INTRODUCTION TO CSIM 19 FOR C PROGRAMMERS Mesquite
- Slides: 183
INTRODUCTION TO CSIM 19 FOR C++ PROGRAMMERS Mesquite Corporation http: //www. mesquite. com/documentation/index. htm#startcpp
What is CSIM? Simulation language developed by Mesquite Software in Austin, TX C/C++ based Has now a Java-based version Allows user to create process-oriented, discrete-event simulation models Implemented as a library No need to learn a new language
OUR FIRST CSIM PROGRAM
A very simple example (I) M/M/1 server with a FCFS queue Input parameters are Time intervals between arrivals Service times Server
A very simple example (II) We want to know Average customer response time: time of arrival to time of departure Customer throughput rate: customers served per unit time Server utilization: Fraction of elapsed time the server is busy Average queue length: number of customers at the facility
The sim process #include <cpp. h> // CSIM C++ header file facility *f; // the service center extern "C" void sim() { // sim process create("sim"); // make this a process f = new facility("f"); // create service center f while (simtime() < 5000. 0) { hold(exponential(1. 0)); // delay customer(); // generate new customer } // while loop report(); // output results }// sim
The customer process void customer() { create("customer"); // make this a process f->use(exponential(0. 5)); // get service } // customer Advantages of the approach • We can describe system through actions taken by each customer • Facility f manages its own queue

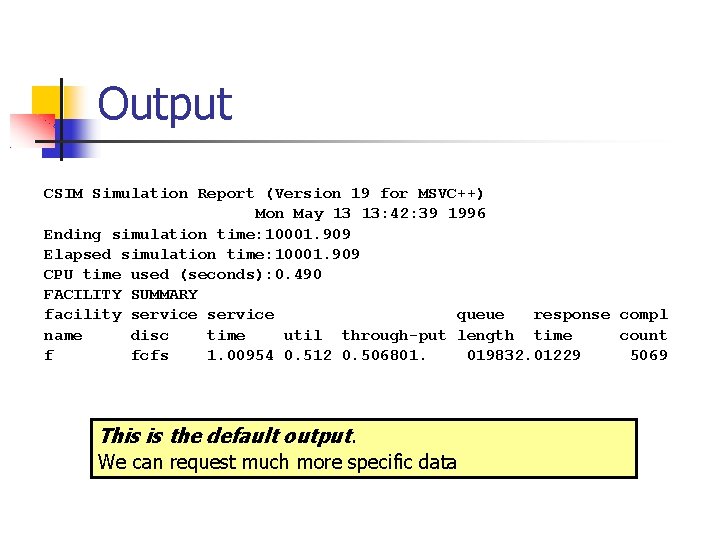

Output CSIM Simulation Report (Version 19 for MSVC++) Mon May 13 13: 42: 39 1996 Ending simulation time: 10001. 909 Elapsed simulation time: 10001. 909 CPU time used (seconds): 0. 490 FACILITY SUMMARY facility service queue response compl name disc time util through-put length time count f fcfs 1. 00954 0. 512 0. 506801. 019832. 01229 5069 This is the default output. We can request much more specific data
Program analysis: processes Two processes sim: the main process customer: describes customer behavior A CSIM process is a C++ function which executes the "create" statement Establishes the procedure as an independent, ready-to-run process, Returns control to the calling process

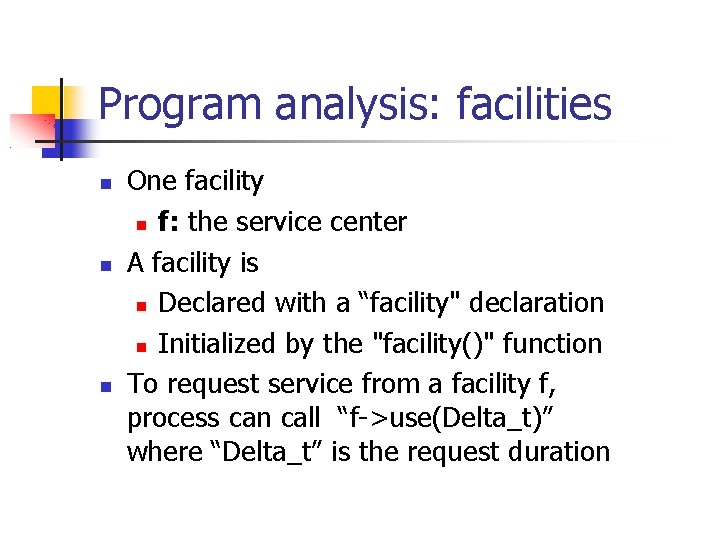

Program analysis: facilities One facility f: the service center A facility is Declared with a “facility" declaration Initialized by the "facility()" function To request service from a facility f, process can call “f->use(Delta_t)” where “Delta_t” is the request duration
Program analysis: simtime() A global “clock” variable keeps track of the simulated time Double-precision floating point variable Value can be accessed through “simtime()” function
Program analysis: hold() “hold()” function causes time to pass for the process that calls it Deals with simulated time Do not use “sleep()”
Program analysis: exponential() “exponential(Delta_t)” function returns a value for a exponential random variable with mean “Delta_t” Many other functions of this type
CSIM PROCESSES
Processes Model the active elements of a system Created through a call to “create()” Can have multiple instances of the same process: while (simtime() < 5000. 0) { hold(exponential(1. 0)); // delay customer(); // generate new customer } // while
Process attributes Each instance of a CSIM process has: Its own internal state A unique process id A process priority One of the following external states: Executing Waiting-to-execute Holding (for some time interval) Waiting (for some event to occur)
Warning CSIM processes look very much like conventional OS processes They are different: One OS process per CSIM simulation CSIM processes run within that process CSIM processes use simulated time Not physical time
CSIM process creation When a function calls create() CSIM creates a process control block (pcb) for the new process and puts it on the “next event list” Control is returned immediately to the process which invoked the function
CSIM process scheduling Non-preemptive A new process will execute only after the currently running process leaves the running state by Executing a hold() Going through a wait Terminating
CSIM FACILITIES
Facilities We can define Single server facilities: Can service one process at a time Multi-server facilities: Can service several processes at a time and have a single queue Arrays of single server facilities: each with its own queue
Facility scheduling By default, a facility services processes in priority order Where several processes have the same priority, they will be served on FCFS basis Other service disciplines can be specified
Example: single-server facility (I) facility *ss; // declare facility. . . ss = new facility("sngle srvr"); // initialize. . . ss->use(Delta_t); // use ss for duration Delta_t
Example: single-server facility (II) s->reserve(); // reserve facility. . . hold(Delta_t); . . . s->release(); // release facility. . . Using a reserve/release pair lets us keep separate counts of time spent by customers (a) in queue and (b) being serviced
Example: facility with three servers All three servers share the same queue const long NSERV = 3; // 3 servers. . . facility_ms *ms; // declare facility ms = new facility_ms("multi", NSERV); . . . ms->use(service_time); . .
The post office problem revisited (I) #include <cpp. h> // CSIM C++ header file facility_ms *po; // the service center extern "C" void sim() { // sim process create("sim"); // make it a process po = new facility_ms(“po“, 2); // create po while (simtime() < 5000. 0) { hold(exponential(1. 0)); // delay customer(); // generate new customer } // while loop report(); // output results }// sim

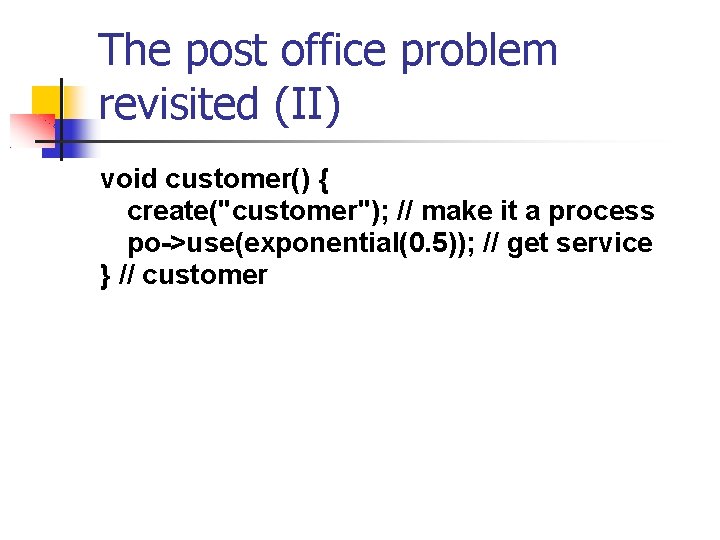

The post office problem revisited (II) void customer() { create("customer"); // make it a process po->use(exponential(0. 5)); // get service } // customer
Example: array of single-server facilities Each facility now has its own queue const long NFACS = 10; facility_set *fa; // declare array fa = new facility_set("facs", NFACS); . . . i = random(0, NFACS - 1); // pick one (*fa)[i]. use(service_time); //use facility[i] Note the (*fa)[i]. without “->”

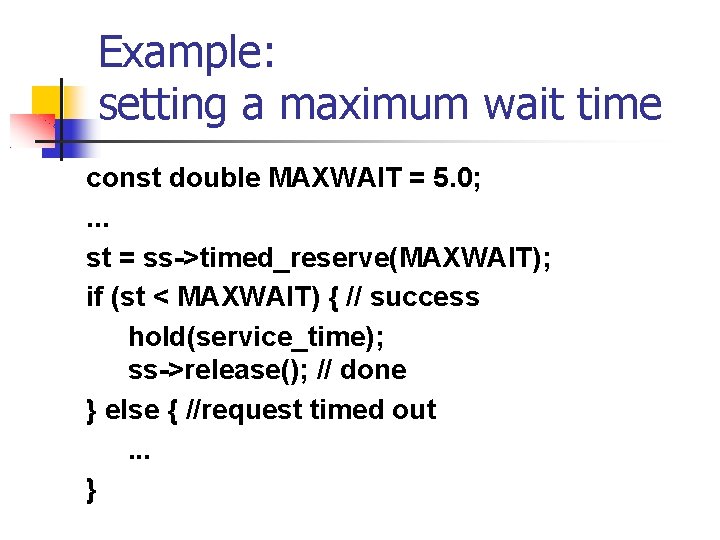

Example: setting a maximum wait time const double MAXWAIT = 5. 0; . . . st = ss->timed_reserve(MAXWAIT); if (st < MAXWAIT) { // success hold(service_time); ss->release(); // done } else { //request timed out. . . }
Example: allowing preemption FACILITY cpu; // declare facility cpu = new facility("cpu"); // initialize facility. . . cpu->set_servicefunc(pre_res) // set service protocol to preempt-resume. . . priority = 100; // raise process priority cpu->use(service_time);
CSIM STORAGES
Storages Like facilities but designed to be shared Each process gets some units of storage Used to simulate main memory Must have a name Only used to label report entries
Example: single storage const long SIZE = 100; storage *mem; // declare storage mem = new storage("mem", SIZE); // initialize mem with 100 units. . . amt = random(1, SIZE); mem->allocate(amt); // get storage. . . mem->deallocate(amt); // release it. . .
Example: storage array const long NSTORES = 5; const long SIZE = 100; storage _set *mems; // declare array. . . mems = new storage_set("mem", SIZE, NSTORES); //initialize. . . (*mems)[3]. allocate(amt); . . . (*mems)[3]. deallocate(amt);
Example: setting a maximum wait time const double MAXWAIT = 1. 0; st = mem->timed_allocate(amt, MAXWAIT); // maximum wait is one time unit if (st < MAXWAIT) { // success. . . mem->deallocate(amt); // release } else { // failure. . . }
More options Can also specify faculties and storages that can only be allocated at regular points in time Clock ticks Must invoke “synchronous()” method before invoking “allocate()” method “synchronous()” method specifies phase and period of allocation policy
CSIM BUFFERS

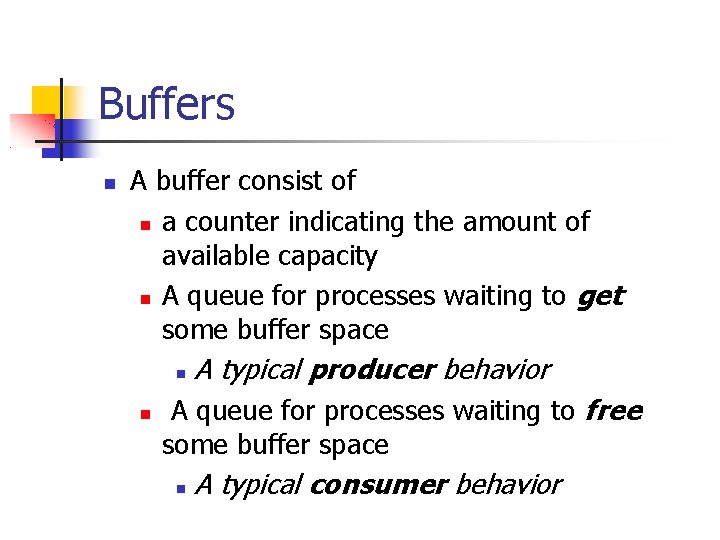

Buffers A buffer consist of a counter indicating the amount of available capacity A queue for processes waiting to get some buffer space A typical producer behavior A queue for processes waiting to free some buffer space A typical consumer behavior

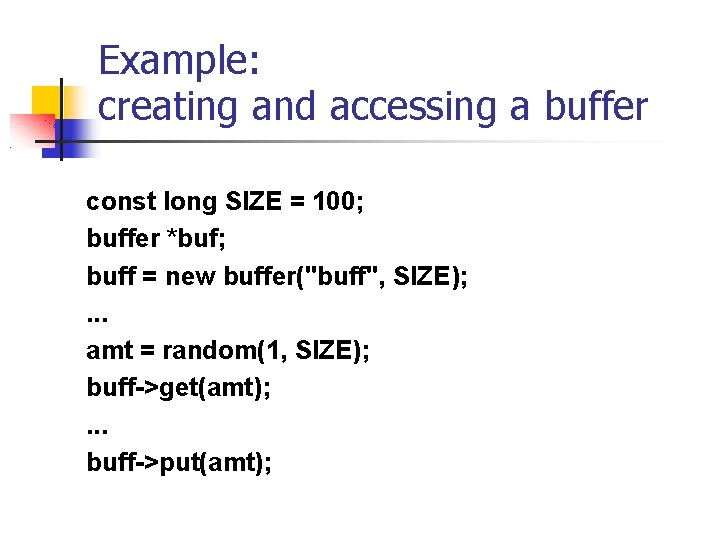

Example: creating and accessing a buffer const long SIZE = 100; buffer *buf; buff = new buffer("buff", SIZE); . . . amt = random(1, SIZE); buff->get(amt); . . . buff->put(amt);
Example: setting a maximum wait time st = buff->timed_get(amt, 1. 0); if (st < TIMED_OUT) { // success. . . buff->put(amt); } else { // failure. . . }
CSIM EVENTS
Events Used to synchronize and control interactions between different processes Have two states Occurred (OCC) Not occurred (NOT_OCC).
Processes and events A process can Set an event: mark it as occurred Wait for an event: when event occurs all waiting processes can continue occurred state Queue on an event: when event occurs one waiting processes can continue
More details (I) When a process waits for an event: If the event is in the not-occurred state, the process is suspended and placed in a queue of processes waiting for the event to occur. When the event occur All waiting processes are allowed to proceed Event is changed to not occurred If the event is in the occurred state, The process continues to execute Event state is changed to not occurred
More details (II) When a process queues on an event: If the event is in the not-occurred state, the process is suspended and placed in a queue of processes queued on the event. When the event occur Only the first queued processes is allowed to proceed Event is changed to not occurred If the event is in the occurred state, The process continues to execute Event state is changed to not occurred
CSIM events and semaphores Like binary semaphores, CSIM events can have two values: occurred/not-occurred Occurred correspond to value of 1 Not-occurred corresponds to value of 0 Set() method corresponds to V() Queue() method corresponds to P() Wait() method does not correspond to any semaphore operation
Example: declaring and using an event *ev; //declare event ev ev = new event("ev"); //initialize it. . . ev->wait(); // wait for event. . . ev->queue(); // queue on event. . . ev->set(); // set event

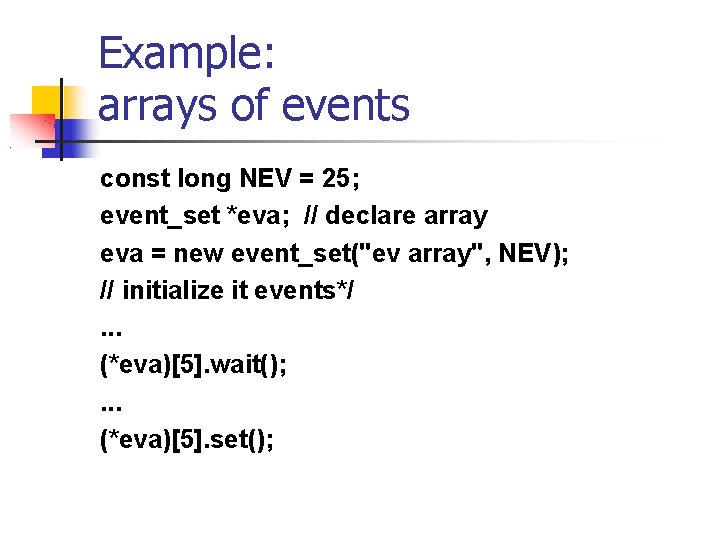

Example: arrays of events const long NEV = 25; event_set *eva; // declare array eva = new event_set("ev array", NEV); // initialize it events*/. . . (*eva)[5]. wait(); . . . (*eva)[5]. set();
Example: waiting/queuing for any event in an array i = eva->wait_any(); // i is index of event that occurred or i = eva->queue_any(); // i is index of event that occurred
Example: setting a maximum wait time. . . t = ev->timed_wait(MAXWAIT); //wait for up to MAXWAIT time units if (st ! = MAXWAIT) { // success. . . }
CSIM MAILBOXES
Mailboxes Allow for the asynchronous exchange of data between CSIM processes Any process may send a message to any mailbox Any process may attempt to receive a message from any mailbox
More details A mailbox has two FIFO queues: A queue of unreceived messages A queue of waiting processes At least one of the queues will be empty at any time Can either have messages waiting to be received or processes waiting for messages but not both
Sending messages CSIM uses non-blocking sends: When a process sends a message If there is a waiting process The message is given to that process Else The message is placed in the message queue.

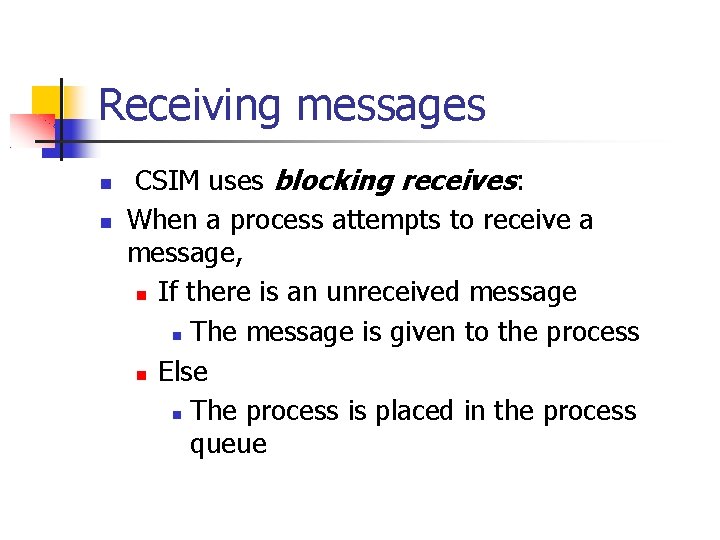

Receiving messages CSIM uses blocking receives: When a process attempts to receive a message, If there is an unreceived message The message is given to the process Else The process is placed in the process queue
Observations Non-blocking sends and blocking receives are the norm in most message passing systems CSP is the counter-example Since messages are sent to and retrieved from a mailbox, this is a case of indirect communication
Messages A message can be either A single integer or A pointer to some other data object. If a process sends a pointer, it is the responsibility of that process to maintain the integrity of the referenced data object until it is received and processed We are simulating message passing
Example: a single mailbox long msg_r, msg_s; // message variables mailbox *mb; // declare mailbox mb mb = new mailbox("mb"); // instantiate mailbox. . . mb->receive(&msg_r); // receive msg. . . mb->send(msg_s); // send msg
Example: setting a maximum wait time. . . st = mb->timed_receive(&msg_r, MAXWAIT); // wait for up to MAXWAIT time units if (st < MAXWAIT) { //success. . . } // if
Example: arrays of mailboxes const long NBOXES = 25; mailbox_set *mba; . . . mba = new mailbox_set("mbox set", NBOXES);
Example: getting a message from any mailbox in an array i = mba->receive_any(&msg); // i is index of non-empty mailbox

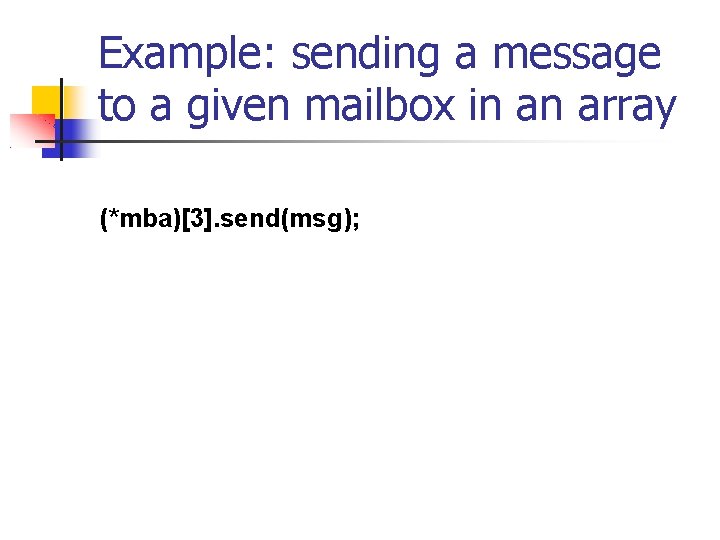

Example: sending a message to a given mailbox in an array (*mba)[3]. send(msg);
Example: st = mba->timed_receive_any(&msg, MAXWAIT); if(st < MAXWAIT) { // process message. . . } else { // handle time out. . . } // if
MANAGING QUEUES
Queues Each CSIM resource (facility, storage, buffer, mailbox, …) consists of One or more queues containing waiting processes (suspended processes in CSIM lingo) Resource-specific data structures CSIM allows programmer to manipulate the contents of these queues
Example For facilities, the programmer can Find the process at the head of the queue: pptr = f->first_process(); Find the process at the tail of the queue: pptr = f->last_process(); Remove a process from a facility queue : pptr = f->remove_process(pptr); Insert a process in a facility queue: f->insert_process(pptr);
For more details Check online documentation
GATHERING MORE STATISTICS

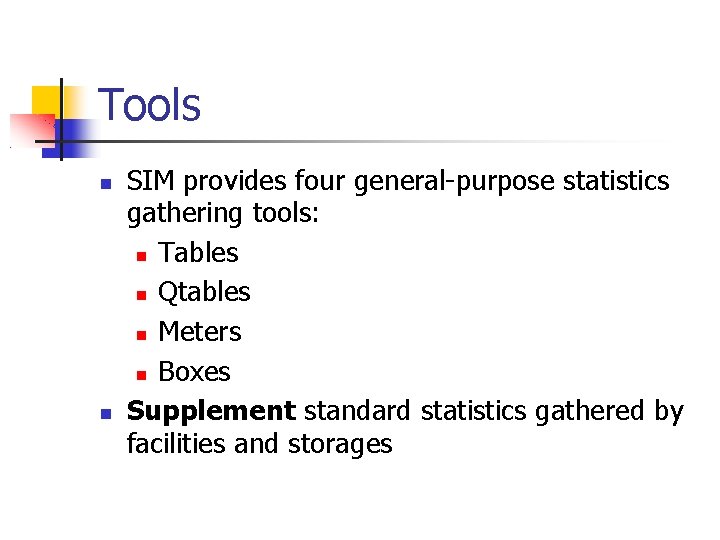

Tools SIM provides four general-purpose statistics gathering tools: Tables Qtables Meters Boxes Supplement standard statistics gathered by facilities and storages
Usage To obtain statistics other than mean values for facilities and storages To obtain statistics for other model components, such as mailboxes and events To obtain statistics for selected submodels or for the model considered as a whole To employ the CSIM run length control algorithms Stop the simulation once collected data satisfy user’s accuracy requirements
Steps to be taken Identify statistics of interest and which statistics gathering tools are appropriate Declare a global pointer (variable) for each statistics gathering tool that will be used Initialize each statistics gathering tool Add instrumentation (i. e. , function calls) to the model to feed data to the tools Generate reports
TABLES
Purpose To gather statistics about a sequence of discrete entities such as Interarrival times Service times Response times Tables do not store anywhere the recorded values They simply update their statistics each time a value is included
Standard statistics Minimum Maximum Range Mean Variance Standard deviation Coefficient of variation No quantiles (median, …)
Optional features Creation of a histogram Calculation of confidence intervals Computation of statistics for values in a moving window
Types of tables Tables can be Dynamic Should be used by default Permanent Not cleared when the reset function is called Not deleted when rerun is called Used to gather data across multiple runs of a model
Declaring and initializing a dynamic table *td; td = new table("response times");
Declaring and initializing a permanent table permanent_table *td; td = new permanent_table ("response times");

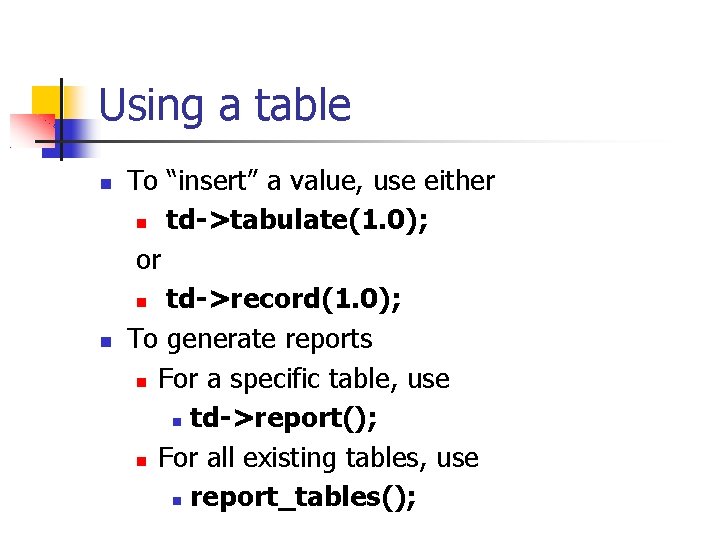

Using a table To “insert” a value, use either td->tabulate(1. 0); or td->record(1. 0); To generate reports For a specific table, use td->report(); For all existing tables, use report_tables();

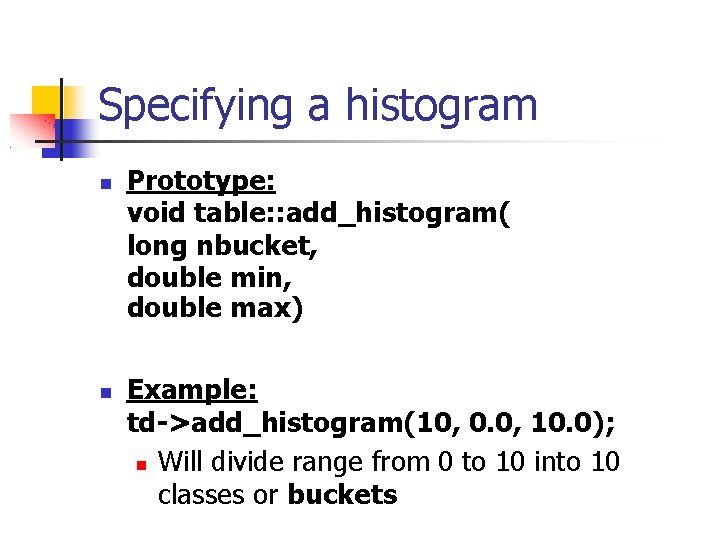

Specifying a histogram Prototype: void table: : add_histogram( long nbucket, double min, double max) Example: td->add_histogram(10, 0. 0, 10. 0); Will divide range from 0 to 10 into 10 classes or buckets
Confidence Intervals CSIM can automatically compute confidence intervals for the mean value of any table td->confidence(); Must invoke method immediately after table has been initialized We get 90, 95 and 98 percent confidence intervals
Moving window Can specify that only the last n values are used in computing the statistics n is called the window size Example: td->moving_window(1000); Usually specified immediately after the table is initialized Can do it later but table must be empty Can be used to remove initial bias
Other options Can rename a table: td->set_name("elapsed time"); Can clear and reinitialize a table td->reset_table(); Can delete a dynamic table delete td;
The post office problem revisited (I) #include <cpp. h> // header file facility_ms *po; // the service center table *tqueue, *tservice, *ttotal; const long nclerks = 2; void customer();
The post office problem revisited (II) extern "C" void sim() { // sim process create("sim"); // make it a process po = new facility_ms(“po", nclerks); tqueue = new table("Waiting times"); tservice = new table("Service times"); ttotal = new table("Total times"); while (simtime() < 5000. 0) { hold(exponential(1. 0)); // delay customer(); // new customer } // while loop report(); // output results }// sim

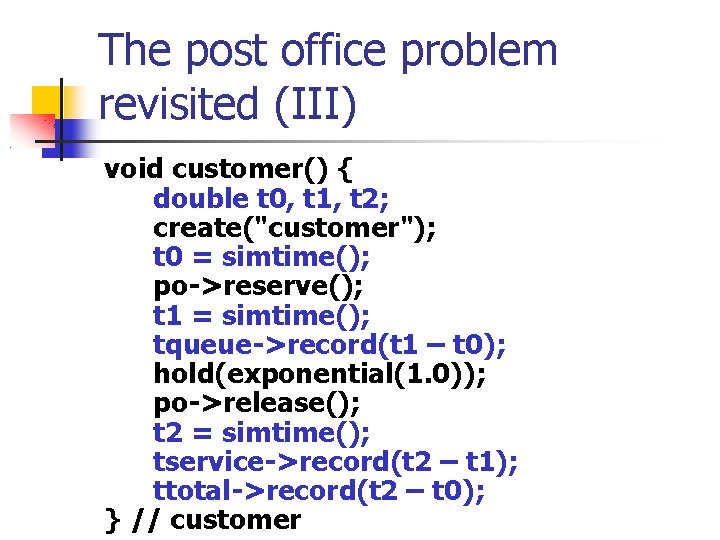

The post office problem revisited (III) void customer() { double t 0, t 1, t 2; create("customer"); t 0 = simtime(); po->reserve(); t 1 = simtime(); tqueue->record(t 1 – t 0); hold(exponential(1. 0)); po->release(); t 2 = simtime(); tservice->record(t 2 – t 1); ttotal->record(t 2 – t 0); } // customer
The post office problem revisited (IV) void customer() { double t 0, t 2; create("customer"); t 0 = simtime(); po->use(exponential(1. 0)); t 2 = simtime(); ttotal->record(t 2 – t 0); } // customer
Observations If we use a use statement in the customer process, we can only have collected total times

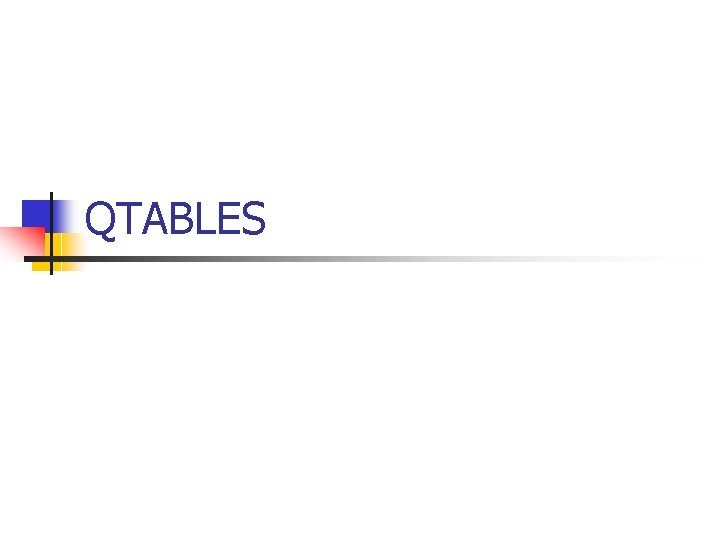

QTABLES
Purpose To gather statistics about on an integer function of time such as Queue length Population of a subsystem Number of available resources . . . Qtables record and gather statistics about time-averaged values
Qtables and Tables Entering a value into a table is done through a tabulate() method Updating a qtable is a two-step process: qtbl->note_entry(); . . . qtbl->note_exit(); Think of qtables as special tables for queues
Declaring and Initializing Dynamic Qtables A pointer to a dynamic qtable is declared in a CSIM program as follows: qtable *qtd; Before a qtable can be used, it must be initialized qtd = new qtable("queue length");
Initializing Permanent Qtables A qtable can be initialized as a permanent qtable qtd = new permanent_qtable("queue length");
Noting a Change in Value Most common way for the value of a qtable to change is for it to increase or decrease by one. Customer joins/leaves a queue A resource is allocated/released Use qtd -> note_entry(); . . . qtd->note_exit();

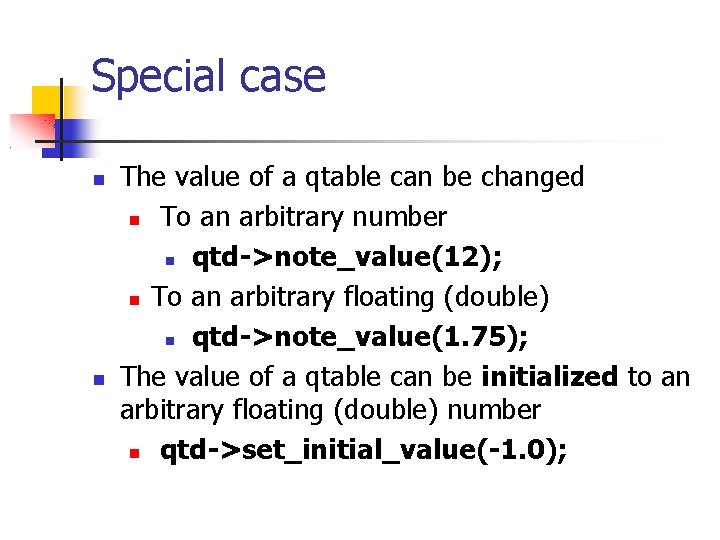

Special case The value of a qtable can be changed To an arbitrary number qtd->note_value(12); To an arbitrary floating (double) qtd->note_value(1. 75); The value of a qtable can be initialized to an arbitrary floating (double) number qtd->set_initial_value(-1. 0);
Producing reports To generate a report for a specific qtable use qtd->report(); To generate reports for all existing qtables use report_qtables(); Report for a qtable will include the qtable name and all statistics
Histograms To specify a histogram use qtd->add_histogram( nbuckets, // number of buckets min, // minimum value max // maximum value ); Caution: The min and max parameters of add_histogram are of type long, not double as for tables
Confidence Intervals CSIM can automatically compute confidence intervals for the mean value of any qtable qtd->confidence(); Must invoke method immediately after qtable has been initialized We get 90, 95 and 98 percent confidence intervals

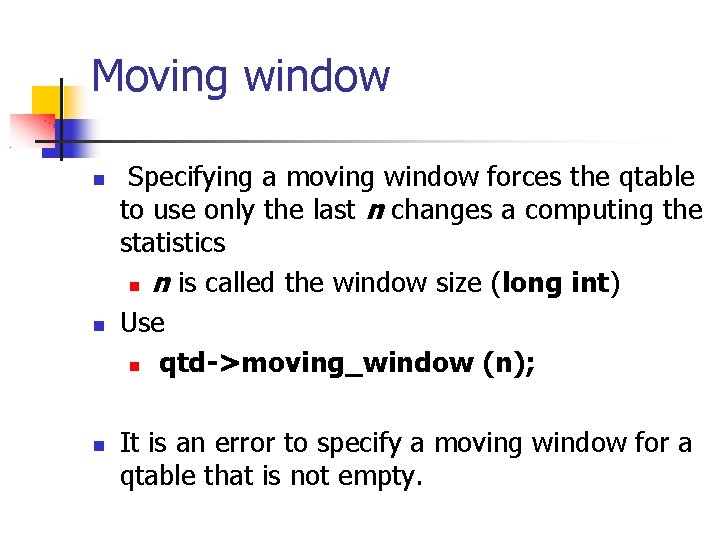

Moving window Specifying a moving window forces the qtable to use only the last n changes a computing the statistics n is called the window size (long int) Use qtd->moving_window (n); It is an error to specify a moving window for a qtable that is not empty.
More Can rename, reset and delete qtables qtd-> set_name ("number in queue"); qtd->reset_qtable (); delete qtd; Reset does not clear qtable optional features like histogram, confidence intervals and moving window
The post office problem revisited (I) #include <cpp. h> // header file facility_ms *po; // the service center qtable *tqueue, *tclerks, *tpo; const long nclerks = 2; void customer();

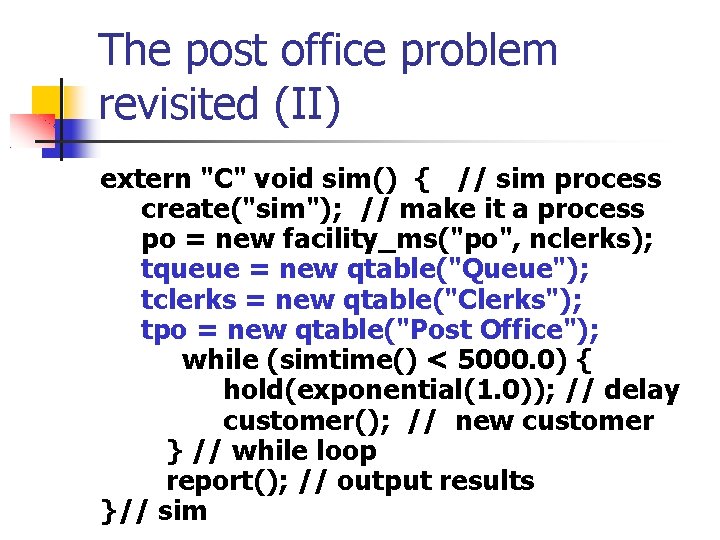

The post office problem revisited (II) extern "C" void sim() { // sim process create("sim"); // make it a process po = new facility_ms("po", nclerks); tqueue = new qtable("Queue"); tclerks = new qtable("Clerks"); tpo = new qtable("Post Office"); while (simtime() < 5000. 0) { hold(exponential(1. 0)); // delay customer(); // new customer } // while loop report(); // output results }// sim
The post office problem revisited (III) void customer() { create("customer"); tqueue->note_entry(); tpo->note_entry(); po->reserve(); tqueue->note_exit(); tclerks->note_entry(); hold(exponential(1. 0)); po->release(); tclerks->note_exit(); tpo-> note_exit(); } // customer

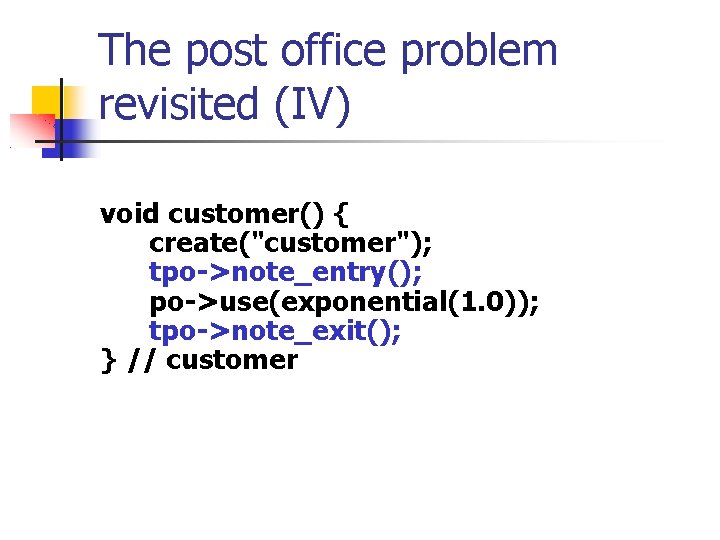

The post office problem revisited (IV) void customer() { create("customer"); tpo->note_entry(); po->use(exponential(1. 0)); tpo->note_exit(); } // customer
METERS
Meters Used to gather statistics on the flow of entities past a specific point in a model Can measure arrival rates completion rates allocation rates

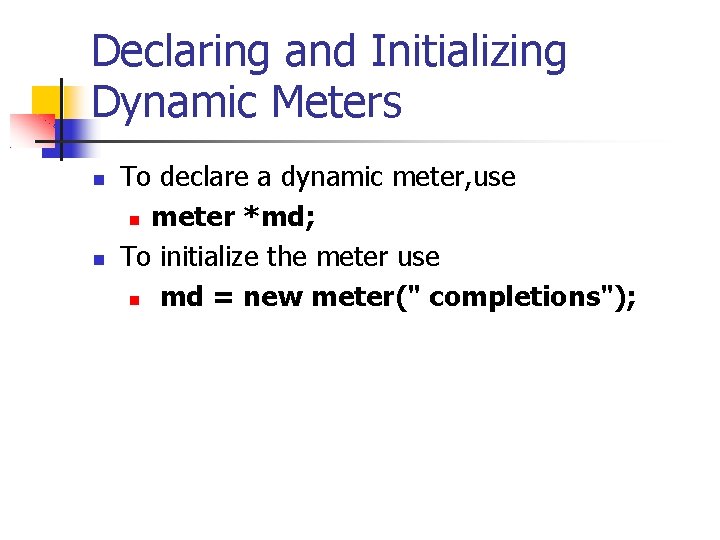

Declaring and Initializing Dynamic Meters To declare a dynamic meter, use meter *md; To initialize the meter use md = new meter(" completions");
Measuring passages at a meter Use md-> note_passage(); For the statistics to be accurate, every entity of interest must Note its passage Do so at the correct time

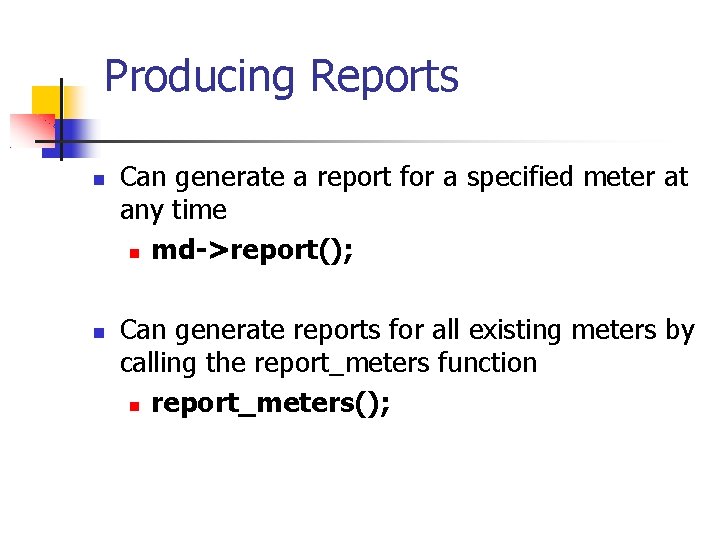

Producing Reports Can generate a report for a specified meter at any time md->report(); Can generate reports for all existing meters by calling the report_meters function report_meters();
Standard Report Options Can request meters to produce histograms md ->add_histogram( nbuckets, // long min, // double max // double ) Can request meters to compute confidence intervals md ->confidence();
Other Options Can rename, reset and delete meters md ->set_name(" departures"); md->reset(); delete md;
BOXES

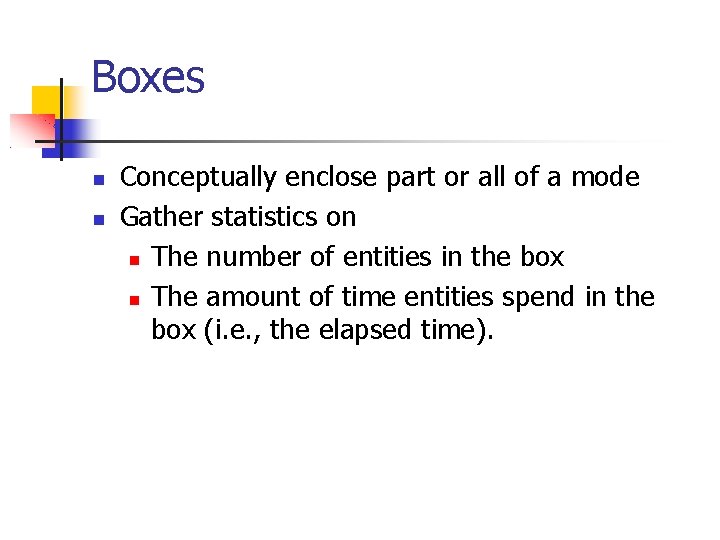

Boxes Conceptually enclose part or all of a mode Gather statistics on The number of entities in the box The amount of time entities spend in the box (i. e. , the elapsed time).
Boxes, Tables and Qtables Each box combines a table and a qtable Statistics on elapsed times are kept in the table Statistics on number of entities in the box are kept in the qtable Simplifies the programmer's task

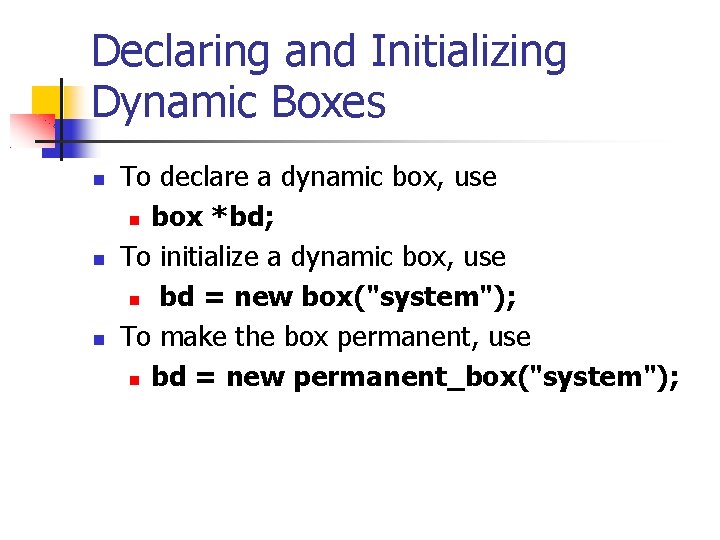

Declaring and Initializing Dynamic Boxes To declare a dynamic box, use box *bd; To initialize a dynamic box, use bd = new box("system"); To make the box permanent, use bd = new permanent_box("system");

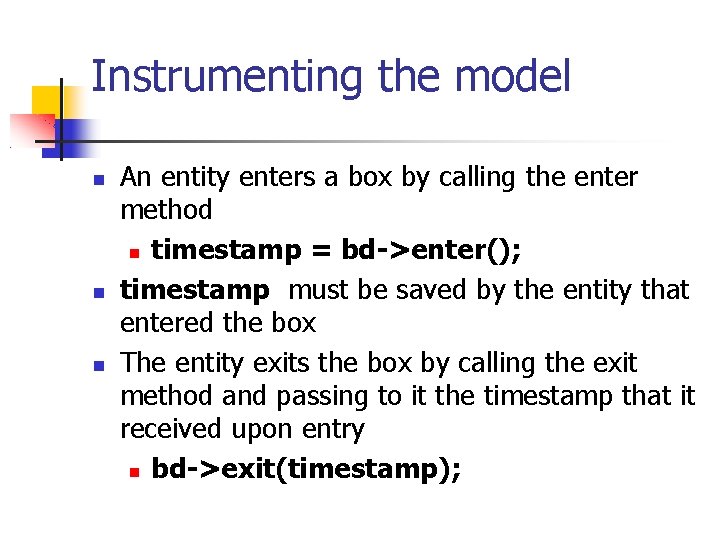

Instrumenting the model An entity enters a box by calling the enter method timestamp = bd->enter(); timestamp must be saved by the entity that entered the box The entity exits the box by calling the exit method and passing to it the timestamp that it received upon entry bd->exit(timestamp);
Producing Reports To generate a report for a specified box, use bd->report(); To generate reportsd for all existing boxes, use report_boxes();
Histograms Can specify histograms For the elapsed times in a box; bd->add_time_histogram (10, 0. 0, 10. 0); For the population of a box bd->add_number_histogram (10, 0, 10);
Confidence intervals Can specify confidence intervals For the elapsed times in a box bd->time_confidence(); For the population of a box bd->_number_confidence();
The post office problem revisited (I) // Uses boxes #include <cpp. h> // header file facility_ms *po; // the service center box *bqueue, *bclerks, *bpo; const long nclerks = 2; void customer();
The post office problem revisited (II) extern "C" void sim() { // sim process create("sim"); // make it a process po = new facility_ms("po", nclerks); bqueue = new box("Queue"); bclerks = new box("Clerks"); bpo = new box("Post Office"); while (simtime() < 5000. 0) { hold(exponential(1. 0)); // delay customer(); // new customer } // while loop report(); // output results }// sim
The post office problem revisited (III) void customer() { double t 0, t 1; create("customer"); t 0 = bqueue->enter(); t 0 = bpo->enter(); po->reserve(); bqueue->exit(t 0); t 1 = bclerks->enter(); hold(exponential(1. 0)); po->release(); bclerks->exit(t 1); bpo->exit(t 0); } // customer
The post office problem revisited (IV) void customer() { double t 0; create("customer"); t 0 = bpo->enter(); po->use(exponential(1. 0)); bpo->exit(t 0); } // customer
STATISTICS GATHERING
Statistics gathering Will show to combine boxes and meters to gather statistics
Example Want to instrument a service center and get Arrival rates Departure rates Statistics about the whole service center Statistics about the server alone Use Meters for both rates Boxes to isolate subsystems
The service center Will use two meters and two boxes One box around queue and server One box around server alone Meter Server
Declarations facility *f; meter *arrivals; meter *departures; box *queue_box; box *service_box; All entities are dynamic

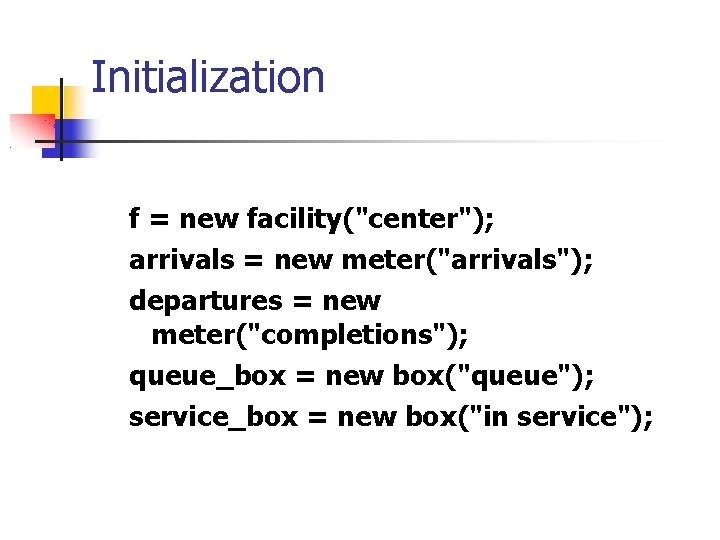

Initialization f = new facility("center"); arrivals = new meter("arrivals"); departures = new meter("completions"); queue_box = new box("queue"); service_box = new box("in service");
Instrumentation arrivals->note_passage(); timestamp 1 = queue_box->enter(); f->reserve(); timestamp 2 = service_box->enter(); hold (exponential(0. 8)); f ->release(); service_box->exit(timestamp 2); queue_box->exit(timestamp 1); departures->note_passage(); }
Notes The time at which the customer process enters the queue is the current time immediately before it issues the request() for the facility The time at which the customer process enters the server is the current time immediately after it issues the request() for the facility Every box requires each process using it to keep track of entry timestamps Timestamps must be local to the process

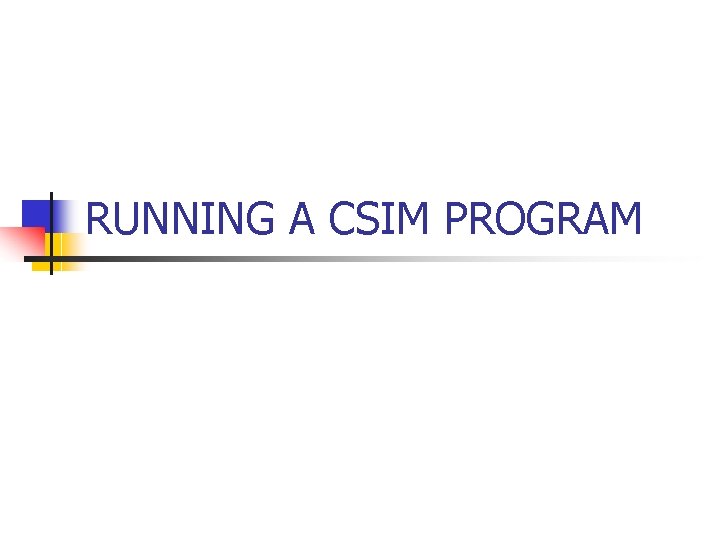

RUNNING A CSIM PROGRAM
The basics Your program should run on one of the four Linux machines (linux 01 to linux 04) of our department. Do not forget to add to your program: #include <cpp. h> To compile your program with g++, you should use g++ -DCPP program 1. cpp –o program 1 /usr/libcsimcpp. a –lm
How to simplify your life Create a file named csim containing g++ -DCPP $* /usr/libcsimcpp. a –lm Make it executable You can now write csim program 1. cpp –o program 1
First example: A camper rental service Hill Country Camper Rental Service has four campers available for rent to walk-in customers. Rental times are uniformly distributed between three and seven days Walk-in customers arrive randomly every two days, on the average. If a camper is not available, the customer will go elsewhere.
Quantities of interest Fraction of arriving customers that will be lost because no camper is available Mean number of rented campers Median number of rented campers Fraction of arriving customers that will be lost if one of the four campers is in the shop for repairs
Basic entities Two basic entities Customers Campers We will use Processes to represent customers A multi-server facility to represent the campers
How it will look Customer process will start with a test Campers Free campers? No Yes

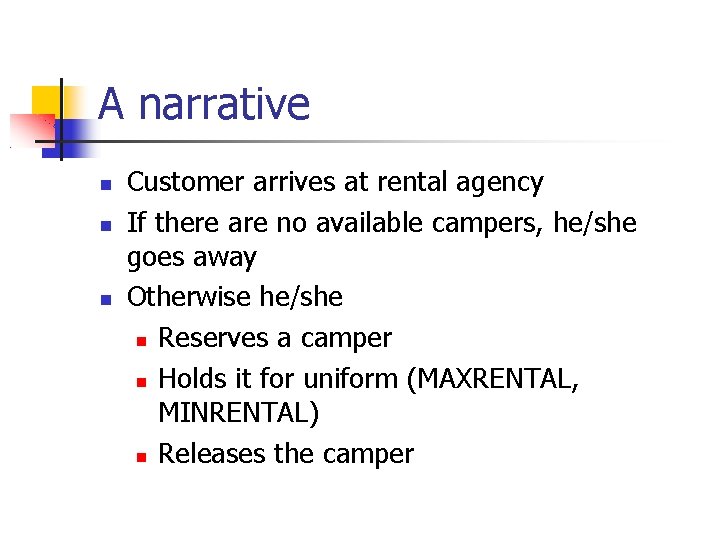

A narrative Customer arrives at rental agency If there are no available campers, he/she goes away Otherwise he/she Reserves a camper Holds it for uniform (MAXRENTAL, MINRENTAL) Releases the camper
Data gathering Put a box around the multi-server facility representing them campers Use number_histogram to evaluate the mean number of rented campers Keep track of number of rented campers If all campers are rented out, customer will be lost
Includes and defines #include <cpp. h> // required #define DURATION 360 #define NCAMPERS 4 #define MIART 2. 0 #define MINRENTAL 3. 0 #define MAXRENTAL 7. 0 void customer();
Global declarations facility_ms *campers; // service center box *agency; // other global variables int nrented = 0; // no of rented campers int ncust = 0; // no of customers int nlost = 0; // no of lost customers
Sim process (I) extern "C" void sim() { // sim process create("sim"); // make this a process campers = new facility_ms("campers", NCAMPERS); // create the facility // initialize box agency = new box("rental agency"); agency->add_number_histogram(5, 0, 4);
Sim process (II) while(simtime() < DURATION) { hold(exponential(MIART)); customer(); // generate next customer } // while
Sim process (III) report(); // produce statistics report printf("n. Number of customer arrivals: dn", ncust); printf("Number of lost customers: %dn", nlost); printf("Percentage of lost customers: %f percentn", (nlost*100. 0)/ncust); } // sim
Customer process (I) void customer() { double time_in; // MUST BE LOCAL create("customer"); // make this a process ncust++; // note arrival if (nrented == NCAMPERS) { nlost++; // customer goes elsewhere terminate (); // bye } // if
Customer process (II) // proceed with rental time_in = agency->enter(); //note entry campers->reserve(); // request service nrented++; // one more rented camper hold(uniform(MINRENTAL, MAXRENTAL)); campers->release(); // return camper nrented--; // one less rented camper agency->exit(time_in); // note exit } // customer
Output (I) C++/CSIM Simulation Report (Version 19. 0 for Linux x 86) Tue Apr 8 09: 22: 41 2008 Ending simulation time: 363. 461 Elapsed simulation time: 363. 461 CPU time used (seconds): 0. 000

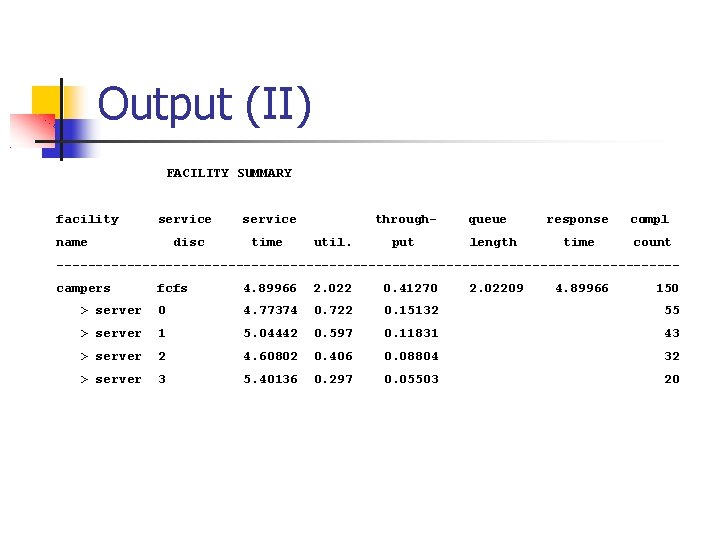

Output (II) FACILITY SUMMARY facility service through- queue response compl name disc time util. put length time count ----------------------------------------campers fcfs 4. 89966 2. 022 0. 41270 2. 02209 4. 89966 150 > server 0 4. 77374 0. 722 0. 15132 55 > server 1 5. 04442 0. 597 0. 11831 43 > server 2 4. 60802 0. 406 0. 08804 32 > server 3 5. 40136 0. 297 0. 05503 20
Output (III) BOX 1: camper rental agency statistics on elapsed times minimum 3. 054523 mean 4. 899663 maximum 6. 959299 variance 1. 309492 range 3. 904776 standard deviation 1. 144330 observations 150 coefficient of var 0. 233553 statistics on population initial 0 minimum 0 mean 2. 043391 final 2 maximum 4 variance 1. 265306 entries 152 range 4 standard deviation 1. 124858 exits 150 coeff of variation 0. 550486
Output (IV) cumulative number total time proportion 0 25. 00858 0. 068807 ***** 1 104. 86629 0. 288522 0. 357328 ********** 2 105. 44072 0. 290102 0. 647431 ********** 3 85. 63595 0. 235613 0. 883043 ******** >= 4 42. 50915 0. 116957 1. 000000 **** Total number of customer arrivals: 176 Number of lost customers: 24 Percentage of lost customers: 13. 636364 percent
Estimating a median • Median of number of rented campers is above 1 but less than 2 • Assuming linearity, median is around 1. 51
Observations Could have decomposed sim process into three functions initialize() generate. Customers() display. Results() Could have replaced request(), hold() and release() calls by campers->use(uniform(…);
Second Example: A RAID array Have extra parity data P = A XOR B XOR C A B C P
Second Example: A RAID array Can tolerate failure of one disk Say disk A fails We can reconstitute its contents using A = P XOR A XOR B XOR C A X B C P

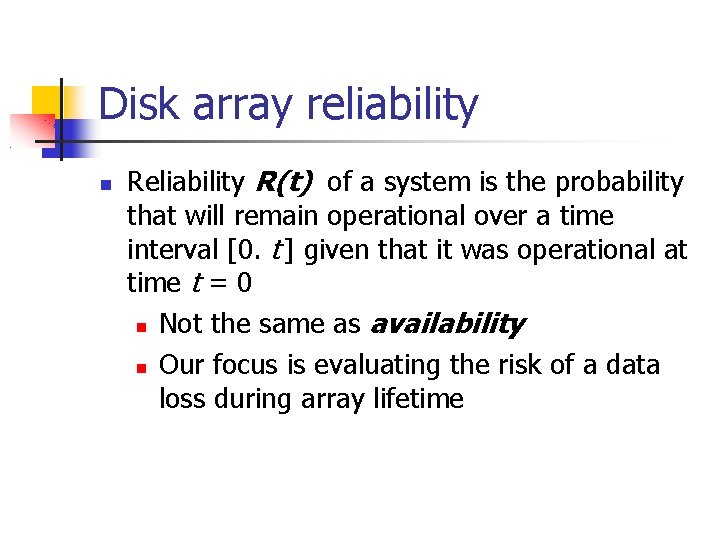

Disk array reliability Reliability R(t) of a system is the probability that will remain operational over a time interval [0. t ] given that it was operational at time t = 0 Not the same as availability Our focus is evaluating the risk of a data loss during array lifetime
Limitations of Markov models Require disk failures and disk repairs to be Poisson processes Disk repair times are not exponentially distributed Disk failures are not independent events A failing disk may overhead a disk rack Disk failure rate vary over time
Disk failure rates Disk MTTFs express failure rates over actual disk lifetime A disk with a MTTF of 1, 000 hours will not last an average of 114 years Disk MTTFs announced by manufacturers are fairly optimistic Obtained by extrapolating stress tests Observed disk failure rates are much larger
Quantities of interest (I) Mean Time to Data Loss (MTTDL): Used in many studies Assumes that long-term data loss rate of an array can be sued to predict its data loss rate during its actual lifetime MTTDLs are measured in decades, it not centuries Array actual lifetimes are 5 to 7 years
Quantities of interest (II) Failure rate over first n years; Probability that array will not lose any data over n years Better performance index Reflects actual usage conditions
Our model Will investigate failure rates over first n years of operation of array Will start the array and stop the simulation when A data loss occurs Array exceeds its operational lifetime and repeat the process until we get good confidence intervals for failure rates
Possible extensions Use variable disk failure rates High during burn-in period Much lower during first or second year Increase as disk age Model correlated failures
CSIM implications Have one process per disk Wait until first of Data loss Array reached the end of its useful lifetime 5 to 7 years Program will use a timed_wait() on a “data loss” event Other solutions are possible
Entities The disk drives Assumed to fail independently of each other Not always true Overheating disks in disk racks Disks from the same defective batch
Constants #include <cpp. h> // required #include <math. h> #define #define NDISKS 5 // number of disks in array NYEARS 5 // lifetime of array (years) MTTF 300000. 0 // disk MTTF (hours) MTTR 8. 0 // disk MTTR (hours) NRUNS 400000 L // number of runs
Other global declarations int nfailed; // number of failed disks double lifetime = NYEARS * 365 * 24; // simulation duration event *dataloss; void disk(int i);
Sim process (I) extern "C" void sim() { // sim process int i; create("sim"); // make this a process dataloss = new event(“data loss"); // create NDISKS disk processes for (i=0; i < NDISKS; i++){ disk(i); } // for

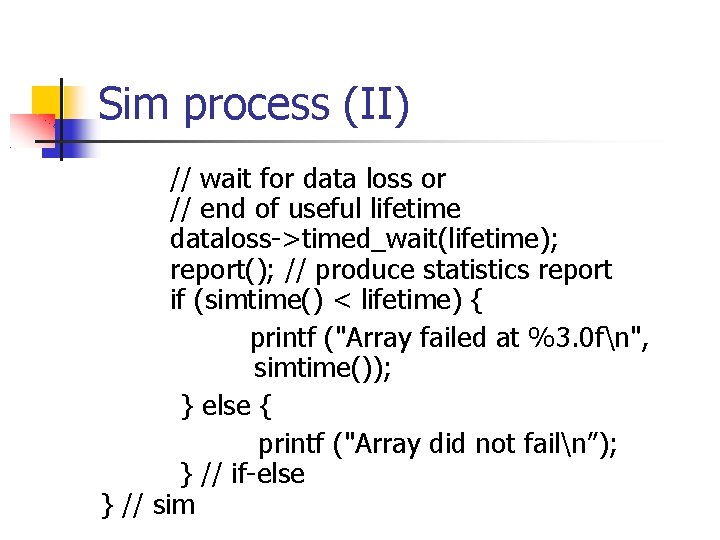

Sim process (II) // wait for data loss or // end of useful lifetime dataloss->timed_wait(lifetime); report(); // produce statistics report if (simtime() < lifetime) { printf ("Array failed at %3. 0 fn", simtime()); } else { printf ("Array did not failn”); } // if-else } // sim
Disk process (I) void disk(int i) { create("disk"); while(simtime() < lifetime) { // expect failure hold(failures->exponential(MTTF)); // disk failed nfailed++; if (nfailed == 2) { dataloss->set(); terminate(); // the process } // if

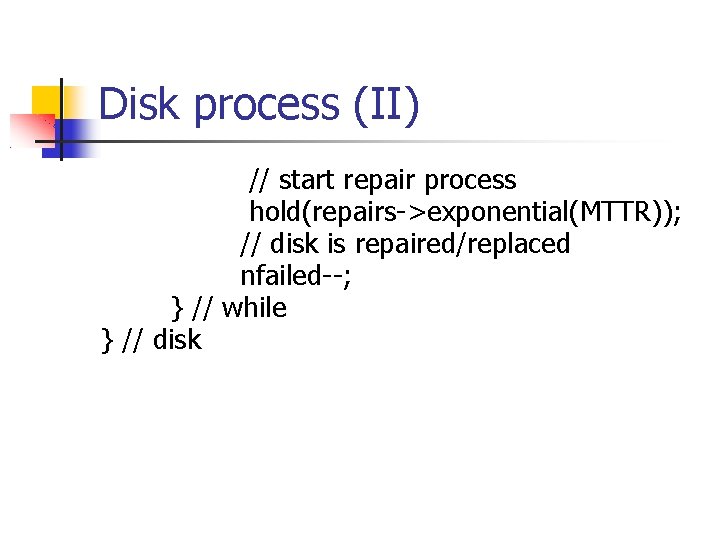

Disk process (II) // start repair process hold(repairs->exponential(MTTR)); // disk is repaired/replaced nfailed--; } // while } // disk
MORE ABOUT REPORTS
Tables, Qtables, … To generate a complete report use report(); We can also generate partial reports: report_hdr(); report_facilities(); … (check the online CSIM documentation)
Printing model statistics To generate a report on the model statistics, use mdlstat(); Can also get specific reports on the number of events processed events_processed();

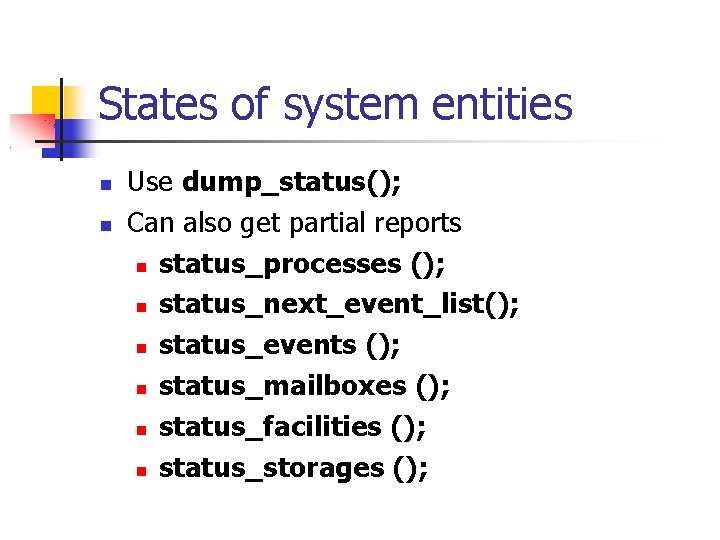

States of system entities Use dump_status(); Can also get partial reports status_processes (); status_next_event_list(); status_events (); status_mailboxes (); status_facilities (); status_storages ();
DEBUGGING AND TRACING
Tracing all state changes To generate trace messages for all state changes, use trace_on(); To turn off tracing, use trace_off (); Can use logical tests to turn and off trace messages Can also use run time option –T to turn on trace messages
Tracing processes Can trace one type of processes: trace_process ("customer"); Can trace a specific process: trace_process ("customer. 100"); Number in string specifies the process sequence number
Tracing a specific object Object can be a facility, storage, event, or mailbox. Use trace_object ("memory"); where string specifies the object name

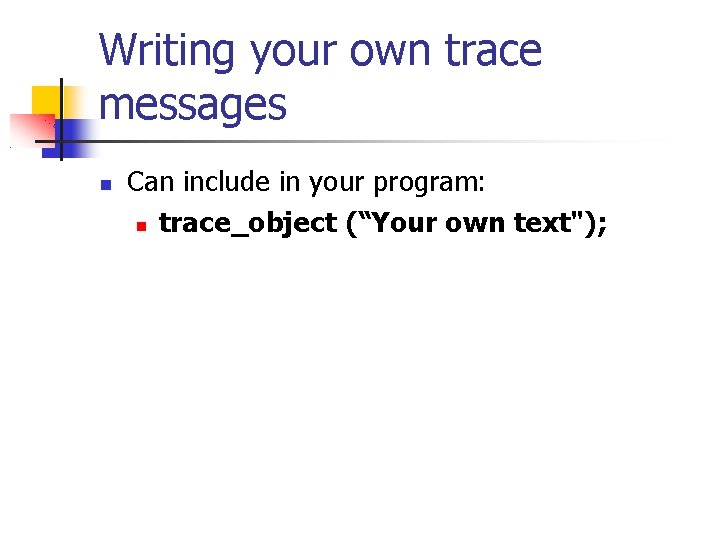

Writing your own trace messages Can include in your program: trace_object (“Your own text");
Redirecting trace output Use fp = fopen ("trace", "w"); set_trace_file (fp);
MISCELLEANOUS OPTIONS
Restarting the model (I) Use rerun(); It will Clear all non-permanent tables structures Kill all processes Reinitialize all facilities, events, mailboxes, process classes, storage units, tables and qtables established before the first create(); statement Eliminate all remaining facilities, storage units, events, … Reset the clock to zero
Restarting the model (II) Use rerun(); It will not: Reset the random number generator Clear the permanent table structures A good reason to use permanent tables
- Under the mesquite summary
- Common curly mesquite
- Mesquite ancestral state reconstruction
- Mesquite shipwreck
- Pu csim
- Csim scilab
- Csim ait
- C language
- Uml for java programmers
- Tcp/ip sockets in java
- Programmers use backdoors to debug and test programs.
- It has levels of services for programmers
- C for java programmers
- Linux programmers manual
- Programmers guild
- Java for c programmers
- Formuö
- Novell typiska drag
- Tack för att ni lyssnade bild
- Ekologiskt fotavtryck
- Shingelfrisyren
- En lathund för arbete med kontinuitetshantering
- Adressändring ideell förening
- Tidbok för yrkesförare
- Sura för anatom
- Densitet vatten
- Datorkunskap för nybörjare
- Tack för att ni lyssnade bild
- Debattartikel struktur
- Autokratiskt ledarskap
- Nyckelkompetenser för livslångt lärande
- Påbyggnader för flakfordon
- Lufttryck formel
- Publik sektor
- Bo bergman jag fryser om dina händer
- Presentera för publik crossboss
- Jiddisch
- Vem räknas som jude
- Treserva lathund
- Epiteltyper
- Claes martinsson
- Centrum för kunskap och säkerhet
- Verifikationsplan
- Mat för idrottare
- Verktyg för automatisering av utbetalningar
- Rutin för avvikelsehantering
- Smärtskolan kunskap för livet
- Ministerstyre för och nackdelar
- Tack för att ni har lyssnat
- Mall för referat
- Redogör för vad psykologi är
- Borstål, egenskaper
- Tack för att ni har lyssnat
- Borra hål för knoppar
- Vilken grundregel finns det för tronföljden i sverige?
- Standardavvikelse formel
- Tack för att ni har lyssnat
- Steg för steg rita
- Verksamhetsanalys exempel
- Tobinskatten för och nackdelar
- Blomman för dagen drog
- Modell för handledningsprocess
- Egg för emanuel
- Elektronik för barn
- Fredsgudinnan
- Strategi för svensk viltförvaltning
- Kung dog 1611
- Indikation för kejsarsnitt på moderns önskan
- Ro i rom pax
- Tack för att ni lyssnade
- Multiplikation med decimaltal uppgifter
- Anafor dikt exempel
- Inköpsprocessen steg för steg
- Rbk mätning
- Etik och ledarskap etisk kod för chefer
- Aktiv exspektans
- Myndigheten för delaktighet
- Trög för kemist
- Tillitsbaserad ledning
- Läkarutlåtande för livränta
- Karttecken tät skog
- Geometri för barn
- Vishnuiter
- Var finns arvsanlagen
- Bris för vuxna
- Jätte råtta
- Introduction paragraph structure
- Learning without burden means
- Introduction to yacc
- Dare essay examples
- Essay introduction examples
- Abstract vs introduction
- How long is a introduction
- Introduction in email
- Bridge of a paragraph
- Introduction answer the question
- How to write an informative thesis
- What is editorial article
- Objectives essay
- Example introduction in research
- Diary introduction examples
- Literary character analysis essay example
- Schaffer paragraphs
- Mesopotamian civilization introduction
- Prayer for work immersion portfolio
- Wireless communication introduction
- Band introduction speech
- Introduction of personal selling
- Humour introduction
- Maksud informal letter
- Theme essay
- Good introduction paragraph
- Who invented smart note taker
- Introduction to e business
- Introduction to semiconductors
- Infosys 222
- Introduction of transport
- Acids and bases webquest
- Introduction to dynamic web content
- Pollution introduction
- What is intellectual virtue
- Introduction of purification of water
- Intro
- The victorian age characteristics
- Exemple de poeme
- Vegetable production introduction
- Anecdote introductory paragraph examples
- Introduction of urinary system
- Uric acid introduction
- Introduction to personal selling
- Epic poem the odyssey
- Oltp vs olap
- Enduring issues essay outline
- Data structures unit 1
- Introduction to computer organization and architecture
- Unit 1 introduction to accounting
- Online and offline ups block diagram
- Ultrasonic testing principle
- Types of hooks in an essay
- Cathode ray oscilloscope working principle
- Tuesdays with morrie aphorisms
- Introduction of clutch
- Transistor cbe
- Introduction of transformer
- Primary and secondary transducer
- How does tragic love affect teenagers today
- Introduction to traffic management
- Capacitive touch screen
- Introduction of tpr
- Motor equivalent circuit
- They say / i say introduction examples
- Introduction to thermochemistry
- Therapeutic communication introduction
- How to write a theme paragraph
- Introduction to world wide web
- Short story short story
- Cars model research sample
- Conclusion prayer
- Poisson formula
- The odyssey thesis
- An introduction to the odyssey by david adams leeming
- Introduction sur le microscope
- Alphonse daudet class 12
- Introduction and background example
- Introduction paragraph examples high school
- Introduction of western education in india
- Iliad introduction
- The great gatsby introduction essay
- Chapter 3 great gatsby summary
- The giver english
- Step by step introduction paragraph
- Introduction of digestive system
- Comparison essay block method
- Introduction of heart
- 1 body paragraph
- Title page format apa
- Roadmap in essay
- Introduction of team teaching
- System analysis and design
- What is symposium in education
- Swot analysis of tata company
- Intro paragraph for argumentative essay
- Sample introduction of guest speaker for webinar
- Introduction to meghalaya
