IBM Rational The Complexity of Programming Models Grady
IBM Rational The Complexity of Programming Models Grady Booch IBM Fellow © 2005 IBM Corporation
IBM Rational How much software exists in the world? § SLOC is a measure of labor (not of value) – Old code never dies (you have to kill it) – Some code is DOA § Some assumptions – 1 SLOC = 1 semicolon – Number of software professionals worldwide – %of software professionals who cut code – SLOC/developer/year – $100 US/SLOC 2 © 2005 IBM Corporation
IBM Rational Number of software professional worldwide 3 © 2005 IBM Corporation
IBM Rational % of software professionals who cut code 4 © 2005 IBM Corporation
IBM Rational SLOC/developer/year 5 © 2005 IBM Corporation
IBM Rational New or modified SLOC/year and cumulative 6 © 2005 IBM Corporation
IBM Rational Dimensions of software complexity Higher technical complexity An average software project - 5 -10 people - 3 -9 month duration - 3 -5 external interfaces - Some unknowns & risks Lower management complexity - Small scale - Informal - Single stakeholder - “Products” - Embedded, real-time, distributed, fault-tolerant - Custom, unprecedented, architecture reengineering - High performance Defense Weapon System Telecom Switch Commercial Embedded Compiler Automotive Software CASE Tool Small Scientific Simulation IS Application Distributed Objects (Order Entry) National Air Traffic Control System Large-Scale Organization/Entity Simulation Enterprise IS (Family of IS Applications) Defense MIS System Higher management complexity - Large scale - Contractual - Many stake holders - “Projects” IS Application GUI/RDB (Order Entry) Business Spreadsheet Lower technical complexity - Mostly 4 GL, or component-based - Application reengineering - Interactive performance Royce 7 © 2005 IBM Corporation
IBM Rational Stakeholders and views § A given system is many things to many different stakeholders – End user – Customer – Sys admin – Project manager – System engineer – Developer – Architect – Maintainer – Tester – Other systems § Multiple realities, multiple views and multiple blueprints exist 8 © 2005 IBM Corporation
IBM Rational Simplicity has different points of view § User – Simple metaphors and gestures § End-user programmer – Access to significant parts and flexible mechanisms for behavior § Architect – Common architectural patterns § Developer – Common design patterns and idioms § Tester – Access to significant parts 9 © 2005 IBM Corporation

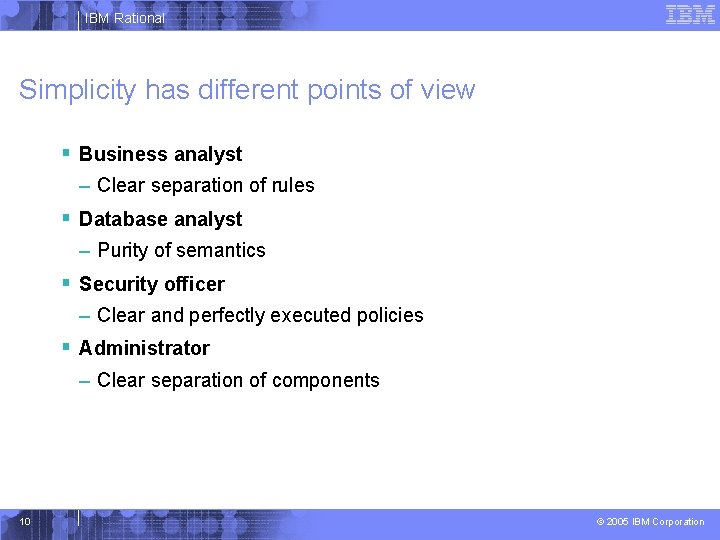

IBM Rational Simplicity has different points of view § Business analyst – Clear separation of rules § Database analyst – Purity of semantics § Security officer – Clear and perfectly executed policies § Administrator – Clear separation of components 10 © 2005 IBM Corporation

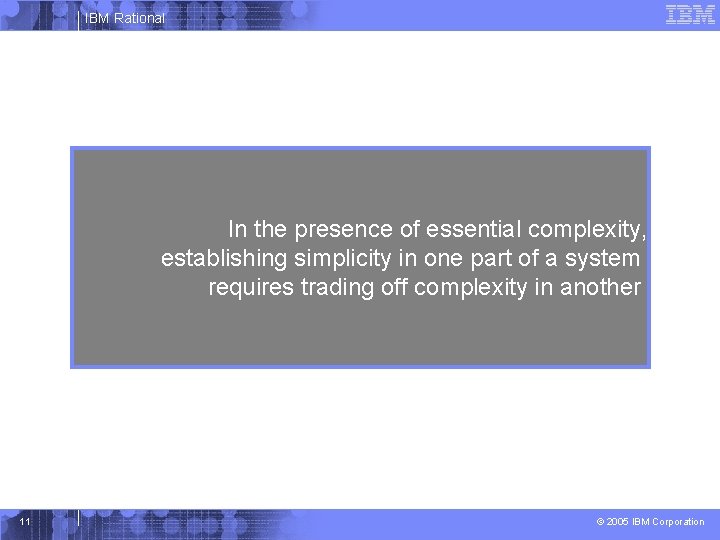

IBM Rational In the presence of essential complexity, establishing simplicity in one part of a system requires trading off complexity in another 11 © 2005 IBM Corporation
IBM Rational Creating the illusion of simplicity 12 © 2005 IBM Corporation

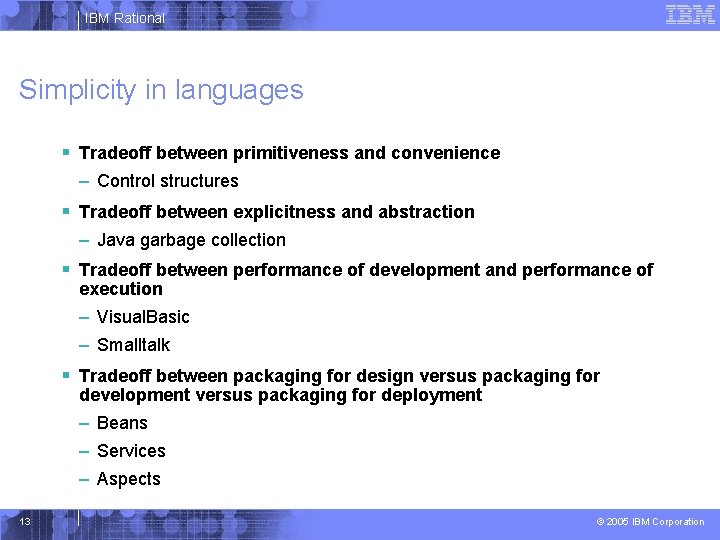

IBM Rational Simplicity in languages § Tradeoff between primitiveness and convenience – Control structures § Tradeoff between explicitness and abstraction – Java garbage collection § Tradeoff between performance of development and performance of execution – Visual. Basic – Smalltalk § Tradeoff between packaging for design versus packaging for development versus packaging for deployment – Beans – Services – Aspects 13 © 2005 IBM Corporation

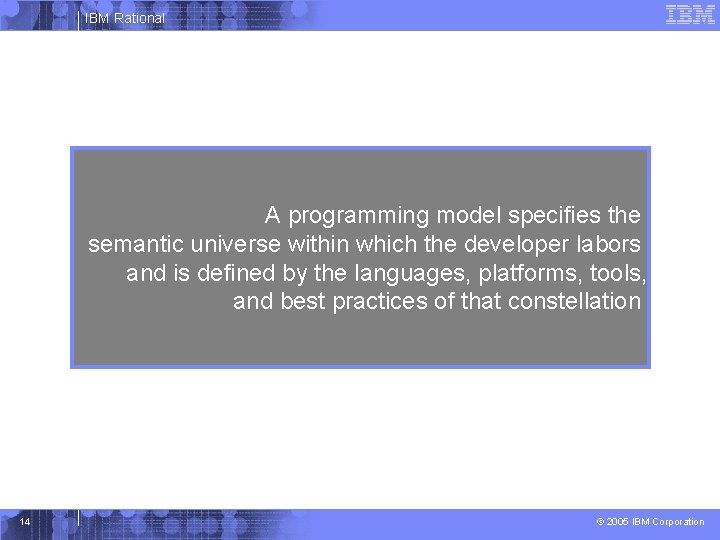

IBM Rational A programming model specifies the semantic universe within which the developer labors and is defined by the languages, platforms, tools, and best practices of that constellation 14 © 2005 IBM Corporation
IBM Rational Web-centric programming model § Languages § Tools – HTML – Linux – Coding – Eclipse – CSS – Apache – Design patterns – Dreamweaver – My. SQL – Deployment – Photoshop – J 2 EE – User interface – Clear. Case – Accessibility – Clear. Quest – XSL – XML – SQL – RSS – Java – Internationalization – RSA – Java. Script – Security – PHP – Logging – Flash – Backup – UML 15 § Platforms § Best practices – Portfolio Manager – Requisite. Pro – Tester © 2005 IBM Corporation

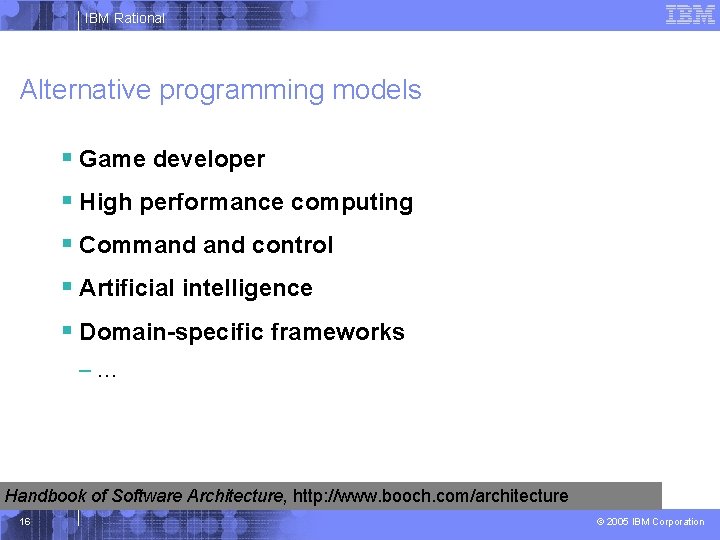

IBM Rational Alternative programming models § Game developer § High performance computing § Command control § Artificial intelligence § Domain-specific frameworks –… Handbook of Software Architecture, http: //www. booch. com/architecture 16 © 2005 IBM Corporation
IBM Rational A system is shaped by a myriad of design decisions by different stakeholders that work to balance the forces swirling around the system 17 © 2005 IBM Corporation
IBM Rational Forces in civil architecture Load Compression Kinds of loads Tension - Dead loads - Live loads - Dynamic loads Avoiding failure - Safety factors - Redundancy - Equilibrium Load Any time you depart from established practice, make ten times the effort, ten times the investigation. Especially on a very large project. - Le. Messuier 18 © 2005 IBM Corporation
IBM Rational Forces on software 19 © 2005 IBM Corporation
IBM Rational Why is software inherently complex? § Complexity of the problem domain § Difficulty of managing the development process § Fluidity of software § Fundamental challenges of discrete systems 20 © 2005 IBM Corporation

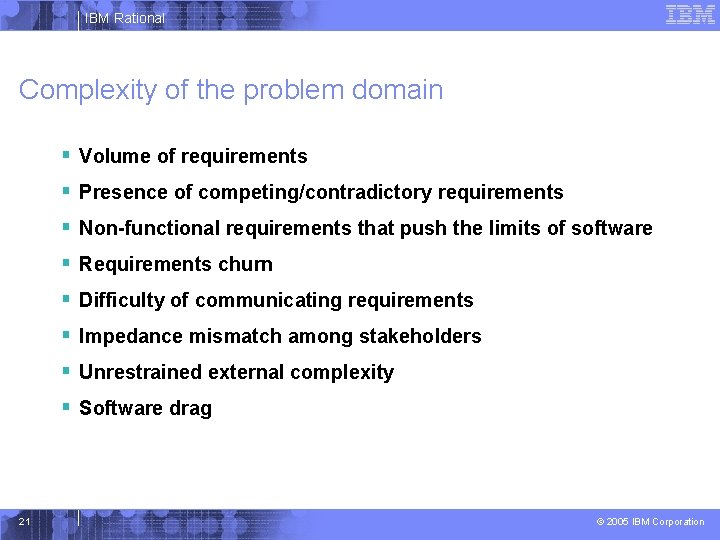

IBM Rational Complexity of the problem domain § Volume of requirements § Presence of competing/contradictory requirements § Non-functional requirements that push the limits of software § Requirements churn § Difficulty of communicating requirements § Impedance mismatch among stakeholders § Unrestrained external complexity § Software drag 21 © 2005 IBM Corporation

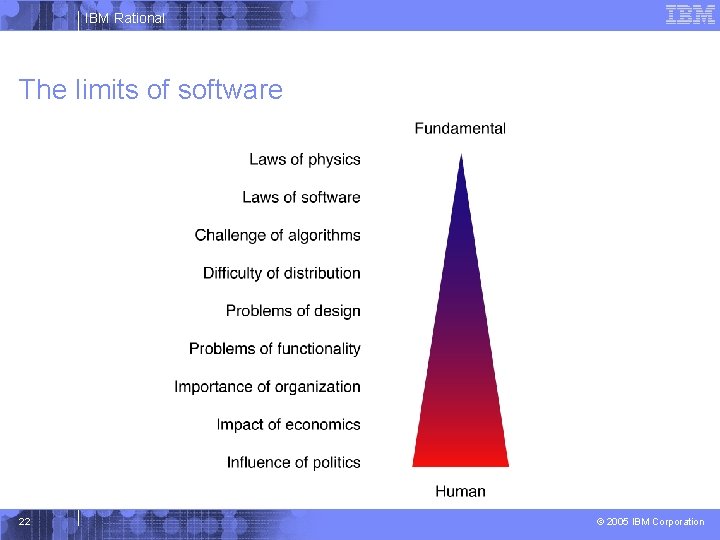

IBM Rational The limits of software 22 © 2005 IBM Corporation

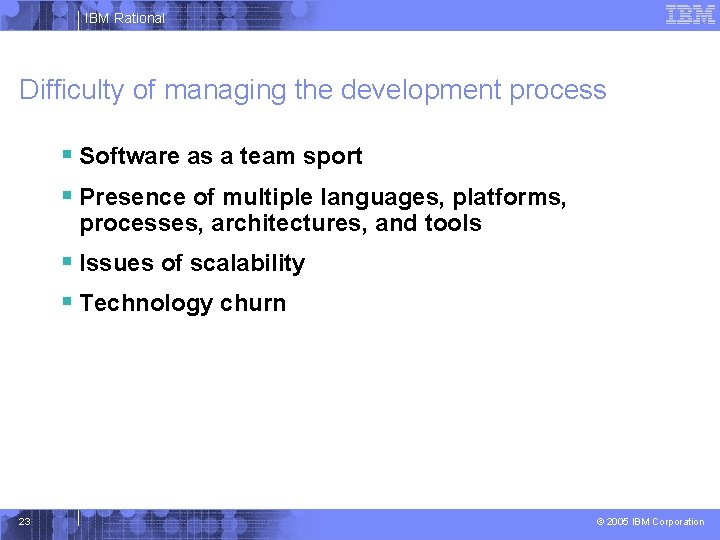

IBM Rational Difficulty of managing the development process § Software as a team sport § Presence of multiple languages, platforms, processes, architectures, and tools § Issues of scalability § Technology churn 23 © 2005 IBM Corporation
IBM Rational Scalability § Size up – Increasing database size by a factor of x increases query response time by at most a factor of x. § Speed up – Increasing the capacity of your hardware configuration by a factor of x decreases your query response time by no less than a factor of x. § Scale up – Increasing the workload on your system by a factor of x while maintaining response time and/or throughput requires increasing your capacity by a factor of no more than x. § Scale out – Increasing workers by a factor of x requires replicating your capacity by a factor of at most x. http: //www. intelligententerprise. com/db_area/archives/1999/991602/scalable. jhtml 24 © 2005 IBM Corporation

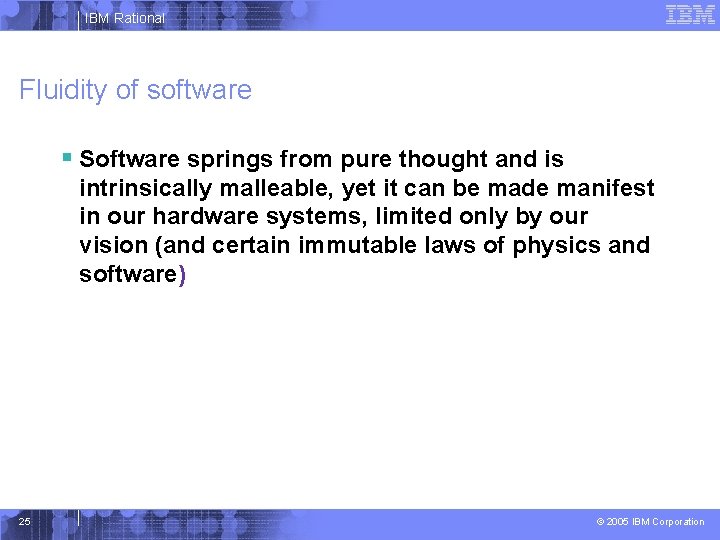

IBM Rational Fluidity of software § Software springs from pure thought and is intrinsically malleable, yet it can be made manifest in our hardware systems, limited only by our vision (and certain immutable laws of physics and software) 25 © 2005 IBM Corporation

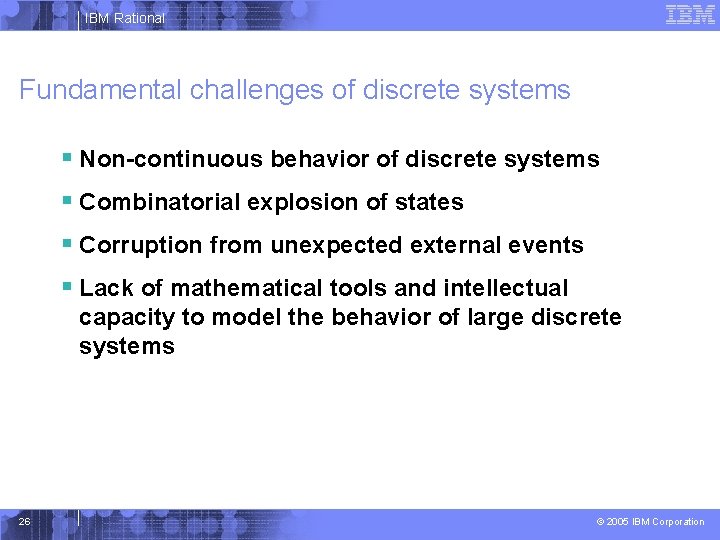

IBM Rational Fundamental challenges of discrete systems § Non-continuous behavior of discrete systems § Combinatorial explosion of states § Corruption from unexpected external events § Lack of mathematical tools and intellectual capacity to model the behavior of large discrete systems 26 © 2005 IBM Corporation

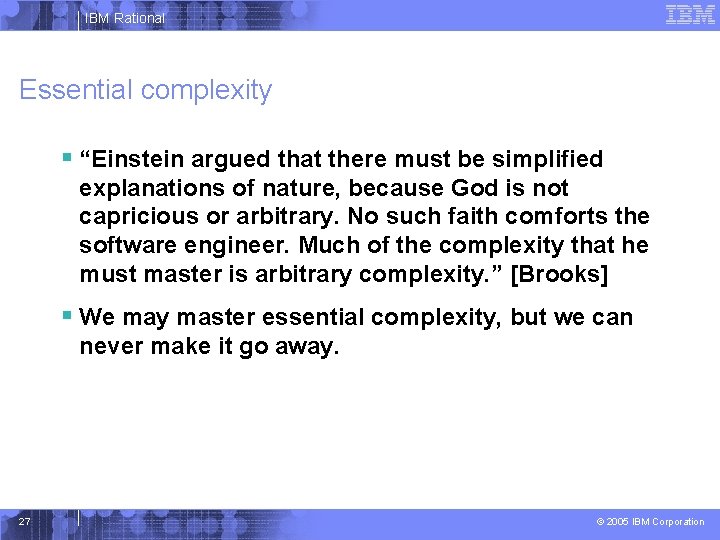

IBM Rational Essential complexity § “Einstein argued that there must be simplified explanations of nature, because God is not capricious or arbitrary. No such faith comforts the software engineer. Much of the complexity that he must master is arbitrary complexity. ” [Brooks] § We may master essential complexity, but we can never make it go away. 27 © 2005 IBM Corporation
IBM Rational Measuring complexity of biological systems (syntactic) § § § Kolmogorov Entropy Mean component size Number of behaviors exhibited Species richness, relative to tolerance to risk Species guilds Energy flow Grammatical complexity Number of feedback loops Cyclomatic measures (arcs, vertices, and components) Graph complexity Hamming distance http: //www. carleton. ca/~hmasum/complex. html 28 © 2005 IBM Corporation

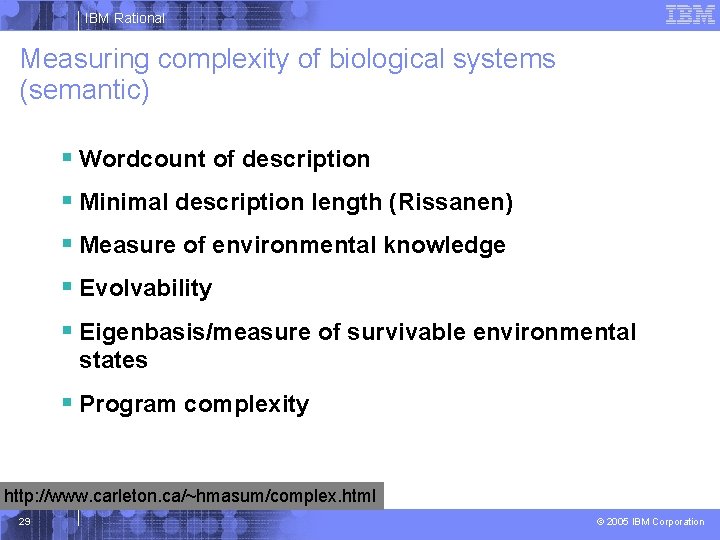

IBM Rational Measuring complexity of biological systems (semantic) § Wordcount of description § Minimal description length (Rissanen) § Measure of environmental knowledge § Evolvability § Eigenbasis/measure of survivable environmental states § Program complexity http: //www. carleton. ca/~hmasum/complex. html 29 © 2005 IBM Corporation

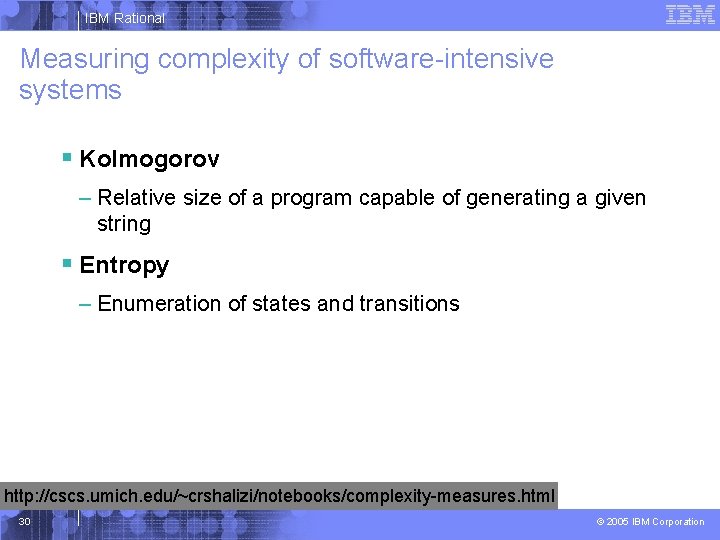

IBM Rational Measuring complexity of software-intensive systems § Kolmogorov – Relative size of a program capable of generating a given string § Entropy – Enumeration of states and transitions http: //cscs. umich. edu/~crshalizi/notebooks/complexity-measures. html 30 © 2005 IBM Corporation

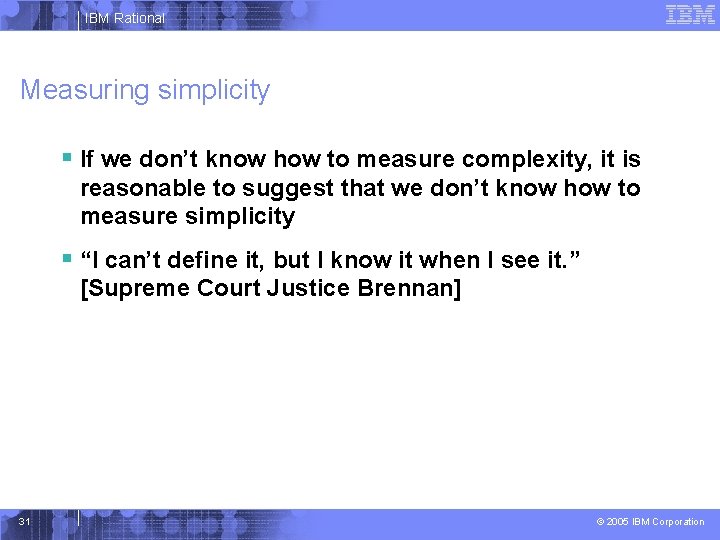

IBM Rational Measuring simplicity § If we don’t know how to measure complexity, it is reasonable to suggest that we don’t know how to measure simplicity § “I can’t define it, but I know it when I see it. ” [Supreme Court Justice Brennan] 31 © 2005 IBM Corporation
IBM Rational Beauty § Elegance is not an approach to finding a solution to a problem, it is the label we stick on the optimum solution § Elegance is doing the most with the least § Elegance means simplicity and less new code. § An elegant solution solves the whole problem. " [Fisher, p. 37] Fisher & Gipson, “In Search of Elegance” 32 © 2005 IBM Corporation

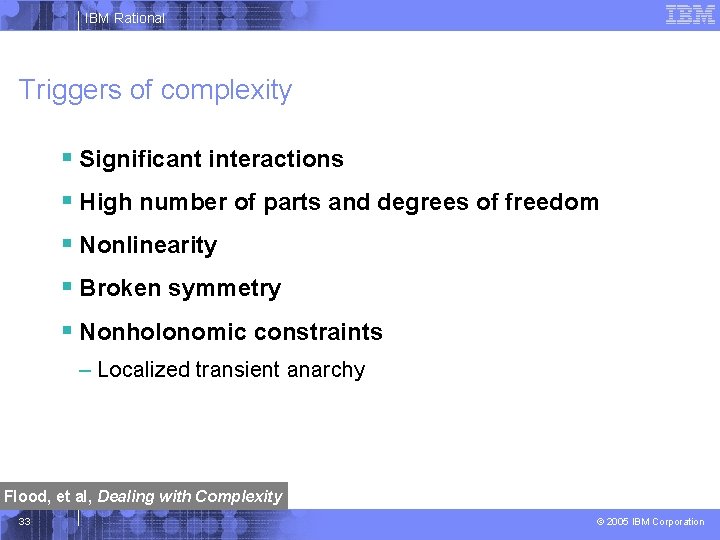

IBM Rational Triggers of complexity § Significant interactions § High number of parts and degrees of freedom § Nonlinearity § Broken symmetry § Nonholonomic constraints – Localized transient anarchy Flood, et al, Dealing with Complexity 33 © 2005 IBM Corporation

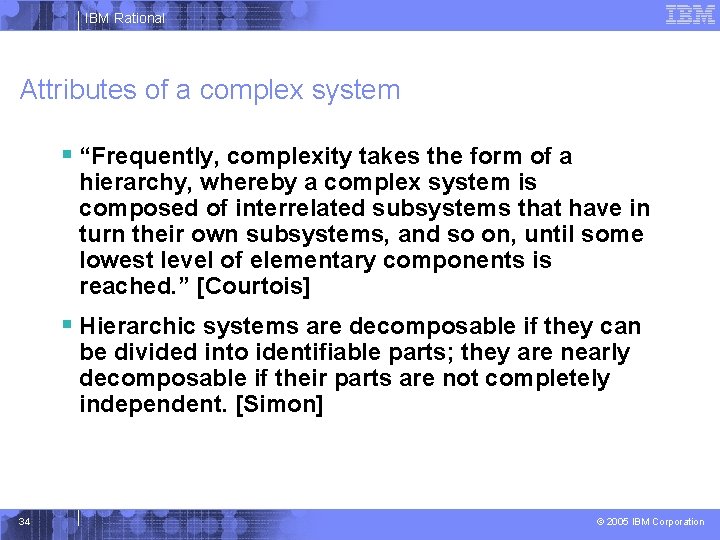

IBM Rational Attributes of a complex system § “Frequently, complexity takes the form of a hierarchy, whereby a complex system is composed of interrelated subsystems that have in turn their own subsystems, and so on, until some lowest level of elementary components is reached. ” [Courtois] § Hierarchic systems are decomposable if they can be divided into identifiable parts; they are nearly decomposable if their parts are not completely independent. [Simon] 34 © 2005 IBM Corporation

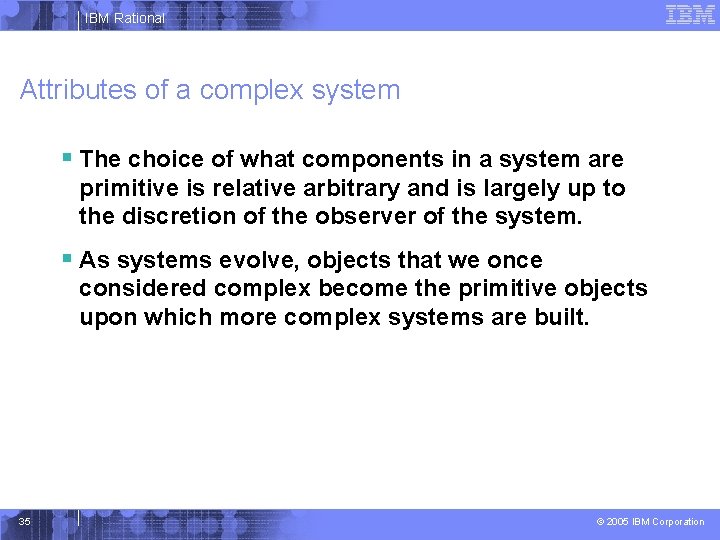

IBM Rational Attributes of a complex system § The choice of what components in a system are primitive is relative arbitrary and is largely up to the discretion of the observer of the system. § As systems evolve, objects that we once considered complex become the primitive objects upon which more complex systems are built. 35 © 2005 IBM Corporation
IBM Rational Attributes of a complex system § Intracomponent linkages are generally stronger than intercomponent linkages. This fact has the effect of separating the high-frequency dynamics of the components – involving the internal structure of the components – from the lowfrequency dynamics - involving interaction among components. [Simon] 36 © 2005 IBM Corporation

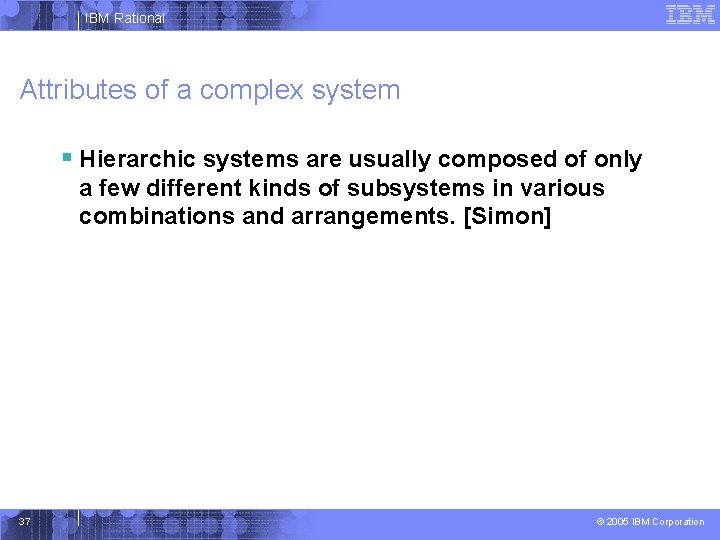

IBM Rational Attributes of a complex system § Hierarchic systems are usually composed of only a few different kinds of subsystems in various combinations and arrangements. [Simon] 37 © 2005 IBM Corporation

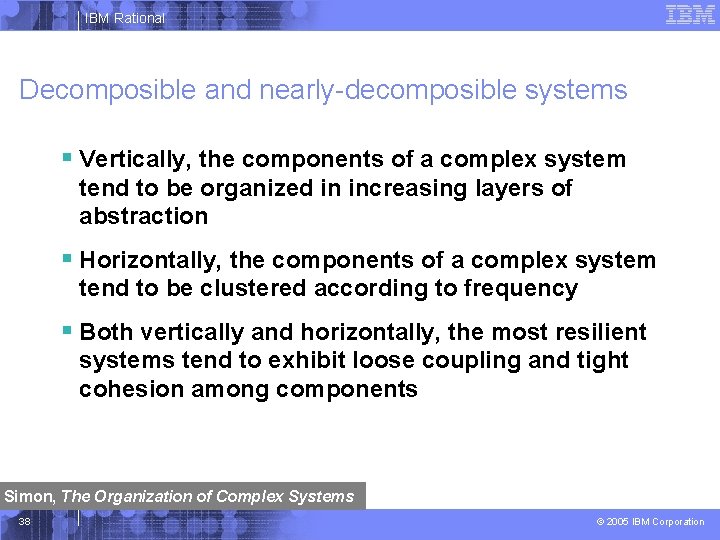

IBM Rational Decomposible and nearly-decomposible systems § Vertically, the components of a complex system tend to be organized in increasing layers of abstraction § Horizontally, the components of a complex system tend to be clustered according to frequency § Both vertically and horizontally, the most resilient systems tend to exhibit loose coupling and tight cohesion among components Simon, The Organization of Complex Systems 38 © 2005 IBM Corporation

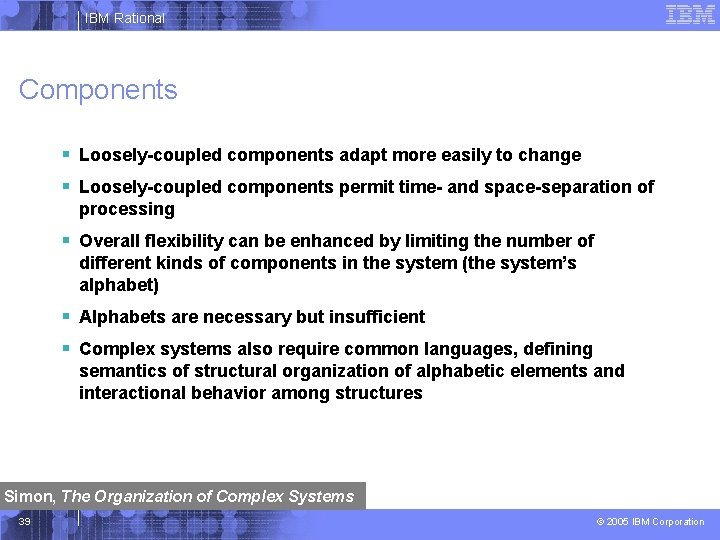

IBM Rational Components § Loosely-coupled components adapt more easily to change § Loosely-coupled components permit time- and space-separation of processing § Overall flexibility can be enhanced by limiting the number of different kinds of components in the system (the system’s alphabet) § Alphabets are necessary but insufficient § Complex systems also require common languages, defining semantics of structural organization of alphabetic elements and interactional behavior among structures Simon, The Organization of Complex Systems 39 © 2005 IBM Corporation
IBM Rational Languages § Must have sufficient variety in its primitive processes so that no meaning is absolutely excluded from expression § Must have sufficient flexibility in its rules of combination so that any nuance can be expressed by building up composite structures Simon, The Organization of Complex Systems 40 © 2005 IBM Corporation
IBM Rational Attributes of complex systems § Complex systems will evolve from simple systems much more rapidly if there are stable intermediate forms than if there are not. [Simon] § A complex system that works is invariable found to have evolved from a simple system that worked. A complex system designed from scratch never works and cannot be patched up to make it work. You have to start over, beginning with a working simple system. [Gall] 41 © 2005 IBM Corporation
IBM Rational Complex adaptive systems § Emergent behavior § Attributes – Classification of components – Identity of objects – Non-linearity of behavior – Flow of objects – Diversity – Use of internal models – Clustering Holland, Hidden Order 42 © 2005 IBM Corporation
IBM Rational Characteristics of self-organizing systems § Dynamic, requiring continual interactions among lower-level components to produce and maintain structure § Exhibit bifurcation leading to multistable systems – Strange attractors Sante Fe Institute 43 © 2005 IBM Corporation
IBM Rational Self-organization in biological systems § § § § Pattern formation in slime molds Feeding aggregation of bark beetles Synchronized flashing among fireflies Fish schooling Nectar source selection by honey bees Trail formation in ants Swarm raids of army ants Colony thermoregulation in honey bees Comb patterns in honey bee colonies Wall building by ants Termite mount building Construction Aagorithms by wasps Dominance hierarchies in paper wasps Camazine, et al, Self-Organization in Biological Systems 44 © 2005 IBM Corporation

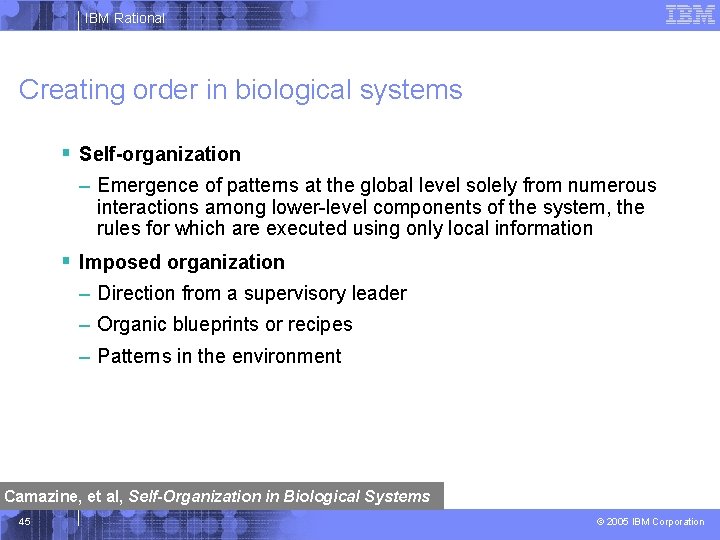

IBM Rational Creating order in biological systems § Self-organization – Emergence of patterns at the global level solely from numerous interactions among lower-level components of the system, the rules for which are executed using only local information § Imposed organization – Direction from a supervisory leader – Organic blueprints or recipes – Patterns in the environment Camazine, et al, Self-Organization in Biological Systems 45 © 2005 IBM Corporation
IBM Rational Complexity, Functionality, and Understandability Functionality Complexity 46 © 2005 IBM Corporation
IBM Rational Fundamentals never go out of style 47 © 2005 IBM Corporation
IBM Rational Shearing layers of change Space plan Services Stuff Structure Skin Site Brand, How Buildings Learn 48 © 2005 IBM Corporation

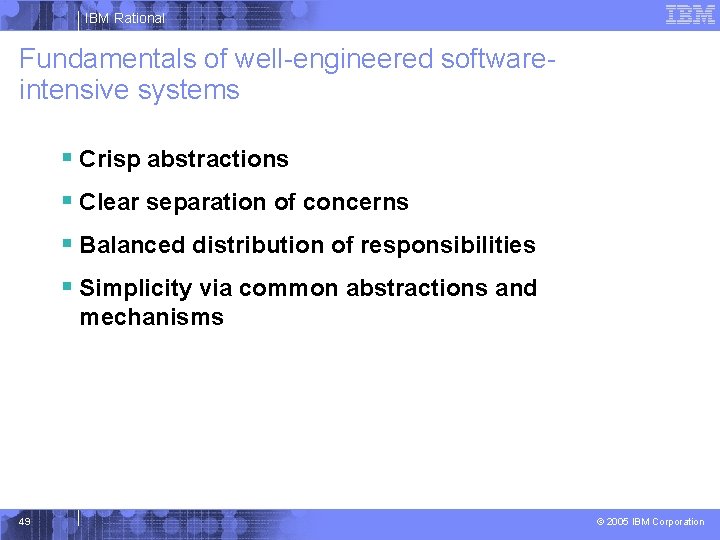

IBM Rational Fundamentals of well-engineered softwareintensive systems § Crisp abstractions § Clear separation of concerns § Balanced distribution of responsibilities § Simplicity via common abstractions and mechanisms 49 © 2005 IBM Corporation

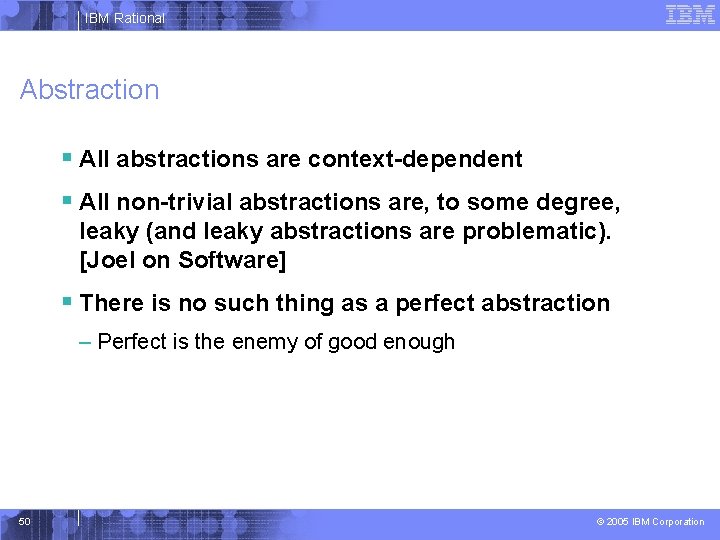

IBM Rational Abstraction § All abstractions are context-dependent § All non-trivial abstractions are, to some degree, leaky (and leaky abstractions are problematic). [Joel on Software] § There is no such thing as a perfect abstraction – Perfect is the enemy of good enough 50 © 2005 IBM Corporation

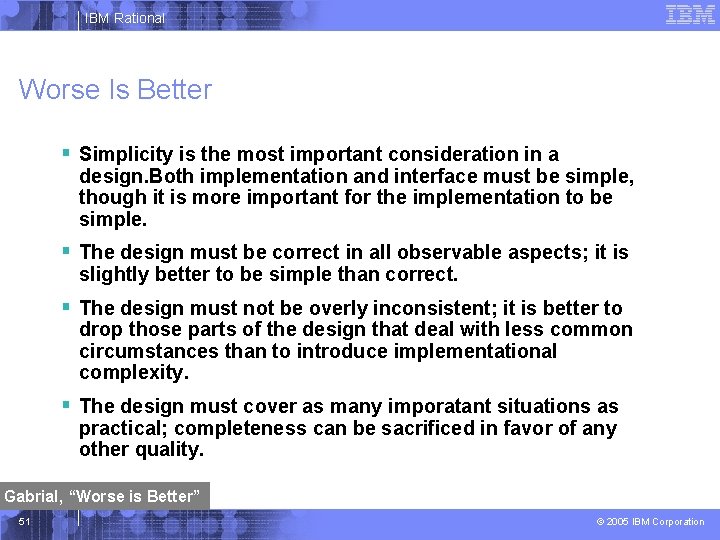

IBM Rational Worse Is Better § Simplicity is the most important consideration in a design. Both implementation and interface must be simple, though it is more important for the implementation to be simple. § The design must be correct in all observable aspects; it is slightly better to be simple than correct. § The design must not be overly inconsistent; it is better to drop those parts of the design that deal with less common circumstances than to introduce implementational complexity. § The design must cover as many imporatant situations as practical; completeness can be sacrificed in favor of any other quality. Gabrial, “Worse is Better” 51 © 2005 IBM Corporation

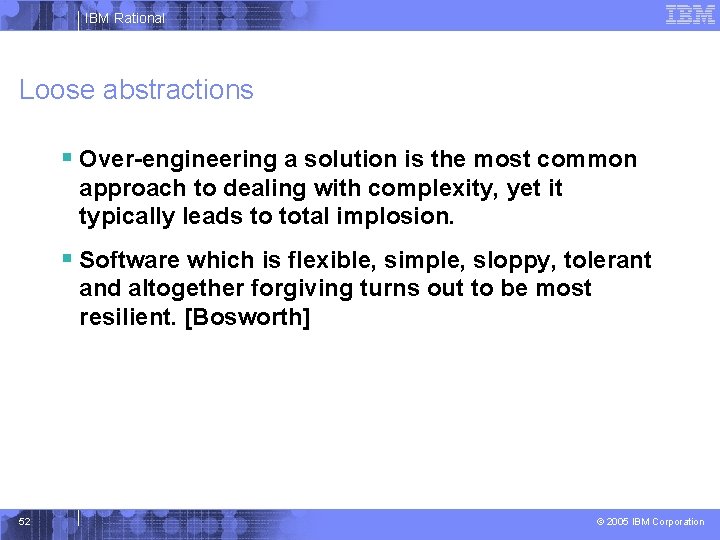

IBM Rational Loose abstractions § Over-engineering a solution is the most common approach to dealing with complexity, yet it typically leads to total implosion. § Software which is flexible, simple, sloppy, tolerant and altogether forgiving turns out to be most resilient. [Bosworth] 52 © 2005 IBM Corporation

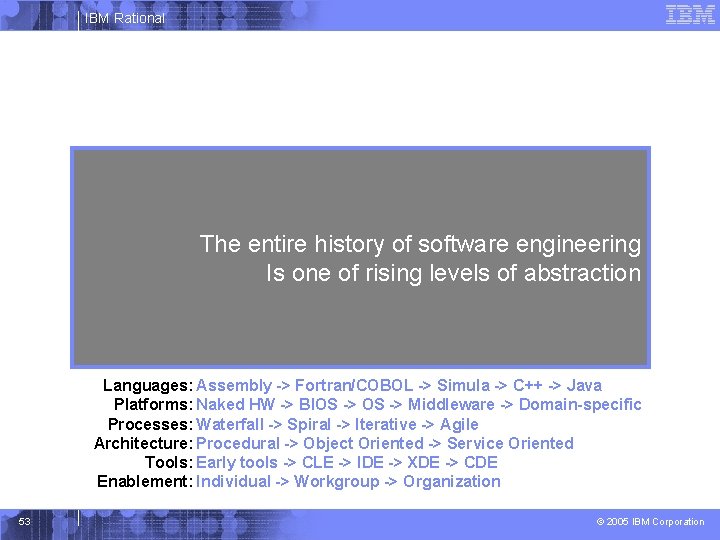

IBM Rational The entire history of software engineering Is one of rising levels of abstraction Languages: Assembly -> Fortran/COBOL -> Simula -> C++ -> Java Platforms: Naked HW -> BIOS -> Middleware -> Domain-specific Processes: Waterfall -> Spiral -> Iterative -> Agile Architecture: Procedural -> Object Oriented -> Service Oriented Tools: Early tools -> CLE -> IDE -> XDE -> CDE Enablement: Individual -> Workgroup -> Organization 53 © 2005 IBM Corporation

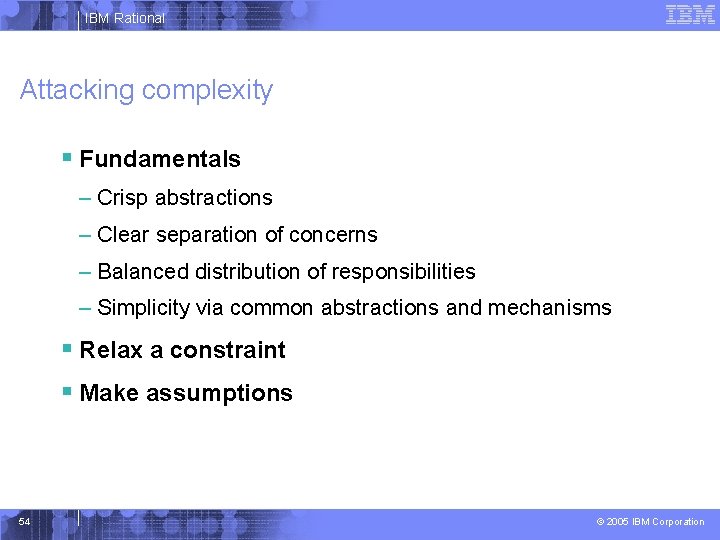

IBM Rational Attacking complexity § Fundamentals – Crisp abstractions – Clear separation of concerns – Balanced distribution of responsibilities – Simplicity via common abstractions and mechanisms § Relax a constraint § Make assumptions 54 © 2005 IBM Corporation

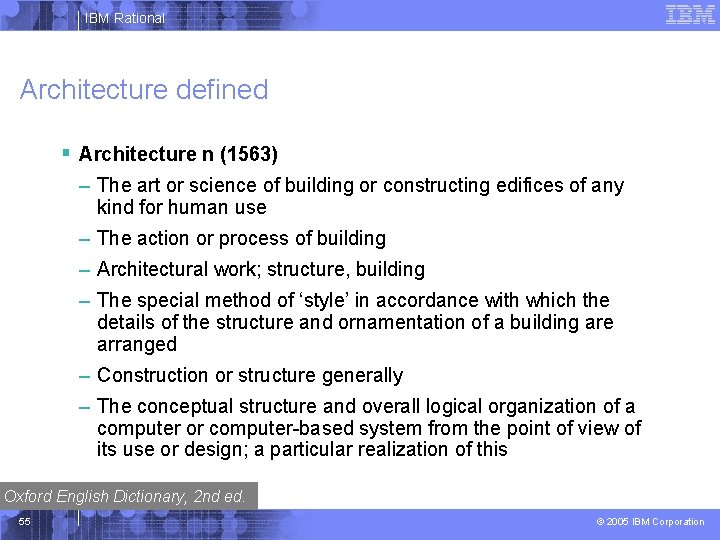

IBM Rational Architecture defined § Architecture n (1563) – The art or science of building or constructing edifices of any kind for human use – The action or process of building – Architectural work; structure, building – The special method of ‘style’ in accordance with which the details of the structure and ornamentation of a building are arranged – Construction or structure generally – The conceptual structure and overall logical organization of a computer or computer-based system from the point of view of its use or design; a particular realization of this Oxford English Dictionary, 2 nd ed. 55 © 2005 IBM Corporation
IBM Rational Physical systems § Mature physical systems have stable architectures – Aircraft, cars, and ships – Bridges and buildings § Such architectures have grown over long periods of time – Trial-and-error – Reuse and refinement of proven solutions – Quantitative evaluation with analytical methods § Mature domains are dominated by engineering efforts – Analytical engineering methods – New materials – New manufacturing processes 56 © 2005 IBM Corporation

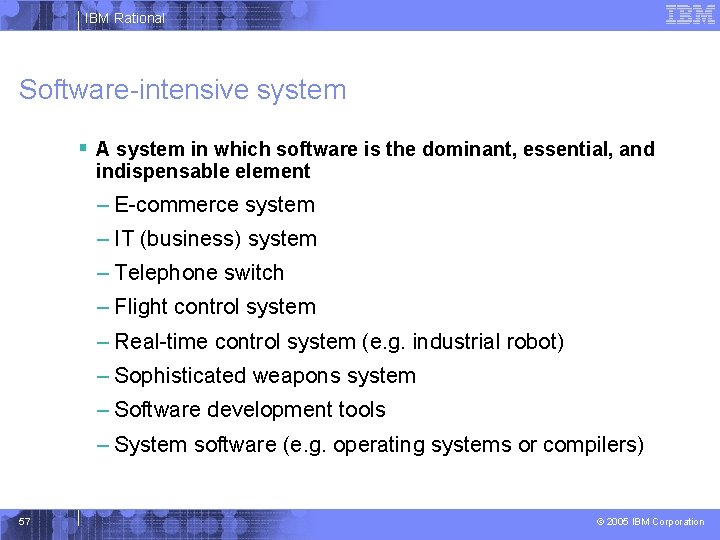

IBM Rational Software-intensive system § A system in which software is the dominant, essential, and indispensable element – E-commerce system – IT (business) system – Telephone switch – Flight control system – Real-time control system (e. g. industrial robot) – Sophisticated weapons system – Software development tools – System software (e. g. operating systems or compilers) 57 © 2005 IBM Corporation

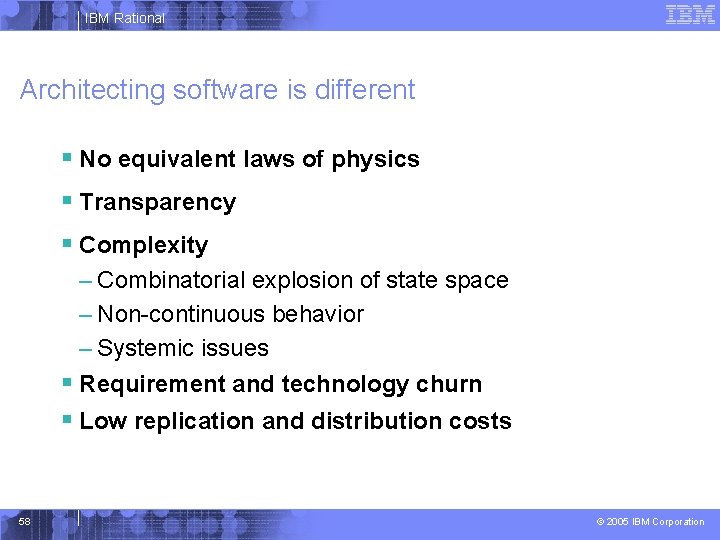

IBM Rational Architecting software is different § No equivalent laws of physics § Transparency § Complexity – Combinatorial explosion of state space – Non-continuous behavior – Systemic issues § Requirement and technology churn § Low replication and distribution costs 58 © 2005 IBM Corporation

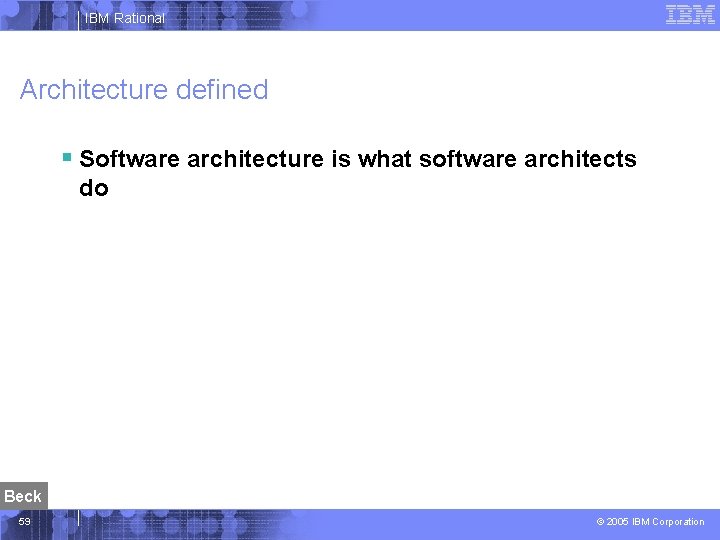

IBM Rational Architecture defined § Software architecture is what software architects do Beck 59 © 2005 IBM Corporation

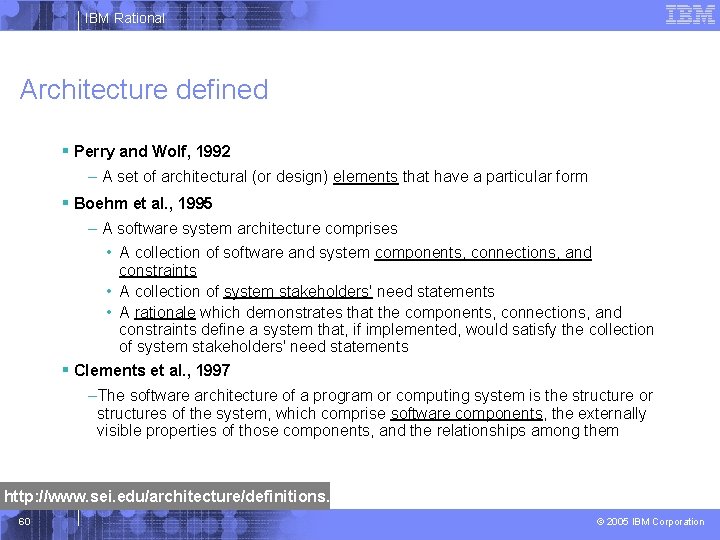

IBM Rational Architecture defined § Perry and Wolf, 1992 – A set of architectural (or design) elements that have a particular form § Boehm et al. , 1995 – A software system architecture comprises • A collection of software and system components, connections, and constraints • A collection of system stakeholders' need statements • A rationale which demonstrates that the components, connections, and constraints define a system that, if implemented, would satisfy the collection of system stakeholders' need statements § Clements et al. , 1997 –The software architecture of a program or computing system is the structure or structures of the system, which comprise software components, the externally visible properties of those components, and the relationships among them http: //www. sei. edu/architecture/definitions. html 60 © 2005 IBM Corporation
IBM Rational Common elements § Architecture defines major components § Architecture defines component relationships (structures) and interactions § Architecture omits content information about components that does not pertain to their interactions § Behavior of components is a part of architecture insofar as it can be discerned from the point of view of another component § Every system has an architecture (even a system composed of one component) § Architecture defines the rationale behind the components and the structure § Architecture definitions do not define what a component is § Architecture is not a single structure -- no single structure is the architecture 61 © 2005 IBM Corporation

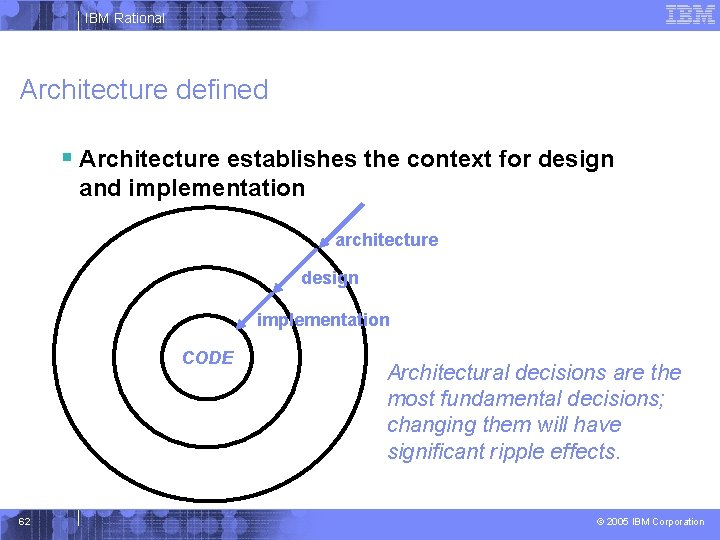

IBM Rational Architecture defined § Architecture establishes the context for design and implementation architecture design implementation CODE 62 Architectural decisions are the most fundamental decisions; changing them will have significant ripple effects. © 2005 IBM Corporation

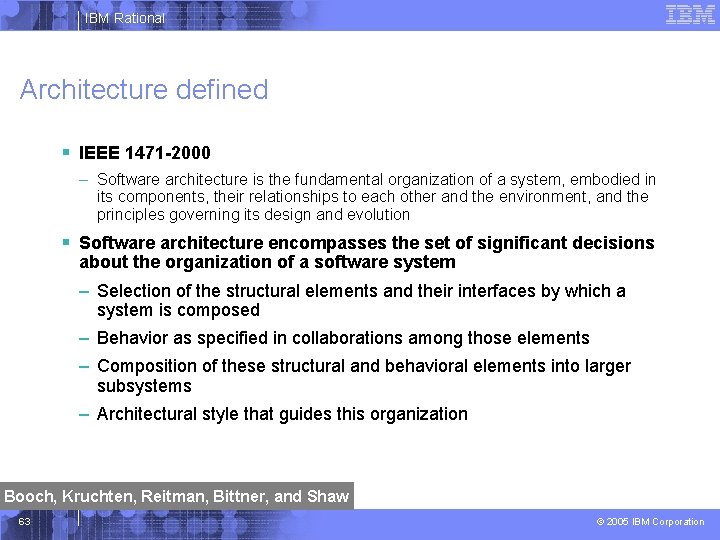

IBM Rational Architecture defined § IEEE 1471 -2000 – Software architecture is the fundamental organization of a system, embodied in its components, their relationships to each other and the environment, and the principles governing its design and evolution § Software architecture encompasses the set of significant decisions about the organization of a software system – Selection of the structural elements and their interfaces by which a system is composed – Behavior as specified in collaborations among those elements – Composition of these structural and behavioral elements into larger subsystems – Architectural style that guides this organization Booch, Kruchten, Reitman, Bittner, and Shaw 63 © 2005 IBM Corporation
IBM Rational Architecture defined § Software architecture also involves – Functionality – Usability – Resilience – Performance – Reuse – Comprehensibility – Economic and technology constraints and tradeoffs – Aesthetic concerns 64 © 2005 IBM Corporation

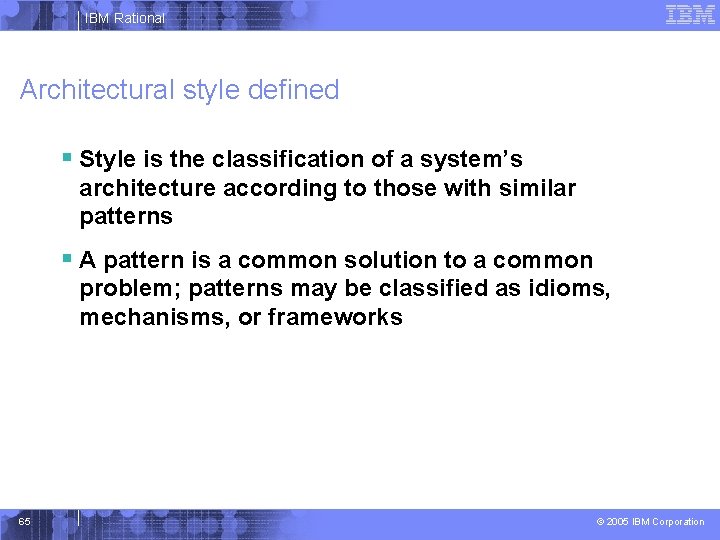

IBM Rational Architectural style defined § Style is the classification of a system’s architecture according to those with similar patterns § A pattern is a common solution to a common problem; patterns may be classified as idioms, mechanisms, or frameworks 65 © 2005 IBM Corporation
IBM Rational Model, views, concerns, and stakeholders § A model is a simplification of reality, created in order to better understand the system being created; a semantically closed abstraction of a system § A view is a representation of a whole system from the perspective of a related set of concerns § A concern is those interests which pertain to the system's development, its operation or any other aspects that are critical or otherwise important to one or more stakeholders § A stakeholder is an individual, team, or organization (or classes thereof) with interests in, or concerns relative to, a system 66 © 2005 IBM Corporation
IBM Rational Stakeholders and views § Architecture is many things to many different stakeholders – End user – Customer – Sys admin – Project manager – System engineer – Developer – Architect – Maintainer – Tester – Other systems § Multiple realities, multiple views and multiple blueprints exist 67 © 2005 IBM Corporation
IBM Rational Representing software architecture Logical View End-user Functionality Implementation View Programmers Configuration management Use Case View Process View Deployment View System integrators Performance Scalability Throughput Conceptual System engineering System topology Communication Provisioning Physical Clements, et al, Documenting Software Architectures 68 © 2005 IBM Corporation

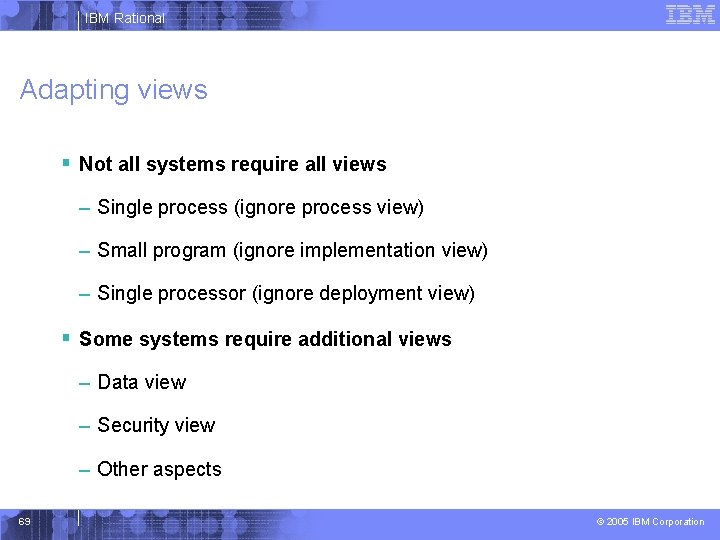

IBM Rational Adapting views § Not all systems require all views – Single process (ignore process view) – Small program (ignore implementation view) – Single processor (ignore deployment view) § Some systems require additional views – Data view – Security view – Other aspects 69 © 2005 IBM Corporation
IBM Rational Logical view § The view of a system’s architecture that encompasses the vocabulary of the problem and solution space, the collaborations that realize the system’s use cases, the subsystems that provide the central layering and decomposition of the system, and the interfaces that are exposed by those subsystems and the system as a whole § Focuses on – Functionality – Key Abstractions – Mechanisms – Separation of concerns and distribution of responsibilities 70 © 2005 IBM Corporation
IBM Rational Process view § The view of a system’s architecture that encompasses the threads and processes that form the system’s concurrency and synchronization mechanisms § Focuses on – Performance – Scalability – Throughput 71 © 2005 IBM Corporation

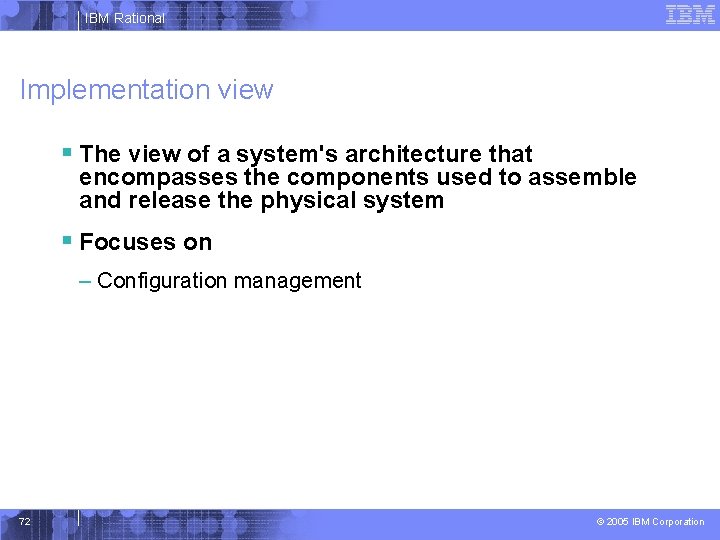

IBM Rational Implementation view § The view of a system's architecture that encompasses the components used to assemble and release the physical system § Focuses on – Configuration management 72 © 2005 IBM Corporation
IBM Rational Deployment view § The view of a system’s architecture that encompasses the nodes that form the system’s hardware topology on which the system executes § Focuses on – Distribution – Communication – Provisioning 73 © 2005 IBM Corporation

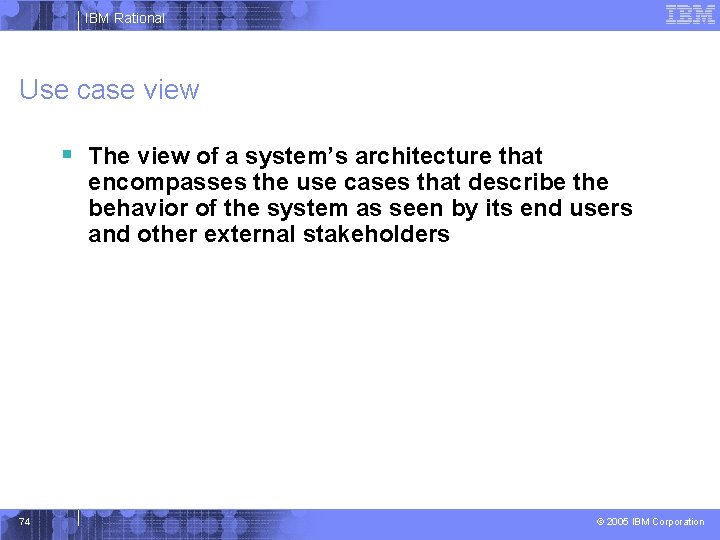

IBM Rational Use case view § The view of a system’s architecture that encompasses the use cases that describe the behavior of the system as seen by its end users and other external stakeholders 74 © 2005 IBM Corporation
IBM Rational Relations among views Logical view Implementation view Process view Deployment view 75 © 2005 IBM Corporation
IBM Rational Architecture metamodel 76 © 2005 IBM Corporation
IBM Rational Architecture metamodel 77 © 2005 IBM Corporation
IBM Rational Architecture metamodel 78 © 2005 IBM Corporation
IBM Rational The architecture of biological systems § Gene § Cell component § Cell § Tissue § Organ § System 79 © 2005 IBM Corporation
IBM Rational Cross-cutting concerns in biological systems § Gene – Reproduction – Protein creation § Cell component (mitochondria) – Metabolism – Glutamate-mediated excitotic neurlogical injury – Cellular proliferation – Regulation of the cellular redox state – Heme synthesis – Heat production 80 © 2005 IBM Corporation

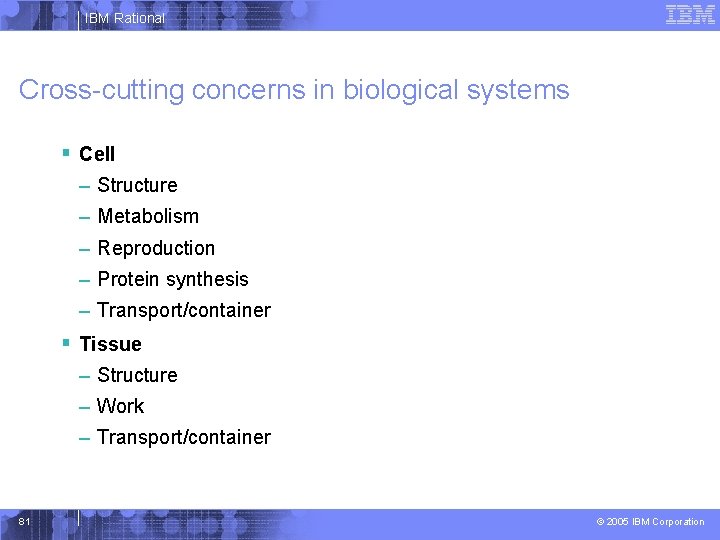

IBM Rational Cross-cutting concerns in biological systems § Cell – Structure – Metabolism – Reproduction – Protein synthesis – Transport/container § Tissue – Structure – Work – Transport/container 81 © 2005 IBM Corporation
IBM Rational Cross-cutting concerns in biological systems § Organ (liver) – Digestion – Carbohydrate metabolism – Glucoenogenesis – Glycogenesis – Breakdown of insulin – Lipid metabolism – Cholesterol synthesis – Production of triglycerides – Coagulation factors – Neutralization of various products – Storage of glucose and various vitamins – Red cell production for the fetus § System (circulatory) – Transport – Heat regulation – Healing mechanism 82 © 2005 IBM Corporation
IBM Rational The reification of concerns § Concerns are not isomorphic to structure § In biological systems, these aspects evolved simultaneously and interdependently at each level of abstraction – They existed a priori as reactions to evolutionary forces – Post hoc we can name them 83 © 2005 IBM Corporation
IBM Rational Representing software architecture Logical View End-user Functionality Implementation View Programmers Configuration management Use Case View Process View Deployment View System integrators Performance Scalability Throughput Conceptual System engineering System topology Communication Provisioning Physical Clements, et al, Documenting Software Architectures 84 © 2005 IBM Corporation

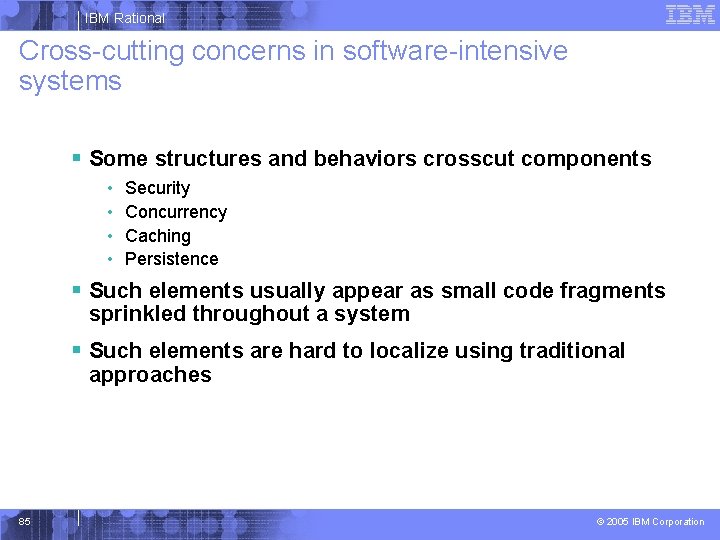

IBM Rational Cross-cutting concerns in software-intensive systems § Some structures and behaviors crosscut components • • Security Concurrency Caching Persistence § Such elements usually appear as small code fragments sprinkled throughout a system § Such elements are hard to localize using traditional approaches 85 © 2005 IBM Corporation

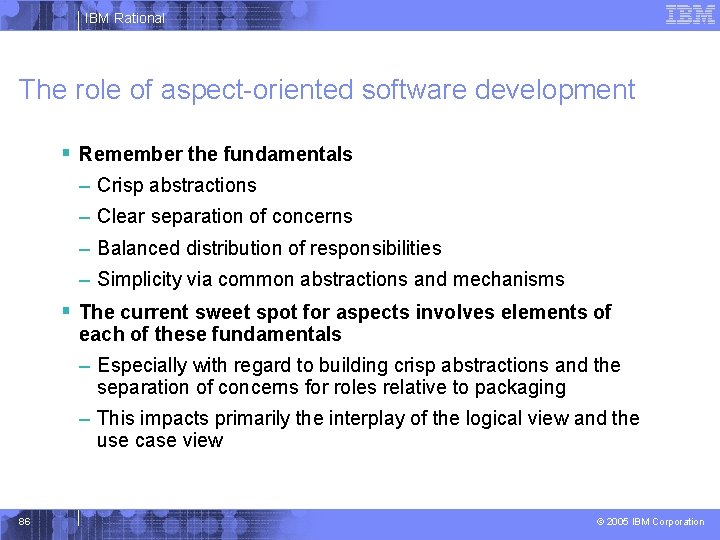

IBM Rational The role of aspect-oriented software development § Remember the fundamentals – Crisp abstractions – Clear separation of concerns – Balanced distribution of responsibilities – Simplicity via common abstractions and mechanisms § The current sweet spot for aspects involves elements of each of these fundamentals – Especially with regard to building crisp abstractions and the separation of concerns for roles relative to packaging – This impacts primarily the interplay of the logical view and the use case view 86 © 2005 IBM Corporation
IBM Rational What’s missing/what’s next § Remember the already complex programming model – Don’t make it more complex by adding yet another orthogonal mechanism § The current pragmatic focus is upon transformation tools that focus on already visible artifacts – The harder focus - plus the one that is most disruptive yet most potentially valuable - is upon transformation tools that focus on deep semantic representations and then the creation of these traditional artifacts by reflection • I. e. source code as a pretty-printed side-effect, not a central object 87 © 2005 IBM Corporation
IBM Rational Summary § This stuff is fundamentally, wickedly hard – And it’s not going to get any better in my lifetime • And I plan on having a long life § Remember that the world doesn’t need Yet More Technology – We need less • And ultimately, the best technology is invisible 88 © 2005 IBM Corporation
IBM Rational Bibliography on complexity Allen, T. & Starr, T. , Hierarchy: Perspectives for Ecological Complexity, University of Chicago: 1982. Axelrod, R. , The Complexity of Cooperation, Princeton: 1997. Barrow, J. , Davies, P. , & Harper, C. , Science and Ultimate Reality, Cambridge University Press: 2004. Bowker, G. & Star, S. , Sorting Things Out: Classification and its Consequences, MIT Press: 1999. Buchanan, M. , Nexus, Norton: 2002. Camazine, S. , Deneubourg, J. , Franks, N. , Sneyd, J. , Theraulaz, G. , & Bonabeau, E. , Self-Organization in Biological Systems, Princeton: 2001. Duda, R. , Pattern Classification, 2 nd ed. , Wiley: 2001. Epxtein, J. & Axtell, R. , Growing Artificial Societies, MIT Press: 1996. Flood, R. & Carson, E. , Dealing With Complexity: An Introduction to the Theory and Application of Systems Science, Plenum Press: 1988. Gleick, J. , Chaos: Making a New Science, Penguin Books: 1987. Hollland, J. , Hidden Order, Perseus Books: 1995. Johnson, S. , Emergence, Scribner: 2001. 89 © 2005 IBM Corporation

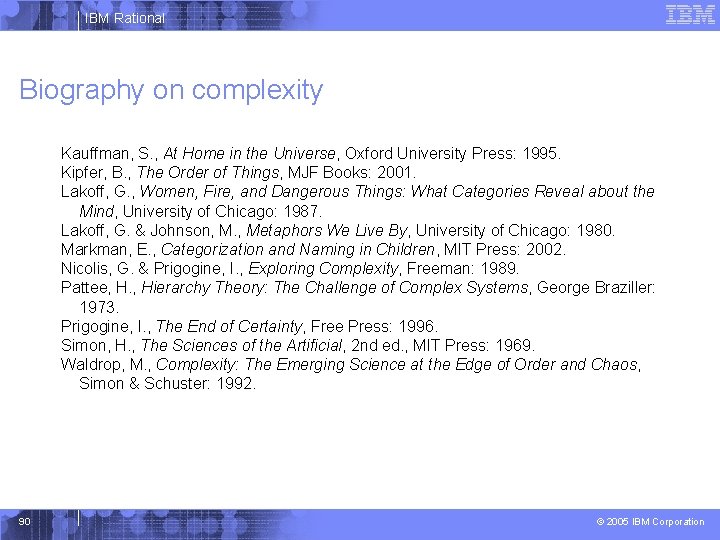

IBM Rational Biography on complexity Kauffman, S. , At Home in the Universe, Oxford University Press: 1995. Kipfer, B. , The Order of Things, MJF Books: 2001. Lakoff, G. , Women, Fire, and Dangerous Things: What Categories Reveal about the Mind, University of Chicago: 1987. Lakoff, G. & Johnson, M. , Metaphors We Live By, University of Chicago: 1980. Markman, E. , Categorization and Naming in Children, MIT Press: 2002. Nicolis, G. & Prigogine, I. , Exploring Complexity, Freeman: 1989. Pattee, H. , Hierarchy Theory: The Challenge of Complex Systems, George Braziller: 1973. Prigogine, I. , The End of Certainty, Free Press: 1996. Simon, H. , The Sciences of the Artificial, 2 nd ed. , MIT Press: 1969. Waldrop, M. , Complexity: The Emerging Science at the Edge of Order and Chaos, Simon & Schuster: 1992. 90 © 2005 IBM Corporation
IBM Rational Thank you! 91 © 2005 IBM Corporation
