Understanding ContentionBased Channels and Using Them for Defense
Understanding Contention-Based Channels and Using Them for Defense Casen Hunger Alex Dimakis Ankit Rawat Mikhail Kazdagli Mohit Tiwari Sriram Vishwanath HPCA 2015 The University of Texas at Austin

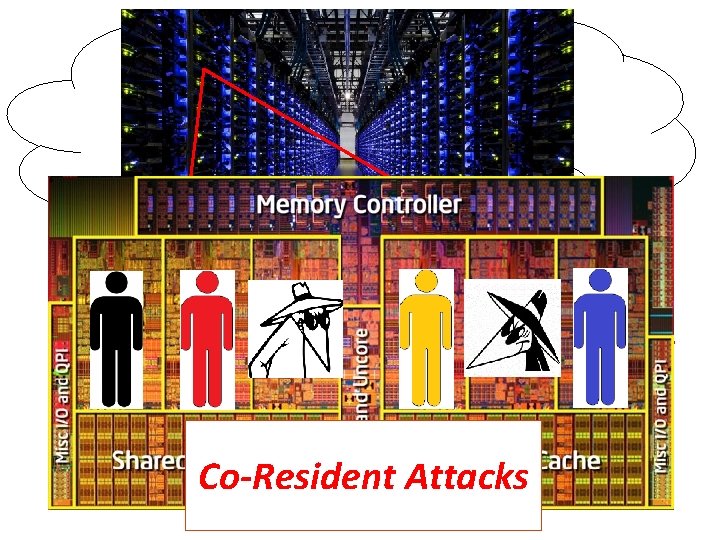

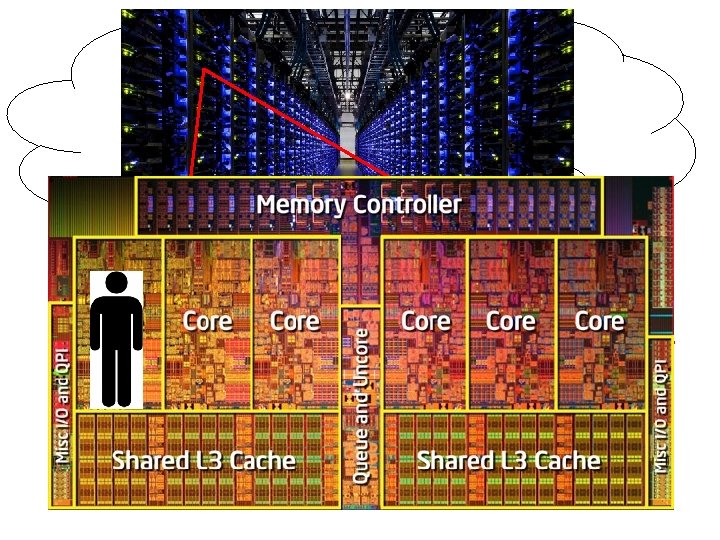

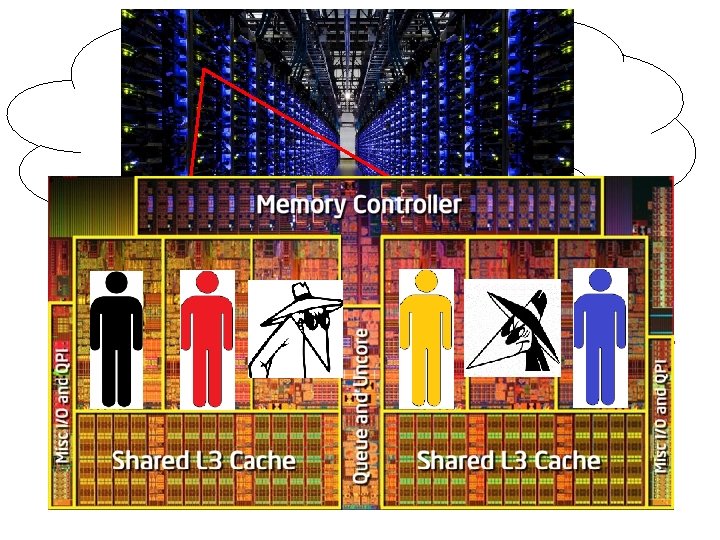

Co-Resident Attacks

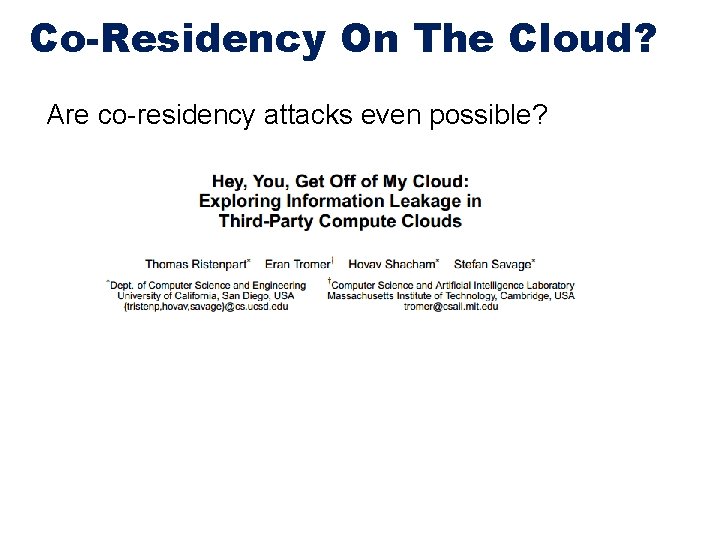

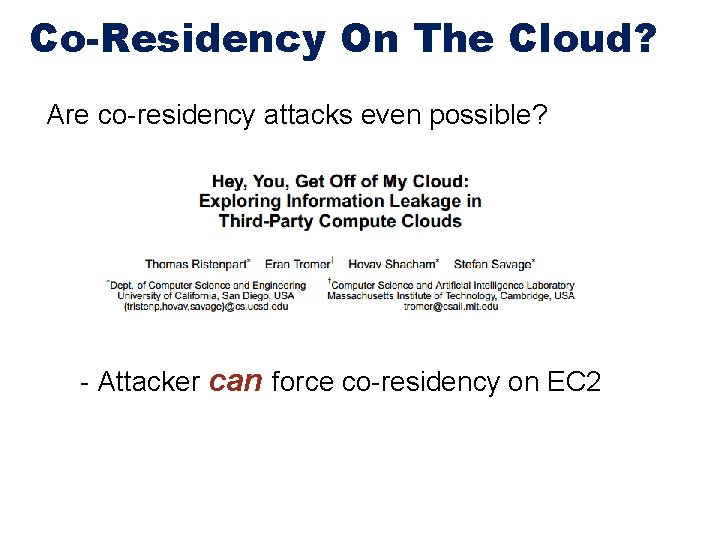

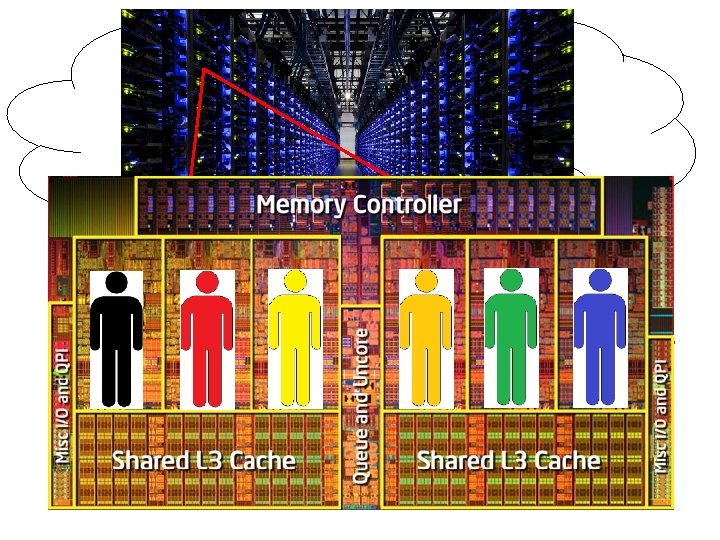

Co-Residency On The Cloud? Are co-residency attacks even possible?
Co-Residency On The Cloud? Are co-residency attacks even possible?
Co-Residency On The Cloud? Are co-residency attacks even possible? - Attacker can force co-residency on EC 2
Co-Residency On The Cloud? Are co-residency attacks even possible? - Attacker can force co-residency on EC 2 - Attacker can verify co-residency

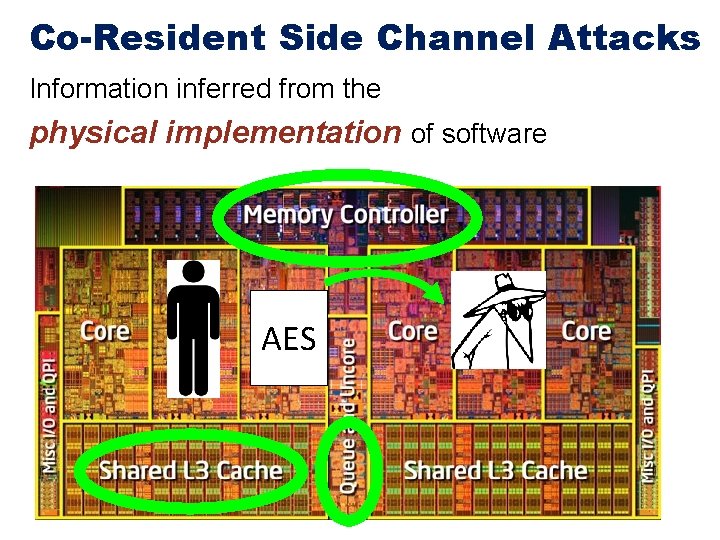

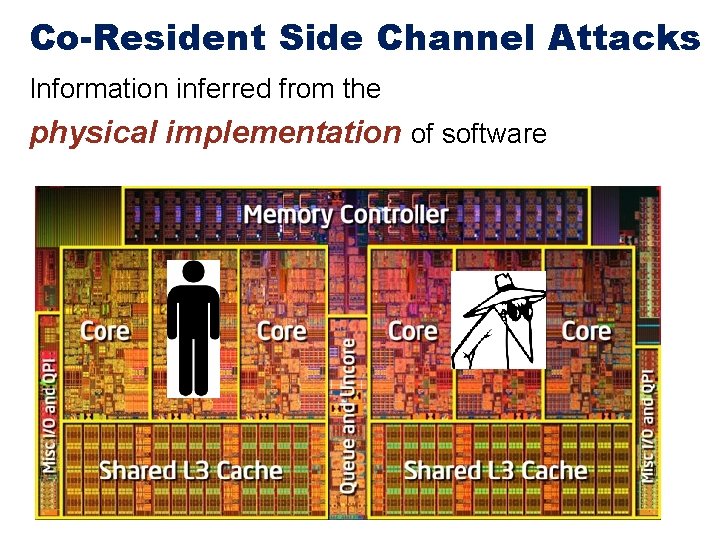

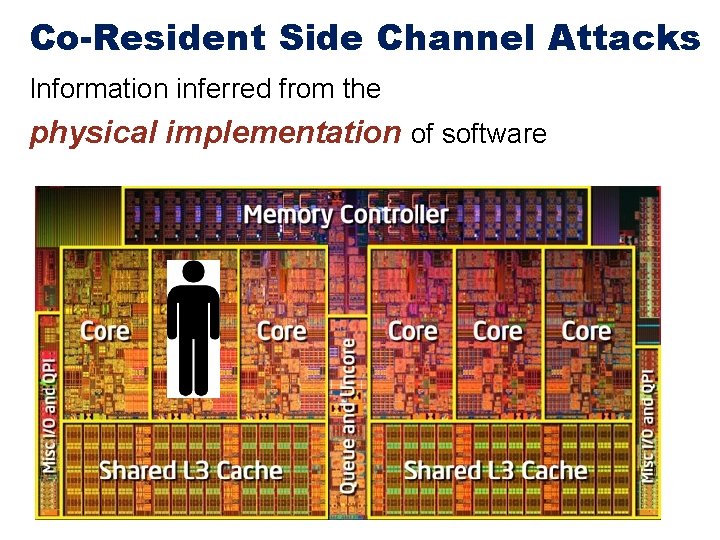

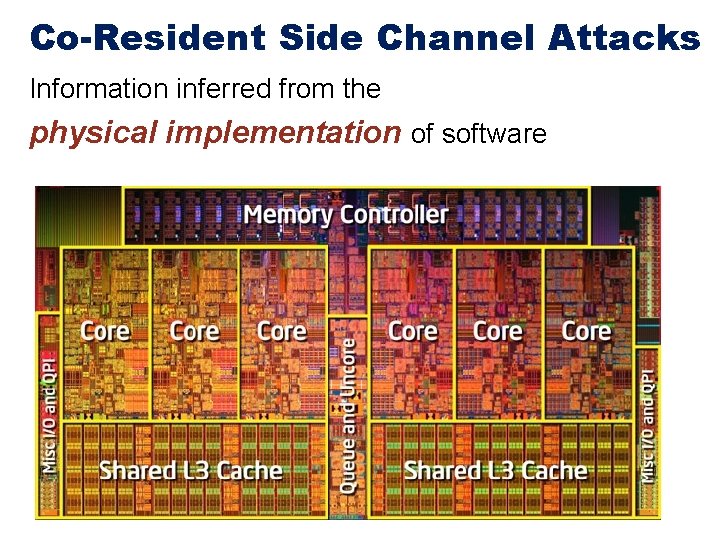

Co-Resident Side Channel Attacks Information inferred from the physical implementation of software
Co-Resident Side Channel Attacks Information inferred from the physical implementation of software
Co-Resident Side Channel Attacks Information inferred from the physical implementation of software
Co-Resident Side Channel Attacks Information inferred from the physical implementation of software AES
Co-Resident Side Channel Attacks Information inferred from the physical implementation of software AES
Co-Resident Side Channel Attacks Information inferred from the physical implementation of software AES
Co-Resident Side Channel Attacks Information inferred from the physical implementation of software AES

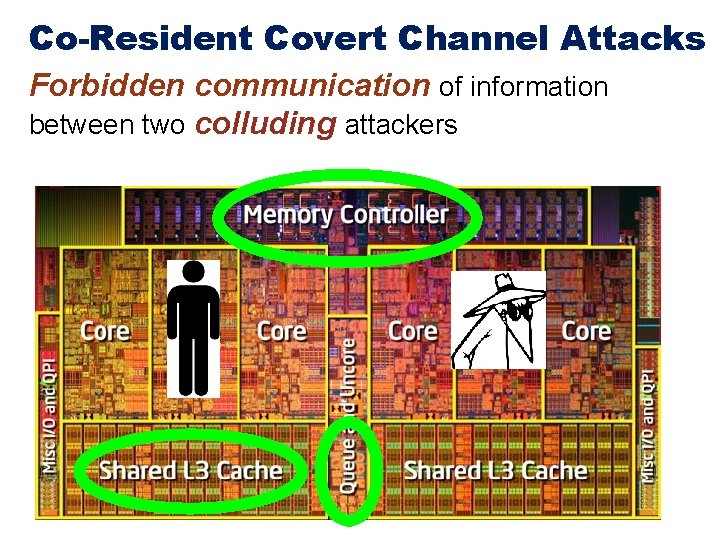

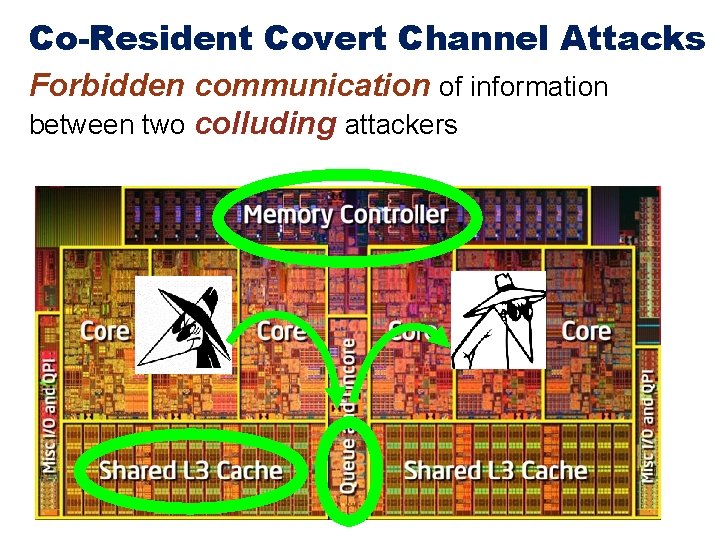

Co-Resident Covert Channel Attacks Forbidden communication of information between two colluding attackers
Co-Resident Covert Channel Attacks Forbidden communication of information between two colluding attackers
Co-Resident Covert Channel Attacks Forbidden communication of information between two colluding attackers

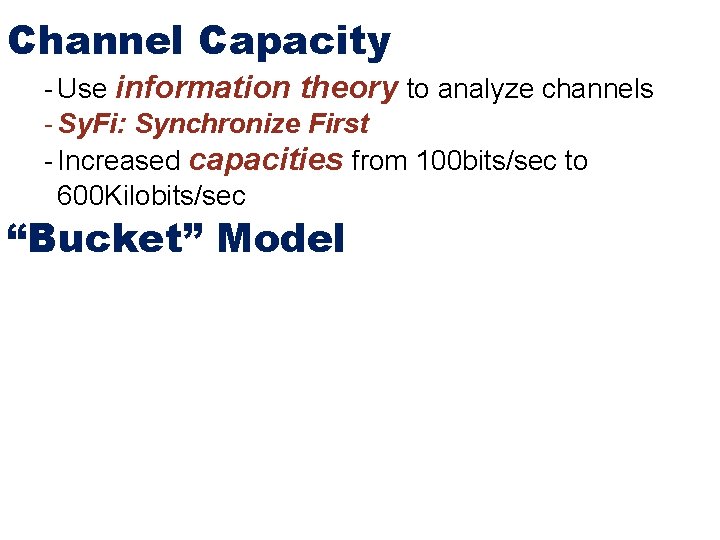

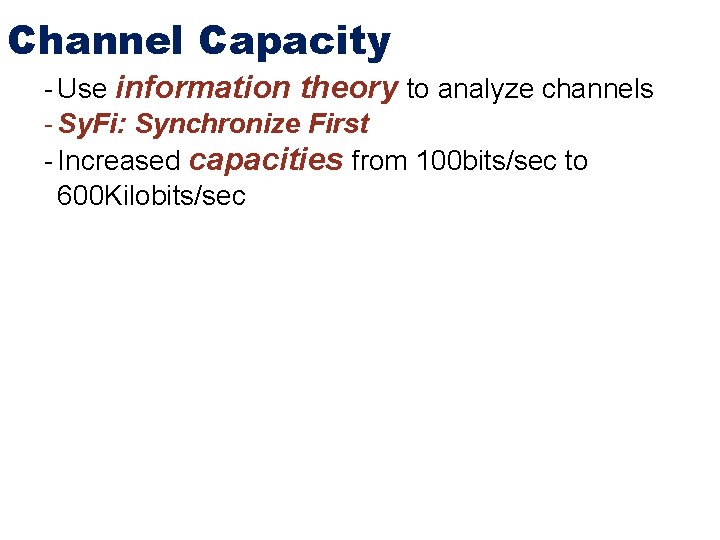

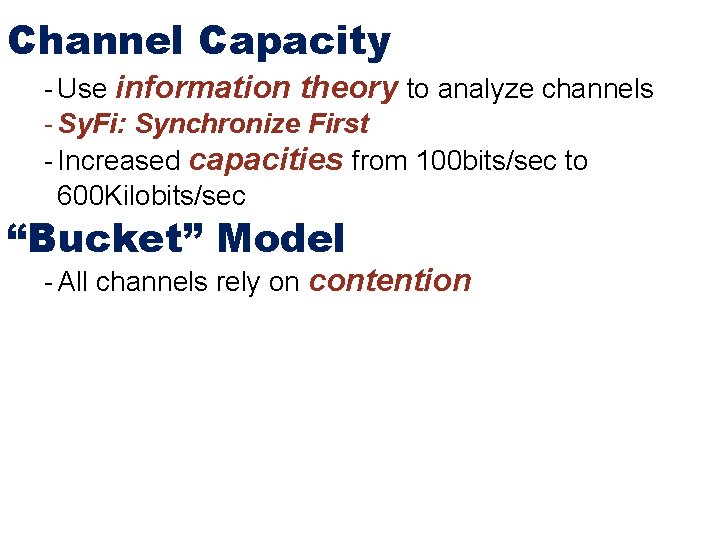

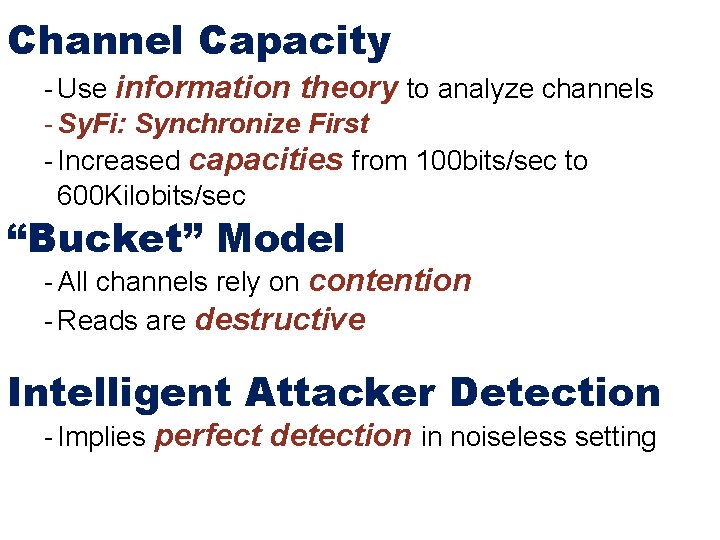

Channel Capacity
Channel Capacity - Use information theory to analyze channels
Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First
Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bits/sec to 600 Kilobits/sec
Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bits/sec to 600 Kilobits/sec “Bucket” Model
Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bits/sec to 600 Kilobits/sec “Bucket” Model - All channels rely on contention

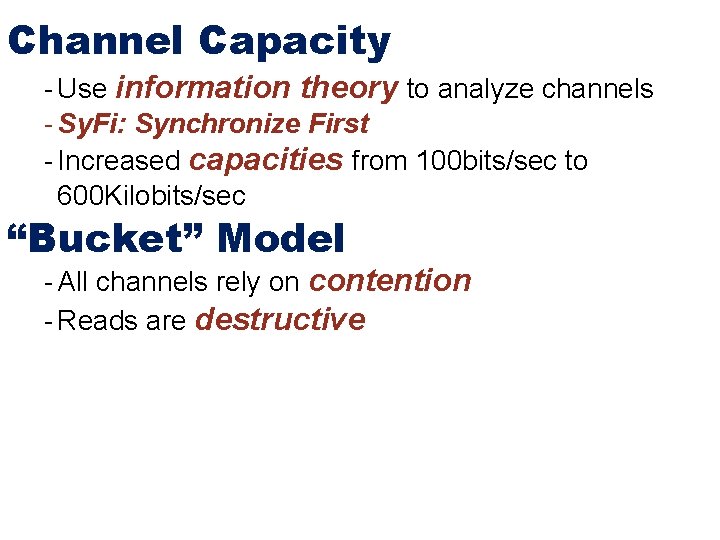

Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bits/sec to 600 Kilobits/sec “Bucket” Model - All channels rely on contention - Reads are destructive
Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bits/sec to 600 Kilobits/sec “Bucket” Model - All channels rely on contention - Reads are destructive Intelligent Attacker Detection
Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bits/sec to 600 Kilobits/sec “Bucket” Model - All channels rely on contention - Reads are destructive Intelligent Attacker Detection - Implies perfect detection in noiseless setting
Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bits/sec to 600 Kilobits/sec “Bucket” Model - All channels rely on contention - Reads are destructive Intelligent Attacker Detection - Implies perfect detection in noiseless setting - Model detection as a game: Detector wins

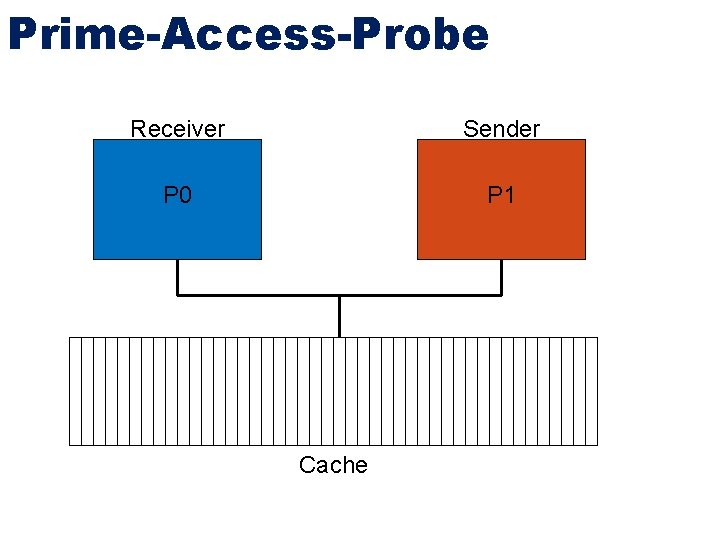

Prime-Access-Probe Receiver Sender P 0 P 1 Cache
Prime-Access-Probe Step 1) Receiver primes the cache Receiver Sender P 0 P 1 Cache
Prime-Access-Probe Step 2) Sender accesses the cache to communicate Receiver Sender P 0 P 1 Cache
Prime-Access-Probe Step 2) Sender accesses the cache to communicate Receiver Sender P 0 P 1 Cache

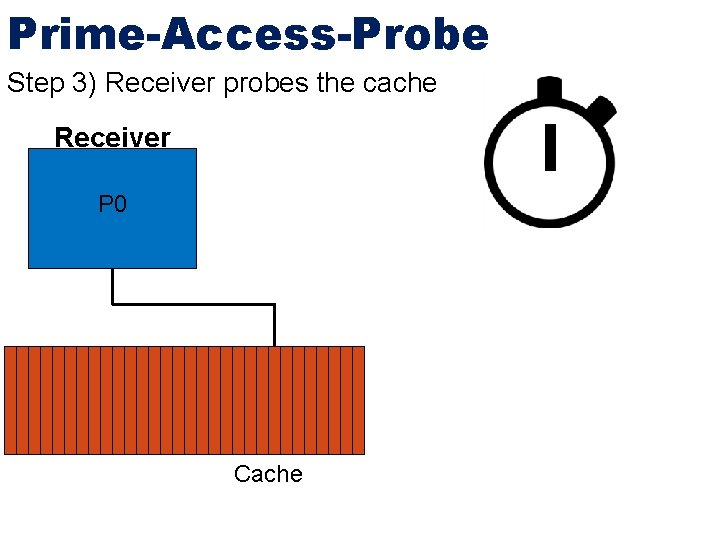

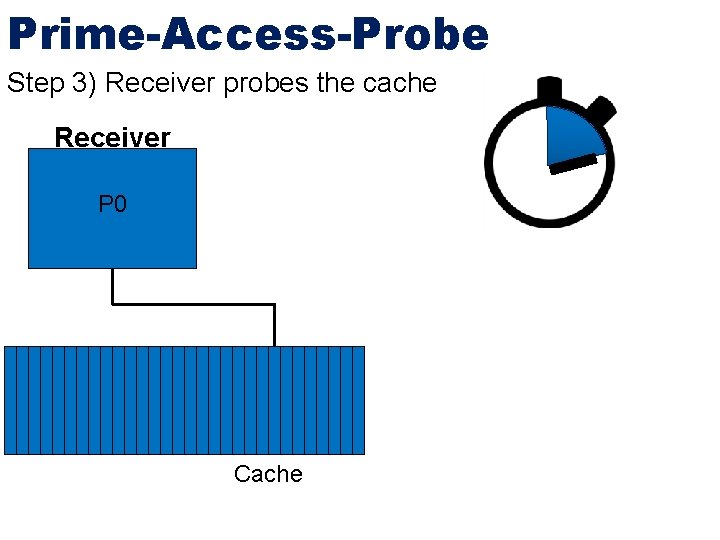

Prime-Access-Probe Step 3) Receiver probes the cache Receiver P 0 Cache
Prime-Access-Probe Step 3) Receiver probes the cache Receiver P 0 Cache
Prime-Access-Probe Step 3) Receiver probes the cache Receiver P 0 Yes 1 Sent Cache > Average? No 0 Sent

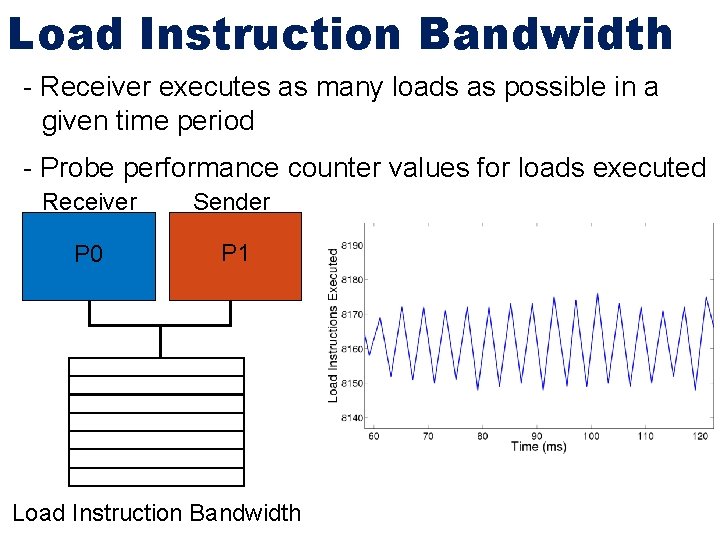

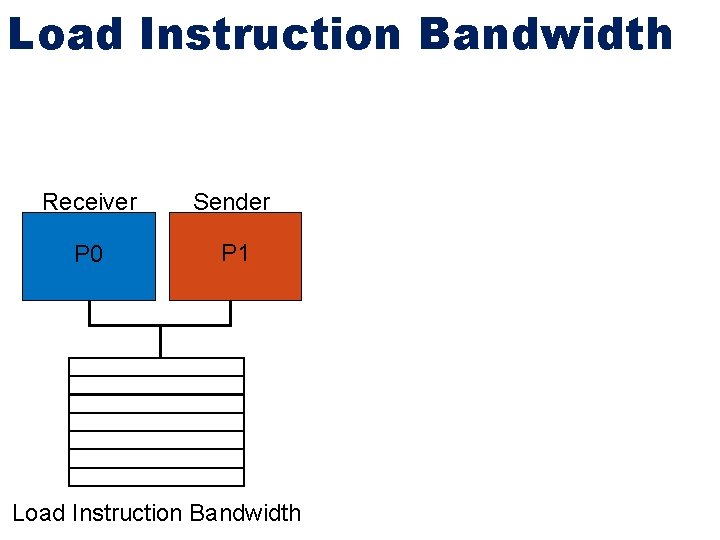

Load Instruction Bandwidth Receiver Sender P 0 P 1 Load Instruction Bandwidth
Load Instruction Bandwidth - Receiver executes as many loads as possible in a given time period Receiver Sender P 0 P 1 Load Instruction Bandwidth
Load Instruction Bandwidth - Receiver executes as many loads as possible in a given time period - Probe performance counter values for loads executed Receiver Sender P 0 P 1 Load Instruction Bandwidth
Load Instruction Bandwidth - Receiver executes as many loads as possible in a given time period - Probe performance counter values for loads executed Receiver Sender P 0 P 1 Load Instruction Bandwidth

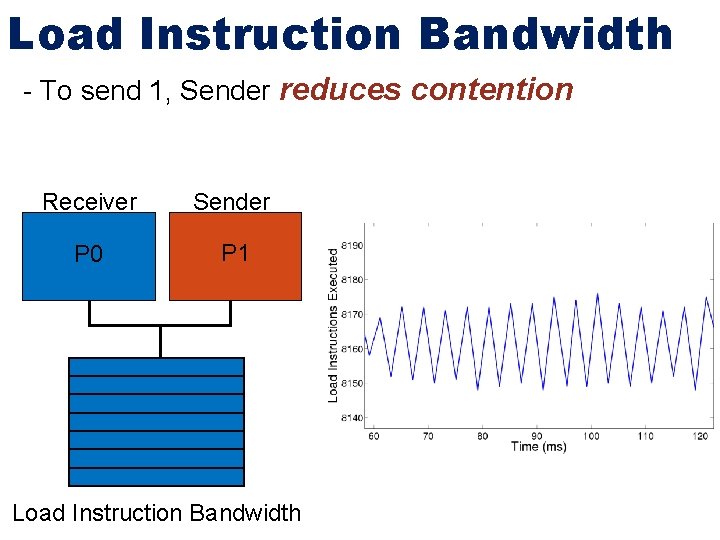

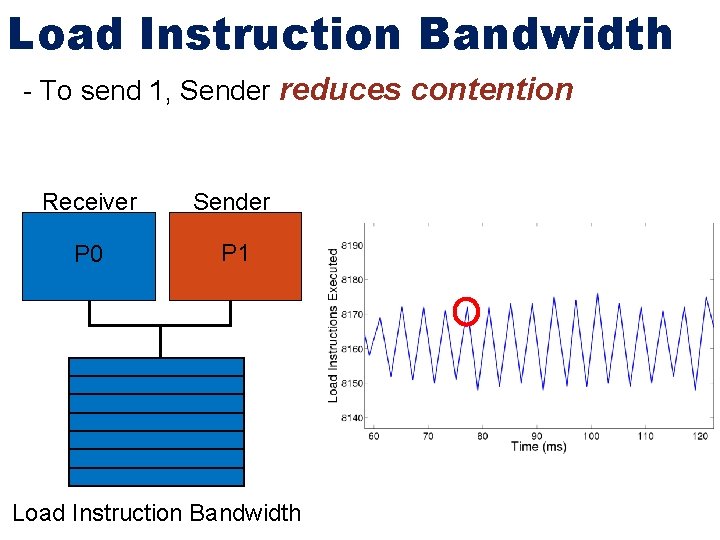

Load Instruction Bandwidth - To send 1, Sender reduces contention Receiver Sender P 0 P 1 Load Instruction Bandwidth
Load Instruction Bandwidth - To send 1, Sender reduces contention Receiver Sender P 0 P 1 Load Instruction Bandwidth

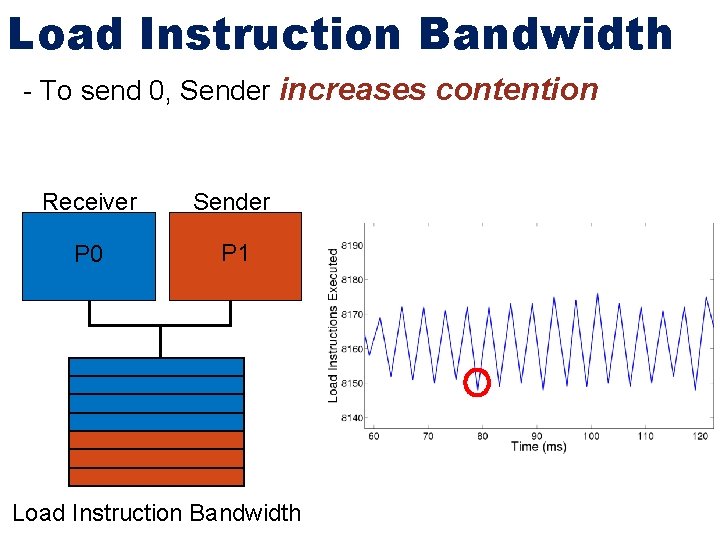

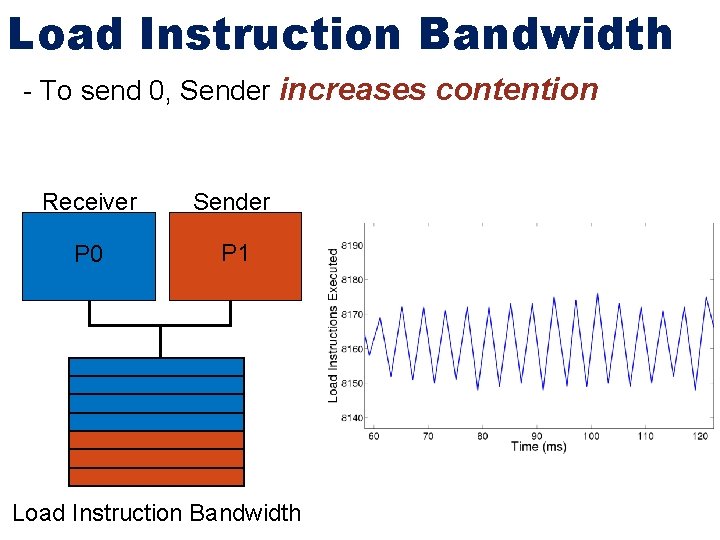

Load Instruction Bandwidth - To send 0, Sender increases contention Receiver Sender P 0 P 1 Load Instruction Bandwidth
Load Instruction Bandwidth - To send 0, Sender increases contention Receiver Sender P 0 P 1 Load Instruction Bandwidth
Additional Channels - L 1, L 2, L 3 Cache Access Driven L 3 (Set Specific) Branch History Table Memory Bus
Additional Channels - L 1, L 2, L 3 Cache Access Driven L 3 (Set Specific) Branch History Table Memory Bus Load/Store Bandwidth AES Encryption Unit

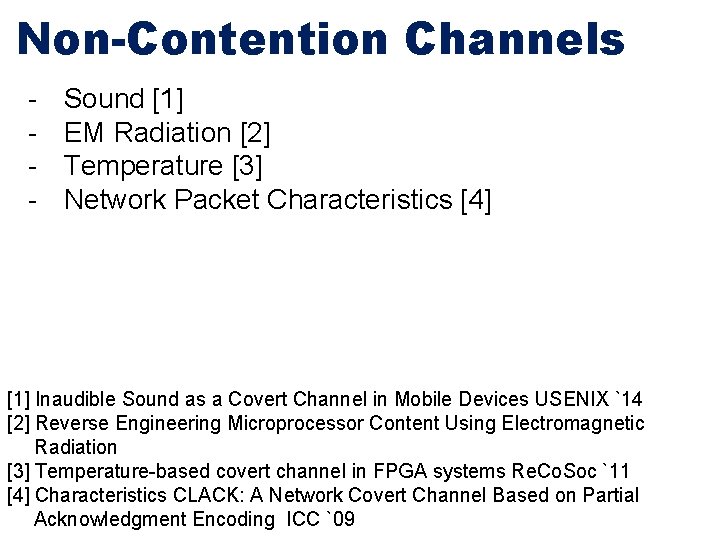

Non-Contention Channels - Sound [1] EM Radiation [2] Temperature [3] Network Packet Characteristics [4] [1] Inaudible Sound as a Covert Channel in Mobile Devices USENIX `14 [2] Reverse Engineering Microprocessor Content Using Electromagnetic Radiation [3] Temperature-based covert channel in FPGA systems Re. Co. Soc `11 [4] Characteristics CLACK: A Network Covert Channel Based on Partial Acknowledgment Encoding ICC `09

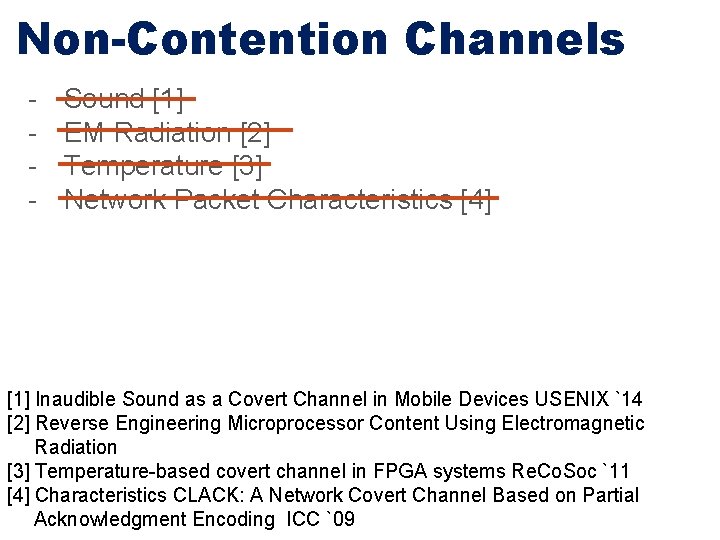

Non-Contention Channels - Sound [1] EM Radiation [2] Temperature [3] Network Packet Characteristics [4] [1] Inaudible Sound as a Covert Channel in Mobile Devices USENIX `14 [2] Reverse Engineering Microprocessor Content Using Electromagnetic Radiation [3] Temperature-based covert channel in FPGA systems Re. Co. Soc `11 [4] Characteristics CLACK: A Network Covert Channel Based on Partial Acknowledgment Encoding ICC `09
Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bits/sec to 600 Kilobits/sec “Bucket” Model - All channels rely on contention - Reads are destructive Intelligent Attacker Detection - Implies perfect detection in noiseless setting - Model detection as a game: Detector wins
Communication Issues
Communication Issues Drift in absolute value ft i h S
Communication Issues Drift in absolute value Deletion of Bits Deletions

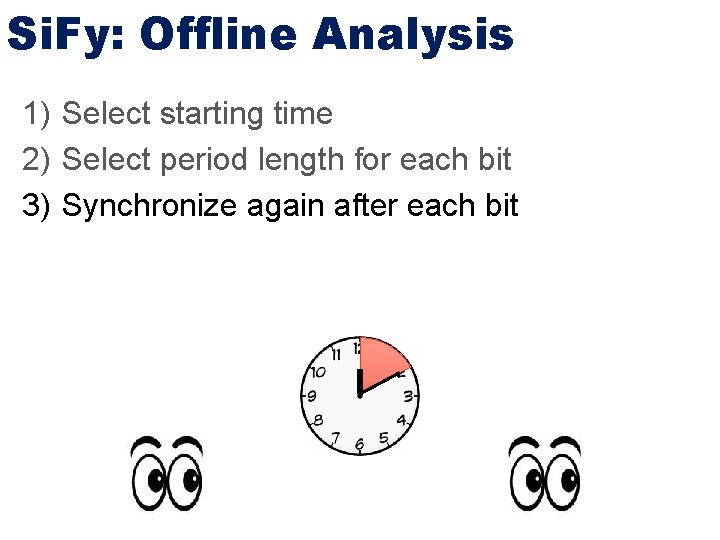

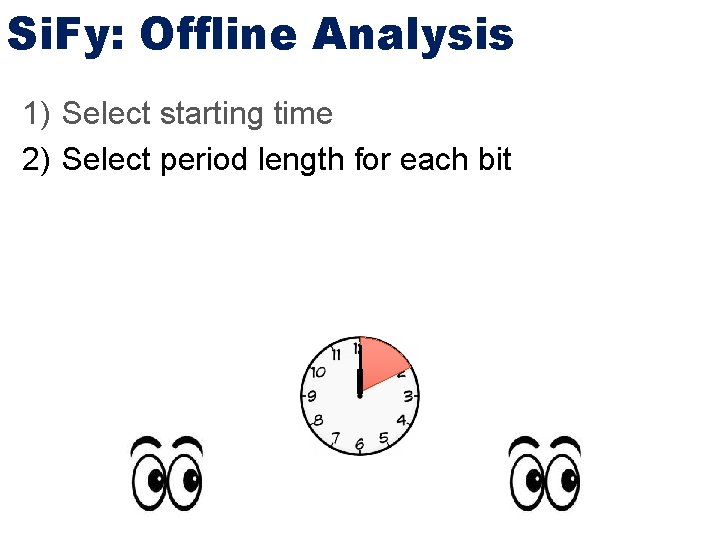

Si. Fy: Offline Analysis

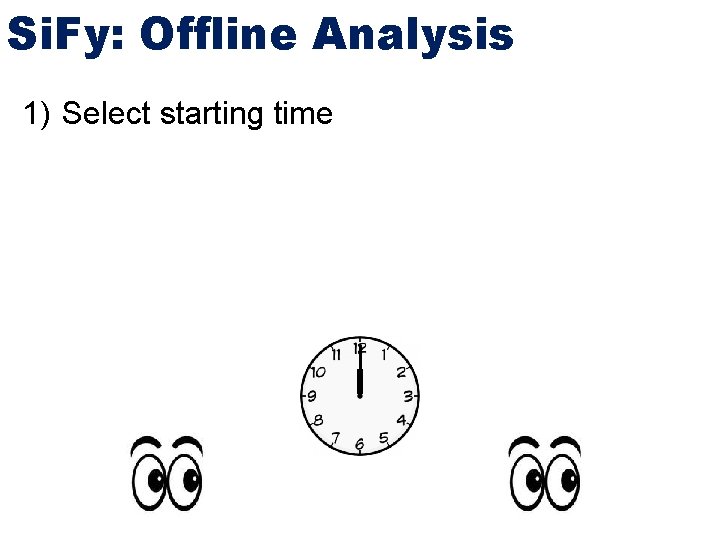

Si. Fy: Offline Analysis 1) Select starting time
Si. Fy: Offline Analysis 1) Select starting time 2) Select period length for each bit
Si. Fy: Offline Analysis 1) Select starting time 2) Select period length for each bit 3) Synchronize again after each bit

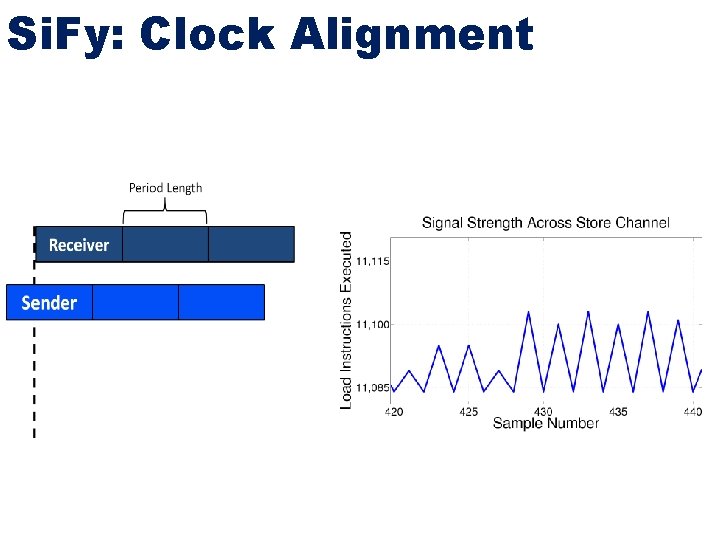

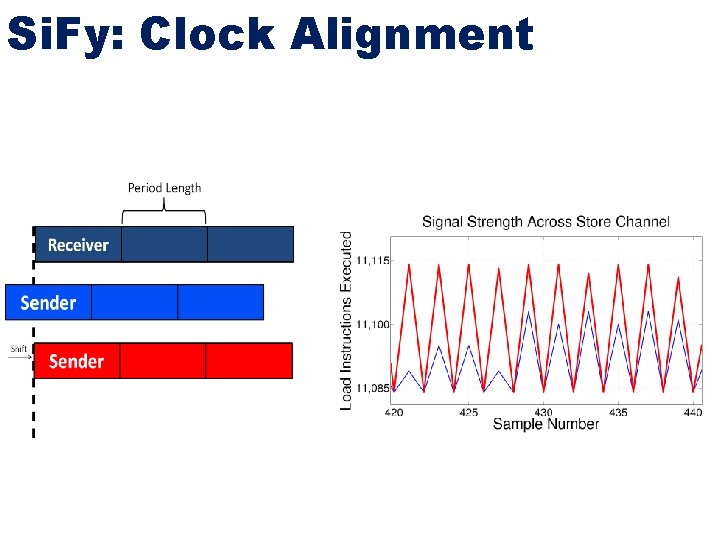

Si. Fy: Clock Alignment

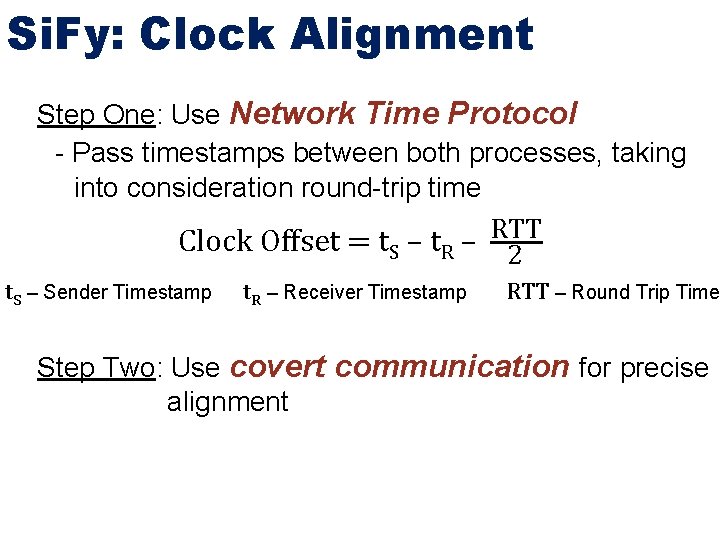

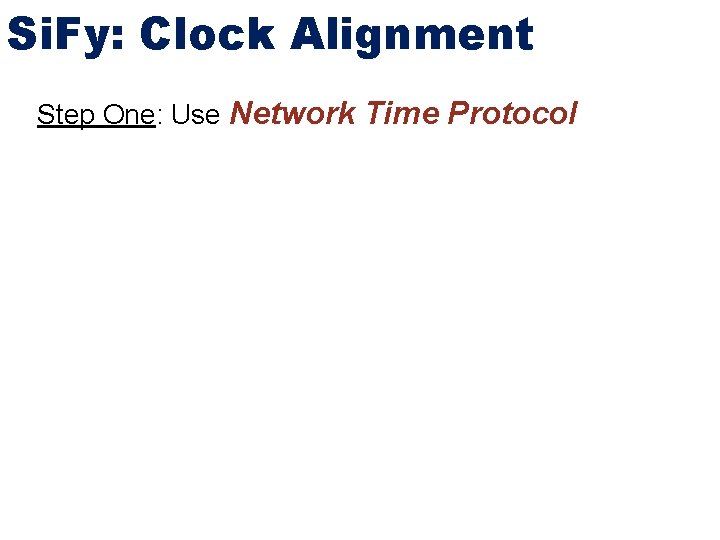

Si. Fy: Clock Alignment Step One: Use Network Time Protocol

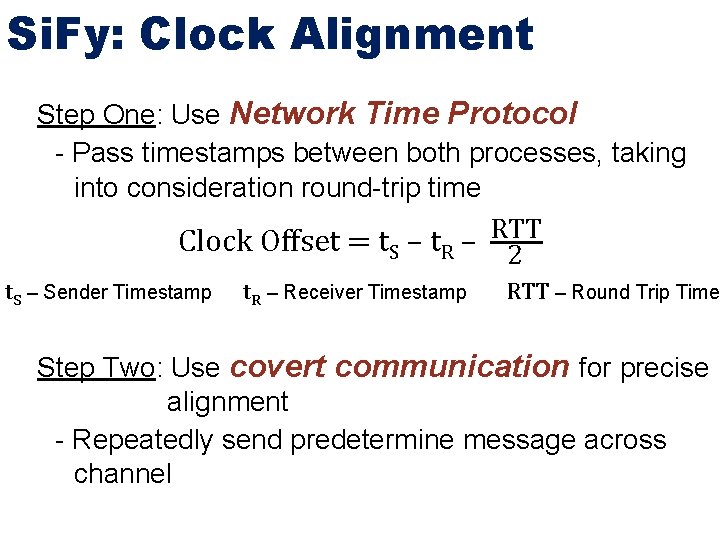

Si. Fy: Clock Alignment Step One: Use Network Time Protocol - Pass timestamps between both processes, taking into consideration round-trip time

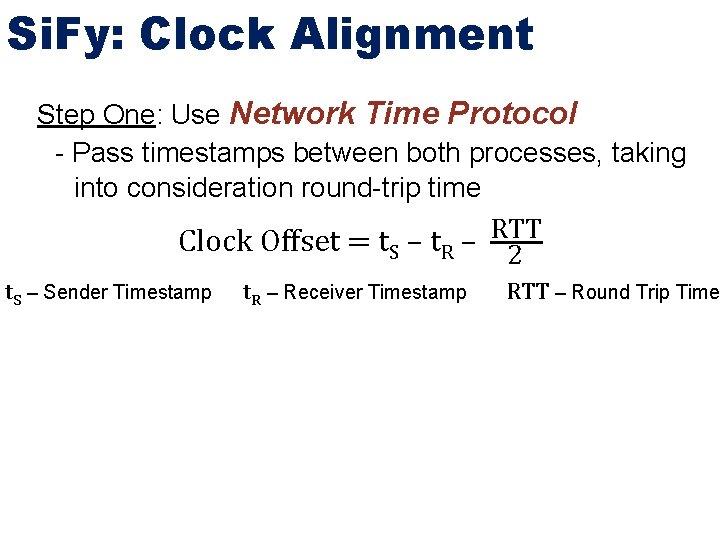

Si. Fy: Clock Alignment Step One: Use Network Time Protocol - Pass timestamps between both processes, taking into consideration round-trip time RTT Clock Offset = t. S – t. R – RTT 2 t. S – Sender Timestamp t. R – Receiver Timestamp RTT – Round Trip Time
Si. Fy: Clock Alignment Step One: Use Network Time Protocol - Pass timestamps between both processes, taking into consideration round-trip time RTT Clock Offset = t. S – t. R – RTT 2 t. S – Sender Timestamp t. R – Receiver Timestamp RTT – Round Trip Time Step Two: Use covert communication for precise alignment
Si. Fy: Clock Alignment Step One: Use Network Time Protocol - Pass timestamps between both processes, taking into consideration round-trip time RTT Clock Offset = t. S – t. R – RTT 2 t. S – Sender Timestamp t. R – Receiver Timestamp RTT – Round Trip Time Step Two: Use covert communication for precise alignment - Repeatedly send predetermine message across channel
Si. Fy: Clock Alignment
Si. Fy: Clock Alignment
Si. Fy: Clock Alignment

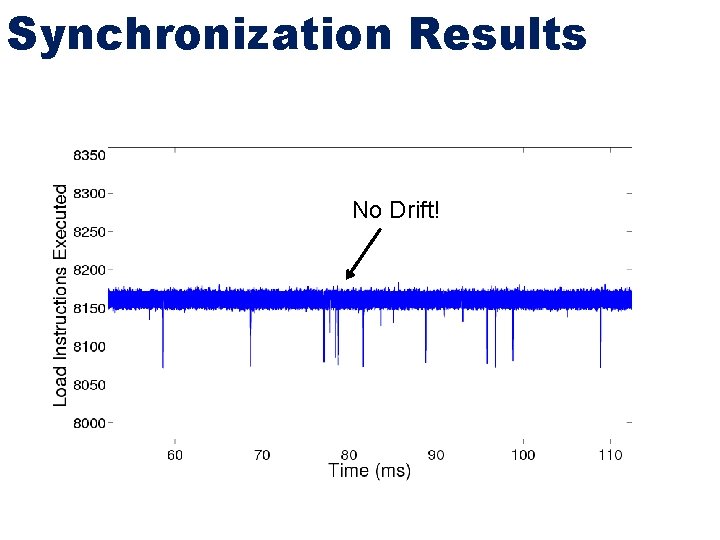

Synchronization Results No Drift!

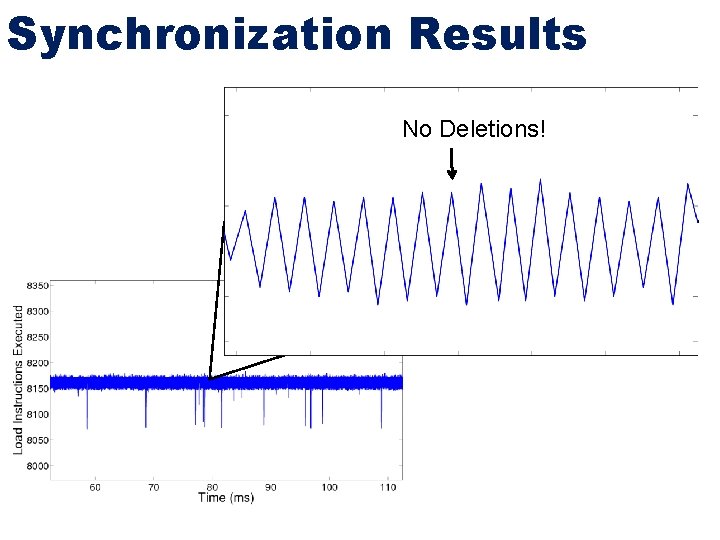

Synchronization Results No Deletions!

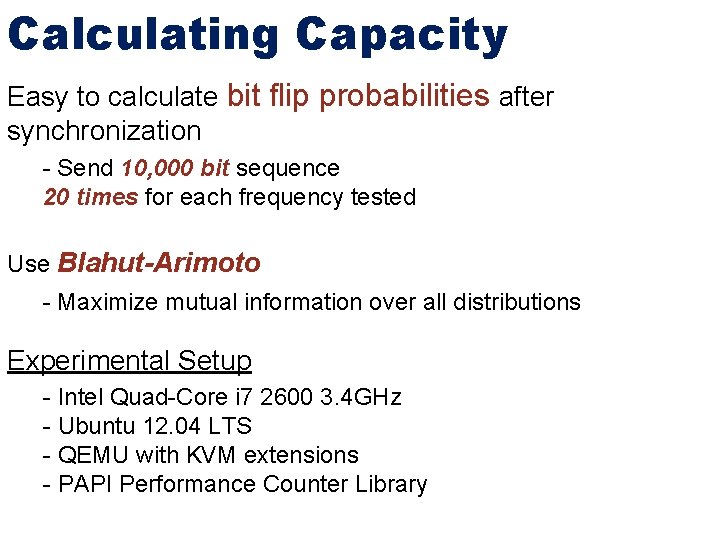

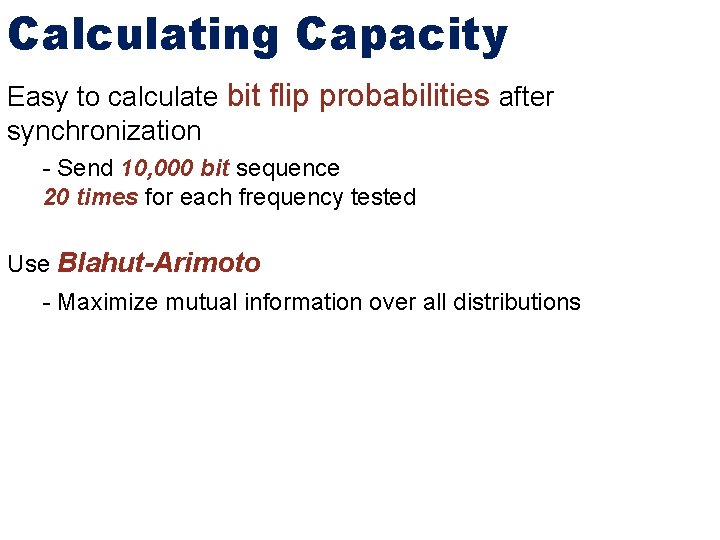

Calculating Capacity Easy to calculate bit flip probabilities after synchronization - Send 10, 000 bit sequence 20 times for each frequency tested
Calculating Capacity Easy to calculate bit flip probabilities after synchronization - Send 10, 000 bit sequence 20 times for each frequency tested Use Blahut-Arimoto - Maximize mutual information over all distributions
Calculating Capacity Easy to calculate bit flip probabilities after synchronization - Send 10, 000 bit sequence 20 times for each frequency tested Use Blahut-Arimoto - Maximize mutual information over all distributions Experimental Setup - Intel Quad-Core i 7 2600 3. 4 GHz - Ubuntu 12. 04 LTS - QEMU with KVM extensions - PAPI Performance Counter Library

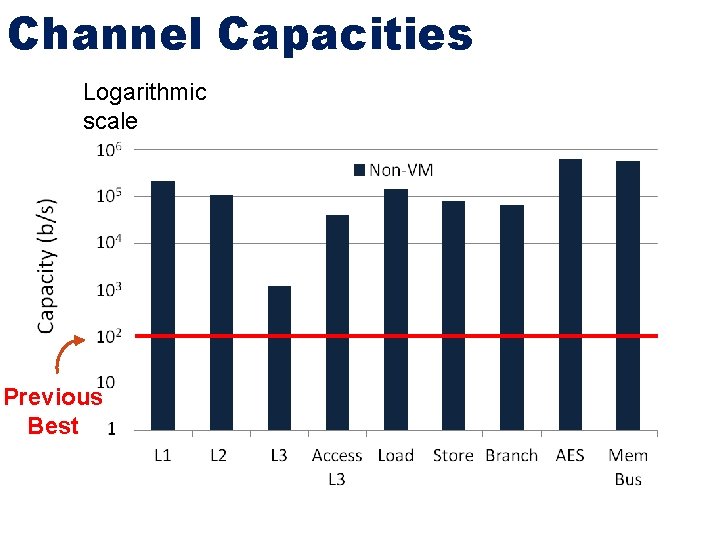

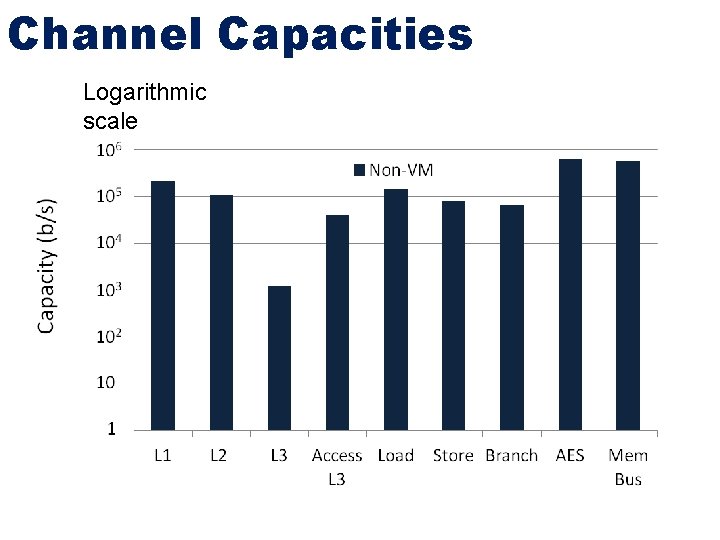

Channel Capacities Logarithmic scale
Channel Capacities Logarithmic scale Previous Best
Channel Capacities Logarithmic scale 1 Kbps Previous Best
Channel Capacities Logarithmic scale 1 Kbps Previous Best 624 Kbps
Channel Capacities
Channel Capacities - 41. 7% average decrease

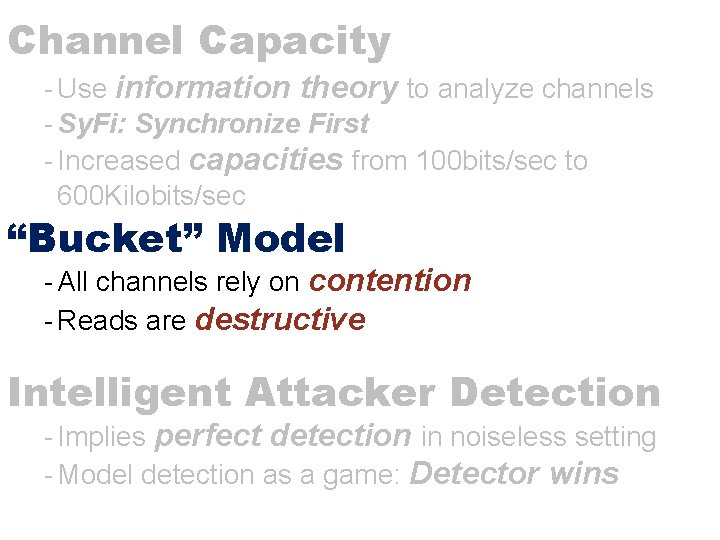

Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bits/sec to 600 Kilobits/sec “Bucket” Model - All channels rely on contention - Reads are destructive Intelligent Attacker Detection - Implies perfect detection in noiseless setting - Model detection as a game: Detector wins
Bucket Model Alice Bob
Bucket Model Alice Bob
Bucket Model Alice Primitives Write your colored water to the bucket - Displaces previous water Bob

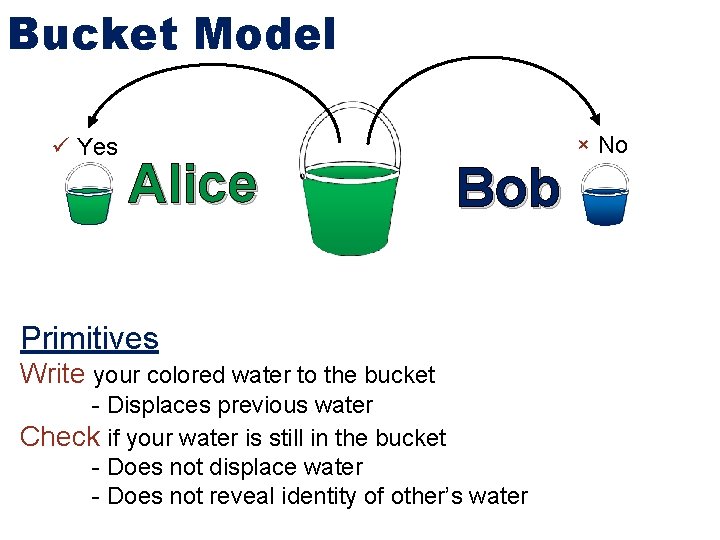

Bucket Model Yes Alice Bob Primitives Write your colored water to the bucket - Displaces previous water Check if your water is still in the bucket - Does not displace water - Does not reveal identity of other’s water × No

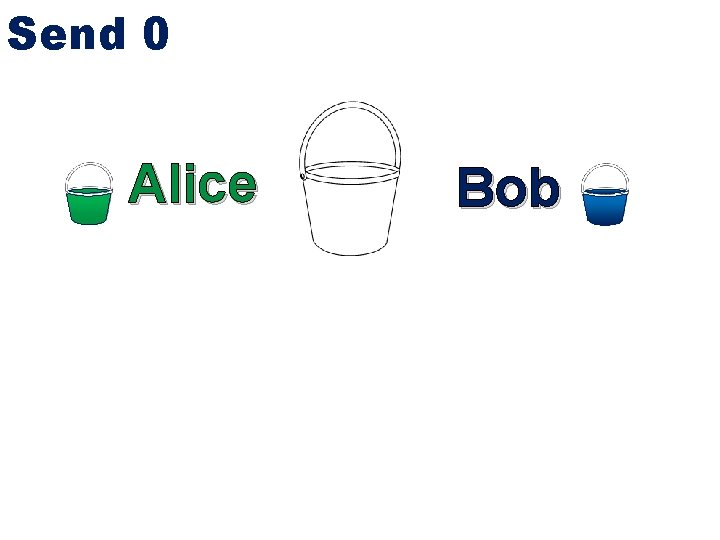

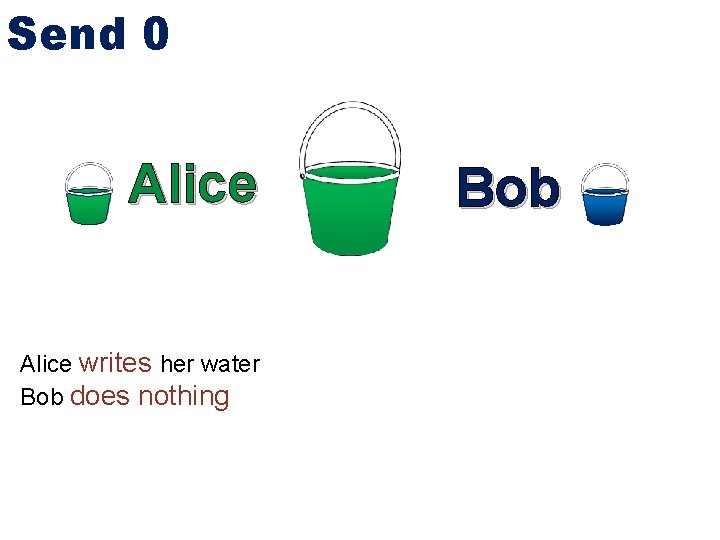

Send 0 Alice Bob

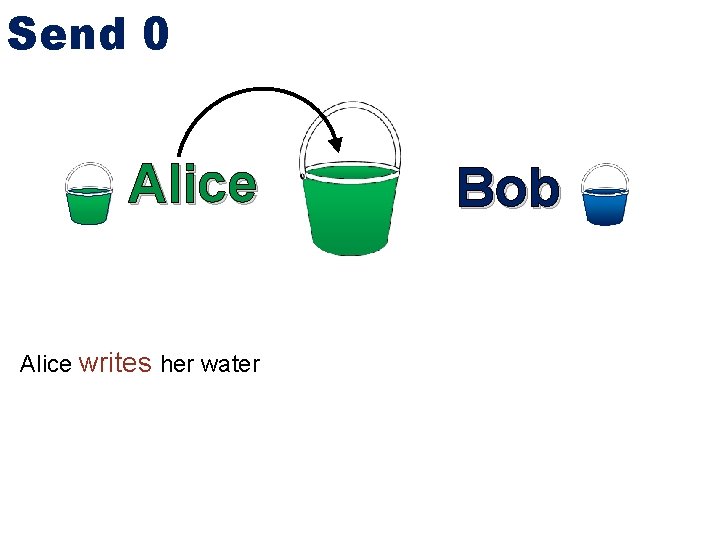

Send 0 Alice writes her water Bob
Send 0 Alice writes her water Bob does nothing Bob

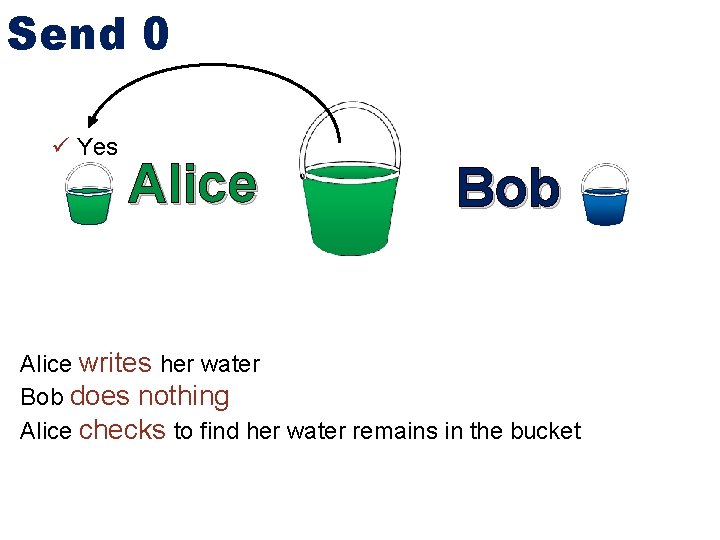

Send 0 Yes Alice Bob Alice writes her water Bob does nothing Alice checks to find her water remains in the bucket
Send 1 Alice writes her water Bob
Send 1 Alice writes her water Bob writes his water Bob

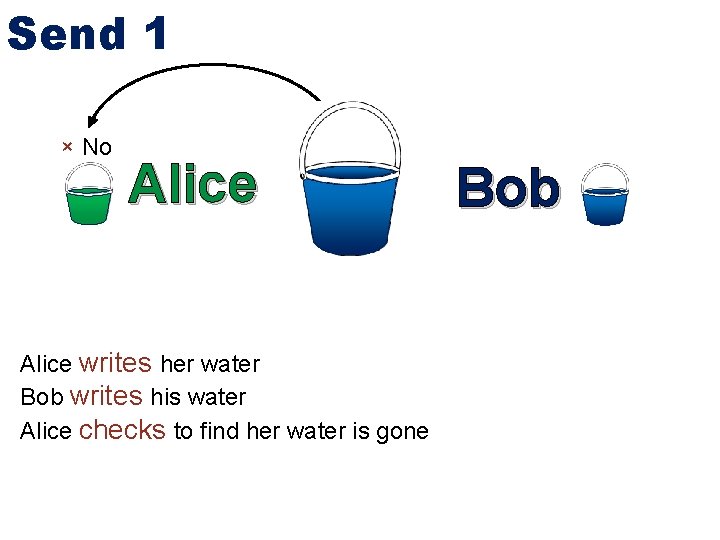

Send 1 × No Alice writes her water Bob writes his water Alice checks to find her water is gone Bob

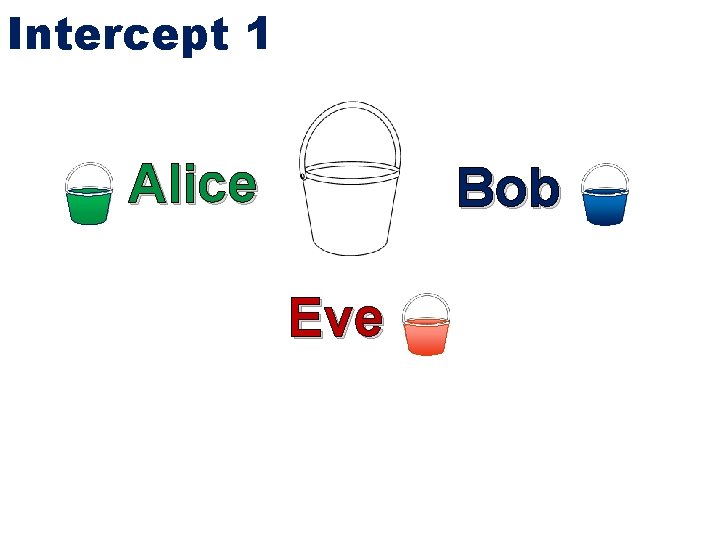

Intercept 1 Alice Bob Eve
Intercept 1 Alice writes her water Bob Eve

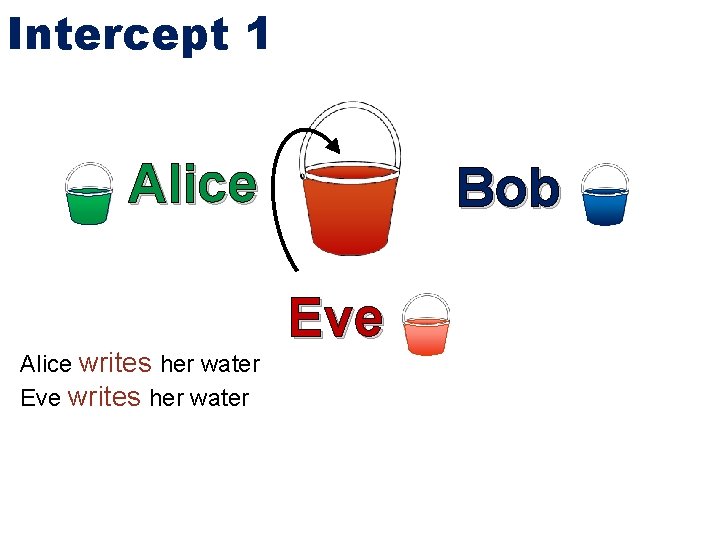

Intercept 1 Alice writes her water Eve writes her water Bob Eve

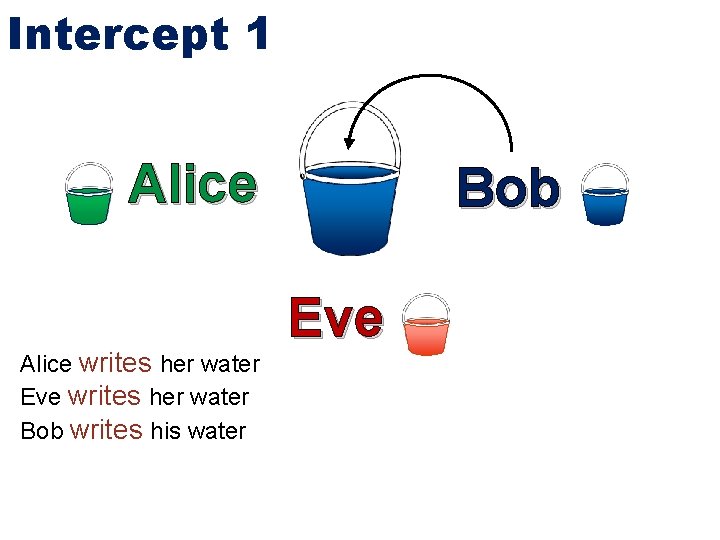

Intercept 1 Alice writes her water Eve writes her water Bob writes his water Bob Eve

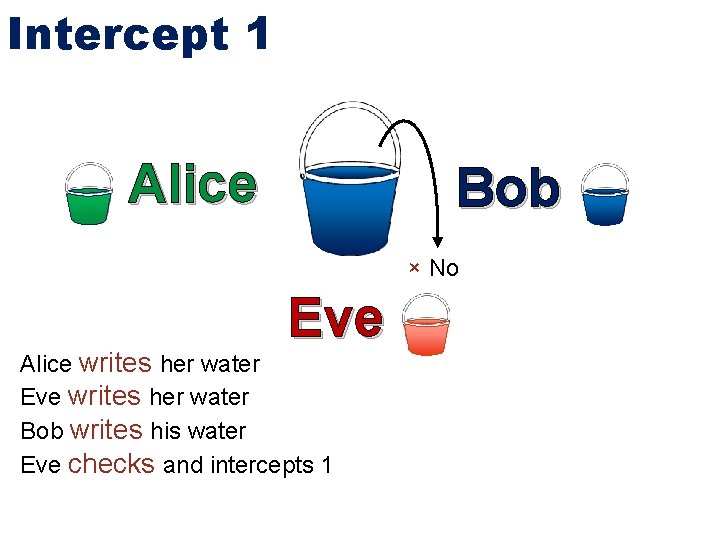

Intercept 1 Alice Bob × No Eve Alice writes her water Eve writes her water Bob writes his water Eve checks and intercepts 1

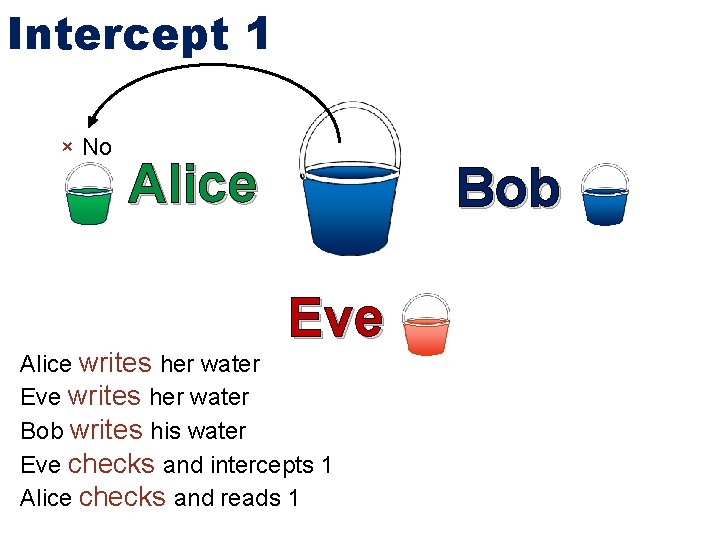

Intercept 1 × No Alice Bob Eve Alice writes her water Eve writes her water Bob writes his water Eve checks and intercepts 1 Alice checks and reads 1

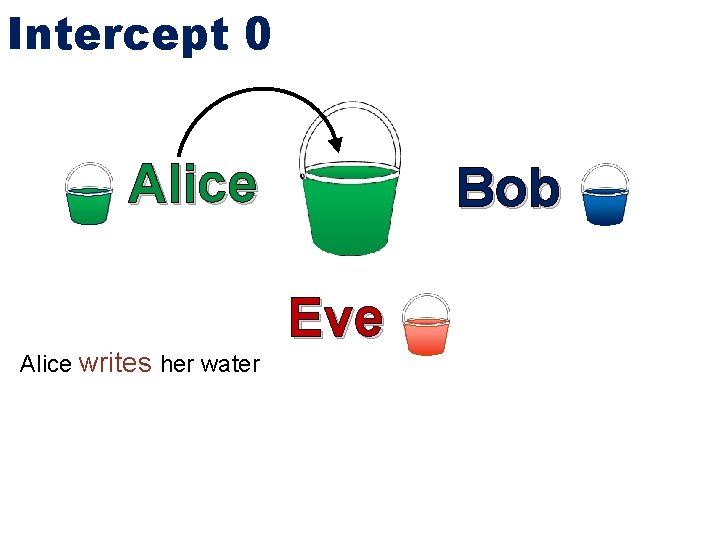

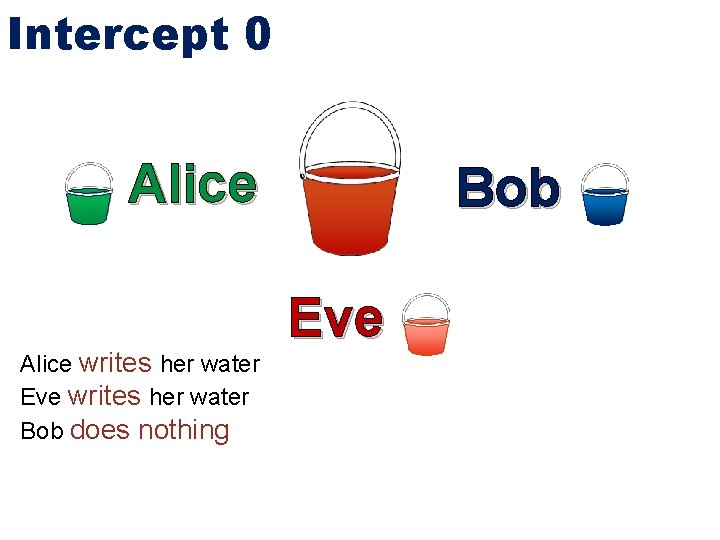

Intercept 0 Alice writes her water Bob Eve

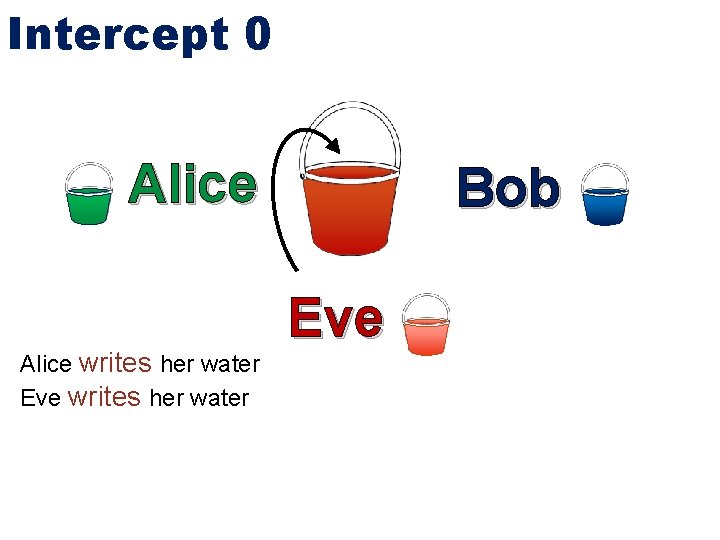

Intercept 0 Alice writes her water Eve writes her water Bob Eve
Intercept 0 Alice writes her water Eve writes her water Bob does nothing Bob Eve

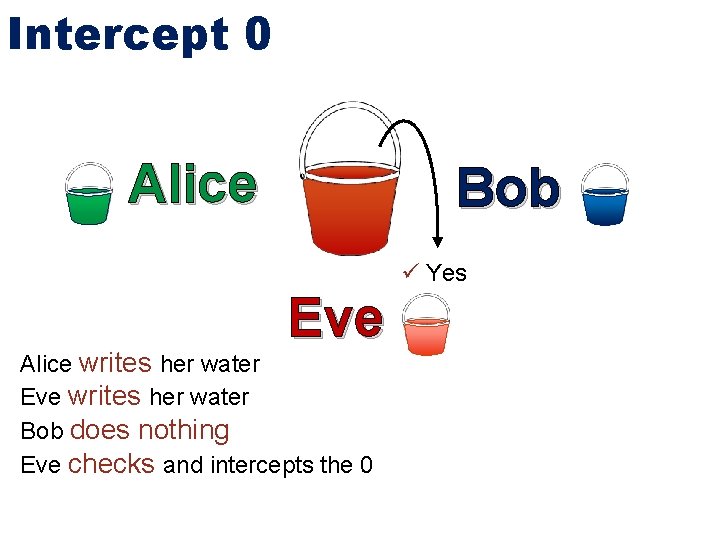

Intercept 0 Alice Bob Yes Eve Alice writes her water Eve writes her water Bob does nothing Eve checks and intercepts the 0

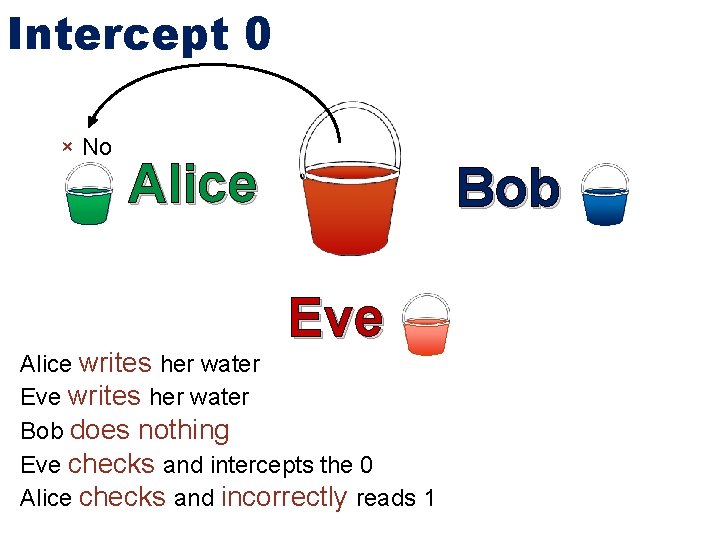

Intercept 0 × No Alice Bob Eve Alice writes her water Eve writes her water Bob does nothing Eve checks and intercepts the 0 Alice checks and incorrectly reads 1
Intercept 0 × No Alice Bob Eve Alice writes her water Eve writes her water Bob does nothing Eve checks and intercepts the 0 Alice checks and incorrectly reads 1 Reads are destructive!

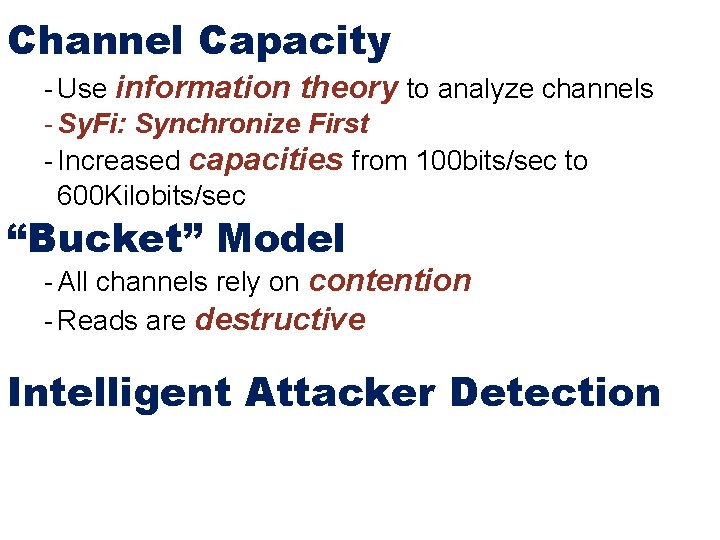

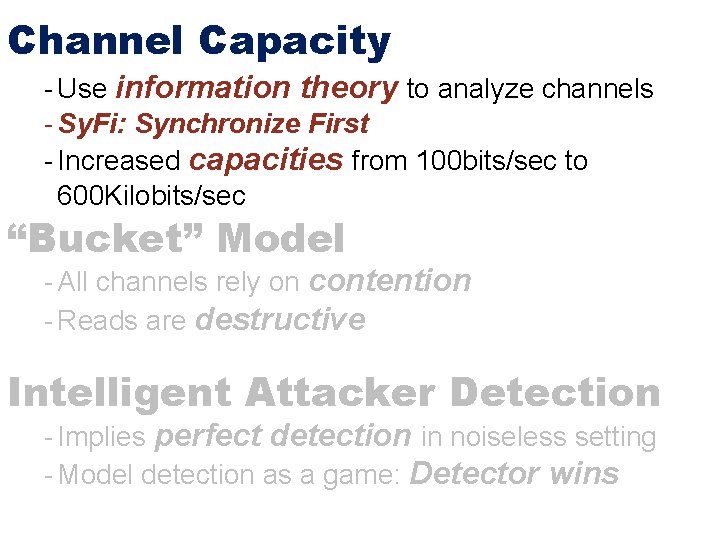

Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bits/sec to 600 Kilobits/sec “Bucket” Model - All channels rely on contention - Reads are destructive Intelligent Attacker Detection - Implies perfect detection in noiseless setting - Model detection as a game: Detector wins
Detection Game Our Detector vs an attacker (Eve)

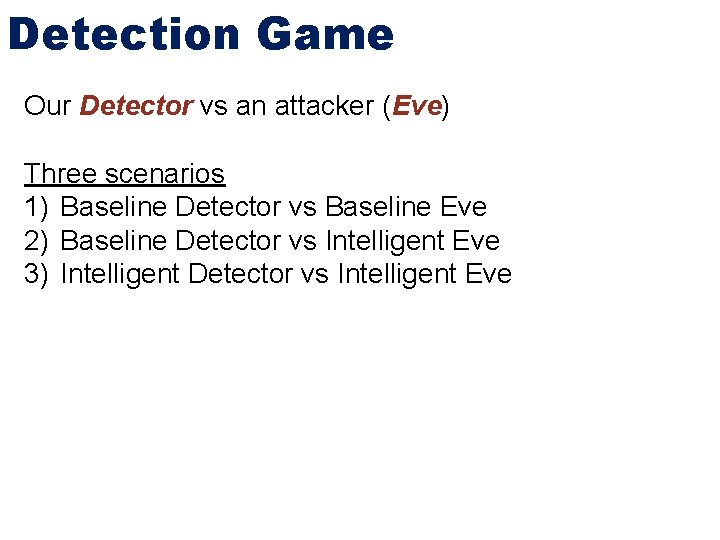

Detection Game Our Detector vs an attacker (Eve) Three scenarios 1) Baseline Detector vs Baseline Eve 2) Baseline Detector vs Intelligent Eve 3) Intelligent Detector vs Intelligent Eve
Detection Game Our Detector vs an attacker (Eve) Three scenarios 1) Baseline Detector vs Baseline Eve 2) Baseline Detector vs Intelligent Eve 3) Intelligent Detector vs Intelligent Eve Using load instruction bandwidth Apache httpd as victim

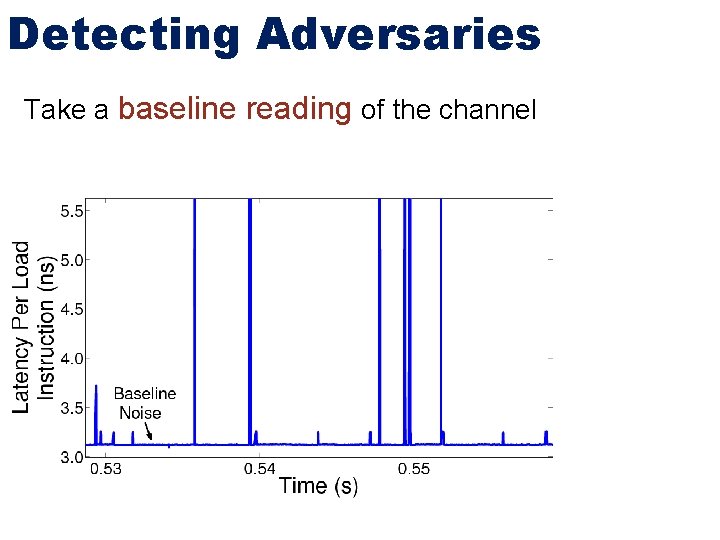

Detecting Adversaries Take a baseline reading of the channel
Detecting Adversaries Take a baseline reading of the channel Compare to when attacker is executing Easily Separable

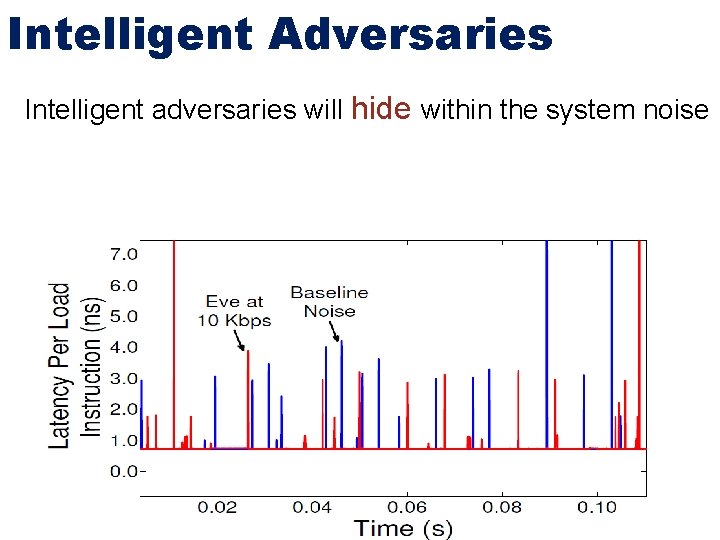

Intelligent Adversaries Intelligent adversaries will hide within the system noise

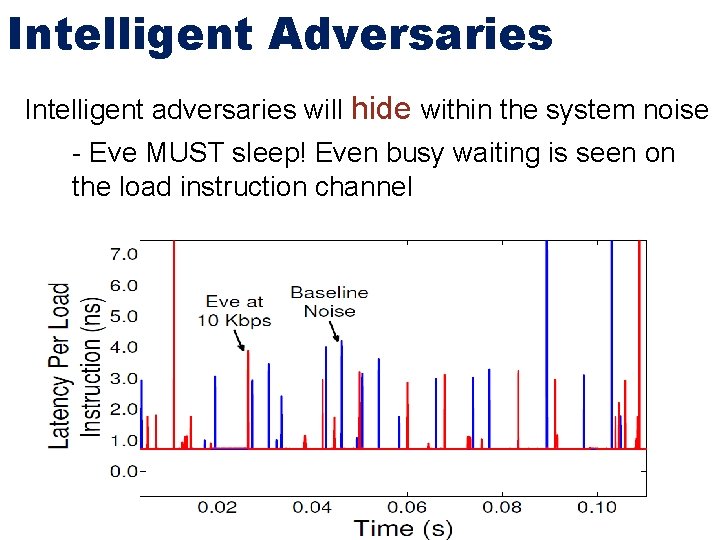

Intelligent Adversaries Intelligent adversaries will hide within the system noise - Eve MUST sleep! Even busy waiting is seen on the load instruction channel

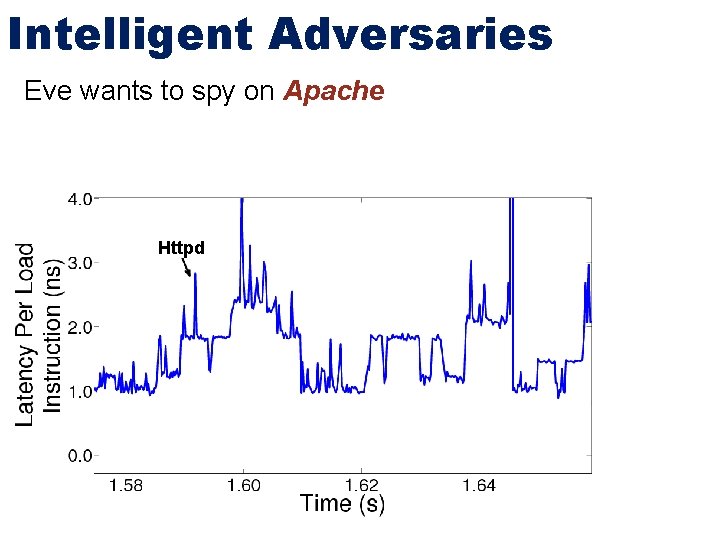

Intelligent Adversaries Eve wants to spy on Apache Httpd

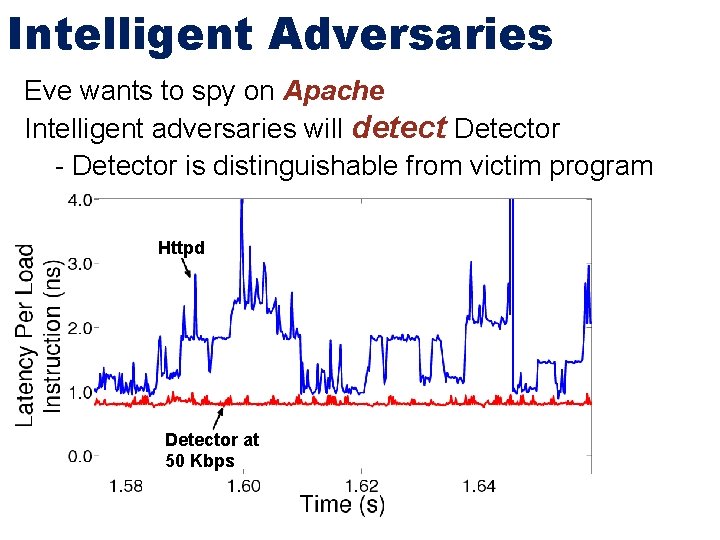

Intelligent Adversaries Eve wants to spy on Apache Intelligent adversaries will detect Detector - Detector is distinguishable from victim program Httpd Detector at 50 Kbps

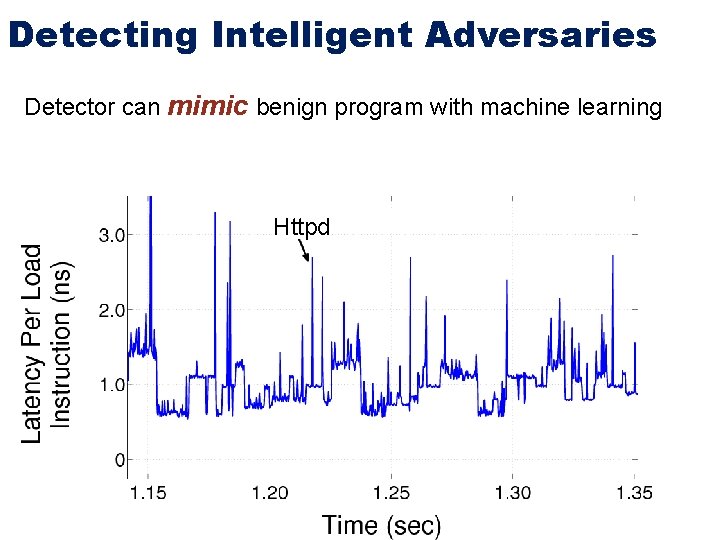

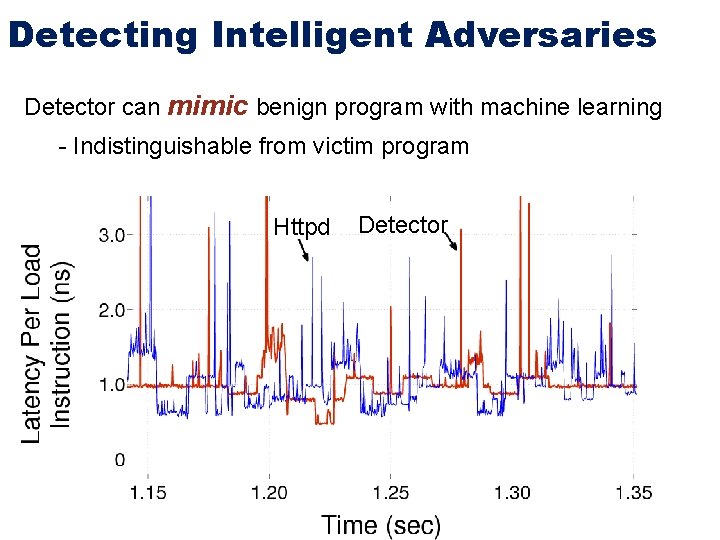

Detecting Intelligent Adversaries Detector can mimic benign program with machine learning Httpd
Detecting Intelligent Adversaries Detector can mimic benign program with machine learning - Indistinguishable from victim program Httpd Detector

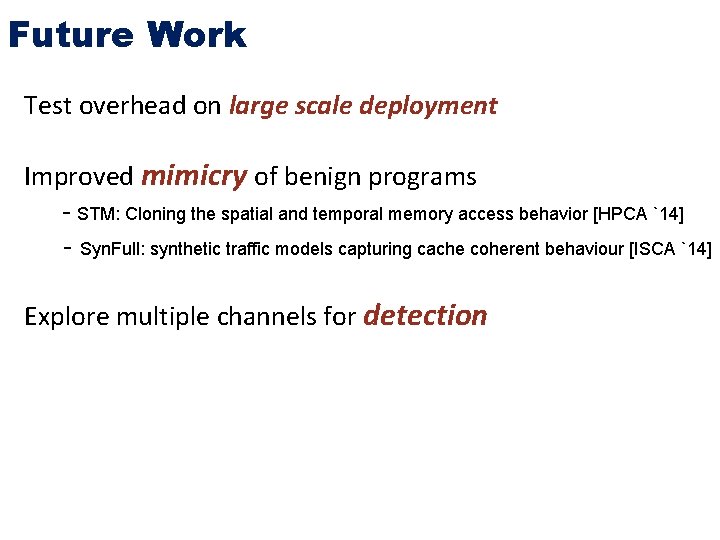

Future Work Test overhead on large scale deployment Improved mimicry of benign programs - STM: Cloning the spatial and temporal memory access behavior [HPCA `14] - Syn. Full: synthetic traffic models capturing cache coherent behaviour [ISCA `14] Explore multiple channels for detection

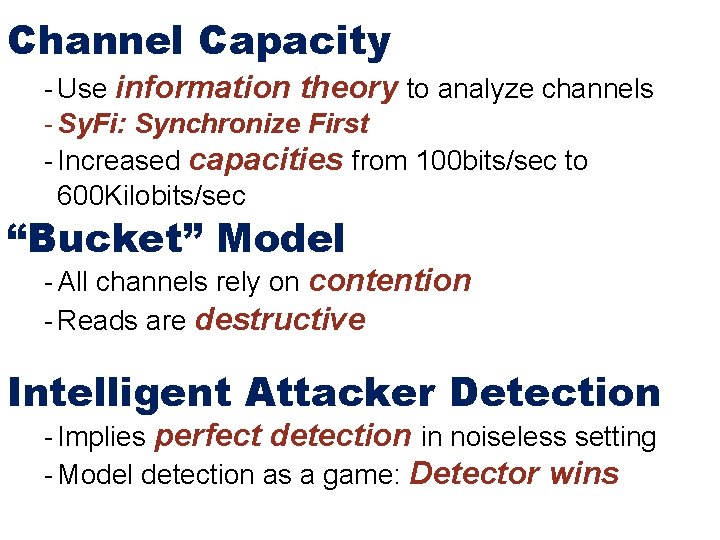

Channel Capacity - Use information theory to analyze channels - Sy. Fi: Synchronize First - Increased capacities from 100 bps to 600 Kbps “Bucket” Model - All channels rely on contention - Reads are destructive Intelligent Attacker Detection - Implies perfect detection in noiseless setting - Model detection as a game: Detector wins
Thank you! Questions?
