DISORDERS OF THE PANCREAS Judit Varkonyi MD Ph

DISORDERS OF THE PANCREAS Judit Varkonyi MD. Ph. D. Med. Habil. 3 rd. Department of Internal Medicine. Semmelweis University

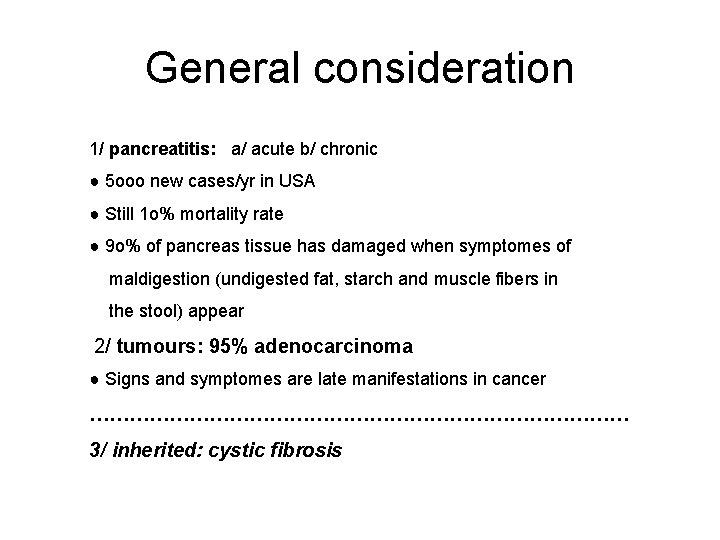

General consideration 1/ pancreatitis: a/ acute b/ chronic ● 5 ooo new cases/yr in USA ● Still 1 o% mortality rate ● 9 o% of pancreas tissue has damaged when symptomes of maldigestion (undigested fat, starch and muscle fibers in the stool) appear 2/ tumours: 95% adenocarcinoma ● Signs and symptomes are late manifestations in cancer …………………………………… 3/ inherited: cystic fibrosis

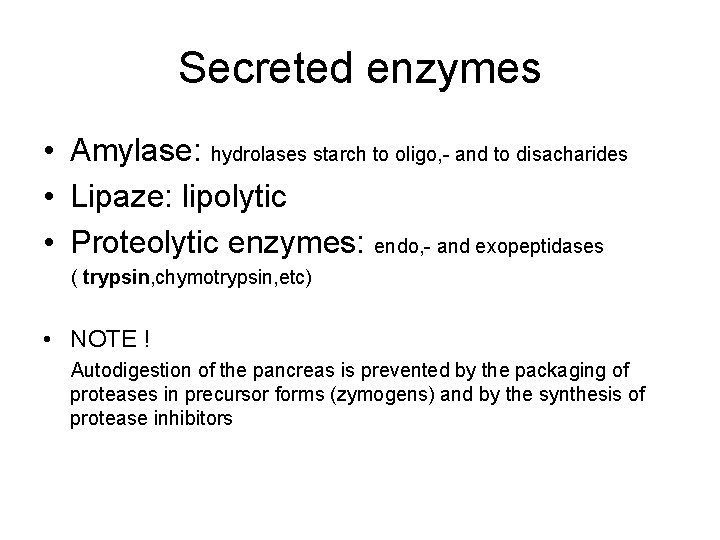

Secreted enzymes • Amylase: hydrolases starch to oligo, - and to disacharides • Lipaze: lipolytic • Proteolytic enzymes: endo, - and exopeptidases ( trypsin, chymotrypsin, etc) • NOTE ! Autodigestion of the pancreas is prevented by the packaging of proteases in precursor forms (zymogens) and by the synthesis of protease inhibitors

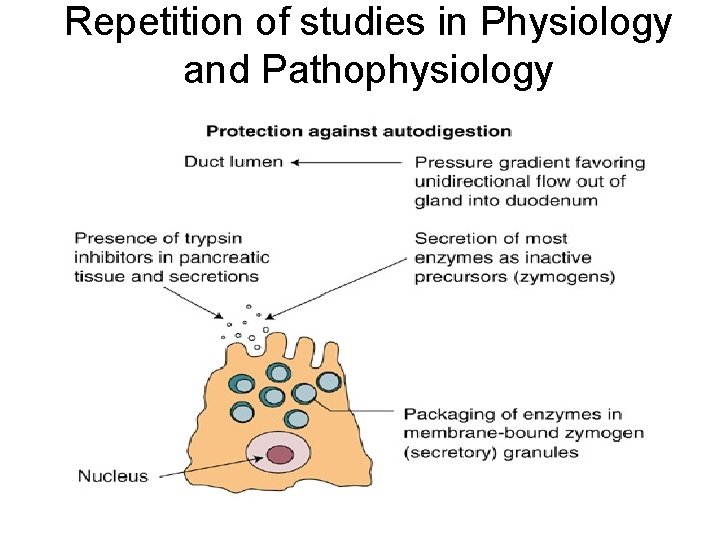

Repetition of studies in Physiology and Pathophysiology

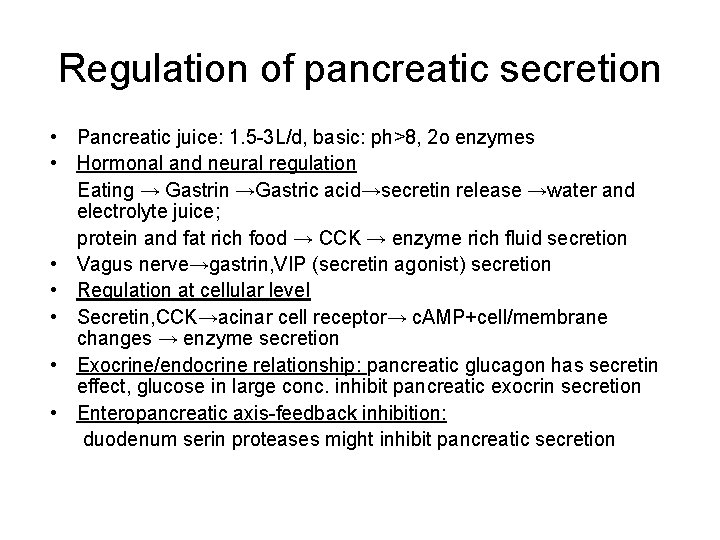

Regulation of pancreatic secretion • Pancreatic juice: 1. 5 -3 L/d, basic: ph>8, 2 o enzymes • Hormonal and neural regulation Eating → Gastrin →Gastric acid→secretin release →water and electrolyte juice; protein and fat rich food → CCK → enzyme rich fluid secretion • Vagus nerve→gastrin, VIP (secretin agonist) secretion • Regulation at cellular level • Secretin, CCK→acinar cell receptor→ c. AMP+cell/membrane changes → enzyme secretion • Exocrine/endocrine relationship: pancreatic glucagon has secretin effect, glucose in large conc. inhibit pancreatic exocrin secretion • Enteropancreatic axis-feedback inhibition: duodenum serin proteases might inhibit pancreatic secretion

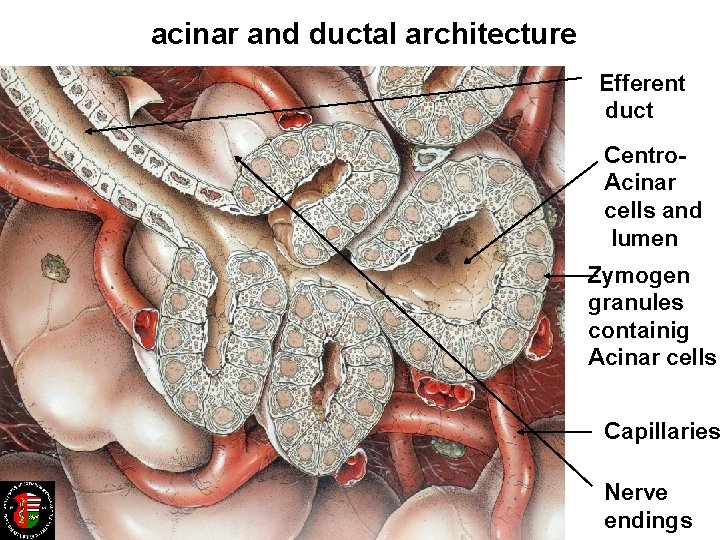

acinar and ductal architecture Efferent duct Centro. Acinar cells and lumen Zymogen granules containig Acinar cells Capillaries Nerve endings

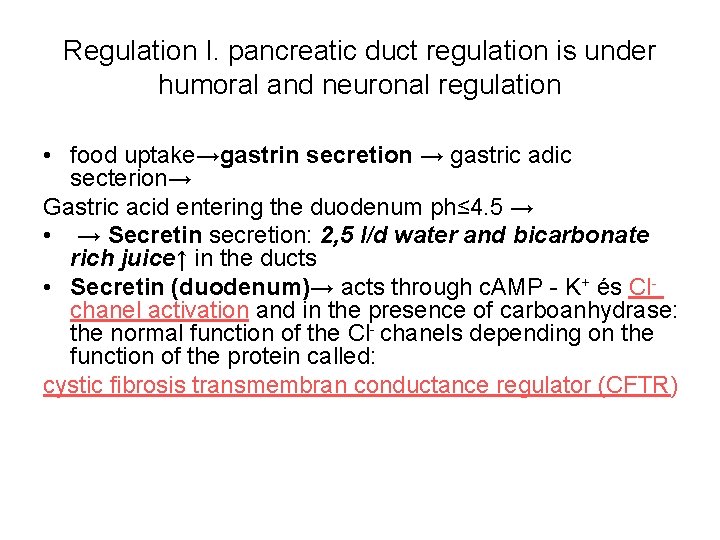

Regulation I. pancreatic duct regulation is under humoral and neuronal regulation • food uptake→gastrin secretion → gastric adic secterion→ Gastric acid entering the duodenum ph≤ 4. 5 → • → Secretin secretion: 2, 5 l/d water and bicarbonate rich juice↑ in the ducts • Secretin (duodenum)→ acts through c. AMP - K+ és Cl- chanel activation and in the presence of carboanhydrase: the normal function of the Cl- chanels depending on the function of the protein called: cystic fibrosis transmembran conductance regulator (CFTR)

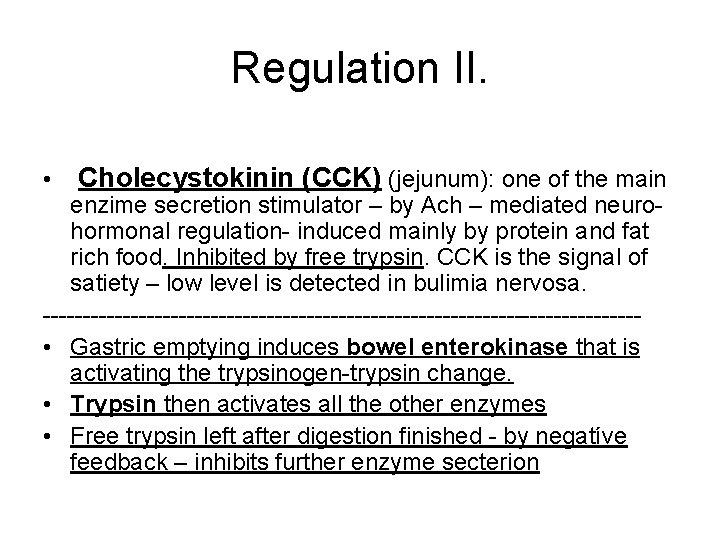

Regulation II. • Cholecystokinin (CCK) (jejunum): one of the main enzime secretion stimulator – by Ach – mediated neurohormonal regulation- induced mainly by protein and fat rich food. Inhibited by free trypsin. CCK is the signal of satiety – low level is detected in bulimia nervosa. ------------------------------------- • Gastric emptying induces bowel enterokinase that is activating the trypsinogen-trypsin change. • Trypsin then activates all the other enzymes • Free trypsin left after digestion finished - by negatíve feedback – inhibits further enzyme secterion

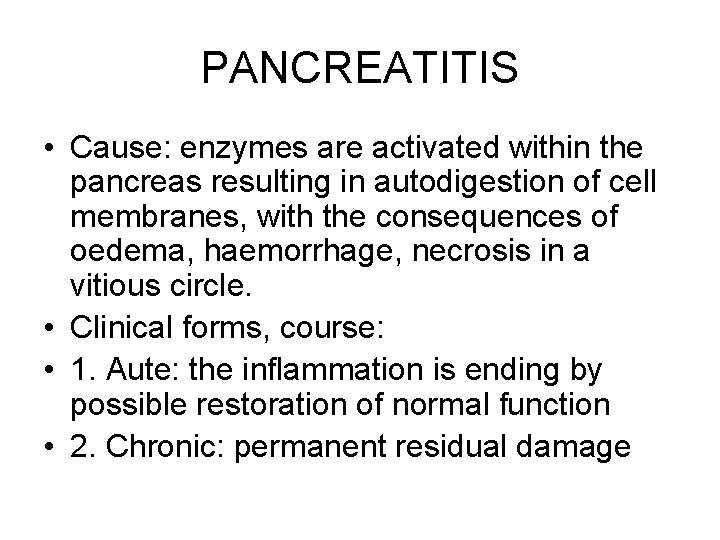

PANCREATITIS • Cause: enzymes are activated within the pancreas resulting in autodigestion of cell membranes, with the consequences of oedema, haemorrhage, necrosis in a vitious circle. • Clinical forms, course: • 1. Aute: the inflammation is ending by possible restoration of normal function • 2. Chronic: permanent residual damage

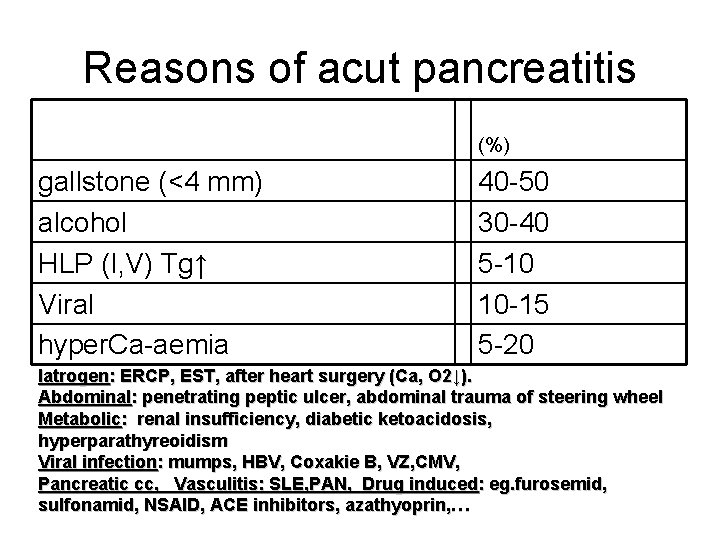

Reasons of acut pancreatitis (%) gallstone (<4 mm) alcohol HLP (I, V) Tg↑ Viral hyper. Ca-aemia 40 -50 30 -40 5 -10 10 -15 5 -20 Iatrogen: ERCP, EST, after heart surgery (Ca, O 2↓). Abdominal: penetrating peptic ulcer, abdominal trauma of steering wheel Metabolic: renal insufficiency, diabetic ketoacidosis, hyperparathyreoidism Viral infection: mumps, HBV, Coxakie B, VZ, CMV, Pancreatic cc, Vasculitis: SLE, PAN, Drug induced: eg. furosemid, sulfonamid, NSAID, ACE inhibitors, azathyoprin, …

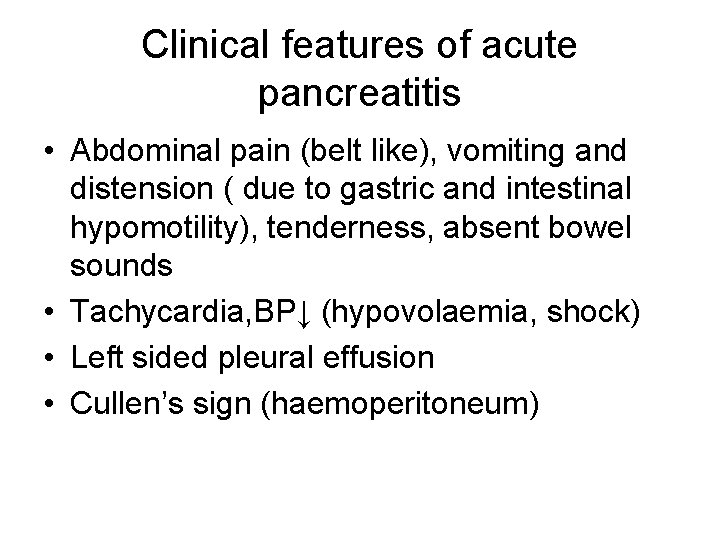

Clinical features of acute pancreatitis • Abdominal pain (belt like), vomiting and distension ( due to gastric and intestinal hypomotility), tenderness, absent bowel sounds • Tachycardia, BP↓ (hypovolaemia, shock) • Left sided pleural effusion • Cullen’s sign (haemoperitoneum)

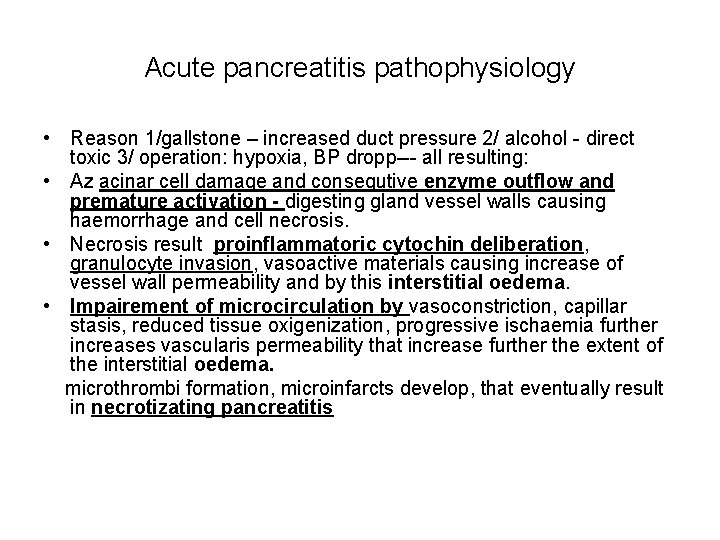

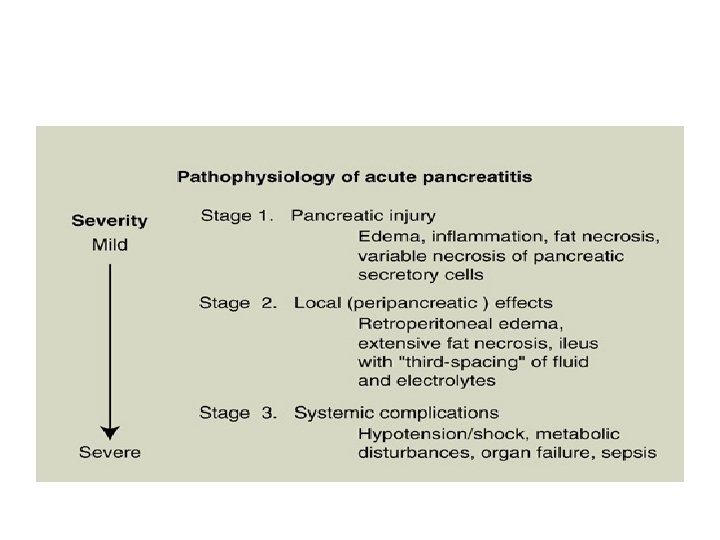

Acute pancreatitis pathophysiology • Reason 1/gallstone – increased duct pressure 2/ alcohol - direct toxic 3/ operation: hypoxia, BP dropp--- all resulting: • Az acinar cell damage and consequtive enzyme outflow and premature activation - digesting gland vessel walls causing haemorrhage and cell necrosis. • Necrosis result proinflammatoric cytochin deliberation, granulocyte invasion, vasoactive materials causing increase of vessel wall permeability and by this interstitial oedema. • Impairement of microcirculation by vasoconstriction, capillar stasis, reduced tissue oxigenization, progressive ischaemia further increases vascularis permeability that increase further the extent of the interstitial oedema. microthrombi formation, microinfarcts develop, that eventually result in necrotizating pancreatitis

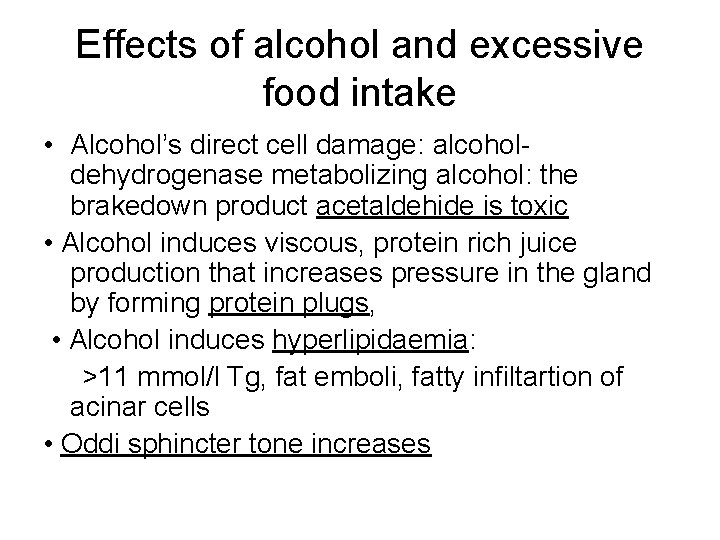

Effects of alcohol and excessive food intake • Alcohol’s direct cell damage: alcohol- dehydrogenase metabolizing alcohol: the brakedown product acetaldehide is toxic • Alcohol induces viscous, protein rich juice production that increases pressure in the gland by forming protein plugs, • Alcohol induces hyperlipidaemia: >11 mmol/l Tg, fat emboli, fatty infiltartion of acinar cells • Oddi sphincter tone increases

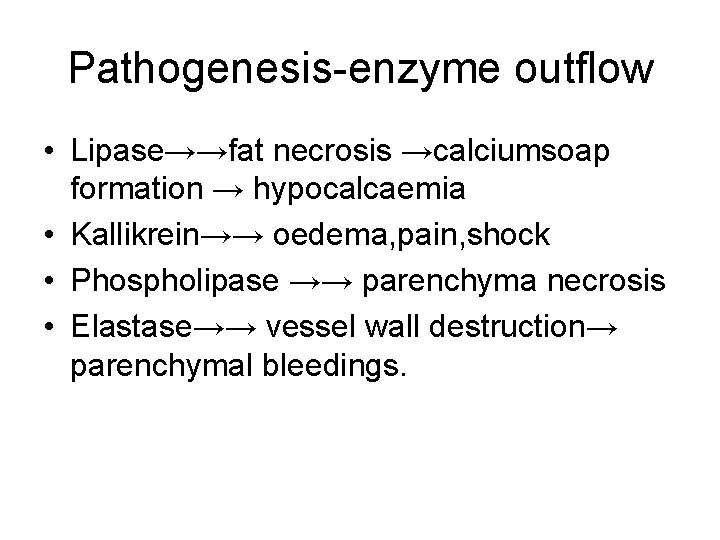

Pathogenesis-enzyme outflow • Lipase→→fat necrosis →calciumsoap formation → hypocalcaemia • Kallikrein→→ oedema, pain, shock • Phospholipase →→ parenchyma necrosis • Elastase→→ vessel wall destruction→ parenchymal bleedings.

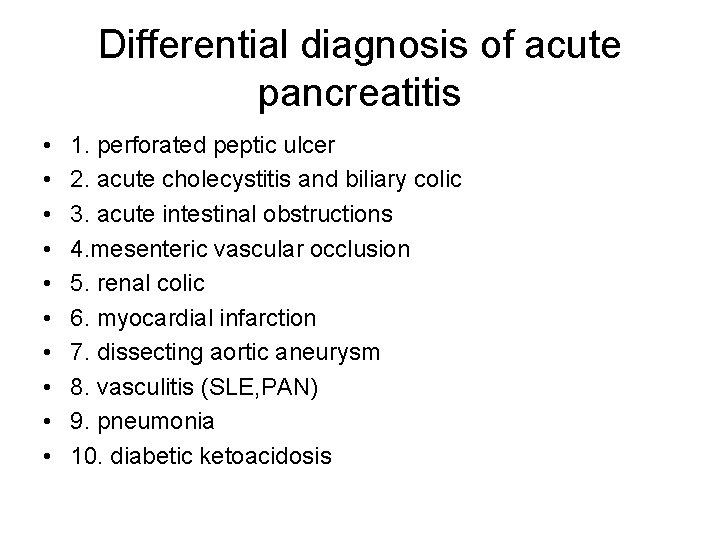

Differential diagnosis of acute pancreatitis • • • 1. perforated peptic ulcer 2. acute cholecystitis and biliary colic 3. acute intestinal obstructions 4. mesenteric vascular occlusion 5. renal colic 6. myocardial infarction 7. dissecting aortic aneurysm 8. vasculitis (SLE, PAN) 9. pneumonia 10. diabetic ketoacidosis

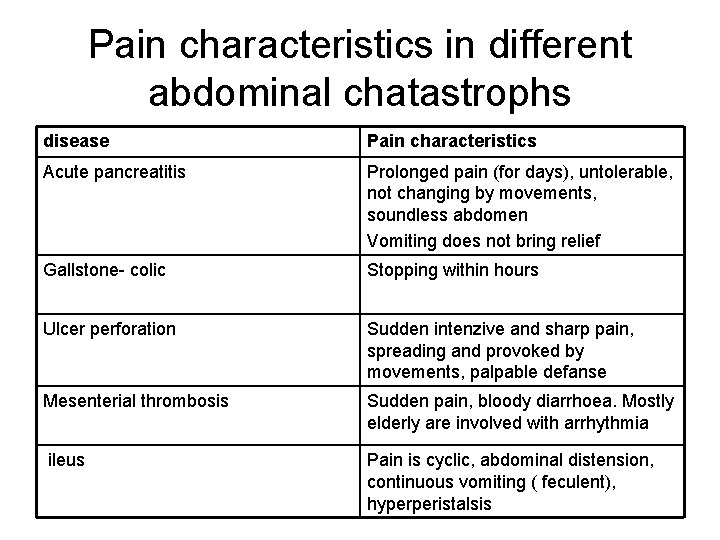

Pain characteristics in different abdominal chatastrophs disease Pain characteristics Acute pancreatitis Prolonged pain (for days), untolerable, not changing by movements, soundless abdomen Vomiting does not bring relief Gallstone- colic Stopping within hours Ulcer perforation Sudden intenzive and sharp pain, spreading and provoked by movements, palpable defanse Mesenterial thrombosis Sudden pain, bloody diarrhoea. Mostly elderly are involved with arrhythmia ileus Pain is cyclic, abdominal distension, continuous vomiting ( feculent), hyperperistalsis

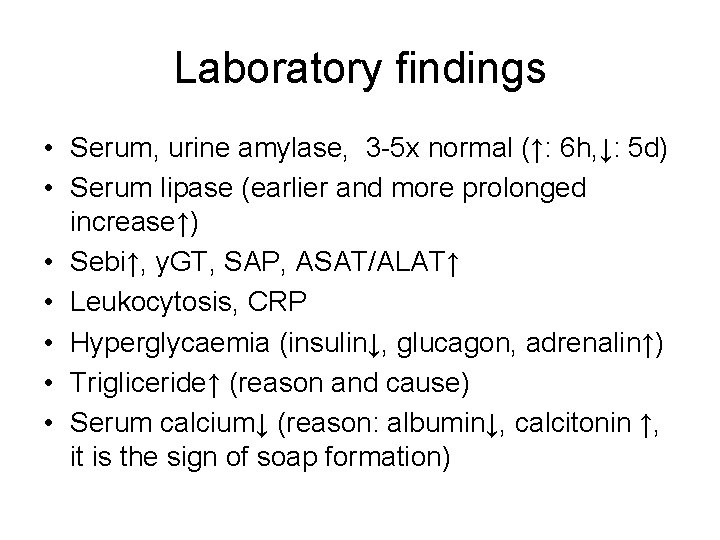

Laboratory findings • Serum, urine amylase, 3 -5 x normal (↑: 6 h, ↓: 5 d) • Serum lipase (earlier and more prolonged increase↑) • Sebi↑, y. GT, SAP, ASAT/ALAT↑ • Leukocytosis, CRP • Hyperglycaemia (insulin↓, glucagon, adrenalin↑) • Trigliceride↑ (reason and cause) • Serum calcium↓ (reason: albumin↓, calcitonin ↑, it is the sign of soap formation)

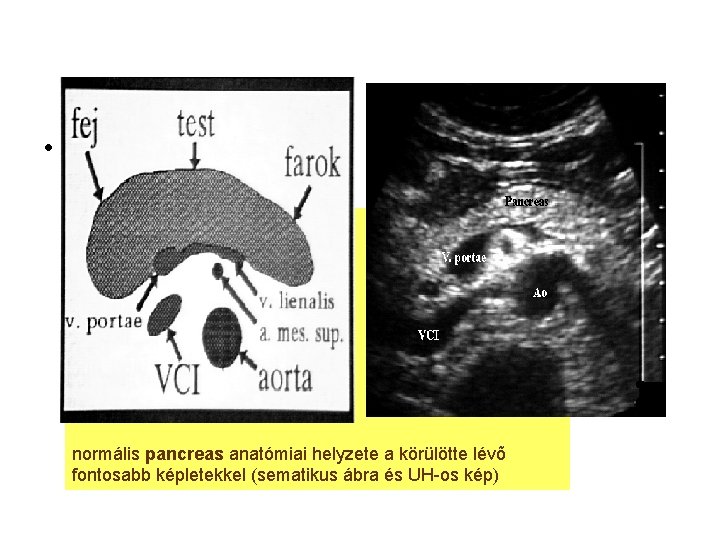

• normális pancreas anatómiai helyzete a körülötte lévõ fontosabb képletekkel (sematikus ábra és UH-os kép)

• Ultrahang vizsgálat: A pancreas fejben jelentõs nagyságú, körülírt, közepes echogenitású szolid képlet látható.

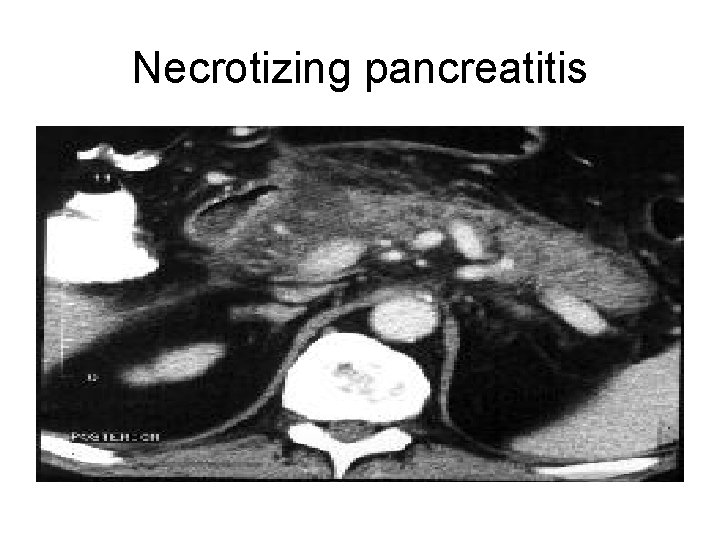

Necrotizing pancreatitis

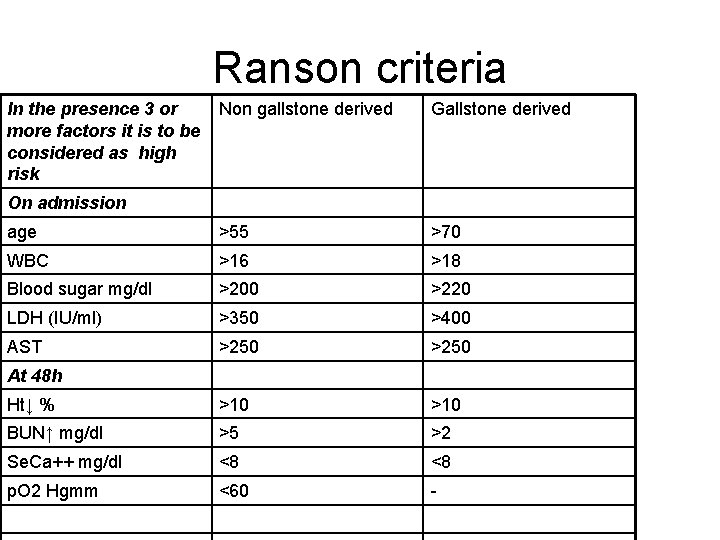

Ranson criteria In the presence 3 or more factors it is to be considered as high risk Non gallstone derived Gallstone derived age >55 >70 WBC >16 >18 Blood sugar mg/dl >200 >220 LDH (IU/ml) >350 >400 AST >250 Ht↓ % >10 BUN↑ mg/dl >5 >2 Se. Ca++ mg/dl <8 <8 p. O 2 Hgmm <60 - On admission At 48 h

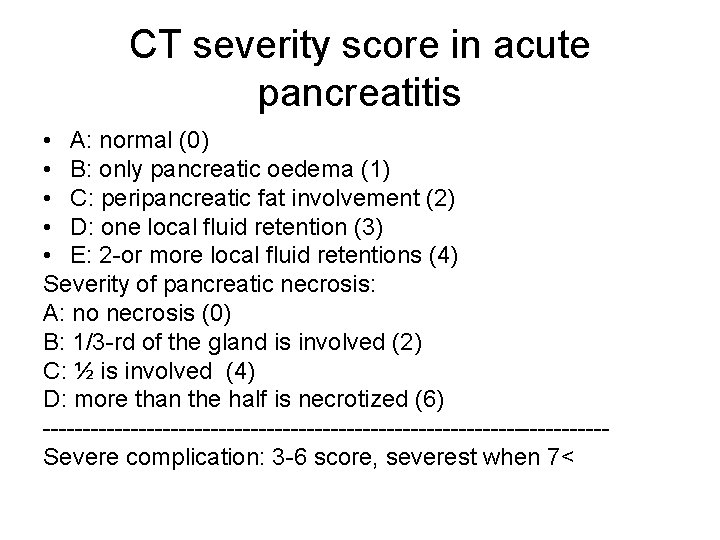

CT severity score in acute pancreatitis • A: normal (0) • B: only pancreatic oedema (1) • C: peripancreatic fat involvement (2) • D: one local fluid retention (3) • E: 2 -or more local fluid retentions (4) Severity of pancreatic necrosis: A: no necrosis (0) B: 1/3 -rd of the gland is involved (2) C: ½ is involved (4) D: more than the half is necrotized (6) -----------------------------------Severe complication: 3 -6 score, severest when 7<

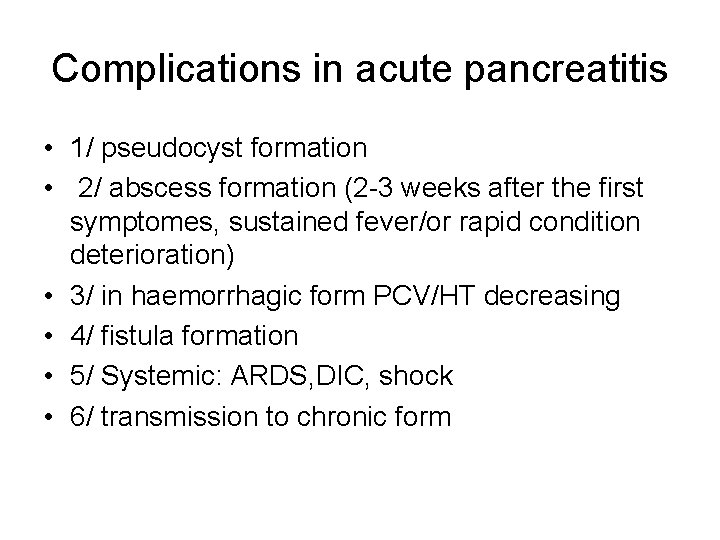

Complications in acute pancreatitis • 1/ pseudocyst formation • 2/ abscess formation (2 -3 weeks after the first symptomes, sustained fever/or rapid condition deterioration) • 3/ in haemorrhagic form PCV/HT decreasing • 4/ fistula formation • 5/ Systemic: ARDS, DIC, shock • 6/ transmission to chronic form

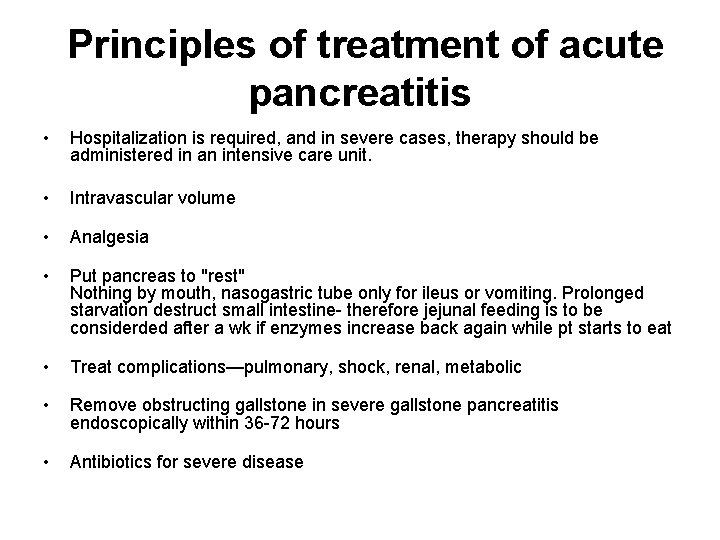

Principles of treatment of acute pancreatitis • Hospitalization is required, and in severe cases, therapy should be administered in an intensive care unit. • Intravascular volume • Analgesia • Put pancreas to "rest" Nothing by mouth, nasogastric tube only for ileus or vomiting. Prolonged starvation destruct small intestine- therefore jejunal feeding is to be considerded after a wk if enzymes increase back again while pt starts to eat • Treat complications—pulmonary, shock, renal, metabolic • Remove obstructing gallstone in severe gallstone pancreatitis endoscopically within 36 -72 hours • Antibiotics for severe disease

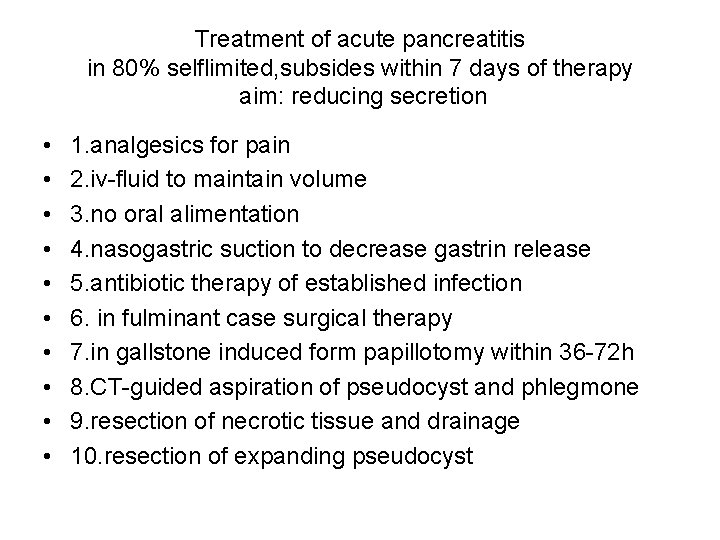

Treatment of acute pancreatitis in 80% selflimited, subsides within 7 days of therapy aim: reducing secretion • • • 1. analgesics for pain 2. iv-fluid to maintain volume 3. no oral alimentation 4. nasogastric suction to decrease gastrin release 5. antibiotic therapy of established infection 6. in fulminant case surgical therapy 7. in gallstone induced form papillotomy within 36 -72 h 8. CT-guided aspiration of pseudocyst and phlegmone 9. resection of necrotic tissue and drainage 10. resection of expanding pseudocyst

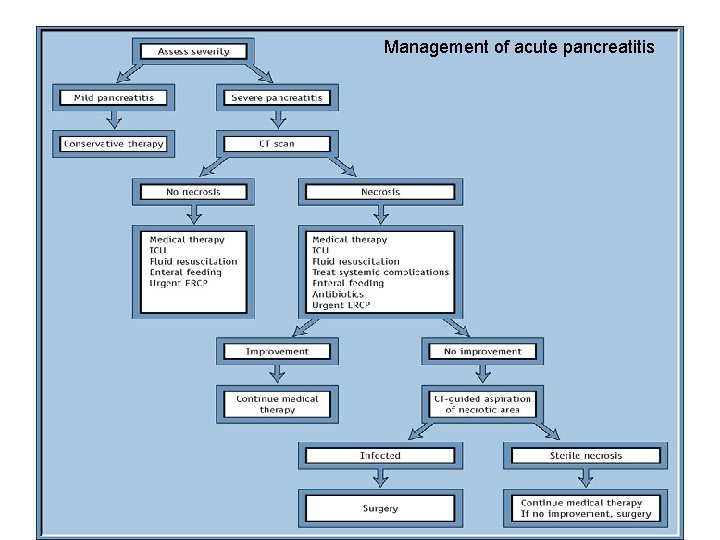

Management of acute pancreatitis

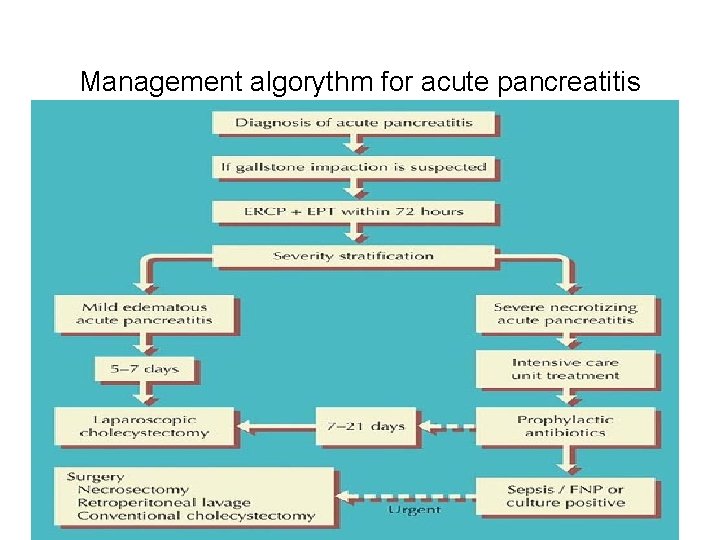

Management algorythm for acute pancreatitis

Stones in pancreatic duct causing filling defects ERCP

Endoszkópos sphincterotomia biliaris pancreatitis miatt Enélkül: 1/ progresszió 2/ epekő okozta pancreatitisben a relapsus 50%-ban bekövetkezne 3 hónapon belül

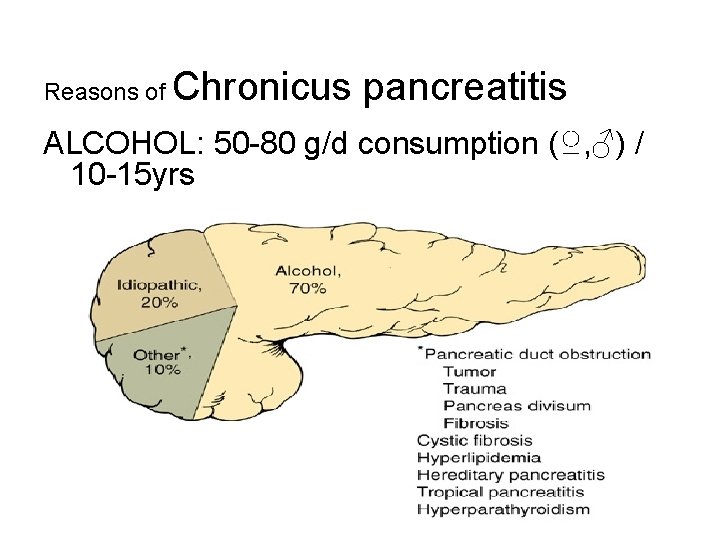

Reasons of Chronicus pancreatitis ALCOHOL: 50 -80 g/d consumption (♀, ♂) / 10 -15 yrs

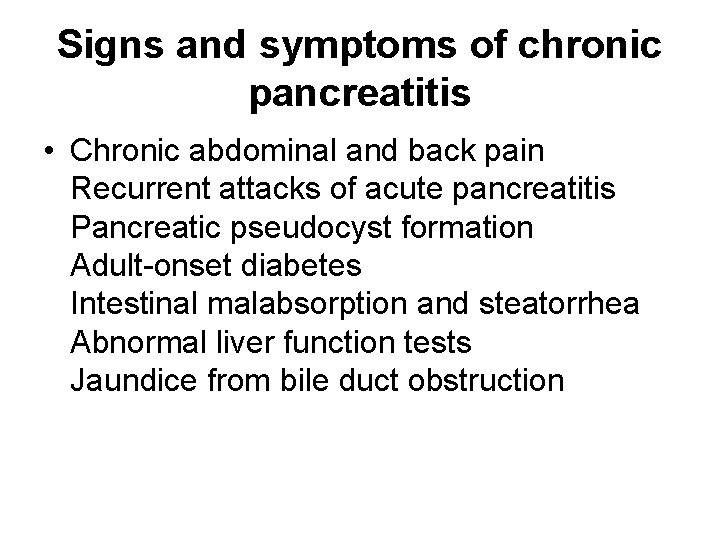

Signs and symptoms of chronic pancreatitis • Chronic abdominal and back pain Recurrent attacks of acute pancreatitis Pancreatic pseudocyst formation Adult-onset diabetes Intestinal malabsorption and steatorrhea Abnormal liver function tests Jaundice from bile duct obstruction

Chronic pancreatitis with calcifications

Chronic pancreatitis duct’s irregularity (ERCP)

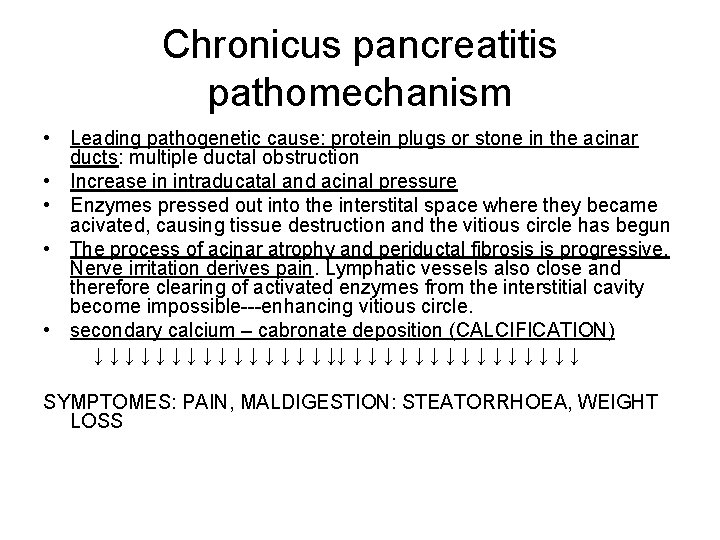

Chronicus pancreatitis pathomechanism • Leading pathogenetic cause: protein plugs or stone in the acinar ducts: multiple ductal obstruction • Increase in intraducatal and acinal pressure • Enzymes pressed out into the interstital space where they became acivated, causing tissue destruction and the vitious circle has begun • The process of acinar atrophy and periductal fibrosis is progressive. Nerve irritation derives pain. Lymphatic vessels also close and therefore clearing of activated enzymes from the interstitial cavity become impossible---enhancing vitious circle. • secondary calcium – cabronate deposition (CALCIFICATION) ↓ ↓ ↓ ↓↓ ↓ ↓ ↓ SYMPTOMES: PAIN, MALDIGESTION: STEATORRHOEA, WEIGHT LOSS

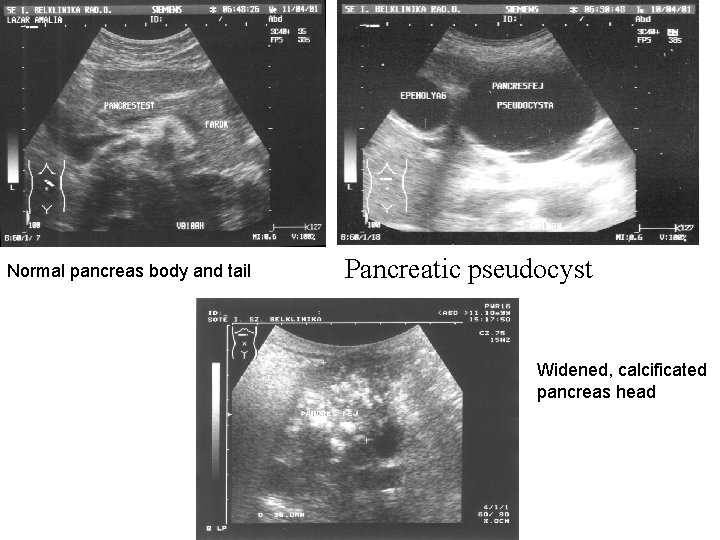

Normal pancreas body and tail Pancreatic pseudocyst Widened, calcificated pancreas head

CT: chronic pancreatitis: diffuse calcification, ductal dilation, gland atrophy, irregular contour, and pseudocysts

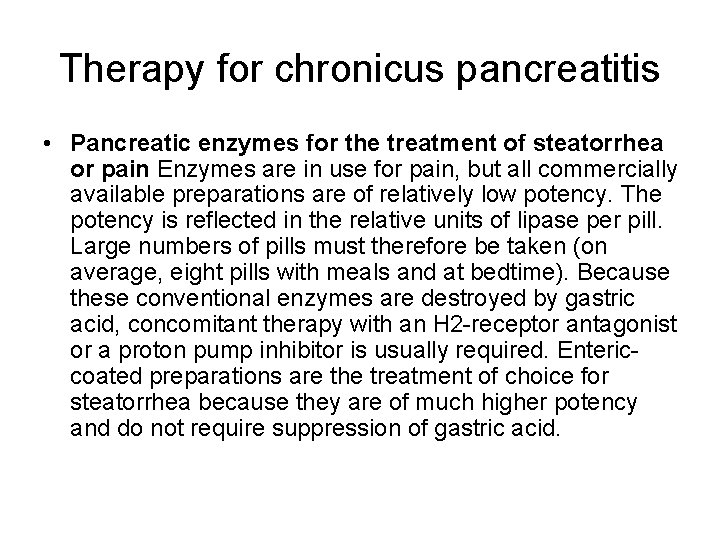

Therapy for chronicus pancreatitis • Pancreatic enzymes for the treatment of steatorrhea or pain Enzymes are in use for pain, but all commercially available preparations are of relatively low potency. The potency is reflected in the relative units of lipase per pill. Large numbers of pills must therefore be taken (on average, eight pills with meals and at bedtime). Because these conventional enzymes are destroyed by gastric acid, concomitant therapy with an H 2 -receptor antagonist or a proton pump inhibitor is usually required. Entericcoated preparations are the treatment of choice for steatorrhea because they are of much higher potency and do not require suppression of gastric acid.

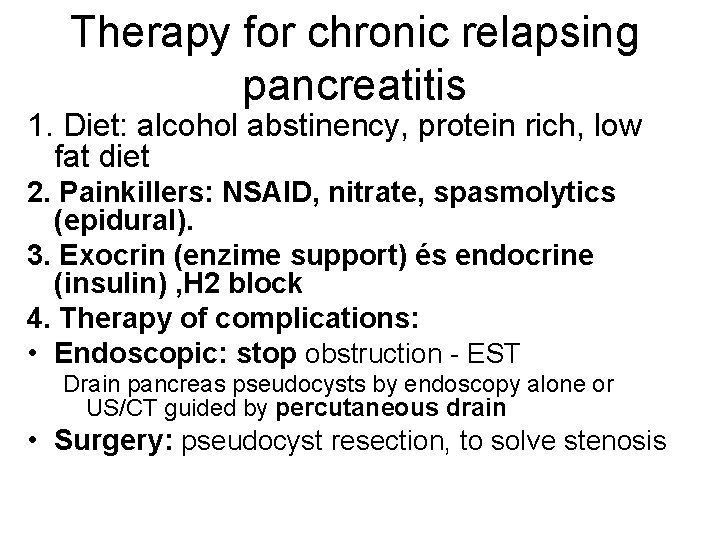

Therapy for chronic relapsing pancreatitis 1. Diet: alcohol abstinency, protein rich, low fat diet 2. Painkillers: NSAID, nitrate, spasmolytics (epidural). 3. Exocrin (enzime support) és endocrine (insulin) , H 2 block 4. Therapy of complications: • Endoscopic: stop obstruction - EST Drain pancreas pseudocysts by endoscopy alone or US/CT guided by percutaneous drain • Surgery: pseudocyst resection, to solve stenosis

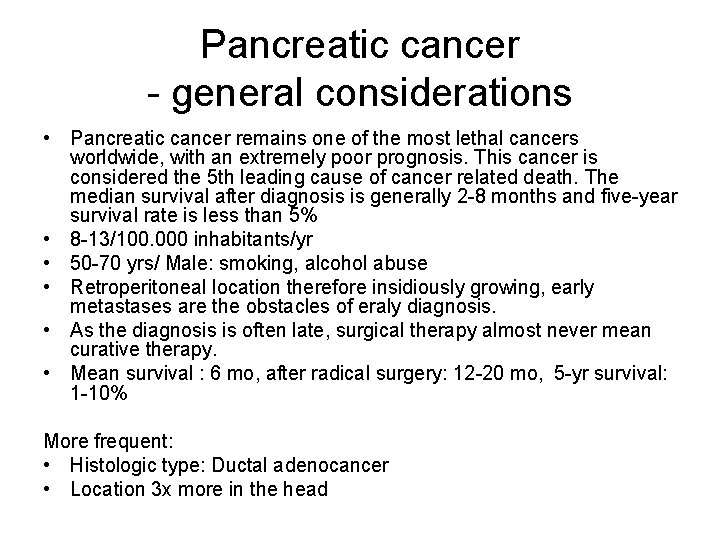

Pancreatic cancer - general considerations • Pancreatic cancer remains one of the most lethal cancers worldwide, with an extremely poor prognosis. This cancer is considered the 5 th leading cause of cancer related death. The median survival after diagnosis is generally 2 -8 months and five-year survival rate is less than 5% • 8 -13/100. 000 inhabitants/yr • 50 -70 yrs/ Male: smoking, alcohol abuse • Retroperitoneal location therefore insidiously growing, early metastases are the obstacles of eraly diagnosis. • As the diagnosis is often late, surgical therapy almost never mean curative therapy. • Mean survival : 6 mo, after radical surgery: 12 -20 mo, 5 -yr survival: 1 -10% More frequent: • Histologic type: Ductal adenocancer • Location 3 x more in the head

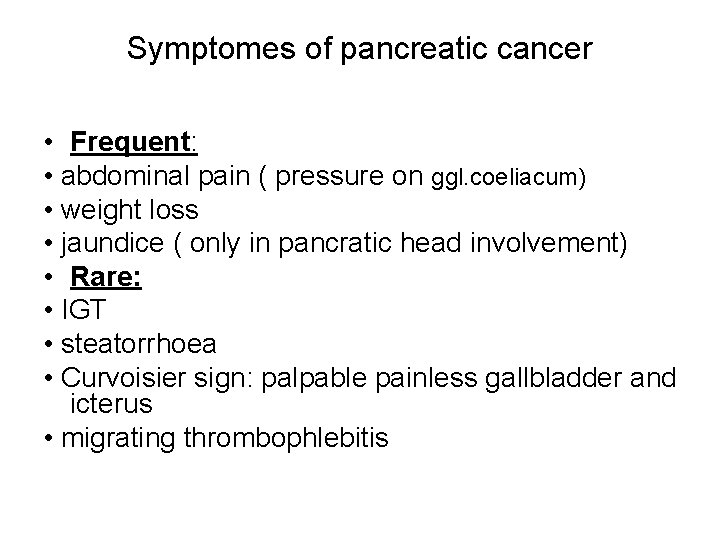

Symptomes of pancreatic cancer • Frequent: • abdominal pain ( pressure on ggl. coeliacum) • weight loss • jaundice ( only in pancratic head involvement) • Rare: • IGT • steatorrhoea • Curvoisier sign: palpable painless gallbladder and icterus • migrating thrombophlebitis

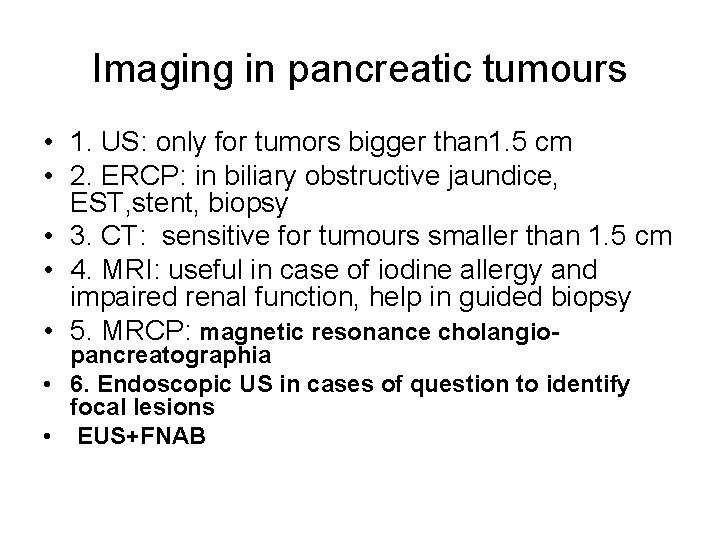

Imaging in pancreatic tumours • 1. US: only for tumors bigger than 1. 5 cm • 2. ERCP: in biliary obstructive jaundice, EST, stent, biopsy • 3. CT: sensitive for tumours smaller than 1. 5 cm • 4. MRI: useful in case of iodine allergy and impaired renal function, help in guided biopsy • 5. MRCP: magnetic resonance cholangiopancreatographia • 6. Endoscopic US in cases of question to identify focal lesions • EUS+FNAB

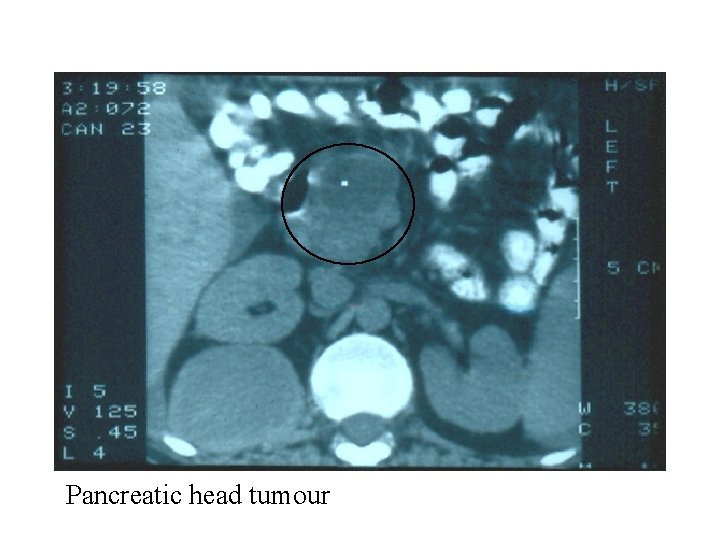

Pancreatic head tumour

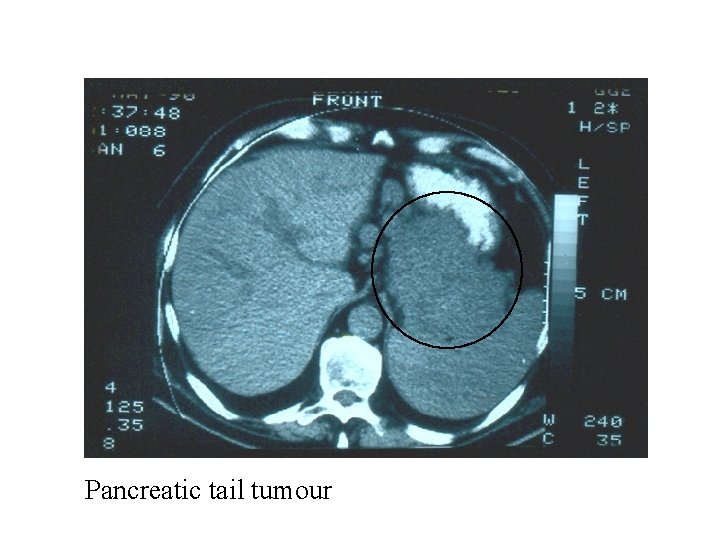

Pancreatic tail tumour

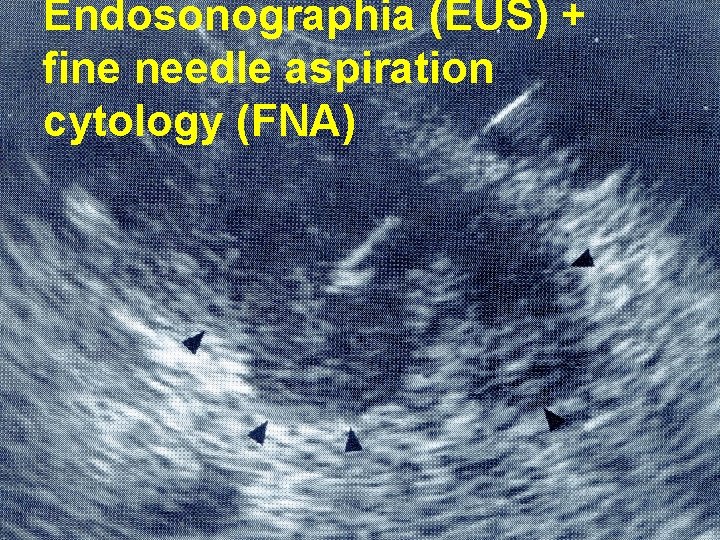

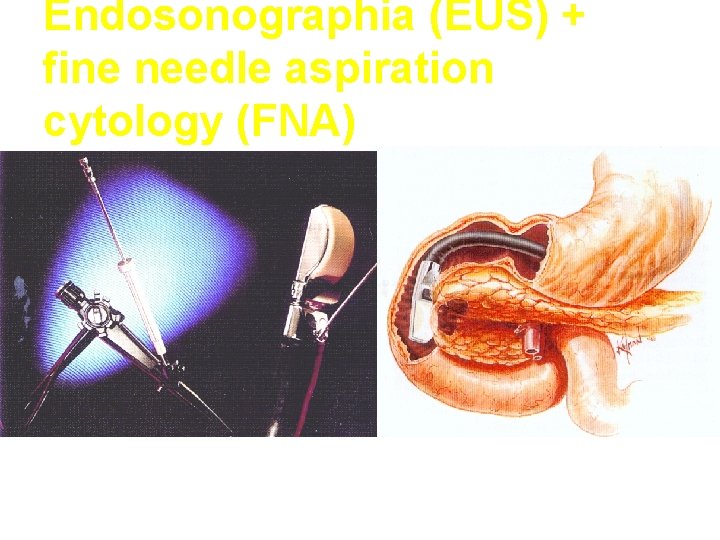

Endosonographia (EUS) + fine needle aspiration cytology (FNA)

Endosonographia (EUS) + fine needle aspiration cytology (FNA)

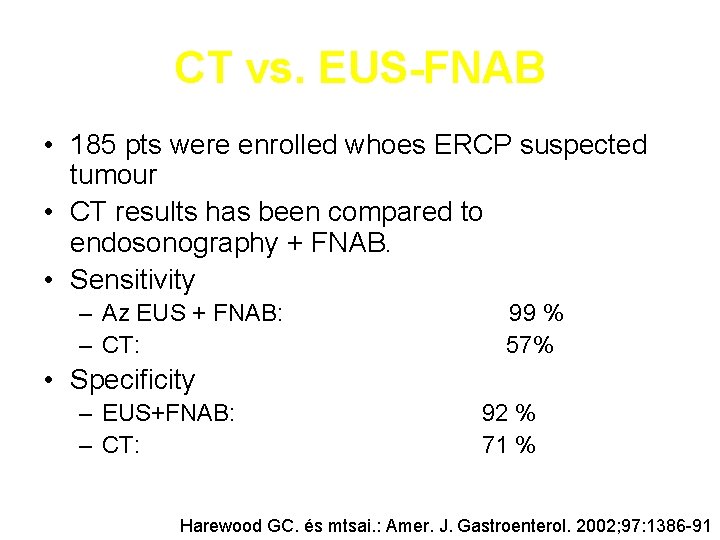

CT vs. EUS-FNAB • 185 pts were enrolled whoes ERCP suspected tumour • CT results has been compared to endosonography + FNAB. • Sensitivity – Az EUS + FNAB: 99 % – CT: 57% • Specificity – EUS+FNAB: – CT: 92 % 71 % Harewood GC. és mtsai. : Amer. J. Gastroenterol. 2002; 97: 1386 -91

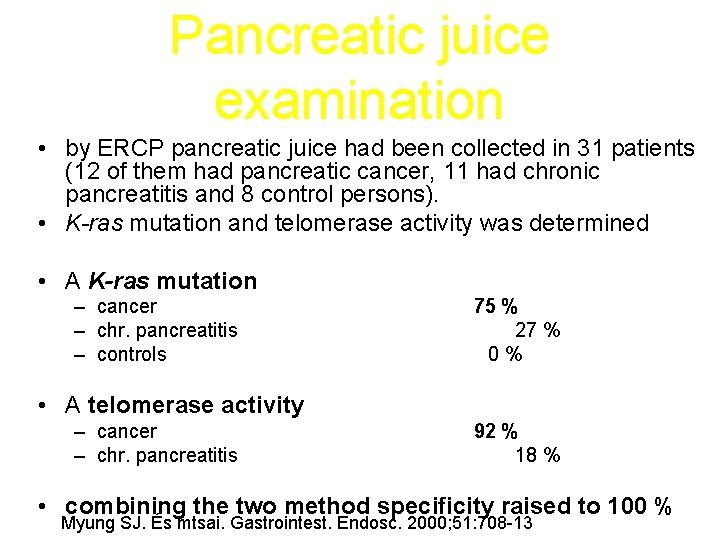

Pancreatic juice examination • by ERCP pancreatic juice had been collected in 31 patients (12 of them had pancreatic cancer, 11 had chronic pancreatitis and 8 control persons). • K-ras mutation and telomerase activity was determined • A K-ras mutation – cancer 75 % – chr. pancreatitis 27 % – controls 0 % • A telomerase activity – cancer 92 % – chr. pancreatitis 18 % • combining the two method specificity raised to 100 % Myung SJ. És mtsai. Gastrointest. Endosc. 2000; 51: 708 -13

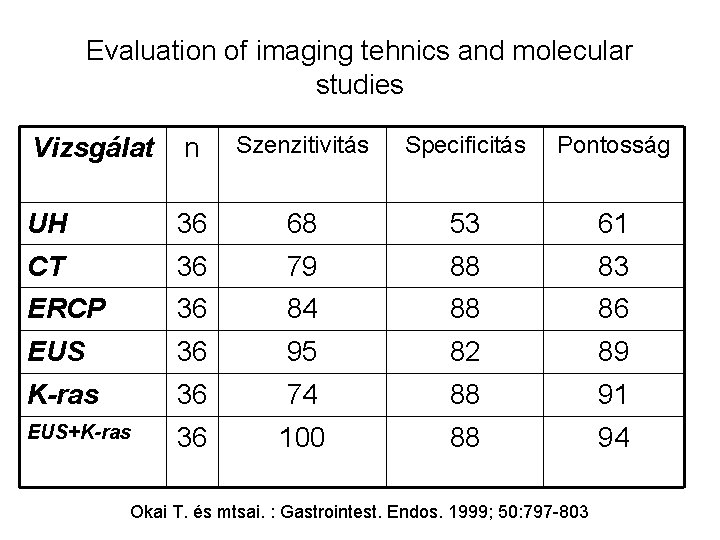

Evaluation of imaging tehnics and molecular studies Vizsgálat n Szenzitivitás Specificitás Pontosság UH 36 68 53 61 CT 36 79 88 83 ERCP 36 84 88 86 EUS 36 95 82 89 K-ras 36 74 88 91 EUS+K-ras 36 100 88 94 Okai T. és mtsai. : Gastrointest. Endos. 1999; 50: 797 -803

Endosonography guided FNAB in the diagnosis of pancreatic tumours • 33 pts „Tru-Cut” technic gained apropriate specimen for histological evaluation. Diagnostic specificity was 87, 5 % • There weren’t compliation Adenocc. Neuroendocrin tu. Larghi A. és mtsai: Gastrointest. Endosc. 2004, 59: 185 -90 De. Witt és mtsai. : Gastrointest. Endosc. 2004, 59: AB 224

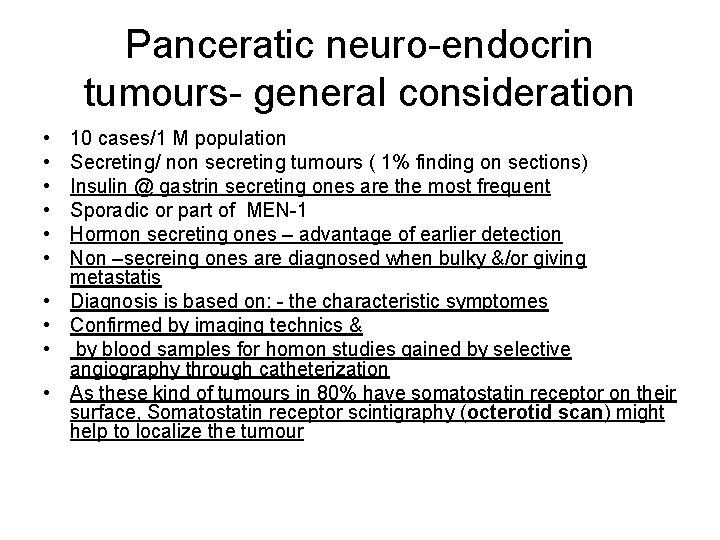

Panceratic neuro-endocrin tumours- general consideration • • • 10 cases/1 M population Secreting/ non secreting tumours ( 1% finding on sections) Insulin @ gastrin secreting ones are the most frequent Sporadic or part of MEN-1 Hormon secreting ones – advantage of earlier detection Non –secreing ones are diagnosed when bulky &/or giving metastatis Diagnosis is based on: - the characteristic symptomes Confirmed by imaging technics & by blood samples for homon studies gained by selective angiography through catheterization As these kind of tumours in 80% have somatostatin receptor on their surface, Somatostatin receptor scintigraphy (octerotid scan) might help to localize the tumour

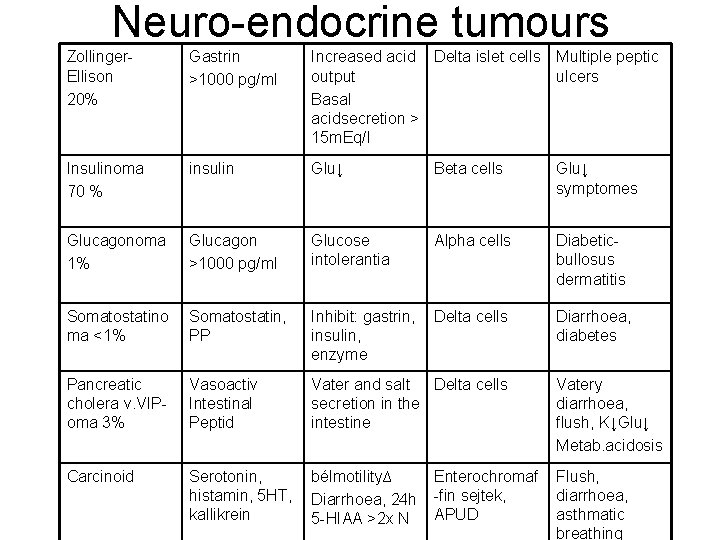

Neuro-endocrine tumours Zollinger- Ellison 20% Gastrin >1000 pg/ml Increased acid Delta islet cells Multiple peptic output ulcers Basal acidsecretion > 15 m. Eq/l Insulinoma 70 % insulin Glu↓ Beta cells Glu↓ symptomes Glucagonoma 1% Glucagon >1000 pg/ml Glucose intolerantia Alpha cells Diabeticbullosus dermatitis Somatostatino ma <1% Somatostatin, PP Inhibit: gastrin, Delta cells insulin, enzyme Diarrhoea, diabetes Pancreatic cholera v. VIPoma 3% Vasoactiv Intestinal Peptid Vater and salt Delta cells secretion in the intestine Vatery diarrhoea, flush, K↓Glu↓ Metab. acidosis Carcinoid Serotonin, bélmotility∆ Enterochromaf histamin, 5 HT, Diarrhoea, 24 h -fin sejtek, kallikrein APUD 5 -HIAA >2 x N Flush, diarrhoea, asthmatic breathing

Carcinoid tumour investigation algorhytm Chromogranin A= Cg. A carcinoid Non characteristic symptomes 5 HIAA, Cg. A Characteristic symptomes + + ellenőrzés Θ Gyomor EUS Endoscopia biopszia Θ Provoking teszt 5 HIAA, Cg. A SRS CT-MR + Vékonybél Kapszula Endoscopia szívecho Colon, rectum EUS Kolonoszkópia biopszia Máj EUS, CT Biopszia szívecho

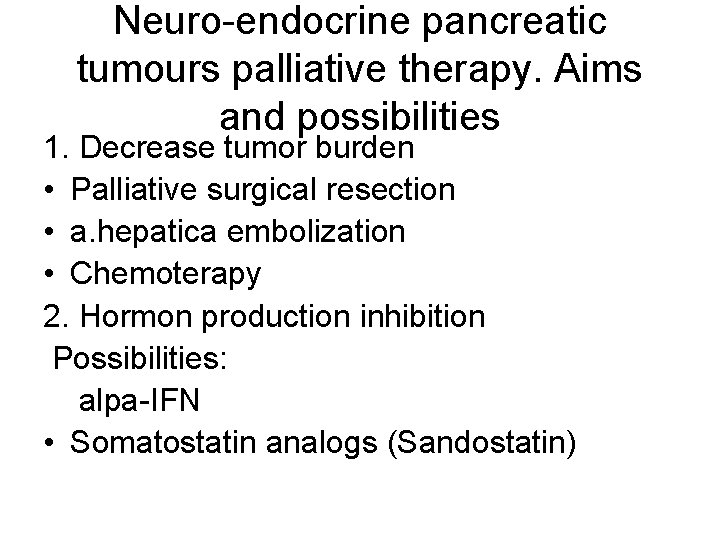

Neuro-endocrine pancreatic tumours palliative therapy. Aims and possibilities 1. Decrease tumor burden • Palliative surgical resection • a. hepatica embolization • Chemoterapy 2. Hormon production inhibition Possibilities: alpa-IFN • Somatostatin analogs (Sandostatin)

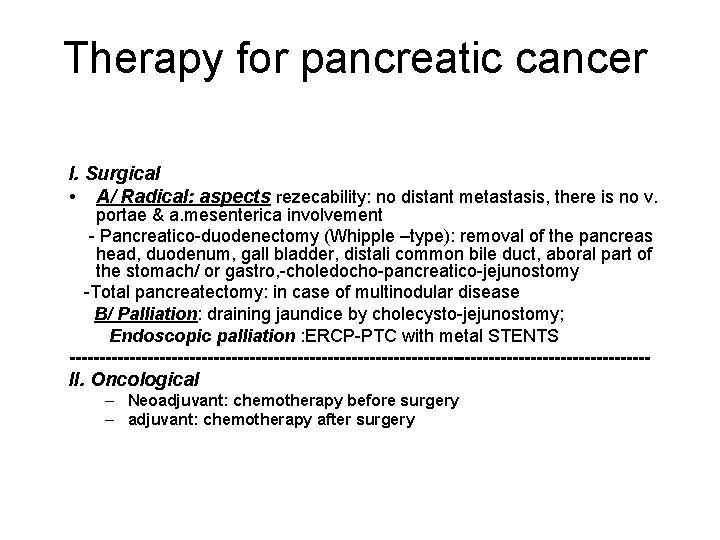

Therapy for pancreatic cancer I. Surgical • A/ Radical: aspects rezecability: no distant metastasis, there is no v. portae & a. mesenterica involvement - Pancreatico-duodenectomy (Whipple –type): removal of the pancreas head, duodenum, gall bladder, distali common bile duct, aboral part of the stomach/ or gastro, -choledocho-pancreatico-jejunostomy -Total pancreatectomy: in case of multinodular disease B/ Palliation: draining jaundice by cholecysto-jejunostomy; Endoscopic palliation : ERCP-PTC with metal STENTS ------------------------------------------------- II. Oncological – Neoadjuvant: chemotherapy before surgery – adjuvant: chemotherapy after surgery

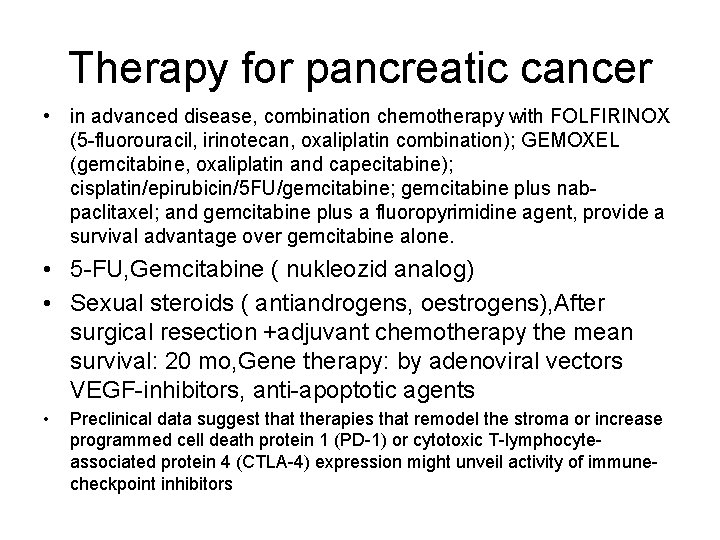

Therapy for pancreatic cancer • in advanced disease, combination chemotherapy with FOLFIRINOX (5 -fluorouracil, irinotecan, oxaliplatin combination); GEMOXEL (gemcitabine, oxaliplatin and capecitabine); cisplatin/epirubicin/5 FU/gemcitabine; gemcitabine plus nabpaclitaxel; and gemcitabine plus a fluoropyrimidine agent, provide a survival advantage over gemcitabine alone. • 5 -FU, Gemcitabine ( nukleozid analog) • Sexual steroids ( antiandrogens, oestrogens), After surgical resection +adjuvant chemotherapy the mean survival: 20 mo, Gene therapy: by adenoviral vectors VEGF-inhibitors, anti-apoptotic agents • Preclinical data suggest that therapies that remodel the stroma or increase programmed cell death protein 1 (PD-1) or cytotoxic T-lymphocyteassociated protein 4 (CTLA-4) expression might unveil activity of immunecheckpoint inhibitors

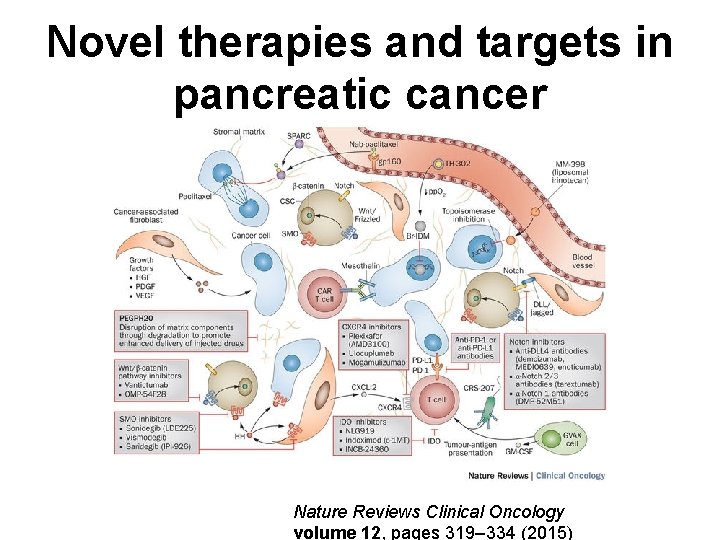

Novel therapies and targets in pancreatic cancer Nature Reviews Clinical Oncology volume 12, pages 319– 334 (2015)
