Chapter 13 Mendel and the Gene Idea Inheritance

Chapter 13 Mendel and the Gene Idea

Inheritance u. The passing of traits from parents to offspring. u. Humans have known about inheritance for thousands of years.

Genetics u. The scientific study of the inheritance. u. Genetics is a relatively “new” science (about 150 years).

Genetic Theories 1. Blending Theory traits were like paints and mixed evenly from both parents. 2. Incubation Theory only one parent controlled the traits of the children. Ex: Spermists and Ovists

3. Particulate Model parents pass on traits as discrete units that retain their identities in the offspring.

Gregor Mendel u. Father of Modern Genetics.

u. Mendel’s paper published in 1866, but was not recognized by Science until the early 1900’s.

Reasons for Mendel's Success u. Used an experimental approach. u. Applied mathematics to the study of natural phenomena. u. Kept good records.

u. Mendel was a pea picker. u. He used peas as his study organism.

Why Use Peas? u. Short life span. u. Bisexual. u. Many traits known. u. Cross- and self-pollinating. u(You can eat the failures).

Cross-pollination u. Two parents. u. Results in hybrid offspring where the offspring may be different than the parents.

Self-pollination u. One flower as both parents. u. Natural event in peas. u. Results in pure-bred offspring where the offspring are identical to the parents.

Mendel's Work u. Used seven characters, each with two expressions or traits. u. Example: u. Character - height u. Traits - tall or short.

Monohybrid or Mendelian Crosses u. Crosses that work with a single character at a time. Example - Tall X short

P Generation u. The Parental generation or the first two individuals used in a cross. Example - Tall X short u. Mendel used reciprocal crosses, where the parents alternated for the trait.

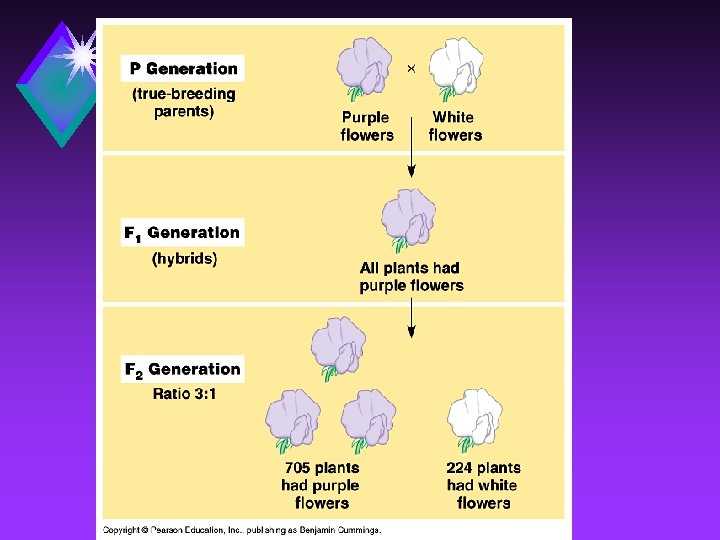

Offspring u. F 1 - first filial generation. u. F 2 - second filial generation, bred by crossing two F 1 plants together or allowing a F 1 to self-pollinate.

Another Sample Cross P 1 F 2 Tall X short (TT x tt) all Tall (Tt) 3 tall to 1 short (1 TT: 2 Tt: 1 tt)

Results - Summary u. In all crosses, the F 1 generation showed only one of the traits regardless of which was male or female. u. The other trait reappeared in the F 2 at ~25% (3: 1 ratio).

Mendel's Hypothesis 1. Genes can have alternate versions called alleles. 2. Each offspring inherits two alleles, one from each parent.

Mendel's Hypothesis 3. If the two alleles differ, the dominant allele is expressed. The recessive allele remains hidden unless the dominant allele is absent. Comment - do not use the terms “strongest” to describe the dominant allele.

Mendel's Hypothesis 4. The two alleles for each trait separate during gamete formation. This now called: Mendel's Law of Segregation

Law of Segregation

Mendel’s Experiments u. Showed that the Particulate Model best fit the results.

Vocabulary u. Phenotype - the physical appearance of the organism. u. Genotype - the genetic makeup of the organism, usually shown in a code. u. T = tall ut = short

Helpful Vocabulary u. Homozygous - When the two alleles are the same (TT/tt). u. Heterozygous- When the two alleles are different (Tt).

6 Mendelian Crosses are Possible Cross Genotype Phenotype TT X tt Tt X Tt TT X TT tt X tt TT X Tt Tt X tt all Tt 1 TT: 2 Tt: 1 tt all TT all tt 1 TT: 1 Tt: 1 tt all Dom 3 Dom: 1 Res all Dom all Res all Dom 1 Dom: 1 Res

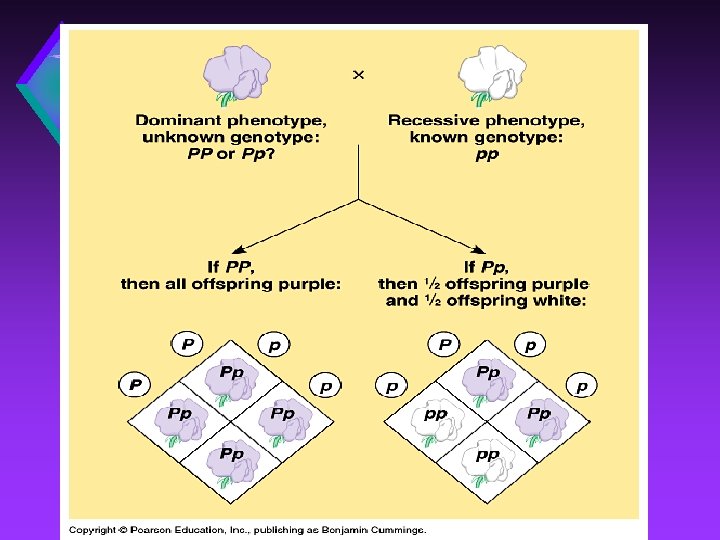

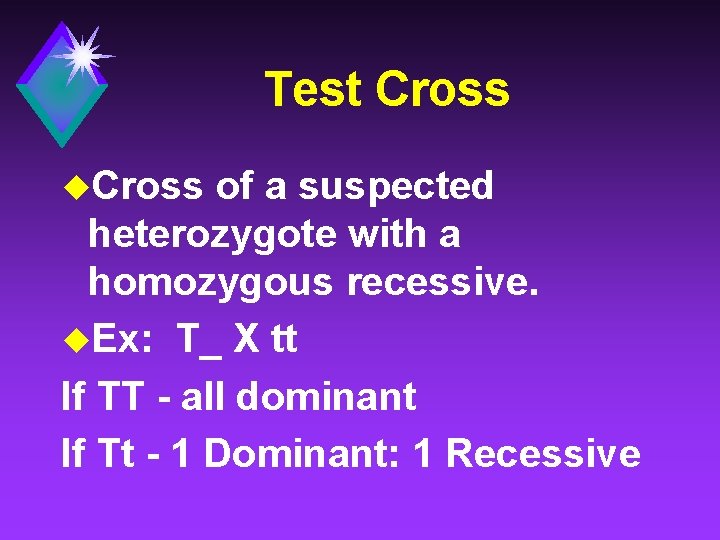

Test Cross u. Cross of a suspected heterozygote with a homozygous recessive. u. Ex: T_ X tt If TT - all dominant If Tt - 1 Dominant: 1 Recessive

Dihybrid Cross u. Cross with two genetic traits. u. Need 4 letters to code for the cross. u. Ex: Tt. Rr u. Each Gamete - Must get 1 letter for each trait. u. Ex. TR, Tr, etc.

Number of Kinds of Gametes u. Critical to calculating the results of higher level crosses. u. Look for the number of heterozygous traits.

Equation The formula 2 n can be used, where “n” = the number of heterozygous traits. Ex: Tt. Rr, n=2 22 or 4 different kinds of gametes are possible. TR, t. R, Tr, tr

Dihybrid Cross Tt. Rr X Tt. Rr Each parent can produce 4 types of gametes. TR, Tr, t. R, tr Cross is a 4 X 4 with 16 possible offspring.

Results u 9 Tall, Red flowered u 3 Tall, white flowered u 3 short, Red flowered u 1 short, white flowered Or: 9: 3: 3: 1

Law of Independent Assortment u. The inheritance of 1 st genetic trait is NOT dependent on the inheritance of the 2 nd trait. u. Inheritance of height is independent of the inheritance of flower color.

Comment u. Ratio of Tall to short is 3: 1 u. Ratio of Red to white is 3: 1 u. The cross is really a product of the ratio of each trait multiplied together. (3: 1) X (3: 1)

Probability u. Genetics is a specific application of the rules of probability. u. Probability - the chance that an event will occur out of the total number of possible events.

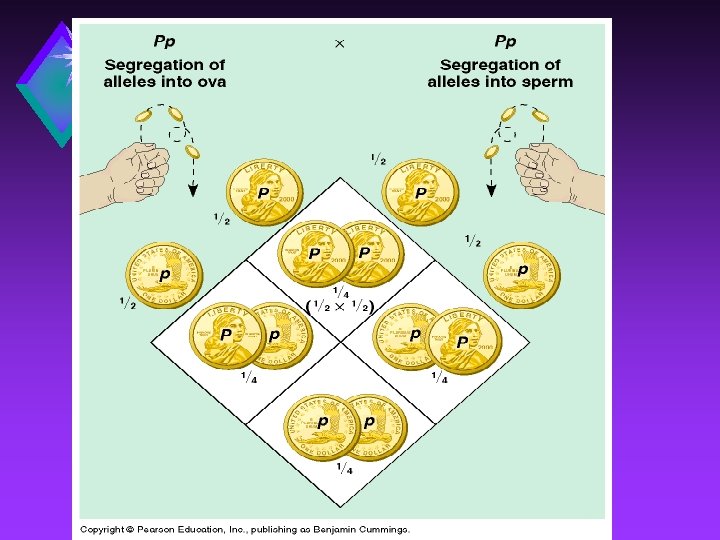

Genetic Ratios u. The monohybrid “ratios” are actually the “probabilities” of the results of random fertilization. Ex: 3: 1 75% chance of the dominant 25% chance of the recessive

Rule of Multiplication u. The probability that two alleles will come together at fertilization, is equal to the product of their separate probabilities.

Example: Tt. Rr X Tt. Rr u. The probability of getting a tall offspring is ¾. u. The probability of getting a red offspring is ¾. u. The probability of getting a tall red offspring is ¾ x ¾ = 9/16

Comment u. Use the Product Rule to calculate the results of complex crosses rather than work out the Punnett Squares. u. Ex: Ttrr. GG X Tt. Rrgg

Solution “T’s” = Tt X Tt = 3: 1 “R’s” = rr X Rr = 1: 1 “G’s” = GG x gg = 1: 0 Product is: (3: 1) X (1: 0 ) = 3: 3: 1: 1

Variations on Mendel 1. 2. 3. 4. 5. Incomplete Dominance Codominance Multiple Alleles Epistasis Polygenic Inheritance

Incomplete Dominance u. When the F 1 hybrids show a phenotype somewhere between the phenotypes of the two parents. Ex. Red X White snapdragons F 1 = all pink F 2 = 1 red: 2 pink: 1 white

Result u. No hidden Recessive. u 3 phenotypes and 3 genotypes (Hint! – often a “dose” effect) u. Red = C R CR u. Pink = CRCW u. White = CWCW

Codominance u. Both alleles are expressed equally in the phenotype. u. Ex. MN blood group u. MM u. MN u. NN

Result u. No hidden Recessive. u 3 phenotypes and 3 genotypes (but not a “dose” effect)

Multiple Alleles u. When there are more than 2 alleles for a trait. u. Ex. ABO blood group u. I A - A type antigen u. IB - B type antigen ui - no antigen

Result u. Multiple genotypes and phenotypes. u. Very common event in many traits.

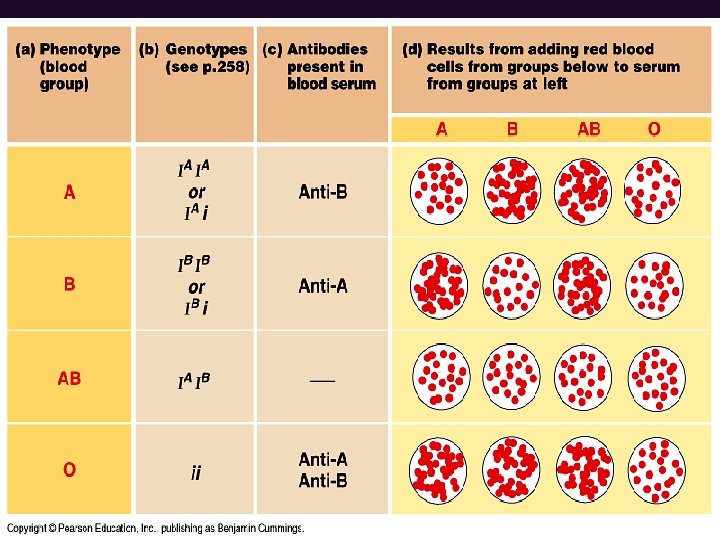

Alleles and Blood Types Type A B AB O Genotypes IA IA or IAi IB IB or IBi I AI B ii

Comment u. Rh blood factor is a separate factor from the ABO blood group. u. Rh+ = dominant u. Rh- = recessive u. A+ blood = dihybrid trait

Epistasis u. When 1 gene locus alters the expression of a second locus. u. Ex: u 1 st gene: C = color, c = albino u 2 nd gene: B = Brown, b = black

Gerbils

In Gerbils Cc. Bb X Cc. Bb Brown X Brown F 1 = 9 brown (C_B_) 3 black (C_bb) 4 albino (cc__)

Result u. Ratios often altered from the expected. u. One trait may act as a recessive because it is “hidden” by the second trait.

Problem u. Wife is type A u. Husband is type AB u. Child is type O Question - Is this possible? Comment - Wife’s boss is type O

Bombay Effect u. Epistatic Gene on ABO group. u. Alters the expected ABO outcome. u. H = dominant, normal ABO uh = recessive, no A, B, reads as type O blood.

Genotypes u. Wife: type A (IA IA , Hh) u. Husband: type AB (IAIB, Hh) u. Child: type O (IA IA , hh) Therefore, the child is the offspring of the wife and her husband (and not the boss).

Bombay - Detection u. When ABO blood type inheritance patterns are altered from expected.

Homework u. Read Chapter 14 u. Chapter 48 – part II u. Lab – Genetics of Organisms u. Chapter 14 – Wed. 12/5

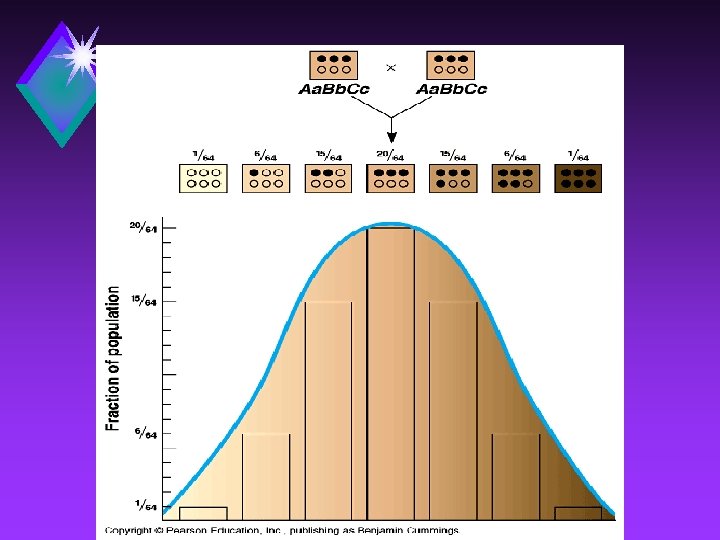

Polygenic Inheritance u. Factors that are expressed as continuous variation. u. Lack clear boundaries between the phenotype classes. u. Ex: skin color, height

Genetic Basis u. Several genes govern the inheritance of the trait. u. Ex: Skin color is likely controlled by at least 4 genes. Each dominant gives a darker skin.

Result u. Mendelian ratios fail. u. Traits tend to "run" in families. u. Offspring often intermediate between the parental types. u. Trait shows a “bell-curve” or continuous variation.

Genetic Studies in Humans u. Often done by Pedigree charts. u. Why? u. Can’t do controlled breeding studies in humans. u. Small number of offspring. u. Long life span.

Pedigree Chart Symbols Male Female Person with trait

Sample Pedigree

Dominant Trait Recessive Trait

Human Recessive Disorders u. Several thousand known: u. Albinism u. Sickle Cell Anemia u. Tay-Sachs Disease u. Cystic Fibrosis u. PKU u. Galactosemia

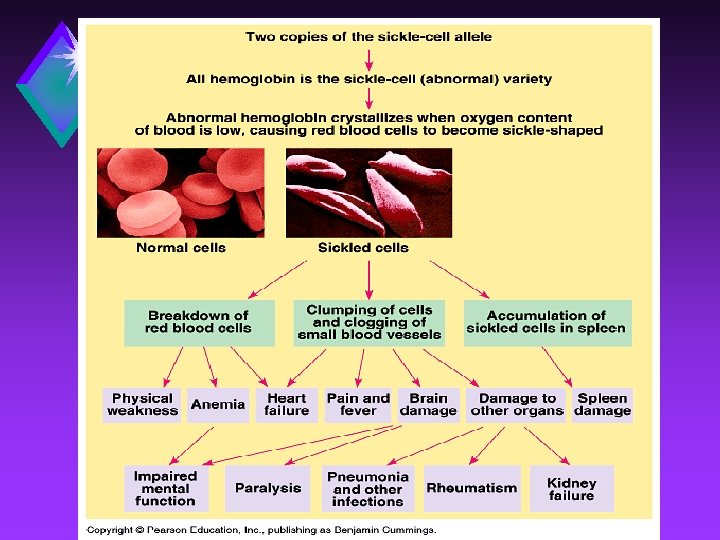

Sickle-cell Disease u. Most common inherited disease among African-Americans. u. Single amino acid substitution results in malformed hemoglobin. u. Reduced O 2 carrying capacity. u. Codominant inheritance.

Tay-Sachs u. Eastern European Jews. u. Brain cells unable to metabolize type of lipid, accumulation of causes brain damage. u. Death in infancy or early childhood.

Cystic Fibrosis u. Most common lethal genetic disease in the U. S. u. Most frequent in Caucasian populations (1/20 a carrier). u. Produces defective chloride channels in membranes.

Recessive Pattern u. Usually rare. u. Skips generations. u. Occurrence increases with consaguineous matings. u. Often an enzyme defect.

Human Dominant Disorders u. Less common then recessives. u. Ex: u. Huntington’s disease u. Achondroplasia u. Familial Hypercholsterolemia

Inheritance Pattern u. Each affected individual had one affected parent. u. Doesn’t skip generations. u. Homozygous cases show worse phenotype symptoms. u. May have post-maturity onset of symptoms.

Genetic Screening u. Risk assessment for an individual inheriting a trait. u. Uses probability to calculate the risk.

General Formal R=FXMXD R = risk F = probability that the female carries the gene. M = probability that the male carries the gene. D = Disease risk under best conditions.

Example u. Wife has an albino parent. u. Husband has no albinism in his pedigree. u. Risk for an albino child?

Risk Calculation u. Wife = probability is 1. 0 that she has the allele. u. Husband = with no family record, probability is near 0. u. Disease = this is a recessive trait, so risk is Aa X Aa =. 25 u. R = 1 X 0 X. 25 u. R = 0

Risk Calculation u. Assume husband is a carrier, then the risk is: R = 1 X. 25 R =. 25 There is a. 25 chance that any child will be albino.

Common Mistake u. If risk is. 25, then as long as we don’t have 4 kids, we won’t get any with the trait. u. Risk is. 25 for each child. It is not dependent on what happens to other children.

Carrier Recognition u. Fetal Testing u. Amniocentesis u. Chorionic u. Newborn villi sampling Screening

Fetal Testing u. Biochemical Tests u. Chromosome Analysis

Amniocentesis u. Administered between 11 - 14 weeks. u. Extract amnionic fluid = cells and fluid. u. Biochemical tests and karyotype. u. Requires culture time for cells.

Chorionic Villi Sampling u. Administered between 8 - 10 weeks. u. Extract tissue from chorion (placenta). u. Slightly greater risk but no culture time required.

Newborn Screening u. Blood tests for recessive conditions that can have the phenotypes treated to avoid damage. Genotypes are NOT changed. u. Ex. PKU

Newborn Screening u. Required by law in all states. u. Tests 1 - 6 conditions. u. Required of “home” births too.

Multifactorial Diseases u. Where Genetic and Environment Factors interact to cause the Disease. u. Becoming more widely recognized in medicine.

Ex. Heart Disease u. Genetic u. Diet u. Exercise u. Bacterial Infection

Summary u. Know the Mendelian crosses and their patterns. u. Be able to work simple genetic problems (practice). u. Watch genetic vocabulary. u. Be able to read pedigree charts.

Summary u. Be able to recognize and work with some of the “common” human trait examples.
