1. Introduction When customers want to use IP-Phone (*) mainly for extension and they want to use E 1 or more than 2 PRI as trunk, KX-NS 1000 version 2 with new trunk adapter is recommended because KX-NS 1000 supports more IP capacity and IP functionality than KX-NCP or KX-TDE. (*) - KX-NT / KX-UT by Panasonic - NT based software phone by Panasonic - SIP hardware phone by other maker - SIP software phone for PC, Android, i. Phone and so on Panasonic KX-NS 8290 PRI 30 Trunk Adaptor SIP Extension Model Specifications KX-NS 8188 X E 1 adapter on SIP trunk KX-NS 8290 CE PRI 30 adapter on SIP trunk KX-NS 8290 X PRI 23 adapter on SIP trunk 215 mm (W) 44 mm (H) 200 mm (D) 500 g SIP Trunk (30 -ch) PRI 30 KX-NS 1000 PRI Card KX-NCS 0290 IP Network KX-NT KX-UT Other SIP Phone SIP Softphone 2

Stacking Card 2. Introduction On the other hand, when customer has Panasonic PBX now, they can add IP capacity and IP functionality using KX-NS 1000 version 2 with stacking card KX-NS 0130 with keeping current PBX. This configuration is useful for new customer also when they need more SLT phone, Digital PT with DSS Console, Analog PT and analog CO as well as IP-Phone. KX-NS 0130 SC card for NS 100 Before adding KX-NS 1000 After adding KX-NS 1000 Analog CO KX-TDE KX-NS 0132 SC card for TDA/TDE Direct Connection like TDE 600 to TDE 620 MPR Card EXT Card SC Card 100 % Feature Transparency like TDE 600 to TDE 620 SLT SC card for NCP CO Card EXT Card KX-NS 0131 KX-DT w/ DSS Console SLT KX-DT w/ DSS Console KX-NS 1000 SC Card KX-NCS 0130 IP Network KX-NT KX-UT Other SIP Phone SIP Softphone 3

3. Table of Contents Chapter Explanation 1 Overview 2 Specifications 3 Concept of programming for Public mode 4 Step by step programming for the trunk adapter 5 Step by step programming for KX-NS 1000 6 Programming hint for Private mode (QSIG) 7 Demonstration guide 4

Chapter 1 Overview 5

11. Trunk Adapter for E 1 / PRI Panasonic KX-NS 8290 increases PRI capacity. KX-NS 8188 for E 1. Two PRI by card and adapter One PRI by card Panasonic KX-NS 8290 PRI 30 Trunk Adaptor PRI 30 KX-NS 1000 SIP Extension SIP Trunk (30 -ch) KX-NCS 0290 PRI Card KX-NCS 0290 IP Network KX-UT KX-NS 1000 IP Trunk AK PRI Card KX-NT PRI 30 Other SIP Phone SIP Softphone KX-NT KX-UT Other SIP Phone SIP Softphone Activation key of IP Trunk is NOT required in KX-NS 1000 to connect PRI / E 1 trunk adapter, even if SIP Trunk of KX-NS 1000 is used. 6

12. Trunk Adapter for E 1 / PRI - Capacity Maximum 256 ch is available for E 1 / PRI by adapter and IP trunk. Line NS 1000 x 1 NS 1000 x 2 256 x 2 600 Legacy 256 x 2 600 IP incl E 1/PRI adapter 256 SIP 256 H. 323 48 48 x 2 = 96 Trunk SIP Provider SIP Trunk (xx-ch) PRI 30 E 1 Trunk Adaptor SIP Trunk (30 -ch) NS 1000 x 4 or more Also useful to provide PRI/E 1 with 2 -ch Analog CO or 4 BRI. PRI 30 E 1 Trunk Adaptor NS 1000 x 3 PRI 30 256 ch PRI Card Max. 256 ch can be registered to SIP provider or the adapter. PRI 30 E 1 Trunk Adaptor SIP Trunk (30 -ch) Analog CO CO Card 7

13. TDE as Option by H. 323 Reference KX-TDE with CO card increases CO capacity using H. 323. More Analog CO by TDE (H. 323) Analog CO Enhanced QSIG AK Enhanced Feature AK KX-TDE IP Trunk AK CO Card H. 323 MPR Card w/ Vo. IP DSP IP Trunk AK IP Network SC Card Stacking card is not required in this case. KX-NT KX-UT Other SIP Phone SIP Softphone Activation key of IP Trunk is required in KX-NS 1000 for H. 323 all channels and required in KX-TDE for more than 4 or 16 channels. Activation key for “Enhanced QSIG” is not required because this configuration needs only basic QSIG function. 8

14. TDE as Option by H. 323 - Capacity Reference Maximum 96 ch is available for Analog CO / BRI and H. 323. Line NS 1000 x 1 NS 1000 x 2 256 x 2 600 Legacy 256 x 2 600 IP incl E 1/PRI adapter 256 SIP 256 H. 323 incl Analog CO by TDE 48 48 x 2 = 96 Trunk Branch NS 1000 x 3 HQ PRI 30 Analog CO CO Card KX-NCP H. 323 (32 ch) IP Network NS 1000 x 4 or more Trunk Adaptor KX-TDE H. 323 (32 ch) MPR Card w/ Vo. IP DSP H. 323 + SIP Trunk (256 ch) H. 323 (96 ch) Analog CO KX-NS 1000 CO Card Max. 96 ch can be used for any other PBX. (Chanel is occupied only when call is made. ) 9

Stacking Card 15. Stacking Card increases DPT + SLT + Trunk capacity. More Analog CO and DPT / SLT by Stacking Card Analog CO like TDE 600 to TDE 620 Direct Connection like TDE 600 to TDE 620 KX-TDE KX-NS 1000 CO Card EXT Card 100 % Feature Transparency SC Card IP Network SLT KX-DT KX-NT KX-UT Other SIP Phone SIP Softphone This configuration is useful if customer needs DPT with DSS Console and so on. - SC card for TDE-NCP is installed instead of MPR card. - SC card for NS 1000 is installed to free slot. (Slot for “PRI+2 SLT” etc ) 10

Stacking Card 16 -1. Stacking Card - Specifications You can connect a maximum of 2 existing PBXs for one KX-NS 1000. A maximum of 8 existing PBXs and 16 KX-NS 1000 can be connected for the entire One-look Network. An existing PBX refers to a Panasonic KX-TDE series, KX-NCP series, or KX-TDA 100/200/620 PBX. IP Network KX-TDE 620 SC Card KX-TDE 600 KX-NCP IP Network KX-TDE 600 SC Card KX-TDE 620 KX-NCP SC Card QSIG KX-DT Max. 8 PBXs KX-DT Different PBX category cannot be mixed to one KX-NS 1000. Category 1 : KX-NCP 500 -1000 Category 2 : KX-TDE(A)100 -200 Category 3 : KX-TDE(A)600 -620 Stacking card for KX-TDA 100 D is not planned currently. KX-DT NCP 500+TDE 200 : N/A TDE 100+TDA 200 : OK TDE 600+TDE 620 : OK TDE 620+TDE 620 : OK 11

16 -2. Stacking Card - Conditions - Cards in right table are not supported. Reason is as follows. - MPR is not required. - IP feature is supported by KX-NS 1000. - DISA/SVM feature is supported by KX-NS 1000 without AK. - New cards for TDE-NCP version 5 are N/A. - By above condition, KX-NT 400 and KX-HGT 100 cannot be used after connecting with KX-NS 1000. - IP capacity AK is not required for trunk and extension in existing PBXs because these are not IP. - Other AK such as CA is required in KX-NS 1000 for extension in existing PBX. - In case of TDA 100/200 and TDE 100/200 OPB 3 card with ECHO 16 must be installed in only Slot 1. *) Other cards except OPB 3 or OPB 3 card with other daughter board except ECHO 16 can be installed to any slot. Stacking Card Not Supported Symbol Model RMT TDA 0196 MEC TDA 0105/ TDE 0105 DSP 4 NCP 1104 DSP 16 TDE 0110 DSP 64 TDE 0111 CTI-LINK TDA 0410 IP-EXT 16 TDA 0470 IP-GW 4 E TDA 0484 IP-GW 16 TDA 0490 IP GW 4 TDA 0480 MSG 4 TDA 0191 ESVM 2 TDA 0192 ESVM 4 TDA 0194 CLCOT 8 TDA 1180 CLCOT 8 E TDA 1186 MCSLC 24 TDA 1178 MCSLC 16 TDA 1176 12

17. Stacking Card - Programming Stacking Card Programming It is not required to program for connection (Same as TDE 600 to TDE 620 connection). Property of cards in TDE/NCP can be programmed using NS 1000 Web. 13

18. Recommendation of Configuration KX-NS 1000 is recommended as follows, when new customer does not have Panasonic PBX now and they want to use IP phone mainly for extension. When customer wants to use for Extension for Trunk One PRI or 4 BRI Recommendation Optional Card Version 1 & 2 Trunk Adapter (+ Optional Card) Version 2 TDE/NCP as option by H. 323 Version 1 & 2 E 1 / 2 or more PRI E 1 / PRI + 4 BRI IP Phone + 2 SLT E 1 / PRI + 2 Analog 3 or more Analog CO 5 or more BRI Other mixture IP Phone + Digital PT + Analog PT + SLT (Any above configuration) TDE 620 with Stacking Card Version 2 14

19. KX-NS 1000 Capacity Total capacity is as follows. Line Trunk Legacy NS 1000 x 1 NS 1000 x 2 NS 1000 x 3 NS 1000 x 4 or more 256 256 x 2 600 by stacking card or/and “xxx+SLT 2” card IP incl E 1/PRI adapter 256 SIP 256 H. 323 48 48 x 2 = 96 640 1000 480 SLT (*1) 512 DPT (*2) 1000 640 1000 UT 640 1000 NT (NS 1000 V 1) 128 x 2 128 x 3 128 x N or 1000 NT (NS 1000 V 2) 256 x 2 256 x 3 1000 Extension Digital PT / Analog PT / SLT by stacking card or/and “xxx+SLT 2” card IP (*1) 24 SLT x 10 by TDE 620 x 2 for example (*2) 256 DPT incl DXDP by TDE 620 x 2 for example 15

Chapter 2 Specifications 16

21. Hardware Appearance is as follows. Front Back Wall Mountain No. Description 1 System LED 2 E 1 / PRI line LED 3 DC Jack 4 LAN Port 5 LAN LED (Link) 6 LAN LED (Transmission Speed) 7 E 1 / PRI line port 8 Initialize button (Not slide switch) Unpack the box and check the items below: Main Unit x 1 Screw x 2 Washer x 2 17

22. Po. E (Power over Ethernet) KX-NS 8188 / KX-NS 8290 supports Po. E. If Po. E is not supported by network, AC adapter is required. KX-A 420 for Brazil KX-A 239 for others *) These are same model of AC adapter for KX-UT phone. 18

23. KX-NS 8188 E 1 Adapter KX-NS 8188 E 1 adapter supports following features. Features NS 8188 TDA 0188 (Reference) DR 2 Yes E&M-C No Yes E&M-P No Yes MFC-R 2 Yes DTMF Yes Pulse No Yes Caller Number Notification (ANI) Yes Charge / Meter Pulse No Yes Deny collect call for Brazil Yes Outgoing call auto disconnect Yes Signaling Dial Type E 1 KX-NS 8188 Trunk Adaptor KX-TDA 0188 KX-TDE KX-NS 1000 19

24. KX-NS 8290 PRI Adapter KX-NS 8290 PRI adapter supports following features. Features Mode NS 8290 NS 0290 (Reference) CO (Public) Yes Extension No Yes QSIG-master/slave (Private) Yes CLIP / CLIR Yes COLP / COLR No Yes CNIP /CNIR Yes CONP / CONR No Yes Advice of charge Yes Call Forwarding No Yes Call Hold No Yes Call Transfer (incl. ISDN Centrex) No Yes Tree-party conference No Yes Malicious call identification No Yes Generic keypad protocol No Yes CCBS No Yes ISDN - Virtual Private Network No Yes E-911 (for PRI 23) Yes ISDN Carrier Service (Public) “No” because these services by ISDN provider are not popular and PBX can support same feature basically. Conf by PBX Conf by ISDN KX-NS 8290 Trunk Adaptor KX-NS 0290 PRI Card KX-NS 1000 20

25. KX-NS 8290 PRI Adapter for QSIG KX-NS 8290 PRI adapter supports QSIG also. Features QSIG service NS 8290 TDA 0290 (Reference) CLIP/CLIR Yes CNIP/CNIR Yes Call Forwarding (CF) Yes Call Transfer (CT) Yes Completion of Calls to Busy Subscriber (CCBS) Yes Network Direct Station Selection (NDSS) Yes Centralized Voice Mail Yes Network ICD Group Yes PRI QSIG Private Network (Leased ISDN) PRI QSIG Trunk Adaptor H. 323 QSIG 30 ch or 23 ch H. 323 is used for this configuration instead of SIP. Line NS 1000 x 1 IP incl E 1/PRI adapter NS 1000 or other PBX x 2 IP Trunk AK KX-NS 1000 x 3 256 SIP + PRI Adapter for Public 256 H. 323 + PRI Adapter for QSIG 48 48 x 2 = 96 NS 1000 x 4 or more 21

26. Fractional Service Fractional service is also available. <Stand alone> 20 ch E 1/PRI Trunk Adaptor 20 ch KX-NS 1000 <One-look network> 20 ch E 1/PRI Trunk Adaptor 60 ch E 1/PRI Trunk Adaptor 10 ch E 1/PRI Trunk Adaptor Total 256 ch 20 ch 1 st KX-NS 1000 in Fukuoka 30 ch 2 nd KX-NS 1000 in Tokyo 30 ch 16 th KX-NS 1000 in Niseko 22

27. Solution with “Back-up Master” Back-up is available automatically for SIP trunk incl E 1 / PRI adapter, KX-NT/UT IP-phone and one look connection. PRI/E 1 or SIP Provider Trunk Adaptor SIP Trunk KX-NS 1000 (2 nd) Back-up Master One-Look AK KX-NS 1000 (1 st) Master KX-NT KX-UT KX-NT Back-up master PBX works as slave PBX usually. But it works as master PBX after master PBX stops working. KX-UT PRI/E 1 or SIP Provider Trunk Adaptor After master PBX stops working, KX-NS 1000 Back-up Master SIP Trunk One-Look AK KX-NS 1000 Master KX-NT KX-UT 23

Chapter 3 Concept of Programming for Public Connection 24

31. Concept of Programming - Adapter The trunk adapter is PBX with E 1 / PRI trunk and SIP extension. SIP trunk of KX-NS 1000 is registered to SIP extension of the adapter. <Programming for the trunk adapter> Software of the adapter is basically same as KX-NS 1000. Features except E 1 / PRI and SIP extension are removed. Therefore programming method is very similar to KX-NS 1000. E 1/ ISDN - PRI configuration is same as programming for KX-NS 1000 PRI card (KX-NS 0290). E 1 configuration is same as KX-TDE E 1 card (KX-TDA 0188). - SIP extension configuration is same as KX-NS 1000. But SIP extension is programmed by default. KX-TDA 0188 401 to 430 for E 1 / PRI 30 KX-TDE 401 to 423 for PRI 23 PRI E 1 / PRI Trunk Adaptor SIP Extension 401 -430 30 ch or 23 ch ID 401 -430 SIP Trunk PRI Card KX-NS 1000 KX-NS 0290 25

32. Concept of Programming – NS 1000 <Programming for KX-NS 1000> The trunk adapter is basically SIP provider for KX-NS 1000. Following has to be programmed. - IP address of the adapter as SIP server destination - SIP registration User ID (Password is not required. ) - Connection Attribute : SIP Provider / Trunk Adapter E 1/ ISDN E 1 / PRI Trunk Adaptor SIP Extension 401 -430 30 ch or 23 ch ID 401 -430 SIP Trunk KX-NS 1000 26

33. Concept of Programming - Call <Programming for KX-NS 1000 - CONT> Programming of the trunk adapter is not required for DDI / DIL incoming call from E 1/PRI to SIP extension. It works like DIL 1: 1 without programming and DDI number and caller ID are informed from the trunk adapter to KX-NS 1000. Programming of KX-NS 1000 is required for DDI / DIL. Outgoing call is also programmed for KX-NS 1000 instead of the trunk adapter. E 1 / ISDN E 1 / PRI CH 1 CH 2 CH 30 Trunk Adapter DDI Caller ID SIP Extension 401 SIP Trunk 402 430 KX-NS 1000 Therefore administrator has to access only KX-NS 1000 to change extension number, DDI and so on after dealer installed. 27

Chapter 4 Step by Step Programming for Trunk Adapter Trunk Adaptor KX-NS 1000 28

41. Initialize Operation and “SYSTEM” LED display is as follows. 1. Power On (Connect AC adapter or connect LAN with Po. E) (a) Amber On (5 sec) (b) Amber rapid flash (5 sec) 2. During (b), keep pressing Initialize button for 1 s. (c) Off (2 sec) (d) Amber On (30 sec) (e) Amber slow flash (120 sec) (f) Green slow flash Trunk Adaptor KX-NS 1000 - Display of (b) finishes before 5 sec after operation of (2). - Display of (f) means success of initialization and awaiting “Easy set-up” of web maintenance console. Initialize Button System LED 29

42. LED Indication LED indication is as follows. Trunk Adaptor KX-NS 1000 30

43. PC Connection - 1 (1) Set IP address 192. 168. 0. 99 for example to your PC like first connection of KX-TDE or KX-NCP. - Trunk adapter does not have maintenance port with DHCP server. - Sub-net mask should be 255. 0 (2) Connect 192. 168. 0. 151 by Firefox. - Default IP address of trunk adapter is 192. 168. 0. 151. Trunk Adaptor KX-NS 1000 DHCP Server 192. 168. 0. 101 by default Trunk Adapter 192. 168. 0. 99 for example 192. 168. 0. 151 by default For demo, NS 1000 with DHCP server function is useful to assign IP address of PC automatically. 31

43. PC Connection - 2 (1) In 10 seconds from step in previous page, log-in menu is displayed. (2) Input “INSTALLER” as user and “ 1234” as password. Trunk Adaptor KX-NS 1000 32

44. Easy setup - Language selection (1) Select language. Trunk Adaptor KX-NS 1000 33

44. Easy setup - 1 (1) Select Suffix of KX-NS 1000 and area. Trunk Adaptor KX-NS 1000 No need to change If Suffix is changed, system restarts again after click [OK]. Wait 3 min and connect PC again. (a) Amber slow flash (30 sec) (b) Amber On (10 sec) (c) Amber rapid flash (5 sec) (d) Amber On (30 sec) (e) Amber slow flash (120 sec) (f) Green slow flash 34

44. Easy setup - 2 No need to change. - Adapter name is only for reference. - Time is used only for error log. Trunk Adaptor KX-NS 1000 35

44. Easy setup - 3 (1) Input IP address of trunk adapter in actual customer’s network. Get the IP address from IT manager. *) For demo, default is OK. Trunk Adaptor KX-NS 1000 36

44. Easy setup - 4 No need to change. - Time is used only for error log. Trunk Adaptor KX-NS 1000 37

44. Easy setup - 5 (1) Input password as you hope, click [Finish]. (2) Wait for 30 seconds. Trunk Adaptor KX-NS 1000 If LAN setting is changed, system restarts again after click [OK]. Wait 3 min and connect PC again. (a) Amber slow flash (30 sec) (b) Amber On (10 sec) (c) Amber rapid flash (5 sec) (d) Amber On (30 sec) (e) Amber slow flash (120 sec) (f) Green slow flash 38

45. Maintenance Console - Top menu If LAN setting is changed, (1) Remove the trunk adapter from LAN (2) Connect it to actual customer’s network. (3) Connect PC to IP address of trunk adapter using Firefox. (4) After log-in, following top menu is displayed. Trunk Adaptor KX-NS 1000 If LAN setting is not changed, following Top menu is displayed. 39

45. Maintenance Console - 1 Software version can be confirmed as follows. Trunk Adaptor KX-NS 1000 40

45. Maintenance Console - 2 Parameter for PRI can be modified as follows. (Same as “PRI + 2 SLT” card) Trunk Adaptor KX-NS 1000 41

45. Maintenance Console - 3 IP address of adapter can be changed. (No need to change usually. ) Trunk Adaptor KX-NS 1000 42

45. Maintenance Console - 4 Software can be updated by one step. (Not same as KX-NS 1000) - Wait 15 minutes after clicking [Execute]. (Same as KX-NS 1000. ) Trunk Adaptor KX-NS 1000 43

45. Maintenance Console - 5 E 1/ PRI Card diagnosis is supported. Trunk Adaptor KX-NS 1000 Out of service can be assigned. This is required for software update also. 44

Chapter 5 Step by Step Programming for KX-NS 1000 45

51. KX-NS 1000 - Out of Service Install virtual SIP trunk card. Out of service is required for port or card before programming in following pages. Trunk Adaptor KX-NS 1000 46

52. KX-NS 1000 - Connection Attribute Change connection attribute from “SIP provider” to “Trunk Adapter” for each channels or click [Trunk Adapter] button to change max. 30 ch at the same time. Use this. No need to program each ch. Trunk Adaptor KX-NS 1000 47

53. KX-NS 1000 - Trunk Adapter button - 1 Input IP address of trunk adapter and click [Next]. - Trunk adapter name is for reference. 192. 168. 0. 151 Trunk Adaptor 192. 168. 0. 152 Trunk Adaptor KX-NS 1000 Web maintenance console for the trunk adapter is opened. For reference Max. 16 Adapter *) If program manually not using “trunk adapter”, more than 16 adapter can be programmed. 48

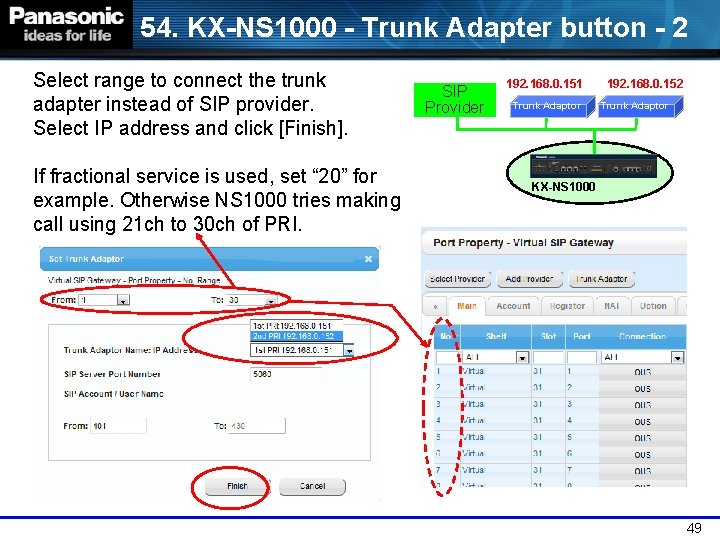

54. KX-NS 1000 - Trunk Adapter button - 2 Select range to connect the trunk adapter instead of SIP provider. Select IP address and click [Finish]. If fractional service is used, set “ 20” for example. Otherwise NS 1000 tries making call using 21 ch to 30 ch of PRI. SIP Provider 192. 168. 0. 151 Trunk Adaptor 192. 168. 0. 152 Trunk Adaptor KX-NS 1000 49

55. KX-NS 1000 - Registration to SIP Server Connection attribute were programmed by previous step. Parameters for registration to SIP server (E 1/PRI adapter) were also programmed. 192. 168. 0. 151 Trunk Adaptor 192. 168. 0. 152 Trunk Adaptor KX-NS 1000 50

56. KX-NS 1000 - CLIP “PBX CLIP” has to be selected as follows to send CLIP on extension for outgoing call. Trunk Adaptor KX-NS 1000 51

57. KX-NS 1000 - In Service Set In Service. E 1 / - Other programming such as ARS, TRS is ISDN basically same as PRI for KX-TDE/NCP. - However it is required to program as next 2 pages additionally because I/F with trunk adapter is SIP. Trunk Adaptor KX-NS 1000 When E 1/PRI line of trunk adapter is fault, trunk adapter stops communication with KX-NS 1000. Therefore the SIP trunk ch of KX-NS 1000 becomes fault. This specification is useful not to use the SIP ch automatically for ARS and so on. 52

58. KX-NS 1000 - Dialing Plan Dialing plan has to be programmed for outgoing call because I/F with trunk adapter is SIP en-block dial. Trunk Adaptor Otherwise extension caller has to wait for 10 seconds to hear ring back tone after dial to E 1/PRI trunk adapter. KX-NS 1000 53

59. KX-NS 1000 - DDI Modification DDI first 3 digits has to be removed because I/F with trunk adapter is SIP. ID such as “ 401” + real DDI number is informed as DDI number from E 1/PRI adapter to KX-NS 1000. E 1 / ISDN Trunk Adaptor DDI 5678 DDI 4015678 DDI 5678 KX-NS 1000 Program DDI table. 54

Chapter 6 Programming Hint for Private Mode (QSIG) 55

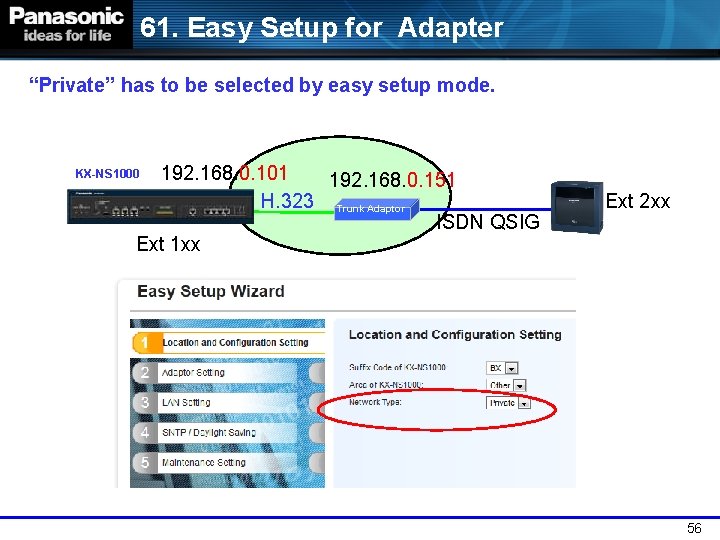

61. Easy Setup for Adapter “Private” has to be selected by easy setup mode. 192. 168. 0. 101 192. 168. 0. 151 H. 323 Trunk Adaptor ISDN QSIG Ext 1 xx KX-NS 1000 Ext 2 xx 56

62. PRI QSIG mode for Adapter QSIG (Slave) is assigned automatically after easy setup. 192. 168. 0. 101 192. 168. 0. 151 H. 323 Trunk Adaptor ISDN QSIG Ext 1 xx KX-NS 1000 Ext 2 xx 57

63. H. 323 programming for Adapter H. 323 destination programming of adapter is also required. Common IP address is assigned for any dial. (Not each dial) 192. 168. 0. 101 192. 168. 0. 151 H. 323 Trunk Adaptor ISDN QSIG Ext 1 xx KX-NS 1000 Ext 2 xx IP address of Back-up master PBX 192. 168. 0. 101 58

64. H. 323 programming for KX-NS 1000 H. 323 destination programming of KX-NS 1000 is required for adapter as well as other PBXs. Sole difference is that activation key for IP trunk is not required. 192. 168. 0. 101 192. 168. 0. 151 H. 323 Trunk Adaptor ISDN QSIG Ext 1 xx 192. 168. 30. 101 IP Network Ext 3 xx KX-NS 1000 DN 2 IP table (Dial to IP) -----------------Dial 2 xx to 192. 168. 0. 151 Dial 3 xx to 192. 168. 30. 101 Dial 4 xx to 192. 168. 40. 101 Ext 2 xx 192. 168. 40. 101 Ext 4 xx 59

Chapter 7 Demonstration Guide 60

71. Configuration Example D P P L R R C I I Ext 301 (for test) Ext 31 X KX-TDE with 2 PRI Extension as ISDN provider Ext 32 X PRI Adaptor SIP Trunk (30 -ch) KX-NS 1000 Ext 101 Ext 102 CLIP 01234311 CLIP 01234312 KX-NCP with PRI Ext 201 CLIP 01234321 61

72. Outgoing Call KX-TDE with 2 PRI Extension as ISDN provider D P P L R R C I I Dialing plan 3 XX Ext 301 (for test) Dial 321 (Remove 01234 by ARS) SIP Trunk (30 -ch) Ext 31 X PRI Adaptor Ext 32 X DDI 321 Dial 321 KX-NS 1000 KX-NCP with PRI Dial 0/9 -01 -234 -321 DDI Program 01234311 Ext 102 CLIP 01234311 CLIP 01234312 Ext 201 CLIP 01234321 62

73. Incoming Call D P P L R R C I I Ext 301 (for test) Ext 31 X KX-TDE with 2 PRI Extension as ISDN provider Ext 32 X Dial 312 (Remove 01234 by ARS) DDI 312 PRI Adaptor DDI 401312 SIP Trunk (30 -ch) KX-NS 1000 DDI Program 01234321 Ext 102 CLIP 01234311 CLIP 01234312 KX-NCP with PRI Dial 0/9 -01 -234 -312 Ext 201 CLIP 01234321 63

74. PRI Extension Standard LAN cable can be used by this switch for PRI Extension. D P P L R R C I I Ext 301 (for test) Ext 31 X PRI Adaptor Ext 32 X PRI 64

75. KX-NS 1000 – SIP Register Resending “Register Resending Interval” has to be 10 seconds. If default value 300 seconds is used, it takes for 0 to 300 seconds to reconnect KX-NS 1000 and trunk adapter, when trunk adapter returns IN Service from Out of Service or LAN is reconnected. Trunk Adaptor KX-NS 1000 65
