23 PART 1 The Digestive System Pages 676

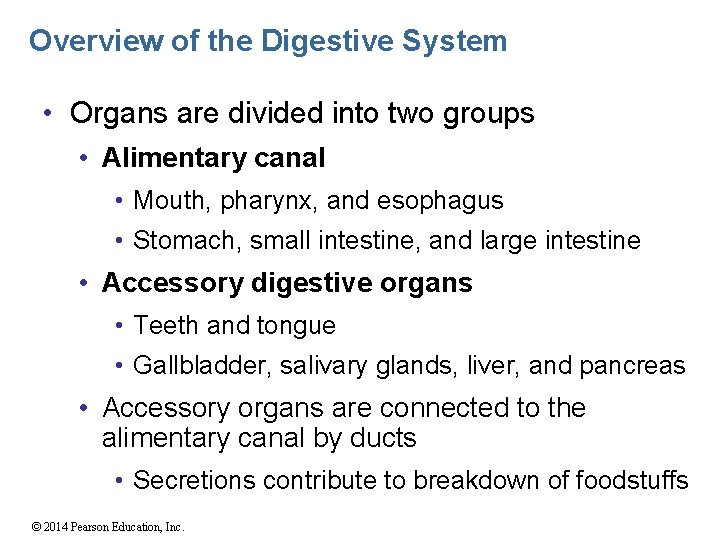

Overview of the Digestive System • Organs are divided into two groups • Alimentary

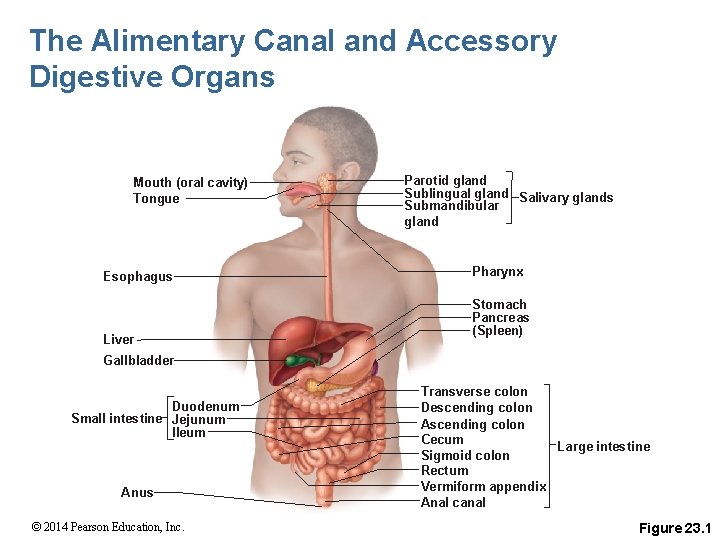

The Alimentary Canal and Accessory Digestive Organs Mouth (oral cavity) Tongue Esophagus Liver Parotid

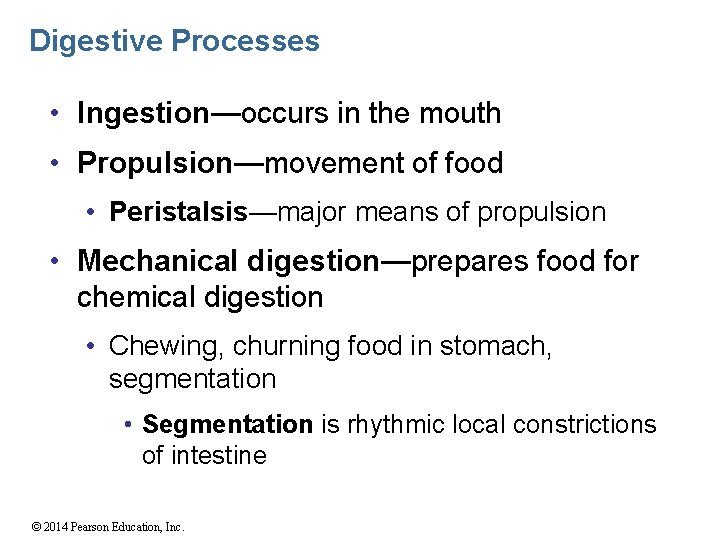

Digestive Processes • Ingestion—occurs in the mouth • Propulsion—movement of food • Peristalsis—major means

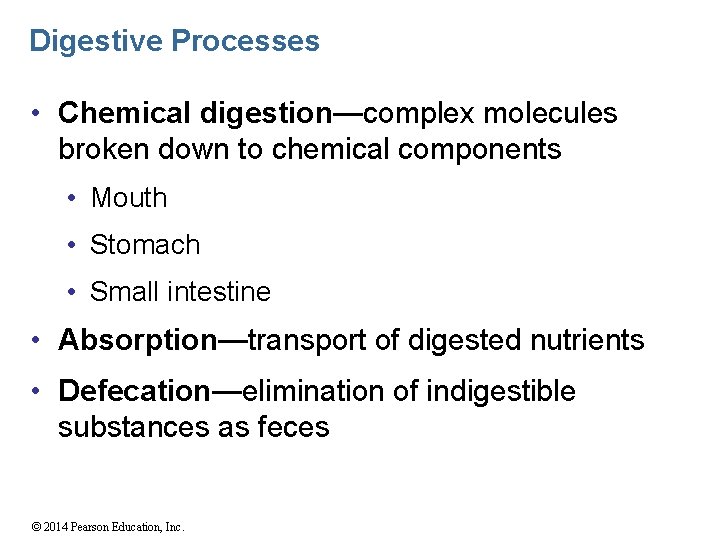

Digestive Processes • Chemical digestion—complex molecules broken down to chemical components • Mouth •

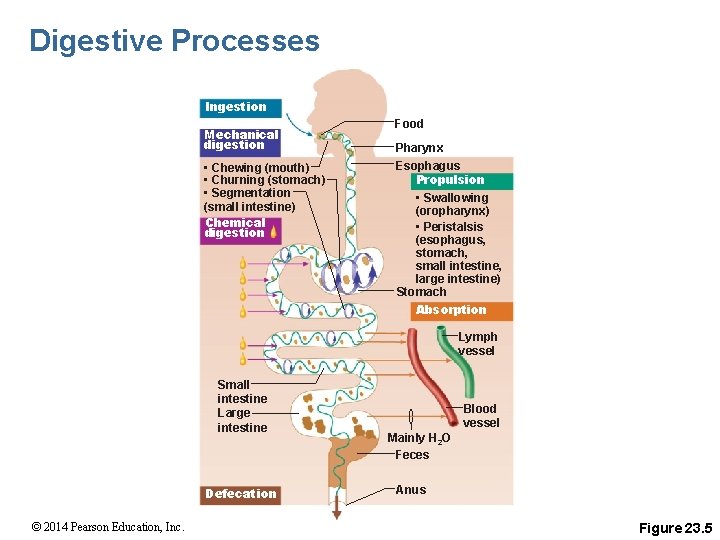

Digestive Processes Ingestion Mechanical digestion • Chewing (mouth) • Churning (stomach) • Segmentation (small

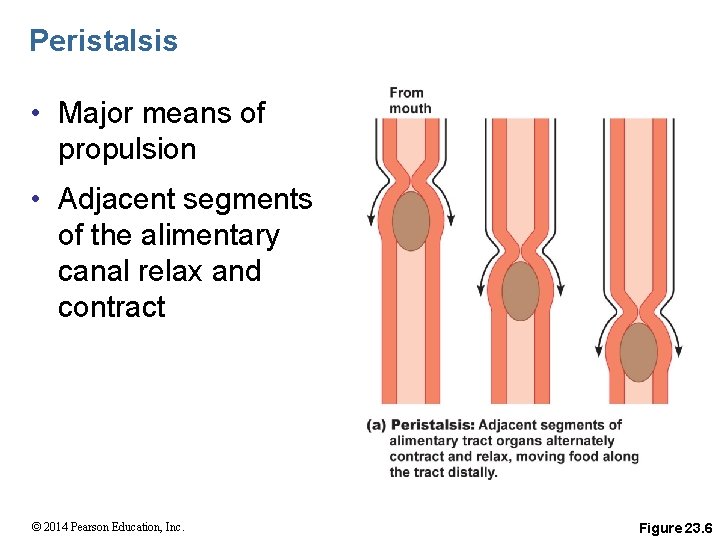

Peristalsis • Major means of propulsion • Adjacent segments of the alimentary canal relax

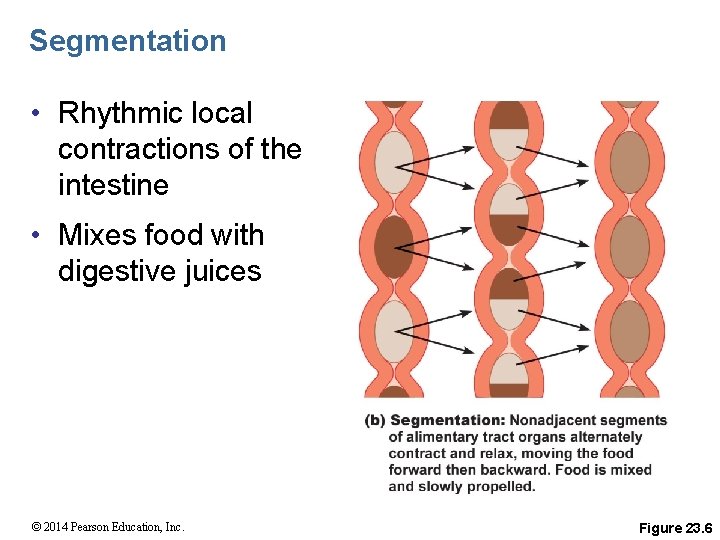

Segmentation • Rhythmic local contractions of the intestine • Mixes food with digestive juices

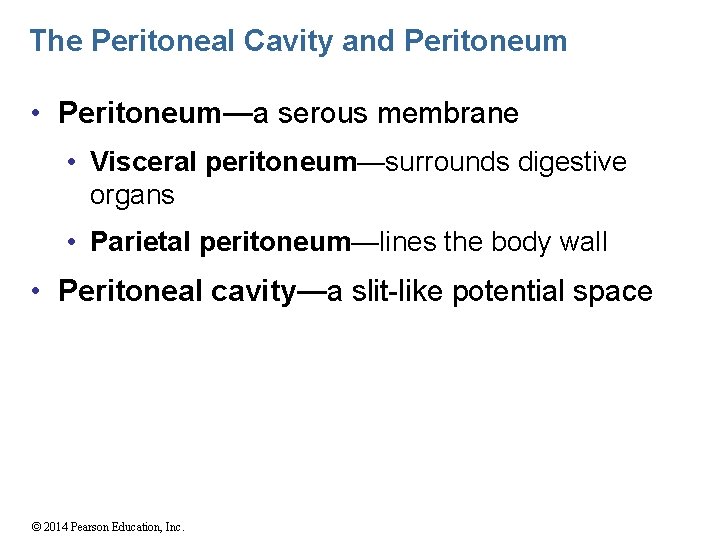

The Peritoneal Cavity and Peritoneum • Peritoneum—a serous membrane • Visceral peritoneum—surrounds digestive organs

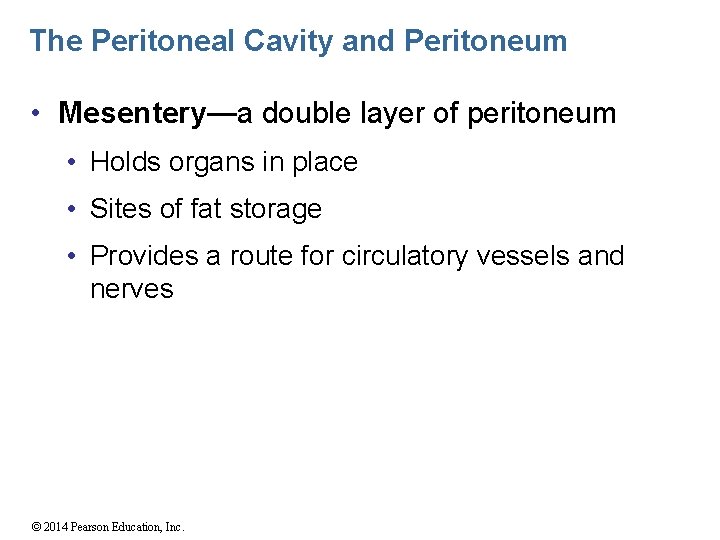

The Peritoneal Cavity and Peritoneum • Mesentery—a double layer of peritoneum • Holds organs

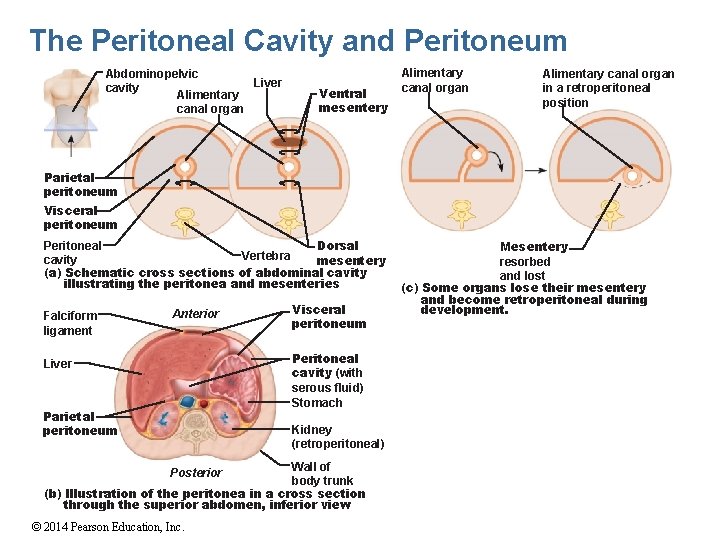

The Peritoneal Cavity and Peritoneum Abdominopelvic Liver cavity Alimentary canal organ Ventral mesentery Alimentary

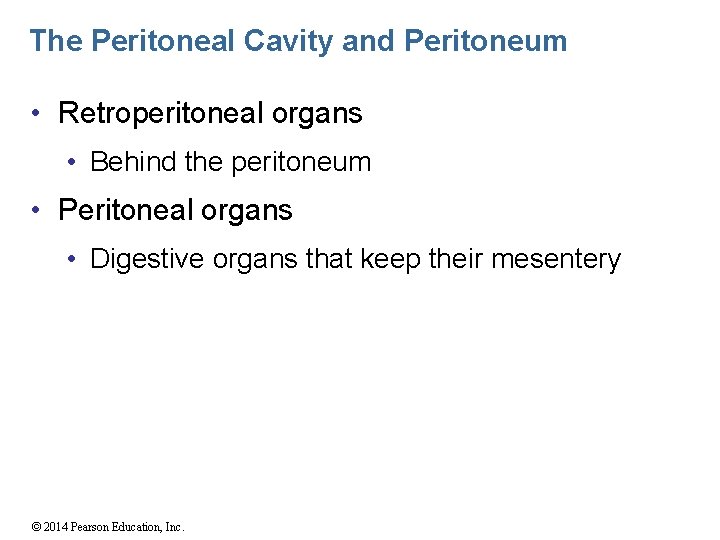

The Peritoneal Cavity and Peritoneum • Retroperitoneal organs • Behind the peritoneum • Peritoneal

Mesenteries • Superficial view of abdominal organs Falciform ligament Liver Gallbladder Spleen Stomach Ligamentum

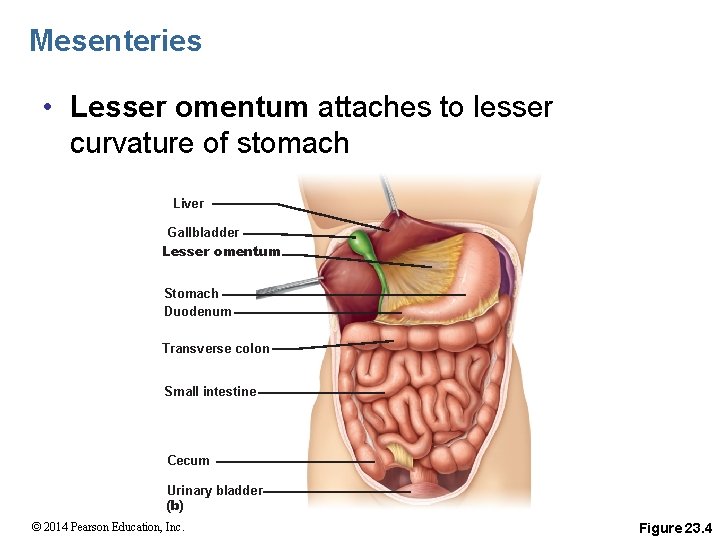

Mesenteries • Lesser omentum attaches to lesser curvature of stomach Liver Gallbladder Lesser omentum

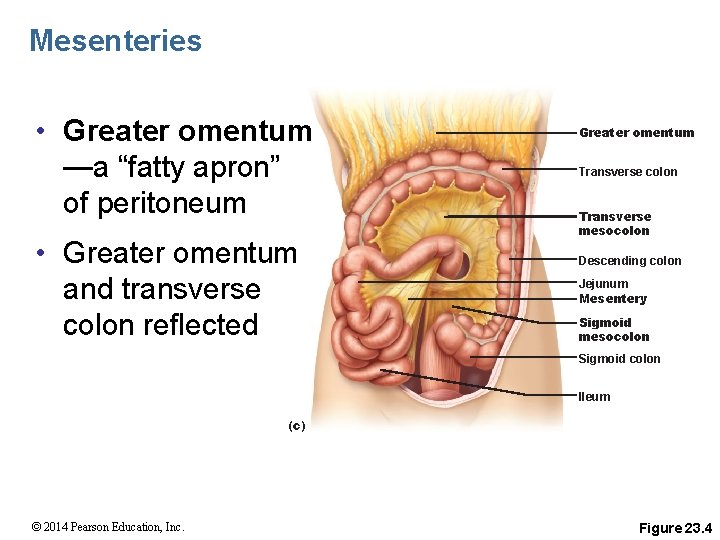

Mesenteries • Greater omentum —a “fatty apron” of peritoneum • Greater omentum and transverse

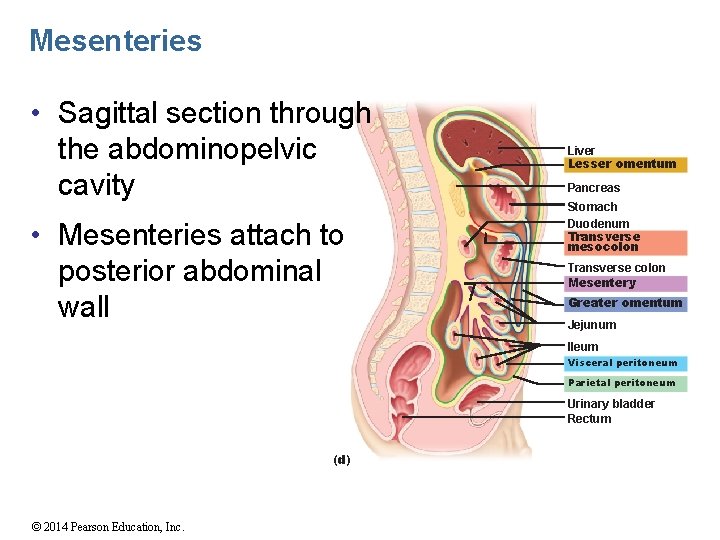

Mesenteries • Sagittal section through the abdominopelvic cavity • Mesenteries attach to posterior abdominal

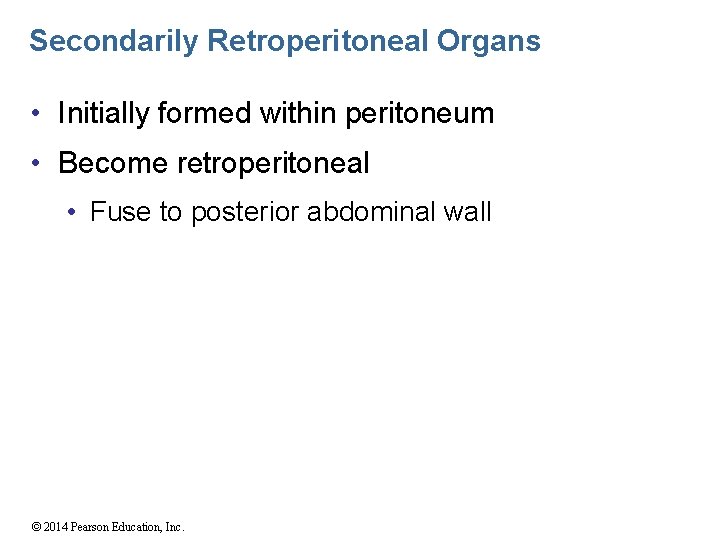

Secondarily Retroperitoneal Organs • Initially formed within peritoneum • Become retroperitoneal • Fuse to

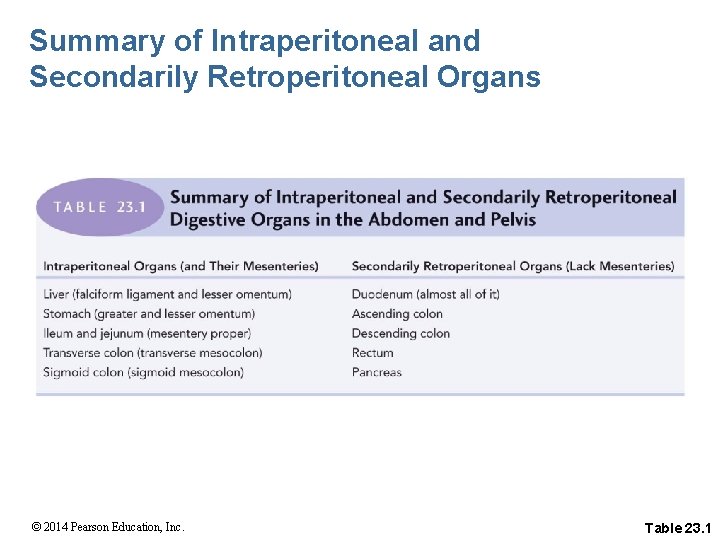

Summary of Intraperitoneal and Secondarily Retroperitoneal Organs © 2014 Pearson Education, Inc. Table 23.

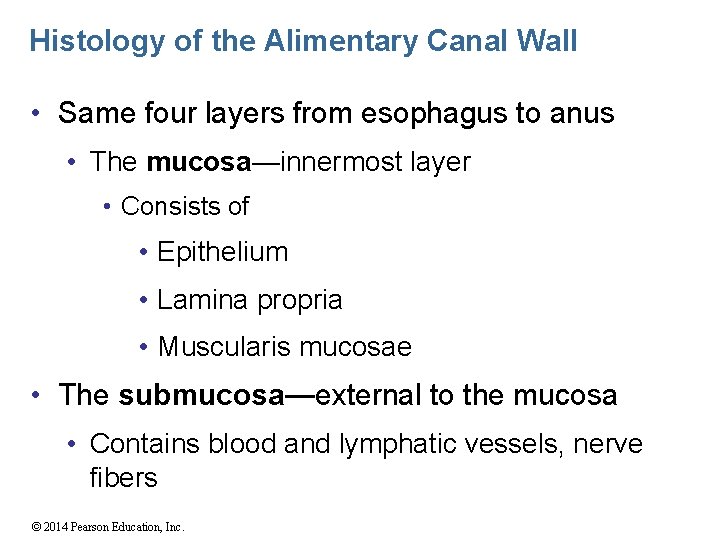

Histology of the Alimentary Canal Wall • Same four layers from esophagus to anus

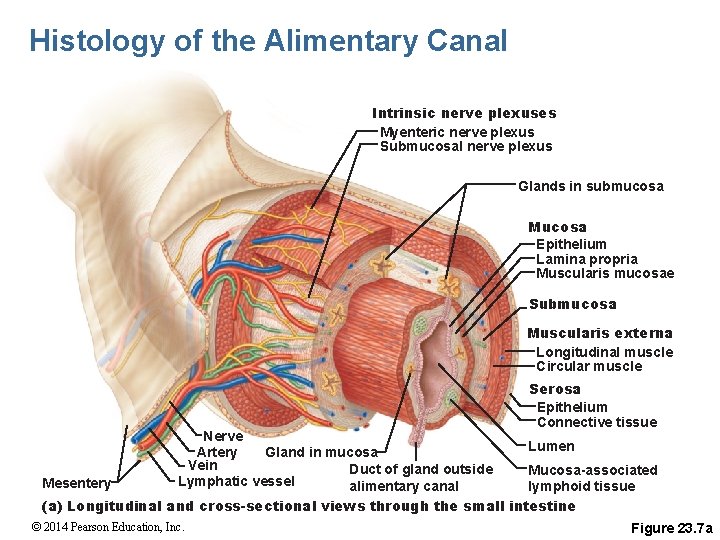

Histology of the Alimentary Canal Intrinsic nerve plexuses Myenteric nerve plexus Submucosal nerve plexus

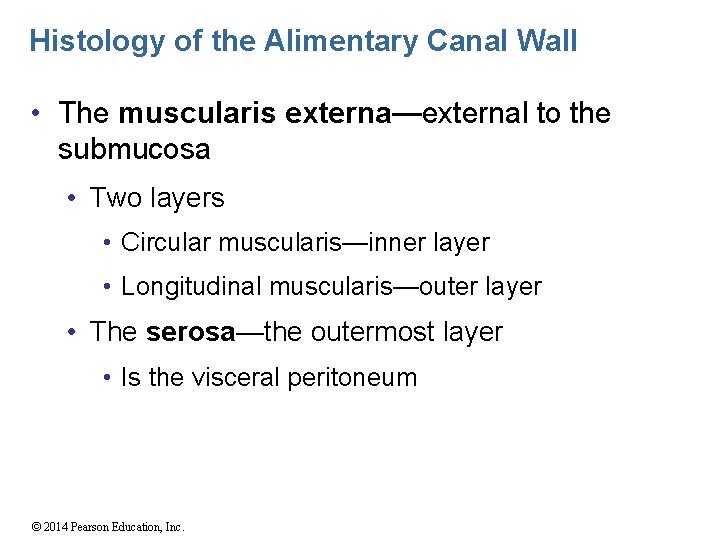

Histology of the Alimentary Canal Wall • The muscularis externa—external to the submucosa •

Histology of the Alimentary Canal Mucosa Submucosa Muscularis externa Serosa (b) Light micrograph cross

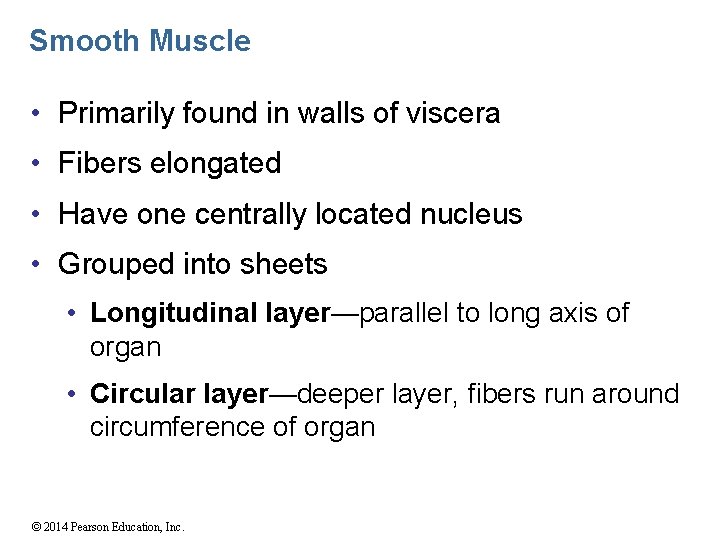

Smooth Muscle • Primarily found in walls of viscera • Fibers elongated • Have

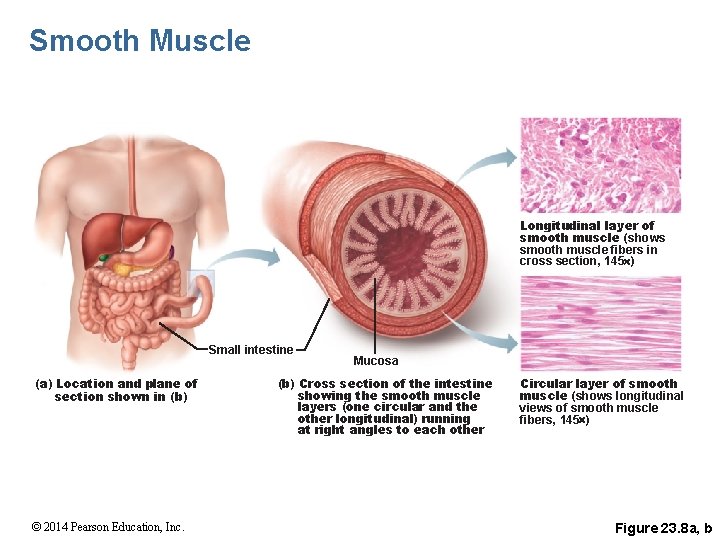

Smooth Muscle Longitudinal layer of smooth muscle (shows smooth muscle fibers in cross section,

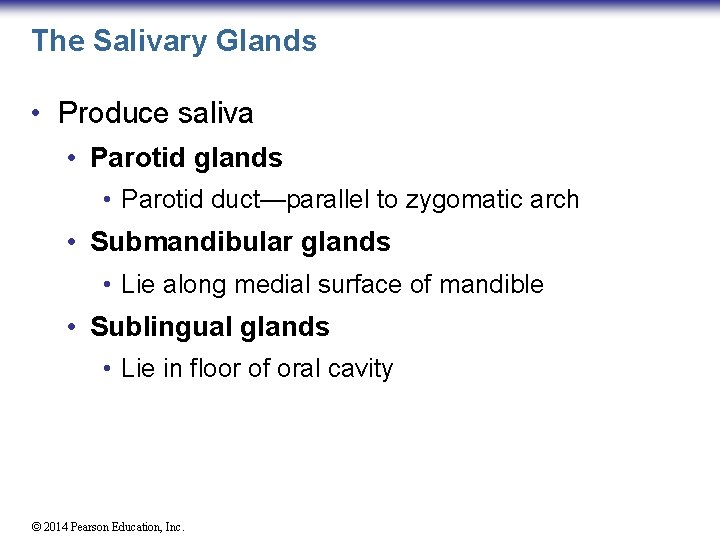

The Salivary Glands • Produce saliva • Parotid glands • Parotid duct—parallel to zygomatic

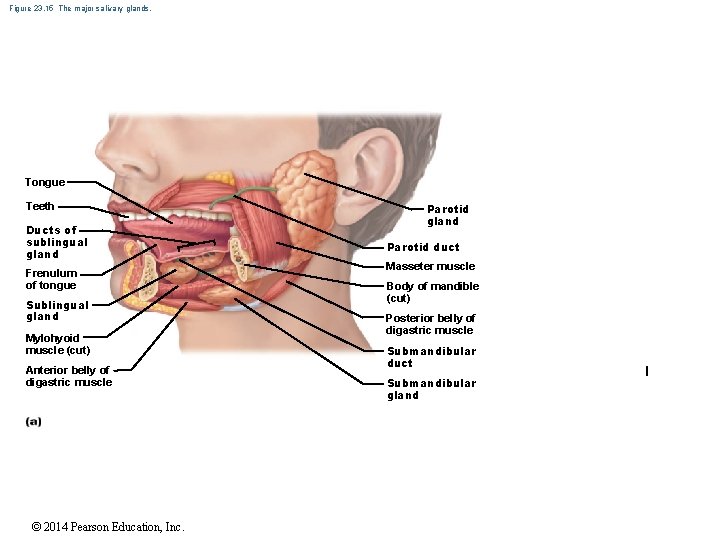

Figure 23. 15 The major salivary glands. Tongue Teeth Ducts of sublingual gland Frenulum

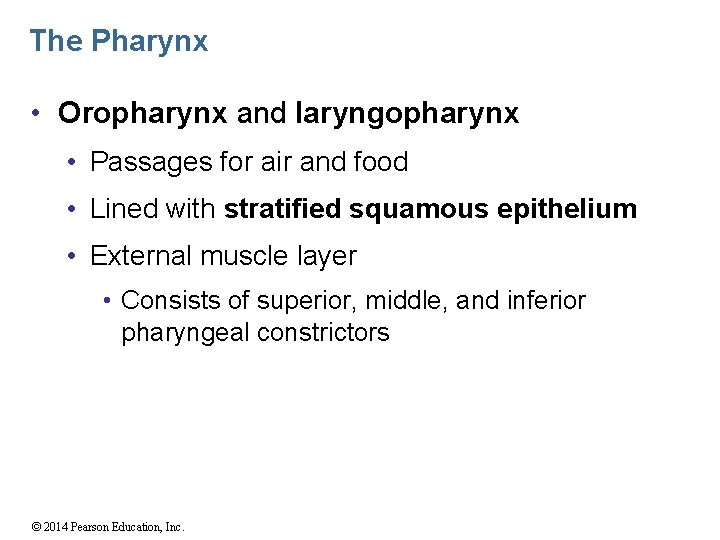

The Pharynx • Oropharynx and laryngopharynx • Passages for air and food • Lined

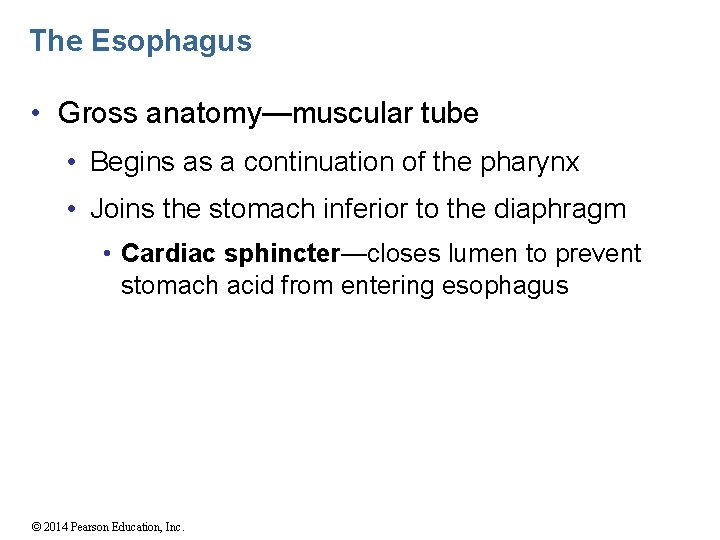

The Esophagus • Gross anatomy—muscular tube • Begins as a continuation of the pharynx

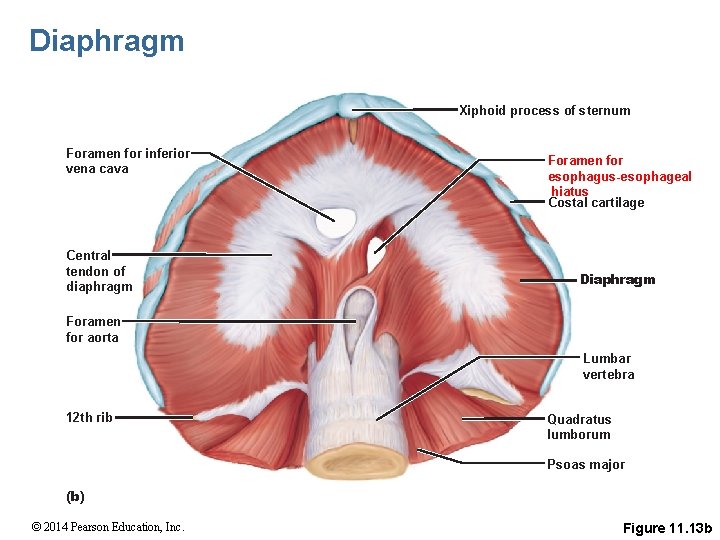

Diaphragm Xiphoid process of sternum Foramen for inferior vena cava Central tendon of diaphragm

Cardia Fundus Esophagus Serosa Muscularis externa Longitudinal layer Circular layer Oblique layer Body Lumen

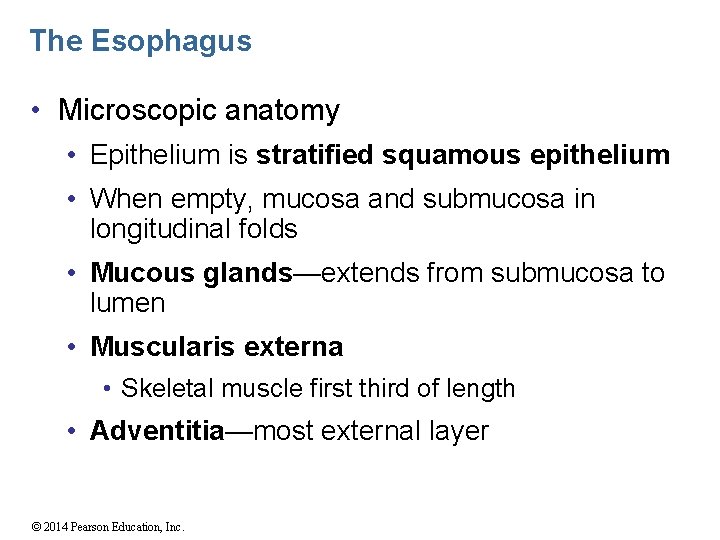

The Esophagus • Microscopic anatomy • Epithelium is stratified squamous epithelium • When empty,

Figure 23. 16 Microscopic structure of the esophagus. Mucosa (stratified squamous epithelium) Submucosa (areolar

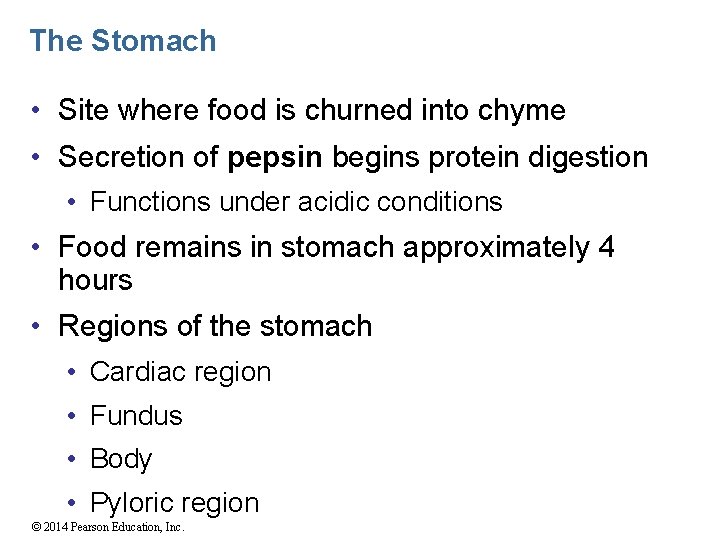

The Stomach • Site where food is churned into chyme • Secretion of pepsin

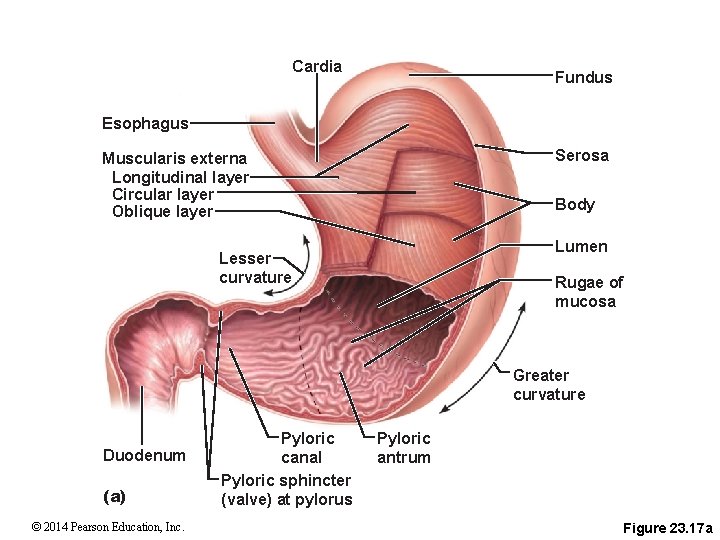

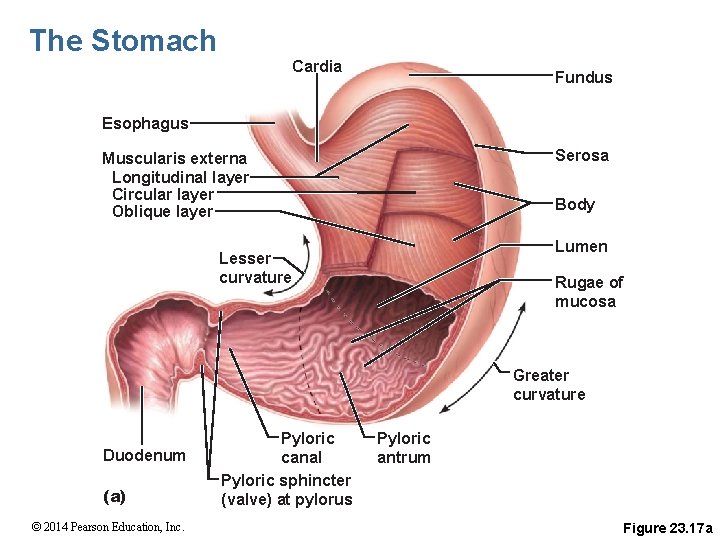

The Stomach Cardia Fundus Esophagus Serosa Muscularis externa Longitudinal layer Circular layer Oblique layer

The Stomach Fundus Liver (cut) Body Spleen Lesser curvature Greater curvature (b) © 2014

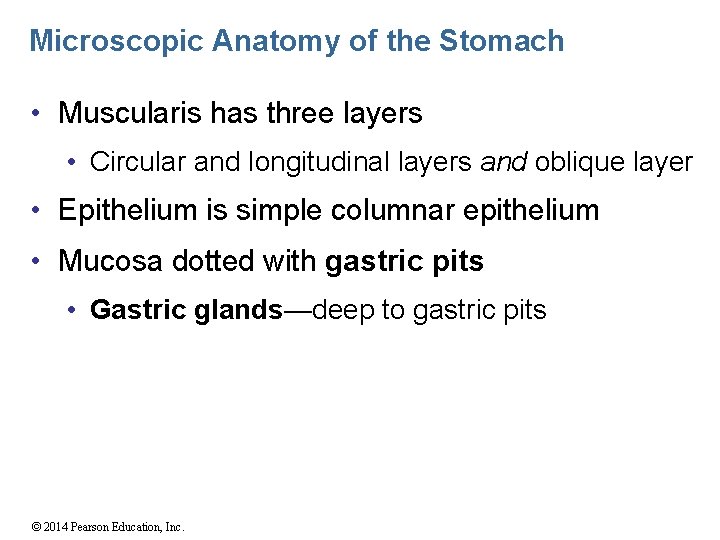

Microscopic Anatomy of the Stomach • Muscularis has three layers • Circular and longitudinal

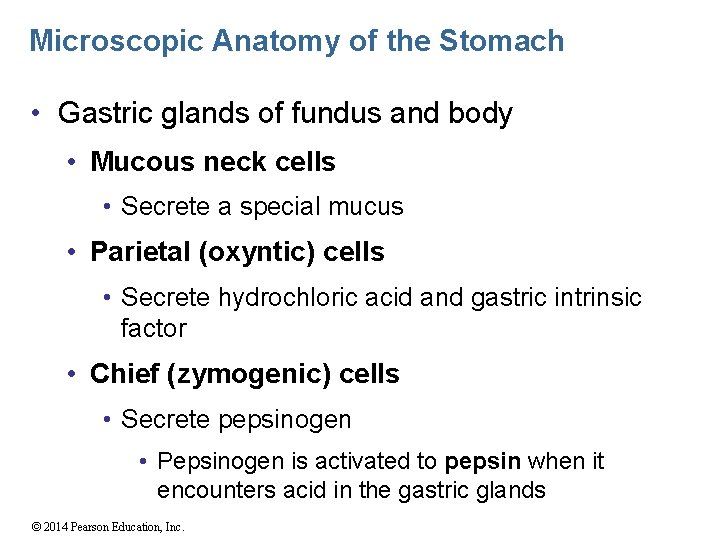

Microscopic Anatomy of the Stomach • Gastric glands of fundus and body • Mucous

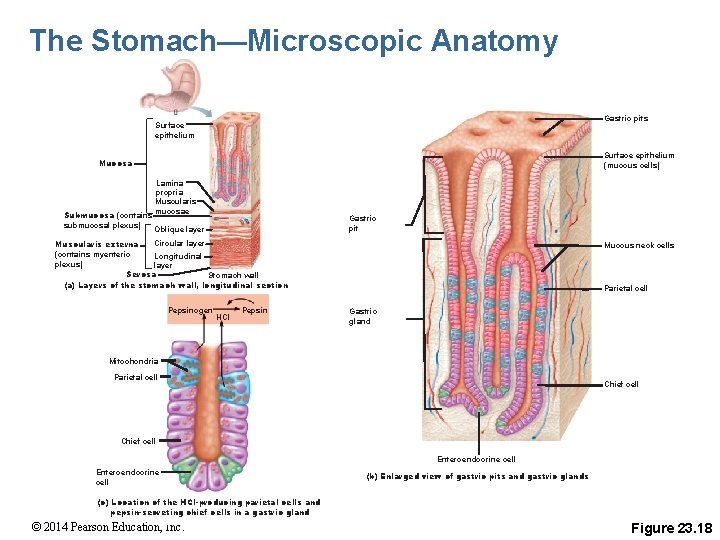

The Stomach—Microscopic Anatomy Gastric pits Surface epithelium (mucous cells) Mucosa Lamina propria Muscularis Submucosa

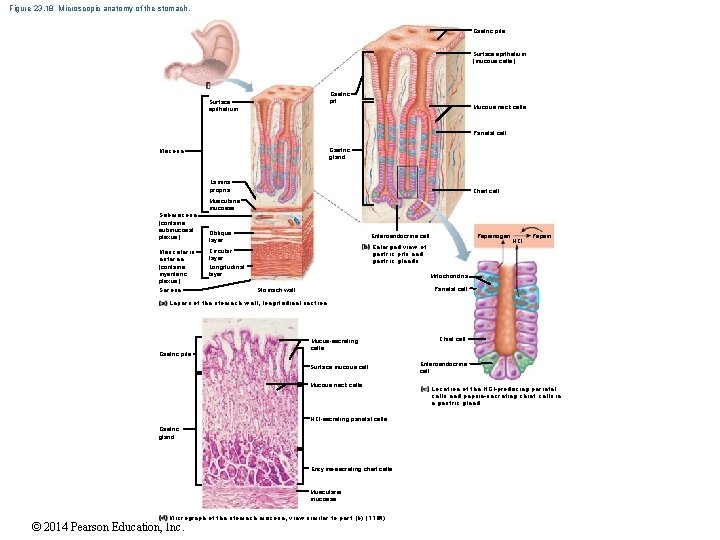

Figure 23. 18 Microscopic anatomy of the stomach. Gastric pits Surface epithelium (mucous cells)

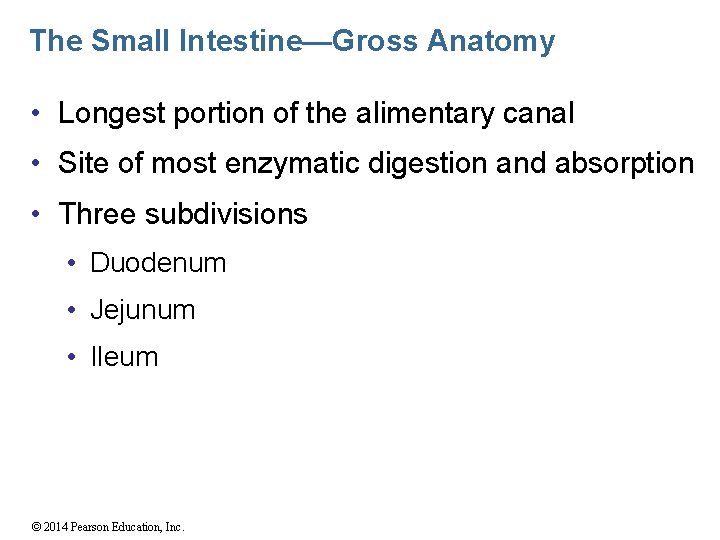

The Small Intestine—Gross Anatomy • Longest portion of the alimentary canal • Site of

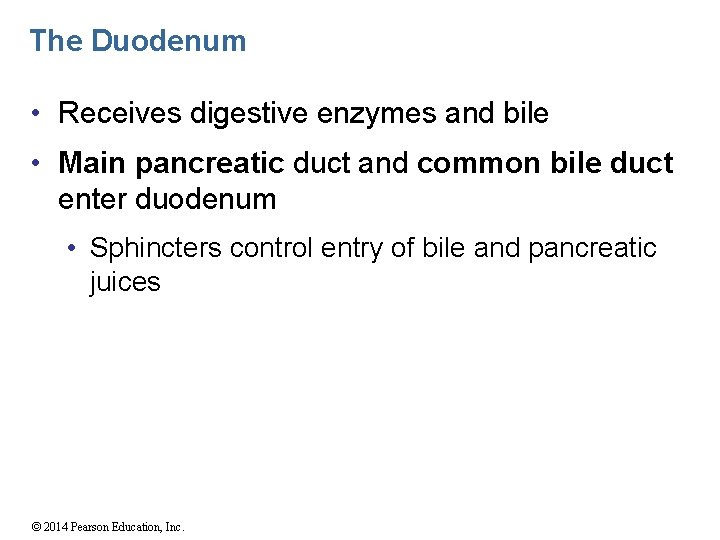

The Duodenum • Receives digestive enzymes and bile • Main pancreatic duct and common

The Duodenum and Related Organs Right and left hepatic ducts of liver Common hepatic

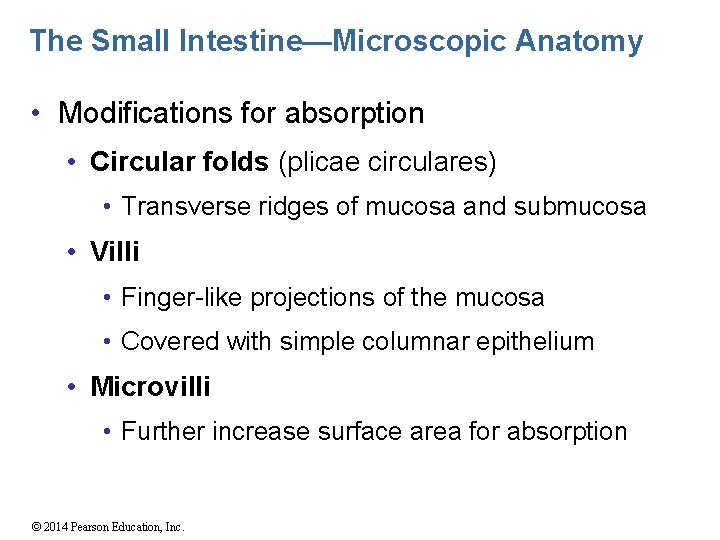

The Small Intestine—Microscopic Anatomy • Modifications for absorption • Circular folds (plicae circulares) •

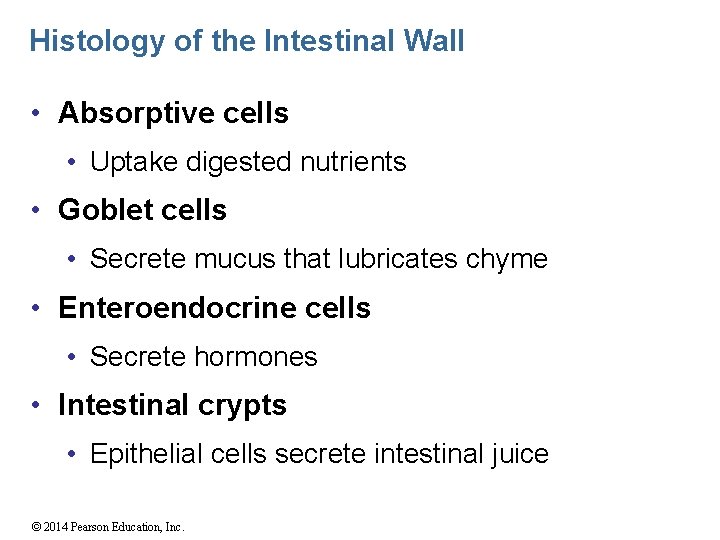

Histology of the Intestinal Wall • Absorptive cells • Uptake digested nutrients • Goblet

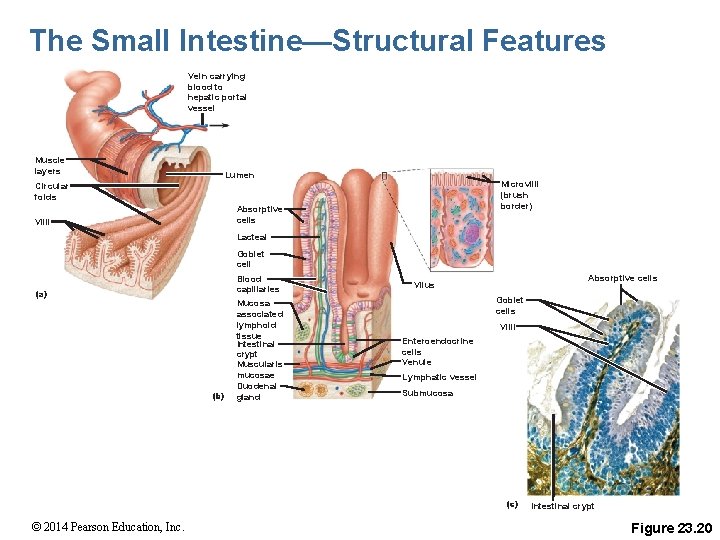

The Small Intestine—Structural Features Vein carrying blood to hepatic portal vessel Muscle layers Lumen

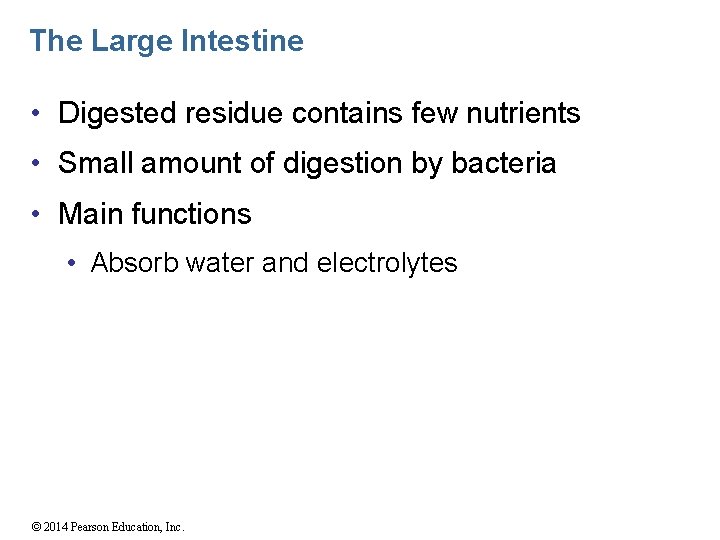

The Large Intestine • Digested residue contains few nutrients • Small amount of digestion

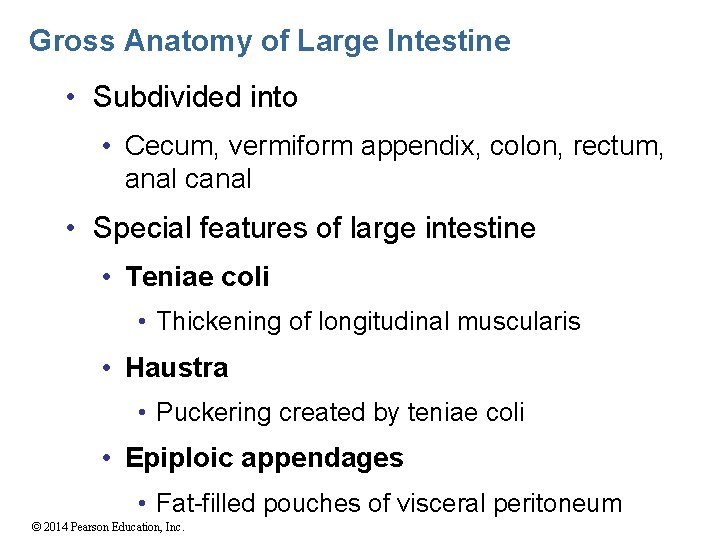

Gross Anatomy of Large Intestine • Subdivided into • Cecum, vermiform appendix, colon, rectum,

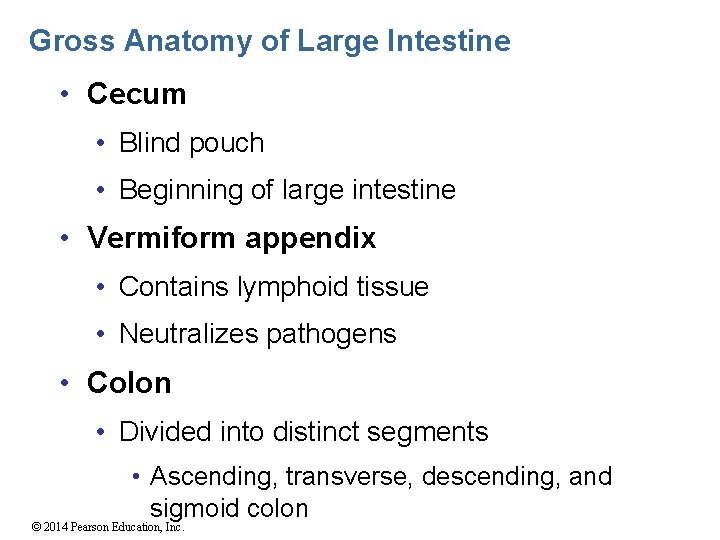

Gross Anatomy of Large Intestine • Cecum • Blind pouch • Beginning of large

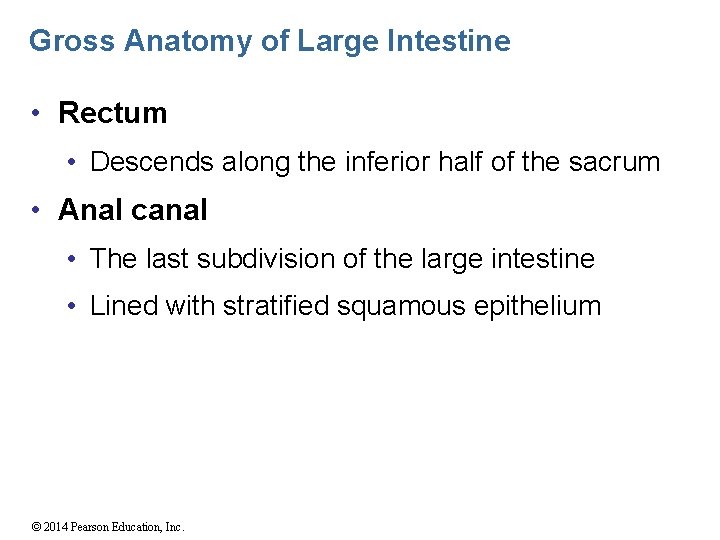

Gross Anatomy of Large Intestine • Rectum • Descends along the inferior half of

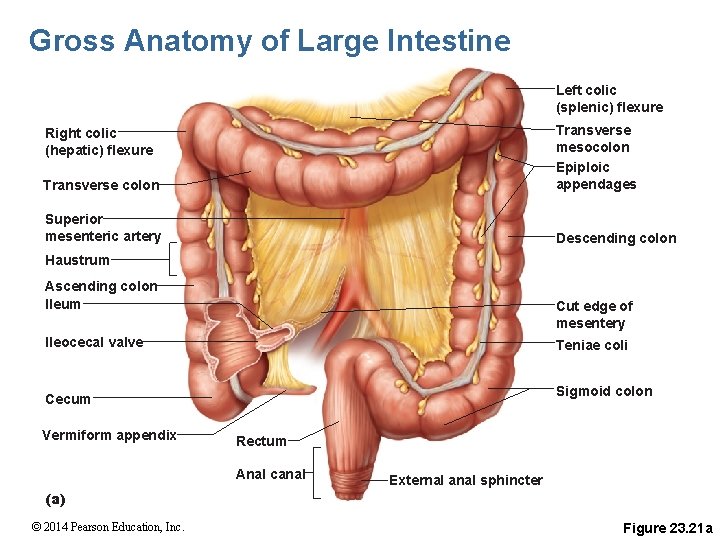

Gross Anatomy of Large Intestine Left colic (splenic) flexure Transverse colon Transverse mesocolon Epiploic

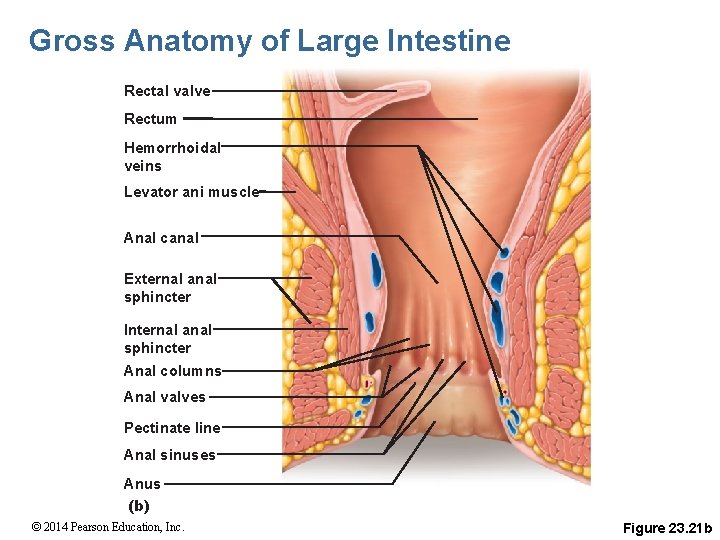

Gross Anatomy of Large Intestine Rectal valve Rectum Hemorrhoidal veins Levator ani muscle Anal

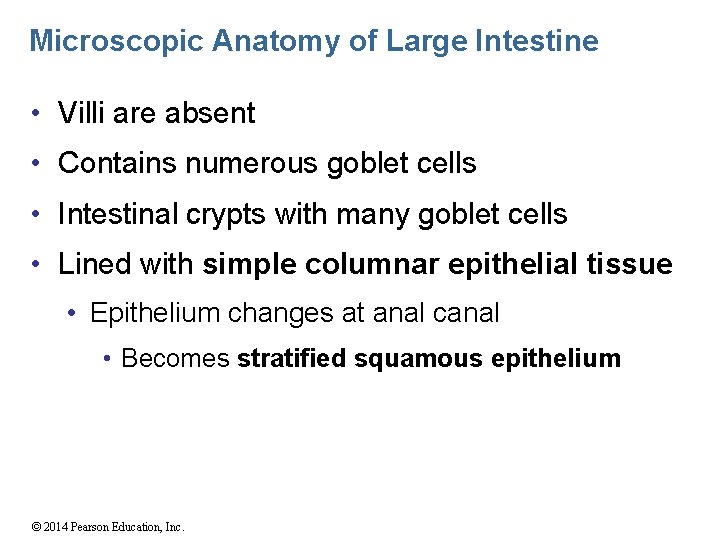

Microscopic Anatomy of Large Intestine • Villi are absent • Contains numerous goblet cells

Figure 23. 23 The mucosa of the large intestine. Colonocytes Goblet cells Lamina propria

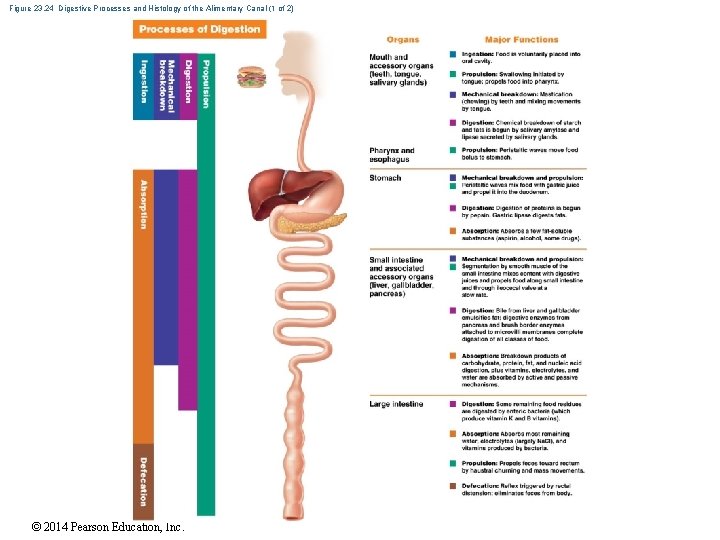

Figure 23. 24 Digestive Processes and Histology of the Alimentary Canal (1 of 2)

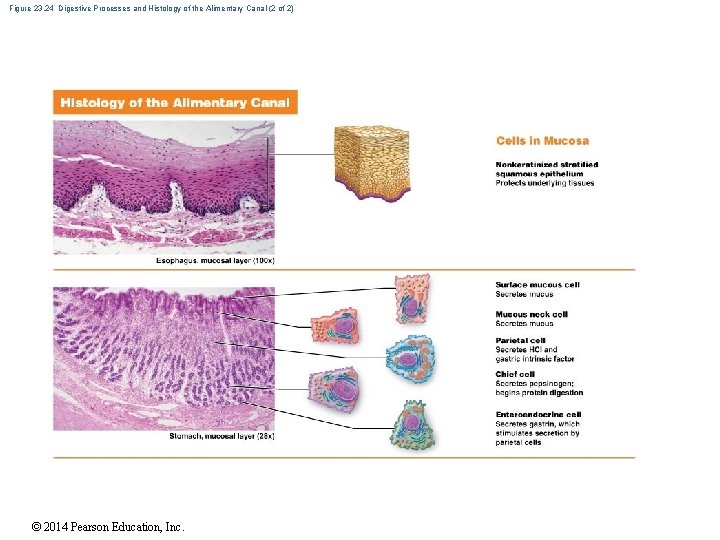

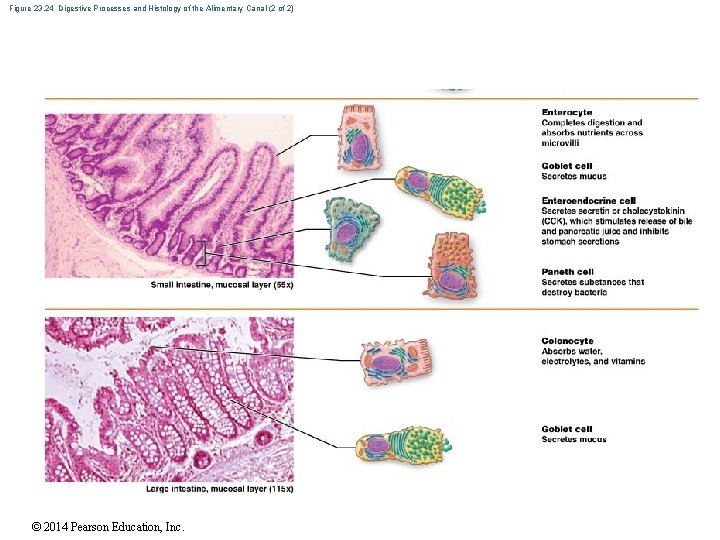

Figure 23. 24 Digestive Processes and Histology of the Alimentary Canal (2 of 2)

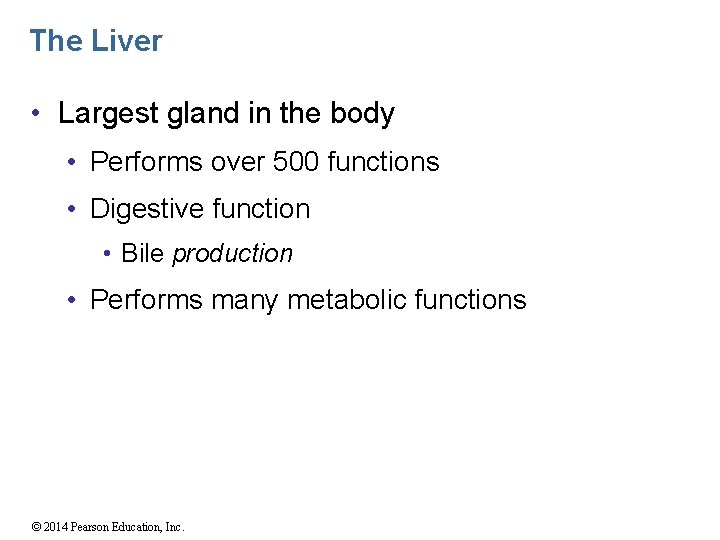

The Liver • Largest gland in the body • Performs over 500 functions •

The Liver Sternum Nipple Bare area Liver Falciform ligament Left lobe of liver Right

Visceral Surface of the Liver Lesser omentum (in fissure) Caudate lobe of liver Left

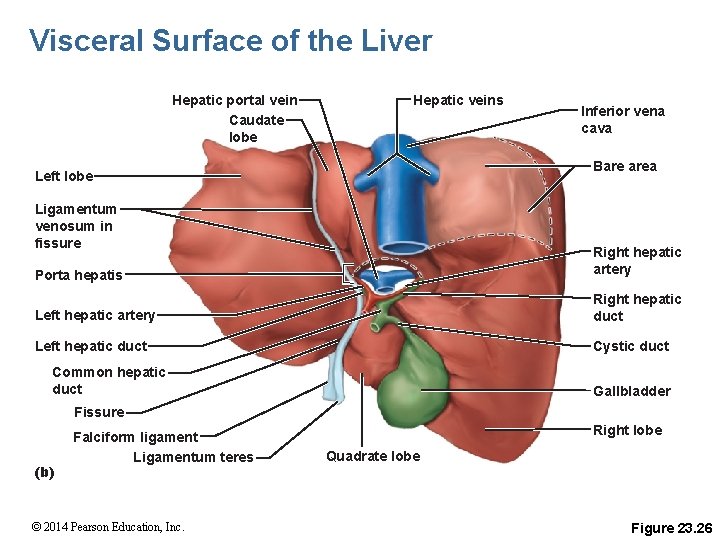

Visceral Surface of the Liver Hepatic portal vein Caudate lobe Hepatic veins Inferior vena

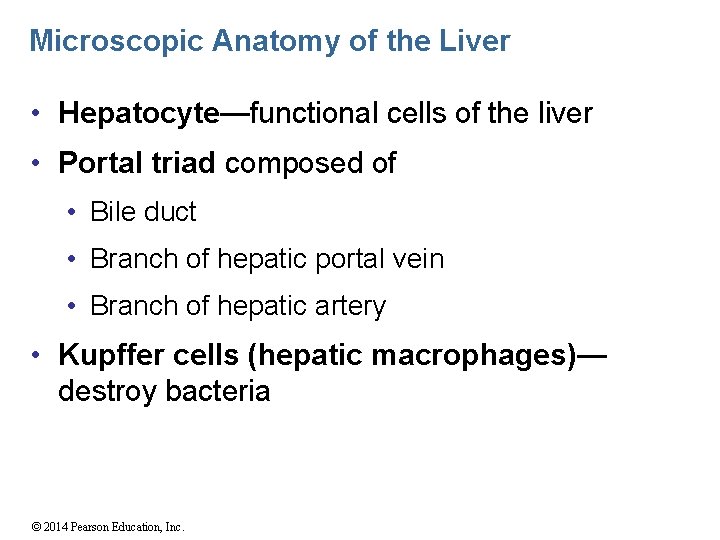

Microscopic Anatomy of the Liver • Hepatocyte—functional cells of the liver • Portal triad

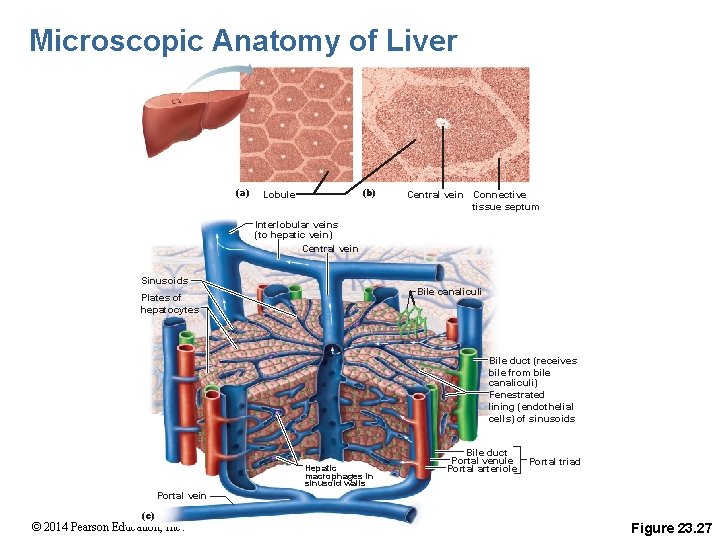

Microscopic Anatomy of Liver (a) (b) Lobule Central vein Connective tissue septum Interlobular veins

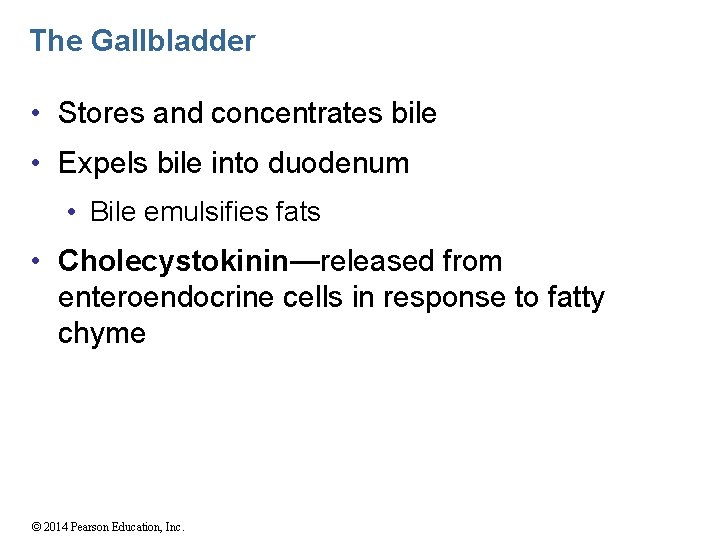

The Gallbladder • Stores and concentrates bile • Expels bile into duodenum • Bile

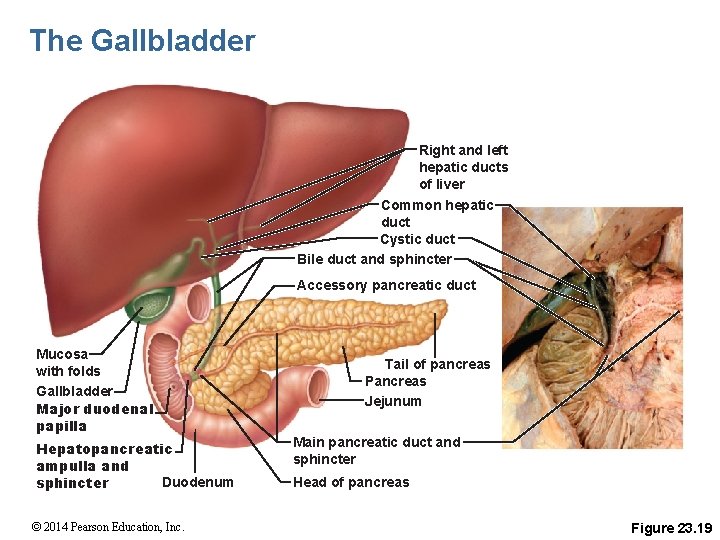

The Gallbladder Right and left hepatic ducts of liver Common hepatic duct Cystic duct

Right and left hepatic ducts of liver Common hepatic duct Cystic duct Bile duct

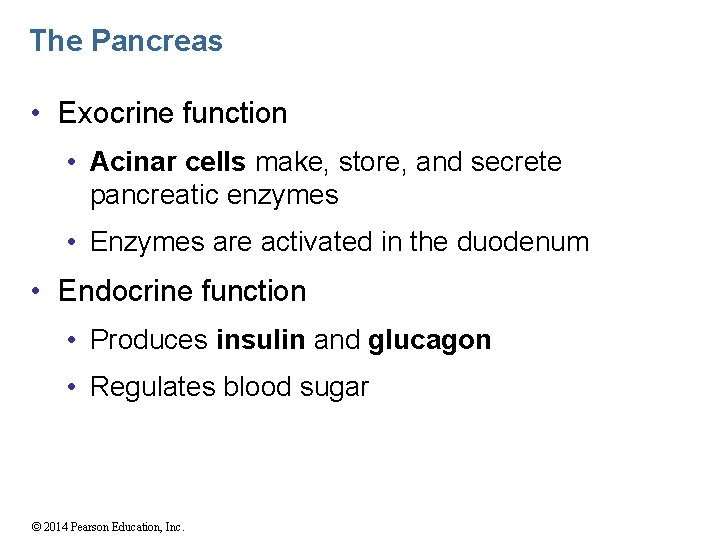

The Pancreas • Exocrine function • Acinar cells make, store, and secrete pancreatic enzymes

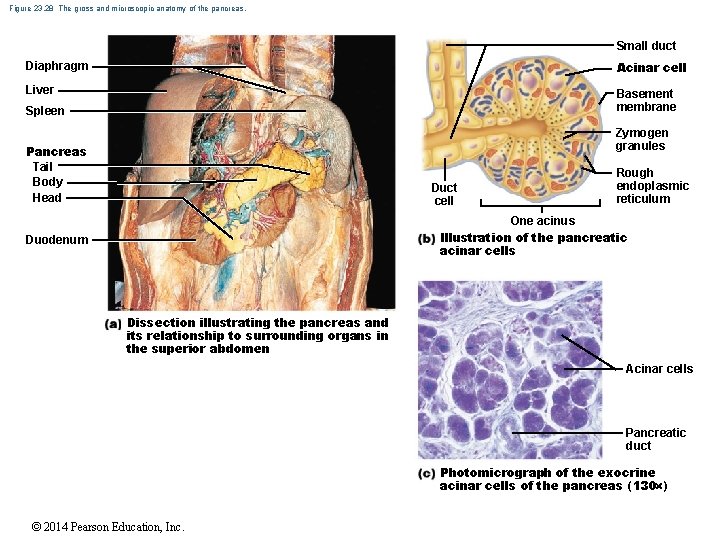

Figure 23. 28 The gross and microscopic anatomy of the pancreas. Small duct Diaphragm

Figure 17. 9 Photomicrograph of a pancreatic islet. Pancreas Pancreatic islet (Glucagonproducing) cells (Insulinproducing)
