Modeling & Simulating ASIC Designs with VHDL Reference: Smith text: Chapters 10 & 12
HDLs in Digital System Design Model and document digital systems Hierarchical models System, RTL (Register Transfer Level), Gates Different levels of abstraction Behavior, structure Verify circuit/system design via simulation Automated synthesis of circuits from HDL models using a technology library output is primitive cell-level netlist (gates, flip flops, etc. )
Anatomy of a VHDL model “Entity” describes the external view of a component “Architecture” describes the internal behavior and/or structure of the component Example: 1 -bit full adder Full Adder A Sum B Cin Cout
Example: 1 -Bit Full Adder entity full_add 1 is port ( a: in bit; b: in bit; cin: in bit; sum: out bit; cout: out bit); end full_add 1 ; -- I/O ports -- addend input -- augend input -- carry input -- sum output -- carry output I/O Port Declarations Comments follow double-dash Type of signal Signal name Signal direction (mode)
Port: Identifier: Mode Data_type; Identifier (naming) rules: Can consist of alphabet characters (a-z), numbers (0 -9), and underscore (_) First character must be a letter (a-z) Last character cannot be an underscore Consecutive underscores are not allowed Upper and lower case are equivalent (case insensitive) VHDL keywords cannot be used as identifiers 1 of 3
Port: Identifier: Mode Data_type; Mode in - driven into the entity from an external source (can read, but not update within architecture) out - driven from within the entity (can drive but not read within architecture) inout – bidirectional; drivers both within the entity and external (can read or write within architecture) buffer – like “out” but can read and write 2 of 3

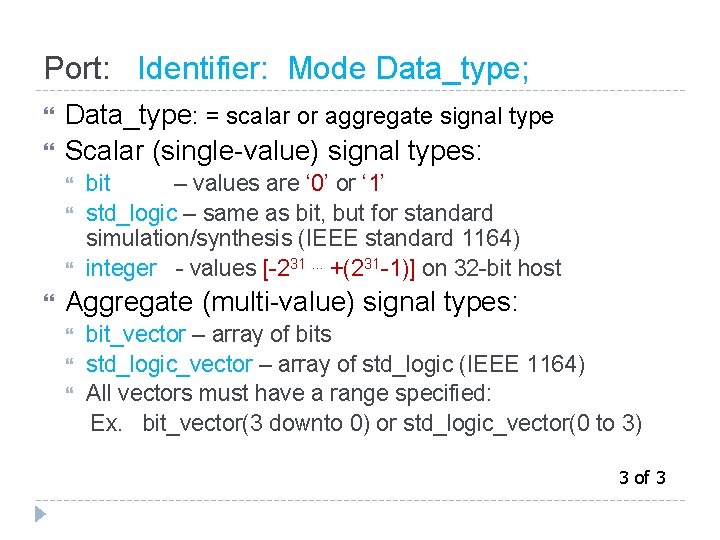

Port: Identifier: Mode Data_type; Data_type: = scalar or aggregate signal type Scalar (single-value) signal types: bit – values are ‘ 0’ or ‘ 1’ std_logic – same as bit, but for standard simulation/synthesis (IEEE standard 1164) integer - values [-231 … +(231 -1)] on 32 -bit host Aggregate (multi-value) signal types: bit_vector – array of bits std_logic_vector – array of std_logic (IEEE 1164) All vectors must have a range specified: Ex. bit_vector(3 downto 0) or std_logic_vector(0 to 3) 3 of 3
IEEE std_logic_1164 package -- For simulation and synthesis, std_logic preferred over bit. -- Provides additional logic states as data values type STD_LOGIC is ( 'U', -- Uninitialized 'X', -- Forcing Unknown '0', -- Forcing 0 '1', -- Forcing 1 'Z', -- High Impedance 'W', -- Weak Unknown 'L', -- Weak 0 'H', -- Weak 1 '-' -- Don't Care); You must include the library and package declarations in the VHDL model before the entity. (Example on next slide)
Example: 8 -bit full adder -- Adder with 8 -bit inputs/outputs library ieee; --supplied library use ieee. std_logic_1164. all; --package of definitions entity full_add 8 is port ( a: in std_logic_vector(7 downto 0); b: in std_logic_vector(7 downto 0); cin: in std_logic; sum: out std_logic _vector(7 downto 0); cout: out std_logic); end full_add 8 ;
Format for Architecture body architecture_name of entity_name is -- data type definitions (ie, states, arrays, etc. ) -- internal signal declarations signal_name: signal_type; : signal_name: signal_type; -- component declarations – see format below -- function and procedure declarations begin -- behavior of the model is described here and consists of concurrent interconnecting: -- component instantiations -- processes -- concurrent statements including: Signal Assignment statements When-Else statements With-Select-When statements end architecture_name; Note: entity and architecture in the end statement is optional.
Architecture defines function/structure -- behavioral model (no circuit structure implied) architecture dataflow of full_add 1 is signal x 1: std_logic; -- internal signal begin x 1 <= a xor b after 1 ns; sum <= x 1 xor cin after 1 ns; cout <= (a and b) or (a and cin) or (b and cin) after 1 ns; end;
Structural architecture example (no “behavior” specified) architecture structure of full_add 1 is component xor -- declare component to be used port (x, y: in bit; z: out bit); end component; for all: xor use entity work. xor(eqns); -- if multiple arch’s signal x 1: bit; -- signal internal to this component begin G 1: xor port map (a, b, x 1); -- instantiate 1 st xor gate G 2: xor port map (x 1, cin, sum); -- instantiate 2 nd xor gate …add circuit for carry output… end;
Associating signals with formal ports component And. Gate port (Ain_1, Ain_2 : in BIT; Aout : out BIT); end component; -- formal parameters -- positional association: A 1: And. Gate port map (X, Y, Z 1); -- named association: A 2: And. Gate port map (Ain_2=>Y, Aout=>Z 2, Ain_1=>X); -- both (positional must begin from leftmost formal): A 3: And. Gate port map (X, Aout => Z 3, Ain_2 => Y);
Example: D flip-flop entity DFF is port (Preset: in bit; Clear: in bit; Clock: in bit; Data: in bit; Q: out bit; Qbar: out bit); end DFF; Preset Data Q Clock Qbar Clear
7474 D flip-flop equations architecture eqns of DFF is signal A, B, C, D: bit; signal QInt, QBar. Int: bit; begin A <= not (Preset and D and B) after 1 ns; B <= not (A and Clear and Clock) after 1 ns; C <= not (B and Clock and D) after 1 ns; D <= not (C and Clear and Data) after 1 ns; Qint <= not (Preset and B and Qbar. Int) after 1 ns; QBar. Int <= not (QInt and Clear and C) after 1 ns; Q <= QInt; -- Can drive but not read “outs” QBar <= QBar. Int; -- Can read & drive “internals” end;
4 -bit Register (Structural Model) entity Register 4 is port ( D: in bit_vector(0 to 3); Q: out bit_vector(0 to 3); Clk: in bit; Clr: in bit; Pre: in bit); end Register 4; D(3) D(2) D(1) D(0) CLK PRE CLR Q(3) Q(2) Q(1) Q(0)
Register Structure architecture structure of Register 4 is component DFF -- declare library component to be used port (Preset: in bit; Clear: in bit; Clock: in bit; Data: in bit; Q: out bit; Qbar: out bit); end component; signal Qbar: bit_vector(0 to 3); -- dummy for unused FF outputs begin -- Signals connect to ports in order listed above F 3: DFF port map (Pre, Clr, Clk, D(3), Qbar(3)); F 2: DFF port map (Pre, Clr, Clk, D(2), Qbar(2)); F 1: DFF port map (Pre, Clr, Clk, D(1), Qbar(1)); F 0: DFF port map (Pre, Clr, Clk, D(0), Qbar(0)); end;
Conditional Signal Assignment signal a, b, c, d, y: std_logic; signal S: std_logic_vector(0 to 1); 4 -to-1 Mux begin 00 a with S select 01 b y <= a after 1 ns when “ 00”, 10 c b after 1 ns when “ 01”, c after 1 ns when “ 10”, 11 d d after 1 ns when “ 11”; S --Alternative “default”: d after 1 ns when others; y
32 -bit-wide 4 -to-1 multiplexer signal a, b, c, d, y: bit_vector(0 to 31); signal S: bit_vector(0 to 1); a begin b with S select y <= a after 1 ns when “ 00”, c b after 1 ns when “ 01”, d c after 1 ns when “ 10”, d after 1 ns when “ 11”; 4 -to-1 Mux 00 01 y 10 11 S --a, b, c, d, y can be any type, as long as they are the same
Conditional Signal Assignment – Alternate Format y <= a after 1 ns when (S=“ 00”) else b after 1 ns when (S=“ 01”) else c after 1 ns when (S=“ 10”) else d after 1 ns; 4 -to-1 Mux a 00 b 01 c 10 d 11 Use any boolean expression for each condition: y <= a after 1 ns when (F=‘ 1’) and (G=‘ 0’) … y S
VHDL “Process” Construct [label: ] process (sensitivity list) declarations begin sequential statements end process; Process statements executed once at start of simulation Process halts at “end” until an event occurs on a signal in the “sensitivity list” Allows conventional programming language methods to describe circuit behavior
Modeling sequential behavior -- Edge-triggered flip flop/register entity DFF is port (D, CLK: in bit; Q: out bit); end DFF; architecture behave of DFF is begin process(clk) -- “process sensitivity list” begin if (clk’event and clk=‘ 1’) then Q <= D after 1 ns; end if; end process; end; � � D Q CLK Process statements executed sequentially (sequential statements) clk’event is an attribute of signal clk which is TRUE if an event has occurred on clk at the current simulation time
Edge-triggered flip-flop Alternative methods for specifying clock process (clk) begin if rising_edge(clk) then -- std_logic_1164 function Q <= D ; end if; end process; Leonardo also recognizes not clk’stable as equivalent to clk’event
Alternative to sensitivity list process -- no “sensitivity list” begin wait on clk; -- suspend process until event on clk if (clk=‘ 1’) then Q <= D after 1 ns; end if; end process; � Other “wait” formats: D CLK wait until (clk’event and clk=‘ 1’) wait for 20 ns; � This format does not allow for asynchronous controls � Process executes endlessly if no sensitivity list or wait statement! Q
Level-Sensitive D latch vs. D flip-flop entity Dlatch is port (D, CLK: in bit; Q: out bit); end Dlatch; architecture behave of Dlatch is begin process(D, clk) begin if (clk=‘ 1’) then Q <= D after 1 ns; end if; end process; end; D Q CLK Latch, Q changes whenever the latch is enabled by CLK=‘ 1’ (rather than edge-triggered)
Defining a “register” for an RTL model (not gate-level) entity Reg 8 is port (D: in bit_vector(0 to 7); Q: out bit_vector(0 to 7); D(0 to 7) LD: in bit); end Reg 8; architecture behave of Reg 8 is. LD Reg 8 begin process(LD) begin Q(0 to 7) if (LD’event and LD=‘ 1’) then Q <= D after 1 ns; end if; end process; end; D and Q could be any abstract data type
Basic format for synchronous and asynchronous inputs process (clock, asynchronously_used_signals ) begin if (boolean_expression) then asynchronous signal_assignments elsif (boolean_expression) then asynchronous signal assignments elsif (clock’event and clock = contstant) then synchronous signal_assignments end if ; end process;
Synchronous vs. Asynchronous Flip-Flop Inputs entity DFF is port (D, CLK: in bit; PRE, CLR: in bit; CLR Q: out bit); D Q end DFF; architecture behave of DFF is CLK begin PRE process(clk, PRE, CLR) begin if (CLR=‘ 0’) then -- async CLR has precedence Q <= ‘ 0’ after 1 ns; elsif (PRE=‘ 0’) then -- then async PRE has precedence Q <= ‘ 1’ after 1 ns; elsif (clk’event and clk=‘ 1’) then Q <= D after 1 ns; -- sync operation only if CLR=PRE=‘ 1’ end if; end process; end;
Modeling Finite State Machines (Synchronous Sequential Circuits) FSM design & synthesis process: 1. 2. 3. 4. 5. 6. Design state diagram (behavior) Derive state table Reduce state table Choose a state assignment Derive output equations Derive flip-flop excitation equations Synthesis steps 2 -6 can be automated, given the state diagram
Synchronous Sequential Circuit Model Inputs x Outputs z Comb. Logic Present State y Next State Y FFs Clock Mealy Outputs z = f(x, y), Moore Outputs z = f(y) Next State Y = f(x, y)
Synchronous Sequential Circuit (FSM) Example
FSM Example – entity definition entity seqckt is port ( x: in bit; -- FSM input z: out bit; -- FSM output clk: in bit ); -- clock end seqckt;
FSM Example - behavioral model architecture behave of seqckt is type states is (A, B, C); -- symbolic state names (enumerate) signal curr_state, next_state: states; begin -- Model the memory elements of the FSM process (clk) begin if (clk’event and clk=‘ 1’) then pres_state <= next_state; end if; end process; (continue on next slide)
FSM Example - continued -- Model next-state and output functions of the FSM process (x, pres_state) -- function inputs begin case pres_state is -- describe each state when A => if (x = ‘ 0’) then z <= ‘ 0’; next_state <= A; else -- if (x = ‘ 1’) z <= ‘ 0’; next_state <= B; end if; (continue next slide for pres_state = B and C)
FSM Example (continued) when B => if (x=‘ 0’) then z <= ‘ 0’; next_state <= A; else z <= ‘ 1’; next_state <= C; end if; when C => if (x=‘ 0’) then z <= ‘ 0’; next_state <= C; else z <= ‘ 1’; next_state <= A; end if; end case; end process;
Alternative Format for Output and Next State Functions -- Output function z <= ‘ 1’ when ((curr_state = B) and (x = ‘ 1’)) or ((curr_state = C) and (x = ‘ 1’)) else ‘ 0’; -- Next state function next_state <= A when ((curr_state = A) and (x = ‘ 0’)) or ((curr_state = B) and (x = ‘ 0’)) or ((curr_state = C) and (x = ‘ 1’)) else B when ((curr_state = 1) and (x = ‘ 1’)) else C;
library IEEE; use IEEE. STD_LOGIC_1164. all; entity SM 1 is port (a. In, clk : in Std_logic; y. Out: out Std_logic); end SM 1; architecture Moore of SM 1 is type state is (s 1, s 2, s 3, s 4); signal p. S, n. S : state; begin process (a. In, p. S) begin – next state and output functions case p. S is when s 1 => y. Out <= '0'; n. S <= s 4; --Moore: y. Out = f(p. S) when s 2 => y. Out <= '1'; n. S <= s 3; when s 3 => y. Out <= '1'; n. S <= s 1; when s 4 => y. Out <= '1'; n. S <= s 2; end case; end process; process begin wait until clk = '1'; p. S <= n. S; -- update state variable on next clock end process; end Moore;
library IEEE; use IEEE. STD_LOGIC_1164. all; entity SM 2 is port (a. In, clk : in Std_logic; y. Out: out Std_logic); end SM 2; architecture Mealy of SM 2 is type state is (s 1, s 2, s 3, s 4); signal p. S, n. S : state; begin process(a. In, p. S) begin -- Mealy: y. Out & n. S are functions of a. In and p. S case p. S is when s 1 => if (a. In = '1') then y. Out <= '0'; n. S <= s 4; else y. Out <= '1'; n. S <= s 3; end if; when s 2 => y. Out <= '1'; n. S <= s 3; when s 3 => y. Out <= '1'; n. S <= s 1; when s 4 => if (a. In = '1') then y. Out <= '1'; n. S <= s 2; else y. Out <= '0'; n. S <= s 1; end if; end case; end process; process begin wait until clk = '1' ; p. S <= n. S; end process; end Mealy;

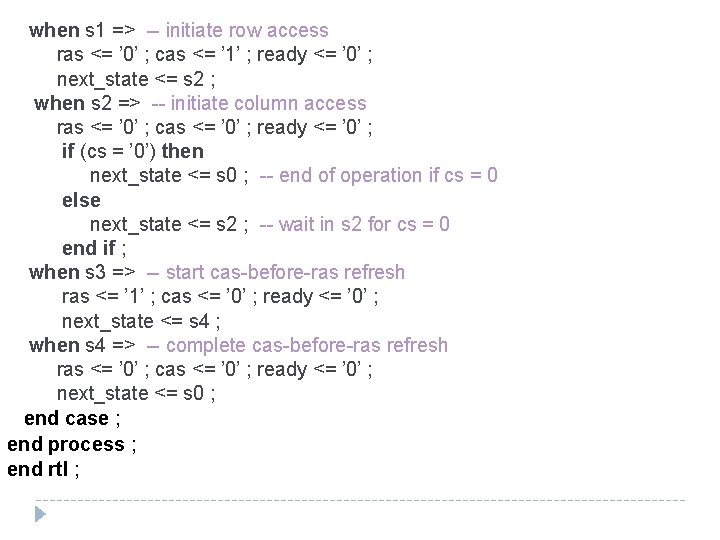

when s 1 => -- initiate row access ras <= ’ 0’ ; cas <= ’ 1’ ; ready <= ’ 0’ ; next_state <= s 2 ; when s 2 => -- initiate column access ras <= ’ 0’ ; cas <= ’ 0’ ; ready <= ’ 0’ ; if (cs = ’ 0’) then next_state <= s 0 ; -- end of operation if cs = 0 else next_state <= s 2 ; -- wait in s 2 for cs = 0 end if ; when s 3 => -- start cas-before-ras refresh ras <= ’ 1’ ; cas <= ’ 0’ ; ready <= ’ 0’ ; next_state <= s 4 ; when s 4 => -- complete cas-before-ras refresh ras <= ’ 0’ ; cas <= ’ 0’ ; ready <= ’ 0’ ; next_state <= s 0 ; end case ; end process ; end rtl ;
Synthesizing arithmetic circuits (12. 6. 5, 12. 6. 9, 12. 6. 10) Leonardo recognizes overloaded operators and generated corresponding circuits: “+”, “-”, “*”, and “abs” Special operations: “+1”, “-1”, unary “-” Relational Operators: “=“, “/=“, “<“, “>“, “<=“, “>=“ Use “ranged integers” instead of unbound to minimize generated logic. signal i : integer range 0 to 15;
