ASICs for high temperatures and harsh environments IRTG

ASICs for high temperatures and harsh environments IRTG, Bergen 17 October 2012 SINTEF ICT Joar Martin Østby Senior Research Scientist joar. m. ostby@sintef. no joar@ifi. uio. no 1

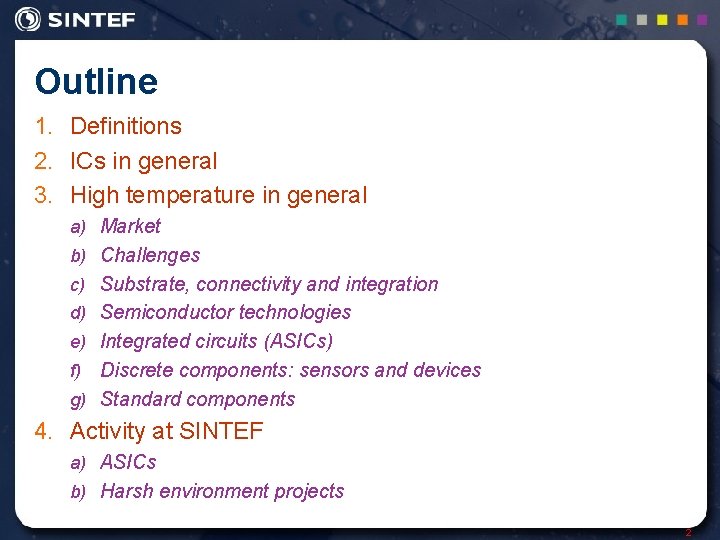

Outline 1. Definitions 2. ICs in general 3. High temperature in general a) Market b) Challenges c) Substrate, connectivity and integration d) Semiconductor technologies e) Integrated circuits (ASICs) Discrete components: sensors and devices g) Standard components f) 4. Activity at SINTEF a) ASICs b) Harsh environment projects 2

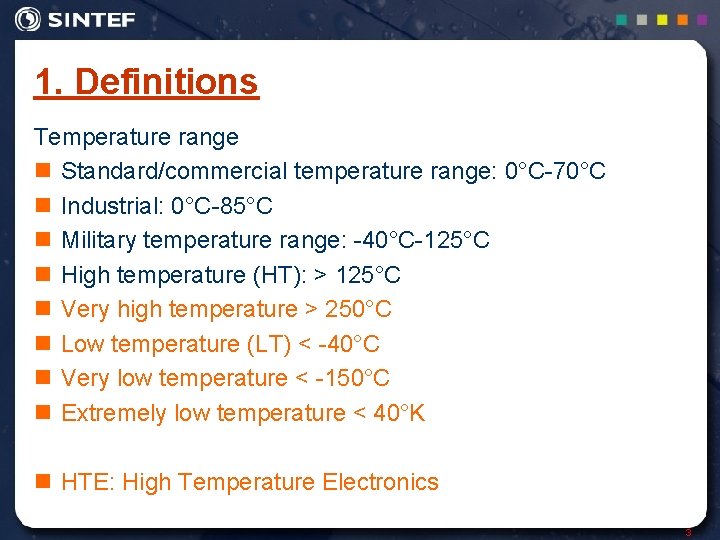

1. Definitions Temperature range n Standard/commercial temperature range: 0°C-70°C n Industrial: 0°C-85°C n Military temperature range: -40°C-125°C n High temperature (HT): > 125°C n Very high temperature > 250°C n Low temperature (LT) < -40°C n Very low temperature < -150°C n Extremely low temperature < 40°K n HTE: High Temperature Electronics 3

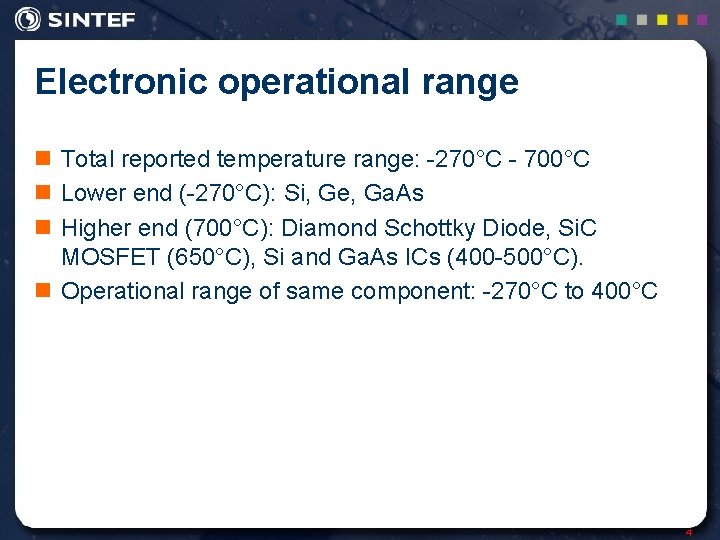

Electronic operational range n Total reported temperature range: -270°C - 700°C n Lower end (-270°C): Si, Ge, Ga. As n Higher end (700°C): Diamond Schottky Diode, Si. C MOSFET (650°C), Si and Ga. As ICs (400 -500°C). n Operational range of same component: -270°C to 400°C 4

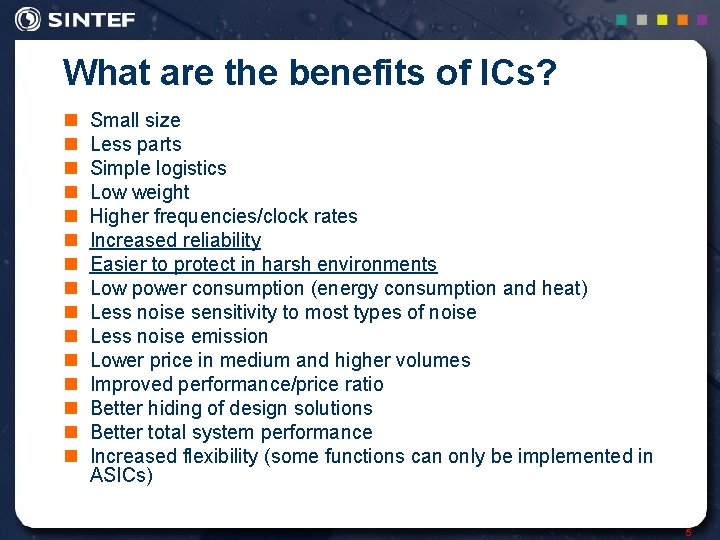

What are the benefits of ICs? n n n n Small size Less parts Simple logistics Low weight Higher frequencies/clock rates Increased reliability Easier to protect in harsh environments Low power consumption (energy consumption and heat) Less noise sensitivity to most types of noise Less noise emission Lower price in medium and higher volumes Improved performance/price ratio Better hiding of design solutions Better total system performance Increased flexibility (some functions can only be implemented in ASICs) 5

2. High temperature in general 6

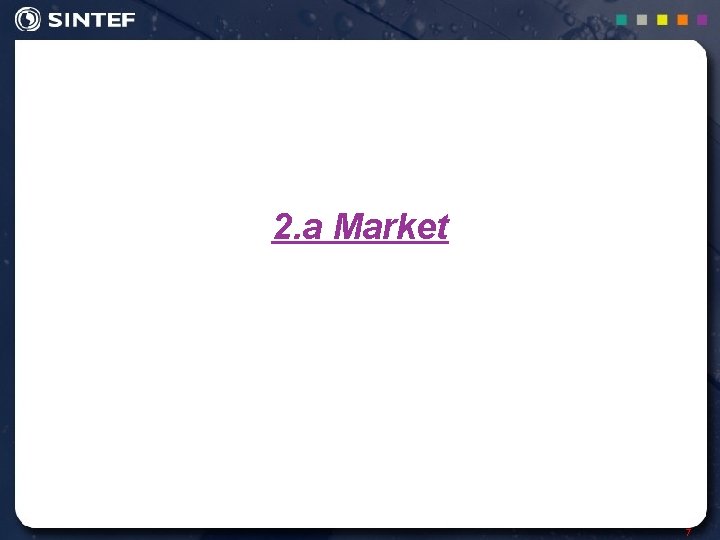

2. a Market 7

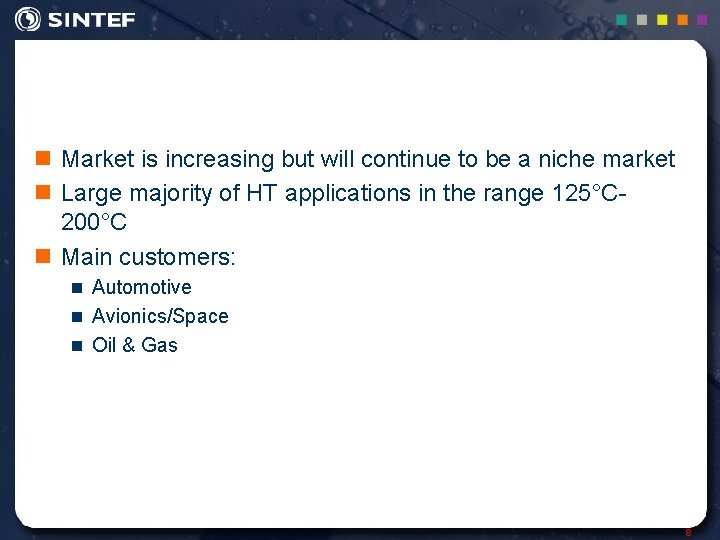

n Market is increasing but will continue to be a niche market n Large majority of HT applications in the range 125°C 200°C n Main customers: n Automotive n Avionics/Space n Oil & Gas 8

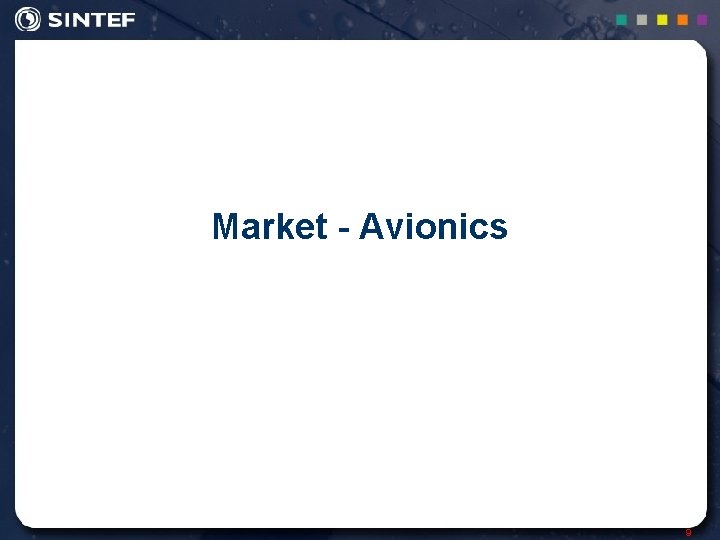

Market - Avionics 9

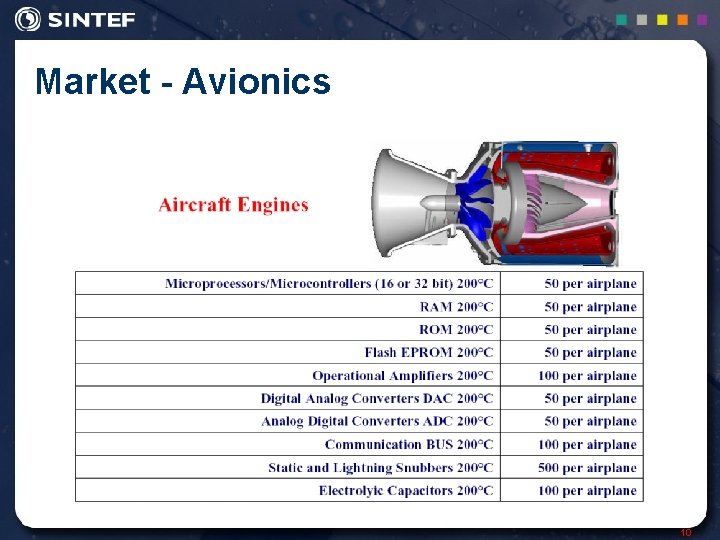

Market - Avionics 10

Market - Automotive 11

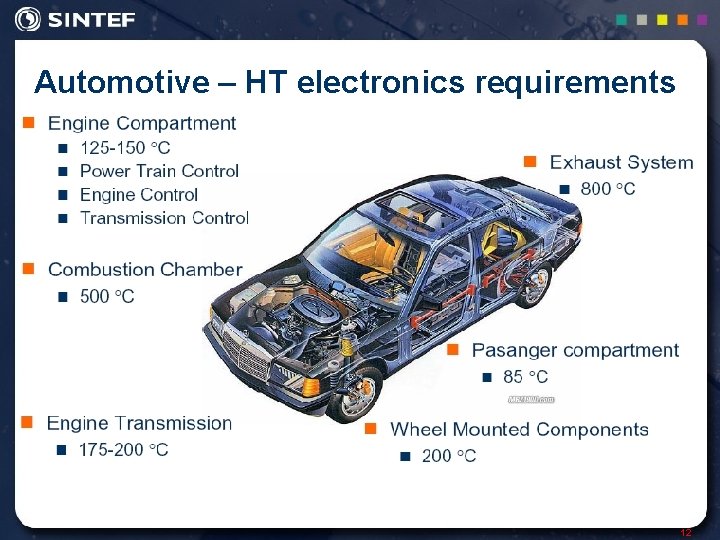

Automotive – HT electronics requirements 12

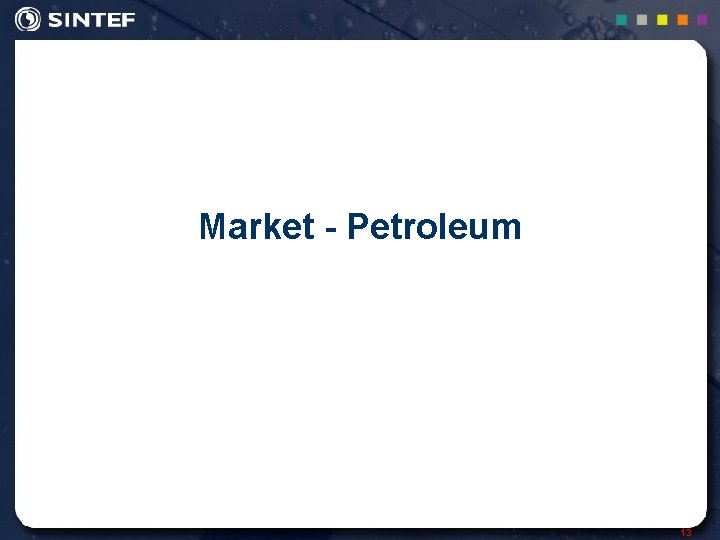

Market - Petroleum 13

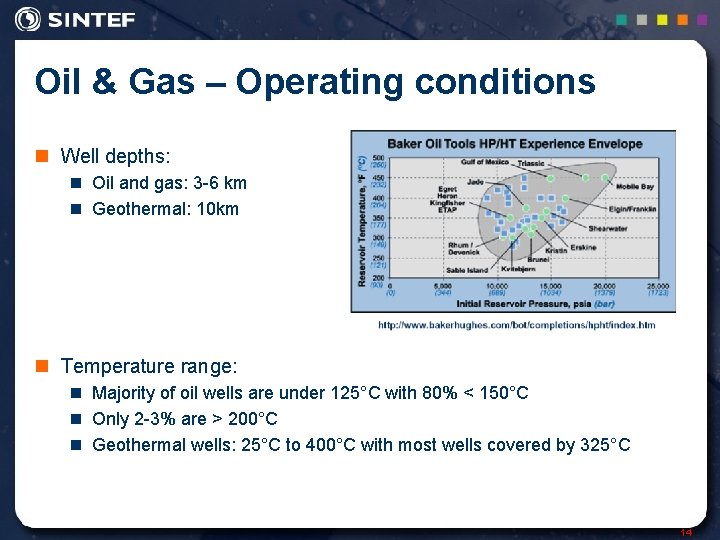

Oil & Gas – Operating conditions n Well depths: n Oil and gas: 3 -6 km n Geothermal: 10 km n Temperature range: n Majority of oil wells are under 125°C with 80% < 150°C n Only 2 -3% are > 200°C n Geothermal wells: 25°C to 400°C with most wells covered by 325°C 14

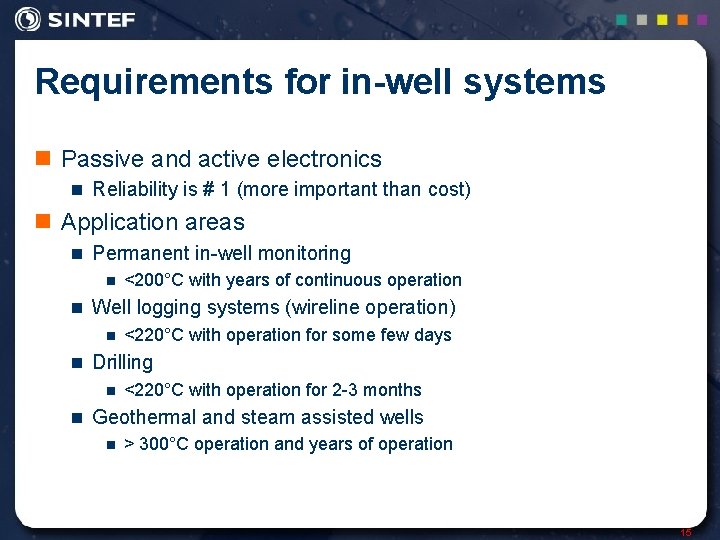

Requirements for in-well systems n Passive and active electronics n Reliability is # 1 (more important than cost) n Application areas n Permanent in-well monitoring n <200°C with years of continuous operation n Well logging systems (wireline operation) n <220°C with operation for some few days n Drilling n <220°C with operation for 2 -3 months n Geothermal and steam assisted wells n > 300°C operation and years of operation 15

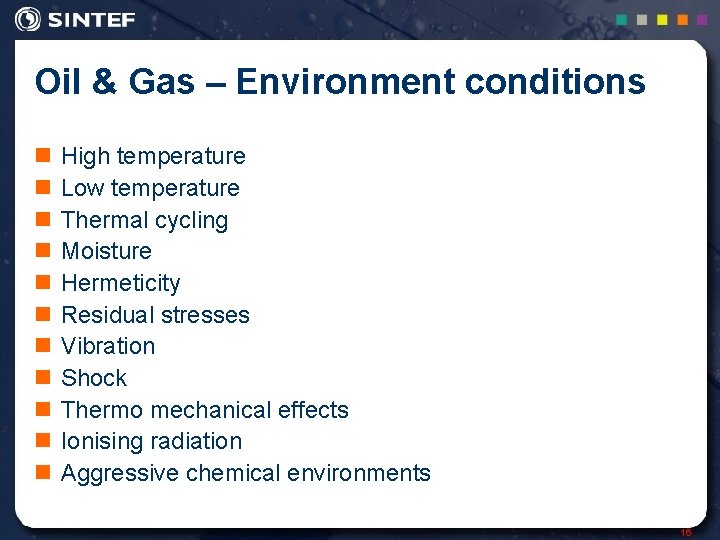

Oil & Gas – Environment conditions n n n High temperature Low temperature Thermal cycling Moisture Hermeticity Residual stresses Vibration Shock Thermo mechanical effects Ionising radiation Aggressive chemical environments 16

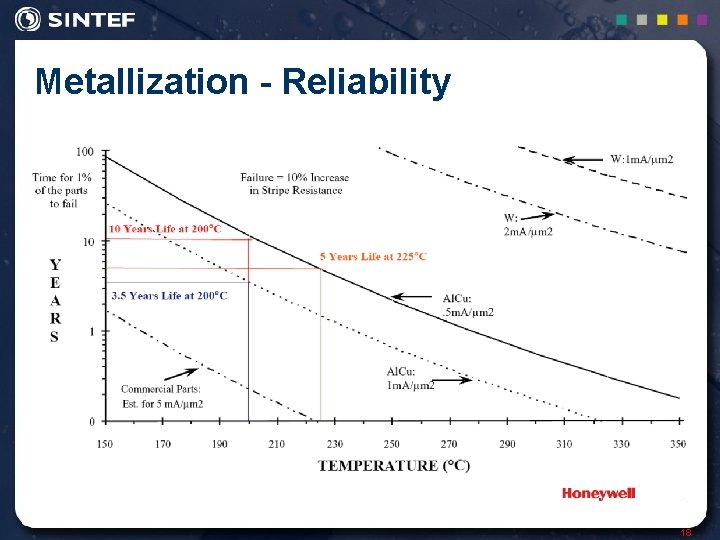

Metallization - Reliability 18

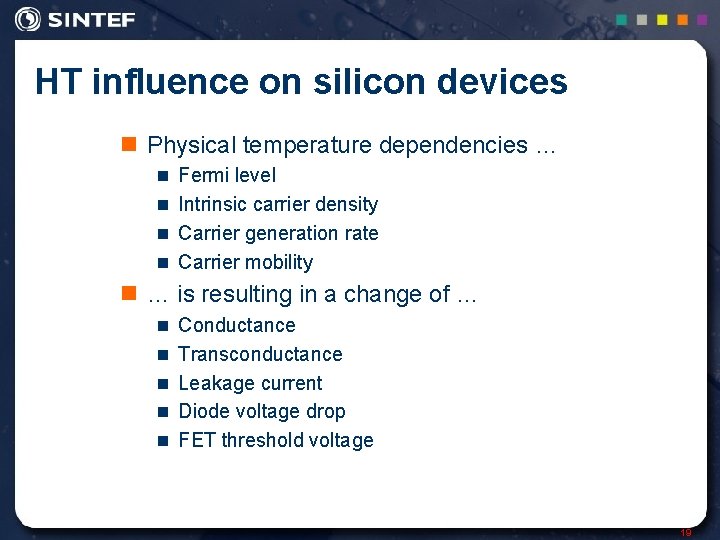

HT influence on silicon devices n Physical temperature dependencies … n Fermi level n Intrinsic carrier density n Carrier generation rate n Carrier mobility n … is resulting in a change of … n Conductance n Transconductance n Leakage current n Diode voltage drop n FET threshold voltage 19

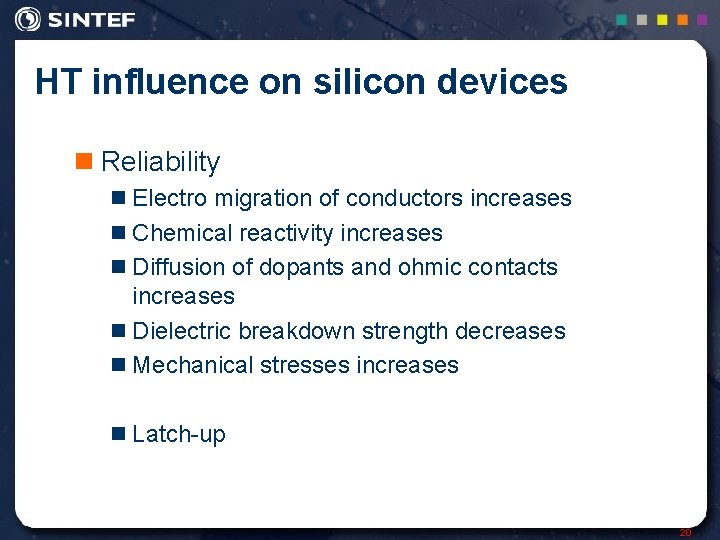

HT influence on silicon devices n Reliability n Electro migration of conductors increases n Chemical reactivity increases n Diffusion of dopants and ohmic contacts increases n Dielectric breakdown strength decreases n Mechanical stresses increases n Latch-up 20

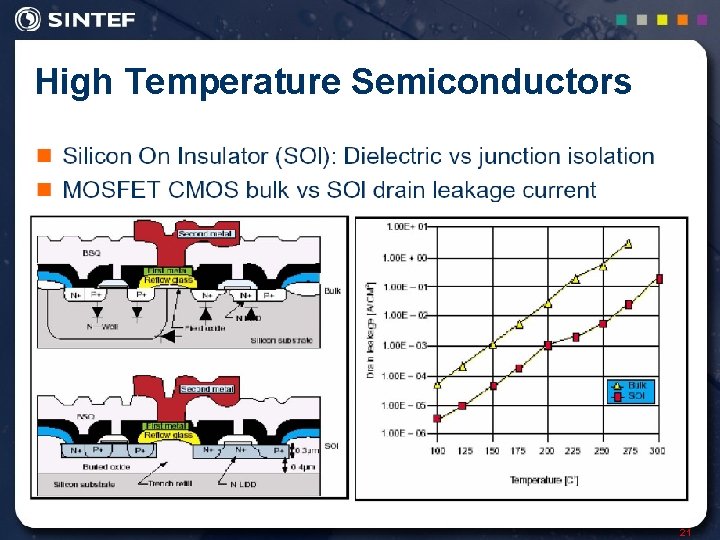

High Temperature Semiconductors 21

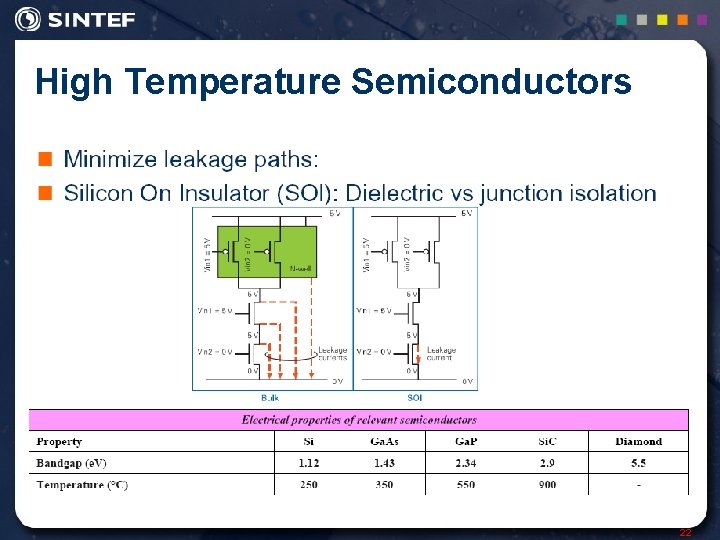

High Temperature Semiconductors 22

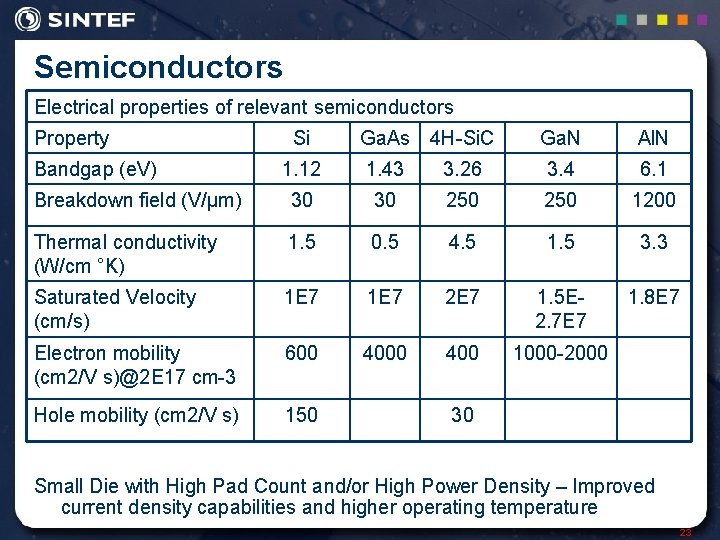

Semiconductors Electrical properties of relevant semiconductors Property Si Ga. As 4 H-Si. C Ga. N Al. N 1. 12 1. 43 3. 26 3. 4 6. 1 Breakdown field (V/µm) 30 30 250 1200 Thermal conductivity (W/cm °K) 1. 5 0. 5 4. 5 1. 5 3. 3 Saturated Velocity (cm/s) 1 E 7 2 E 7 1. 5 E 2. 7 E 7 1. 8 E 7 Electron mobility (cm 2/V s)@2 E 17 cm-3 600 400 1000 -2000 Hole mobility (cm 2/V s) 150 Bandgap (e. V) 30 Small Die with High Pad Count and/or High Power Density – Improved current density capabilities and higher operating temperature 23

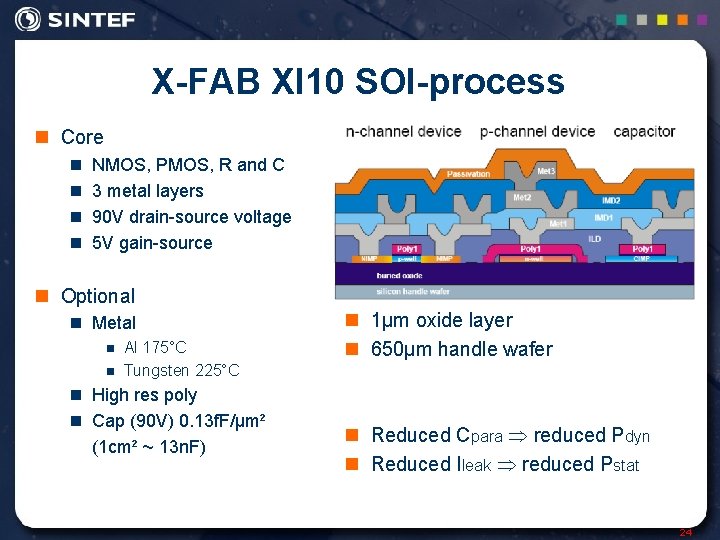

X-FAB XI 10 SOI-process n Core n NMOS, PMOS, R and C n 3 metal layers n 90 V drain-source voltage n 5 V gain-source n Optional n Metal n Al 175°C n Tungsten 225°C n 1µm oxide layer n 650µm handle wafer n High res poly n Cap (90 V) 0. 13 f. F/µm² (1 cm² ~ 13 n. F) n Reduced Cpara reduced Pdyn n Reduced Ileak reduced Pstat 24

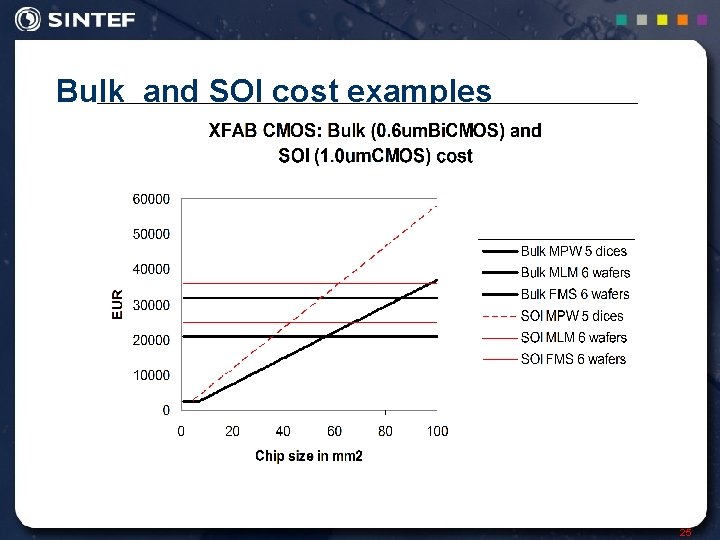

Bulk and SOI cost examples 25

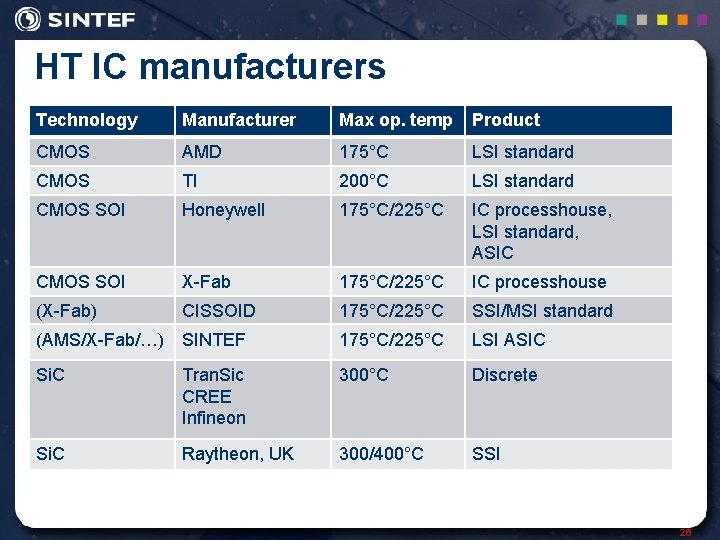

HT IC manufacturers Technology Manufacturer Max op. temp Product CMOS AMD 175°C LSI standard CMOS TI 200°C LSI standard CMOS SOI Honeywell 175°C/225°C IC processhouse, LSI standard, ASIC CMOS SOI X-Fab 175°C/225°C IC processhouse (X-Fab) CISSOID 175°C/225°C SSI/MSI standard (AMS/X-Fab/…) SINTEF 175°C/225°C LSI ASIC Si. C Tran. Sic CREE Infineon 300°C Discrete Si. C Raytheon, UK 300/400°C SSI 26

HT (200°C) and HV (600 -800 V) devices n United. Sic n 4 H-Si. C BJT(150°C, 600 V), VJFET (200°C, 1200 V) and Shottky Diode (700 V) n Tran. SIC (225°C 800 V) n Si. C BJT, Si IGBT n Bit. Csic n Si. C NPN power (250°, 1200 V) 28

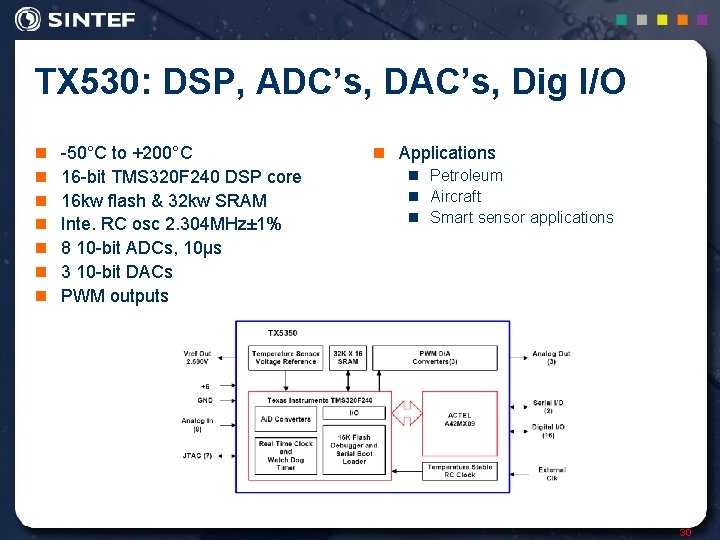

TX 530: DSP, ADC’s, DAC’s, Dig I/O n n n n -50°C to +200°C 16 -bit TMS 320 F 240 DSP core 16 kw flash & 32 kw SRAM Inte. RC osc 2. 304 MHz± 1% 8 10 -bit ADCs, 10µs 3 10 -bit DACs PWM outputs n Applications n Petroleum n Aircraft n Smart sensor applications 30

3. Activity at SINTEF 31

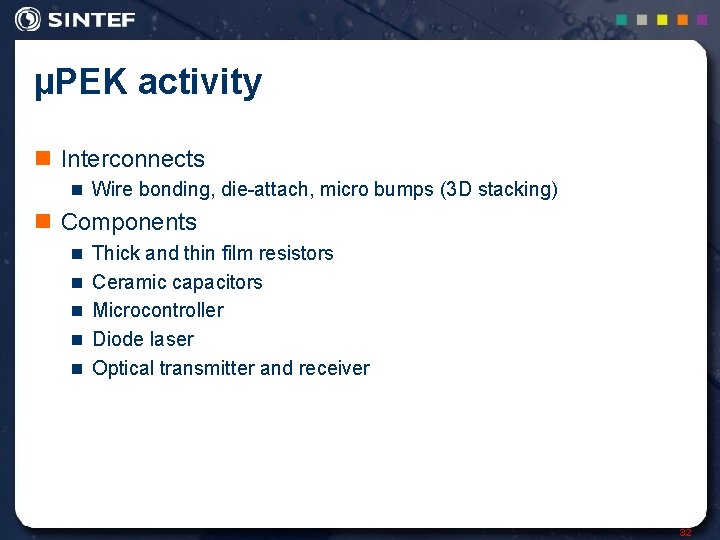

µPEK activity n Interconnects n Wire bonding, die-attach, micro bumps (3 D stacking) n Components n Thick and thin film resistors n Ceramic capacitors n Microcontroller n Diode laser n Optical transmitter and receiver 32

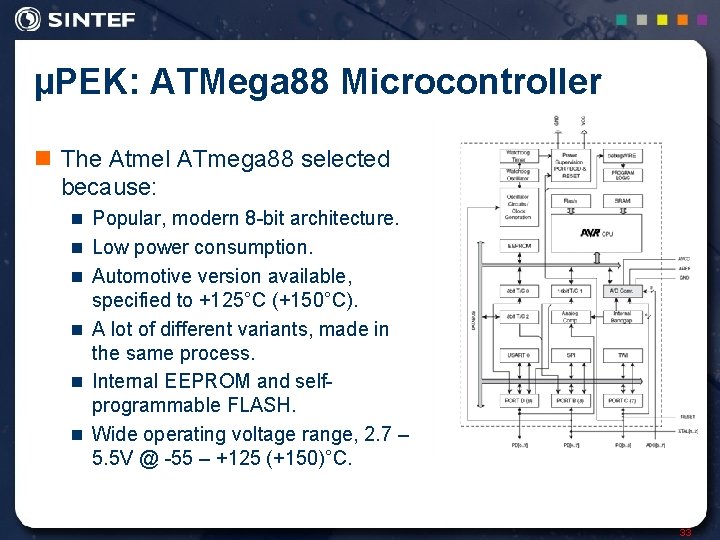

µPEK: ATMega 88 Microcontroller n The Atmel ATmega 88 selected because: n Popular, modern 8 -bit architecture. n Low power consumption. n Automotive version available, specified to +125°C (+150°C). n A lot of different variants, made in the same process. n Internal EEPROM and selfprogrammable FLASH. n Wide operating voltage range, 2. 7 – 5. 5 V @ -55 – +125 (+150)°C. 33

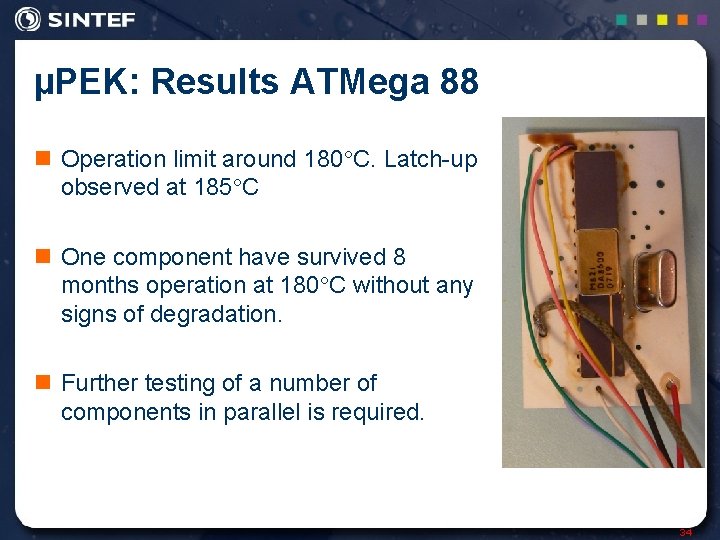

µPEK: Results ATMega 88 n Operation limit around 180 C. Latch-up observed at 185 C n One component have survived 8 months operation at 180 C without any signs of degradation. n Further testing of a number of components in parallel is required. 34

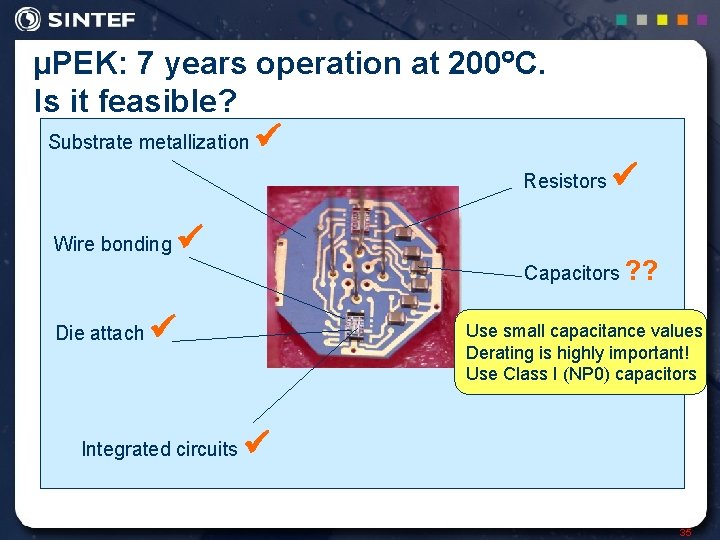

µPEK: 7 years operation at 200 C. Is it feasible? Substrate metallization Resistors Wire bonding Die attach Capacitors ? ? Integrated circuits Use small capacitance values Derating is highly important! Use Class I (NP 0) capacitors 35

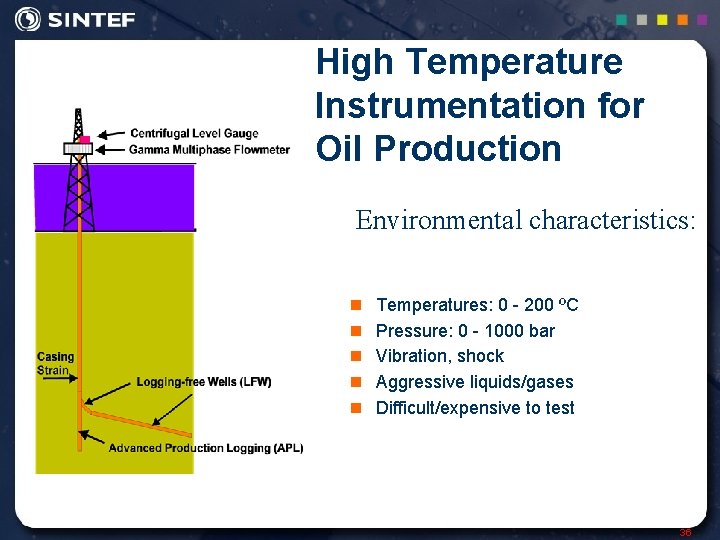

High Temperature Instrumentation for Oil Production Environmental characteristics: n n n Temperatures: 0 - 200 ºC Pressure: 0 - 1000 bar Vibration, shock Aggressive liquids/gases Difficult/expensive to test 36

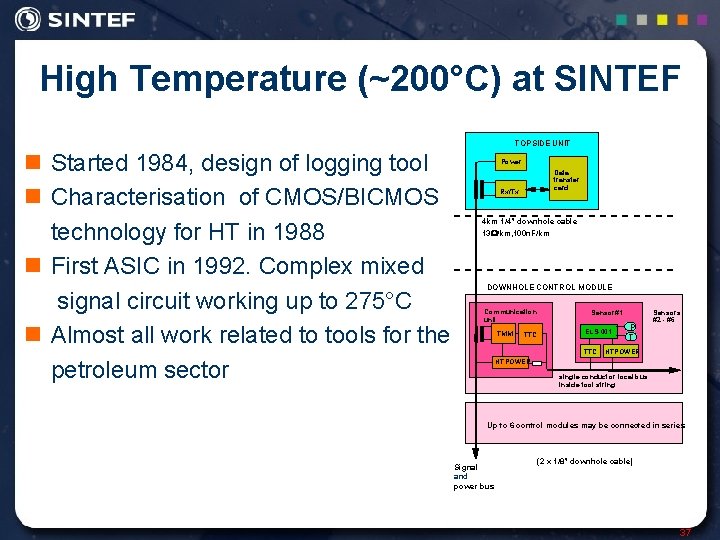

High Temperature (~200°C) at SINTEF TOPSIDE UNIT n Started 1984, design of logging tool n Characterisation of CMOS/BICMOS technology for HT in 1988 n First ASIC in 1992. Complex mixed signal circuit working up to 275°C n Almost all work related to tools for the petroleum sector Power Data transfer card Rx/Tx 4 km 1/4" downhole cable 13 W/km, 100 n. F/km DOWNHOLE CONTROL MODULE Communication unit TMM TTC Sensor#1 ELS-001 TTC P T Sensors #2 - #6 HTPOWER single conductor local bus inside tool string Up to 6 control modules may be connected in series Signal and power bus (2 x 1/8" downhole cable) 37

Library of high temperature ASICs n TMM Telemetry Master Module (long distance biphase telemetry Tx/Rx, system sync) TOPSIDE UNIT n TTC Telemetry Tool Chip Power (time multiplexing, directly connected to single wire bus) Rx/Tx n HTP High Temperature Power (serial regulator with built in reference voltage) n ELS Quartz oscillator control chip Data transfer card 4 km 1/4" downhole cable 13 W/km, 100 n. F/km (four channel oscillator/mixer for quartz sensor interface) n CMC Capacitance Measurement Circuit (capacitance measurement, p. F-n. F, n S/D <1%, high res. ) A/D converter based on sigma-delta principle (A/D-converter diff. input +-1 V, DOWNHOLE CONTROL MODULE Communication unit TMM < 0. 1%, low noise) The chips are designed for use at temperatures up to 200°C. They may either be put together as a complete system for remote measurements or be used separately. ELS-001 TTC n VFC Voltage to frequency converter n SAC Spectrum Analyser Chip (not yet fully verified) (spectrum analyzer chip 500 Hz-50 k. Hz) TTC Sensor#1 P T Sensors #2 - #6 HTPOWER single conductor local bus inside tool string Up to 6 control modules may be connected in series Signal and power bus (2 x 1/8" downhole cable) 38

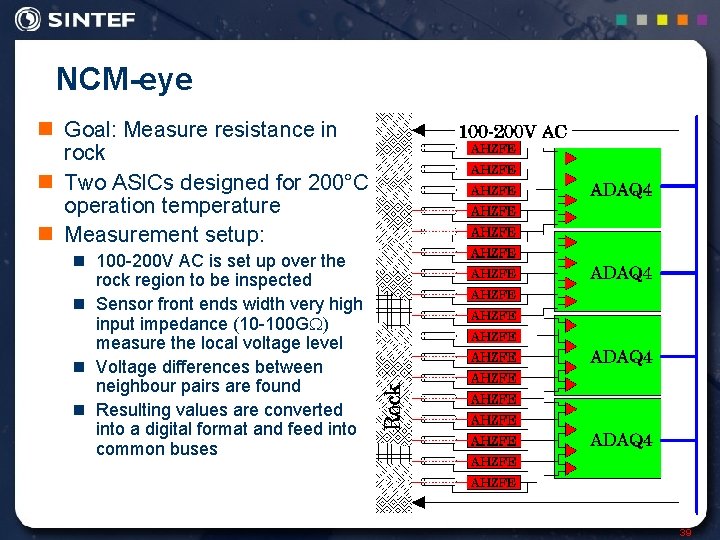

NCM-eye n Goal: Measure resistance in rock n Two ASICs designed for 200°C operation temperature n Measurement setup: n 100 -200 V AC is set up over the rock region to be inspected n Sensor front ends width very high input impedance (10 -100 G ) measure the local voltage level n Voltage differences between neighbour pairs are found n Resulting values are converted into a digital format and feed into common buses 39

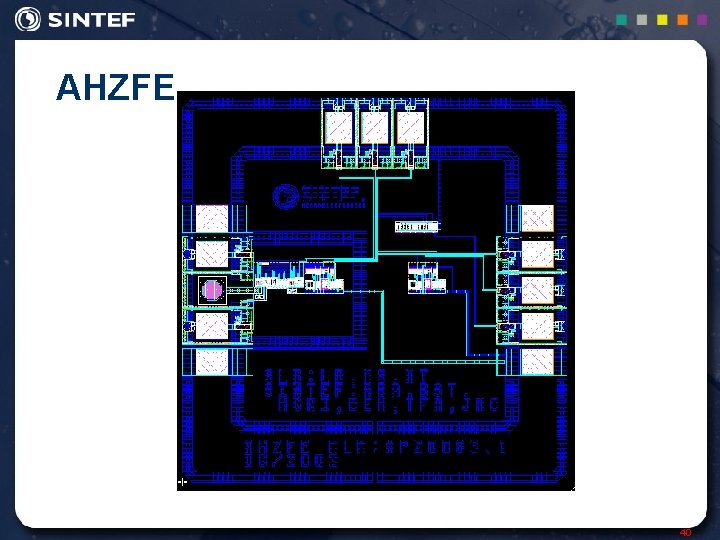

AHZFE 40

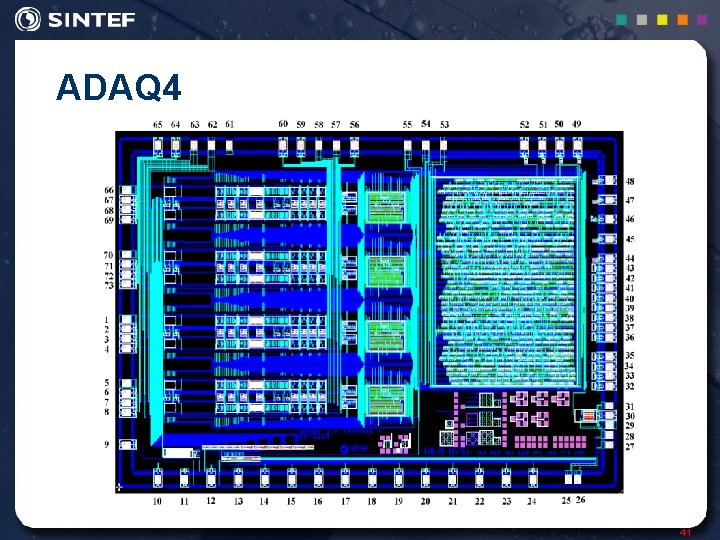

ADAQ 4 41

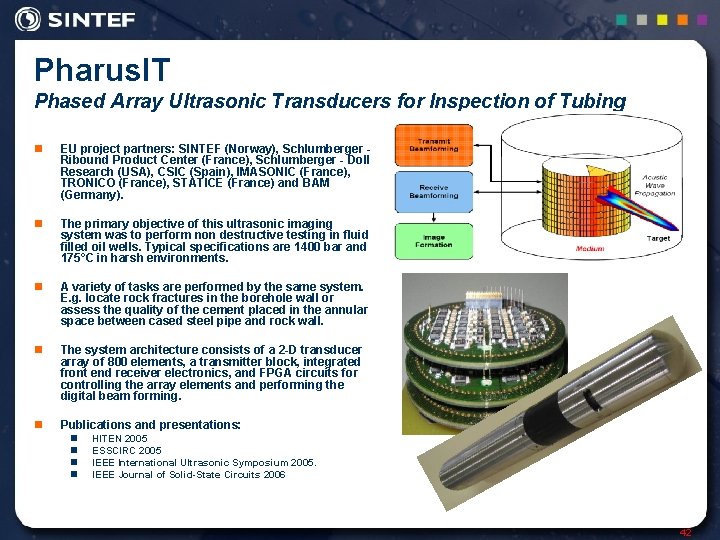

Pharus. IT Phased Array Ultrasonic Transducers for Inspection of Tubing n EU project partners: SINTEF (Norway), Schlumberger Ribound Product Center (France), Schlumberger - Doll Research (USA), CSIC (Spain), IMASONIC (France), TRONICO (France), STATICE (France) and BAM (Germany). n The primary objective of this ultrasonic imaging system was to perform non destructive testing in fluid filled oil wells. Typical specifications are 1400 bar and 175°C in harsh environments. n A variety of tasks are performed by the same system. E. g. locate rock fractures in the borehole wall or assess the quality of the cement placed in the annular space between cased steel pipe and rock wall. n The system architecture consists of a 2 -D transducer array of 800 elements, a transmitter block, integrated front end receiver electronics, and FPGA circuits for controlling the array elements and performing the digital beam forming. n Publications and presentations: n n HITEN 2005 ESSCIRC 2005 IEEE International Ultrasonic Symposium 2005. IEEE Journal of Solid-State Circuits 2006 42

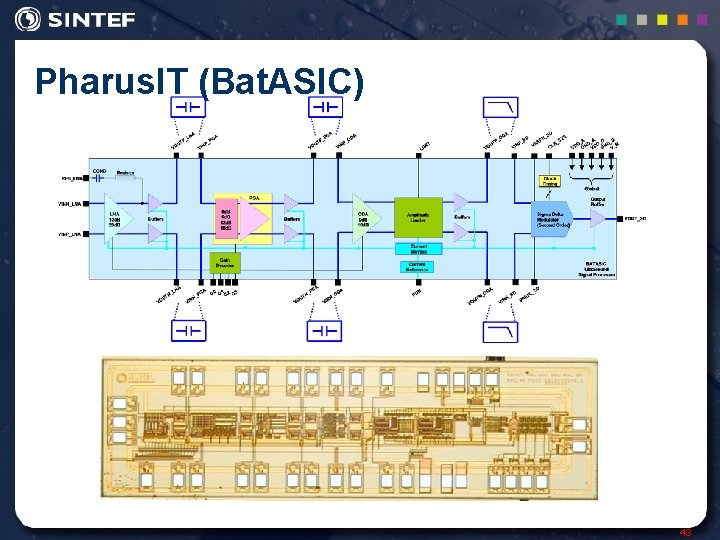

Pharus. IT (Bat. ASIC) 43

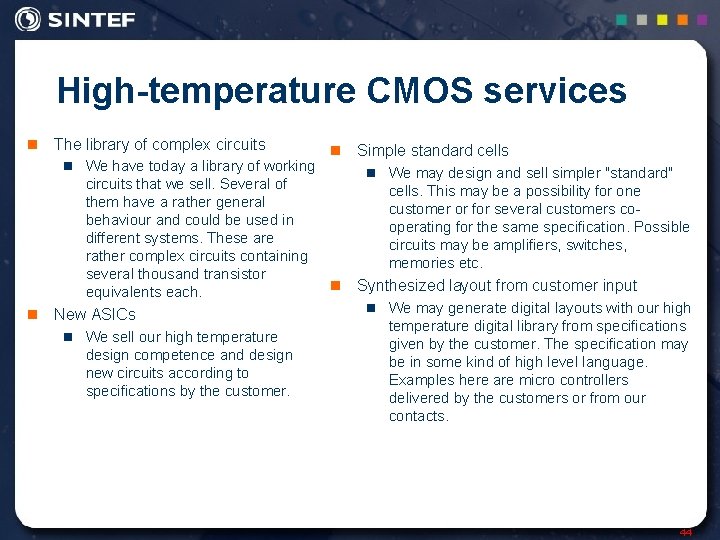

High-temperature CMOS services n The library of complex circuits n We have today a library of working circuits that we sell. Several of them have a rather general behaviour and could be used in different systems. These are rather complex circuits containing several thousand transistor equivalents each. n New ASICs n We sell our high temperature design competence and design new circuits according to specifications by the customer. n Simple standard cells n We may design and sell simpler "standard" cells. This may be a possibility for one customer or for several customers cooperating for the same specification. Possible circuits may be amplifiers, switches, memories etc. n Synthesized layout from customer input n We may generate digital layouts with our high temperature digital library from specifications given by the customer. The specification may be in some kind of high level language. Examples here are micro controllers delivered by the customers or from our contacts. 44

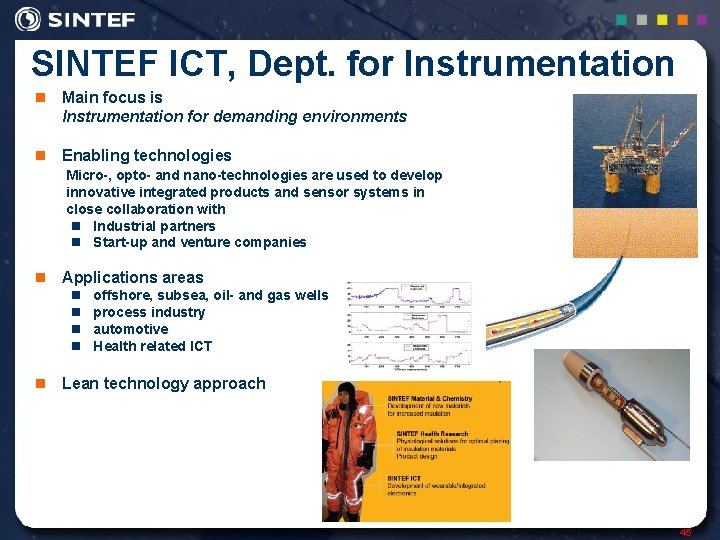

SINTEF ICT, Dept. for Instrumentation n Main focus is Instrumentation for demanding environments n Enabling technologies Micro-, opto- and nano-technologies are used to develop innovative integrated products and sensor systems in close collaboration with n Industrial partners n Start-up and venture companies n Applications areas n n offshore, subsea, oil- and gas wells process industry automotive Health related ICT n Lean technology approach 45

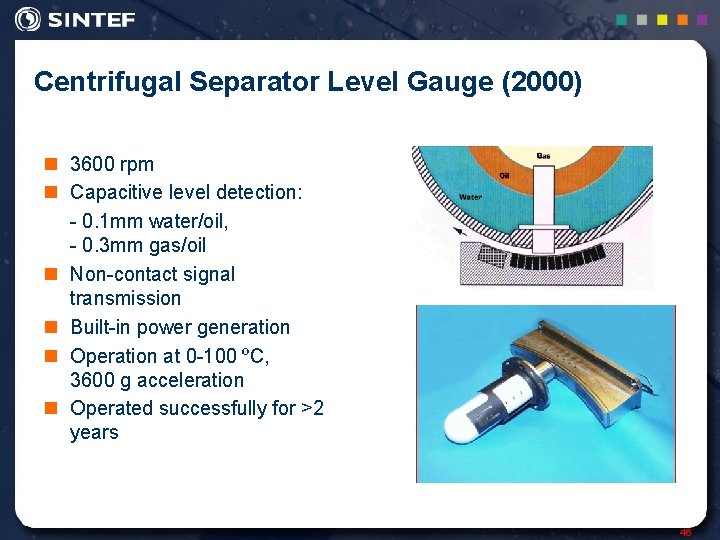

Centrifugal Separator Level Gauge (2000) n 3600 rpm n Capacitive level detection: - 0. 1 mm water/oil, - 0. 3 mm gas/oil n Non-contact signal transmission n Built-in power generation n Operation at 0 -100 ºC, 3600 g acceleration n Operated successfully for >2 years 46

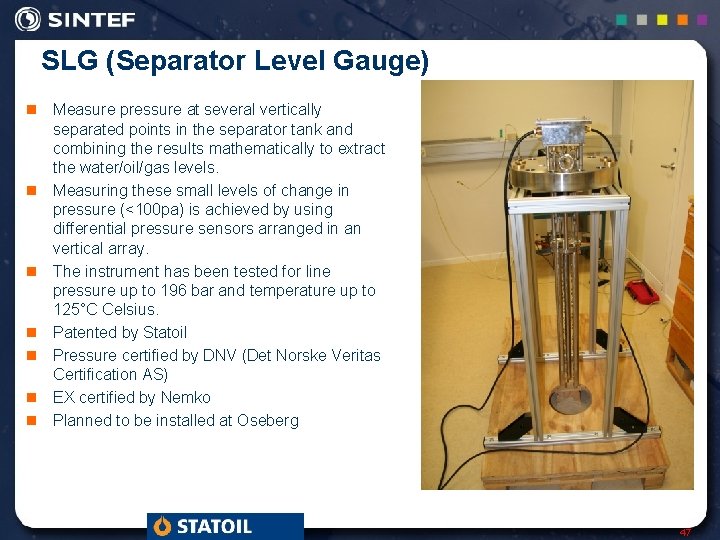

SLG (Separator Level Gauge) n Measure pressure at several vertically separated points in the separator tank and combining the results mathematically to extract the water/oil/gas levels. n Measuring these small levels of change in pressure (<100 pa) is achieved by using differential pressure sensors arranged in an vertical array. n The instrument has been tested for line pressure up to 196 bar and temperature up to 125°C Celsius. n Patented by Statoil n Pressure certified by DNV (Det Norske Veritas Certification AS) n EX certified by Nemko n Planned to be installed at Oseberg 47

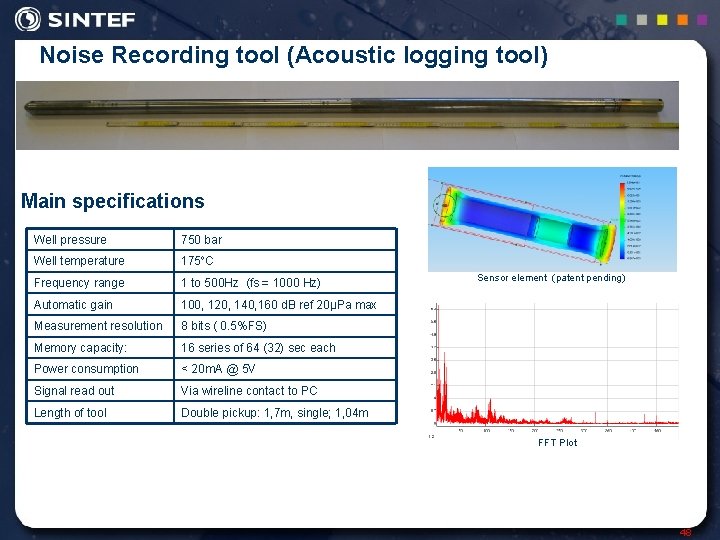

Noise Recording tool (Acoustic logging tool) Main specifications Well pressure 750 bar Well temperature 175ºC Frequency range 1 to 500 Hz (fs = 1000 Hz) Automatic gain 100, 120, 140, 160 d. B ref 20µPa max Measurement resolution 8 bits ( 0. 5%FS) Memory capacity: 16 series of 64 (32) sec each Power consumption < 20 m. A @ 5 V Signal read out Via wireline contact to PC Length of tool Double pickup: 1, 7 m, single; 1, 04 m Sensor element (patent pending) FFT Plot 48

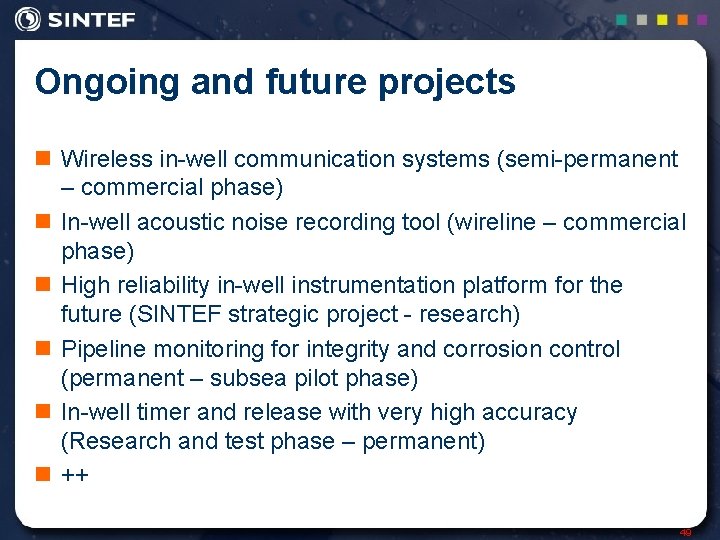

Ongoing and future projects n Wireless in-well communication systems (semi-permanent – commercial phase) n In-well acoustic noise recording tool (wireline – commercial phase) n High reliability in-well instrumentation platform for the future (SINTEF strategic project - research) n Pipeline monitoring for integrity and corrosion control (permanent – subsea pilot phase) n In-well timer and release with very high accuracy (Research and test phase – permanent) n ++ 49
