Lecture 17 VHDL Structural Modeling Prith Banerjee ECE

Lecture 17 VHDL Structural Modeling Prith Banerjee ECE C 03 Advanced Digital Design Spring 1998 ECE C 03 Lecture 17 ECE C 03 Lecture 6 1

Outline • • • Review of VHDL Structural VHDL Mixed Structural and Behavioral VHDL Use of hierarchy Combinational designs Component instantiation statements Concurrent statements Process statements Test Benches READING: Dewey 12. 1, 12. 2, 12. 3, 12. 4, 13. 1, 13. 2, 13. 3. 13. 4, ECE 13. 6, 13. 7. 13. 8 C 03 Lecture 17 ECE C 03 Lecture 6 2

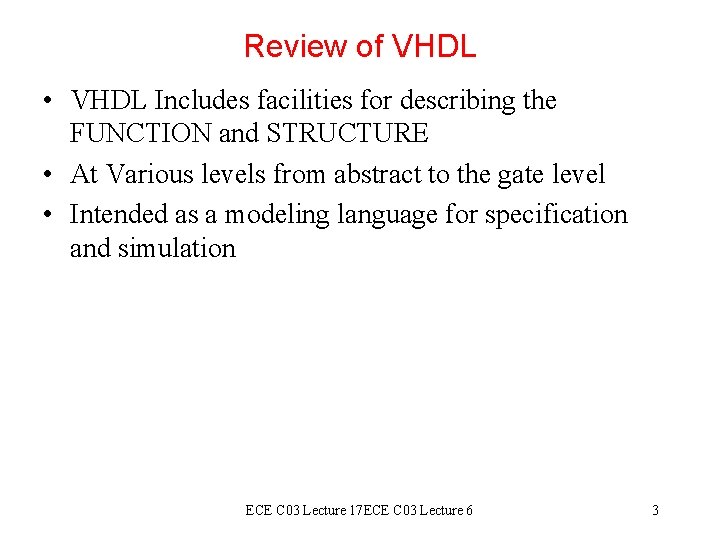

Review of VHDL • VHDL Includes facilities for describing the FUNCTION and STRUCTURE • At Various levels from abstract to the gate level • Intended as a modeling language for specification and simulation ECE C 03 Lecture 17 ECE C 03 Lecture 6 3

Example of Behavioral Modeling (AND_OR_INVERT) architecture primitive of and_or_inv is signal and_a, and_b, or_a_b : bit; and_gate_a : process (a 1, a 2) is end process or_gate; inv : process (or_a_b) is begin and_a <= a 1 and a 2; y <= not or_a_b; end process and_gate_a; and_gate_b : process (b 1, b 2) is and_b <= b 1 and b 2; begin or_a_b <= and_a or and_b; begin or_gate: process (and_a, and_b) is end process inv; end architecture primitive; a 1 a 2 y end process and_gate_b; b 1 b 2 ECE C 03 Lecture 17 ECE C 03 Lecture 6 4

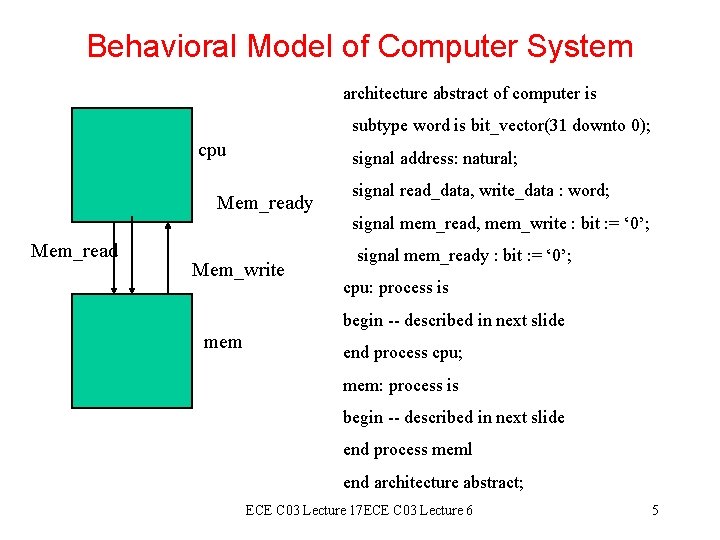

Behavioral Model of Computer System architecture abstract of computer is subtype word is bit_vector(31 downto 0); cpu signal address: natural; Mem_ready Mem_read Mem_write signal read_data, write_data : word; signal mem_read, mem_write : bit : = ‘ 0’; signal mem_ready : bit : = ‘ 0’; cpu: process is begin -- described in next slide mem end process cpu; mem: process is begin -- described in next slide end process meml end architecture abstract; ECE C 03 Lecture 17 ECE C 03 Lecture 6 5

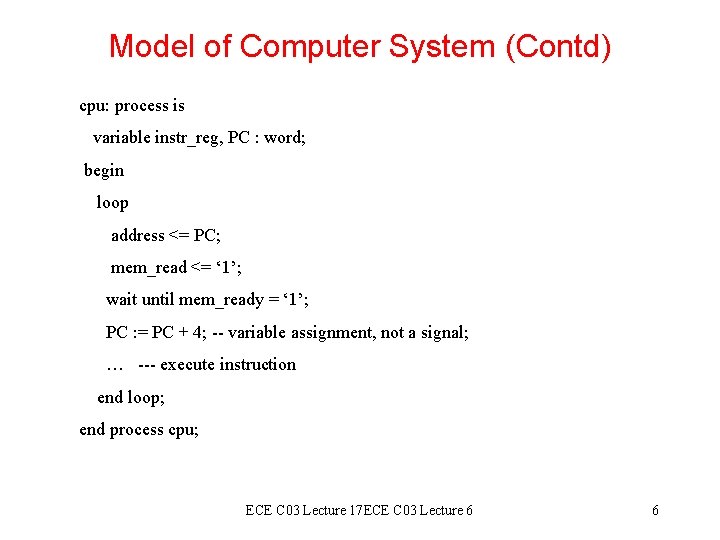

Model of Computer System (Contd) cpu: process is variable instr_reg, PC : word; begin loop address <= PC; mem_read <= ‘ 1’; wait until mem_ready = ‘ 1’; PC : = PC + 4; -- variable assignment, not a signal; … --- execute instruction end loop; end process cpu; ECE C 03 Lecture 17 ECE C 03 Lecture 6 6

Model of Computer System (Contd) memory: process is type memory_array is array (0 to 2**14 - 1) of word; variable store: memory_array : = (…); begin wait until mem_read = ‘ 1’ or mem_write = ‘ 1’; if mem_read = ‘ 1’ then read_data <= store(address/4); mem_ready <= ‘ 1’; wait until mem_ready = ‘ 0’; else …. --- perform write access; end process memory; ECE C 03 Lecture 17 ECE C 03 Lecture 6 7

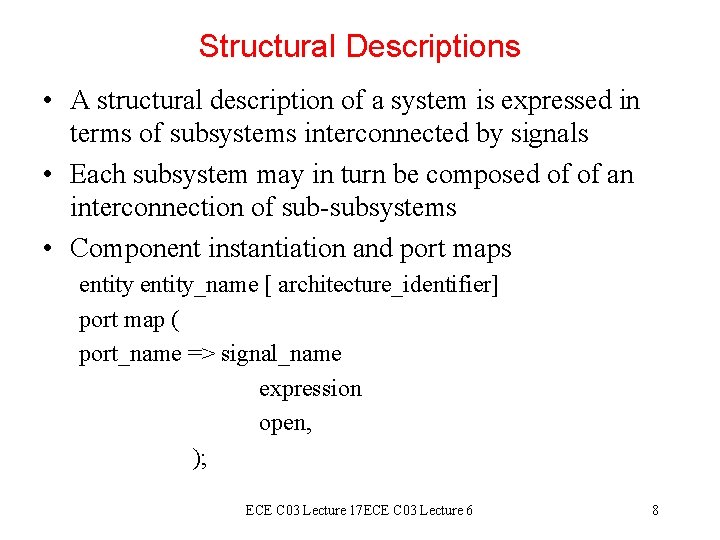

Structural Descriptions • A structural description of a system is expressed in terms of subsystems interconnected by signals • Each subsystem may in turn be composed of of an interconnection of sub-subsystems • Component instantiation and port maps entity_name [ architecture_identifier] port map ( port_name => signal_name expression open, ); ECE C 03 Lecture 17 ECE C 03 Lecture 6 8

Example of Component Instantiation entity DRAM_controller is port (rd, wr, mem: in bit; ras, cas, we, ready: out bit); end entity DRAM_controller; • We can then perform a component instantiation as follows assuming that there is a corresponding architecture called “fpld” for the entity. main_mem_cont : entity work. DRAM_controller(fpld) port map(rd=>cpu_rd, wr=>cpu_wr, mem=>cpu_mem, ready=> cpu_rdy, ras=>mem_ras, cas=>mem_cas, we=>mem_we); ECE C 03 Lecture 17 ECE C 03 Lecture 6 9

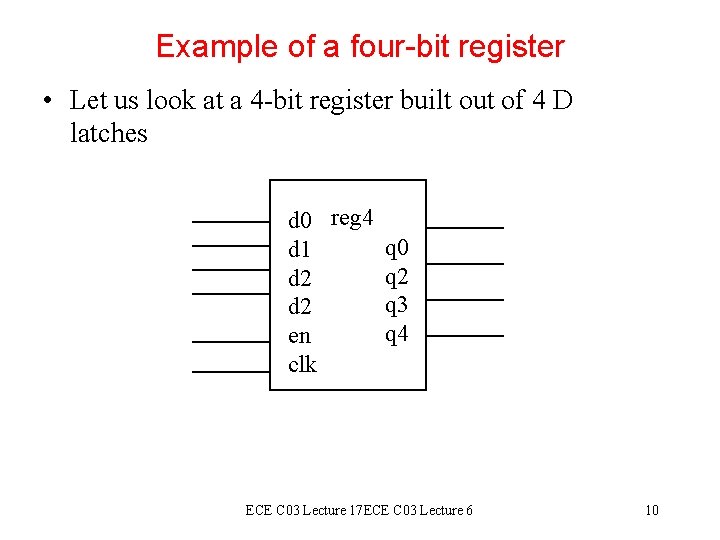

Example of a four-bit register • Let us look at a 4 -bit register built out of 4 D latches d 0 reg 4 q 0 d 1 q 2 d 2 q 3 d 2 q 4 en clk ECE C 03 Lecture 17 ECE C 03 Lecture 6 10

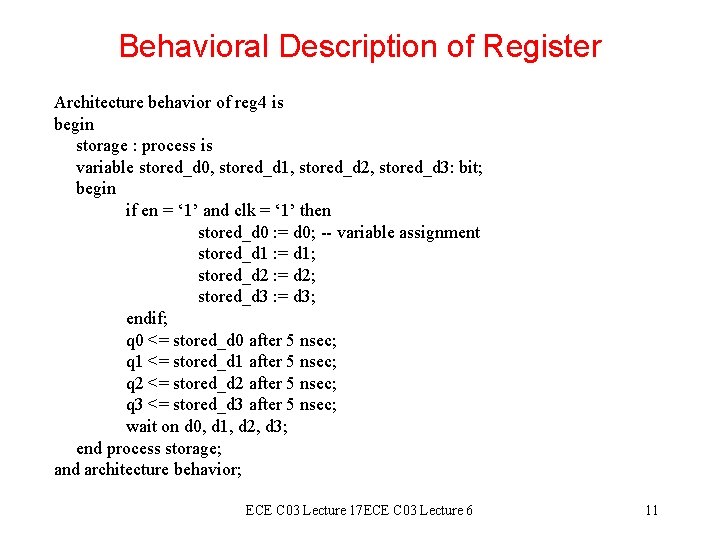

Behavioral Description of Register Architecture behavior of reg 4 is begin storage : process is variable stored_d 0, stored_d 1, stored_d 2, stored_d 3: bit; begin if en = ‘ 1’ and clk = ‘ 1’ then stored_d 0 : = d 0; -- variable assignment stored_d 1 : = d 1; stored_d 2 : = d 2; stored_d 3 : = d 3; endif; q 0 <= stored_d 0 after 5 nsec; q 1 <= stored_d 1 after 5 nsec; q 2 <= stored_d 2 after 5 nsec; q 3 <= stored_d 3 after 5 nsec; wait on d 0, d 1, d 2, d 3; end process storage; and architecture behavior; ECE C 03 Lecture 17 ECE C 03 Lecture 6 11

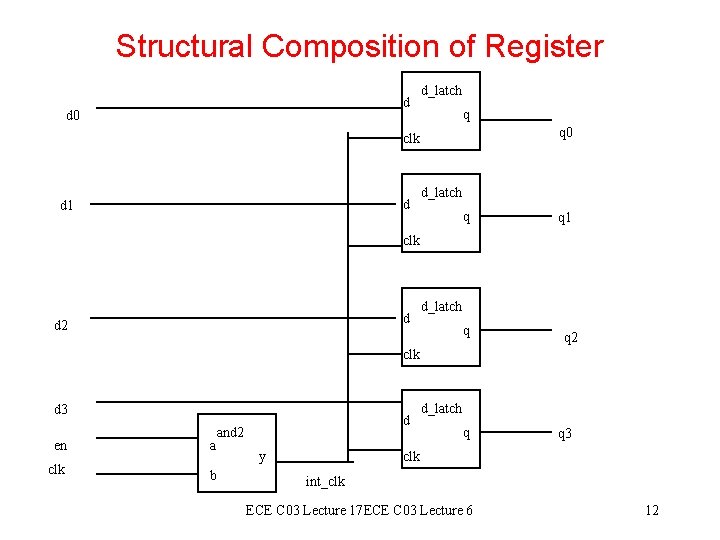

Structural Composition of Register d d 0 d_latch q q 0 clk d d 1 d_latch q q 1 clk d d 2 d_latch q q 2 clk d 3 en a clk b d and 2 y d_latch q q 3 clk int_clk ECE C 03 Lecture 17 ECE C 03 Lecture 6 12

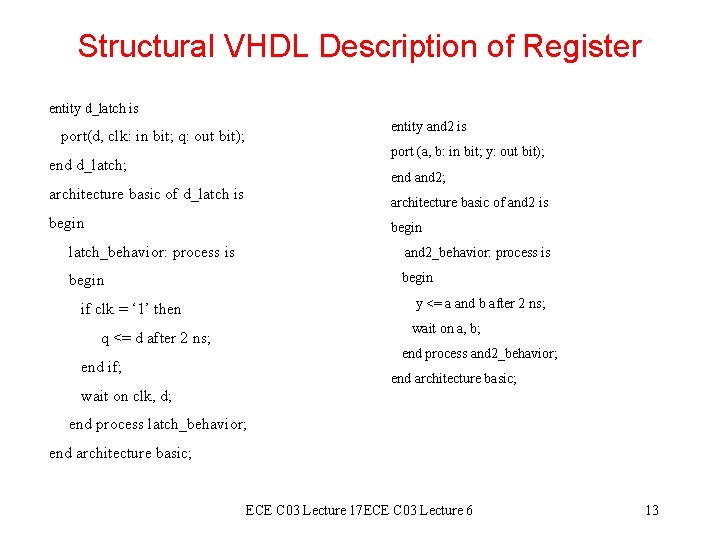

Structural VHDL Description of Register entity d_latch is entity and 2 is port(d, clk: in bit; q: out bit); port (a, b: in bit; y: out bit); end d_latch; end and 2; architecture basic of d_latch is architecture basic of and 2 is begin latch_behavior: process is and 2_behavior: process is begin y <= a and b after 2 ns; if clk = ‘ 1’ then wait on a, b; q <= d after 2 ns; end process and 2_behavior; end if; end architecture basic; wait on clk, d; end process latch_behavior; end architecture basic; ECE C 03 Lecture 17 ECE C 03 Lecture 6 13

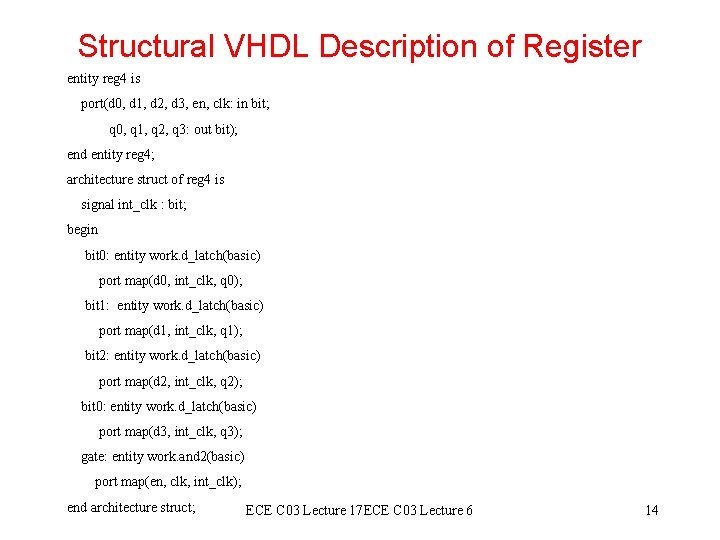

Structural VHDL Description of Register entity reg 4 is port(d 0, d 1, d 2, d 3, en, clk: in bit; q 0, q 1, q 2, q 3: out bit); end entity reg 4; architecture struct of reg 4 is signal int_clk : bit; begin bit 0: entity work. d_latch(basic) port map(d 0, int_clk, q 0); bit 1: entity work. d_latch(basic) port map(d 1, int_clk, q 1); bit 2: entity work. d_latch(basic) port map(d 2, int_clk, q 2); bit 0: entity work. d_latch(basic) port map(d 3, int_clk, q 3); gate: entity work. and 2(basic) port map(en, clk, int_clk); end architecture struct; ECE C 03 Lecture 17 ECE C 03 Lecture 6 14

Mixed Structural and Behavioral Models • Models need not be purely structural or behavioral • Often it is useful to specify a model with some parts composed of interconnected component instances and other parts using processes • Use signals as a way to join component instances and processes • A signal can be associated with a port of a component instance and can be assigned to or read in a process ECE C 03 Lecture 17 ECE C 03 Lecture 6 15

Example of Mixed Modeling: Multiplier architecture mixed of multiplier is Entity multiplier is signal partial_product, full_product: integer; port(clk, reset: in bit; signal arith_control, result_en, mult_bit, mult_load: bit; multiplicand, multiplier: in integer; product: out integer; arith_unit: entity work. shift_adder(behavior) end entity multiplier; multiplicand begin -- mized port map( addend => multiplicand, augend => full_product, sum => partial_product, add_control => arith_control); Multiplier (register) result : entity work, reg(behavior) port map (d => partial_product, q => full_product, en => result_en, reset => reset); multiplier_sr: entity work. shift_reg(behavior) Arith_unit (shift adder) port map (d => multiplier, q => mult_bit, load => mult_load, clk => clk); product <= full_product; clk Result (shift register) control_section: process is begin -- sequential statements to assign values to control signals end process ECE C 03 Lecture 17 ECEcontrol_section; C 03 Lecture 6 end architecture mixed; 16

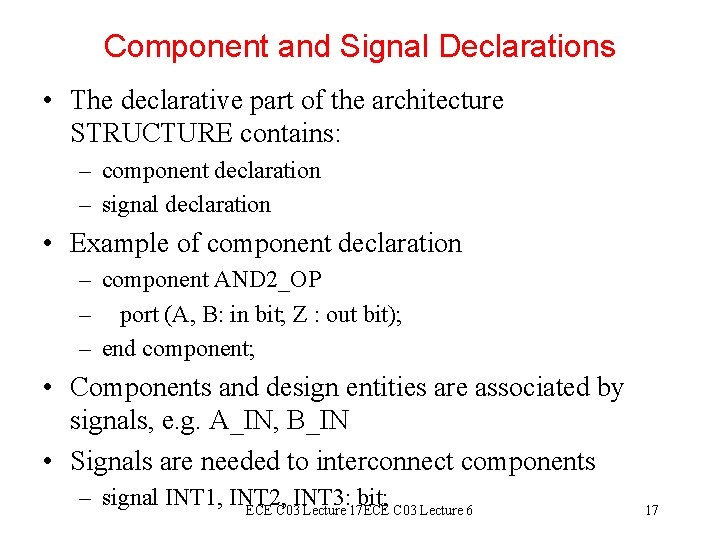

Component and Signal Declarations • The declarative part of the architecture STRUCTURE contains: – component declaration – signal declaration • Example of component declaration – component AND 2_OP – port (A, B: in bit; Z : out bit); – end component; • Components and design entities are associated by signals, e. g. A_IN, B_IN • Signals are needed to interconnect components – signal INT 1, INT 2, INT 3: bit; ECE C 03 Lecture 17 ECE C 03 Lecture 6 17

Component Instantiation Statements • The statement part of an architecture body of a structural VHDL description contains component instantiation statements • FORMAT label : component_name port map (positional association of ports); label : component_name port map (named association of ports); • EXAMPLES A 1: AND 2_OP port map (A_IN, B_IN, INT 1); A 2: AND 2_OP port map (A=>A_IN, C=>C_IN, Z=>INT 2); ECE C 03 Lecture 17 ECE C 03 Lecture 6 18

Hierarchical Structures • Can combine 2 MAJORITY functions (defined earlier) and AND gate to form another function entity MAJORITY_2 X 3 is port (A 1, B 1, C 1, A 2, B 2, C 2: in BIT; Z_OUT: out BIT); end MAJORITY_2 X 3; architecture STRUCTURE of MAJORITY_2 X 3 is component MAJORITY port (A_IN, B_IN, C_IN: in BIT; Z_OUT : out BIT); end component; component AND 2_OP end component; signal INT 1, INT 2 : BIT; begin M 1: MAJORITY port map (A 1, B 1, C 1, INT 1); M 2: MAJORITY port map (A 1, B 2, C 2, INT 2); A 1: AND 2_OP port map (INT 1, INT 2, Z_OUT); ECE C 03 Lecture 17 ECE C 03 Lecture 6 end STRUCTURE; 19

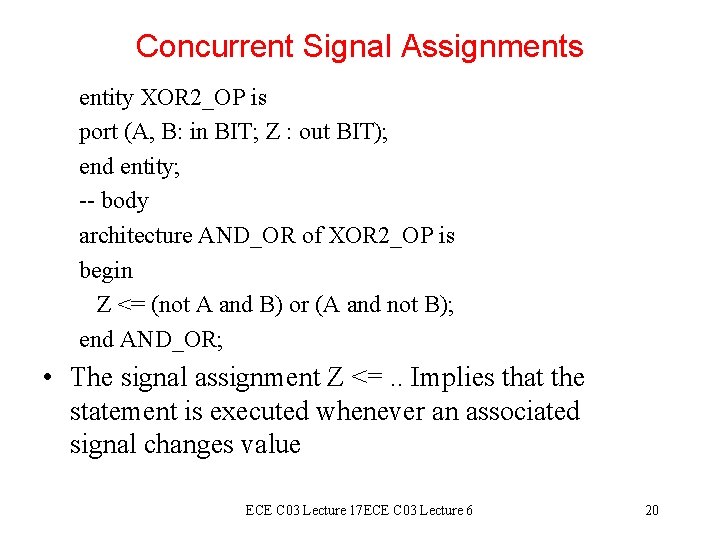

Concurrent Signal Assignments entity XOR 2_OP is port (A, B: in BIT; Z : out BIT); end entity; -- body architecture AND_OR of XOR 2_OP is begin Z <= (not A and B) or (A and not B); end AND_OR; • The signal assignment Z <=. . Implies that the statement is executed whenever an associated signal changes value ECE C 03 Lecture 17 ECE C 03 Lecture 6 20

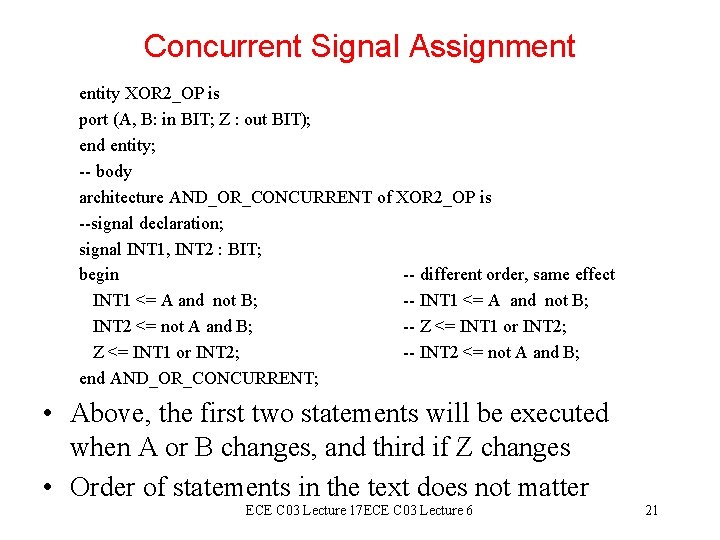

Concurrent Signal Assignment entity XOR 2_OP is port (A, B: in BIT; Z : out BIT); end entity; -- body architecture AND_OR_CONCURRENT of XOR 2_OP is --signal declaration; signal INT 1, INT 2 : BIT; begin -- different order, same effect INT 1 <= A and not B; -- INT 1 <= A and not B; INT 2 <= not A and B; -- Z <= INT 1 or INT 2; -- INT 2 <= not A and B; end AND_OR_CONCURRENT; • Above, the first two statements will be executed when A or B changes, and third if Z changes • Order of statements in the text does not matter ECE C 03 Lecture 17 ECE C 03 Lecture 6 21

VHDL Modeling Styles • Structural representation describes system by specifying the interconnection of components that comprise a system • Behavioral representation in VHDL defines an input-output function – Procedural or algorithmic style uses sequential statements such as normal programming languages • top to bottom left to right order of statements – Nonprocedural or dataflow style uses concurrent signal assignment ECE C 03 Lecture 17 ECE C 03 Lecture 6 22

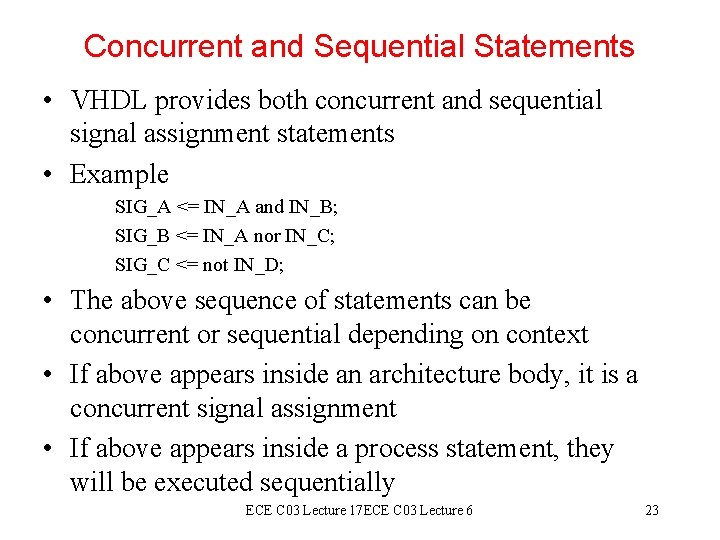

Concurrent and Sequential Statements • VHDL provides both concurrent and sequential signal assignment statements • Example SIG_A <= IN_A and IN_B; SIG_B <= IN_A nor IN_C; SIG_C <= not IN_D; • The above sequence of statements can be concurrent or sequential depending on context • If above appears inside an architecture body, it is a concurrent signal assignment • If above appears inside a process statement, they will be executed sequentially ECE C 03 Lecture 17 ECE C 03 Lecture 6 23

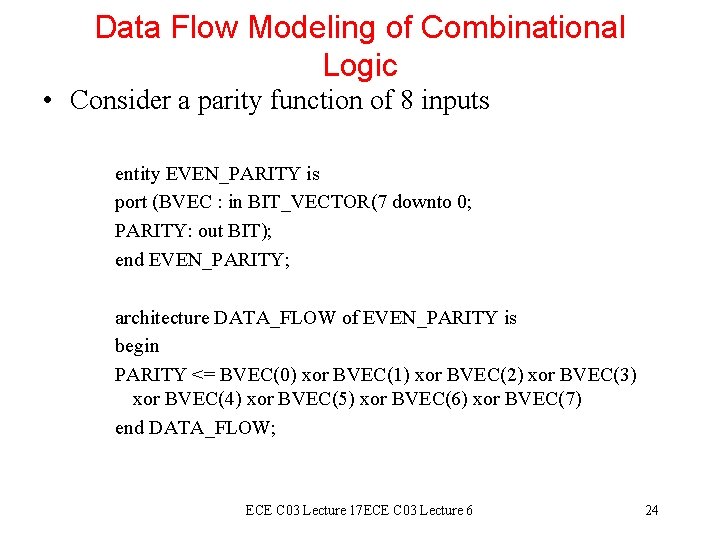

Data Flow Modeling of Combinational Logic • Consider a parity function of 8 inputs entity EVEN_PARITY is port (BVEC : in BIT_VECTOR(7 downto 0; PARITY: out BIT); end EVEN_PARITY; architecture DATA_FLOW of EVEN_PARITY is begin PARITY <= BVEC(0) xor BVEC(1) xor BVEC(2) xor BVEC(3) xor BVEC(4) xor BVEC(5) xor BVEC(6) xor BVEC(7) end DATA_FLOW; ECE C 03 Lecture 17 ECE C 03 Lecture 6 24

Alternative Logic Implementations of PARITY TREE CONFIGURATION CASCADE CONFIGURATION ECE C 03 Lecture 17 ECE C 03 Lecture 6 25

Suggestions of Hardware Implementation architecture TREE of EVEN_PARITY is signal INT 1, INT 2, INT 3, INT 4, INT 5, INT 6 : BIT; begin INT 1 <= BVEC(0) xor BVEC(1) ; INT 2 <= BVEC(2) xor BVEC(3) ; INT 3 <= BVEC(4) xor BVEC(5) ; INT 4 <= BVEC(6) xor BVEC(7); --second row of tree INT 5 <= INT 1 xor INT 6; INT 6 <= INT 3 xor INT 4; -third row of tree PARITY <= INT 5 xor INT 6; end DATA_FLOW; ECE C 03 Lecture 17 ECE C 03 Lecture 6 26

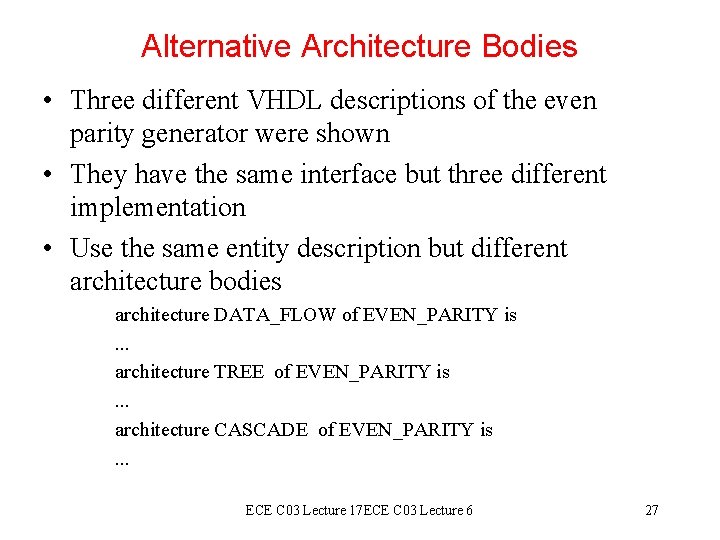

Alternative Architecture Bodies • Three different VHDL descriptions of the even parity generator were shown • They have the same interface but three different implementation • Use the same entity description but different architecture bodies architecture DATA_FLOW of EVEN_PARITY is. . . architecture TREE of EVEN_PARITY is. . . architecture CASCADE of EVEN_PARITY is. . . ECE C 03 Lecture 17 ECE C 03 Lecture 6 27

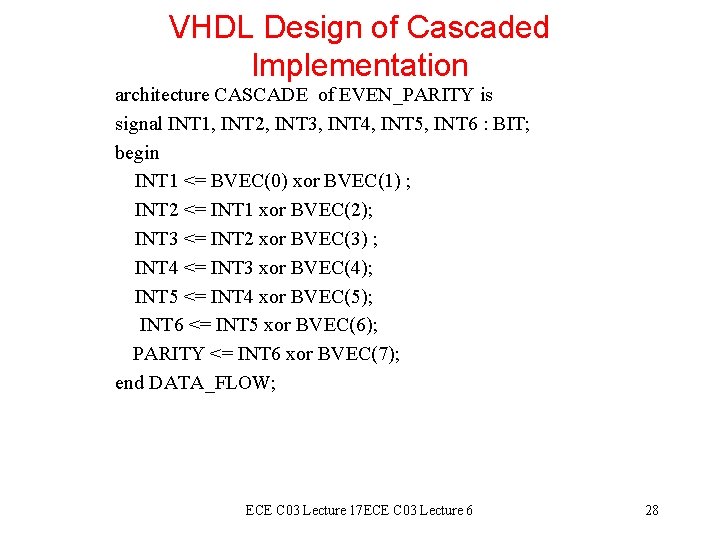

VHDL Design of Cascaded Implementation architecture CASCADE of EVEN_PARITY is signal INT 1, INT 2, INT 3, INT 4, INT 5, INT 6 : BIT; begin INT 1 <= BVEC(0) xor BVEC(1) ; INT 2 <= INT 1 xor BVEC(2); INT 3 <= INT 2 xor BVEC(3) ; INT 4 <= INT 3 xor BVEC(4); INT 5 <= INT 4 xor BVEC(5); INT 6 <= INT 5 xor BVEC(6); PARITY <= INT 6 xor BVEC(7); end DATA_FLOW; ECE C 03 Lecture 17 ECE C 03 Lecture 6 28

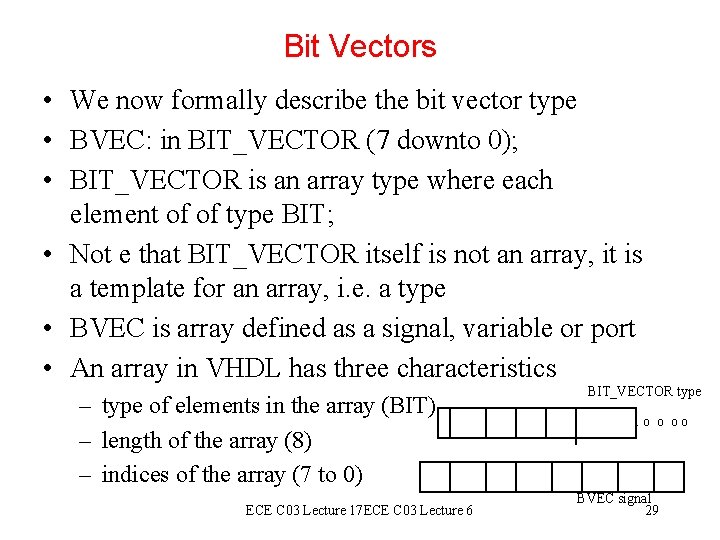

Bit Vectors • We now formally describe the bit vector type • BVEC: in BIT_VECTOR (7 downto 0); • BIT_VECTOR is an array type where each element of of type BIT; • Not e that BIT_VECTOR itself is not an array, it is a template for an array, i. e. a type • BVEC is array defined as a signal, variable or port • An array in VHDL has three characteristics – type of elements in the array (BIT) – length of the array (8) – indices of the array (7 to 0) ECE C 03 Lecture 17 ECE C 03 Lecture 6 BIT_VECTOR type. o o oo BVEC signal 29

Bit Vectors • Can specify in ascending or descending order – BVEC: BIT_VECTOR(0 to 7); – BVEC: BIT_VECTOR(8 to 15); – BVEC: BIT_VECTOR(15 downto 8); • Can specify values – SIG_A <= B” 11100011”; – -- B is binary, O is octal, X is hex • Can define vector logic or shift operations – signal SIG_A, SIG_B, SIG_C: BIT_VECTOR(7 downto 0); – SIG_C <= SIG_A nor SIG_B; -- performs bitwise nor – B” 1100” sla 1 = B” 1000” -- shift left arithmetic by one – B” 1100” ror 1 = B” 0110” -- rotate right logical ECE C 03 Lecture 17 ECE C 03 Lecture 6 30

Process Statements • FORMAT Flow of control PROCESS_LABEL: process -- declarative part declares functions, procedures, types, constants, variables, etc begin -- Statement part sequential statement; wait statement; -- eg. Wait for 1 ms; or wait on ALARM_A; sequential statement; … wait statement; end process; ECE C 03 Lecture 17 ECE C 03 Lecture 6 31

Concurrent and Sequential Statements CONCURRENT: block begin COMM_BUS <= ‘ 1’; -- concurrent signal assignment DATA_BUS <= ‘ 0’; -- concurrent signal assignment end block CONCURRENT; SEQUENTIAL: process begin COMM_BUS <= ‘ 1’; -- sequential signal assignment DATA_BUS <= ‘ 0’; -- sequential signal assignment end process SEQUENTIAL; ECE C 03 Lecture 17 ECE C 03 Lecture 6 32

Variable and Sequential Signal Assignment • Variable assignment – new values take effect immediately after execution variable LOGIC_A, LOGIC_B : BIT; LOGIC_A : = ‘ 1’; LOGIC_B : = LOGIC_A; • Signal assignment – new values take effect after some delay (delta if not specified) signal LOGIC_A : BIT; LOGIC_A <= ‘ 0’ after 1 sec; LOGIC_A <= ‘ 0’ after 1 sec, ‘ 1’ after 3. 5 sec; ECE C 03 Lecture 17 ECE C 03 Lecture 6 33

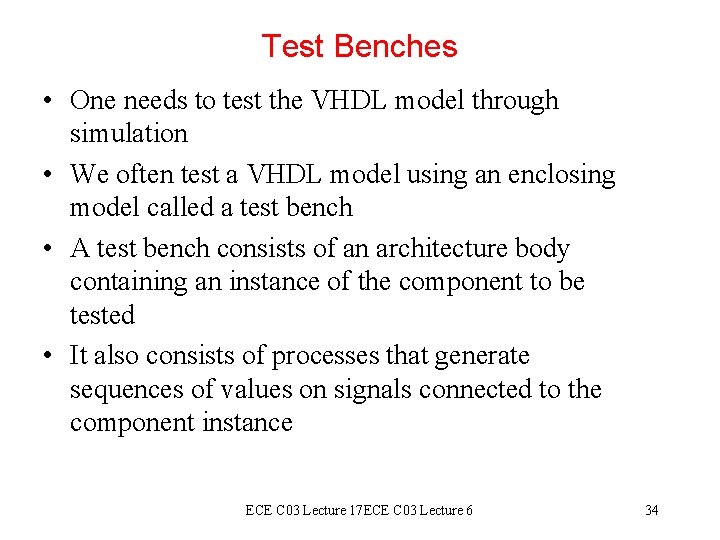

Test Benches • One needs to test the VHDL model through simulation • We often test a VHDL model using an enclosing model called a test bench • A test bench consists of an architecture body containing an instance of the component to be tested • It also consists of processes that generate sequences of values on signals connected to the component instance ECE C 03 Lecture 17 ECE C 03 Lecture 6 34

Example Test Bench Entity test_bench is end entity test_bench; architecture test_reg 4 of test_bench is signal d 0, d 1, d 2, d 3, en, clk, q 0, q 1, q 2, q 3: bit; begin dut: entity work. reg 4(behav) port map (d 0, d 1, d 2, d 3, d 4, en, clk, q 0, q 1, q 2, q 3); stimulus: process is begin d 0 <= ‘ 1’; d 1 <= ‘ 1’; d 2 <= ‘ 1’; d 3 <= ‘ 1’; en <= ‘ 0’; clk <= ‘ 0’; wait for 20 ns; en <= ‘ 1’; wait for 20 ns; clk <= ‘ 1’; wait for 20 ns; d 0 <= ‘ 0’; d 1 <= ‘ 0’; d 2 <= ‘ 0’; d 3 <= ‘ 0’; wait for 20 ns; en <= ‘ 0’; wait for 20 ns; …. wait; end process stimulus; end architecture test_reg 4; ECE C 03 Lecture 17 ECE C 03 Lecture 6 35

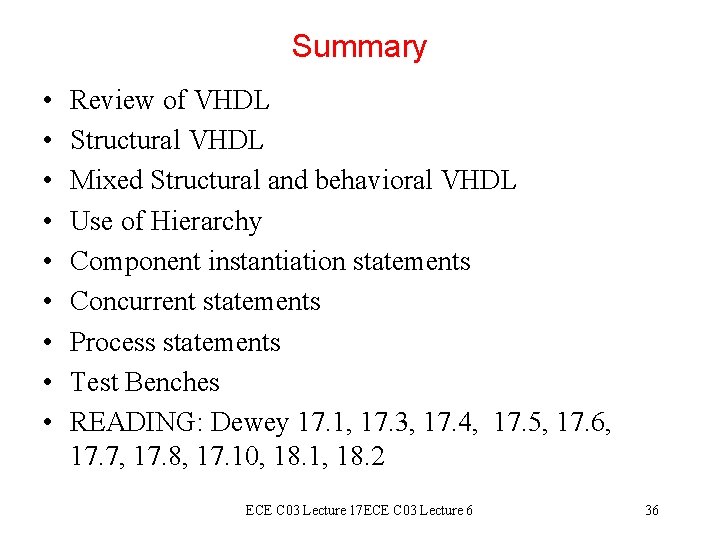

Summary • • • Review of VHDL Structural VHDL Mixed Structural and behavioral VHDL Use of Hierarchy Component instantiation statements Concurrent statements Process statements Test Benches READING: Dewey 17. 1, 17. 3, 17. 4, 17. 5, 17. 6, 17. 7, 17. 8, 17. 10, 18. 1, 18. 2 ECE C 03 Lecture 17 ECE C 03 Lecture 6 36
