Using the Power Diagram to Computing Implicitly Defined
- Slides: 44
Using the Power Diagram to Computing Implicitly Defined Surfaces Michael E. Henderson IBM T. J. Watson Research Center Yorktown Heights, NY Presented at DIMACS Workshop on Surface Resconstruction May 1, 2003 An Implicitly Defined Surface M is the set of points Find the component "connected" to Restrict to a finite region Find: A set of points on M A set of charts
Continuation Methods
Mesh or Tiling Locating point easy Merge hard Could: +Select from fixed grid Allgower/Schmidt Rheinboldt +Advancing front Brodzik Melville/Mackey
Covering Locating point hard Merge easy
The boundary of a union
Can form the boundary from pairwise subtractions
Pairwise Subtractions - Spheres The part of a sphere that doesn't lie in a spherical ball
The part of a sphere that doesn't lie in a spherical ball
Pairwise Subtraction, Spherical Balls

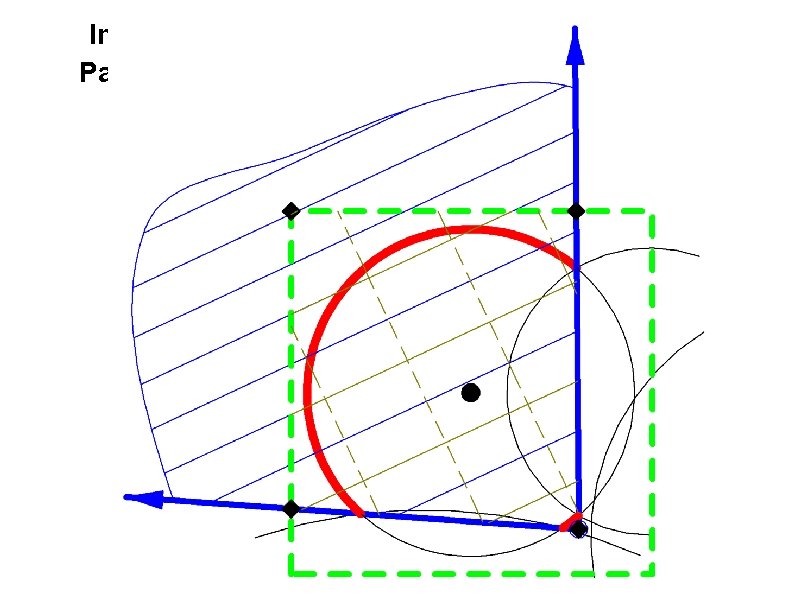

Instead of part not in another ball Part in a Finite Convex Polyhedron
Boundary -> on Sphere and in Polyhedron
Power Diagram a. k. a. "Laguerre Voronoi Diagram" Restricted to the interior of the balls is same as the polyhedra.
Finding a point on the boundary If all vertices of the polyhedron lie inside the ball
Finding a point on the boundary If a vertex of the polyhedron lies outside the ball "All" we have to do is find a point u in both. If ratio of radii close to one can use origin. One sqrt gives bnd. pt.
Find a P w/ ext. vert. Get pt. on d. M P=cube Find overlaps Remove 1/2 spaces Continuing
Cover a square
Cover a Square 120
Cover a Square 240
Cover a Square 368
Cover a cube
Cover a cube 2500
Cover a cube 5000
Cover a cube 7476
When not flat : Charts
Cover a circle
Cover a circle
Cover a circle
Cover a circle
Cover a Torus 20
Cover a Torus 700
Cover a Torus 1400
Cover a Torus 2035
Implementation Data Stuctures: List of "charts" (center, tangent, radius, Polyhedron) Basic Operations: Find a list of charts which overlap another Hierarchical Bounding Boxes - O( log m ) Subtract a half space from a Polyhedron Keep edge and vertex lists (Chen, Hansen, Jaumard). Find a Polyhedron with an exterior vertex Keep a list, as half spaces removed update.
Coupled Pendula
Coupled Pendula
Flexible Rod Clamped at Ends Sebastien Neukirch (Lausanne)
Flexible Rod Clamped at Ends Sebastien Neukirch (Lausanne) These are all configurations of the Rod
Flexible Rod Clamped at Ends Sebastien Neukirch (Lausanne)
Rings
Planar Untwisted Ring Layer 2+
Planar Untwisted Ring Layer 3 -
Planar Untwisted Ring Layer 4 -
Summary Start with a point on M Add a neighborhood of a point on d. M Based on the boundary of a union of spherical balls. Each ball has a polyhedron If P has vertices outside the ball, then part of the sphere is on d. M Complexity O(m log m) Resembles incremental insertion algorithm for Laguerre Voronoi. Points not closer than R not further apart than 2 R
References Multiple Parameter Continuation: Computing Implicitly Defined k-manifolds, Int. J. Bifurcation and Chaos v 12(3), pages 451 -76 Preprints on Twisted. Rod http: //lcvmsun 9. epfl. ch/~neukirch/publi. html My Home page -- http: //www. research. ibm. com/people/h/henderson/
