The HDF Group Introduction to HDF 5 Quincey
- Slides: 53
The HDF Group Introduction to HDF 5 Quincey Koziol Principal Data Architect NERSC – LBNL koziol@lbl. gov April 26, 2017 HDF 5 Overview @ UC Berkeley 1 www. hdfgroup. org/HDF 5
Why HDF 5? • Have you ever asked yourself: • How will I deal with one-file-per-processor in the petascale era? • Do I need to be an “MPI and Lustre pro” to do my research? • Where is my checkpoint file? • HDF 5 hides all complexity so you can concentrate on Science • Optimized I/O to single shared file HDF 5 Overview @ UC Berkeley 2 www. hdfgroup. org/HDF 5
Goal • Introduce you to HDF 5 • HDF 5 Overview • HDF 5 Data model • HDF 5 Programming model HDF 5 Overview @ UC Berkeley 3 www. hdfgroup. org/HDF 5
WHAT IS HDF 5? HDF 5 Overview @ UC Berkeley 4 www. hdfgroup. org/HDF 5
What is HDF 5? • HDF 5 == Hierarchical Data Format, v 5 • Open file format • Designed for high volume or complex data • Open source software • Works with data in the format • An extensible data model • Structures for data organization and specification HDF 5 Overview @ UC Berkeley 5 www. hdfgroup. org/HDF 5
HDF 5 is like … HDF 5 Overview @ UC Berkeley 6 www. hdfgroup. org/HDF 5
HDF 5 is designed … • for high volume and/or complex data • for every size and type of system (portable) • for flexible, efficient storage and I/O • to enable applications to evolve in their use of HDF 5 and to accommodate new models • to support long-term data preservation April 26, 2017 HDF 5 Overview @ UC Berkeley 7 www. hdfgroup. org/HDF 5
HDF 5 DATA MODEL HDF 5 Overview @ UC Berkeley 8 www. hdfgroup. org/HDF 5
HDF 5 File An HDF 5 file is a container that holds data objects. April 26, 2017 HDF 5 Overview @ UC Berkeley lat | lon | temp ----|----12 | 23 Se|r. Exper 3. 1 D ial im Nu ent Co ate| 15 | 24 m N nf : 3/1 4. 2 ig 3 be ote ur /0 r: s: a 9 99 17 | 21 |tion 3. 6 37 : S tan 89 da 9 rd 20 3 www. hdfgroup. org/HDF 5
HDF 5 Data Model Dataset Group Attribute Link HDF 5 Objects Datatype Dataspace File April 26, 2017 HDF 5 Overview @ UC Berkeley 10 www. hdfgroup. org/HDF 5
HDF 5 Dataset HDF 5 Datatype Integer: 32 -bit, LE HDF 5 Dataspace Rank 3 Dimensions Dim[0] = 4 Dim[1] = 5 Dim[2] = 7 Specifications for single data element and array dimensions Multi-dimensional array of identically typed data elements • HDF 5 datasets organize and contain data elements. • HDF 5 datatype describes individual data elements. • HDF 5 dataspace describes the logical layout of the data elements. HDF 5 Overview @ UC Berkeley 11 www. hdfgroup. org/HDF 5

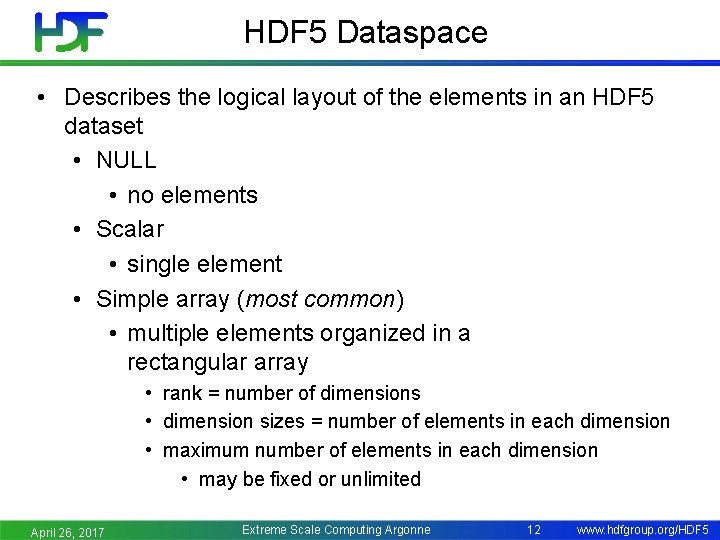

HDF 5 Dataspace • Describes the logical layout of the elements in an HDF 5 dataset • NULL • no elements • Scalar • single element • Simple array (most common) • multiple elements organized in a rectangular array • rank = number of dimensions • dimension sizes = number of elements in each dimension • maximum number of elements in each dimension • may be fixed or unlimited April 26, 2017 Extreme Scale Computing Argonne 12 www. hdfgroup. org/HDF 5
HDF 5 Dataspace Two roles: Dataspace contains spatial information • Rank and dimensions • Permanent part of dataset definition Rank = 2 Dimensions = 4 x 6 Partial I/0: Dataspace describes application’s data buffer and data elements participating in I/O Rank = 1 Dimension = 10 April 26, 2017 HDF 5 Overview @ UC Berkeley 13 www. hdfgroup. org/HDF 5
HDF 5 Datatypes • Describe individual data elements in an HDF 5 dataset • Wide range of datatypes supported • Integer • Float • Enum • • • Array User-defined (e. g. , 13 -bit integer) Variable-length types (e. g. , strings, vectors) Compound (similar to C structs) More … Extreme Scale Computing HDF 5 14 www. hdfgroup. org/HDF 5
HDF 5 Dataset 3 5 12 Datatype: 32 -bit Integer Dataspace: Rank = 2 Dimensions = 5 x 3 HDF 5 Overview @ UC Berkeley 15 www. hdfgroup. org/HDF 5
HDF 5 Dataset with Compound Datatype 3 5 V uint 16 char int 32 V V V V 2 x 3 x 2 array of float 32 Compound Datatype: Dataspace: Rank = 2 Dimensions = 5 x 3 HDF 5 Overview @ UC Berkeley 16 www. hdfgroup. org/HDF 5
How are data elements stored? Buffer in memory Data in the file Contiguous (default) Data elements stored physically adjacent to each other Chunked Better access time for subsets; extendible Improves storage efficiency, transmission speed Chunked & Compressed HDF 5 Overview @ UC Berkeley 17 www. hdfgroup. org/HDF 5
HDF 5 Attributes • Typically contain user metadata • Have a name and a value • Attributes “decorate” HDF 5 objects • Value is described by a datatype and a dataspace • Analogous to a dataset, but do not support partial I/O operations; nor can they be compressed or extended 18 www. hdfgroup. org/HDF 5
HDF 5 Groups and Links HDF 5 groups and links organize data objects. Experiment Notes: Serial Number: 99378920 Date: 3/13/09 Configuration: Standard 3 / Every HDF 5 file has a root group Sim. Out Viz Parameters 10; 1000 lat | lon | temp ----|----12 | 23 | 3. 1 15 | 24 | 4. 2 17 | 21 | 3. 6 Timestep 36, 000 HDF 5 Overview @ UC Berkeley 20 www. hdfgroup. org/HDF 5
HDF 5 SOFTWARE HDF 5 Overview @ UC Berkeley 21 www. hdfgroup. org/HDF 5
HDF 5 Home Page HDF 5 home page: http: //hdfgroup. org/HDF 5/ • Latest release: HDF 5 1. 10. 0 (1. 10. 1 coming May 2017) HDF 5 source code: • • Written in C, and includes optional C++, Fortran APIs, and High Level APIs Contains command-line utilities (h 5 dump, h 5 repack, h 5 diff, . . ) and compile scripts HDF 5 pre-built binaries: • When possible, include C, C++, Fortran, and High Level libraries. Check. /libhdf 5. settings file. • Built with and require the SZIP and ZLIB external libraries April 26, 2017 HDF 5 Overview @ UC Berkeley 22 www. hdfgroup. org/HDF 5
Useful Tools For New Users h 5 dump: Tool to “dump” or display contents of HDF 5 files h 5 cc, h 5 c++, h 5 fc: Scripts to compile applications HDFView: Java browser to view HDF 5 files http: //www. hdfgroup. org/hdf-java-html/hdfview/ HDF 5 Examples (C, Fortran, Java, Python, Matlab, …) https: //www. hdfgroup. org/HDF 5/examples/ April 26, 2017 HDF 5 Overview @ UC Berkeley 23 www. hdfgroup. org/HDF 5
HDF 5 PROGRAMMING MODEL AND API HDF 5 Overview @ UC Berkeley 24 www. hdfgroup. org/HDF 5
HDF 5 Library Apps HDF 5 Software Layers & Storage API H 5 Part Language Interfaces C, Fortran, C++ Internals Virtual File Layer Storage I/O Drivers HDF 5 File Format High Level APIs net. CDF-4 h 5 dump Java Interface HDF 5 Data Model Objects Groups, Datasets, Attributes, … Memory Mgmt Datatype Conversion Filters Split Files Posix I/O File HDFview Tunable Properties Chunk Size, I/O Driver, … Chunked Storage Version and so on… Compatibility Custom MPI I/O Split Files HDF 5 Overview @ UC Berkeley File on Parallel Filesystem 25 ? Other www. hdfgroup. org/HDF 5
The General HDF 5 API • C, Fortran, Java, C++, and. NET bindings • IDL, MATLAB, Python (H 5 Py, Py. Tables) • C routines begin with prefix: H 5? ? is a character corresponding to the type of object the function acts on Example Functions: H 5 D : Dataset interface e. g. , H 5 Dread H 5 F : File interface e. g. , H 5 Fopen H 5 S : data. Space interface e. g. , H 5 Sclose HDF 5 Overview @ UC Berkeley 26 www. hdfgroup. org/HDF 5
The HDF 5 API • For flexibility, the API is extensive Victorinox Swiss Army Cybertool 34 ü 300+ functions • This can be daunting… but there is hope ü A few functions can do a lot ü Start simple ü Build up knowledge as more features are needed HDF 5 Overview @ UC Berkeley 27 www. hdfgroup. org/HDF 5

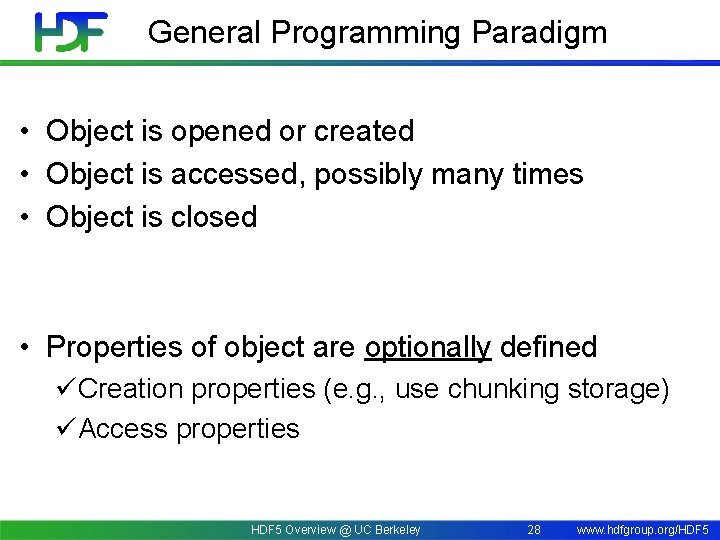

General Programming Paradigm • Object is opened or created • Object is accessed, possibly many times • Object is closed • Properties of object are optionally defined üCreation properties (e. g. , use chunking storage) üAccess properties HDF 5 Overview @ UC Berkeley 28 www. hdfgroup. org/HDF 5

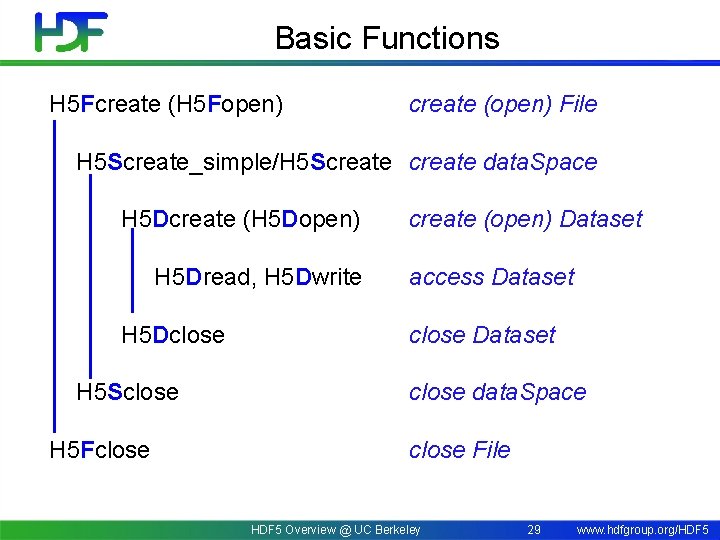

Basic Functions H 5 Fcreate (H 5 Fopen) create (open) File H 5 Screate_simple/H 5 Screate data. Space H 5 Dcreate (H 5 Dopen) H 5 Dread, H 5 Dwrite H 5 Dclose H 5 Sclose H 5 Fclose create (open) Dataset access Dataset close data. Space close File HDF 5 Overview @ UC Berkeley 29 www. hdfgroup. org/HDF 5
Other Common Functions Data. Spaces: H 5 Sselect_hyperslab (Partial I/O) H 5 Sselect_elements (Partial I/O) H 5 Dget_space Data. Types: H 5 Tcreate, H 5 Tcommit, H 5 Tclose H 5 Tequal, H 5 Tget_native_type Groups: H 5 Gcreate, H 5 Gopen, H 5 Gclose Attributes: H 5 Acreate, H 5 Aopen_name, H 5 Aclose, H 5 Aread, H 5 Awrite Property lists: H 5 Pcreate, H 5 Pclose H 5 Pset_chunk, H 5 Pset_deflate HDF 5 Overview @ UC Berkeley 30 www. hdfgroup. org/HDF 5
C EXAMPLES HDF 5 Overview @ UC Berkeley 31 www. hdfgroup. org/HDF 5
How to compile HDF 5 applications • h 5 cc – HDF 5 C compiler command • h 5 fc – HDF 5 F 90 compiler command • h 5 c++ - HDF 5 C++ compiler command • To compile: • % h 5 cc h 5 prog. c • % h 5 fc h 5 prog. f 90 • % h 5 c++ h 5 prog. cpp HDF 5 Overview @ UC Berkeley 32 www. hdfgroup. org/HDF 5
Code: Create a File hid_t herr_t file_id; status; file_id = H 5 Fcreate("file. h 5", H 5 F_ACC_TRUNC, H 5 P_DEFAULT); status = H 5 Fclose (file_id); “/” (root) Note: Return codes not checked for errors in code samples. HDF 5 Overview @ UC Berkeley 33 www. hdfgroup. org/HDF 5
Code: Create a Dataset 1 2 3 hid_t hsize_t herr_t 4 file_id = H 5 Fcreate ("file. h 5", H 5 F_ACC_TRUNC, H 5 P_DEFAULT); dims[0] = 4; dims[1] = 6; dataspace_id = H 5 Screate_simple (2, dims, NULL); dataset_id = H 5 Dcreate (file_id, "A", H 5 T_STD_I 32 BE, dataspace_id, H 5 P_DEFAULT, H 5 P_DEFAULT); 5 6 7 8 file_id, dataset_id, dataspace_id; dims[2]; status; 9 status = H 5 Dclose (dataset_id); 10 status = H 5 Sclose (dataspace_id); 11 status = H 5 Fclose (file_id); April 26, 2017 HDF 5 Overview @ UC Berkeley “/” (root) A 34 www. hdfgroup. org/HDF 5
Code: Create a Group hid_t file_id, group_id; . . . /* Open "file. h 5" */ file_id = H 5 Fopen ("file. h 5", H 5 F_ACC_RDWR, H 5 P_DEFAULT); /* Create group "/B" in file. */ group_id = H 5 Gcreate (file_id, "B", H 5 P_DEFAULT, H 5 P_DEFAULT); /* Close group and file. */ status = H 5 Gclose (group_id); status = H 5 Fclose (file_id); April 26, 2017 HDF 5 Overview @ UC Berkeley 35 www. hdfgroup. org/HDF 5
Example: Create Dataset & Group “/” (root) A B 4 x 6 array of integers file. h 5 April 26, 2017 HDF 5 Overview @ UC Berkeley 36 www. hdfgroup. org/HDF 5
Output of h 5 dump $ h 5 dump file. h 5 HDF 5 "file. h 5" { GROUP "/" { DATASET "A" { DATATYPE H 5 T_STD_I 32 BE DATASPACE SIMPLE { ( 4, 6 ) / ( 4, 6 ) } DATA { (0, 0): 0, 0, 0, (1, 0): 0, 0, 0, (2, 0): 0, 0, 0, (3, 0): 0, 0, 0, 0 } } GROUP "B" { } } } HDF 5 Overview @ UC Berkeley 37 www. hdfgroup. org/HDF 5
Example Code - H 5 Dwrite int wdata[4][6]; /* Initialize the dataset. */ for (i = 0; i < 4; i++) for (j = 0; j < 6; j++) wdata[i][j] = i * 6 + j + 1; …. . status = H 5 Dwrite (dataset_id, H 5 T_NATIVE_INT, H 5 S_ALL, H 5 P_DEFAULT, wdata); HDF 5 Overview @ UC Berkeley 38 www. hdfgroup. org/HDF 5
Output of h 5 dump after writing $ h 5 dump file. h 5 HDF 5 "file. h 5" { GROUP "/" { DATASET "A" { DATATYPE H 5 T_STD_I 32 BE DATASPACE SIMPLE { ( 4, 6 ) / ( 4, 6 ) } DATA { (0, 0): 1, 2, 3, 4, 5, 6, (1, 0): 7, 8, 9, 10, 11, 12, (2, 0): 13, 14, 15, 16, 17, 18, (3, 0): 19, 20, 21, 22, 23, 24 } } GROUP "B" { } } } HDF 5 Overview @ UC Berkeley 39 www. hdfgroup. org/HDF 5
PARTIAL I/O IN HDF 5 Overview @ UC Berkeley 40 www. hdfgroup. org/HDF 5
How to write a row? $ h 5 dump file. h 5 HDF 5 "file. h 5" { GROUP "/" { DATASET "A" { DATATYPE H 5 T_STD_I 32 BE DATASPACE SIMPLE { ( 4, 6 ) / ( 4, 6 ) } DATA { (0, 0): 0, 0, 0, (1, 0): 1, 2, 3, 4, 5, 6, (2, 0): 0, 0, 0, (3, 0): 0, 0, 0, 0 } } GROUP "B" { } } } HDF 5 Overview @ UC Berkeley 41 www. hdfgroup. org/HDF 5
How to Describe a Subset in HDF 5? • Before writing and reading a subset of data one has to describe it to the HDF 5 Library. • HDF 5 APIs and documentation refer to a subset as a “selection” or “hyperslab selection”. • If specified, HDF 5 Library will perform I/O on a selection only and not on all elements of a dataset. HDF 5 Overview @ UC Berkeley 42 www. hdfgroup. org/HDF 5
Types of Selections in HDF 5 • Two types of selections • Hyperslab selection • Regular hyperslab • Simple hyperslab • Result of set operations on hyperslabs (union, difference, …) • Point selection • Hyperslab selection is especially important for doing parallel I/O in HDF 5 (See Parallel HDF 5 Tutorial) HDF 5 Overview @ UC Berkeley 43 www. hdfgroup. org/HDF 5
Regular Hyperslab Collection of regularly spaced blocks of equal size HDF 5 Overview @ UC Berkeley 44 www. hdfgroup. org/HDF 5
Simple Hyperslab Contiguous subset or sub-array HDF 5 Overview @ UC Berkeley 45 www. hdfgroup. org/HDF 5
Hyperslab Selection Result of union operation on three simple hyperslabs HDF 5 Overview @ UC Berkeley 46 www. hdfgroup. org/HDF 5
HDF 5 Hyperslab Description • Everything is “measured” in number of elements • Uses row-major ordering (C order) for coordinates • Example: • • Start - starting location of a hyperslab (1, 1) Stride - number of elements that separate each block (3, 2) Count - number of blocks (2, 6) Block - block size (2, 1) 0 1 2 3 4 5 6 7 8 9 1011 HDF 5 Overview @ UC Berkeley 47 www. hdfgroup. org/HDF 5
Simple Hyperslab Description • Two ways to describe a simple hyperslab • As several blocks • Stride – (1, 1) • Count – (2, 6) • Block – (2, 1) • As one block • Stride – (1, 1) • Count – (1, 1) • Block – (4, 6) No performance penalty for one way or another HDF 5 Overview @ UC Berkeley 48 www. hdfgroup. org/HDF 5
Writing a row • Memory space selection is 1 -dim array of size 6 • File space selection start = {1, 0}, stride = {1, 1}, count = {1, 6}, block = {1, 1} Number of elements selected in memory must be the same as selected in the file HDF 5 Overview @ UC Berkeley 49 www. hdfgroup. org/HDF 5
Writing a row hid_t mspace_id, fspace_id; hsize_t dims[1] = {6}; hsize_t start[2], count[2]; …. . /* Create memory dataspace */ mspace_id = H 5 Screate_simple(1, dims, NULL); /* Get file space identifier from the dataset */ fspace_id = H 5 Dget_space(dataset_id); /* Select hyperslab in the dataset to write too */ start[0] = 1; start[1] = 0; count[0] = 1; count[1] = 6; status = H 5 Sselect_hyperslab(fspace_id, H 5 S_SELECT_SET, start, NULL, count, NULL); H 5 Dwrite(dataset_id, H 5 T_NATIVE_INT, mspace_id, fspace_id, H 5 P_DEFAULT, wdata); HDF 5 Overview @ UC Berkeley 50 www. hdfgroup. org/HDF 5
HDF 5 FILE FORMAT HDF 5 Overview @ UC Berkeley 51 www. hdfgroup. org/HDF 5
HDF 5 File Format • Defined by the HDF 5 File Format Specification. http: //www. hdfgroup. org/HDF 5/doc/H 5. format. html • Specifies the bit-level organization of an HDF 5 file on storage media. • HDF 5 library adheres to the File Format, users do not need to know the details of this information. Extreme Scale Computing HDF 5 52 www. hdfgroup. org/HDF 5
HDF 5 Roadmap • Concurrency • Performance • Single-Writer / Multiple. Reader (SWMR) • Asynchronous I/O • Internal threading • • • Scalable chunk indices • Metadata aggregation and Page buffering • Variable-length records Virtual Object Layer • Fault tolerance Virtual Datasets • Parallel I/O Query & Indexing Native HDF 5 client/server • I/O Autotuning Extreme Scale Computing HDF 5 53 www. hdfgroup. org/HDF 5
The HDF Group Thank You! Questions? HDF 5 Overview @ UC Berkeley 54 www. hdfgroup. org/HDF 5
