CHM 1045: General Chemistry and Qualitative Analysis Unit 10: Molecular Geometries and Bonding Theories Dr. Jorge L. Alonso Miami-Dade College – Kendall Campus Miami, FL Textbook Reference: • Chapter # 8 (skip 9) Molecular Geometries and Bonding • Module #12 (skip 13)
Molecular Shape and Reactivity: Lock & Key Theory The shape of a molecule plays an important role in its reactivity Receptor, active site {Molecular. Shape&Reactivity} t-RNA Molecular Shape determines function! Geometries and Bonding
Molecular Shape: Effect of Cocaine on CNS Presynaptic Neuron synapse Dopamine binding to receptors and uptake pumps. Cocaine concentrates in areas of the brain that are rich in dopamine synapses. Postsynaptic Neuron Cocaine binding to uptake pumps; inhibition of dopamine uptake when cocaine is present in the synapse. Cocaine (turquoise) binds to the uptake pumps and prevents them from removing dopamine from the synapse. This results in more dopamine in the synapse, and more dopamine receptors are activated. Molecular Geometries and Bonding
Molecular Shape determines function! Dopamine Cocaine Molecular Geometries and Bonding
Molecular Shapes 1. By noting the number of bonding and nonbonding electron pairs we can easily predict the shape of the molecule. 2. electron pairs, whether they be bonding or nonbonding, repel each other. 3. By assuming the electron pairs are placed as far as possible from each other. Molecular Geometries and Bonding
Bonding Theories (1) Valence Shell Electron Pair Repulsion (VSEPR) Theory: considers only the valence electrons and their geometry when they repel each other when they form bonds. (2) Valence Bond (VB) Theory: considers the valence electrons and the quantum mechanical orbitals and how they hybridize to form bonds. (3) Molecular Orbital (MO) Theory: uses bonding and antibonding molecular orbitals Molecular which best explain the energy characteristics Geometries and Bonding of molecules.
Electron Domains • We can refer to the electron pairs as electron domains. • In a double or triple bond, all electrons shared between those two atoms are on the same side of the central atom; therefore, they count as one electron domain. • This molecule has four electron domains. Molecular Geometries and Bonding
Valence Shell Electron Pair Repulsion Theory (VSEPR) “The best arrangement of a given number of electron domains is the one that minimizes the repulsions among them. ” Molecular Geometries and Bonding
Electron. Domain Geometries These are the electron-domain geometries for two through six electron domains around a central atom. {VSEPRTheory Electr. Domain} Molecular Geometries and Bonding
Electron-Domain Geometries How would the structure of CH 4 and NH 3 differ? • Count the number of electron domains in the Lewis structure. • The geometry will be that which corresponds to that number of electron domains. Molecular Geometries and Bonding
Molecular Geometries • The electron-domain geometry is often not the shape of the molecule, however. • The molecular geometry is that defined by the positions of only the atoms in the molecules, not the nonbonding pairs. Molecular Geometries and Bonding
Linear Electron Domain • In this domain, there is only one molecular geometry: linear. • NOTE: If there are only two atoms in the molecule, the molecule will be linear no matter what the electron domain is. Molecular Geometries and Bonding
Trigonal Planar Electron Domain • There are two molecular geometries: Ø Trigonal planar, if all the electron domains are bonding Ø Bent, if one of the domains is a nonbonding pair. Molecular Geometries and Bonding
Multiple Bonds and Bond Angles • Double and triple bonds place greater electron density on one side of the central atom than do single bonds. • Therefore, they also affect bond angles. Molecular Geometries and Bonding
Tetrahedral Electron Domain Molecular Geometries and Bonding • There are three molec
Molecular Geometries and Bonding
Nonbonding Pairs and Bond Angle • Nonbonding pairs are physically larger than bonding pairs. • Therefore, their repulsions are greater; this tends to decrease bond angles in a molecule. Molecular Geometries and Bonding
Trigonal Bipyramidal Electron Domain • There are two distinct positions in this geometry: Ø Axial Ø Equatorial Where will the nonbonding electrons be for SF 4? SF 4 Molecular Geometries and Bonding

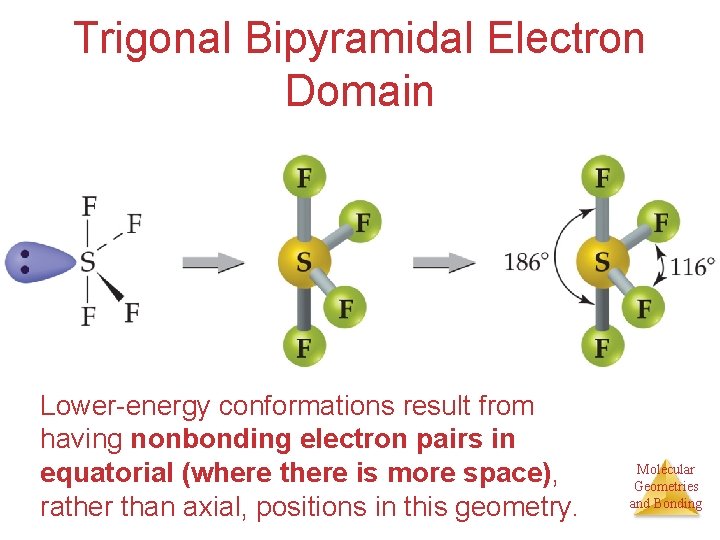

Trigonal Bipyramidal Electron Domain Lower-energy conformations result from having nonbonding electron pairs in equatorial (where there is more space), rather than axial, positions in this geometry. Molecular Geometries and Bonding
Trigonal Bipyramidal Electron- Domain Molecular Geometries and Bonding
Octahedral Electron Domain Molecular Geometries and Bonding
Electron Domains determined from Molecular Geometries What is the electron domain geometries that led to the formation of these molecular structures? CO 2: two double bonds SO 2: trigonal planar SO 3: trigonal planar (1 double bond) NF 3: tetrahedral Cl. F 3: trigonal bipyramidal (5 epairs on Cl) Molecular Geometries and Bonding
Larger Molecules: HC 2 H 3 O 2 In larger molecules, it makes more sense to talk about the geometry about a particular atom rather than the geometry of the molecule as a whole. 3 1 2 4 Molecular Geometries and Bonding
Larger Molecules This approach makes sense, especially because larger molecules tend to react at a particular site in the Molecular molecule. Geometries {Other. Large. Molecules} and Bonding
Molecular Structure Molecular Geometries and Bonding
Polarity Just because a molecule possesses polar bonds does not mean the molecule as a whole will be polar. Molecular Geometries and Bonding
Polarity By adding the individual bond dipoles, one can determine the overall dipole moment for the molecule. Molecular Geometries and Bonding
Polarity Molecular Geometries and Bonding
Valence Bond Theory: Orbital (s, p, d, f) Overlap and Bonding • Covalent bonds are formed by the sharing of electrons from adjacent atoms whose orbitals overlap. • Which orbitals are involved in the bonding of the molecules shown below? H 2 HCl Cl 2 Molecular Geometries and Bonding
Atomic Orbitals & Molecular Geometries? It is hard to imagine that from the atomic orbitals we know (s, px, py & pz) Atomic Orbitals Molecular Geometries sp sp 2 p orbitals have Angles that are 900 from each other ……. . could arise the molecular geometries we know to exist: tetrahedral, trigonal planar, etc. sp 3 Molecular Geometries and Bonding
Hybrids: Mixing Orbitals ¨: Be. F 2 = : F¨ : Be : F ¨ sp hybrid ¨ (Be & B, accept less than octet) • Consider beryllium (Be): In its ground electronic state, it would not be able to form bonds because it has no singlyoccupied orbitals. • But if it absorbs the small amount of energy needed to promote an electron from the 2 s to the 2 p orbital, it can form two bonds. • With hybrid orbitals the orbital diagram for beryllium would look like this. Molecular • The sp orbitals are higher in energy than Geometries the 1 s orbital but lower than the and 2 p. Bonding
Hybrid Orbitals • Mixing the s and p orbitals yields two degenerate orbitals that are hybrids of the two orbitals. Ø These sp hybrid orbitals have two lobes like a p orbital. Ø One of the lobes is larger and more rounded as is the s orbital. Molecular Geometries and Bonding sp hybrid orbitals for Beryllium
Hybrid Orbitals • These two degenerate orbitals would align themselves 180 from each other. • This is consistent with the observed geometry of beryllium compounds: linear. ¨: Be. F 2 = : F¨ : Be : F ¨ : ¨ ¨ ¨ (Be & B, accept less than octet) ¨ ¨ : Molecular Geometries and Bonding
Hybrid Orbitals Using a similar model for boron (B) leads to… BF 3 Molecular Geometries and Bonding
Hybrid Orbitals …three degenerate sp 2 orbitals. BF 3 Molecular Geometries and Bonding
Hybrid Orbitals With carbon we get… CH 4 Molecular Geometries and Bonding
Hybrid Orbitals …four degenerate sp 3 orbitals. CH 4 Molecular Geometries and Bonding
Hybrid Orbitals For geometries involving expanded octets on the central atom, we must use d orbitals in our hybrids. PF 5 Molecular Geometries and Bonding
Hybrid Orbitals PF 5 This leads to five degenerate sp 3 d orbitals… …or six degenerate sp 3 d 2 orbitals. SF 6 Molecular Geometries and Bonding

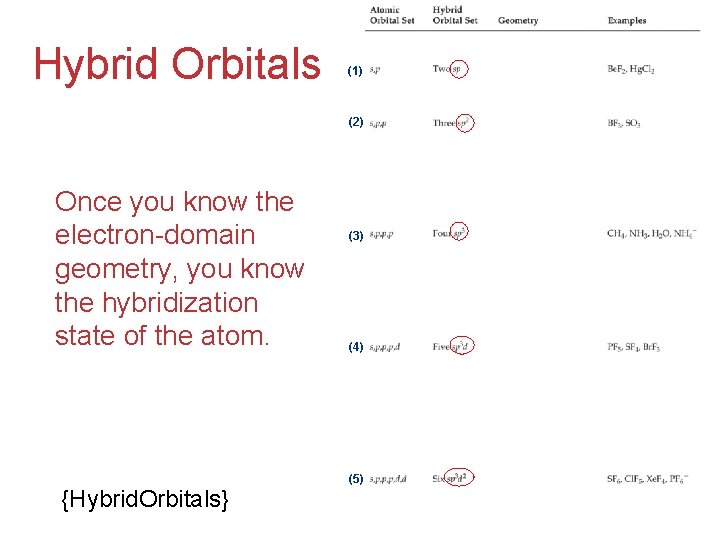

Hybrid Orbitals (1) (2) Once you know the electron-domain geometry, you know the hybridization state of the atom. {Hybrid. Orbitals} (3) (4) (5) Molecular Geometries and Bonding
Valence Bond Theory: Bond Types • Hybridization is a major player in this approach to bonding. • There are two ways orbitals can overlap to form bonds between atoms. Molecular Geometries and Bonding
Sigma ( ) Bonds H 2 HCl Cl 2 s-s bond s-px bond px-px bond • Sigma bonds are characterized by Ø Head-to-head overlap. Ø Cylindrical symmetry of electron density about the internuclear axis. Molecular Geometries and Bonding
Pi ( ) Bonds • Pi bonds are characterized by Ø Side-to-side overlap. Ø Electron density above and below the internuclear axis. Molecular Geometries and Bonding
Single Bonds Single bonds are always bonds, because overlap is greater, resulting in a stronger bond and more energy lowering. Molecular Geometries and Bonding
Multiple Bonds In a multiple bond one of the bonds is a bond and the rest are bonds. Molecular Geometries and Bonding
Multiple Bonds • In a molecule like formaldehyde (shown at left) an sp 2 orbital on carbon overlaps in fashion with the corresponding orbital on the oxygen. • The unhybridized p orbitals overlap in fashion. Molecular Geometries and Bonding
Multiple Bonds In triple bonds, as in acetylene, two sp orbitals form a bond between the carbons, and two pairs of p orbitals overlap in fashion to form the two bonds. H C C H Molecular Geometries and Bonding
Delocalized Electrons: Resonance When writing Lewis structures for species like the nitrate ion, we draw resonance structures to more accurately reflect the structure of the molecule or ion. Molecular Geometries and Bonding
Delocalized Electrons: Resonance • In reality, each of the four atoms in the nitrate ion has a p orbital. • The p orbitals on all three oxygens overlap with the p orbital on the central Molecular Geometries and Bonding nitrogen.
Delocalized Electrons: Resonance This means the electrons are not localized between the nitrogen and one of the oxygens, but rather are delocalized throughout the ion. Molecular Geometries and Bonding
Resonance The organic molecule benzene has six bonds and a p orbital on each carbon atom. Molecular Geometries and Bonding
Resonance • In reality the electrons in benzene are not localized, but delocalized. • The even distribution of the electrons in benzene makes the molecule unusually stable. or Molecular Geometries and Bonding
Molecular Orbital (MO) Theory Considers the wave nature of electrons. If waves interact destructively, the resulting orbital is higher in energy: an antibonding molecular orbital. Molecular Geometries and Bonding If waves interact constructively, the resulting orbital is lower in energy: a bonding molecular orbital.
MO Theory In H 2 the two electrons go into the bonding molecular orbital. BOND ORDER: 1 (2 - 0) = 1 2 Molecular Geometries and Bonding The bond order is one half the difference between the number of bonding and antibonding electrons.
MO Theory • In the case of He 2, the bond order would be BOND ORDER: 1 (2 - 2) = 0 2 {MO Theory} • Therefore, He 2 does not exist. Molecular Geometries and Bonding
MO Theory • For atoms with both s and p orbitals, there are two types of interactions: Ø The s and the p orbitals that face each other overlap in fashion. Ø The other two sets of p orbitals overlap in fashion. Molecular Geometries and Bonding
MO Theory • The resulting MO diagram looks like this. • There are both and bonding molecular orbitals and * antibonding molecular orbitals. Molecular Geometries and Bonding
MO Theory • The smaller p-block elements in the second period have a sizeable interaction between the s and p orbitals. • This flips the order of the s and p molecular orbitals in these elements. Molecular Geometries and Bonding
Magnetism: Ferro-, Dia- & Para. All substances are magnetic. The science of physics has divided substances into 3 magnetic categories, they are: 1. Ferromagnetic, e. g. , Fe, Ni, Permalloy (alloy 20% Fe and 80% Ni) Exert strong lines of force when exposed to a magnetic field, for example, the familiar magnetic compass. 2. Diamagnetic (weakly repelled) e. g. , Cu, Ag, H 2 O, Liquid N 2 3. Paramagnetic (weakly attracted) e. g. , Air, Liquid Oxygen, Platinum. Magnetic effects are so minute, that they need instrumentation for detection. Molecular Geometries and Bonding
Molecular Geometries and Bonding
Paramagnetism • Unpaired electrons have their spins aligned or ØThis increases the magnetic field of the atom. • Atoms with unpaired electrons are called paramagnetic. ØParamagnetic atoms are attracted to a magnet. Molecular Geometries and Bonding

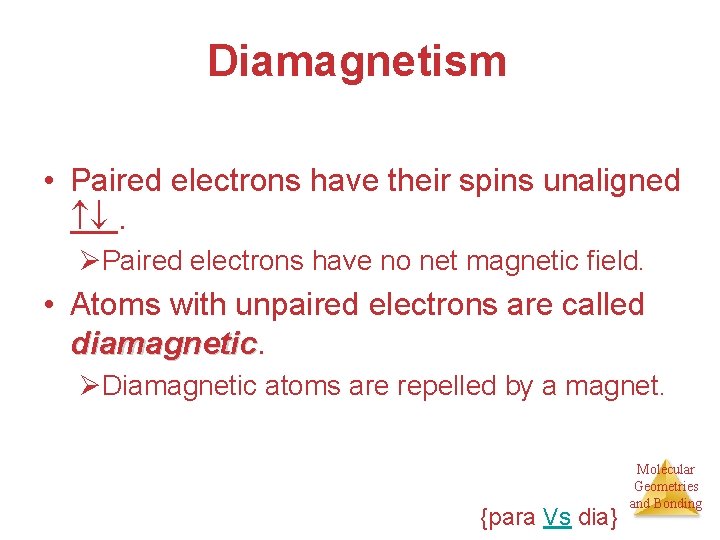

Diamagnetism • Paired electrons have their spins unaligned . ØPaired electrons have no net magnetic field. • Atoms with unpaired electrons are called diamagnetic ØDiamagnetic atoms are repelled by a magnet. {para Vs dia} Molecular Geometries and Bonding
Second-Row MO Diagrams Molecular Geometries and Bonding
