Using Condor An Introduction Condor Week 2007 Condor

Using Condor An Introduction Condor Week 2007 Condor Project Computer Sciences Department University of Wisconsin-Madison condor-admin@cs. wisc. edu http: //www. cs. wisc. edu/condor

Tutorial Outline ›The story of Frieda, the scientist ›Using Condor to manage jobs ›Using Condor to manage resources ›Condor architecture and mechanisms ›Condor on the grid Flocking Condor and other grid technologies ›Stop me if you have any questions! http: //www. cs. wisc. edu/condor 2

Meet Frieda. She is a scientist with a big problem. http: //www. cs. wisc. edu/condor 3

Frieda’s Application … Run a Parameter Sweep of F(x, y, z) for 20 values of x, 10 values of y and 3 values of z 20× 10× 3 = 600 combinations F takes on the average 6 hours to compute on a “typical” workstation (total = 600 × 6 = 3600 hours) F requires a “moderate” (256 MB) amount of memory F performs “moderate” I/O - (x, y, z) is 5 MB and F(x, y, z) is 50 MB http: //www. cs. wisc. edu/condor 4

I have 600 simulations to run. Where can I get help? http: //www. cs. wisc. edu/condor 5

While sharing a beverage with some colleagues, she shares her problem. Somebody asks “Have you tried Condor? It’s free. ” http: //www. cs. wisc. edu/condor 6

Getting Condor › Available as a free download from › http: //www. cs. wisc. edu/condor Download Condor for your operating system Available for most UNIX (including Linux and Apple’s OS/X) platforms Also for Windows NT / XP http: //www. cs. wisc. edu/condor 7

Condor Releases › Stable / Developer Releases Version numbering scheme similar to that of the (pre 2. 6) Linux kernels … Major. minor. release • Minor is even (a. b. c): Stable – Examples: 6. 6. 3, 6. 8. 4, 6. 8. 5 – Very stable, mostly bug fixes • Minor is odd (a. b. c): Developer – New features, may have some bugs – Examples: 6. 7. 11, 6. 9. 2 http: //www. cs. wisc. edu/condor 8

Frieda Installs a “Personal Condor” on her machine… › What do we mean by a “Personal” Condor? Condor on your own workstation No root / administrator access required No system administrator intervention needed › After installation, Frieda submits her jobs to her Personal Condor… http: //www. cs. wisc. edu/condor 9

Frieda’s Condor Pool F(3, 4, 5) 600 Condor jobs personal Condor Frieda's workstation http: //www. cs. wisc. edu/condor 10

Personal Condor? ! What’s the benefit of a Condor “Pool” with just one user and one machine? http: //www. cs. wisc. edu/condor 11

Your Personal Condor will. . . › Keep an eye on your jobs and will keep you › › posted on their progress Implement your policy on the execution order of the jobs Keep a log of your job activities Add fault tolerance to your jobs Implement your policy on when the jobs can run on your workstation http: //www. cs. wisc. edu/condor 12

Definitions › Job The Condor representation of your work › Machine The Condor representation of computers and that can perform the work › Match Making Matching a job with a machine “Resource” http: //www. cs. wisc. edu/condor 13

Job Jobs state their requirements and preferences: I need a Linux/x 86 platform I want the machine with the most memory I prefer a machine in the chemistry department http: //www. cs. wisc. edu/condor 14

Machines state their requirements and preferences: Run jobs only when there is no keyboard activity I prefer to run Frieda’s jobs I am a machine in the physics department Never run jobs belonging to Dr. Smith http: //www. cs. wisc. edu/condor 15

The Magic of Matchmaking › Jobs and machines state their requirements and preferences › Condor matches jobs with machines based on requirements and preferences http: //www. cs. wisc. edu/condor 16

Getting Started: Submitting Jobs to Condor › Overview: Choose a “Universe” for your job Make your job “batch-ready” Create a submit description file Run condor_submit to put your job in the queue http: //www. cs. wisc. edu/condor 17

1. Choose the “Universe” › Controls how Condor handles jobs › Choices include: Vanilla Standard Grid Java Parallel http: //www. cs. wisc. edu/condor 18

Using the Vanilla Universe • The Vanilla Universe: – Allows running almost any “serial” job – Provides automatic file transfer, etc. – Like vanilla ice cream • Can be used in just about any situation http: //www. cs. wisc. edu/condor 19

2. Make your job batchready Must be able to run in the background • No interactive input • No windows • No GUI http: //www. cs. wisc. edu/condor 20

Make your job batch-ready (continued)… Job can still use STDIN, STDOUT, and STDERR (the keyboard and the screen), but files are used for these instead of the actual devices Similar to UNIX shell: • $. /myprogram <input. txt >output. txt http: //www. cs. wisc. edu/condor 21

3. Create a Submit Description File › A plain ASCII text file › Condor does not care about file extensions › Tells Condor about your job: Which executable, universe, input, output and error files to use, command-line arguments, environment variables, any special requirements or preferences (more on this later) › Can describe many jobs at once (a “cluster”), each with different input, arguments, output, etc. http: //www. cs. wisc. edu/condor 22

Simple Submit Description File # Simple condor_submit input file # (Lines beginning with # are comments) # NOTE: the words on the left side are not # case sensitive, but filenames are! Universe = vanilla Executable = my_job Output = output. txt Queue http: //www. cs. wisc. edu/condor 23

4. Run condor_submit › You give condor_submit the name of the submit file you have created: condor_submit my_job. submit › condor_submit: Parses the submit file, checks for errors Creates a “Class. Ad” that describes your job(s) Puts job(s) in the Job Queue http: //www. cs. wisc. edu/condor 24

Class. Ad ? › Condor’s internal data representation Similar to classified ads (as the name implies) Represent an object & its attributes • Usually many attributes Can also describe what an object matches with http: //www. cs. wisc. edu/condor 25

Class. Ad Details › Class. Ads can contain a lot of details The job’s executable is analysis. exe The machine’s load average is 5. 6 › Class. Ads can specify requirements I require a machine with Linux › Class. Ads can specify preferences This machine prefers to run jobs from the physics group http: //www. cs. wisc. edu/condor 26

Class. Ad Details (continued) › Class. Ads are: semi-structured user-extensible schema-free Attribute = Expression http: //www. cs. wisc. edu/condor 27

Class. Ad Example: String My. Type = "Job" Target. Type = "Machine" Number Cluster. Id = 1377 Owner = "roy" Cmd = "sim. exe" Requirements = Boolean (Arch == "INTEL") && (Op. Sys == "LINUX") && (Disk >= Disk. Usage) && ((Memory * 1024)>=Image. Size) … http: //www. cs. wisc. edu/condor 28

The Dog Class. Ad for the “Job” Type = “Dog”. . . Color = “Brown” Requirements = (type == “Dog”) && Price = 12 (color == “Brown”) && (price <= 15). . . http: //www. cs. wisc. edu/condor 29

The Job Queue › condor_submit sends your job’s › Class. Ad(s) to the schedd The schedd (more details later): Manages the local job queue Stores the job in the job queue • Atomic operation, two-phase commit • “Like money in the bank” › View the queue with condor_q http: //www. cs. wisc. edu/condor 30

Example condor_submit and condor_q % condor_submit my_job. submit Submitting job(s). 1 job(s) submitted to cluster 1. % condor_q -- Submitter: perdita. cs. wisc. edu : <128. 105. 165. 34: 1027> : ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD 1. 0 frieda 6/16 06: 52 0+00: 00 I 0 0. 0 my_job 1 jobs; 1 idle, 0 running, 0 held % http: //www. cs. wisc. edu/condor 31

Input, output & error files › Controlled by submit file settings › You can define the job’s standard input, standard output and standard error: Read job’s standard input from “input_file”: • Input = input_file • Shell equivalent: program <input_file Write job’s standard ouput to “output_file”: • Output = output_file • Shell equivalent: program >output_file Write job’s standard error to “error_file”: • Error = error_file • Shell equivalent: program 2>error_file http: //www. cs. wisc. edu/condor 32

Email about your job • Condor sends email about job events to the submitting user • Specify “notification” in your submit file to control which events: Notification = complete never error always Default http: //www. cs. wisc. edu/condor 33

Feedback on your job › Create a log of job events › Add to submit description file: log = sim. log › Becomes the Life Story of a Job Shows all events in the life of a job Always have a log file http: //www. cs. wisc. edu/condor 34

Sample Condor User Log 000 (0001. 000) 05/25 19: 10: 03 Job submitted from host: <128. 105. 146. 14: 1816>. . . 001 (0001. 000) 05/25 19: 12: 17 Job executing on host: <128. 105. 146. 14: 1026>. . . 005 (0001. 000) 05/25 19: 13: 06 Job terminated. (1) Normal termination (return value 0). . . http: //www. cs. wisc. edu/condor 35

Example Submit Description File With Logging # Example condor_submit input file # (Lines beginning with # are comments) # NOTE: the words on the left side are not # case sensitive, but filenames are! Universe = vanilla Executable = /home/frieda/condor/my_job. condor Log = my_job. log ·Job log (from Condor) Input = my_job. in ·Program’s standard input Output = my_job. out ·Program’s standard output Error = my_job. err ·Program’s standard error Arguments = -a 1 -a 2 ·Command line arguments Initial. Dir = /home/frieda/condor/run Queue http: //www. cs. wisc. edu/condor 36

“Clusters” and “Processes” › If your submit file describes multiple jobs, we call › › › this a “cluster” Each cluster has a unique “cluster number” Each job in a cluster is called a “process” Process numbers always start at zero A Condor “Job ID” is the cluster number, a period, and the process number (i. e. 2. 1) A cluster can have a single process • Job ID = 20. 0 ·Cluster 20, process 0 Or, a cluster can have more than one process • Job ID: 21. 0, 21. 1, 21. 2 ·Cluster 21, process 0, 1, 2 http: //www. cs. wisc. edu/condor 37

Submit File for a Cluster # Example submit file for a cluster of 2 jobs # with separate input, output, error and log files Universe = vanilla Executable = my_job Arguments = -x 0 log = my_job_0. log Input = my_job_0. in Output = my_job_0. out Error = my_job_0. err Queue ·Job 2. 0 (cluster 2, process 0) Arguments = -x 1 log Input Output Error Queue = = my_job_1. log my_job_1. in my_job_1. out my_job_1. err ·Job 2. 1 (cluster 2, process 1) http: //www. cs. wisc. edu/condor 38

Submitting The Job % condor_submit my_job. submit-file Submitting job(s). 2 job(s) submitted to cluster 2. % condor_q -- Submitter: perdita. cs. wisc. edu : <128. 105. 165. 34: 1027> : ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD 1. 0 frieda 4/15 06: 52 0+00: 02: 11 R 0 0. 0 my_job –a 1 –a 2 2. 0 frieda 4/15 06: 56 0+00: 00 I 0 0. 0 my_job –x 0 2. 1 frieda 4/15 06: 56 0+00: 00 I 0 0. 0 my_job –x 1 3 jobs; 2 idle, 1 running, 0 held % http: //www. cs. wisc. edu/condor 39

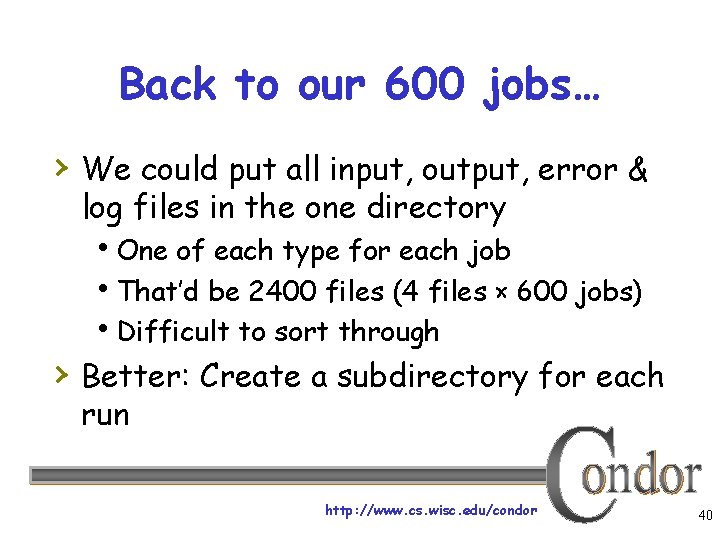

Back to our 600 jobs… › We could put all input, output, error & log files in the one directory One of each type for each job That’d be 2400 files (4 files × 600 jobs) Difficult to sort through › Better: Create a subdirectory for each run http: //www. cs. wisc. edu/condor 40

Organize your files and directories for big runs › Create subdirectories for each “run” run_0, run_1, … run_599 › Create input files in each of these run_0/simulation. in run_1/simulation. in … run_599/simulation. in › The output, error & log files for each job will be created by Condor from your job’s output http: //www. cs. wisc. edu/condor 41

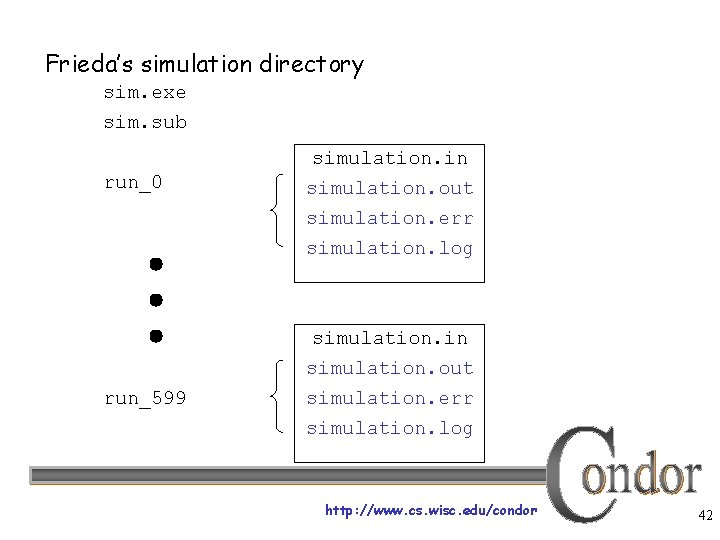

Frieda’s simulation directory sim. exe sim. sub simulation. in run_0 simulation. out simulation. err simulation. log simulation. in simulation. out run_599 simulation. err simulation. log http: //www. cs. wisc. edu/condor 42

Submit Description File for 600 Jobs # Cluster of Universe = Executable = Log =. . . Arguments = Initial. Dir = Queue 600 jobs with different directories vanilla simulation. log -x 0 run_0 Arguments = -x 1 Initial. Dir = run_1 Queue ·Log, input, output & error files -> run_0 ·Job 3. 0 (Cluster 3, Process 0) ·Log, input, output & error files -> run_1 ·Job 3. 1 (Cluster 3, Process 1) ·Do this 598 more times………… http: //www. cs. wisc. edu/condor 43

Submit File for a Big Cluster of Jobs › We just submitted 1 cluster with 600 › › › processes All the input/output files will be in different directories The submit file is pretty unwieldy (over 1200 lines) Isn’t there a better way? http: //www. cs. wisc. edu/condor 44

Submit File for a Big Cluster of Jobs (the better way) #1 › We can queue all 600 in 1 “Queue” command Queue 600 › Condor provides $(Process) and $(Cluster) $(Process) will be expanded to the process number for each job in the cluster • 0, 1, … 599 $(Cluster) will be expanded to the cluster number • Will be 4 for all jobs in this cluster http: //www. cs. wisc. edu/condor 45

Submit File for a Big Cluster of Jobs (the better way) #2 › The initial directory for each job can be specified using $(Process) Initial. Dir = run_$(Process) Condor will expand these to “run_0”, “run_1”, … “run_599” directories › Similarly, arguments can be variable Arguments = -x $(Process) Condor will expand these to “-x 0”, -x 1”, … “-x 599” http: //www. cs. wisc. edu/condor “ 46

Better Submit File for 600 Jobs # Example condor_submit input file that defines # a cluster of 600 jobs with different directories Universe = vanilla Executable = my_job Log = my_job. log Input = my_job. in Output = my_job. out Error = my_job. err Arguments = –x $(Process) ·–x 0, -x 1, … -x 599 Initial. Dir = run_$(Process) ·run_0 … run_599 Queue 600 ·Jobs 4. 0 … 4. 599 http: //www. cs. wisc. edu/condor 47

Now, we submit it… $ condor_submit my_job. submit Submitting job(s). . . . . . . . . . . . . . . . Logging submit event(s). . . . . . . . . . . . . . . . 600 job(s) submitted to cluster 4. http: //www. cs. wisc. edu/condor 48

And, Check the queue $ condor_q -- Submitter: ID OWNER 4. 0 frieda 4. 1 frieda 4. 2 frieda 4. 3 frieda. . . 4. 598 frieda 4. 599 frieda x. cs. wisc. edu : <128. 105. 121. 53: 510> : x. cs. wisc. edu SUBMITTED RUN_TIME ST PRI SIZE CMD 4/20 12: 08 0+00: 05 R 0 9. 8 my_job -arg 1 –x 0 4/20 12: 08 0+00: 03 I 0 9. 8 my_job -arg 1 –x 1 4/20 12: 08 0+00: 01 I 0 9. 8 my_job -arg 1 –x 2 4/20 12: 08 0+00: 00 I 0 9. 8 my_job -arg 1 –x 3 4/20 12: 08 0+00: 00: 00 I 0 0 9. 8 my_job -arg 1 –x 598 my_job -arg 1 –x 599 600 jobs; 599 idle, 1 running, 0 held http: //www. cs. wisc. edu/condor 49

Removing jobs › If you want to remove a job from the › › Condor queue, you use condor_rm You can only remove jobs that you own Privileged user can remove any jobs “root” on UNIX “administrator” on Windows http: //www. cs. wisc. edu/condor 50

Removing jobs (continued) › Remove an entire cluster: condor_rm 4 ·Removes the whole cluster › Remove a specific job from a cluster: condor_rm 4. 0 ·Removes a single job › Or, remove all of your jobs with “-a” condor_rm -a ·Removes all jobs / clusters http: //www. cs. wisc. edu/condor 51

Another Universe http: //www. cs. wisc. edu/condor 52

More about Condor Universes › Multiple Condor Universes Different feature sets › We’ve been using the “Vanilla” universe Can be used to run any serial job › And, introducing: Scheduler Local http: //www. cs. wisc. edu/condor 53

Condor Universes: Scheduler and Local › Scheduler Universe Plug in a meta-scheduler Developed for DAGMan (more later) Similar to Globus’s fork job manager › Local Very similar to vanilla, but jobs run on the local host Has more control over jobs than scheduler universe http: //www. cs. wisc. edu/condor 54

F(3, 4, 5) Frieda’s Condor Pool 600 Condor jobs personal Condor Frieda's workstation Frieda can still only run one job at a time, however. http: //www. cs. wisc. edu/condor 55

Good News (Boss Fat Cat) The Boss says Frieda can add her co-workers’ desktop machines into her Condor pool as well… but only if they can also submit jobs. http: //www. cs. wisc. edu/condor 56

Adding nodes › Frieda installs Condor on the desktop machines, and configures them with her machine as the central manager The central manager: • Central repository for the whole pool • Performs job / machine matching, etc. › These are “non-dedicated” nodes, meaning that they can't always run Condor jobs http: //www. cs. wisc. edu/condor 57

600 Condor jobs Frieda’s Condor Pool Now, Frieda and her co-workers can run multiple jobs at a time so their work completes sooner. http: //www. cs. wisc. edu/condor 58

condor_status % condor_status Name Op. Sys Arch State Activ Load. Av Mem antipholus. cs LINUX INTEL Unclaimed Idle 0. 020 511 0+02: 28: 42 coral. cs. wisc LINUX INTEL Claimed Busy 0. 990 511 0+01: 27: 21 doc. cs. wisc. e LINUX INTEL Unclaimed Idle 0. 260 511 0+00: 20: 04 dsonokwa. cs. w LINUX INTEL Claimed Busy 0. 810 511 0+00: 01: 45 ferdinand. cs. LINUX INTEL Claimed Suspe 1. 130 511 0+00: 55 vm 1@pinguino. LINUX INTEL Unclaimed Idle 0. 000 255 0+01: 03: 28 vm 2@pinguino. LINUX INTEL Unclaimed Idle 0. 190 255 0+01: 03: 29 http: //www. cs. wisc. edu/condor Actvty. Time 59

How can my jobs access their data files? http: //www. cs. wisc. edu/condor 60

Access to Data in Condor › Use shared filesystem if available › No shared filesystem? Condor can transfer files • Can automatically send back changed files • Atomic transfer of multiple files • Can be encrypted over the wire Remote I/O Socket Standard Universe can use remote system calls (more on this later) http: //www. cs. wisc. edu/condor 61

Condor File Transfer › Should. Transfer. Files = YES Always transfer files to execution site › Should. Transfer. Files = NO Rely on a shared filesystem › Should. Transfer. Files = IF_NEEDED Will automatically transfer the files if the submit and execute machine are not in the same File. System. Domain Universe = vanilla Executable = my_job Log = my_job. log Should. Transfer. Files = IF_NEEDED Transfer_input_files = dataset. $(Process), common. data Transfer_output_files = The. Answer. dat Queue 600 http: //www. cs. wisc. edu/condor 62

We Always Want More Condor is managing and running our jobs, but § Our CPU requirements are greater than our resources § Jobs are preempted more often than we like http: //www. cs. wisc. edu/condor 63

Happy Day! Frieda’s organization purchased a Dedicated Cluster! › Frieda Installs Condor on all the › › dedicated Cluster nodes Frieda also adds a dedicated central manager She configures her entire pool with this new host as the central manager… http: //www. cs. wisc. edu/condor 64

Frieda’s Condor Pool 600 Condor jobs Condor Pool With the additional resources, Frieda and her co-workers can get their jobs completed even faster. Dedicated Cluster http: //www. cs. wisc. edu/condor 65

What Condor Daemons are running on my machine, and what do they do? http: //www. cs. wisc. edu/condor 66

condor_master › Starts up all other Condor daemons › If there any problems and a daemon › exits, it restarts the daemon and sends email to the administrator Acts as the server for many Condor remote administration commands: condor_reconfig, condor_restart, condor_off, condor_on, condor_config_val, etc. http: //www. cs. wisc. edu/condor 67

Condor Daemon Layout Personal Condor / Central Manager Master startd schedd negotiator collector = Process Spawned http: //www. cs. wisc. edu/condor 68

Central Manager: condor_collector › Central manager: central repository and match › maker for whole pool Collects information from all other Condor daemons in the pool “Directory Service” / Database for a Condor pool › Each daemon sends a periodic update called a › “Class. Ad” to the collector Services queries for information: Queries from other Condor daemons Queries from users (condor_status) › Only on the Central Manager › At least one collector per pool http: //www. cs. wisc. edu/condor 69

Condor Pool Layout: Collector = Process Spawned = Class. Ad Communication Pathway Central Manager Master Collector http: //www. cs. wisc. edu/condor 70

Central Manager: condor_negotiator › Performs “matchmaking” in Condor › Each “Negotiation Cycle” (typically 5 minutes): Gets information from the collector about all available machines and all idle jobs Tries to match jobs with machines that will serve them Both the job and the machine must satisfy each other’s requirements › Only one negotiator per pool › Only on the Central Manager http: //www. cs. wisc. edu/condor 71

Condor Pool Layout: Negotiator = Process Spawned = Class. Ad Communication Pathway Central Manager negotiator Master Collector http: //www. cs. wisc. edu/condor 72

Execute Hosts: condor_startd › Execute host: machines that run user jobs › Represents a machine to the Condor system › Responsible for starting, suspending, and › › › stopping jobs Enforces the wishes of the machine owner (the owner’s “policy”… more on this in the administrator’s tutorial) Creates a “starter” for each running job One startd runs on each execute node http: //www. cs. wisc. edu/condor 73

Condor Pool Layout: startd = Process Spawned = Class. Ad Communication Pathway Central Manager negotiator Master Collector Cluster Node Master startd http: //www. cs. wisc. edu/condor 74

Submit Hosts: condor_schedd › Submit hosts: machines that users can submit › › › jobs on Maintains the persistent queue of jobs Responsible for contacting available machines and sending them jobs Services user commands which manipulate the job queue: condor_submit, condor_rm, condor_q, condor_hold, condor_release, condor_prio, … › Creates a “shadow” for each running job › One schedd runs on each submit host http: //www. cs. wisc. edu/condor 75

Condor Pool Layout: schedd = Process Spawned = Class. Ad Communication Pathway Central Manager negotiator schedd Master Collector Cluster Node Master startd Cluster Node Master Desktop Master startd schedd Desktop startd Master startd schedd http: //www. cs. wisc. edu/condor 76

Condor Pool Layout: master = Process Spawned = Class. Ad Communication Pathway Cluster Node Central Manager negotiator schedd Master startd Cluster Node Collector Master Desktop Master startd schedd Desktop startd Master startd schedd http: //www. cs. wisc. edu/condor 77

Now what? › Some of the machines in the pool can’t run my jobs Not enough RAM Not enough scratch disk space Required software not installed Etc. http: //www. cs. wisc. edu/condor 78

Specify Requirements › An expression (syntax similar to C or Java) › Must evaluate to True for a match to be made Universe = Executable = Log = Initial. Dir = Requirements Queue 600 vanilla my_job. log run_$(Process) = Memory >= 256 && Disk > 10000 http: //www. cs. wisc. edu/condor 79

Advanced Requirements › Requirements can match custom attributes in your Machine Ad Can be added by hand to each machine Or, automatically using the “Hawkeye” mechanism Universe = vanilla Executable = my_job Log = my_job. log Initial. Dir = run_$(Process) Requirements = Memory >= 256 && Disk > 10000 && ( Have. Prog =!= UNDEFINED && Have. Prog) ) Queue 600 http: //www. cs. wisc. edu/condor 80

And, Specify Rank › All matches which meet the requirements › can be sorted by preference with a Rank expression. Higher the Rank, the better the match Universe = vanilla Executable = my_job Log = my_job. log Arguments = -arg 1 –arg 2 Initial. Dir = run_$(Process) Requirements = Memory >= 256 && Disk > 10000 Rank = (KFLOPS*10000) + Memory Queue 600 http: //www. cs. wisc. edu/condor 81

My jobs aren’t running!! http: //www. cs. wisc. edu/condor 82

Check the queue › Check the queue with condor_q: bash-2. 05 a$ condor_q -- Submitter: x. cs. wisc. edu : <128. 105. 121. 53: 510> : x. cs. wisc. edu ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD 5. 0 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 0 5. 1 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 1 5. 2 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 2 5. 3 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 3 5. 4 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 4 5. 5 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 5 5. 6 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 6 5. 7 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 7 6. 0 frieda 4/20 13: 22 0+00: 00 H 0 9. 8 my_job -arg 1 –arg 2 8 jobs; 8 idle, 0 running, 1 held http: //www. cs. wisc. edu/condor 83

Look at jobs on hold % condor_q –hold -- Submiter: x. cs. wisc. edu : <128. 105. 121. 53: 510> : x. cs. wisc. edu ID OWNER HELD_SINCE HOLD_REASON 6. 0 frieda 4/20 13: 23 Error from starter on vm 1@skywalker. cs. wisc 9 jobs; 8 idle, 0 running, 1 held Or, See full details for a job % condor_q –l 6. 0 http: //www. cs. wisc. edu/condor 84

Check machine status › Verify that there are idle machines with condor_status: bash-2. 05 a$ Name vm 1@tonic. c vm 2@tonic. c vm 3@tonic. c vm 4@tonic. c INTEL/LINUX Total condor_status Op. Sys Arch State LINUX INTEL Claimed Activity Busy Load. Av Mem 0. 000 501 0. 040 501 0. 000 501 Actvty. Time 0+00: 20 0+00: 19 0+00: 17 0+00: 05 Total Owner Claimed Unclaimed Matched Preempting 4 0 4 0 0 0 http: //www. cs. wisc. edu/condor 85

Look in Job Log › Look in your job log for clues: bash-2. 05 a$ cat my_job. log 000 (031. 000) 04/20 14: 47: 31 Job submitted from host: <128. 105. 121. 53: 48740>. . . 007 (031. 000) 04/20 15: 02: 00 Shadow exception! Error from starter on gig 06. stat. wisc. edu: Failed to open '/scratch. 1/frieda/workspace/v 67/condortest/test 3/run_0/my_job. in' as standard input: No such file or directory (errno 2) 0 - Run Bytes Sent By Job 0 - Run Bytes Received By Job. . . http: //www. cs. wisc. edu/condor 86

Still not running? Exercise a little patience › On a busy pool, it can take a while to match and start your jobs › Wait at least a negotiation cycle or two (typically 5 minutes) http: //www. cs. wisc. edu/condor 87

Look to condor_q for help: condor_q -analyze bash-2. 05 a$ condor_q -ana 29 --029. 000: Run analysis summary. Of 1243 machines, 1243 are rejected by your job's requirements 0 are available to run your job WARNING: Be advised: No resources matched request's constraints Check the Requirements expression below: Requirements = ((Memory > 8192)) && (Arch == "INTEL") && (Op. Sys == "LINUX") && (Disk >= Disk. Usage) && (TARGET. File. System. Domain == MY. File. System. Domain) http: //www. cs. wisc. edu/condor 88

Better analysis (Linux only): condor_q –better-analyze bash-2. 05 a$ condor_q -better-ana 29 The Requirements expression for your job is: ( ( target. Memory > 8192 ) ) && ( target. Arch == "INTEL" ) && ( target. Op. Sys == "LINUX" ) && ( target. Disk >= Disk. Usage ) && ( TARGET. File. System. Domain == MY. File. System. Domain ) Condition Machines Matched Suggestion ------------1 ( ( target. Memory > 8192 ) ) 0 MODIFY TO 4000 2 ( TARGET. File. System. Domain == "cs. wisc. edu" )584 3 ( target. Arch == "INTEL" ) 1078 4 ( target. Op. Sys == "LINUX" ) 1100 5 ( target. Disk >= 13 ) 1243 http: //www. cs. wisc. edu/condor 89

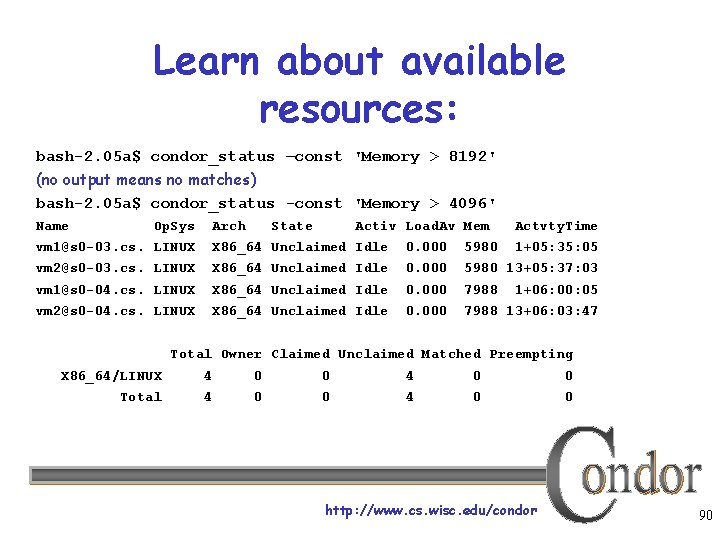

Learn about available resources: bash-2. 05 a$ condor_status –const 'Memory > 8192' (no output means no matches) bash-2. 05 a$ condor_status -const 'Memory > 4096' Name Op. Sys Arch State Activ Load. Av Mem Actvty. Time vm 1@s 0 -03. cs. LINUX X 86_64 Unclaimed Idle 0. 000 5980 1+05: 35: 05 vm 2@s 0 -03. cs. LINUX X 86_64 Unclaimed Idle 0. 000 5980 13+05: 37: 03 vm 1@s 0 -04. cs. LINUX X 86_64 Unclaimed Idle 0. 000 7988 vm 2@s 0 -04. cs. LINUX X 86_64 Unclaimed Idle 0. 000 7988 13+06: 03: 47 1+06: 00: 05 Total Owner Claimed Unclaimed Matched Preempting X 86_64/LINUX 4 0 0 Total 4 0 0 http: //www. cs. wisc. edu/condor 90

Job Policy Expressions › User can supply job policy expressions in › the submit file. Can be used to describe a successful run. on_exit_remove = <expression> on_exit_hold = <expression> periodic_remove = <expression> periodic_hold = <expression> http: //www. cs. wisc. edu/condor 91

Job Policy Examples › Do not remove if exits with a signal: on_exit_remove = Exit. By. Signal == False › Place on hold if exits with nonzero status or ran for less than an hour: on_exit_hold = ( (Exit. By. Signal==False) && (Exit. Signal != 0) ) || ( (Server. Start. Time - Job. Start. Date) < 3600) › Place on hold if job has spent more than 50% of its time suspended: periodic_hold = Cumulative. Suspension. Time > (Remote. Wall. Clock. Time / 2. 0) http: //www. cs. wisc. edu/condor 92

Insert Class. Ad attributes › Special purpose usage › In the submit description file, introduce an attribute for the job +Department = biochemistry causes the Class. Ad to contain Department = ”biochemistry” http: //www. cs. wisc. edu/condor 93

We’ve seen how Condor can: Keep an eye on your jobs and will keep you posted on their progress Implement your policy on the execution order of the jobs Keep a log of your job activities http: //www. cs. wisc. edu/condor 94

My new jobs run for 20 days… › What happens when a job is forced off it’s CPU? Preempted by higher priority user or job Vacated because of user activity › How can I add fault tolerance to my jobs? http: //www. cs. wisc. edu/condor 95

Run them in Todd’s Private Universe? http: //www. cs. wisc. edu/condor 96

Condor’s Standard Universe to the rescue! › Support for transparent process checkpoint and restart › Remote system calls (remote I/O) Your job can read / write files as if they were local http: //www. cs. wisc. edu/condor 97

Remote System Calls in the Standard Universe › I/O system calls are trapped and sent back to the submit machine Examples: open a file, write to a file › No source code changes typically required › Programming language independent http: //www. cs. wisc. edu/condor 98

Process Checkpointing in the Standard Universe › Condor’s process checkpointing provides a › mechanism to automatically save the state of a job The process can then be restarted from right where it was checkpointed After preemption, crash, etc. http: //www. cs. wisc. edu/condor 99

Checkpointing: Process Starts checkpoint: the entire state of a program, saved in a file § CPU registers, memory image, I/O time http: //www. cs. wisc. edu/condor 100

Checkpointing: Process Checkpointed time 1 2 3 http: //www. cs. wisc. edu/condor 101

Checkpointing: Process Killed time Killed! 3 3 http: //www. cs. wisc. edu/condor 102

Checkpointing: Process Resumed goodput badput time goodput 3 3 http: //www. cs. wisc. edu/condor 103

When will Condor checkpoint your job? › Periodically, if desired For fault tolerance › When your job is preempted by a higher › › priority job When your job is vacated because the execution machine becomes busy When you explicitly run condor_checkpoint, condor_vacate, condor_off or condor_restart command http: //www. cs. wisc. edu/condor 104

Making the Standard Universe Work › The job must be relinked with Condor’s › standard universe support library To relink, place condor_compile in front of the command used to link the job: % condor_compile gcc -o myjob. c - OR % condor_compile f 77 -o myjob filea. f fileb. f - OR % condor_compile make –f My. Makefile http: //www. cs. wisc. edu/condor 105

Limitations of the Standard Universe › Condor’s checkpointing is not at the kernel level. Standard Universe the job may not: • Fork() • Use kernel threads • Use some forms of IPC, such as pipes and shared memory › Must have access to source code to relink › Many typical scientific jobs are OK http: //www. cs. wisc. edu/condor 106

Connecting Condors › Frieda knows people with › their own Condor pools, and gets permission to use their computing resources… How can Condor help her do this? http: //www. cs. wisc. edu/condor 107

Connect Condors with Flocking › Frieda configures her Condor pool › to “flock” flock to her friend’s pool. Flocking is a Condor-specific technology. http: //www. cs. wisc. edu/condor 108

Frieda’s Condor Pool 600 Condor jobs Condor Pool Friendly Condor Pool http: //www. cs. wisc. edu/condor 109

Frieda meets The Grid › Frieda also has access to grid resources she wants to use She has certificates and access to Globus or other resources at remote institutions › But Frieda wants Condor’s queue › management features for her jobs! She installs Condor so she can submit “Grid Universe” jobs to Condor http: //www. cs. wisc. edu/condor 110

“Grid” Universe › All handled in your submit file › Supports a number of “back end” types: Globus: GT 2, GT 3, GT 4 Nordu. Grid UNICORE Condor PBS LSF http: //www. cs. wisc. edu/condor 111

Grid Universe & Globus 2/3 › Used for a Globus GT 2 / GT 3 back-end “Condor-G” › Format: Grid_Resource = (gt 2|gt 3) Head-Node Globus_rsl = <RSL-String> › Example: Universe = grid Grid_Resource = gt 2 beak. cs. wisc. edu/jobmanager Globus_rsl = (queue=long)(project=atom-smasher) http: //www. cs. wisc. edu/condor 112

Grid Universe & Globus 4 › Used for a Globus GT 4 back-end › Format: Grid_Resource = gt 4 <Head-Node> <Scheduler-Type> Globus_XML = <XML-String> › Example: Universe = grid Grid_Resource = gt 4 beak. cs. wisc. edu Condor Globus_xml = <queue>long</queue><project>atomsmasher</project> http: //www. cs. wisc. edu/condor 113

Grid Universe & Condor › Used for a Condor back-end “Condor-C” › Format: Grid_Resource = condor <Schedd-Name> <Collector-Name> Remote_<param> = <value> “Remote_” part is stripped off › Example: Universe = grid Grid_Resource = condor beak condor. cs. wisc. edu Remote_Universe = standard http: //www. cs. wisc. edu/condor 114

Grid Universe & Nordu. Grid › Used for a Nordu. Grid back-end Grid_Resource = nordugrid <Host-Name> › Example: Universe = grid Grid_Resource = nordugrid ngrid. cs. wisc. edu http: //www. cs. wisc. edu/condor 115

Grid Universe & UNICORE › Used for a UNICORE back-end › Format: Grid_Resource = unicore <USite> <VSite> › Example: Universe = grid Grid_Resource = unicore uhost. cs. wisc. edu vhost http: //www. cs. wisc. edu/condor 116

Grid Universe & PBS › Used for a PBS back-end › Format: Grid_Resource = pbs › Example: Universe = grid Grid_Resource = pbs http: //www. cs. wisc. edu/condor 117

Grid Universe & LSF › Used for a LSF back-end › Format: Grid_Resource = lsf › Example: Universe = grid Grid_Resource = lsf http: //www. cs. wisc. edu/condor 118

Credential Management › Condor will do The Right Thing™ with your › X 509 certificate and proxy Override default proxy: X 509 User. Proxy = /home/frieda/other/proxy › Proxy may expire before jobs finish executing Condor can use My. Proxy to renew your proxy When a new proxy is available, Condor will forward the renewed proxy to the job This works for non-grid jobs, too http: //www. cs. wisc. edu/condor 119

My jobs have dependencies… Can Condor help solve my dependency problems? http: //www. cs. wisc. edu/condor 120

Frieda learns DAGMan › Directed Acyclic Graph Manager › DAGMan allows you to specify the dependencies between your Condor jobs, so it can manage them automatically for you. › (e. g. , “Don’t run job “B” until job “A” has completed successfully. ”) http: //www. cs. wisc. edu/condor 121

What is a DAG? › A DAG is the data structure Job A used by DAGMan to represent these dependencies. › Each job is a “node” in the DAG. › Each node can have any number of “parent” or “children” nodes – as long as there are no loops! Job B Job C Job D http: //www. cs. wisc. edu/condor 122

Defining a DAG › A DAG is defined by a. dag file, listing each of its nodes and their dependencies: # diamond. dag Job A a. sub Job B b. sub Job C c. sub Job D d. sub Parent A Child B C Parent B C Child D Job A Job B Job C Job D › each node will run the Condor job specified by its accompanying Condor submit file http: //www. cs. wisc. edu/condor 123

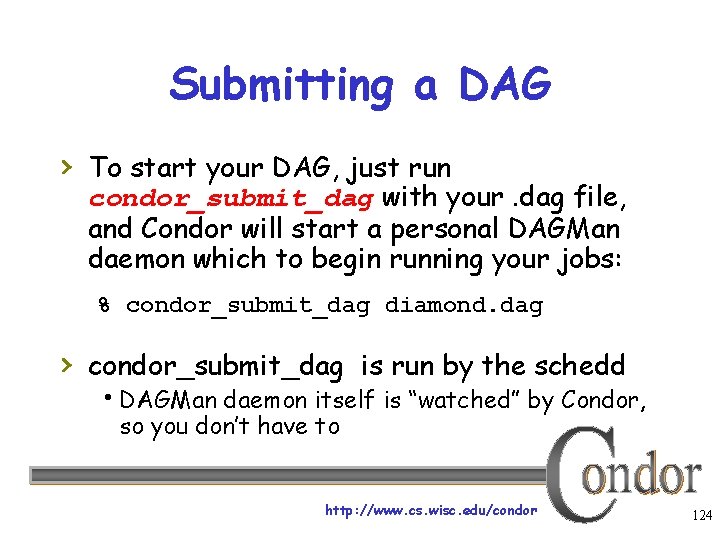

Submitting a DAG › To start your DAG, just run condor_submit_dag with your. dag file, and Condor will start a personal DAGMan daemon which to begin running your jobs: % condor_submit_dag diamond. dag › condor_submit_dag is run by the schedd DAGMan daemon itself is “watched” by Condor, so you don’t have to http: //www. cs. wisc. edu/condor 124

Running a DAG › DAGMan acts as a “meta-scheduler”, managing the submission of your jobs to Condor based on the DAG dependencies. A Condor A Job Queue B C . dag File DAGMan D http: //www. cs. wisc. edu/condor 125

Running a DAG (cont’d) › DAGMan holds & submits jobs to the Condor queue at the appropriate times. A Condor B Job Queue C B C DAGMan D http: //www. cs. wisc. edu/condor 126

Running a DAG (cont’d) › In case of a job failure, DAGMan continues until it can no longer make progress, and then creates a “rescue” file with the current state of the DAG. A Condor Job Queue B X DAGMan D http: //www. cs. wisc. edu/condor Rescue File 127

Recovering a DAG › Once the failed job is ready to be re-run, the rescue file can be used to restore the prior state of the DAG. A Condor Job Queue C B C Rescue File DAGMan D http: //www. cs. wisc. edu/condor 128

Recovering a DAG (cont’d) › Once that job completes, DAGMan will continue the DAG as if the failure never happened. A Condor Job Queue D B C DAGMan D http: //www. cs. wisc. edu/condor 129

Finishing a DAG › Once the DAG is complete, the DAGMan job itself is finished, and exits. A Condor Job Queue B C DAGMan D http: //www. cs. wisc. edu/condor 130

Additional DAGMan Features › Provides other handy features for job management… nodes can have PRE & POST scripts failed nodes can be automatically re- tried a configurable number of times job submission can be “throttled” http: //www. cs. wisc. edu/condor 131

› › › › › General User Commands condor_status View Pool Status condor_q View Job Queue condor_submit Submit new Jobs condor_rm Remove Jobs condor_prio Intra-User Prios condor_history Completed Job Info condor_submit_dag Submit new DAG condor_checkpoint Force a checkpoint condor_compile Link Condor library http: //www. cs. wisc. edu/condor 132

Condor Job Universes • Serial Jobs • Parallel Jobs • Vanilla Universe • Standard Universe • Grid Universe • Scheduler • Local Universe • Java Universe • MPI Universe • PVM Universe • Parallel Universe http: //www. cs. wisc. edu/condor 133

Why have a special Universe for Java jobs? › Java Universe provides more than just inserting “java” at the start of the execute line of a vanilla job: Knows which machines have a JVM installed Knows the location, version, and performance of JVM on each machine Knows about jar files, etc. Provides more information about Java job completion than just JVM exit code • Program runs in a Java wrapper, allowing Condor to report Java exceptions, etc. http: //www. cs. wisc. edu/condor 134

Universe Java Job › Example Java Universe Submit file: Universe = java Executable = Main. class jar_files = My. Library. jar Input = infile Output = outfile Arguments = Main 1 2 3 Queue http: //www. cs. wisc. edu/condor 135

Java support, cont. bash-2. 05 a$ Name abulafia. cs acme. cs. wis adelie 01. cs adelie 02. cs … condor_status –java Java. Vendor Ver State Sun Microsy 1. 5. 0_ Claimed Sun Microsy 1. 5. 0_ Unclaimed Sun Microsy 1. 5. 0_ Claimed INTEL/LINUX INTEL/WINNT 50 SUN 4 u/SOLARIS 28 X 86_64/LINUX Total Actv Busy Idle Busy Load. Av Mem 0. 180 503 0. 000 1002 Total Owner Claimed Unclaimed Matched Preempting 965 179 516 250 20 0 102 6 65 31 0 0 128 2 106 20 0 0 1196 187 687 302 http: //www. cs. wisc. edu/condor 20 0 136

Frieda wants Condor features on remote resources › She wants to run standard universe jobs on Grid-managed resources For matchmaking and dynamic scheduling of jobs For job checkpointing and migration For remote system calls http: //www. cs. wisc. edu/condor 137

Condor Glide. In › Frieda can use the Grid Universe to run › › › Condor daemons on Grid resources When the resources run these Glide. In jobs, they will temporarily join her Condor Pool She can then submit Standard, Vanilla, PVM, or MPI Universe jobs and they will be matched and run on the remote resources Currently only supports Globus GT 2 We hope to fix this limitation http: //www. cs. wisc. edu/condor 138

Remote Grid 600 Condor jobs Condor Pool PBS LSF glide-in jobs Friendly Condor Pool Condor http: //www. cs. wisc. edu/condor 139

Condor jobs How It Works Personal Condor Master Collector & Negotiator Remote Resource Manager Schedd LSF Startd Grid Manager Glide. In jobs Shadow Starter User Job http: //www. cs. wisc. edu/condor 140

Glide. In Concerns › What if the remote resource kills my Glide. In job? That resource will disappear from your pool and your jobs will be rescheduled on other machines Standard universe jobs will resume from their last checkpoint like usual › What if all my jobs are completed before a Glide. In job runs? If a Glide. In Condor daemon is not matched with a job in 10 minutes, it terminates, freeing the resource http: //www. cs. wisc. edu/condor 141

In Review With Condor’s help, Frieda can: Manage her compute job workload Access local machines Access remote Condor Pools via flocking Access remote compute resources on the Grid via “Grid Universe” jobs Carve out her own personal Condor Pool from the Grid with Glide. In technology http: //www. cs. wisc. edu/condor 142

Advanced Topics http: //www. cs. wisc. edu/condor 143

› › › › Administrator Commands condor_vacate Leave a machine now condor_on Start Condor condor_off Stop Condor condor_reconfig Reconfig on-the-fly condor_config_val View/set config condor_userprio User Priorities condor_stats View detailed usage accounting stats http: //www. cs. wisc. edu/condor 144

My boss wants to watch what Condor is doing http: //www. cs. wisc. edu/condor 145

Use Condor. View! › Provides visual graphs of current and past › › › utilization Data is derived from Condor's own accounting statistics Interactive Java applet Quickly and easily view: How much Condor is being used How many cycles are being delivered Who is using them Utilization by machine platform or by user http: //www. cs. wisc. edu/condor 146

Condor. View Usage Graph http: //www. cs. wisc. edu/condor 147

A Common Question › My Personal Condor is flocking with a bunch of Solaris and Linux machines, and also doing a Glide. In to a SGI O 2 K. I do not want to statically partition my jobs. Solution: In your submit file, specify: Executable = myjob. $$(Op. Sys). $$(Arch) Requirements = (Arch==“INTEL” && Op. Sys==“LINUX”) ||(Arch==“SUN 4 u” && Op. Sys==“SOLARIS 8” ) ||(Arch==“SGI” && Op. Sys==“IRIX 65”) The “$$(xxx)” notation is replaced with attributes from the machine Class. Ad which was matched with your job. http: //www. cs. wisc. edu/condor 148

Thank you! Check us out on the Web: http: //www. condorproject. org Email: condor-admin@cs. wisc. edu http: //www. cs. wisc. edu/condor 149
