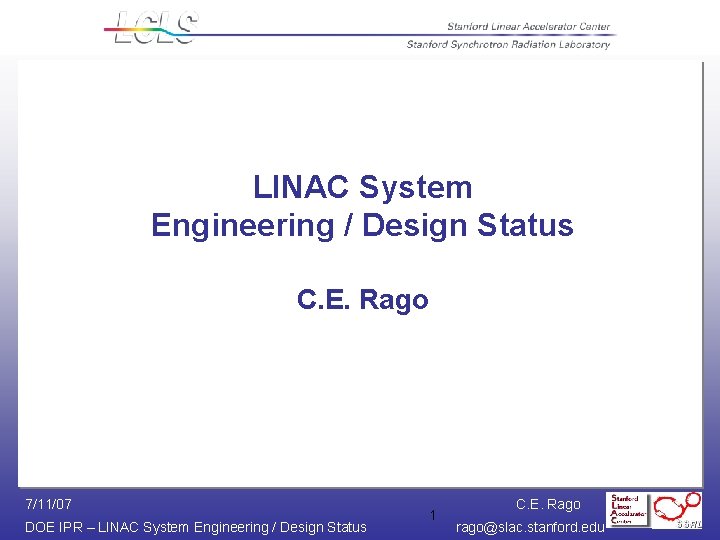

LINAC System Engineering Design Status C E Rago

LINAC System Engineering / Design Status C. E. Rago 7/11/07 DOE IPR – LINAC System Engineering / Design Status 1 C. E. Rago rago@slac. stanford. edu

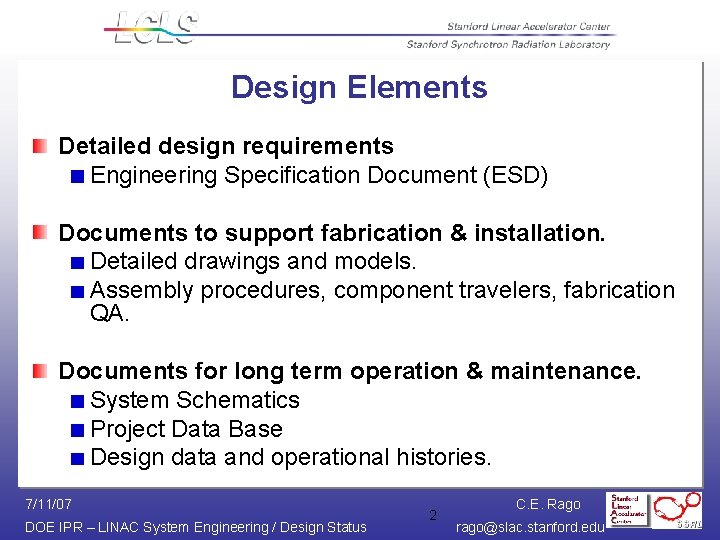

Design Elements Detailed design requirements Engineering Specification Document (ESD) Documents to support fabrication & installation. Detailed drawings and models. Assembly procedures, component travelers, fabrication QA. Documents for long term operation & maintenance. System Schematics Project Data Base Design data and operational histories. 7/11/07 DOE IPR – LINAC System Engineering / Design Status 2 C. E. Rago rago@slac. stanford. edu

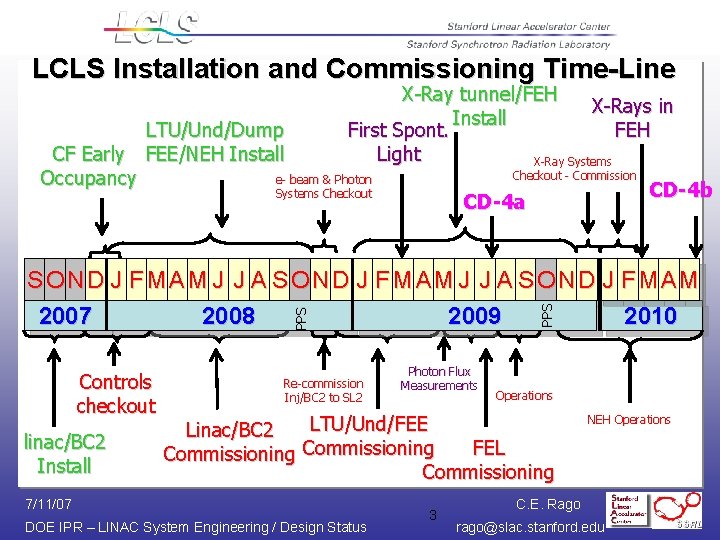

LCLS Installation and Commissioning Time-Line X-Ray tunnel/FEH X-Rays in Install First Spont. FEH Light X-Ray Systems LTU/Und/Dump CF Early FEE/NEH Install e- beam & Photon Occupancy Checkout - Commission Systems Checkout CD-4 a CD-4 b PPS SOND J F MAM J J A SOND J F MAM 2007 2008 2009 2010 Controls checkout linac/BC 2 Install Re-commission Inj/BC 2 to SL 2 Photon Flux Measurements Operations LTU/Und/FEE Linac/BC 2 FEL Commissioning 7/11/07 DOE IPR – LINAC System Engineering / Design Status 3 NEH Operations C. E. Rago rago@slac. stanford. edu

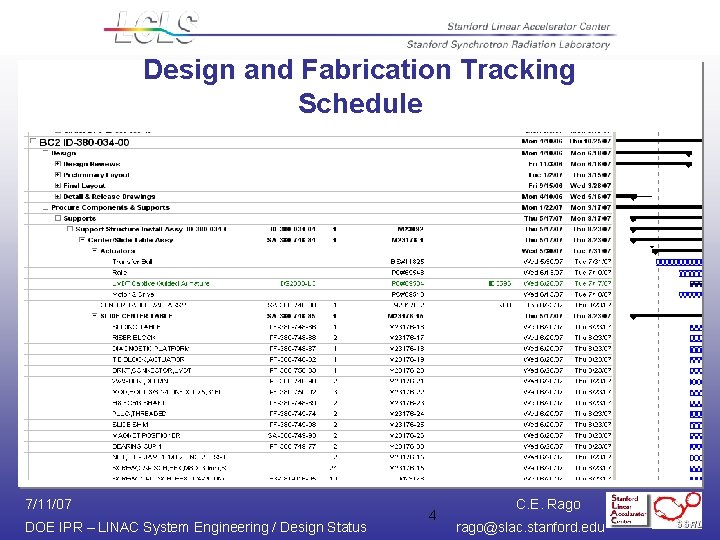

Design and Fabrication Tracking Schedule 7/11/07 DOE IPR – LINAC System Engineering / Design Status 4 C. E. Rago rago@slac. stanford. edu

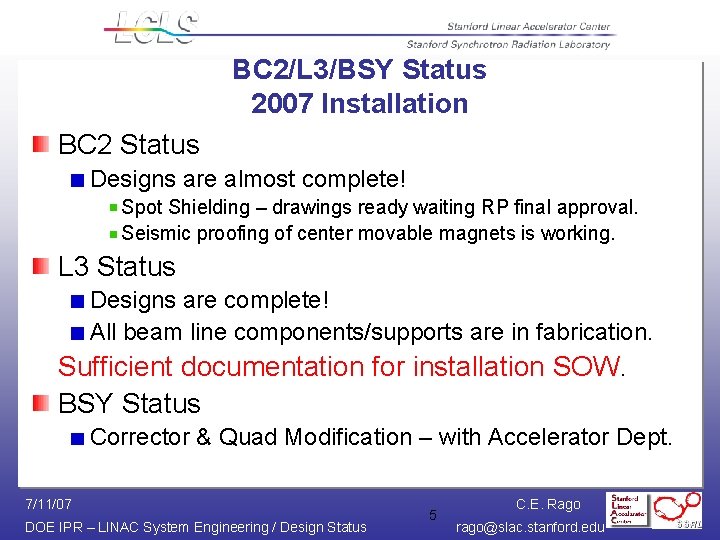

BC 2/L 3/BSY Status 2007 Installation BC 2 Status Designs are almost complete! Spot Shielding – drawings ready waiting RP final approval. Seismic proofing of center movable magnets is working. L 3 Status Designs are complete! All beam line components/supports are in fabrication. Sufficient documentation for installation SOW. BSY Status Corrector & Quad Modification – with Accelerator Dept. 7/11/07 DOE IPR – LINAC System Engineering / Design Status 5 C. E. Rago rago@slac. stanford. edu

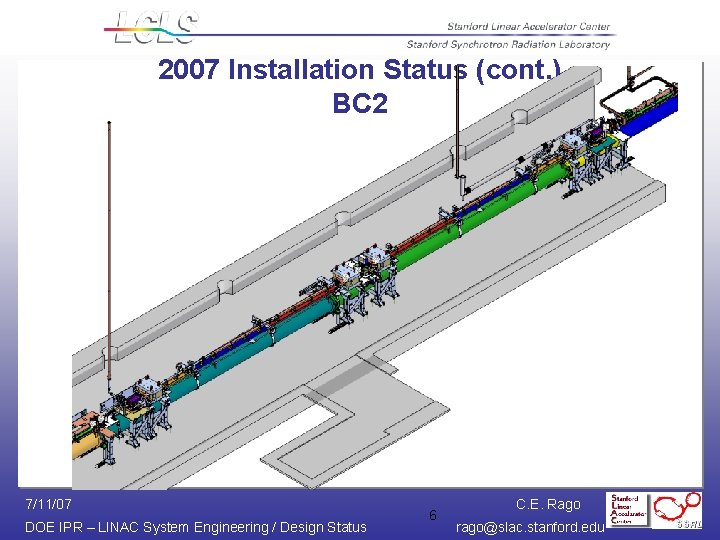

2007 Installation Status (cont. ) BC 2 7/11/07 DOE IPR – LINAC System Engineering / Design Status 6 C. E. Rago rago@slac. stanford. edu

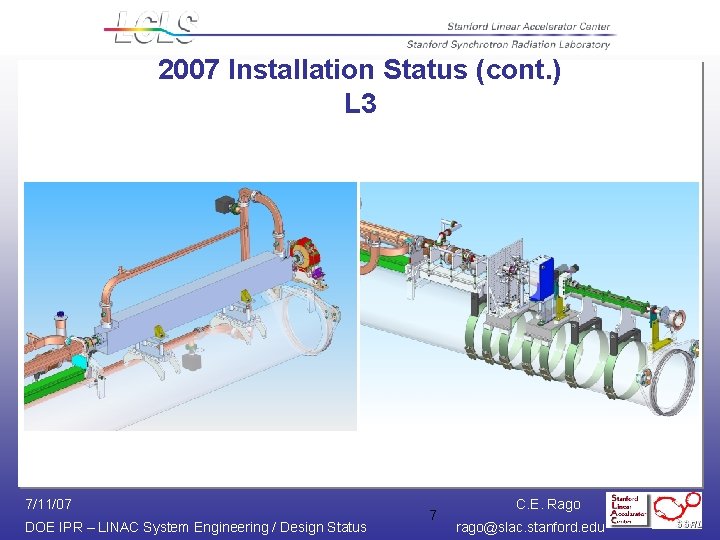

2007 Installation Status (cont. ) L 3 7/11/07 DOE IPR – LINAC System Engineering / Design Status 7 C. E. Rago rago@slac. stanford. edu

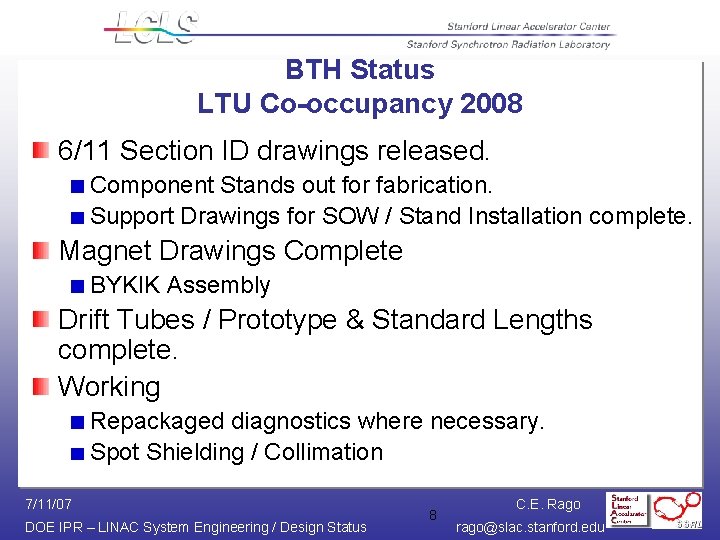

BTH Status LTU Co-occupancy 2008 6/11 Section ID drawings released. Component Stands out for fabrication. Support Drawings for SOW / Stand Installation complete. Magnet Drawings Complete BYKIK Assembly Drift Tubes / Prototype & Standard Lengths complete. Working Repackaged diagnostics where necessary. Spot Shielding / Collimation 7/11/07 DOE IPR – LINAC System Engineering / Design Status 8 C. E. Rago rago@slac. stanford. edu

7/11/07 DOE IPR – LINAC System Engineering / Design Status 9 C. E. Rago rago@slac. stanford. edu

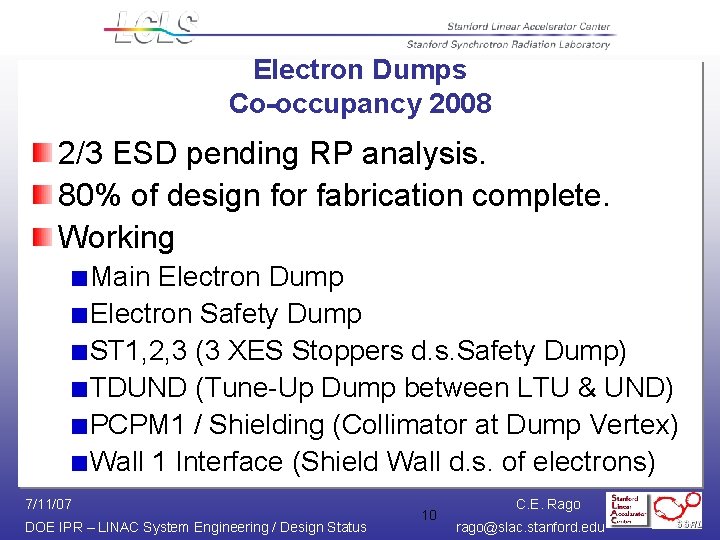

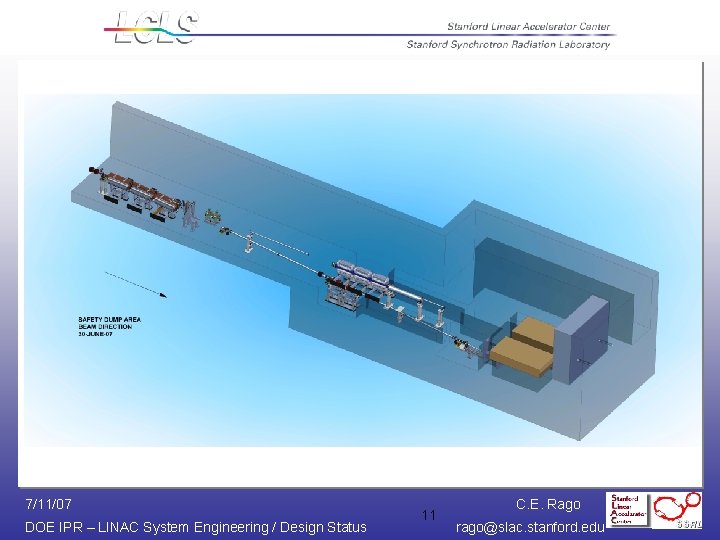

Electron Dumps Co-occupancy 2008 2/3 ESD pending RP analysis. 80% of design for fabrication complete. Working Main Electron Dump Electron Safety Dump ST 1, 2, 3 (3 XES Stoppers d. s. Safety Dump) TDUND (Tune-Up Dump between LTU & UND) PCPM 1 / Shielding (Collimator at Dump Vertex) Wall 1 Interface (Shield Wall d. s. of electrons) 7/11/07 DOE IPR – LINAC System Engineering / Design Status 10 C. E. Rago rago@slac. stanford. edu

7/11/07 DOE IPR – LINAC System Engineering / Design Status 11 C. E. Rago rago@slac. stanford. edu

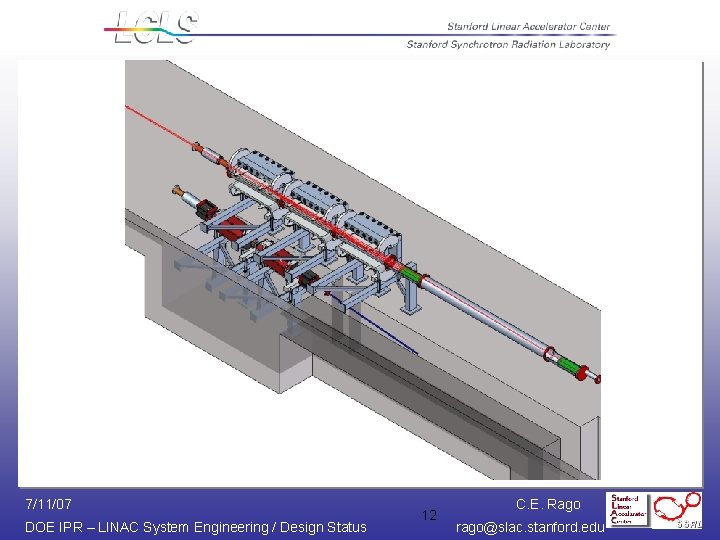

7/11/07 DOE IPR – LINAC System Engineering / Design Status 12 C. E. Rago rago@slac. stanford. edu

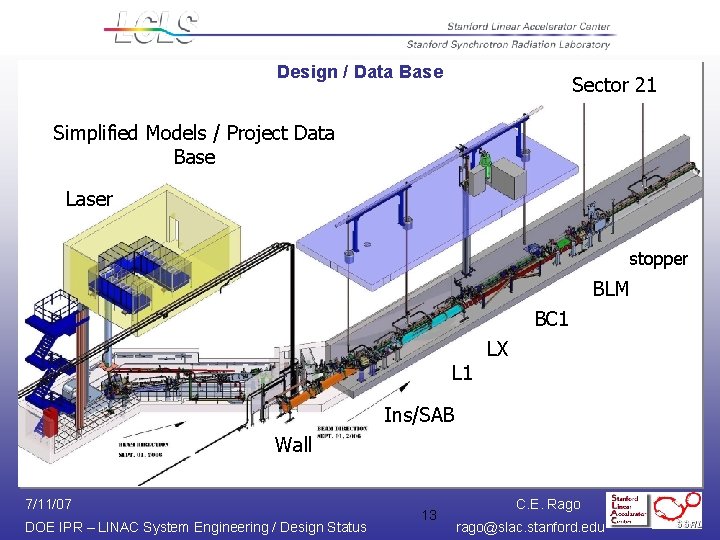

Design / Data Base Sector 21 Simplified Models / Project Data Base Laser stopper BLM BC 1 LX Ins/SAB Wall 7/11/07 DOE IPR – LINAC System Engineering / Design Status 13 C. E. Rago rago@slac. stanford. edu

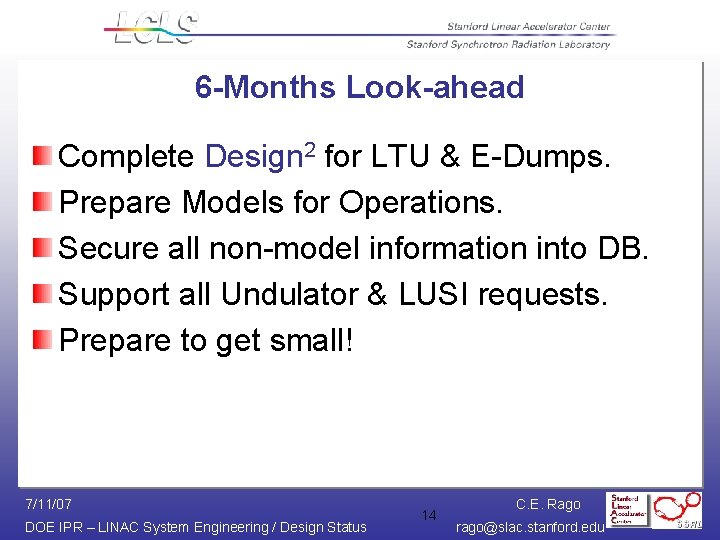

6 -Months Look-ahead Complete Design 2 for LTU & E-Dumps. Prepare Models for Operations. Secure all non-model information into DB. Support all Undulator & LUSI requests. Prepare to get small! 7/11/07 DOE IPR – LINAC System Engineering / Design Status 14 C. E. Rago rago@slac. stanford. edu
