Using Condor An Introduction Condor Week 2006 Condor

Using Condor An Introduction Condor Week 2006 Condor Project Computer Sciences Department University of Wisconsin-Madison condor-admin@cs. wisc. edu http: //www. cs. wisc. edu/condor

Tutorial Outline ›The story of Frieda, the scientist ›Using Condor to manage jobs ›Using Condor to manage resources ›Condor architecture and mechanisms ›Condor on the grid Flocking Condor and other grid technologies ›Stop me if you have any questions! http: //www. cs. wisc. edu/condor 2

Meet Frieda. She is a scientist with a big problem. http: //www. cs. wisc. edu/condor 3

Frieda’s Application … Run a Parameter Sweep of F(x, y, z) for 20 values of x, 10 values of y and 3 values of z 20× 10× 3 = 600 combinations F takes on the average 6 hours to compute on a “typical” workstation (total = 600 × 6 = 3600 hours) F requires a “moderate” (256 MB) amount of memory F performs “moderate” I/O - (x, y, z) is 5 MB and F(x, y, z) is 50 MB http: //www. cs. wisc. edu/condor 4

I have 600 simulations to run. Where can I get help? http: //www. cs. wisc. edu/condor 5

As if by magic, a genie appears from a lamp, and says, “Install a Personal Condor!” http: //www. cs. wisc. edu/condor 6

Getting Condor › Available as a free download from › http: //www. cs. wisc. edu/condor Download Condor for your operating system Available for most UNIX (including Linux and Apple’s OS/X) platforms Also for Windows NT / XP http: //www. cs. wisc. edu/condor 7

Condor Releases › Stable / Developer Releases Version numbering scheme similar to that of the (pre 2. 6) Linux kernels … Major. minor. release • Minor is even (a. b. c): Stable – Examples: 6. 4. 3, 6. 6. 8, 6. 6. 9 – Very stable, mostly bug fixes • Minor is odd (a. b. c): Developer – New features, may have some bugs – Examples: 6. 5. 5, 6. 7. 18, 6. 7. 19 http: //www. cs. wisc. edu/condor 8

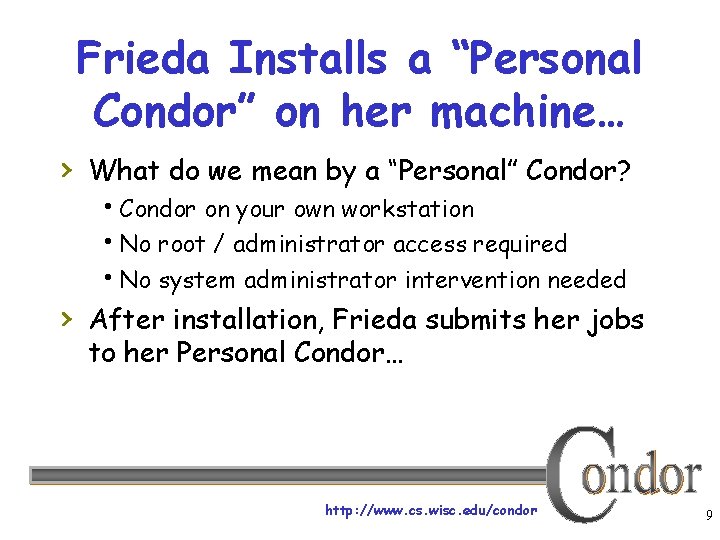

Frieda Installs a “Personal Condor” on her machine… › What do we mean by a “Personal” Condor? Condor on your own workstation No root / administrator access required No system administrator intervention needed › After installation, Frieda submits her jobs to her Personal Condor… http: //www. cs. wisc. edu/condor 9

Frieda’s Condor Pool F(3, 4, 5) 600 Condor jobs personal Condor Frieda's workstation http: //www. cs. wisc. edu/condor 10

Personal Condor? ! What’s the benefit of a Condor “Pool” with just one user and one machine? http: //www. cs. wisc. edu/condor 11

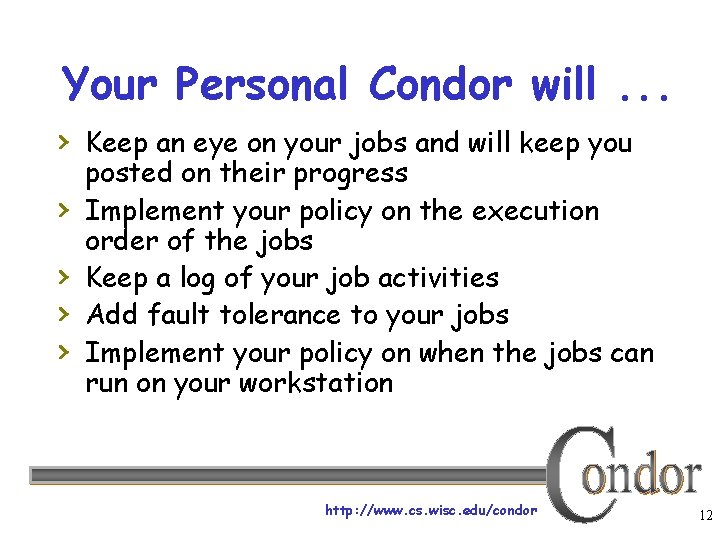

Your Personal Condor will. . . › Keep an eye on your jobs and will keep you › › posted on their progress Implement your policy on the execution order of the jobs Keep a log of your job activities Add fault tolerance to your jobs Implement your policy on when the jobs can run on your workstation http: //www. cs. wisc. edu/condor 12

Getting Started: Submitting Jobs to Condor › Overview: Choose a “Universe” for your job Make your job “batch-ready” Create a submit description file Run condor_submit to put your job in the queue http: //www. cs. wisc. edu/condor 13

1. Choose the “Universe” › Controls how Condor handles jobs › Choices include: Vanilla Standard Grid Java Parallel http: //www. cs. wisc. edu/condor 14

Using the Vanilla Universe • The Vanilla Universe: – Allows running almost any “serial” job – Provides automatic file transfer, etc. – Like vanilla ice cream • Can be used in just about any situation http: //www. cs. wisc. edu/condor 15

2. Make your job batch-ready › Must be able to run in the background: › no interactive input, windows, GUI, etc. Can still use STDIN, STDOUT, and STDERR (the keyboard and the screen), but files are used for these instead of the actual devices Similar to UNIX: • $. /myprogram <input. txt >output. txt http: //www. cs. wisc. edu/condor 16

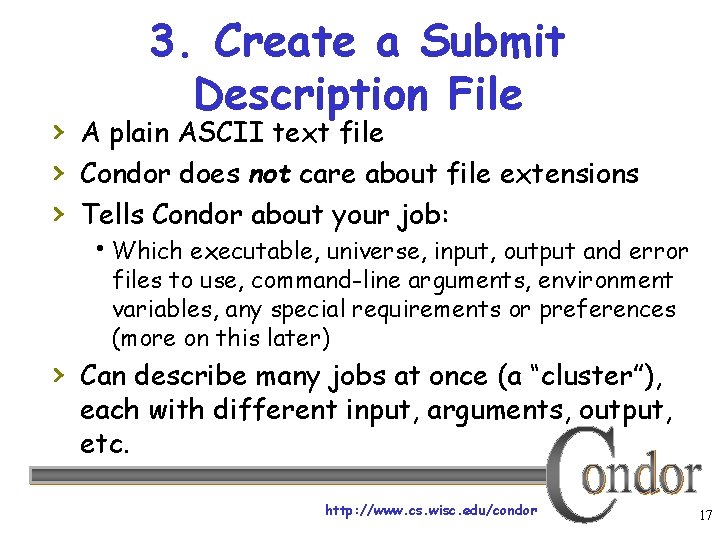

3. Create a Submit Description File › A plain ASCII text file › Condor does not care about file extensions › Tells Condor about your job: Which executable, universe, input, output and error files to use, command-line arguments, environment variables, any special requirements or preferences (more on this later) › Can describe many jobs at once (a “cluster”), each with different input, arguments, output, etc. http: //www. cs. wisc. edu/condor 17

Simple Submit Description File # Simple condor_submit input file # (Lines beginning with # are comments) # NOTE: the words on the left side are not # case sensitive, but filenames are! Universe = vanilla Executable = my_job Output = output. txt Queue http: //www. cs. wisc. edu/condor 18

4. Run condor_submit › You give condor_submit the name of the submit file you have created: condor_submit my_job. submit › condor_submit parses the submit file, checks for it errors, and creates a “Class. Ad” that describes your job(s) Class. Ads: Condor’s internal data representation • Similar to classified ads (as the name implies) • Represent an object & its attributes • Can also describe what an object matches with http: //www. cs. wisc. edu/condor 19

The Job Queue › condor_submit sends your job’s › Class. Ad(s) to the schedd The schedd (more details later): Manages the local job queue Stores the job in the job queue • Atomic operation, two-phase commit • “Like money in the bank” › View the queue with condor_q http: //www. cs. wisc. edu/condor 20

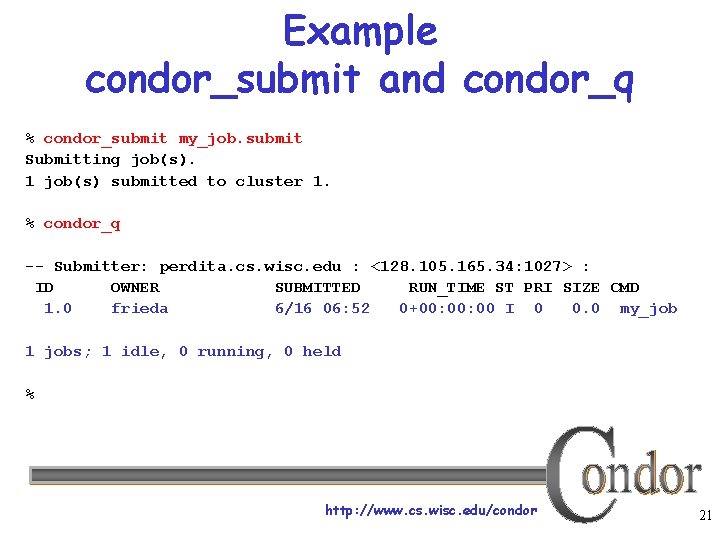

Example condor_submit and condor_q % condor_submit my_job. submit Submitting job(s). 1 job(s) submitted to cluster 1. % condor_q -- Submitter: perdita. cs. wisc. edu : <128. 105. 165. 34: 1027> : ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD 1. 0 frieda 6/16 06: 52 0+00: 00 I 0 0. 0 my_job 1 jobs; 1 idle, 0 running, 0 held % http: //www. cs. wisc. edu/condor 21

Input, output & error files › Controlled by submit file settings › You can define the job’s standard input, standard output and standard error: Read job’s standard input from “input_file”: • Input = input_file • Shell equivalent: program <input_file Write job’s standard ouput to “output_file”: • Output = output_file • Shell equivalent: program >output_file Write job’s standard error to “error_file”: • Error = error_file • Shell equivalent: program 2>error_file http: //www. cs. wisc. edu/condor 22

Feedback on your job › Condor sends you email about events Turn it off: Notification = Never Only on errors: Notification = Error › Condor creates a log file (user log) “The Life Story of a Job” Shows all events in the life of a job Always have a log file To turn it on: Log = filename http: //www. cs. wisc. edu/condor 23

Sample Condor User Log 000 (0001. 000) 05/25 19: 10: 03 Job submitted from host: <128. 105. 146. 14: 1816>. . . 001 (0001. 000) 05/25 19: 12: 17 Job executing on host: <128. 105. 146. 14: 1026>. . . 005 (0001. 000) 05/25 19: 13: 06 Job terminated. (1) Normal termination (return value 0). . . http: //www. cs. wisc. edu/condor 24

Example Submit Description File With Logging # Example condor_submit input file # (Lines beginning with # are comments) # NOTE: the words on the left side are not # case sensitive, but filenames are! Universe = vanilla Executable = /home/frieda/condor/my_job. condor Log = my_job. log ·Job log (from Condor) Input = my_job. in ·Program’s standard input Output = my_job. out ·Program’s standard output Error = my_job. err ·Program’s standard error Arguments = -a 1 -a 2 Initial. Dir = /home/frieda/condor/run Queue http: //www. cs. wisc. edu/condor 25

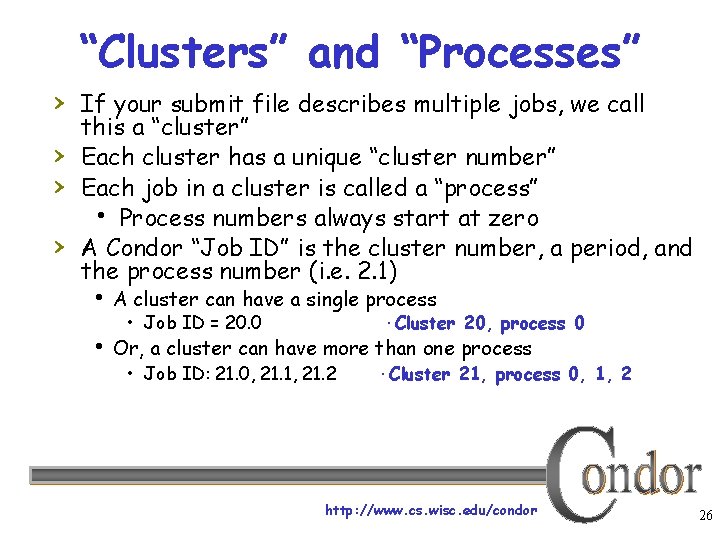

“Clusters” and “Processes” › If your submit file describes multiple jobs, we call › › › this a “cluster” Each cluster has a unique “cluster number” Each job in a cluster is called a “process” Process numbers always start at zero A Condor “Job ID” is the cluster number, a period, and the process number (i. e. 2. 1) A cluster can have a single process • Job ID = 20. 0 ·Cluster 20, process 0 Or, a cluster can have more than one process • Job ID: 21. 0, 21. 1, 21. 2 ·Cluster 21, process 0, 1, 2 http: //www. cs. wisc. edu/condor 26

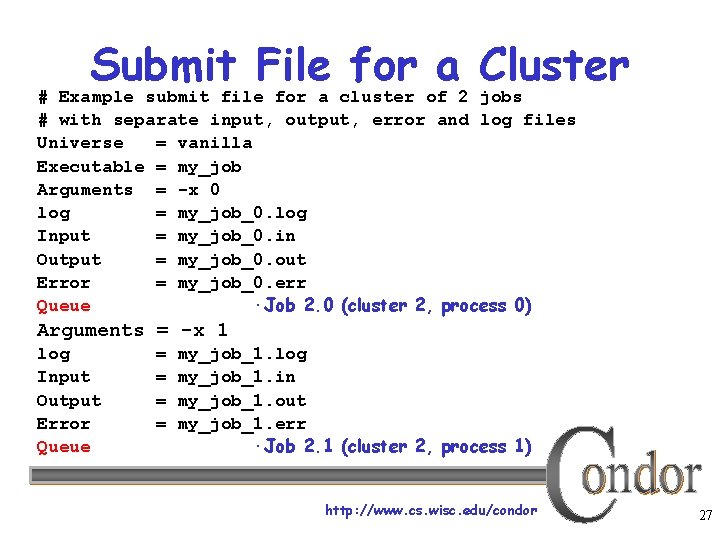

Submit File for a Cluster # Example submit file for a cluster of 2 jobs # with separate input, output, error and log files Universe = vanilla Executable = my_job Arguments = -x 0 log = my_job_0. log Input = my_job_0. in Output = my_job_0. out Error = my_job_0. err Queue ·Job 2. 0 (cluster 2, process 0) Arguments = -x 1 log Input Output Error Queue = = my_job_1. log my_job_1. in my_job_1. out my_job_1. err ·Job 2. 1 (cluster 2, process 1) http: //www. cs. wisc. edu/condor 27

Submitting The Job % condor_submit my_job. submit-file Submitting job(s). 2 job(s) submitted to cluster 2. % condor_q -- Submitter: perdita. cs. wisc. edu : <128. 105. 165. 34: 1027> : ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD 1. 0 frieda 4/15 06: 52 0+00: 02: 11 R 0 0. 0 my_job –a 1 –a 2 2. 0 frieda 4/15 06: 56 0+00: 00 I 0 0. 0 my_job –x 0 2. 1 frieda 4/15 06: 56 0+00: 00 I 0 0. 0 my_job –x 1 3 jobs; 2 idle, 1 running, 0 held % http: //www. cs. wisc. edu/condor 28

Back to our 600 jobs… › We could put all input, output, error & log files in the one directory One of each type for each job That’d be 2400 files (4 files × 600 jobs) Difficult to sort through › Better: Create a subdirectory for each run http: //www. cs. wisc. edu/condor 29

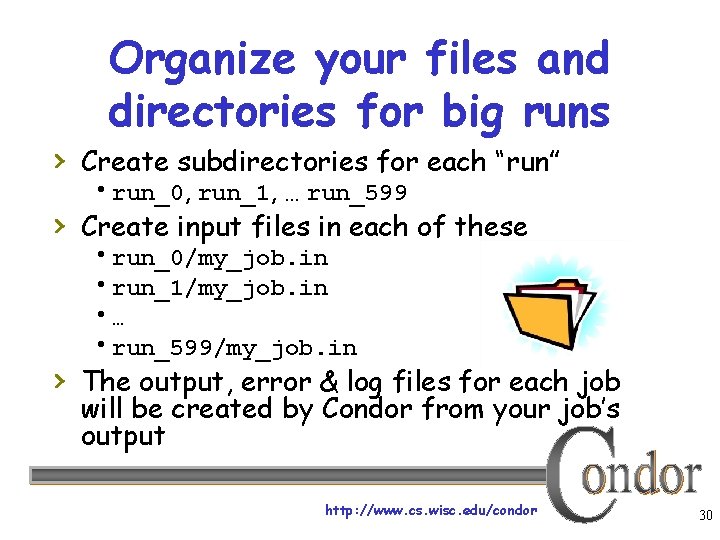

Organize your files and directories for big runs › Create subdirectories for each “run” run_0, run_1, … run_599 › Create input files in each of these run_0/my_job. in run_1/my_job. in … run_599/my_job. in › The output, error & log files for each job will be created by Condor from your job’s output http: //www. cs. wisc. edu/condor 30

Submit Description File for 600 Jobs # Cluster of Universe = Executable = Arguments = Log = Input = Output = Error = Initial. Dir = Queue Arguments = Initial. Dir = Queue 600 jobs with different directories vanilla my_job -x 0 my_job. log my_job. in my_job. out my_job. err run_0 ·Log, input, output & error files -> run_0 ·Job 3. 0 (Cluster 3, Process 0) -x 1 run_1 ·Log, input, output & error files -> run_1 ·Job 3. 1 (Cluster 3, Process 1) ·Do this 598 more times………… http: //www. cs. wisc. edu/condor 31

Submit File for a Big Cluster of Jobs › We just submitted 1 cluster with 600 › › › processes All the input/output files will be in different directories The submit file is pretty unwieldy (over 1200 lines) Isn’t there a better way? http: //www. cs. wisc. edu/condor 32

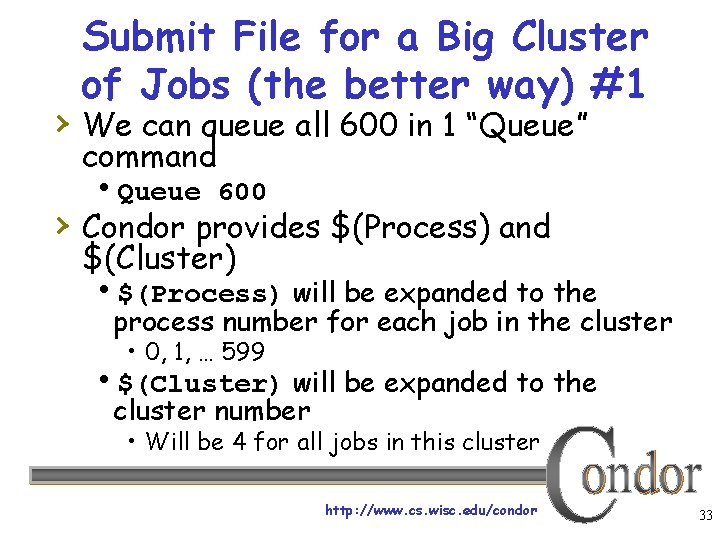

Submit File for a Big Cluster of Jobs (the better way) #1 › We can queue all 600 in 1 “Queue” command Queue 600 › Condor provides $(Process) and $(Cluster) $(Process) will be expanded to the process number for each job in the cluster • 0, 1, … 599 $(Cluster) will be expanded to the cluster number • Will be 4 for all jobs in this cluster http: //www. cs. wisc. edu/condor 33

Submit File for a Big Cluster of Jobs (the better way) #2 › The initial directory for each job can be specified using $(Process) Initial. Dir = run_$(Process) Condor will expand these to “run_0”, “run_1”, … “run_599” directories › Similarly, arguments can be variable Arguments = -x $(Process) Condor will expand these to “-x 0”, -x 1”, … “-x 599” http: //www. cs. wisc. edu/condor “ 34

Better Submit File for 600 Jobs # Example condor_submit input file that defines # a cluster of 600 jobs with different directories Universe = vanilla Executable = my_job Arguments = –x $(Process) ·–x 0, -x 1, … -x 599 Log = my_job. log Input = my_job. in Output = my_job. out Error = my_job. err Initial. Dir = run_$(Process) ·run_0 … run_599 Queue 600 ·Jobs 4. 0 … 4. 599 http: //www. cs. wisc. edu/condor 35

Now, we submit it… $ condor_submit my_job. submit Submitting job(s). . . . . . . . . . . . . . . . Logging submit event(s). . . . . . . . . . . . . . . . 600 job(s) submitted to cluster 4. http: //www. cs. wisc. edu/condor 36

And, Check the queue $ condor_q -- Submitter: ID OWNER 4. 0 frieda 4. 1 frieda 4. 2 frieda 4. 3 frieda. . . 4. 598 frieda 4. 599 frieda x. cs. wisc. edu : <128. 105. 121. 53: 510> : x. cs. wisc. edu SUBMITTED RUN_TIME ST PRI SIZE CMD 4/20 12: 08 0+00: 05 R 0 9. 8 my_job -arg 1 –x 0 4/20 12: 08 0+00: 03 I 0 9. 8 my_job -arg 1 –x 1 4/20 12: 08 0+00: 01 I 0 9. 8 my_job -arg 1 –x 2 4/20 12: 08 0+00: 00 I 0 9. 8 my_job -arg 1 –x 3 4/20 12: 08 0+00: 00: 00 I 0 0 9. 8 my_job -arg 1 –x 598 my_job -arg 1 –x 599 600 jobs; 599 idle, 1 running, 0 held http: //www. cs. wisc. edu/condor 37

Removing jobs › If you want to remove a job from the Condor › › queue, you use condor_rm You can only remove jobs that you own (you can’t run condor_rm on someone else’s jobs unless you are root on UNIX or administrator on Windows) You can give specific job ID’s (cluster or cluster. proccondor condor_rm 4. 0 condor_rm 4 ·Removes a single job condor_rm -a ·Removes all jobs / clusters ·Removes the whole cluster › Or, remove all of your jobs with “-a” http: //www. cs. wisc. edu/condor 38

Another Universe http: //www. cs. wisc. edu/condor 39

More about Condor Universes › Multiple Condor Universes Different feature sets › We’ve been using the “Vanilla” universe Can be used to run any serial job › And, introducing: Scheduler Local http: //www. cs. wisc. edu/condor 40

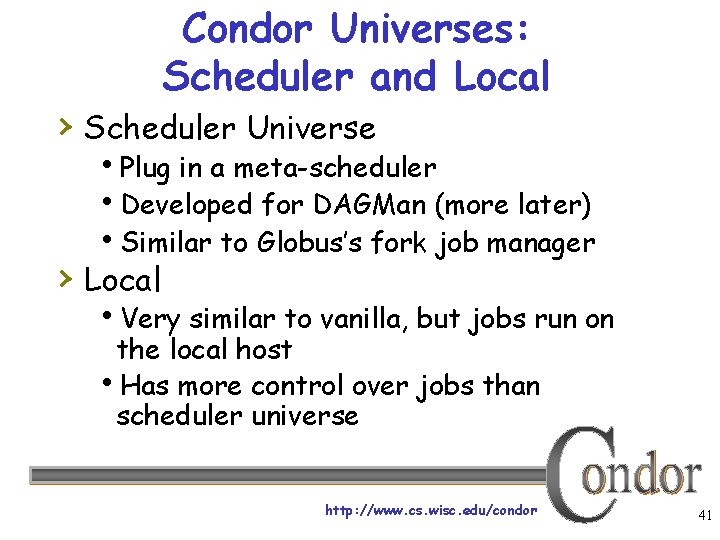

Condor Universes: Scheduler and Local › Scheduler Universe Plug in a meta-scheduler Developed for DAGMan (more later) Similar to Globus’s fork job manager › Local Very similar to vanilla, but jobs run on the local host Has more control over jobs than scheduler universe http: //www. cs. wisc. edu/condor 41

F(3, 4, 5) Frieda’s Condor Pool 600 Condor jobs personal Condor Frieda's workstation Frieda can still only run one job at a time, however. http: //www. cs. wisc. edu/condor 42

Good News (Boss Fat Cat) The Boss says Frieda can add her co-workers’ desktop machines into her Condor pool as well… but only if they can also submit jobs. http: //www. cs. wisc. edu/condor 43

Adding nodes › Frieda installs Condor on the desktop machines, and configures them with her machine as the central manager The central manager: • Central repository for the whole pool • Performs job / machine matching, etc. › These are “non-dedicated” nodes, meaning that they can't always run Condor jobs http: //www. cs. wisc. edu/condor 44

600 Condor jobs Frieda’s Condor Pool Now, Frieda and her co-workers can run multiple jobs at a time so their work completes sooner. http: //www. cs. wisc. edu/condor 45

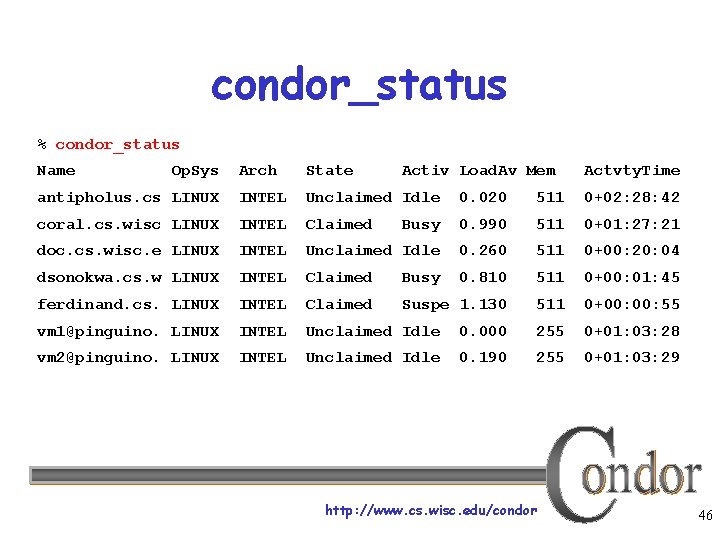

condor_status % condor_status Name Op. Sys Arch State Activ Load. Av Mem antipholus. cs LINUX INTEL Unclaimed Idle 0. 020 511 0+02: 28: 42 coral. cs. wisc LINUX INTEL Claimed Busy 0. 990 511 0+01: 27: 21 doc. cs. wisc. e LINUX INTEL Unclaimed Idle 0. 260 511 0+00: 20: 04 dsonokwa. cs. w LINUX INTEL Claimed Busy 0. 810 511 0+00: 01: 45 ferdinand. cs. LINUX INTEL Claimed Suspe 1. 130 511 0+00: 55 vm 1@pinguino. LINUX INTEL Unclaimed Idle 0. 000 255 0+01: 03: 28 vm 2@pinguino. LINUX INTEL Unclaimed Idle 0. 190 255 0+01: 03: 29 http: //www. cs. wisc. edu/condor Actvty. Time 46

How can my jobs access their data files? http: //www. cs. wisc. edu/condor 47

Access to Data in Condor › Use shared filesystem if available › No shared filesystem? Condor can transfer files • Can automatically send back changed files • Atomic transfer of multiple files • Can be encrypted over the wire Remote I/O Socket Standard Universe can use remote system calls (more on this later) http: //www. cs. wisc. edu/condor 48

Condor File Transfer › Should. Transfer. Files = YES Always transfer files to execution site › Should. Transfer. Files = NO Rely on a shared filesystem › Should. Transfer. Files = IF_NEEDED Will automatically transfer the files if the submit and execute machine are not in the same File. System. Domain Universe = vanilla Executable = my_job Log = my_job. log Should. Transfer. Files = IF_NEEDED Transfer_input_files = dataset. $(Process), common. data Transfer_output_files = The. Answer. dat Queue 600 http: //www. cs. wisc. edu/condor 49

We Need More › Condor is managing and running our jobs, but: Our CPU requirements are greater than our resources Jobs get vacated when people use their workstations http: //www. cs. wisc. edu/condor 50

Happy Day! Frieda’s organization purchased a Dedicated Cluster! › Frieda Installs Condor on all the › › dedicated Cluster nodes Frieda also adds a dedicated central manager She configures her entire pool with this new host as the central manager… http: //www. cs. wisc. edu/condor 51

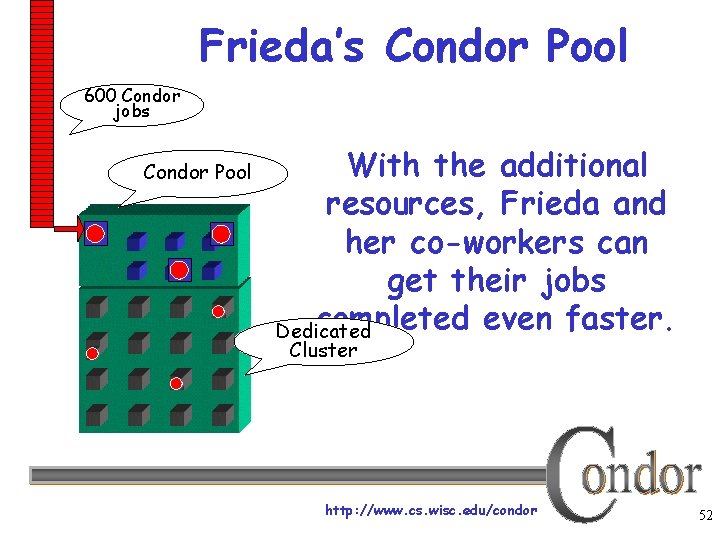

Frieda’s Condor Pool 600 Condor jobs Condor Pool With the additional resources, Frieda and her co-workers can get their jobs completed even faster. Dedicated Cluster http: //www. cs. wisc. edu/condor 52

What Condor Daemons are running on my machine, and what do they do? http: //www. cs. wisc. edu/condor 53

condor_master › Starts up all other Condor daemons › If there any problems and a daemon › exits, it restarts the daemon and sends email to the administrator Acts as the server for many Condor remote administration commands: condor_reconfig, condor_restart, condor_off, condor_on, condor_config_val, etc. http: //www. cs. wisc. edu/condor 54

Condor Daemon Layout Personal Condor / Central Manager Master startd schedd negotiator collector = Process Spawned http: //www. cs. wisc. edu/condor 55

Central Manager: condor_collector › Central manager: central repository and match › maker for whole pool Collects information from all other Condor daemons in the pool “Directory Service” / Database for a Condor pool › Each daemon sends a periodic update called a › “Class. Ad” to the collector Services queries for information: Queries from other Condor daemons Queries from users (condor_status) › Only on the Central Manager › At least one collector per pool http: //www. cs. wisc. edu/condor 56

Condor Pool Layout: Collector = Process Spawned = Class. Ad Communication Pathway Central Manager Master Collector http: //www. cs. wisc. edu/condor 57

Central Manager: condor_negotiator › Performs “matchmaking” in Condor › Each “Negotiation Cycle” (typically 5 minutes): Gets information from the collector about all available machines and all idle jobs Tries to match jobs with machines that will serve them Both the job and the machine must satisfy each other’s requirements › Only one negotiator per pool › Only on the Central Manager http: //www. cs. wisc. edu/condor 58

Condor Pool Layout: Negotiator = Process Spawned = Class. Ad Communication Pathway Central Manager negotiator Master Collector http: //www. cs. wisc. edu/condor 59

Execute Hosts: condor_startd › Execute host: machines that run user jobs › Represents a machine to the Condor system › Responsible for starting, suspending, and › › › stopping jobs Enforces the wishes of the machine owner (the owner’s “policy”… more on this in the administrator’s tutorial) Creates a “starter” for each running job One startd runs on each execute node http: //www. cs. wisc. edu/condor 60

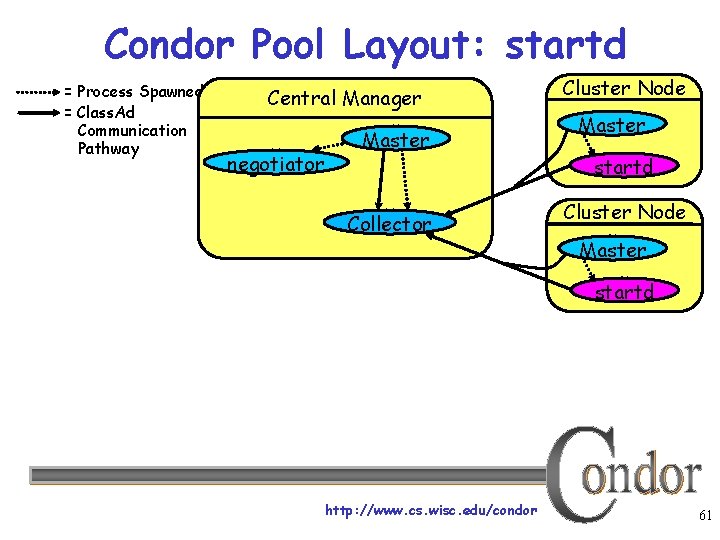

Condor Pool Layout: startd = Process Spawned = Class. Ad Communication Pathway Central Manager negotiator Master Collector Cluster Node Master startd http: //www. cs. wisc. edu/condor 61

Submit Hosts: condor_schedd › Submit hosts: machines that users can submit › › › jobs on Maintains the persistent queue of jobs Responsible for contacting available machines and sending them jobs Services user commands which manipulate the job queue: condor_submit, condor_rm, condor_q, condor_hold, condor_release, condor_prio, … › Creates a “shadow” for each running job › One schedd runs on each submit host http: //www. cs. wisc. edu/condor 62

Condor Pool Layout: schedd = Process Spawned = Class. Ad Communication Pathway Central Manager negotiator schedd Master Collector Cluster Node Master startd Cluster Node Master Desktop Master startd schedd Desktop startd Master startd schedd http: //www. cs. wisc. edu/condor 63

Condor Pool Layout: master = Process Spawned = Class. Ad Communication Pathway Cluster Node Central Manager negotiator schedd Master startd Cluster Node Collector Master Desktop Master startd schedd Desktop startd Master startd schedd http: //www. cs. wisc. edu/condor 64

Some of the machines in the Pool do not have enough memory or scratch disk space to run my job! http: //www. cs. wisc. edu/condor 65

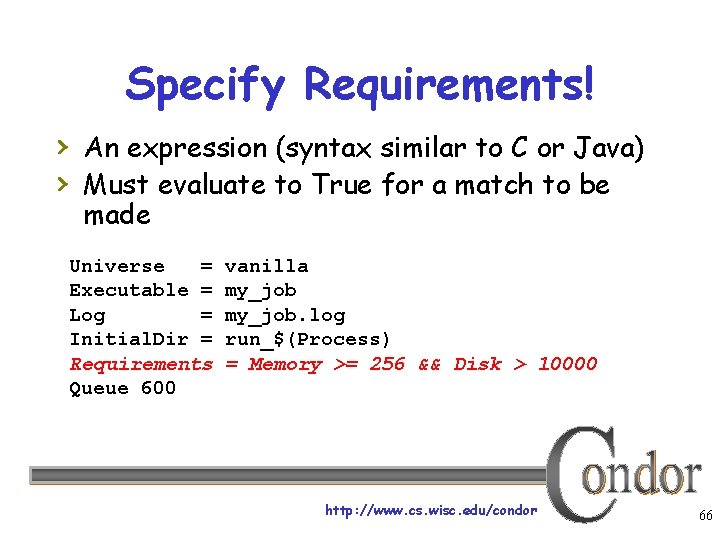

Specify Requirements! › An expression (syntax similar to C or Java) › Must evaluate to True for a match to be made Universe = Executable = Log = Initial. Dir = Requirements Queue 600 vanilla my_job. log run_$(Process) = Memory >= 256 && Disk > 10000 http: //www. cs. wisc. edu/condor 66

Specify Rank! › All matches which meet the requirements › can be sorted by preference with a Rank expression. Higher the Rank, the better the match Universe = vanilla Executable = my_job Log = my_job. log Arguments = -arg 1 –arg 2 Initial. Dir = run_$(Process) Requirements = Memory >= 256 && Disk > 10000 Rank = (KFLOPS*10000) + Memory Queue 600 http: //www. cs. wisc. edu/condor 67

Now my jobs aren’t running. . What’s wrong? http: //www. cs. wisc. edu/condor 68

Checking the queue › Check the queue with condor_q: bash-2. 05 a$ condor_q -- Submitter: x. cs. wisc. edu : <128. 105. 121. 53: 510> : x. cs. wisc. edu ID OWNER SUBMITTED RUN_TIME ST PRI SIZE CMD 5. 0 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 0 5. 1 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 1 5. 2 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 2 5. 3 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 3 5. 4 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 4 5. 5 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 5 5. 6 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 6 5. 7 frieda 4/20 12: 23 0+00: 00 I 0 9. 8 my_job -arg 1 –n 7 6. 0 frieda 4/20 13: 22 0+00: 00 H 0 9. 8 my_job -arg 1 –arg 2 8 jobs; 8 idle, 0 running, 1 held http: //www. cs. wisc. edu/condor 69

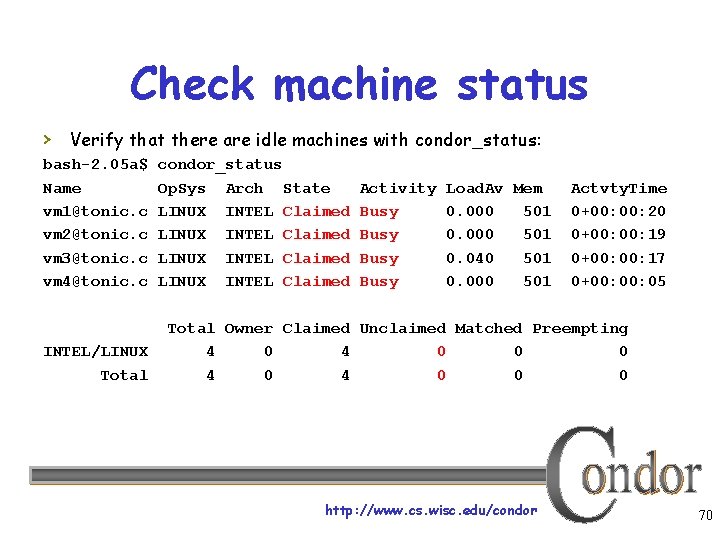

Check machine status › Verify that there are idle machines with condor_status: bash-2. 05 a$ Name vm 1@tonic. c vm 2@tonic. c vm 3@tonic. c vm 4@tonic. c INTEL/LINUX Total condor_status Op. Sys Arch State LINUX INTEL Claimed Activity Busy Load. Av Mem 0. 000 501 0. 040 501 0. 000 501 Actvty. Time 0+00: 20 0+00: 19 0+00: 17 0+00: 05 Total Owner Claimed Unclaimed Matched Preempting 4 0 4 0 0 0 http: //www. cs. wisc. edu/condor 70

Look in Job Log › Look in your job log for clues: bash-2. 05 a$ cat my_job. log 000 (031. 000) 04/20 14: 47: 31 Job submitted from host: <128. 105. 121. 53: 48740>. . . 007 (031. 000) 04/20 15: 02: 00 Shadow exception! Error from starter on gig 06. stat. wisc. edu: Failed to open '/scratch. 1/frieda/workspace/v 67/condortest/test 3/run_0/my_job. in' as standard input: No such file or directory (errno 2) 0 - Run Bytes Sent By Job 0 - Run Bytes Received By Job. . . http: //www. cs. wisc. edu/condor 71

Still not running? Exercise a little patience › On a busy pool, it can take a while to match and start your jobs › Wait at least a negotiation cycle or two (typically 5 minutes) http: //www. cs. wisc. edu/condor 72

Look to condor_q for help: condor_q -analyze bash-2. 05 a$ condor_q -ana 29 --029. 000: Run analysis summary. Of 1243 machines, 1243 are rejected by your job's requirements 0 are available to run your job WARNING: Be advised: No resources matched request's constraints Check the Requirements expression below: Requirements = ((Memory > 8192)) && (Arch == "INTEL") && (Op. Sys == "LINUX") && (Disk >= Disk. Usage) && (TARGET. File. System. Domain == MY. File. System. Domain) http: //www. cs. wisc. edu/condor 73

Queue analysis for 6. 7: condor_q –better-analyze bash-2. 05 a$ condor_q -better-ana 29 The Requirements expression for your job is: ( ( target. Memory > 8192 ) ) && ( target. Arch == "INTEL" ) && ( target. Op. Sys == "LINUX" ) && ( target. Disk >= Disk. Usage ) && ( TARGET. File. System. Domain == MY. File. System. Domain ) Condition Machines Matched Suggestion ------------1 ( ( target. Memory > 8192 ) ) 0 MODIFY TO 4000 2 ( TARGET. File. System. Domain == "cs. wisc. edu" )584 3 ( target. Arch == "INTEL" ) 1078 4 ( target. Op. Sys == "LINUX" ) 1100 5 ( target. Disk >= 13 ) 1243 http: //www. cs. wisc. edu/condor 74

Use condor_status to learn about resources: bash-2. 05 a$ condor_status –const 'Memory > 8192' (no output means no matches) bash-2. 05 a$ condor_status -const 'Memory > 4096' Name Op. Sys Arch State Activ Load. Av Mem Actvty. Time vm 1@s 0 -03. cs. LINUX X 86_64 Unclaimed Idle 0. 000 5980 1+05: 35: 05 vm 2@s 0 -03. cs. LINUX X 86_64 Unclaimed Idle 0. 000 5980 13+05: 37: 03 vm 1@s 0 -04. cs. LINUX X 86_64 Unclaimed Idle 0. 000 7988 vm 2@s 0 -04. cs. LINUX X 86_64 Unclaimed Idle 0. 000 7988 13+06: 03: 47 1+06: 00: 05 Total Owner Claimed Unclaimed Matched Preempting X 86_64/LINUX 4 0 0 Total 4 0 0 http: //www. cs. wisc. edu/condor 75

We’ve seen how Condor can: Keep an eye on your jobs and will keep you posted on their progress Implement your policy on the execution order of the jobs Keep a log of your job activities http: //www. cs. wisc. edu/condor 76

My new jobs run for 20 days… › What happens when a job is forced off it’s CPU? Preempted by higher priority user or job Vacated because of user activity › How can I add fault tolerance to my jobs? http: //www. cs. wisc. edu/condor 77

Run them in Todd’s Private Universe? http: //www. cs. wisc. edu/condor 78

Condor’s Standard Universe to the rescue! › Support for transparent process checkpoint and restart › Remote system calls (remote I/O) Your job can read / write files as if they were local http: //www. cs. wisc. edu/condor 79

Process Checkpointing in the Standard Universe › Condor’s process checkpointing provides a › mechanism to automatically save the state of a job The process can then be restarted from right where it was checkpointed After preemption, crash, etc. http: //www. cs. wisc. edu/condor 80

Checkpointing details › The entire state of a process into a checkpoint file Memory image CPU registers I/O, etc. › Typically, no changes to your job’s source › code needed Your job must be relinked with Condor’s Standard Universe support library http: //www. cs. wisc. edu/condor 81

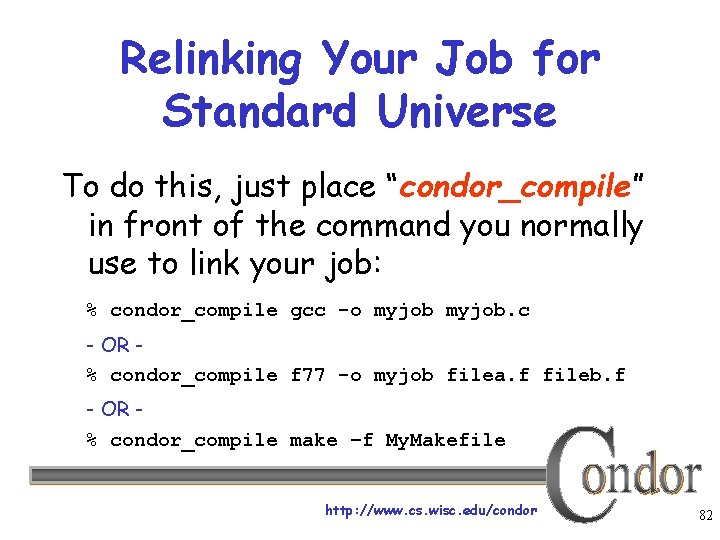

Relinking Your Job for Standard Universe To do this, just place “condor_compile” in front of the command you normally use to link your job: % condor_compile gcc -o myjob. c - OR % condor_compile f 77 -o myjob filea. f fileb. f - OR % condor_compile make –f My. Makefile http: //www. cs. wisc. edu/condor 82

Limitations of the Standard Universe › Condor’s checkpointing is not at the kernel level. Standard Universe the job may not: • Fork() • Use kernel threads • Use some forms of IPC, such as pipes and shared memory › Must have access to source code to relink › Many typical scientific jobs are OK http: //www. cs. wisc. edu/condor 83

When will Condor checkpoint your job? › Periodically, if desired For fault tolerance › When your job is preempted by a higher › › priority job When your job is vacated because the execution machine becomes busy When you explicitly run condor_checkpoint, condor_vacate, condor_off or condor_restart command http: //www. cs. wisc. edu/condor 84

Remote System Calls in the Standard Universe › I/O system calls are trapped and sent back › to submit machine Allows transparent migration across administrative domains Checkpoint on machine A, restart on B › No source code changes required › Language independent › Opportunities for application steering Example: Condor tells customer process “how” to open files http: //www. cs. wisc. edu/condor 85

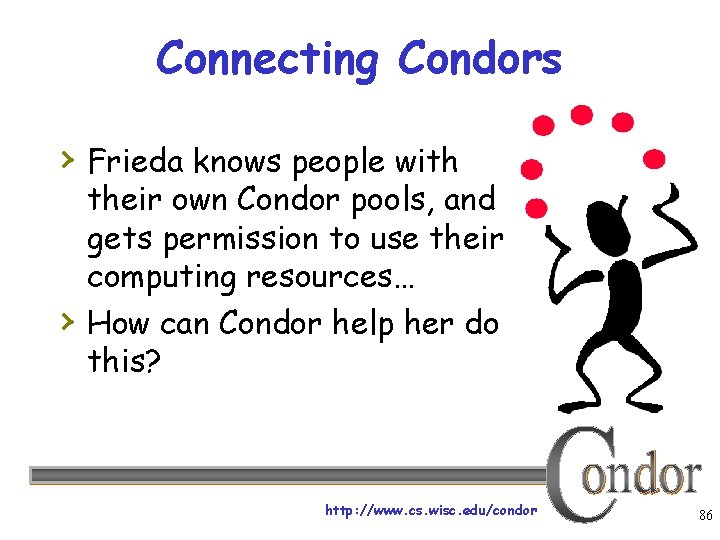

Connecting Condors › Frieda knows people with › their own Condor pools, and gets permission to use their computing resources… How can Condor help her do this? http: //www. cs. wisc. edu/condor 86

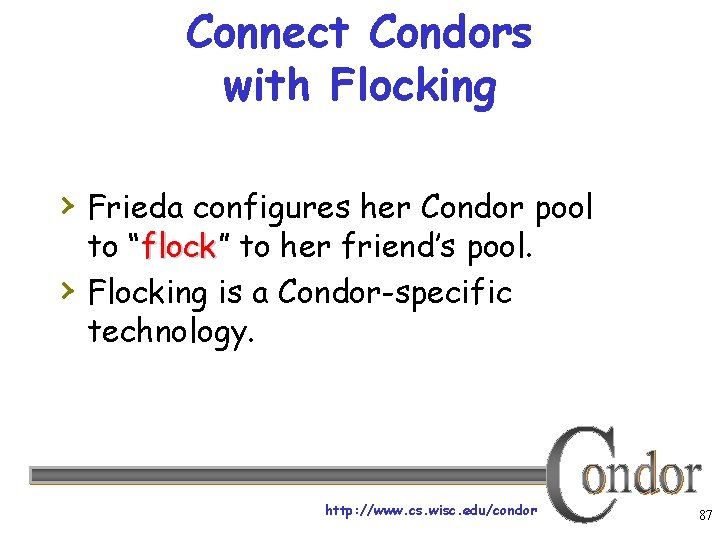

Connect Condors with Flocking › Frieda configures her Condor pool › to “flock” flock to her friend’s pool. Flocking is a Condor-specific technology. http: //www. cs. wisc. edu/condor 87

Frieda’s Condor Pool 600 Condor jobs Condor Pool Friendly Condor Pool http: //www. cs. wisc. edu/condor 88

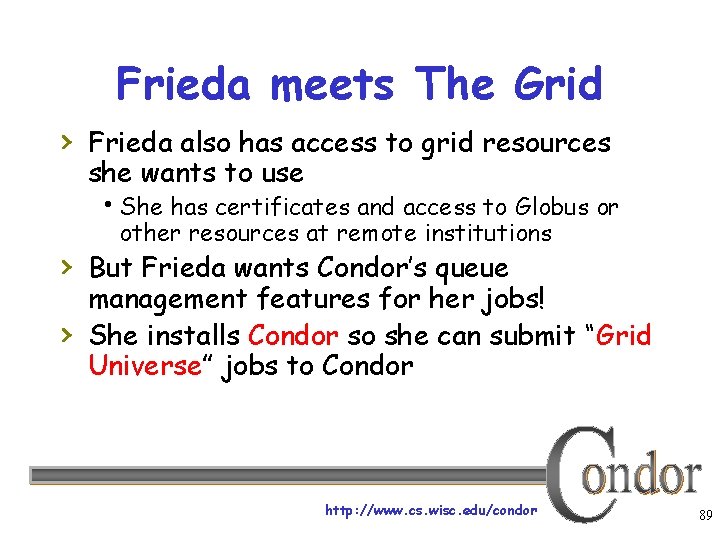

Frieda meets The Grid › Frieda also has access to grid resources she wants to use She has certificates and access to Globus or other resources at remote institutions › But Frieda wants Condor’s queue › management features for her jobs! She installs Condor so she can submit “Grid Universe” jobs to Condor http: //www. cs. wisc. edu/condor 89

“Grid” Universe › All handled in your submit file › Supports a number of “back end” types: Globus: GT 2, GT 3, GT 4 Nordu. Grid UNICORE Condor PBS LSF http: //www. cs. wisc. edu/condor 90

Grid Universe & Globus 2/3 › Used for a Globus GT 2 / GT 3 back-end “Condor-G” › Grid_Resource = (gt 2|gt 3) Head-Node › Globus_rsl = <RSL-String> › Example: Universe = grid Grid_Resource = gt 2 beak. cs. wisc. edu/jobmanager Globus_rsl = (queue=long)(project=atom-smasher) http: //www. cs. wisc. edu/condor 91

Grid Universe & Globus 4 › Used for a Globus GT 4 back-end › Grid_Resource = gt 4 <Head-Node> › › <Scheduler-Type> Globus_XML = <XML-String> Example: Universe = grid Grid_Resource = gt 4 beak. cs. wisc. edu Condor Globus_xml = <queue>long</queue><project>atomsmasher</project> http: //www. cs. wisc. edu/condor 92

Grid Universe & Condor › Used for a Condor back-end “Condor-C” › Grid_Resource = condor <Schedd-Name> › <Collector-Name> Remote_<param> = <value> “Remote_” is stripped off › Example: Universe = grid Grid_Resource = condor beak condor. cs. wisc. edu Remote_Universe = standard http: //www. cs. wisc. edu/condor 93

Grid Universe & Nordu. Grid › Used for a Nordu. Grid back-end › Grid_Resource = nordugrid <Host› Name> Example: Universe = grid Grid_Resource = nordugrid ngrid. cs. wisc. edu http: //www. cs. wisc. edu/condor 94

Grid Universe & UNICORE › Used for a UNICORE back-end › Grid_Resource = unicore <USite> › <VSite> Example: Universe = grid Grid_Resource = unicore uhost. cs. wisc. edu vhost http: //www. cs. wisc. edu/condor 95

Grid Universe & PBS › › Used for a PBS back-end New in 6. 7. 19 Grid_Resource = pbs Example: Universe = grid Grid_Resource = pbs http: //www. cs. wisc. edu/condor 96

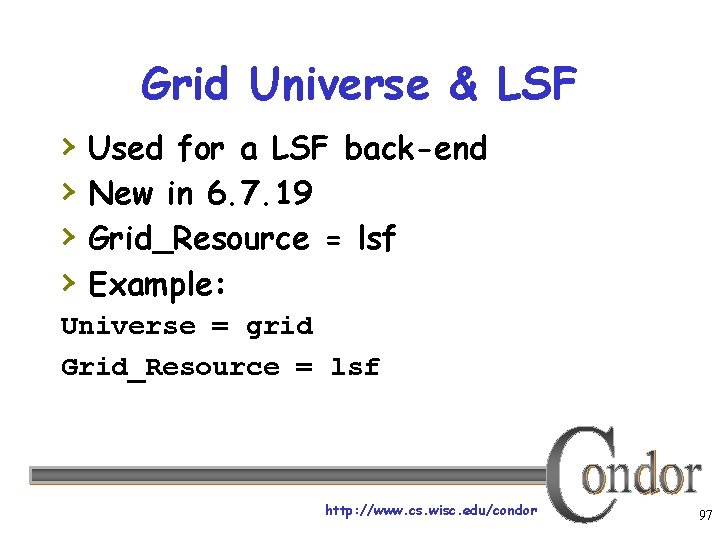

Grid Universe & LSF › › Used for a LSF back-end New in 6. 7. 19 Grid_Resource = lsf Example: Universe = grid Grid_Resource = lsf http: //www. cs. wisc. edu/condor 97

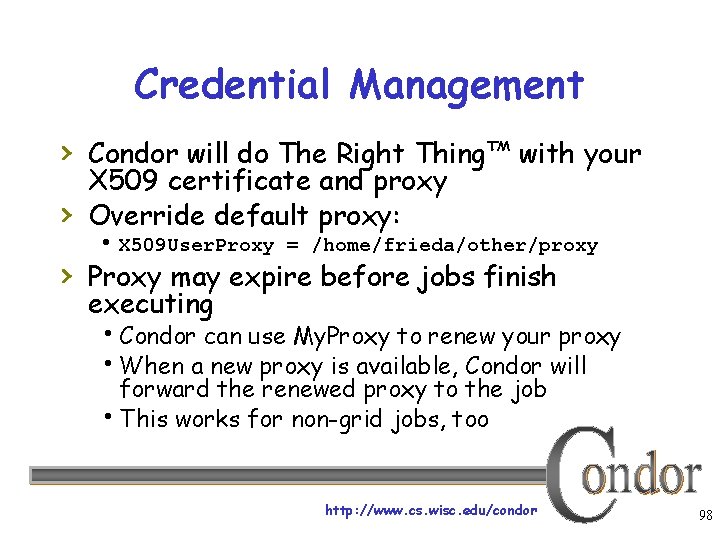

Credential Management › Condor will do The Right Thing™ with your › X 509 certificate and proxy Override default proxy: X 509 User. Proxy = /home/frieda/other/proxy › Proxy may expire before jobs finish executing Condor can use My. Proxy to renew your proxy When a new proxy is available, Condor will forward the renewed proxy to the job This works for non-grid jobs, too http: //www. cs. wisc. edu/condor 98

My jobs have dependencies… Can Condor help solve my dependency problems? http: //www. cs. wisc. edu/condor 99

Frieda learns DAGMan › Directed Acyclic Graph Manager › DAGMan allows you to specify the dependencies between your Condor jobs, so it can manage them automatically for you. › (e. g. , “Don’t run job “B” until job “A” has completed successfully. ”) http: //www. cs. wisc. edu/condor 100

What is a DAG? › A DAG is the data structure Job A used by DAGMan to represent these dependencies. › Each job is a “node” in the DAG. › Each node can have any number of “parent” or “children” nodes – as long as there are no loops! Job B Job C Job D http: //www. cs. wisc. edu/condor 101

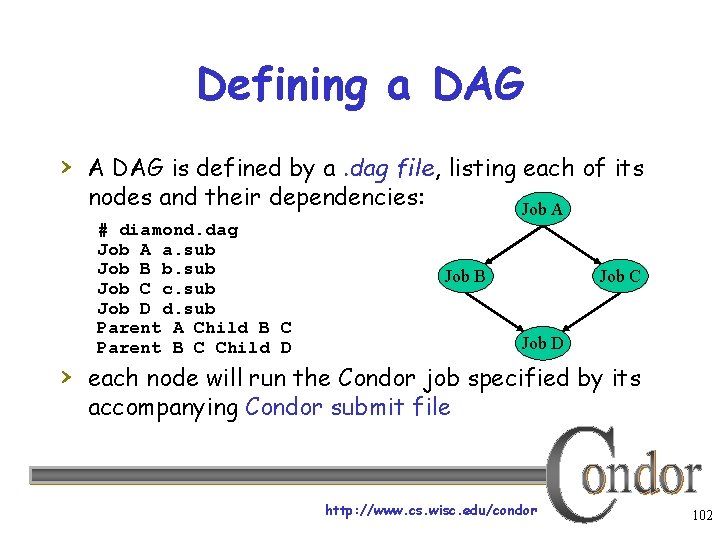

Defining a DAG › A DAG is defined by a. dag file, listing each of its nodes and their dependencies: # diamond. dag Job A a. sub Job B b. sub Job C c. sub Job D d. sub Parent A Child B C Parent B C Child D Job A Job B Job C Job D › each node will run the Condor job specified by its accompanying Condor submit file http: //www. cs. wisc. edu/condor 102

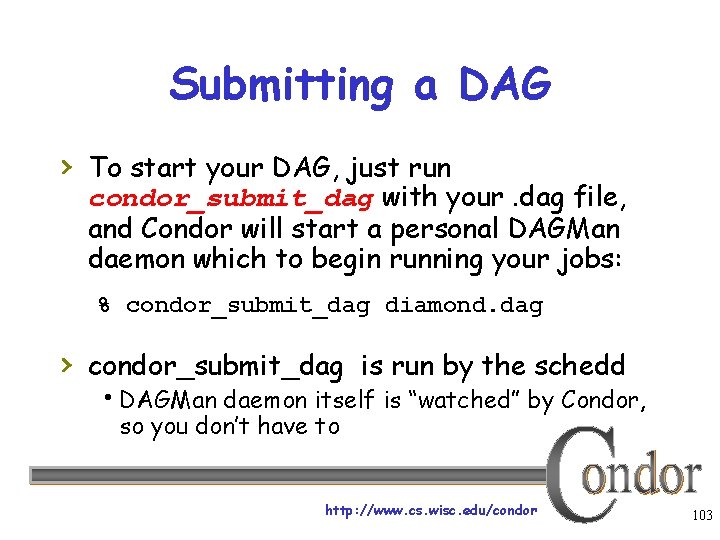

Submitting a DAG › To start your DAG, just run condor_submit_dag with your. dag file, and Condor will start a personal DAGMan daemon which to begin running your jobs: % condor_submit_dag diamond. dag › condor_submit_dag is run by the schedd DAGMan daemon itself is “watched” by Condor, so you don’t have to http: //www. cs. wisc. edu/condor 103

Running a DAG › DAGMan acts as a “meta-scheduler”, managing the submission of your jobs to Condor based on the DAG dependencies. A Condor A Job Queue B C . dag File DAGMan D http: //www. cs. wisc. edu/condor 104

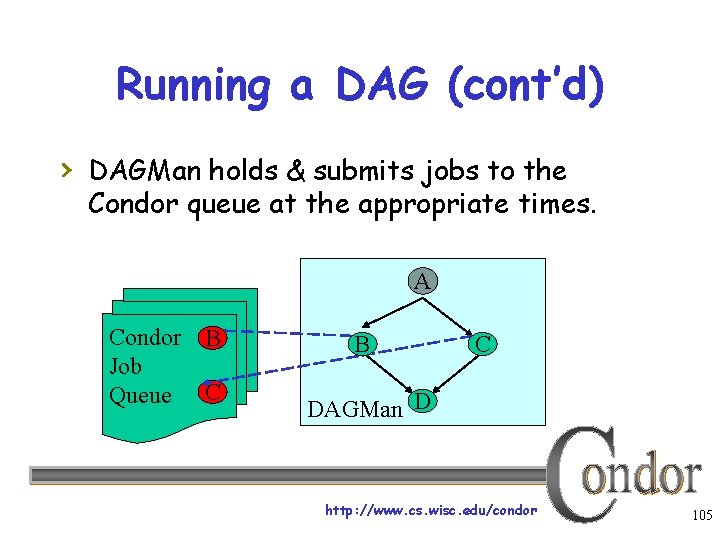

Running a DAG (cont’d) › DAGMan holds & submits jobs to the Condor queue at the appropriate times. A Condor B Job Queue C B C DAGMan D http: //www. cs. wisc. edu/condor 105

Running a DAG (cont’d) › In case of a job failure, DAGMan continues until it can no longer make progress, and then creates a “rescue” file with the current state of the DAG. A Condor Job Queue B X DAGMan D http: //www. cs. wisc. edu/condor Rescue File 106

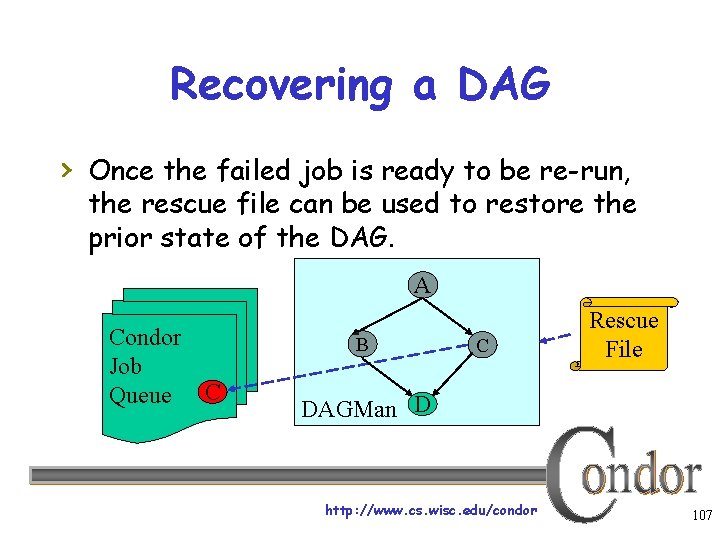

Recovering a DAG › Once the failed job is ready to be re-run, the rescue file can be used to restore the prior state of the DAG. A Condor Job Queue C B C Rescue File DAGMan D http: //www. cs. wisc. edu/condor 107

Recovering a DAG (cont’d) › Once that job completes, DAGMan will continue the DAG as if the failure never happened. A Condor Job Queue D B C DAGMan D http: //www. cs. wisc. edu/condor 108

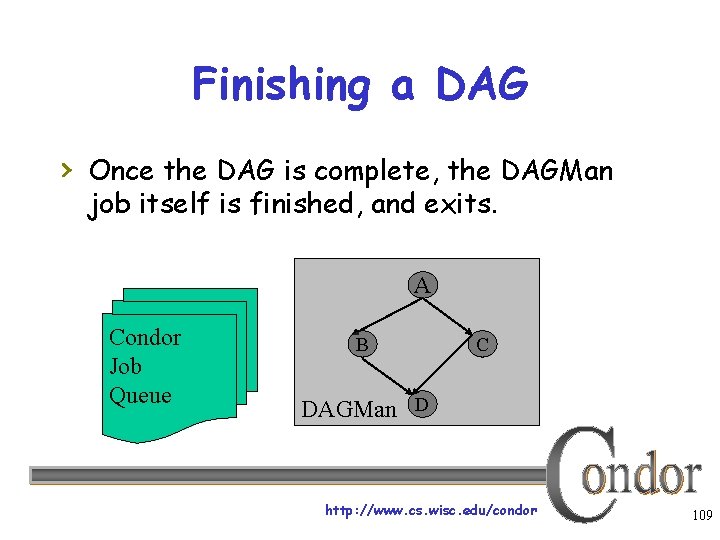

Finishing a DAG › Once the DAG is complete, the DAGMan job itself is finished, and exits. A Condor Job Queue B C DAGMan D http: //www. cs. wisc. edu/condor 109

Additional DAGMan Features › Provides other handy features for job management… nodes can have PRE & POST scripts failed nodes can be automatically re- tried a configurable number of times job submission can be “throttled” http: //www. cs. wisc. edu/condor 110

› › › › › General User Commands condor_status View Pool Status condor_q View Job Queue condor_submit Submit new Jobs condor_rm Remove Jobs condor_prio Intra-User Prios condor_history Completed Job Info condor_submit_dag Submit new DAG condor_checkpoint Force a checkpoint condor_compile Link Condor library http: //www. cs. wisc. edu/condor 111

Condor Job Universes • Serial Jobs • Parallel Jobs • Vanilla Universe • Standard Universe • Grid Universe • Scheduler • Local Universe • Java Universe • MPI Universe • PVM Universe • Parallel Universe http: //www. cs. wisc. edu/condor 112

Why have a special Universe for Java jobs? › Java Universe provides more than just inserting “java” at the start of the execute line of a vanilla job: Knows which machines have a JVM installed Knows the location, version, and performance of JVM on each machine Knows about jar files, etc. Provides more information about Java job completion than just JVM exit code • Program runs in a Java wrapper, allowing Condor to report Java exceptions, etc. http: //www. cs. wisc. edu/condor 113

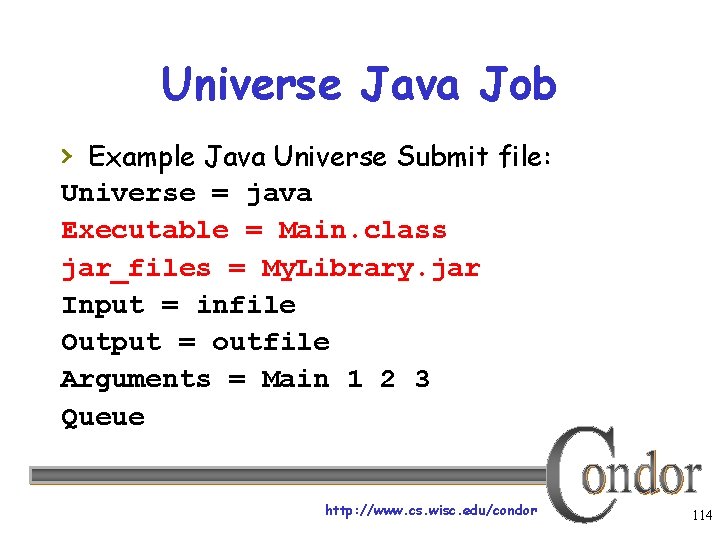

Universe Java Job › Example Java Universe Submit file: Universe = java Executable = Main. class jar_files = My. Library. jar Input = infile Output = outfile Arguments = Main 1 2 3 Queue http: //www. cs. wisc. edu/condor 114

Java support, cont. bash-2. 05 a$ Name abulafia. cs acme. cs. wis adelie 01. cs adelie 02. cs … condor_status –java Java. Vendor Ver State Sun Microsy 1. 5. 0_ Claimed Sun Microsy 1. 5. 0_ Unclaimed Sun Microsy 1. 5. 0_ Claimed INTEL/LINUX INTEL/WINNT 50 SUN 4 u/SOLARIS 28 X 86_64/LINUX Total Actv Busy Idle Busy Load. Av Mem 0. 180 503 0. 000 1002 Total Owner Claimed Unclaimed Matched Preempting 965 179 516 250 20 0 102 6 65 31 0 0 128 2 106 20 0 0 1196 187 687 302 http: //www. cs. wisc. edu/condor 20 0 115

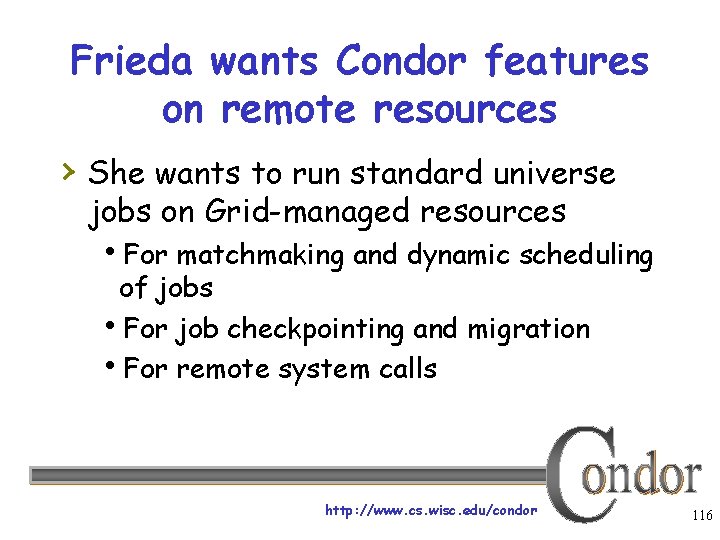

Frieda wants Condor features on remote resources › She wants to run standard universe jobs on Grid-managed resources For matchmaking and dynamic scheduling of jobs For job checkpointing and migration For remote system calls http: //www. cs. wisc. edu/condor 116

Condor Glide. In › Frieda can use the Grid Universe to run › › › Condor daemons on Grid resources When the resources run these Glide. In jobs, they will temporarily join her Condor Pool She can then submit Standard, Vanilla, PVM, or MPI Universe jobs and they will be matched and run on the remote resources Currently only supports Globus GT 2 We hope to fix this limitation http: //www. cs. wisc. edu/condor 117

Remote Grid 600 Condor jobs Condor Pool PBS LSF glide-in jobs Friendly Condor Pool Condor http: //www. cs. wisc. edu/condor 118

Condor jobs How It Works Personal Condor Master Collector & Negotiator Remote Resource Manager Schedd LSF Startd Grid Manager Glide. In jobs Shadow Starter User Job http: //www. cs. wisc. edu/condor 119

Glide. In Concerns › What if the remote resource kills my Glide. In job? That resource will disappear from your pool and your jobs will be rescheduled on other machines Standard universe jobs will resume from their last checkpoint like usual › What if all my jobs are completed before a Glide. In job runs? If a Glide. In Condor daemon is not matched with a job in 10 minutes, it terminates, freeing the resource http: //www. cs. wisc. edu/condor 120

In Review With Condor’s help, Frieda can: Manage her compute job workload Access local machines Access remote Condor Pools via flocking Access remote compute resources on the Grid via “Grid Universe” jobs Carve out her own personal Condor Pool from the Grid with Glide. In technology http: //www. cs. wisc. edu/condor 121

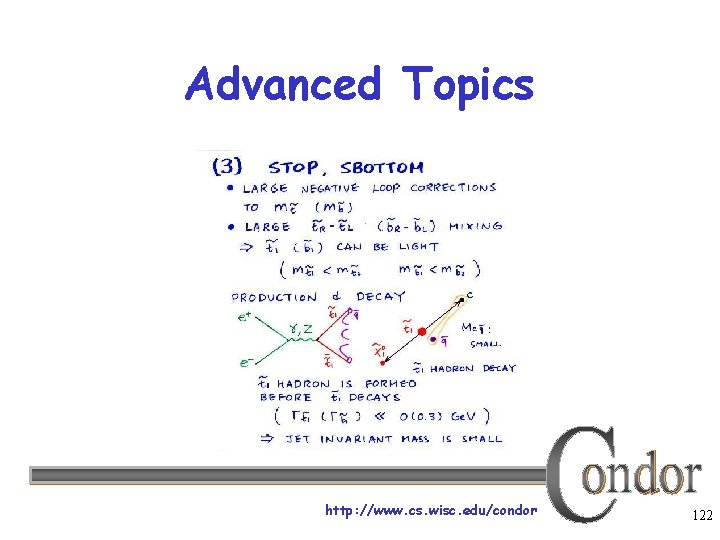

Advanced Topics http: //www. cs. wisc. edu/condor 122

› › › › Administrator Commands condor_vacate Leave a machine now condor_on Start Condor condor_off Stop Condor condor_reconfig Reconfig on-the-fly condor_config_val View/set config condor_userprio User Priorities condor_stats View detailed usage accounting stats http: //www. cs. wisc. edu/condor 123

Job Policy Expressions › User can supply job policy expressions › in the submit file. Can be used to describe a successful run. on_exit_remove = <expression> on_exit_hold = <expression> periodic_remove = <expression> periodic_hold = <expression> http: //www. cs. wisc. edu/condor 124

Job Policy Examples › Do not remove if exits with a signal: on_exit_remove = Exit. By. Signal == False › Place on hold if exits with nonzero status or ran for less than an hour: on_exit_hold = ( (Exit. By. Signal==False) && (Exit. Signal != 0) ) || ( (Server. Start. Time - Job. Start. Date) < 3600) › Place on hold if job has spent more than 50% of its time suspended: periodic_hold = Cumulative. Suspension. Time > (Remote. Wall. Clock. Time / 2. 0) http: //www. cs. wisc. edu/condor 125

My boss wants to watch what Condor is doing http: //www. cs. wisc. edu/condor 126

Use Condor. View! › Provides visual graphs of current and past › › › utilization Data is derived from Condor's own accounting statistics Interactive Java applet Quickly and easily view: How much Condor is being used How many cycles are being delivered Who is using them Utilization by machine platform or by user http: //www. cs. wisc. edu/condor 127

Condor. View Usage Graph http: //www. cs. wisc. edu/condor 128

A Common Question › My Personal Condor is flocking with a bunch of Solaris and Linux machines, and also doing a Glide. In to a SGI O 2 K. I do not want to statically partition my jobs. Solution: In your submit file, specify: Executable = myjob. $$(Op. Sys). $$(Arch) Requirements = (Arch==“INTEL” && Op. Sys==“LINUX”) ||(Arch==“SUN 4 u” && Op. Sys==“SOLARIS 8” ) ||(Arch==“SGI” && Op. Sys==“IRIX 65”) The “$$(xxx)” notation is replaced with attributes from the machine Class. Ad which was matched with your job. http: //www. cs. wisc. edu/condor 129

Thank you! Check us out on the Web: http: //www. condorproject. org Email: condor-admin@cs. wisc. edu http: //www. cs. wisc. edu/condor 130
