Stork An Introduction Condor Week 2006 Milan Condor
- Slides: 21
Stork An Introduction Condor Week 2006 Milan Condor Project Computer Sciences Department University of Wisconsin-Madison http: //www. cs. wisc. edu/condor
Two Main Ideas • Make data transfers a “first class citizen” in Condor • Reuse items in the Condor toolbox http: //www. cs. wisc. edu/condor 2
The tools • Class. Ads • Matchmaking • DAGMan http: //www. cs. wisc. edu/condor 3
The data transfer problem • Process large data sets at sites on grid. For each data set: o stage in data from remote server o run CPU data processing job o stage out data to remote server http: //www. cs. wisc. edu/condor 4
Simple Data Transfer Job #!/bin/sh globus-url-copy source dest Often works fine for short, simple data transfers, but… http: //www. cs. wisc. edu/condor 5
What can go wrong? • Too many transfers at one time • Service down; need to try later • Service down; need to try alternate data source • Partial transfers • Time out; not worth waiting anymore http: //www. cs. wisc. edu/condor 6

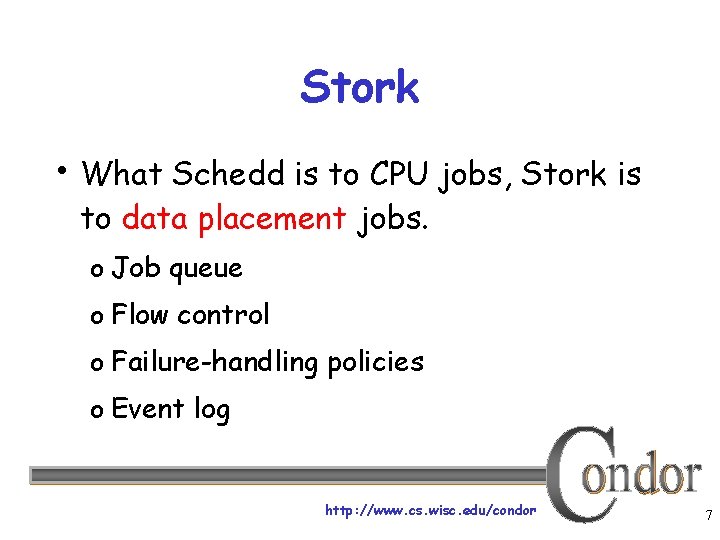

Stork • What Schedd is to CPU jobs, Stork is to data placement jobs. o Job queue o Flow control o Failure-handling policies o Event log http: //www. cs. wisc. edu/condor 7
Supported Data Transfers • local file system • Grid. FTP • HTTP • SRB • Ne. ST • SRM • other protocols via simple plugin http: //www. cs. wisc. edu/condor 8
Stork Commands stork_submit stork_q stork_status stork_rm - submit a job - list the job queue - show completion status - cancel a job http: //www. cs. wisc. edu/condor 9
Creating a Submit Description File • A plain ASCII text file • Tells Stork about your job: o source/destination o alternate protocols o proxy location o debugging logs o command-line arguments http: //www. cs. wisc. edu/condor 10
Simple Submit File // c++ style comment lines [ dap_type = "transfer"; src_url = "gsiftp: //server/path”; dest_url = "file: ///dir/file"; x 509 proxy = "default"; log = "stage-in. out. log"; output = "stage-in. out"; err = "stage-in. out. err"; ] Note: different format from Condor submit files http: //www. cs. wisc. edu/condor 11
Sample stork_submit # stork_submit stage-in. stork using default proxy: /tmp/x 509 up_u 19100 ======== Sending request: [ dest_url = "file: ///dir/file"; src_url = "gsiftp: //server/path"; err = "path/stage-in. out. err"; output = "path/stage-in. out"; dap_type = "transfer"; log = "path/stage-in. out. log"; x 509 proxy = "default" ] ======== Request assigned id: 1 # returned job id http: //www. cs. wisc. edu/condor 12
Sample Stork User Log 000. . . 001. . . 008. . . 005 (001. -01) 04/17 19: 30: 00 Job submitted from host: <128. 105. 121. (001. -01) 04/17 19: 30: 01 Job executing on host: <128. 105. 121. 53 (001. -01) 04/17 19: 30: 01 job type: transfer (001. -01) 04/17 19: 30: 01 src_url: gsiftp: //server/path (001. -01) 04/17 19: 30: 01 dest_url: file: ///dir/file (001. -01) 04/17 19: 30: 02 Job terminated. (1) Normal termination (return value 0) Usr 0 00: 00, Sys 0 00: 00 - Run Remote Usage Usr 0 00: 00, Sys 0 00: 00 - Run Local Usage Usr 0 00: 00, Sys 0 00: 00 - Total Remote Usage Usr 0 00: 00, Sys 0 00: 00 - Total Local Usage 0 - Run Bytes Sent By Job 0 - Run Bytes Received By Job 0 - Total Bytes Sent By Job 0 - Total Bytes Received By Job . . . http: //www. cs. wisc. edu/condor 13
Who needs Stork? SRM exists. It provides a job queue, logging, etc. Why not use that? http: //www. cs. wisc. edu/condor 14
Use whatever makes sense! • Another way to view Stork: • Glue between DAGMan and data • transport or transport scheduler. So one DAG can describe a workflow, including both data movement and computation steps. http: //www. cs. wisc. edu/condor 15
Stork jobs in a DAG • A DAG is defined by a text file, listing each • job and its dependents: # data-process. dag IN Data IN in. stork Job CRUNCH crunch. condor CRUNCH Data OUT out. stork Parent IN Child CRUNCH OUT Parent CRUNCH Child OUT each node will run the Condor or Stork job specified by accompanying submit file http: //www. cs. wisc. edu/condor 16
Important Stork Parameters • STORK_MAX_NUM_JOBS limits number of active jobs • STORK_MAX_RETRY limits job attempts, before job marked as failed • STORK_MAXDELAY_INMINUTES specifies “hung job” threshold http: //www. cs. wisc. edu/condor 17
Features in Development Matchmaking o Job Class. Ad with site Class. Ad o Global max transfers per site limits o Load balancing across sites o Dynamic reconfiguration of sites o Coordination of multiple instances of Stork Working prototype developed with Globus gridftp team http: //www. cs. wisc. edu/condor 18
Further Ahead • Automatic startup of personal stork • • server on demand Fair sharing between users Fit into new pluggable scheduling framework ala schedd-on-the-side http: //www. cs. wisc. edu/condor 19
Summary • Stork manages a job queue for data transfers • A DAG may describe a workflow containing both data movement and processing steps. http: //www. cs. wisc. edu/condor 20
Additional Resources • http: //www. cs. wisc. edu/condor/stork/ • Condor Manual, Stork sections • stork-announce@cs. wisc. edu list • stork-discuss@cs. wisc. edu list http: //www. cs. wisc. edu/condor 21
