Excel Tools Solver and Goal Seek A Brown

Excel Tools: Solver and Goal Seek A Brown Bag discussion for N-81 26 Sept 2012 THIS PRESENTATION IS UNCLASSIFIED

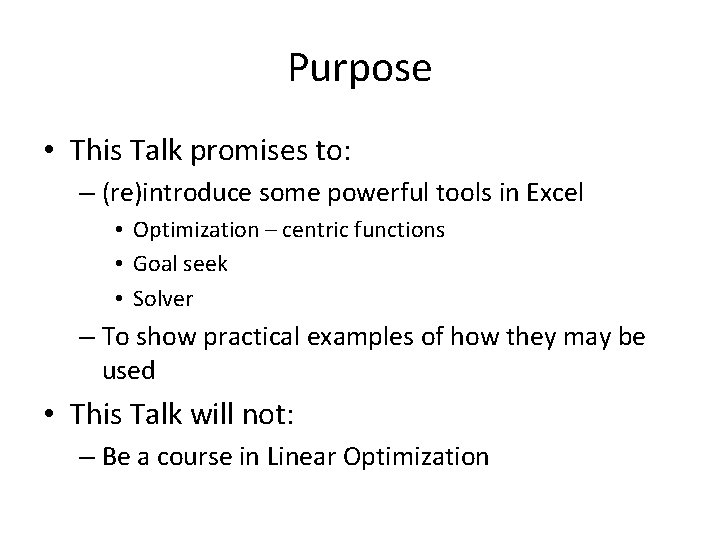

Purpose • This Talk promises to: – (re)introduce some powerful tools in Excel • Optimization – centric functions • Goal seek • Solver – To show practical examples of how they may be used • This Talk will not: – Be a course in Linear Optimization

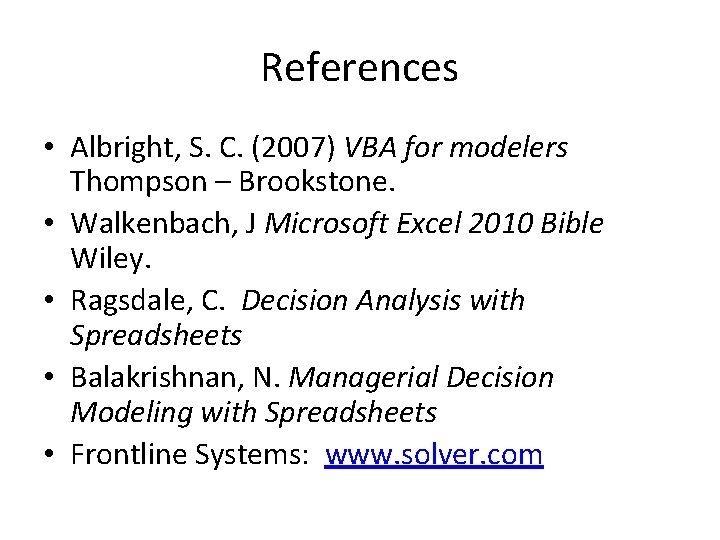

References • Albright, S. C. (2007) VBA for modelers Thompson – Brookstone. • Walkenbach, J Microsoft Excel 2010 Bible Wiley. • Ragsdale, C. Decision Analysis with Spreadsheets • Balakrishnan, N. Managerial Decision Modeling with Spreadsheets • Frontline Systems: www. solver. com

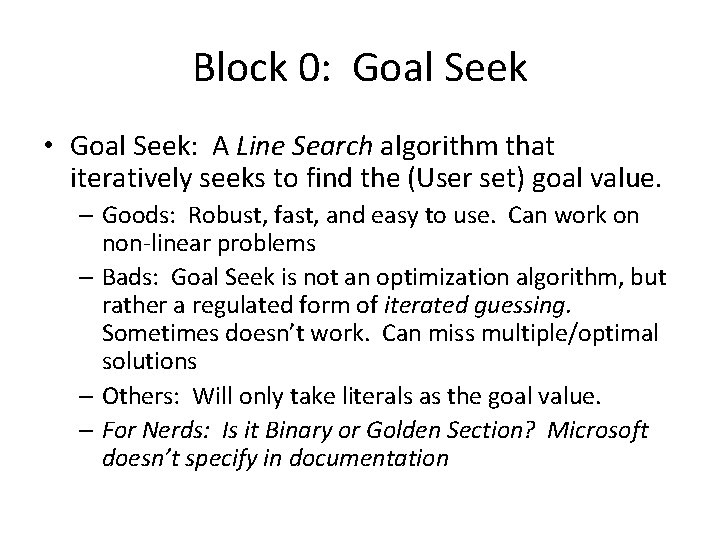

Block 0: Goal Seek • Goal Seek: A Line Search algorithm that iteratively seeks to find the (User set) goal value. – Goods: Robust, fast, and easy to use. Can work on non-linear problems – Bads: Goal Seek is not an optimization algorithm, but rather a regulated form of iterated guessing. Sometimes doesn’t work. Can miss multiple/optimal solutions – Others: Will only take literals as the goal value. – For Nerds: Is it Binary or Golden Section? Microsoft doesn’t specify in documentation

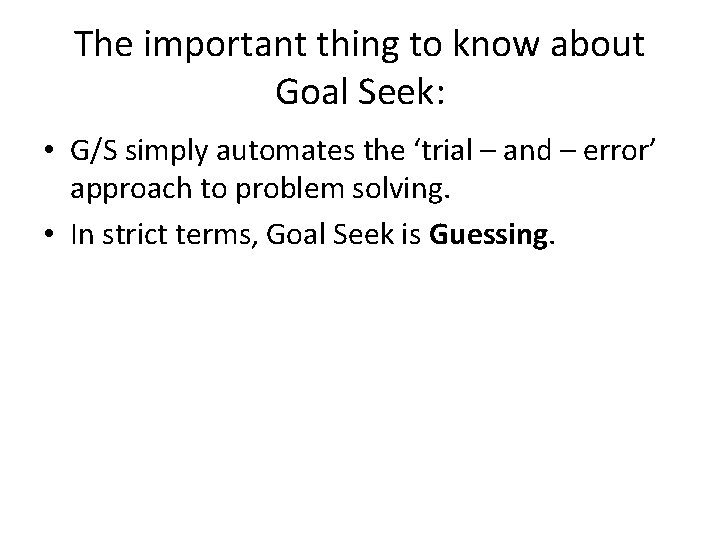

The important thing to know about Goal Seek: • G/S simply automates the ‘trial – and – error’ approach to problem solving. • In strict terms, Goal Seek is Guessing.

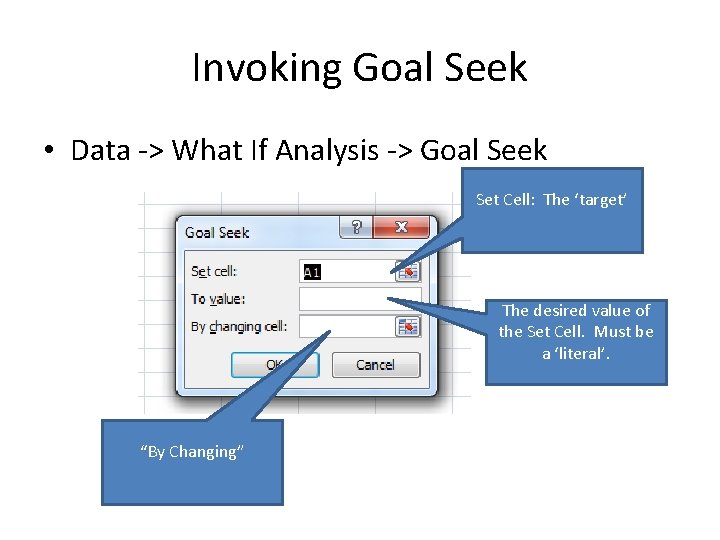

Invoking Goal Seek • Data -> What If Analysis -> Goal Seek Set Cell: The ‘target’ The desired value of the Set Cell. Must be a ‘literal’. “By Changing”

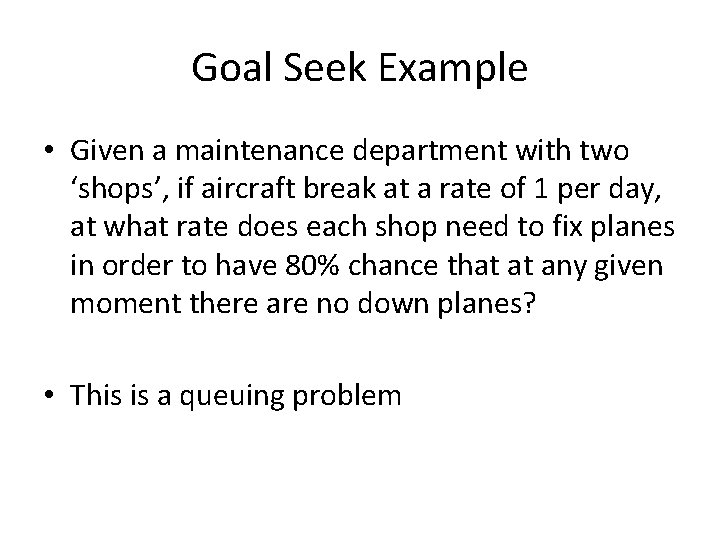

Goal Seek Example • Given a maintenance department with two ‘shops’, if aircraft break at a rate of 1 per day, at what rate does each shop need to fix planes in order to have 80% chance that at any given moment there are no down planes? • This is a queuing problem

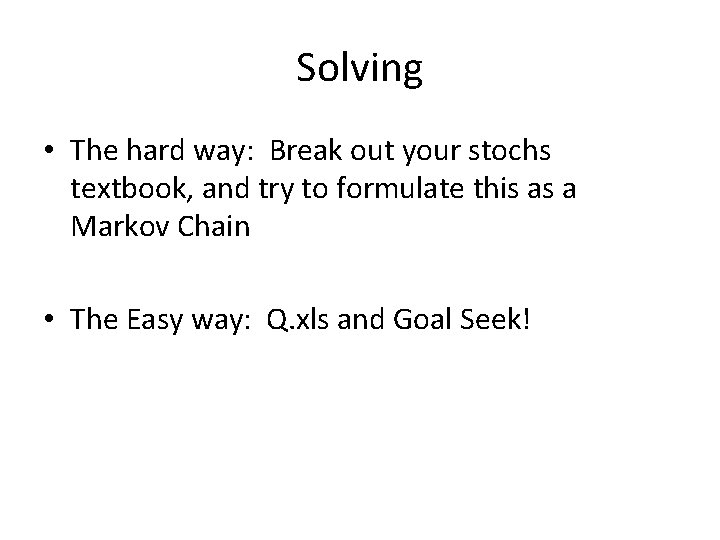

Solving • The hard way: Break out your stochs textbook, and try to formulate this as a Markov Chain • The Easy way: Q. xls and Goal Seek!

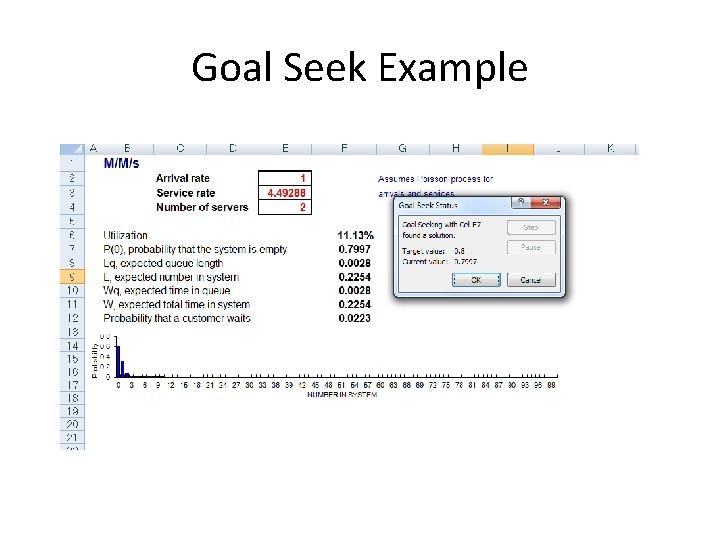

Goal Seek Example

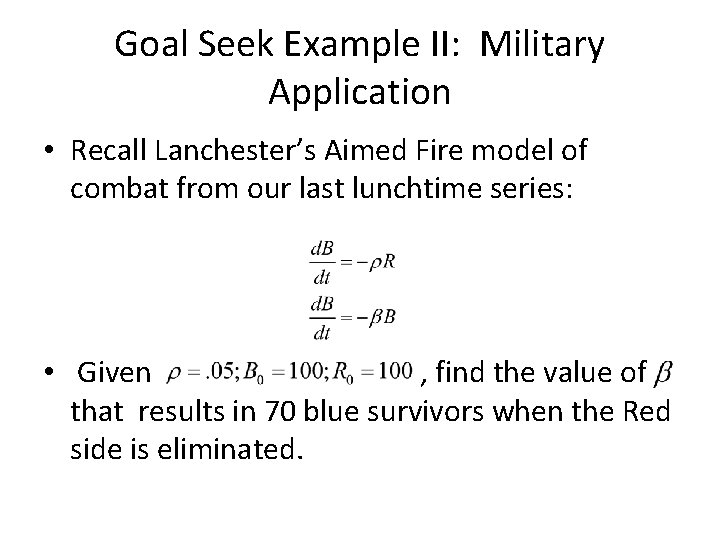

Goal Seek Example II: Military Application • Recall Lanchester’s Aimed Fire model of combat from our last lunchtime series: • Given , find the value of that results in 70 blue survivors when the Red side is eliminated.

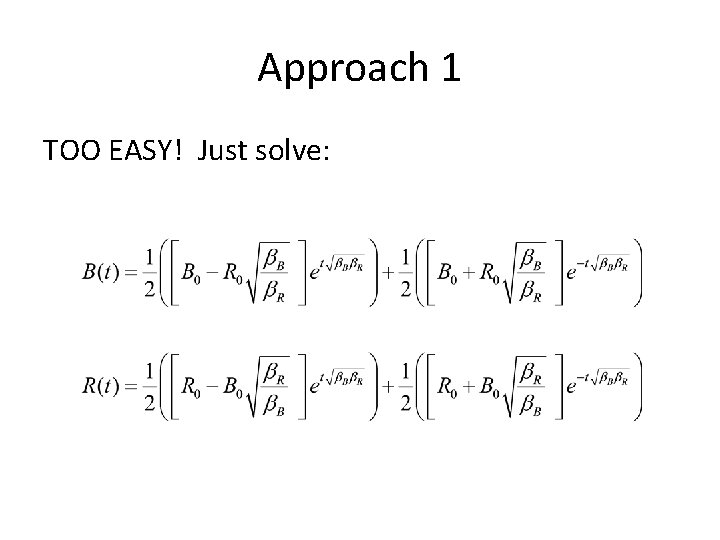

Approach 1 TOO EASY! Just solve:

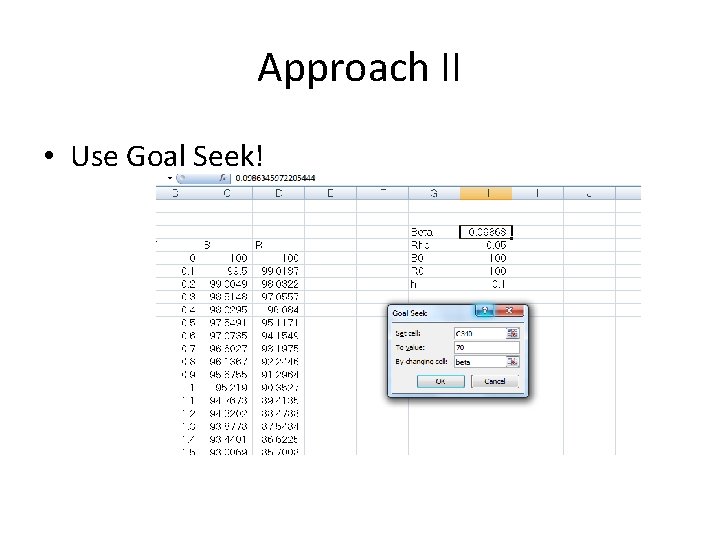

Approach II • Use Goal Seek!

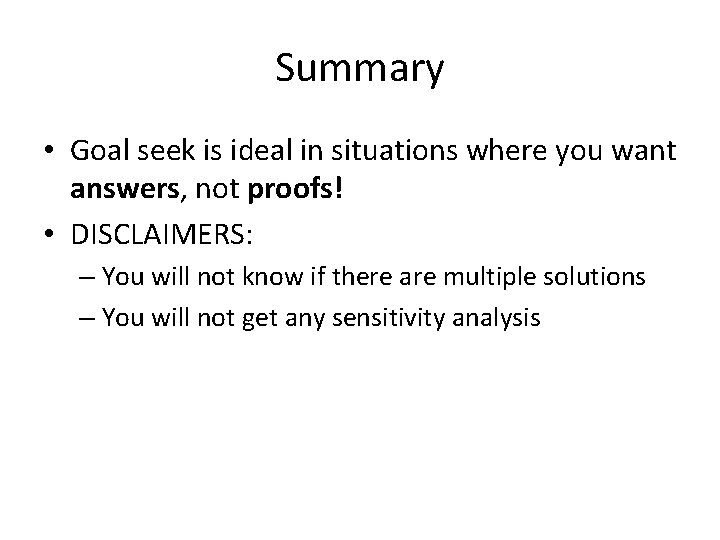

Summary • Goal seek is ideal in situations where you want answers, not proofs! • DISCLAIMERS: – You will not know if there are multiple solutions – You will not get any sensitivity analysis

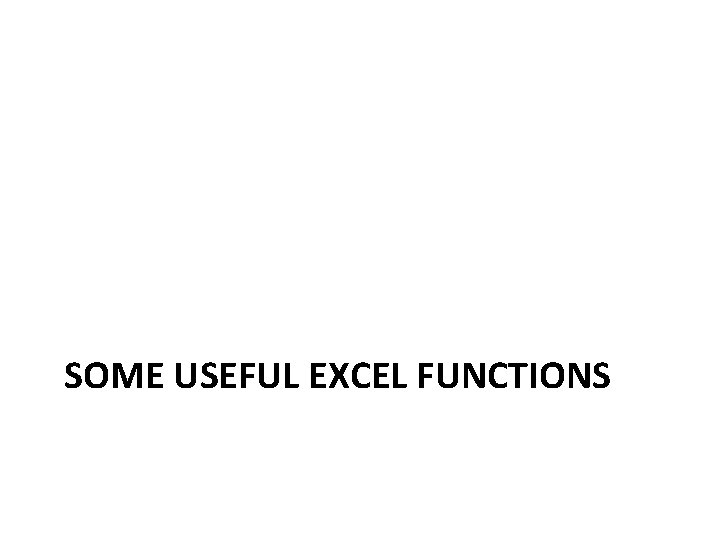

SOME USEFUL EXCEL FUNCTIONS

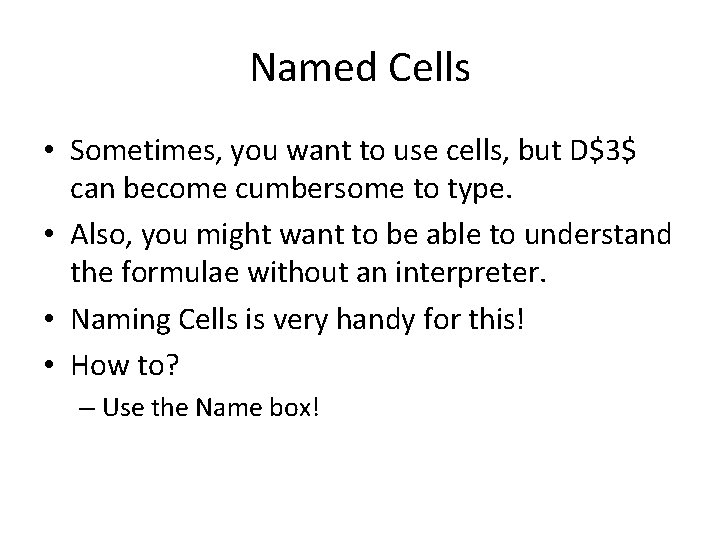

Named Cells • Sometimes, you want to use cells, but D$3$ can become cumbersome to type. • Also, you might want to be able to understand the formulae without an interpreter. • Naming Cells is very handy for this! • How to? – Use the Name box!

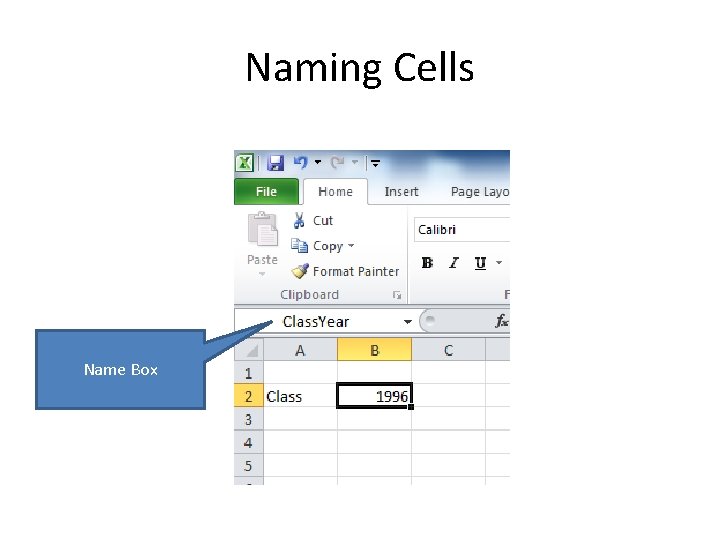

Naming Cells Name Box

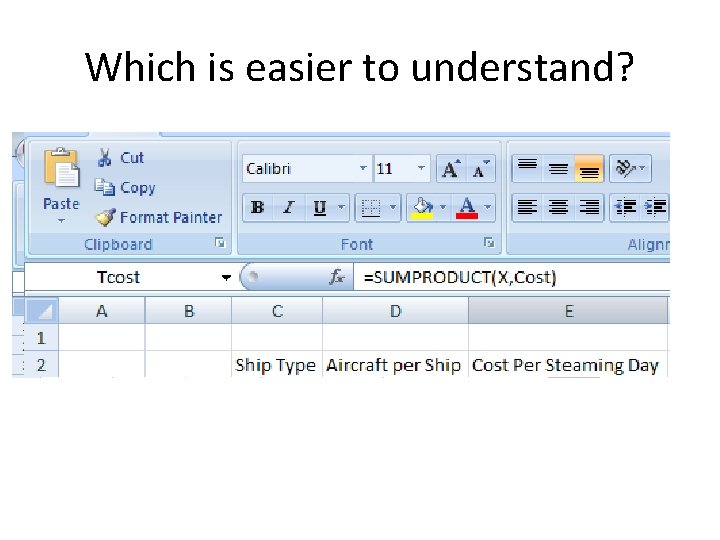

Which is easier to understand?

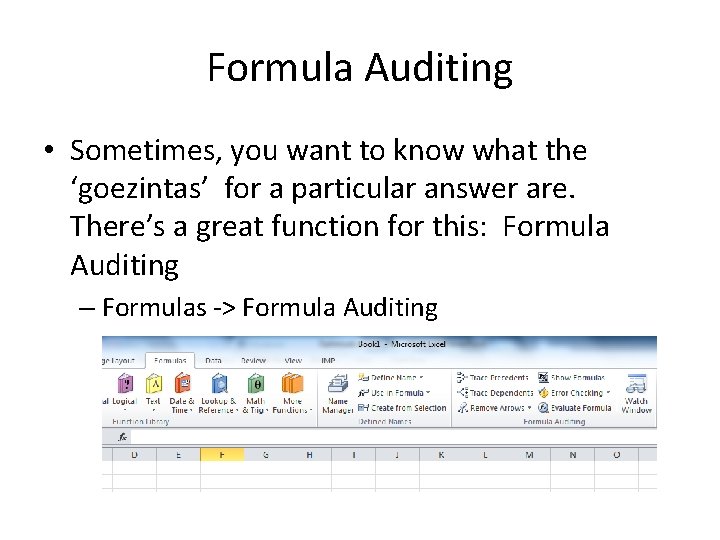

Formula Auditing • Sometimes, you want to know what the ‘goezintas’ for a particular answer are. There’s a great function for this: Formula Auditing – Formulas -> Formula Auditing

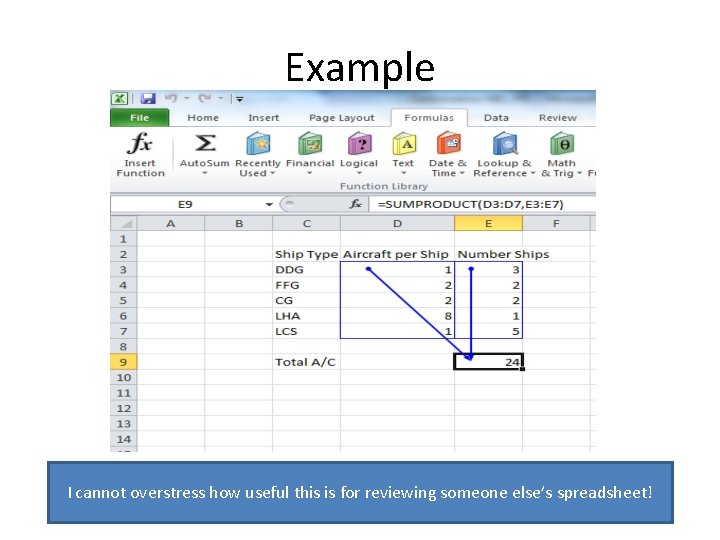

Example I cannot overstress how useful this is for reviewing someone else’s spreadsheet!

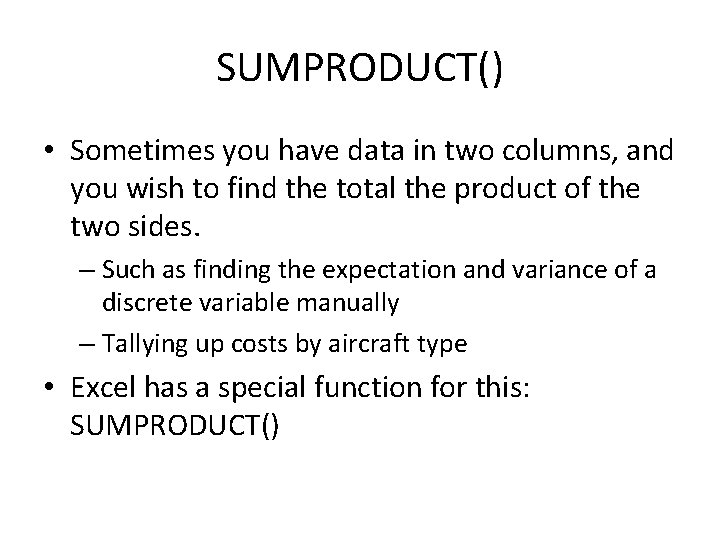

SUMPRODUCT() • Sometimes you have data in two columns, and you wish to find the total the product of the two sides. – Such as finding the expectation and variance of a discrete variable manually – Tallying up costs by aircraft type • Excel has a special function for this: SUMPRODUCT()

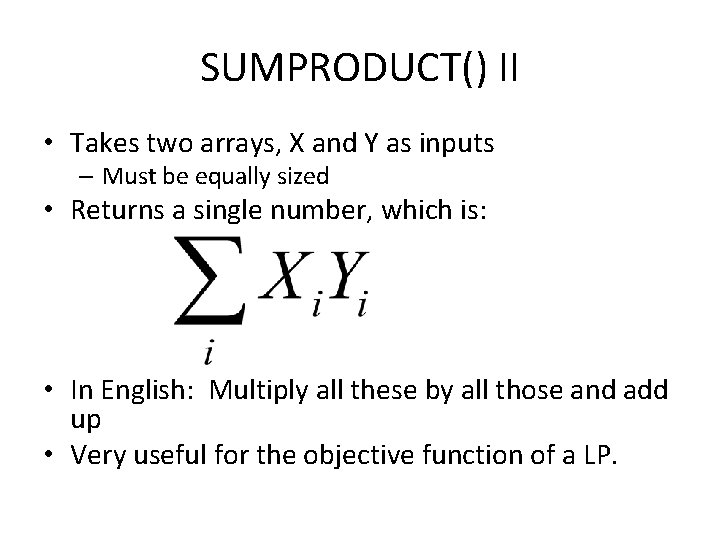

SUMPRODUCT() II • Takes two arrays, X and Y as inputs – Must be equally sized • Returns a single number, which is: • In English: Multiply all these by all those and add up • Very useful for the objective function of a LP.

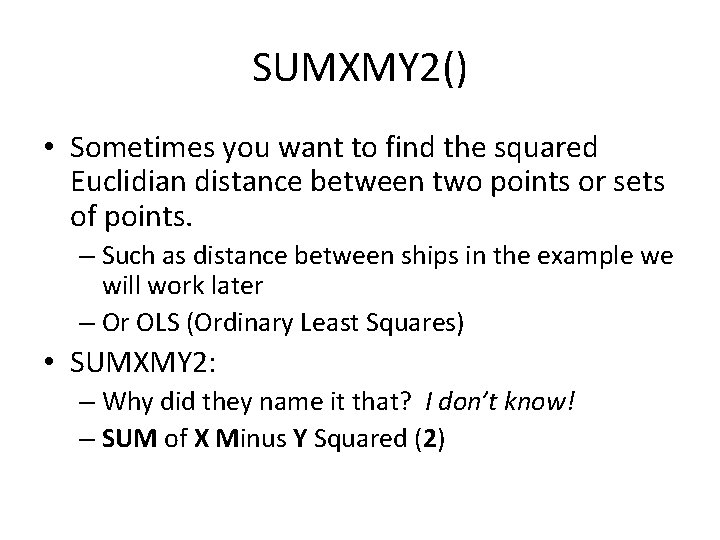

SUMXMY 2() • Sometimes you want to find the squared Euclidian distance between two points or sets of points. – Such as distance between ships in the example we will work later – Or OLS (Ordinary Least Squares) • SUMXMY 2: – Why did they name it that? I don’t know! – SUM of X Minus Y Squared (2)

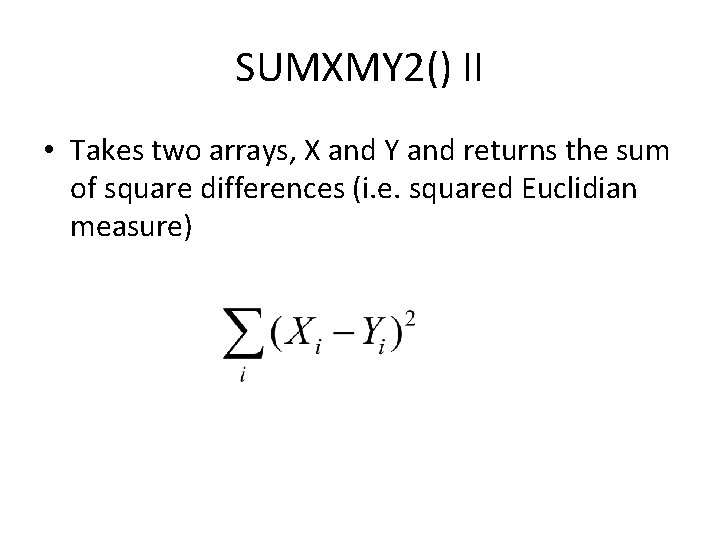

SUMXMY 2() II • Takes two arrays, X and Y and returns the sum of square differences (i. e. squared Euclidian measure)

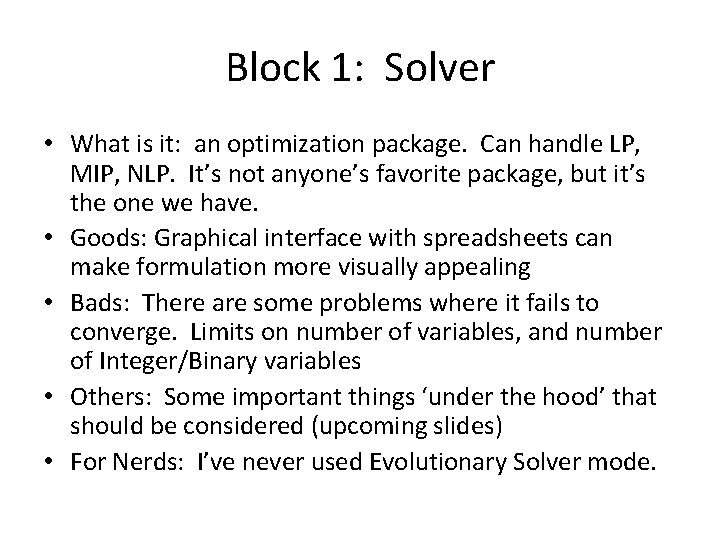

Block 1: Solver • What is it: an optimization package. Can handle LP, MIP, NLP. It’s not anyone’s favorite package, but it’s the one we have. • Goods: Graphical interface with spreadsheets can make formulation more visually appealing • Bads: There are some problems where it fails to converge. Limits on number of variables, and number of Integer/Binary variables • Others: Some important things ‘under the hood’ that should be considered (upcoming slides) • For Nerds: I’ve never used Evolutionary Solver mode.

Invoking Solver • To use Solver, it must be installed – Why? Because Bill Gates Hates you, that’s why! • To use Solver in VBA, it must be installed there as well – Why? See above!

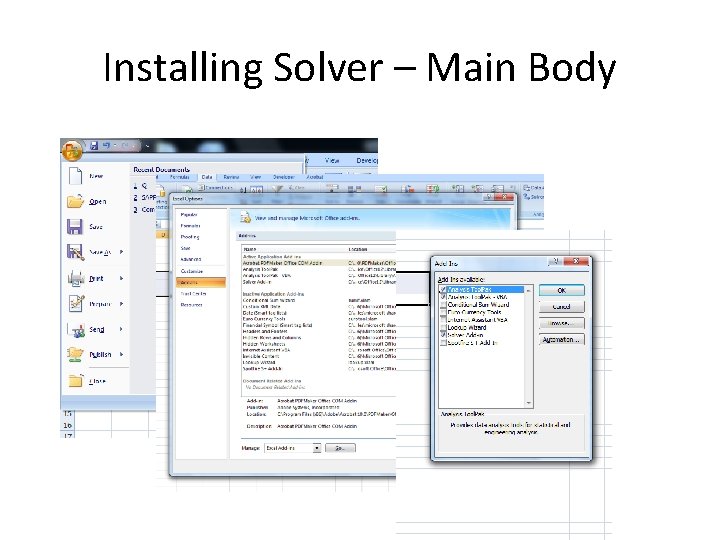

Installing Solver – Main Body

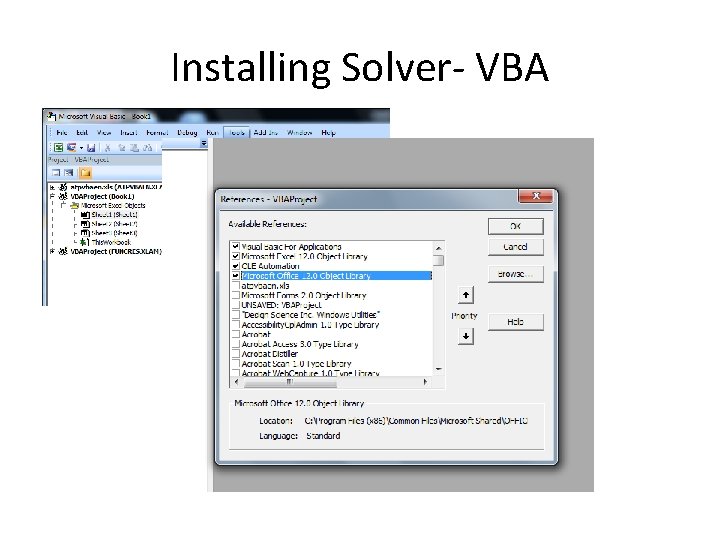

Installing Solver- VBA

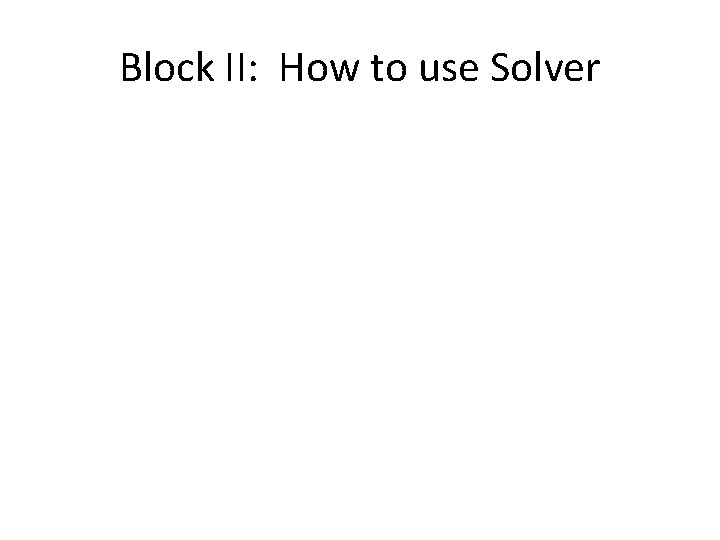

Block II: How to use Solver

Solver Differences - 2010 • Excel 2010 has a different (and not better) interface. • Report options are now available after the solution is complete – Used to be an option in the dialog box Report Options

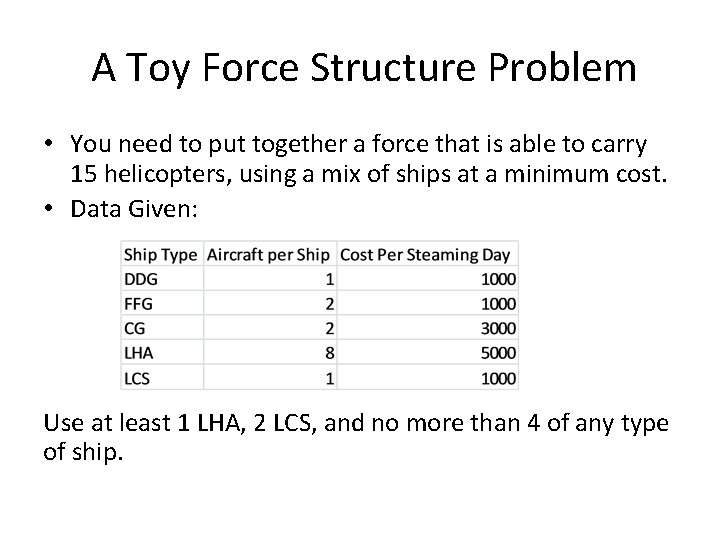

A Toy Force Structure Problem • You need to put together a force that is able to carry 15 helicopters, using a mix of ships at a minimum cost. • Data Given: Use at least 1 LHA, 2 LCS, and no more than 4 of any type of ship.

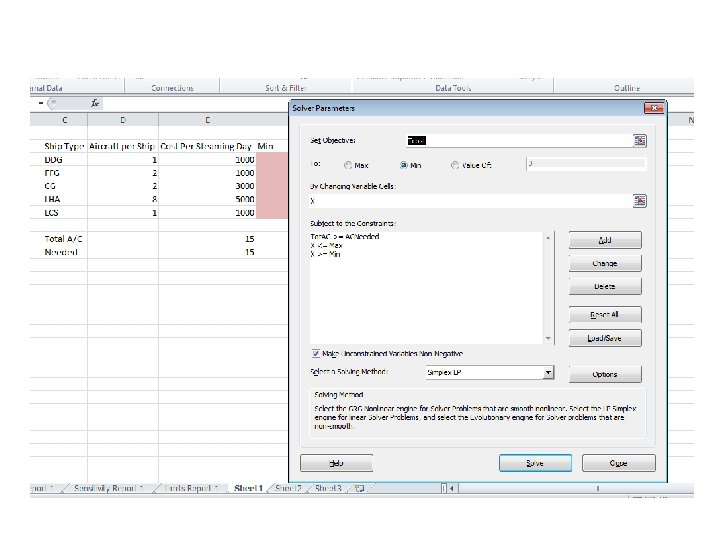

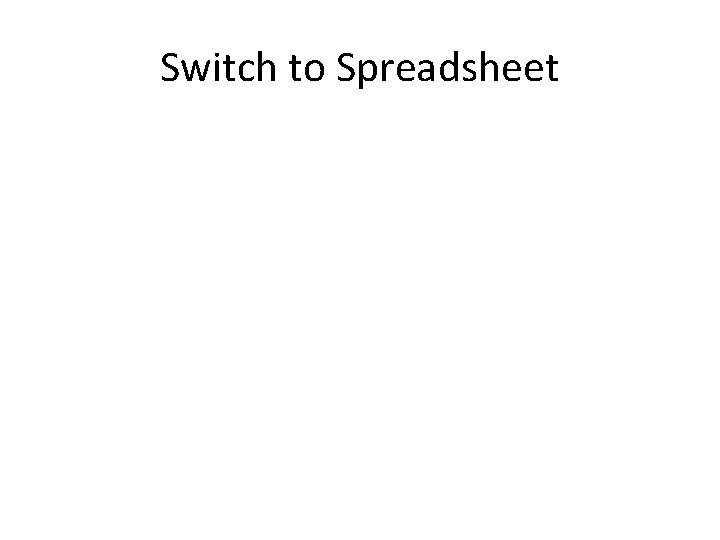

Switch to Spreadsheet

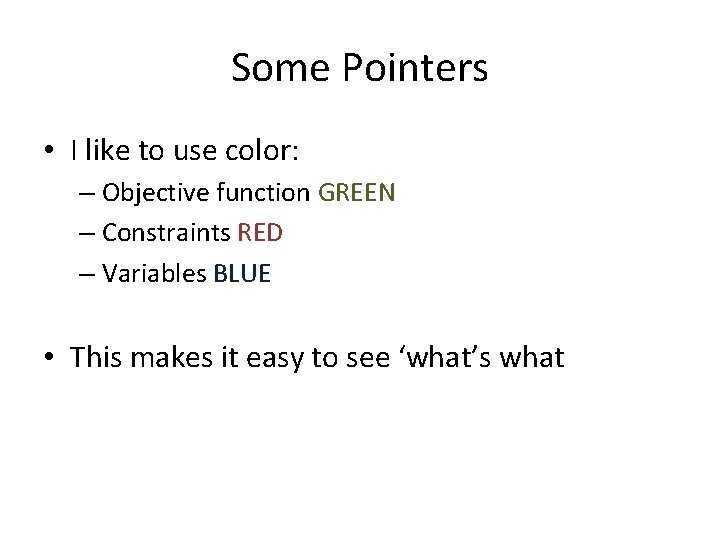

Some Pointers • I like to use color: – Objective function GREEN – Constraints RED – Variables BLUE • This makes it easy to see ‘what’s what

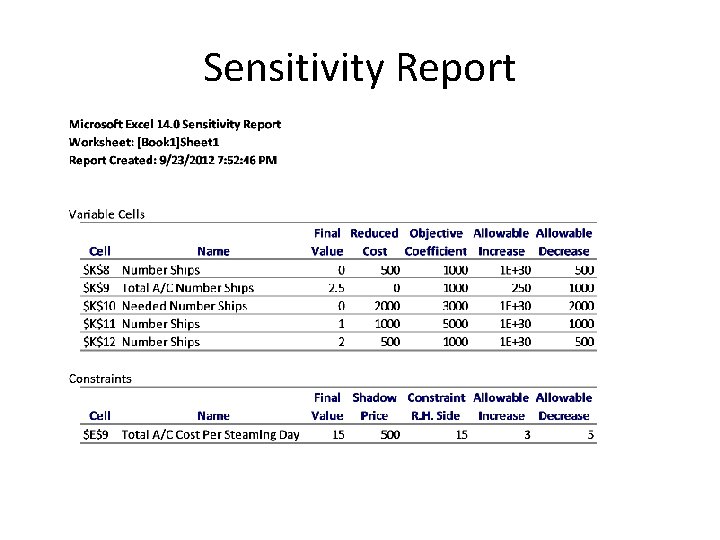

Sensitivity Report

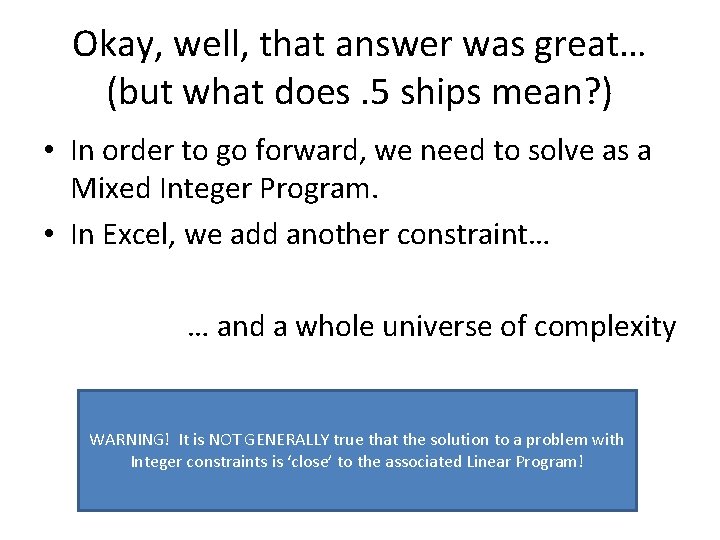

Okay, well, that answer was great… (but what does. 5 ships mean? ) • In order to go forward, we need to solve as a Mixed Integer Program. • In Excel, we add another constraint… … and a whole universe of complexity WARNING! It is NOT GENERALLY true that the solution to a problem with Integer constraints is ‘close’ to the associated Linear Program!

Solver – Pro Tips • Frontline solvers claims that the limit on variables is 200, – But it might crash much, much sooner! • Solutions: – A. Upgrade solver – B. Use MATLAB solver – C. Ask us (NPS) for help.

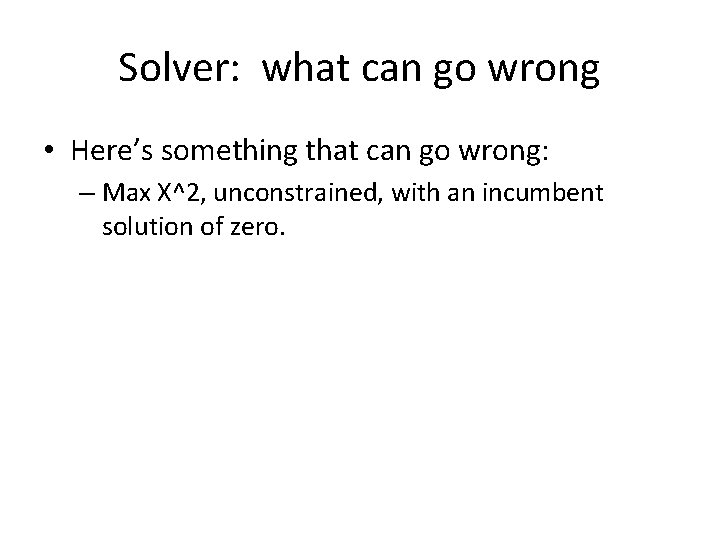

Solver: what can go wrong • Here’s something that can go wrong: – Max X^2, unconstrained, with an incumbent solution of zero.

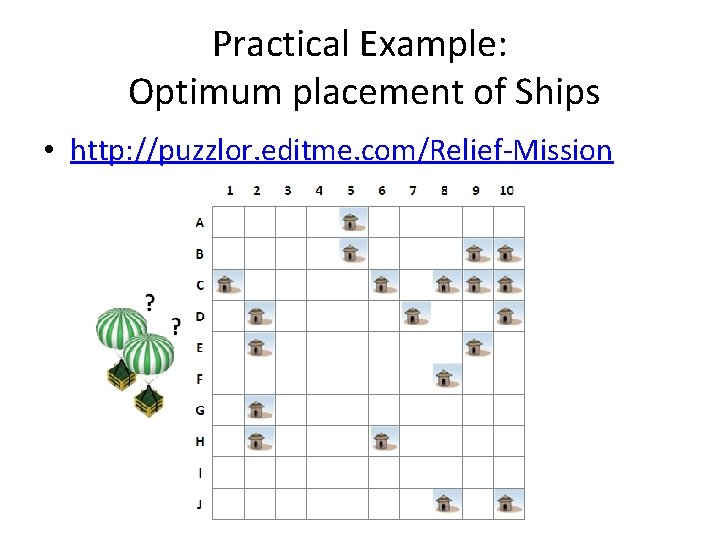

Practical Example: Optimum placement of Ships • http: //puzzlor. editme. com/Relief-Mission

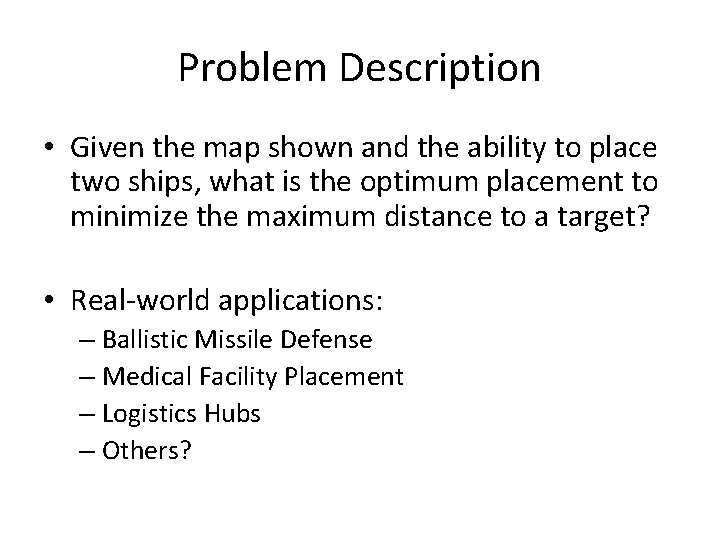

Problem Description • Given the map shown and the ability to place two ships, what is the optimum placement to minimize the maximum distance to a target? • Real-world applications: – Ballistic Missile Defense – Medical Facility Placement – Logistics Hubs – Others?

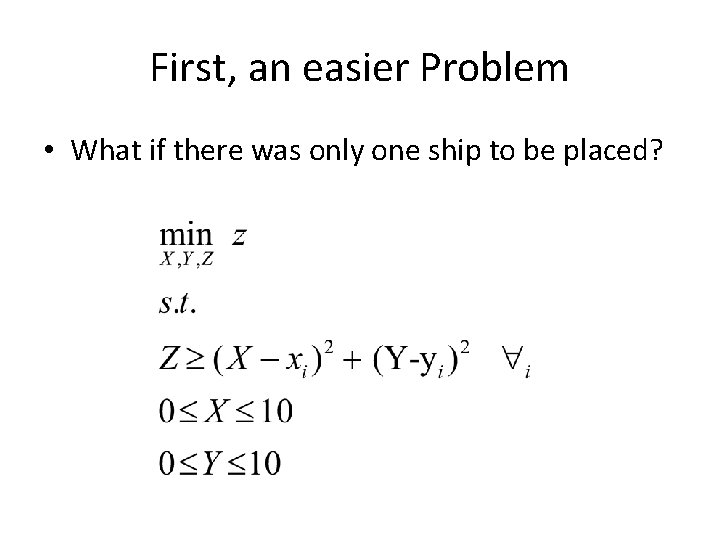

First, an easier Problem • What if there was only one ship to be placed?

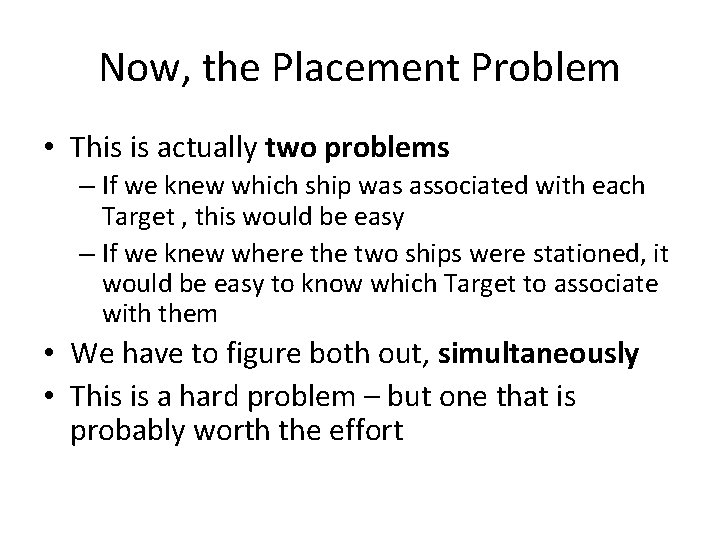

Now, the Placement Problem • This is actually two problems – If we knew which ship was associated with each Target , this would be easy – If we knew where the two ships were stationed, it would be easy to know which Target to associate with them • We have to figure both out, simultaneously • This is a hard problem – but one that is probably worth the effort

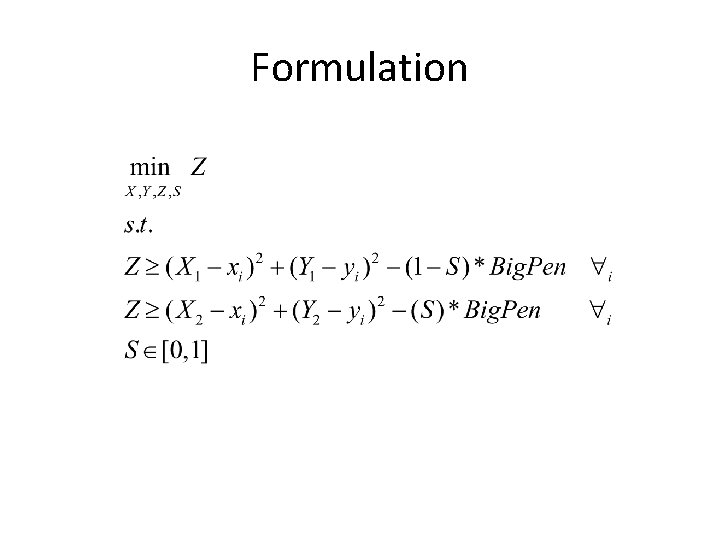

Formulation

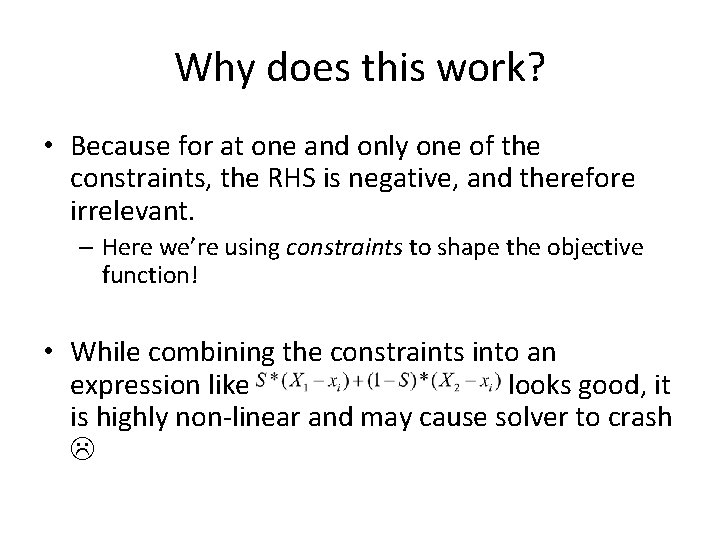

Why does this work? • Because for at one and only one of the constraints, the RHS is negative, and therefore irrelevant. – Here we’re using constraints to shape the objective function! • While combining the constraints into an expression like looks good, it is highly non-linear and may cause solver to crash

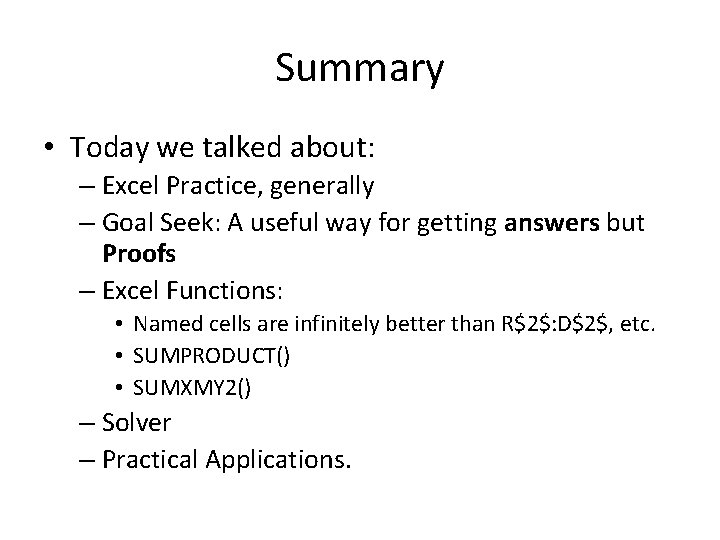

Summary • Today we talked about: – Excel Practice, generally – Goal Seek: A useful way for getting answers but Proofs – Excel Functions: • Named cells are infinitely better than R$2$: D$2$, etc. • SUMPRODUCT() • SUMXMY 2() – Solver – Practical Applications.

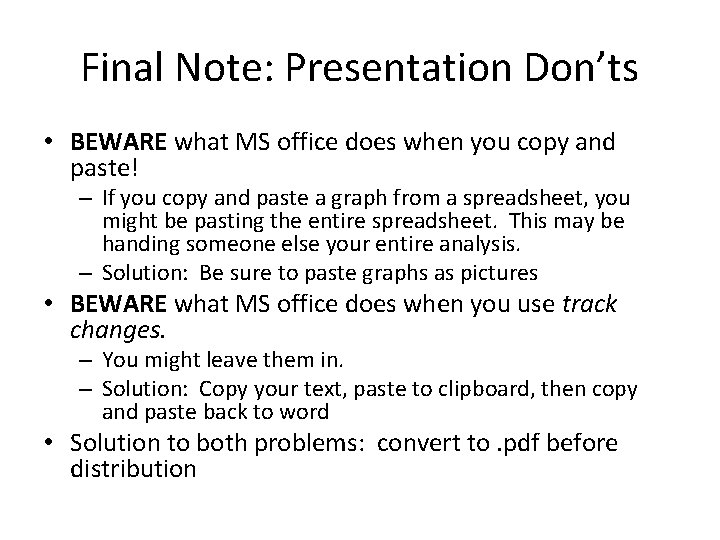

Final Note: Presentation Don’ts • BEWARE what MS office does when you copy and paste! – If you copy and paste a graph from a spreadsheet, you might be pasting the entire spreadsheet. This may be handing someone else your entire analysis. – Solution: Be sure to paste graphs as pictures • BEWARE what MS office does when you use track changes. – You might leave them in. – Solution: Copy your text, paste to clipboard, then copy and paste back to word • Solution to both problems: convert to. pdf before distribution

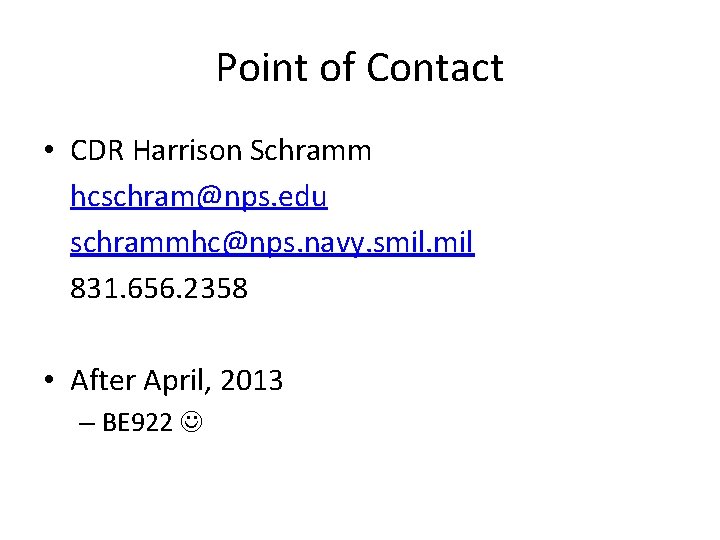

Point of Contact • CDR Harrison Schramm hcschram@nps. edu schrammhc@nps. navy. smil. mil 831. 656. 2358 • After April, 2013 – BE 922
