Power Pivot Reporting Services Power Pivot for Excel

  • Slides: 30
Download presentation

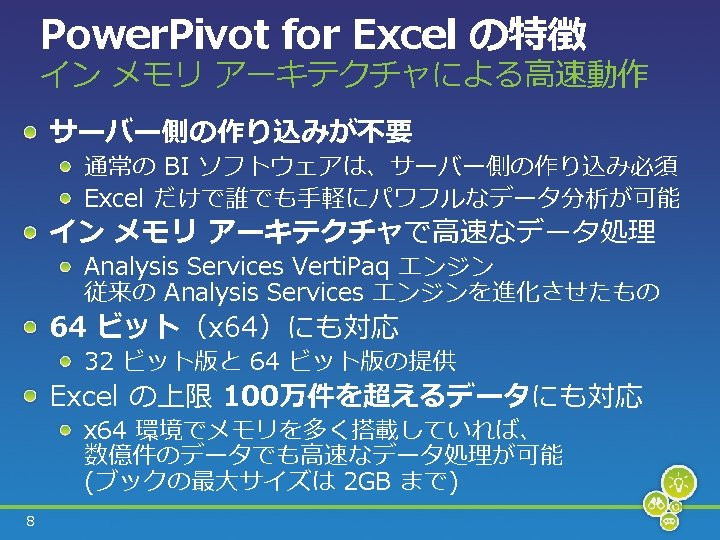

アジェンダ Power. Pivot & Reporting Services 構築の技 Power. Pivot for Excel 2010 の特徴/内部動作 Power.

アジェンダ Power. Pivot & Reporting Services 構築の技 Power. Pivot for Excel 2010 の特徴/内部動作 Power. Pivot for Share. Point 2010 の特徴/内部動作 Power. Pivot 利用時のポイント Reporting Services の特徴 SQL Server 2008 R 2 からの新機能 共有データセット&クエリ キャッシュ Reporting Services 利用時のポイント Pivot. Viewer Extension for Reporting Services (CTP 1) 6

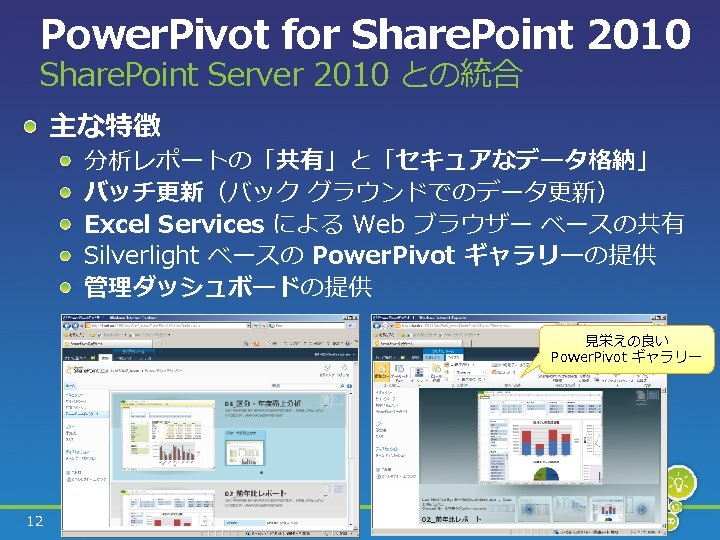

内部動作 Power. Pivot for Share. Point 2010 ”新” Analysis Services Verti. Paq モードの Analysis

内部動作 Power. Pivot for Share. Point 2010 ”新” Analysis Services Verti. Paq モードの Analysis Services = Analysis Services Verti. Paq エンジン Verti. Paq モードの Analysis Services Share. Point コンテンツ DB Backup フォルダー Share. Point_Content_xx All. Doc. Streams テーブル Power. Pivot ファイル(. xlsx)が バイナリ登録 されたもの xlcustom. Data item 1. data 13 Analysis Services を インストールしたフォルダー Program Files Microsoft SQL Server MSAS 10_50. POWERPIVOT OLAPBackup Sandboxes Default. Power. Pivot. Service. App~ 解凍 メモリ msmdsrv. exe Share. Point Excel Services Excel Calculation Services が Web 形式へ変換 Excel Web Access 集計演算 メモリへ そのまま展開 Web ブラウザー

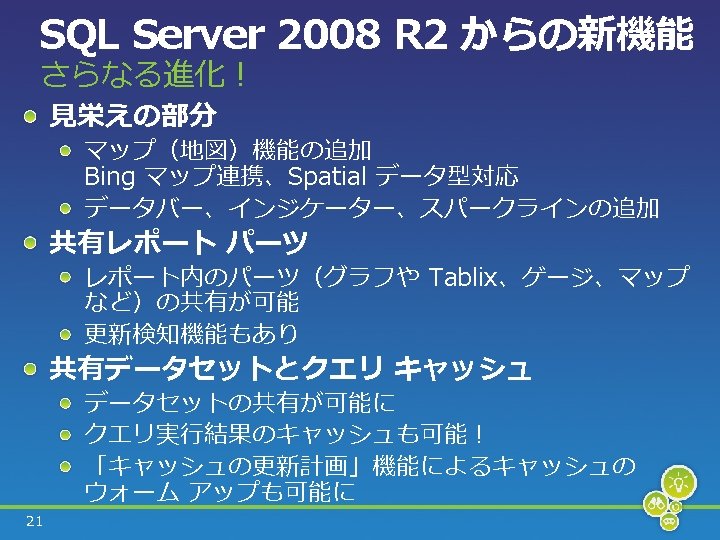

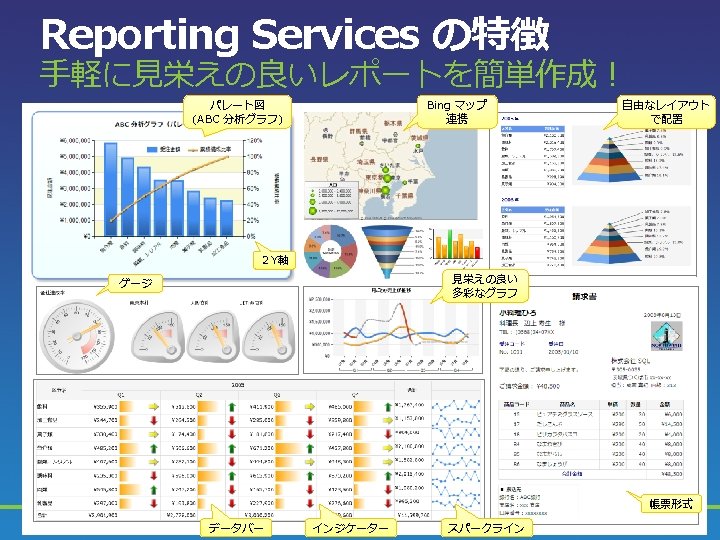

Reporting Services の特徴 SQL Server 2008 R 2 からの新機能 共有データセット&クエリ キャッシュ Reporting Services 利用時のポイント

Reporting Services の特徴 SQL Server 2008 R 2 からの新機能 共有データセット&クエリ キャッシュ Reporting Services 利用時のポイント Pivot. Viewer Extension 19

キャッシュの効果の確認 Report. Server DB の Execution. Log 2 ビュー SELECT Report. Path, Parameters ,

キャッシュの効果の確認 Report. Server DB の Execution. Log 2 ビュー SELECT Report. Path, Parameters , DATEDIFF(millisecond, Time. Start, Time. End) AS 実行時間 , Time. Data. Retrieval, Time. Processing, Time. Rendering, Byte. Count FROM Execution. Log 2 ORDER BY Time. Start DESC 23

Pivot. Viewer Extension(CTP 1) Pivot. Viewer Extension for Reporting Services Silverlight の Pivot. Viewer

Pivot. Viewer Extension(CTP 1) Pivot. Viewer Extension for Reporting Services Silverlight の Pivot. Viewer コントロール http: //www. microsoft. com/downloads/details. aspx? displaylang= en&Family. ID=d 31 f 609 d-a 353 -41 ad-a 1 a 4 -f 81456 e 3 a 6 c 4 動作に必要なもの Share. Point 統合モードで動作する Reporting Services Power. Pivot for Share. Point 2010 へ配置した. xlsx 25

関連セッション TH-201: SQL Server 2008 再入門 ~ ダイジェスト版 ~ TH-202: SQL Server 2008 R

関連セッション TH-201: SQL Server 2008 再入門 ~ ダイジェスト版 ~ TH-202: SQL Server 2008 R 2 新機能ダイジェスト T 4 -302: SQL Server 2008 R 2 Parallel Data Warehouse Edition の特徴 TH-305: Self Service BI 体験 ~ Power. Pivot での分析 Step by Step ~ TH-306: レポート作成体験 ~ Reporting Services と Report Builder 3. 0 で   Bing Map 連携 Step by Step ~ 28

リファレンス SQL Server 2008 R 2 自習書シリーズ http: //www. microsoft. com/japan/sqlserver/2008/r 2/technology/selflearning. mspx SQL

リファレンス SQL Server 2008 R 2 自習書シリーズ http: //www. microsoft. com/japan/sqlserver/2008/r 2/technology/selflearning. mspx SQL Server 2008 R 2 開発者のための必読情報 http: //www. microsoft. com/japan/sqlserver/2008/r 2/technology/ SQL Server 2008 徹底検証シリーズ http: //www. microsoft. com/japan/sqlserver/2008/r 2/technology/cqi. mspx SQL Server サポートオンライン http: //support. microsoft. com/ph/13165 動画でわかる SQL Server 2008 R 2 http: //www. microsoft. com/japan/sqlserver/2008/r 2/prodinfo/movie. mspx 29
