BDD 2007 for Vista Anders Bjrling Senior Consultant

BDD 2007 for Vista Anders Björling Senior Consultant Microsoft Mathias Carlberg Infrastructure Architect Microsoft

Agenda BDD – Overview BDD 2007 – Computer Imaging System BDD 2007 - Light Touch Deployment Demo BDD 2007 - Zero Touch Deployment BDD Roadmap

BDD – Overview Mathias Carlberg Infrastructure Architect Microsoft

What is The Solution Accelerator for Business Desktop Deployment? End-to-end guidance, best practices, and tools for efficient planning, building, and deploying Windows and Microsoft Office Based on real-world experience and industry best practices Increase automation Decrease costs Manual Deployment $500 - $1000 per PC Light Touch ~ $350 per PC Zero Touch Less than $100 per PC

BDD Today Microsoft Office

BDD 2007 Focus Areas Simplify and streamline Reduce documentation Separate guidance and methodology from tools |and reference material More automation, wizards, and checklists Shared components for all scenarios Integrate SCCM 2007 task sequencer Use all the Windows Vista deployment tools Some even for Windows XP Update guidance Changes for Windows Vista, 2007 Office system, and the new tools

BDD 2007 Deployment Scenarios Lite Touch Deployment without management infrastructure Manually initiated Uses network share, Windows Deployment Services, CD/DVD, or USB Refresh, upgrade, replace, new computer Complete rewrite from BDD 2. 5 Zero Touch Uses SMS 2003 OS Deployment Feature Pack Scheduled via Systems Management Server (SMS) and completely automated Centrally monitored with Microsoft Operations Manager (MOM) 2005 Management Pack Refresh, replace, new computer

BDD 2007 New Features Microsoft Management Console (MMC) 3. 0 -based management console Replaces HTA application from BDD 2. 5 Improved driver management For Windows PE, Windows Vista, and Windows XP Manage a driver store Inject drivers based on Pn. P ID (copy only needed drivers) Multi-language support Installation of MUI language packs Configuring locale settings

BDD 2007 New Features Task sequence-based Uses technology from System Center Configuration Manager (SCCM) 2007, but does not require SCCM Allows for greater configuration flexibility Computer imaging processes uses Lite Touch deployment process Automate the installation, Sysprep, and capture Backup capability

BDD 2007 – Computer Imaging System Anders Björling Senior Consultant Microsoft

Configuring BDD for First Use Importing the Windows Vista DVD

Select New

Enter the destination directory name to be used

Once the import has been completed the D: DistributionOperating Systems folder will contain the imported Windows Vista DVD

Create a Windows Vista Build

Select New

Specify organisation, product key and computer administrator password information

Specify the Windows Vista version to be used for this build, in this case Windows Vista Ultimate

This information will be added to the BDD Workbench under the Builds container

It is now possible to modify the build configuration information

The Settings tab allows the organisation and product key information for the build to be modified

Adding a Deploy Configuration to BDD

Select the New option

On the next dialog enter a descriptive name for the deployment point, e. g. Windows BDD Deployment Point

Select Finish to complete the BDD Deployment Wizard. A new Deploy configuration will be shown under the Deploy folder

Examine the General tab of the Deploy Properties dialog

Select the Rules tab (customsettings. ini)

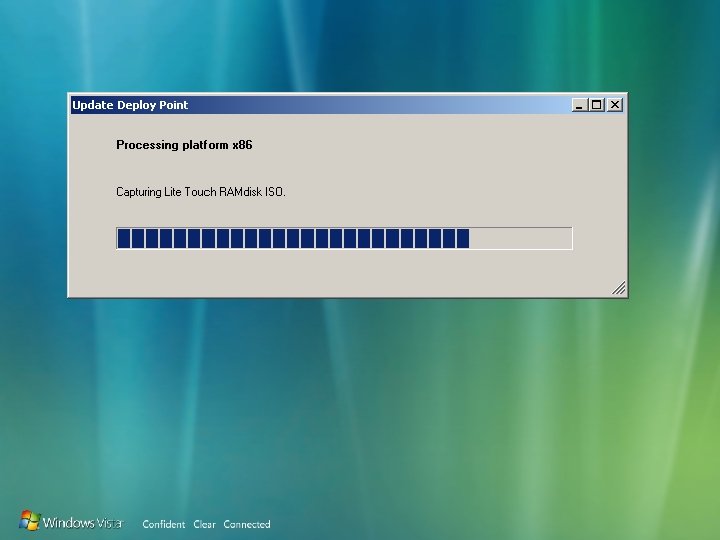

Right-click on the configuration and selecting Update

A number boot images will have been created under the D: DistributionBoot folder Windows DS can now be used to initiate a Lite touch deployment by importing the Lite. Touch. PE_x 86. wim

BDD Workbench

BDD Computer Imaging Process Gather source files BDD Server Configure build Build Lab CD (Windows PE) Lab CD Reference computer Windows Vista Lab CD Install Windows Vista Execute task sequence Capture image Windows Vista Applications Drivers BDD Workbench MMC Windows System Image Manager BDD Workbench MMC PEIMG (behind the scenes) Windows PE 2. 0 SETUP. EXE IMAGEX (WIMGAPI. DLL) SCCM 2007 task sequencer Applications (maybe), settings Sysprep Windows PE 2. 0 IMAGEX (WIMGAPI. DLL)

BDD Computer Imaging Process Windows Vista offers more options HAL-independent images Offline servicing (drivers and security updates) Provided as a Sysprep image (staged) So, some may choose a shorter route* Gather source files Configure Unattend. xml Windows Vista Applications Drivers BDD Workbench MMC Windows System Image Manager * Unless you want to include apps, or you want to use SMS OSD

BDD 2007 – Light Touch Deployment Anders Björling Senior Consultant Microsoft

BDD Lite Touch Process Gather Rule-based Using Zero Touch Installation technologies Prompt Wizard-based Fill in missing values or override gathered values Execute Consume gathered values Perform task sequence (SMSv 4 Task Sequencer)

BDD Lite Touch Process Task sequence Windows PE New OS SMSv 4 Task Sequencer Old OS Capture User State ZTIUser. State. wsf USMT 3. 0 Back up computer ZTIBackup. wsf IMAGEX Apply new image ZTIApply. wsf SETUP. exe Configure OS ZTIConfigure. wsf Unattend. xml ZTIDrivers. wsf Install Applications And more… ZTIApplications. wsf And more… Restore User State ZTIUser. STate. wsf USMT 3. 0

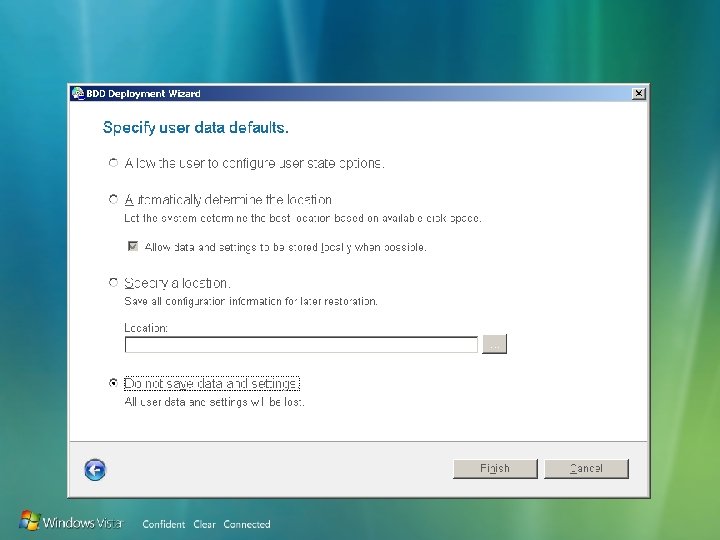

BDD Wizards Allow administrators to customize the wizard Provide default answers to bypass some questions Enable customization HTML-based Simplify localization Windows Vista look-and-feel

Lite Touch Deployment

BDD 2007 – Zero Touch Deployment Mathias Carlberg Infrastructure Architect Microsoft

BDD Zero Touch Process Shared components with Lite Touch Scripts, configuration files, rules engine, task sequences Knowledge of one gives knowledge of the other Differences: No wizard Some components replaced by SMS 2003 OS Deployment Feature Pack functionality Applications installed via SMS packages

BDD Zero Touch Process Zero touch design Easy migration path from current BDD 2. 5 Zero Touch Installation and SMS 2003 OSD RTM Easy migration path to System Center Configuration Manager (SCCM) 2007 Enhanced capabilities: SCCM 2007 task sequencer integration (even with SMS 2003) Full computer backup More granular driver injection

BDD Roadmap Mathias Carlberg Infrastructure Architect Microsoft

BDD Roadmap Today Q 3 2006 BDD 2007 beta release Windows Vista Beta 2 SCCM 2007 Task Sequencer integration Windows Vista only Includes 2007 Office system support and guidance BDD 2007 beta release Windows Vista RC 1 Complete guidance for 2007 Office system Windows XP support added Zero Touch added (OSD Update) Full Windows DS support Q 4 2006 BDD 2007 release Windows Vista RTM 2007 Office system RTM OSD Update RTM Windows DS RTM 2007 BDD 2007 updated Support for SMSv 4 BDLM

The Future Business Desktop Lifecycle Management
