Imaging of the Renal System Dr Dima Jamjoom

Imaging of the Renal System Dr. Dima Jamjoom Department of Radiology

OUTLINE • • Introduction Imaging modalities Anatomy Cases

INTRODUCTION • What is radiology? It is a medical specialty that employs the use of imaging to both diagnose and treat disease within the human body. • What is the renal system? Kidneys, ureters, urinary bladder and urethra.

IMAGING MODALITIES • • • Conventional radiography Intravenous urogram (IVU) US CT MRI Nuclear medicine

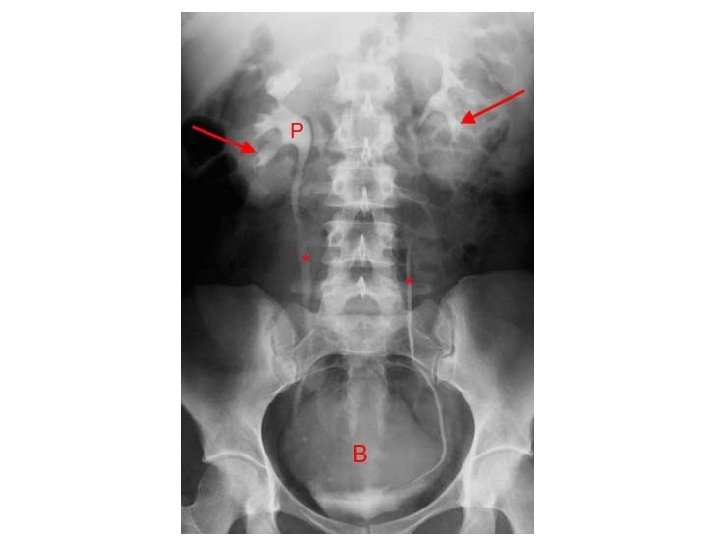

Conventional radiography • First imaging modality. • Cheap. • Useful for radioopaque stones.

Conventional radiography Image features: • Projectional image. • Image contrast determined by tissue density. • Good evaluation radio-opaque stones.

IVU • Conventional x-ray plus intravenous contrast. • Cheap. • Recently replaced by CT and MRI. • Useful for radioopaque stones.

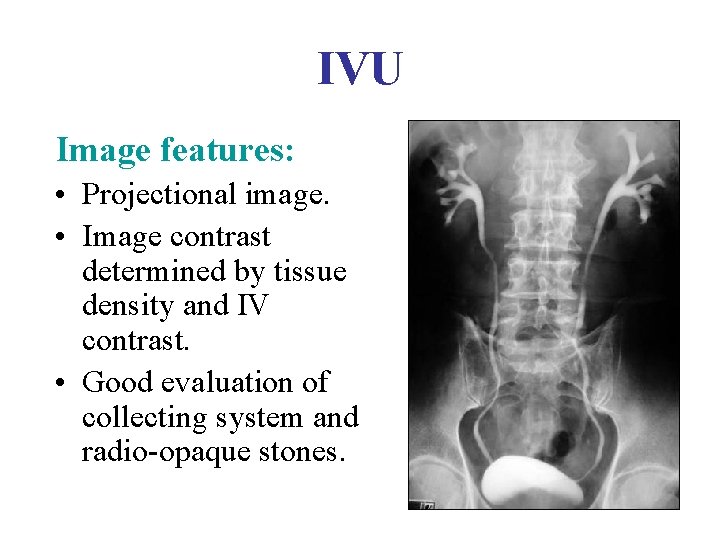

IVU Image features: • Projectional image. • Image contrast determined by tissue density and IV contrast. • Good evaluation of collecting system and radio-opaque stones.

US • Use high frequency sound wave. • Contrast between tissue is determined by sound reflection.

US Image features: • • Operator dependant. Projectional image. Good resolution. Used for stone, hydronephrosis, focal lesion.

CT • Same basic principle of radiography. • More precise. • Costly. • +/- contrast. • Useful for trauma, stone, tumor, infection.

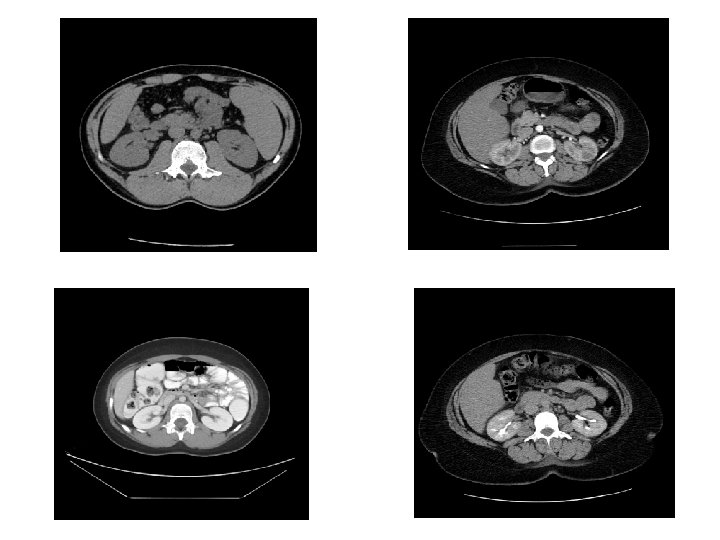

CT Image features: • Cross sectional images. • Image contrast determined by tissue density +/- contrast. • Better evaluation of soft tissue.

MRI • Better evaluation of soft tissue. • Expensive. • Useful for soft tissue pathology: tumor, infection.

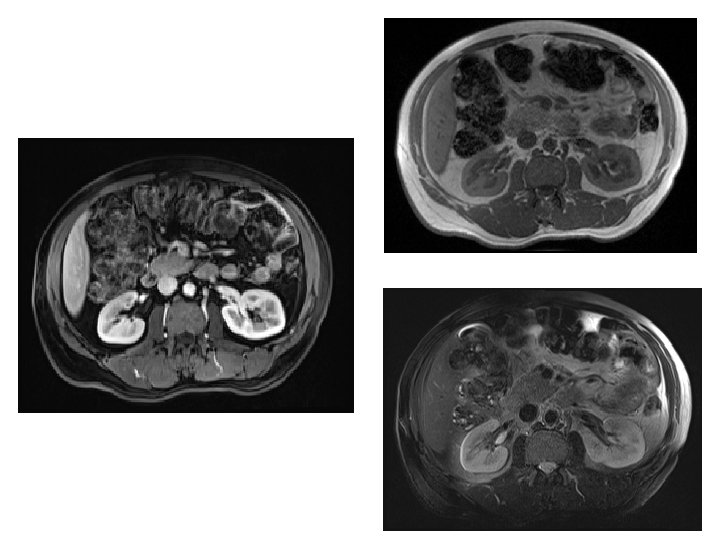

MRI Image features: • Cross sectional images. • Image contrast determine by tissue properties. • Excellent for soft tissue evaluation.

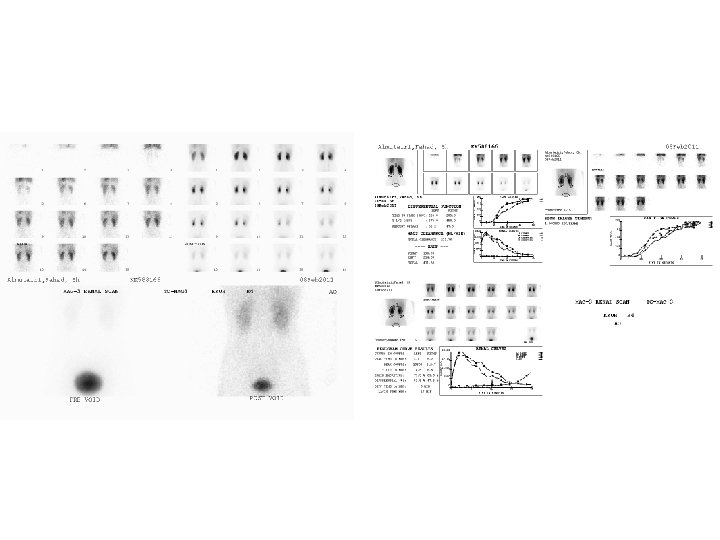

Nuclear medicine • Utilizes a gamma camera and radioactive isotopes. • Functional test. • Less expensive. • Useful for: obstruction and split function.

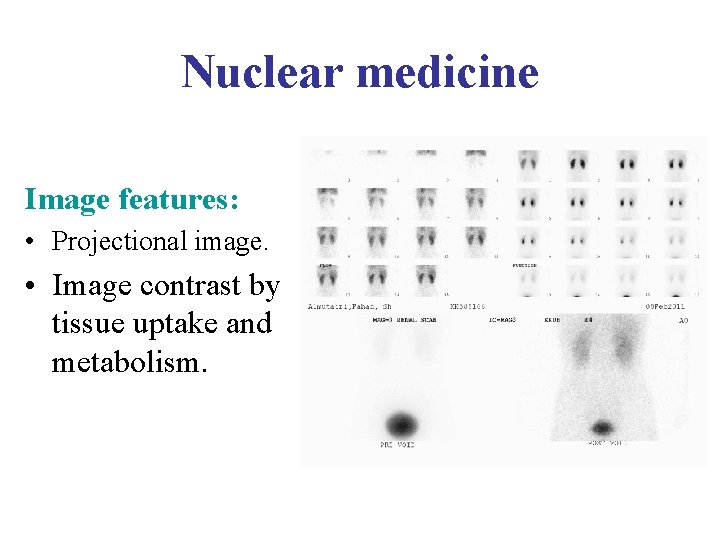

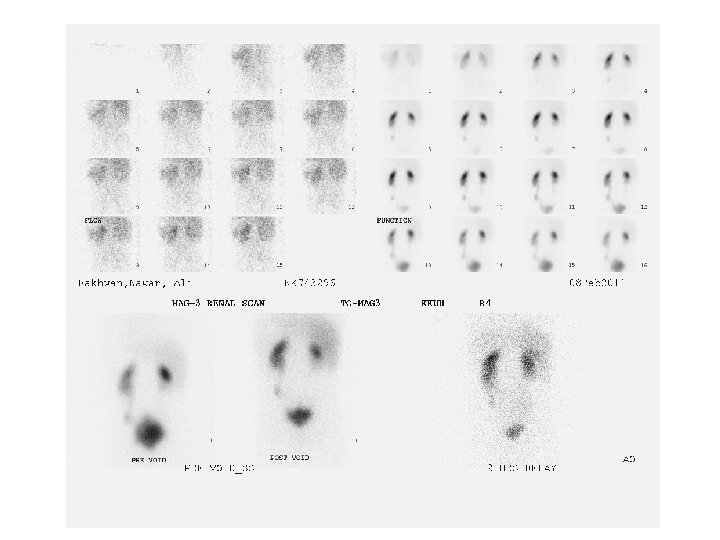

Nuclear medicine Image features: • Projectional image. • Image contrast by tissue uptake and metabolism.

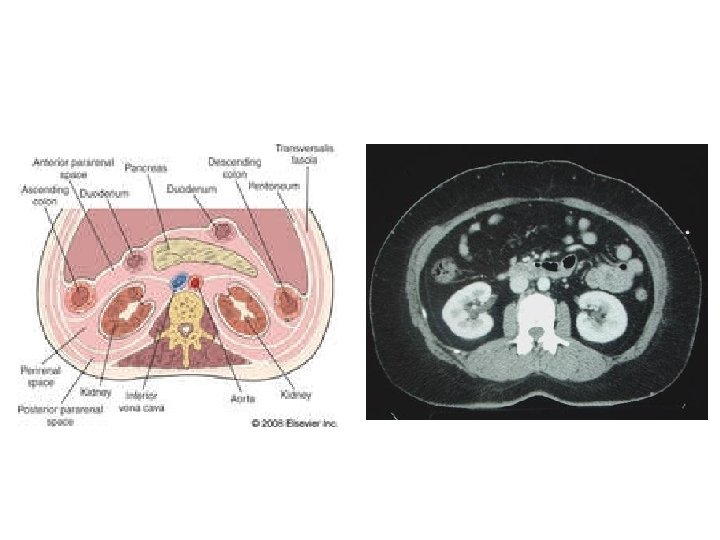

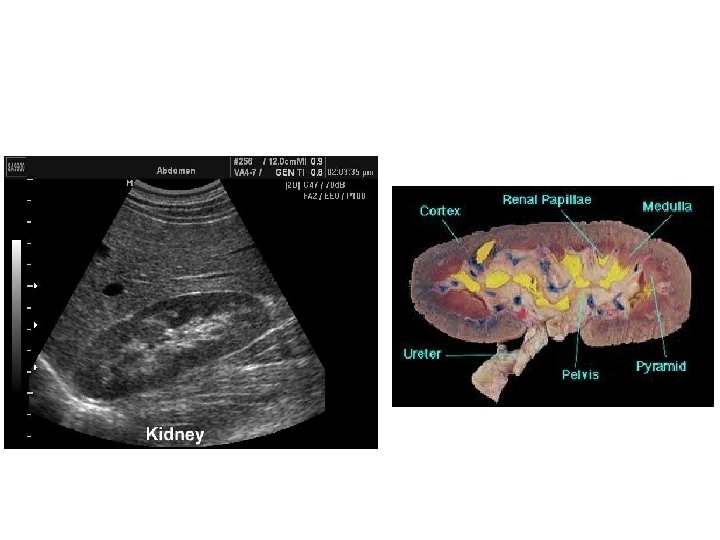

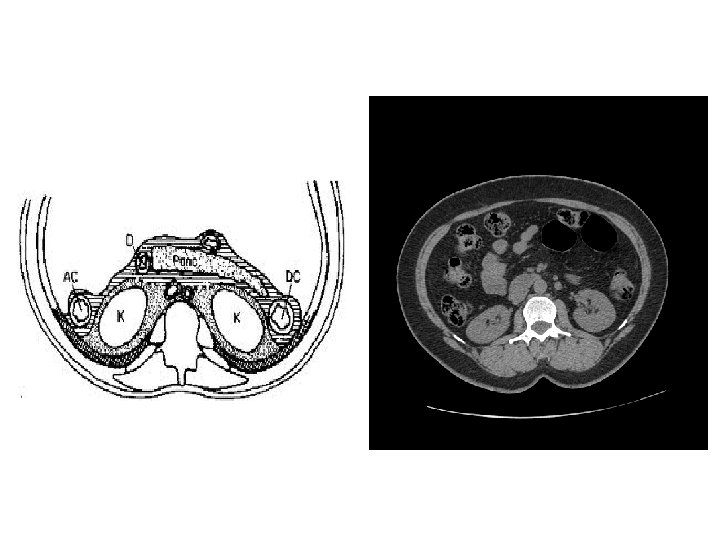

ANATOMY

CASES

• What are the imaging modalities? • What are the findings? • Diagnosis?

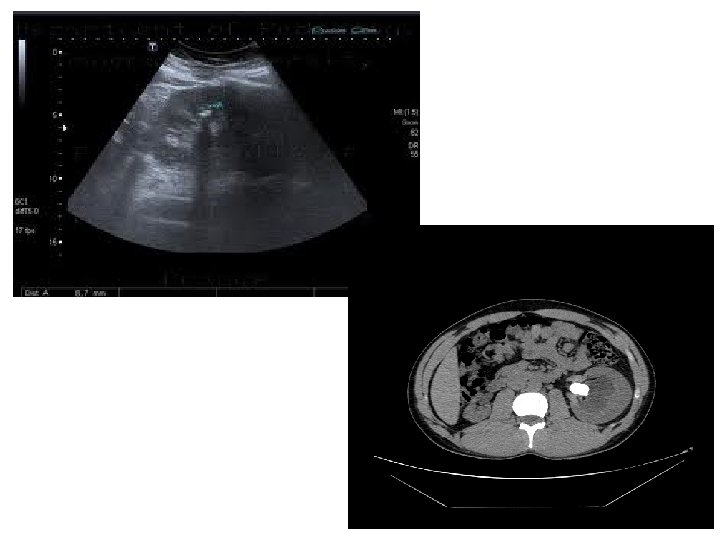

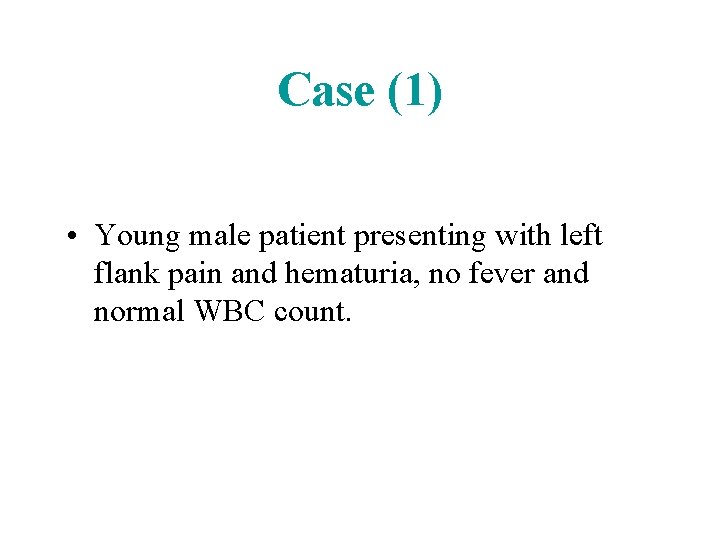

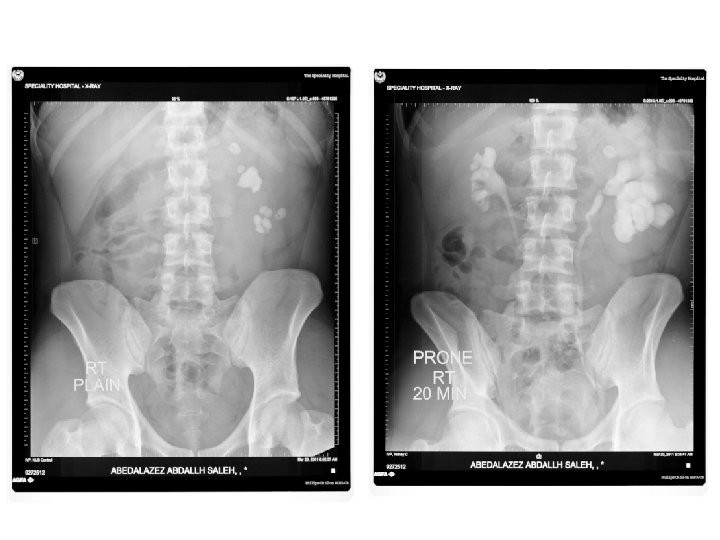

Case (1) • Young male patient presenting with left flank pain and hematuria, no fever and normal WBC count.

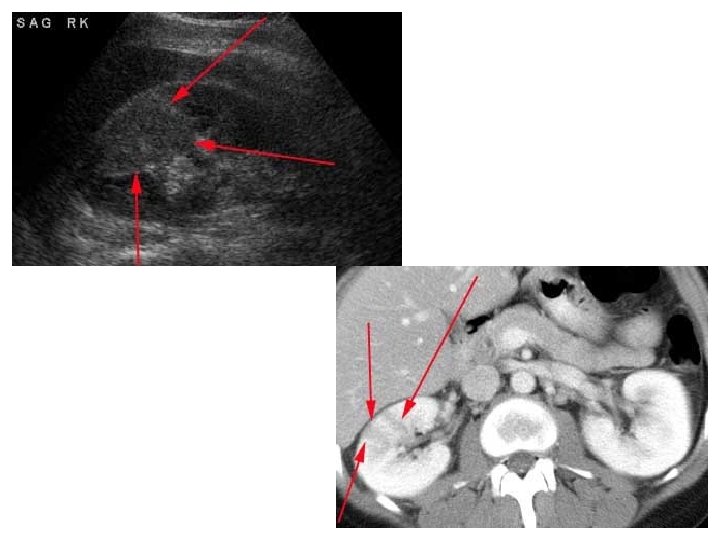

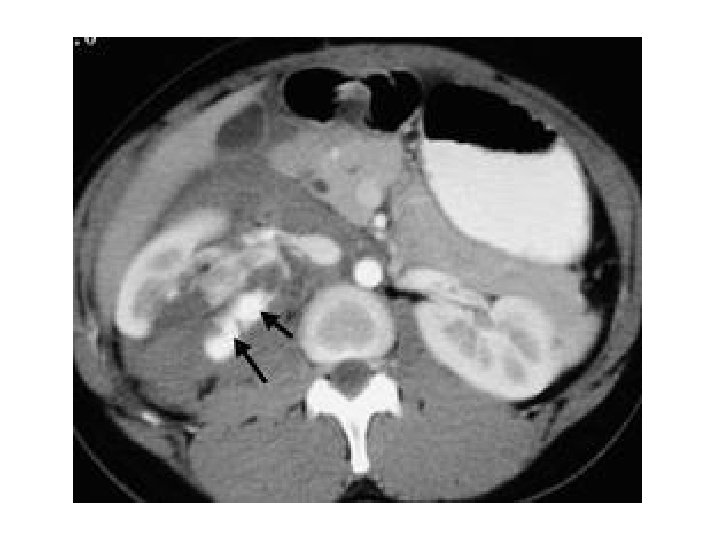

Case (2) • Middle aged woman presenting with flank pain, fever and high WBC.

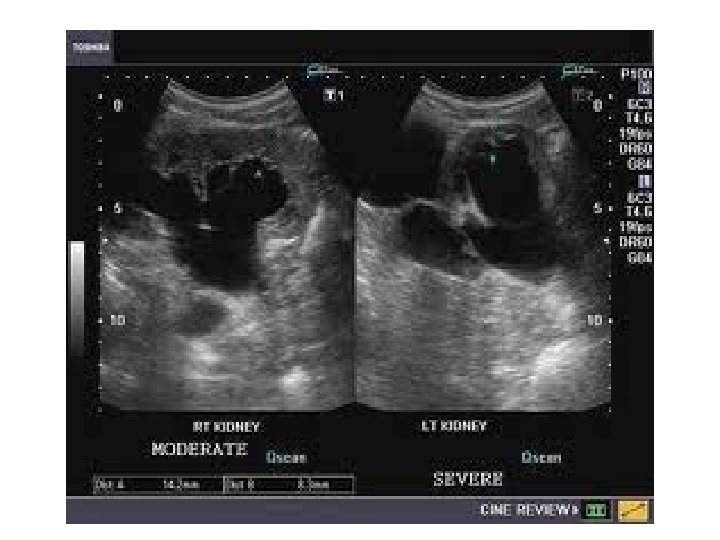

Case (3) • Elderly male patient with recurrent urinary tract infections.

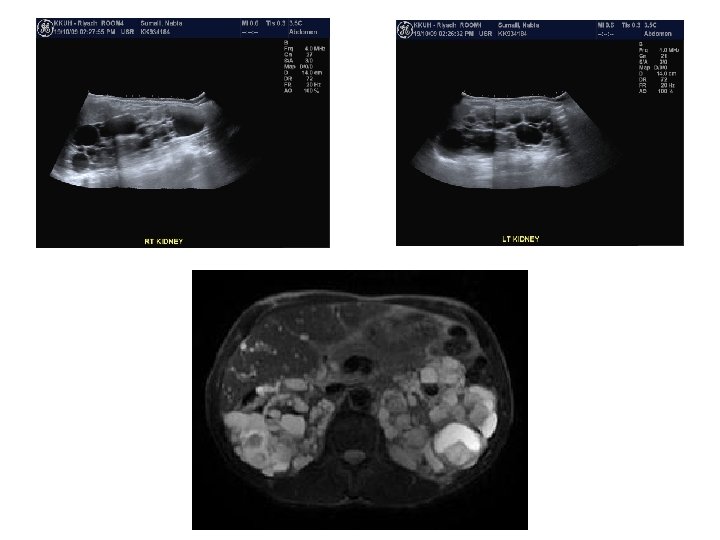

Case (4) • Young female presenting with decreased renal function (high urea and creatinine level).

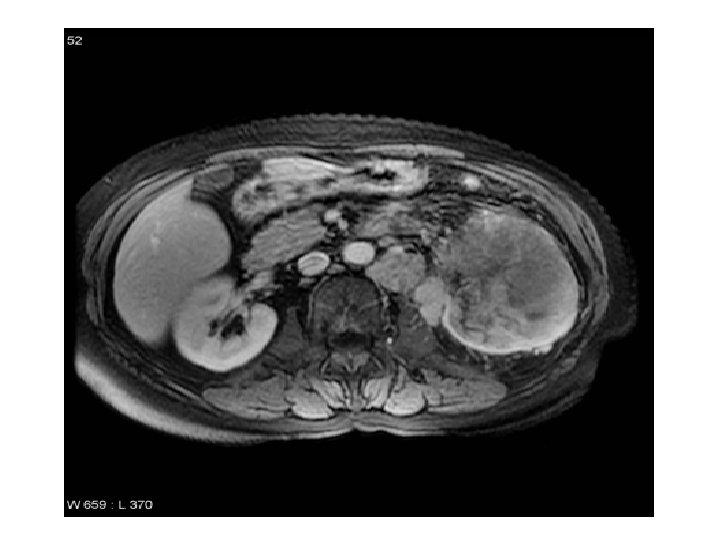

Case (5) • Elderly male patient with painless hematuria and weight loss.

Case (6) • Young male patient involved in a motor vehicle accident with blunt trauma to the abdomen.

Renal trauma grading

References • Stephanie Ryan, “Anatomy for Diagnostic imaging”, 2 nd Edition. • Jamie Weir, Peter Abraham, “Imaging Atlas of Human Anatomy” 3 rd Edition. • Peter Armstrong, “diagnostic imaging”, 5 th Edition.

THANK YOU
