Introducing the new KODAK 9000 C Extraoral Imaging System TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 2

Kodak 9000 C Panoramic – 3 D and Cephalometric Imaging System The Best Solution to address the needs of general practitioners and orthodontists • One Shot cephalometric imaging • Unique range of image formats • Automatic Tracing Module • Easy and simple to use • High-end panoramic unit TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 3

Kodak 9000 C « One Shot » Cephalometric Imaging First direct digital cephalometric system Exposure in a single shot Capture in a fraction of seconds Reduction of the risk of blurred images Patient comfort improvement TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 4

Kodak 9000 C - Unique range of cephalometric formats Half Skull ADULT: 24 x 30 cm (10 x 12 in. ) Full Skull CHILD: 24 x 24 cm (10 x 10 in. ) Half Skull CHILD: 18 x 24 cm (8 x 10 in. ) Specific Low Dose: 18 x 18 cm (8 x 8 in. ) Full Skull ADULT: 30 x 30 cm (12 x 12 in. ) TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 5

Kodak 9000 C - Variety of cephalometric programs Lateral Frontal (AP/PA) Oblique Submento-vertex Carpus TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 6

Kodak 9000 C Extraoral Imaging System PAN Two built-in CCD digital sensors: • Panoramic CEPH • Cephalometric No worries • No additional cost at purchase • No handling of the sensor • No risk to damage the sensors • No loss of time for the operator TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 7

Kodak 9000 C - Compact « One Shot » Design New One Shot system with reduced footprints => Fits into a 2. 23 m-width-room 2, 23 m (86. 6 in) TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 8

Kodak 9000 C - Unique Automatic Landmark Recognition Thanks to the Automatic Landmark Recognition application Allowing… - time savings for identification of basic landmarks - instant display of “ready for analysis & diagnosis”images. TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 9

Kodak 9000 C - Easy integration The same imaging software is used for all Kodak digital imaging systems KODAK 8000 / 8000 C KODAK 9000 C Digital Panoramic and Cephalometric System TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 10

Kodak 9000 C - Face to face positioning Direct contact with the patient • Constant control of the situation • Reinforced patient communication • The patient is not stressed TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 11

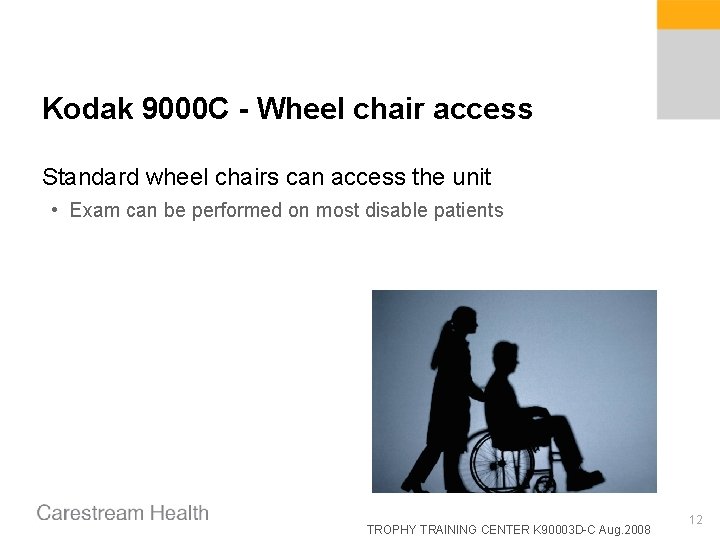

Kodak 9000 C - Wheel chair access Standard wheel chairs can access the unit • Exam can be performed on most disable patients TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 12

Kodak 9000 C - User friendly graphic interface • Fast learning curve for operators • Limited risk of making mistakes TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 13

Kodak 9000 C - Easy control panel • Just key functions to easily understand operate the system • Clear representation • A display screen provides messages and reminds the current exam settings TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 14

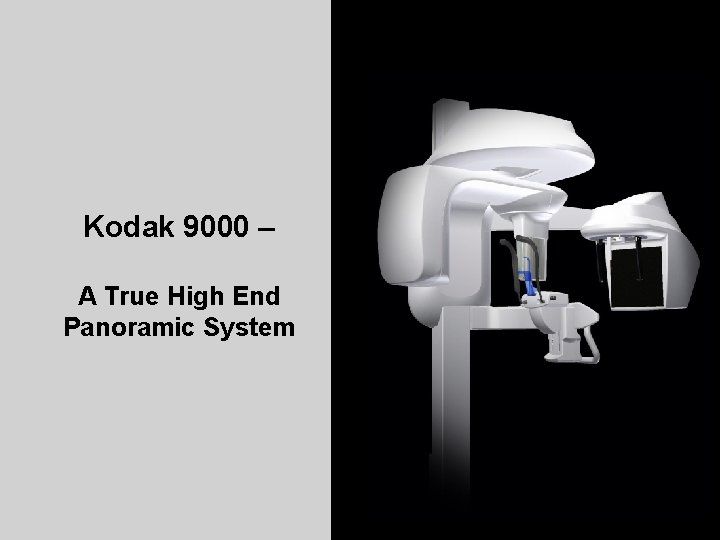

Kodak 9000 – A True High End Panoramic System TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 15

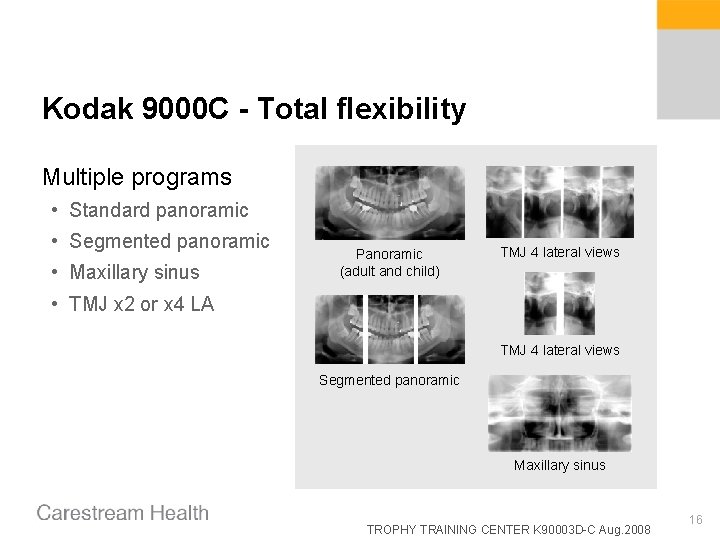

Kodak 9000 C - Total flexibility Multiple programs • Standard panoramic • Segmented panoramic • Maxillary sinus Panoramic (adult and child) TMJ 4 lateral views • TMJ x 2 or x 4 LA TMJ 4 lateral views Segmented panoramic Maxillary sinus TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 16

Kodak 9000 C - Total flexibility Anatomic programs • Variable focal trough that allows anatomical selection according to patient morphology – ‘U’, ‘V’ or Square shape of the jaw – Large, medium or small size of the jaw – Incisors tilt standard, inward or outward Small Medium Large TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 17

Kodak 9000 C - Easy patient positioning Two positioning laser beams: • Horizontal for Frankfurt plan • Vertical for Sagittal plan TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 18

Kodak 9000 C - Panoramic features – Lateral holders New lateral holders • More ergonomic • Keep the head stable • Invisible in the image TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 19

Kodak 9000 C – 3 D 3 D benefits TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 20

The new Kodak 9000 C 3 D presentation We initiate a new era for extraoral systems: • An affordable 3 D solution • 3 D exam now for everyone • Easy to use everyday • A true high-end panoramic unit • The best Ceph technology: One -shot TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 21

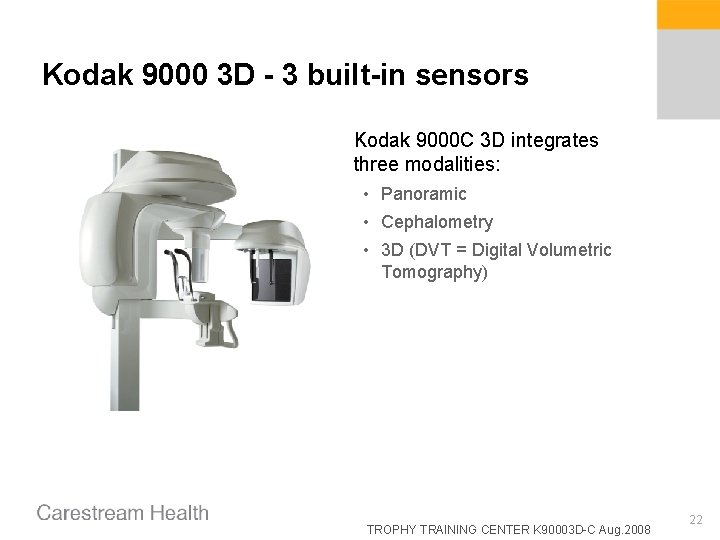

Kodak 9000 3 D - 3 built-in sensors Kodak 9000 C 3 D integrates three modalities: • Panoramic • Cephalometry • 3 D (DVT = Digital Volumetric Tomography) TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 22

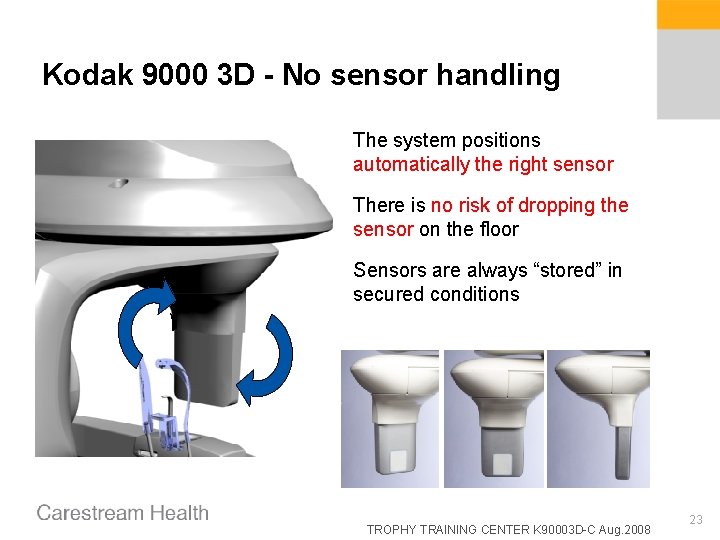

Kodak 9000 3 D - No sensor handling The system positions automatically the right sensor There is no risk of dropping the sensor on the floor Sensors are always “stored” in secured conditions TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 23

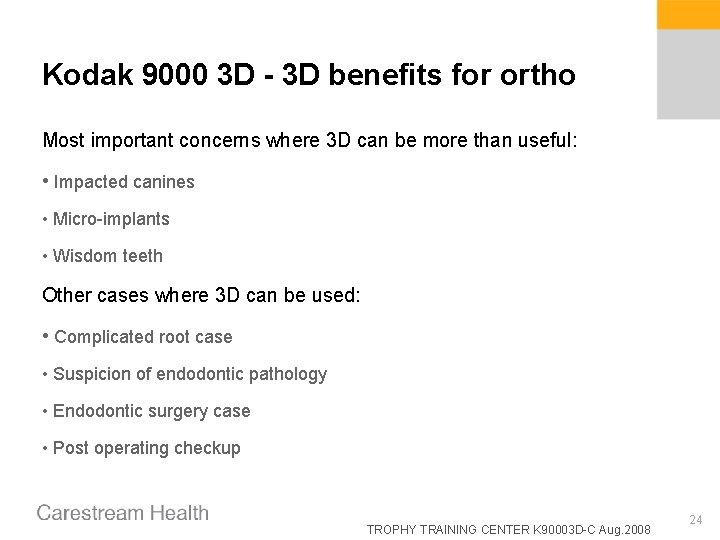

Kodak 9000 3 D - 3 D benefits for ortho Most important concerns where 3 D can be more than useful: • Impacted canines • Micro-implants • Wisdom teeth Other cases where 3 D can be used: • Complicated root case • Suspicion of endodontic pathology • Endodontic surgery case • Post operating checkup TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 24

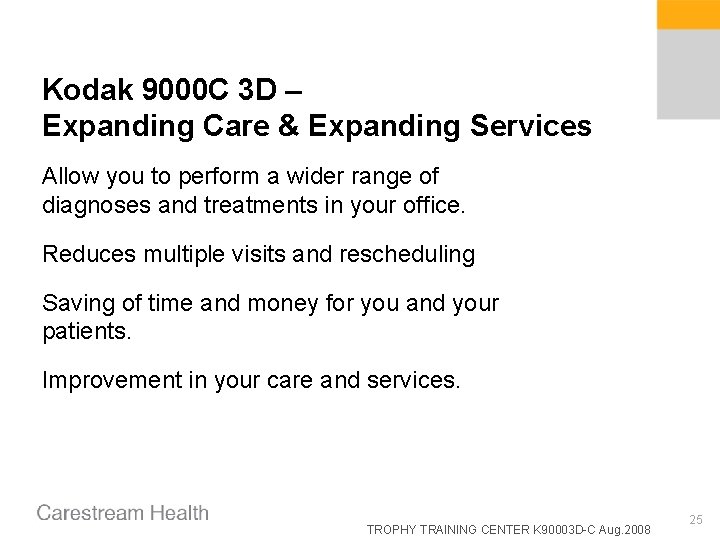

Kodak 9000 C 3 D – Expanding Care & Expanding Services Allow you to perform a wider range of diagnoses and treatments in your office. Reduces multiple visits and rescheduling Saving of time and money for you and your patients. Improvement in your care and services. TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 25

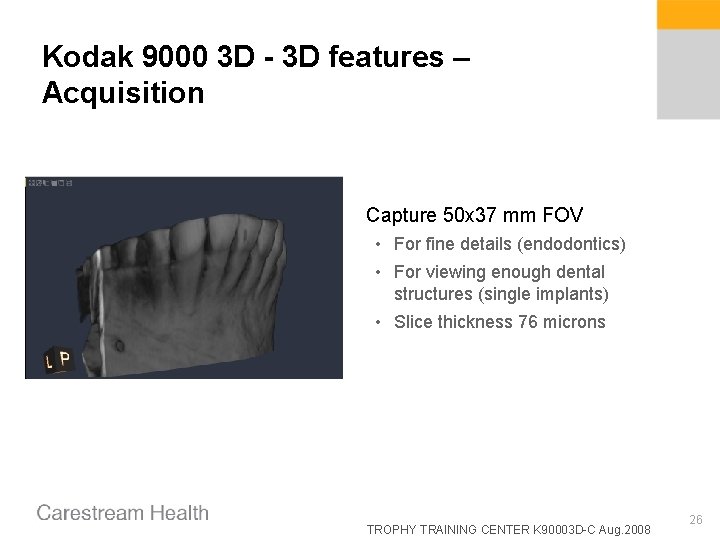

Kodak 9000 3 D - 3 D features – Acquisition Capture 50 x 37 mm FOV • For fine details (endodontics) • For viewing enough dental structures (single implants) • Slice thickness 76 microns TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 26

Kodak 9000 3 D - 3 D features – Positioning of the FOV The positioning is made easy thanks to the 50 mm diameter field of view! Positioning of the area of interest • Automatic with the virtual arch on the GUI Vertical alignment check • Pre shoot mode TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 27

Kodak 9000 3 D - 3 D software features Among hundreds of fancy features directly inherited from medical or industrial scanning applications: • Measurements (segments, angles) • Multi planar review • 3 D volume review • Curved plane slicing and orthogonal views • Thick slices TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 28

TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 29

TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 30

Kodak 9000 C 3 D – Technical Specifications

KODAK 9000 3 D – Unit overview Face to face positioning Direct contact with the patient • Constant control of the situation • Reinforced patient communication • Reduction of the feeling of entrapment. • The patient is not stressed TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 32

KODAK 9000 3 D – Unit overview Main features : Full Ethernet connection • Fast Ethernet connection for quick and secured image transfer • Easy installation • Long distance possible between the unit and the host computer • Point to Point protocol for optimum safety TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 33

KODAK 9000 3 D – Unit overview 3 D features – Patient positioning Two positioning laser beams: • Vertical for Sagittal plan • Sensor height line for vertical centring of the area of interest In manual mode: • Laser spot that indicates the centre of the area of interest TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 34

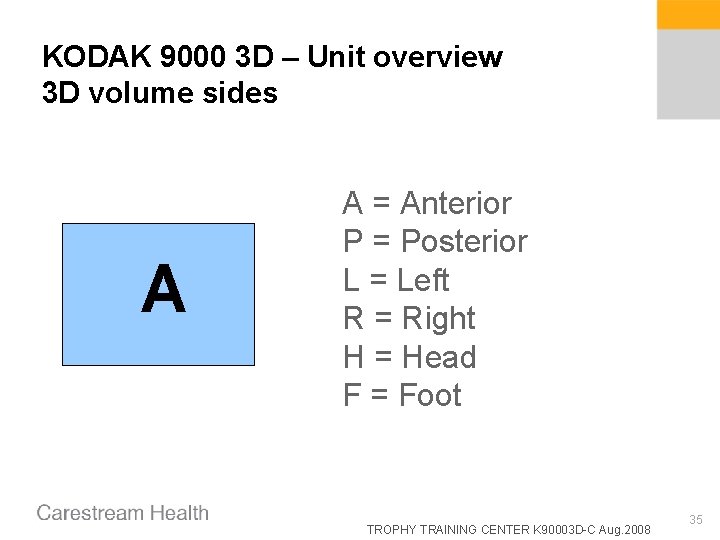

KODAK 9000 3 D – Unit overview 3 D volume sides A A = Anterior P = Posterior L = Left R = Right H = Head F = Foot TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 35

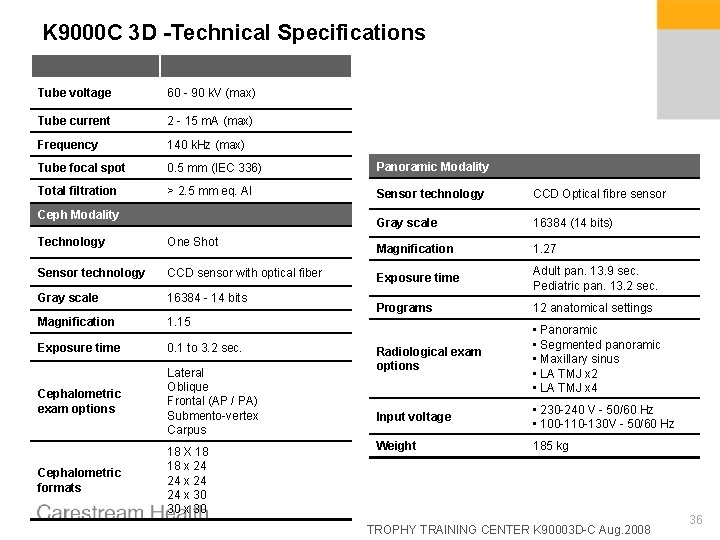

K 9000 C 3 D -Technical Specifications Tube voltage 60 - 90 k. V (max) Tube current 2 - 15 m. A (max) Frequency 140 k. Hz (max) Tube focal spot 0. 5 mm (IEC 336) Panoramic Modality Total filtration > 2. 5 mm eq. Al Sensor technology CCD Optical fibre sensor Gray scale 16384 (14 bits) Magnification 1. 27 Exposure time Adult pan. 13. 9 sec. Pediatric pan. 13. 2 sec. Programs 12 anatomical settings Radiological exam options • Panoramic • Segmented panoramic • Maxillary sinus • LA TMJ x 2 • LA TMJ x 4 Input voltage • 230 -240 V - 50/60 Hz • 100 -110 -130 V - 50/60 Hz Weight 185 kg Ceph Modality Technology One Shot Sensor technology CCD sensor with optical fiber Gray scale 16384 - 14 bits Magnification 1. 15 Exposure time 0. 1 to 3. 2 sec. Cephalometric exam options Lateral Oblique Frontal (AP / PA) Submento-vertex Carpus Cephalometric formats 18 X 18 18 x 24 24 x 30 30 x 30 TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 36

K 9000 C 3 D - Technical Specifications TROPHY TRAINING CENTER K 90003 D-C Aug. 2008 37
