Group (Multicast) Communication in Wide Area Networks Mostafa Ammar Don Towsley College of Computing Georgia Tech Atlanta, GA ammar@cc. gatech. edu Dept. of Computer Science University of Massachusetts Amherst, MA towsley@cs. umass. edu 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Definition u Multicast: Multicast is the act of sending a message to multiple receivers using a single local “transmit” operation 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
A Spectrum of Paradigms Unicast Broadcast Multicast Send to one 9/14/97 Send to some SIGCOMM 97 Tutorial, Copyright Ammar and Towsley Send to All
The Layering of Multicast 9/14/97 Multicast by Unicast Multicast by Broadcast SIGCOMM 97 Tutorial, Copyright Ammar and Towsley Multicast by Multicast
The Many Uses of Multicasting u Teleconferencing u Distributed Games u Software/File Distribution u Video Distribution u Replicated Database Updates 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Application Models u Point-to-Multipoint: Single Source, Multiple Receivers u Multipoint-to-Multipoint: Multiple Sources, Multiple Receivers u Sources are receivers u Sources are not receivers 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley

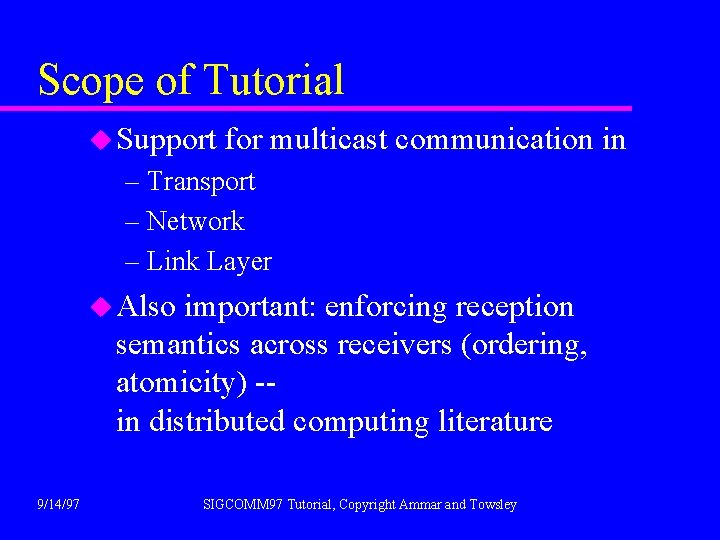

Scope of Tutorial u Support for multicast communication in – Transport – Network – Link Layer u Also important: enforcing reception semantics across receivers (ordering, atomicity) -in distributed computing literature 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Support Challenges u Overhead for network layer support u Scalability u Dealing with heterogeneity 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Outline u IP Multicast and the Mbone u Multicast Routing u Qo. S and Real-Time support u Reliable Multicast Transport u Multicast Flow Control u ATM and IP/ATM Multicast u Summary 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
IP Multicast and the Mbone 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Server-Oriented Multicast u source sets up one-to-many multicast group u each source responsible for its own group u examples: – ATM (explicit connection to each receiver) – ST-II (receivers listed in setup message) u for connection-oriented services (packet header size!) u discourages 9/14/97 dynamic groups SIGCOMM 97 Tutorial, Copyright Ammar and Towsley

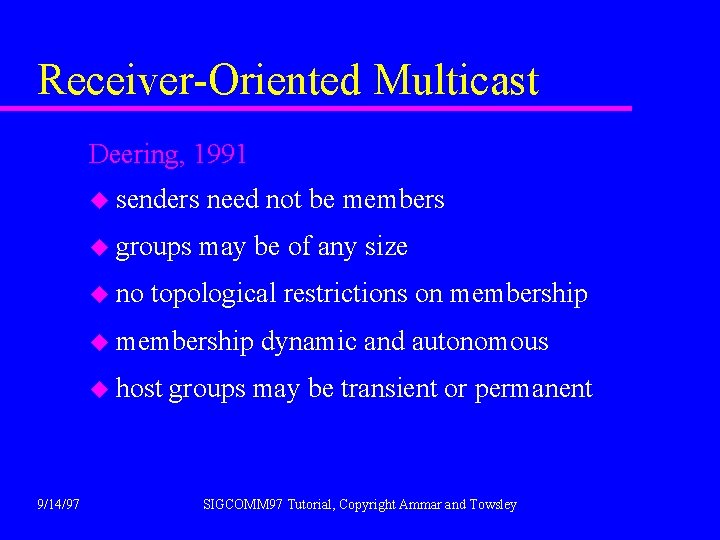

Receiver-Oriented Multicast Deering, 1991 u senders u groups u no need not be members may be of any size topological restrictions on membership u host 9/14/97 dynamic and autonomous groups may be transient or permanent SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
IP Multicast u host-group model u network-level; same packet format, different address u routers do all of the work u special IP addresses: 224. 0. 0. 0 - 239. 255 u 28 bits => 268 million groups (plus scope) u ttl value limits distribution 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Forwarding 1. check incoming interface: discard if not on shortest path to source 2. forward to all outgoing interfaces 3. don’t forward if interface has been pruned 4. prunes time out every minute 5. routers may send grafts upstream Routing done by DVMRP 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
IP Multicast (cont. ) Basic idea is to flood and prune router packet S R R no receiver 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
IP Multicast (cont. ) Prune branches where no members and branches not on shortest paths 2 nd packet S R R prune 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
IP Multicast (cont. ) Add new user via grafting; departure via pruning S R R graft R 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Mbone u Mbone = multicast backbone u virtual network overlaying Internet u needed until mcast capable routers deployed u IP in IP encapsulation u limited capacity, resilience 9/14/97 MBONE tunnel endpoint IP router SIGCOMM 97 Tutorial, Copyright Ammar and Towsley WS
Mbone Protocols u u u 9/14/97 IP UDP: best effort RTP: real-time transport RSVP: resource reservation protocol SDP/SAP: session description, announcement protocols conf. shared audio video control tools RSVP RTP, RTCP session directory SDP SAP HTTP SMTP TCP UDP IP physical layer SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Session Protocols u session description protocol (SDP) – used to describe (not necessarily) mcast session » » name, purpose start time, duration media (type, transport protocol, format) how to receive media u session announcement protocol (SAP) – mcast protocol for SDP – periodic transmission to known mcast address – frequency depends on other announcements and scope 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Session Directory u used to allocate multicast addresses to sessions – birthday problem, N addresses support sessions using random address allocation with negligible collision probability – random allocation currently used in popular session directory tools sd (LBL), sdr UCL) u advertises multicast sessions – uses SDP 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Example: sdr 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Mbone Applications ufreeware vic, nv (video), vat, nevot (audio), wb (whiteboard) IVS (teleconferencing) u commercial IP/TV - teleconferencing (Precept) Most group applications use IP unicast E. g. , Cu. See. Me builds own mcast tree 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
MBone Behavior Motivation: quantitative understanding of session dynamics, and loss behavior u session dynamics: – sizes, durations of sessions – join/leave behavior u loss behavior: – loss rates – spatial and temporal correlation 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Mbone Session Dynamics Goal: to characterize the dynamics of Mbone sessions -- Join/Leave Behavior u capture data using Mlisten tool http: //www. cc. gatech. edu/computing/Telecomm/mbone/ u data pre-processed to account for – Mbone un-reliability, – abnormal usage 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Typical Sessions u long-lived (Shuttle) u short-lived (Seminars) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Session Stats Statistics for u u interarrival of rcvrs rcvr membership duration 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Tree Size u multicast vs unicast tree cost u sensitivity of multicast tree to source location u Mbone vs Internet tree 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Audio/Video audio receivers vs video receivers 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley

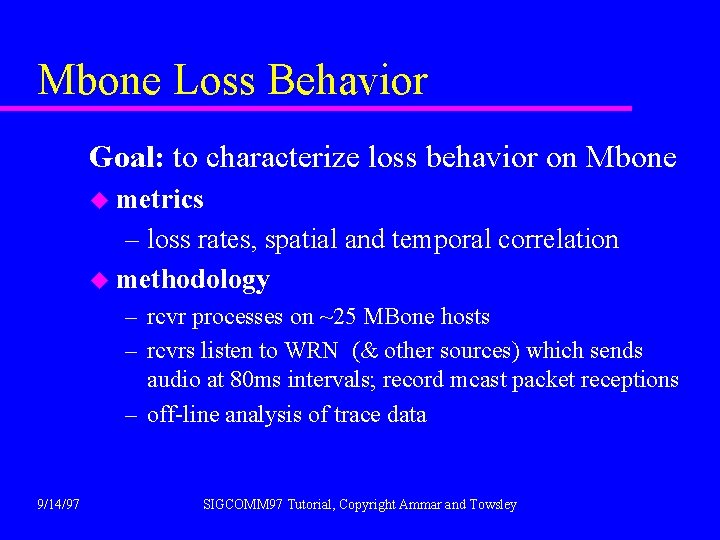

Mbone Loss Behavior Goal: to characterize loss behavior on Mbone u metrics – loss rates, spatial and temporal correlation u methodology – rcvr processes on ~25 MBone hosts – rcvrs listen to WRN (& other sources) which sends audio at 80 ms intervals; record mcast packet receptions – off-line analysis of trace data 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Measurements 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Where does MBone loss occur? u 4/16/96 dataset u across data sets: backbone loss small compared to overall loss u no loss in endsystems 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Simultaneous Packet Loss u u Q: distribution of number of rcvr’s losing pkt? 4/19/96 dataset: 47% pkts lost somewhere similar results across datasets models of packet loss: – star: end-end loss independent – full topology: measured per link loss independent – modified star: source-tobackbone plus star 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Temporal Loss Correlation u u Q: do losses occur singly or in “bursts” 12/11/95 dataset, rcvr loss vs time – occasional long periods of 100% loss – spatial correlation 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Burst Loss Length Distribution u sample distribution from “alps” – 12/1/95 dataset u generally isolated losses with occasional longer bursts 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley

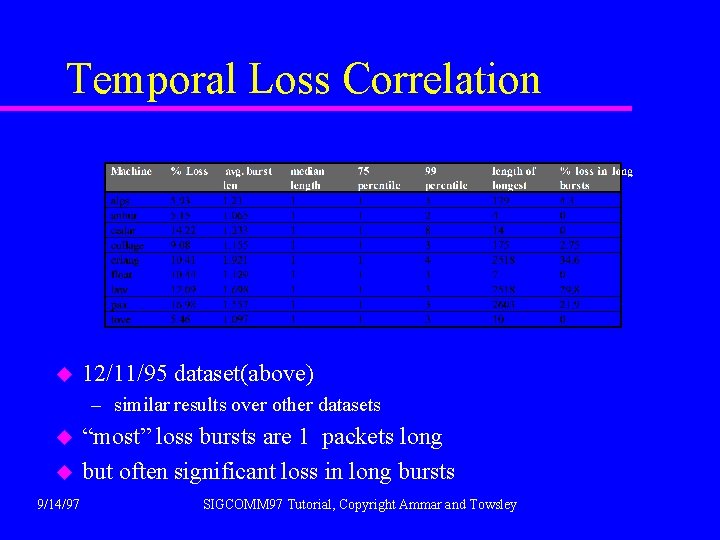

Temporal Loss Correlation u 12/11/95 dataset(above) – similar results over other datasets u u 9/14/97 “most” loss bursts are 1 packets long but often significant loss in long bursts SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
MBone Measurements Summary u u u identifiable backbone loss small wrt overall loss spatial loss correlation: limited temporal loss correlation: – most loss bursts have length one – significant loss occurs in long bursts u u 9/14/97 reference: ftp: //gaia. cs. umass. edu/pub/Yajn 96: loss. ps lessons for multicast protocols/applications? loss/delay correlation? sensitivity to period, probe size, 1 -many, many-many SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Routing 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Theoretical Basis The Steiner Tree Problem is NP-Complete – Graph G = (V, E) – Positive Edge Weights W(e) – R a subset of V – B positive integer bound Is there a subtree of G that includes all R with cost no more than B? – Heuristic less than twice optimum 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Principles of Multicast Routing u Addressing – List Addressing » Not Scalable – Group Addressing » Less Control 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Principles of Multicast Routing u Reuse of unicast routing infrastructure – Desirable – Too Constraining u Multicast routing overhead – Needs to be minimized 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Principles of Multicast Routing u Evaluation – Bandwidth Usage – Delay -- Average, Maximum, Variance – Concentration – Router/Switch overhead 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Basic Multicast Routing Protocols u Problem: Given a source and a set of destinations, Route same packet to at least (or exactly) this set of destinations A B C Source D 9/14/97 E SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Basic Multicast Routing Protocols u Multicast by Broadcast – Filter above network layer – Natural in Broadcast Networks (Satellite, Bridged LANs) – Use Flooding in PSN – Bandwidth inefficient, Security concerns 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Basic Multicast Routing Protocols u Separately addressed packets A B C Source to A to B 9/14/97 to C to D to E D E SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Basic Multicast Routing Protocols u Multidestination Addressing to (A, B) A to (A, B) B to (B) Source to (C, D, E) to (C) to (A, B, C, D, E) E 9/14/97 C to (D, C) D SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Basic Multicast Routing Protocols u Spanning Tree Forwarding – Shared or Source-Based B A Source C D 9/14/97 E SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Basic Multicast Routing Protocols u Reverse Path Forwarding – Dalal and Metcalfe – Basis for DVMRP (the original Mbone routing protocol) – Main advantage: Use of existing unicast routing infratsrutcure 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Reverse Path Forwarding u. A Broadcast Protocol u Group addressing used u Routers/Switches Forward based on source of multicast packet 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Reverse Path Forwarding u Flood if packet arrives from Source on link that router would use to send packets to source u Otherwise Discard u Rule avoids flooding loops u Uses Shortest Path Tree from destinations to source (reverse tree) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Reverse Path Forwarding Routing Table to use S S to Group y x w y z 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley Destinations
Reverse Path Forwarding B A Source C D E 9/14/97 Shortest Path Tree to Source SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Shared Tree VS Source-Based Tree u RPF routes over source-based tree – Good delay properties – Per source and group overhead u Spanning Tree Forwarding uses shared tree – Per group overhead – Higher delays – More Traffic Concentration 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Routing Performance Evaluation u Simulation, Analysis and Experimentation u Need – Network Models (Waxman, GT-ITM, Tiers) – Application Models (Mlisten) – Traffic Models – Data Loss Models 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Internet Multicast Routing u Group Addressing – Class D IP addresses u Link Layer Multicast u Two Protocol Functions – Group Management » IGMP – Route Establishment » DVMRP, MOSPF, CBT, PIM 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Link Layer Multicast u Example Ethernet: – Ethernet multicast addresses – Algorithmic mapping between IP mcast address and Ethernet mcast address u To join group: – Recognize IP mcast address – Interface recognizes link layer mcast address – Inform local router using IGMP 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Internet Group Management Protocol u Used by end-system to declare membership in particular multicast group to nearest router(s) – Version 1: Timed-out Leave – Vesrion 2: Fast (Explicit Leave) – Version 3: Per-Source Join 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
IGMPv 1 u Joining Host send IGMP Report u Leaving Host does nothing u Router periodically polls hosts on subnet using IGMP Query u Hosts respond to Query in a randomized fashion 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
IGMPv 2 u ADDS: – Group Specific Queries – Leave Group Message u Host sends Leave Group message if it was the one to respond to most recent query u Router receiving Leave Group msg queries group. 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
IGMPv 3 u Unclear Status? ? u ADDS: – Group-Source Specific Queries, Reports and Leaves u Inclusion/Exclusion 9/14/97 of sources SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Routing Protocols u Source -based Tree Protocols: – DVMRP – MOSPF – PIM-DM u Shared-Tree Protocols – CBT – PIM-SM 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
DVMRP u Distance Vector Multicast Routing Protocol – An enhancement of Reverse Path Forwarding that : » Uses Distance Vector Routing Packets for building tree » Prunes broadcast tree links that are not used (non-membership reports) » Allows for Broadcast links (LANs) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Forwarding in DVMRP 1. check incoming interface: discard if not on shortest path to source 2. forward to all outgoing interfaces 3. don’t forward if interface has been pruned 4. prunes time out every minute 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
DVMRP Forwarding (cont. ) Basic idea is to flood and prune router packet S R R no receiver 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
DVMRP Forwarding (cont. ) Prune branches where no members and branches not on shortest paths 2 nd packet S R R prune 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
DVMRP Forwarding (cont. ) Add new user via grafting; departure via pruning S R R graft Report R 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Overheard on Mbone Mailing List! u “Help, we are unable to send prunes” u Response: “Well, have you tried to send plums? Raisins or grapes? …… Perhaps your multicast implementation does not support fruit at all? ” 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast OSPF u Link-State Multicast Routing u Routers maintain topology DBs u Group-Membership-LSA broadcast by routers to advertise links with members u Routers compute and cache pruned SPTs 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Protocol Independent Multicast u Motivation: – DVMRP good for dense group membership – Need shared/source-based tree flexibility – Independence from Unicast Routing u Two PIM modes: – Dense Mode (approx. DVMRP) – Sparse Mode 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
PIM- Dense Mode u Independent from underlying unicast routing u Slight efficiency cost u Contains protocol mechanisms to: – detect leaf routers – avoid packet duplicates 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
PIM - Sparse Mode u Rendezvous Point (Core): Receivers Meet Sources u Reception through RP connection = Shared Tree u Establish Path to Source = Source-Based Tree 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
PIM - Sparse Mode Source Join Register Rendez-Vous Receiver 9/14/97 Prune SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
PIM - Sparse Mode Source Rendez-Vous Receiver 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Core-Based Trees u. A shared-tree protocol u One node on shared tree is Core u Sender sends to Core u Core forwards over multicast tree 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Core-Based Trees Core B A Source C D E 9/14/97 Core-based tree SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
PIM and CBT Issues u Unidirectional VS Bidirectional Shared Trees u Core/RP Placement and Selection u Multiple Cores/RPS u Dynamic Cores/RPs 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Real-Time Multicasting and Quality-of-Service (Qo. S) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
pkts generated (received) The Problem sender t 0 t 1 t 2 receiver time How to get smooth, continuous playout u adaptation by appl. – playout delay adj. – loss concealment u 9/14/97 perf. guarantees by network SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Requirements for Real-Time Applications u transport protocol must provide timing information u call admission/reservation protocols needed to – determine availability of resources for particular performance requirement – reserve (allocate) resources u support 9/14/97 for multicast – heterogeneity, scalability SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
RTP: Real-Time Transport Protocol u timing info. for playout u reordering information u loss detection for quality estimation, recovery u synchronization – network jitter – clock drift – intermedia (lip sync) u Qo. S feedback u source identification 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
RTP: Real-Time Transport Protocol Schulzrinne, et al. RFC 1889 u product of IETF Audio Video Transport Working Group (AVT WG) u goals – lightweight, interoperability – easy integration with application – mechanism - not policy – scalability - unicast, multipoint 2 - 1000 s participants – separation of control/data 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
RTCP: RTP Control Protocol u provides monitoring capablities – quality of routes – state of participants (talker indication) u feedback to application – Qo. S feedback - adjust sender rate u scalability- randomized control traffic; rate decreases as number increases 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Performance Guarantees to Application u deterministic guarantees – absolute guarantees on loss, delay or jitter u statistical guarantees – probabilistic guarantees – cell loss probability < e – prob. pkt delay exceeds D is less than e u different services for different performance requirements 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Example: Internet Services Guaranteed: no loss, upper bound on delay – invoked by specifying traffic (TSpec) Controlled load: negligible losses, like unloaded network => delay-adaptive applications – invoked by specifying traffic (Tspec) Best Effort: traditional service 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Guaranteed Service u user specifies traffic (TSpec) – token bucket spec. (r - token rate, b b - bucket depth in bytes) – p - peak rate – m - minimum policed unit – M - max. packet size u and desired service (Rspec) – desired bandwidth R > r – slack term S 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley r
Guaranteed Service (cont. ) u delay is decreasing function of R for weighted fair queueing u user does not provide delay bound; delay bound controlled by choice of R, S u call admission, scheduling policy unspecified – service oriented towards WFQ 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Controlled Load Service u user sees unloaded network – buffer loss on order of loss due to noise, faults, etc. – delays should be mostly = propagation delay + processing costs u TSpec is same as for guaranteed service; no RSpec u call admission, scheduling, buffer management unspecified 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Call Setup u contract between network and application – network guarantees performance – application guarantees traffic behavior » peak rate » average rate » burst size u approaches – one pass – two pass 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
One Pass u u sender or receiver oriented source (rcvr) sends resource reservation to rcvrs (source) cannot specify/guarantee Qo. S soft state possible – periodic refreshes u u 9/14/97 e. g. , RSVP one pass w. advertisement rsvtn source rcvr 1 rcvr 2 rsvtn rcvr 1 source SIGCOMM 97 Tutorial, Copyright Ammar and Towsley rcvr 2
Two Pass u u u sender/rcvr initiated forward phase: check for resources at each link reverse phase – inform routers if call admitted – reserve resources u u u 9/14/97 reserve max resources resource reclamation phase can be added passive two-phase - notify originator rcvr 1 source rcvr 2 fwd phase rev phase SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
RSVP: Re. Ser. Vation Protocol Zhang, etal. 1993 u receivers control reservations – consistent with IP multicast – good scalability – supports heterogeneity u separate resource reservation from usage – packet filters control usage u soft state – end system periodically refresh state 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
RSVP Operation R D data (mcast) S R PATH RESV R D u rcvr joins group via IGMP source sends PATH messages to rcvrs u rcvrs send RESV messages back to source(s) u reservations can be lowered, u merged between senders (audio) u 9/14/97 one pass => rcvr does not know final Qo. S => one pass with advertising SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Other Issues u policing/traffic shaping – leaky bucket – Generic Cell Rate Algorithm (GCRA) » peak cell rate, mean cell rate, cell delay variation tolerance u interaction with routing u what does a guarantee really mean? u pricing u performance evaluation 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Grand-Unified Multicast (GUM) u Putting it all together u A protocol for inter-domain multicast routing u Bidirectional Shared Tree for inter-domain routing u Receiver domains can utilize choice of protocol u Very New -- Still needs digesting 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Summary u Multicast Routing is a well researched problem. u Challenge now is – deployment – inter-operability – management 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Reliable Multicast 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Problem How to transfer data reliably from source to R receivers u u u 9/14/97 scalability: 10 s -- 1000 s -- 100000 s of receivers heterogeneity feedback implosion problem SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
AC K Feedback Implosion Problem rcvrs K AC . . . K AC 9/14/97 K AC ACK AC K sender SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Issues u level of reliability – full reliability (data) – semi-reliability (video) u ordering – no ordering – ordering per sender – full ordering (distr. computing) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Approaches u shift responsibilities to receivers u feedback suppression u multiple multicast groups u local recovery u server-based recovery u forward error correction (FEC) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Applications u application requirements – low latency » file transfer (finite duration) » DIS, teleconferencing – high throughputs - streaming applications (billing, etc. ) u application characteristics – one-many: one sender, all other participants rcvrs (streaming appl. teleconferencing) – many-many: all participants send and receive (DIS) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Sender Oriented Reliable Mcast Rcvr: ACKs received pkts Note: group membership important 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley K AC Sender: mcasts all (re)transmissions selective repeat use of timeouts for loss detection ACK table AC K sender X receivers
Vanilla Rcvr Oriented Reliable Mcast Sender: mcasts (re)transmissions selective repeat responds to NAKs Note: easy to allow joins/leaves 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley NAK Rcvr: upon detecting pkt loss sends pt-pt NAK timers to detect lost retransmission sender X receivers

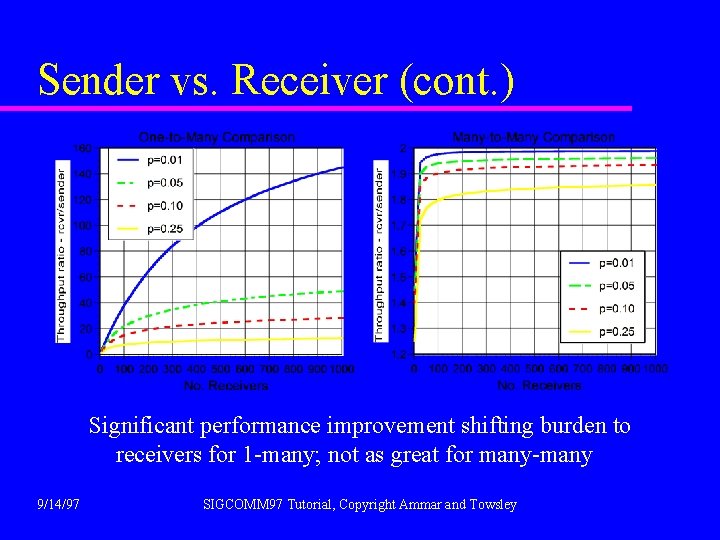

Sender vs. Receiver (cont. ) Significant performance improvement shifting burden to receivers for 1 -many; not as great for many-many 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Feedback Suppression u u randomly delay NAKs multicast to all receivers sender N A K + reduce bandwidth - additional complexity at receivers (timers, etc) - increase latencies (timers) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley X X
Performance of Feedback Suppression Additional thruput improvement for 1 -many; costly for many -many 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multiple Multicast Groups u mcast group per pkt – all rcvrs belong to one group for original transmissions – rcvr losing pkt j joins group for j – additional performance improvement for small no. groups (Kasera etal 1997) u receivers divided into destination groups – identify rcvrs with different capabilities – place similar rcvrs into same group – additional improvement (Ammar, Wu 1992) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Server-based Reliable Multicast first transmisions mcast to all sender receivers and servers u each receiver assigned to server u servers perform loss recovery u servers can be subset of rcvrs or provided by network u can have more than 2 levels LBRM (Cheriton) receivers u 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Benefits of Adding Servers u u u 2 levels, 4 rcvrs/server equal losses on each link rcvr oriented, NAK suppression at all levels Comments: u u clear performance benefits how to configure – static/dynamic – many-many 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Local Recovery Lost packets recovered from nearby receivers u deterministic methods – impose tree structure on rcvrs with sender as root – rcvr goes to upstream node on tree RMTP (Lucent) u self-organizing methods – rcvrs elect nearby rcvr to act as retransmitter using scoped multicast and random delays (SRM) u hybrid 9/14/97 methods SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Issues with Server- and Local Based Recovery u how to configure tree u what constitutes a local group u how to permit joins/leaves u how to adapt to time-varying network conditions no definitive resolution 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Some Examples of Protocols 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley

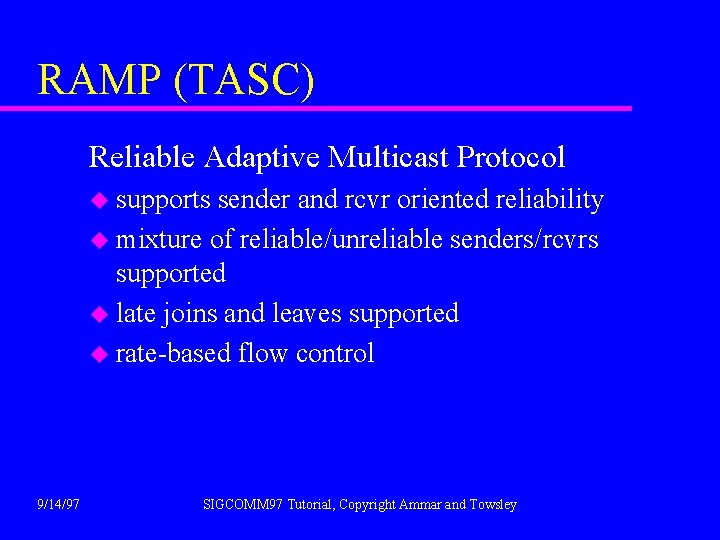

RAMP (TASC) Reliable Adaptive Multicast Protocol u supports sender and rcvr oriented reliability u mixture of reliable/unreliable senders/rcvrs supported u late joins and leaves supported u rate-based flow control 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
RMTP (Lucent) Reliable Multicast Transport Protocol u imposes a tree structure on rcvrs corresponding to multicast routing tree u leaves send periodic status msgs to upstream nodes u nodes inside tree – provide repairs to downstream nodes – send aggregate status msgs upstream u late-joins supported thru 2 -level cache u rate- and window-based flow control 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
SRM (LBL) Scalable Reliable Multicast framework u integrated with application u rcvr-oriented using NAK suppression and selforganizing local recovery u supports late-joins and leaves u as built in wb, uses rate-based flow control u has been used with 100 s of participants over the Internet 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Other Examples u Single Connection Emulation (SCE, Georgia Tech) – sender oriented, offers semantics of TCP (sender ordering, etc) – late-joins are not supported. u ISIS (Cornell, Isis Dist. Systems) – general purpose toolkit for providing reliable data transfer to dist. applications – sender and rcvr oriented – wide range of ordering semantics supported – late-joins and leaves supported 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Other Examples Local Group based Multicast Protocol (LGMP, Karlsruhe) – self-organizing local- recovery based scheme Xpress Transport Protocol (XTP) – sender-oriented extension of unicast protocol 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Forward Error Correction (FEC) Add redundancy in order to reduce need to recover from losses (e. g. , Reed Solomon codes) (k, n) code – for every k data pkts, construct n-k parity pkts – can recover all data pkts if no more than n-k losses + reduce loss probability - greater overheads at end-hosts Q: can FEC reduce network resource utilization? 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Potential Benefits of FEC Data Retransmission D 3 Initial Transmission D 3 X D 3 D 2 D 1 X D 3 D 2 X D 1 Parity Retransmission D 1 P=D 1 D 2 D 3 One parity pkt can recover different data pkts at different rcvrs 9/14/97 D 2 D 1 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley P P P
An Integrated Approach using (k, n) Erasure Codes u u transmit packets in blocks of k send redundancy packets in response to NAKs p=0. 01 Assumptions: independent losses, p significant performance gain achievable with small no. of parity pkts, n-k 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
End-Host Overheads Software encoding/ decoding rates for 1 KB pkt size (Rizzo) => FEC in SW is feasible for many applications 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
End-Host Thruput Comparison: No FEC vs FEC u u No FEC, rcvr oriented with NAK suppression – SW encoding at sender – HW encoding at sender SW FEC thruput determined by sender HW FEC thruput determined by rcvr 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Performance Evaluation - no. transmissions to get pkt j to all rcvrs - no. transmsissions of pkt j needed for rcvr i u u u 9/14/97 well understood for spatially and temporally independent losses spatial correlation: computationally expensive for general topologies see Towsley 85, Tripathi 94, Nonnenmacher 97 temporal correlation: has not been touched on (see Nonnenmacher etal 97 for one treatment) SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Summary u reliable mcast is a hot topic u unresolved issues – proper integration of different ideas wrt different applications – integration with flow control – interaction with group memebrship – notion of semi-reliability 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Multicast Applications 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Problem u Match transmission rates to – Network capacity – Receiver “consumption” rates 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Flow Control Challenges u Accommodating heterogeneity among receivers and paths leading to them u Preserving fairness among – receivers of same flow – distinct flows u Scalability of feedback 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Flow Control Solutions u Loss-Tolerant Applications (e. g. , Video) – Information content per unit time can be preserved at lower data rates u Applications demanding data integrity – lower data rates => lower information content per unit time u Goal: Goal Co-Existence with TCP? 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Video Flow Control u Scalable Feedback Control (Bolot, Turletti and Wakeman) – Receivers measure loss rates – Randomly generated feedback – Source estimates receivers’ state and adjusts video rate by changing compression parameters u Problem: 9/14/97 fairness among receivers SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Video Flow Control u Improving fairness using Destination Set Grouping (Cheung, Li, Ammar) – Send replicated video streams at different rates – Receivers can control rate of each stream within limits – Receivers can move among streams u Fairness at the expense of increased bandwidth consumption 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Video Flow Control u DSG Intra. Stream Protocol Inter. Stream Protocol and Single Stream Comparison High Intra. Stream Protocol Med. Low Single Group DSG 9/14/97 Receivers SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Video Flow Control u Receiver-Driven Layered Multicast (Mc. Canne, Jacobson and Vetterli) – Single video stream subdivided into layers – Receivers add and drop layers depending on congestion – Challenge: Distributed Consensus, Layer Synchronization 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Video Flow Control u Receiver-driven Layered Multicast Source Receivers 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Video Flow Control u Receiver-Driven Layered Multicast – Drop Layer: indicated by loss – Add Layer: – No such indication – Use join experiments with shared learning » Reluctance to join layers that failed » Inform others via multicast of failed experiments 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multicast Video Flow Control u Layered Video Multicast with Retransmissions (LVMR) (Li, Paul, Ammar) – Uses agents within network to maintain information about join experiments – Reduces overhead of shared learning 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Reliable Multicast u Less Understood/Mature Area u Some Possibilities: – Window flow control (a la TCP) » Not Scalable, Not Fair (across receivers) – Explicit rate control (e. g. , ATM ABR) » Scalable but still not fair – Multiple Multicast Groups 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Reliable Multicast u The Single Connection Emulation (SCE) Architecture (Window Flow Control) Application TCP SCE IP 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley

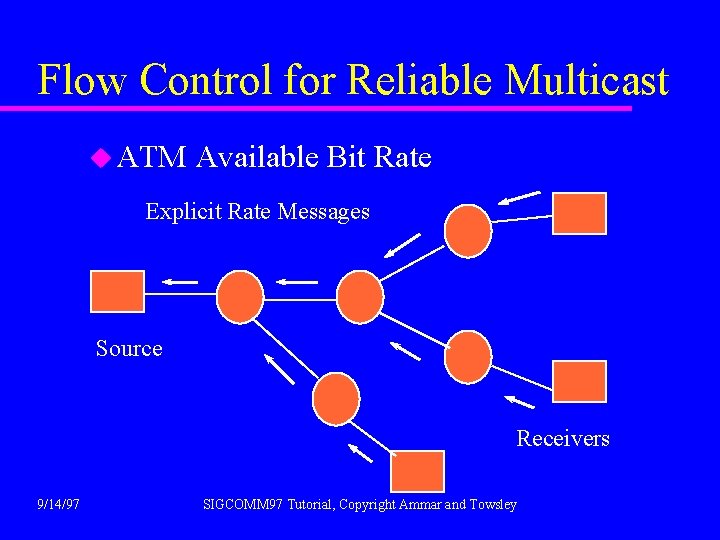

Flow Control for Reliable Multicast u ATM Available Bit Rate Explicit Rate Messages Source Receivers 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Reliable Multicast u ATM Available Bit Rate – Consolidation Algorithm – Consolidation Noise – Transient Time – Volume of Feedback 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Reliable Multicast u Multiple Multicast Groups – Simulcasting or Destination Set Splitting (Ammar, Wu and Cheung, Ammar) – Data Partitioning (Bhattacharyya, Towsley, Kurose, Nagarajan) – Cumulative Layering (Vicisano) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Reliable Multicast u Simulcasting: – Similar to DSG protocol for Video – Send multiple (uncoordinated streams) at different rates – Each stream carries all data – Receivers join appropriate stream one at a time 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Reliable Multicast u Data Partitioning: – Send multiple streams at different rates – Synchronous start time for receivers – Partition data among streams with replication among streams allowed – Schedule data for optimum completion time 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Reliable Multicast u Data Partitioning Example R 1 R 2 R 3 Flow 1 rate = 1 A D Flow 2 rate = 1 B C Flow 3 rate = 2 C D 9/14/97 C SIGCOMM 97 Tutorial, Copyright Ammar and Towsley B
Flow Control for Reliable Multicast u Data Partitioning – Can achieve ideal completion time with as many channels as receivers – Can achieve close to ideal with a few channels – Same completion time as simulcast but less bandwidth consumed – Can improve by dynamic rate adjustment – Requires coordination and scheduling among channels 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Reliable Multicast u Cumulative Layering – Multiple data streams at different rates – Each stream contains entire data – Receivers join asynchronously -Streams transmit for indefinite duration – Schedule to minimize reception time – (Scheme allows for FEC encoding) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Reliable Multicast Channel 3 Rate = 2 B D A C Channel 2 Rate = 1 C D A B Channel 1 Rate = 1 A B C D Receiver 1, BW = 1 Receiver 2, BW = 2 9/14/97 Receiver 3, BW = 4 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Flow Control for Reliable Multicast u Cumulative Layering – Can achieve minimum reception time with asynchronous receivers – Schedulability requires some parameter relationships – Synchronization among channels needed 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Summary u Flow control for multicast communication is a hard problem: – Scalability – Heterogeneity – Added dynamic dimension (receivers and their join behavior) – Plenty of room for innovation! 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
ATM and IP over ATM Multicast 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
ATM Multicast u ATM: Connection-Oriented (VC) u Multicast connection establishment – UNI 3. 0/3. 1 » Source-Controlled » Full Knowledge of Receivers required – UNI 4. 0 » Leaf-Initiated Join (LIJ) » Group identified by (Source, Tree ID) 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
IP Multicast over ATM u Problem (for UNI 3. x): u Mapping IP’s connectionless, receiver-controlled model to ATM’s connection-oriented, sourcecontrolled model 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
The MARS Architecture u MARS: Multicast Address Resolution Server u Stores mapping between IP group address and Unicast addresses of ATM endpoints 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
MARS -- The Mesh Approach u IP receivers joining group register their ATM addresses with the MARS u IP source consults MARS for list of ATM addresses u IP source opens multipoint connection to ATM end-points u Receivers joining/leaving need to inform MARS 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
MARS -- The VC Mesh MARS Request Receivers Reply Source ATM Multipoint Connection ATM Cluster 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
MARS -- The Multicast Server u The VC Mesh approach requires one multipoint VC per source per group u Alternative: – Provide a multicast server (MCS) per group – One multipoint VC from MCS to receivers – Source sends to MCS – MARS now returns ATM address of MCS 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
MARS -- The Multicast Server MARS Request Receivers Reply Source ATM Cluster 9/14/97 Multicast Server SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
VC Mesh VS MCS u VC Mesh – Higher VC consumption – Higher signaling overhead – Better Delay – Less Vulnerability u MCS : Requires Reflection Suppression u Comparison similar to Shared Tree VS Source-based Tree in multicast routing 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
VC Mesh VS MCS 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley

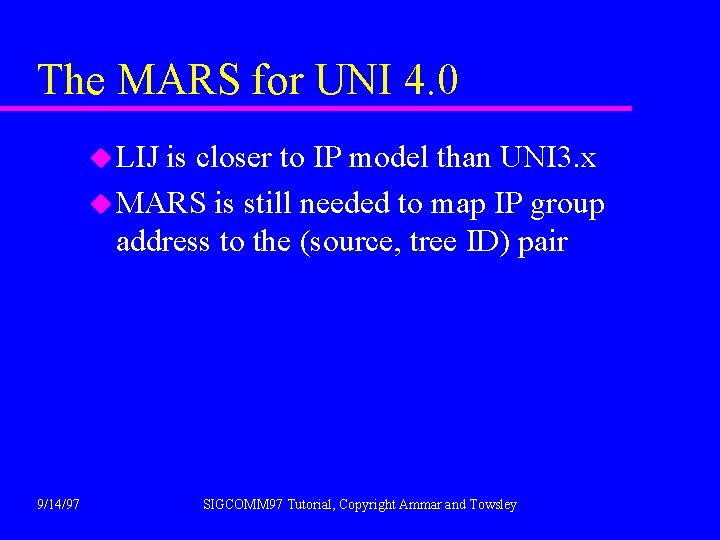

The MARS for UNI 4. 0 u LIJ is closer to IP model than UNI 3. x u MARS is still needed to map IP group address to the (source, tree ID) pair 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Multipoint-to-Multipoint Support in ATM u How to support multiple sources on same multipoint VC and shared tree u Problem: Interleaving of Cells from different AAL PDUs within switch u Solution: – No problem for AAL 3/4 – For AAL 5 : SEAM and SMART 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley

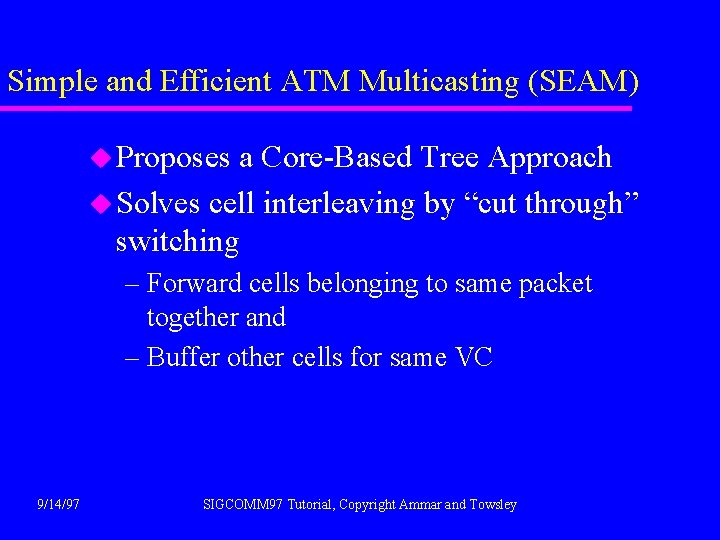

Simple and Efficient ATM Multicasting (SEAM) u Proposes a Core-Based Tree Approach u Solves cell interleaving by “cut through” switching – Forward cells belonging to same packet together and – Buffer other cells for same VC 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Shared Many-to-Many ATM Reservations (SMART) u Many-to-Many connection over a single VCC u Addresses – Cell-interleaving – On-demand bandwidth sharing (a la RSVP) u Solution: Take Turns (essentially) u Signalling Protocol 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Summary u ATM and Internet multicast mechanisms are incompatible u Convergence approaches have been defined u ATM multicast still has problems: – many-to-many – Qo. S – routing 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Summary 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Topics Covered in Tutorial u overview of multicast at – network layer (routing, congestion control) – transport layer (reliability, flow control) – session layer (Internet centric view) u examples taken from – Internet, MBone – ATM 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Other Topics u application issues – stronger semantics: ordering requirements, atomicity, etc. (Isis, Horus, Berman et al, Cornell) u session semantics u group membership u performance evaluation: how to evaluate large networks supporting large numbers of multicast applications 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
Other Topics Control Issues: u control issues related to TCP have generated 100 s of papers and are still not resolved u control aspects of multicast add at least one additional layer of complexity – a very fruitful area for research and development 9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
9/14/97 SIGCOMM 97 Tutorial, Copyright Ammar and Towsley
- Wireless wide area network
- Wan switching
- Introduction to wide area networks
- Joseph wei
- Mostafa abdallah
- Mostofa feroz
- How to learn written english by mostafa kamal
- What is multicast communication in distributed system
- Interprocess communication in distributed systems
- Extreme long shot (els) or extreme wide shot (ews)
- Virtual circuit and datagram networks in computer networks
- Basestore iptv
- Unicast multicast broadcast
- Broadcasting
- Apa yang dimaksud dengan multicast
- L
- Anycast vs multicast
- Unicast vs multicast vs broadcast
- Mtrace juniper
- Overlay multicast
- Unicast multicast broadcast address example
- Multicast
- Totally ordered multicast
- Unicast vs multicast
- Broadcast and multicast routing
- Unicast vs multicast
- Multicast
- Multicast
- Multicast
- Multicast
- Multicast roteador
- Bier multicast
- Bimodal multicast
- Calico multicast
- Mobile wide area network
- What is wawf
- Wan wide area network
- Local area network topology
- Cisco waas vs riverbed
- Components of world wide web
- Wide area network example
- Wireless wide area network
- Wide area work flow
- Wide area kommunikationssystem
- Wide area
- Wawf training slides
- Wide area monitoring
- Wide area network wan fort myers
- Wide area network adalah
- Plektion
- Introduction to storage area networks
- What are the basic layouts of local area networks
- Storage area networks tutorial
- San storage topology
- San storage architecture diagram
- What are the basic layouts of local area networks
- Channel richness
- Formal small group networks
- Iec 61850 communication networks and systems in substations
- Game theory in wireless and communication networks
- Introduction to communication networks
- Networks of communication and exchange
- A communication processor that connects dissimilar networks
- Industrial communication networks
- Pollaczek khinchin formula
- Lateral area def
- What is structured programming language
- Ibm system/390
- Curved surface area of cone
- Lateral area vs surface area
- Cobol area a and area b
- Cleavage in birds
- Area radicularis
- Surface area vs area
- Boundaries of buccal shelf area
- Lateral edge
- What is the area
- Area nervina area radicularis
- Area nervina area radicularis
- Lateral area meaning
- 12-2 surface areas of prisms
- Project management process group and knowledge area mapping
- Deindividuation psychology definition
- Y = a(b)^x
- Anova within group and between group
- Different types of social group
- Jrcptb patient survey
- Group 2 nitrates thermal stability
- Amino group and carboxyl group
- Amino group and carboxyl group
- In group out group
- Group yourself or group yourselves
- Sumner's classification of social groups
- Joining together group theory and group skills
- Woods model of communication
- Two way communication system for area of refuge
- Crisis communications working group
- An introduction to group communication
- Communication and interaction patterns in group dynamics
- Group dynamics and communication
- Keygraph
- Group communication in distributed systems
- Dewey's reflective thinking process
- Effective group discussion defines human communication as
- Argyle communication cycle
- "goldstein group communication"
- Free floating interaction pattern
- Parallel bus vs serial bus
- What is oral communication and written communication
- Serial and parallel communication
- Intrapersonal communication vs interpersonal communication
- Oral communication conclusion
- Serial communication vs parallel communication
- Overview of www
- Wrat spelling test words
- Wide qrs complex
- Longitudinal survey data analysis
- Wide world importers
- Wide isa vs narrow isa
- Pictures of world wide web
- System wide information management
- Swim sesar
- The ground beneath my feet is open wide meaning
- Pulmonary hangout interval
- Fixed split s2 causes
- Film as text
- Wide receiver positions x y z
- Plant wide control
- T0con register in pic
- World wide web
- Wide th digunakan untuk
- Turner syndrome is what numerical chromosome disorder?
- World wide web 1990s
- Wide narrow long
- Wide carrying angle
- Tia wide sargasso sea
- Simon andrews reading
- Introduction to ecommerce
- World wide web 1991
- How deep how wide is the love of god
- World wide web 1990s
- Xyz wr positions
- Continuous profiling
- I'm a black ocean leaping and wide figurative language
- Language
- Enterprise wide quality management software
- Broad philtrum
- Wide vs long format
- Comparative of colorful
- Explain company wide strategic planning
- Mixed departmentalization
- Medium wide shot
- Body average
- Mesomorph sports persons names
- Retrozygomal fossae
- Nitmed tutorials
- Advantages of using world wide web
- Patm disease
- World wide web components
- Cgi programming on the world wide web
- Http://worldwidescience.org/
- Wide range assessment of memory and learning
- School wide pbis rewards
- Wide branch addressing in computer organization
- Mid shot example
- World wide web infrastructure
- Reed sea map
- World wide web 1990s
- Campus-wide license
