designed for networking-calico – what, why, how, and the future Neil Jerram, Project Calico / Metaswitch Sponsored by

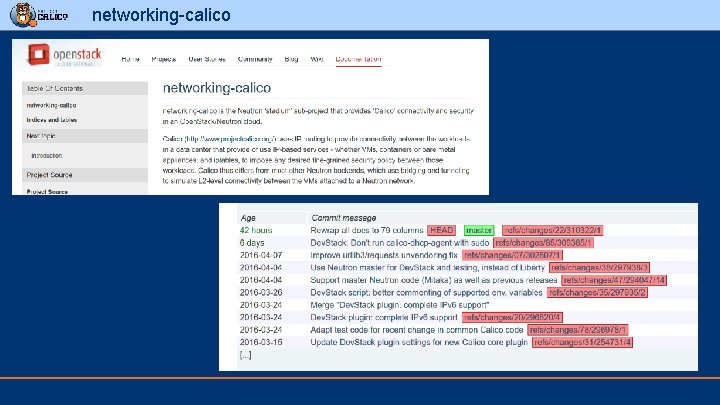

networking-calico

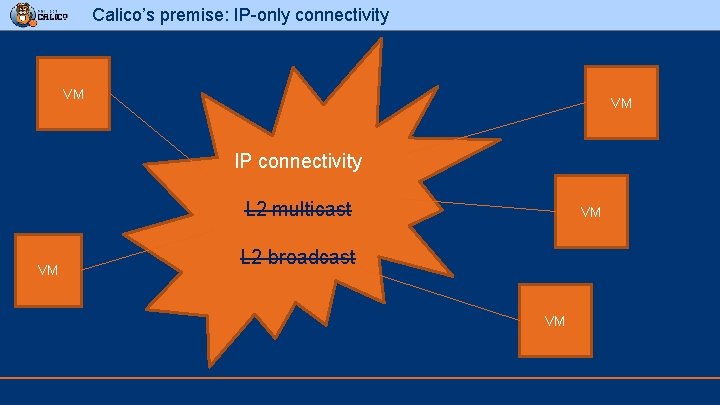

Calico’s premise: IP-only connectivity VM VM IP connectivity L 2 multicast VM VM L 2 broadcast VM

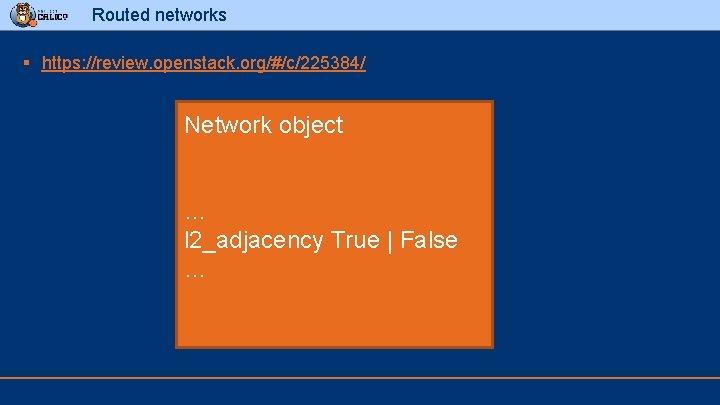

Routed networks § https: //review. openstack. org/#/c/225384/ Network object … l 2_adjacency True | False …

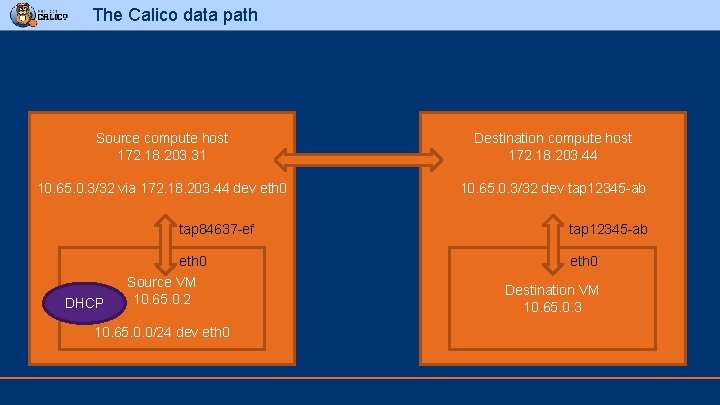

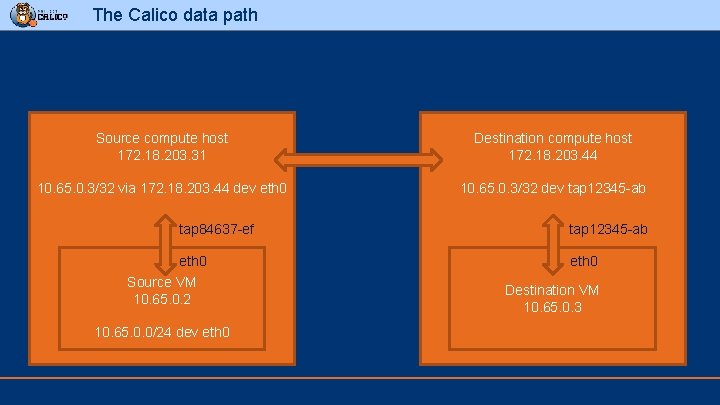

The Calico data path Source compute host 172. 18. 203. 31 Destination compute host 172. 18. 203. 44 10. 65. 0. 3/32 via 172. 18. 203. 44 dev eth 0 10. 65. 0. 3/32 dev tap 12345 -ab tap 84637 -ef eth 0 Source VM 10. 65. 0. 2 10. 65. 0. 0/24 dev eth 0 tap 12345 -ab eth 0 Destination VM 10. 65. 0. 3

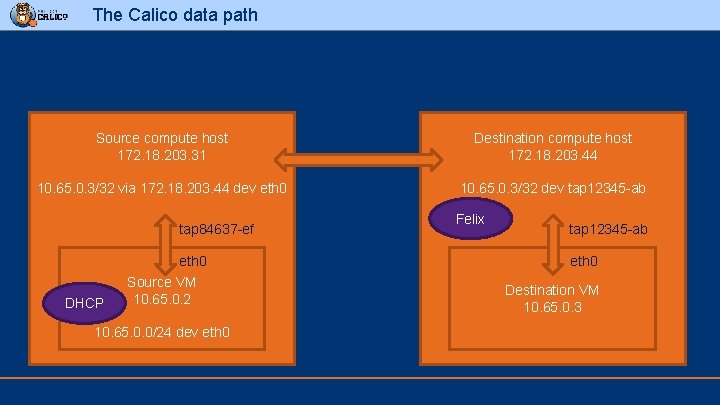

The Calico data path Source compute host 172. 18. 203. 31 Destination compute host 172. 18. 203. 44 10. 65. 0. 3/32 via 172. 18. 203. 44 dev eth 0 10. 65. 0. 3/32 dev tap 12345 -ab tap 84637 -ef DHCP eth 0 Source VM 10. 65. 0. 2 10. 65. 0. 0/24 dev eth 0 tap 12345 -ab eth 0 Destination VM 10. 65. 0. 3

The Calico data path Source compute host 172. 18. 203. 31 Destination compute host 172. 18. 203. 44 10. 65. 0. 3/32 via 172. 18. 203. 44 dev eth 0 10. 65. 0. 3/32 dev tap 12345 -ab tap 84637 -ef DHCP eth 0 Source VM 10. 65. 0. 2 10. 65. 0. 0/24 dev eth 0 Felix tap 12345 -ab eth 0 Destination VM 10. 65. 0. 3

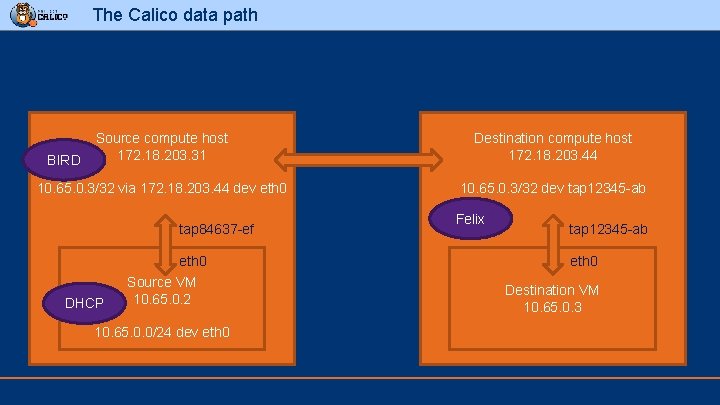

The Calico data path Source compute host 172. 18. 203. 31 Destination compute host 172. 18. 203. 44 10. 65. 0. 3/32 via 172. 18. 203. 44 dev eth 0 10. 65. 0. 3/32 dev tap 12345 -ab BIRD tap 84637 -ef DHCP eth 0 Source VM 10. 65. 0. 2 10. 65. 0. 0/24 dev eth 0 Felix tap 12345 -ab eth 0 Destination VM 10. 65. 0. 3

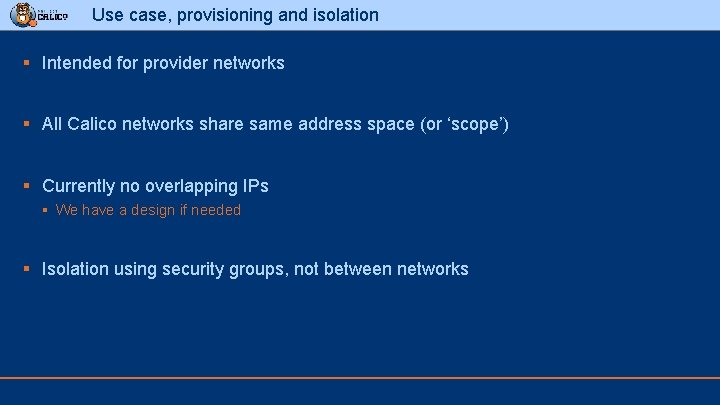

Use case, provisioning and isolation § Intended for provider networks § All Calico networks share same address space (or ‘scope’) § Currently no overlapping IPs § We have a design if needed § Isolation using security groups, not between networks

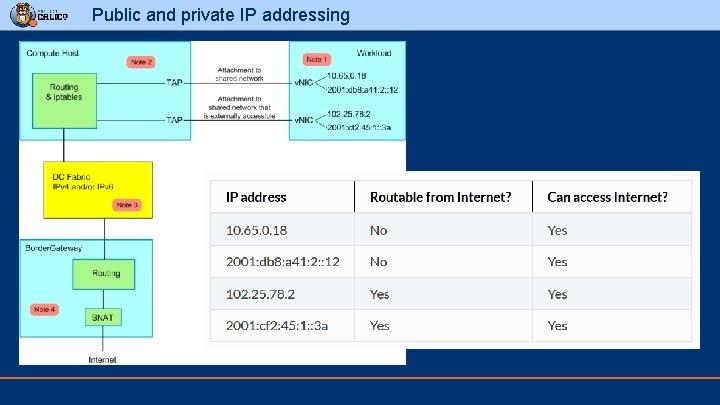

Public and private IP addressing

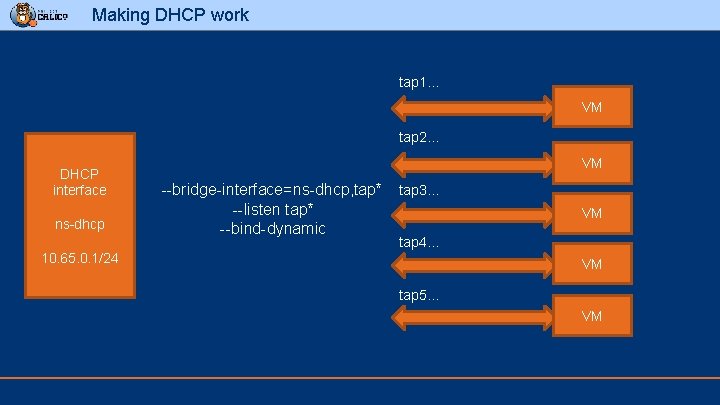

Making DHCP work tap 1… VM tap 2… DHCP interface ns-dhcp VM --bridge-interface=ns-dhcp, tap* --listen tap* --bind-dynamic tap 3… VM tap 4… 10. 65. 0. 1/24 VM tap 5… VM

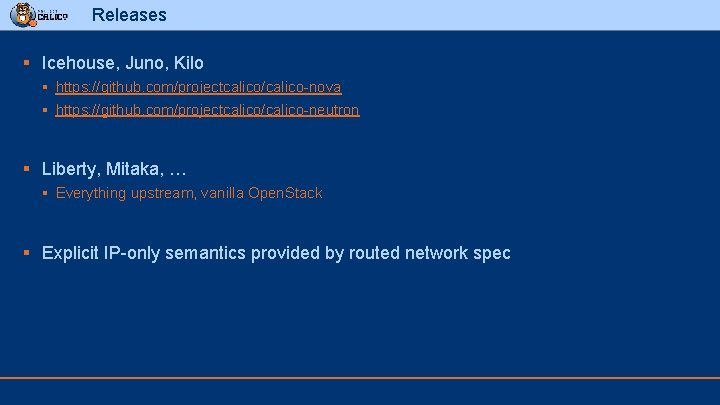

Releases § Icehouse, Juno, Kilo § https: //github. com/projectcalico/calico-nova § https: //github. com/projectcalico/calico-neutron § Liberty, Mitaka, … § Everything upstream, vanilla Open. Stack § Explicit IP-only semantics provided by routed network spec

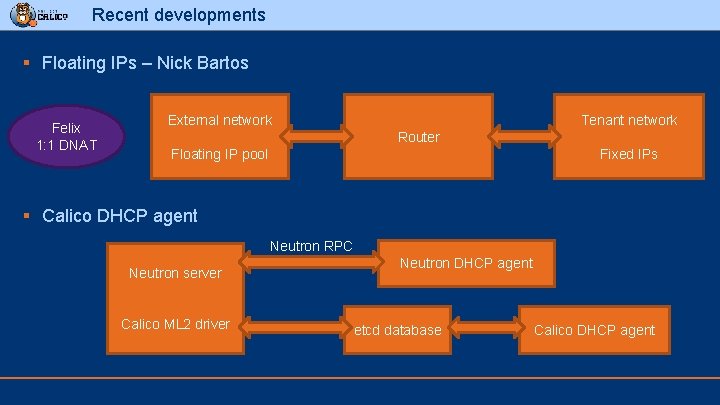

Recent developments § Floating IPs – Nick Bartos Felix 1: 1 DNAT External network Tenant network Router Floating IP pool Fixed IPs § Calico DHCP agent Neutron RPC Neutron server Calico ML 2 driver Neutron DHCP agent etcd database Calico DHCP agent

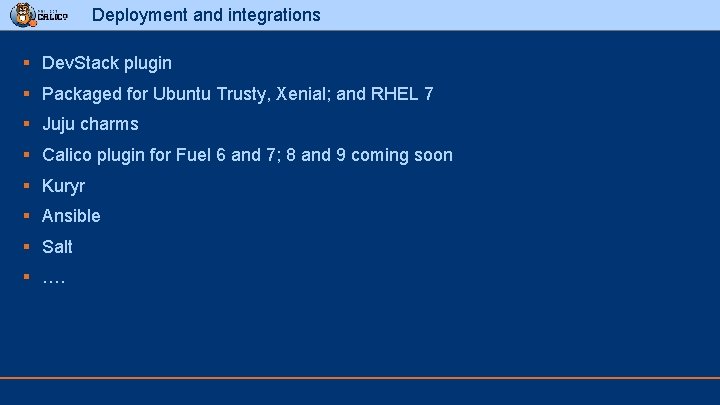

Deployment and integrations § Dev. Stack plugin § Packaged for Ubuntu Trusty, Xenial; and RHEL 7 § Juju charms § Calico plugin for Fuel 6 and 7; 8 and 9 coming soon § Kuryr § Ansible § Salt § ….

What next? § IRC meeting § IPAM work for route aggregation § ?

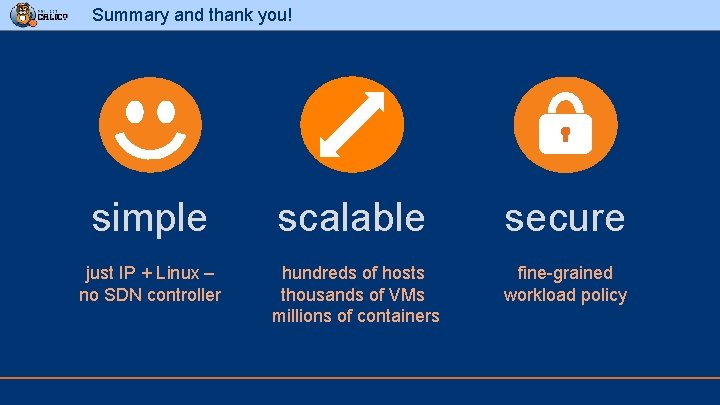

Summary and thank you! simple scalable secure just IP + Linux – no SDN controller hundreds of hosts thousands of VMs millions of containers fine-grained workload policy
