WORLD WIDE WEB COMPONENTS Browsers and Servers CGI

WORLD WIDE WEB COMPONENTS Browsers and Servers CGI Processing Model (Common Gateway Interface) © Norman White, 2013

Agenda � � � WWW and Client Server computing Forms & CGI programming Writing a CGI program

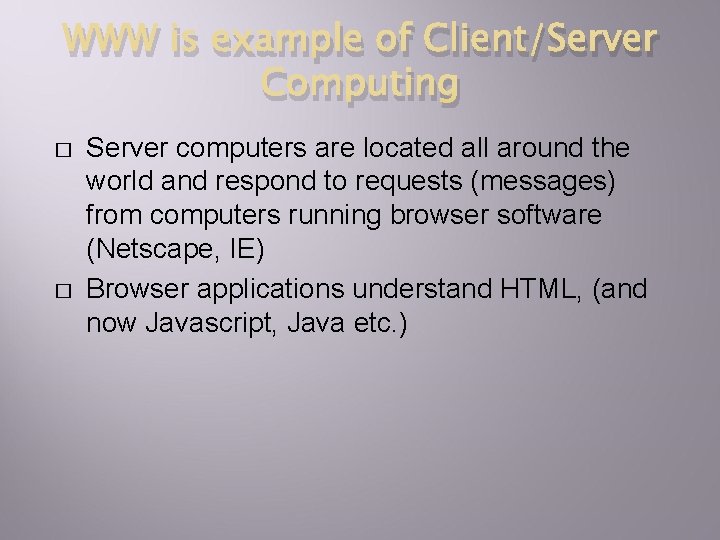

WWW is example of Client/Server Computing � � Server computers are located all around the world and respond to requests (messages) from computers running browser software (Netscape, IE) Browser applications understand HTML, (and now Javascript, Java etc. )

Server Browser Interaction (simple) http request B Server Browser sends http request to server (I. e. GET index 1. html)

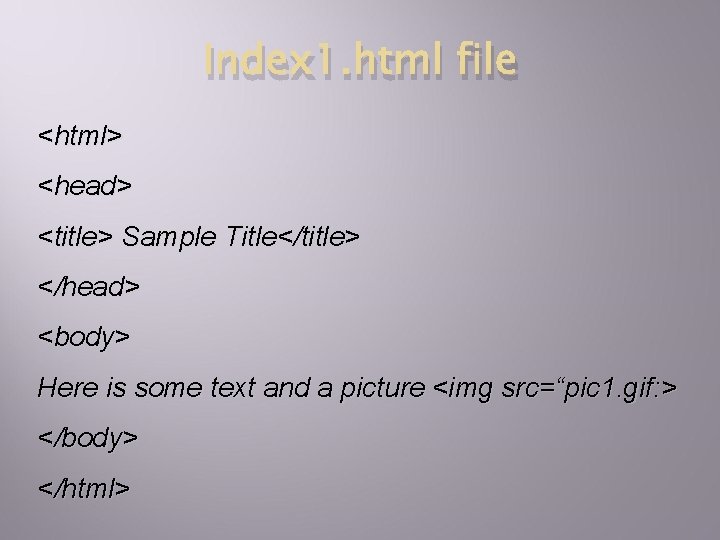

Index 1. html file <html> <head> <title> Sample Title</title> </head> <body> Here is some text and a picture <img src=“pic 1. gif: > </body> </html>

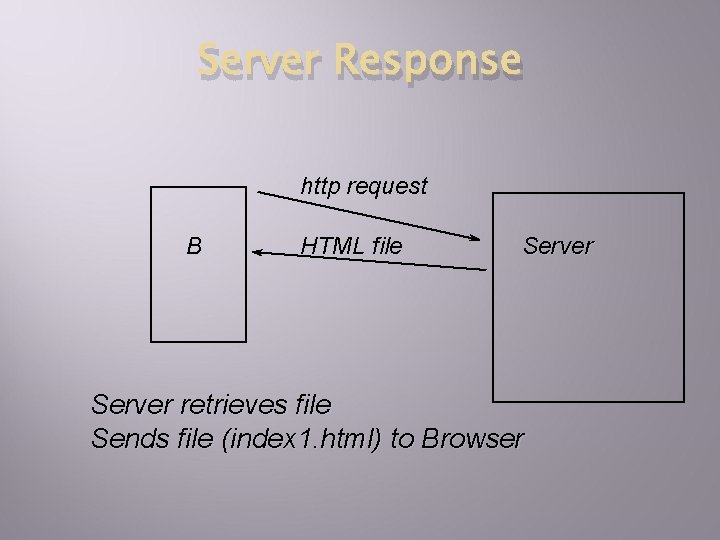

Server Response http request B HTML file Server retrieves file Sends file (index 1. html) to Browser

Browser displays file http request B HTML index 1. html Browser “formats” index 1. html May mean retrieving more files In order to display Server

Browser asks for next file http request B HTML index 1. html GET pic 1. gif index 1. html contains reference to pic 1. gif Browser then requests pic 1. gif Server

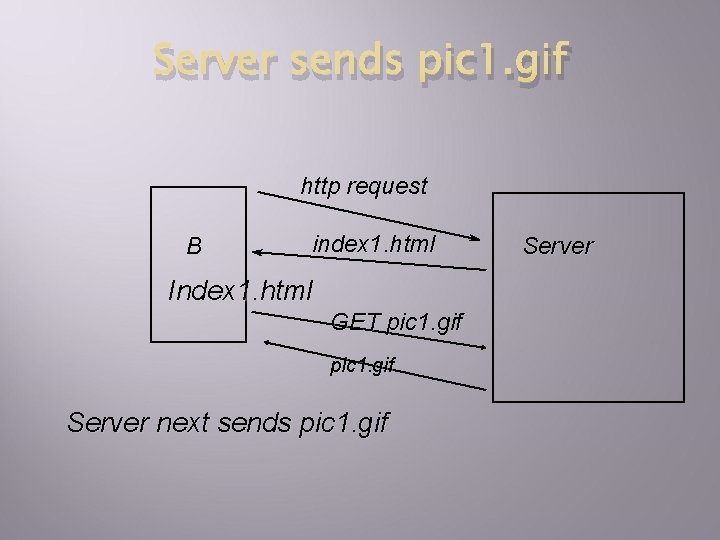

Server sends pic 1. gif http request B index 1. html Index 1. html GET pic 1. gif Server next sends pic 1. gif Server

Browser displays pic 1. gif http request B index 1. html pic 1. gif index 1. html GET pic 1. gif Browser displays pic 1. gif Server

RESULT ? ? ?

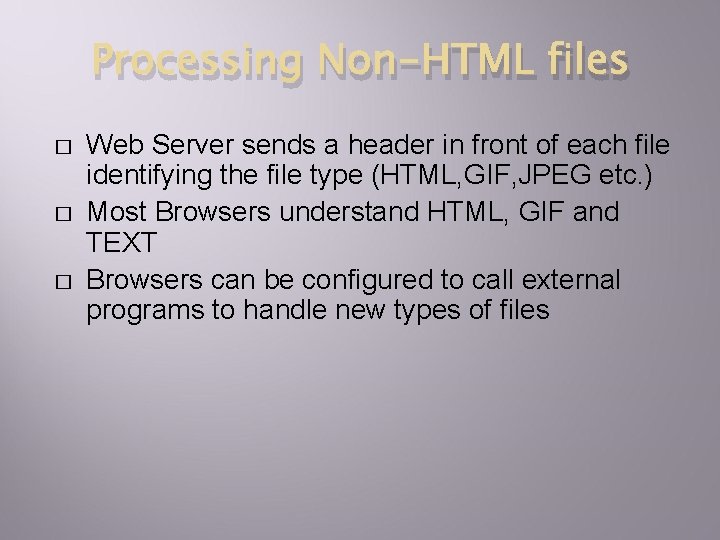

Processing Non-HTML files � � � Web Server sends a header in front of each file identifying the file type (HTML, GIF, JPEG etc. ) Most Browsers understand HTML, GIF and TEXT Browsers can be configured to call external programs to handle new types of files

Helper Apps � � � These programs are called HELPER applications and dramatically extend the capabilities of the browser, since they can be developed independently of the client software Examples - Quicktime viewers, sound players, VRML viewers etc. To see the currently configured viewers go to options on the Browser title bar

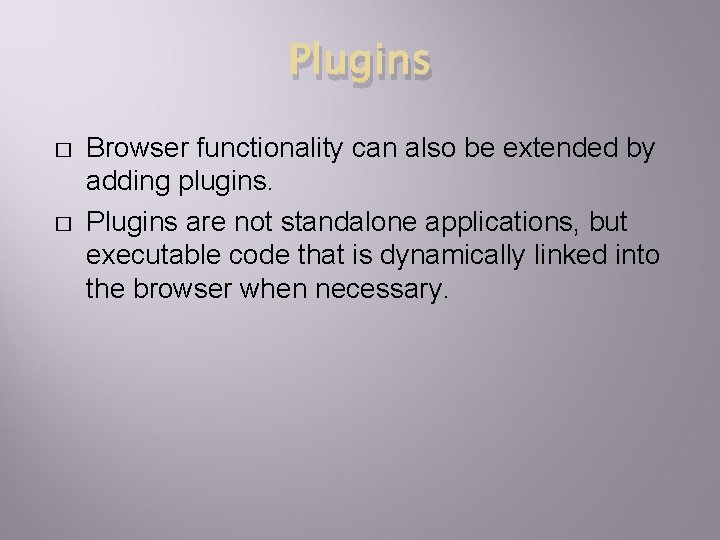

Plugins � � Browser functionality can also be extended by adding plugins. Plugins are not standalone applications, but executable code that is dynamically linked into the browser when necessary.

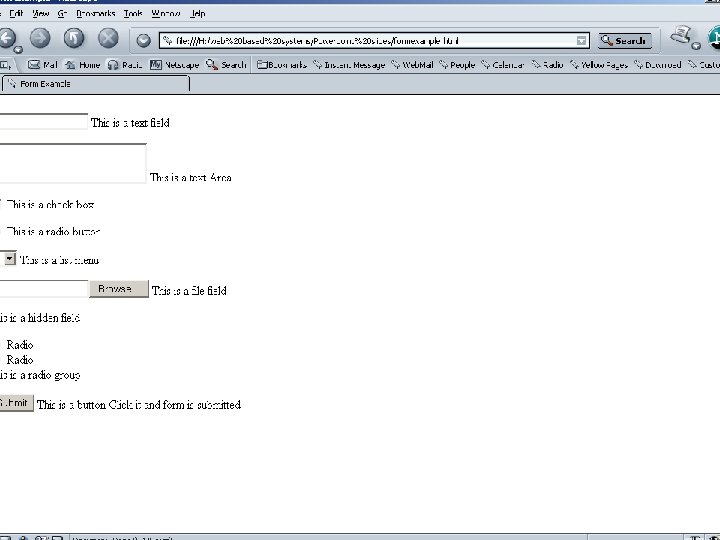

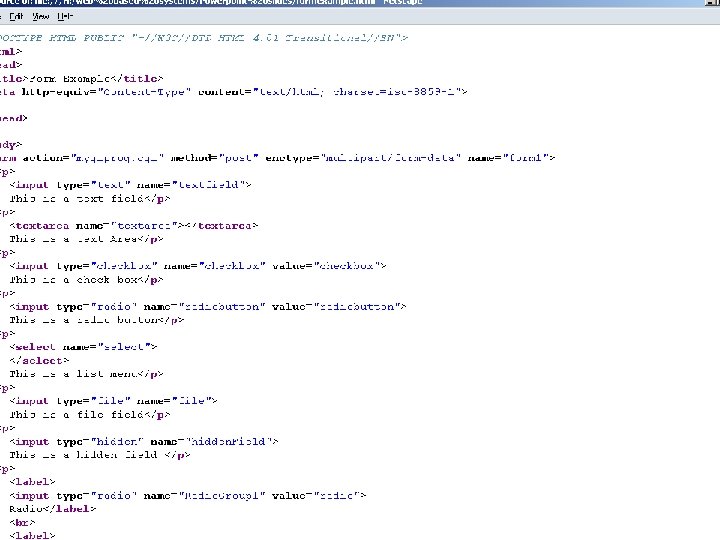

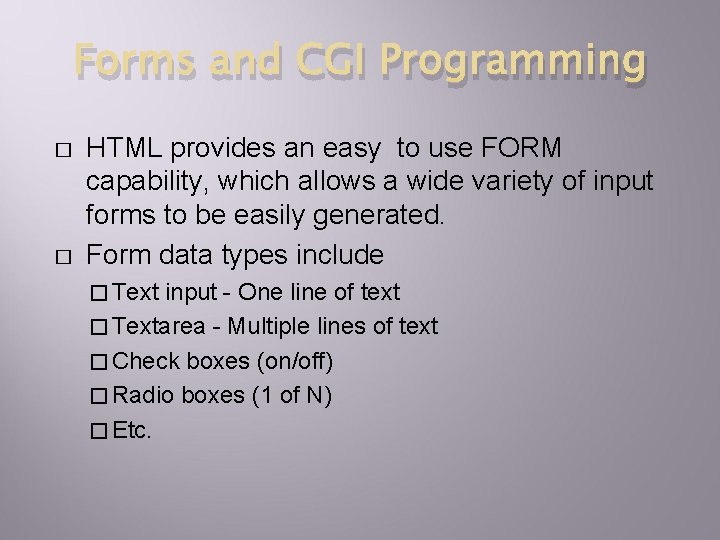

Forms and CGI Programming � � HTML provides an easy to use FORM capability, which allows a wide variety of input forms to be easily generated. Form data types include � Text input - One line of text � Textarea - Multiple lines of text � Check boxes (on/off) � Radio boxes (1 of N) � Etc.

Forms Processing Logic � � � Output of Form is formatted and sent to Server, along with the name of a program to process the contents of the form. The WEB Server takes information from form, and passes it on as input to a Common Gateway Interface Program (CGI) Output of CGI program is sent back to Client browser as an HTML (or other) file.

CGI programming extends power of WWW � CGI programs can do an almost unlimited set of activities. . . � Look up info in a database and send it to Browser. � Take input from user and add to a file. � Take input and send to a standard business application � CGI program can be in any language that runs on the server, including a shell language like sh or bash.

CGI Programming http form content B HTML http server input output CGI Program (Note, all processing is on server)

BREAK? ?

What do you need to do for CGI? � � � Develop form to collect information from users Write and test CGI program to handle form information Put the name of the CGI program in the “ACTION” statement of the form. � Note: program can be on another server.

CGI Two Processing options � Two Types of FORM processing options, GET and POST � GET - parameters sent as additions to URL string. Each individual parameter separated by & � POST - Data sent in message body. This is a more general method and can handle more input data.

CGI Processing - review � � � Server sends form (in html document) to client Client displays form, and user fills in fields Client sends form info to server (SUBMIT button) Server runs the CGI program named in the ACTION section of the FORM CGI program parses data as input Output of CGI program is sent by the server to the client (i. e. it should be HTML)

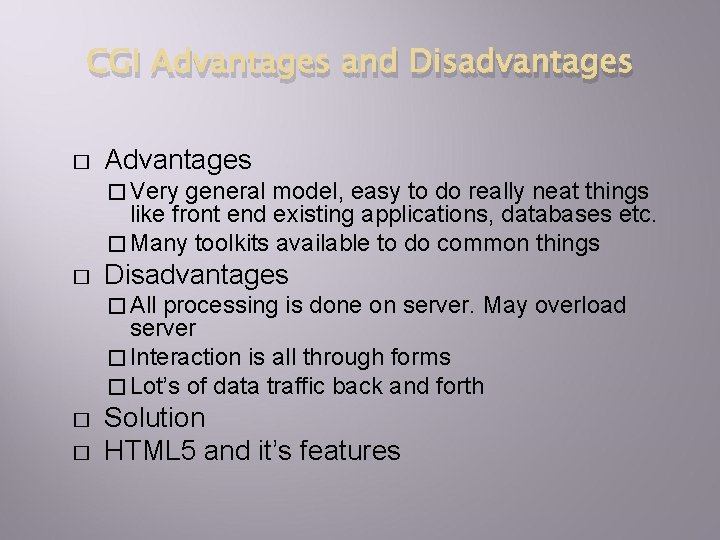

CGI Advantages and Disadvantages � Advantages � Very general model, easy to do really neat things like front end existing applications, databases etc. � Many toolkits available to do common things � Disadvantages � All processing is done on server. May overload server � Interaction is all through forms � Lot’s of data traffic back and forth � � Solution HTML 5 and it’s features

Writing a CGI Program � CGI program needs to � Parse form input � Process the input � Generate html output

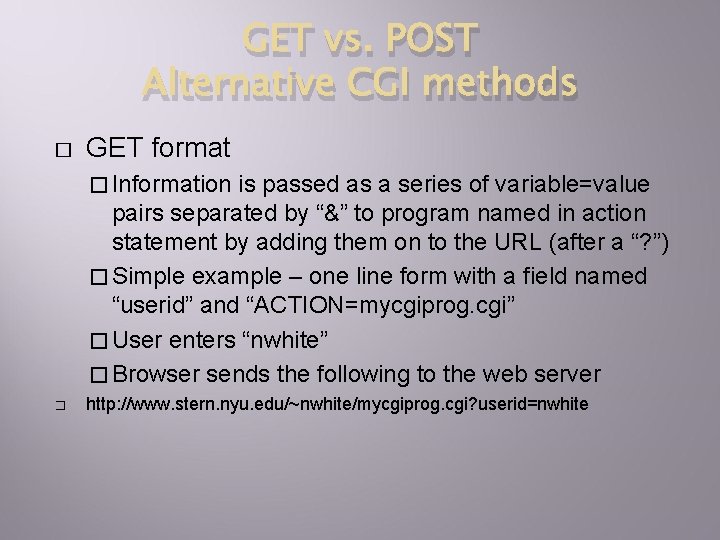

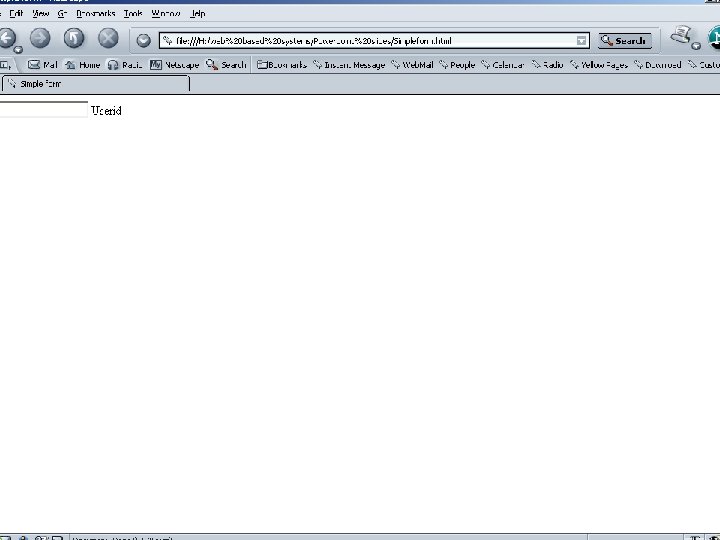

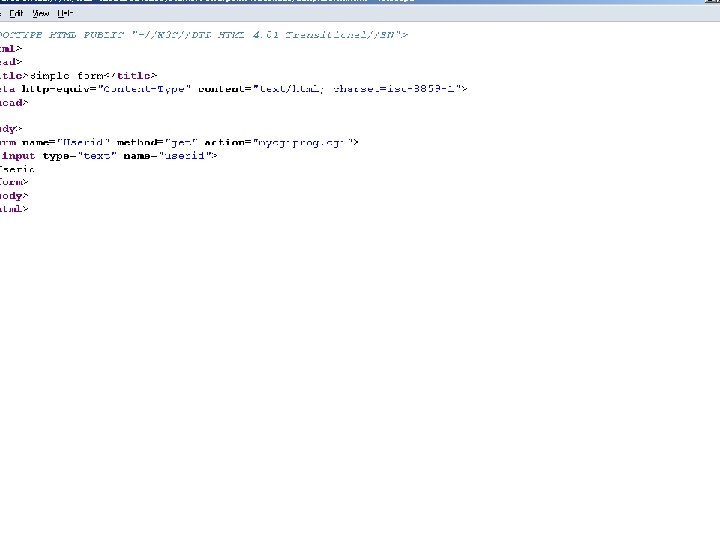

GET vs. POST Alternative CGI methods � GET format � Information is passed as a series of variable=value pairs separated by “&” to program named in action statement by adding them on to the URL (after a “? ”) � Simple example – one line form with a field named “userid” and “ACTION=mycgiprog. cgi” � User enters “nwhite” � Browser sends the following to the web server � http: //www. stern. nyu. edu/~nwhite/mycgiprog. cgi? userid=nwhite

GET Processing Server Side � � Web server takes the information after the “? ” and creates an environment variable named “QUERY_STRING”, then executes the program “mycgiprog. cgi” QUERY_STRING contains � � userid=nwhite CGI program retrieves value of QUERY_STRING, does appropriate processing, and (optionally) sends an HTML response back

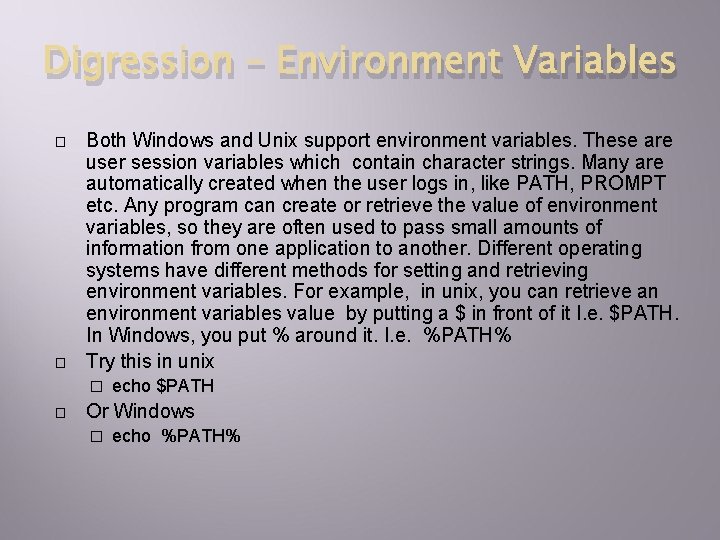

Digression – Environment Variables � � Both Windows and Unix support environment variables. These are user session variables which contain character strings. Many are automatically created when the user logs in, like PATH, PROMPT etc. Any program can create or retrieve the value of environment variables, so they are often used to pass small amounts of information from one application to another. Different operating systems have different methods for setting and retrieving environment variables. For example, in unix, you can retrieve an environment variables value by putting a $ in front of it I. e. $PATH. In Windows, you put % around it. I. e. %PATH% Try this in unix � � echo $PATH Or Windows � echo %PATH%

GET method – more than one parameter � � � What if we want have more than one field? No problem QUERY_STRING can contain many variable=value pairs separated by “&” i. e. userid=nwhite&password=junk&fname=Norman Possible problem, how big can environment variables be (how many characters) GET only useful for limited input

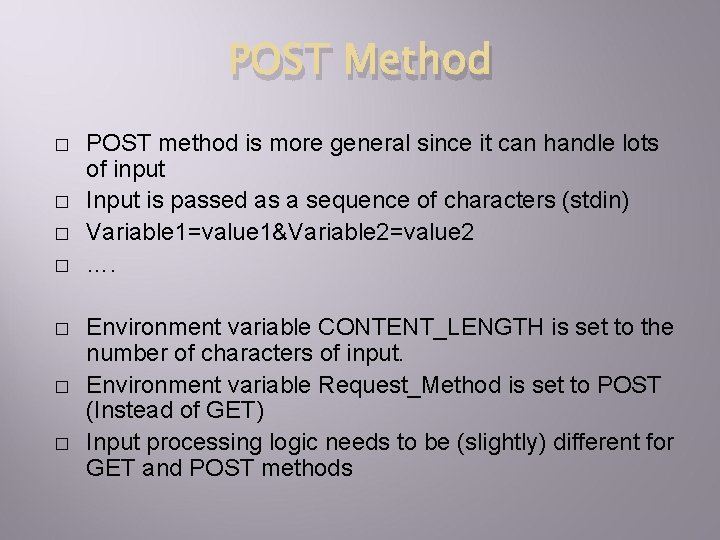

POST Method � � � � POST method is more general since it can handle lots of input Input is passed as a sequence of characters (stdin) Variable 1=value 1&Variable 2=value 2 …. Environment variable CONTENT_LENGTH is set to the number of characters of input. Environment variable Request_Method is set to POST (Instead of GET) Input processing logic needs to be (slightly) different for GET and POST methods

CGI Output � CGI output is passed back to the browser, hence has to be something (HTML) the browser can understand Like… Content-type: text/html <HTML><HEAD> <TITLE>output of HTML from CGI script</TITLE> </HEAD><BODY> <H 1>Sample output</H 1> What do you think of <STRONG>this? </STRONG> </BODY></HTML>

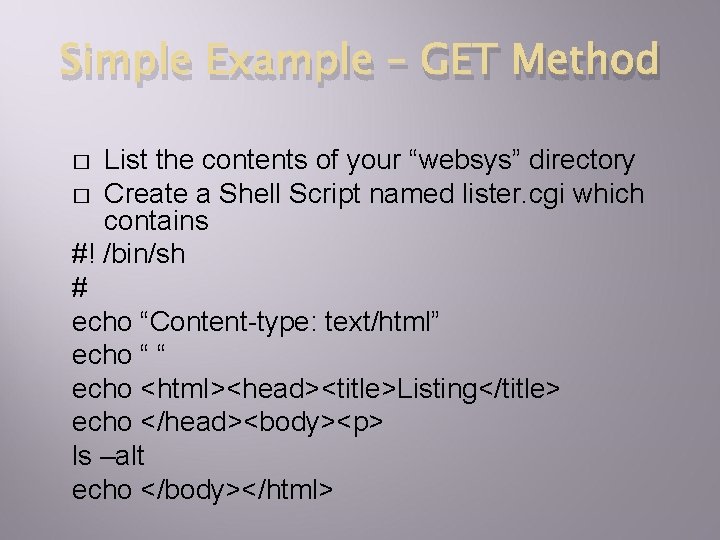

Simple Example – GET Method List the contents of your “websys” directory � Create a Shell Script named lister. cgi which contains #! /bin/sh # echo “Content-type: text/html” echo “ “ echo <html><head><title>Listing</title> echo </head><body><p> ls –alt echo </body></html> �

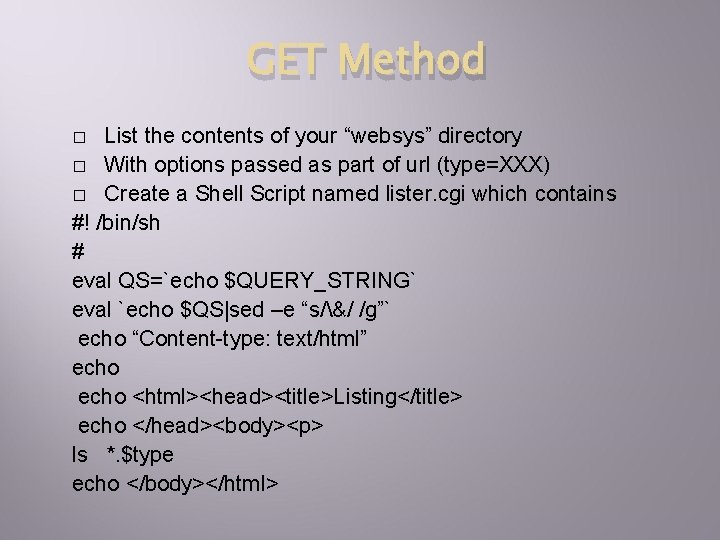

GET Method List the contents of your “websys” directory � With options passed as part of url (type=XXX) � Create a Shell Script named lister. cgi which contains #! /bin/sh # eval QS=`echo $QUERY_STRING` eval `echo $QS|sed –e “s/&/ /g”` echo “Content-type: text/html” echo <html><head><title>Listing</title> echo </head><body><p> ls *. $type echo </body></html> �

Try it, what happens? To run it, put it in your websys directory chmod +rx lister. cgi � � Type the following as a URL Your userid http: //www. stern. nyu. edu/~userid/websys/lister. cgi? type=html

POST METHOD � � In the POST method, form data is NOT passed as part of the URL, instead it is passed to the “STANDARD INPUT” of the CGI program. Advantages � Not limited by max size of environment variables � Users can’t see the input fields � Disadvantages �A little harder to handle � Users can’t save/send the link plus form data i. e Send the results of a search to someone else

Conclusion � � World-Wide-Web model is much more powerful than it appears on the surface Easily integrated with existing applications Easy to add new functionality CGI model can do lots of things… � Update files � Link to corporate databases � Specialized Applications

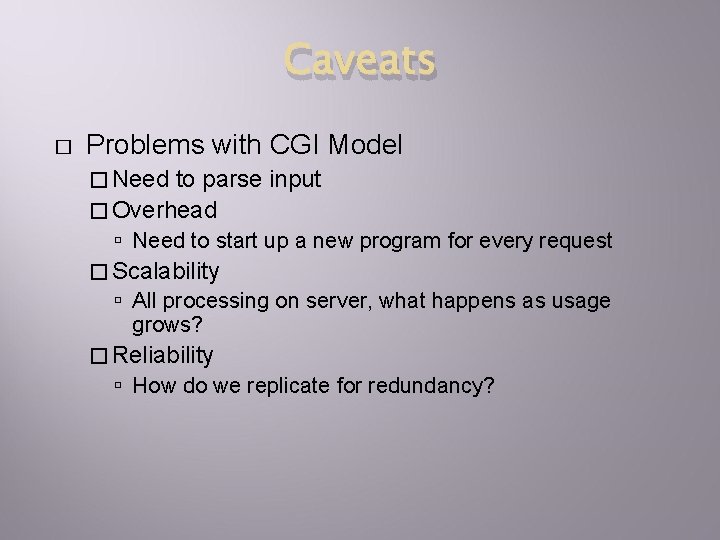

Caveats � Problems with CGI Model � Need to parse input � Overhead Need to start up a new program for every request � Scalability All processing on server, what happens as usage grows? � Reliability How do we replicate for redundancy?

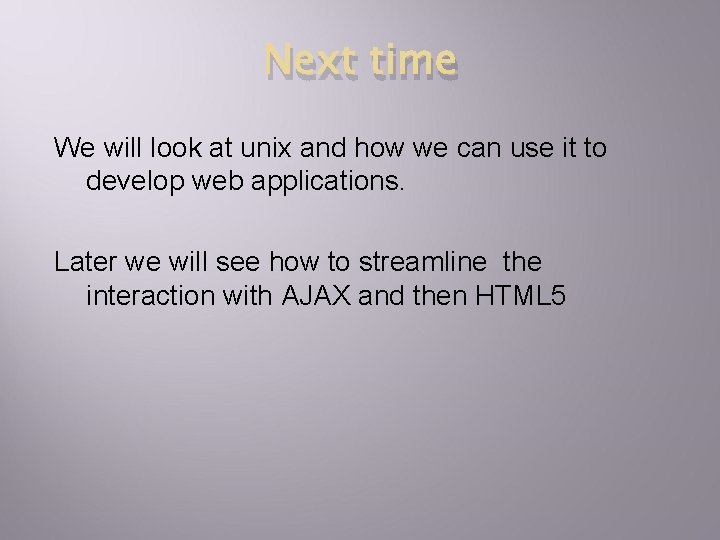

Next time We will look at unix and how we can use it to develop web applications. Later we will see how to streamline the interaction with AJAX and then HTML 5
