Modelchecking Concurrent Java Software Using the Bandera Tool
Model-checking Concurrent Java Software Using the Bandera Tool Set SAn. To. S Laboratory, Kansas State University, USA (http: //www. cis. ksu. edu/santos/bandera) Faculty Matthew Dwyer John Hatcliff Students and Post-docs Radu Iosif Yu Chen Georg Jung Todd Wallentine Robby Roby Joehanes Venkatesh Ranganath Oksana Tkachuk Funding US National Science Foundation (NSF) US National Aeronautics and Space Agency (NASA) US Department of Defense Advanced Research Projects Agency (DARPA) US Army Research Office (ARO) Rockwell-Collins ATC Honeywell Technology Center and NASA Langley Sun Microsystems
Goals of the Project I. Provide platform for construction of and experimentation with technologies for model-checking concurrent Java software … model-reduction techniques e. g. , abstraction, slicing, compiler-based optimizations … model-checking engines e. g. , explicit-state, symbolic … property specification languages e. g. , temp logic, state machines II. Integration with commonly used design notations, methods, and processes … UML artifacts, JML e. g. , checking, specification … automatic generation of synchronization code with dedicated checking … integration with development and certification of safetycritical systems. III. Evaluation using safety-critical military and civilian applications as well as non-critical popular open-source software
Model Checking OK Finite-state model or Model Checker (F W) Temporal logic formula Error trace Line Line … Line 5: … 12: … 15: … 21: … 25: … 27: … 41: … 47: …
What makes model-checking software difficult? OK Finite-state model (F W) or Model Checker Error trace Line Temporal logic formula 5: … 12: … 15: … 21: … Problems using existing checkers: Model construction l Property specification l State explosion l Output interpretation l
![Model Construction Problem void add(Object o) { buffer[head] = o; head = (head+1)%size; }](http://slidetodoc.com/presentation_image_h2/29b38e9116328c272f2ca0a0ac5ec830/image-5.jpg "Model Construction Problem void add(Object o) { buffer[head] = o; head = (head+1)%size; }")
Model Construction Problem void add(Object o) { buffer[head] = o; head = (head+1)%size; } Object take() { … tail=(tail+1)%size; return buffer[tail]; } Program l Gap Model Checker Model Description Semantic gap: Programming Languages methods, inheritance, dynamic creation, exceptions, etc. Model Description Languages automata
What makes model-checking software difficult? OK Finite-state model (F W) or Model Checker Error trace Line Temporal logic formula 5: … 12: … 15: … 21: … Problems using existing checkers: Model construction l Property specification l State explosion l Output interpretation l
Property Specification Problem l Difficult to formalize a requirement in temporal logic “Between the window open and the window close, button X can be pushed at most twice. ” …is rendered in LTL as. . . []((open / <>close) -> ((!push. X / !close) U (close / ((push. X / !close) U (close / (!push. X U close)))))
Property Specification Problem Forced to state property in terms of model rather than source: l We want to write source level specifications. . . Heap. b. head == Heap. b. tail l We are forced to write model level specifications. . . (((_collect(heap_b) == 1) && (Bounded. Buffer_col. instance[_index(heap _b)]. head == Bounded. Buffer_col. instance[_index(heap _b)]. tail) ) || ((_collect(heap _b) == 3) && (Bounded. Buffer_col_0. instance[_index(heap _b)]. head == Bounded. Buffer_col_0. instance[_index(heap _b)]. tail) ) || ((_collect(heap _b) == 0) && TRAP))
Property Specification Problem Complications due to the dynamic nature of OO software… Consider multiple instances of a bounded buffer class. . . Requirement: If a buffer instance becomes full, it will eventually become non-full. In general, a heap object has no program-level name that persists throughout the lifetime of the object. b 1 b 2 b 3 Variables Heap object
What makes model-checking software difficult? OK Finite-state model (F W) or Model Checker Error trace Line Temporal logic formula 5: … 12: … 15: … 21: … Problems using existing checkers: Model construction l Property specification l State explosion l Output interpretation l
State Explosion Problem l Cost is exponential in the number of components Bit x 1, …, x. N l 2^N states Moore’s law and algorithm advances can help – Holzmann: 7 days (1980) ==> 7 seconds (2000) l Explosive state growth in software limits scalability
What makes model-checking software difficult? OK Finite-state model (F W) or Model Checker Error trace Line Temporal logic formula 5: … 12: … 15: … 21: … Problems using existing checkers: Model construction l Property specification l State explosion l Output interpretation l
![Output Interpretation Problem Line Line … Line void add(Object o) { buffer[head] = o;](http://slidetodoc.com/presentation_image_h2/29b38e9116328c272f2ca0a0ac5ec830/image-13.jpg "Output Interpretation Problem Line Line … Line void add(Object o) { buffer[head] = o;")
Output Interpretation Problem Line Line … Line void add(Object o) { buffer[head] = o; head = (head+1)%size; } Object take() { … tail=(tail+1)%size; return buffer[tail]; } Program Gap Model Description 5: … 12: … 15: … 21: … 25: … 27: … 41: … 47: … Error trace Raw error trace may be 1000’s of steps long l Must map line listing onto model description l Mapping to source is made difficult by l – Semantic gap & clever encodings of complex features – multiple optimizations and transformations
Bandera: An open tool set for model-checking Java source code Graphical User Interface Optimization Control Checker Inputs Bandera Temporal Specification Model Checkers void add(Object o) { buffer[head] = o; head = (head+1)%size; } Object take() { … tail=(tail+1)%size; return buffer[tail]; } Java Source Transformation & Abstraction Tools Error Trace Mapping Bandera Checker Outputs
![Addressing the Model Construction Problem void add(Object o) { buffer[head] = o; head =](http://slidetodoc.com/presentation_image_h2/29b38e9116328c272f2ca0a0ac5ec830/image-15.jpg "Addressing the Model Construction Problem void add(Object o) { buffer[head] = o; head =")
Addressing the Model Construction Problem void add(Object o) { buffer[head] = o; head = (head+1)%size; } Object take() { … tail=(tail+1)%size; return buffer[tail]; } Java Source Static Analyses Abstract Interpretation Slicing Optimizations Model Compiler Model Description Model extraction: compiling to model checker inputs: Numerous analyses, optimizations, two intermediate languages, multiple back-ends l Slicing, abstract interpretation, specialization l Variety of usage modes: simple. . . highly tuned l
Addressing the Property Specification Problem An extensible language based on field-tested temporal property specification patterns []((open / <>close) -> ((!push. X / !close) U (close / ((push. X / !close) U (close / (!push. X U close))))) Using the pattern system: 2 -bounded existence Between {open} and {close} {push. X} exists at. Most {2} times;
![Addressing the State Explosion Problem Property void add(Object o) { buffer[head] = o; head](http://slidetodoc.com/presentation_image_h2/29b38e9116328c272f2ca0a0ac5ec830/image-17.jpg "Addressing the State Explosion Problem Property void add(Object o) { buffer[head] = o; head")
Addressing the State Explosion Problem Property void add(Object o) { buffer[head] = o; head = (head+1)%size; } … Java Source Model Compiler Model Descriptions Generate models customized wrt property! l Result: multiple models --- even as many as one per property l Aggressive customization via slicing, abstract interp
![Addressing the Output Interpretation Problem void add(Object o) { buffer[head] = o; head =](http://slidetodoc.com/presentation_image_h2/29b38e9116328c272f2ca0a0ac5ec830/image-18.jpg "Addressing the Output Interpretation Problem void add(Object o) { buffer[head] = o; head =")
Addressing the Output Interpretation Problem void add(Object o) { buffer[head] = o; head = (head+1)%size; } Model Description Intermediate Representations Object take() { … tail=(tail+1)%size; return buffer[tail]; } Java Source Model Checker Model Compiler + simulator Error trace Like a debugger: error traces mapped back to source Run error traces forwards and backwards l Program state queried l Heap structures navigated l Locks, wait sets, blocked sets displayed l Line 5: … 12: … 15: … 21: …
Bandera Architecture Property Tool Abstraction Analyses Engine BIRC Translators BIR SPIN d. SPIN Java Jimple Parser SMV Slicer Error Trace Display Simulator JPF
![Bounded Buffer class Bounded. Buffer { Object [] buffer; int head; /* next available](http://slidetodoc.com/presentation_image_h2/29b38e9116328c272f2ca0a0ac5ec830/image-20.jpg "Bounded Buffer class Bounded. Buffer { Object [] buffer; int head; /* next available")
Bounded Buffer class Bounded. Buffer { Object [] buffer; int head; /* next available slot */ int tail; /* last available slot */ int bound; /* max # of elements */ public Bounded. Buffer(int b) {…} Initialization head tail Add, Add head tail public synchronized boolean is. Empty() {…} public synchronized void add(Object o) {…} public synchronized Object take () {…} } Add, Take tail head
Property Specification /** * @observable * EXP Full: (head == tail); */ class Bounded. Buffer { Object [] buffer; int head, tail, bound; public synchronized void add(Object o) {…} public synchronized Object take () {…} } Requirement: If a buffer becomes full, it will eventually become non-full. Bandera Specification: Full. To. Non. Full: forall[b: Bounded. Buffer]. {Full(b)} leads to {!Full(b)} globally;
Property Specification /** * @observable * EXP Empty: * head == ((tail+1) % bound); */ class Bounded. Buffer { int head, tail, bound; /** * @observable INVOKE Call; */ public synchronized void add(Object o) {…} /** * @observable RETURN Return; */ public synchronized Object take () {…} } Requirement: Empty buffers must added to before being taken from Bandera Specification: No. Take. While. Empty: forall[b: Bounded. Buffer]. {take. Return(b)} is absent after {Empty(b)} until {add. Call(b)};
Property-directed Slicing indirectly relevant Slice mentioned in property Source program Resulting slice slicing criterion generated automatically from observables mentioned in the property l backwards slicing automatically finds all components that might influence the observables. l
Property-directed Slicing /** * @observable EXP Full: (head == tail) */ class Bounded. Buffer { Object [] buffer_; int bound; int head, tail; Slicing Criterion All statements that assign to head, tail. removed by slicing public synchronized void add(Object o) { while ( tail == head ) try { wait(); } catch ( Interrupted. Exception ex) {} buffer_[head] = o; head = (head+1) % bound; notify. All(); Included in slicing critirion. . . } } indirectly relevant
Abstraction Engine Collapses data domains via abstract interpretation: Code int x = 0; if (x == 0) x = x + 1; Data domains int (n<0) : neg (n==0): zero (n>0) : pos Signs x = zero; if (x == zero) x = pos; Signs neg zero pos
Abstraction Component Functionality PVS Concrete Abstract Inferred Variable Type x y done count …. o b int bool int Signs Object Buffer Jimple Signs Bool int. Abs …. Point Buffer BASL Compiler Abstraction Library Abstraction Engine Bandera Abstraction Specification Language Abstracted Jimple
Abstraction Specification abstraction Signs abstracts int begin TOKENS = { NEG, ZERO, POS }; abstract(n) begin n < 0 n == 0 n > 0 end -> {NEG}; -> {ZERO}; -> {POS}; operator + add Compiled begin (NEG , NEG) -> {NEG} ; (NEG , ZERO) -> {NEG} ; (ZERO, NEG) -> {NEG} ; (ZERO, ZERO) -> {ZERO} ; (ZERO, POS) -> {POS} ; (POS , ZERO) -> {POS} ; (POS , POS) -> {POS} ; (_, _)-> {NEG, ZERO, POS}; /* case (POS, NEG), (NEG, POS) */ end public class Signs { public static final int NEG = 0; // mask 1 public static final int ZERO = 1; // mask 2 public static final int POS = 2; // mask 4 public static int abstract(int n) { if (n < 0) return NEG; if (n == 0) return ZERO; if (n > 0) return POS; } public static int add(int arg 1, int arg 2) { if (arg 1==NEG && arg 2==NEG) return NEG; if (arg 1==NEG && arg 2==ZERO) return NEG; if (arg 1==ZERO && arg 2==NEG) return NEG; if (arg 1==ZERO && arg 2==ZERO) return ZERO; if (arg 1==ZERO && arg 2==POS) return POS; if (arg 1==POS && arg 2==ZERO) return POS; if (arg 1==POS && arg 2==POS) return POS; return Bandera. choose(7); /* case (POS, NEG), (NEG, POS) */ }
Specification Creation Tools abstraction Signs abstracts int begin TOKENS = { NEG, ZERO, POS }; abstract(n) begin n < 0 n == 0 n > 0 end -> {NEG}; -> {ZERO}; -> {POS}; Automatic Generation operator + add begin (NEG , NEG) -> {NEG} ; (NEG , ZERO) -> {NEG} ; (ZERO, NEG) -> {NEG} ; (ZERO, ZERO) -> {ZERO} ; (ZERO, POS) -> {POS} ; (POS , ZERO) -> {POS} ; (POS , POS) -> {POS} ; (_, _)-> {NEG, ZERO, POS}; end Example: Start safe, then refine: +(NEG, NEG)={NEG, ZERO, POS} Proof obligations submitted to PVS. . . Forall n 1, n 2: neg? (n 1) and neg? (n 2) implies not pos? (n 1+n 2) Forall n 1, n 2: neg? (n 1) and neg? (n 2) implies not zero? (n 1+n 2) Forall n 1, n 2: neg? (n 1) and neg? (n 2) implies not neg? (n 1+n 2)
Bounded Buffer BIR State Declarations process Bounded. B() Bounded. Buffer_rec = record { bound : range -1. . 4; head : range -1. . 4; tail : range -1. . 4; BIRLock : lock wait reentrant; }; static identification of threads object state as record bounded integer values qualified lock representation Bounded. Buffer_col : collection [3] of Bounded. Buffer_rec; Bounded. Buffer_col_0 : collection [3] of Bounded. Buffer_rec; Bounded. Buffer_ref = ref { Bounded. Buffer_col, Bounded. Buffer_col_0 }; “mini-heaps” – one per allocator site Reference type indicates mini-heaps that can be pointed to. Easily express results of “points-to” analysis
Bounded Buffer BIR Guarded Transitions loc s 34: live { b 2, b 1, T_0, T_6, T_8 } when true do invisible { T_8 : = (T_6 % T_8); } goto s 35; … loc s 36: live { b 2, b 1, T_0 } when true do { notify. All(T_0. BIRLock); } goto s 37; … loc s 37: live { b 2, b 1, T_0 } when true do { unlock(T_0. BIRLock); } goto s 38; control point label live variable information used to optimize back-end code annotation denoting invisible transition which can be merged with following transition built-in operations on lock representations

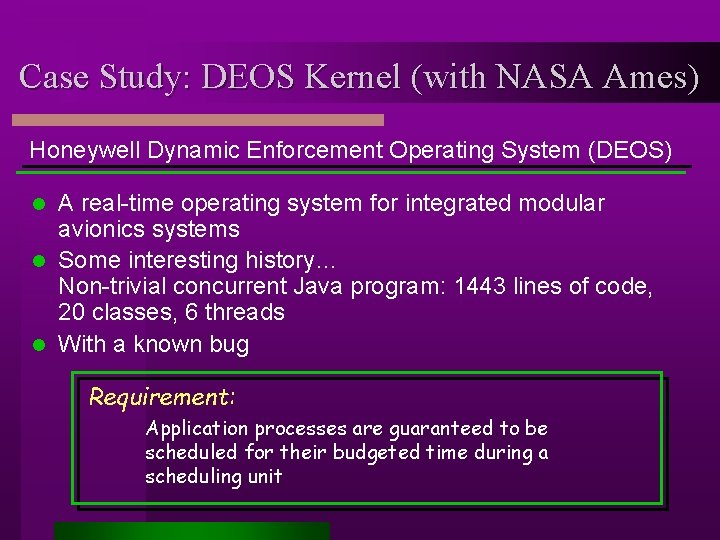

Case Study: DEOS Kernel (with NASA Ames) Honeywell Dynamic Enforcement Operating System (DEOS) A real-time operating system for integrated modular avionics systems l Some interesting history… Non-trivial concurrent Java program: 1443 lines of code, 20 classes, 6 threads l With a known bug l Requirement: Application processes are guaranteed to be scheduled for their budgeted time during a scheduling unit
DEOS Architecture DEOS Kernel class Thread Environment User Process 1 User Process 2 class Scheduler class Startof. Period. Event . . . System Clock & Timer class Listof. Threads Requirement Monitor. . . if(. . . ) assert(false); . . .
Verification of DEOS l We used Bandera and Java Path. Finder (JPF) l Verification of the system exhausted 4 Gigabytes of memory without completing – no information about satisfaction of requirement l To verify property or produce a counter-example – to reduce the state space to a tractable size – some form of abstraction is needed
Variable Selection Control dependencies: DEOS Kernel Environment User Process 1 User Process 2. . . System Clock & Timer 29 conditionals class Thread 16 methods int its. Last. Execution; . . . public void start. Charging. CPUTime(){ int cp=its. Event. current. Period(); if(cp == its. Last. Execution) {. . . } 32 variables class Startof. Period. Event its. Period. Id = 0; . . . public int current. Period() { return its. Period. Id; } public void pulse. Event(. . . ) {. . . if(count. Down == 0) { its. Period. Id=its. Period. Id + 1; . . . } Requirement Monitor. . . if(. . . ) assert(false); . . .
Variable Selection Control dependencies: DEOS Kernel Environment User Process 1 User Process 2. . . System Clock & Timer 29 conditionals class Thread 16 methods int its. Last. Execution; . . . public void start. Charging. CPUTime(){ int cp=its. Event. current. Period(); if(cp == its. Last. Execution) {. . . } 32 variables class Startof. Period. Event its. Period. Id = 0; . . . public int current. Period() { return its. Period. Id; } public void pulse. Event(. . . ) {. . . if(count. Down == 0) { its. Period. Id=its. Period. Id + 1; . . . } Requirement Monitor. . . if(. . . ) assert(false); . . .
Variable Selection Data dependencies DEOS Kernel class Thread Environment User Process 1 User Process 2. . . System Clock & Timer int its. Last. Execution; . . . public void start. Charging. CPUTime(){ int cp=its. Event. current. Period(); if(cp == its. Last. Execution) {. . . } class Startof. Period. Event its. Period. Id = 0; . . . public int current. Period() { return its. Period. Id; } public void pulse. Event(. . . ) {. . . if(count. Down == 0) { its. Period. Id=its. Period. Id + 1; . . . } Requirement Monitor. . . if(. . . ) assert(false); . . . Unbounded!
Attaching Abstract Types DEOS Kernel class Thread Environment User Process 1 User Process 2. . . System Clock & Timer SIGNS int its. Last. Execution; . . . public void start. Charging. CPUTime(){ SIGNS int cp=its. Event. current. Period(); if(cp == its. Last. Execution) {. . . } class Startof. Period. Event SIGNS int its. Period. Id = 0; . . . public int current. Period() { return its. Period. Id; } public void pulse. Event(. . . ) {. . . if(count. Down == 0) { its. Period. Id=its. Period. Id + 1; . . . } Requirement Monitor. . . if(. . . ) assert(false); . . .
Code Transformation DEOS Kernel class Thread Environment User Process 1 User Process 2. . . System Clock & Timer Signs its. Last. Execution; . . . public void start. Charging. CPUTime(){ Signs cp=its. Event. current. Period(); if(Signs. eq(cp, its. Last. Execution)){. . . } class Startof. Period. Event Signs its. Period. Id = ZERO; . . . public Signs current. Period() { return its. Period. Id; } public void pulse. Event(. . . ) {. . . if(count. Down == 0) { its. Period. Id=Signs. add(its. Period. Id , POS); . . . } Requirement Monitor. . . if(. . . ) assert(false); . . .
Verification of Abstracted DEOS l JPF completed the check – produced a 464 step counter-example l Does the counter-example correspond to a feasible execution? – difficult to determine – because of abstraction, we may get spurious errors l We re-ran JPF to perform a customized search – found a guaranteed feasible 318 step counter-example l After fixing the bug – the requirement was verified
Summary l A collection of tools for reasoning about concurrent systems. l Has been applied to find bugs in safety-critical systems. – Can it be used effectively by others – people familiar with quality assurance issues? l Still a research prototype, but the implementation is maturing. l Is it possible to integrate tools like this into the develop process for certified systems? – As a simple debugging utitlity? – As an officially sanctioned (certified) tool? – Can it complement existing tools used in certification – especially when concurrency is considered? l The JPF back-end has been modified to produce coverage information. – Can this complement existing coverage tools? l We would be happy to have challenge problems/case studies.
Primary Challenges Unclear how far model-checking can be pushed down the hierarchy of software developers Will there be so much technical knowledge and effort required that it will only be used by research teams or quality assurance in highly safety-critical applications? l Can it be integrated well enough with standard development processes so it can be used not only with designs but also mesh well with rigorous testing? l Can software engineers be trained in the concepts of abstraction and temporal logic, e. g. , in a one semester course, so with little further training they can use tools effectively, in concurrent software development? l Can effective “canned” solutions be provided for particular application domains – thus enabling developers with less training? l
