Shielding calculations with MCNPX at the European Spallation
- Slides: 56
Shielding calculations with MCNPX at the European Spallation Source R. Bevilacqua, L. Tchelidze, G. Muhrer and E. Pitcher European Spallation Source ESS, Lund, Sweden SATIF-12, April 28 -30, 2014
Outlook • Just one slide on flux-to-dose conversion • Front End Building shielding design at ESS • A short digression on 13 C(p, xn) • Study to reduce ESS Monolith’s radius • If time allows: two slides on mctal 2 root (how to analyze mcnp results with root) Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
flux to dose conversion Flux to dose (µSv h-1 cm 2 s) mcnpx 2. 7 calculations o mcnpx built-in: • ICRP-21 1971 (DEFAULT) • ICRP-74 1996 (ambient dose equivalent) o we used the Maximum of the conversion factors from ICRP-116 elaborated from ICRP 116 (same method for γ flux to dose) neutron energy (Me. V) Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Radiation areas at ESS Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Front End Building (FEB) Water cooling room o preliminary study: • • two concrete walls 40 cm thickness each < 3 µSv/h o dose limit 3 µSv/h corridor Accelerator’s tunnel MEBT 3 2 DTL TANKS RFQ 1 Front End Building
Front End Building (FEB) o Components modeled with mcnpx 2. 7 • RFQ • MEBT • DTL Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
RFQ Proton beam loss: 1 Watt m-1 RFQ length: 4. 6 m Proton Energy: 3. 6 Me. V MCNPX model Dose in water cooling room with 40 cm concrete wall Cu 0. 13 µSv/h neutron 4. 6 W point loss gamma dose: comparable Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
MEBT collimator (one of 3) [Medium Energy Beam Transport] collimator chopper dump (detail) Cu o 3. 6 Me. V protons 1014 o protons on collimators 1. 70 o protons on chopper dump: 5. 68 1014 o protons on beam pipe: 7. 0 1012 Riccardo Bevilacqua Graphite (2 mm) SATIF-12, April 28 -30, 2014
MEBT max neutron dose at surface, water cooling room • chopper dump (graphite + Cu) < 10 -8 µSv/h • collimators (graphite + Cu) • beam pipe (stainless steel) 0. 08 µSv/h [compared to RFQ: 0. 13 µSv/h ] Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
about graphite chopper dump (detail) Cu Graphite (2 mm) Range 3. 6 Me. V protons in 1. 7 g cm-3 graphite: 0. 135 mm incident protons on chopper dump All protons stopped in graphite (same for the 3 collimators) Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
(p, n) reaction on graphite o 3. 6 Me. V protons o range in graphite: 0. 135 mm o No ENDF/B proton data library for 13 C o (p, n) reaction thresholds: o TENDL is available • • 12 C(p, xn) 19. 6 Me. V 13 C(p, xn) 3. 2 Me. V o graphite: 1. 1% 13 C Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
TENDL p+13 C total and 13 C(p, xn) cross section However, TENDL-2011 Cross Section (barn) 1 E 0 p+13 C total 1 E-1 1 E-2 13 C(p, xn) 1 E-3 1 E-4 TENDL: 1 Me. V steps… 1 E-5 1 E-6 1 E-7 3. 2 Me. V 1 E-8 0 Riccardo Bevilacqua 1 2 3 4 5 6 7 8 Proton Energy (Me. V) 9 10 SATIF-12, April 28 -30, 2014
13 C(p, xn) yield total neutron production yield 1. 0 E-03 1. 0 E-04 1. 0 E-05 our conservative approach MCNPX model TENDL-2011 1. 0 E-06 TENDL-2013 Bair et al 1. 0 E-07 3. 5 4. 5 5. 5 6. 5 Proton incident energy (Me. V) Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
DTL St ain les Stainless Steel 50 µm Cu s. S tee l vacuum drift tube (Cu) Sm 2 Co 17 magnet (50% of cells) scaled densities account for DTL cells structure Cu + 15% cooling H 20
DTL tank length (m) initial energy (Me. V) final energy (Me. V) protons/sec ond 1 7. 62 3. 6 21. 29 5. 4 1012 2 7. 09 21. 29 39. 11 1. 6 1012 3 7. 58 39. 11 56. 81 1. 0 1012 4 7. 85 56. 81 73. 83 7. 7 1011 5 7. 69 73. 83 89. 91 6. 0 1011 Assuming a proton beam loss of 1 W m-1 Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
DTL – integral neutron flux (40 cm wall) 2 3 4 contribution from tank 1 Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
tunnel DTL – dose inside FEB up Prompt dose (µSv/h) 1 E+04 FEB 1 E+03 water cooling 1 E+02 down 1 E+01 neutron dose (up) photon dose (up) 1 E+00 neutron dose (down) 1 E-01 photon dose (down) 0 1 2 3 4 5 6 DTL TANK # Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
dose cell tunnel Prompt dose (µSv/h) DTL – dose in water cooling room 1 E+00 FEB water cooling 1 E-01 neutron 40 cm wall photon 40 cm wall 1 E-02 0 1 2 3 4 5 6 DTL TANK # Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Prompt dose (µSv/h) Total dose in water cooling room INTEGRAL = 3. 7 µSV/h limit 3 µSv/h 1 E+00 RFQ (n+γ) MEBT (n+γ) 1 E-01 neutron 40 cm wall photon 40 cm wall 1 E-02 0 1 2 3 4 5 6 DTL TANK # Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
tunnel DTL – dose in water cooling room Prompt dose (µSv/h) from 40 to 100 cm walls 1 E+00 FEB water cooling 1 E-01 1 E-02 neutron 40 cm wall photon 40 cm wall 1 E-03 neutron 100 cm wall water cooling room: green < 3 µSv/h photon 100 cm wall 1 E-04 0 1 2 3 4 5 6 DTL TANK # Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
FEB – labyrinth (100 m) Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
FEB – labyrinth (100 m) Integral neutron flux from DTL tank 1 Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Prompt dose (µSv/h) DTL – dose in water cooling room 1 E+00 neutron 40 cm wall 1 E-01 photon 40 cm wall 1 E-02 neutron 100 cm wall photon 100 cm wall 1 E-03 neutron labyrinth photon labyrinth 1 E-04 0 1 2 3 4 5 6 DTL TANK # Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
ESS Monolith Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
ESS Monolith 2013 Baseline in TDR [Technical Design Report] o 6 meters radius stainless steel & carbon steel 2014 Question: can we afford 5. 5 meters? Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
ESS Monolith Figure of Merit (given by colleagues of science directorate) o Neutron flux E > 10 Me. V: < 10 -2 n cm-2 s-1 o at 2 meters above proton beam line height above proton beam line: 4 meters Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
mcnpx model by Alan Takibayev (ESS) ESS Monolith o 48 possible beam port positions o 4 beam extraction sectors: • 60 degrees each • 5 degree angular separation Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
80 100 20 120 0 140 340 160 320 180 300 280 260 240 220 200 neutron flux En > 10 Me. V (cm-2 s-1) 40 60 each sector: 50 cm, 20 deg monolith: 5. 5 meters radius + 0. 5 meters concrete (external ring) [unperturbed] slice: 200 – 210 cm above the proton beam line level Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
neutron flux at 220º 20 40 60 80 100 120 0 140 340 160 320 180 300 280 Riccardo Bevilacqua 200 260 240 220 SATIF-12, April 28 -30, 2014
neutron flux at 320º 20 40 60 80 100 120 0 140 340 160 320 180 300 280 Riccardo Bevilacqua 200 260 240 220 SATIF-12, April 28 -30, 2014
neutron flux at 280º 20 40 60 80 100 120 0 140 340 160 320 180 300 280 Riccardo Bevilacqua 200 260 240 220 SATIF-12, April 28 -30, 2014
ESS Monolith: from 6 to 5. 5 o Fo. M given assuming flat response function from neutron scattering instruments o next step: folding neutron spectrum with actual response function This will most likely allow us to go to 5. 5 meters Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Conclusions • flux-to-dose: maximum of ICRP-116 • a nice FEB shielding design • be careful with 13 C(p, xn) • ESS Monolith’s radius maybe reduced to 5. 5 m • download and enjoy mctal 2 root Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
just google “mctal 2 root” o Read mctal files: • all tallies • all mesh tallies o Store the data in a root file • TSparse objects o Fancy plots o All data analysis capabilities of Root o Developed at ESS Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
mctal 2 root http: //code. google. com/p/mc-tools/ Code by Konstantin Batkov & Nicolò Borghi (ESS) SATIF-12, April 28 -30, 2014
Thank you riccardo. bevilacqua@esss. se SATIF-12, April 28 -30, 2014
Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Front End Building (FEB) DTL MEBT RFQ ion source Accelerator Tunnel out of scale Water cooling room Front End Building Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Front End Building (FEB) Water cooling room < 3 µSv/h DTL MEBT RFQ ? ion source Accelerator Tunnel > 1000 µSv/h out of scale i. e. < 6 m. Sv/y [2000 h] Front End Building Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Front End Building (FEB) < 3 µSv/h Water cooling room i. e. < 6 m. Sv/y [2000 h] DTL MEBT RFQ ion source Accelerator Tunnel > 1000 µSv/h out of scale ? Front End Building Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
courtesy of Benjamin Cheymol, ESS MEBT Beam Loss Distributions in collimators Gaussian beam at collimator location, collimator jaw at 3 sigma, particle collimated (1% of full beam) on the all collimator, dimension for one jaw protons per second 1. 70 E+14 Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
courtesy of Benjamin Cheymol, ESS MEBT beam profile Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
TENDL p+13 C total and 13 C(p, xn) cross section TENDL-2013 Cross Section (barn) 1 E 0 1 E-1 p+13 C total 1 E-2 13 C(p, xn) 1 E-3 1 E-4 1 E-5 1 E-6 1 E-7 3. 2 Me. V 1 E-8 0 Riccardo Bevilacqua 1 2 3 4 5 6 7 8 Proton Energy (Me. V) 9 10 SATIF-12, April 28 -30, 2014
Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Integral gamma flux from DTL tank 1 100 cm thick wall Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Integral neutron flux from DTL tank 1 100 cm thick wall Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Water cooling room < 3 µSv/h > 1 m. Sv/h < 25 µSv/h < 1 m. Sv/h FEB Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
incident protons radius (cm) degrees Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Riccardo Bevilacqua SATIF-12, April 28 -30, 2014
Riccardo Bevilacqua SATIF-12, April 28 -30, 2014

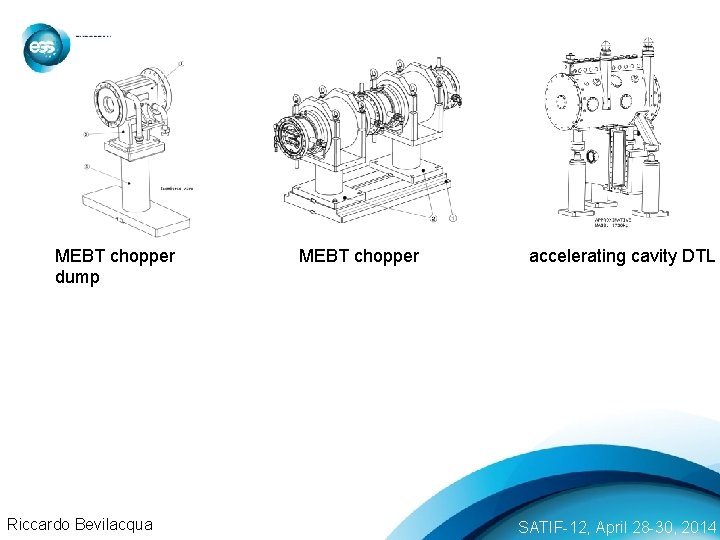

MEBT chopper dump Riccardo Bevilacqua MEBT chopper accelerating cavity DTL SATIF-12, April 28 -30, 2014
