Coupled EMThermalStructural ANSYS Simulation of the FETS 4
- Slides: 50
Coupled EM-Thermal-Structural ANSYS Simulation of the FETS 4 metre RFQ
Tuner & Coupler Ports Vacuum Pump Flange Designed to be Fully Bolted Together Vanes Vacuum Flange Coolant Manifold Water Baths Milled Into Vanes
Tuner & Coupler Ports Vane End Water Bath Shaped to Follow Vane Cut-Back O-Ring Joint to Mount to End Wall
Requirements of Study • Confirm resonant frequency is 324 MHz • Use EM fields to calculate heat loads • Confirm proposed cooling strategy ok • Estimate coolant flow rates needed • Calculate copper thermal displacements • Estimate resonant frequency shift
ANSYS Coupled solver process Resonant frequency: High-frequency electromagnetic eigenmode solver Surface heat flux: Use macro to convert magnetic fields to thermal element loads Temperature distribution: Thermal solver Vane and wall displacement: Structural solver Frequency shift: Export results to MATLAB Slater perturbation algorithm
Model Geometry (from Autodesk Inventor)
Simplified Geometry Internal Space ‘Filled’ with Vacuum Body Water-Bath Baffle Added Simplifications made: • Bolt Holes Removed • Other Unnecessary Features Removed • Sliced by Symmetry Planes End Wall Added
Mesh Optimization • Depends on desired effect to be observed: 1) For frequency dependence on geometry, enhance vacuum mesh in relevant regions 2) For surface losses/heat flux, need high density mesh at copper-vacuum boundary 3) For accurate mechanical solutions, increase mesh density in copper • Coupled solvers need all three enhanced!
Mesh Optimization Examples Resonant Frequency and Q-factor Studies Increased Surface Loss Accuracy
Boundary Condition Regions
Transfer to ANSYS Classic • Different ‘bodies’ are different mesh types • Assign boundary condition to node groups
Resonant Frequency Analysis
Eigenmode Solver Surface H-Field Results
Eigenmode Solver Magnetic Field Vector Results H-Field flowing around vane cut-backs H-Field flowing past tuner port and vacuum pump slots
Eigenmode Solver Surface E-Field Results
Eigenmode Solver Electric Field Vector Results Quadrupole Mode 333. 56 MHz Dipole Modes 330. 02 MHz
Why the Wrong Frequency? • Poor Mesh Quality? – Eigenmode solver very insensitive to mesh • Eigenmode solver not as good as CST? – Same (correct) frequency found for cold model • Different tuner/coupler positions? • Longer RFQ section? • Effect of vane-tip to end-wall gap?
Frequency vs. Port Positions
Frequency vs. RFQ Length Poisson Superfish result for infinitely long RFQ = 338 MHz End effects become dominant in short 40 cm cold model (319 MHz) ∞
Frequency vs. End Wall Gap
Frequency vs. End Wall Angle
Re-sized RFQ for correct frequency Note: set for slightly too high a frequency (326 MHz) because Superfish assumes no features such as couplers and vacuum pumping, which reduce the frequency by 2 MHz. See slide 19.
Summary of Frequency Analysis • Quad & Dipole modes remain well separated by several MHz • Resonant frequency increases with length, asymptoting to 338 MHz Superfish result • Quadrupole frequency of 400 cm RFQ is ~9 MHz shifted cf. 40 cm cold model • Increase radius to 43. 49 mm for correct f • Frequency and Q-value vary with end wall geometry as measured on cold model
Temperature Distribution
Total Surface Power Loss where: Heat Flux Per Element Psolver = Calculated total surface power (W) ρ = Surface resistance (Ω) H = Tangential magnetic field at surface (T) d. A = Area of surface mesh element (m 2) f = Cavity resonant frequency (Hz) µ 0 = permeability of free space (H m-1) σ = Conductivity of cavity walls (S m-1) F = Heat flux due to surface losses (W m-2) Preal = Expected total surface power (W)
Convection Boundary Conditions Heat Transfer Coefficient (HTC) / W m-2 K-1
Thermal Solver Solution Temperature / °C Water-bath HTC = 3000 W m-2 K-1
Temperature vs. Input Power Outer Wall Vane Tip
Squirt Tubes
Squirt Tubes Inserted Squirt Tube HTC: 0 Wm-2 K-1 Input Power: 500 k. W
Squirt Tubes Inserted Squirt Tube HTC: 1000 Wm-2 K-1 Input Power: 500 k. W
Squirt Tubes Inserted Squirt Tube HTC: 2000 Wm-2 K-1 Input Power: 500 k. W
Squirt Tubes Inserted Squirt Tube HTC: 3000 Wm-2 K-1 Input Power: 500 k. W
Squirt Tubes Inserted Squirt Tube HTC: 4000 Wm-2 K-1 Input Power: 500 k. W
Squirt Tubes Inserted Squirt Tube HTC: 5000 Wm-2 K-1 Input Power: 500 k. W
Squirt Tubes Inserted Squirt Tube HTC: 7500 Wm-2 K-1 Input Power: 500 k. W

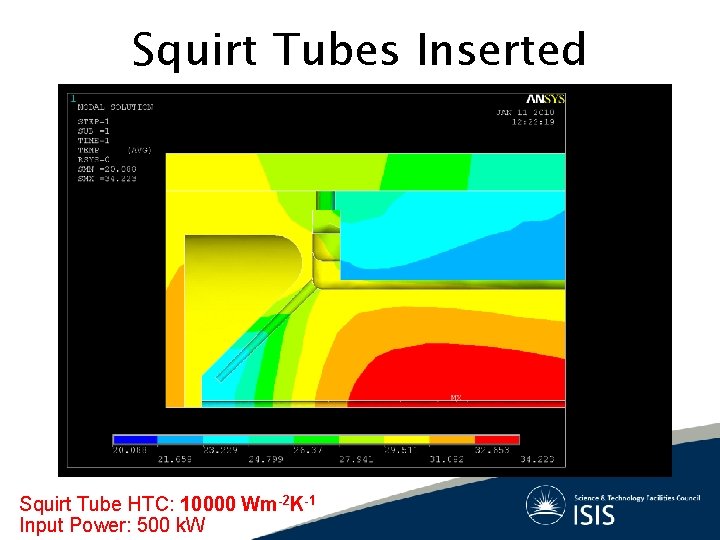

Squirt Tubes Inserted Squirt Tube HTC: 10000 Wm-2 K-1 Input Power: 500 k. W
Variation With Squirt Tube HTC Water bath HTC: 1000 Wm-2 K-1 Tuner, Coupler & Vacuum Port HTC: 3000 Wm-2 K-1 Input Power: 500 k. W
Summary of Thermal Analysis • Majority of heat flux at vane cut-backs • Tuner/Coupler and Vacuum flange cooling more than adequate • Large temperature gradient at vane tips can be smoothed using squirt tubes • Majority of heat removed by water baths • Test required to assess flow rates and HTC
Structural Analysis
Boundary Conditions • Temperature distribution applied as load • Frictionless supports at symmetry planes • End wall either longitudinally fixed or free • Effect of air pressure untested yet
Structural Deformation Longitudinal Displacement / mm Vane ends move toward end wall by ~300 µm. Vertical Displacement / mm Vanes move toward each other by ~30 µm. Walls move outward by ~150 µm.
Von Mises Stress 200 MPa of stress in vane cutbacks
End Wall Movement Constraint Fixed End Wall Max Stress 196 MPa Free End Wall Max Stress 23. 3 MPa
End Wall Movement Constraint Fixed End Wall Free End Wall
Frequency Shift Import EM fields and boundary node displacements into MATLAB. Algorithm written to calculate frequency shift using Slater perturbation equation: Energy change due to deformed boundary Total stored energy in cavity vacuum
Frequency Shift vs. Input Power
Frequency Shift • Walls expand outward • Vanes grow toward each other • ∴ Little net transverse movement of vanes • Vane tips grow longitudinally toward end wall by ~100 µm • Creates ~300 k. Hz frequency shift
Summary of Structural Analysis • Compensating movement of walls outward and vanes inward • Largest temperature gradients (~60°C) and thermal expansion (100µm) at vane ends • Resulting frequency shift ~300 k. Hz • Well within moveable tuner range • Free wall reduces stress at vane cut-backs
Conclusion & Actions Required • Sequential EM-Thermal-Structural analyses allow comprehensive study of RFQ • Full 4 -metre RFQ has a higher frequency – Increase transverse size to lower the frequency • Cooling scheme seems ok – Confirm flow rate needed for water baths • Small deformations and frequency shift – Use as perturbation in tracking codes
