FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Finite Element Modeling and Simulation with ANSYS Workbench ANSYS 17. 2 Student 제품 무료 다운로드 Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. ANSYS설

1. 홈페이지에 접속합니다. http: //www. ansys. com/ko-KR/ FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press 2. 제품 – Academic – 학생용 무료 소프트웨어 클릭 3. ANSYS Student – 이전 버전 – ANSYS STUDENT 17. 2다운로드 – 파일 모두 다운 - Windows x 64용 ANSYS Student 17. 2 다운로드(3. 98 GB) (*2017 Cornell Ed. X 과 정에서 사용) - ANSYS Student 제품 라이센스 키(506바이트) - Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 2 ANSYS설

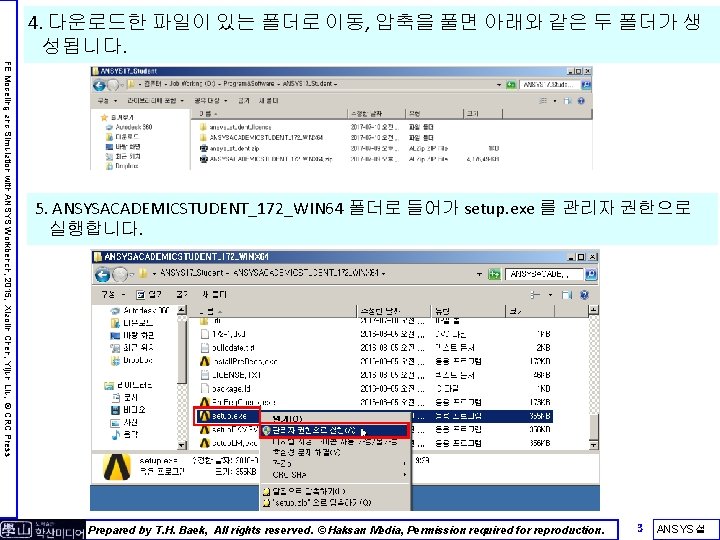

4. 다운로드한 파일이 있는 폴더로 이동, 압축을 풀면 아래와 같은 두 폴더가 생 성됩니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press 5. ANSYSACADEMICSTUDENT_172_WIN 64 폴더로 들어가 setup. exe 를 관리자 권한으로 실행합니다. Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 3 ANSYS설

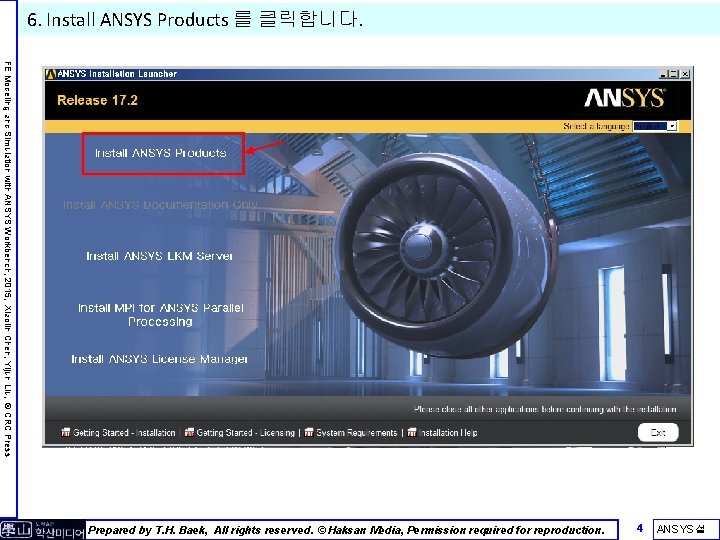

6. Install ANSYS Products 를 클릭합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 4 ANSYS설

7. 약관에 동의한 후, Next 를 클릭합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 5 ANSYS설

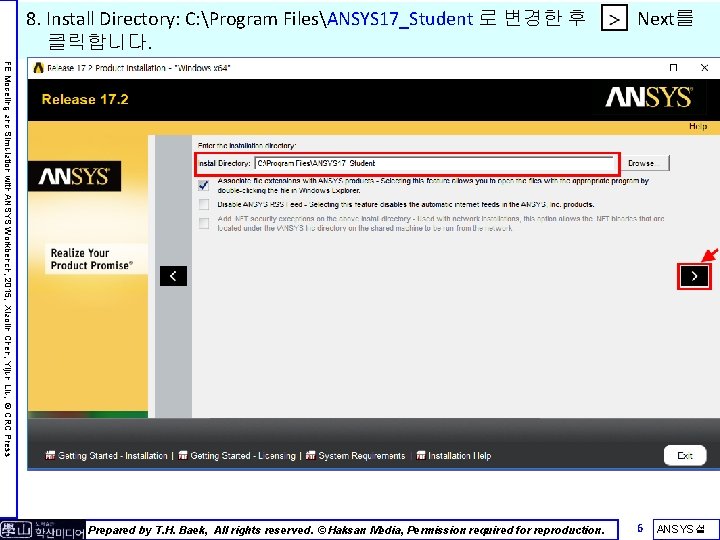

8. Install Directory: C: Program FilesANSYS 17_Student 로 변경한 후 Next를 클릭합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 6 ANSYS설

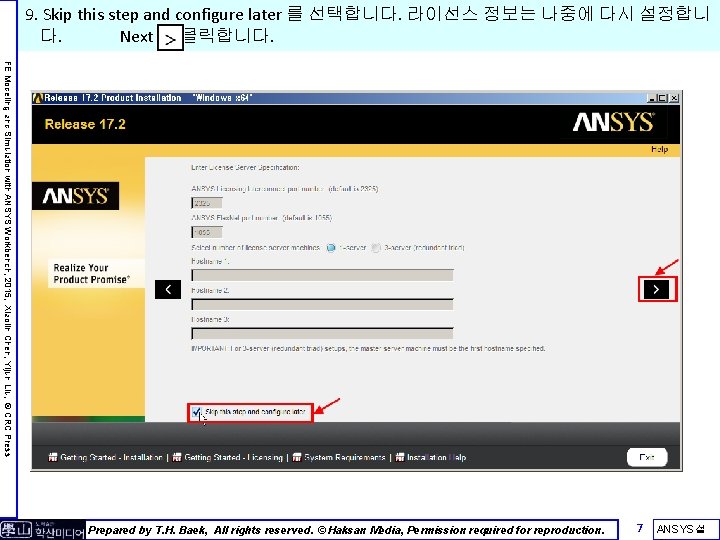

9. Skip this step and configure later 를 선택합니다. 라이선스 정보는 나중에 다시 설정합니 다. Next 를 클릭합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 7 ANSYS설

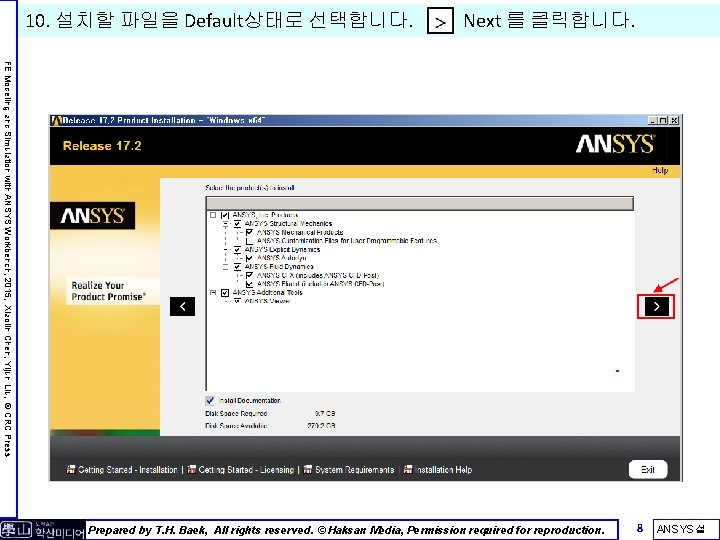

10. 설치할 파일을 Default상태로 선택합니다. Next 를 클릭합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 8 ANSYS설

11. Default상태에서 Next 를 클릭합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 9 ANSYS설

12. 설치를 시작합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 10 ANSYS설

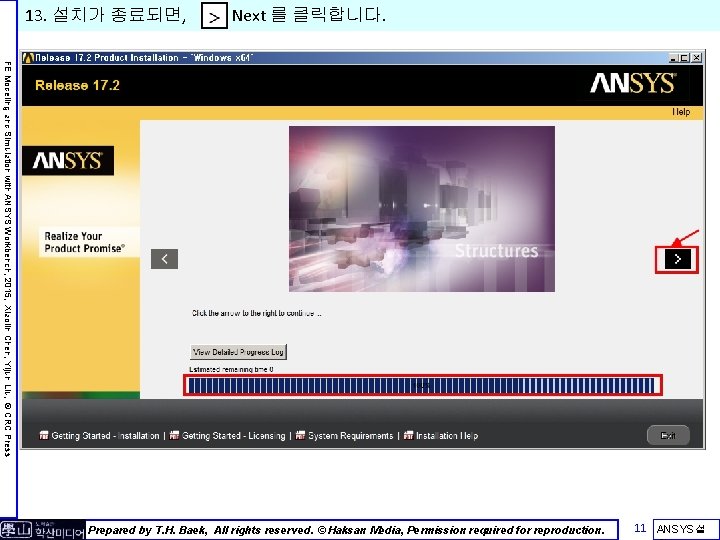

13. 설치가 종료되면, Next 를 클릭합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 11 ANSYS설

14. Launch survey upon existing을 클릭하여 “√” 표시를 해지하고, Exit 를 클릭합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 12 ANSYS설

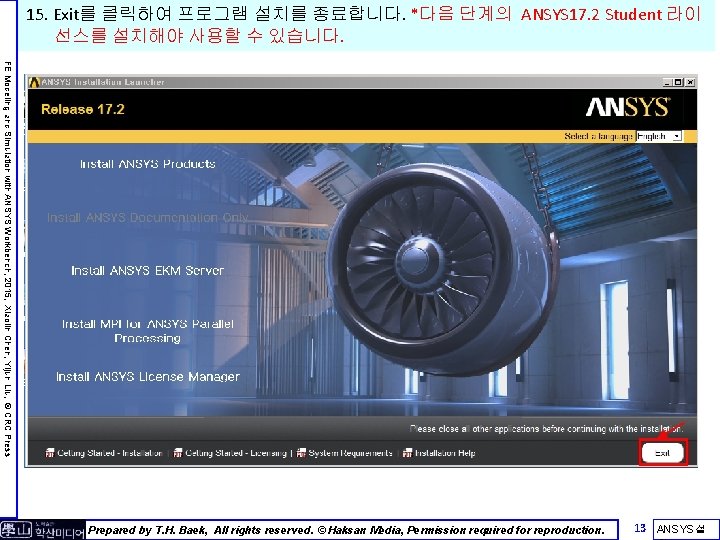

15. Exit를 클릭하여 프로그램 설치를 종료합니다. *다음 단계의 ANSYS 17. 2 Student 라이 선스를 설치해야 사용할 수 있습니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 13 ANSYS설

4. 아래 경로로 이동합니다. C: Program FilesANSYS IncShared FilesLicensing FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press 5. 위의 마지막 경로 Licensing폴더에 3단계에서 복사한 라이선스 파일을 붙여 넣습니다. Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 15 ANSYS설

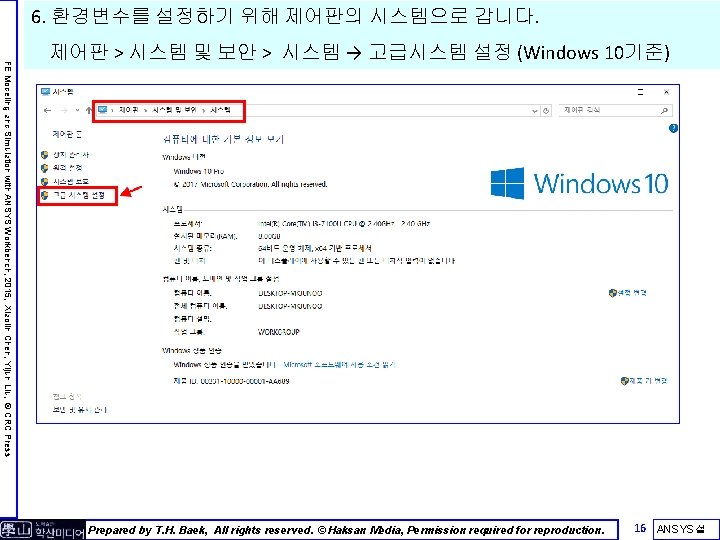

6. 환경변수를 설정하기 위해 제어판의 시스템으로 갑니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press 제어판 > 시스템 및 보안 > 시스템 → 고급시스템 설정 (Windows 10기준) Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 16 ANSYS설

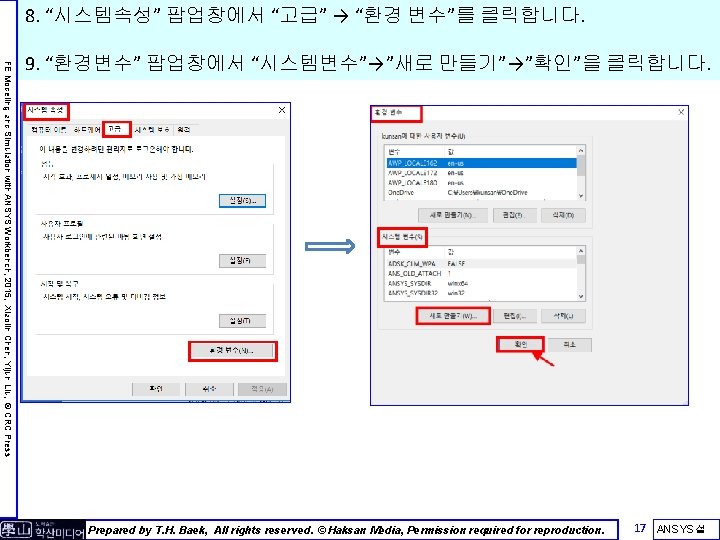

8. “시스템속성” 팝업창에서 “고급” → “환경 변수”를 클릭합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press 9. “환경변수” 팝업창에서 “시스템변수”→”새로 만들기”→”확인”을 클릭합니다. Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 17 ANSYS설

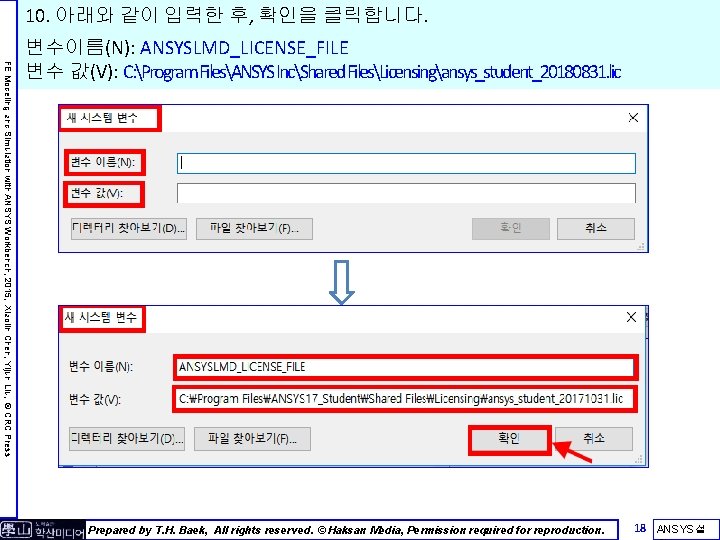

10. 아래와 같이 입력한 후, 확인을 클릭합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press 변수이름(N): ANSYSLMD_LICENSE_FILE 변수 값(V): C: Program FilesANSYS IncShared FilesLicensingansys_student_20180831. lic Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 18 ANSYS설

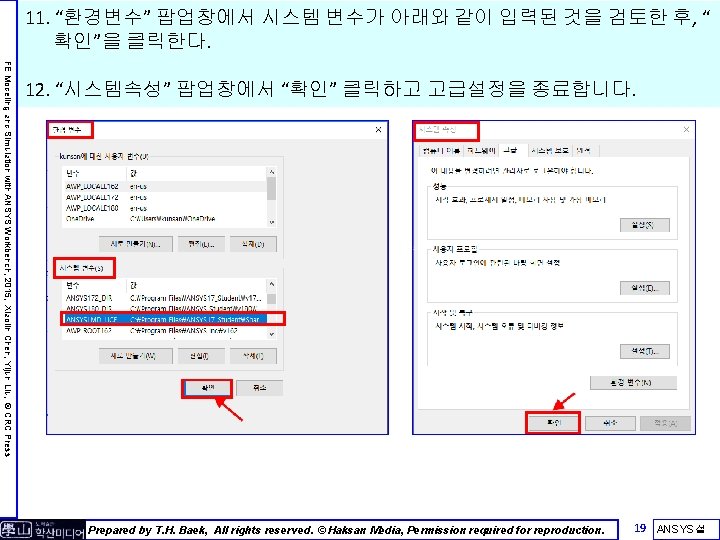

11. “환경변수” 팝업창에서 시스템 변수가 아래와 같이 입력된 것을 검토한 후, “ 확인”을 클릭한다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press 12. “시스템속성” 팝업창에서 “확인” 클릭하고 고급설정을 종료합니다. Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 19 ANSYS설

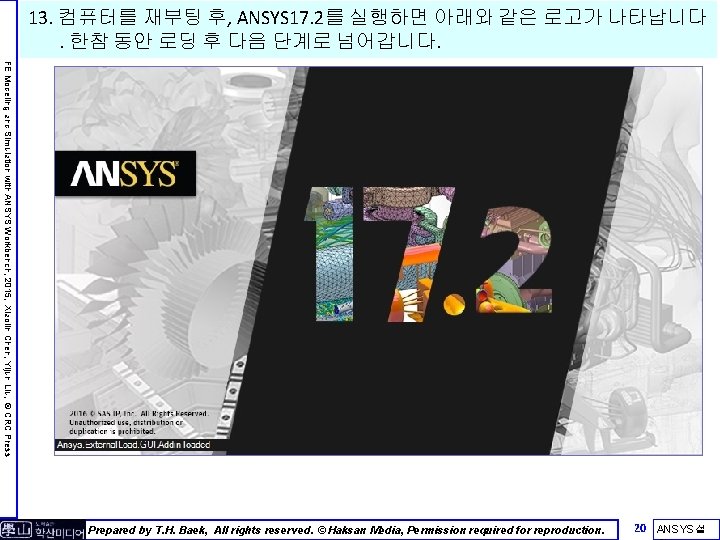

13. 컴퓨터를 재부팅 후, ANSYS 17. 2를 실행하면 아래와 같은 로고가 나타납니다. 한참 동안 로딩 후 다음 단계로 넘어갑니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 20 ANSYS설

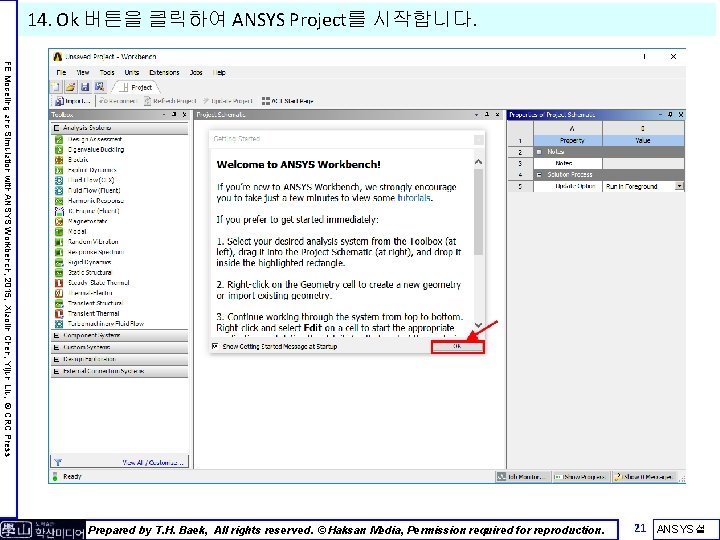

14. Ok 버튼을 클릭하여 ANSYS Project를 시작합니다. FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. 21 ANSYS설

FE Modeling and Simulation with ANSYS Workbench, 2015, Xiaolin Chen, Yijun Liu, © CRC Press Finite Element Modeling and Simulation with ANSYS Workbench This is the final step for download and installation of ANSYS 17. 2 Student version. Prepared by T. H. Baek, All rights reserved. © Haksan Media, Permission required for reproduction. ANSYS설
