Chapter 1 ANSYS Workbench ANSYS Meshing Application Introduction

ANSYS Workbench Overview Training Manual • ANSYS Workbench Environment • Toolbox • Workbench Project Schematic • Linking Items in the Project Schematic • Workbench File Management • Archiving your Workbench 12. 0 project • Importing Models • Exporting Project Components ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -2 April 28, 2009 Inventory #002645

ANSYS Workbench The Workbench Environment Training Manual • For most situations the Workbench GUI is divided into 2 primary sections (there are other optional sections we’ll see in a moment): The Toolbox ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. The Project Schematic 1 -3 April 28, 2009 Inventory #002645

ANSYS Workbench The Toolbox Training Manual • The toolbox contains 4 subgroups: • Analysis systems: predefined templates that can be placed in the schematic. • Component systems: various applications that can be accessed to build, or expand, analysis systems. • Custom Systems: predefined analysis systems for coupled applications (FSI, thermal-stress, etc. ). Users can also create their own predefined systems. • Design Exploration: Parametric management and optimization tools. ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -4 April 28, 2009 Inventory #002645

ANSYS Workbench The Toolbox Training Manual • The systems and components displayed in the toolbox will depend on the installed products. • Using the check boxes in the “View All / Customize” window, the items displayed in the toolbox can be toggled on or off. • The toolbox customization window is normally left closed when not in use. ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -5 April 28, 2009 Inventory #002645

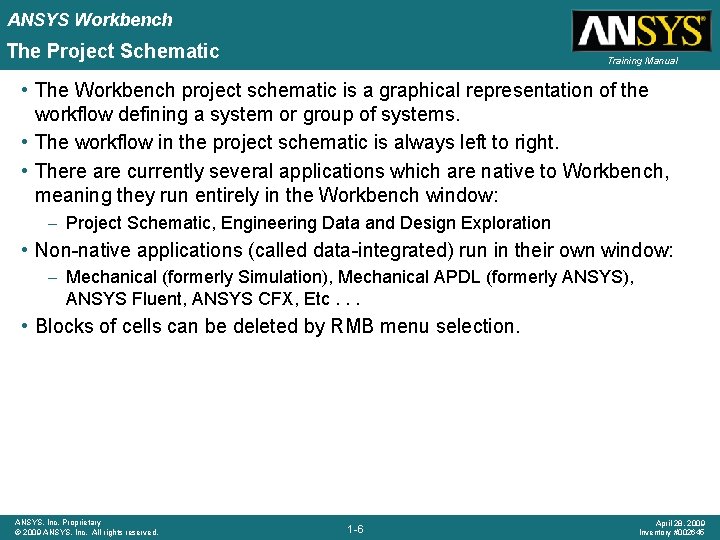

ANSYS Workbench The Project Schematic Training Manual • The Workbench project schematic is a graphical representation of the workflow defining a system or group of systems. • The workflow in the project schematic is always left to right. • There are currently several applications which are native to Workbench, meaning they run entirely in the Workbench window: – Project Schematic, Engineering Data and Design Exploration • Non-native applications (called data-integrated) run in their own window: – Mechanical (formerly Simulation), Mechanical APDL (formerly ANSYS), ANSYS Fluent, ANSYS CFX, Etc. . . • Blocks of cells can be deleted by RMB menu selection. ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -6 April 28, 2009 Inventory #002645

ANSYS Workbench The Project Schematic Training Manual • In this example a Fluid Flow (FLUENT) analysis type is selected for the project schematic. • From the toolbox the selection can be dragged and dropped onto the schematic or simply double clicked. • Note that a Mesh item appears in the Fluid Flow block ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -7 April 28, 2009 Inventory #002645

ANSYS Workbench Meshing as a Component System Training Manual • Note that you can also create an entry on the Project Schematic that is a standalone instance of the ANSYS Meshing Application • In the example shown, the Meshing entry in the Component Systems toolbox is dragged onto the Project Schematic ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -8 April 28, 2009 Inventory #002645

ANSYS Workbench The Project Schematic Training Manual • Linkages between different entries in the schematic can be established in a number of ways • The RMB will reveal various choices to you Linkage RMB ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -9 April 28, 2009 Inventory #002645

ANSYS Workbench File Management Training Manual • Workbench creates a project file and a series of subdirectories to manage all associated files. • Users should allow Workbench to manage the content of these directories. Please do NOT manually modify the content or structure of the project directories. • When a project is saved a project file is created (. wbpj), using the user specified file name (e. g. My. File. wbpj). • A project directory will be created using the project name. In the above example the directory would be My. File_files. • A number of subdirectories will be created in the project directory (explained next). ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -10 April 28, 2009 Inventory #002645

ANSYS Workbench File Management Training Manual • Directory Structure: – dpn: this is the design point directory. This essentially is the state of all parameters for a particular analysis. In the case of a single analysis there will be only one “dp 0” directory. – global: contains subdirectories for each application in the analysis. In the example at right the “Mech” directory will contain the database, and other associated files from the Mechanical application. – SYS: the “SYS” directory will contain subdirectories for each system type in the project (e. g. Mechanical, Fluent, CFX, etc. ). Each system subdirectory contains solver specific files. For example the MECH subdirectory would contain the results file, the ds. dat file, solve. out file and so on. – user_files: contains input files, user macro files etc. that may be associated with a project. ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -11 April 28, 2009 Inventory #002645

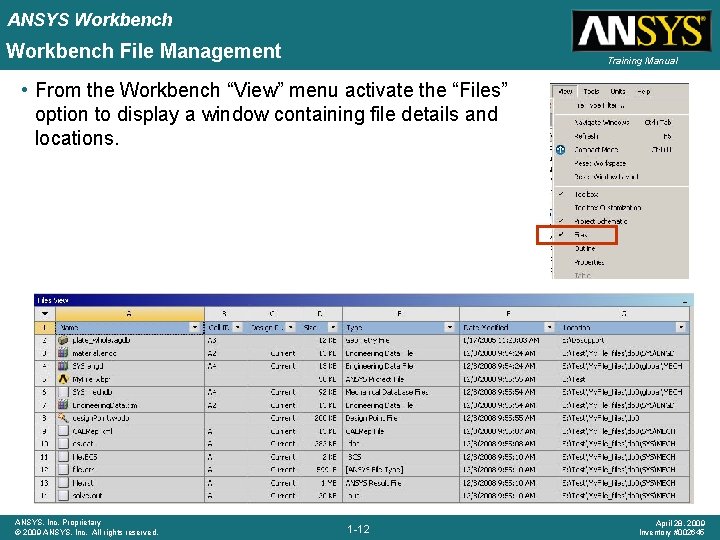

ANSYS Workbench File Management Training Manual • From the Workbench “View” menu activate the “Files” option to display a window containing file details and locations. ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -12 April 28, 2009 Inventory #002645

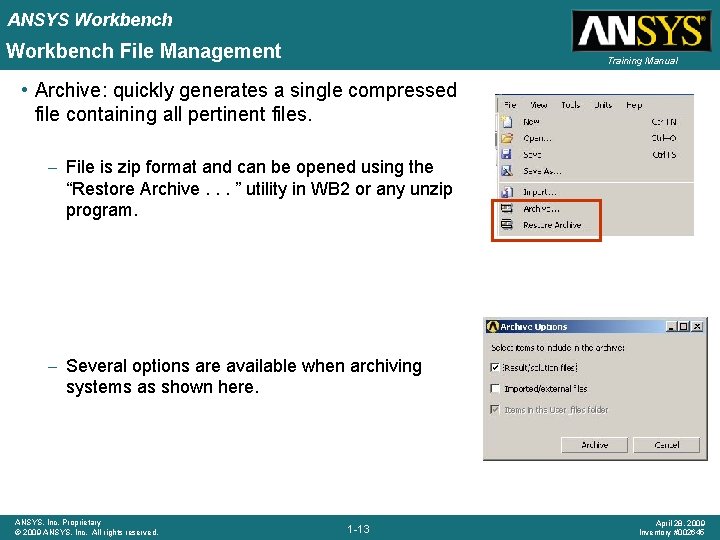

ANSYS Workbench File Management Training Manual • Archive: quickly generates a single compressed file containing all pertinent files. – File is zip format and can be opened using the “Restore Archive. . . ” utility in WB 2 or any unzip program. – Several options are available when archiving systems as shown here. ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -13 April 28, 2009 Inventory #002645

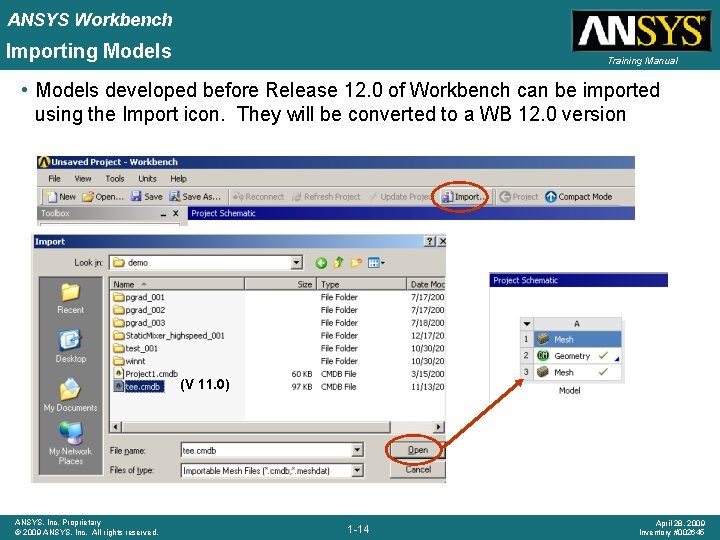

ANSYS Workbench Importing Models Training Manual • Models developed before Release 12. 0 of Workbench can be imported using the Import icon. They will be converted to a WB 12. 0 version (V 11. 0) ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -14 April 28, 2009 Inventory #002645

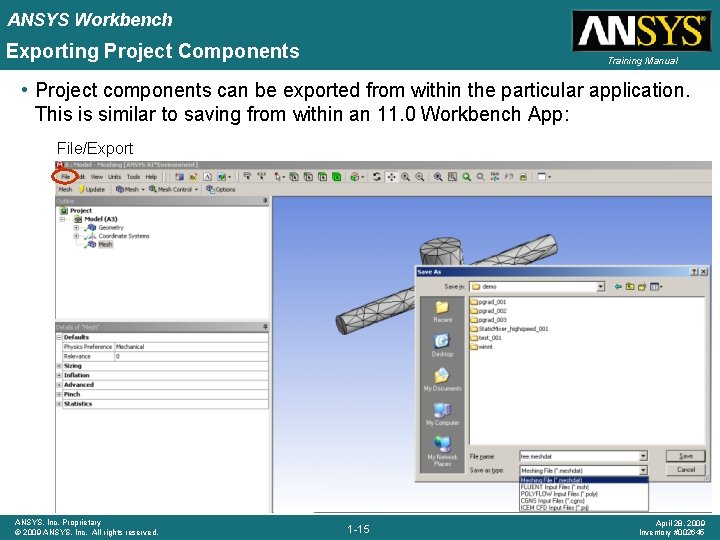

ANSYS Workbench Exporting Project Components Training Manual • Project components can be exported from within the particular application. This is similar to saving from within an 11. 0 Workbench App: File/Export ANSYS, Inc. Proprietary © 2009 ANSYS, Inc. All rights reserved. 1 -15 April 28, 2009 Inventory #002645
