Multi Media Card MMC The Multi Media Card

Multi. Media. Card - MMC • The Multi. Media. Card (MMC) is a flash memory card standard. Unveiled in 1997 by Siemens AG and San. Disk, it is based on Toshiba's NAND-based flash memory, and is therefore much smaller than earlier systems based on Intel NOR -based memory such as Compact. Flash. MMC is about the size of a postage stamp: 24 mm x 32 mm x 1. 4 mm. MMC originally used a 1 -bit serial interface, but newer versions of the specification allow transfers of 4 or sometimes even 8 bits at a time.

• They have been more or less superseded by Secure Digital cards (SD card), but still see significant use because MMCs can be used in most devices which support SD cards.

Since the MMC card had slow transfer speed, 2. 5 MB/sec, in comparison to other memory cards, mostly compared to SD Memory Card, a new high performance version of the MMC card was introduced in 2005 by the name MMCplus. The MMCplus has today the highest, up to 52 MB/sec, theoretical data transfer speed in the whole memory card industry.

• The Multi. Media. Card Association announced that by the end of 2005 the secure. MMC application will be available only for the MMCplus and MMCmobile memory cards. The secure. MMC is a copyright protection application that features DRM, Digital Rights Management, and VPN, Virtual Private Network, capabilities.

• Since the MMC cards are thinner they can be used in all SD Memory Card slots but not the vice versa. Based on that fact the MMC and MMCplus memory cards can be used in SD Memory Cards slots they are today the most compatible memory cards in the market. It is important to keep in mind that music stored on MMCplus or standard MMC cards my not be able to play back when inserted into a SD Memory Card slot due to the copyright protection features supported by the SD slots.

MMC Card (Multi. Media. Card)

MMCplus and MMCmobile • The version 4. x of the MMC standard, introduced in 2005, brought in two very significant changes to compete against SD cards. These were support for running at higher speeds (26 MHz, 52 MHz) than the original MMC (20 MHz) or SD (25 MHz, 50 MHz) and 4 or 8 bit wide data bus. • Version 4. x full-size cards and reducedsize cards can be marketed as MMCplus and MMCmobile respectively.

• Version 4. x cards are fully backward compatible with existing readers but require updated hardware/software to use their new capabilities; even though the 4 bit wide bus and high-speed modes of operation are deliberately electrically compatible with SD, the initialization protocol is different, so firmware/software updates are required to allow these features to be enabled when the card is used in an SD reader.

MMC Mobile and DV-RS-MMC

Multi. Media. Card ������� Apacer MMCmobile Card 1 GB Compliant with MMC Spec Ver 3. 31 Built-in ECC technology Operating voltage: 3. 3 V Capacities: 1 GB Dimension: 24 x 32 x 1. 4 mm Weight: 1. 3 g

Apacer MMCplus Card 2 GB Compliant with MMC Spec Ver 3. 31 Built-in ECC technology Operating voltage: 3. 3 V Capacities: 2 GB Dimension: 24 x 32 x 1. 4 mm Weight: 1. 3 g

Apacer MMCmobile - 1 GB • - Compliant with MMC specification version 4. 1 - The first small form factor memory card standard to offer dual-voltage operation at both 3 V and 1. 8 V - Fully pin-compatible with standard MMC format - Capacity Support: 1 GB

• - Compatible with next generation mobile phone system specifications and meets the toughest space saving and low power consumption requirements of mobile phones and small consumer electronics devices - Dimensions: 24 mm(W) x 32 mm(L) x 1. 4 mm(H), Weight: 1. 3

San. Disk 1 GB MMCmobile Dual-Voltage RS-MMC Card #SDMMCM-1028 -E 10 M This San. Disk reduced size, dual voltage (1. 8/3. 0 V) MMC card provides 1 GB of removable storage and increases the available memory for data and software applications. Sales package includes an MMC Adapter for a full size MMC slot and an MMC Case.

Additional Information The San. Disk 1 GB MMCMobile memory card is compatible with a wide range of mobile phones. Below is a small selection of compatible products. Please check your device's manual if you are unsure as to whether this product is compatible. Works in all memory card slots for MMCMobile, RS-MMC Low Voltage, RS-MMC and Multi. Media Card (with extender) Higher capacity memory card conserves valuable internal phone memory Attach the MMCmobile card to the extender (included) and use in other MMC based devices

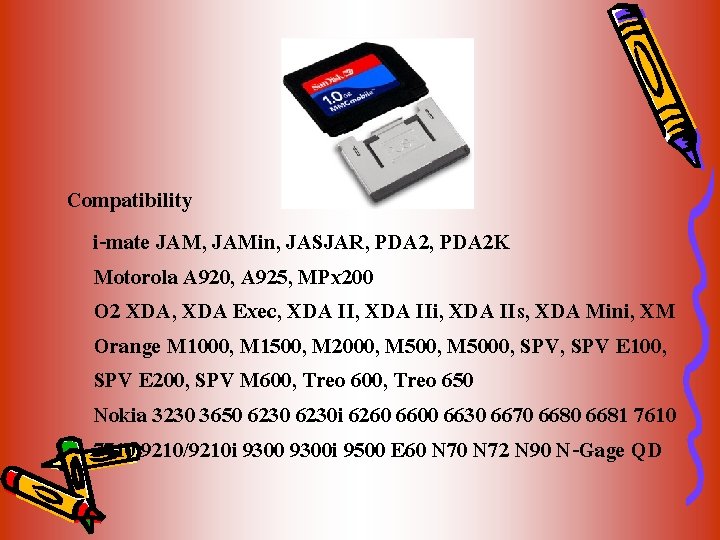

Compatibility i-mate JAM, JAMin, JASJAR, PDA 2 K Motorola A 920, A 925, MPx 200 O 2 XDA, XDA Exec, XDA IIi, XDA IIs, XDA Mini, XM Orange M 1000, M 1500, M 2000, M 5000, SPV E 100, SPV E 200, SPV M 600, Treo 650 Nokia 3230 3650 6230 i 6260 6600 6630 6670 6681 7610 7710 9210/9210 i 9300 i 9500 E 60 N 72 N 90 N-Gage QD

Pretec 4 GB MMC plus 266 X Pretec Electronic Corp has released the 4 GB MMC Plus 266 X, the largest capacity MMC card, smallest and fastest small form factor flash memory card in the world today. Theoretically, most MMC 3. x and SD 1. 0 cards operate at 2. 5 MB/s (16 X) and 12. 5 MB/s (83 X) speeds, while MMC 4. x cards operate on a higher plane at 52 MB/s (346 X) - trouncing SD 1. 1 at 25 MB/s (166 X). Pretec's 4 GB MMC Plus 266 X is twice faster than Pretec's 4 GB SD card 133 X. The card is priced at $699 each, targeting a 4 th quarter production date.

Pretec 256 MB DV-RS MMC Power Requirements: 2. 7 V to 3. 6 V Read mode: <33 m. A Standby: <50 Writing mode: <35 m. A Length: 32 mm+/-0. 1 mm Height: 1. 4 mm+/-0. 1 mm Width: 24 mm+/-0. 08 mm Weight: 1. 5 g max Operating Temperature: -250 C to 850 C Storage Temperature: -400 CC to 850 C Shock: 1000 G max

Kingston 1 GB High Speed MMC Card Plus • * Capacities* — 256 MB, 512 MB, 1 GB, 2 GB * Dimensions —. 94" x 1. 26" x. 06" (24 mm x 32 mm x 1. 4 mm) * Transfer Rate** — Up to 11 MB/sec read rate Up to 7 MB/sec write rate * Operating Temperature — 0 o to 60 o C / 32 o to 140 o F * Storage Temperature — -20 o to 85 o C / -4 o to 185 o F * Voltage — 3. 3 V * Weight — 1. 50 grams * Compliant — complies with MMC System Specification Version 4. 0

Kingston DV-RS MMC (Dual Voltage -Reduce Size) 1 GB * Capacities*: 256 MB, 512 MB, 1 GB * Dimensions: . 70'' x. 94'' x. 05'' (18 mm x 24 mm x 1. 4 mm) * Weight: . 05 oz. (1. 5 g) * Dual Voltage Operation: at 1. 8 V or 3. 3 V * Speed ** : up to 8 MB/sec read rate up to 7 MB/sec write rate * Operating Temperature: 32° F to 140° F (0 C to 60 C) * Storage Temperature: 4° F to 185° F (-20 C to 85 C) * Standardized: complies with MMC System Specification Version 4. 0

Kingston MMC 1 GB • Dimensions —. 94" x 1. 26" x. 06" (24 mm x 32 mm x 1. 4 mm) Transfer Rate** — Up to 11 MB/sec read rate Up to 7 MB/sec write rate Operating Temperature — 0 o to 60 o C / 32 o to 140 o F Storage Temperature — -20 o to 85 o C / -4 o to 185 o F Voltage — 3. 3 V Weight — 1. 50 grams Compliant — complies with MMC System Specification Version 4. 0

Kingston MMC MOBILE MEMORY CARD 256 MB • Dimensions: . 70'' x. 94'' x. 05'' (18 mm x 24 mm x 1. 4 mm) Weight: . 05 oz. (1. 5 g) Dual Voltage Operation: at 1. 8 V or 3. 3 V Speed: up to 8 MB/sec read rate up to 7 MB/sec write rate Operating Temperature: 32° F to 140° F (0 C to 60 C) Storage Temperature: 4° F to 185° F (-20 C to 85 C) Standardized: complies with MMC System Specification Version 4. 0
