IBM Software Group Rational Software France ObjectOriented Analysis
® IBM Software Group Rational Software France Object-Oriented Analysis and Design with UML 2 and Rational Software Modeler PART II – Object-Oriented Analysis © 2006 IBM Corporation
IBM Software Group | Rational software Table of Contents 05. Introduction to RUP p. 03 06. Requirements Overview p. 17 07. Analysis and Design Overview p. 43 08. Architectural Analysis p. 55 09. Use-Case Analysis p. 79 2
® IBM Software Group Rational Software France Object-Oriented Analysis and Design with UML 2 and Rational Software Modeler 05. Introduction to RUP © 2006 IBM Corporation
IBM Software Group | Rational software Success Rates of Software Development Projects “Standish Group” CHAOS Chronicles § Year Success Rate First “Chaos” Report 1994 16 % “Extreme Chaos” 2000 28 % Last “Chaos” Report 2003 34 % Success = project delivered on time, within budget and meeting the needs of the users “We know why projects fail, we know how to prevent their failure -so why do they still fail? ” - Martin Cobb 4
IBM Software Group | Rational software Symptoms of Software Development Problems ü User or business needs not met ü Requirements not addressed ü Modules not integrating ü Difficulties with maintenance ü Late discovery of flaws ü Poor quality of end-user experience ü Poor performance under load ü No coordinated team effort ü Build-and-release issues 5

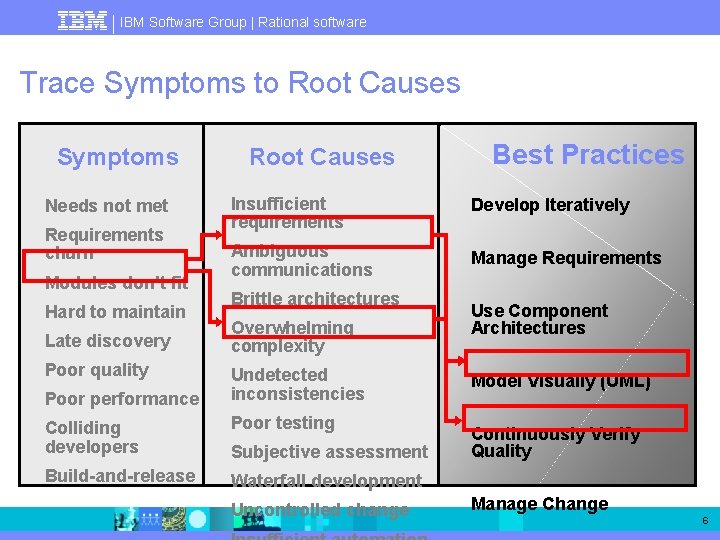

IBM Software Group | Rational software Trace Symptoms to Root Causes Symptoms Needs not met Requirements churn Modules don’t fit Hard to maintain Late discovery Poor quality Poor performance Root Causes Best Practices Insufficient requirements Develop Iteratively Ambiguous communications Manage Requirements Brittle architectures Overwhelming complexity Undetected inconsistencies Colliding developers Poor testing Build-and-release Waterfall development Subjective assessment Uncontrolled change Use Component Architectures Model Visually (UML) Continuously Verify Quality Manage Change 6
IBM Software Group | Rational software Definition of Iterative Development § Iterative development = steering a project by using periodic objective assessments, and re-planning based on those assessments § Good iterative development means: 4 Addressing risks early 4 Using an architecture-driven approach 4 Measuring objectively Requirement s Planning Analysis & Design Implementation Each iteration results in an executable release Management Environment Evaluation Test Deployment 7
IBM Software Group | Rational software Contrasting Traditional and Iterative Processes Waterfall Process Requirements Analysis Design Code and Unit Test Subsystem Integration Iterative Process System Test § Requirements-driven and mostly custom development § Late risk resolution § Diseconomy of scale § Architecture-driven and component-based § Early risk resolution § Economy of scale 8
IBM Software Group | Rational software Iterations and Phases Inception Preliminary Iteration Elaboration Architecture Iteration Construction Developme nt Iteration Transition Development Iteration Transition Iteration § Inception: To achieve concurrence among all stakeholders on the lifecycle objectives for the project § Elaboration: To baseline architecture providing a stable basis for the design and implementation efforts in Construction § Construction: To complete the development of the product § Transition: To ensure the product is available for its end users 9
IBM Software Group | Rational software Managing Requirements § Ensures that you: 4 Solve the right problem 4 Build the right system § By taking a systematic approach to 4 Eliciting 4 Organizing 4 Documenting 4 Managing § The changing requirements of a software application 10
IBM Software Group | Rational software Use Component-Based Architectures § Basis for reuse Componentbased architecture with layers 4 Component reuse 4 Architecture reuse § Basis for project management 4 Planning 4 Staffing 4 Delivery § Intellectual control 4 Manage complexity 4 Maintain integrity Applicationspecific Businessspecific Middleware Systemsoftware 11
IBM Software Group | Rational software Model Visually (UML) § Captures structure and behavior § Shows how system elements fit together § Keeps design and implementation consistent § Hides or exposes details as appropriate § Promotes unambiguous communication 4 The UML provides one language for all practitioners 12
IBM Software Group | Rational software Continuously Verify Quality Software problems are 100 to 1000 times more costly to find and repair after deployment w Cost to Repair Software w Cost of Lost Opportunities Cost w Cost of Lost Customers Time 13
IBM Software Group | Rational software Manage Change § To avoid confusion, have: 4 Secure workspaces for each developer 4 Automated integration/build management 4 Parallel development Workspace Management Configuration Management is more than just check-in and check-out Process Integration Parallel Development Build Managem ent 14
IBM Software Group | Rational software Rational Unified Process Implements Best Practices § Iterative approach § Guidance for activities and artifacts § Process focus on architecture § Use cases that drive design and implementation § Models that abstract the system 15

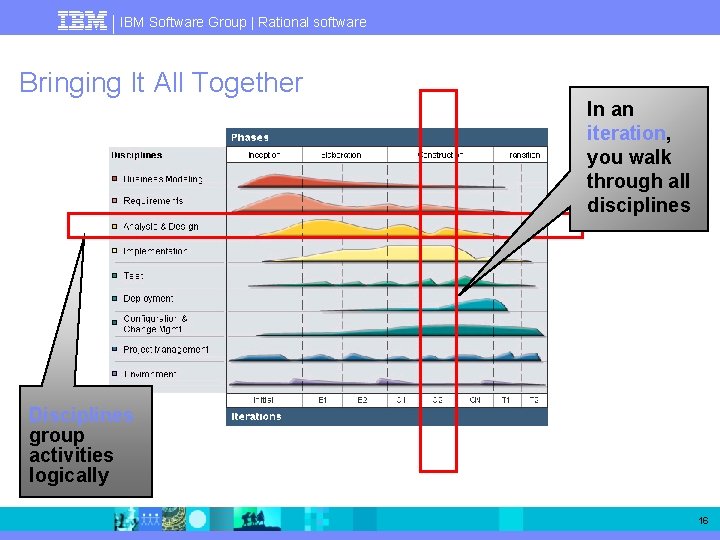

IBM Software Group | Rational software Bringing It All Together In an iteration, you walk through all disciplines Disciplines group activities logically 16
® IBM Software Group Rational Software France Object-Oriented Analysis and Design with UML 2 and Rational Software Modeler 06. Requirements Overview © 2006 IBM Corporation
IBM Software Group | Rational software Where Are We? § Introduction to Use-Case Modeling § Find Actors and Use Cases § Other Requirements Management Artifacts 18
IBM Software Group | Rational software Requirements in Context § The purpose of Requirements is to: 4 Elicit stakeholder requests and transform them into a set of requirements work products that scope the system to be built and provide detailed requirements for what the system must do § RUP recommends a use-case driven approach 19
IBM Software Group | Rational software What Is Use-Case Modeling? § Links stakeholder needs to software requirements § Defines clear boundaries of a system § Captures and communicates the desired behavior of the system § Identifies who or what interacts with the system § Validates/verifies requirements Model § Is a planning instrument Use case 1 Actor 2 Use case 3 Use Case 2 Specification 20
IBM Software Group | Rational software A Use-Case Model is Mostly Text The System Use case 1 Use-Case-Model Survey - survey description - list of all actors - list of all use cases Actor 1 Use case 2 Actor 2 Use case 3 Actor 3 Use-Case 1 Spec - brief description - flow of events Use-Case 2 Spec - brief description - flow of events Use-Case 3 Spec - brief description - flow of events 21

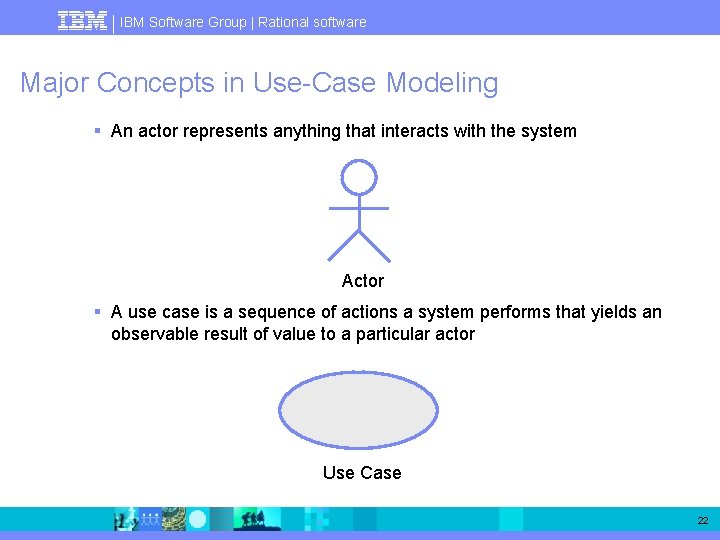

IBM Software Group | Rational software Major Concepts in Use-Case Modeling § An actor represents anything that interacts with the system Actor § A use case is a sequence of actions a system performs that yields an observable result of value to a particular actor Use Case 22

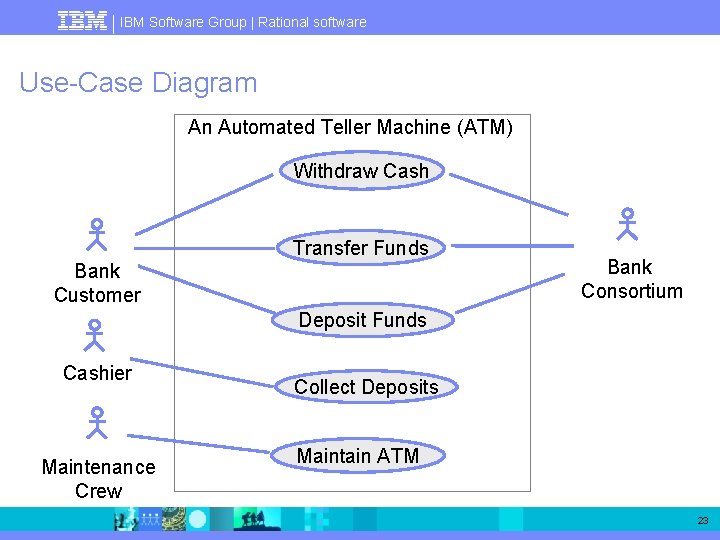

IBM Software Group | Rational software Use-Case Diagram An Automated Teller Machine (ATM) Withdraw Cash Transfer Funds Bank Customer Bank Consortium Deposit Funds Cashier Maintenance Crew Collect Deposits Maintain ATM 23
IBM Software Group | Rational software Use Cases Contain Software Requirements § Each use case: 4 Describes actions the system takes to deliver something of value to an actor 4 Shows the system functionality an actor uses 4 Models a dialog between the system and actors 4 Is a complete and meaningful flow of events from the perspective of a particular actor 24
IBM Software Group | Rational software Benefits of Use Cases § Give context for requirements 4 Put system requirements in logical sequences 4 Illustrate why the system is needed 4 Help verify that all requirements are captured § Are easy to understand 4 Use terminology that customers and users understand 4 Tell concrete stories of system use 4 Verify stakeholder understanding § Facilitate agreement with customers § Facilitate reuse: test, documentation, and design 25
IBM Software Group | Rational software Where Are We? § Introduction to Use-Case Modeling § Find Actors and Use Cases § Other Requirements Management Artifacts 26
IBM Software Group | Rational software Define Actors: Focus on the Roles § An actor represents a role that a human, hardware device, or another system can play in relation to the system § Actor names should clearly denote the actor’s role ? 27

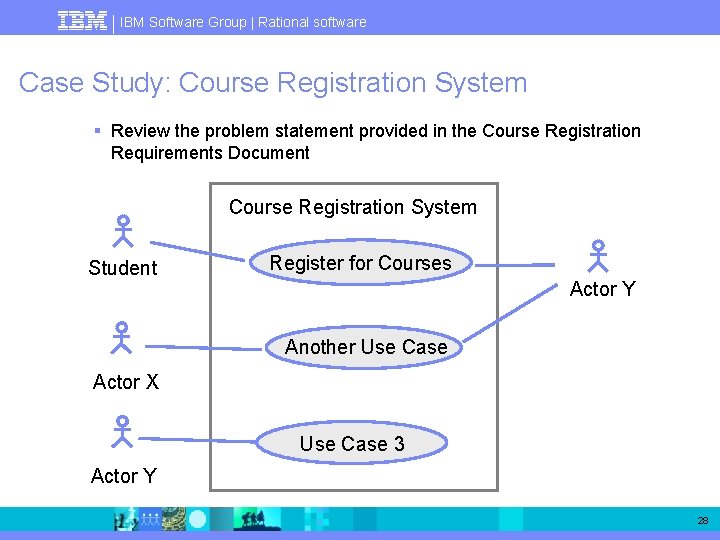

IBM Software Group | Rational software Case Study: Course Registration System § Review the problem statement provided in the Course Registration Requirements Document Course Registration System Student Register for Courses Actor Y Another Use Case Actor X Use Case 3 Actor Y 28
IBM Software Group | Rational software How Should I Name a Use Case? § Indicate the value or goal of the actor § Use the active form; begin with a verb § Imagine a to-do list § Examples of variations 4 Register for Courses 4 Registering for Courses 4 Acknowledge Registration 4 Course Registration 4 Use Registration System Which variations show the value to the actor? Which do not? Which would you choose as the use-case name? Why? 29

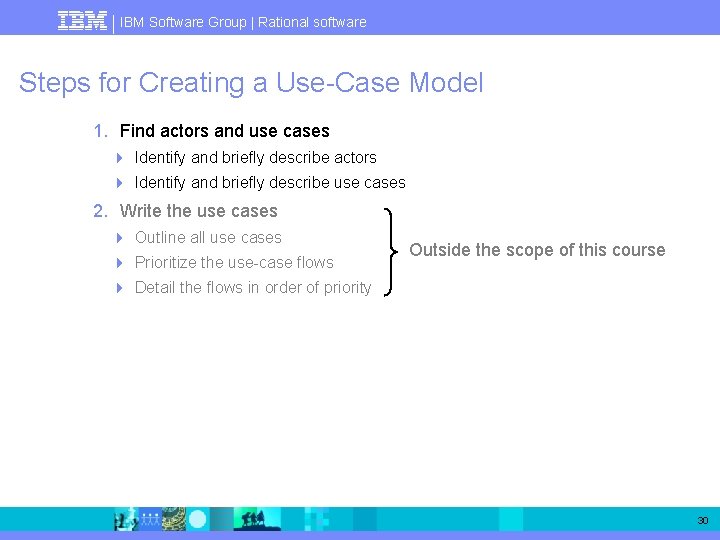

IBM Software Group | Rational software Steps for Creating a Use-Case Model 1. Find actors and use cases 4 Identify and briefly describe actors 4 Identify and briefly describe use cases 2. Write the use cases 4 Outline all use cases 4 Prioritize the use-case flows Outside the scope of this course 4 Detail the flows in order of priority 30
IBM Software Group | Rational software Find Actors § Who is pressing the keys (interacting with the system)? Student Registrar Registration System The student never touches the system; the registrar operates it. Or, are you building an Internet application? Student Online Registration System (www. college. edu) 31

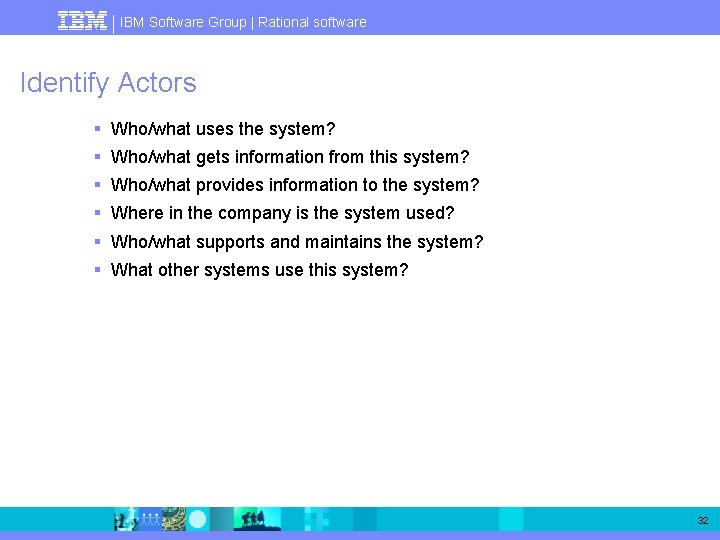

IBM Software Group | Rational software Identify Actors § Who/what uses the system? § Who/what gets information from this system? § Who/what provides information to the system? § Where in the company is the system used? § Who/what supports and maintains the system? § What other systems use this system? 32
IBM Software Group | Rational software Find Use Cases What goal am I trying to achieve by using the system? GOAL 1 Actor GOAL 2 33
IBM Software Group | Rational software Identify Use Cases § What are the goals of each actor? 4 Why does the actor want to use the system? 4 Will the actor create, store, change, remove, or read data in the system? If so, why? 4 Will the actor need to inform the system about external events or changes? 4 Will the actor need to be informed about certain occurrences in the system? § Does the system supply the business with all of the correct behavior? 34
IBM Software Group | Rational software Group Exercise § Identify the actors who interact with the Course Registration System § Identify use cases for the system § Sketch a use-case diagram 35
IBM Software Group | Rational software Where Are We? § Introduction to Use-Case Modeling § Find Actors and Use Cases § Other Requirements Management Artifacts 36
IBM Software Group | Rational software Use-Case Specifications Use-Case Model § Name § Brief description § Flow of Events § Relationships § Activity diagrams Actors Use Cases § Use-Case diagrams § Special requirements § Pre-conditions § Post-conditions § Other diagrams . . . Use-Case Specifications 37

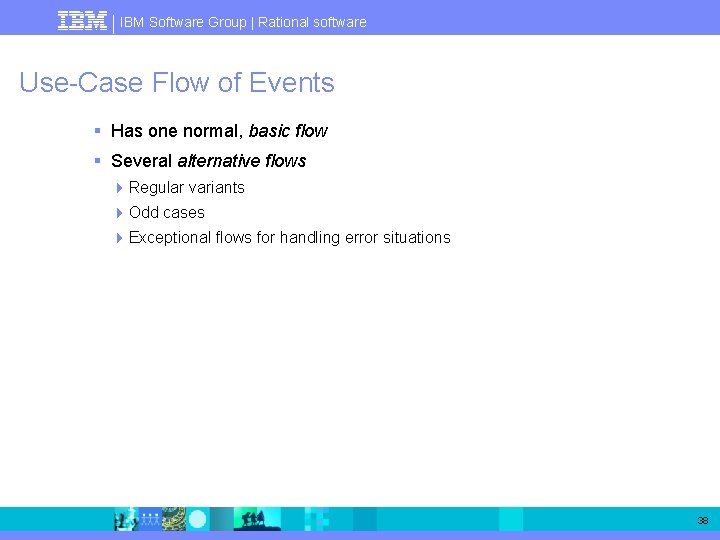

IBM Software Group | Rational software Use-Case Flow of Events § Has one normal, basic flow § Several alternative flows 4 Regular variants 4 Odd cases 4 Exceptional flows for handling error situations 38

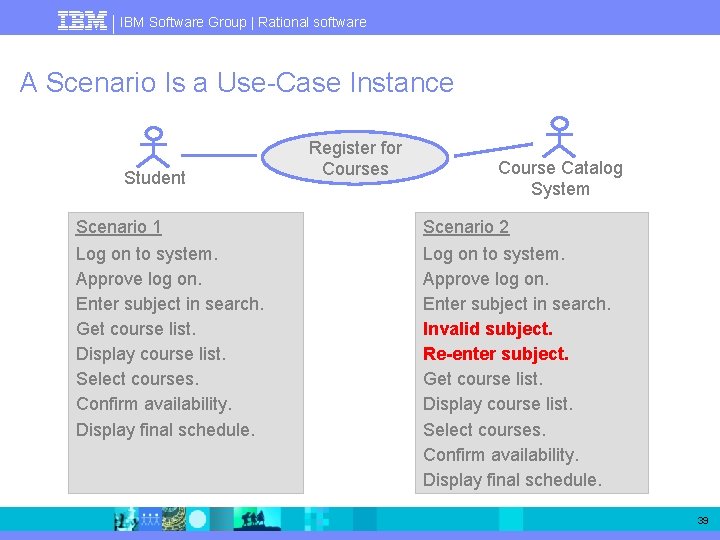

IBM Software Group | Rational software A Scenario Is a Use-Case Instance Student Scenario 1 Log on to system. Approve log on. Enter subject in search. Get course list. Display course list. Select courses. Confirm availability. Display final schedule. Register for Courses Course Catalog System Scenario 2 Log on to system. Approve log on. Enter subject in search. Invalid subject. Re-enter subject. Get course list. Display course list. Select courses. Confirm availability. Display final schedule. 39
IBM Software Group | Rational software Glossary Course Registration System Glossary 1. Introduction This document is used to define terminology specific to the problem domain, explaining terms, which may be unfamiliar to the reader of the use-case descriptions or other project documents. Often, this document can be used as an informal data dictionary, capturing data definitions so that use-case descriptions and other project documents can focus on what the system must do with the information. 2. Definitions The glossary contains the working definitions for the key concepts in the Course Registration System. 2. 1 Glossary Course: A class offered by the university. 2. 2 Course Offering: A specific delivery of the course for a specific semester – you could run the same course in parallel sessions in the semester. Includes the days of the week and times it is offered. 2. 3 Course Catalog: The unabridged catalog of all courses offered by the university. 40

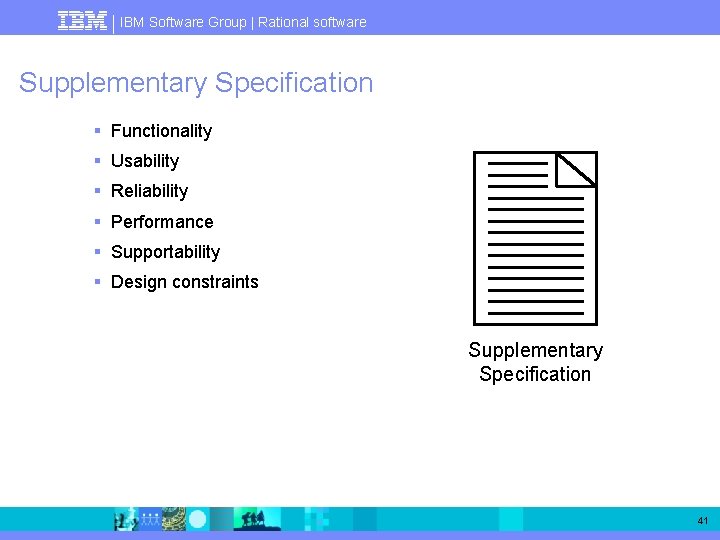

IBM Software Group | Rational software Supplementary Specification § Functionality § Usability § Reliability § Performance § Supportability § Design constraints Supplementary Specification 41
IBM Software Group | Rational software Exercise § Perform the exercise provided by the instructor 42
® IBM Software Group Rational Software France Object-Oriented Analysis and Design with UML 2 and Rational Software Modeler 07. Analysis and Design Overview © 2006 IBM Corporation
