T Madas What is the locus of a

© T Madas

What is the locus of a point? [plural “loci ”] It the position(s) for the point which satisfy certain conditions. (constraints) What is the locus of a point which always stays a constant distance r from another fixed point O ? The required locus is a circle r Locus O © T Madas

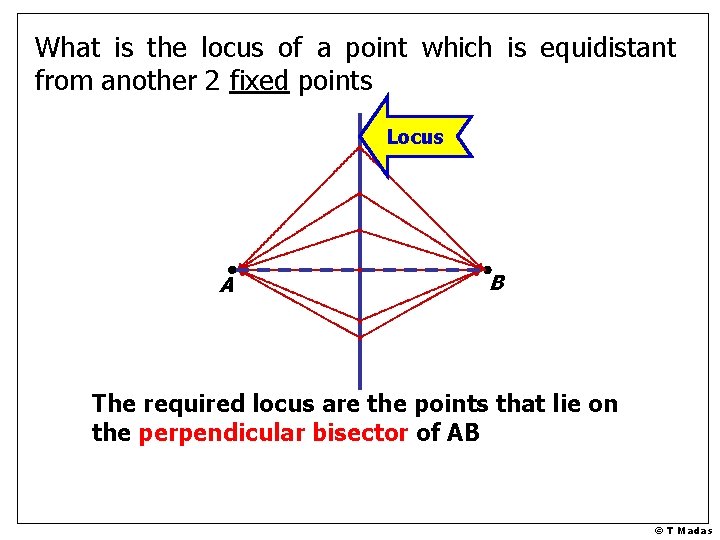

What is the locus of a point which is equidistant from another 2 fixed points Locus A B The required locus are the points that lie on the perpendicular bisector of AB © T Madas

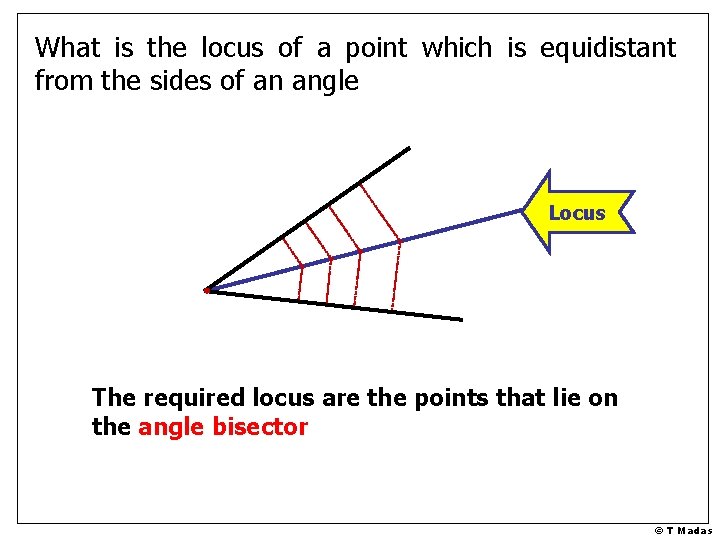

What is the locus of a point which is equidistant from the sides of an angle Locus The required locus are the points that lie on the angle bisector © T Madas

© T Madas

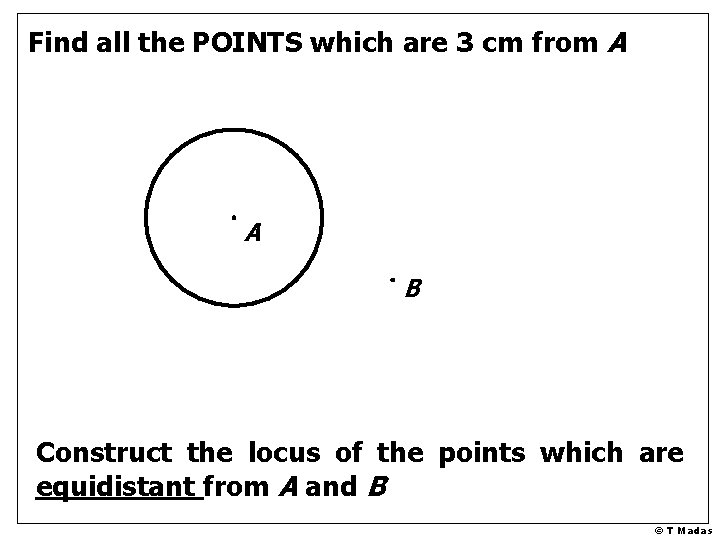

Find all the POINTS which are 3 cm from A A B Construct the locus of the points which are equidistant from A and B © T Madas

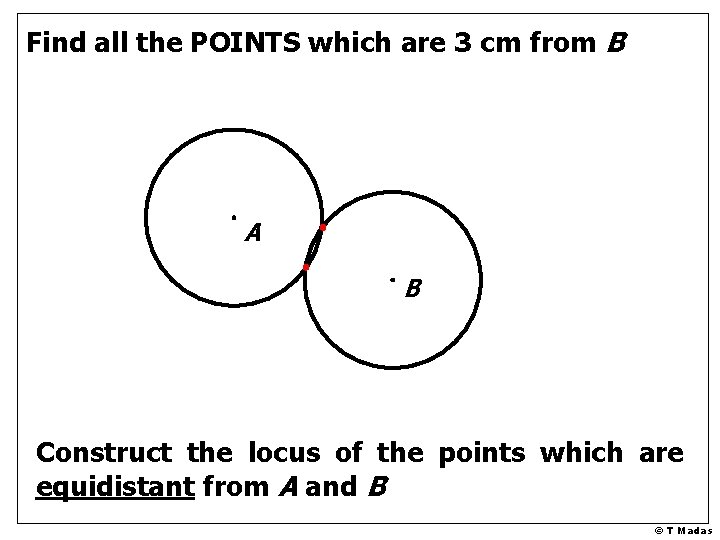

Find all the POINTS which are 3 cm from B A B Construct the locus of the points which are equidistant from A and B © T Madas

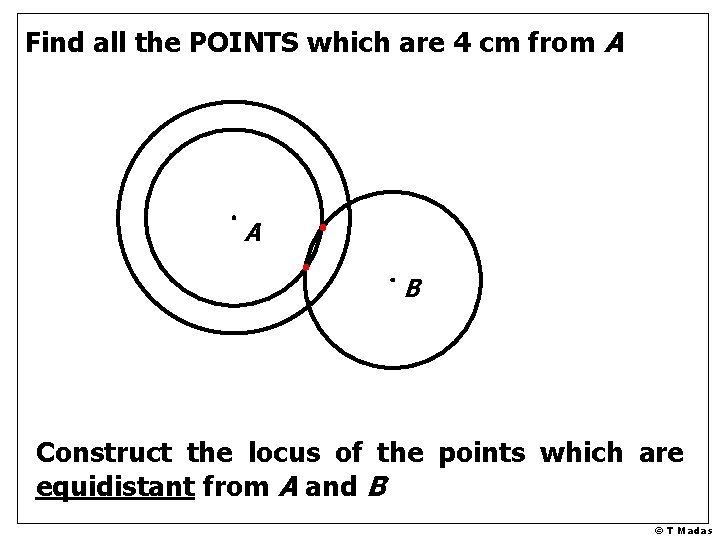

Find all the POINTS which are 4 cm from A A B Construct the locus of the points which are equidistant from A and B © T Madas

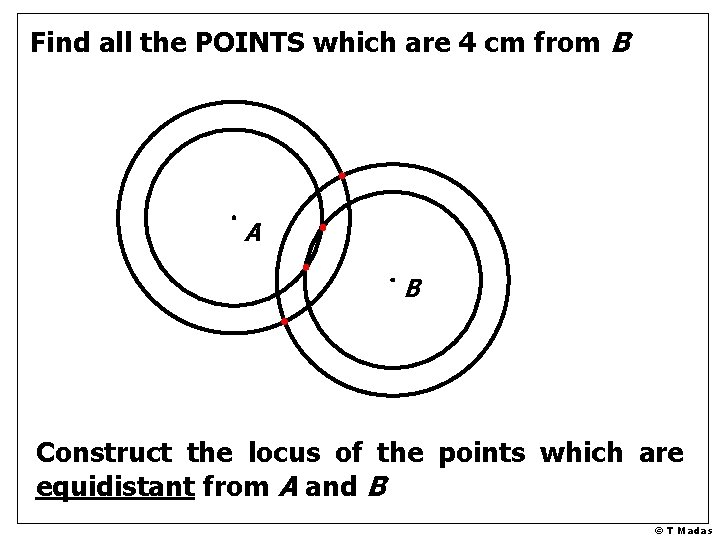

Find all the POINTS which are 4 cm from B A B Construct the locus of the points which are equidistant from A and B © T Madas

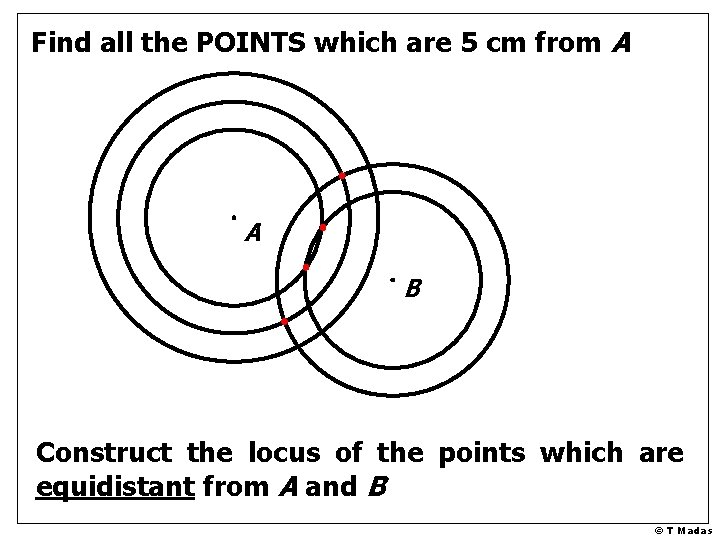

Find all the POINTS which are 5 cm from A A B Construct the locus of the points which are equidistant from A and B © T Madas

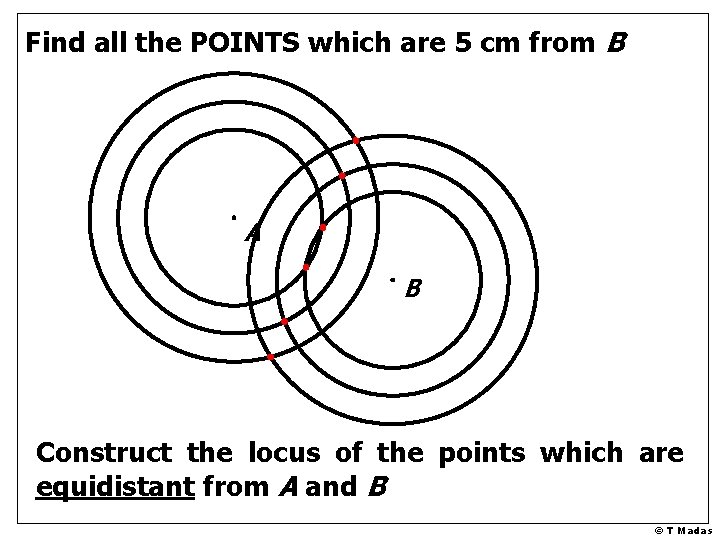

Find all the POINTS which are 5 cm from B A B Construct the locus of the points which are equidistant from A and B © T Madas

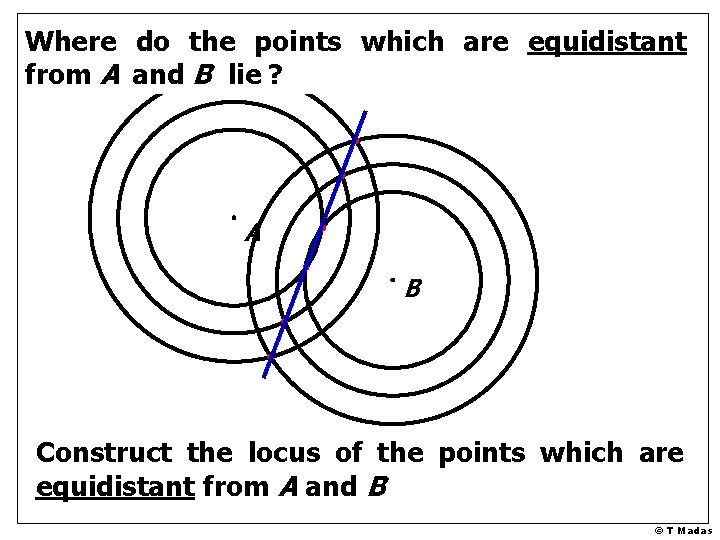

Where do the points which are equidistant from A and B lie ? A B Construct the locus of the points which are equidistant from A and B © T Madas

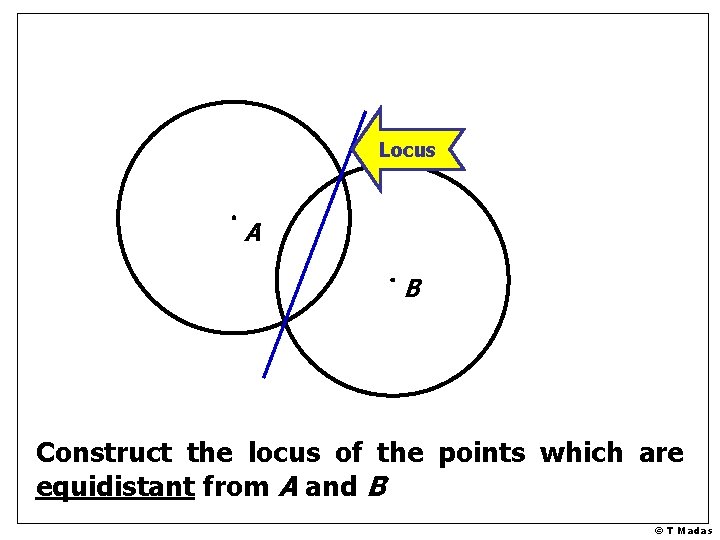

Locus A B Construct the locus of the points which are equidistant from A and B © T Madas

© T Madas

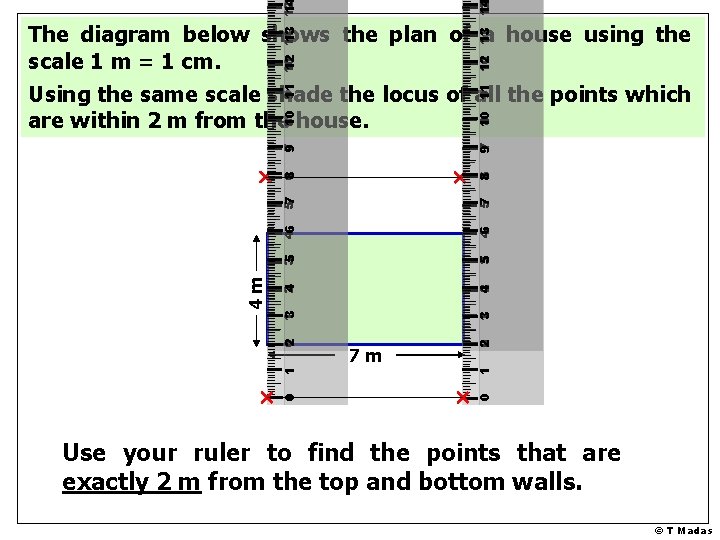

8 11 9 10 10 12 11 13 12 1 8 9 10 10 11 12 11 13 12 1 3 5 2 4 13 1 0 0 2 1 7 m 0 0 2 13 4 m 35 46 46 57 57 6 8 7 9 97 The diagram below shows the plan of a house using the scale 1 m = 1 cm. Using the same scale shade the locus of all the points which are within 2 m from the house. Use your ruler to find the points that are exactly 2 m from the top and bottom walls. © T Madas

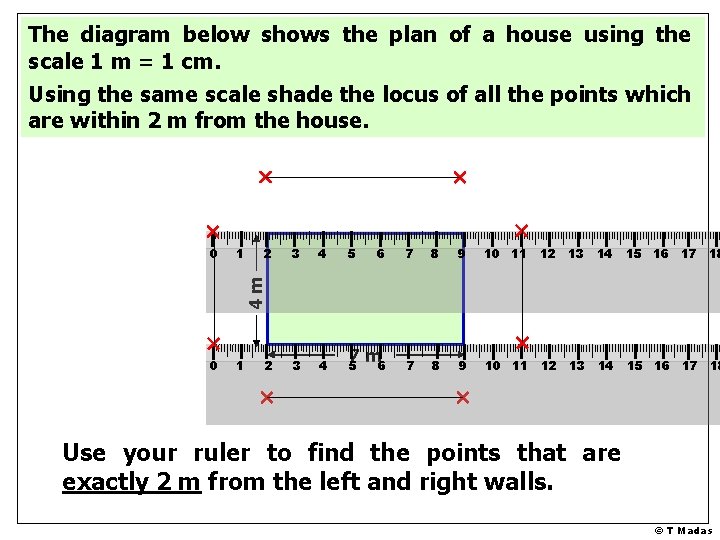

The diagram below shows the plan of a house using the scale 1 m = 1 cm. Using the same scale shade the locus of all the points which are within 2 m from the house. 1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 3 4 5 7 m 6 7 8 9 10 11 12 13 14 15 16 17 18 4 m 0 2 Use your ruler to find the points that are exactly 2 m from the left and right walls. © T Madas

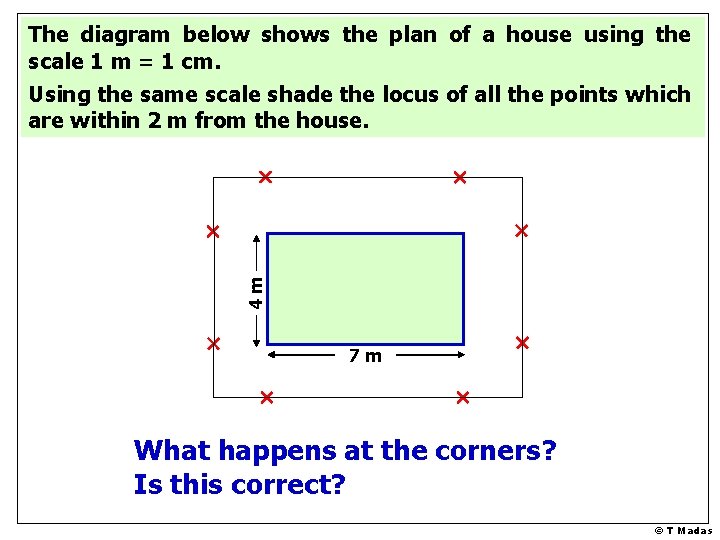

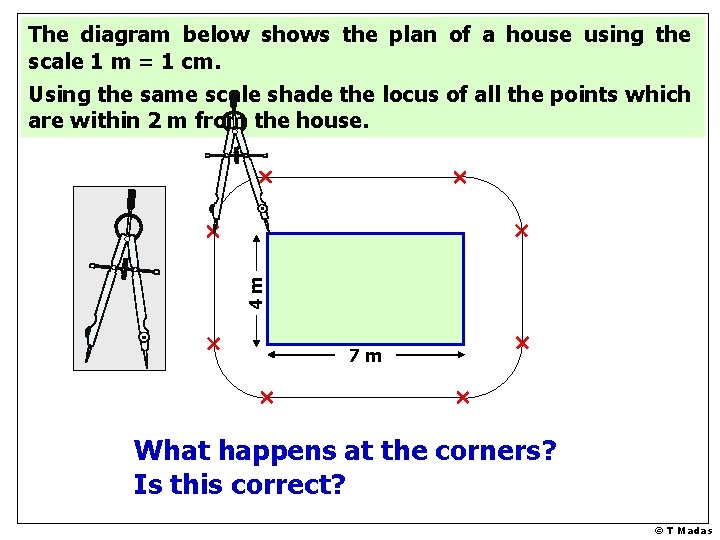

4 m The diagram below shows the plan of a house using the scale 1 m = 1 cm. Using the same scale shade the locus of all the points which are within 2 m from the house. 7 m What happens at the corners? Is this correct? © T Madas

4 m The diagram below shows the plan of a house using the scale 1 m = 1 cm. Using the same scale shade the locus of all the points which are within 2 m from the house. 7 m What happens at the corners? Is this correct? © T Madas

4 m The diagram below shows the plan of a house using the scale 1 m = 1 cm. Using the same scale shade the locus of all the points which are within 2 m from the house. 7 m What happens at the corners? Is this correct? © T Madas

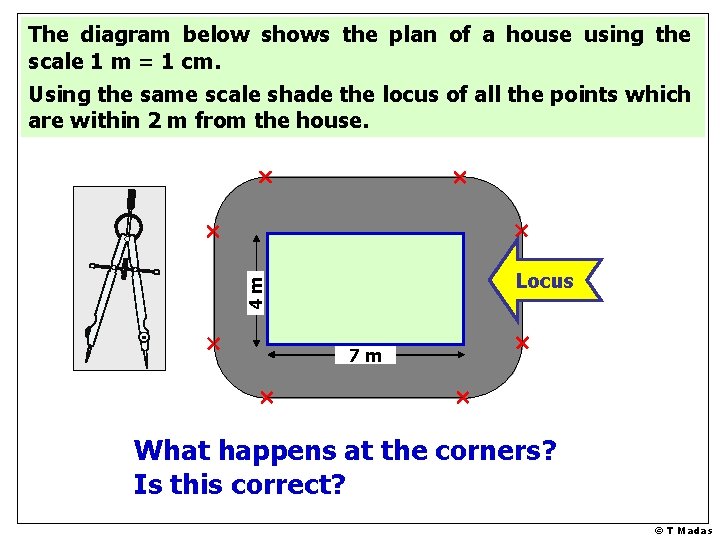

The diagram below shows the plan of a house using the scale 1 m = 1 cm. Using the same scale shade the locus of all the points which are within 2 m from the house. 4 m Locus 7 m What happens at the corners? Is this correct? © T Madas

© T Madas

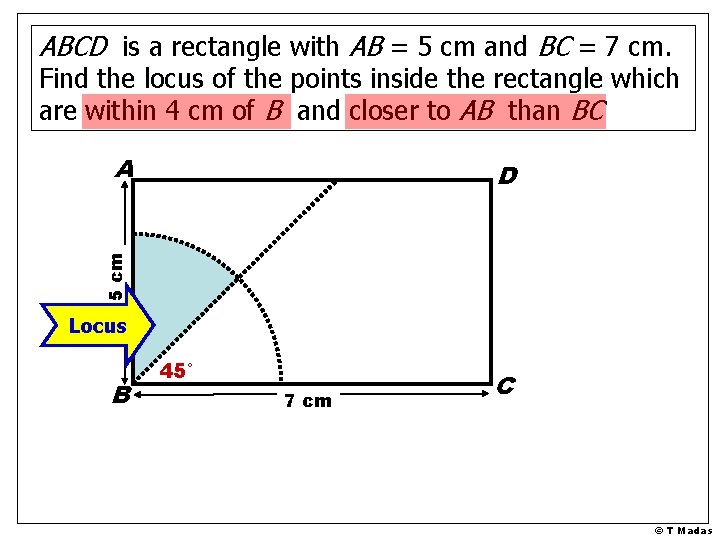

ABCD is a rectangle with AB = 5 cm and BC = 7 cm. Find the locus of the points inside the rectangle which are within 4 cm of B and closer to AB than BC A 5 cm D Locus B 45° 7 cm C © T Madas

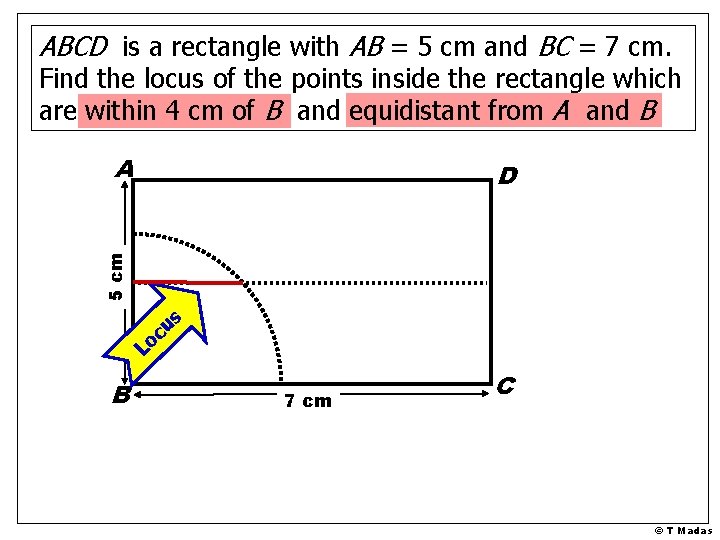

ABCD is a rectangle with AB = 5 cm and BC = 7 cm. Find the locus of the points inside the rectangle which are within 4 cm of B and equidistant from A and B A 5 cm D Lo B s u c 7 cm C © T Madas

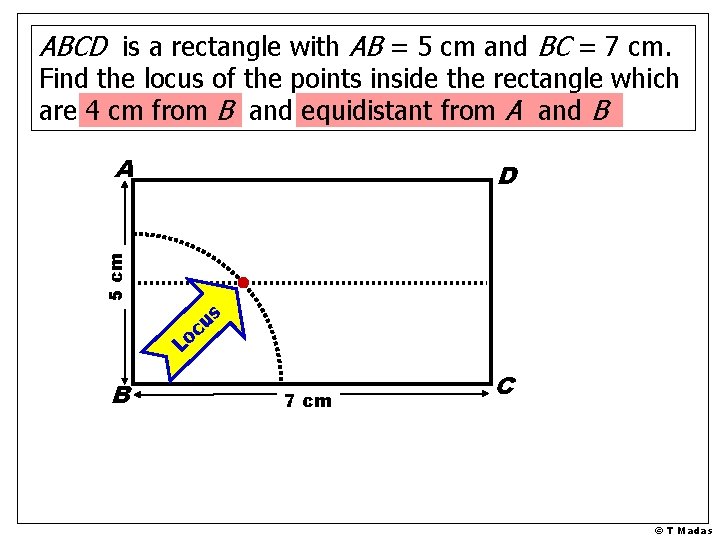

ABCD is a rectangle with AB = 5 cm and BC = 7 cm. Find the locus of the points inside the rectangle which are 4 cm from B and equidistant from A and B A 5 cm D Lo B s u c 7 cm C © T Madas

© T Madas

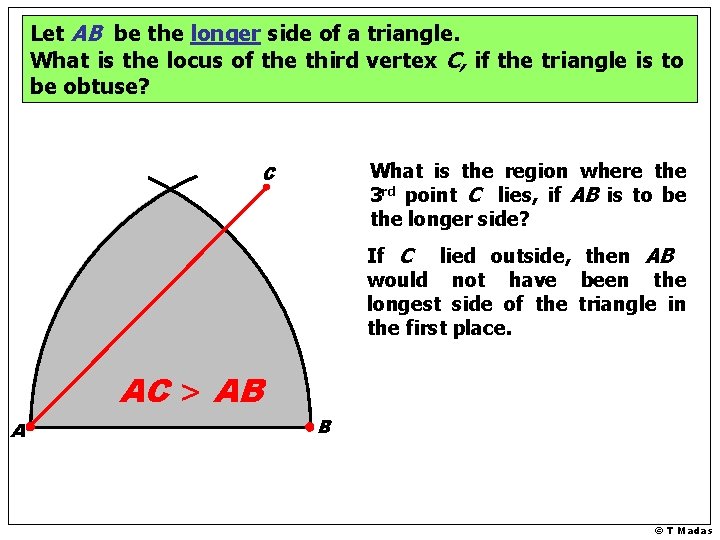

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? What is the region where the 3 rd point C lies, if AB is to be the longer side? C If C lied outside, then AB would not have been the longest side of the triangle in the first place. AC > AB A B © T Madas

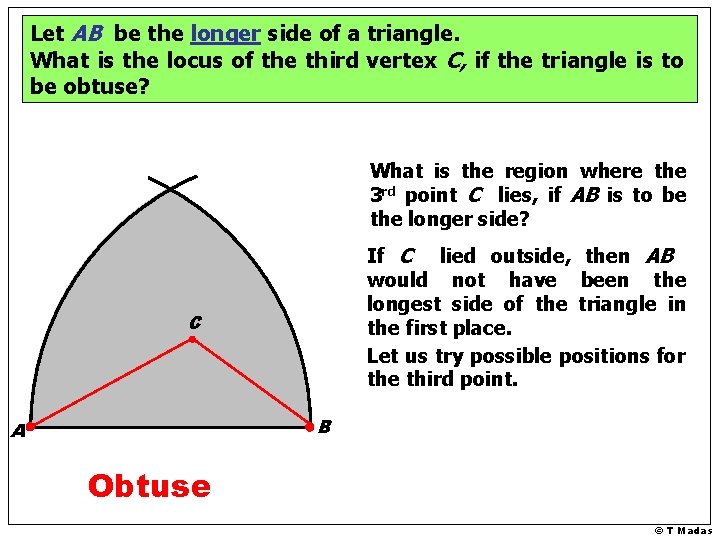

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? What is the region where the 3 rd point C lies, if AB is to be the longer side? If C lied outside, then AB would not have been the longest side of the triangle in the first place. Let us try possible positions for the third point. C B A Obtuse © T Madas

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? What is the region where the 3 rd point C lies, if AB is to be the longer side? If C lied outside, then AB would not have been the longest side of the triangle in the first place. Let us try possible positions for the third point. C B A Obtuse © T Madas

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? What is the region where the 3 rd point C lies, if AB is to be the longer side? If C lied outside, then AB would not have been the longest side of the triangle in the first place. Let us try possible positions for the third point. C B A Obtuse © T Madas

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? What is the region where the 3 rd point C lies, if AB is to be the longer side? If C lied outside, then AB would not have been the longest side of the triangle in the first place. Let us try possible positions for the third point. C B A Obtuse © T Madas

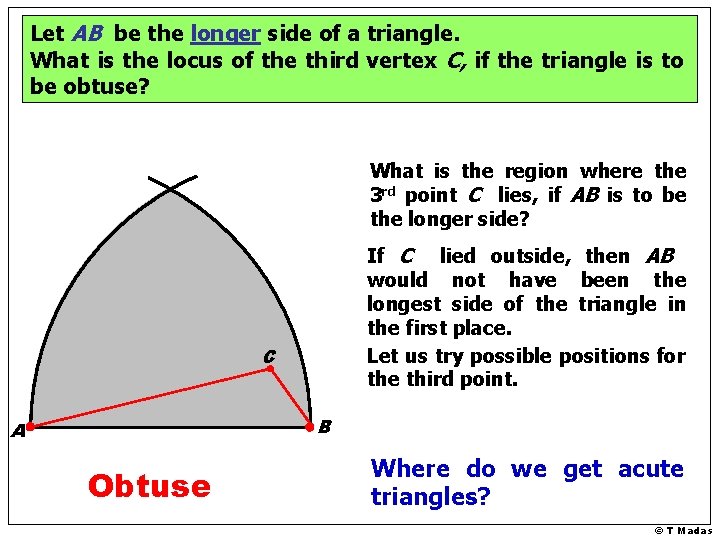

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? What is the region where the 3 rd point C lies, if AB is to be the longer side? If C lied outside, then AB would not have been the longest side of the triangle in the first place. Let us try possible positions for the third point. C B A Obtuse Where do we get acute triangles? © T Madas

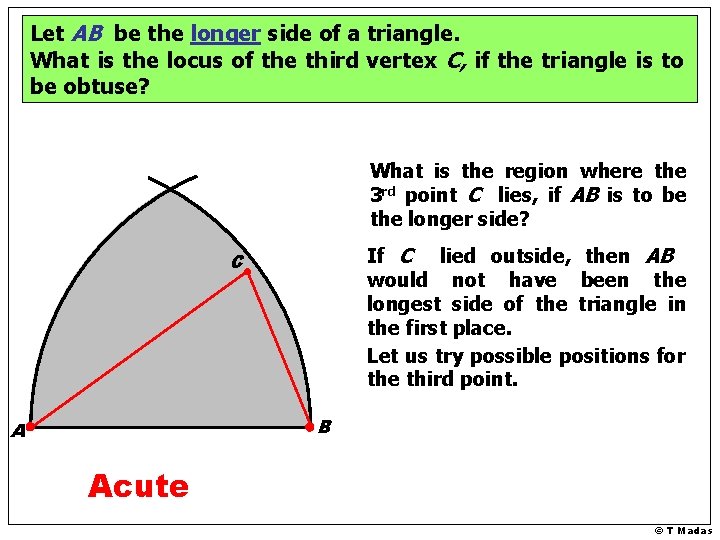

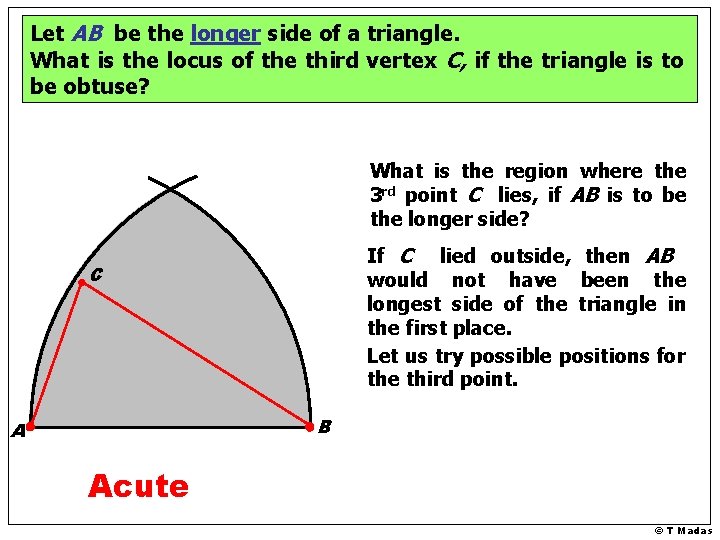

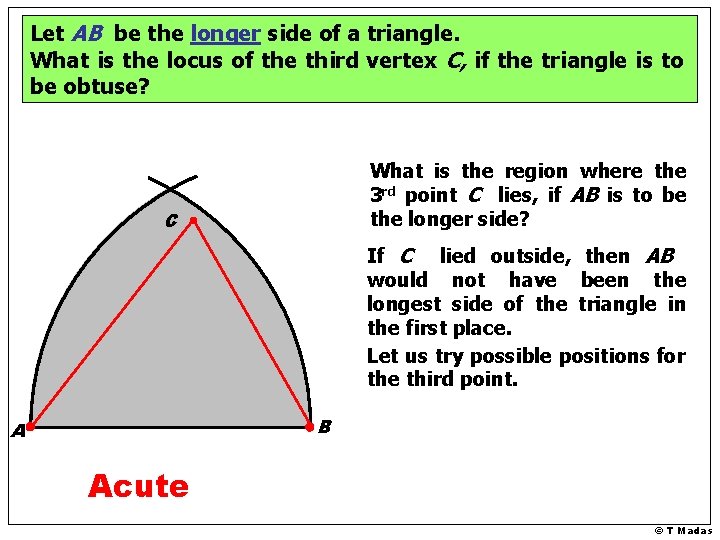

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? What is the region where the 3 rd point C lies, if AB is to be the longer side? If C lied outside, then AB would not have been the longest side of the triangle in the first place. Let us try possible positions for the third point. C B A Acute © T Madas

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? What is the region where the 3 rd point C lies, if AB is to be the longer side? If C lied outside, then AB would not have been the longest side of the triangle in the first place. Let us try possible positions for the third point. C B A Acute © T Madas

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? What is the region where the 3 rd point C lies, if AB is to be the longer side? C If C lied outside, then AB would not have been the longest side of the triangle in the first place. Let us try possible positions for the third point. B A Acute © T Madas

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? What is the region where the 3 rd point C lies, if AB is to be the longer side? If C lied outside, then AB would not have been the longest side of the triangle in the first place. Let us try possible positions for the third point. C B A Acute © T Madas

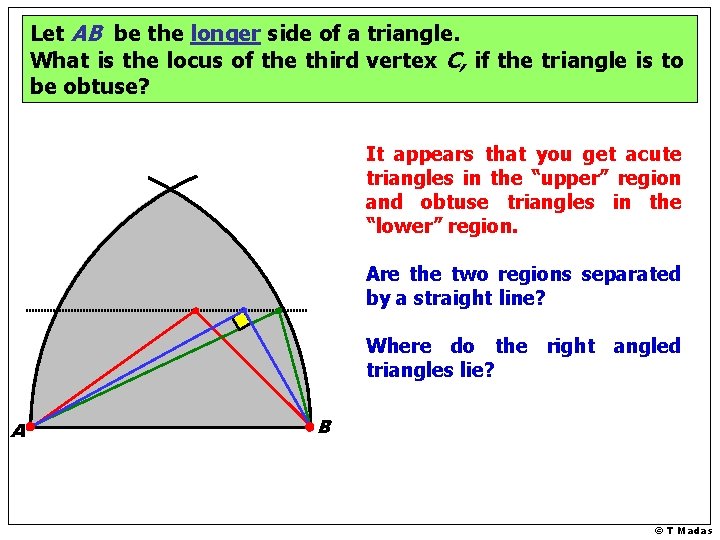

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? It appears that you get acute triangles in the “upper” region and obtuse triangles in the “lower” region. Are the two regions separated by a straight line? Where do the right angled triangles lie? A B © T Madas

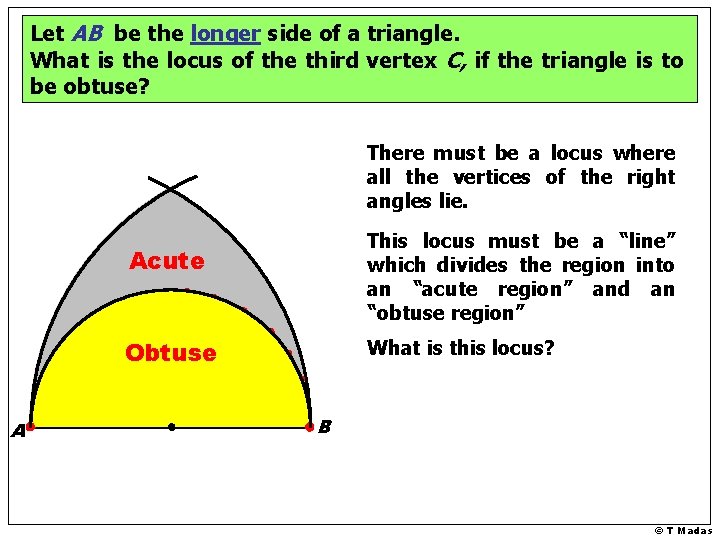

Let AB be the longer side of a triangle. What is the locus of the third vertex C, if the triangle is to be obtuse? There must be a locus where all the vertices of the right angles lie. This locus must be a “line” which divides the region into an “acute region” and an “obtuse region” Acute Obtuse A What is this locus? B © T Madas
