ECE 1747 Parallel Programming Shared Memory Multithreading Pthreads
- Slides: 102
ECE 1747 Parallel Programming Shared Memory Multithreading Pthreads
Shared Memory • All threads access the same shared memory data space. Shared Memory Address Space proc 1 proc 2 proc 3 proc. N

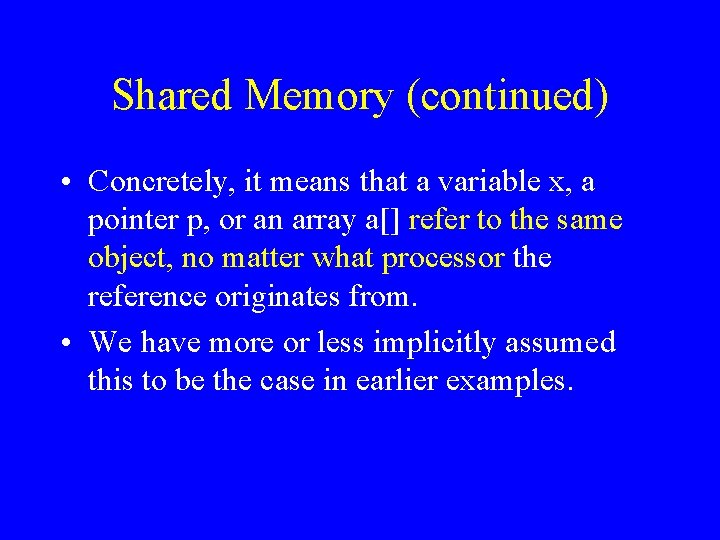

Shared Memory (continued) • Concretely, it means that a variable x, a pointer p, or an array a[] refer to the same object, no matter what processor the reference originates from. • We have more or less implicitly assumed this to be the case in earlier examples.

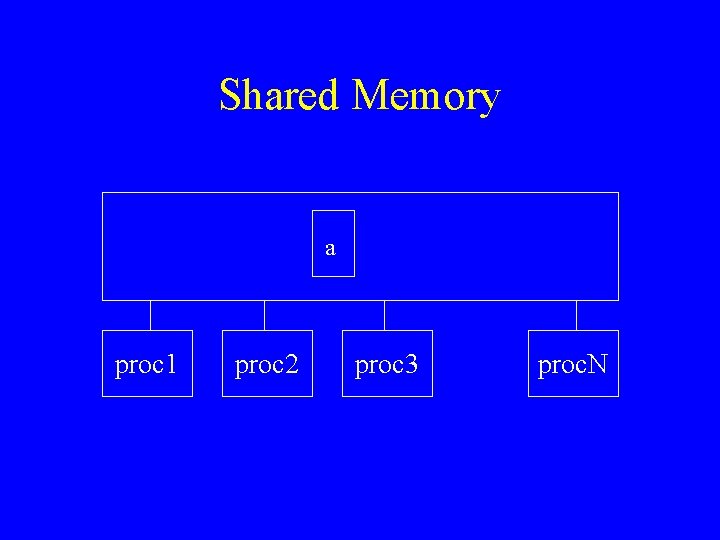

Shared Memory a proc 1 proc 2 proc 3 proc. N
Distributed Memory - Message Passing The alternative model to shared memory. a a mem 1 mem 2 mem 3 mem. N proc 1 proc 2 proc 3 proc. N network
Shared Memory vs. Message Passing • Same terminology is used in distinguishing hardware. • For us: distinguish programming models, not hardware.
Portability of programming models shared memory programming message passing programming shared memory machine distr. memory machine

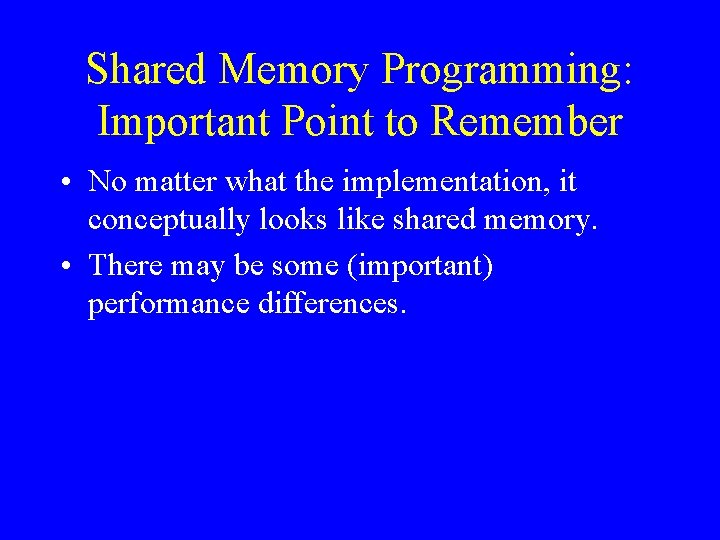

Shared Memory Programming: Important Point to Remember • No matter what the implementation, it conceptually looks like shared memory. • There may be some (important) performance differences.
Multithreading • User has explicit control over thread. • Good: control can be used to performance benefit. • Bad: user has to deal with it.
Pthreads • POSIX standard shared-memory multithreading interface. • Provides primitives for process management and synchronization.

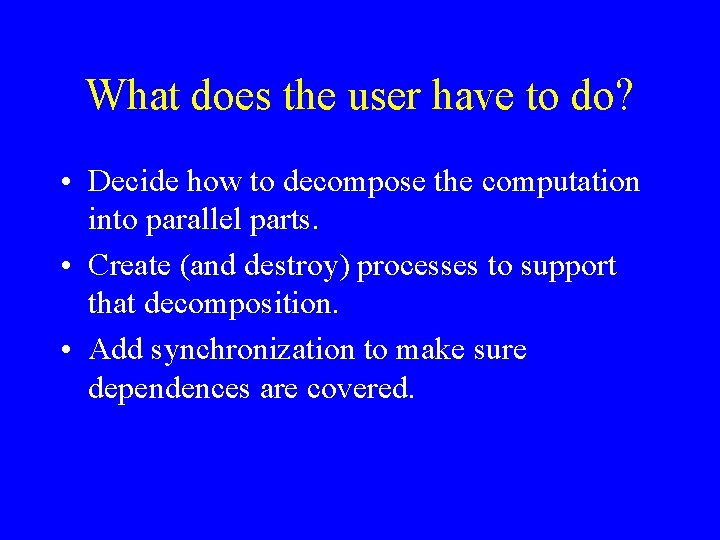

What does the user have to do? • Decide how to decompose the computation into parallel parts. • Create (and destroy) processes to support that decomposition. • Add synchronization to make sure dependences are covered.
General Thread Structure • Typically, a thread is a concurrent execution of a function or a procedure. • So, your program needs to be restructured such that parallel parts form separate procedures or functions.
Example of Thread Creation (contd. ) main() pthread_ create(func) func()
Thread Joining Example void *func(void *) { …. . } pthread_t id; int X; pthread_create(&id, NULL, func, &X); …. . pthread_join(id, NULL); …. .
Example of Thread Creation (contd. ) main() pthread_ create(func) pthread_ join(id) func() pthread_ exit()
Sequential SOR for some number of timesteps/iterations { for (i=0; i<n; i++ ) for( j=1, j<n, j++ ) temp[i][j] = 0. 25 * ( grid[i-1][j] + grid[i+1][j] grid[i][j-1] + grid[i][j+1] ); for( i=0; i<n; i++ ) for( j=1; j<n; j++ ) grid[i][j] = temp[i][j]; }
Parallel SOR • First (i, j) loop nest can be parallelized. • Second (i, j) loop nest can be parallelized. • Must wait to start second loop nest until all processors have finished first. • Must wait to start first loop nest of next iteration until all processors have done second loop nest of previous iteration. • Give n/p rows to each processor.
Pthreads SOR: Parallel parts (1) void* sor_1(void *s) { int slice = (int) s; int from = (slice*n)/p; int to = ((slice+1)*n)/p; for( i=from; i<to; i++) for( j=0; j<n; j++ ) temp[i][j] = 0. 25*(grid[i-1][j] + grid[i+1][j] +grid[i][j-1] + grid[i][j+1]); }
Pthreads SOR: Parallel parts (2) void* sor_2(void *s) { int slice = (int) s; int from = (slice*n)/p; int to = ((slice+1)*n)/p; for( i=from; i<to; i++) for( j=0; j<n; j++ ) grid[i][j] = temp[i][j]; }
Pthreads SOR: main for some number of timesteps { for( i=0; i<p; i++ ) pthread_create(&thrd[i], NULL, sor_1, (void *)i); for( i=0; i<p; i++ ) pthread_join(thrd[i], NULL); for( i=0; i<p; i++ ) pthread_create(&thrd[i], NULL, sor_2, (void *)i); for( i=0; i<p; i++ ) pthread_join(thrd[i], NULL); }

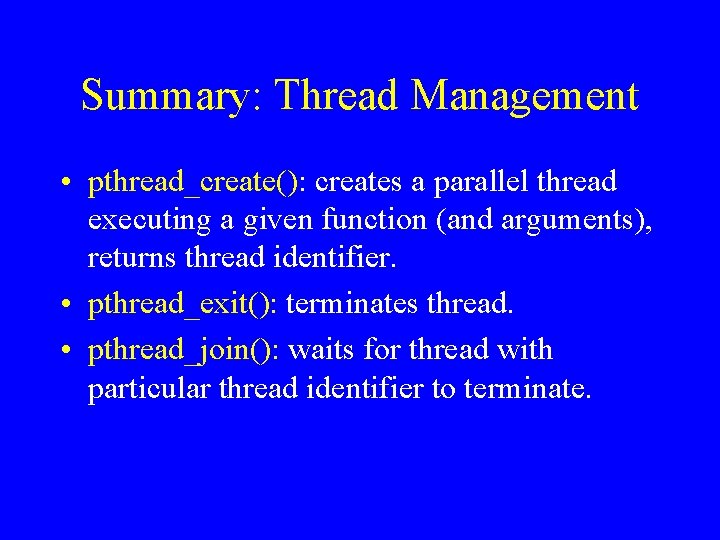

Summary: Thread Management • pthread_create(): creates a parallel thread executing a given function (and arguments), returns thread identifier. • pthread_exit(): terminates thread. • pthread_join(): waits for thread with particular thread identifier to terminate.
Summary: Program Structure • Encapsulate parallel parts in functions. • Use function arguments to parameterize what a particular thread does. • Call pthread_create() with the function and arguments, save thread identifier returned. • Call pthread_join() with that thread identifier.
Pthreads Synchronization • Create/exit/join – provide some form of synchronization, – at a very coarse level, – requires thread creation/destruction. • Need for finer-grain synchronization – mutex locks, – condition variables.
Use of Mutex Locks • To implement critical sections pthread_mutex_t mutex; pthread_mutex_lock(&mutex); … pthread_mutex_unlock(&mutex); • Pthreads provides only exclusive locks. • Some other systems allow shared-read, exclusive-write locks.
Condition variables (1 of 5) pthread_cond_init( pthread_cond_t *cond, pthread_cond_attr *attr) • Creates a new condition variable cond. • Attribute: ignore for now.
Condition Variables (2 of 5) pthread_cond_destroy( pthread_cond_t *cond) • Destroys the condition variable cond.
Condition Variables (3 of 5) pthread_cond_wait( pthread_cond_t *cond, pthread_mutex_t *mutex) • Blocks the calling thread, waiting on cond. • Unlocks the mutex.
Condition Variables (4 of 5) pthread_cond_signal( pthread_cond_t *cond) • Unblocks one thread waiting on cond. • Which one is determined by scheduler. • If no thread waiting, then signal is a no-op.
Condition Variables (5 of 5) pthread_cond_broadcast( pthread_cond_t *cond) • Unblocks all threads waiting on cond. • If no thread waiting, then broadcast is a noop.
Use of Condition Variables • To implement signal-wait synchronization discussed in earlier examples. • Important note: a signal is “forgotten” if there is no corresponding wait that has already happened.
Barrier Synchronization • A wait at a barrier causes a thread to wait until all threads have performed a wait at the barrier. • At that point, they all proceed.
Implementing Barriers in Pthreads • Count the number of arrivals at the barrier. • Wait if this is not the last arrival. • Make everyone unblock if this is the last arrival. • Since the arrival count is a shared variable, enclose the whole operation in a mutex lock -unlock.
Implementing Barriers in Pthreads void barrier() { pthread_mutex_lock(&mutex_arr); arrived++; if (arrived<N) { pthread_cond_wait(&cond, &mutex_arr); } else { pthread_cond_broadcast(&cond); arrived=0; /* be prepared for next barrier */ } pthread_mutex_unlock(&mutex_arr); }
Parallel SOR with Barriers (1 of 2) void* sor (void* arg) { int slice = (int)arg; int from = (slice * (n-1))/p + 1; int to = ((slice+1) * (n-1))/p + 1; for some number of iterations { … } }
Parallel SOR with Barriers (2 of 2) for (i=from; i<to; i++) for (j=1; j<n; j++) temp[i][j] = 0. 25 * (grid[i-1][j] + grid[i+1][j] + grid[i][j-1] + grid[i][j+1]); barrier(); for (i=from; i<to; i++) for (j=1; j<n; j++) grid[i][j]=temp[i][j]; barrier();
Parallel SOR with Barriers: main int main(int argc, char *argv[]) { pthread_t *thrd[p]; /* Initialize mutex and condition variables */ for (i=0; i<p; i++) pthread_create (&thrd[i], &attr, sor, (void*)i); for (i=0; i<p; i++) pthread_join (thrd[i], NULL); /* Destroy mutex and condition variables */ }
Note again • Many shared memory programming systems (other than Pthreads) have barriers as basic primitive. • If they do, you should use it, not construct it yourself. • Implementation may be more efficient than what you can do yourself.
Busy Waiting • Not an explicit part of the API. • Available in a general shared memory programming environment.
Busy Waiting initially: flag = 0; P 1: produce data; flag = 1; P 2: while( !flag ) ; consume data;

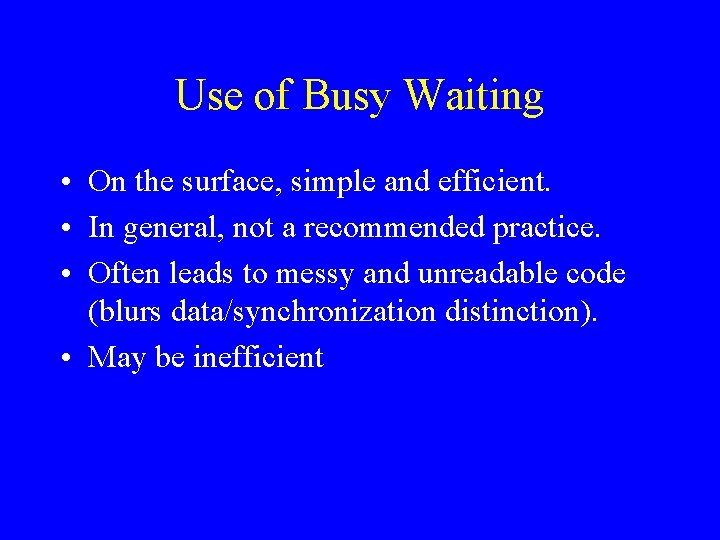

Use of Busy Waiting • On the surface, simple and efficient. • In general, not a recommended practice. • Often leads to messy and unreadable code (blurs data/synchronization distinction). • May be inefficient
Private Data in Pthreads • To make a variable private in Pthreads, you need to make an array out of it. • Index the array by thread identifier, which you should keep track of. • Not very elegant or efficient.
Other Primitives in Pthreads • Set the attributes of a thread. • Set the attributes of a mutex lock. • Set scheduling parameters.
Flavors of Parallelism • Data parallelism: all processors do the same thing on different data. – Regular – Irregular • Task parallelism: processors do different tasks. – Task queue – Pipelines
Task Parallelism • Each process performs a different task. • Two principal flavors: – pipelines – task queues • Program Examples: PIPE (pipeline), TSP (task queue).
Pipeline • Often occurs with image processing applications, where a number of images undergoes a sequence of transformations. • E. g. , rendering, clipping, compression, etc.
Sequential Program for( i=0; i<num_pic, read(in_pic[i]); i++ ) { int_pic_1[i] = trans 1( in_pic[i] ); int_pic_2[i] = trans 2( int_pic_1[i]); int_pic_3[i] = trans 3( int_pic_2[i]); out_pic[i] = trans 4( int_pic_3[i]); }
Parallelizing a Pipeline • For simplicity, assume we have 4 processors (i. e. , equal to the number of transformations). • Furthermore, assume we have a very large number of pictures (>> 4).
Parallelizing a Pipeline (part 1) Processor 1: for( i=0; i<num_pics, read(in_pic[i]); i++ ) { int_pic_1[i] = trans 1( in_pic[i] ); signal(event_1_2[i]); }
Parallelizing a Pipeline (part 2) Processor 2: for( i=0; i<num_pics; i++ ) { wait( event_1_2[i] ); int_pic_2[i] = trans 2( int_pic_1[i] ); signal(event_2_3[i] ); } Same for processor 3
Parallelizing a Pipeline (part 3) Processor 4: for( i=0; i<num_pics; i++ ) { wait( event_3_4[i] ); out_pic[i] = trans 4( int_pic_3[i] ); }

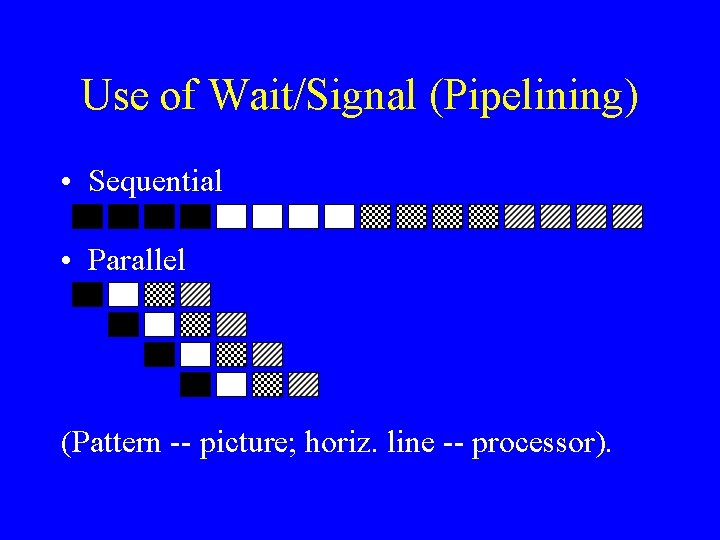

Use of Wait/Signal (Pipelining) • Sequential • Parallel (Pattern -- picture; horiz. line -- processor).
PIPE P 1: for( i=0; i<num_pics, read(in_pic); i++ ) { int_pic_1[i] = trans 1( in_pic ); signal( event_1_2[i] ); } P 2: for( i=0; i<num_pics; i++ ) { wait( event_1_2[i] ); int_pic_2[i] = trans 2( int_pic_1[i] ); signal( event_2_3[i] ); }
PIPE Using Pthreads • Replacing the original wait/signal by a Pthreads condition variable wait/signal will not work. – signals before a wait are forgotten. – we need to remember a signal.
How to remember a signal (1 of 2) semaphore_signal(i) { pthread_mutex_lock(&mutex_rem[i]); arrived [i] = 1; pthread_cond_signal(&cond[i]); pthread_mutex_unlock(&mutex_rem[i]); }

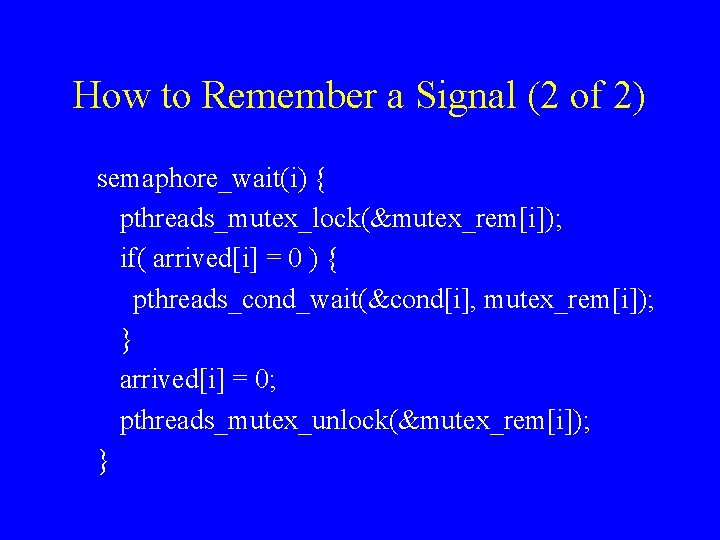

How to Remember a Signal (2 of 2) semaphore_wait(i) { pthreads_mutex_lock(&mutex_rem[i]); if( arrived[i] = 0 ) { pthreads_cond_wait(&cond[i], mutex_rem[i]); } arrived[i] = 0; pthreads_mutex_unlock(&mutex_rem[i]); }
PIPE with Pthreads P 1: for( i=0; i<num_pics, read(in_pic); i++ ) { int_pic_1[i] = trans 1( in_pic ); semaphore_signal( event_1_2[i] ); } P 2: for( i=0; i<num_pics; i++ ) { semaphore_wait( event_1_2[i] ); int_pic_2[i] = trans 2( int_pic_1[i] ); semaphore_signal( event_2_3[i] ); }
Another Sequential Program for( i=0; i<num_pic, read(in_pic); i++ ) { int_pic_1 = trans 1( in_pic ); int_pic_2 = trans 2( int_pic_1); int_pic_3 = trans 3( int_pic_2); out_pic = trans 4( int_pic_3); }
Can we use same parallelization? Processor 2: for( i=0; i<num_pics; i++ ) { semaphore_wait( event_1_2[i] ); int_pic_2 = trans 1( int_pic_1 ); semaphore_signal(event_2_3[i] ); } Same for processor 3
Can we use same parallelization? • No, because of anti-dependence between stages, there is no parallelism. • We used privatization to enable pipeline parallelism. • Used often to avoid dependences (not only with pipelines). • Costly in terms of memory.
In-between Solution • Use n>1 buffers between stages. • Block when buffers are full or empty. P 1 P 2 P 3 P 4

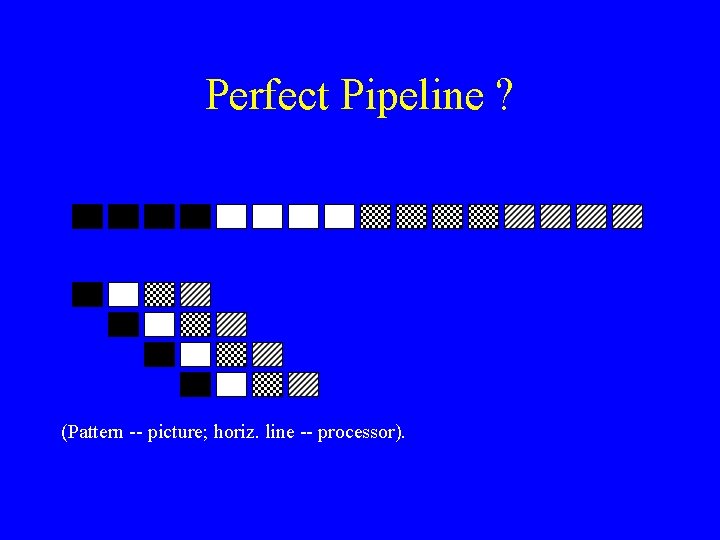

Perfect Pipeline ? (Pattern -- picture; horiz. line -- processor).

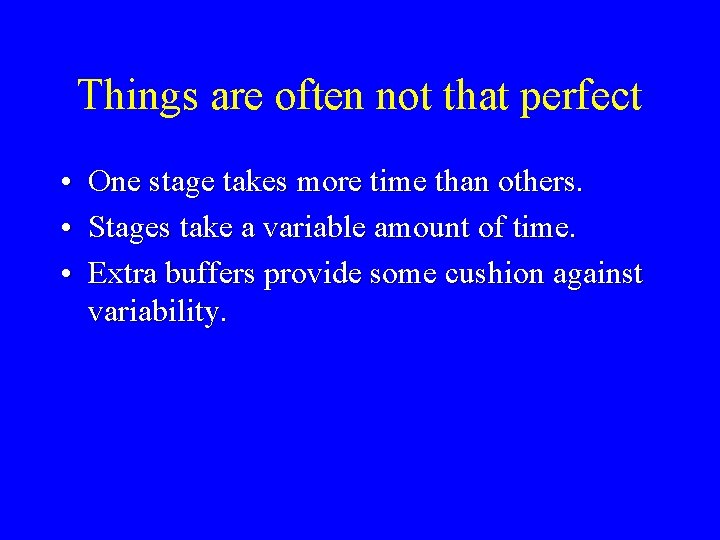

Things are often not that perfect • One stage takes more time than others. • Stages take a variable amount of time. • Extra buffers provide some cushion against variability.
Task Parallelism • Each process performs a different task. • Two principal flavors: – pipelines – task queues • Program Examples: PIPE (pipeline), TSP (task queue).
TSP (Traveling Salesman) • Goal: – given a list of cities, a matrix of distances between them, and a starting city, – find the shortest tour in which all cities are visited exactly once. • Example of an NP-hard search problem. • Algorithm: branch-and-bound.

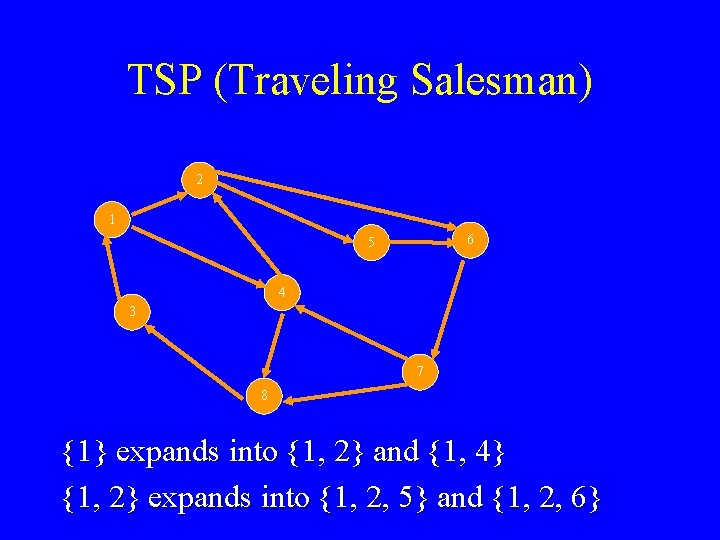

TSP (Traveling Salesman) 2 1 6 5 4 3 7 8 {1} expands into {1, 2} and {1, 4} {1, 2} expands into {1, 2, 5} and {1, 2, 6}
Branching Initialization: n go from starting city to each possible city n put resulting partial path into priority queue, ordered by its current length. Further (repeatedly): n take head element out of priority queue, n expand by each one of remaining cities, n put resulting partial path into priority queue.

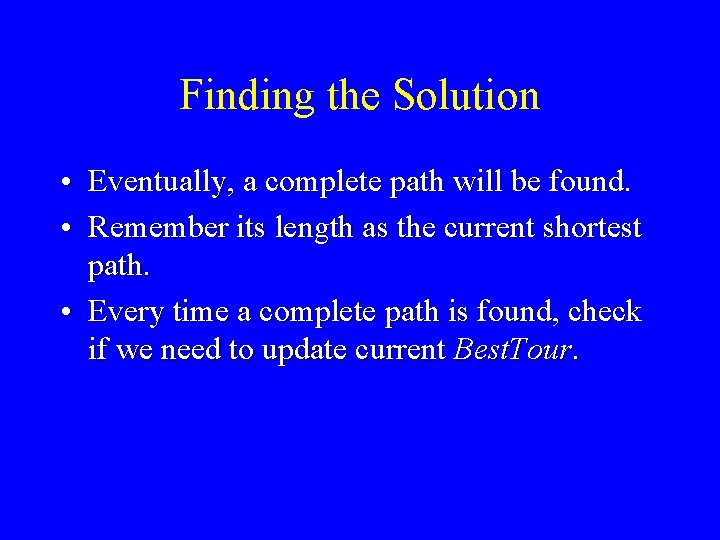

Finding the Solution • Eventually, a complete path will be found. • Remember its length as the current shortest path. • Every time a complete path is found, check if we need to update current Best. Tour.

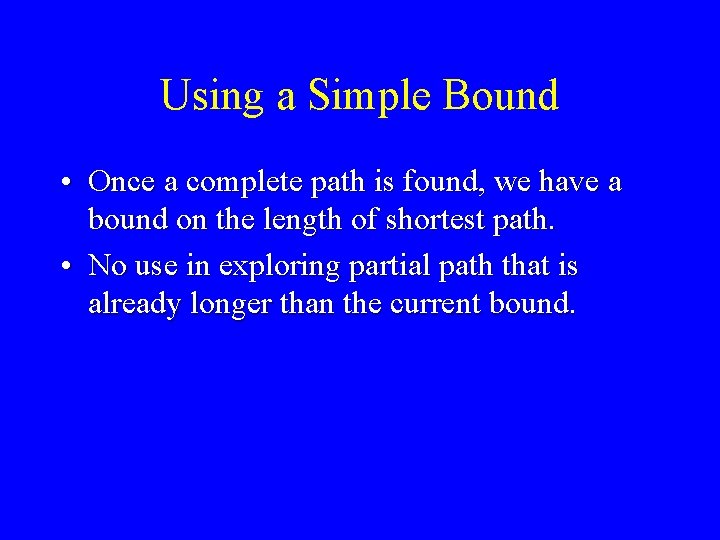

Using a Simple Bound • Once a complete path is found, we have a bound on the length of shortest path. • No use in exploring partial path that is already longer than the current bound.
Sequential TSP: Data Structures • Priority queue of partial paths. • Current best solution and its length. • For simplicity, we will ignore bounding.
Sequential TSP: Code Outline init_q(); init_best(); while( (p=de_queue()) != NULL ) { for each expansion by one city { q = add_city(p); if( complete(q) ) { update_best(q) }; else { en_queue(q) }; } }
Parallel TSP: Possibilities • Have each process do expansion of one partial path. • Have each process do expansion of multiple partial paths. • Issue of granularity/performance, not an issue of correctness. • Assume: process expands one partial path.
Parallel TSP: Synchronization • True dependence between process that puts partial path in queue and the one that takes it out. • Dependences arise dynamically. • Required synchronization: need to make process wait if q is empty.
Parallel TSP: First cut (part 2) • In de_queue: wait if Task. Queue is empty • In en_queue: signal that Task. Queue is no longer empty
Parallel TSP: More synchronization • All processes operate, potentially at the same time, on Task. Queue and Best. Tour. • This race must not be allowed to happen. • Critical section: only one process can execute in critical section at once.
Parallel TSP: Critical Sections • Update_best must be protected by a critical section. • En_queue and de_queue must be protected by the same critical section.

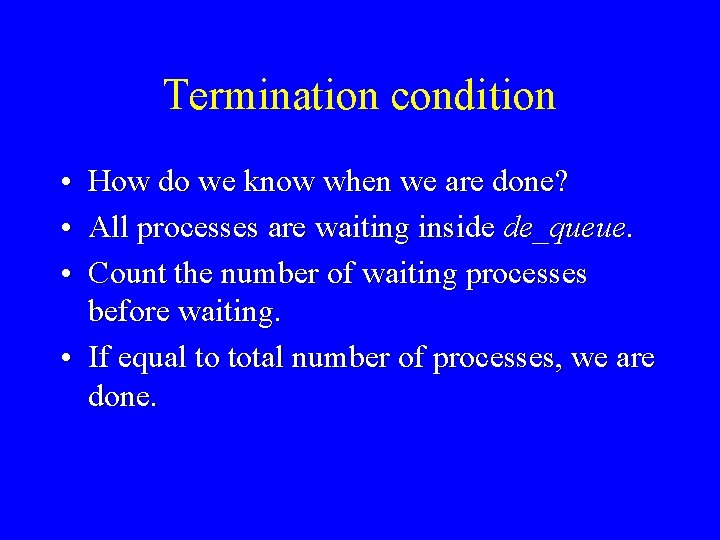

Termination condition • How do we know when we are done? • All processes are waiting inside de_queue. • Count the number of waiting processes before waiting. • If equal to total number of processes, we are done.
Parallel TSP • Need critical section – in update_best, – in en_queue/de_queue. • In de_queue – wait if q is empty, – terminate if all processes are waiting. • In en_queue: – signal q is no longer empty.
Parallel TSP: Mutual Exclusion en_queue() / de_queue() { pthreads_mutex_lock(&queue); …; pthreads_mutex_unlock(&queue); } update_best() { pthreads_mutex_lock(&best); …; pthreads_mutex_unlock(&best); }
Parallel TSP: Condition Synchronization de_queue() { while( (q is empty) and (not done) ) { waiting++; if( waiting == p ) { done = true; pthreads_cond_broadcast(&empty, &queue); } else { pthreads_cond_wait(&empty, &queue); waiting--; } } if( done ) return null; else remove and return head of the queue; }

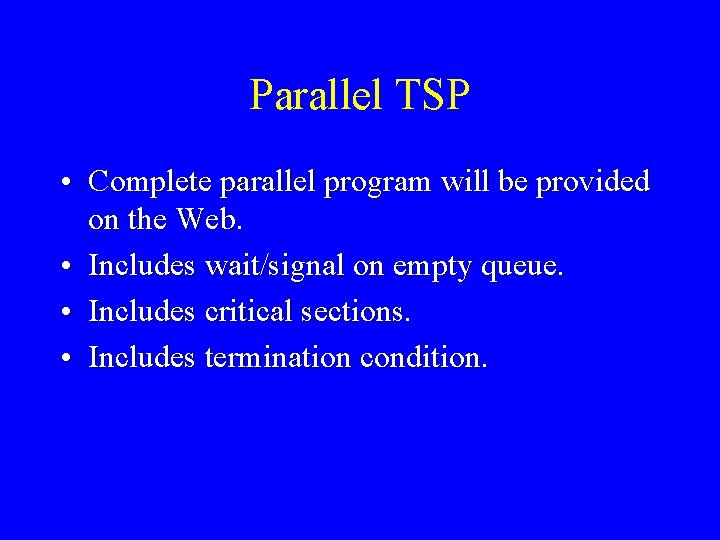

Parallel TSP • Complete parallel program will be provided on the Web. • Includes wait/signal on empty queue. • Includes critical sections. • Includes termination condition.
Factors that Determine Speedup • Characteristics of parallel code – granularity – load balance – locality – communication and synchronization
Granularity • Granularity = size of the program unit that is executed by a single processor. • May be a single loop iteration, a set of loop iterations, etc. • Fine granularity leads to: – (positive) ability to use lots of processors – (positive) finer-grain load balancing – (negative) increased overhead
Granularity and Critical Sections • Small granularity => more processors => more critical section accesses => more contention.
Issues in Performance of Parallel Parts • • Granularity. Load balance. Locality. Synchronization and communication.

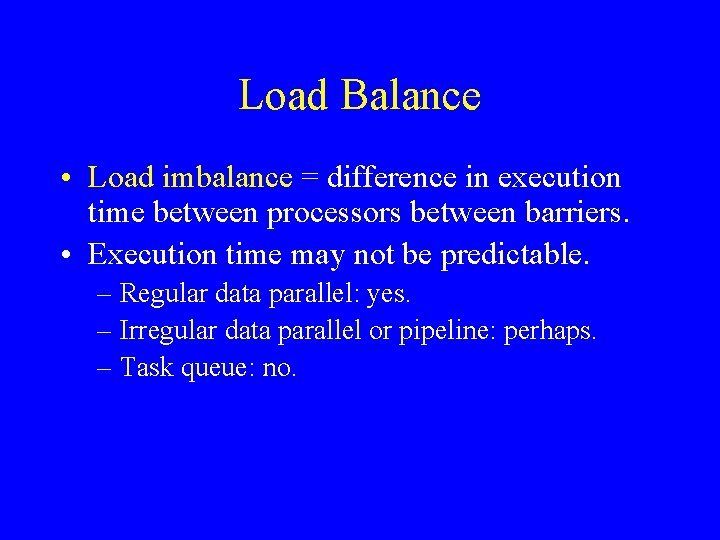

Load Balance • Load imbalance = difference in execution time between processors between barriers. • Execution time may not be predictable. – Regular data parallel: yes. – Irregular data parallel or pipeline: perhaps. – Task queue: no.
Static vs. Dynamic • Static: done once, by the programmer – block, cyclic, etc. – fine for regular data parallel • Dynamic: done at runtime – task queue – fine for unpredictable execution times – usually high overhead • Semi-static: done once, at run-time

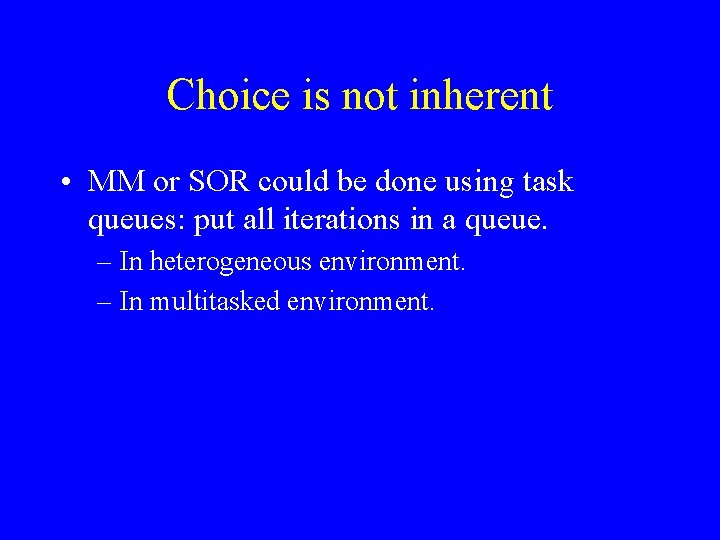

Choice is not inherent • MM or SOR could be done using task queues: put all iterations in a queue. – In heterogeneous environment. – In multitasked environment.

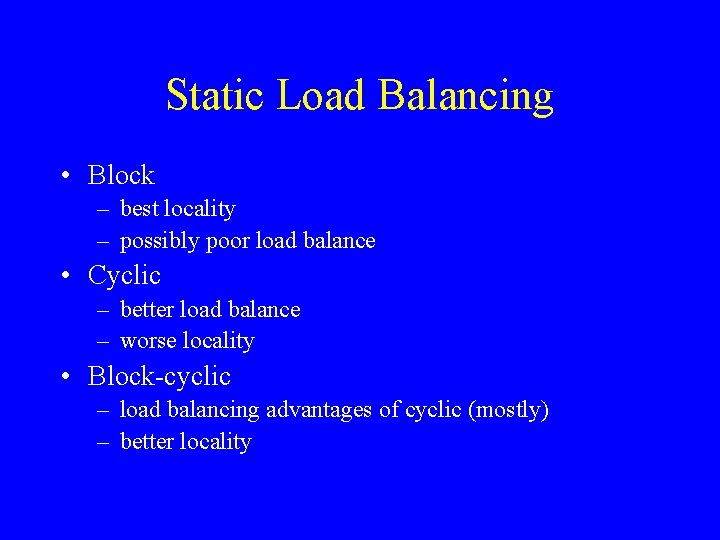

Static Load Balancing • Block – best locality – possibly poor load balance • Cyclic – better load balance – worse locality • Block-cyclic – load balancing advantages of cyclic (mostly) – better locality
Dynamic Load Balancing (1 of 2) • Centralized: single task queue. – Easy to program – Excellent load balance • Distributed: task queue per processor. – Less contention during synchronization
Dynamic Load Balancing (2 of 2) • Task stealing with distributed queues: – Processes normally remove and insert tasks from their own queue. – When queue is empty, remove task(s) from other queues. • Extra overhead and programming difficulty. • Better load balancing.

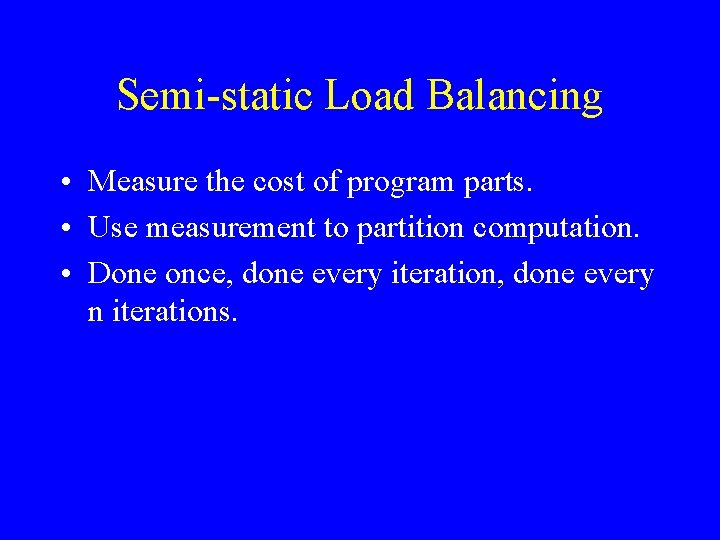

Semi-static Load Balancing • Measure the cost of program parts. • Use measurement to partition computation. • Done once, done every iteration, done every n iterations.

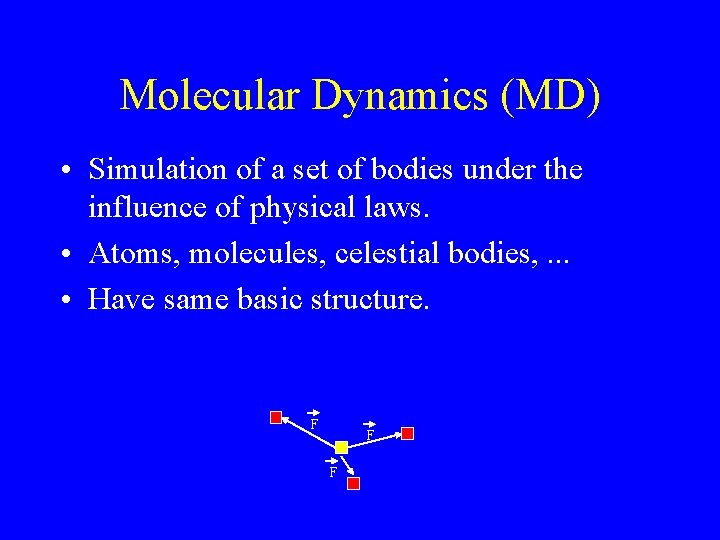

Molecular Dynamics (MD) • Simulation of a set of bodies under the influence of physical laws. • Atoms, molecules, celestial bodies, . . . • Have same basic structure. F F F
Molecular Dynamics (Skeleton) for some number of timesteps { for all molecules i for all other molecules j force[i] += f( loc[i], loc[j] ); for all molecules i loc[i] = g( loc[i], force[i] ); }
Molecular Dynamics • To reduce amount of computation, account for interaction only with nearby molecules.
Molecular Dynamics (continued) for some number of timesteps { for all molecules i for all nearby molecules j force[i] += f( loc[i], loc[j] ); for all molecules i loc[i] = g( loc[i], force[i] ); }
Molecular Dynamics (continued) for each molecule i number of nearby molecules count[i] array of indices of nearby molecules index[j] ( 0 <= j < count[i])

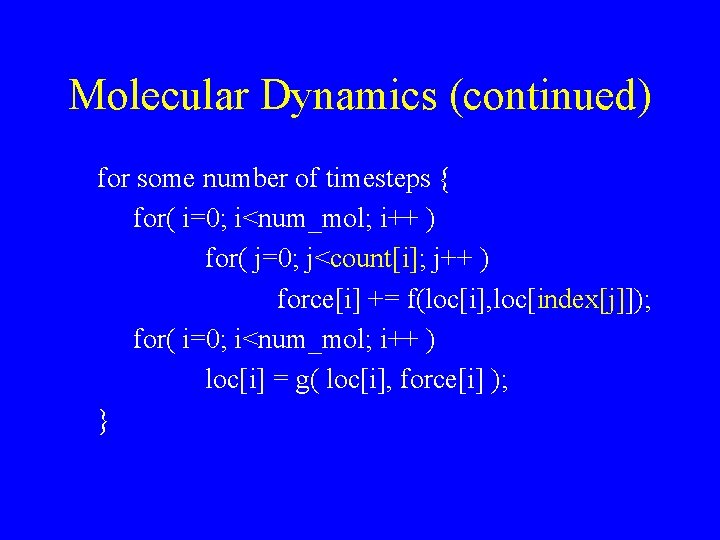

Molecular Dynamics (continued) for some number of timesteps { for( i=0; i<num_mol; i++ ) for( j=0; j<count[i]; j++ ) force[i] += f(loc[i], loc[index[j]]); for( i=0; i<num_mol; i++ ) loc[i] = g( loc[i], force[i] ); }
Molecular Dynamics (simple) for some number of timesteps { parallel for( i=0; i<num_mol; i++ ) for( j=0; j<count[i]; j++ ) force[i] += f(loc[i], loc[index[j]]); parallel for( i=0; i<num_mol; i++ ) loc[i] = g( loc[i], force[i] ); }
Molecular Dynamics (simple) • Simple to program. • Possibly poor load balance – block distribution of i iterations (molecules) – could lead to uneven neighbor distribution – cyclic does not help
Better Load Balance • Assign iterations such that each processor has ~ the same number of neighbors. • Array of “assign records” – size: number of processors – two elements: • beginning i value (molecule) • ending i value (molecule) • Recompute partition periodically
Frequency of Balancing • Every time neighbor list is recomputed. – once during initialization. – every iteration. – every n iterations. • Extra overhead vs. better approximation and better load balance.

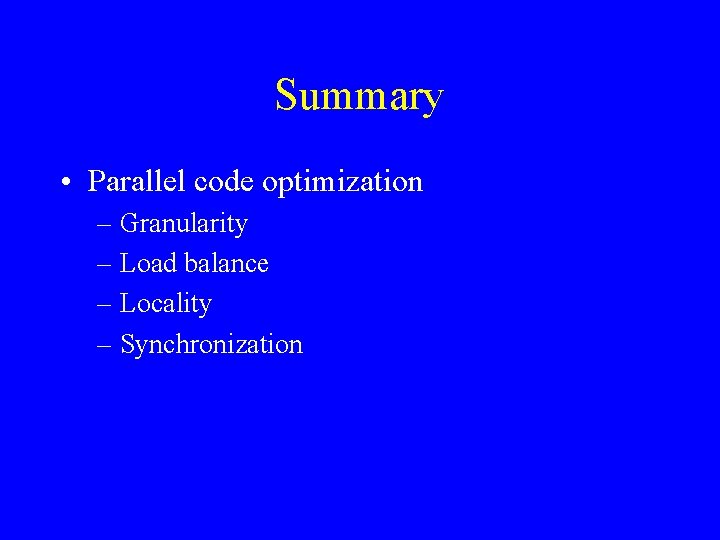

Summary • Parallel code optimization – Granularity – Load balance – Locality – Synchronization
