Shared Memory Parallelization Outline What is shared memory

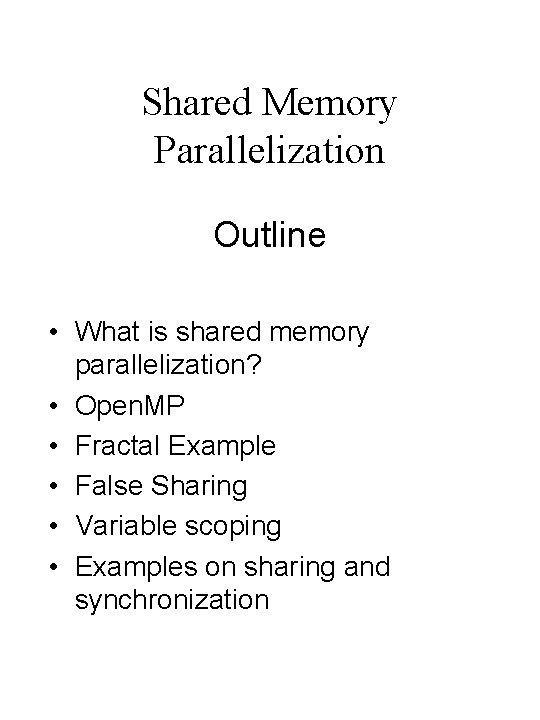

Shared Memory Parallelization Outline • What is shared memory parallelization? • Open. MP • Fractal Example • False Sharing • Variable scoping • Examples on sharing and synchronization

Shared Memory Parallelization • All processors can access all the memory in the parallel system • The time to access the memory may not be equal for all processors - not necessarily a flat memory • Parallelizing on a SMP does not reduce CPU time - it reduces wallclock time • Parallel execution is achieved by generating threads which execute in parallel • Number of threads is independent of the number of processors

Shared Memory Parallelization • Overhead for SMP parallelization is large (100 -200 sec)- size of parallel work construct must be significant enough to overcome overhead • SMP parallelization is degraded by other processes on the node important to be dedicated on the SMP node • Remember Amdahl's Law - Only get a speedup on code that is parallelized

Fork-Join Model 1. All Open. MP programs begin as a single process: the master thread 2. FO RK: the master thread then creates a team of parallel threads 3. Parallel region statements executed in parallel among the various team threads 4. JOIN: threads synchronize and terminate, leaving only the master thread

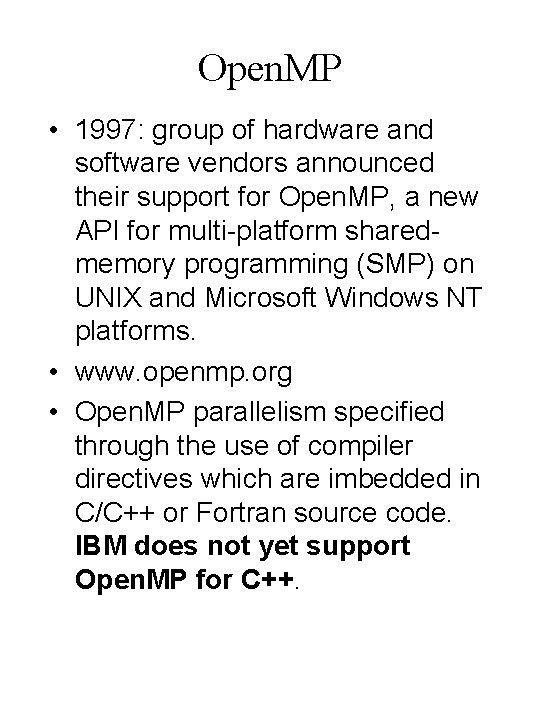

Open. MP • 1997: group of hardware and software vendors announced their support for Open. MP, a new API for multi-platform sharedmemory programming (SMP) on UNIX and Microsoft Windows NT platforms. • www. openmp. org • Open. MP parallelism specified through the use of compiler directives which are imbedded in C/C++ or Fortran source code. IBM does not yet support Open. MP for C++.

Open. MP How is Open. MP typically used? • Open. MP is usually used to parallelize loops: – Find your most time consuming loops. – Split them up between threads. • Better scaling can be obtained using Open. MP parallel regions, but can be tricky!

Loop Parallelization

Functional Parallelization

Fractal Example !$OMP PARALLEL !$OMP DO SCHEDULE(RUNTIME) do i=0, inos ! Long loop do k=1, niter ! Short loop if(zabs(z(i)). lt. lim) then if(z(i). eq. dcmplx(0. , 0. )) then z(i)=c(i) else z(i)=z(i)**alpha+c(i) endif kount(i)=k else exit endif end do !$OMP END PARALLEL

Fractal Example (cont’d) Can also define parallel region thus: !$OMP PARALLEL DO SCHEDULE(RUNTIME) do i=0, inos ! Long loop do k=1, niter ! Short loop. . . end do C syntax: #pragma omp parallel for(i=0; i <= inos; i++) for(k=1; j <= niter; k++) {. . . }

Fractal Example (cont’d) • Number of threads is machinedependent, or can be set at runtime by setting an environment variable • SCHEDULE clause specifies how the iterations of the loop are divided among the threads: – STATIC: the loop iterations divided into contiguous chunks of equal size. – DYNAMIC: iterations are broken into chunks of specified size (default 1). As each thread finishes its work it dynamically obtains the next set of iterations. – RUNTIME: the schedule determined at runtime – GUIDED

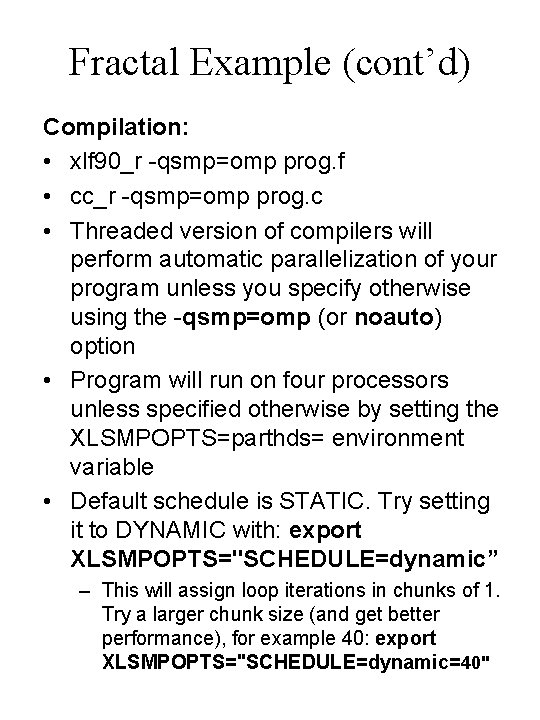

Fractal Example (cont’d) Compilation: • xlf 90_r -qsmp=omp prog. f • cc_r -qsmp=omp prog. c • Threaded version of compilers will perform automatic parallelization of your program unless you specify otherwise using the -qsmp=omp (or noauto) option • Program will run on four processors unless specified otherwise by setting the XLSMPOPTS=parthds= environment variable • Default schedule is STATIC. Try setting it to DYNAMIC with: export XLSMPOPTS="SCHEDULE=dynamic” – This will assign loop iterations in chunks of 1. Try a larger chunk size (and get better performance), for example 40: export XLSMPOPTS="SCHEDULE=dynamic=40"

Fractal Example (cont’d) Tradeoff between Load Balancing and Reduced Overhead • The larger the size (GRANULARITY) of the piece of work, the lower the overall thread overhead. • The smaller the size (GRANULARITY) of the piece of work, the better the dynamically scheduled load balancing • Watch out for FALSE SHARING: chunk size smaller than cache line

False Sharing • IBM Power 3 cache line is 128 Bytes (16 8 -Byte words) !$OMP PARALLEL DO do I=1, 50 A(I)=B(I)+C(I) enddo say A(1 -13)starts on cache line – then some of A(14 -20)will be on first cache line so won’t be accessible until first thread finished Solution: set chunk size of 32 so won’t have overlap on other cache line

Variable Scoping • Most difficult part of Shared Memory Parallelization – What memory is Shared – What memory is Private - each processor has its own copy • Compare MPI: all variables are private • Variables are shared by default, except: – loop indices – scalars, and arrays whose subscript is constant with respect to PARALLEL DO, that are set and then used in loop)

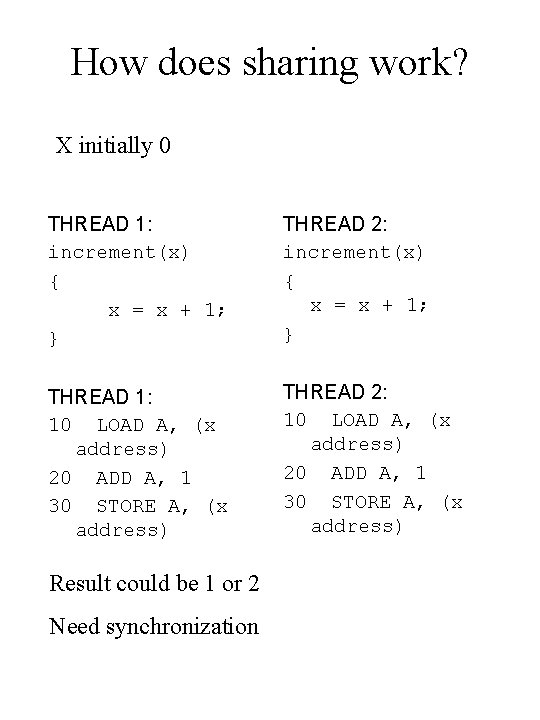

How does sharing work? X initially 0 THREAD 1: increment(x) { x = x + 1; } THREAD 2: increment(x) { x = x + 1; } THREAD 1: 10 LOAD A, (x address) 20 ADD A, 1 30 STORE A, (x address) THREAD 2: 10 LOAD A, (x address) 20 ADD A, 1 30 STORE A, (x address) Result could be 1 or 2 Need synchronization

Variable Scoping example read *, n sum = 0. 0 call random (b) call random (c) !$OMP PARALLEL !$OMP PRIVATE (i, sump ) !$OMP SHARED (a, b, n, c, sum) sump = 0. 0 !$OMP DO do i=1, n a(i) = sqrt(b(i)**2+c(i)**2) sump = sump + a(i) enddo !$OMP CRITICAL sum = sum + sump !$OMP ENDCRITICAL !$OMP END PARALLEL end

Scoping example #2 read *, n sum = 0. 0 call random (b) call random (c) !$OMP PARALLEL DO !$OMP&PRIVATE (i) !$OMP&SHARED (a, b, n) !$OMP&REDUCTION (+: sum) do i=1, n a(i) = sqrt(b(i)**2+c(i)**2) sum = sum + a(i) Enddo !$OMP PARALLEL ENDDO end Each processor needs a separate copy of i everything else is Shared

Variable Scoping • Global variables are SHARED among threads – Fortran: COMMON blocks, SAVE variables, MODULE variables – C: variables “visible” when #pragma omp parallel encountered, static variables declared within a parallel region • But not everything is shared. . . – Stack variables in sub-programs called from parallel regions are PRIVATE – Automatic variables within a statement block are PRIVATE.

Hello World #1 (correct) PROGRAM HELLO INTEGER TID, OMP_GET_THREAD_NUM !$OMP PARALLEL PRIVATE(TID) TID = OMP_GET_THREAD_NUM() PRINT *, 'Hello World from thread = ', TID. . . !$OMP END PARALLEL END

Hello World #2 (incorrect) PROGRAM HELLO INTEGER TID, OMP_GET_THREAD_NUM !$OMP PARALLEL TID = OMP_GET_THREAD_NUM() PRINT *, 'Hello World from thread = ', TID. . . !$OMP END PARALLEL END

Hello World #3 (incorrect) PROGRAM HELLO INTEGER TID, OMP_GET_THREAD_NUM TID = OMP_GET_THREAD_NUM() PRINT *, 'Hello World from thread = ', TID !$OMP PARALLEL. . . !$OMP END PARALLEL END

Another Variable Scoping Example subroutine example 4(n, m, a, b, c) real*8 a(100, 100), B(100, 100), c(100) integer n, i real*8 sum !$OMP PARALLEL DO !$OMP PRIVATE (j, i, c) !$OMP SHARED (a, b, m, n) do j=1, m do i=2, n-1 c(i) = sqrt(1. 0+b(i, j)**2) enddo do i=1, n a(i, j) = sqrt(b(i, j)**2+c(i)**2) enddo end Each processor needs a separate copy of j, i, c everything else is Shared. What about c? c(1) and c(n)?

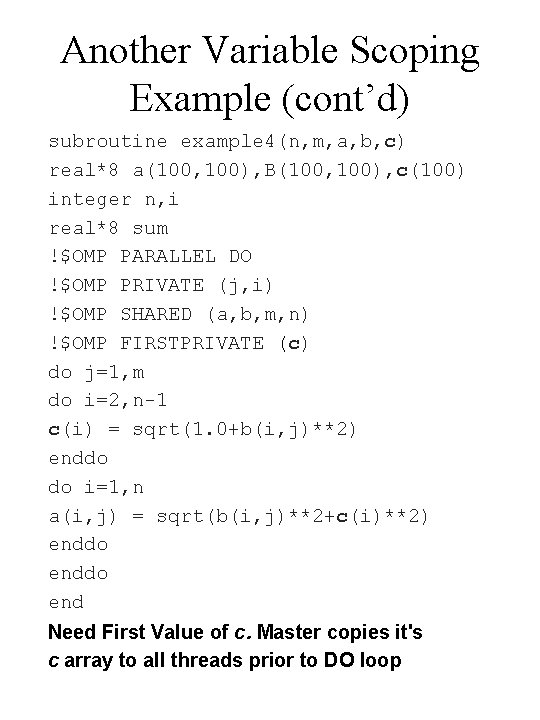

Another Variable Scoping Example (cont’d) subroutine example 4(n, m, a, b, c) real*8 a(100, 100), B(100, 100), c(100) integer n, i real*8 sum !$OMP PARALLEL DO !$OMP PRIVATE (j, i) !$OMP SHARED (a, b, m, n) !$OMP FIRSTPRIVATE (c) do j=1, m do i=2, n-1 c(i) = sqrt(1. 0+b(i, j)**2) enddo do i=1, n a(i, j) = sqrt(b(i, j)**2+c(i)**2) enddo end Need First Value of c. Master copies it's c array to all threads prior to DO loop

Another Variable Scoping Example (cont’d) What if last value of c is needed? • Use LASTPRIVATE clause

References • www. openmp. org • ASCI Blue training : http: //www. llnl. gov/computing/tutorials/ workshops/workshop/ • EWOMP ‘ 99: http: //www. it. lth. se/ewomp 99/ programme. html • EWOMP ‘ 00: http: //www. epcc. ed. ac. uk/ewomp 2000/ proceedings. html • Multimedia tutorial at Boston University: http: //scv. bu. edu/SCV/Tutorials/ Open. MP/
