Overview 1. 2. 3. 4. Modular Arithmetic Review What is Cryptography? Transposition Ciphers Substition Ciphers 1. Cæsar cipher 2. Vigènere cipher 5. Cryptanalysis: frequency analysis 6. Block Ciphers 7. DES CIT 380: Securing Computer Systems 2

Modular Arithmetic Congruence – a = b (mod N) iff a = b + k. N – Equivalently, a = b (mod N) iff N / (a – b) – ex: 37=27 mod 10 b is the residue of a, modulo N – Ints 0. . N-1 are complete set of residues mod N CIT 380: Securing Computer Systems 3

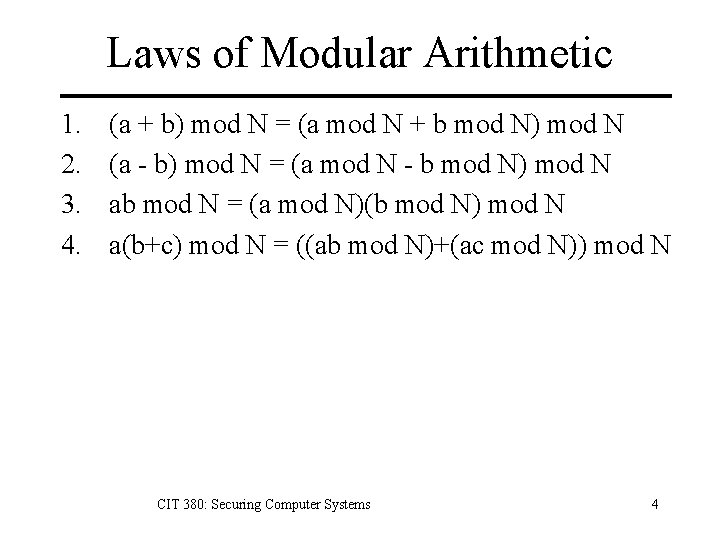

Laws of Modular Arithmetic 1. 2. 3. 4. (a + b) mod N = (a mod N + b mod N) mod N (a - b) mod N = (a mod N - b mod N) mod N ab mod N = (a mod N)(b mod N) mod N a(b+c) mod N = ((ab mod N)+(ac mod N)) mod N CIT 380: Securing Computer Systems 4

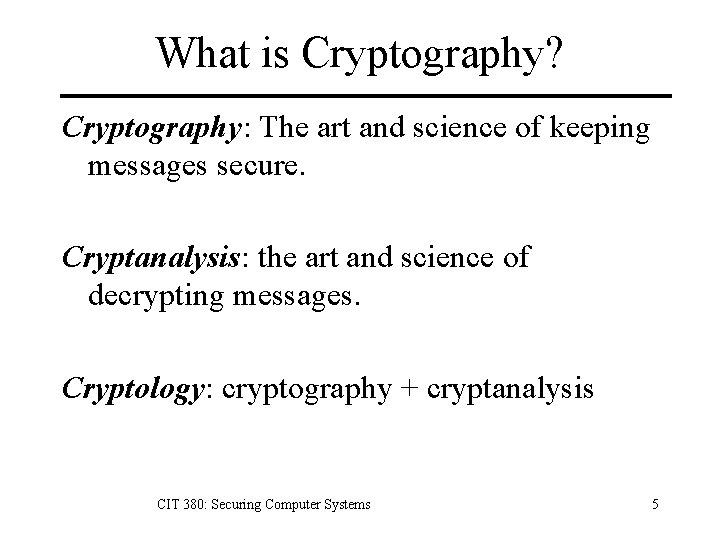

What is Cryptography? Cryptography: The art and science of keeping messages secure. Cryptanalysis: the art and science of decrypting messages. Cryptology: cryptography + cryptanalysis CIT 380: Securing Computer Systems 5

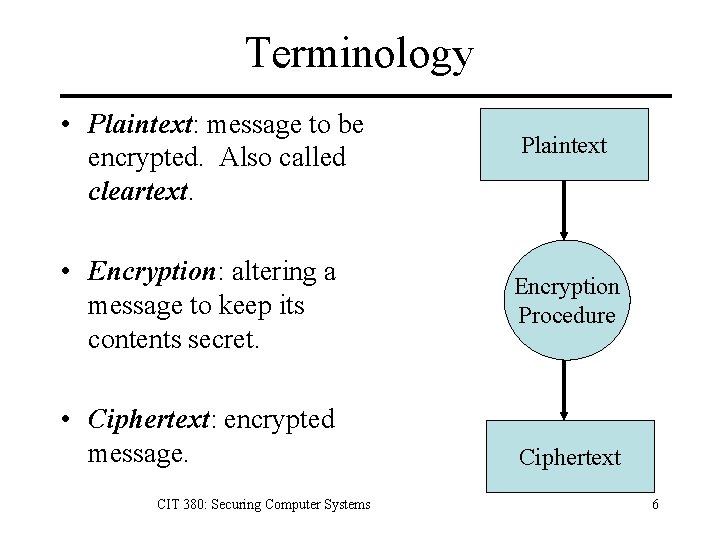

Terminology • Plaintext: message to be encrypted. Also called cleartext. • Encryption: altering a message to keep its contents secret. • Ciphertext: encrypted message. CIT 380: Securing Computer Systems Plaintext Encryption Procedure Ciphertext 6

History of Cryptography Egyptian hieroglyphics ~ 2000 B. C. E. – Cryptic tomb enscriptions for regality. Spartan skytale cipher ~ 500 B. C. E. – Wrapped thin sheet of papyrus around staff. – Messages written down length of staff. – Decrypted by wrapped around = diameter staff. Cæsar cipher ~ 50 B. C. E. – Simple alphabetic substitution cipher. al-Kindi ~ 850 C. E. – Cryptanalysis using letter frequencies. CIT 380: Securing Computer Systems 7

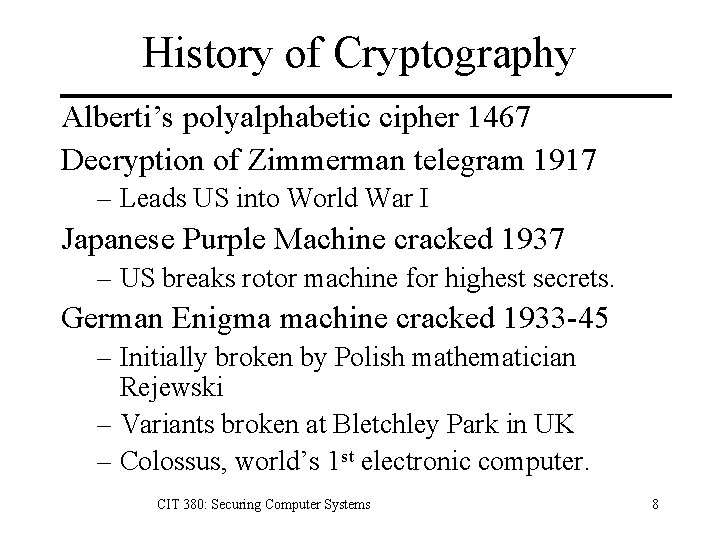

History of Cryptography Alberti’s polyalphabetic cipher 1467 Decryption of Zimmerman telegram 1917 – Leads US into World War I Japanese Purple Machine cracked 1937 – US breaks rotor machine for highest secrets. German Enigma machine cracked 1933 -45 – Initially broken by Polish mathematician Rejewski – Variants broken at Bletchley Park in UK – Colossus, world’s 1 st electronic computer. CIT 380: Securing Computer Systems 8

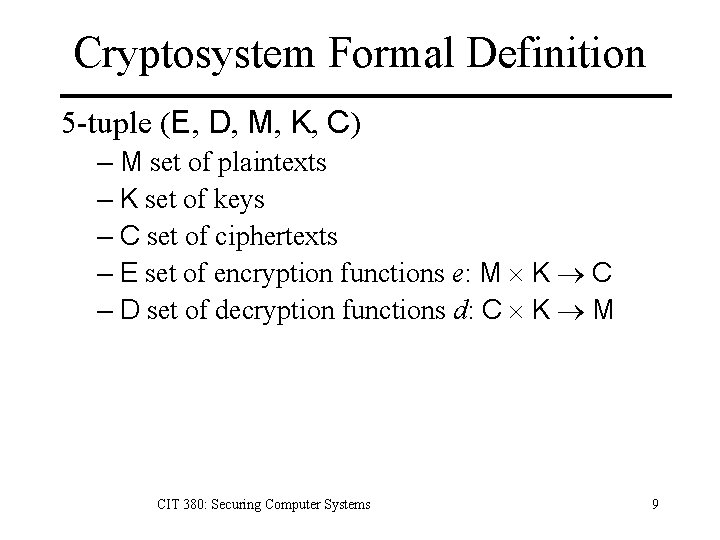

Cryptosystem Formal Definition 5 -tuple (E, D, M, K, C) – M set of plaintexts – K set of keys – C set of ciphertexts – E set of encryption functions e: M K C – D set of decryption functions d: C K M CIT 380: Securing Computer Systems 9

Example: Cæsar cipher Letter shifting cipher (A=>D, B=>E, C=>F, …) 5 -tuple – M = { all sequences of letters } – K = { i | i is an integer and 0 ≤ i ≤ 25 } – E = { Ek | k K and for all letters m, Ek(m) = (m + k) mod 26 } – D = { Dk | k K and for all letters c, Dk(c) = (26 + c – k) mod 26 } – C=M History: Cæsar’s key was 3. CIT 380: Securing Computer Systems 10

Example: Cæsar cipher • Plaintext is HELLO WORLD • Change each letter to the third letter following it (X goes to A, Y to B, Z to C) – Key is 3, usually written as letter ‘D’ • Ciphertext is KHOOR ZRUOG CIT 380: Securing Computer Systems 11

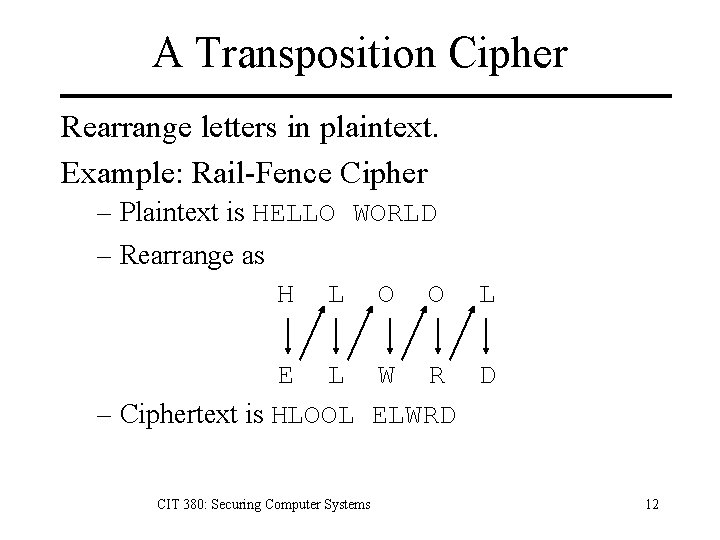

A Transposition Cipher Rearrange letters in plaintext. Example: Rail-Fence Cipher – Plaintext is HELLO WORLD – Rearrange as H L O O L E L W R D – Ciphertext is HLOOL ELWRD CIT 380: Securing Computer Systems 12

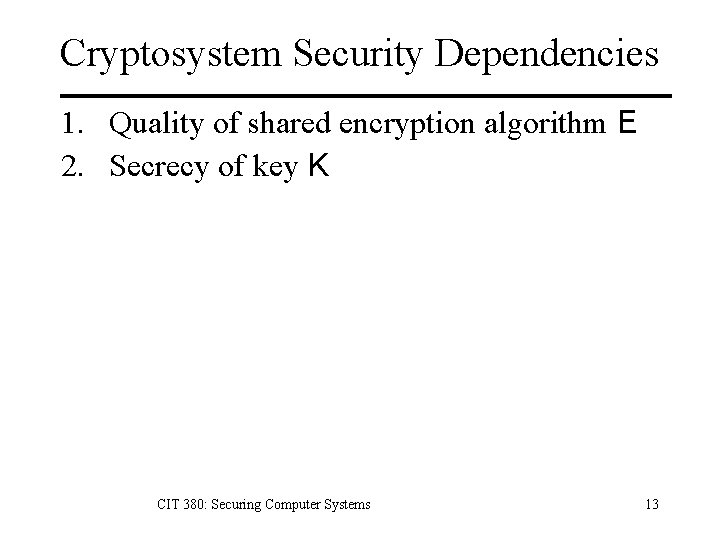

Cryptosystem Security Dependencies 1. Quality of shared encryption algorithm E 2. Secrecy of key K CIT 380: Securing Computer Systems 13

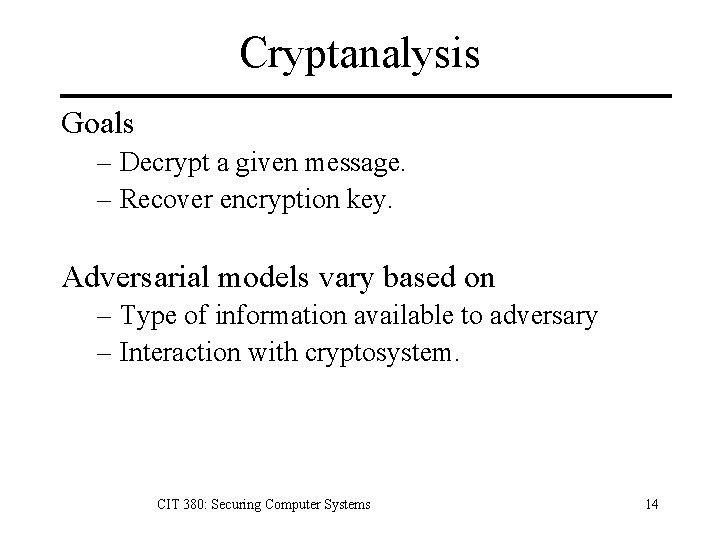

Cryptanalysis Goals – Decrypt a given message. – Recover encryption key. Adversarial models vary based on – Type of information available to adversary – Interaction with cryptosystem. CIT 380: Securing Computer Systems 14

Cryptanalysis Adversarial Models 1. ciphertext only: adversary has only ciphertext; goal is to find plaintext, possibly key. 2. known plaintext: adversary has ciphertext, corresponding plaintext; goal is to find key. 3. chosen plaintext: adversary may supply plaintexts and obtain corresponding ciphertext; goal is to find key. CIT 380: Securing Computer Systems 15

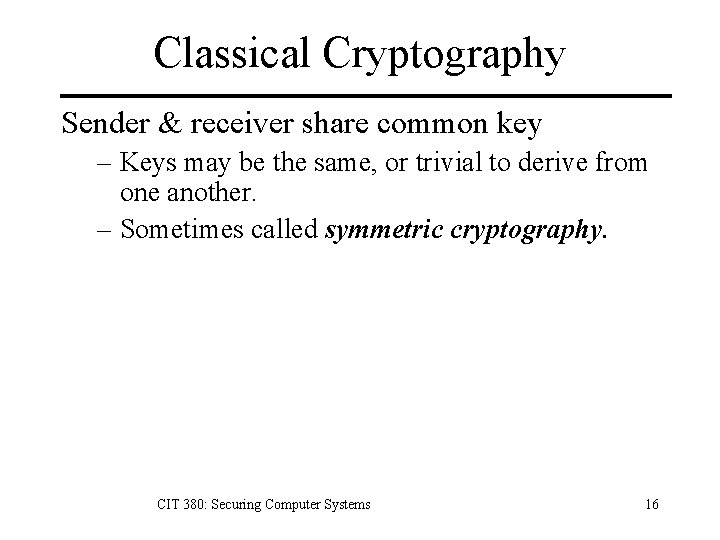

Classical Cryptography Sender & receiver share common key – Keys may be the same, or trivial to derive from one another. – Sometimes called symmetric cryptography. CIT 380: Securing Computer Systems 16

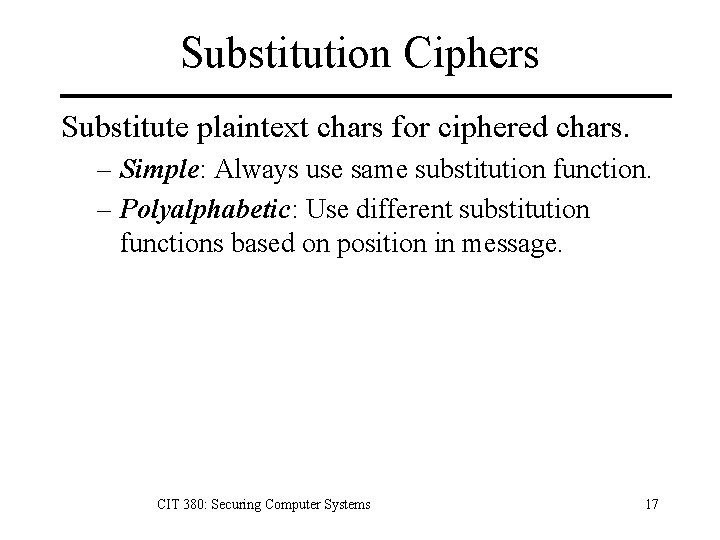

Substitution Ciphers Substitute plaintext chars for ciphered chars. – Simple: Always use same substitution function. – Polyalphabetic: Use different substitution functions based on position in message. CIT 380: Securing Computer Systems 17

Cryptanalysis of Cæsar Cipher Exhaustive search – If the key space is small enough, try all possible keys until you find the right one. – Cæsar cipher has 26 possible keys. CIT 380: Securing Computer Systems 18

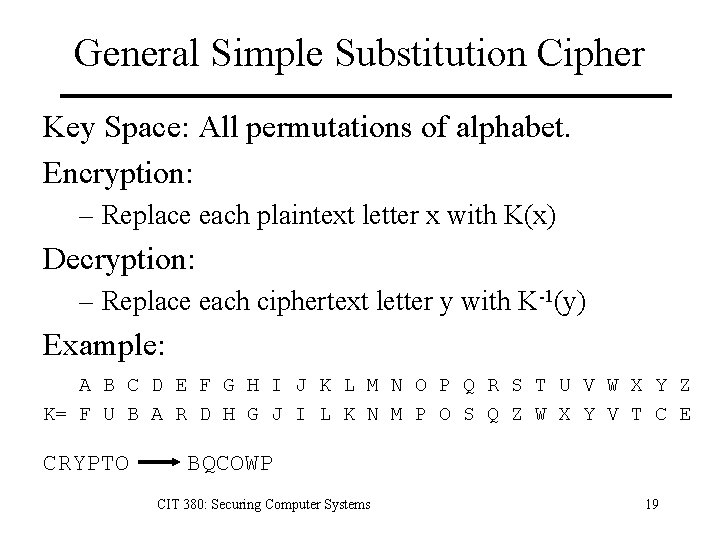

General Simple Substitution Cipher Key Space: All permutations of alphabet. Encryption: – Replace each plaintext letter x with K(x) Decryption: – Replace each ciphertext letter y with K-1(y) Example: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z K= F U B A R D H G J I L K N M P O S Q Z W X Y V T C E CRYPTO BQCOWP CIT 380: Securing Computer Systems 19

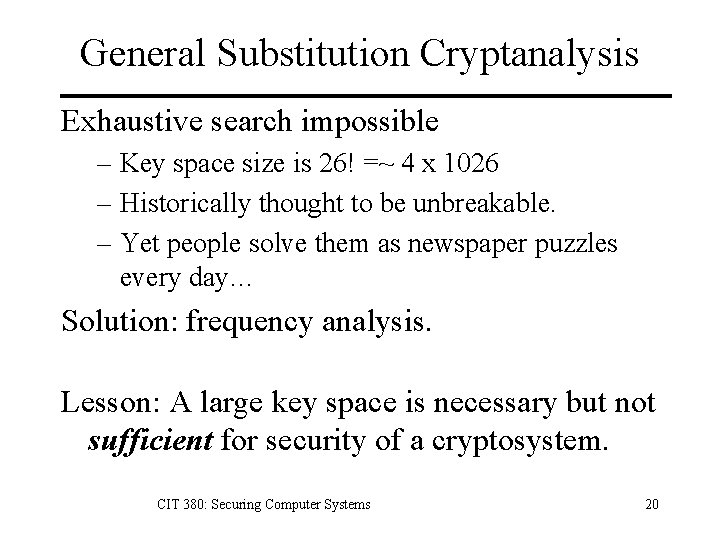

General Substitution Cryptanalysis Exhaustive search impossible – Key space size is 26! =~ 4 x 1026 – Historically thought to be unbreakable. – Yet people solve them as newspaper puzzles every day… Solution: frequency analysis. Lesson: A large key space is necessary but not sufficient for security of a cryptosystem. CIT 380: Securing Computer Systems 20

Cryptanalysis: Frequency Analysis Languages have different frequencies of – letters – digrams (groups of 2 letters) – trigrams (groups of 3 letters) – etc. Simple substitution ciphers preserve frequency distributions. CIT 380: Securing Computer Systems 21

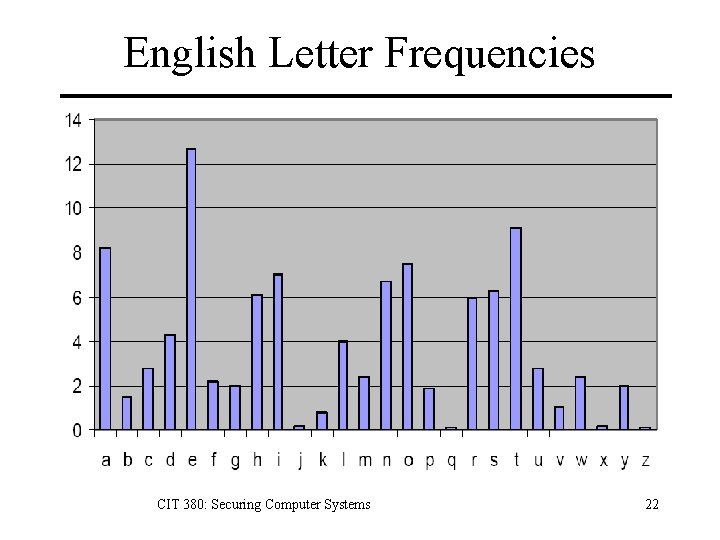

English Letter Frequencies CIT 380: Securing Computer Systems 22

Additional Frequency Features 1. Digram frequencies – Common digraphs: EN, RE, ER, NT, TH 2. Trigram frequencies – Common trigrams: THE, ING, THA, ENT 3. Vowels other than E rarely followed by another vowel. 4. The letter Q is followed only by U. 5. Many others. CIT 380: Securing Computer Systems 23

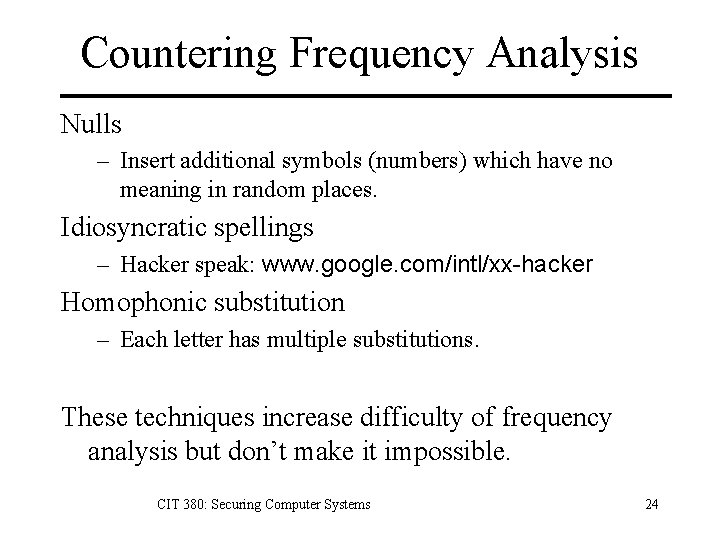

Countering Frequency Analysis Nulls – Insert additional symbols (numbers) which have no meaning in random places. Idiosyncratic spellings – Hacker speak: www. google. com/intl/xx-hacker Homophonic substitution – Each letter has multiple substitutions. These techniques increase difficulty of frequency analysis but don’t make it impossible. CIT 380: Securing Computer Systems 24

Countering Frequency Analysis Primary weakness of simple substition: – Each ciphertext letter corresponds to only one letter of plaintext. Solution: polyalphabetic substitution – Use multiple cipher alphabets. – Switch between cipher alphabets from character to character in the plaintext. CIT 380: Securing Computer Systems 25

Letter Frequency Distributions CIT 380: Securing Computer Systems 26

Vigènere Cipher Use phrase instead of letter as key. Example: – Message THE BOY HAS THE BALL – Key VIG – Encipher using Cæsar cipher for each letter: key VIGVIGVIGV plain THEBOYHASTHEBALL cipher OPKWWECIYOPKWIRG Key space size is 26 m. CIT 380: Securing Computer Systems 27

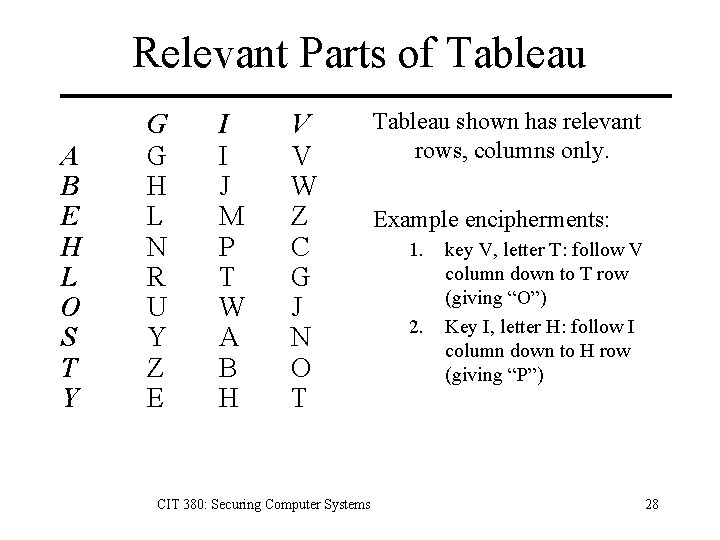

Relevant Parts of Tableau A B E H L O S T Y G G H L N R U Y Z E I I J M P T W A B H V V W Z C G J N O T CIT 380: Securing Computer Systems Tableau shown has relevant rows, columns only. Example encipherments: 1. 2. key V, letter T: follow V column down to T row (giving “O”) Key I, letter H: follow I column down to H row (giving “P”) 28

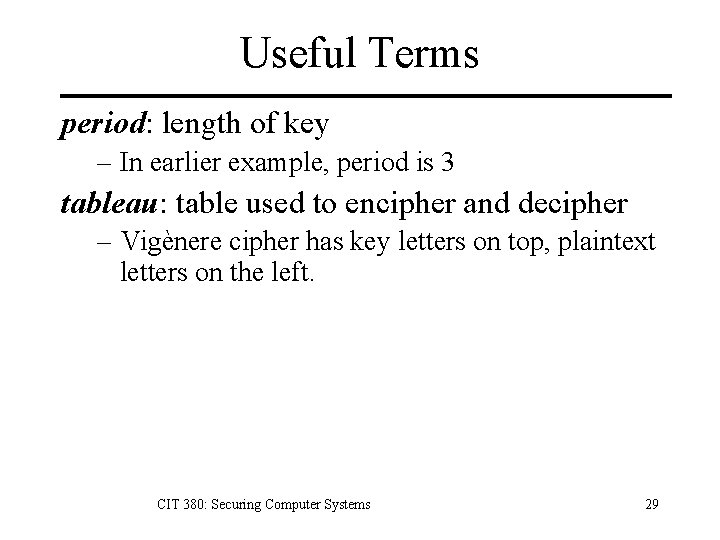

Useful Terms period: length of key – In earlier example, period is 3 tableau: table used to encipher and decipher – Vigènere cipher has key letters on top, plaintext letters on the left. CIT 380: Securing Computer Systems 29

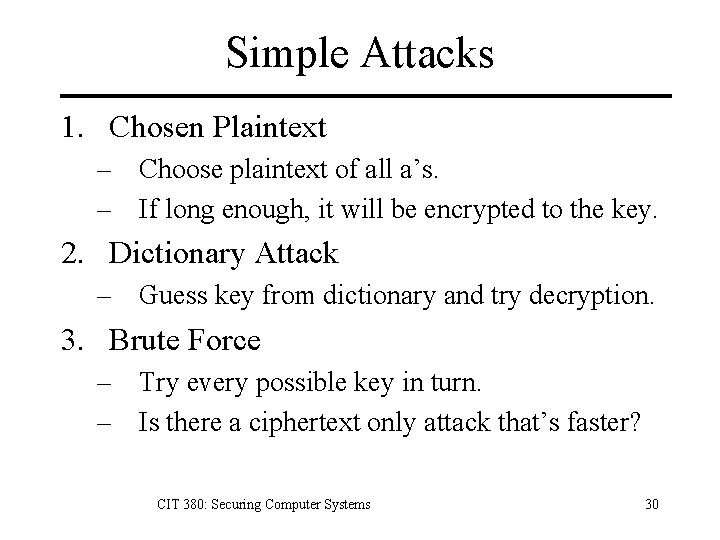

Simple Attacks 1. Chosen Plaintext – Choose plaintext of all a’s. – If long enough, it will be encrypted to the key. 2. Dictionary Attack – Guess key from dictionary and try decryption. 3. Brute Force – Try every possible key in turn. – Is there a ciphertext only attack that’s faster? CIT 380: Securing Computer Systems 30

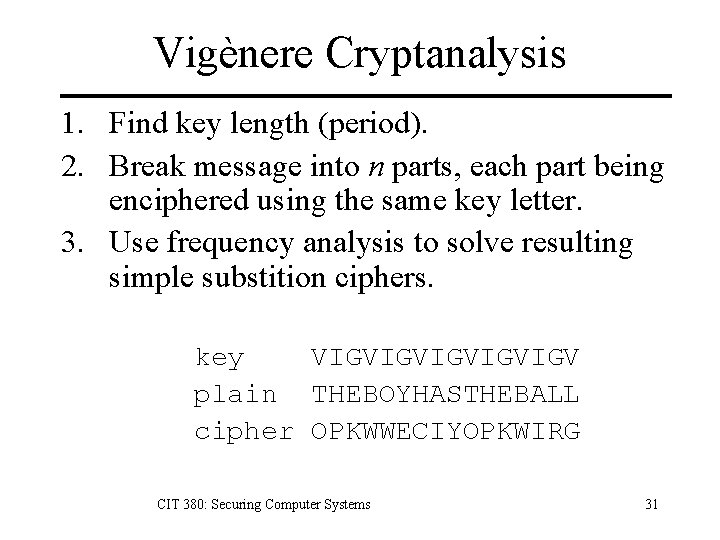

Vigènere Cryptanalysis 1. Find key length (period). 2. Break message into n parts, each part being enciphered using the same key letter. 3. Use frequency analysis to solve resulting simple substition ciphers. key VIGVIGVIGV plain THEBOYHASTHEBALL cipher OPKWWECIYOPKWIRG CIT 380: Securing Computer Systems 31

Kaskski Test • Conjunction of key repetition with repeated portion of plaintext produces repeated ciphertext. • Example: key VIGVIGVIGV plain THEBOYHASTHEBALL cipher OPKWWECIYOPKWIRG Key and plaintext line up over the repetitions. • Distance between reptitions is 9 – Repeated phrase “OPK” at 1 st and 10 th positions. – Period is a multiple of 9 (1, 3 or 9. ) CIT 380: Securing Computer Systems 32

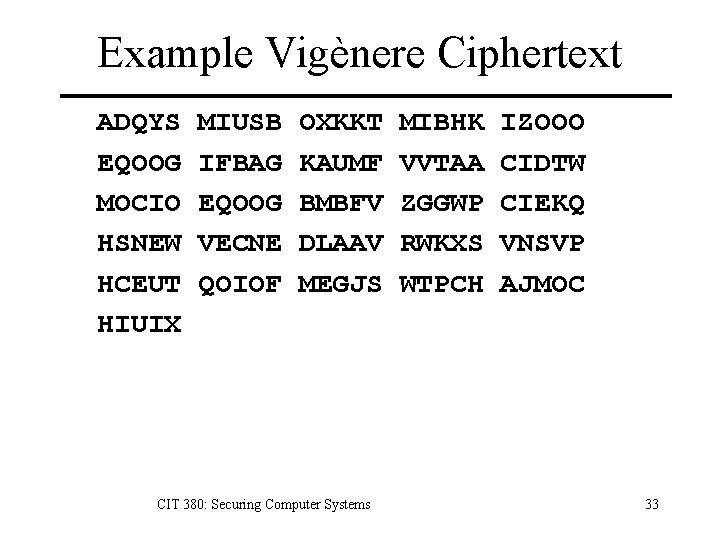

Example Vigènere Ciphertext ADQYS EQOOG MOCIO HSNEW HCEUT HIUIX MIUSB IFBAG EQOOG VECNE QOIOF OXKKT KAUMF BMBFV DLAAV MEGJS CIT 380: Securing Computer Systems MIBHK VVTAA ZGGWP RWKXS WTPCH IZOOO CIDTW CIEKQ VNSVP AJMOC 33

Repetitions in Example Letters Start End Distance Factors MI 5 15 10 2, 5 OO 22 27 5 5 OEQOOG 24 54 30 2, 3, 5 FV 39 63 24 2, 2, 2, 3 AA 43 87 44 2, 2, 11 MOC 50 122 72 2, 2, 2, 3, 3 QO 56 105 49 7, 7 PC 69 117 48 2, 2, 3 NE 77 83 6 2, 3 SV 94 97 3 3 CH 118 124 6 2, 3 CIT 380: Securing Computer Systems 34

Estimate of Period • OEQOOG is probably not a coincidence – Two character repetitions may be chance. – Period may be 1, 2, 3, 5, 6, 10, 15, or 30 • Most others (7/10) have 2 in their factors • Almost as many (6/10) have 3 in their factors. • Begin with period of 2 3 = 6. CIT 380: Securing Computer Systems 35

Letter Coincidence • Coincidence: Picking two letters at random from a message that are identical. • Probability of picking two a’s – Let there be n letters in the ciphertext. – Let there be na a’s in the ciphertext. – The probability of selecting two a’s at random CIT 380: Securing Computer Systems 36

Index of Coincidence Probability of chosing two identical letters Coincidence probabilities for two letters: – English plaintext: 0. 0667 – Random English letters: 1/26 @ 0. 0385 CIT 380: Securing Computer Systems 37

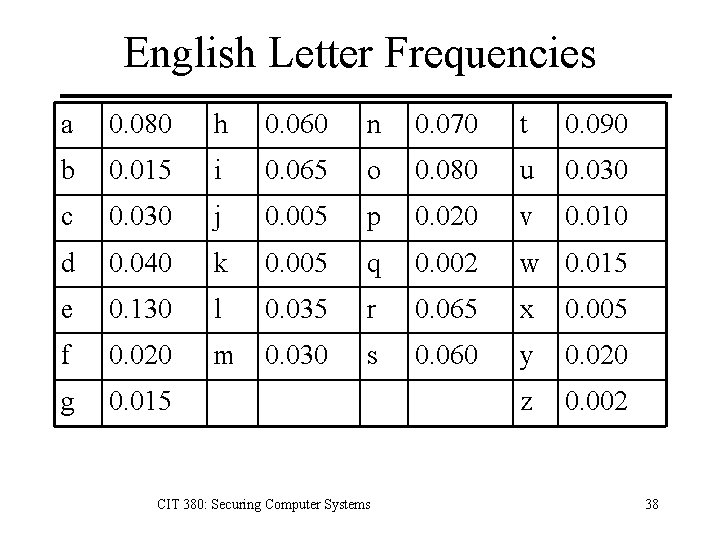

English Letter Frequencies a 0. 080 h 0. 060 n 0. 070 t 0. 090 b 0. 015 i 0. 065 o 0. 080 u 0. 030 c 0. 030 j 0. 005 p 0. 020 v 0. 010 d 0. 040 k 0. 005 q 0. 002 w 0. 015 e 0. 130 l 0. 035 r 0. 065 x 0. 005 f 0. 020 m 0. 030 s 0. 060 y 0. 020 g 0. 015 z 0. 002 CIT 380: Securing Computer Systems 38

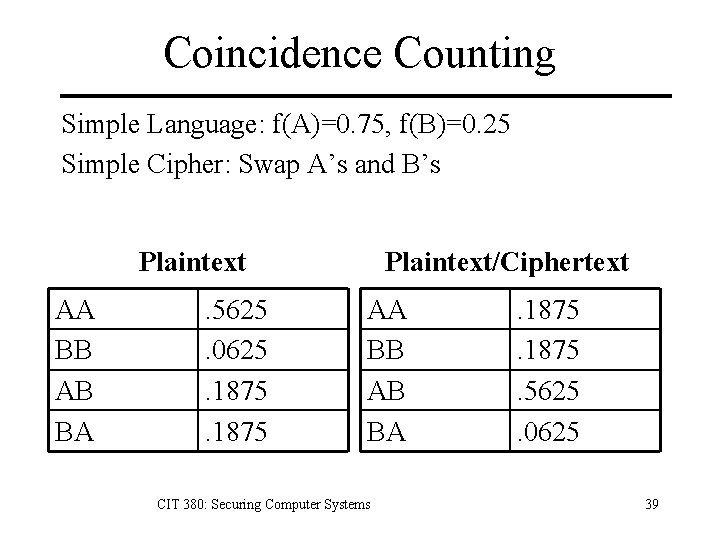

Coincidence Counting Simple Language: f(A)=0. 75, f(B)=0. 25 Simple Cipher: Swap A’s and B’s Plaintext AA BB AB BA . 5625. 0625. 1875 Plaintext/Ciphertext AA BB AB BA CIT 380: Securing Computer Systems . 1875. 5625. 0625 39

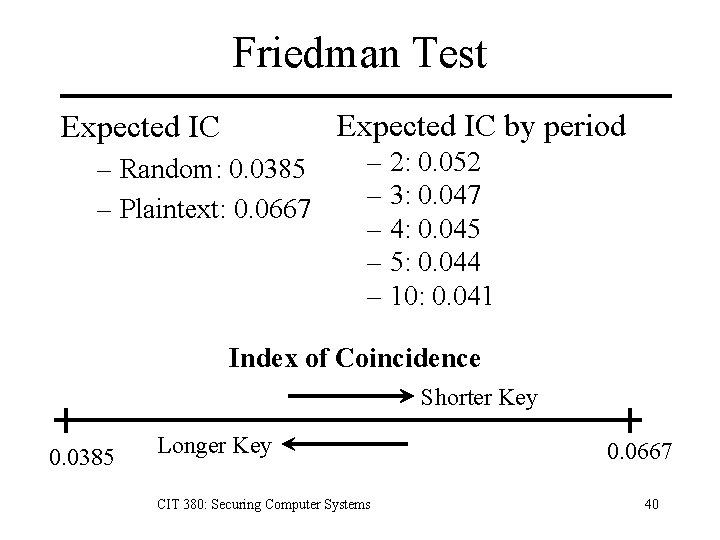

Friedman Test Expected IC by period Expected IC – Random: 0. 0385 – Plaintext: 0. 0667 – 2: 0. 052 – 3: 0. 047 – 4: 0. 045 – 5: 0. 044 – 10: 0. 041 Index of Coincidence Shorter Key 0. 0385 Longer Key CIT 380: Securing Computer Systems 0. 0667 40

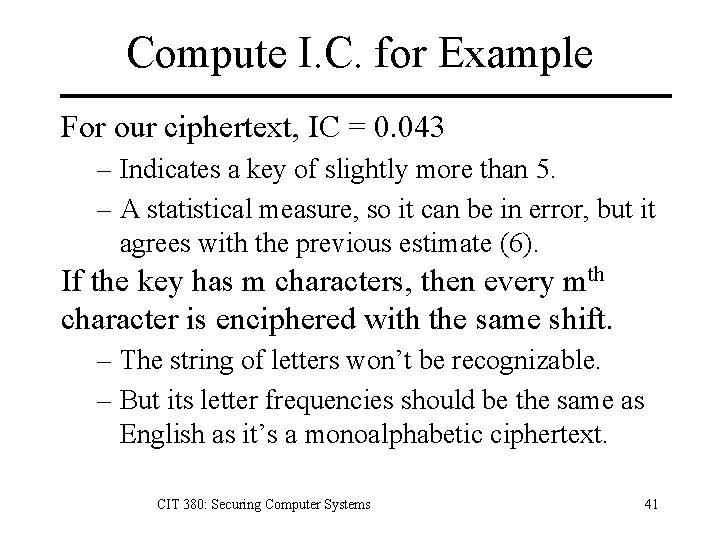

Compute I. C. for Example For our ciphertext, IC = 0. 043 – Indicates a key of slightly more than 5. – A statistical measure, so it can be in error, but it agrees with the previous estimate (6). If the key has m characters, then every mth character is enciphered with the same shift. – The string of letters won’t be recognizable. – But its letter frequencies should be the same as English as it’s a monoalphabetic ciphertext. CIT 380: Securing Computer Systems 41

Splitting Into Alphabets Divide cipher into 6 (period) alphabets. Alphabet AIKHOIATTOBGEEERNEOSAI DUKKEFUAWEMGKWDWSUFWJU QSTIQBMAMQBWQVLKVTMTMI YBMZOAFCOOFPHEAXPQEPOX SOIOOGVICOVCSVASHOGCC MXBOGKVDIGZINNVVCIJHH IC 0. 069 0. 078 0. 056 0. 124 0. 043 IC indicates single alphabet, except #4 and #6. CIT 380: Securing Computer Systems 42

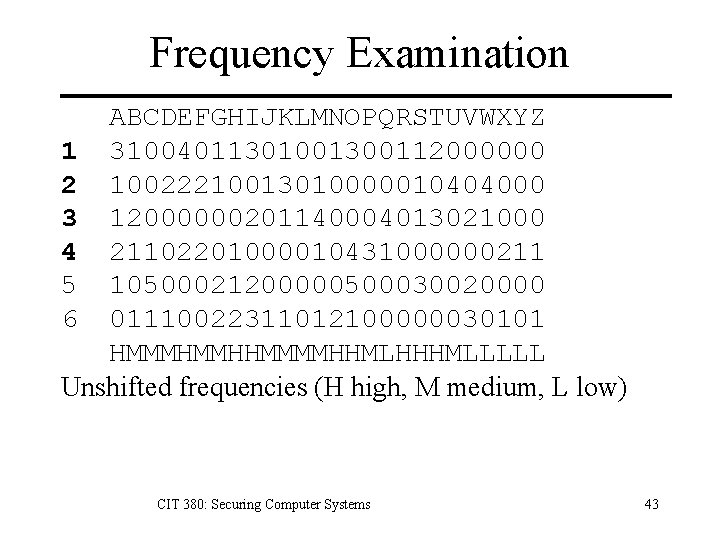

Frequency Examination ABCDEFGHIJKLMNOPQRSTUVWXYZ 1 31004011301001300112000000 2 10022210013010000010404000 3 12000000201140004013021000 4 21102201000010431000000211 5 10500021200000500030020000 6 01110022311012100000030101 HMMMHMMHHMMMMHHMLHHHMLLLLL Unshifted frequencies (H high, M medium, L low) CIT 380: Securing Computer Systems 43

Begin Decryption • • First matches characteristics of unshifted alphabet Third matches if I shifted to A Sixth matches if V shifted to A Substitute into ciphertext (bold are substitutions) ADIYS RIUKB OCKKL MIGHK AZOTO EIOOL IFTAG PAUEF VATAS CIITW EOCNO EIOOL BMTFV EGGOP CNEKI HSSEW NECSE DDAAA RWCXS ANSNP HHEUL QONOF EEGOS WLPCM AJEOC MIUAX CIT 380: Securing Computer Systems 44

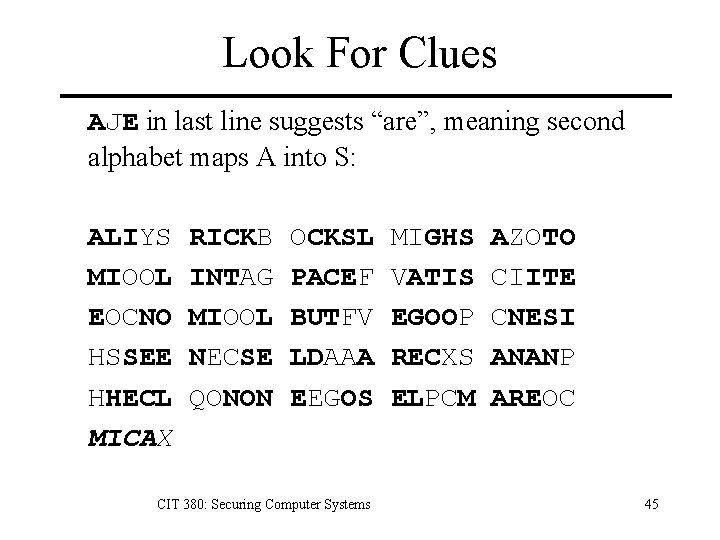

Look For Clues AJE in last line suggests “are”, meaning second alphabet maps A into S: ALIYS MIOOL EOCNO HSSEE HHECL MICAX RICKB INTAG MIOOL NECSE QONON OCKSL PACEF BUTFV LDAAA EEGOS CIT 380: Securing Computer Systems MIGHS VATIS EGOOP RECXS ELPCM AZOTO CIITE CNESI ANANP AREOC 45

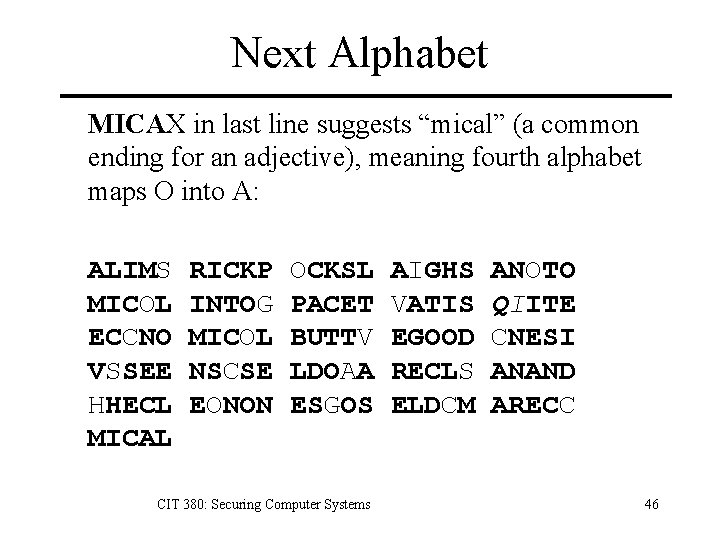

Next Alphabet MICAX in last line suggests “mical” (a common ending for an adjective), meaning fourth alphabet maps O into A: ALIMS MICOL ECCNO VSSEE HHECL MICAL RICKP INTOG MICOL NSCSE EONON OCKSL PACET BUTTV LDOAA ESGOS CIT 380: Securing Computer Systems AIGHS VATIS EGOOD RECLS ELDCM ANOTO QIITE CNESI ANAND ARECC 46

Got It! QI means that U maps into I, as Q is always followed by U: ALIME MICAL ECONO VESEE THECL MICAL RICKP INTOS MICAL NSOSE EANON ACKSL PACET BUTTH LDOMA ESSOS CIT 380: Securing Computer Systems AUGHS HATIS EGOOD RECLE ELDOM ANATO QUITE ONESI ANAND ARECO 47

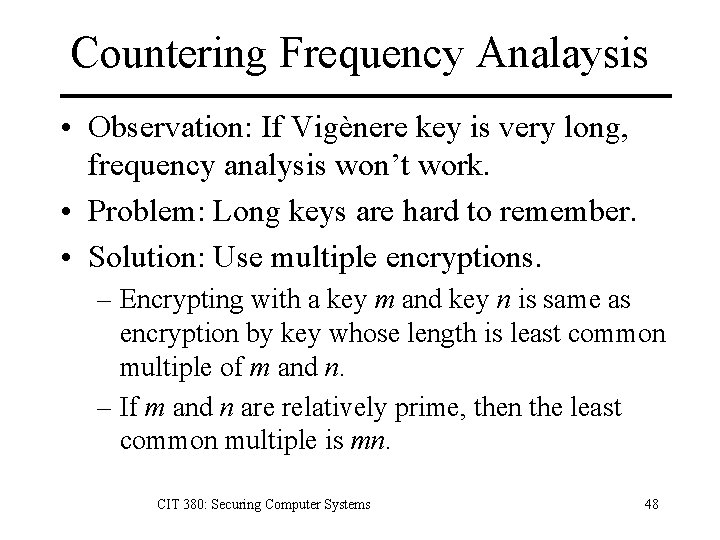

Countering Frequency Analaysis • Observation: If Vigènere key is very long, frequency analysis won’t work. • Problem: Long keys are hard to remember. • Solution: Use multiple encryptions. – Encrypting with a key m and key n is same as encryption by key whose length is least common multiple of m and n. – If m and n are relatively prime, then the least common multiple is mn. CIT 380: Securing Computer Systems 48

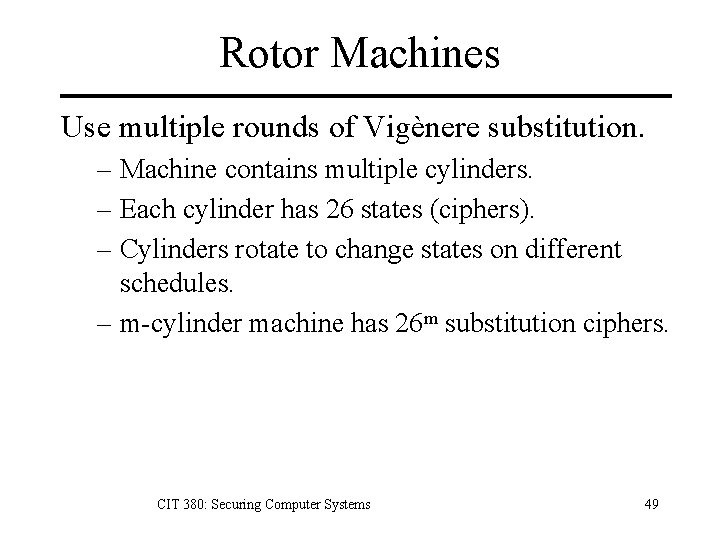

Rotor Machines Use multiple rounds of Vigènere substitution. – Machine contains multiple cylinders. – Each cylinder has 26 states (ciphers). – Cylinders rotate to change states on different schedules. – m-cylinder machine has 26 m substitution ciphers. CIT 380: Securing Computer Systems 49

Enigma Machine • 3 rotors: 17576 substitutions. • 3 rotors can be used in any order: 6 combinations. • Plug board: 6 pairs of letters can be swapped. • Total keys ~ 1016 CIT 380: Securing Computer Systems 50

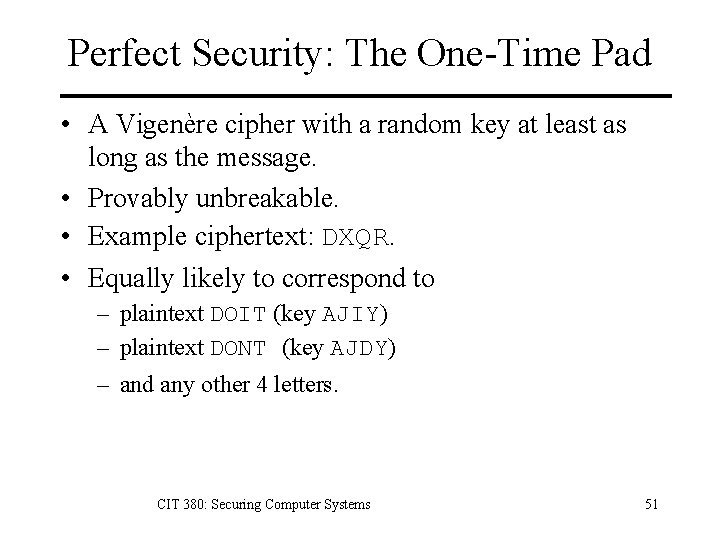

Perfect Security: The One-Time Pad • A Vigenère cipher with a random key at least as long as the message. • Provably unbreakable. • Example ciphertext: DXQR. • Equally likely to correspond to – plaintext DOIT (key AJIY) – plaintext DONT (key AJDY) – and any other 4 letters. CIT 380: Securing Computer Systems 51

One-Time Pad • Warning: keys must be random, or you can attack the cipher by trying to regenerate the key. • Approximations, such as using computer pseudorandom number generators to generate keys, are not random. CIT 380: Securing Computer Systems 52

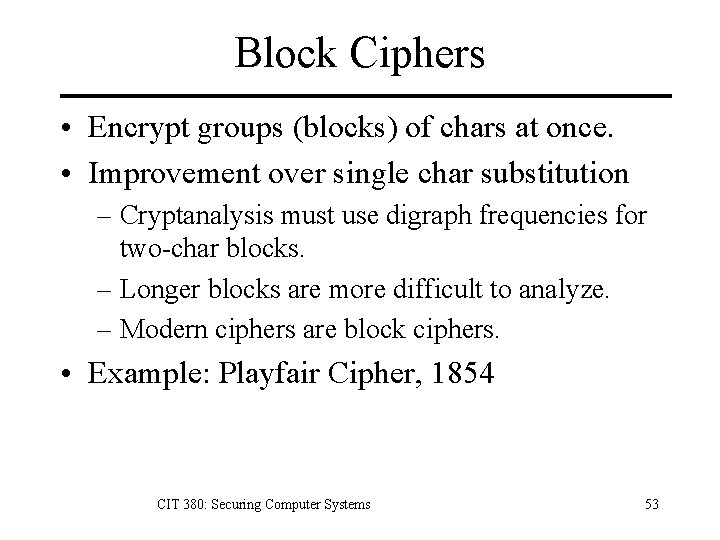

Block Ciphers • Encrypt groups (blocks) of chars at once. • Improvement over single char substitution – Cryptanalysis must use digraph frequencies for two-char blocks. – Longer blocks are more difficult to analyze. – Modern ciphers are block ciphers. • Example: Playfair Cipher, 1854 CIT 380: Securing Computer Systems 53

Playfair Cipher Create 5 x 5 table – Fill in spaces with letters of key, dropping duplicate letters. – Fill remaining spaces with unused letters of alphabet in order • Drop Q … or • I=J CIT 380: Securing Computer Systems P I|J B K T L R C N U A E D O V Y X G Q W F M H S Z 54

Playfair Cipher Encryption Algorithm 1. If letters of pair are identical (or only one letter remains), add an “X” after first letter. 2. If two letters are in same row or column, replace them with the succeeding letters. 3. Otherwise, two letters form a rectangle, and we replace them with letters on the same row respectively at the other pair of corners. CIT 380: Securing Computer Systems 55

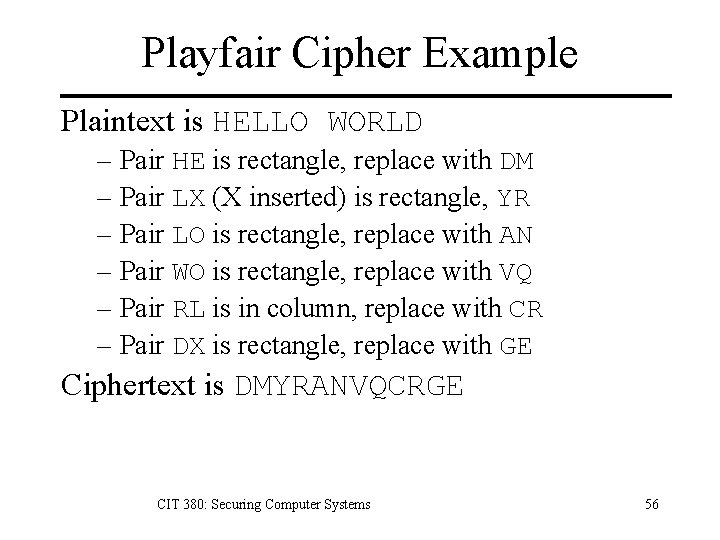

Playfair Cipher Example Plaintext is HELLO WORLD – Pair HE is rectangle, replace with DM – Pair LX (X inserted) is rectangle, YR – Pair LO is rectangle, replace with AN – Pair WO is rectangle, replace with VQ – Pair RL is in column, replace with CR – Pair DX is rectangle, replace with GE Ciphertext is DMYRANVQCRGE CIT 380: Securing Computer Systems 56

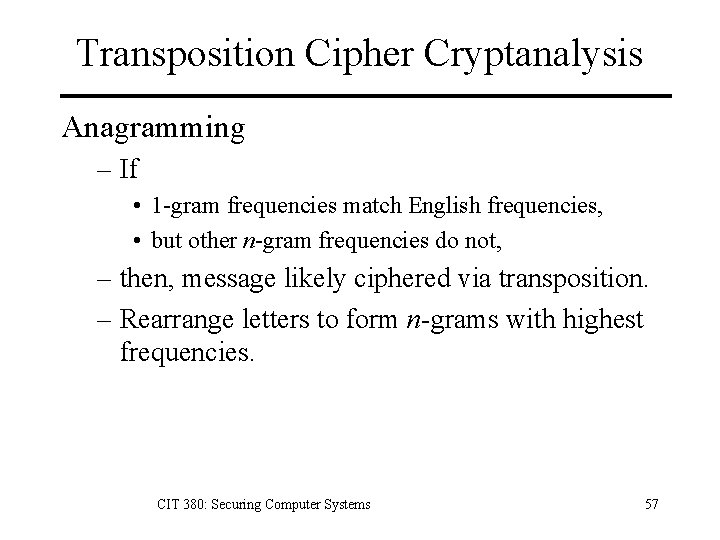

Transposition Cipher Cryptanalysis Anagramming – If • 1 -gram frequencies match English frequencies, • but other n-gram frequencies do not, – then, message likely ciphered via transposition. – Rearrange letters to form n-grams with highest frequencies. CIT 380: Securing Computer Systems 57

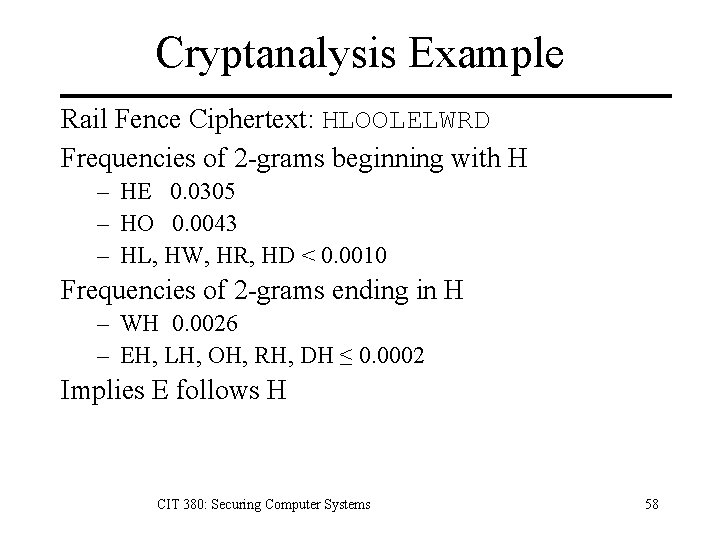

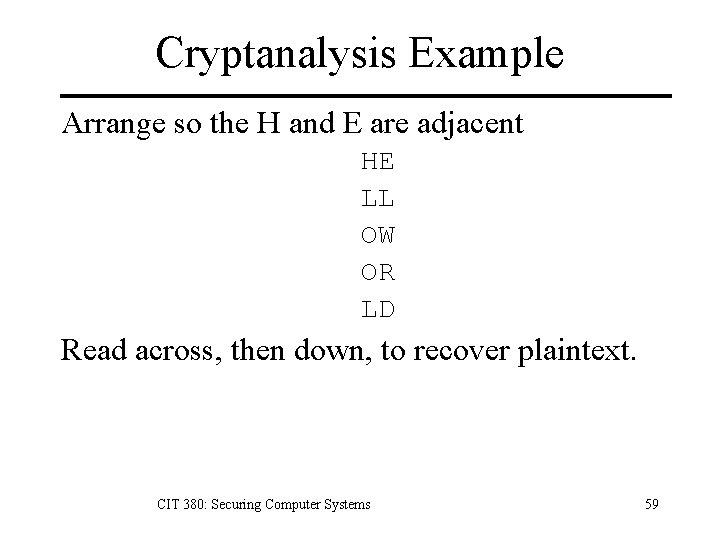

Cryptanalysis Example Rail Fence Ciphertext: HLOOLELWRD Frequencies of 2 -grams beginning with H – HE 0. 0305 – HO 0. 0043 – HL, HW, HR, HD < 0. 0010 Frequencies of 2 -grams ending in H – WH 0. 0026 – EH, LH, OH, RH, DH ≤ 0. 0002 Implies E follows H CIT 380: Securing Computer Systems 58

Cryptanalysis Example Arrange so the H and E are adjacent HE LL OW OR LD Read across, then down, to recover plaintext. CIT 380: Securing Computer Systems 59

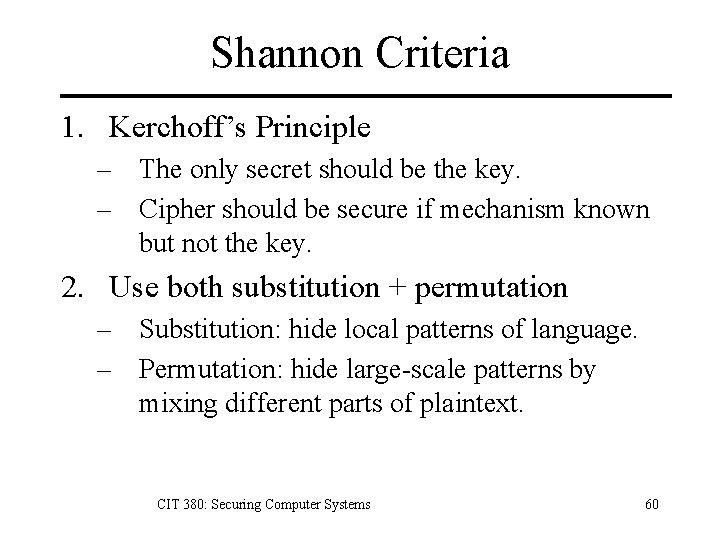

Shannon Criteria 1. Kerchoff’s Principle – The only secret should be the key. – Cipher should be secure if mechanism known but not the key. 2. Use both substitution + permutation – Substitution: hide local patterns of language. – Permutation: hide large-scale patterns by mixing different parts of plaintext. CIT 380: Securing Computer Systems 60

SP-Networks Combine Substitution+Permutation (transposition) – Substitution: adding unknown key values will confuse attacker about value of plaintext symbol. – Permutation: Transposing text to ensure nothing is left in its original position. Designing for Security – Block Size – Number of Rounds • Each input bit is XOR of several output bits from previous round. – Choice of S-boxes CIT 380: Securing Computer Systems 61

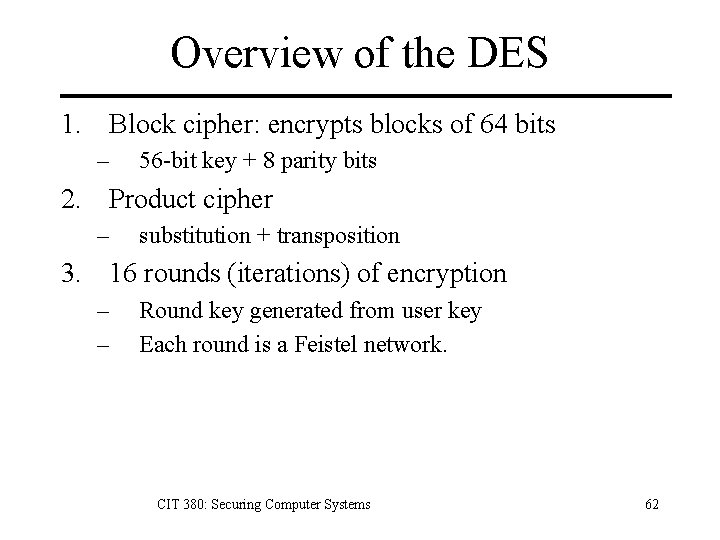

Overview of the DES 1. Block cipher: encrypts blocks of 64 bits – 56 -bit key + 8 parity bits 2. Product cipher – substitution + transposition 3. 16 rounds (iterations) of encryption – – Round key generated from user key Each round is a Feistel network. CIT 380: Securing Computer Systems 62

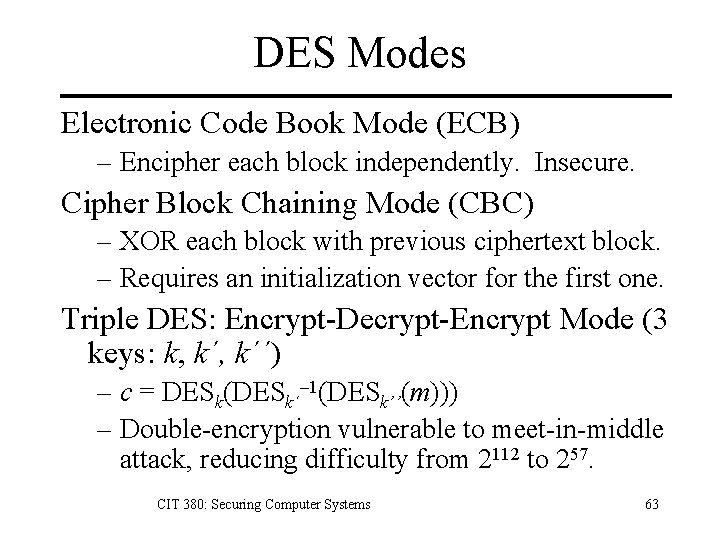

DES Modes Electronic Code Book Mode (ECB) – Encipher each block independently. Insecure. Cipher Block Chaining Mode (CBC) – XOR each block with previous ciphertext block. – Requires an initialization vector for the first one. Triple DES: Encrypt-Decrypt-Encrypt Mode (3 keys: k, k´´) – c = DESk(DESk´– 1(DESk’’(m))) – Double-encryption vulnerable to meet-in-middle attack, reducing difficulty from 2112 to 257. CIT 380: Securing Computer Systems 63

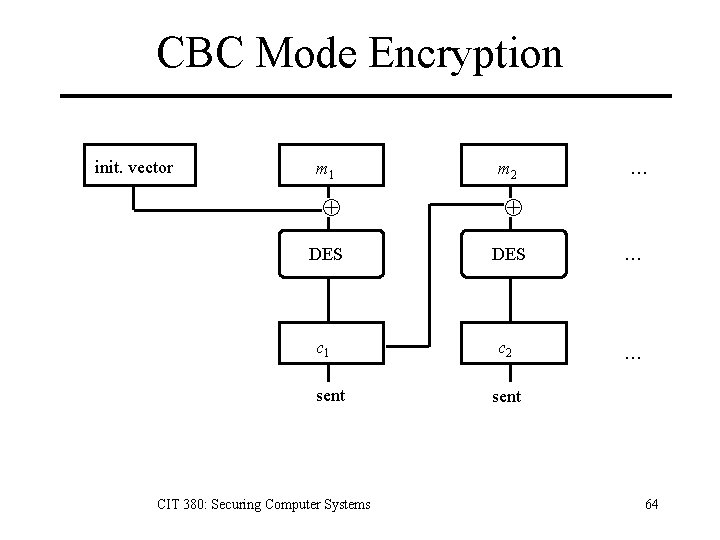

CBC Mode Encryption init. vector m 1 m 2 … DES … c 1 c 2 … sent CIT 380: Securing Computer Systems sent 64

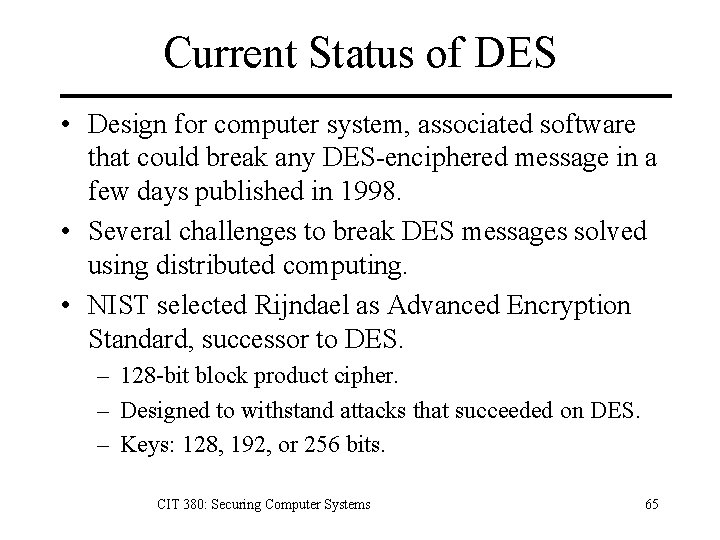

Current Status of DES • Design for computer system, associated software that could break any DES-enciphered message in a few days published in 1998. • Several challenges to break DES messages solved using distributed computing. • NIST selected Rijndael as Advanced Encryption Standard, successor to DES. – 128 -bit block product cipher. – Designed to withstand attacks that succeeded on DES. – Keys: 128, 192, or 256 bits. CIT 380: Securing Computer Systems 65

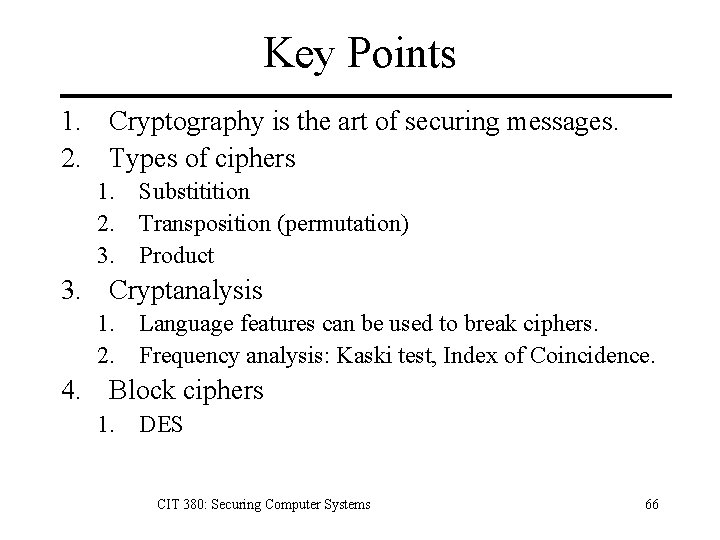

Key Points 1. Cryptography is the art of securing messages. 2. Types of ciphers 1. Substitition 2. Transposition (permutation) 3. Product 3. Cryptanalysis 1. Language features can be used to break ciphers. 2. Frequency analysis: Kaski test, Index of Coincidence. 4. Block ciphers 1. DES CIT 380: Securing Computer Systems 66

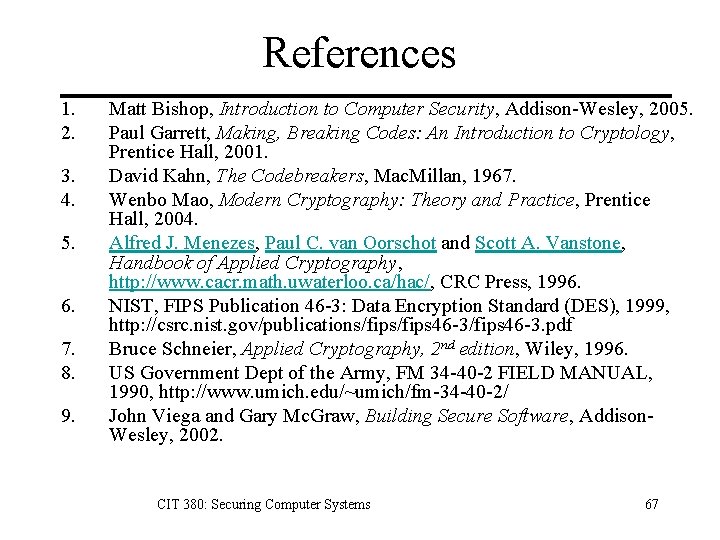

References 1. 2. 3. 4. 5. 6. 7. 8. 9. Matt Bishop, Introduction to Computer Security, Addison-Wesley, 2005. Paul Garrett, Making, Breaking Codes: An Introduction to Cryptology, Prentice Hall, 2001. David Kahn, The Codebreakers, Mac. Millan, 1967. Wenbo Mao, Modern Cryptography: Theory and Practice, Prentice Hall, 2004. Alfred J. Menezes, Paul C. van Oorschot and Scott A. Vanstone, Handbook of Applied Cryptography, http: //www. cacr. math. uwaterloo. ca/hac/, CRC Press, 1996. NIST, FIPS Publication 46 -3: Data Encryption Standard (DES), 1999, http: //csrc. nist. gov/publications/fips 46 -3/fips 46 -3. pdf Bruce Schneier, Applied Cryptography, 2 nd edition, Wiley, 1996. US Government Dept of the Army, FM 34 -40 -2 FIELD MANUAL, 1990, http: //www. umich. edu/~umich/fm-34 -40 -2/ John Viega and Gary Mc. Graw, Building Secure Software, Addison. Wesley, 2002. CIT 380: Securing Computer Systems 67
