USTER® - 'Think Quality' The Way to Think Quality ITMA 2007 Preview Conference Flavio Carraro Università degli studi di Bergamo 10. 07. 2007

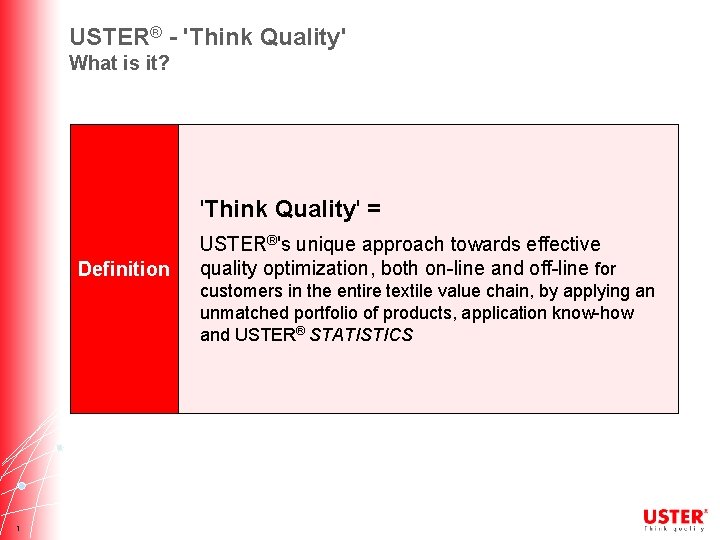

USTER® - 'Think Quality' What is it? 'Think Quality' = Definition USTER®'s unique approach towards effective quality optimization, both on-line and off-line for customers in the entire textile value chain, by applying an unmatched portfolio of products, application know-how and USTER® STATISTICS 1

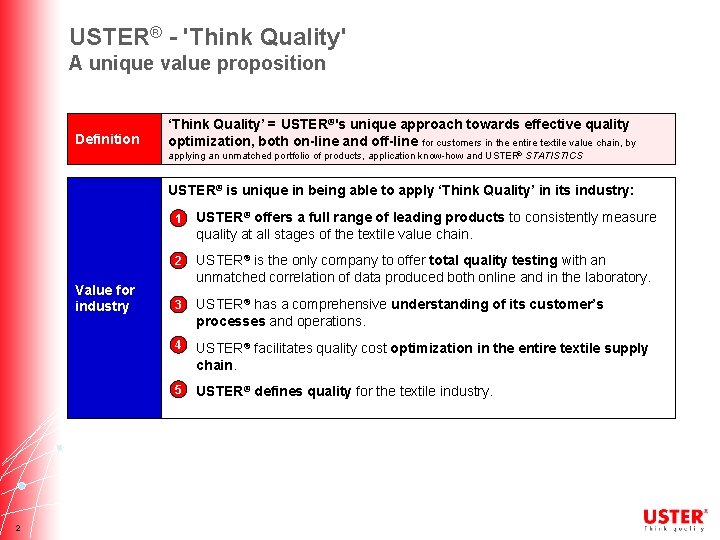

USTER® - 'Think Quality' A unique value proposition Definition ‘Think Quality’ = USTER®'s unique approach towards effective quality optimization, both on-line and off-line for customers in the entire textile value chain, by applying an unmatched portfolio of products, application know-how and USTER® STATISTICS USTER® is unique in being able to apply ‘Think Quality’ in its industry: Value for industry 2 1 USTER® offers a full range of leading products to consistently measure quality at all stages of the textile value chain. 2 USTER® is the only company to offer total quality testing with an unmatched correlation of data produced both online and in the laboratory. 3 USTER® has a comprehensive understanding of its customer’s processes and operations. 4 USTER® facilitates quality cost optimization in the entire textile supply chain. 5 USTER® defines quality for the textile industry.

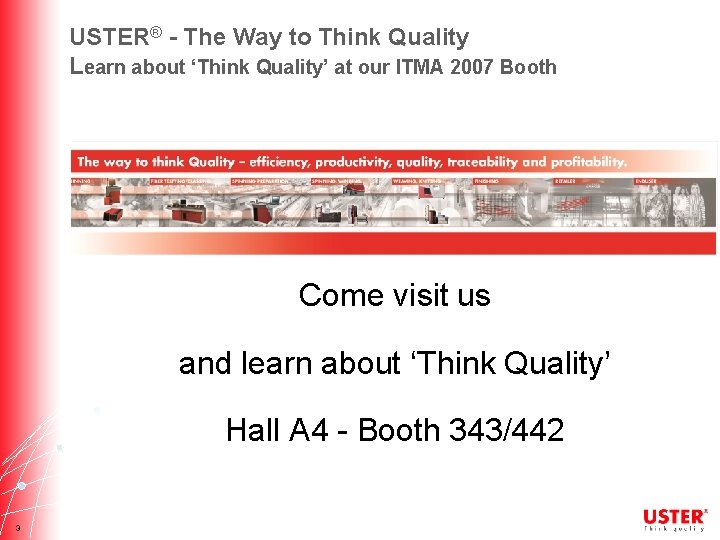

USTER® - The Way to Think Quality Learn about ‘Think Quality’ at our ITMA 2007 Booth Come visit us and learn about ‘Think Quality’ Hall A 4 - Booth 343/442 3

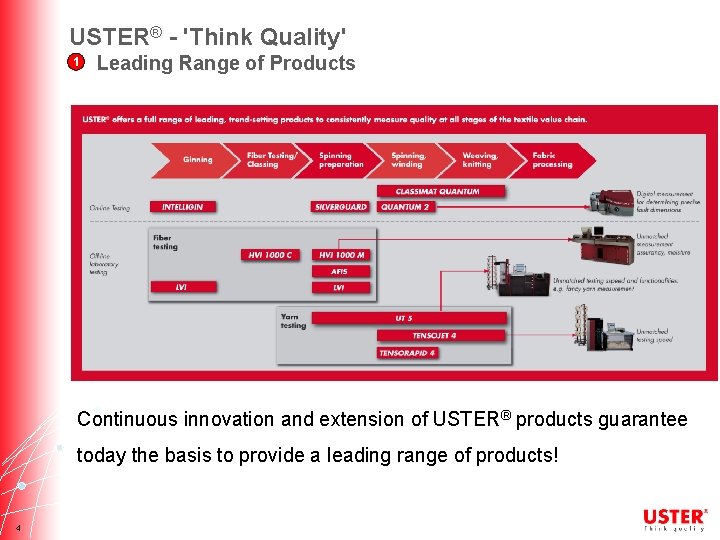

USTER® - 'Think Quality' 1 Leading Range of Products Continuous innovation and extension of USTER® products guarantee today the basis to provide a leading range of products! 4

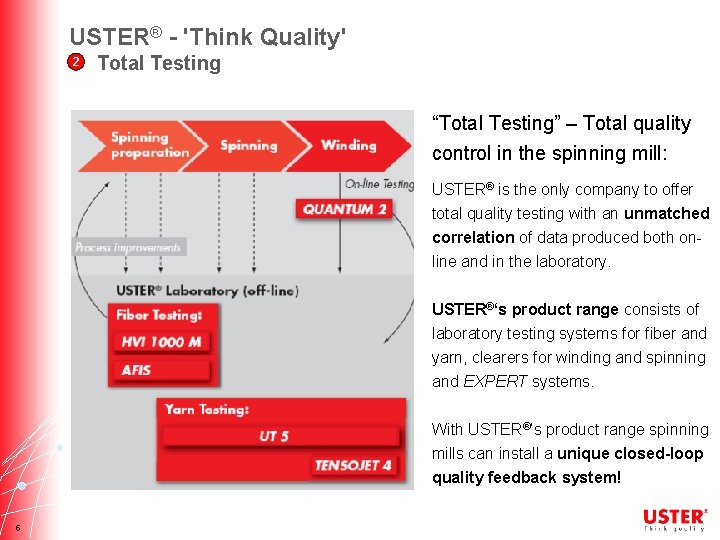

USTER® - 'Think Quality' 2 Total Testing “Total Testing” – Total quality control in the spinning mill: USTER® is the only company to offer total quality testing with an unmatched correlation of data produced both online and in the laboratory. USTER®‘s product range consists of laboratory testing systems for fiber and yarn, clearers for winding and spinning and EXPERT systems. With USTER®’s product range spinning mills can install a unique closed-loop quality feedback system! 5

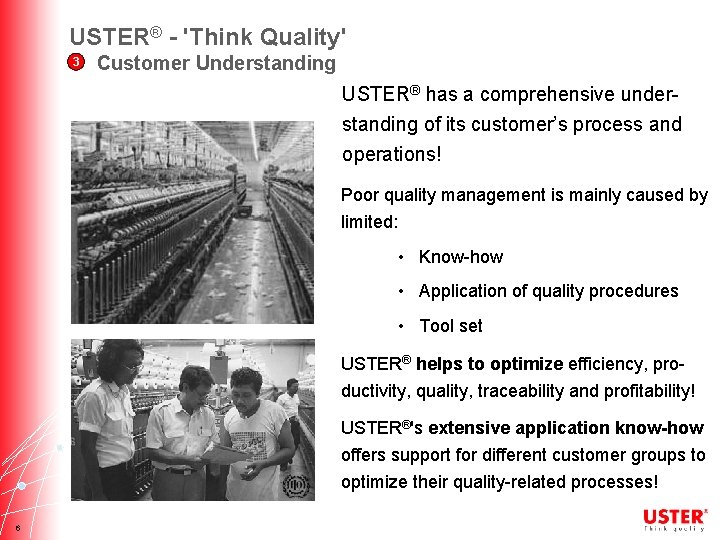

USTER® - 'Think Quality' 3 Customer Understanding USTER® has a comprehensive understanding of its customer’s process and operations! Poor quality management is mainly caused by limited: • Know-how • Application of quality procedures • Tool set USTER® helps to optimize efficiency, productivity, quality, traceability and profitability! USTER®'s extensive application know-how offers support for different customer groups to optimize their quality-related processes! 6

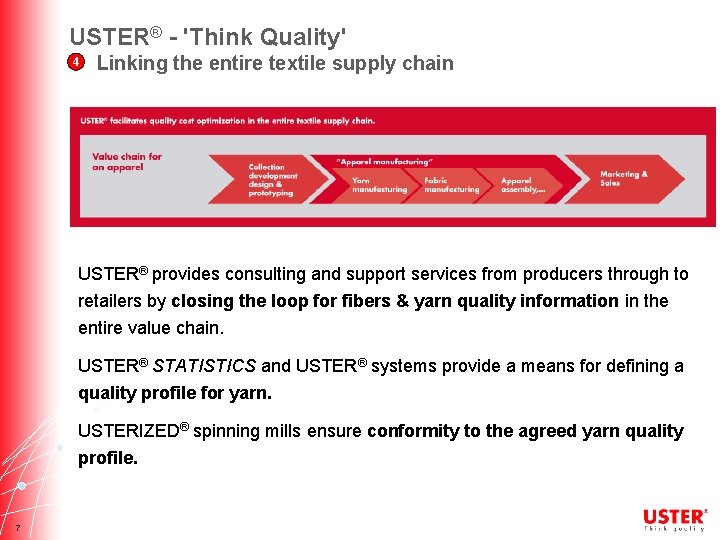

USTER® - 'Think Quality' 4 Linking the entire textile supply chain USTER® provides consulting and support services from producers through to retailers by closing the loop for fibers & yarn quality information in the entire value chain. USTER® STATISTICS and USTER® systems provide a means for defining a quality profile for yarn. USTERIZED® spinning mills ensure conformity to the agreed yarn quality profile. 7

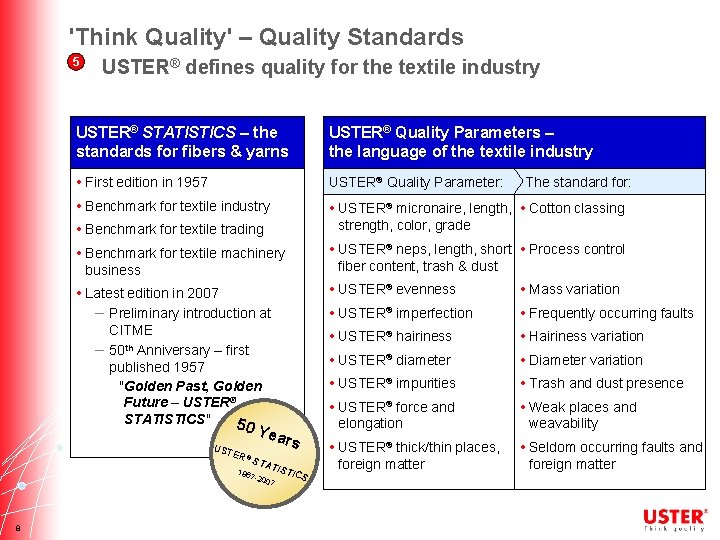

'Think Quality' – Quality Standards 5 USTER® defines quality for the textile industry USTER® STATISTICS – the standards for fibers & yarns USTER® Quality Parameters – the language of the textile industry • First edition in 1957 • Benchmark for textile industry • Benchmark for textile trading • Benchmark for textile machinery USTER® Quality Parameter: • USTER® micronaire, length, • Cotton classing strength, color, grade • USTER® neps, length, short • Process control fiber content, trash & dust business • USTER® evenness • USTER® imperfection • USTER® hairiness • USTER® diameter • USTER® impurities • USTER® force and • Latest edition in 2007 – Preliminary introduction at CITME – 50 th Anniversary – first published 1957 "Golden Past, Golden Future – USTER® STATISTICS" 5 UST 0 Ye ars ER ® 195 STA TIST 7 -20 0 8 7 The standard for: ICS elongation • USTER® thick/thin places, foreign matter • Mass variation • Frequently occurring faults • Hairiness variation • Diameter variation • Trash and dust presence • Weak places and weavability • Seldom occurring faults and foreign matter

USTER® - 'Think Quality' 5 USTER® STATISTICS Golden Past – Golden Future USTER® STATISTICS – the standards for fibers & yarns! USTER® Quality Parameters – the language of the textile industry! During the ITMA MUNICH USTER® will celebrate the 50 th anniversary of its USTER® STATISTICS 9

USTER® STATISTICS 2007 Sandra Edalat-Pour April 2007

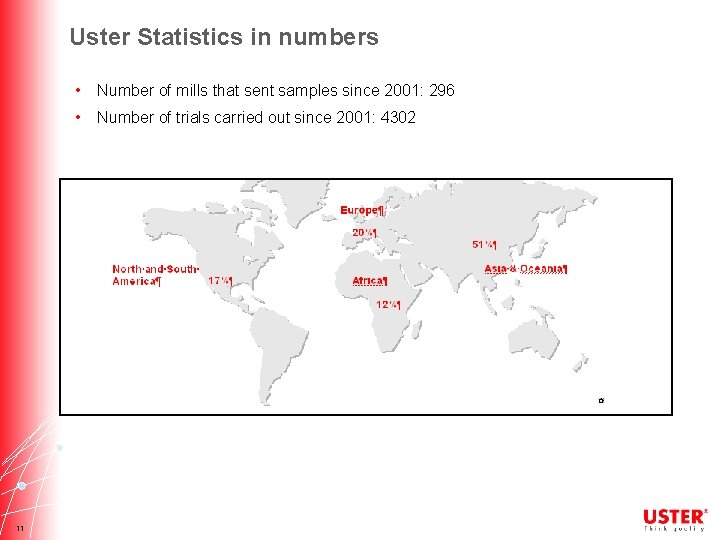

Uster Statistics in numbers • Number of mills that sent samples since 2001: 296 • Number of trials carried out since 2001: 4302 11

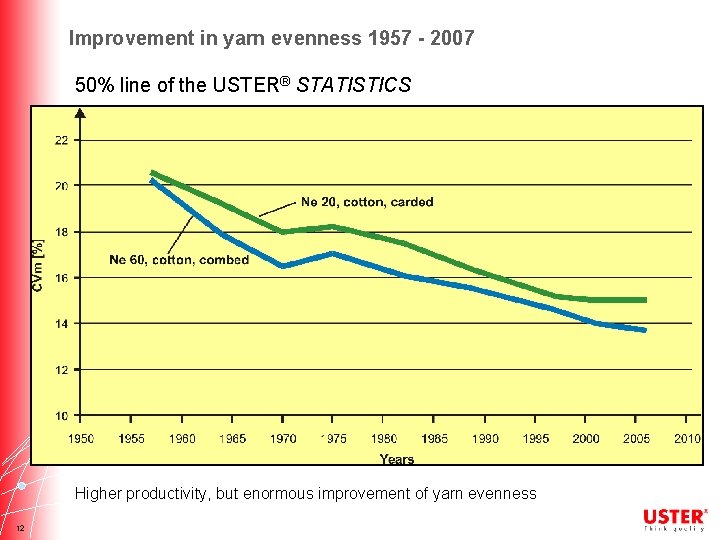

Improvement in yarn evenness 1957 - 2007 50% line of the USTER® STATISTICS Higher productivity, but enormous improvement of yarn evenness 12

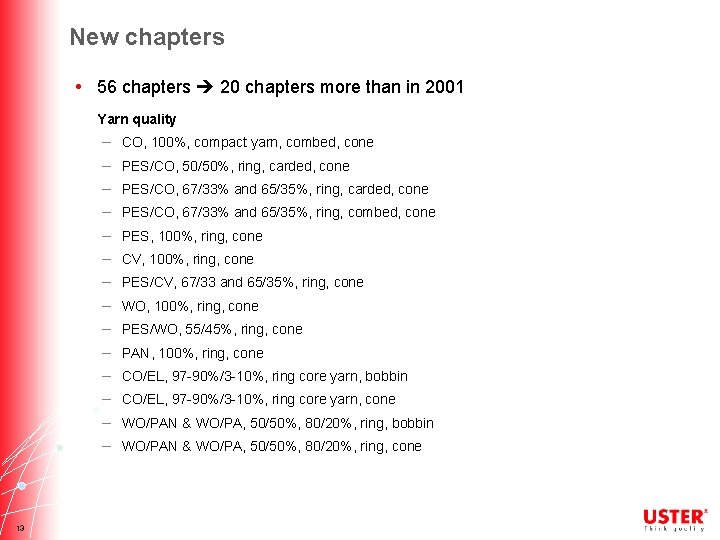

New chapters • 56 chapters 20 chapters more than in 2001 Yarn quality – – – – 13 CO, 100%, compact yarn, combed, cone PES/CO, 50/50%, ring, carded, cone PES/CO, 67/33% and 65/35%, ring, combed, cone PES, 100%, ring, cone CV, 100%, ring, cone PES/CV, 67/33 and 65/35%, ring, cone WO, 100%, ring, cone PES/WO, 55/45%, ring, cone PAN, 100%, ring, cone CO/EL, 97 -90%/3 -10%, ring core yarn, bobbin CO/EL, 97 -90%/3 -10%, ring core yarn, cone WO/PAN & WO/PA, 50/50%, 80/20%, ring, bobbin WO/PAN & WO/PA, 50/50%, 80/20%, ring, cone

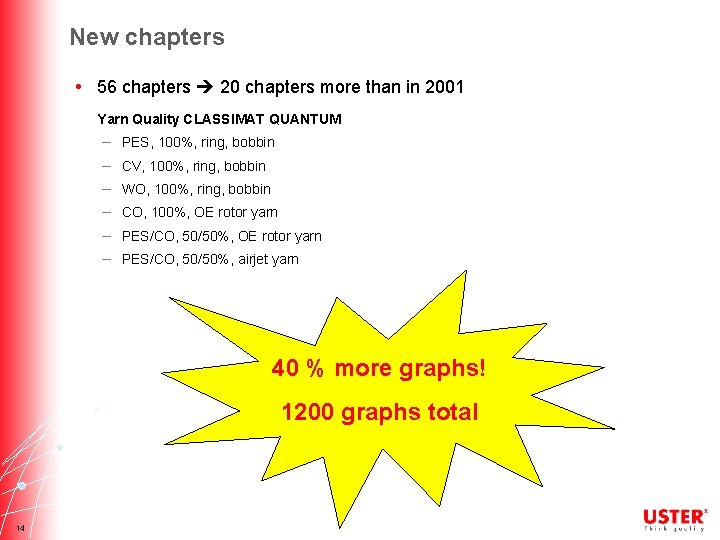

New chapters • 56 chapters 20 chapters more than in 2001 Yarn Quality CLASSIMAT QUANTUM – – – PES, 100%, ring, bobbin CV, 100%, ring, bobbin WO, 100%, ring, bobbin CO, 100%, OE rotor yarn PES/CO, 50/50%, airjet yarn 40 % more graphs! 1200 graphs total 14

USTER® TESTER 5 The yarn inspection system Fancy Yarn Profile Gabriela Peters, June 2007

USTER® TESTER 5 The yarn inspection system General

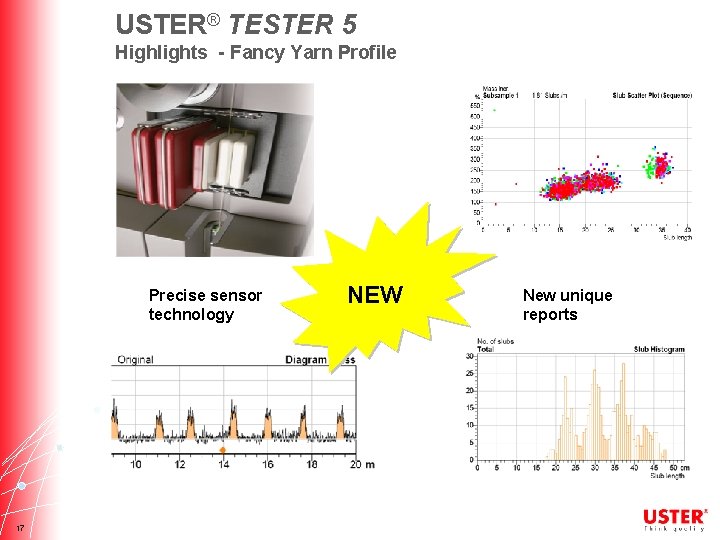

USTER® TESTER 5 Highlights - Fancy Yarn Profile Precise sensor technology 17 NEW New unique reports

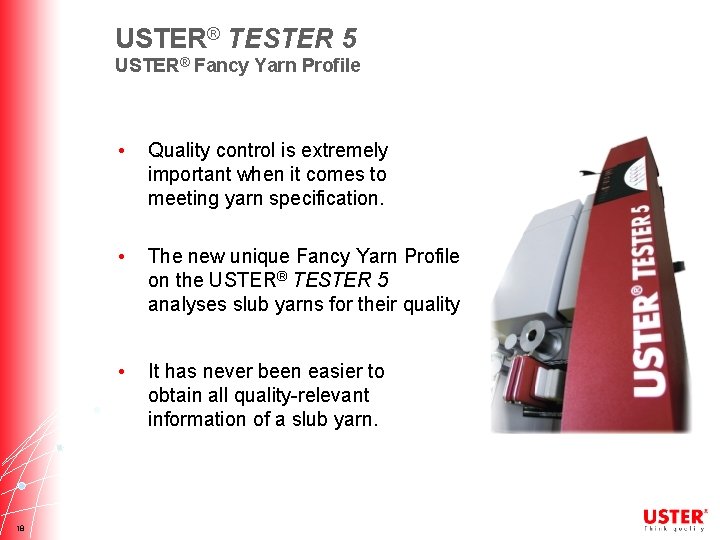

USTER® TESTER 5 USTER® Fancy Yarn Profile 18 • Quality control is extremely important when it comes to meeting yarn specification. • The new unique Fancy Yarn Profile on the USTER® TESTER 5 analyses slub yarns for their quality. • It has never been easier to obtain all quality-relevant information of a slub yarn.

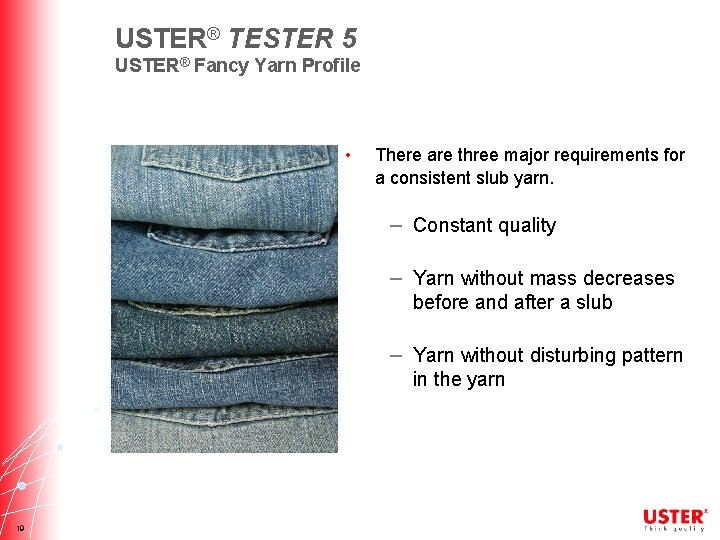

USTER® TESTER 5 USTER® Fancy Yarn Profile • There are three major requirements for a consistent slub yarn. – Constant quality – Yarn without mass decreases before and after a slub – Yarn without disturbing pattern in the yarn 19

USTER® TESTER 5 The yarn inspection system Features

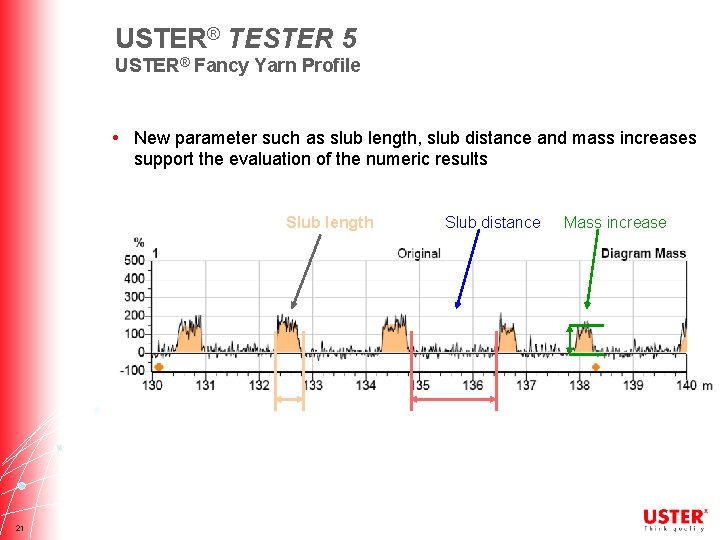

USTER® TESTER 5 USTER® Fancy Yarn Profile • New parameter such as slub length, slub distance and mass increases support the evaluation of the numeric results Slub length 21 Slub distance Mass increase

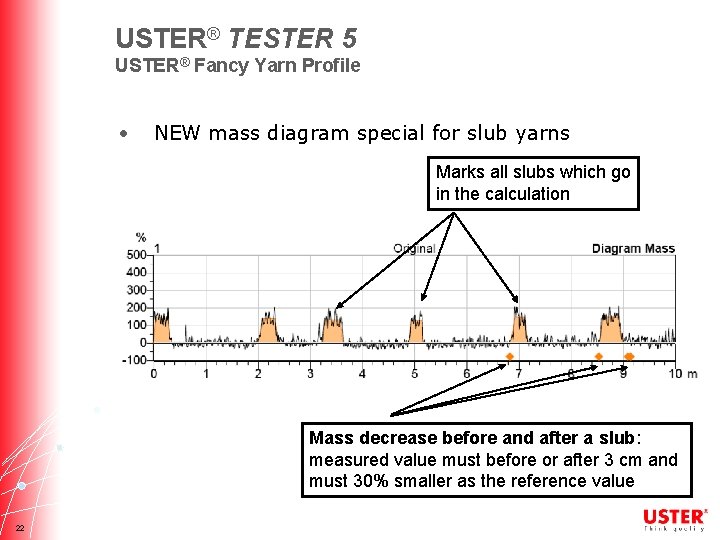

USTER® TESTER 5 USTER® Fancy Yarn Profile • NEW mass diagram special for slub yarns Marks all slubs which go in the calculation Mass decrease before and after a slub: measured value must before or after 3 cm and must 30% smaller as the reference value 22

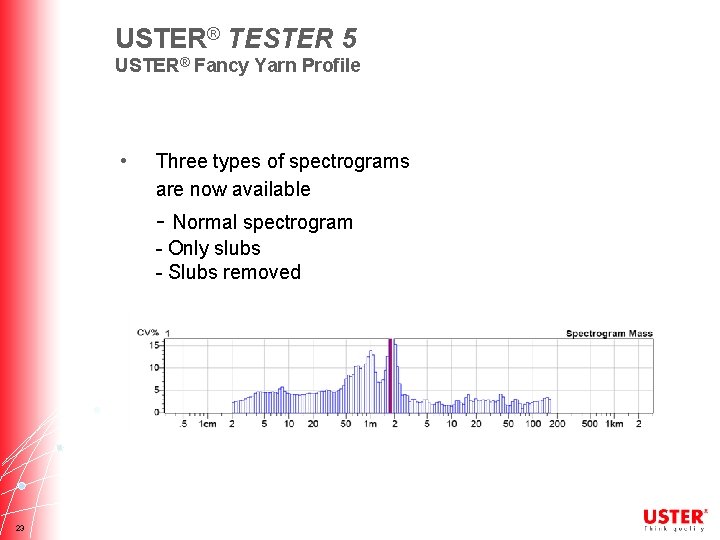

USTER® TESTER 5 USTER® Fancy Yarn Profile • Three types of spectrograms are now available - Normal spectrogram - Only slubs - Slubs removed 23

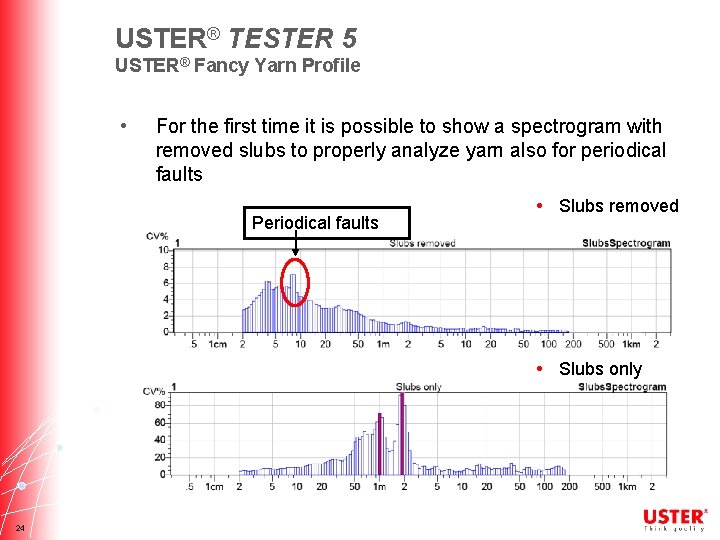

USTER® TESTER 5 USTER® Fancy Yarn Profile • For the first time it is possible to show a spectrogram with removed slubs to properly analyze yarn also for periodical faults Periodical faults • Slubs removed • Slubs only 24

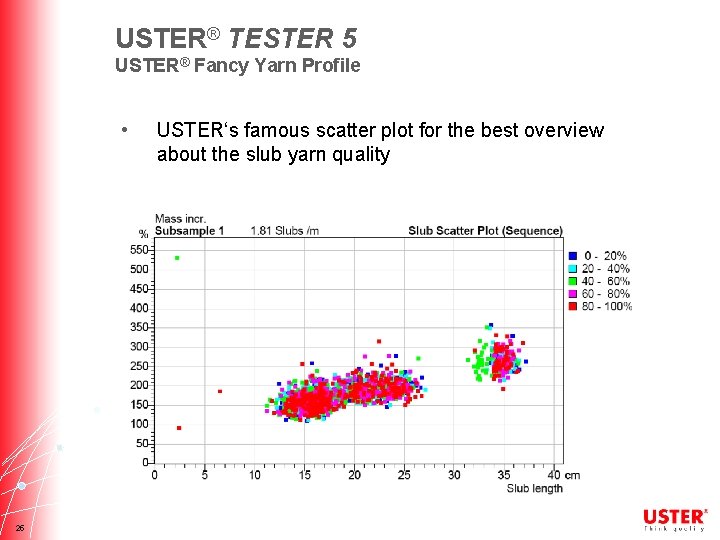

USTER® TESTER 5 USTER® Fancy Yarn Profile • 25 USTER‘s famous scatter plot for the best overview about the slub yarn quality

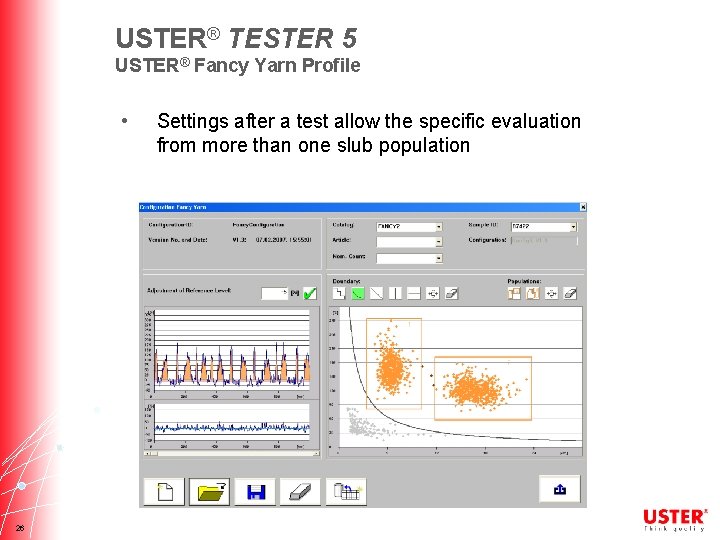

USTER® TESTER 5 USTER® Fancy Yarn Profile • 26 Settings after a test allow the specific evaluation from more than one slub population

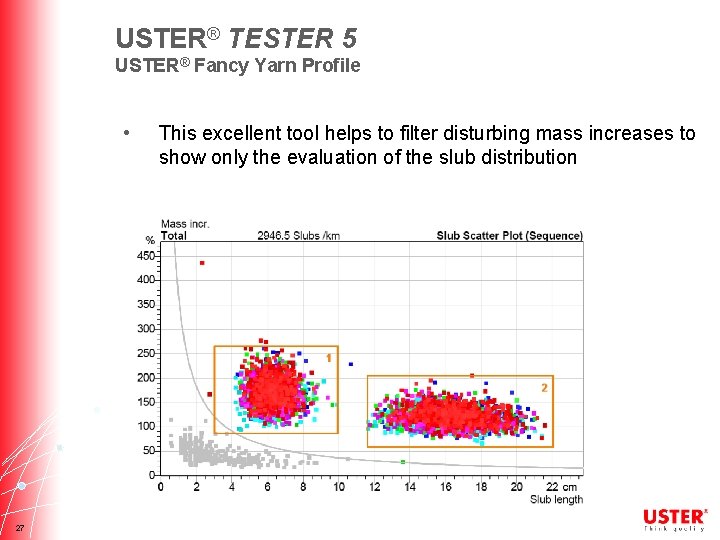

USTER® TESTER 5 USTER® Fancy Yarn Profile • 27 This excellent tool helps to filter disturbing mass increases to show only the evaluation of the slub distribution

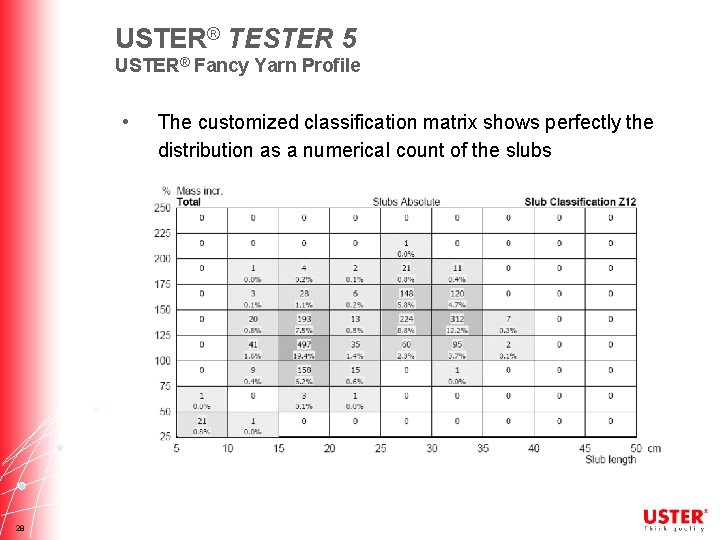

USTER® TESTER 5 USTER® Fancy Yarn Profile • 28 The customized classification matrix shows perfectly the distribution as a numerical count of the slubs

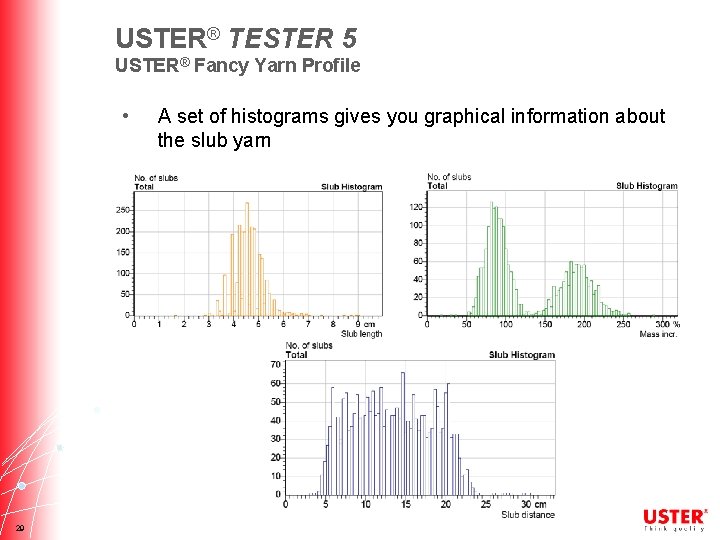

USTER® TESTER 5 USTER® Fancy Yarn Profile • 29 A set of histograms gives you graphical information about the slub yarn

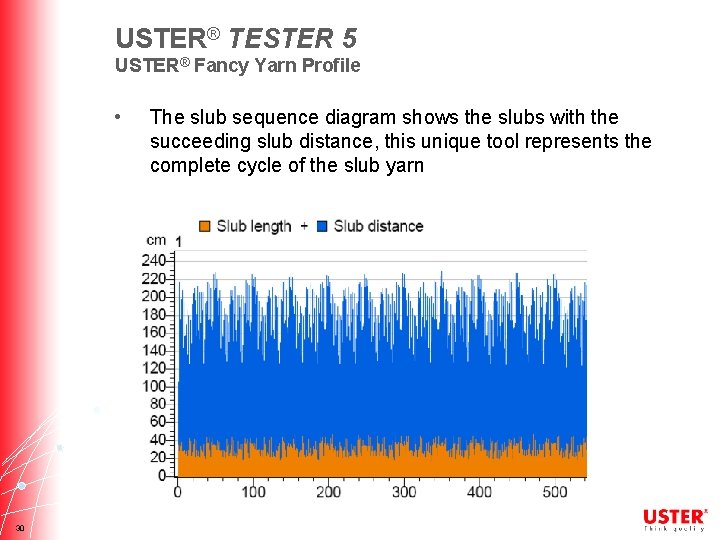

USTER® TESTER 5 USTER® Fancy Yarn Profile • 30 The slub sequence diagram shows the slubs with the succeeding slub distance, this unique tool represents the complete cycle of the slub yarn

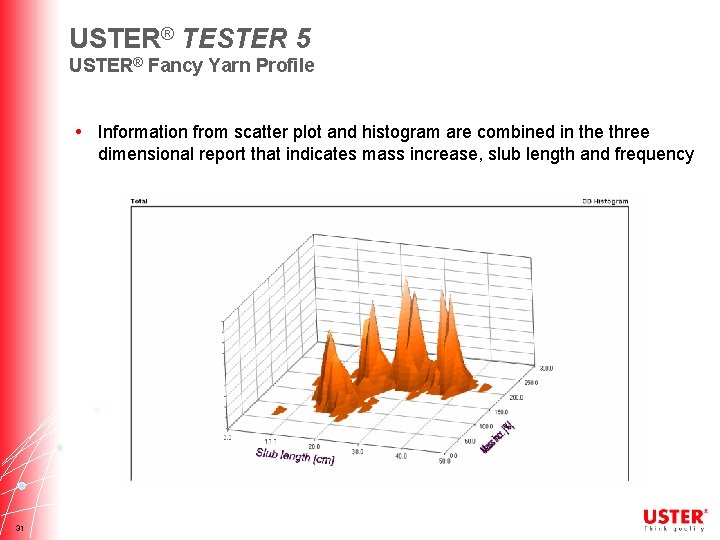

USTER® TESTER 5 USTER® Fancy Yarn Profile • Information from scatter plot and histogram are combined in the three dimensional report that indicates mass increase, slub length and frequency 31

USTER® TESTER 5 The yarn inspection system Benefits

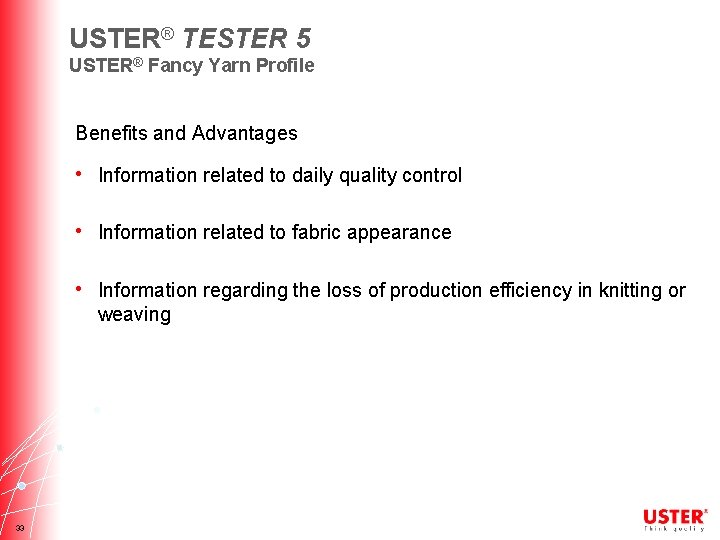

USTER® TESTER 5 USTER® Fancy Yarn Profile Benefits and Advantages • Information related to daily quality control • Information related to fabric appearance • Information regarding the loss of production efficiency in knitting or weaving 33

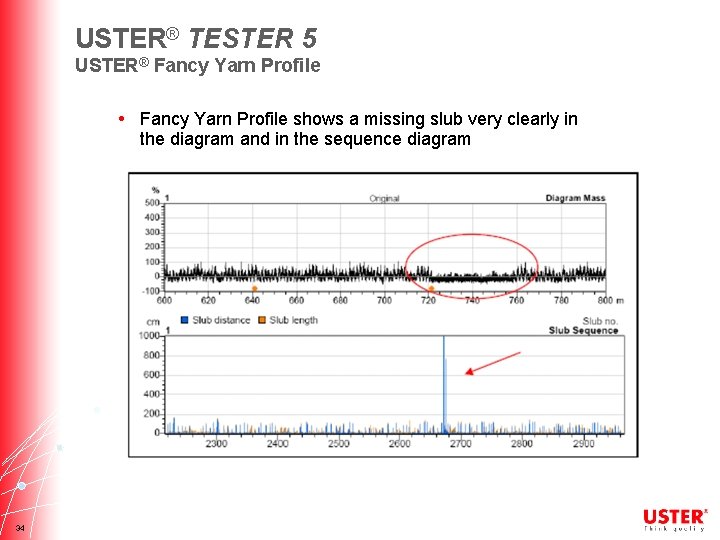

USTER® TESTER 5 USTER® Fancy Yarn Profile • Fancy Yarn Profile shows a missing slub very clearly in the diagram and in the sequence diagram 34

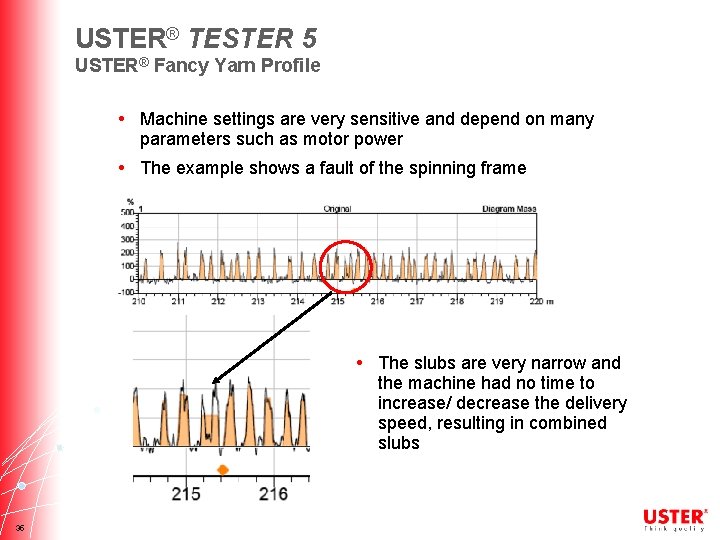

USTER® TESTER 5 USTER® Fancy Yarn Profile • Machine settings are very sensitive and depend on many parameters such as motor power • The example shows a fault of the spinning frame • The slubs are very narrow and the machine had no time to increase/ decrease the delivery speed, resulting in combined slubs 35

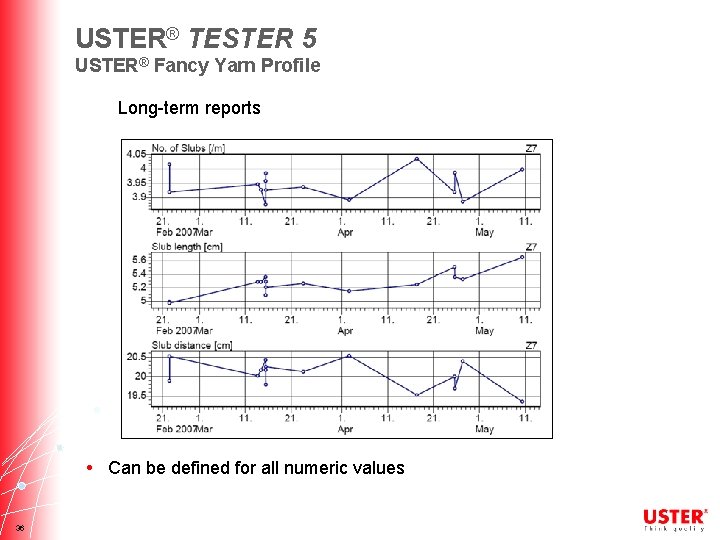

USTER® TESTER 5 USTER® Fancy Yarn Profile Long-term reports • Can be defined for all numeric values 36

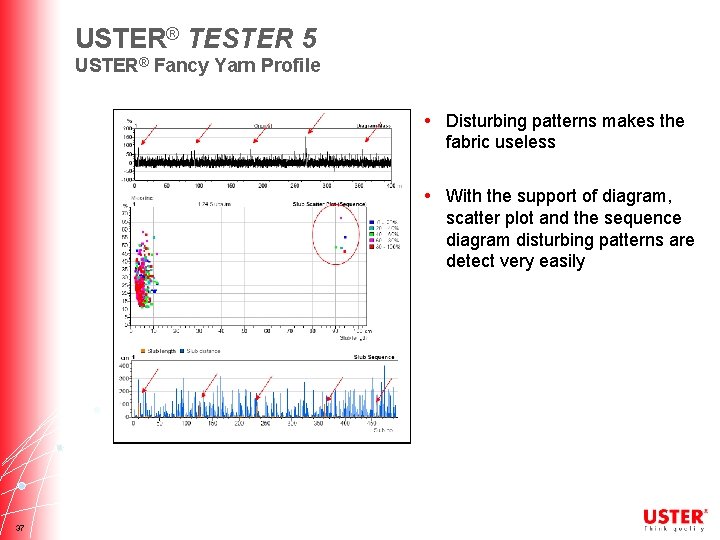

USTER® TESTER 5 USTER® Fancy Yarn Profile • Disturbing patterns makes the fabric useless • With the support of diagram, scatter plot and the sequence diagram disturbing patterns are detect very easily 37

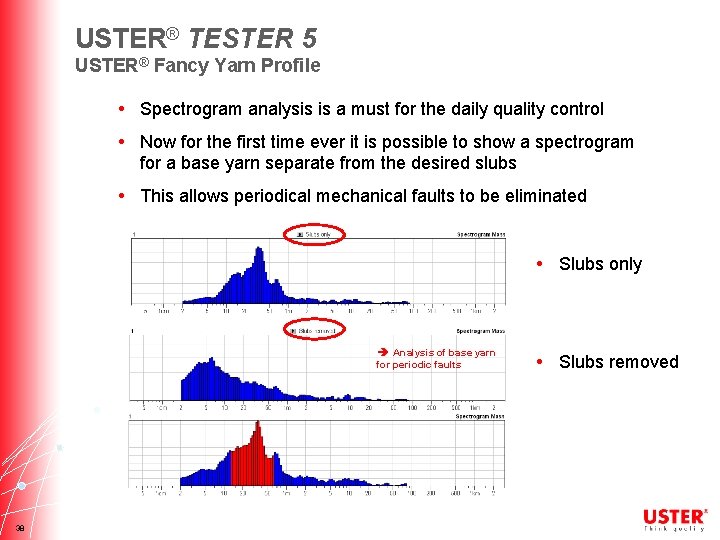

USTER® TESTER 5 USTER® Fancy Yarn Profile • Spectrogram analysis is a must for the daily quality control • Now for the first time ever it is possible to show a spectrogram for a base yarn separate from the desired slubs • This allows periodical mechanical faults to be eliminated • Slubs only Analysis of base yarn for periodic faults 38 • Slubs removed

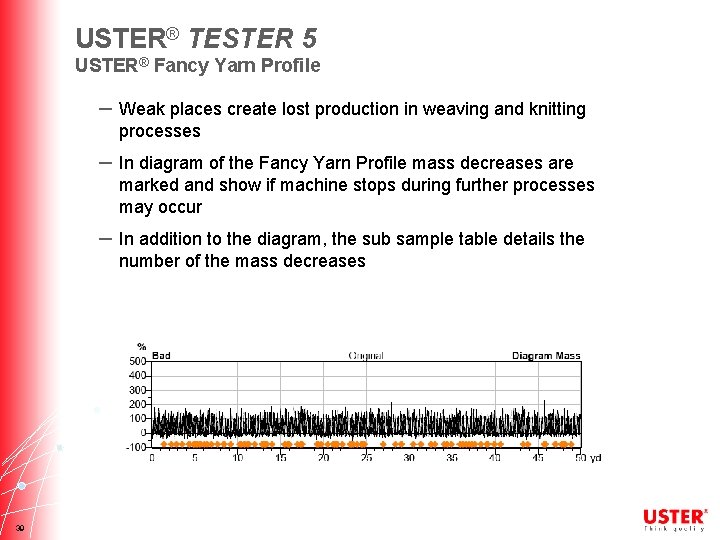

USTER® TESTER 5 USTER® Fancy Yarn Profile – Weak places create lost production in weaving and knitting processes – In diagram of the Fancy Yarn Profile mass decreases are marked and show if machine stops during further processes may occur – In addition to the diagram, the sub sample table details the number of the mass decreases 39

USTER® TESTER 5 The yarn inspection system Summary

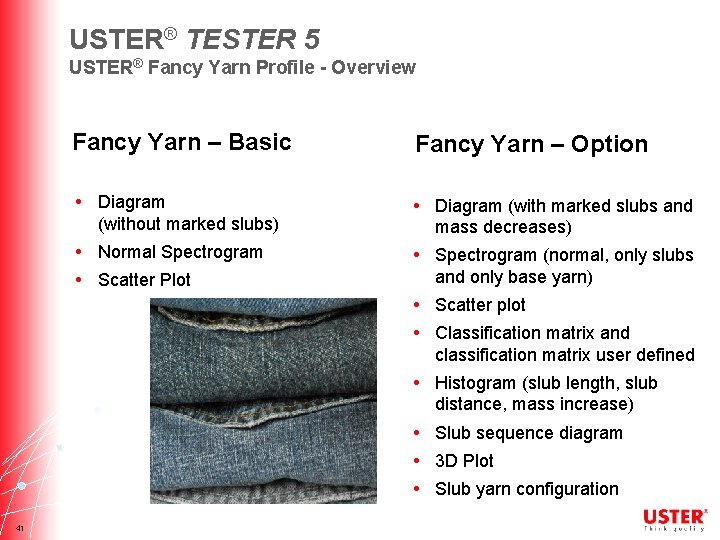

USTER® TESTER 5 USTER® Fancy Yarn Profile - Overview Fancy Yarn – Basic Fancy Yarn – Option • Diagram (with marked slubs and (without marked slubs) • Normal Spectrogram • Scatter Plot mass decreases) • Spectrogram (normal, only slubs and only base yarn) • Scatter plot • Classification matrix and classification matrix user defined • Histogram (slub length, slub distance, mass increase) • Slub sequence diagram • 3 D Plot • Slub yarn configuration 41

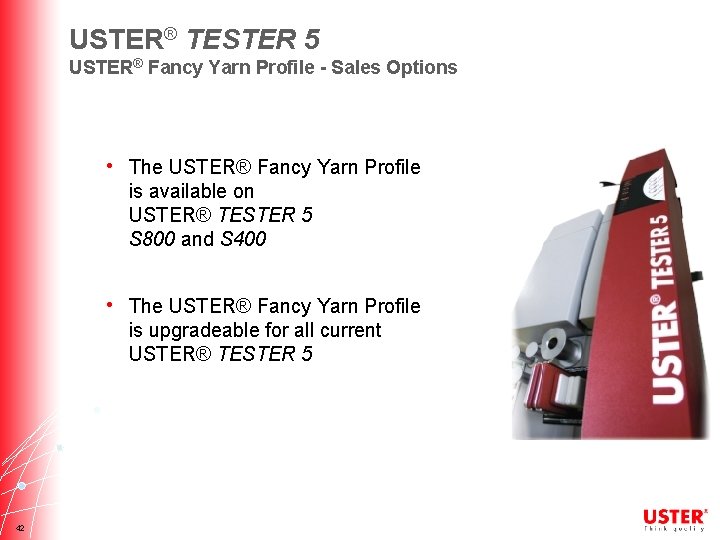

USTER® TESTER 5 USTER® Fancy Yarn Profile - Sales Options • The USTER® Fancy Yarn Profile is available on USTER® TESTER 5 S 800 and S 400 • The USTER® Fancy Yarn Profile is upgradeable for all current USTER® TESTER 5 42

USTER® TESTER 5 USTER® Fancy Yarn Profile 43 • The new USTER® Fancy Yarn Profile sets the standard for slub yarns measurements • Through a multitude of new reports, the USTER® TESTER 5 now makes it simple to determine the quality of slub yarns precisely

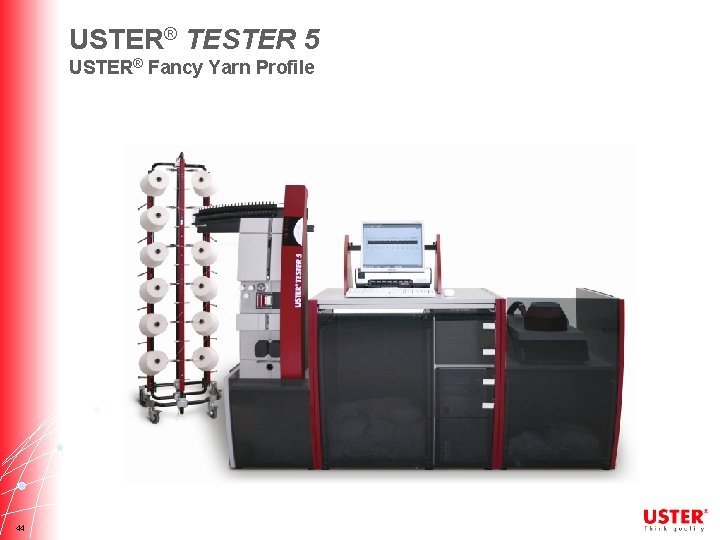

USTER® TESTER 5 USTER® Fancy Yarn Profile 44

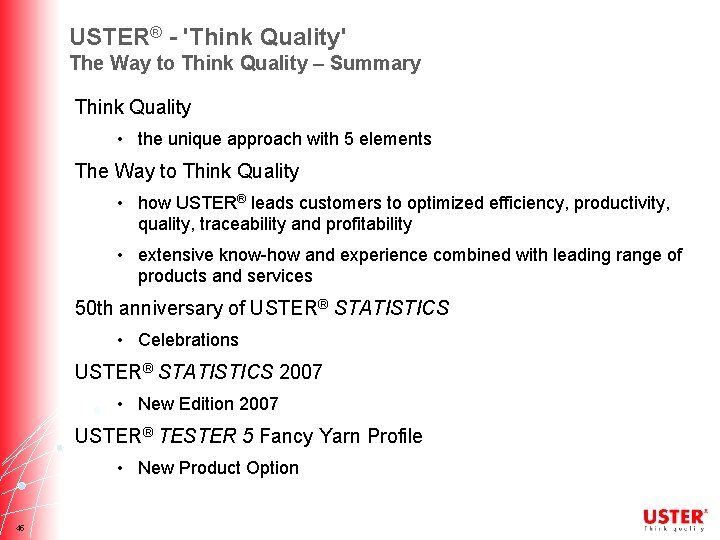

USTER® - 'Think Quality' The Way to Think Quality – Summary Think Quality • the unique approach with 5 elements The Way to Think Quality • how USTER® leads customers to optimized efficiency, productivity, quality, traceability and profitability • extensive know-how and experience combined with leading range of products and services 50 th anniversary of USTER® STATISTICS • Celebrations USTER® STATISTICS 2007 • New Edition 2007 USTER® TESTER 5 Fancy Yarn Profile • New Product Option 45

Thank you for your attention See you in Munich Hall A 4 - Booth 343/442 46
