Upcoming Deadlines Pick up a clicker find the

Upcoming Deadlines Pick up a clicker, find the right channel, and enter Student ID Fifth Homework (Video Analysis of a Jump) Due Thursday, Sept. 29 th (In 2 weeks) 15 points (10 points if late) Sixth Homework (Stop-motion Animation) Due Thursday, Oct. 6 th (In 3 weeks) 20 points (if late, 10 points) Bonus prize of 20 extra points to top three. For full schedule, visit course website: Art. Physics 123. pbworks. com

Tracker Exercise

Extra Credit Opportunity • Visit the R. Crumb “Genesis” exhibit (now through Sept. 25) at the SJ Museum of Art http: //www. sjmusart. org/ • Bring me proof of attendance (ticket stub, photos, etc. ) by Sept. 26 for ten points of extra credit

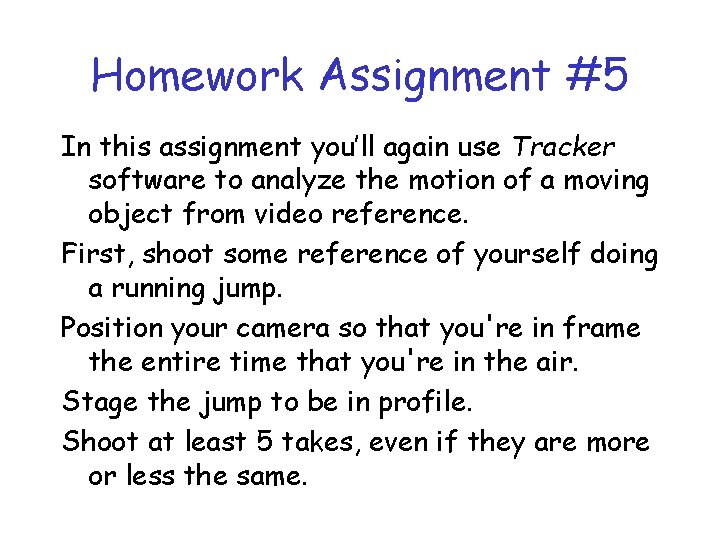

Homework Assignment #5 In this assignment you’ll again use Tracker software to analyze the motion of a moving object from video reference. First, shoot some reference of yourself doing a running jump. Position your camera so that you're in frame the entire time that you're in the air. Stage the jump to be in profile. Shoot at least 5 takes, even if they are more or less the same.

Homework Assignment #5 Original Video Reference

Homework Assignment #5 Import your video reference into the Tracker software (as in previous homework). Track the center of your waistline or beltline, which is approximately the location of your center of gravity. Marking your position from the time you leave the ground until you’ve landed. After tracking your motion, upload the screen image from Tracker to your blog into a post called "Video analysis of path of action".

Homework Assignment #5 Straight Line Parabolic Path of Action Parabolic Curve

Homework Assignment #5 Finally, rewind your video to the first frame of your jump and from the "File" menu select ”Export -> Video Clip". Choose the export format (. avi, . mov, . gif, etc. ) and click "Save As" to save the recording.

Homework Assignment #5 Video Reference with Tracking

Homework Assignment #5 Check that your saved movie has the track showing the path of action then put both clips (original and with tracking) in your blog post using You. Tube or Vimeo. This assignment is due by 8 am on Thursday, Sept. 29 th (2 weeks from today). 15 points (10 points if late)

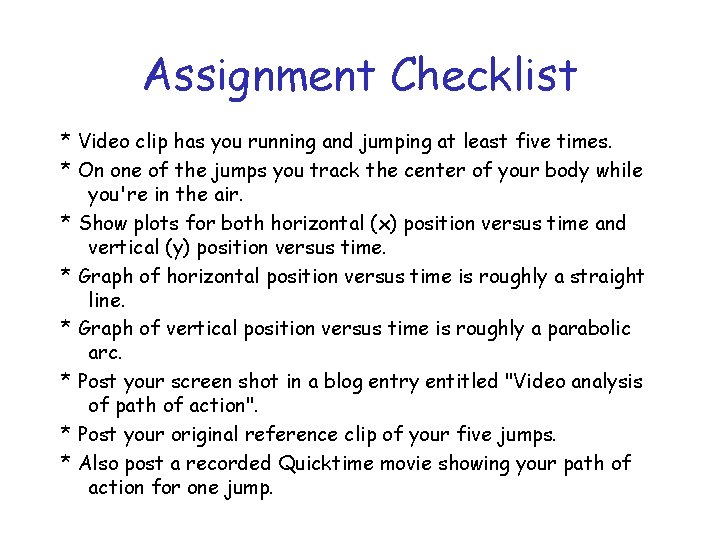

Assignment Checklist * Video clip has you running and jumping at least five times. * On one of the jumps you track the center of your body while you're in the air. * Show plots for both horizontal (x) position versus time and vertical (y) position versus time. * Graph of horizontal position versus time is roughly a straight line. * Graph of vertical position versus time is roughly a parabolic arc. * Post your screen shot in a blog entry entitled "Video analysis of path of action". * Post your original reference clip of your five jumps. * Also post a recorded Quicktime movie showing your path of action for one jump.

Activating your Clicker * Turn on your clicker. * Enter the channel number or letter for joining this class. Hit Enter/Send key. * Clicker should read AP 123 KF 11 * Type in your student ID; hit Enter/Send. Clicker is now ready to use; leave it on. Hit any key to wake the clicker from sleep mode.

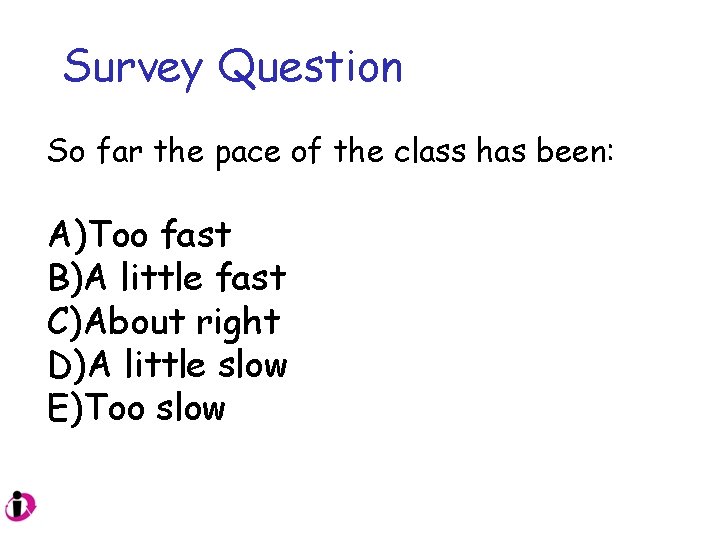

Survey Question So far the pace of the class has been: A)Too fast B)A little fast C)About right D)A little slow E)Too slow

When you want to throw a ball as far as possible, release it at and angle of_? a) b) c) d) e) 15 degrees 30 degrees 45 degrees 60 degrees 90 degrees

“Shoot the Monkey” Rifle is aimed at monkey’s nose. Monkey lets go of the branch the moment he hears the gun fire. Bullet hits the monkey: A)Above the nose B) On the nose C) Below the nose

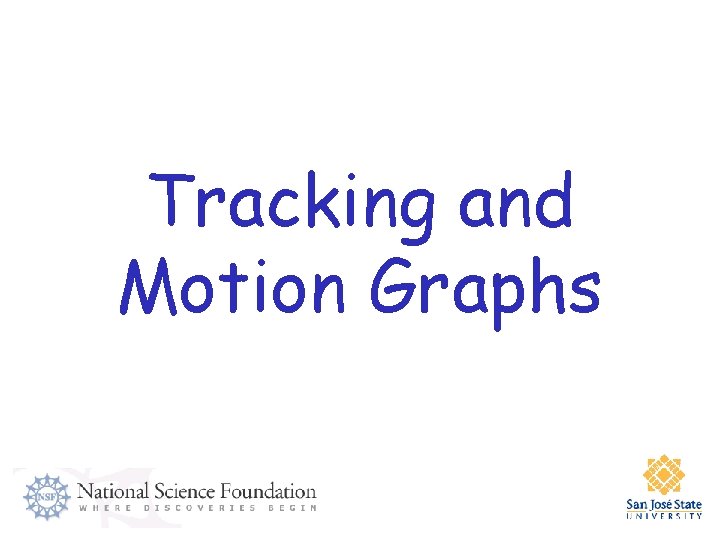

Tracking and Motion Graphs

Analyzing Video Reference is not for rotoscoping (tracing images from a film) but to study the motion. We can also use video analysis tools to help us see the patterns of motion in a scene that we’ve filmed.

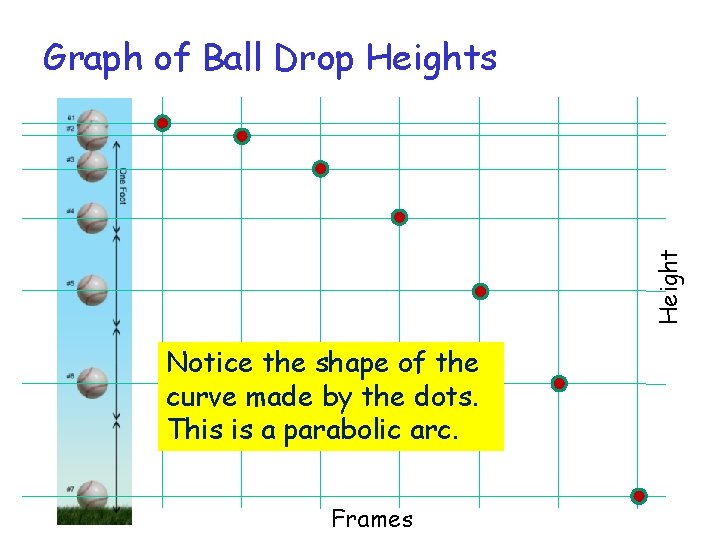

Height Graph of Ball Drop Heights Notice the shape of the curve made by the dots. This is a parabolic arc. Frames

Tracking a Jump Straight Line Horizontal Motion Vertical Motion Parabolic Arc

Motion Graphs Position In computer animation the timing and spacing of motion is often viewed using motion graphs, which can be manipulated in a graph editor. Frame

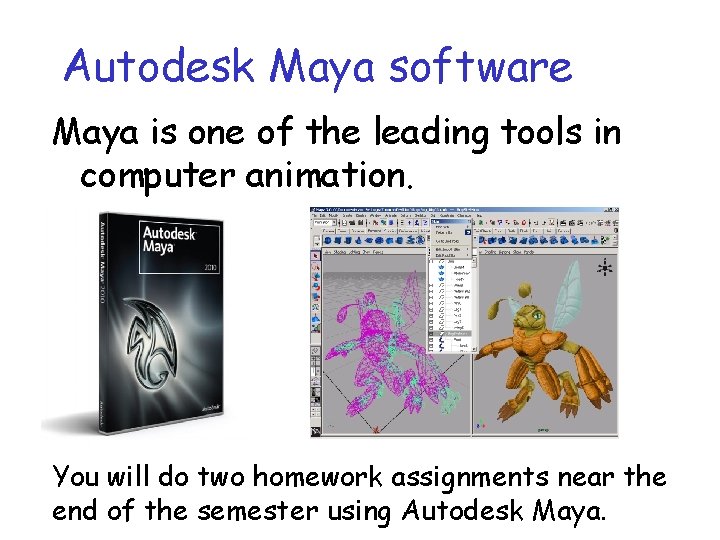

Autodesk Maya software Maya is one of the leading tools in computer animation. You will do two homework assignments near the end of the semester using Autodesk Maya.

The motion graph for uniform motion at a constant speed is a straight line. Position Motion Graph for Uniform Motion Frame

Position Motion Graphs in Maya Frame The motion graph for a ball drop looks something like this in Maya

Parabolic Arcs Vertical Horizontal Position The motion graphs for a ball on a parabolic path of action. Frame

Maya Demo for Bouncing Ball Let me demonstrate how to set up a simple bouncing ball in Autodesk Maya. Our animation will be of a ball that is 4 inches in diameter (2 inches in radius) The ball will fall from a height of 4 feet (48 inches). It takes ½ second (12 frames) to reach the ground. Use Fourth Down at Half Time

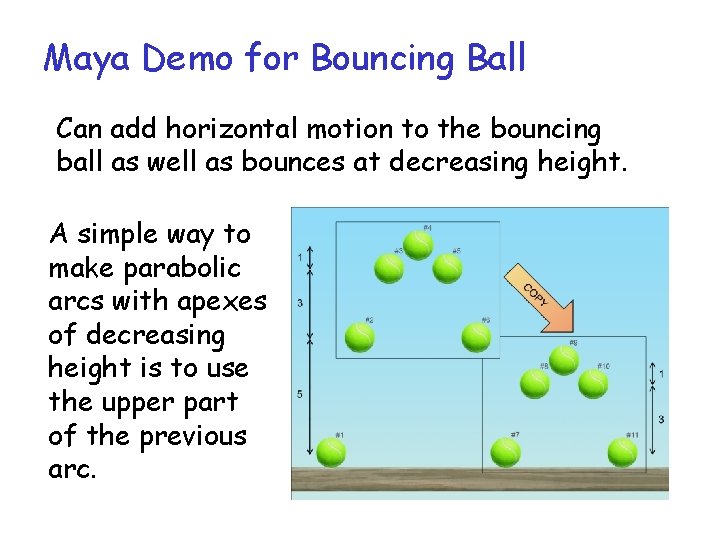

Maya Demo for Bouncing Ball Can add horizontal motion to the bouncing ball as well as bounces at decreasing height. A simple way to make parabolic arcs with apexes of decreasing height is to use the upper part of the previous arc.

Motion Capture & Tracking Motion capture is automated video tracking. Beowulf (2007) Data from sensor points can be used to create motion graphs in Maya.

Using Reference Wisely Artists know that reference is very important but they also recognize that they shouldn’t be slaves to their reference. Photo reference shot by Eakins Thomas Eakins, The Swimming Hole (c. 1884)

Using Physics Wisely Physics helps understand motion yet animators shouldn’t be slaves to it. The plane’s path of action feels like a roller coaster drop.

Review Question The motion graph for a ball drop, going from the apex until the ball just touches the ground, looks like: A) B) C) D)

Motion Graph of a Ball Drop Height D) Frames

Arcs in Animation

Disney’s Principles of Animation In their classic book, Disney Animation – The Illusion of Life, Frank Thomas and Olie Johnston list a set of basic principles for animation. 1. 2. 3. 4. 5. Squash & Stretch Timing Anticipation Staging Follow Through & Overlapping Action 6. Straight Ahead & Pose-to-Pose Action 7. Slow In and Slow Out 8. Arcs 9. Exaggeration 10. Secondary Action 11. Appeal

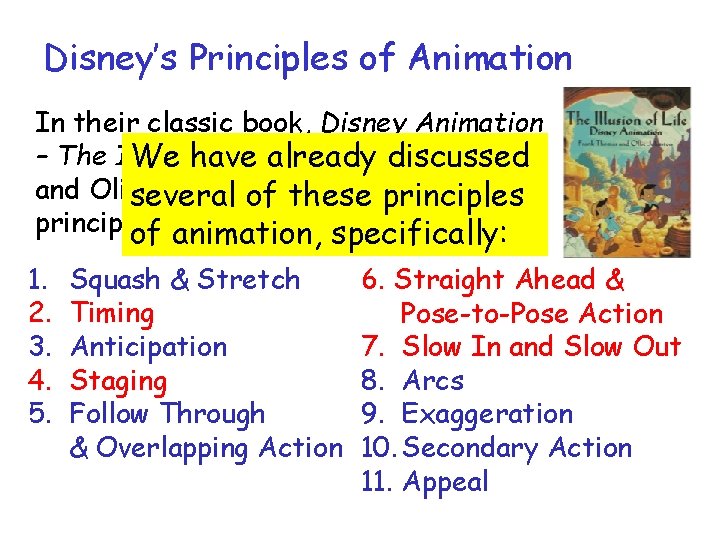

Disney’s Principles of Animation In their classic book, Disney Animation – The Illusion of Life, Frankdiscussed Thomas We have already and Olieseveral Johnston a setprinciples of basic oflist these principles animation. of for animation, specifically: 1. 2. 3. 4. 5. Squash & Stretch Timing Anticipation Staging Follow Through & Overlapping Action 6. Straight Ahead & Pose-to-Pose Action 7. Slow In and Slow Out 8. Arcs 9. Exaggeration 10. Secondary Action 11. Appeal

Disney’s Principles of Animation In their classic book, Disney Animation – The Illusion Thomas Todayof we. Life, will. Frank discuss arcs and Olieand Johnston list arelate set of to basic how they principles for animation. animated motion. 1. 2. 3. 4. 5. Squash & Stretch Timing Anticipation Staging Follow Through & Overlapping Action 6. Straight Ahead & Pose-to-Pose Action 7. Slow In and Slow Out 8. Arcs 9. Exaggeration 10. Secondary Action 11. Appeal

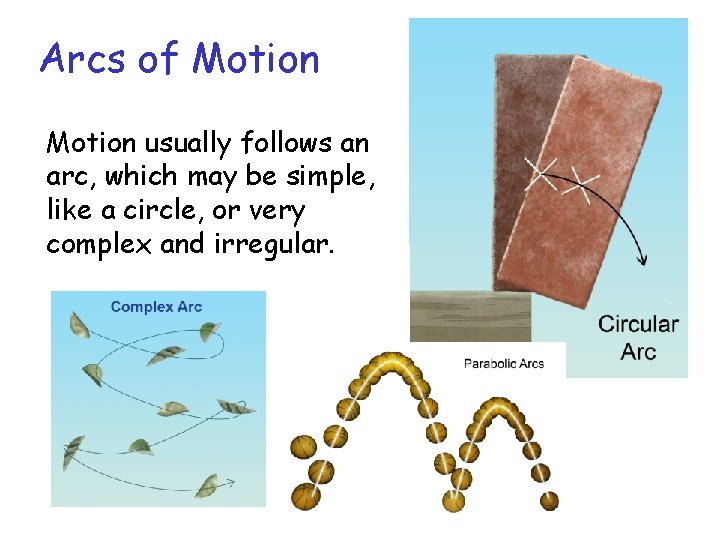

Arcs of Motion usually follows an arc, which may be simple, like a circle, or very complex and irregular.

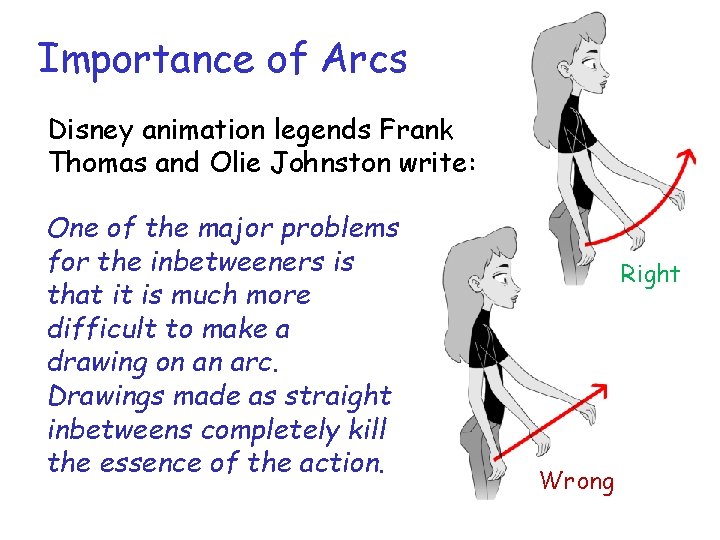

Importance of Arcs Disney animation legends Frank Thomas and Olie Johnston write: One of the major problems for the inbetweeners is that it is much more difficult to make a drawing on an arc. Drawings made as straight inbetweens completely kill the essence of the action. Right Wrong

Circular Arcs Circular arcs are common since motion is often around a fixed pivot point, such as a joint.

Speed in Circular Motion Rotational Speed: Revolutions per second Tangential Speed: Total distance per second Same Rotational Speed Different Tangential Speeds

Rolling & Slipping 1 2 3 4 5 6 7 ROLLING Rolling ball turns one revolution when it travels a distance equal to three times its diameter (actually 3. 1416 diameter) 1 2 3 4 5 SLIPPING Slipping and rolling are both uniform in spacing and rotation.

Throwing Arm Sling lengthens the arm at almost no cost in the weight. Doubling the speed quadruples the range! x 2 al ti en d ng ee Ta Sp The longer the throwing arm, the greater the tangential speed so the farther it can throw.

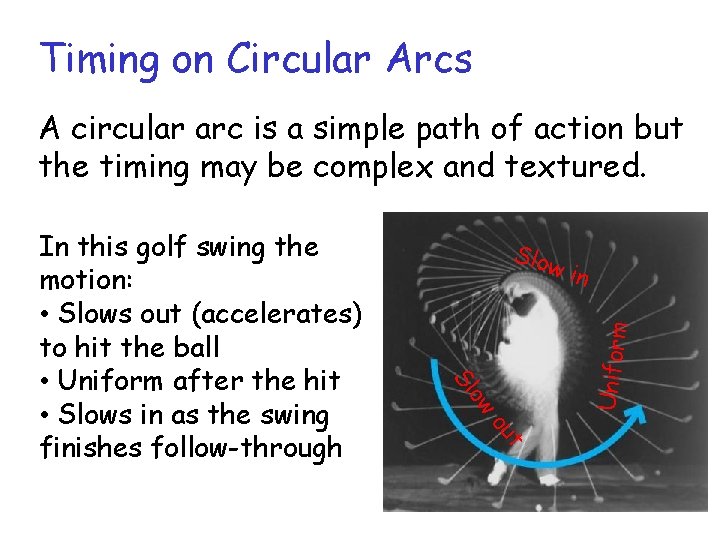

Timing on Circular Arcs A circular arc is a simple path of action but the timing may be complex and textured. in Uniform Slow ow Sl t ou In this golf swing the motion: • Slows out (accelerates) to hit the ball • Uniform after the hit • Slows in as the swing finishes follow-through

Non-Uniform Circular Motion Two common types of motion on circular arcs that have non-uniform timing and spacing are: Exponential Spacing Example: Tipping over Pendulum Spacing Example: Stride in walking

Pendulum Spacing A pendulum’s path of action is also a circular arc but the spacing is very different from the exponential spacing of tipping over.

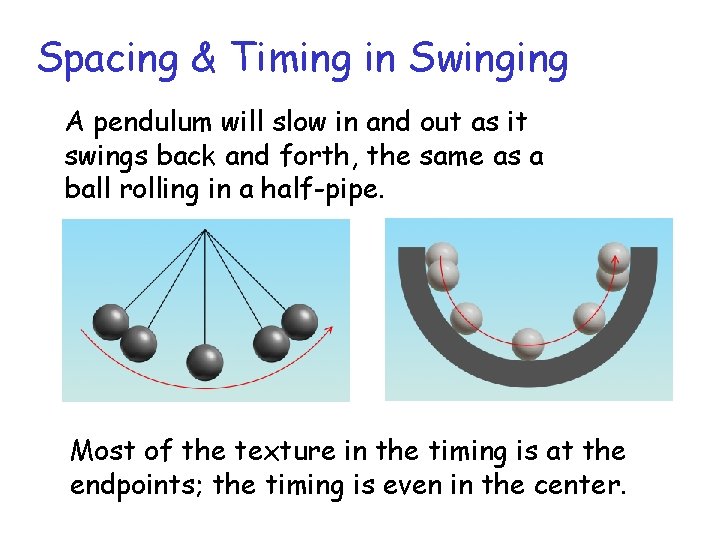

Spacing & Timing in Swinging A pendulum will slow in and out as it swings back and forth, the same as a ball rolling in a half-pipe. Most of the texture in the timing is at the endpoints; the timing is even in the center.

Pencil Test Example http: //www. youtube. com/watch? v=xuo. Jd. NGxff. U

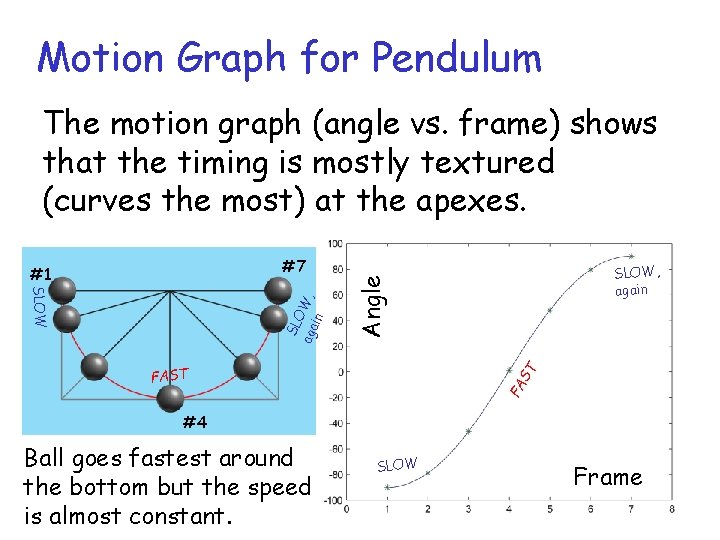

Motion Graph for Pendulum The motion graph (angle vs. frame) shows that the timing is mostly textured (curves the most) at the apexes. SL O aga W, in SLOW, again Angle #7 #1 FA ST FAST #4 Ball goes fastest around the bottom but the speed is almost constant. SLOW Frame

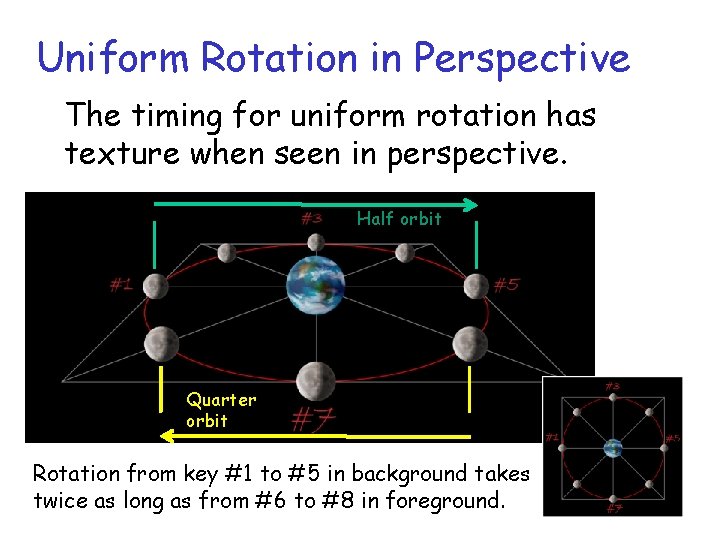

Uniform Rotation in Perspective The timing for uniform rotation has texture when seen in perspective. Half orbit Quarter orbit Rotation from key #1 to #5 in background takes twice as long as from #6 to #8 in foreground.

Swinging in Perspective Visually the timing has even more texture when the swing occurs in perspective.

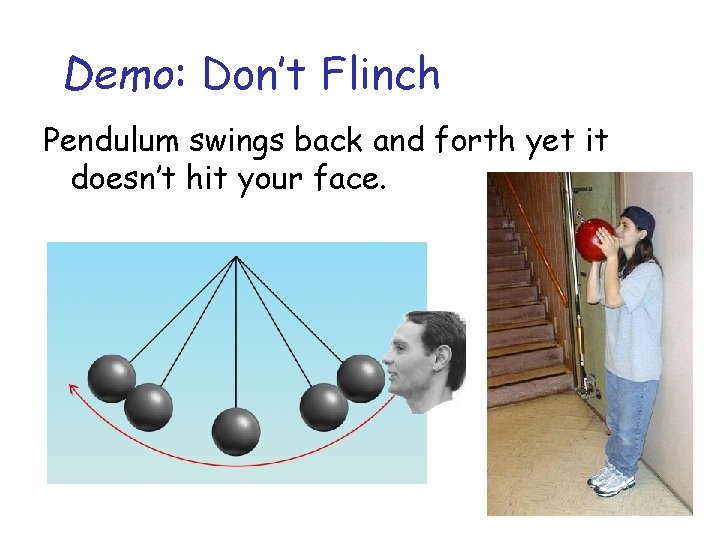

Demo: Don’t Flinch Pendulum swings back and forth yet it doesn’t hit your face.

Bowling Ball Pendulum http: //www. youtube. com/watch? v=UNs. D 15 Gj. WWE Click This video clip lets you experience what it’s like to do this demo.

Who Framed Roger Rabbit? (1988) The opening sequence in Who Framed Roger Rabbit? makes great use of the textured timing of arcs in perspective. Animation by Richard Williams

Who Framed Roger Rabbit? (1988) http: //www. youtube. com/watch? v=s. LNqt. U-g. YPc
