Magnetic Particle Inspection TWI Copyright 2003 TWI Ltd
- Slides: 111
Magnetic Particle Inspection TWI Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Magnetism • Some natural materials strongly attract pieces of iron to themselves. • Such materials were first discovered in the ancient Greek city of Magnesia. • Magnets were utilised in navigation. • Oersted found a link between electricity and magnetism. • Faraday proved that electrical and magnetic energy could be interchanged. Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Magnetic Particle Inspection (MT or MPI) • MT is a test method for the detection of surface and near surface defects in ferromagnetic materials. • Magnetic field induced in component • Defects disrupt the magnetic flux causing “flux leakage”. • Flux leakage can be detected by applying ferromagnetic particles Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Permeability (μ) • Permeability can be defined as the relative ease with which a material may be magnetised. • It is defined as the ratio of the flux density (B) produced within a material under the influence of an applied field to the applied field strength (H) • μ =B/H Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology

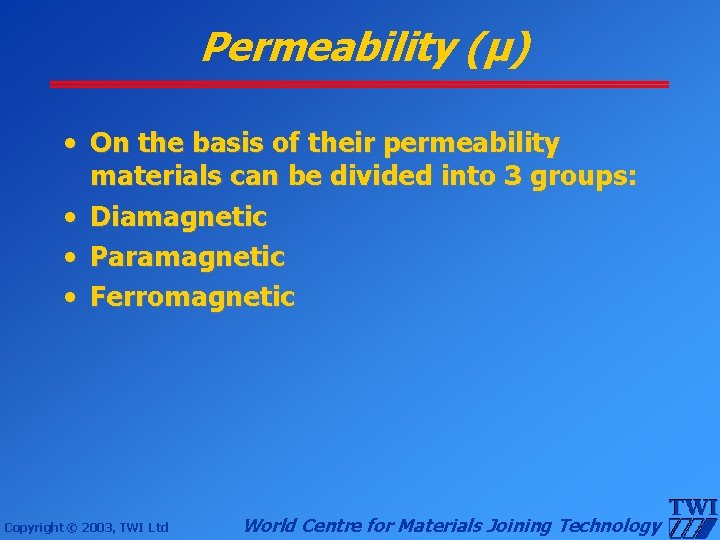

Permeability (μ) • On the basis of their permeability materials can be divided into 3 groups: • Diamagnetic • Paramagnetic • Ferromagnetic Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Permeability (μ) Diamagnetic: Permeability slightly below 1, weakly repelled by magnets. Examples: Gold, Copper, Water • Paramagnetic: Permeability slightly greater than 1, weakly attracted by magnets. • Examples: Aluminium, Tungsten Ferromagnetic: Very high permeability, strongly attracted by magnets. Examples: Iron, Cobalt, Nickel Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Domain theory N- S N-S N- S Copyright © 2003, TWI Ltd N Unmagnetized state -S S N-S N NS N-S N- S N • A domain is a minute internal magnet • Each domain comprises 1015 to 1020 atoms Domains randomly orientated World Centre for Materials Joining Technology
Domain Theory N- S S N N-S N- S Copyright © 2003, TWI Ltd S N-S N Domains orientated in external magnetic field NS N -S NS N-S S N- N-S N Magnetized state -S S N-S N NS N-S N- N-S World Centre for Materials Joining Technology
Domain Theory S N-S N Saturated state NS N -S NS N-S All domains orientated in strong external field N-S N-S Copyright © 2003, TWI Ltd N-S S N- N-S N-S N-S World Centre for Materials Joining Technology
S N N- Un-magnetised S N-S N- S Copyright © 2003, TWI Ltd N -S S N-S N NS N-S N- World Centre for Materials Joining Technology
S N S N- N-S N- S Copyright © 2003, TWI Ltd N- N-S S N N- N-S -S S N-S N N-S S N- N-S S N-S N NS N -S S N- Un-magnetised Magnetised World Centre for Materials Joining Technology
S N S N-S N-S N-S Copyright © 2003, TWI Ltd N- N- N-S S N N- N-S -S S N-S N N-S S N- N-S S N-S N NS N -S S N- N-S Un-magnetised Magnetised Saturated N-S World Centre for Materials Joining Technology
S N S N-S N-S N-S S N-S N Copyright © 2003, TWI Ltd N- N-S N-S N-S S N- N-S S N N- N-S -S S N-S N N-S S N- N-S S N-S N NS N -S S N-S N N- N -S S -S Un-magnetised Magnetised Saturated Residual World Centre for Materials Joining Technology
Lines of Flux Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Lines of flux • By convention they flow from North to South outside and South to North inside • They form closed loops • They never cross • They follow path of least resistance • Flux density is the number of lines of flux passing through a unit area. • Field strength is highest where flux density is highest. Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Electromagnetism • A current flows through a conductor and sets up a magnetic field around it • Field is at 90 o to the direction of the electrical current Direction of current flow Direction of magnetic field Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Right Hand Rule Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Coil Magnetisation • Changes circular field into longitudinal • Increases the strength of the field Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Hysteresis Place an un-magnetised piece of ferromagnetic material within a coil Saturation point B+ Virgin curve H+ HBCopyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Hysteresis B+ Residual magnetism H- H+ BCopyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Hysteresis B+ H- H+ Coercive force BCopyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Hysteresis B+ Negative saturation point H- H+ BCopyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Hysteresis A B C D Copyright © 2003, TWI Ltd F E World Centre for Materials Joining Technology
Hysteresis Hard ferromagnetic Copyright © 2003, TWI Ltd Soft ferromagnetic World Centre for Materials Joining Technology
Permeability (µ) • The ease with which a material can be magnetised • Opposite of reluctance (difficulty with which a material can be magnetised) • µ=B/H • Permeability of free space = µo • Relative Permeability (µr) = µ / µo Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Relative Permeability (µr) • Paramagnetics Slightly > 1 • Diamagnetics Slightly < 1 • Ferromagnetics 240 + Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Hard v Soft Ferromagnetics Soft Hard • Typically Low carbon steel • High permeability • Easy to magnetise • Low residual magnetism Copyright © 2003, TWI Ltd • Typically high carbon steel • Lower permeability • More difficult to magnetise • High levels of residual magnetism World Centre for Materials Joining Technology
Definitions • Magnetic field Flux circuit Flux Density Copyright © 2003, TWI Ltd Region in which magnetic forces exist Total number of lines existing in a magnetic area Tesla) Magnetic flux per unit (measured in World Centre for Materials Joining Technology
Principle of MPI : Flux Leakage No Defect N Defect S N S Lines of flux follow the path of least resistance Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
LEAKAGE FIELDS Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Visibility of Flux Leakage Depends on: • Depth of defect • Orientation of defect shape of defect • Size of defect • Permeability of material • Applied Field Strength • Contrast Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Indications Relevant Indications - Indications due to discontinuities or flaws Non-Relevant Indications - Indications due to flux leakage from design features Spurious Indications - Indications due incorrect inspection procedures Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Defect Orientation Defect at 90 degrees to flux : maximum indication Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Defect Orientation >30 Degrees to Flux: Acceptable indication Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Defect Orientation <30 Degrees to Flux Copyright © 2003, TWI Ltd : Weak indication World Centre for Materials Joining Technology
Defect Orientation Test 1 Test 2 MPI requires 2 tests at 90 o to one another Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Equipment Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Permanent Magnet Longitudinal field between poles Maximum sensitivity for defects orientated at 90º to a line drawn between poles Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Permanent Magnet Advantages • No power supply • No electrical contact problems • Inexpensive • No damage to test piece • Lightweight Copyright © 2003, TWI Ltd Disadvantages • Direct field only • Deteriorate over time • No control over field strength • Poles attract detecting media • Tiring to use World Centre for Materials Joining Technology
Electromagnetism • A current flows through a conductor and sets up a magnetic field around it • Field is at 90 o to the direction of the electrical current Direction of current flow Direction of magnetic field Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Coil Magnetisation • Changes circular field into longitudinal • Increases the strength of the field Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Electromagnets Maximum sensitivity for defects orientated at 90º to a line drawn between the poles Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Electromagnets Advantages • AC, DC or rectified • Controllable field strength • No harm to test piece • Can be used to demagnetise • Easily removed Copyright © 2003, TWI Ltd Disadvantages • Power supply required • Longitudinal field only • Electrical hazard • Poles attract particles • Legs must have area contact World Centre for Materials Joining Technology
Prods • Current passed between 2 contacts. • Defects detected parallel to contacts Field Current Defects Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology

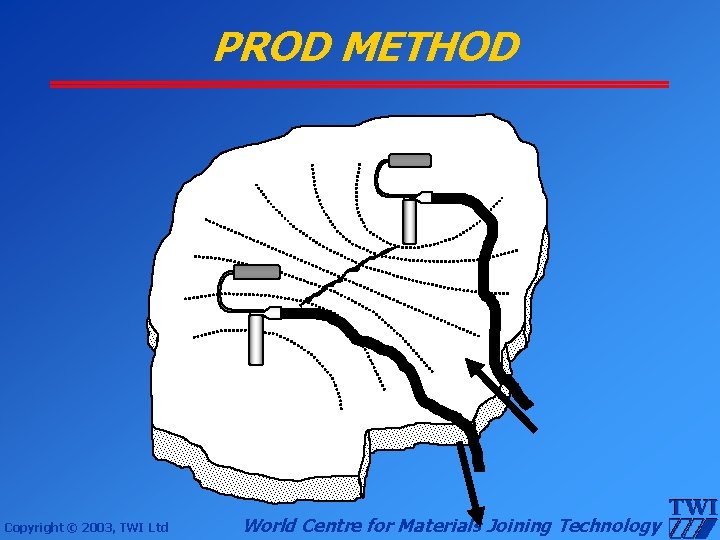

PROD METHOD Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Prods Advantages • AC, DC or rectified • Controllable field strength • No poles attract particles • Control of amperage Copyright © 2003, TWI Ltd Disadvantages • Arcing / damage to work piece • Transformer required • Current can be switched on without creating field • Good contact required • 2 man operation World Centre for Materials Joining Technology
Flexible Cable • Flexible, current carrying cable Used as • Adjacent cable • Threading cable • Flexible coil Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Flexible Cable Advantages • Simple to operate • No danger of burning • AC, DC or rectified • Current adjustable Copyright © 2003, TWI Ltd Disadvantages • Difficult to keep cables in place • High currents required • Transformer required World Centre for Materials Joining Technology
Current Flow Current passed through sample Defects Current Circular Field Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Threading Bar • Current passed through brass bar placed between heads of bench unit • Circular field generated around bar • Sample hung from bar Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Magnetic Flow Magnetism passed through sample Defects Magnetism Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Coil Magnetisation • Changes circular field into longitudinal • Increases the strength of the field Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Rigid Coil Current passed through coil to generate a longitudinal field Defects Magnetism Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
MPI Equipment Portable • Permanent magnet • Electromagnet • Prods • Flexible coil • Flexible cable • Clamps and leeches Copyright © 2003, TWI Ltd Fixed Current flow Magnetic flow Threader Bar Rigid coil Induced current World Centre for Materials Joining Technology
The Swinging Field Method • Uses two magnetic fields at 90º to each other applied alternately. Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Testing Values Page 64 Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Current Types • Direct current (DC) • Alternating current (AC) • Half wave rectified current (HWDC or HWRAC) • Full wave rectified (FWDC or FWRAC) Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Direct Current + Advantages • Sub-surface defects • Availability from batteries Copyright © 2003, TWI Ltd Disadvantages • No agitation • Less sensitive to surface defects World Centre for Materials Joining Technology
Alternating Current Advantages • Availability • Sensitivity to surface defects • Agitation of particles • Demagnetisation Copyright © 2003, TWI Ltd Disadvantages • Will not detect sub-surface defects World Centre for Materials Joining Technology
Half Wave Rectified Current Advantages • Penetration like DC • Agitation • Ease of production • High flux density for less power Copyright © 2003, TWI Ltd Disadvantages • Sensitivity to surface defects lower than AC World Centre for Materials Joining Technology
Full Wave Rectified Current Advantages • Penetration like DC • Agitation Copyright © 2003, TWI Ltd Disadvantages • Sensitivity to surface defects lower than AC World Centre for Materials Joining Technology
3 - PHASE FW RECTIFIED Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
RMS 16 12 8 4 0 -4 Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Direct Current: Field distribution Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
A. C. : Field distribution SKIN EFFECT Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
SKIN EFFECT In order to achieve the same sensitivity to shallow defects a DC field must be far more powerful than a corresponding AC field Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Permanent Magnet and DC Electromagnet Use the Lift Test For pole spacing from 75 to 150 mm - 18 kg Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
AC Electromagnets Use the Lift Test For pole spacing no more than 300 mm - 4. 5 kg Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
PROD METHOD Current passed through sample, typically: 5 Amps (rms) per mm of prod spacing Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Flexible Coil • • I = 3 H(T + Y 2 / 4 T) I = 3 H(10 + Y 2 / 40) for DC for AC Y Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Adjacent Cable • Defects located parallel to cable • I = 4 d H • Return cable separated by 10 d D D Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Current Flow Current passed through sample, typically: • I = H diameter or • I = H x perimeter • For D/d = 1. 5 or less, one shot only req’d Defects Current Circular Field Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Threading Bar • I = H x perimeter R Increase the current (I) to increase R, the radius of the test zone. R Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Threading Bar Component placed within field and rotated for complete coverage Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Magnetic Flow Magnetism passed through sample Defects Magnetism Field strength can be assessed using a “flux indicator”. Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Rigid Coil NI = 0. 4 H K L/ D N = 0. 4 H K L/ D x I • N = Number of turns in coil • K = 32, 000 for DC (typical) 22, 000 for AC or FWR (typical) 11, 000 for HWR (typical) • L/D = Length / Diameter Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Rigid Coil Conditions • Cross section of test piece <10% of Coil (the fill factor) • Test piece must lie against side or bottom • The test zone is the part of the component which lies within the coil • L / D must be between 5 and 20 Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
FLUX INDICATORS Check for adequate flux density and correct orientation with Flux Indicators. (Do not use with permanent magnets or DC electromagnets. ) Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
FLUX INDICATORS - COMMON TYPES • ASME • BERTHOLD PENETRAMETER • BURMAH CASTROL STRIPS Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
ASME V MAGNETIC FLUX INDICATOR CONSISTS OF 8 STEEL PIE SEGMENTS BRAZED TOGETHER WITH COPPER FACEPLATE Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
ASME V MAGNETIC FLUX INDICATOR Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Detecting Media Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Dry Magnetic Particles • • Iron powder or magnetic iron oxide (magnetite). 5 - 200 microns, rounded and elongated shapes Colours vary for contrast against component Can be used on hot surfaces Poor particle mobility, HWDC best, DC or permanent magnets must never be used Greater operator skill required Difficult to apply to overhead surfaces especially in field conditions Generally less sensitive than wet particles Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Wet Magnetic Particles Magnetic iron oxide (magnetite) or iron powder 0. 1 - 100 microns rounded and elongated shapes Colour contrast or fluorescent Water or kerosene based Concentration important Good particle mobility Easier to use More sensitive Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Detecting Media • Magnetic Rubber • Fluorescence may degrade under UV(A), when exposed to acid and high temperatures Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Demagnetisation Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Demagnetisation Removal of residual magnetisation Required for: • Aircraft parts • Rotating parts • Components to be welded, machined or electroplated Check for removal with Field strength meter (magnetometer) Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
How to Demagnetise? • A constantly reversing and reducing magnetic field Flux Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Methods of Demagnetisation • Aperture type coil reversing stepped DC • Aperture type coil reducing AC • AC or reversing DC aperture type coil, withdraw component along the coil axis • AC electromagnet • Heating to above the Curie point (about 770 C for steel) Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
MPI Practices Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Test Methods • Continuous or Residual • Fluorescent or Visible • Wet or Dry Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Continuous or Residual? Continuous Method • Detecting media applied immediately prior to & during magnetisation. Residual • Detecting media used after the applied field has been removed. • Requires high retentivity. • Less sensitive than continuous. • Useful for components like ball bearings Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Fluorescent or Visible? Fluorescent Detecting media dye coated More sensitive Less tiring for operators Better for batch inspections Copyright © 2003, TWI Ltd Visible No special lighting required Higher concentration of particles Background paint may be required World Centre for Materials Joining Technology
NB All surface defects form indications But not all indications are caused by defects Relevant indications…Linear 3: 1 Non-relevant indications Due to flux leakage but arising from design features Changes in section Changes in permeability Grain boundaries Forging flow lines Copyright © 2003, TWI Ltd Spurious indications Not due to flux leakage • Lint • Scale • Dirt • Hairs • Magnetic writing World Centre for Materials Joining Technology
Control and Maintenance Checks To ensure equipment, ancillaries and materials are up to standard • Ink • Lighting conditions • Magnetising units Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Control and Maintenance Checks • Ink settlement 100 ml 100 4. 0 3. 0 2. 0 1. 0 ml 0. 5 Copyright © 2003, TWI Ltd 0. 5 ml World Centre for Materials Joining Technology
Ink Settlement Test Fluorescent Ink • 0. 1 - 0. 3 % Copyright © 2003, TWI Ltd Non-Fluorescent Ink • 1. 25 - 3. 5 % World Centre for Materials Joining Technology
Control and Maintenance Checks • • • Ink settlement Fluorescent ink check Equipment performance check Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Equipment Performance Checks • • • Current flow test piece Magnetic flow test piece Cracked component Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Equipment Performance Checks Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Equipment Performance Checks Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Control and Maintenance Checks • • Ink settlement Fluorescent ink check Equipment performance check Viewing efficiency Magnetising unit Unit tank levels Unit ammeters Demagnetiser Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Control Check Frequency • • Settlement test Fluorescent intensity Test piece Viewing efficiency Copyright © 2003, TWI Ltd Daily Weekly Daily Monthly World Centre for Materials Joining Technology
Maintenance Check Frequency • • • Magnetising units Tank levels UV lamp Ammeters Demagnetiser Copyright © 2003, TWI Ltd Weekly Daily Monthly 6 monthly World Centre for Materials Joining Technology
UV(A) Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Electromagnetic Spectrum X-rays & Gamma Electric Waves Microwaves Ultra Infra violet red Light 10 -10 10 -8 10 -6 Copyright © 2003, TWI Ltd 10 -4 10 -2 TV 1 cm 102 Wavelength 104 106 108 World Centre for Materials Joining Technology
Electromagnetic Spectrum UV-C 10 100 UV-B UV-A 200 ULTRAVIOLET LIGHT Copyright © 2003, TWI Ltd 300 400 A Damaged Black Light UV-B&C 500 600 700 VISIBLE LIGHT World Centre for Materials Joining Technology
Fluorescence UV-A Source : Mercury vapour arc lamp + Filter Precautions • Avoid looking directly at the lamp • Do not use if filter is cracked, damaged or incorrectly fitted Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Fluorescence and the Electromagnetic Spectrum Absorbs 10 100 200 ULTRAVIOLET LIGHT Copyright © 2003, TWI Ltd 300 400 Emits 500 600 700 VISIBLE LIGHT World Centre for Materials Joining Technology
Fluorescent v Colour Contrast • • Fluorescent methods are more sensitive. Less operator fatigue with fluorescent. Background lacquer is not required. Fluorescent properties will degrade if exposed to UV light, acids, alkalis or high temperature. • Background fluorescence is a problem on rough surfaces. • Some oils will produce strong background fluorescence. • Low background light levels are required. Copyright © 2003, TWI Ltd World Centre for Materials Joining Technology
Fluorescent v Colour Contrast Black Particles Copyright © 2003, TWI Ltd Fluorescent Particles World Centre for Materials Joining Technology
