2003 MUTCD Part 2 C Warning Signs 2
![2003 MUTCD Part 2 C Warning Signs 2003 MUTCD Part 2 C Warning Signs](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-1.jpg)
![2 C. 02 Categories of Warning Signs Section 2 C. 02 Application of Warning 2 C. 02 Categories of Warning Signs Section 2 C. 02 Application of Warning](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-2.jpg)
![2 C. 03 Design of Warning Signs Ø Add PLAYGROUND warning sign to the 2 C. 03 Design of Warning Signs Ø Add PLAYGROUND warning sign to the](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-3.jpg)
![2 C. 04 Size of Warning signs Ø Gameli, ØSee MUTCD page 2 C-7 2 C. 04 Size of Warning signs Ø Gameli, ØSee MUTCD page 2 C-7](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-4.jpg)
![2 C. 05 Table 2 C-4, Placement of Advance Warning Signs ØRevise the distance 2 C. 05 Table 2 C-4, Placement of Advance Warning Signs ØRevise the distance](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-5.jpg)
![2 C. 05 Table 2 C-4, Placement of Advance Warning Signs Ø Combine the 2 C. 05 Table 2 C-4, Placement of Advance Warning Signs Ø Combine the](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-6.jpg)
![2 C. 05 Table 2 C-4, Placement of Advance Warning Signs 2 C. 05 Table 2 C-4, Placement of Advance Warning Signs](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-7.jpg)
![2 C. 06 Horizontal Alignment Signs Hairpin Curve 270 Degree Loop 2 C. 06 Horizontal Alignment Signs Hairpin Curve 270 Degree Loop](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-8.jpg)
![2 C. 06 Horizontal Alignment Signs Ø Add GUIDANCE to install a One-Direction Large 2 C. 06 Horizontal Alignment Signs Ø Add GUIDANCE to install a One-Direction Large](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-9.jpg)
![2 C. 06 Horizontal Alignment Signs for Speed Reduction ØIf the reduction in speed 2 C. 06 Horizontal Alignment Signs for Speed Reduction ØIf the reduction in speed](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-10.jpg)
![2 C. 06 Horizontal Alignment Signs (Table 2 C-5) ØMetric Advisory Speed values are 2 C. 06 Horizontal Alignment Signs (Table 2 C-5) ØMetric Advisory Speed values are](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-11.jpg)
![2 C. 07 Combination Horizontal Alignment/Advisory Speed Signs Ø New standard designs with advisory 2 C. 07 Combination Horizontal Alignment/Advisory Speed Signs Ø New standard designs with advisory](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-12.jpg)
![2 C. 10 Chevron Alignment Sign Ø The design of the Chevron Alignment sign 2 C. 10 Chevron Alignment Sign Ø The design of the Chevron Alignment sign](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-13.jpg)
![2 C. 11 Truck Rollover Warning Sign * Compliance date is 10 years from 2 C. 11 Truck Rollover Warning Sign * Compliance date is 10 years from](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-14.jpg)
![2 C. 12 Hill Signs These signs supplement the Hill Signs (W 7 -1, 2 C. 12 Hill Signs These signs supplement the Hill Signs (W 7 -1,](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-15.jpg)
![2 C. 13 Truck Escape Ramp Signs Ø Add to STANDARD to indicate that 2 C. 13 Truck Escape Ramp Signs Ø Add to STANDARD to indicate that](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-16.jpg)
![2 C. 14 HILL BLOCKS VIEW Sign ØAdd Option for use of sign ØGUIDANCE: 2 C. 14 HILL BLOCKS VIEW Sign ØAdd Option for use of sign ØGUIDANCE:](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-17.jpg)
![2 C. 16 Narrow Bridge/Road Sign DELETE Use these word message signs *Compliance date 2 C. 16 Narrow Bridge/Road Sign DELETE Use these word message signs *Compliance date](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-18.jpg)
![2 C. 19 Divided Highway (Road) Ends Sign ØModify GUIDANCE to clarify that a 2 C. 19 Divided Highway (Road) Ends Sign ØModify GUIDANCE to clarify that a](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-19.jpg)
![2 C. 21 DEAD END/NO OUTLET Signs Ø Combine Section 2 C. 40 with 2 C. 21 DEAD END/NO OUTLET Signs Ø Combine Section 2 C. 40 with](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-20.jpg)
![2 C. 22 Low Clearance Signs Ø Clarify STANDARD by removing the words “or 2 C. 22 Low Clearance Signs Ø Clarify STANDARD by removing the words “or](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-21.jpg)
![2 C. 23 BUMP and DIP Signs ØModify Guidance that a short stretch of 2 C. 23 BUMP and DIP Signs ØModify Guidance that a short stretch of](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-22.jpg)
![2 C. 24 SPEED HUMP/BUMP Sign ØAdd to OPTION to allow alternate legend SPEED 2 C. 24 SPEED HUMP/BUMP Sign ØAdd to OPTION to allow alternate legend SPEED](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-23.jpg)
![2 C. 26 SHOULDER Signs Ø Move UNEVEN LANES sign to Part 6 ØGUIDANCE 2 C. 26 SHOULDER Signs Ø Move UNEVEN LANES sign to Part 6 ØGUIDANCE](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-24.jpg)
![2 C. 28 BRIDGE ICES BEFORE ROAD Sign Ø New Section Ø Add OPTION 2 C. 28 BRIDGE ICES BEFORE ROAD Sign Ø New Section Ø Add OPTION](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-25.jpg)
![2 C. 29 Advance Traffic Control Sign ØClarify that reference in text to beacon 2 C. 29 Advance Traffic Control Sign ØClarify that reference in text to beacon](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-26.jpg)
![Speed Reduction Signs (Section 2 C. 30) Ø Add new Section Speed Reduction Signs Speed Reduction Signs (Section 2 C. 30) Ø Add new Section Speed Reduction Signs](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-27.jpg)
![2 C. 31 Merge Signs ØAdd New Entering Roadway Merge Sign W 4 -5 2 C. 31 Merge Signs ØAdd New Entering Roadway Merge Sign W 4 -5](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-28.jpg)
![2 C. 32 Added Lane Signs Ø Add ENTERING ROADWAY ADDED LANE sign W 2 C. 32 Added Lane Signs Ø Add ENTERING ROADWAY ADDED LANE sign W](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-29.jpg)
![2 C. 33 LANE ENDS Sign ØAdd New Symbol Design for the Lane Ends 2 C. 33 LANE ENDS Sign ØAdd New Symbol Design for the Lane Ends](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-30.jpg)
![2 C. 34 TWO-WAY TRAFFIC Sign Ø Add to GUIDANCE that W 6 -3 2 C. 34 TWO-WAY TRAFFIC Sign Ø Add to GUIDANCE that W 6 -3](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-31.jpg)
![2 C. 36 Advisory Exit, Ramp, and Curve Speed Signs W 13 -2 W 2 C. 36 Advisory Exit, Ramp, and Curve Speed Signs W 13 -2 W](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-32.jpg)
![2 C. 36 Example of Advisory Speed Signs at Exit Ramps (Fig. 2 C-8) 2 C. 36 Example of Advisory Speed Signs at Exit Ramps (Fig. 2 C-8)](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-33.jpg)
![2 C. 37 Intersection Warning Signs Ø Revised design for CIRCULAR INTERSECTION warning sign 2 C. 37 Intersection Warning Signs Ø Revised design for CIRCULAR INTERSECTION warning sign](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-34.jpg)
![2 C. 39 Traffic Signal Signs Ø Add new Section Traffic Signal Signs Ø 2 C. 39 Traffic Signal Signs Ø Add new Section Traffic Signal Signs Ø](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-35.jpg)
![2 C. 40 Vehicular Traffic Signs ØAdd Truck symbol, Bicycle, Golf Cart, and Horse. 2 C. 40 Vehicular Traffic Signs ØAdd Truck symbol, Bicycle, Golf Cart, and Horse.](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-36.jpg)
![2 C. 41 Non. Vehicular Signs Ø Add Equestrian, Handicapped, and Snowmobile symbol signs 2 C. 41 Non. Vehicular Signs Ø Add Equestrian, Handicapped, and Snowmobile symbol signs](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-37.jpg)
![2 C. 41 Non. Vehicular Signs Plaques Ø Modify STANDARD that when a Non. 2 C. 41 Non. Vehicular Signs Plaques Ø Modify STANDARD that when a Non.](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-38.jpg)
![2 C. 46 Advisory Speed Plaque Ø OPTION to use the W 13 -1 2 C. 46 Advisory Speed Plaque Ø OPTION to use the W 13 -1](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-39.jpg)
![2 C. 47 Supplemental Arrow Plaques 2 C. 47 Supplemental Arrow Plaques](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-40.jpg)
![2 C. 50 CROSS TRAFFIC DOES NOT STOP Plaque Ø Replace entire section with 2 C. 50 CROSS TRAFFIC DOES NOT STOP Plaque Ø Replace entire section with](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-41.jpg)
![2 C. 52 High-Occupancy Vehicle (HOV) Plaque Ø Add new Section HOV plaque Ø 2 C. 52 High-Occupancy Vehicle (HOV) Plaque Ø Add new Section HOV plaque Ø](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-42.jpg)
![2 C. 53 PHOTO ENFORCED Plaque Ø Add new section PHOTO ENFORCED plaque Ø 2 C. 53 PHOTO ENFORCED Plaque Ø Add new section PHOTO ENFORCED plaque Ø](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-43.jpg)
- Slides: 43
![2003 MUTCD Part 2 C Warning Signs 2003 MUTCD Part 2 C Warning Signs](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-1.jpg)
2003 MUTCD Part 2 C Warning Signs
![2 C 02 Categories of Warning Signs Section 2 C 02 Application of Warning 2 C. 02 Categories of Warning Signs Section 2 C. 02 Application of Warning](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-2.jpg)

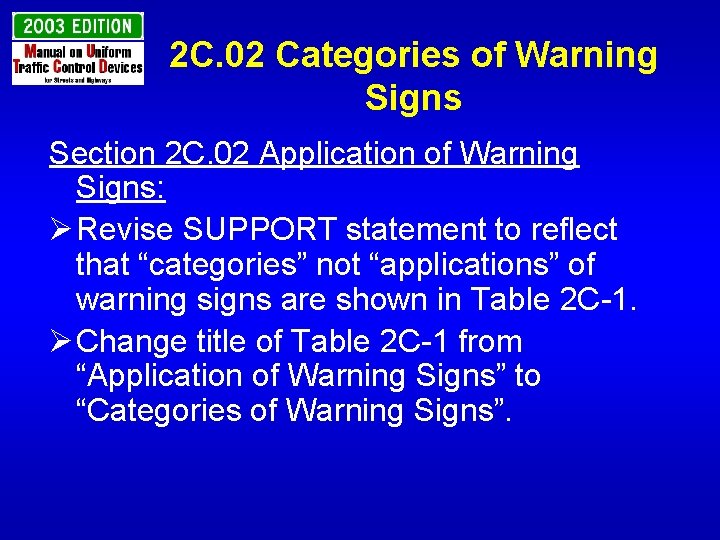

2 C. 02 Categories of Warning Signs Section 2 C. 02 Application of Warning Signs: Ø Revise SUPPORT statement to reflect that “categories” not “applications” of warning signs are shown in Table 2 C-1. Ø Change title of Table 2 C-1 from “Application of Warning Signs” to “Categories of Warning Signs”.
![2 C 03 Design of Warning Signs Ø Add PLAYGROUND warning sign to the 2 C. 03 Design of Warning Signs Ø Add PLAYGROUND warning sign to the](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-3.jpg)
2 C. 03 Design of Warning Signs Ø Add PLAYGROUND warning sign to the listing of signs that may have a black legend and border on a yellow background or on a fluorescent yellowgreen background.
![2 C 04 Size of Warning signs Ø Gameli ØSee MUTCD page 2 C7 2 C. 04 Size of Warning signs Ø Gameli, ØSee MUTCD page 2 C-7](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-4.jpg)
2 C. 04 Size of Warning signs Ø Gameli, ØSee MUTCD page 2 C-7 and cut/paste the W 1 -2 sign, page 2 C-10 the W 7 -4 sign, and page 2 C-11 the W 12 -2 P *Compliance Date – 10 years from effective date of Final Rule
![2 C 05 Table 2 C4 Placement of Advance Warning Signs ØRevise the distance 2 C. 05 Table 2 C-4, Placement of Advance Warning Signs ØRevise the distance](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-5.jpg)
2 C. 05 Table 2 C-4, Placement of Advance Warning Signs ØRevise the distance for the placement of advance warning signs to correspond with values in the 2001 AASHTO “ A Policy on Geometric Design of Highway and Streets” book
![2 C 05 Table 2 C4 Placement of Advance Warning Signs Ø Combine the 2 C. 05 Table 2 C-4, Placement of Advance Warning Signs Ø Combine the](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-6.jpg)
2 C. 05 Table 2 C-4, Placement of Advance Warning Signs Ø Combine the “Condition B” and “Condition C” columns and label them “Condition B” Ø Add columns for 90, 100, and 110 km/h and 60 and 70 mph for the deceleration speed Ø Add rows for 70 and 75 mph to the Posted or 85 percentile column. Ø These changes to Table 2 C-4 reflect the needs of older road users.
![2 C 05 Table 2 C4 Placement of Advance Warning Signs 2 C. 05 Table 2 C-4, Placement of Advance Warning Signs](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-7.jpg)
2 C. 05 Table 2 C-4, Placement of Advance Warning Signs
![2 C 06 Horizontal Alignment Signs Hairpin Curve 270 Degree Loop 2 C. 06 Horizontal Alignment Signs Hairpin Curve 270 Degree Loop](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-8.jpg)
2 C. 06 Horizontal Alignment Signs Hairpin Curve 270 Degree Loop
![2 C 06 Horizontal Alignment Signs Ø Add GUIDANCE to install a OneDirection Large 2 C. 06 Horizontal Alignment Signs Ø Add GUIDANCE to install a One-Direction Large](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-9.jpg)

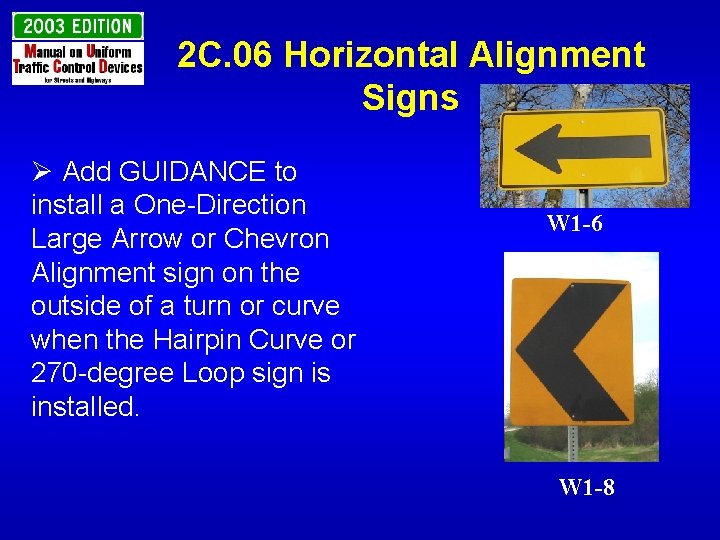

2 C. 06 Horizontal Alignment Signs Ø Add GUIDANCE to install a One-Direction Large Arrow or Chevron Alignment sign on the outside of a turn or curve when the Hairpin Curve or 270 -degree Loop sign is installed. W 1 -6 W 1 -8
![2 C 06 Horizontal Alignment Signs for Speed Reduction ØIf the reduction in speed 2 C. 06 Horizontal Alignment Signs for Speed Reduction ØIf the reduction in speed](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-10.jpg)
2 C. 06 Horizontal Alignment Signs for Speed Reduction ØIf the reduction in speed is 15 mph or greater, the W 1 -1 a, W 1 -2 a, or W 13 -5 signs may be used.
![2 C 06 Horizontal Alignment Signs Table 2 C5 ØMetric Advisory Speed values are 2 C. 06 Horizontal Alignment Signs (Table 2 C-5) ØMetric Advisory Speed values are](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-11.jpg)
2 C. 06 Horizontal Alignment Signs (Table 2 C-5) ØMetric Advisory Speed values are added to Table 2 C-5. They were inadvertently omitted in the 2000 Edition.
![2 C 07 Combination Horizontal AlignmentAdvisory Speed Signs Ø New standard designs with advisory 2 C. 07 Combination Horizontal Alignment/Advisory Speed Signs Ø New standard designs with advisory](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-12.jpg)
2 C. 07 Combination Horizontal Alignment/Advisory Speed Signs Ø New standard designs with advisory speed as part of the symbol design Ø Other proposed sign designs withdrawn for further
![2 C 10 Chevron Alignment Sign Ø The design of the Chevron Alignment sign 2 C. 10 Chevron Alignment Sign Ø The design of the Chevron Alignment sign](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-13.jpg)
2 C. 10 Chevron Alignment Sign Ø The design of the Chevron Alignment sign – a border shall not be used
![2 C 11 Truck Rollover Warning Sign Compliance date is 10 years from 2 C. 11 Truck Rollover Warning Sign * Compliance date is 10 years from](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-14.jpg)
2 C. 11 Truck Rollover Warning Sign * Compliance date is 10 years from the effective date of the Final Rule for the 2003 MUTCD.
![2 C 12 Hill Signs These signs supplement the Hill Signs W 7 1 2 C. 12 Hill Signs These signs supplement the Hill Signs (W 7 -1,](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-15.jpg)

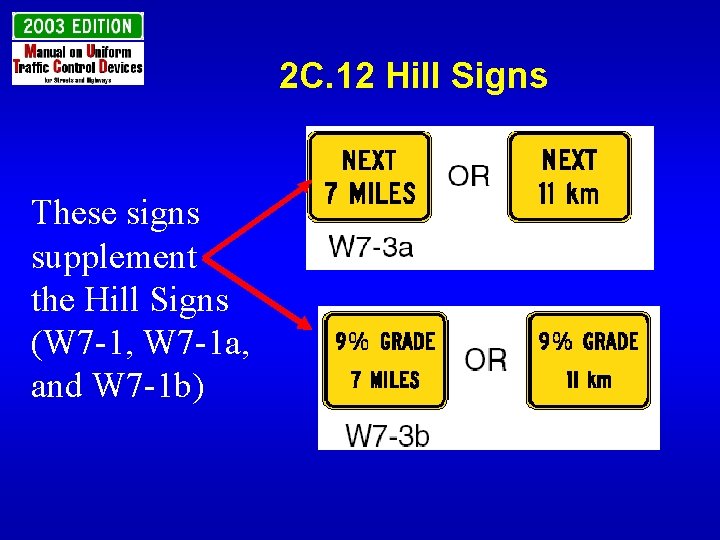

2 C. 12 Hill Signs These signs supplement the Hill Signs (W 7 -1, W 7 -1 a, and W 7 -1 b)
![2 C 13 Truck Escape Ramp Signs Ø Add to STANDARD to indicate that 2 C. 13 Truck Escape Ramp Signs Ø Add to STANDARD to indicate that](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-16.jpg)

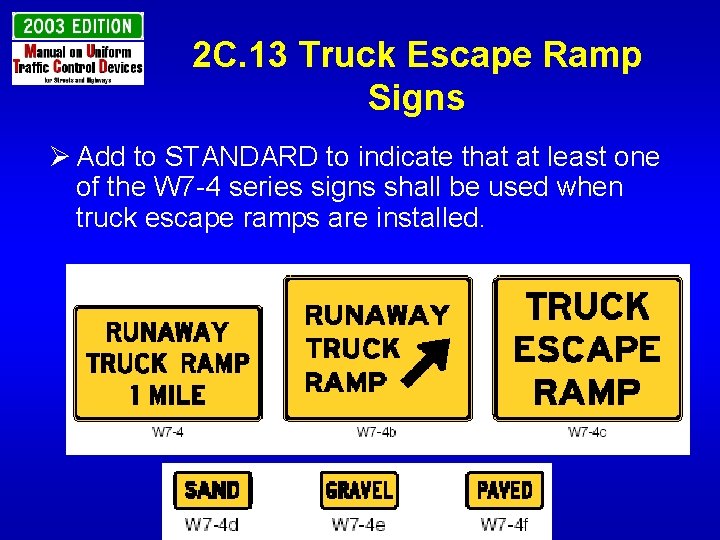

2 C. 13 Truck Escape Ramp Signs Ø Add to STANDARD to indicate that at least one of the W 7 -4 series signs shall be used when truck escape ramps are installed.
![2 C 14 HILL BLOCKS VIEW Sign ØAdd Option for use of sign ØGUIDANCE 2 C. 14 HILL BLOCKS VIEW Sign ØAdd Option for use of sign ØGUIDANCE:](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-17.jpg)
2 C. 14 HILL BLOCKS VIEW Sign ØAdd Option for use of sign ØGUIDANCE: An advisory speed plaque should accompany The HILL BLOCKS VIEW sign.
![2 C 16 Narrow BridgeRoad Sign DELETE Use these word message signs Compliance date 2 C. 16 Narrow Bridge/Road Sign DELETE Use these word message signs *Compliance date](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-18.jpg)

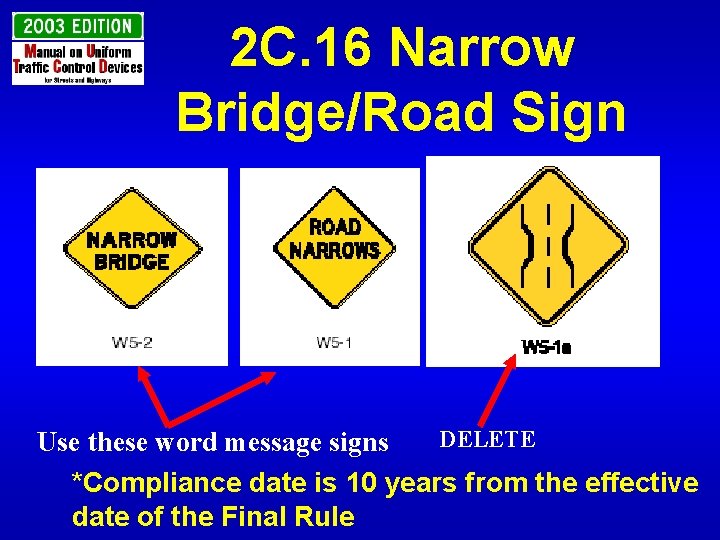

2 C. 16 Narrow Bridge/Road Sign DELETE Use these word message signs *Compliance date is 10 years from the effective date of the Final Rule
![2 C 19 Divided Highway Road Ends Sign ØModify GUIDANCE to clarify that a 2 C. 19 Divided Highway (Road) Ends Sign ØModify GUIDANCE to clarify that a](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-19.jpg)
2 C. 19 Divided Highway (Road) Ends Sign ØModify GUIDANCE to clarify that a W 6 -2 Symbol sign should be used in advance of the end of a section of physically divided highway (not at an intersection or junction)
![2 C 21 DEAD ENDNO OUTLET Signs Ø Combine Section 2 C 40 with 2 C. 21 DEAD END/NO OUTLET Signs Ø Combine Section 2 C. 40 with](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-20.jpg)
2 C. 21 DEAD END/NO OUTLET Signs Ø Combine Section 2 C. 40 with Section 2 C. 21 Ø Redesignate the W 14 -1 a and W 14 -2 a plaques as signs Ø Clarify that the W 14 -1 and W 14 -2 signs shall be posted as near as practical to the entry point or at a sufficient distance ahead
![2 C 22 Low Clearance Signs Ø Clarify STANDARD by removing the words or 2 C. 22 Low Clearance Signs Ø Clarify STANDARD by removing the words “or](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-21.jpg)
2 C. 22 Low Clearance Signs Ø Clarify STANDARD by removing the words “or minimum structure height”
![2 C 23 BUMP and DIP Signs ØModify Guidance that a short stretch of 2 C. 23 BUMP and DIP Signs ØModify Guidance that a short stretch of](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-22.jpg)
2 C. 23 BUMP and DIP Signs ØModify Guidance that a short stretch of depressed alignment that might momentarily hide a vehicle should be treated as a NO PASSING ZONE
![2 C 24 SPEED HUMPBUMP Sign ØAdd to OPTION to allow alternate legend SPEED 2 C. 24 SPEED HUMP/BUMP Sign ØAdd to OPTION to allow alternate legend SPEED](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-23.jpg)
2 C. 24 SPEED HUMP/BUMP Sign ØAdd to OPTION to allow alternate legend SPEED BUMP
![2 C 26 SHOULDER Signs Ø Move UNEVEN LANES sign to Part 6 ØGUIDANCE 2 C. 26 SHOULDER Signs Ø Move UNEVEN LANES sign to Part 6 ØGUIDANCE](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-24.jpg)

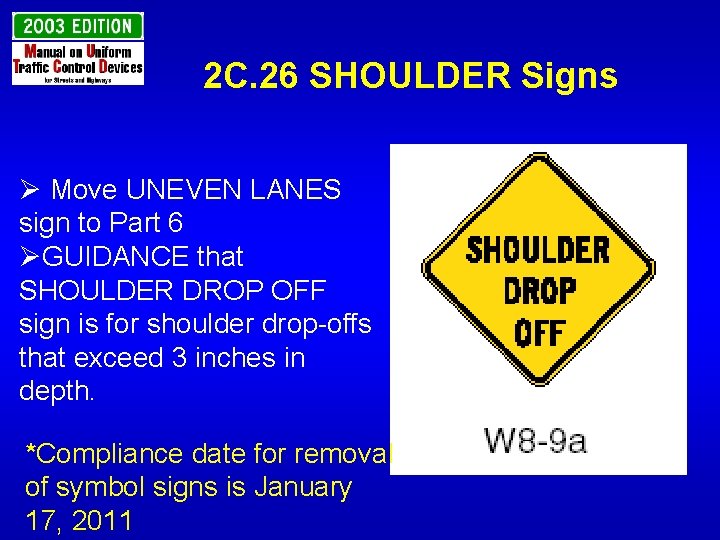

2 C. 26 SHOULDER Signs Ø Move UNEVEN LANES sign to Part 6 ØGUIDANCE that SHOULDER DROP OFF sign is for shoulder drop-offs that exceed 3 inches in depth. *Compliance date for removal of symbol signs is January 17, 2011
![2 C 28 BRIDGE ICES BEFORE ROAD Sign Ø New Section Ø Add OPTION 2 C. 28 BRIDGE ICES BEFORE ROAD Sign Ø New Section Ø Add OPTION](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-25.jpg)
2 C. 28 BRIDGE ICES BEFORE ROAD Sign Ø New Section Ø Add OPTION for use
![2 C 29 Advance Traffic Control Sign ØClarify that reference in text to beacon 2 C. 29 Advance Traffic Control Sign ØClarify that reference in text to beacon](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-26.jpg)
2 C. 29 Advance Traffic Control Sign ØClarify that reference in text to beacon refers to a warning beacon. W 3 -4
![Speed Reduction Signs Section 2 C 30 Ø Add new Section Speed Reduction Signs Speed Reduction Signs (Section 2 C. 30) Ø Add new Section Speed Reduction Signs](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-27.jpg)
Speed Reduction Signs (Section 2 C. 30) Ø Add new Section Speed Reduction Signs *Compliance period is 15 years from effective date of Final Rule
![2 C 31 Merge Signs ØAdd New Entering Roadway Merge Sign W 4 5 2 C. 31 Merge Signs ØAdd New Entering Roadway Merge Sign W 4 -5](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-28.jpg)
2 C. 31 Merge Signs ØAdd New Entering Roadway Merge Sign W 4 -5 Ø Add to GUIDANCE that the ENTERING ROADWAY MERGE sign for use on a roadway curves before converging *Compliance date is 10 years from effective date of Final Rule
![2 C 32 Added Lane Signs Ø Add ENTERING ROADWAY ADDED LANE sign W 2 C. 32 Added Lane Signs Ø Add ENTERING ROADWAY ADDED LANE sign W](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-29.jpg)
2 C. 32 Added Lane Signs Ø Add ENTERING ROADWAY ADDED LANE sign W 4 -6 ØAdd to GUIDANCE that the ENTERING ROADWAY ADDED LANE sign for use on a roadway curves before converging * Compliance Date is 10 years from date of Final Rule
![2 C 33 LANE ENDS Sign ØAdd New Symbol Design for the Lane Ends 2 C. 33 LANE ENDS Sign ØAdd New Symbol Design for the Lane Ends](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-30.jpg)
2 C. 33 LANE ENDS Sign ØAdd New Symbol Design for the Lane Ends (W 4 -2) sign. *Compliance period is 10 years from effective date of Final Rule
![2 C 34 TWOWAY TRAFFIC Sign Ø Add to GUIDANCE that W 6 3 2 C. 34 TWO-WAY TRAFFIC Sign Ø Add to GUIDANCE that W 6 -3](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-31.jpg)
2 C. 34 TWO-WAY TRAFFIC Sign Ø Add to GUIDANCE that W 6 -3 sign should be used to warn road users of a transition from a one-way street to a two-lane, twoway roadway ØAHEAD plaque should be used *Compliance period is 5 years from effective date of Final Rule
![2 C 36 Advisory Exit Ramp and Curve Speed Signs W 13 2 W 2 C. 36 Advisory Exit, Ramp, and Curve Speed Signs W 13 -2 W](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-32.jpg)

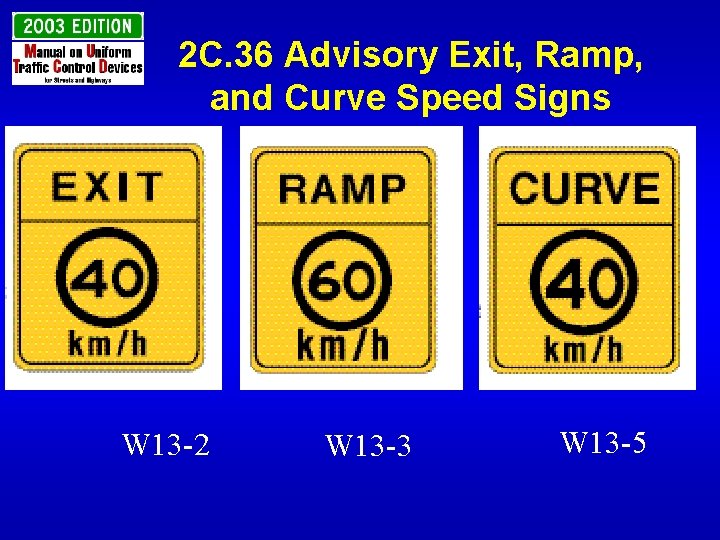

2 C. 36 Advisory Exit, Ramp, and Curve Speed Signs W 13 -2 W 13 -3 W 13 -5
![2 C 36 Example of Advisory Speed Signs at Exit Ramps Fig 2 C8 2 C. 36 Example of Advisory Speed Signs at Exit Ramps (Fig. 2 C-8)](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-33.jpg)

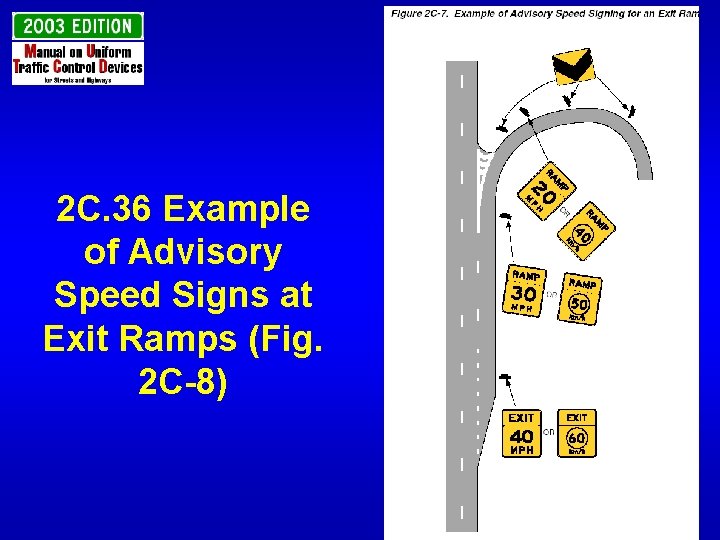

2 C. 36 Example of Advisory Speed Signs at Exit Ramps (Fig. 2 C-8)
![2 C 37 Intersection Warning Signs Ø Revised design for CIRCULAR INTERSECTION warning sign 2 C. 37 Intersection Warning Signs Ø Revised design for CIRCULAR INTERSECTION warning sign](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-34.jpg)

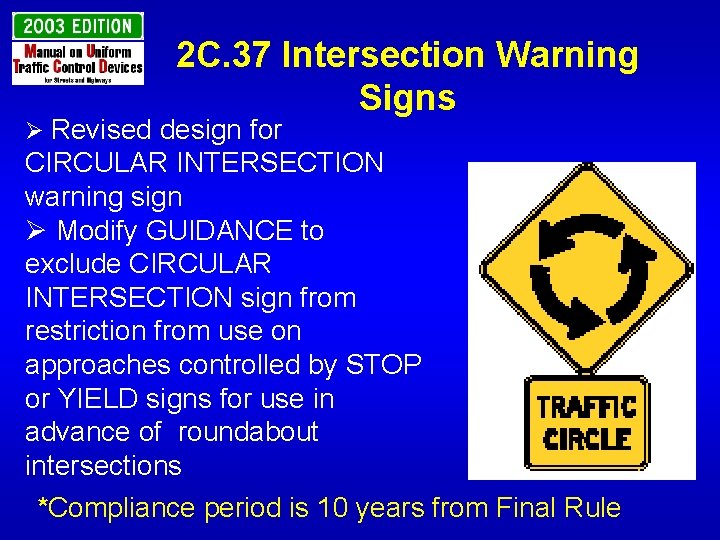

2 C. 37 Intersection Warning Signs Ø Revised design for CIRCULAR INTERSECTION warning sign Ø Modify GUIDANCE to exclude CIRCULAR INTERSECTION sign from restriction from use on approaches controlled by STOP or YIELD signs for use in advance of roundabout intersections *Compliance period is 10 years from Final Rule
![2 C 39 Traffic Signal Signs Ø Add new Section Traffic Signal Signs Ø 2 C. 39 Traffic Signal Signs Ø Add new Section Traffic Signal Signs Ø](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-35.jpg)

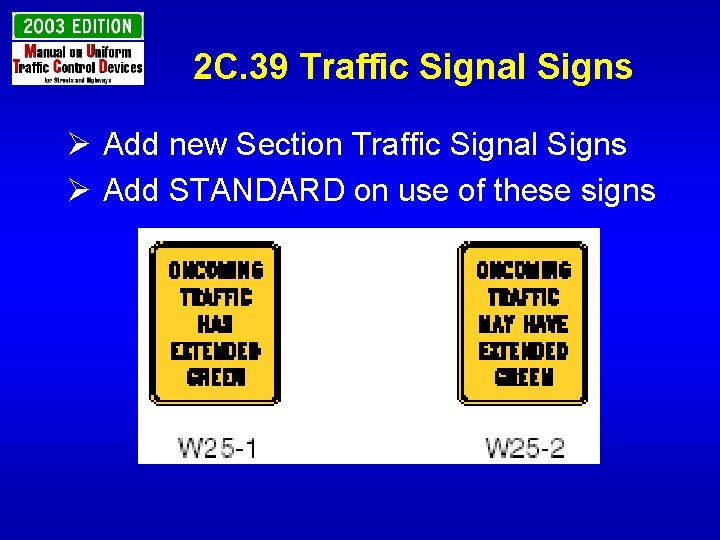

2 C. 39 Traffic Signal Signs Ø Add new Section Traffic Signal Signs Ø Add STANDARD on use of these signs
![2 C 40 Vehicular Traffic Signs ØAdd Truck symbol Bicycle Golf Cart and Horse 2 C. 40 Vehicular Traffic Signs ØAdd Truck symbol, Bicycle, Golf Cart, and Horse.](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-36.jpg)
2 C. 40 Vehicular Traffic Signs ØAdd Truck symbol, Bicycle, Golf Cart, and Horse. Drawn Vehicle signs Ø Add OPTION – SHARE THE ROAD may be mounted below Vehicular Traffic Signs *Compliance period is 10 years from Final Rule
![2 C 41 Non Vehicular Signs Ø Add Equestrian Handicapped and Snowmobile symbol signs 2 C. 41 Non. Vehicular Signs Ø Add Equestrian, Handicapped, and Snowmobile symbol signs](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-37.jpg)
2 C. 41 Non. Vehicular Signs Ø Add Equestrian, Handicapped, and Snowmobile symbol signs Ø Add OPTION that AHEAD or XX Meters plaque may be used in advance of crossing *Compliance date is January 17, 2011 for of crosswalk lines from crossing signs and for use of downward pointing arrow
![2 C 41 Non Vehicular Signs Plaques Ø Modify STANDARD that when a Non 2 C. 41 Non. Vehicular Signs Plaques Ø Modify STANDARD that when a Non.](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-38.jpg)

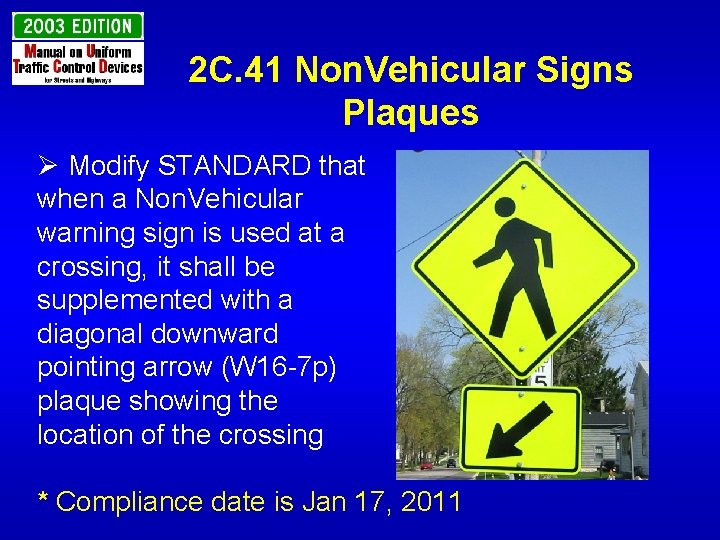

2 C. 41 Non. Vehicular Signs Plaques Ø Modify STANDARD that when a Non. Vehicular warning sign is used at a crossing, it shall be supplemented with a diagonal downward pointing arrow (W 16 -7 p) plaque showing the location of the crossing * Compliance date is Jan 17, 2011
![2 C 46 Advisory Speed Plaque Ø OPTION to use the W 13 1 2 C. 46 Advisory Speed Plaque Ø OPTION to use the W 13 -1](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-39.jpg)

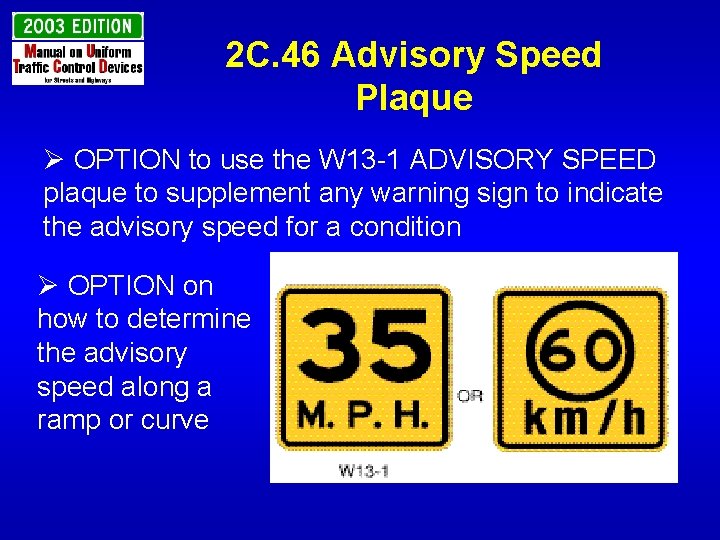

2 C. 46 Advisory Speed Plaque Ø OPTION to use the W 13 -1 ADVISORY SPEED plaque to supplement any warning sign to indicate the advisory speed for a condition Ø OPTION on how to determine the advisory speed along a ramp or curve
![2 C 47 Supplemental Arrow Plaques 2 C. 47 Supplemental Arrow Plaques](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-40.jpg)
2 C. 47 Supplemental Arrow Plaques
![2 C 50 CROSS TRAFFIC DOES NOT STOP Plaque Ø Replace entire section with 2 C. 50 CROSS TRAFFIC DOES NOT STOP Plaque Ø Replace entire section with](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-41.jpg)

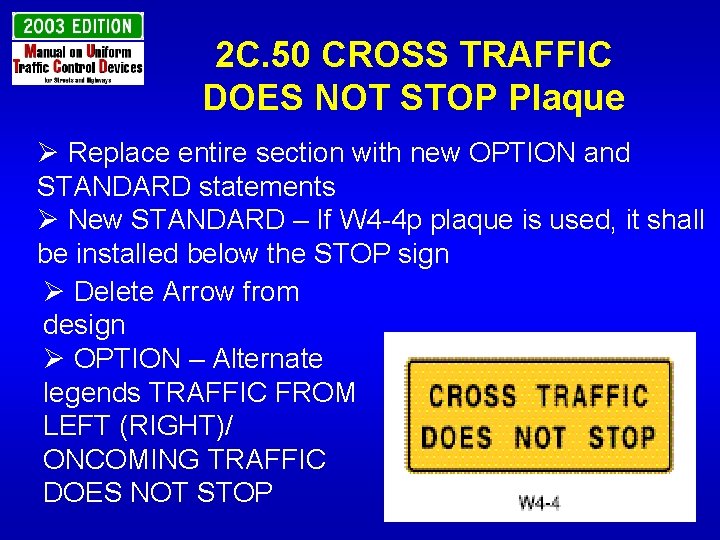

2 C. 50 CROSS TRAFFIC DOES NOT STOP Plaque Ø Replace entire section with new OPTION and STANDARD statements Ø New STANDARD – If W 4 -4 p plaque is used, it shall be installed below the STOP sign Ø Delete Arrow from design Ø OPTION – Alternate legends TRAFFIC FROM LEFT (RIGHT)/ ONCOMING TRAFFIC DOES NOT STOP
![2 C 52 HighOccupancy Vehicle HOV Plaque Ø Add new Section HOV plaque Ø 2 C. 52 High-Occupancy Vehicle (HOV) Plaque Ø Add new Section HOV plaque Ø](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-42.jpg)
2 C. 52 High-Occupancy Vehicle (HOV) Plaque Ø Add new Section HOV plaque Ø Add OPTION for use of the HOV plaque Ø Alternate of diamond symbol may be used
![2 C 53 PHOTO ENFORCED Plaque Ø Add new section PHOTO ENFORCED plaque Ø 2 C. 53 PHOTO ENFORCED Plaque Ø Add new section PHOTO ENFORCED plaque Ø](https://slidetodoc.com/presentation_image_h/0014a76fe7bc9bed67b2be594966752e/image-43.jpg)
2 C. 53 PHOTO ENFORCED Plaque Ø Add new section PHOTO ENFORCED plaque Ø Add OPTION for use in advance of locations with photo enforcement of traffic laws * Compliance period is 10 years from date of Final Rule
