MAGNETIC MATERIALS Confidential 1 1 Magnetic Induction or
![MAGNETIC MATERIALS Confidential 1 MAGNETIC MATERIALS Confidential 1](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-1.jpg)
![1) Magnetic Induction or Magnetic Flux density (B): The magnetic induction or magnetic flux 1) Magnetic Induction or Magnetic Flux density (B): The magnetic induction or magnetic flux](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-2.jpg)
![3) Magnetic Permeability (µ): It describes the nature of the material i. e. it 3) Magnetic Permeability (µ): It describes the nature of the material i. e. it](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-3.jpg)
![4) Magnetization: Process of converting a non magnetic material into magnetic sample. 5) Intensity 4) Magnetization: Process of converting a non magnetic material into magnetic sample. 5) Intensity](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-4.jpg)
![Confidential 5 Confidential 5](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-5.jpg)
![Sources of Magnetic Fields Confidential 6 Sources of Magnetic Fields Confidential 6](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-6.jpg)
![Magnetic Field Strength • Created by current through a coil: magnetic field H N Magnetic Field Strength • Created by current through a coil: magnetic field H N](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-7.jpg)
![Response to a Magnetic Field • Magnetic induction results in the material B = Response to a Magnetic Field • Magnetic induction results in the material B =](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-8.jpg)
![Confidential 9 Confidential 9](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-9.jpg)
![Origin of Magnetic Moment Magnetism arises from the Magnetic Moment or Magnetic dipole of Origin of Magnetic Moment Magnetism arises from the Magnetic Moment or Magnetic dipole of](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-10.jpg)
![Origin of Magnetic Moment A moving electric charge, macroscopically or “microscopically” is responsible for Origin of Magnetic Moment A moving electric charge, macroscopically or “microscopically” is responsible for](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-11.jpg)
![Origin of magnetic dipoles Ø The spin of the electron produces a magnetic field Origin of magnetic dipoles Ø The spin of the electron produces a magnetic field](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-12.jpg)
![Origin of magnetic dipoles The spin of the electron produces a magnetic field with Origin of magnetic dipoles The spin of the electron produces a magnetic field with](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-13.jpg)
![Electrons orbiting around the nucleus create a magnetic field around the atom. Confidential 14 Electrons orbiting around the nucleus create a magnetic field around the atom. Confidential 14](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-14.jpg)
![Classification of magnetic Materials Permanent Dipoles No Ye s Para, Ferro, Anti ferro, Ferri Classification of magnetic Materials Permanent Dipoles No Ye s Para, Ferro, Anti ferro, Ferri](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-15.jpg)
![Diamagnetic Materials Confidential 16 Diamagnetic Materials Confidential 16](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-16.jpg)
![Properties • It is a weak form of magnetism • Diamagnetism is because of Properties • It is a weak form of magnetism • Diamagnetism is because of](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-17.jpg)
![Applied Magnetic Field (H) opposing none No Applied Magnetic Field (H = 0) Confidential Applied Magnetic Field (H) opposing none No Applied Magnetic Field (H = 0) Confidential](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-18.jpg)
![Confidential 19 Confidential 19](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-19.jpg)
![• External field will cause a rotation action on the individual electronic orbits. • External field will cause a rotation action on the individual electronic orbits.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-20.jpg)
![• Diamagnetic susceptibility is independent of temperature and applied magnetic field strength. • • Diamagnetic susceptibility is independent of temperature and applied magnetic field strength. •](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-21.jpg)
![Paramagnetic Materials Confidential 22 Paramagnetic Materials Confidential 22](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-22.jpg)
![Properties • Possess permanent dipoles. • If the orbital's are not completely filled or Properties • Possess permanent dipoles. • If the orbital's are not completely filled or](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-23.jpg)
![Paramagnetic Materials Applied Magnetic Field (H) aligned random No Applied Magnetic Field (H = Paramagnetic Materials Applied Magnetic Field (H) aligned random No Applied Magnetic Field (H =](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-24.jpg)
![• In presence of magnetic field the • material gets feebly magnetized i. • In presence of magnetic field the • material gets feebly magnetized i.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-25.jpg)
![Confidential 26 Confidential 26](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-26.jpg)
![• With increase in temperature susceptibility decreases. • Susceptibility is small and positive. • With increase in temperature susceptibility decreases. • Susceptibility is small and positive.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-27.jpg)
![Confidential 28 Confidential 28](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-28.jpg)
![Confidential 29 Confidential 29](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-29.jpg)
![Ferromagnetic Materials Confidential 30 Ferromagnetic Materials Confidential 30](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-30.jpg)
![Properties • Permanent dipoles are present so possess net magnetic moment • Origin for Properties • Permanent dipoles are present so possess net magnetic moment • Origin for](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-31.jpg)
![Applied Magnetic Field (H) aligned No Applied Magnetic Field (H = 0) Confidential 32 Applied Magnetic Field (H) aligned No Applied Magnetic Field (H = 0) Confidential 32](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-32.jpg)
![• Magnetic susceptibility is as high as 106. • So H << M. • Magnetic susceptibility is as high as 106. • So H << M.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-33.jpg)
![• When placed in external mag. field it strongly attracts magnetic lines of • When placed in external mag. field it strongly attracts magnetic lines of](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-34.jpg)
![Ferro magnetic Materials Even when H = 0, the dipoles tend to strongly align Ferro magnetic Materials Even when H = 0, the dipoles tend to strongly align](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-35.jpg)
![Thermal energy can randomize the spin Ferromagnetic Tcurie Heat Paramagnetic Tc for different materials: Thermal energy can randomize the spin Ferromagnetic Tcurie Heat Paramagnetic Tc for different materials:](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-36.jpg)
![Curie Temperature ü The temperature above (Tc) which ferromagnetic material become paramagnetic. ü Below Curie Temperature ü The temperature above (Tc) which ferromagnetic material become paramagnetic. ü Below](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-37.jpg)
![Antiferro magnetic Material Confidential 38 Antiferro magnetic Material Confidential 38](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-38.jpg)

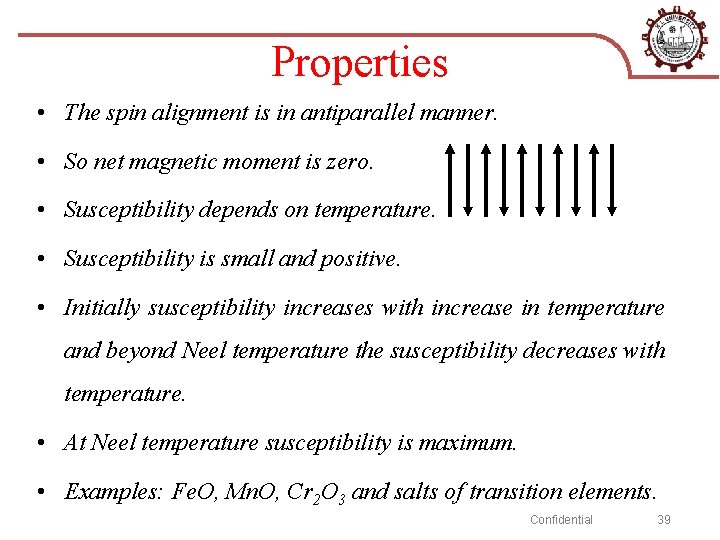

![Properties • The spin alignment is in antiparallel manner. • So net magnetic moment Properties • The spin alignment is in antiparallel manner. • So net magnetic moment](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-39.jpg)
![Confidential 40 Confidential 40](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-40.jpg)
![Confidential 41 Confidential 41](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-41.jpg)
![Ferri-magnetic Materials Confidential 42 Ferri-magnetic Materials Confidential 42](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-42.jpg)
![Classification of Ferri-magnetic Materials Ferrimagnetic Materials Cubic Ferrites MFe 2 O 4 Hexagonal Ferrites Classification of Ferri-magnetic Materials Ferrimagnetic Materials Cubic Ferrites MFe 2 O 4 Hexagonal Ferrites](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-43.jpg)

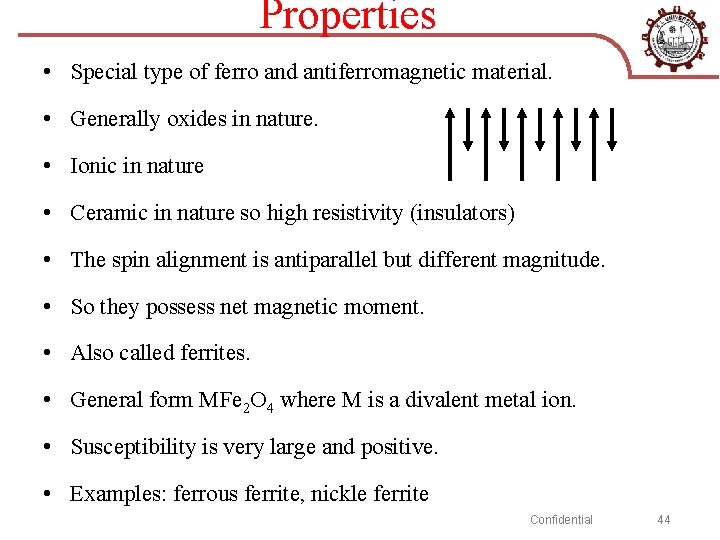

![Properties • Special type of ferro and antiferromagnetic material. • Generally oxides in nature. Properties • Special type of ferro and antiferromagnetic material. • Generally oxides in nature.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-44.jpg)
![Spin Orientation Net Spin S Magnetic Moment Ion E. C Mn 2+ 3 d Spin Orientation Net Spin S Magnetic Moment Ion E. C Mn 2+ 3 d](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-45.jpg)
![Unpaired electrons give rise to ferromagnetism in alkali metals Ms = m. N Net Unpaired electrons give rise to ferromagnetism in alkali metals Ms = m. N Net](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-46.jpg)
![Ferrimagnetism • All Fe 2+ have a spin magnetic moment. • Half of Fe Ferrimagnetism • All Fe 2+ have a spin magnetic moment. • Half of Fe](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-47.jpg)
![Ferrimagnetism-Structure Confidential 48 Ferrimagnetism-Structure Confidential 48](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-48.jpg)
![Confidential 49 Confidential 49](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-49.jpg)
![Domain Theory of Ferromagnetic Materials Confidential 50 Domain Theory of Ferromagnetic Materials Confidential 50](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-50.jpg)
![Domain Theory of Ferromagnetism The domain in ferromagnetic solid is understandable from thermo dynamical Domain Theory of Ferromagnetism The domain in ferromagnetic solid is understandable from thermo dynamical](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-51.jpg)
![Exchange Energy or Magnetic Field Energy • The interaction energy that makes the adjacent Exchange Energy or Magnetic Field Energy • The interaction energy that makes the adjacent](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-52.jpg)
![Confidential 53 Confidential 53](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-53.jpg)

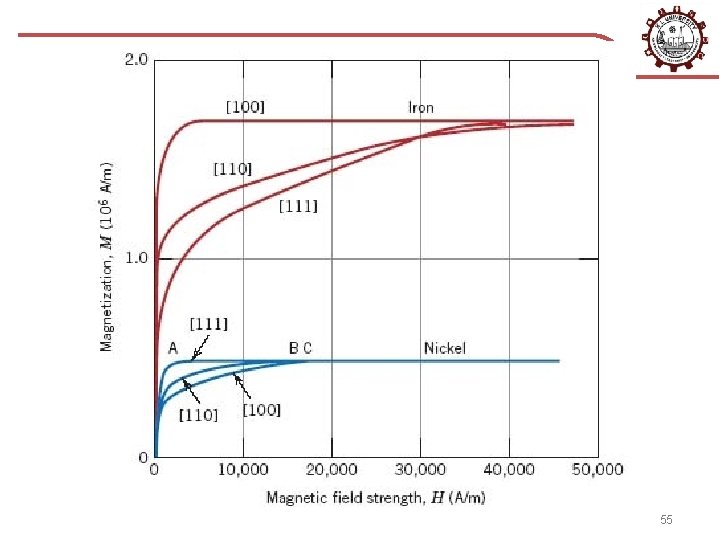

![Anisotropy Energy • Two types of directions of magnetization • Easy Direction • Hard Anisotropy Energy • Two types of directions of magnetization • Easy Direction • Hard](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-54.jpg)
![Confidential 55 Confidential 55](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-55.jpg)
![Domain Wall Energy or Bloch Wall Energy • Bloch is a transition layer which Domain Wall Energy or Bloch Wall Energy • Bloch is a transition layer which](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-56.jpg)
![Domain Structure and the Hysteresis Loop • Bloch walls - The boundaries between magnetic Domain Structure and the Hysteresis Loop • Bloch walls - The boundaries between magnetic](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-57.jpg)
![Magnetostrictive Energy • When the domains are magnatised in different directions, they will either Magnetostrictive Energy • When the domains are magnatised in different directions, they will either](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-58.jpg)
![Confidential 59 Confidential 59](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-59.jpg)
![Confidential 60 Confidential 60](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-60.jpg)

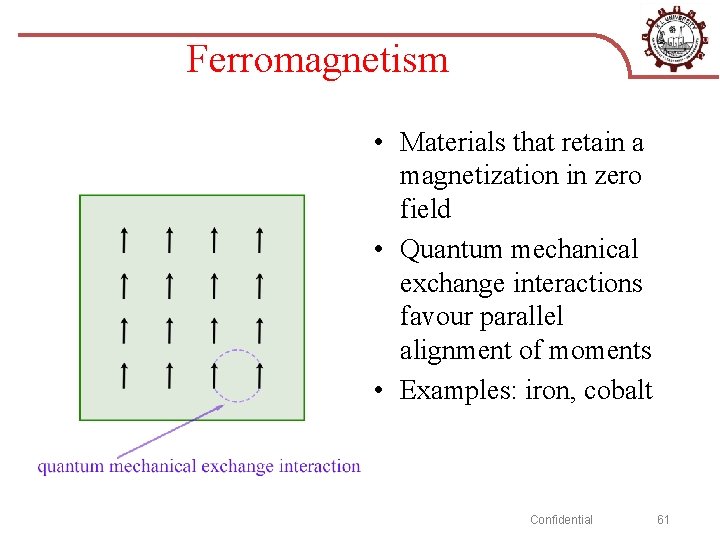

![Ferromagnetism • Materials that retain a magnetization in zero field • Quantum mechanical exchange Ferromagnetism • Materials that retain a magnetization in zero field • Quantum mechanical exchange](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-61.jpg)
![• According to Becker, there are two independent processes which take place and • According to Becker, there are two independent processes which take place and](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-62.jpg)
![Domain wall moment or Domain wall growth • Volume of favorably oriented domains will Domain wall moment or Domain wall growth • Volume of favorably oriented domains will](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-63.jpg)
![Domain Structure and the Hysteresis Loop 1. Domain growth: 1. Each domain is magnetized Domain Structure and the Hysteresis Loop 1. Domain growth: 1. Each domain is magnetized](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-64.jpg)
![Magnetic domains • Applying very strong fields can saturate magnetization by creating single domain Magnetic domains • Applying very strong fields can saturate magnetization by creating single domain](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-65.jpg)
![Hysteresis Curve • Means lagging or retarding of an effect behind the cause of Hysteresis Curve • Means lagging or retarding of an effect behind the cause of](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-66.jpg)
![Confidential 67 Confidential 67](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-67.jpg)
![Domain Structure and the Hysteresis Loop • “Domains” with aligned magnetic moment grow at Domain Structure and the Hysteresis Loop • “Domains” with aligned magnetic moment grow at](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-68.jpg)

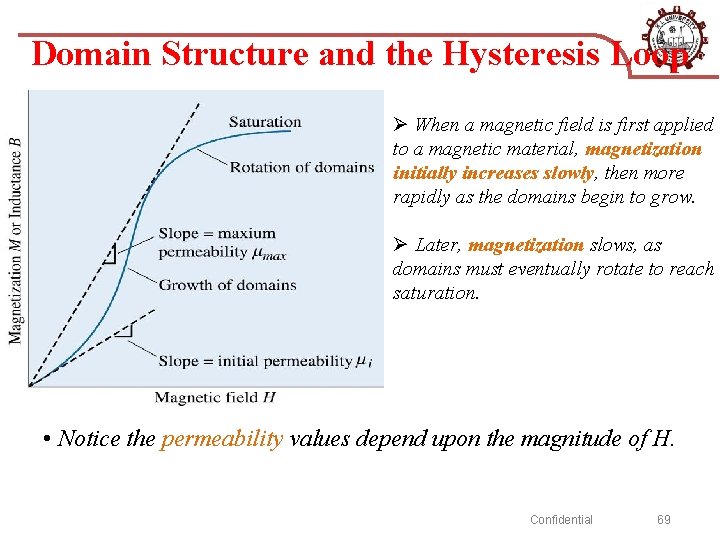

![Domain Structure and the Hysteresis Loop Ø When a magnetic field is first applied Domain Structure and the Hysteresis Loop Ø When a magnetic field is first applied](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-69.jpg)
![Hysteresis Loop • Hysteresis loop - The loop traced out by magnetization in a Hysteresis Loop • Hysteresis loop - The loop traced out by magnetization in a](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-70.jpg)
![Ferromagnetism: Magnetic hysteresis Ms M Ms – Saturation magnetization Mrs – Saturation remanent magnetization Ferromagnetism: Magnetic hysteresis Ms M Ms – Saturation magnetization Mrs – Saturation remanent magnetization](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-71.jpg)
![remanent magnetization = M 0 coercivity = Hc Confidential 72 remanent magnetization = M 0 coercivity = Hc Confidential 72](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-72.jpg)
![Hysteresis Loop Magnetization by domain rotation Domain growth irreversible boundary displacements. • Means lagging Hysteresis Loop Magnetization by domain rotation Domain growth irreversible boundary displacements. • Means lagging](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-73.jpg)
![Hysteresis, Remanence, & Coercivity of Ferromagnetic Materials Confidential 74 Hysteresis, Remanence, & Coercivity of Ferromagnetic Materials Confidential 74](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-74.jpg)

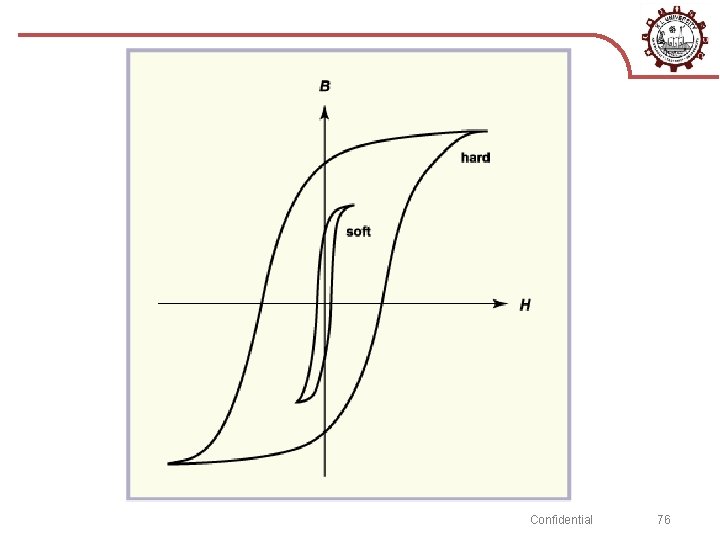

![“hard” ferromagnetic material has a large M 0 and large Hc. “soft” ferromagnetic material “hard” ferromagnetic material has a large M 0 and large Hc. “soft” ferromagnetic material](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-75.jpg)
![Confidential 76 Confidential 76](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-76.jpg)
![Confidential 77 Confidential 77](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-77.jpg)
![Hard versus Soft Magnets: Characteristics of soft magnetic materials: Ø High initial permeability. Ø Hard versus Soft Magnets: Characteristics of soft magnetic materials: Ø High initial permeability. Ø](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-78.jpg)
![Importance of Soft Magnetic Materials: Ø Saturation magnetization can be changed by altering composition Importance of Soft Magnetic Materials: Ø Saturation magnetization can be changed by altering composition](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-79.jpg)
![Hard versus Soft Magnets Hard Magnets: Characteristics of Hard magnetic materials: ü Low initial Hard versus Soft Magnets Hard Magnets: Characteristics of Hard magnetic materials: ü Low initial](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-80.jpg)
![Importance of Hard magnetic material Two important characteristics related to applications of these materials Importance of Hard magnetic material Two important characteristics related to applications of these materials](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-81.jpg)
![Who to get larger area of (BH)max i. e. , who to produce Hard Who to get larger area of (BH)max i. e. , who to produce Hard](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-82.jpg)
![Hard Magnetic Material Soft Magnetic Material Have large hysteresis loss. Have low hysteresis loss. Hard Magnetic Material Soft Magnetic Material Have large hysteresis loss. Have low hysteresis loss.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-83.jpg)
![Applications of Magnetic Materials Confidential 84 Applications of Magnetic Materials Confidential 84](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-84.jpg)
![Magnetic materials applications 1) Ferrite Applications 2) Magnetic Storage Reading Process Writing Process Storage Magnetic materials applications 1) Ferrite Applications 2) Magnetic Storage Reading Process Writing Process Storage](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-85.jpg)

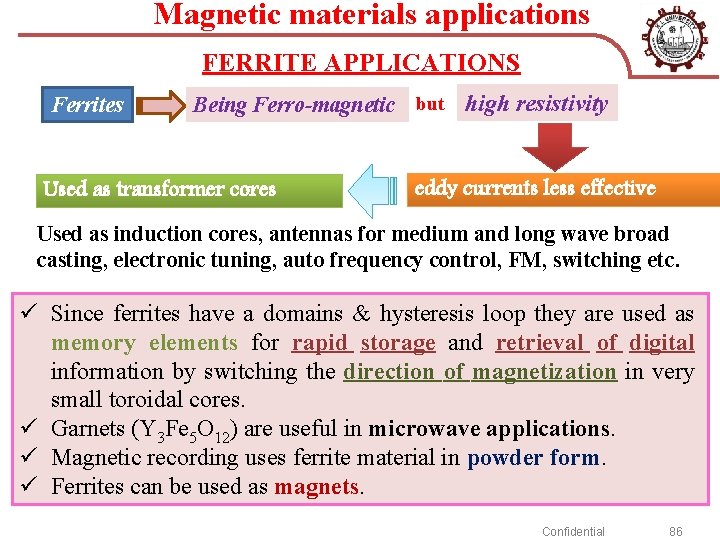

![Magnetic materials applications FERRITE APPLICATIONS Ferrites Being Ferro-magnetic but high resistivity Used as transformer Magnetic materials applications FERRITE APPLICATIONS Ferrites Being Ferro-magnetic but high resistivity Used as transformer](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-86.jpg)

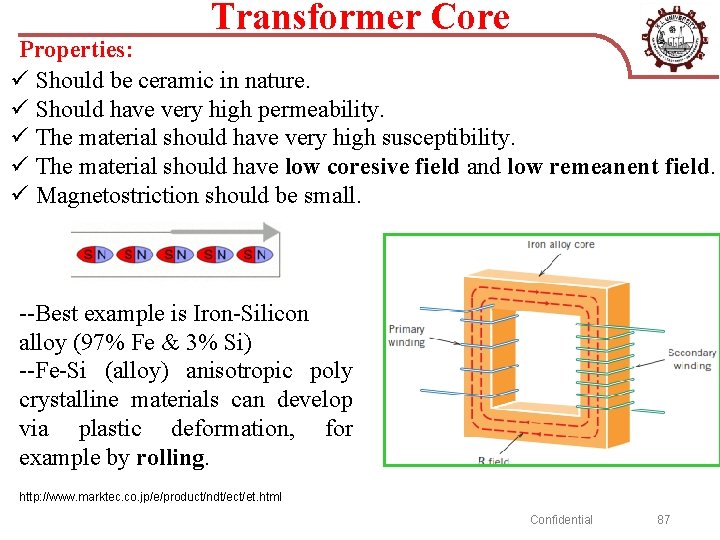

![Transformer Core Properties: ü Should be ceramic in nature. ü Should have very high Transformer Core Properties: ü Should be ceramic in nature. ü Should have very high](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-87.jpg)
![-- For body centred cubic alloys including Fe-Si alloy, the rolling texture is (1 -- For body centred cubic alloys including Fe-Si alloy, the rolling texture is (1](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-88.jpg)
![Magnetic Storage Devices • Information is stored by magnetizing material due to high retentivity. Magnetic Storage Devices • Information is stored by magnetizing material due to high retentivity.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-89.jpg)
![Recording Principle (Digital) Confidential 90 Recording Principle (Digital) Confidential 90](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-90.jpg)
![How Magnetic Storage Works Ø A magnetic disk's medium contains iron particles, which can How Magnetic Storage Works Ø A magnetic disk's medium contains iron particles, which can](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-91.jpg)
![Confidential 92 Confidential 92](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-92.jpg)
![Magnetic Storage Devices Confidential 93 Magnetic Storage Devices Confidential 93](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-93.jpg)
![Magnetic Storage Devices • There are two types of magnetic storage media. • Those Magnetic Storage Devices • There are two types of magnetic storage media. • Those](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-94.jpg)
![Magnetic Storage Devices Thin film: It provides higher storage capacities at lower costs. Ex: Magnetic Storage Devices Thin film: It provides higher storage capacities at lower costs. Ex:](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-95.jpg)
![Magnetic Storage Devices Thin film: Confidential 96 Magnetic Storage Devices Thin film: Confidential 96](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-96.jpg)
![Confidential 97 Confidential 97](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-97.jpg)

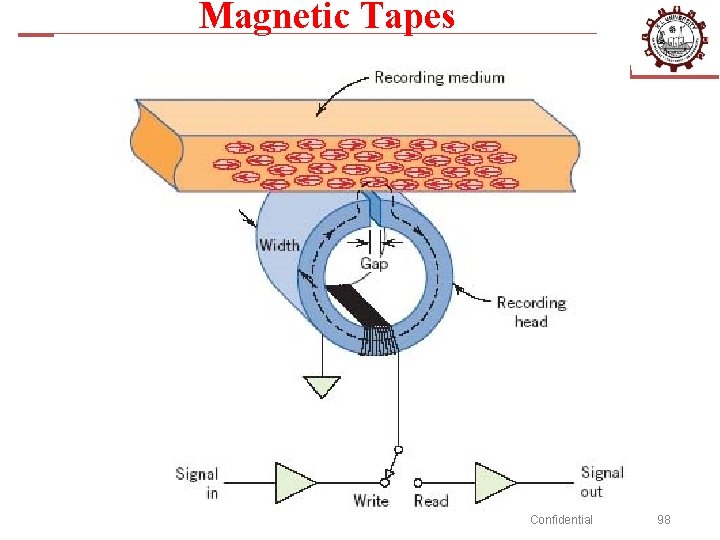

![Magnetic Tapes Confidential 98 Magnetic Tapes Confidential 98](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-98.jpg)
![© 2003 Brooks/Cole, a division of Thomson Learning, Inc. Thomson Learning™ is a trademark © 2003 Brooks/Cole, a division of Thomson Learning, Inc. Thomson Learning™ is a trademark](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-99.jpg)
![Confidential 100 Confidential 100](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-100.jpg)
![Confidential 101 Confidential 101](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-101.jpg)
![Confidential 102 Confidential 102](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-102.jpg)
![MOTORS Ø Hard magnetic materials are used. Ø Motor converts electrical energy into mechanical MOTORS Ø Hard magnetic materials are used. Ø Motor converts electrical energy into mechanical](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-103.jpg)
![Confidential 104 Confidential 104](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-104.jpg)
- Slides: 104
![MAGNETIC MATERIALS Confidential 1 MAGNETIC MATERIALS Confidential 1](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-1.jpg)
MAGNETIC MATERIALS Confidential 1
![1 Magnetic Induction or Magnetic Flux density B The magnetic induction or magnetic flux 1) Magnetic Induction or Magnetic Flux density (B): The magnetic induction or magnetic flux](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-2.jpg)
1) Magnetic Induction or Magnetic Flux density (B): The magnetic induction or magnetic flux density is the number of lines of magnetic force passing through unit area perpendicularly. Where Φ is the magnetic flux and A is the area of cross section. Units: Weber/m 2 or Tesla. 2) Magnetic Field Intensity or Intensity of Magnetic Field (H): Magnetic Field Intensity at any point in the magnetic field is the force experienced by an unit north pole placed at that point. Units: A/m Confidential 2 .
![3 Magnetic Permeability µ It describes the nature of the material i e it 3) Magnetic Permeability (µ): It describes the nature of the material i. e. it](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-3.jpg)
3) Magnetic Permeability (µ): It describes the nature of the material i. e. it is a material property. It is the ease with which the material allows magnetic lines of force to pass through it or the degree to which magnetic field can penetrate a given medium. Mathematically it is equal to the ratio of magnetic induction B inside a material to the applied magnetic field intensity H. Units: H/m. Confidential 3
![4 Magnetization Process of converting a non magnetic material into magnetic sample 5 Intensity 4) Magnetization: Process of converting a non magnetic material into magnetic sample. 5) Intensity](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-4.jpg)
4) Magnetization: Process of converting a non magnetic material into magnetic sample. 5) Intensity of Magnetization (M): It is a material property. It is defined as magnetic moment per unit volume in a material. Units: A/m Confidential . 4
![Confidential 5 Confidential 5](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-5.jpg)
Confidential 5
![Sources of Magnetic Fields Confidential 6 Sources of Magnetic Fields Confidential 6](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-6.jpg)

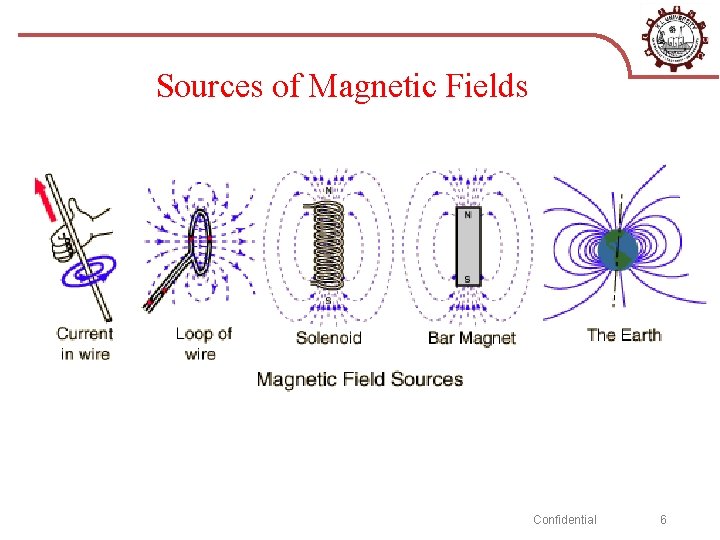

Sources of Magnetic Fields Confidential 6
![Magnetic Field Strength Created by current through a coil magnetic field H N Magnetic Field Strength • Created by current through a coil: magnetic field H N](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-7.jpg)
Magnetic Field Strength • Created by current through a coil: magnetic field H N = total number of turns L = length of the coil current I • Relation for the applied magnetic field, H: current applied magnetic field units = (ampere-turns/m) Confidential 7
![Response to a Magnetic Field Magnetic induction results in the material B Response to a Magnetic Field • Magnetic induction results in the material B =](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-8.jpg)
Response to a Magnetic Field • Magnetic induction results in the material B = Magnetic Induction (tesla) inside the material current I Confidential 8
![Confidential 9 Confidential 9](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-9.jpg)
Confidential 9
![Origin of Magnetic Moment Magnetism arises from the Magnetic Moment or Magnetic dipole of Origin of Magnetic Moment Magnetism arises from the Magnetic Moment or Magnetic dipole of](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-10.jpg)
Origin of Magnetic Moment Magnetism arises from the Magnetic Moment or Magnetic dipole of Magnetic Materials. When the electrons revolves around the nucleus Orbital magnetic moment arises, similarly when the electron spins, spin Magnetic moment arises. The permanent Magnetic Moments can arise due to the 1. The orbital magnetic moment of the electrons 2. The spin magnetic moment of the electrons, and 3. The spin magnetic moment of the nucleus Confidential 10
![Origin of Magnetic Moment A moving electric charge macroscopically or microscopically is responsible for Origin of Magnetic Moment A moving electric charge, macroscopically or “microscopically” is responsible for](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-11.jpg)
Origin of Magnetic Moment A moving electric charge, macroscopically or “microscopically” is responsible for Magnetism Origin of Magnetism Nuclear spin Very Weak effect Spin of electrons Unpaired electrons required for net Magnetic Moment Orbital motion of electrons Weak effect. Magnetic Moment resultant from the spin of a single unpaired electron → Bohr Magneton = 9. 273 x 10 24 A/m 2 Confidential 11
![Origin of magnetic dipoles Ø The spin of the electron produces a magnetic field Origin of magnetic dipoles Ø The spin of the electron produces a magnetic field](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-12.jpg)
Origin of magnetic dipoles Ø The spin of the electron produces a magnetic field with a direction dependent on the quantum number ml. Confidential 12
![Origin of magnetic dipoles The spin of the electron produces a magnetic field with Origin of magnetic dipoles The spin of the electron produces a magnetic field with](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-13.jpg)
Origin of magnetic dipoles The spin of the electron produces a magnetic field with a direction dependent on the quantum number ms. Confidential 13
![Electrons orbiting around the nucleus create a magnetic field around the atom Confidential 14 Electrons orbiting around the nucleus create a magnetic field around the atom. Confidential 14](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-14.jpg)
Electrons orbiting around the nucleus create a magnetic field around the atom. Confidential 14
![Classification of magnetic Materials Permanent Dipoles No Ye s Para Ferro Anti ferro Ferri Classification of magnetic Materials Permanent Dipoles No Ye s Para, Ferro, Anti ferro, Ferri](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-15.jpg)
Classification of magnetic Materials Permanent Dipoles No Ye s Para, Ferro, Anti ferro, Ferri magnetic materials Dia magnetic materials Alignment of dipoles m o nd Ra Uniform Ferro, Anti ferro, Ferri Para e m Sa Ferro e am S Anti ferro Direction of dipoles Opp osite Anti ferro, Ferri Magnitudes of dipoles Dif fer en t Ferri Confidential 15
![Diamagnetic Materials Confidential 16 Diamagnetic Materials Confidential 16](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-16.jpg)
Diamagnetic Materials Confidential 16
![Properties It is a weak form of magnetism Diamagnetism is because of Properties • It is a weak form of magnetism • Diamagnetism is because of](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-17.jpg)

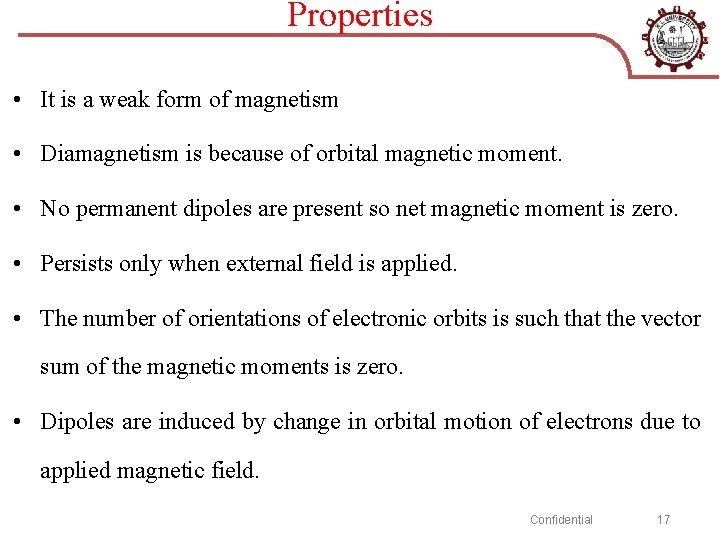

Properties • It is a weak form of magnetism • Diamagnetism is because of orbital magnetic moment. • No permanent dipoles are present so net magnetic moment is zero. • Persists only when external field is applied. • The number of orientations of electronic orbits is such that the vector sum of the magnetic moments is zero. • Dipoles are induced by change in orbital motion of electrons due to applied magnetic field. Confidential 17
![Applied Magnetic Field H opposing none No Applied Magnetic Field H 0 Confidential Applied Magnetic Field (H) opposing none No Applied Magnetic Field (H = 0) Confidential](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-18.jpg)

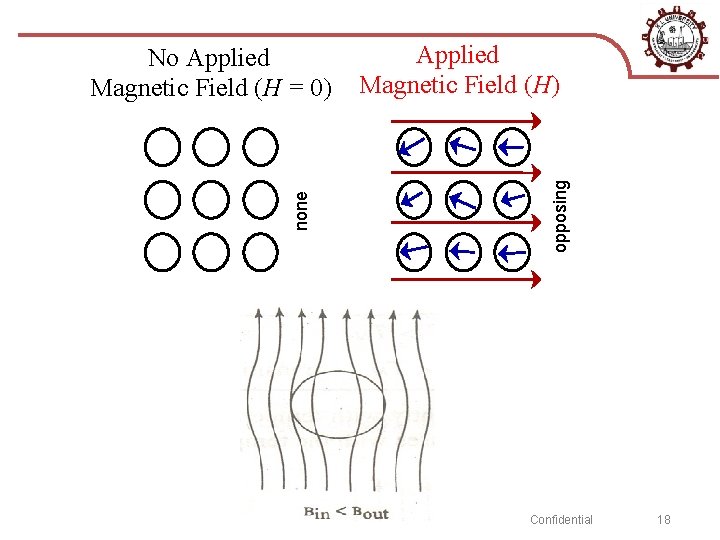

Applied Magnetic Field (H) opposing none No Applied Magnetic Field (H = 0) Confidential 18
![Confidential 19 Confidential 19](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-19.jpg)
Confidential 19
![External field will cause a rotation action on the individual electronic orbits • External field will cause a rotation action on the individual electronic orbits.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-20.jpg)
• External field will cause a rotation action on the individual electronic orbits. • The external magnetic field produces induced magnetic moment which is due to orbital magnetic moment. • Induced magnetic moment is always in opposite direction of the applied magnetic field. • So magnetic induction in the specimen decreases. • Magnetic susceptibility is small and negative. • Repels magnetic lines of force. Confidential 20
![Diamagnetic susceptibility is independent of temperature and applied magnetic field strength • Diamagnetic susceptibility is independent of temperature and applied magnetic field strength. •](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-21.jpg)
• Diamagnetic susceptibility is independent of temperature and applied magnetic field strength. • Susceptibility is of the order of -10 -5. • Relative permeability is less than one. • It is present in all materials, but since it is so weak it can be observed only when other types of magnetism are totally absent. • Examples: Bi, Zn, gold, H 2 O, alkali earth elements (Be, Mg, Ca, Sr), superconducting elements in superconducting state. Confidential 21
![Paramagnetic Materials Confidential 22 Paramagnetic Materials Confidential 22](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-22.jpg)
Paramagnetic Materials Confidential 22
![Properties Possess permanent dipoles If the orbitals are not completely filled or Properties • Possess permanent dipoles. • If the orbital's are not completely filled or](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-23.jpg)
Properties • Possess permanent dipoles. • If the orbital's are not completely filled or spins not balanced, an overall small magnetic moment may exist. • i. e. paramagnetism is because of orbital and spin magnetic moments of the electron. • In the absence of external magnetic field • all dipoles are randomly oriented • so net magnetic moment is zero. • Spin alignment is random. • The magnetic dipoles do not interact Confidential 23
![Paramagnetic Materials Applied Magnetic Field H aligned random No Applied Magnetic Field H Paramagnetic Materials Applied Magnetic Field (H) aligned random No Applied Magnetic Field (H =](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-24.jpg)
Paramagnetic Materials Applied Magnetic Field (H) aligned random No Applied Magnetic Field (H = 0) Confidential 24
![In presence of magnetic field the material gets feebly magnetized i • In presence of magnetic field the • material gets feebly magnetized i.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-25.jpg)
• In presence of magnetic field the • material gets feebly magnetized i. e. the material allows few magnetic lines of force to pass through it. • Relative permeability µr >1 (barely, ≈ 1. 00001 to 1. 01). • The orientation of magnetic dipoles depends on temperature and applied field. • Susceptibility is independent of applied mag. field & depends on temperature • C is Curie constant Confidential 25
![Confidential 26 Confidential 26](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-26.jpg)
Confidential 26
![With increase in temperature susceptibility decreases Susceptibility is small and positive • With increase in temperature susceptibility decreases. • Susceptibility is small and positive.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-27.jpg)
• With increase in temperature susceptibility decreases. • Susceptibility is small and positive. • These materials are used in lasers. • Paramagnetic property of oxygen is used in NMR technique for medical diagnose. • The susceptibility range from 10 -5 to 10 -2. • Examples: alkali metals (Li, Na, K, Rb), transition metals, Al, Pt, Mn, Cr etc. Confidential 27
![Confidential 28 Confidential 28](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-28.jpg)
Confidential 28
![Confidential 29 Confidential 29](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-29.jpg)
Confidential 29
![Ferromagnetic Materials Confidential 30 Ferromagnetic Materials Confidential 30](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-30.jpg)
Ferromagnetic Materials Confidential 30
![Properties Permanent dipoles are present so possess net magnetic moment Origin for Properties • Permanent dipoles are present so possess net magnetic moment • Origin for](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-31.jpg)
Properties • Permanent dipoles are present so possess net magnetic moment • Origin for magnetism in Ferro mag. Materials is due to Spin magnetic moment of electrons. • Material shows magnetic properties even in the absence of external magnetic field. • Possess spontaneous magnetization. • Spontaneous magnetization is because of interaction between dipoles called EXCHANGE COUPLING. Confidential 31
![Applied Magnetic Field H aligned No Applied Magnetic Field H 0 Confidential 32 Applied Magnetic Field (H) aligned No Applied Magnetic Field (H = 0) Confidential 32](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-32.jpg)
Applied Magnetic Field (H) aligned No Applied Magnetic Field (H = 0) Confidential 32
![Magnetic susceptibility is as high as 106 So H M • Magnetic susceptibility is as high as 106. • So H << M.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-33.jpg)
• Magnetic susceptibility is as high as 106. • So H << M. thus Bs = µo. Ms Magnetic induction B (tesla) Ferromagnetic Strength of applied magnetic field (H) (ampere-turns/m) Confidential 33
![When placed in external mag field it strongly attracts magnetic lines of • When placed in external mag. field it strongly attracts magnetic lines of](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-34.jpg)
• When placed in external mag. field it strongly attracts magnetic lines of force. • All spins are aligned parallel & in same direction. • Susceptibility is large and positive, it is given by Curie Weiss Law • C is Curie constant & θ is Curie temperature. • When temp is greater than curie temp then the material gets converted in to paramagnetic. • Material gets divided into small regions called domains. • They possess the property of HYSTERESIS. • Examples: Fe, Co, Ni. Confidential 34
![Ferro magnetic Materials Even when H 0 the dipoles tend to strongly align Ferro magnetic Materials Even when H = 0, the dipoles tend to strongly align](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-35.jpg)
Ferro magnetic Materials Even when H = 0, the dipoles tend to strongly align over small patches. When H is applied, the domains align to produce a large net magnetization. Confidential 35
![Thermal energy can randomize the spin Ferromagnetic Tcurie Heat Paramagnetic Tc for different materials Thermal energy can randomize the spin Ferromagnetic Tcurie Heat Paramagnetic Tc for different materials:](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-36.jpg)
Thermal energy can randomize the spin Ferromagnetic Tcurie Heat Paramagnetic Tc for different materials: Fe=1043 K, Ni=631 K, Co=1400 K, Gd= 298 K Confidential 36
![Curie Temperature ü The temperature above Tc which ferromagnetic material become paramagnetic ü Below Curie Temperature ü The temperature above (Tc) which ferromagnetic material become paramagnetic. ü Below](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-37.jpg)
Curie Temperature ü The temperature above (Tc) which ferromagnetic material become paramagnetic. ü Below the Curie temperature, the ferromagnetic is ordered and above it, disordered. ü The saturation magnetization goes to zero at the Curie temperature. Confidential 37
![Antiferro magnetic Material Confidential 38 Antiferro magnetic Material Confidential 38](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-38.jpg)
Antiferro magnetic Material Confidential 38
![Properties The spin alignment is in antiparallel manner So net magnetic moment Properties • The spin alignment is in antiparallel manner. • So net magnetic moment](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-39.jpg)
Properties • The spin alignment is in antiparallel manner. • So net magnetic moment is zero. • Susceptibility depends on temperature. • Susceptibility is small and positive. • Initially susceptibility increases with increase in temperature and beyond Neel temperature the susceptibility decreases with temperature. • At Neel temperature susceptibility is maximum. • Examples: Fe. O, Mn. O, Cr 2 O 3 and salts of transition elements. Confidential 39
![Confidential 40 Confidential 40](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-40.jpg)
Confidential 40
![Confidential 41 Confidential 41](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-41.jpg)
Confidential 41
![Ferrimagnetic Materials Confidential 42 Ferri-magnetic Materials Confidential 42](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-42.jpg)
Ferri-magnetic Materials Confidential 42
![Classification of Ferrimagnetic Materials Ferrimagnetic Materials Cubic Ferrites MFe 2 O 4 Hexagonal Ferrites Classification of Ferri-magnetic Materials Ferrimagnetic Materials Cubic Ferrites MFe 2 O 4 Hexagonal Ferrites](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-43.jpg)
Classification of Ferri-magnetic Materials Ferrimagnetic Materials Cubic Ferrites MFe 2 O 4 Hexagonal Ferrites AB 12 O 19 Garnets M 3 Fe 5 O 12 Confidential 43
![Properties Special type of ferro and antiferromagnetic material Generally oxides in nature Properties • Special type of ferro and antiferromagnetic material. • Generally oxides in nature.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-44.jpg)
Properties • Special type of ferro and antiferromagnetic material. • Generally oxides in nature. • Ionic in nature • Ceramic in nature so high resistivity (insulators) • The spin alignment is antiparallel but different magnitude. • So they possess net magnetic moment. • Also called ferrites. • General form MFe 2 O 4 where M is a divalent metal ion. • Susceptibility is very large and positive. • Examples: ferrous ferrite, nickle ferrite Confidential 44
![Spin Orientation Net Spin S Magnetic Moment Ion E C Mn 2 3 d Spin Orientation Net Spin S Magnetic Moment Ion E. C Mn 2+ 3 d](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-45.jpg)
Spin Orientation Net Spin S Magnetic Moment Ion E. C Mn 2+ 3 d 5 5/2 5µB Fe 2+ 3 d 6 2 4µB Co 2+ 3 d 7 3/2 3µB Ni 2+ 3 d 8 1 2µB Cu 2+ 3 d 9 1/2 1µB Confidential 45
![Unpaired electrons give rise to ferromagnetism in alkali metals Ms m N Net Unpaired electrons give rise to ferromagnetism in alkali metals Ms = m. N Net](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-46.jpg)
Unpaired electrons give rise to ferromagnetism in alkali metals Ms = m. N Net magnetic moment N = ρ NA/A atom 1 B crystal Fe 3 d 64 s 2 4 B 2. 2 B Co 3 d 74 s 2 3 B 1. 7 B Ni 3 d 84 s 2 2 B 0. 6 B Na 3 s 1 Confidential 46
![Ferrimagnetism All Fe 2 have a spin magnetic moment Half of Fe Ferrimagnetism • All Fe 2+ have a spin magnetic moment. • Half of Fe](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-47.jpg)
Ferrimagnetism • All Fe 2+ have a spin magnetic moment. • Half of Fe 3+ have a spin moment in one direction, the other half in the other (decreasing the overall moment to just that contributed by the Fe 2+ ions). Simpler picture showing a net magnetic moment. Confidential 47
![FerrimagnetismStructure Confidential 48 Ferrimagnetism-Structure Confidential 48](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-48.jpg)
Ferrimagnetism-Structure Confidential 48
![Confidential 49 Confidential 49](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-49.jpg)
Confidential 49
![Domain Theory of Ferromagnetic Materials Confidential 50 Domain Theory of Ferromagnetic Materials Confidential 50](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-50.jpg)
Domain Theory of Ferromagnetic Materials Confidential 50
![Domain Theory of Ferromagnetism The domain in ferromagnetic solid is understandable from thermo dynamical Domain Theory of Ferromagnetism The domain in ferromagnetic solid is understandable from thermo dynamical](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-51.jpg)
Domain Theory of Ferromagnetism The domain in ferromagnetic solid is understandable from thermo dynamical principle (i. e, ) in equilibrium the total energy of the system is minimum. Total Energy of the domains comprises the sum of (i) Exchange Energy (or) Magnetic Field Energy (ii) Anisotropic Energy => Easy and Hard direction (iii) Domain Wall Energy => Thick wall and Thin Wall (iv) Magneto-strictive Energy Confidential 51
![Exchange Energy or Magnetic Field Energy The interaction energy that makes the adjacent Exchange Energy or Magnetic Field Energy • The interaction energy that makes the adjacent](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-52.jpg)
Exchange Energy or Magnetic Field Energy • The interaction energy that makes the adjacent dipoles to align themselves is known as Exchange Energy. • It establishes a single domain in the ferromagnetic material. • It is the energy required in assembling the atomic magnets into a single domain and this work done is stored as potential energy. Confidential 52
![Confidential 53 Confidential 53](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-53.jpg)
Confidential 53
![Anisotropy Energy Two types of directions of magnetization Easy Direction Hard Anisotropy Energy • Two types of directions of magnetization • Easy Direction • Hard](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-54.jpg)
Anisotropy Energy • Two types of directions of magnetization • Easy Direction • Hard Direction • Along easy direction weak field. • Along hard direction strong field. • For producing same amount of magnetisation. • The excess of energy required to magnetize the specimen along hard direction over that required to magnetize the specimen along easy direction is called crystalline anistropy energy. Confidential 54
![Confidential 55 Confidential 55](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-55.jpg)
Confidential 55
![Domain Wall Energy or Bloch Wall Energy Bloch is a transition layer which Domain Wall Energy or Bloch Wall Energy • Bloch is a transition layer which](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-56.jpg)
Domain Wall Energy or Bloch Wall Energy • Bloch is a transition layer which separates the adjacent domains, magnetized in different directions. • Based on the spin alignments Thick Wall & Thin Wall • Thick Wall: When the spins at the boundary are misaligned and if the direction of the spins changes gradually. The misalignment of spins is associated with exchange energy. • Thin Wall: When the spins at the boundaries changes abruptly, then the anistropic energy becomes very less. • Ansitropy energy is directly proportional to the thickness of the wall. Confidential 56
![Domain Structure and the Hysteresis Loop Bloch walls The boundaries between magnetic Domain Structure and the Hysteresis Loop • Bloch walls - The boundaries between magnetic](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-57.jpg)
Domain Structure and the Hysteresis Loop • Bloch walls - The boundaries between magnetic domains. • The entire change in spin direction between domains does not occur in one sudden jump across a single atomic plane rather takes place in a gradual way extending over many atomic planes. Bloch Wall • The magnetic moments in adjoining atoms change direction continuously across the boundary between domains. Confidential 57
![Magnetostrictive Energy When the domains are magnatised in different directions they will either Magnetostrictive Energy • When the domains are magnatised in different directions, they will either](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-58.jpg)
Magnetostrictive Energy • When the domains are magnatised in different directions, they will either expand or shrink this leads to deformation of the material, when magnetised. This phenomenon is known as magnetostriction. • Energy produced in this effect is called Magnetostriction Energy. • The deformation is different along different crystal directions & the change in dimension depends on nature of the material. Confidential 58
![Confidential 59 Confidential 59](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-59.jpg)
Confidential 59
![Confidential 60 Confidential 60](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-60.jpg)

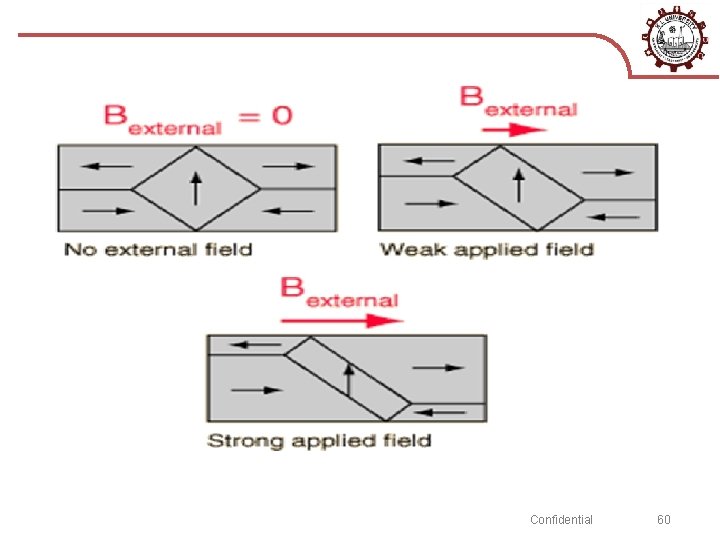

Confidential 60
![Ferromagnetism Materials that retain a magnetization in zero field Quantum mechanical exchange Ferromagnetism • Materials that retain a magnetization in zero field • Quantum mechanical exchange](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-61.jpg)
Ferromagnetism • Materials that retain a magnetization in zero field • Quantum mechanical exchange interactions favour parallel alignment of moments • Examples: iron, cobalt Confidential 61
![According to Becker there are two independent processes which take place and • According to Becker, there are two independent processes which take place and](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-62.jpg)
• According to Becker, there are two independent processes which take place and lead to magnetization when magnetic field is applied. 1. Domain wall moment or Domain growth 2. Domain rotation Confidential 62
![Domain wall moment or Domain wall growth Volume of favorably oriented domains will Domain wall moment or Domain wall growth • Volume of favorably oriented domains will](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-63.jpg)
Domain wall moment or Domain wall growth • Volume of favorably oriented domains will increase. • Occurs at low magnetic field. • It is a reversible process. Rotation of Domains • Rotation of less favorably oriented domains takes place. • Occurs at large magnetic field. • It is a irreversible process. Confidential 63
![Domain Structure and the Hysteresis Loop 1 Domain growth 1 Each domain is magnetized Domain Structure and the Hysteresis Loop 1. Domain growth: 1. Each domain is magnetized](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-64.jpg)
Domain Structure and the Hysteresis Loop 1. Domain growth: 1. Each domain is magnetized in a different direction 2. Applying a field changes domain structure. Domains with magnetization in direction of field grow. 3. Other domains shrink 2. Domain rotation: Finally by applying very strong fields can saturate magnetization by creating single domain Confidential 64
![Magnetic domains Applying very strong fields can saturate magnetization by creating single domain Magnetic domains • Applying very strong fields can saturate magnetization by creating single domain](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-65.jpg)
Magnetic domains • Applying very strong fields can saturate magnetization by creating single domain Confidential 65
![Hysteresis Curve Means lagging or retarding of an effect behind the cause of Hysteresis Curve • Means lagging or retarding of an effect behind the cause of](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-66.jpg)
Hysteresis Curve • Means lagging or retarding of an effect behind the cause of the effect. • Here effect is B & cause of the effect is H. • Also called B H curve. • Hysteresis in magnetic materials means lagging of magnetic induction (B) or magnetization (M) behind the magnetizing field (H). Confidential 66
![Confidential 67 Confidential 67](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-67.jpg)
Confidential 67
![Domain Structure and the Hysteresis Loop Domains with aligned magnetic moment grow at Domain Structure and the Hysteresis Loop • “Domains” with aligned magnetic moment grow at](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-68.jpg)
Domain Structure and the Hysteresis Loop • “Domains” with aligned magnetic moment grow at expense of poorly aligned ones! Confidential 68
![Domain Structure and the Hysteresis Loop Ø When a magnetic field is first applied Domain Structure and the Hysteresis Loop Ø When a magnetic field is first applied](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-69.jpg)
Domain Structure and the Hysteresis Loop Ø When a magnetic field is first applied to a magnetic material, magnetization initially increases slowly, then more rapidly as the domains begin to grow. Ø Later, magnetization slows, as domains must eventually rotate to reach saturation. • Notice the permeability values depend upon the magnitude of H. Confidential 69
![Hysteresis Loop Hysteresis loop The loop traced out by magnetization in a Hysteresis Loop • Hysteresis loop - The loop traced out by magnetization in a](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-70.jpg)
Hysteresis Loop • Hysteresis loop - The loop traced out by magnetization in a • ferromagnetic or ferrimagnetic material as the magnetic field is cycled. OR Removing the field does not necessarily return domain structure to original state. Hence results in magnetic hysteresis. B 2. apply H, cause alignment 3. remove H, alignment stays! => permanent magnet! 4. Coercivity, HC Negative H needed to demagnitize! Applied Magnetic Field (H) 1. initial (unmagnetized state) Confidential 70
![Ferromagnetism Magnetic hysteresis Ms M Ms Saturation magnetization Mrs Saturation remanent magnetization Ferromagnetism: Magnetic hysteresis Ms M Ms – Saturation magnetization Mrs – Saturation remanent magnetization](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-71.jpg)
Ferromagnetism: Magnetic hysteresis Ms M Ms – Saturation magnetization Mrs – Saturation remanent magnetization Hc H Hc – Coercive force (the field needed to bring the magnetization back to zero) 71
![remanent magnetization M 0 coercivity Hc Confidential 72 remanent magnetization = M 0 coercivity = Hc Confidential 72](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-72.jpg)
remanent magnetization = M 0 coercivity = Hc Confidential 72
![Hysteresis Loop Magnetization by domain rotation Domain growth irreversible boundary displacements Means lagging Hysteresis Loop Magnetization by domain rotation Domain growth irreversible boundary displacements. • Means lagging](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-73.jpg)
Hysteresis Loop Magnetization by domain rotation Domain growth irreversible boundary displacements. • Means lagging or retarding of an effect behind the cause of the effect. • Here effect is B & cause of the effect is H. • Also called B H curve. • Hysteresis in magnetic materials means lagging of magnetic induction (B) or magnetization (M) behind the magnetizing field (H). Domain growth reversible boundary displacements. Confidential 73
![Hysteresis Remanence Coercivity of Ferromagnetic Materials Confidential 74 Hysteresis, Remanence, & Coercivity of Ferromagnetic Materials Confidential 74](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-74.jpg)
Hysteresis, Remanence, & Coercivity of Ferromagnetic Materials Confidential 74
![hard ferromagnetic material has a large M 0 and large Hc soft ferromagnetic material “hard” ferromagnetic material has a large M 0 and large Hc. “soft” ferromagnetic material](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-75.jpg)
“hard” ferromagnetic material has a large M 0 and large Hc. “soft” ferromagnetic material has both a small M 0 and Hc. Confidential 75
![Confidential 76 Confidential 76](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-76.jpg)
Confidential 76
![Confidential 77 Confidential 77](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-77.jpg)
Confidential 77
![Hard versus Soft Magnets Characteristics of soft magnetic materials Ø High initial permeability Ø Hard versus Soft Magnets: Characteristics of soft magnetic materials: Ø High initial permeability. Ø](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-78.jpg)
Hard versus Soft Magnets: Characteristics of soft magnetic materials: Ø High initial permeability. Ø Low coercivity. Ø Reaches to saturation magnetization with a relatively low applied magnetic field. Ø It can be easily magnetized and demagnetized. Ø Low Hysteresis loss. Ø Applications involve, generators, motors, dynamos, Cores of transformers and switching circuits. Confidential 78
![Importance of Soft Magnetic Materials Ø Saturation magnetization can be changed by altering composition Importance of Soft Magnetic Materials: Ø Saturation magnetization can be changed by altering composition](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-79.jpg)
Importance of Soft Magnetic Materials: Ø Saturation magnetization can be changed by altering composition of the materials. Ex: - substitution of Ni 2+ in place of Fe 2+ changes saturation magnetization of ferrous-Ferrite. Ø Susceptibility and coercivity which also influence the shape of the Hysteresis curve are sensitive to the structural variables rather than composition. Ø Low value of coercivity corresponds to the easy movement of domain walls as magnetic field changes magnitude and/ or direction. Confidential 79
![Hard versus Soft Magnets Hard Magnets Characteristics of Hard magnetic materials ü Low initial Hard versus Soft Magnets Hard Magnets: Characteristics of Hard magnetic materials: ü Low initial](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-80.jpg)
Hard versus Soft Magnets Hard Magnets: Characteristics of Hard magnetic materials: ü Low initial permeability. ü High coercivity and High remanence. ü High saturation flux density. ü Reaches to saturation magnetization with a high applied magnetic field. ü It can not be easily magnetized and demagnetized. ü High Hysteresis loss. ü Used as permanent magnets. Confidential 80
![Importance of Hard magnetic material Two important characteristics related to applications of these materials Importance of Hard magnetic material Two important characteristics related to applications of these materials](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-81.jpg)
Importance of Hard magnetic material Two important characteristics related to applications of these materials are (i) Coercivity and (ii) energy product expressed as (BH)max with units in k. J/m 3. v This corresponds to the area of largest B-H rectangle that can be constructed within the second quadrant of the Hysteresis curve. v Larger the value of energy product harder is the material in terms of its magnetic characteristics. Schematic magnetization curve that displays hysteresis. Within the second quadrant are drawn two B–H energy product rectangles; the area of that rectangle labeled (BH)max is the largest possible, which is greater than the area defined by Bd– Hd Confidential 81
![Who to get larger area of BHmax i e who to produce Hard Who to get larger area of (BH)max i. e. , who to produce Hard](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-82.jpg)
Who to get larger area of (BH)max i. e. , who to produce Hard magnets? Ø Energy product represents the amount of energy required to demagnetize a permanent magnet. Ø Hysteresis behaviour depends upon the movement of domain walls. Ø The movement of domain walls depends on the final microstructure. Ex: the size, shape and orientation of crystal domains and impurities. Ø Microstructure will depend upon how the material is processed. Ø In a hard magnetic material, impurities are purposely introduced, to make it hard. Due to these impurities domain walls cannot move easily. Ø Finally the coercivity can increase and susceptibility can be decrease. Ø So large external field is required to demagnetization i. e. , difficult to move the domain walls. Confidential 82
![Hard Magnetic Material Soft Magnetic Material Have large hysteresis loss Have low hysteresis loss Hard Magnetic Material Soft Magnetic Material Have large hysteresis loss. Have low hysteresis loss.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-83.jpg)
Hard Magnetic Material Soft Magnetic Material Have large hysteresis loss. Have low hysteresis loss. Domain wall moment is difficult Domain wall moment is relatively easier. Coercivity & Retentivity are large. Coercivity & Retentivity are small. Cannot be easily magnetized & demagnetized Can be easily magnetized & demagnetized. Magneto static energy is large. Magneto static energy is small. Have small values of permeability and susceptibility Have large values of susceptibility and permeability. Used to make permanent magnets. Used to make electromagnets. Iron-nickel-aluminum alloys, copper Iron- silicon alloys, ferrous- nickel -nickle-iron alloys, copper–nickel– alloys, ferrites, garnets. cobalt alloys Confidential 83
![Applications of Magnetic Materials Confidential 84 Applications of Magnetic Materials Confidential 84](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-84.jpg)
Applications of Magnetic Materials Confidential 84
![Magnetic materials applications 1 Ferrite Applications 2 Magnetic Storage Reading Process Writing Process Storage Magnetic materials applications 1) Ferrite Applications 2) Magnetic Storage Reading Process Writing Process Storage](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-85.jpg)
Magnetic materials applications 1) Ferrite Applications 2) Magnetic Storage Reading Process Writing Process Storage of data( Tapes, Floppy and Magnetic Disc Drives) 3) Transformer 4) Motors Confidential 85
![Magnetic materials applications FERRITE APPLICATIONS Ferrites Being Ferromagnetic but high resistivity Used as transformer Magnetic materials applications FERRITE APPLICATIONS Ferrites Being Ferro-magnetic but high resistivity Used as transformer](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-86.jpg)
Magnetic materials applications FERRITE APPLICATIONS Ferrites Being Ferro-magnetic but high resistivity Used as transformer cores eddy currents less effective Used as induction cores, antennas for medium and long wave broad casting, electronic tuning, auto frequency control, FM, switching etc. ü Since ferrites have a domains & hysteresis loop they are used as memory elements for rapid storage and retrieval of digital information by switching the direction of magnetization in very small toroidal cores. ü Garnets (Y 3 Fe 5 O 12) are useful in microwave applications. ü Magnetic recording uses ferrite material in powder form. ü Ferrites can be used as magnets. Confidential 86
![Transformer Core Properties ü Should be ceramic in nature ü Should have very high Transformer Core Properties: ü Should be ceramic in nature. ü Should have very high](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-87.jpg)
Transformer Core Properties: ü Should be ceramic in nature. ü Should have very high permeability. ü The material should have very high susceptibility. ü The material should have low coresive field and low remeanent field. ü Magnetostriction should be small. --Best example is Iron-Silicon alloy (97% Fe & 3% Si) --Fe-Si (alloy) anisotropic poly crystalline materials can develop via plastic deformation, for example by rolling. http: //www. marktec. co. jp/e/product/ndt/ect/et. html Confidential 87
![For body centred cubic alloys including FeSi alloy the rolling texture is 1 -- For body centred cubic alloys including Fe-Si alloy, the rolling texture is (1](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-88.jpg)
-- For body centred cubic alloys including Fe-Si alloy, the rolling texture is (1 1 0) [0 0 1]. 10/31/2020 M V V K Srinivas Prasad; K L University Confidential 88
![Magnetic Storage Devices Information is stored by magnetizing material due to high retentivity Magnetic Storage Devices • Information is stored by magnetizing material due to high retentivity.](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-89.jpg)
Magnetic Storage Devices • Information is stored by magnetizing material due to high retentivity. • Head can. . . --apply magnetic field H & align domains (i. e. , magnetize the medium). --detect a change in the magnetization of the medium. Recording Head: Soft Magnetic Materials Ex: Fe-Ni, Fe-Al-Si alloy, Mn-Zn ferrite, Ni-Zn ferrite Confidential 89
![Recording Principle Digital Confidential 90 Recording Principle (Digital) Confidential 90](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-90.jpg)
Recording Principle (Digital) Confidential 90
![How Magnetic Storage Works Ø A magnetic disks medium contains iron particles which can How Magnetic Storage Works Ø A magnetic disk's medium contains iron particles, which can](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-91.jpg)
How Magnetic Storage Works Ø A magnetic disk's medium contains iron particles, which can be polarized —given a magnetic charge—in one of two directions. Ø Each particle's direction represents a 1 (on) or 0 (off), representing each bit of data that the CPU can recognize. Ø A disk drive uses read/write heads containing electromagnets to create magnetic charges on the medium. Confidential 91
![Confidential 92 Confidential 92](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-92.jpg)
Confidential 92
![Magnetic Storage Devices Confidential 93 Magnetic Storage Devices Confidential 93](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-93.jpg)
Magnetic Storage Devices Confidential 93
![Magnetic Storage Devices There are two types of magnetic storage media Those Magnetic Storage Devices • There are two types of magnetic storage media. • Those](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-94.jpg)
Magnetic Storage Devices • There are two types of magnetic storage media. • Those are particulate and thin film. • Particulate media consist of very small needle like or acicular particles. • Ex: γ-Fe 2 O 3 ferrite, Co- γ- Fe 2 O 3 ferrite and Cr. O 2. Confidential 94
![Magnetic Storage Devices Thin film It provides higher storage capacities at lower costs Ex Magnetic Storage Devices Thin film: It provides higher storage capacities at lower costs. Ex:](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-95.jpg)
Magnetic Storage Devices Thin film: It provides higher storage capacities at lower costs. Ex: Co-Pt-Cr alloy, Co-Cr-Ta alloy (thickness 10 to 50 nm). Domains are ~ 10 -30 nm! (hard drive) • The thin film is a poly crystalline material. • Each grain within the thin film is a single magnetic domain. • The grain shape and size must be uniform. Confidential 95
![Magnetic Storage Devices Thin film Confidential 96 Magnetic Storage Devices Thin film: Confidential 96](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-96.jpg)
Magnetic Storage Devices Thin film: Confidential 96
![Confidential 97 Confidential 97](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-97.jpg)
Confidential 97
![Magnetic Tapes Confidential 98 Magnetic Tapes Confidential 98](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-98.jpg)
Magnetic Tapes Confidential 98
![2003 BrooksCole a division of Thomson Learning Inc Thomson Learning is a trademark © 2003 Brooks/Cole, a division of Thomson Learning, Inc. Thomson Learning™ is a trademark](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-99.jpg)
© 2003 Brooks/Cole, a division of Thomson Learning, Inc. Thomson Learning™ is a trademark used herein under license. Confidential 99
![Confidential 100 Confidential 100](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-100.jpg)
Confidential 100
![Confidential 101 Confidential 101](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-101.jpg)
Confidential 101
![Confidential 102 Confidential 102](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-102.jpg)
Confidential 102
![MOTORS Ø Hard magnetic materials are used Ø Motor converts electrical energy into mechanical MOTORS Ø Hard magnetic materials are used. Ø Motor converts electrical energy into mechanical](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-103.jpg)
MOTORS Ø Hard magnetic materials are used. Ø Motor converts electrical energy into mechanical energy. Ø No heat is generated during operation. Ø Motors using permanent magnets are much smaller than their electromagnets motors. http: //www. animations. physics. unsw. edu. au/jw/electricmotors. html Confidential 103
![Confidential 104 Confidential 104](https://slidetodoc.com/presentation_image/3507c64237e350c3ee87c99c48ccf7ee/image-104.jpg)
Confidential 104
Magnetic flux formula with current
Magnetic field and magnetic force
Distinguish between soft and hard magnetic materials
Magnetic moment and magnetic field relation
Electric field and magnetic field difference
Define magnetic materials
Magnetic materials used in electrical machines
Distinguish between magnetic and nonmagnetic materials
Natural materials and man made materials
Adopting materials
Go noodle cant stop the feeling
Direct materials budget with multiple materials
When is a material useful
Confidential 資料
Cat connect services
Caterpillar confidential green
Hp confidential
This document contains confidential information
Confidential all rights reserved
Strictly private and confidential
Suranne jones strictly confidential
Confidential
Strictly private & confidential
Personalsi
Slot rf confidential
Confidential unit exclusion
Intel confidential
Strictly confidential not for distribution
Caterpillar confidential green
Pam lahoud
Confidential property
Hp recruitment process
Distribute images
"for internal use only"
Confidential
Tcs confidential
Not for onward distribution
Strictly private and confidential
Confidential do not copy or distribute
Notice of confidential info rule 2-420
Confidential company profile
Hp confidential
Smart documents solutions
Confidential copyright
Confidential
Confidential bulk shipping
Confidential internal use only
Worldwide logistics
Polycom vsx 8000 price
Confidential not for distribution
Ioss azonosító
Confidential all rights reserved
Confidential coffee menu
This document contains confidential information
Nexty electronics corporation
Sql server roadmap
Private and confidential
Company confidential singapore
Strictly private and confidential
Confidential not for circulation
Confidential slide
Confidential renault
Intel confidential
Confidential all rights reserved
Hostway web hosting
Simply confidential
This document contains confidential information
Confidential2
Accel advertising billboards
Samsung confidential
Private and confidential in bahasa malaysia
Confidential machine learning
Confidential and proprietary
"not for distribution" confidential
Confidential company profile
Confidential for internal use only
Confidential internal use only
Intel amt inv
Nadav amit
Confidential vpn
This document is strictly private and confidential
Confidential glassdoor
Unit 4 recruitment
Samsung confidential
"what is a confidential disclosure agreement"
Confidential presentation disclaimer
Confidential status
Confidential all rights reserved
Intel confidential
Confidential do not distribute
"not for distribution" confidential
Nda phru,
Confidential recrutement
Confidential for internal use only
Confidential internal use only
Internal use only confidential
Confidential
Induction training topics
Principle of mathematical induction
Power flow diagram of induction motor
Uel induction
Mydmu blackboard login
Speed control of squirrel cage induction motor
What is induction in physics
She induction
