Using Visio 2003 to Create ESM Image Viewer

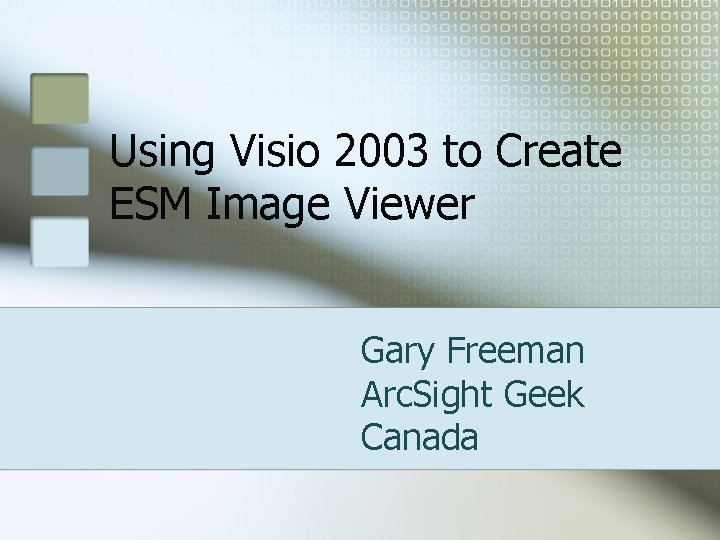

Using Visio 2003 to Create ESM Image Viewer Gary Freeman Arc. Sight Geek Canada

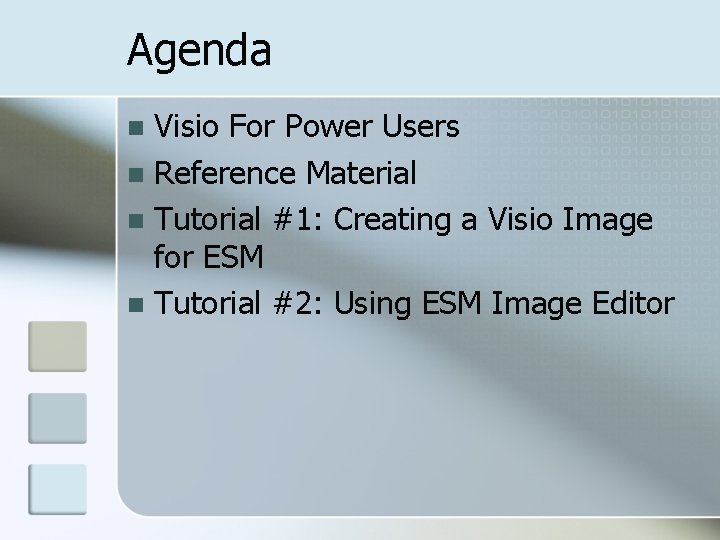

Agenda Visio For Power Users n Reference Material n Tutorial #1: Creating a Visio Image for ESM n Tutorial #2: Using ESM Image Editor n

Visio For Power Users n Most Used Short-Cuts n Ctrl-S: Save! n Ctrl-D: Cloning n Ctrl-1: Pointer Tool n Ctrl-2: Text Tool n Ctrl-Shift-F: Bring To Front n Ctrl-Shift-B: Send To Back

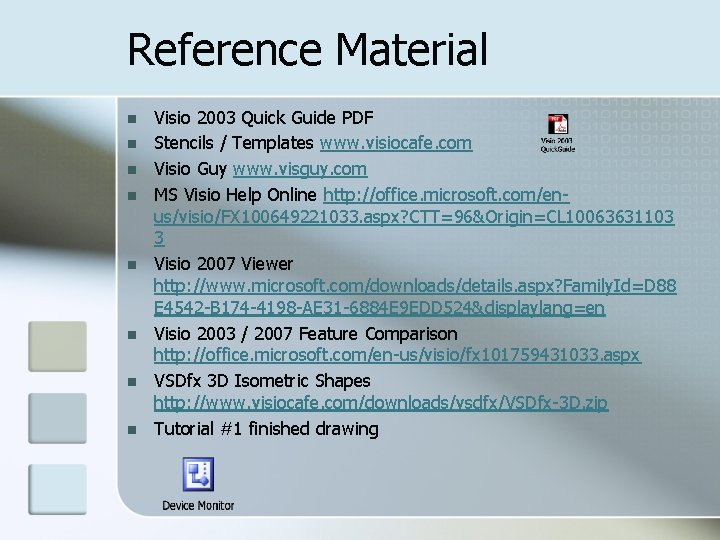

Reference Material n n n n Visio 2003 Quick Guide PDF Stencils / Templates www. visiocafe. com Visio Guy www. visguy. com MS Visio Help Online http: //office. microsoft. com/enus/visio/FX 100649221033. aspx? CTT=96&Origin=CL 10063631103 3 Visio 2007 Viewer http: //www. microsoft. com/downloads/details. aspx? Family. Id=D 88 E 4542 -B 174 -4198 -AE 31 -6884 E 9 EDD 524&displaylang=en Visio 2003 / 2007 Feature Comparison http: //office. microsoft. com/en-us/visio/fx 101759431033. aspx VSDfx 3 D Isometric Shapes http: //www. visiocafe. com/downloads/vsdfx/VSDfx-3 D. zip Tutorial #1 finished drawing

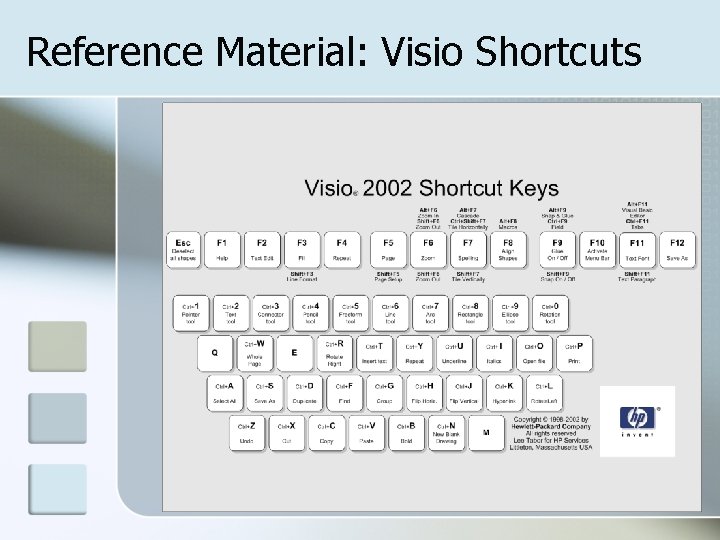

Reference Material: Visio Shortcuts

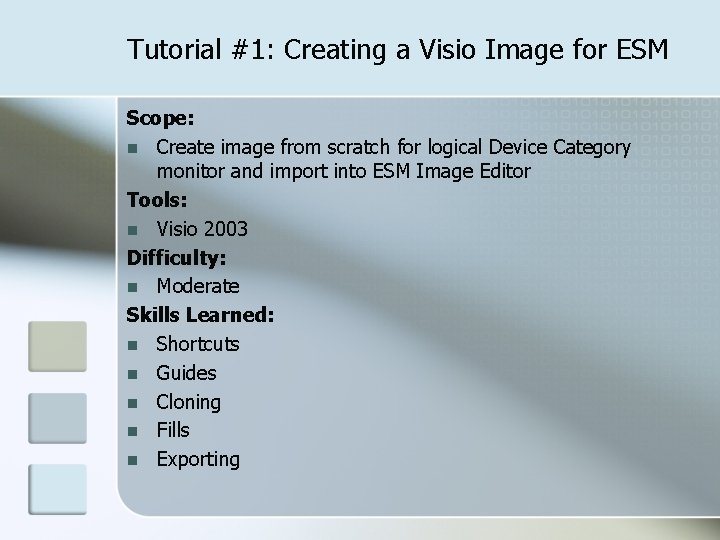

Tutorial #1: Creating a Visio Image for ESM Scope: n Create image from scratch for logical Device Category monitor and import into ESM Image Editor Tools: n Visio 2003 Difficulty: n Moderate Skills Learned: n Shortcuts n Guides n Cloning n Fills n Exporting

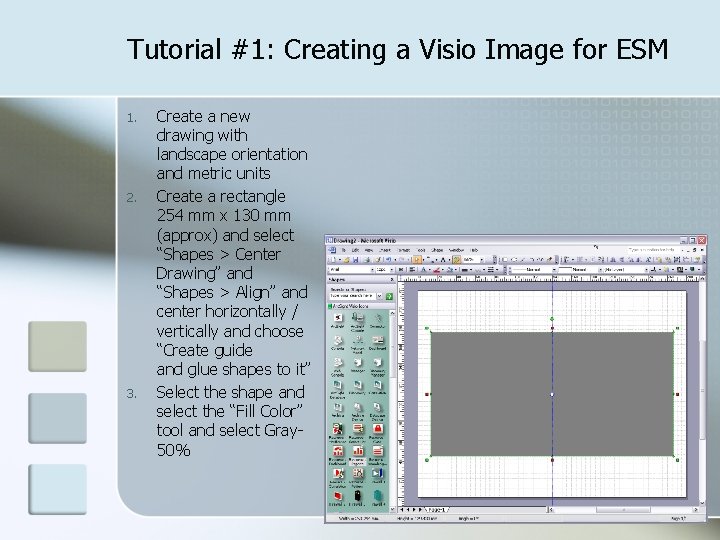

Tutorial #1: Creating a Visio Image for ESM 1. 2. 3. Create a new drawing with landscape orientation and metric units Create a rectangle 254 mm x 130 mm (approx) and select “Shapes > Center Drawing” and “Shapes > Align” and center horizontally / vertically and choose “Create guide and glue shapes to it” Select the shape and select the “Fill Color” tool and select Gray 50%

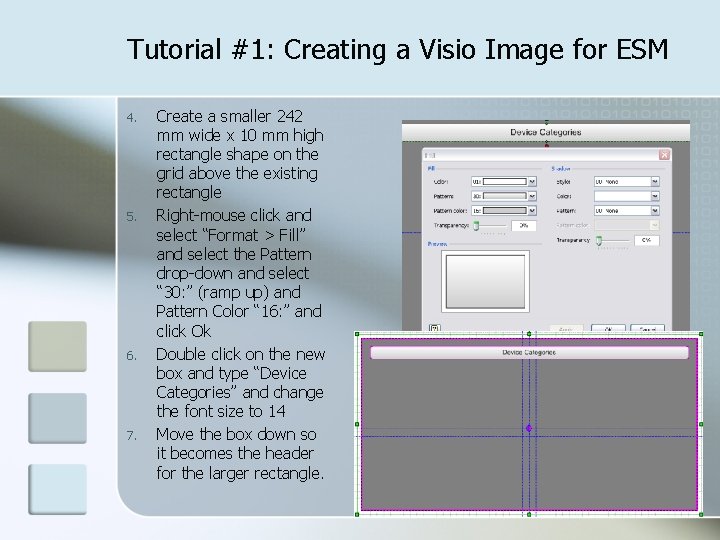

Tutorial #1: Creating a Visio Image for ESM 4. 5. 6. 7. Create a smaller 242 mm wide x 10 mm high rectangle shape on the grid above the existing rectangle Right-mouse click and select “Format > Fill” and select the Pattern drop-down and select “ 30: ” (ramp up) and Pattern Color “ 16: ” and click Ok Double click on the new box and type “Device Categories” and change the font size to 14 Move the box down so it becomes the header for the larger rectangle.

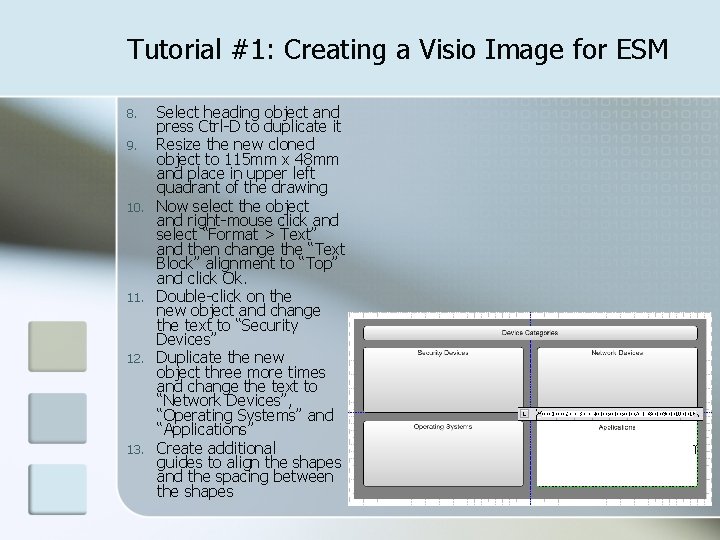

Tutorial #1: Creating a Visio Image for ESM 8. 9. 10. 11. 12. 13. Select heading object and press Ctrl-D to duplicate it Resize the new cloned object to 115 mm x 48 mm and place in upper left quadrant of the drawing Now select the object and right-mouse click and select “Format > Text” and then change the “Text Block” alignment to “Top” and click Ok. Double-click on the new object and change the text to “Security Devices” Duplicate the new object three more times and change the text to “Network Devices”, “Operating Systems” and “Applications” Create additional guides to align the shapes and the spacing between the shapes

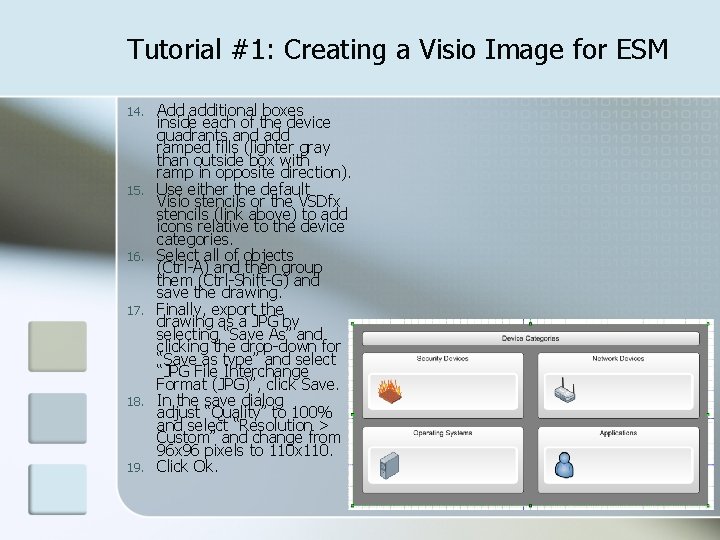

Tutorial #1: Creating a Visio Image for ESM 14. 15. 16. 17. 18. 19. Add additional boxes inside each of the device quadrants and add ramped fills (lighter gray than outside box with ramp in opposite direction). Use either the default Visio stencils or the VSDfx stencils (link above) to add icons relative to the device categories. Select all of objects (Ctrl-A) and then group them (Ctrl-Shift-G) and save the drawing. Finally, export the drawing as a JPG by selecting “Save As” and clicking the drop-down for “Save as type” and select “JPG File Interchange Format (JPG)”, click Save. In the save dialog adjust “Quality” to 100% and select “Resolution > Custom” and change from 96 x 96 pixels to 110 x 110. Click Ok.

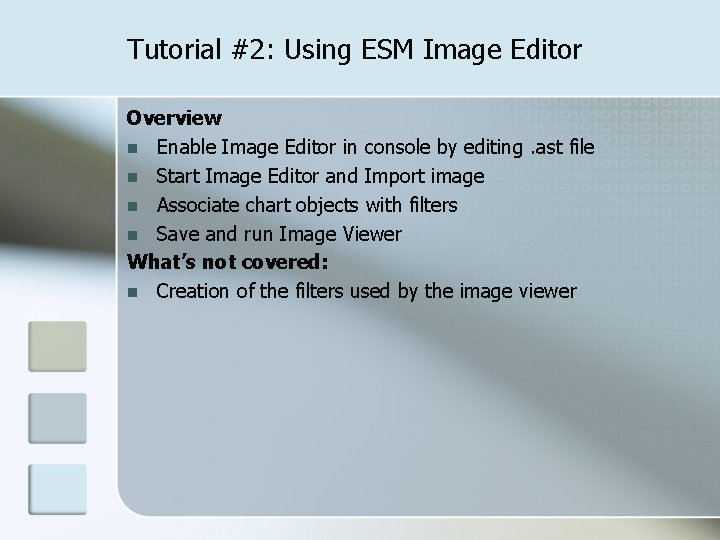

Tutorial #2: Using ESM Image Editor Overview n Enable Image Editor in console by editing. ast file n Start Image Editor and Import image n Associate chart objects with filters n Save and run Image Viewer What’s not covered: n Creation of the filters used by the image viewer

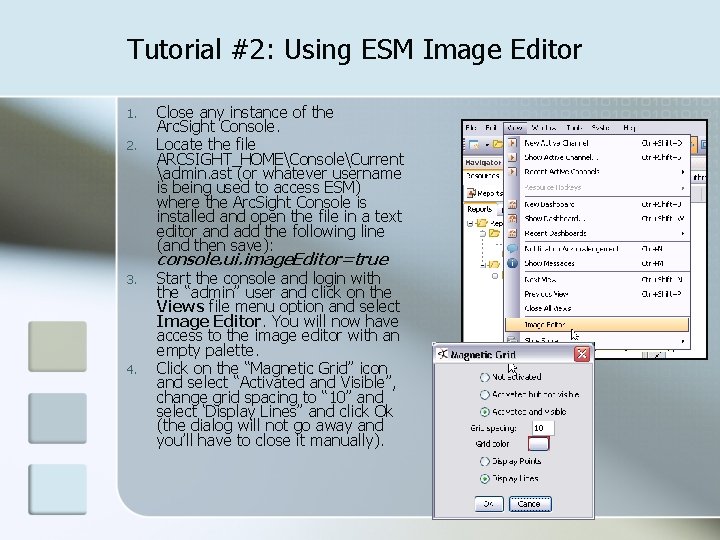

Tutorial #2: Using ESM Image Editor 1. 2. Close any instance of the Arc. Sight Console. Locate the file ARCSIGHT_HOMEConsoleCurrent admin. ast (or whatever username is being used to access ESM) where the Arc. Sight Console is installed and open the file in a text editor and add the following line (and then save): console. ui. image. Editor=true 3. 4. Start the console and login with the “admin” user and click on the Views file menu option and select Image Editor. You will now have access to the image editor with an empty palette. Click on the “Magnetic Grid” icon and select “Activated and Visible”, change grid spacing to “ 10” and select ‘Display Lines” and click Ok (the dialog will not go away and you’ll have to close it manually).

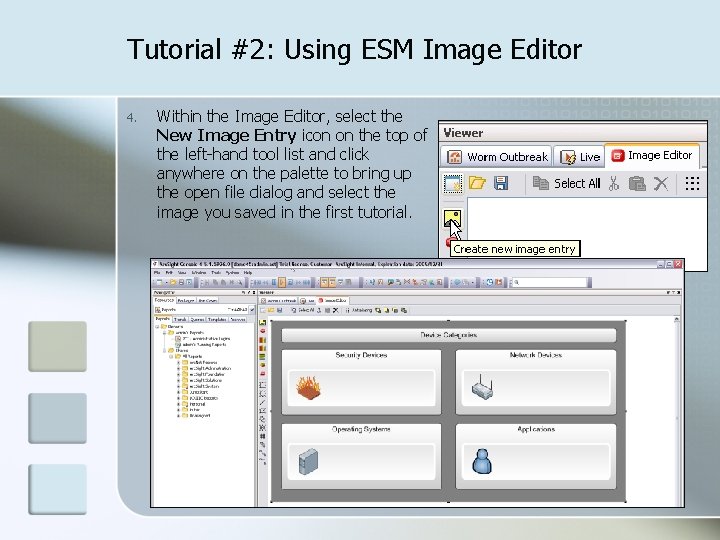

Tutorial #2: Using ESM Image Editor 4. Within the Image Editor, select the New Image Entry icon on the top of the left-hand tool list and click anywhere on the palette to bring up the open file dialog and select the image you saved in the first tutorial.

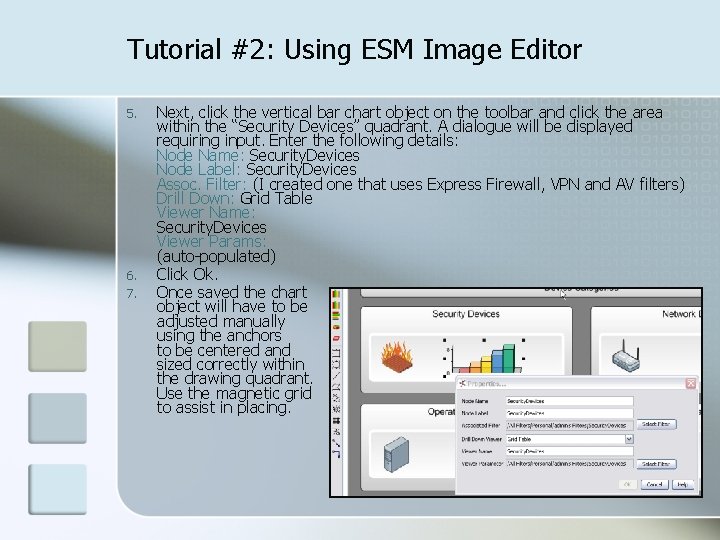

Tutorial #2: Using ESM Image Editor 5. 6. 7. Next, click the vertical bar chart object on the toolbar and click the area within the “Security Devices” quadrant. A dialogue will be displayed requiring input. Enter the following details: Node Name: Security. Devices Node Label: Security. Devices Assoc. Filter: (I created one that uses Express Firewall, VPN and AV filters) Drill Down: Grid Table Viewer Name: Security. Devices Viewer Params: (auto-populated) Click Ok. Once saved the chart object will have to be adjusted manually using the anchors to be centered and sized correctly within the drawing quadrant. Use the magnetic grid to assist in placing.

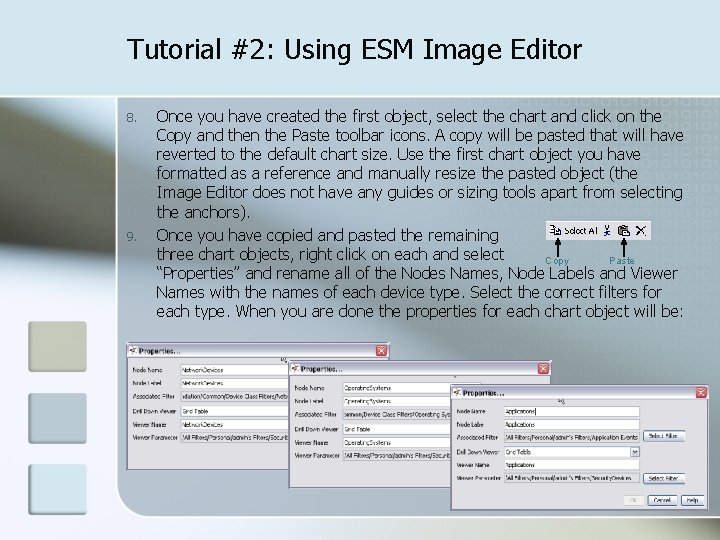

Tutorial #2: Using ESM Image Editor 8. 9. Once you have created the first object, select the chart and click on the Copy and then the Paste toolbar icons. A copy will be pasted that will have reverted to the default chart size. Use the first chart object you have formatted as a reference and manually resize the pasted object (the Image Editor does not have any guides or sizing tools apart from selecting the anchors). Once you have copied and pasted the remaining three chart objects, right click on each and select Copy Paste “Properties” and rename all of the Nodes Names, Node Labels and Viewer Names with the names of each device type. Select the correct filters for each type. When you are done the properties for each chart object will be:

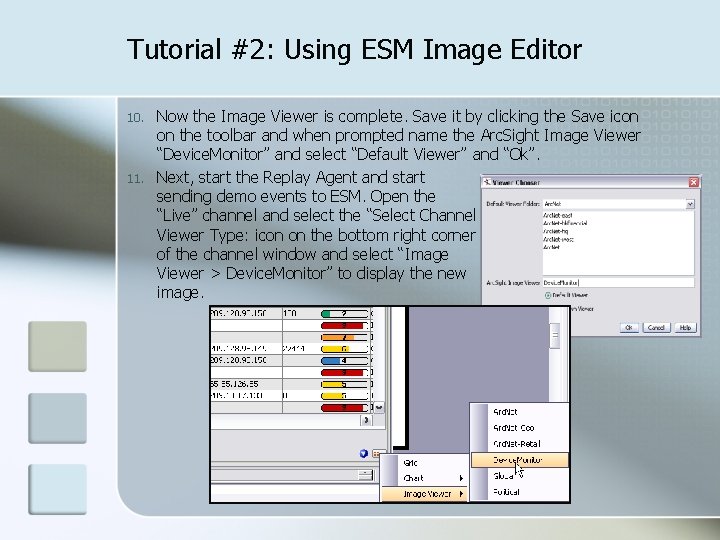

Tutorial #2: Using ESM Image Editor 10. 11. Now the Image Viewer is complete. Save it by clicking the Save icon on the toolbar and when prompted name the Arc. Sight Image Viewer “Device. Monitor” and select “Default Viewer” and “Ok”. Next, start the Replay Agent and start sending demo events to ESM. Open the “Live” channel and select the “Select Channel Viewer Type: icon on the bottom right corner of the channel window and select “Image Viewer > Device. Monitor” to display the new image.

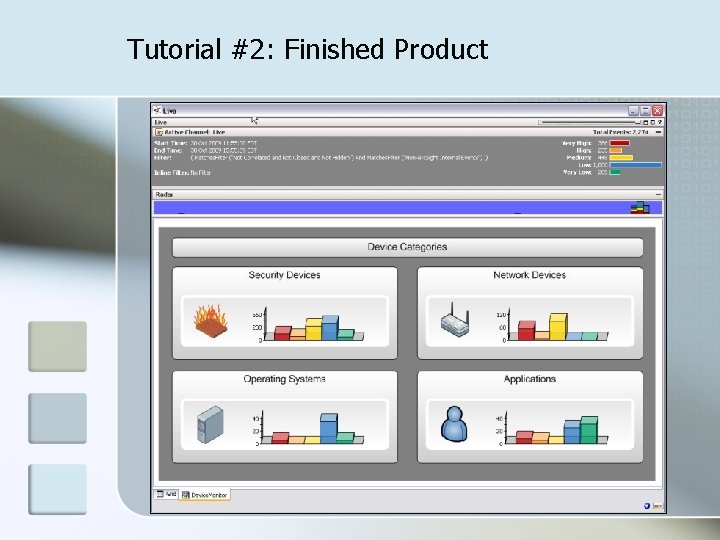

Tutorial #2: Finished Product

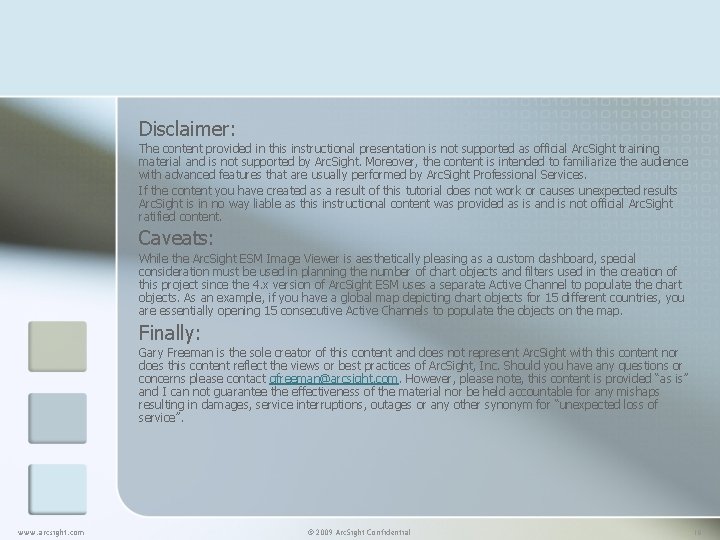

Disclaimer: The content provided in this instructional presentation is not supported as official Arc. Sight training material and is not supported by Arc. Sight. Moreover, the content is intended to familiarize the audience with advanced features that are usually performed by Arc. Sight Professional Services. If the content you have created as a result of this tutorial does not work or causes unexpected results Arc. Sight is in no way liable as this instructional content was provided as is and is not official Arc. Sight ratified content. Caveats: While the Arc. Sight ESM Image Viewer is aesthetically pleasing as a custom dashboard, special consideration must be used in planning the number of chart objects and filters used in the creation of this project since the 4. x version of Arc. Sight ESM uses a separate Active Channel to populate the chart objects. As an example, if you have a global map depicting chart objects for 15 different countries, you are essentially opening 15 consecutive Active Channels to populate the objects on the map. Finally: Gary Freeman is the sole creator of this content and does not represent Arc. Sight with this content nor does this content reflect the views or best practices of Arc. Sight, Inc. Should you have any questions or concerns please contact gfreeman@arcsight. com. However, please note, this content is provided “as is” and I can not guarantee the effectiveness of the material nor be held accountable for any mishaps resulting in damages, service interruptions, outages or any other synonym for “unexpected loss of service”. www. arcsight. com © 2009 Arc. Sight Confidential 18
