The Optimal Timing of Stage-2 -Palliation after the Norwood Operation: A Multi-Institutional Analysis from the CHSS Fall Work Weekend November 19, 2016 James M. Meza, MD and Jake Jaquiss, MD (Study PI), for the Optimal Timing of Stage 2 Working Group

Overview • Background, Rationale, Hypothesis • Study Population and Characteristics • Outcomes and Risk Factors • Determinants of Timing of Stage-2 -Palliation • Optimal Timing – Methods and Results • Effect of interval procedures – Methods and Results • Interpretation and Clinical Implications

Mortality during Staged Palliation • Survival through single ventricle palliation = 50 -70% • Mortality after Norwood and before Stage-2 -Palliation (S 2 P) remains high • Timing of S 2 P is physician modifiable • Effect of timing not well understood

Timing of S 2 P is a Complex Decision Earlier S 2 P • • • Reduce volume load on systemic ventricle Eliminate shunt-associated risks Normalize coronary blood flow in those with BT shunt Normalize pulmonary vascular flow and pressure Underdevelopment of pulmonary vasculature Failure of PVR to decrease Later S 2 P • Growth of infant and pulmonary vasculature • Potentially decreased resource utilization • Increased exposure to risks of Norwood-associated physiology

Hypothesis Norwood S 2 P ? • An optimal timing exists • Is based on patient-specific characteristics Fontan

Study Population & Characteristics

Patient Data Source = CHSS Critical Left Ventricular Outflow Tract Obstruction Registry • • Neonate ≤ age 30 days at admission to a CHSS institution 2005 onward AV & VA concordance Precludes an adequate systemic cardiac output through the aortic valve Study inclusion criteria • Initial Norwood operation

Study Population CHSS LVOTO N=924 Eligible N=852 Initial procedure N=702 Norwood N=534

Demographic Characteristics Sex, male Prenatal diagnosis Prenatal intervention Gestational age (weeks) Birth weight (kg) Low birth weight (< 2. 5 kg) Genetic abnormality White race Overall Cohort (N=534) 66% (346) 73% (383) 1% (4) 39. 0 (38 -39) 3. 2 (1. 6 -3. 8) 16% (87) 7% (41) 84% (363)

Institutional Diagnoses Overall Cohort (N=534) Hypoplastic left heart syndrome 92% (493) Critical aortic stenosis 2% (13) Aortic valve atresia 0. 6% (4) Mitral stenosis 0. 2% (2) Mitral atresia 0. 2% (2) Coarctation of the aorta 1% (3) Interrupted aortic arch 2% (11) Hypoplastic aortic arch 2% (11)

Echocardiographic Data Overall Cohort (N=534) Aortic atresia/mitral atresia 28% (151) Aortic atresia/mitral stenosis 18% (96) Aortic stenosis/mitral atresia 1% (5) Aortic stenosis/mitral stenosis 16% (84) Isolated aortic atresia 2% (13) Isolated aortic stenosis 7% (38) Isolated mitral atresia 2% (11) Isolated mitral stenosis 2% (8) Other 3% (16) Bilateral SVC 5% (19)

Outcomes and Risk Factors

Outcomes after Norwood

Norwood Operative Characteristics Age at Norwood (days) Shunt type MBTS RVPA conduit Central shunt Weight at Norwood (kg) Elapsed time on CPB (min) Modified cerebral perfusion Duration of circulatory arrest (min) Overall Cohort (N=534) 6. 0 (0 -48) 49% (263) 50% (268) 1% (3) 3. 2 (2. 9 -3. 5) 149. 9 ± 45. 9 91% (349) 8. 0 (4. 0 -34. 0)

Probability of Survival Hazard Model for Death after Norwood Months since Norwood

Multivariable Model Candidate covariates = baseline, demographic, clinical through end of Norwood

Death after Norwood

Outcomes after S 2 P

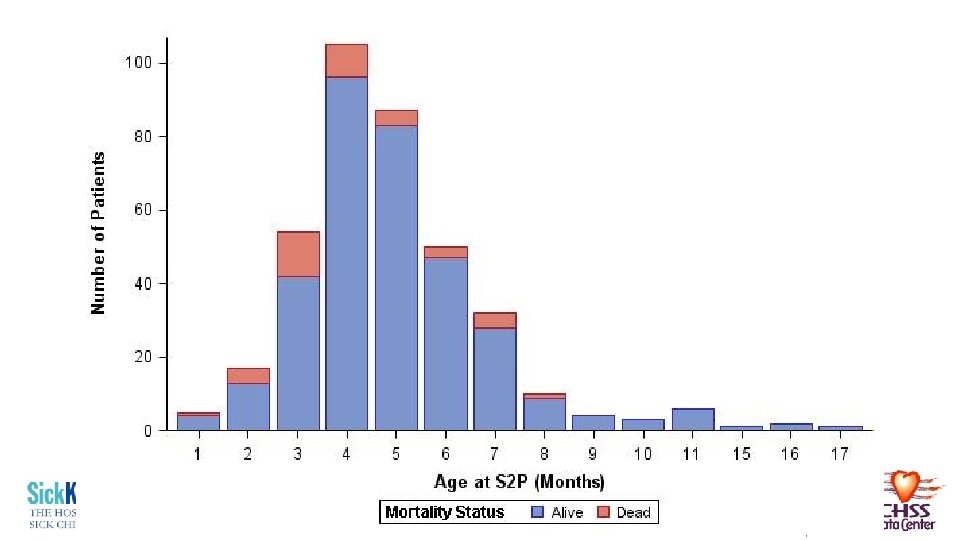

Age at S 2 P • Median = 5. 1 (4. 3– 6. 2) months § 154 days (129 -188) • Range = 1. 7 -17. 2 months • 51 -523 days • Not normally distributed

Probability of Survival Hazard Model for Death after S 2 P Months since S 2 P

Variables – post-Norwood • Weights (z-score) § Norwood, echo, cath, clinic, S 2 P • Echo § AVVR § RV Function • Cath § § PVR Qp. QS PA stenosis PA hypoplasia • Chromosomal abnormality/genetic syndrome • Shunt type and size • Geographic region of S 2 P • Season of S 2 P • Bilateral SVC • Post-Norwood Course § Hospital LOS after Norwood § Length of mechanical ventilation after Norwood § Failed extubation after Norwood § Home oxygen § Tracheostomy § Respiratory illness § § o Unplanned readmission pre-S 2 P and LOS o Delayed S 2 P? Diagnosis of NEC Diagnosis of GERD Interval cath and operative procedures Inpatient vs. outpatient status at time of Stage 2 o Limits of documentation § Mechanical ventilation at time of Stage 2 o Limits of documentation • Pre-S 2 P clinic visit § O 2 sats at pre-op clinic

Post-Norwood Course Length of Norwood hospitalization (days) Length of mechanical ventilation Required re-intubation after Norwood Required readmission for respiratory infection Required home oxygen Required tracheostomy Diagnosis of necrotizing enterocolitis Diagnosis of gastro-esophageal reflux Overall Cohort (N=534) 25 (16 -40) 7 (5 -11) 7% (37) 5% (25) 5% (27) 1% (3) 12% (64) 30% (158)

Pre-S 2 P Cardiac Catheterization Age at pre-S 2 P catheterization (days) Interval from catheterization to S 2 P (days) Weight (kg) Weight-for-age z-score Pulmonary vascular resistance (Wood units) Qp. Qs Coarctation Moderate-severe RPA stenosis Moderate-severe RPA hypoplasia Moderate-severe LPA stenosis Moderate-severe LPA hypoplasia Overall Cohort (N=534) 118 (84 -154) 28 (12 -58) 5. 5 (4. 5 -6. 3) -1. 1 (-2. 0 - -0. 3) 1. 9 (1. 5 -2. 5) 1. 0 (0. 74 -1. 32) 15% (79/534) 15% (80) 10% (54) 17% (89) 13% (67)

Pre-S 2 P Echocardiogram Age at echocardiogram (days) Interval from echocardiogram to S 2 P (days) Weight (kg) Weight-for-age z-score Moderate-severe RV dysfunction Moderate-severe AVV regurgitation Overall Cohort (N=534) 96 (28 – 139) 40 (11 -107) 4. 6 (3. 5 -5. 9) -1. 2 (-2. 0 - -0. 5) 10% (51/534) 22% (117/534)

Pre-S 2 P Clinic Visit Age at clinic visit (days) Interval from clinic visit to S 2 P(days) Weight (kg) Weight-for-age z-score Oxygen saturation (%) Overall Cohort (N=534) 121 (93 -157) 28 (12 -58) 5. 4 (4. 8 -6. 2) -1. 1 (-2. 2 – 0. 1) 80 (76 -83)

Model for Death after S 2 P

Determinants of Timing of S 2 P

Determinants of Timing • Linear regression • Outcome = age at S 2 P • Candidate covariables – all from 1 st two models

Determinants of Age at S 2 P

Determinants of Age at S 2 P

Analyzing Staged Procedures and Optimal Timing

Staged Procedures Model 2 Norwood S 2 P 4 -Years Model 1 • Conditional survival analysis [ CS = S(t|s) ] • Use both models • Predict survival to day of S 2 P, then 2 nd model for S 2 P for four years • Accounts for all patients!

Survival After Norwood %

Survival after Norwood, through S 2 P %

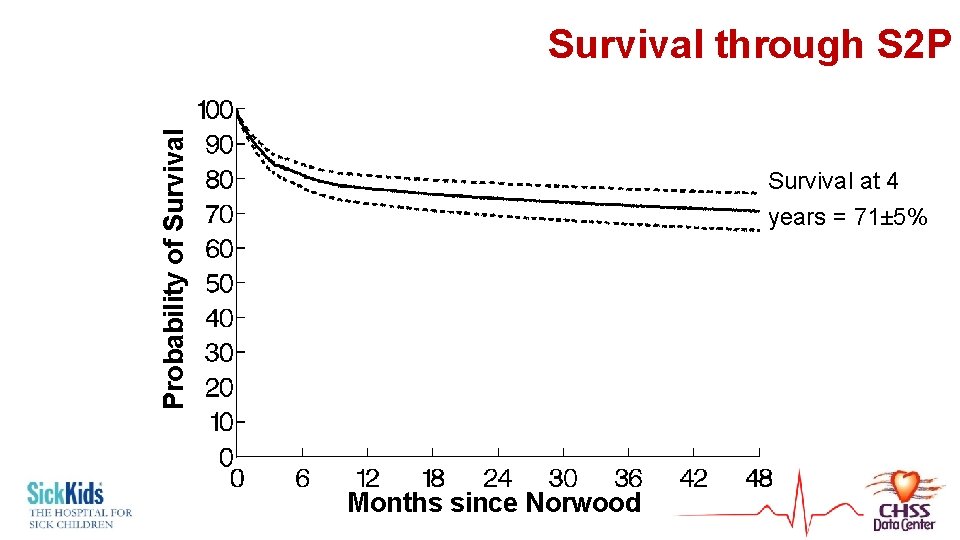

Probability of Survival through S 2 P Survival at 4 years = 71± 5% Months since Norwood

Analyzing Timing • Age at S 2 P identified as risk factor • Parametric model = mathematical equation • Nomogram of survival vs. Age at S 2 P

Risk-adjusted, 4 -Year, post-Norwood Survival Optimal Timing, by Age “Cohort average” Age at S 2 P (months)

Risk-adjusted, 4 -Year, post-Norwood Survival Timing, by Age, with RV Dysfunction No RV Dysfunction Age at S 2 P (months)

Risk-adjusted, 4 -Year, post-Norwood Survival Timing, by Age, by Shunt Type RVPA Conduit MBTS Age at S 2 P (months)

Optimal Timing, by Age Risk-adjusted, 4 -Year, post-Norwood Survival Across various risk profiles Low risk Average-risk High risk Age at S 2 P (months)

Risk-adjusted, 4 -Year, post-Norwood Survival Optimal Timing, by WAZ “Cohort average” -5 -4 -3 -2 -1 0 1 2 3 4 5 Weight-for-Age Z-score at the pre-S 2 P cath

Risk-adjusted, 4 -Year, post-Norwood Survival Timing, by WAZ, with RV Dysfunction No RV Dysfunction -5 -4 -3 -2 -1 0 1 2 3 4 5 Weight-for-Age Z-score at the pre-S 2 P cath

Risk-adjusted, 4 -Year, post-Norwood Survival Timing, by WAZ, by Shunt Type RVPA MBTS -5 -4 -3 -2 -1 0 1 2 3 4 5 Weight-for-Age Z-score at the pre-S 2 P cath

Optimal Timing, by WAZ Risk-adjusted, 4 -Year, post-Norwood Survival Across various risk profiles Low risk Average-risk High risk -5 -4 -3 -2 -1 0 1 2 3 4 5 Weight-for-Age Z-score at the pre-S 2 P cath

Elective S 2 P

Indications for S 2 P

Operative Status vs. Age at S 2 P

Risk Factors in Elective Patients RV dysfunction on pre-S 2 P echo, Parameter Estimate ± STD P-value Reliability 2. 34 ± 0. 54 < 0. 0001 73% 1. 74 ± 0. 84 0. 04 50% moderate or severe Younger age at S 2 P (days), natural log transformation

Risk-adjusted, 4 -Year, post-Norwood Survival Optimal Timing, by Age “Elective average” Age at S 2 P (months)

High-Risk Patients

Why does it appear that high-risk appear to do better with later S 2 P? • Regardless of age or WAZ – survival poor • Especially with early S 2 P • Cannot advocate non-intervention in the deteriorating “high-risk” infant • “Length time bias” • Highest risk patients die earlier – push down survival § Less high risk – survive longer to undergo later S 2 P

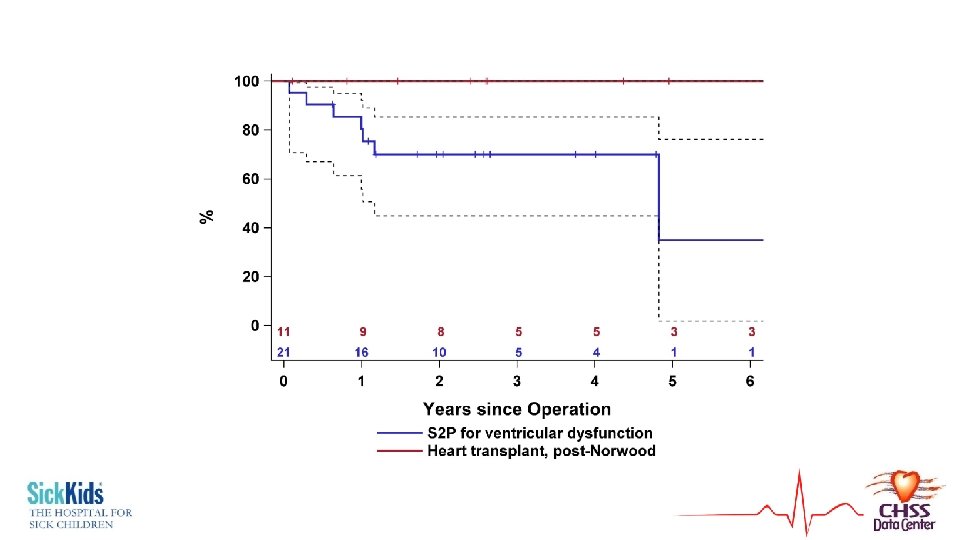

“High-Risk S 2 P” vs. Transplantation? • 11 patients underwent heart transplantation after Norwood • All currently still alive • Can’t make a model, can only suggest this from descriptive statistics

Interval Procedures Norwood S 2 P 4 -Years

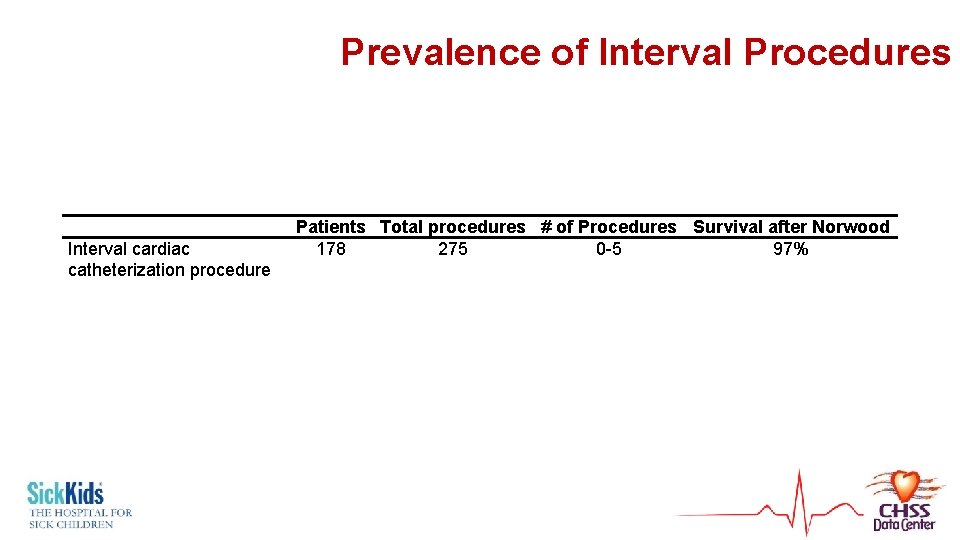

Prevalence of Interval Procedures Interval cardiac catheterization procedure Interval operation Patients Total procedures # of Procedures Survival after Norwood 178 275 0 -5 97% 68 86 0 -3 68%

Methodology • First analyzed for development of 2 nd model • But occur during Norwood – S 2 P interval • Time-varying covariables • Modulated Renewal

Time-Varying Analysis Parameter Estimate ± STD P-value Interval cardiac catheterization procedure 0. 10 ± 0. 25 0. 70 Interval operation 0. 69 ± 0. 24 0. 004

Probability of Survival Effect of Interval Operations Months since Norwood

Discussion, Implications, Conclusions

Low- and Average-Risk Patients • After 3 -4 months and z-score > -2 for low and average risk patients • “Elective” • Patients are progressing early/being delayed for no reason § Younger age – risk factor § Converting some from elective non-elective? § Outgrowing shunts? Waiting for shunt complications

High-Risk Patients • Survival is substantially reduced • A high risk patient at Norwood doesn’t become a better candidate after S 2 P (survival cost still seen) • Very poor survival with “early” S 2 P or low WAZ • No weight-for-age z-score, just like no age “maximizes” survival in these patients • Heart transplantation may maximize survival

Interval Procedures • Low threshold for catheter-based procedures • If facing a non-elective S 2 P with intervenable pathology (e. g. shunt stenosis), try to bridge to a later, elective S 2 P • Operative procedures confer greater risk • Don’t avoid doing • Marker of more severe pathology and higher risk

Implications • Survival through staged procedures should be considered across all, not as individual discrete intervals • Active plan can be developed or modified for planning timing of S 2 P • This info can help with prioritization of rare hearts from transplantation – have an idea of who will fail staged palliation
