Real Gases Deviation from ideal gas Law Gas
![Real Gases Deviation from ideal gas Law: -Gas particles have volume - Attraction exists Real Gases Deviation from ideal gas Law: -Gas particles have volume - Attraction exists](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-1.jpg)
![isotherm isotherm](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-2.jpg)
![Van der Waal’s Equation Ideal gas law needs modification: - Let’s consider the molecular Van der Waal’s Equation Ideal gas law needs modification: - Let’s consider the molecular](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-3.jpg)
![- Let’s consider the attraction forces between molecules: - Due to attraction: - velocity - Let’s consider the attraction forces between molecules: - Due to attraction: - velocity](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-4.jpg)
![- How big is this drop in pressure? attraction force 1 f 2 f - How big is this drop in pressure? attraction force 1 f 2 f](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-5.jpg)
![- How big is this drop in pressure? - How big is this drop in pressure?](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-6.jpg)
![- How big is this drop in pressure? drop in pressure proportional to attraction - How big is this drop in pressure? drop in pressure proportional to attraction](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-7.jpg)
![Vd. W Equation of state Vd. W Equation of state](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-8.jpg)
![b: volume of 1 mole of gas molecules. a: represents strength of attraction. b: volume of 1 mole of gas molecules. a: represents strength of attraction.](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-9.jpg)
![](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-10.jpg)
![Maxwell construction a 1 = a 2 Maxwell construction a 1 = a 2](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-11.jpg)
![Many other equations of state Mostly empirical Virial Equation to correct, develop in a Many other equations of state Mostly empirical Virial Equation to correct, develop in a](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-12.jpg)
![Compression factor z describes deviation from ideal gas behavior. For ideal gas, z=1 Compression factor z describes deviation from ideal gas behavior. For ideal gas, z=1](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-13.jpg)
![At a given temperature, z depends on the nature of gas Why? At a given temperature, z depends on the nature of gas Why?](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-14.jpg)
![Let’s find for a Vd. W gas at p → 0 The slope of Let’s find for a Vd. W gas at p → 0 The slope of](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-15.jpg)
![](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-16.jpg)
![slope at p → 0 slope at p → 0](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-17.jpg)
![>0 =0 <0 >0 =0 <0](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-18.jpg)
![Size effect > attraction Size effect = attraction Size effect < attraction b: volume Size effect > attraction Size effect = attraction Size effect < attraction b: volume](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-19.jpg)
![Explain the trend! Explain the trend!](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-20.jpg)
![Critical Point Vm range in which L and G phases coexist shrink to a Critical Point Vm range in which L and G phases coexist shrink to a](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-21.jpg)
![](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-22.jpg)
![Experimental measurements of pc and Tc are more accurate than that of Vc, a Experimental measurements of pc and Tc are more accurate than that of Vc, a](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-23.jpg)
![The law of corresponding states Is it possible to find an equation of state The law of corresponding states Is it possible to find an equation of state](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-24.jpg)
![• Two gases at the same Tr and pr have the same Vr. • Two gases at the same Tr and pr have the same Vr.](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-25.jpg)
![](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-26.jpg)
![](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-27.jpg)
- Slides: 27
![Real Gases Deviation from ideal gas Law Gas particles have volume Attraction exists Real Gases Deviation from ideal gas Law: -Gas particles have volume - Attraction exists](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-1.jpg)
Real Gases Deviation from ideal gas Law: -Gas particles have volume - Attraction exists between gas particles (liquefication) Ideal gas law applies only at low gas density: high T, low p
![isotherm isotherm](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-2.jpg)

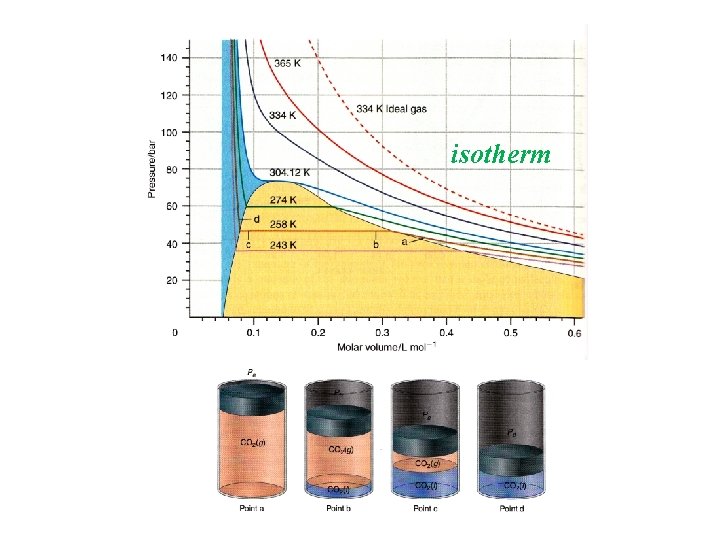

isotherm
![Van der Waals Equation Ideal gas law needs modification Lets consider the molecular Van der Waal’s Equation Ideal gas law needs modification: - Let’s consider the molecular](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-3.jpg)
Van der Waal’s Equation Ideal gas law needs modification: - Let’s consider the molecular volume: b: size of 1 mole of gas molecules For 1 mole of gas: Vm, total = Vm, space + b
![Lets consider the attraction forces between molecules Due to attraction velocity - Let’s consider the attraction forces between molecules: - Due to attraction: - velocity](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-4.jpg)
- Let’s consider the attraction forces between molecules: - Due to attraction: - velocity decreased, - colliding less with wall, - pressure drops
![How big is this drop in pressure attraction force 1 f 2 f - How big is this drop in pressure? attraction force 1 f 2 f](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-5.jpg)
- How big is this drop in pressure? attraction force 1 f 2 f 3 f
![How big is this drop in pressure - How big is this drop in pressure?](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-6.jpg)

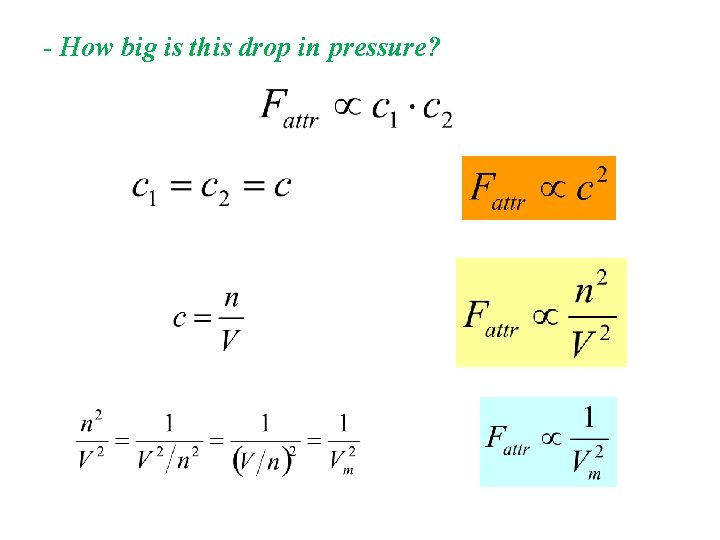

- How big is this drop in pressure?
![How big is this drop in pressure drop in pressure proportional to attraction - How big is this drop in pressure? drop in pressure proportional to attraction](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-7.jpg)
- How big is this drop in pressure? drop in pressure proportional to attraction force drop in pressure indirectly proportional to square of Vm
![Vd W Equation of state Vd. W Equation of state](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-8.jpg)
Vd. W Equation of state
![b volume of 1 mole of gas molecules a represents strength of attraction b: volume of 1 mole of gas molecules. a: represents strength of attraction.](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-9.jpg)
b: volume of 1 mole of gas molecules. a: represents strength of attraction.

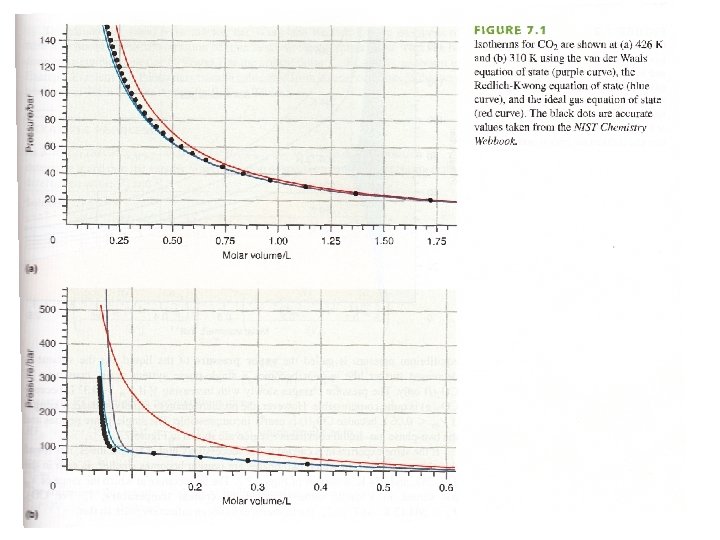

![](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-10.jpg)
![Maxwell construction a 1 a 2 Maxwell construction a 1 = a 2](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-11.jpg)
Maxwell construction a 1 = a 2
![Many other equations of state Mostly empirical Virial Equation to correct develop in a Many other equations of state Mostly empirical Virial Equation to correct, develop in a](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-12.jpg)

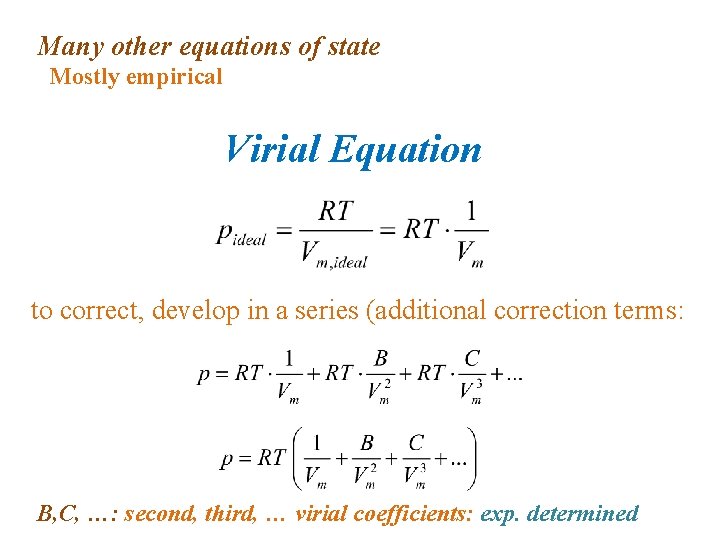

Many other equations of state Mostly empirical Virial Equation to correct, develop in a series (additional correction terms: B, C, …: second, third, … virial coefficients: exp. determined
![Compression factor z describes deviation from ideal gas behavior For ideal gas z1 Compression factor z describes deviation from ideal gas behavior. For ideal gas, z=1](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-13.jpg)
Compression factor z describes deviation from ideal gas behavior. For ideal gas, z=1
![At a given temperature z depends on the nature of gas Why At a given temperature, z depends on the nature of gas Why?](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-14.jpg)
At a given temperature, z depends on the nature of gas Why?
![Lets find for a Vd W gas at p 0 The slope of Let’s find for a Vd. W gas at p → 0 The slope of](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-15.jpg)
Let’s find for a Vd. W gas at p → 0 The slope of the curve z=f(p) in the previous diagram.

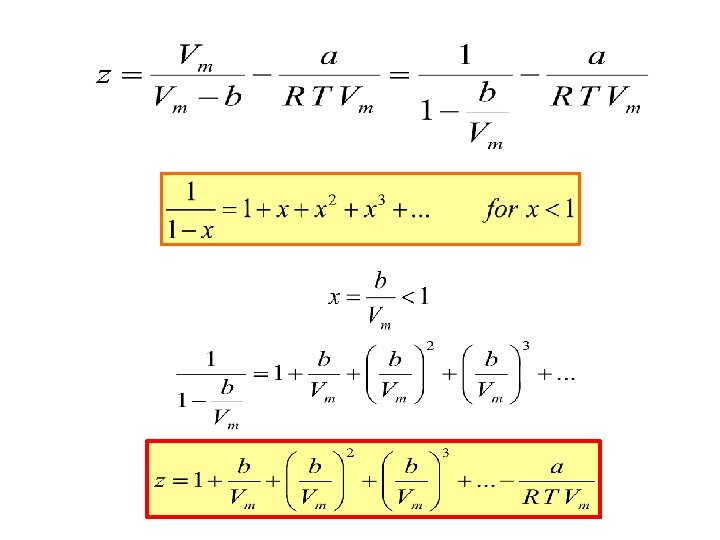

![](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-16.jpg)
![slope at p 0 slope at p → 0](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-17.jpg)
slope at p → 0
![0 0 0 >0 =0 <0](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-18.jpg)
>0 =0 <0
![Size effect attraction Size effect attraction Size effect attraction b volume Size effect > attraction Size effect = attraction Size effect < attraction b: volume](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-19.jpg)

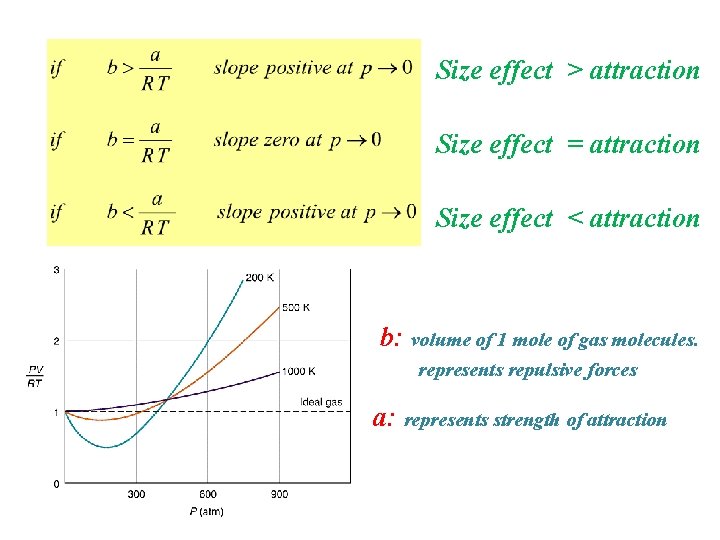

Size effect > attraction Size effect = attraction Size effect < attraction b: volume of 1 mole of gas molecules. represents repulsive forces a: represents strength of attraction
![Explain the trend Explain the trend!](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-20.jpg)
Explain the trend!
![Critical Point Vm range in which L and G phases coexist shrink to a Critical Point Vm range in which L and G phases coexist shrink to a](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-21.jpg)
Critical Point Vm range in which L and G phases coexist shrink to a single point Above Tc, L and G phases can not be distinguished from each other: Density (L) = Density (G) No Interface

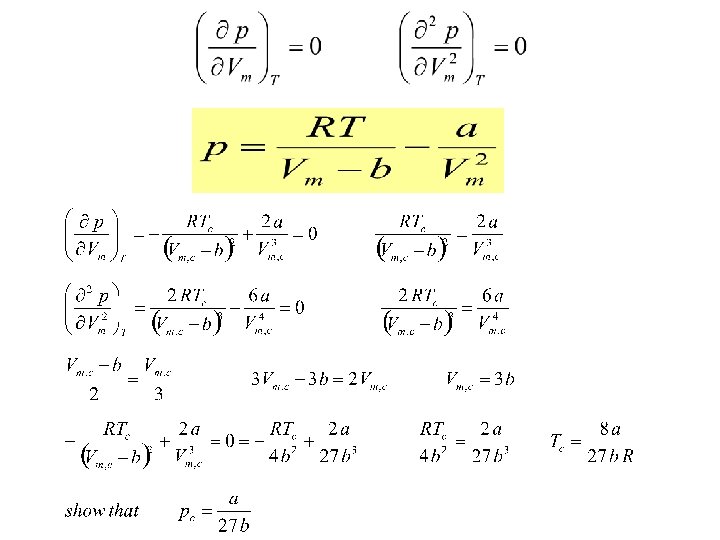

![](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-22.jpg)
![Experimental measurements of pc and Tc are more accurate than that of Vc a Experimental measurements of pc and Tc are more accurate than that of Vc, a](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-23.jpg)
Experimental measurements of pc and Tc are more accurate than that of Vc, a and b are calculated from the experimental values of pc and Tc.
![The law of corresponding states Is it possible to find an equation of state The law of corresponding states Is it possible to find an equation of state](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-24.jpg)
The law of corresponding states Is it possible to find an equation of state that doesn’t contain material specific constants? Reduced properties:
![Two gases at the same Tr and pr have the same Vr • Two gases at the same Tr and pr have the same Vr.](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-25.jpg)
• Two gases at the same Tr and pr have the same Vr. • These two gases are in “corresponding states’’. • Ar (302 K and 16 atm) ↔ ethylene (381 K and 18 atm)

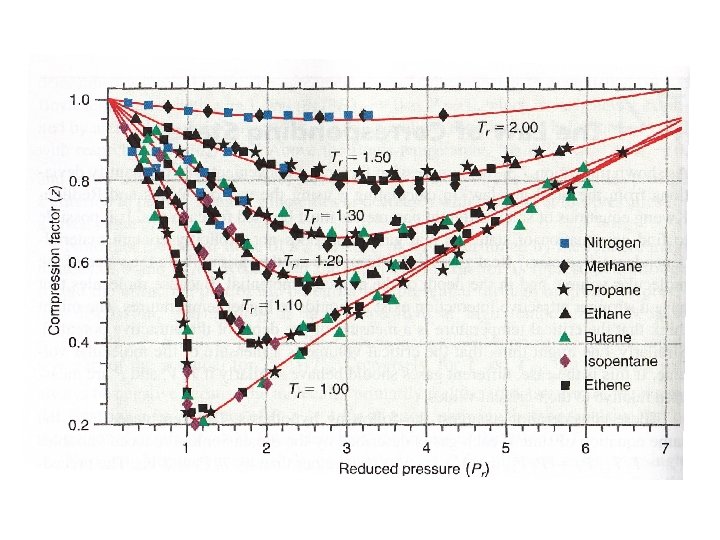

![](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-26.jpg)

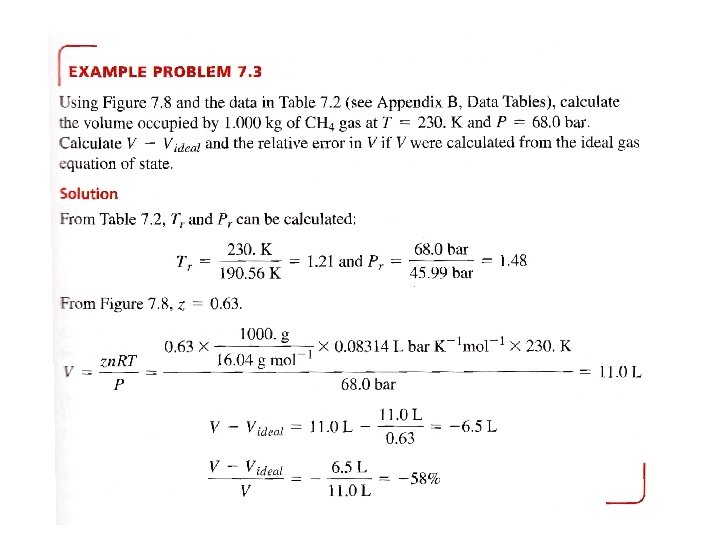

![](https://slidetodoc.com/presentation_image_h2/5d73ae32e98c364cae718a9109146c6e/image-27.jpg)
