An Introduction to Parallel Programming Peter Pacheco Chapter

n n n n n # Chapter Subtitle Roadmap Problems programming shared memory systems.

A Shared Memory System Copyright © 2010, Elsevier Inc. All rights Reserved 3

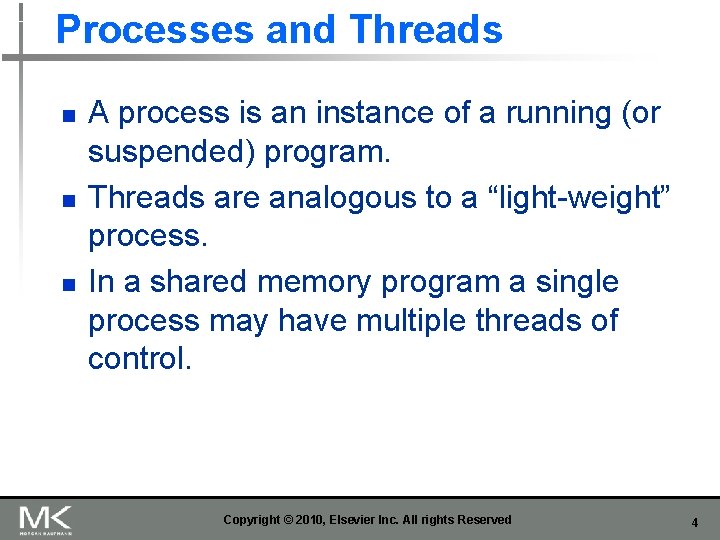

Processes and Threads n n n A process is an instance of a running

POSIX® Threads n n Also known as Pthreads. A standard for Unix-like operating systems.

Caveat n The Pthreads API is only available on POSIXR systems — Linux, Mac.

Hello World! (1) declares the various Pthreads functions, constants, types, etc. Copyright © 2010,

Hello World! (2) Copyright © 2010, Elsevier Inc. All rights Reserved 8

Hello World! (3) Copyright © 2010, Elsevier Inc. All rights Reserved 9

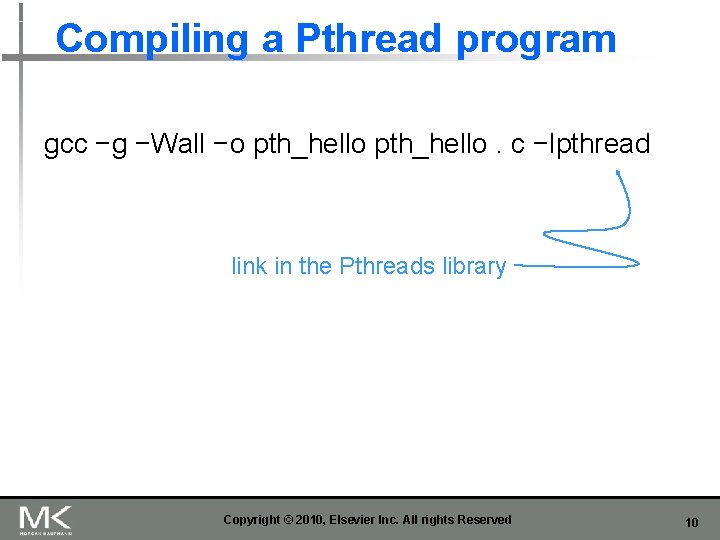

Compiling a Pthread program gcc −g −Wall −o pth_hello. c −lpthread link in the

Running a Pthreads program. / pth_hello <number of threads>. / pth_hello 1 Hello from

Global variables n n Can introduce subtle and confusing bugs! Limit use of global

Starting the Threads n n Processes in MPI are usually started by a script.

Starting the Threads pthread. h pthread_t One object for each thread. int pthread_create (

pthread_t objects n n Opaque The actual data that they store is systemspecific. Their

A closer look (1) int pthread_create ( pthread_t* thread_p /* out */ , const

A closer look (2) int pthread_create ( pthread_t* thread_p /* out */ , const

Function started by pthread_create n n Prototype: void* thread_function ( void* args_p ) ;

Running the Threads Main thread forks and joins two threads. Copyright © 2010, Elsevier

Stopping the Threads n n We call the function pthread_join once for each thread.

MATRIX-VECTOR MULTIPLICATION IN PTHREADS Copyright © 2010, Elsevier Inc. All rights Reserved 21

Serial pseudo-code Copyright © 2010, Elsevier Inc. All rights Reserved 22

Using 3 Pthreads thread 0 general case Copyright © 2010, Elsevier Inc. All rights

Pthreads matrix-vector multiplication Copyright © 2010, Elsevier Inc. All rights Reserved 24

CRITICAL SECTIONS Copyright © 2010, Elsevier Inc. All rights Reserved 25

Estimating π Copyright © 2010, Elsevier Inc. All rights Reserved 26

Using a dual core processor Note that as we increase n, the estimate with

A thread function for computing π Copyright © 2010, Elsevier Inc. All rights Reserved

Possible race condition Copyright © 2010, Elsevier Inc. All rights Reserved 29

Busy-Waiting n n A thread repeatedly tests a condition, but, effectively, does no useful

Pthreads global sum with busy-waiting Copyright © 2010, Elsevier Inc. All rights Reserved 31

Global sum function with critical section after loop (1) Copyright © 2010, Elsevier Inc.

Global sum function with critical section after loop (2) Copyright © 2010, Elsevier Inc.

Mutexes n n A thread that is busy-waiting may continually use the CPU accomplishing

Mutexes n n Used to guarantee that one thread “excludes” all other threads while

Mutexes n n When a Pthreads program finishes using a mutex, it should call

Mutexes n When a thread is finished executing the code in a critical section,

Global sum function that uses a mutex (1) Copyright © 2010, Elsevier Inc. All

Global sum function that uses a mutex (2) Copyright © 2010, Elsevier Inc. All

Run-times (in seconds) of π programs using n = 108 terms on a system

Possible sequence of events with busy-waiting and more threads than cores. Copyright © 2010,

PRODUCER-CONSUMER SYNCHRONIZATION AND SEMAPHORES Copyright © 2010, Elsevier Inc. All rights Reserved 42

Issues n n n Busy-waiting enforces the order threads access a critical section. Using

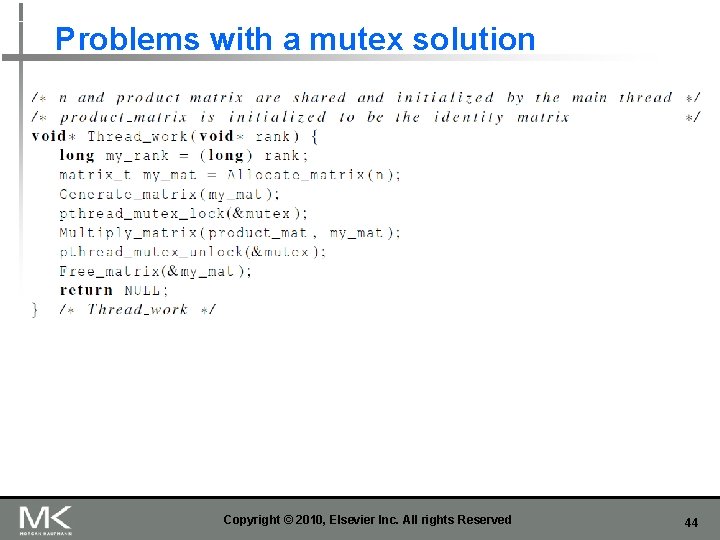

Problems with a mutex solution Copyright © 2010, Elsevier Inc. All rights Reserved 44

A first attempt at sending messages using pthreads Copyright © 2010, Elsevier Inc. All

Syntax of the various semaphore functions Semaphores are not part of Pthreads; you need

BARRIERS AND CONDITION VARIABLES Copyright © 2010, Elsevier Inc. All rights Reserved 47

Barriers n n Synchronizing the threads to make sure that they all are at

Using barriers to time the slowest thread Copyright © 2010, Elsevier Inc. All rights

Using barriers for debugging Copyright © 2010, Elsevier Inc. All rights Reserved 50

Busy-waiting and a Mutex n n n Implementing a barrier using busy-waiting and a

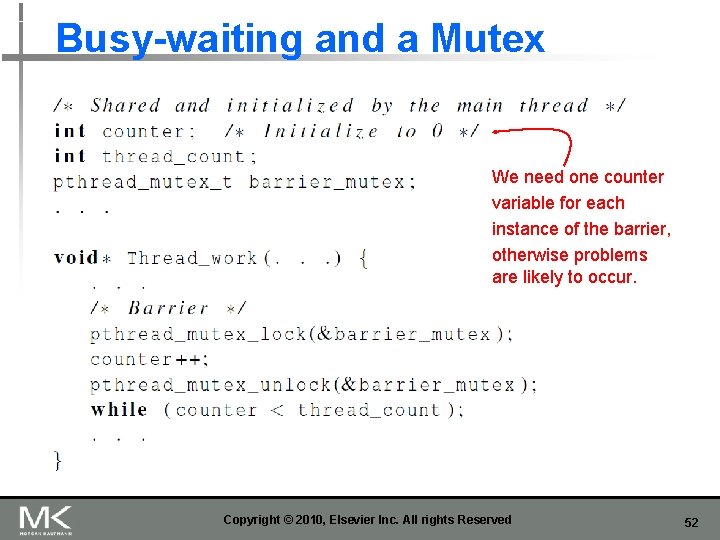

Busy-waiting and a Mutex We need one counter variable for each instance of the

Implementing a barrier with semaphores Copyright © 2010, Elsevier Inc. All rights Reserved 53

Condition Variables n n n A condition variable is a data object that allows

Condition Variables Copyright © 2010, Elsevier Inc. All rights Reserved 55

Implementing a barrier with condition variables Copyright © 2010, Elsevier Inc. All rights Reserved

READ-WRITE LOCKS Copyright © 2010, Elsevier Inc. All rights Reserved 57

Controlling access to a large, shared data structure n n Let’s look at an

Linked Lists Copyright © 2010, Elsevier Inc. All rights Reserved 59

Linked List Membership Copyright © 2010, Elsevier Inc. All rights Reserved 60

Inserting a new node into a list Copyright © 2010, Elsevier Inc. All rights

Deleting a node from a linked list Copyright © 2010, Elsevier Inc. All rights

A Multi-Threaded Linked List n n n Let’s try to use these functions in

Simultaneous access by two threads Copyright © 2010, Elsevier Inc. All rights Reserved 66

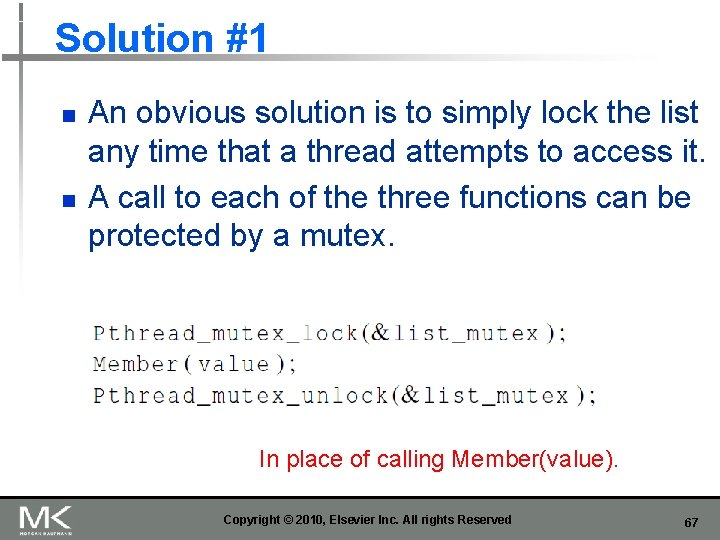

Solution #1 n n An obvious solution is to simply lock the list any

Issues n n n We’re serializing access to the list. If the vast majority

Solution #2 n n Instead of locking the entire list, we could try to

Issues n n n This is much more complex than the original Member function.

Implementation of Member with one mutex per list node (1) Copyright © 2010, Elsevier

Implementation of Member with one mutex per list node (2) Copyright © 2010, Elsevier

Pthreads Read-Write Locks n n n Neither of our multi-threaded linked lists exploits the

Pthreads Read-Write Locks n n A read-write lock is somewhat like a mutex except

Pthreads Read-Write Locks n n So multiple threads can simultaneously obtain the lock by

Pthreads Read-Write Locks n If any thread owns the lock for writing, any threads

Protecting our linked list functions Copyright © 2010, Elsevier Inc. All rights Reserved 77

Linked List Performance 100, 000 ops/thread 99. 9% Member 0. 05% Insert 0. 05%

Linked List Performance 100, 000 ops/thread 80% Member 10% Insert 10% Delete Copyright ©

Caches, Cache-Coherence, and False Sharing n n n Recall that chip designers have added

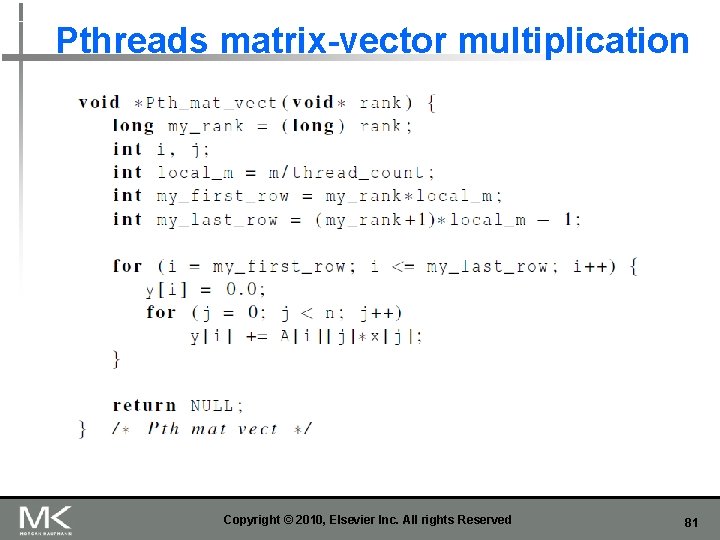

Pthreads matrix-vector multiplication Copyright © 2010, Elsevier Inc. All rights Reserved 81

Run-times and efficiencies of matrix-vector multiplication (times are in seconds) Copyright © 2010, Elsevier

THREAD-SAFETY Copyright © 2010, Elsevier Inc. All rights Reserved 83

Thread-Safety n A block of code is thread-safe if it can be simultaneously executed

Example n n Suppose we want to use multiple threads to “tokenize” a file

Simple approach n n Divide the input file into lines of text and assign

Simple approach n n We can serialize access to the lines of input using

The strtok function n The first time it’s called the string argument should be

The strtok function n The idea is that in the first call, strtok caches

Multi-threaded tokenizer (1) Copyright © 2010, Elsevier Inc. All rights Reserved 90

Multi-threaded tokenizer (2) Copyright © 2010, Elsevier Inc. All rights Reserved 91

Running with one thread n It correctly tokenizes the input stream. Pease porridge hot.

Running with two threads Oops! Copyright © 2010, Elsevier Inc. All rights Reserved 93

What happened? n n n strtok caches the input line by declaring a variable

What happened? n n Thus, thread 0’s call to strtok with the third line

Other unsafe C library functions n n n Regrettably, it’s not uncommon for C

“re-entrant” (thread safe) functions n In some cases, the C standard specifies an alternate,

Concluding Remarks (1) n n n A thread in shared-memory programming is analogous to

Concluding Remarks (2) n When indeterminacy results from multiple threads attempting to access a

Concluding Remarks (3) n n A critical section is a block of code that

Concluding Remarks (4) n n n Busy-waiting can be used to avoid conflicting access

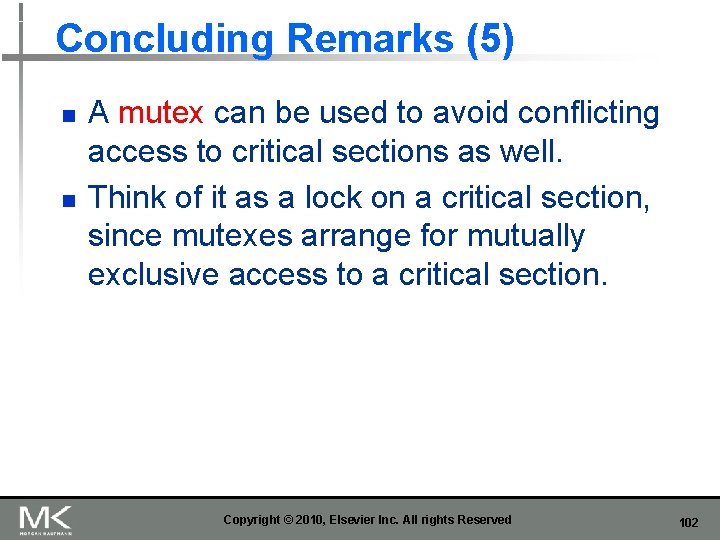

Concluding Remarks (5) n n A mutex can be used to avoid conflicting access

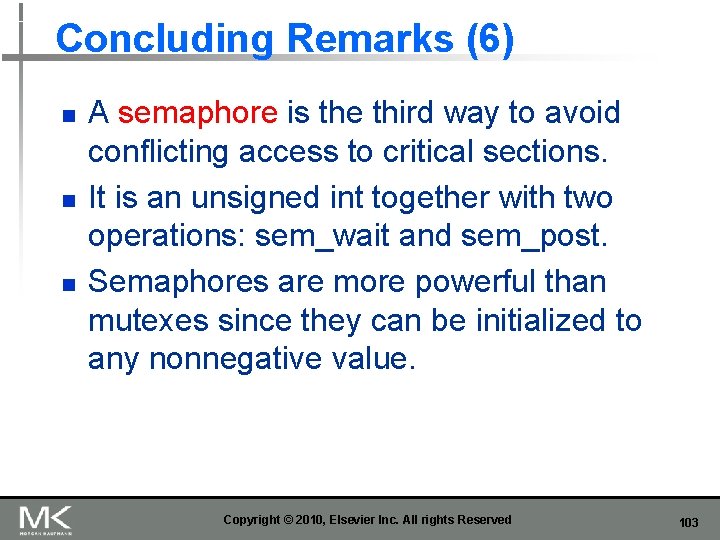

Concluding Remarks (6) n n n A semaphore is the third way to avoid

Concluding Remarks (7) n n A barrier is a point in a program at

Concluding Remarks (8) n n Some C functions cache data between calls by declaring
