Introduction to Management Science 9 th Edition by Bernard W. Taylor III Chapter 9 Multicriteria Decision Making © 2007 Pearson Education Chapter 9 - Multicriteria Decision Making 1

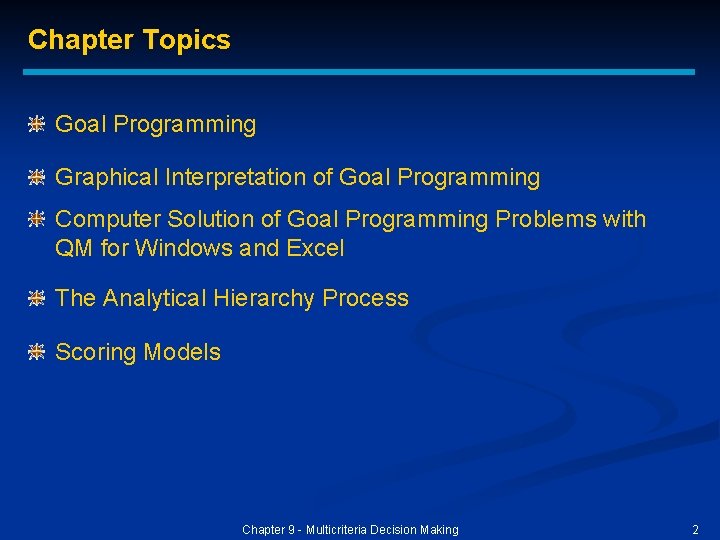

Chapter Topics Goal Programming Graphical Interpretation of Goal Programming Computer Solution of Goal Programming Problems with QM for Windows and Excel The Analytical Hierarchy Process Scoring Models Chapter 9 - Multicriteria Decision Making 2

Overview Study of problems with several criteria, multiple criteria, instead of a single objective when making a decision. Three techniques discussed: goal programming, the analytical hierarchy process and scoring models. Goal programming is a variation of linear programming considering more than one objective (goals) in the objective function. The analytical hierarchy process develops a score for each decision alternative based on comparisons of each under different criteria reflecting the decision makers preferences. Scoring models are based on a relatively simple weighted scoring technique. Chapter 9 - Multicriteria Decision Making 3

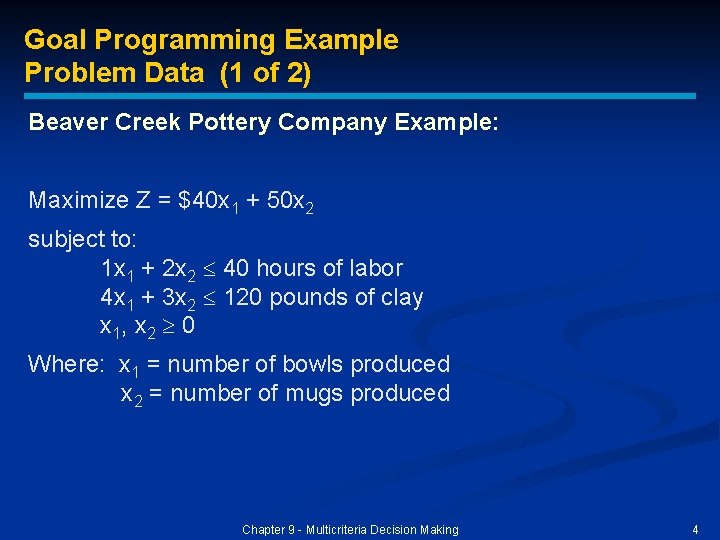

Goal Programming Example Problem Data (1 of 2) Beaver Creek Pottery Company Example: Maximize Z = $40 x 1 + 50 x 2 subject to: 1 x 1 + 2 x 2 40 hours of labor 4 x 1 + 3 x 2 120 pounds of clay x 1, x 2 0 Where: x 1 = number of bowls produced x 2 = number of mugs produced Chapter 9 - Multicriteria Decision Making 4

Goal Programming Example Problem Data (2 of 2) Adding objectives (goals) in order of importance, the company: Does not want to use fewer than 40 hours of labor per day. Would like to achieve a satisfactory profit level of $1, 600 per day. Prefers not to keep more than 120 pounds of clay on hand each day. Would like to minimize the amount of overtime. Chapter 9 - Multicriteria Decision Making 5

Goal Programming Goal Constraint Requirements All goal constraints are equalities that include deviational variables d- and d+. A positive deviational variable (d+) is the amount by which a goal level is exceeded. A negative deviation variable (d-) is the amount by which a goal level is underachieved. At least one or both deviational variables in a goal constraint must equal zero. The objective function in a goal programming model seeks to minimize the deviation from the respective goals in the order of the goal priorities. Chapter 9 - Multicriteria Decision Making 6

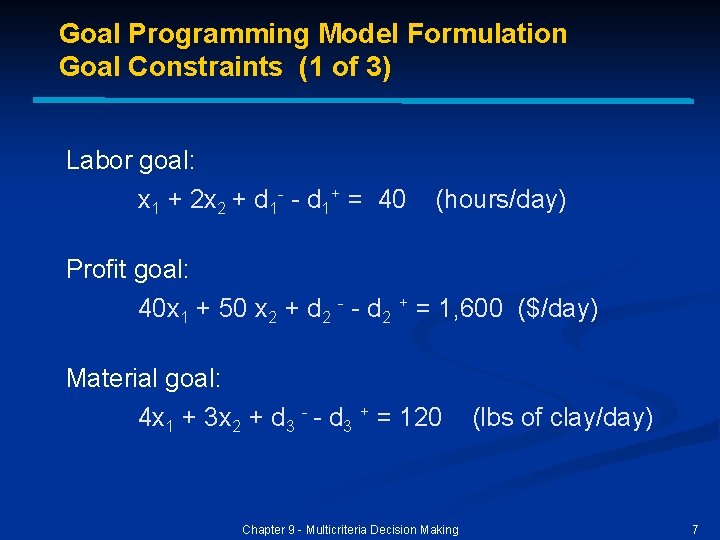

Goal Programming Model Formulation Goal Constraints (1 of 3) Labor goal: x 1 + 2 x 2 + d 1 - - d 1+ = 40 (hours/day) Profit goal: 40 x 1 + 50 x 2 + d 2 - - d 2 + = 1, 600 ($/day) Material goal: 4 x 1 + 3 x 2 + d 3 - - d 3 + = 120 Chapter 9 - Multicriteria Decision Making (lbs of clay/day) 7

Goal Programming Model Formulation Objective Function (2 of 3) Labor goals constraint (priority 1 - less than 40 hours labor; priority 4 - minimum overtime): Minimize P 1 d 1 -, P 4 d 1+ Add profit goal constraint (priority 2 - achieve profit of $1, 600): Minimize P 1 d 1 -, P 2 d 2 -, P 4 d 1+ Add material goal constraint (priority 3 - avoid keeping more than 120 pounds of clay on hand): Minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3+, P 4 d 1+ Chapter 9 - Multicriteria Decision Making 8

Goal Programming Model Formulation Complete Model (3 of 3) Complete Goal Programming Model: Minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3+, P 4 d 1+ subject to: x 1 + 2 x 2 + d 1 - - d 1+ = 40 (labor) 40 x 1 + 50 x 2 + d 2 - - d 2 + = 1, 600 (profit) 4 x 1 + 3 x 2 + d 3 - - d 3 + = 120 (clay) x 1 , x 2 , d 1 -, d 1 + , d 2 -, d 2 + , d 3 -, d 3 + 0 Chapter 9 - Multicriteria Decision Making 9

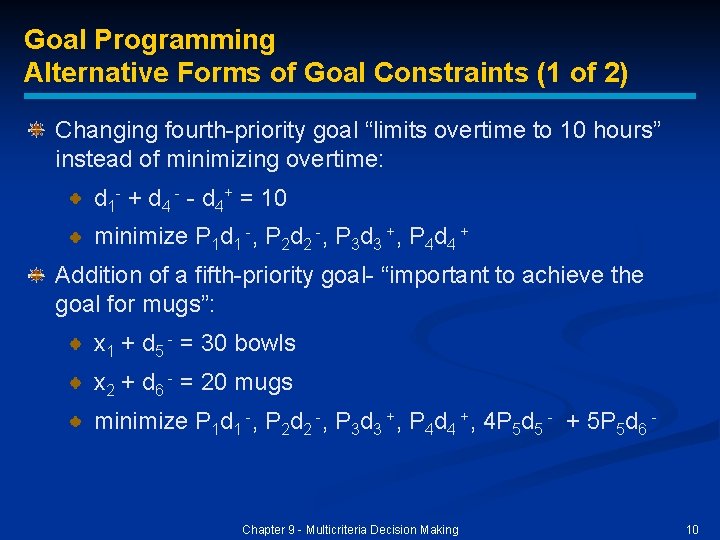

Goal Programming Alternative Forms of Goal Constraints (1 of 2) Changing fourth-priority goal “limits overtime to 10 hours” instead of minimizing overtime: d 1 - + d 4 - - d 4+ = 10 minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3 +, P 4 d 4 + Addition of a fifth-priority goal- “important to achieve the goal for mugs”: x 1 + d 5 - = 30 bowls x 2 + d 6 - = 20 mugs minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3 +, P 4 d 4 +, 4 P 5 d 5 - + 5 P 5 d 6 - Chapter 9 - Multicriteria Decision Making 10

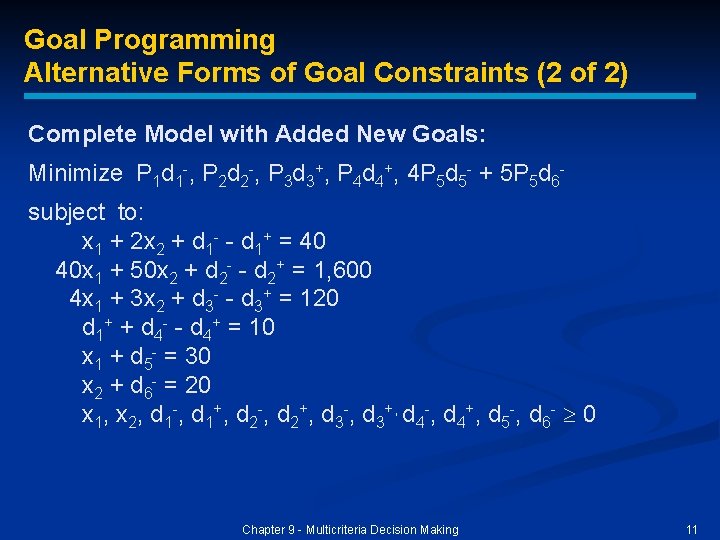

Goal Programming Alternative Forms of Goal Constraints (2 of 2) Complete Model with Added New Goals: Minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3+, P 4 d 4+, 4 P 5 d 5 - + 5 P 5 d 6 subject to: x 1 + 2 x 2 + d 1 - - d 1+ = 40 40 x 1 + 50 x 2 + d 2 - - d 2+ = 1, 600 4 x 1 + 3 x 2 + d 3 - - d 3+ = 120 d 1+ + d 4 - - d 4+ = 10 x 1 + d 5 - = 30 x 2 + d 6 - = 20 x 1, x 2, d 1 -, d 1+, d 2 -, d 2+, d 3 -, d 3+, d 4 -, d 4+, d 5 -, d 6 - 0 Chapter 9 - Multicriteria Decision Making 11

Goal Programming Graphical Interpretation (1 of 6) Minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3+, P 4 d 1+ subject to: x 1 + 2 x 2 + d 1 - - d 1+ = 40 40 x 1 + 50 x 2 + d 2 - - d 2 + = 1, 600 4 x 1 + 3 x 2 + d 3 - - d 3 + = 120 x 1, x 2, d 1 -, d 1 +, d 2 -, d 2 +, d 3 -, d 3 + 0 Figure 9. 1 Goal Constraints Chapter 9 - Multicriteria Decision Making 12

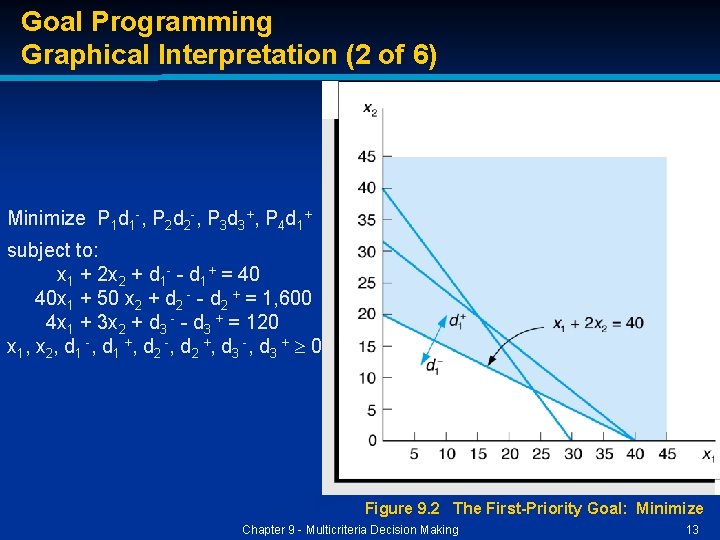

Goal Programming Graphical Interpretation (2 of 6) Minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3+, P 4 d 1+ subject to: x 1 + 2 x 2 + d 1 - - d 1+ = 40 40 x 1 + 50 x 2 + d 2 - - d 2 + = 1, 600 4 x 1 + 3 x 2 + d 3 - - d 3 + = 120 x 1, x 2, d 1 -, d 1 +, d 2 -, d 2 +, d 3 -, d 3 + 0 Figure 9. 2 The First-Priority Goal: Minimize Chapter 9 - Multicriteria Decision Making 13

Goal Programming Graphical Interpretation (3 of 6) Minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3+, P 4 d 1+ subject to: x 1 + 2 x 2 + d 1 - - d 1+ = 40 40 x 1 + 50 x 2 + d 2 - - d 2 + = 1, 600 4 x 1 + 3 x 2 + d 3 - - d 3 + = 120 x 1, x 2, d 1 -, d 1 +, d 2 -, d 2 +, d 3 -, d 3 + 0 Figure 9. 3 The Second-Priority Goal: Minimize Chapter 9 - Multicriteria Decision Making 14

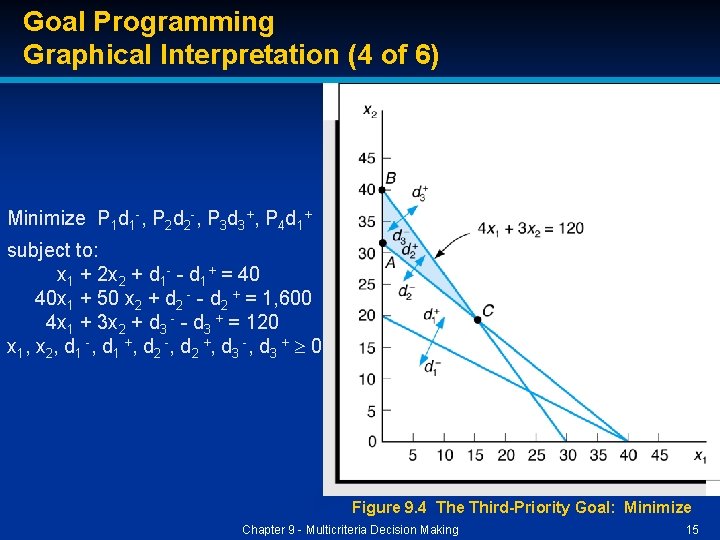

Goal Programming Graphical Interpretation (4 of 6) Minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3+, P 4 d 1+ subject to: x 1 + 2 x 2 + d 1 - - d 1+ = 40 40 x 1 + 50 x 2 + d 2 - - d 2 + = 1, 600 4 x 1 + 3 x 2 + d 3 - - d 3 + = 120 x 1, x 2, d 1 -, d 1 +, d 2 -, d 2 +, d 3 -, d 3 + 0 Figure 9. 4 The Third-Priority Goal: Minimize Chapter 9 - Multicriteria Decision Making 15

Goal Programming Graphical Interpretation (5 of 6) Minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3+, P 4 d 1+ subject to: x 1 + 2 x 2 + d 1 - - d 1+ = 40 40 x 1 + 50 x 2 + d 2 - - d 2 + = 1, 600 4 x 1 + 3 x 2 + d 3 - - d 3 + = 120 x 1, x 2, d 1 -, d 1 +, d 2 -, d 2 +, d 3 -, d 3 + 0 Figure 9. 5 The Fourth-Priority Goal: Minimize Chapter 9 - Multicriteria Decision Making 16

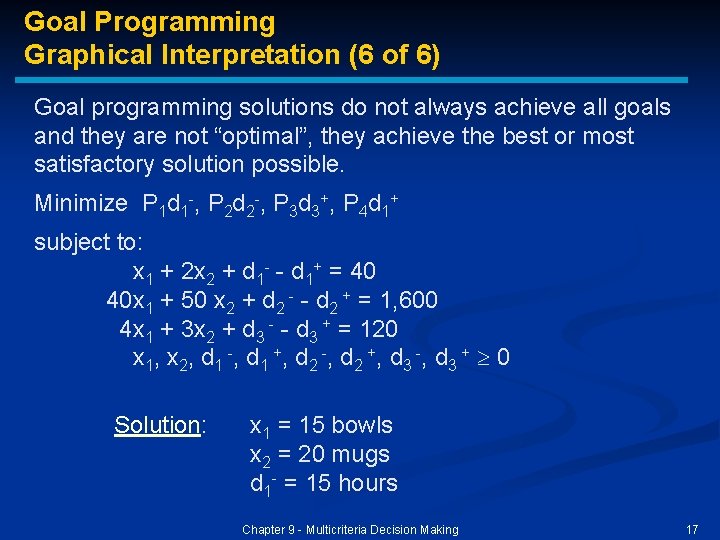

Goal Programming Graphical Interpretation (6 of 6) Goal programming solutions do not always achieve all goals and they are not “optimal”, they achieve the best or most satisfactory solution possible. Minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3+, P 4 d 1+ subject to: x 1 + 2 x 2 + d 1 - - d 1+ = 40 40 x 1 + 50 x 2 + d 2 - - d 2 + = 1, 600 4 x 1 + 3 x 2 + d 3 - - d 3 + = 120 x 1 , x 2 , d 1 -, d 1 + , d 2 -, d 2 + , d 3 -, d 3 + 0 Solution: x 1 = 15 bowls x 2 = 20 mugs d 1 - = 15 hours Chapter 9 - Multicriteria Decision Making 17

Goal Programming Computer Solution Using Excel (1 of 3) Exhibit 9. 4 Chapter 9 - Multicriteria Decision Making 18

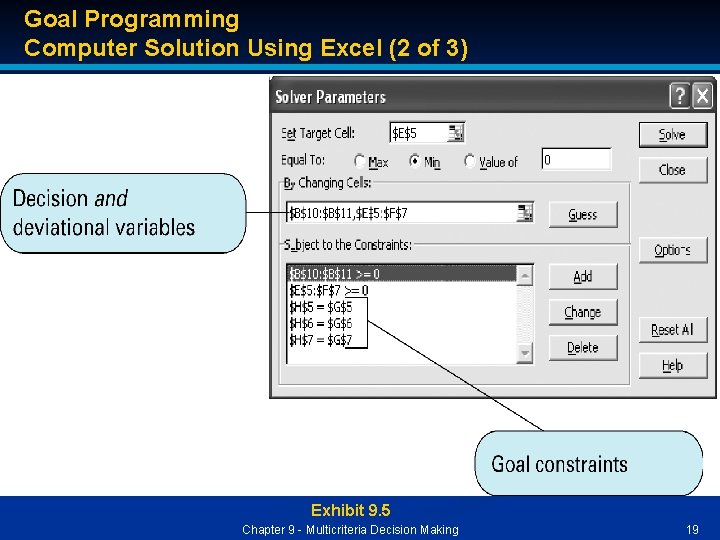

Goal Programming Computer Solution Using Excel (2 of 3) Exhibit 9. 5 Chapter 9 - Multicriteria Decision Making 19

Goal Programming Computer Solution Using Excel (3 of 3) Exhibit 9. 6 Chapter 9 - Multicriteria Decision Making 20

Goal Programming Solution for Altered Problem Using Excel (1 of 6) Minimize P 1 d 1 -, P 2 d 2 -, P 3 d 3+, P 4 d 4+, 4 P 5 d 5 - + 5 P 5 d 6 subject to: x 1 + 2 x 2 + d 1 - - d 1+ = 40 40 x 1 + 50 x 2 + d 2 - - d 2+ = 1, 600 4 x 1 + 3 x 2 + d 3 - - d 3+ = 120 d 1+ + d 4 - - d 4+ = 10 x 1 + d 5 - = 30 x 2 + d 6 - = 20 x 1, x 2, d 1 -, d 1+, d 2 -, d 2+, d 3 -, d 3+, d 4 -, d 4+, d 5 -, d 6 - 0 Chapter 9 - Multicriteria Decision Making 21

Goal Programming Solution for Altered Problem Using Excel (2 of 6) Exhibit 9. 7 Chapter 9 - Multicriteria Decision Making 22

Goal Programming Solution for Altered Problem Using Excel (3 of 6) Exhibit 9. 8 Chapter 9 - Multicriteria Decision Making 23

Goal Programming Solution for Altered Problem Using Excel (4 of 6) Exhibit 9. 9 Chapter 9 - Multicriteria Decision Making 24

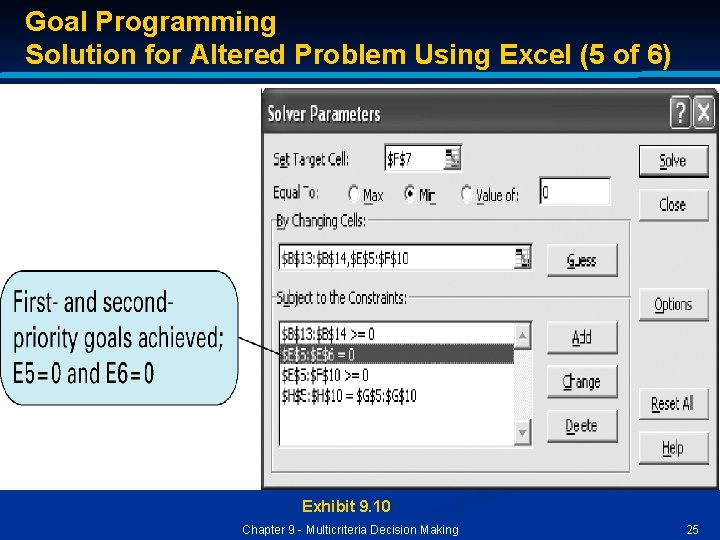

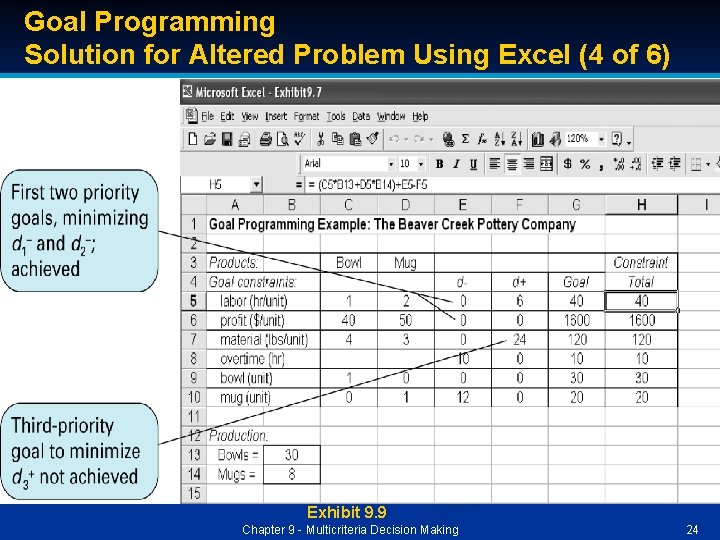

Goal Programming Solution for Altered Problem Using Excel (5 of 6) Exhibit 9. 10 Chapter 9 - Multicriteria Decision Making 25

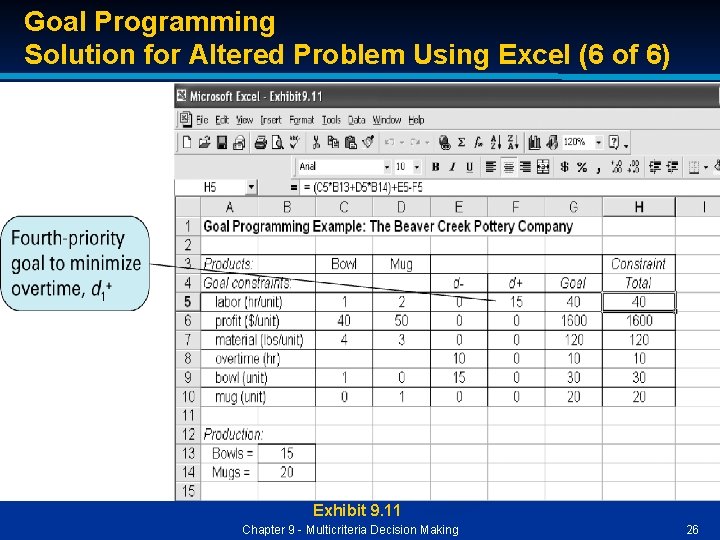

Goal Programming Solution for Altered Problem Using Excel (6 of 6) Exhibit 9. 11 Chapter 9 - Multicriteria Decision Making 26

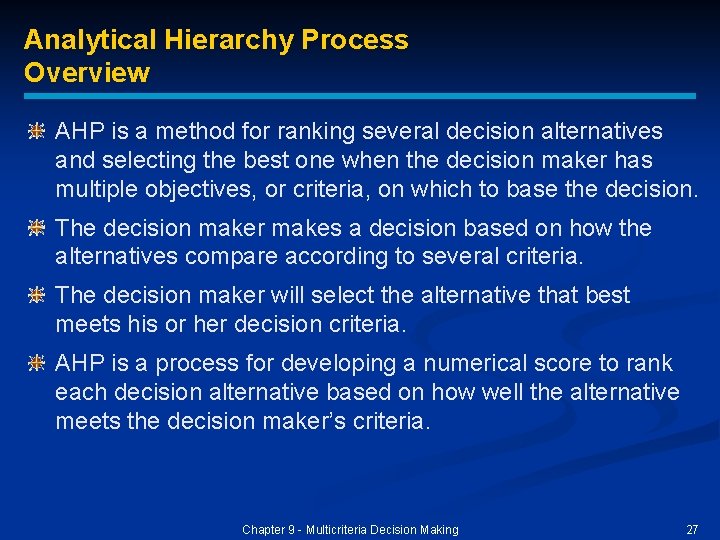

Analytical Hierarchy Process Overview AHP is a method for ranking several decision alternatives and selecting the best one when the decision maker has multiple objectives, or criteria, on which to base the decision. The decision maker makes a decision based on how the alternatives compare according to several criteria. The decision maker will select the alternative that best meets his or her decision criteria. AHP is a process for developing a numerical score to rank each decision alternative based on how well the alternative meets the decision maker’s criteria. Chapter 9 - Multicriteria Decision Making 27

Analytical Hierarchy Process Example Problem Statement Southcorp Development Company shopping mall site selection. Three potential sites: Atlanta Birmingham Charlotte. Criteria for site comparisons: Customer market base. Income level Infrastructure Chapter 9 - Multicriteria Decision Making 28

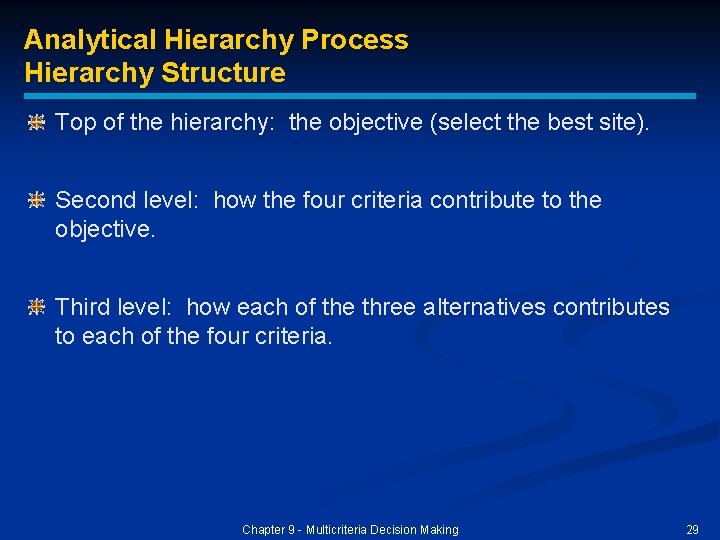

Analytical Hierarchy Process Hierarchy Structure Top of the hierarchy: the objective (select the best site). Second level: how the four criteria contribute to the objective. Third level: how each of the three alternatives contributes to each of the four criteria. Chapter 9 - Multicriteria Decision Making 29

Analytical Hierarchy Process General Mathematical Process Mathematically determine preferences for sites with respect to each criterion. Mathematically determine preferences for criteria (rank order of importance). Combine these two sets of preferences to mathematically derive a composite score for each site. Select the site with the highest score. Chapter 9 - Multicriteria Decision Making 30

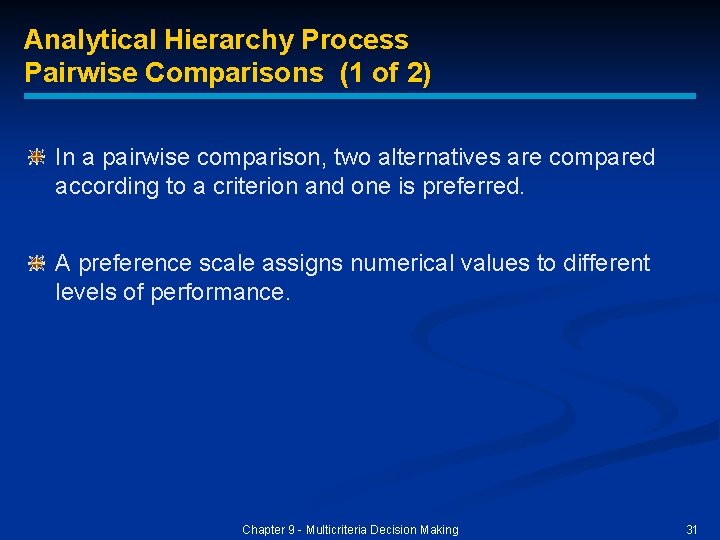

Analytical Hierarchy Process Pairwise Comparisons (1 of 2) In a pairwise comparison, two alternatives are compared according to a criterion and one is preferred. A preference scale assigns numerical values to different levels of performance. Chapter 9 - Multicriteria Decision Making 31

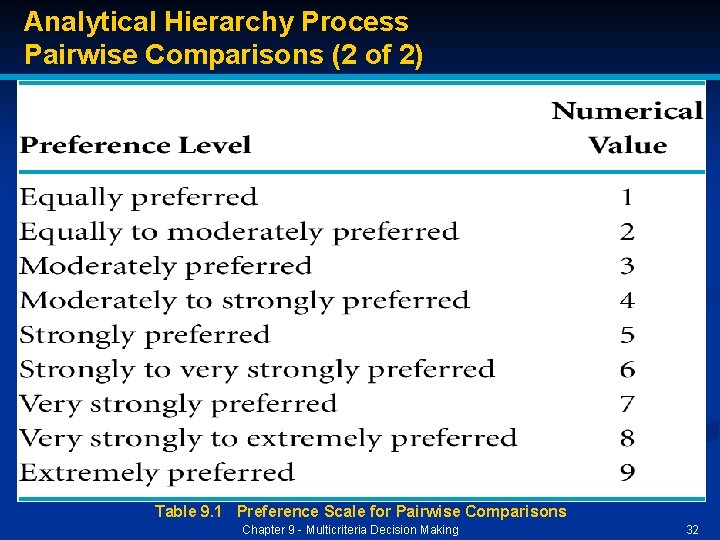

Analytical Hierarchy Process Pairwise Comparisons (2 of 2) Table 9. 1 Preference Scale for Pairwise Comparisons Chapter 9 - Multicriteria Decision Making 32

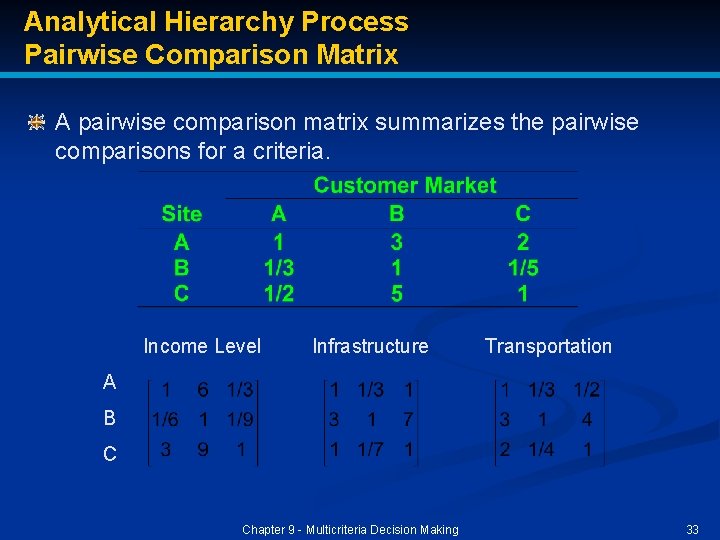

Analytical Hierarchy Process Pairwise Comparison Matrix A pairwise comparison matrix summarizes the pairwise comparisons for a criteria. Income Level Infrastructure Transportation A B C Chapter 9 - Multicriteria Decision Making 33

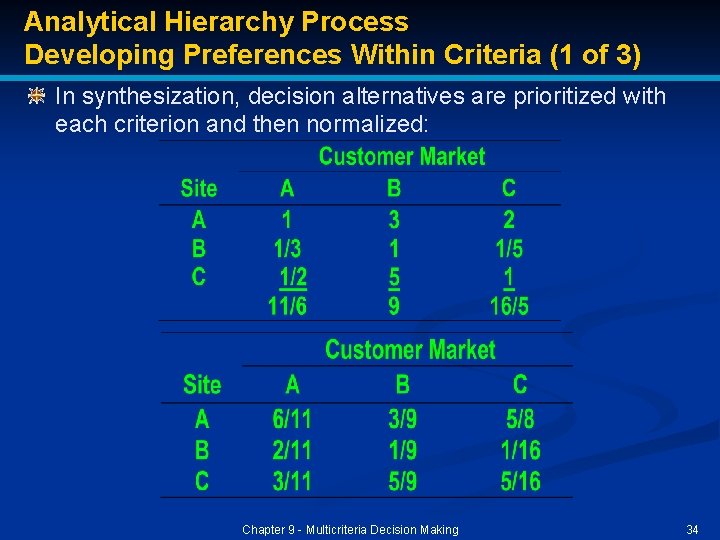

Analytical Hierarchy Process Developing Preferences Within Criteria (1 of 3) In synthesization, decision alternatives are prioritized with each criterion and then normalized: Chapter 9 - Multicriteria Decision Making 34

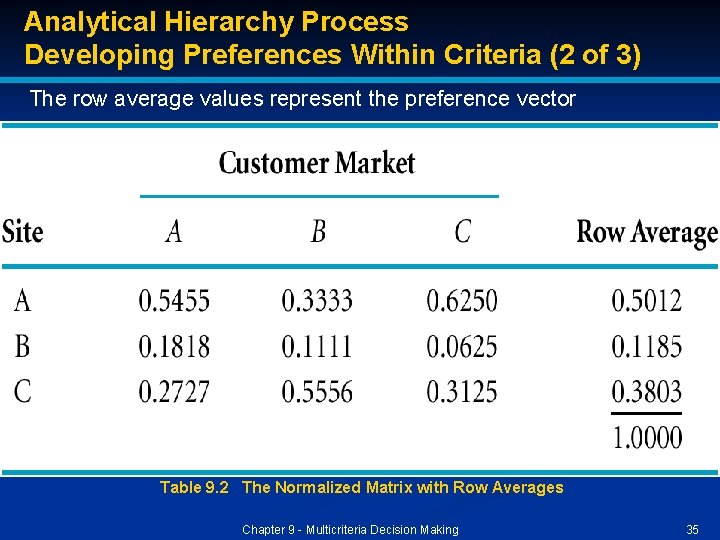

Analytical Hierarchy Process Developing Preferences Within Criteria (2 of 3) The row average values represent the preference vector Table 9. 2 The Normalized Matrix with Row Averages Chapter 9 - Multicriteria Decision Making 35

Analytical Hierarchy Process Developing Preferences Within Criteria (3 of 3) Preference vectors for other criteria are computed similarly, resulting in the preference matrix Table 9. 3 Criteria Preference Matrix Chapter 9 - Multicriteria Decision Making 36

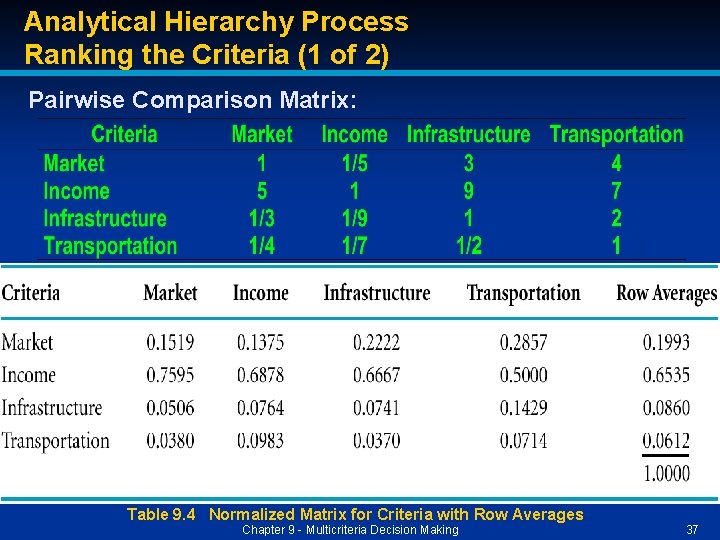

Analytical Hierarchy Process Ranking the Criteria (1 of 2) Pairwise Comparison Matrix: Table 9. 4 Normalized Matrix for Criteria with Row Averages Chapter 9 - Multicriteria Decision Making 37

Analytical Hierarchy Process Ranking the Criteria (2 of 2) Preference Vector for Criteria: Market Income Infrastructure Transportation Chapter 9 - Multicriteria Decision Making 38

Analytical Hierarchy Process Developing an Overall Ranking Overall Score: Site A score =. 1993(. 5012) +. 6535(. 2819) +. 0860(. 1790) +. 0612(. 1561) =. 3091 Site B score =. 1993(. 1185) +. 6535(. 0598) +. 0860(. 6850) +. 0612(. 6196) =. 1595 Site C score =. 1993(. 3803) +. 6535(. 6583) +. 0860(. 1360) +. 0612(. 2243) =. 5314 Overall Ranking: Chapter 9 - Multicriteria Decision Making 39

Analytical Hierarchy Process Summary of Mathematical Steps Develop a pairwise comparison matrix for each decision alternative for each criteria. Synthesization Sum the values of each column of the pairwise comparison matrices. Divide each value in each column by the corresponding column sum. Average the values in each row of the normalized matrices. Combine the vectors of preferences for each criterion. Develop a pairwise comparison matrix for the criteria. Compute the normalized matrix. Develop the preference vector. Compute an overall score for each decision alternative Rank the decision alternatives. Chapter 9 - Multicriteria Decision Making 40

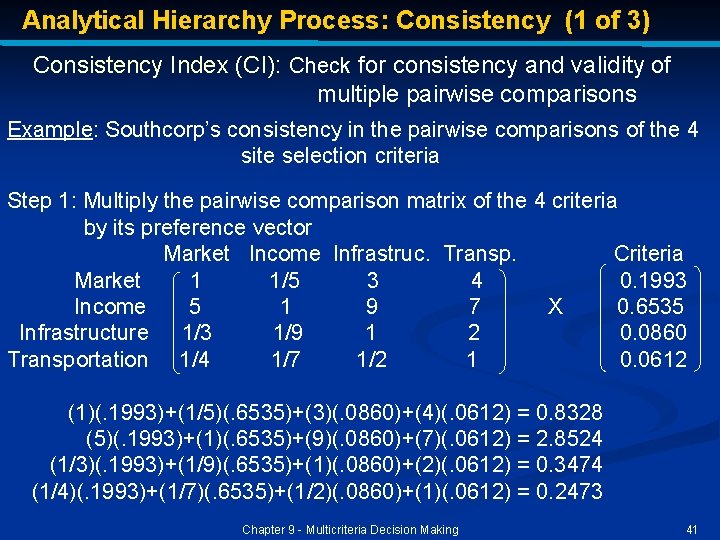

Analytical Hierarchy Process: Consistency (1 of 3) Consistency Index (CI): Check for consistency and validity of multiple pairwise comparisons Example: Southcorp’s consistency in the pairwise comparisons of the 4 site selection criteria Step 1: Multiply the pairwise comparison matrix of the 4 criteria by its preference vector Market Income Infrastruc. Transp. Criteria Market 1 1/5 3 4 0. 1993 Income 5 1 9 7 X 0. 6535 Infrastructure 1/3 1/9 1 2 0. 0860 Transportation 1/4 1/7 1/2 1 0. 0612 (1)(. 1993)+(1/5)(. 6535)+(3)(. 0860)+(4)(. 0612) = 0. 8328 (5)(. 1993)+(1)(. 6535)+(9)(. 0860)+(7)(. 0612) = 2. 8524 (1/3)(. 1993)+(1/9)(. 6535)+(1)(. 0860)+(2)(. 0612) = 0. 3474 (1/4)(. 1993)+(1/7)(. 6535)+(1/2)(. 0860)+(1)(. 0612) = 0. 2473 Chapter 9 - Multicriteria Decision Making 41

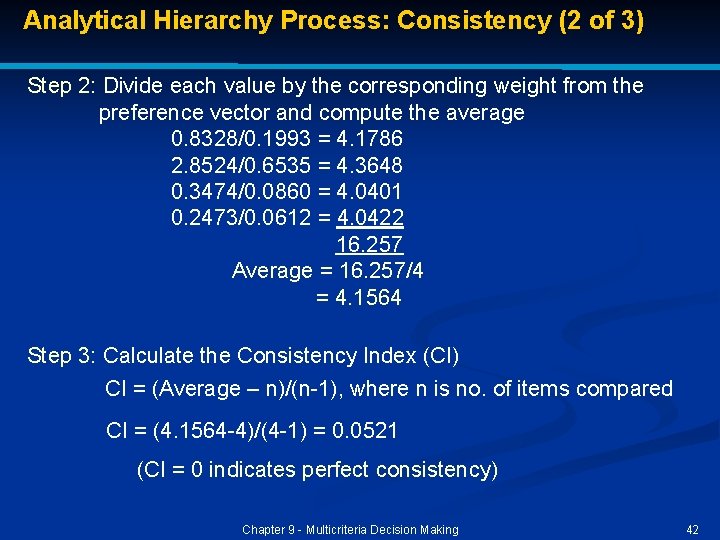

Analytical Hierarchy Process: Consistency (2 of 3) Step 2: Divide each value by the corresponding weight from the preference vector and compute the average 0. 8328/0. 1993 = 4. 1786 2. 8524/0. 6535 = 4. 3648 0. 3474/0. 0860 = 4. 0401 0. 2473/0. 0612 = 4. 0422 16. 257 Average = 16. 257/4 = 4. 1564 Step 3: Calculate the Consistency Index (CI) CI = (Average – n)/(n-1), where n is no. of items compared CI = (4. 1564 -4)/(4 -1) = 0. 0521 (CI = 0 indicates perfect consistency) Chapter 9 - Multicriteria Decision Making 42

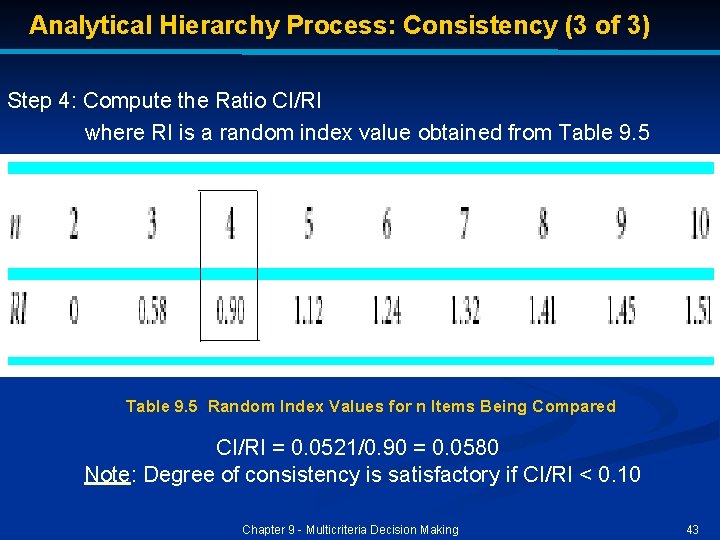

Analytical Hierarchy Process: Consistency (3 of 3) Step 4: Compute the Ratio CI/RI where RI is a random index value obtained from Table 9. 5 Random Index Values for n Items Being Compared CI/RI = 0. 0521/0. 90 = 0. 0580 Note: Degree of consistency is satisfactory if CI/RI < 0. 10 Chapter 9 - Multicriteria Decision Making 43

Analytical Hierarchy Process Excel Spreadsheets (1 of 4) Exhibit 9. 12 Chapter 9 - Multicriteria Decision Making 44

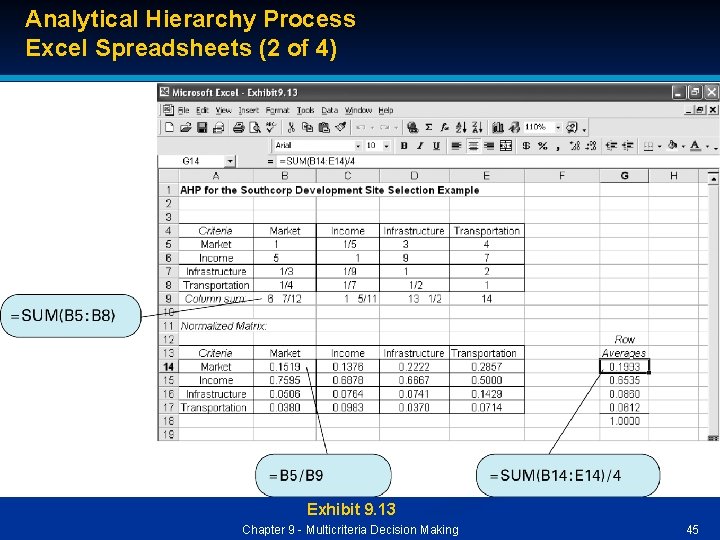

Analytical Hierarchy Process Excel Spreadsheets (2 of 4) Exhibit 9. 13 Chapter 9 - Multicriteria Decision Making 45

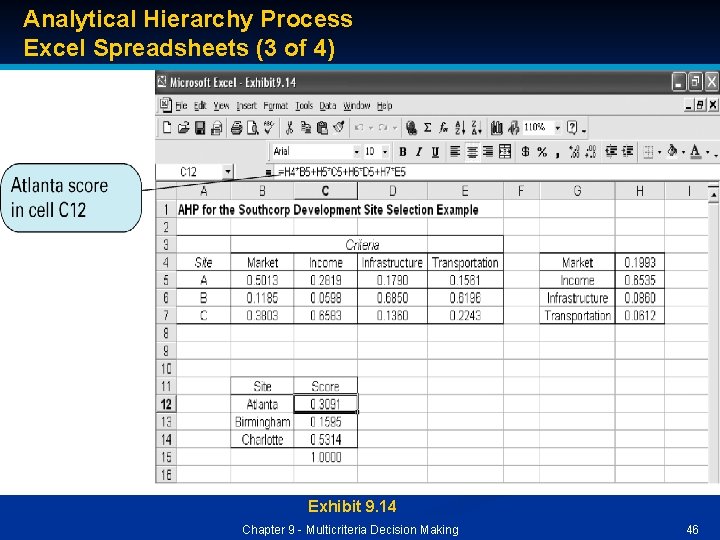

Analytical Hierarchy Process Excel Spreadsheets (3 of 4) Exhibit 9. 14 Chapter 9 - Multicriteria Decision Making 46

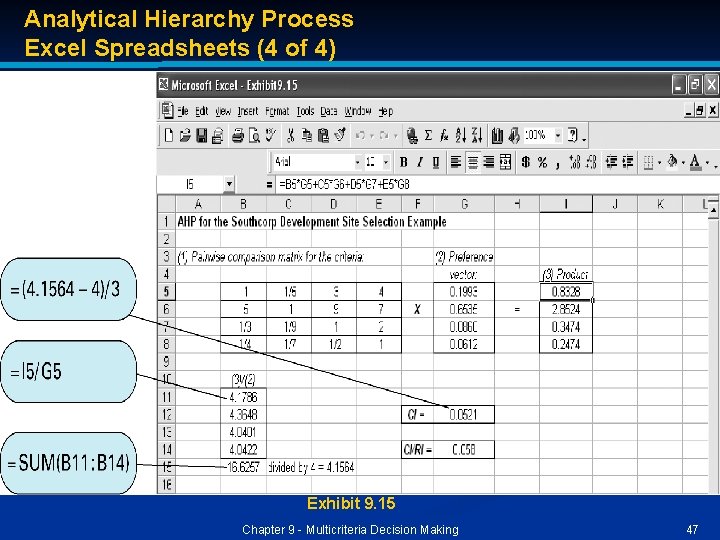

Analytical Hierarchy Process Excel Spreadsheets (4 of 4) Exhibit 9. 15 Chapter 9 - Multicriteria Decision Making 47

Scoring Model Overview Each decision alternative graded in terms of how well it satisfies the criterion according to following formula: Si = gijwj where: wj = a weight between 0 and 1. 00 assigned to criterion j; 1. 00 important, 0 unimportant; sum of total weights equals one. gij = a grade between 0 and 100 indicating how well alternative i satisfies criteria j; 100 indicates high satisfaction, 0 low satisfaction. Chapter 9 - Multicriteria Decision Making 48

Scoring Model Example Problem Mall selection with four alternatives and five criteria: S 1 = (. 30)(40) + (. 25)(75) + (. 25)(60) + (. 10)(90) + (. 10)(80) S 2 = (. 30)(60) + (. 25)(80) + (. 25)(90) + (. 10)(100) + (. 10)(30) S 3 = (. 30)(90) + (. 25)(65) + (. 25)(79) + (. 10)(80) + (. 10)(50) S 4 = (. 30)(60) + (. 25)(90) + (. 25)(85) + (. 10)(90) + (. 10)(70) = = 62. 75 73. 50 76. 00 77. 75 Mall 4 preferred because of highest score, followed by malls 3, 2, 1. Chapter 9 - Multicriteria Decision Making 49

Scoring Model Excel Solution Exhibit 9. 16 Chapter 9 - Multicriteria Decision Making 50

Goal Programming Example Problem Statement Public relations firm survey interviewer staffing requirements determination. One person can conduct 80 telephone interviews or 40 personal interviews per day. $50/ day for telephone interviewer; $70 for personal interviewer. Goals (in priority order): At least 3, 000 total interviews. Interviewer conducts only one type of interview each day. Maintain daily budget of $2, 500. At least 1, 000 interviews should be by telephone. Formulate a goal programming model to determine number of interviewers to hire in order to satisfy the goals, and then solve the problem. Chapter 9 - Multicriteria Decision Making 51

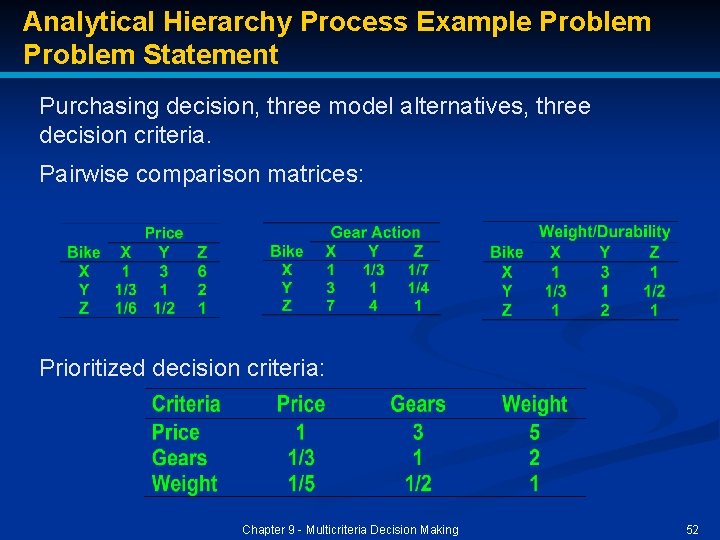

Analytical Hierarchy Process Example Problem Statement Purchasing decision, three model alternatives, three decision criteria. Pairwise comparison matrices: Prioritized decision criteria: Chapter 9 - Multicriteria Decision Making 52

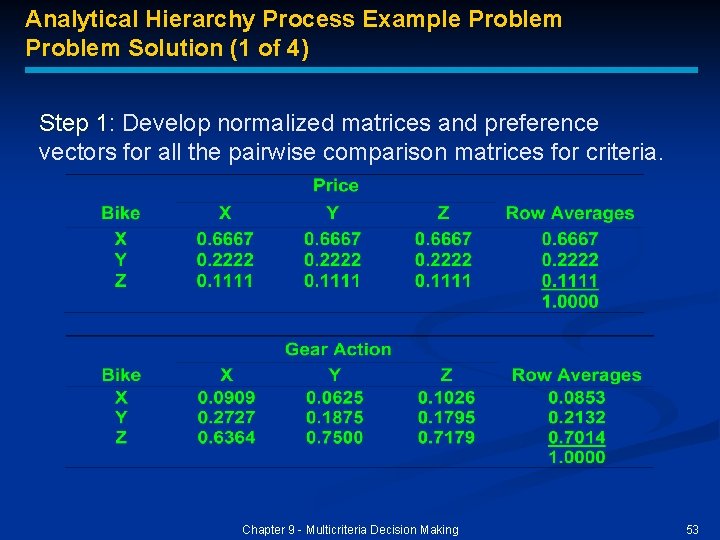

Analytical Hierarchy Process Example Problem Solution (1 of 4) Step 1: Develop normalized matrices and preference vectors for all the pairwise comparison matrices for criteria. Chapter 9 - Multicriteria Decision Making 53

Analytical Hierarchy Process Example Problem Solution (2 of 4) Step 1 continued: Develop normalized matrices and preference vectors for all the pairwise comparison matrices for criteria. Chapter 9 - Multicriteria Decision Making 54

Analytical Hierarchy Process Example Problem Solution (3 of 4) Step 2: Rank the criteria. Price Gears Weight Chapter 9 - Multicriteria Decision Making 55

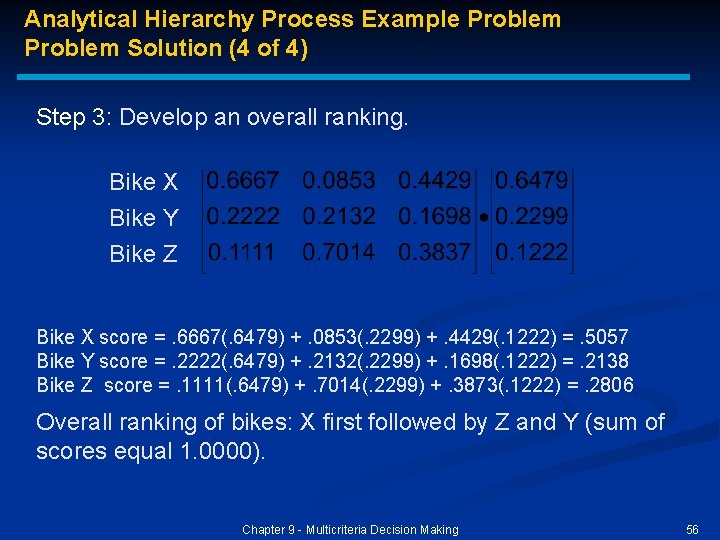

Analytical Hierarchy Process Example Problem Solution (4 of 4) Step 3: Develop an overall ranking. Bike X Bike Y Bike Z Bike X score =. 6667(. 6479) +. 0853(. 2299) +. 4429(. 1222) =. 5057 Bike Y score =. 2222(. 6479) +. 2132(. 2299) +. 1698(. 1222) =. 2138 Bike Z score =. 1111(. 6479) +. 7014(. 2299) +. 3873(. 1222) =. 2806 Overall ranking of bikes: X first followed by Z and Y (sum of scores equal 1. 0000). Chapter 9 - Multicriteria Decision Making 56
