RADIOLOGY OF RESPIRATORY SYSTEM Weizhong Cheng Dept Radiology

RADIOLOGY OF RESPIRATORY SYSTEM Weizhong Cheng Dept. Radiology, Zhongshan Hospital Institute of Medical Imaging, Shanghai

AIMS • Basics • Best exam results • Appreciate the role radiology plays • ? Instill an interest in radiology

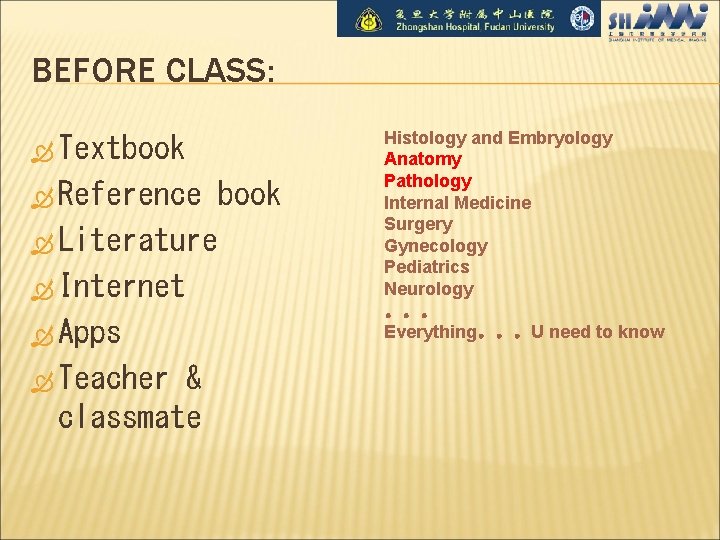

BEFORE CLASS: Textbook Reference Literature book Internet Apps Teacher & classmate Histology and Embryology Anatomy Pathology Internal Medicine Surgery Gynecology Pediatrics Neurology 。。。 Everything。。。U need to know

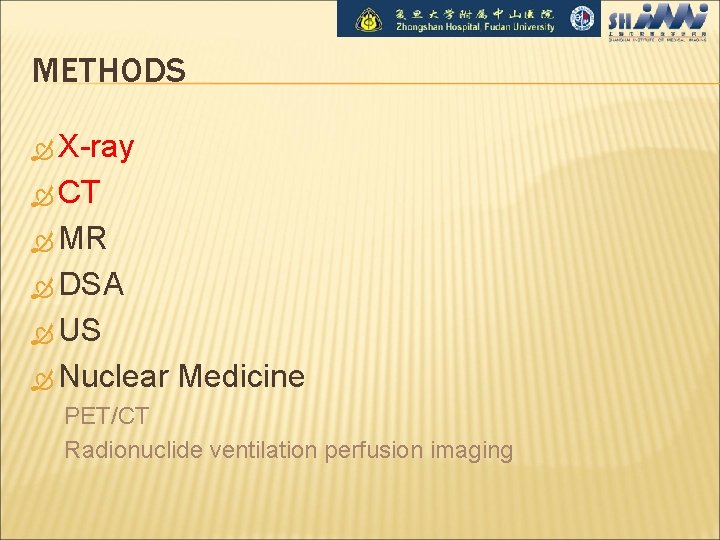

METHODS X-ray CT MR DSA US Nuclear Medicine PET/CT Radionuclide ventilation perfusion imaging

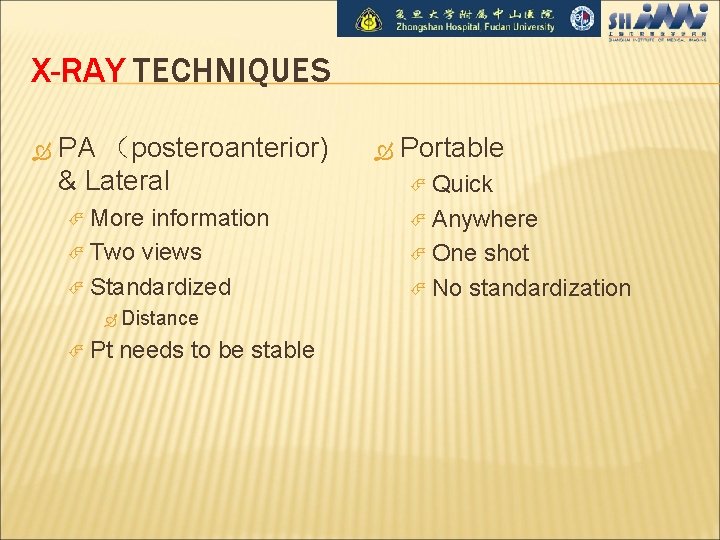

X-RAY TECHNIQUES PA （posteroanterior) & Lateral More information Two views Standardized Distance Pt needs to be stable Portable Quick Anywhere One shot No standardization

Portable PA

TECHNIQUES - PROJECTION • P-A (relation of x-ray beam to patient)

TECHNIQUES - PROJECTION (CONTINUED) • A-P Supine/Erect

TECHNIQUES - PROJECTION (CONTINUED) • Lateral

TECHNIQUES - PROJECTION (CONTINUED) • Lateral • Oblique Decubitus

TECHNICAL DETAILS • Type • Orientation • Rotation • Inspiration/expiration • Penetration

ROTATION

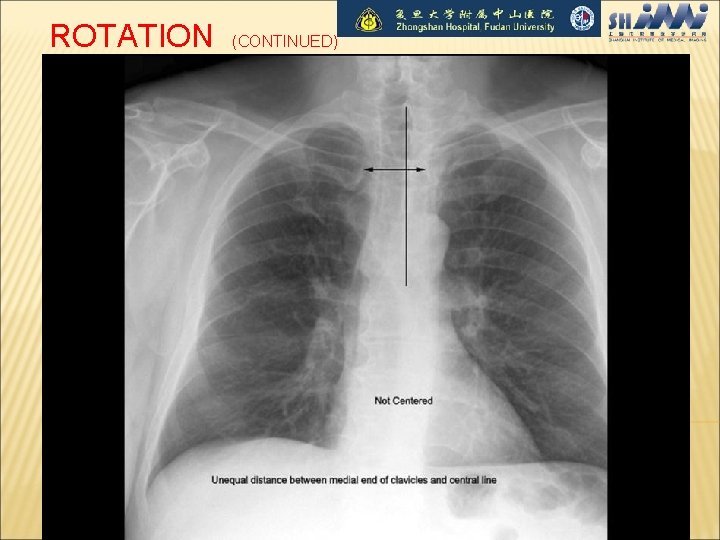

ROTATION (CONTINUED)

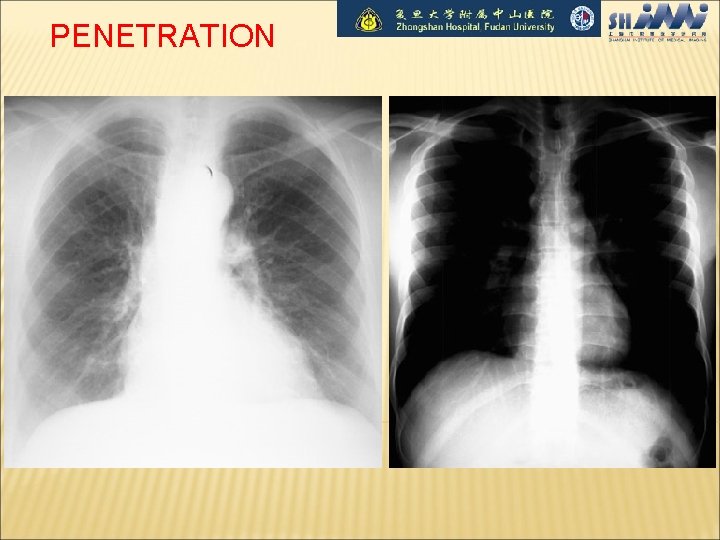

PENETRATION

INSPIRATION/EXPIRATION

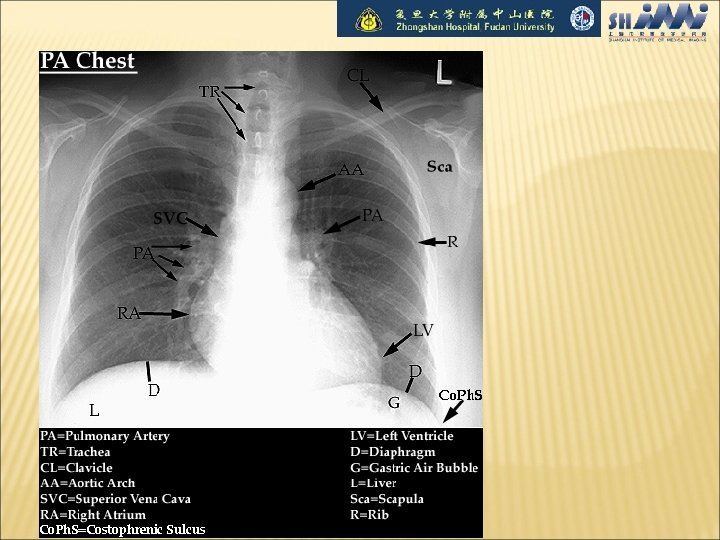

THINGS TO SEE ABCDE… Airways Trachea, endotracheal tube, etc Bones Clavicles, ribs, etc… Cardiac Diaphragm (Right hemidiaphragm slightly higher (~1. 5 cm) Everything else (tubes), effusions

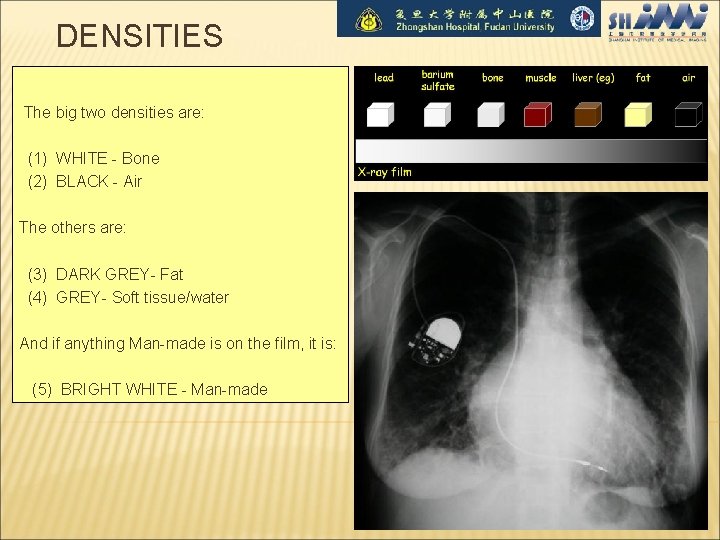

DENSITIES The big two densities are: (1) WHITE - Bone (2) BLACK - Air The others are: (3) DARK GREY- Fat (4) GREY- Soft tissue/water And if anything Man-made is on the film, it is: (5) BRIGHT WHITE - Man-made

ANATOMY

ANATOMY

BRONCHOPULMONARY ANATOMY

CROSS-SECTIONAL ANATOMY OF LUNG SEGMENTS （CT）

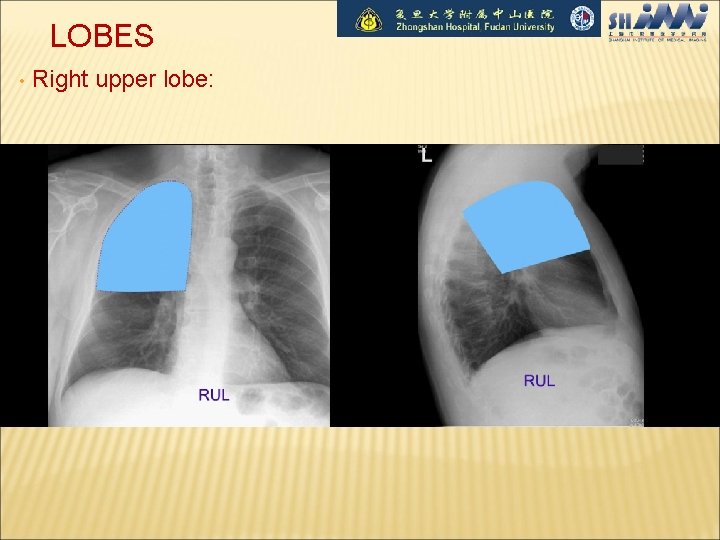

LOBES • Right upper lobe:

LOBES (CONTINUED) • Right middle lobe:

LOBES (CONTINUED) • Right lower lobe:

LOBES (CONTINUED) • Left lower lobe:

LOBES (CONTINUED) • Left upper lobe with Lingula:

LOBES (CONTINUED) • Lingula:

LOBES (CONTINUED) • Left upper lobe - upper division:

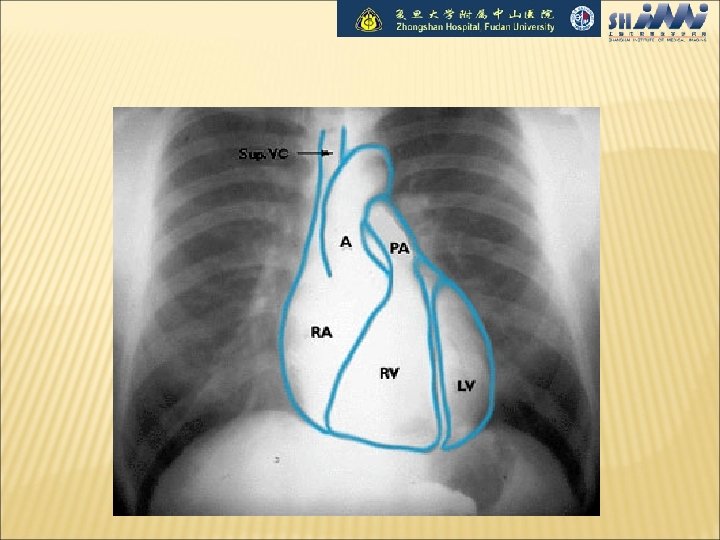

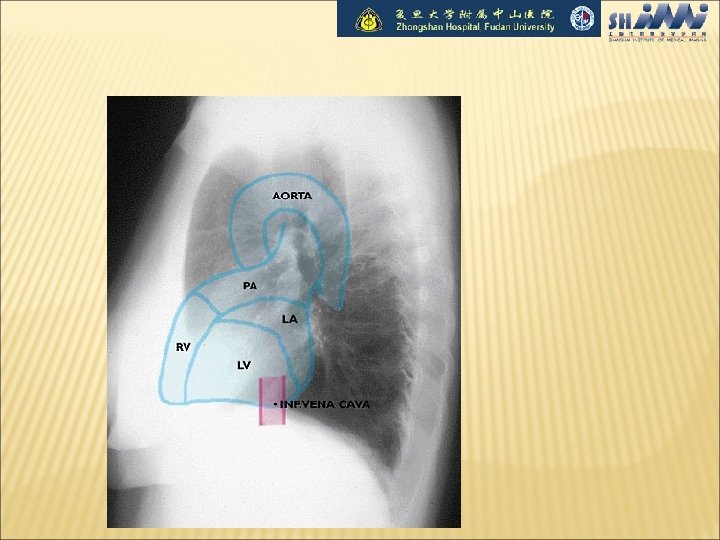

HEART Right border: Edge of (r) Atrium 3. Left border: (l) Ventricle + Atrium 4. Posterior border: Reft Ventricle 5. Anterior border: Right Ventricle

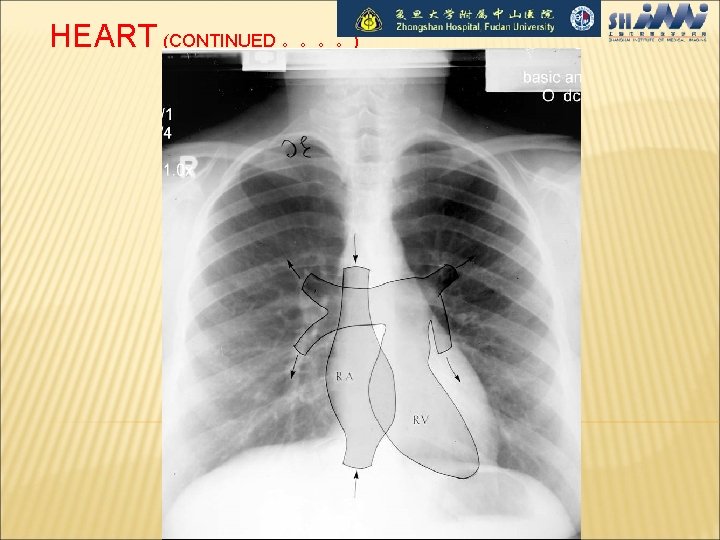

HEART (CONTINUED 。。。。)

HEART IT’S NOT MINE….

HILUM Made of: 1. Pulmonary Art. +Veins 2. The Bronchi Left Hilum higher (max 1 -2, 5 cm) Identical: size, shape, density

HILUM

RIBS

REVIEW AREAS: Apices • Behind the heart • Costophrenic angle (CPA) • Below the diaphragm • Soft tissues ( breast, surgical emphysema) • Ribs & clavicle • Vertebrae •

ABNORMALS

LUNG FINDINGS Darker areas Lighter areas radiolucent Opacities Pneumothorax Atelectasis Cysts/bulla “infiltrates” Air bronchograms Blood Pus Water Nodules or mass

OPACITIES Lobar or not…. Pneumonia Pulmonary Edema “fluffy, ” diffuse, “bat wing” distribution Hemorrhage Can’t tell by x-ray, need bronch

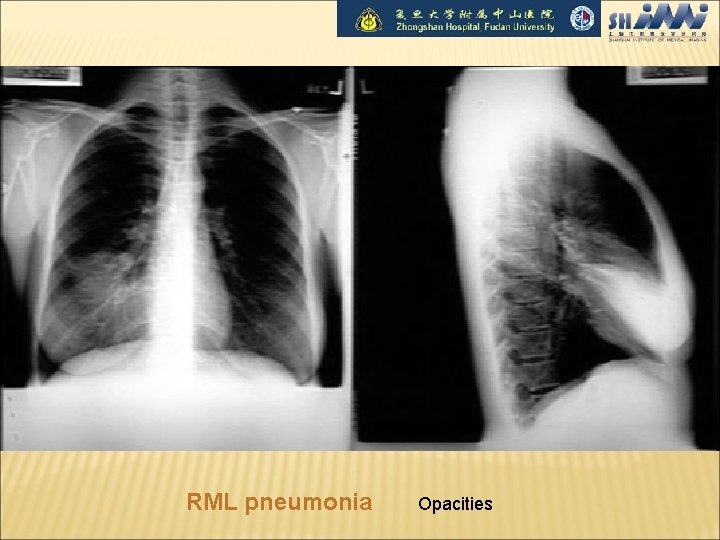

RML pneumonia Opacities

Opacities RLL pneumonia

RUL pneumonia

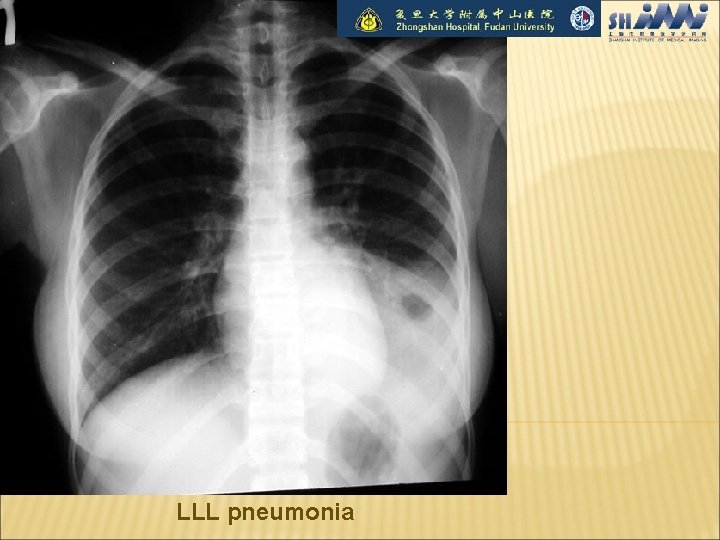

LLL pneumonia

Consolidation on CT

THE ENLARGED HILA Causes: 1. Adenopathies (neoplasia, infection) 2. Primary Tumor 3. Vascular 4. Sarcoidosis

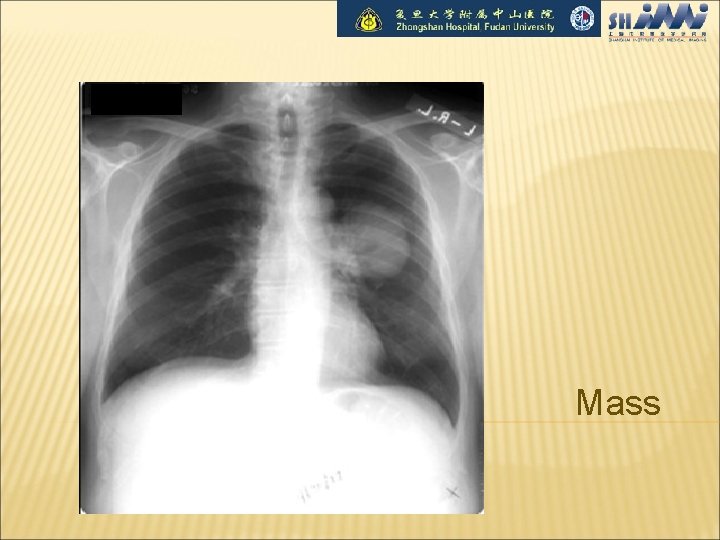

Mass

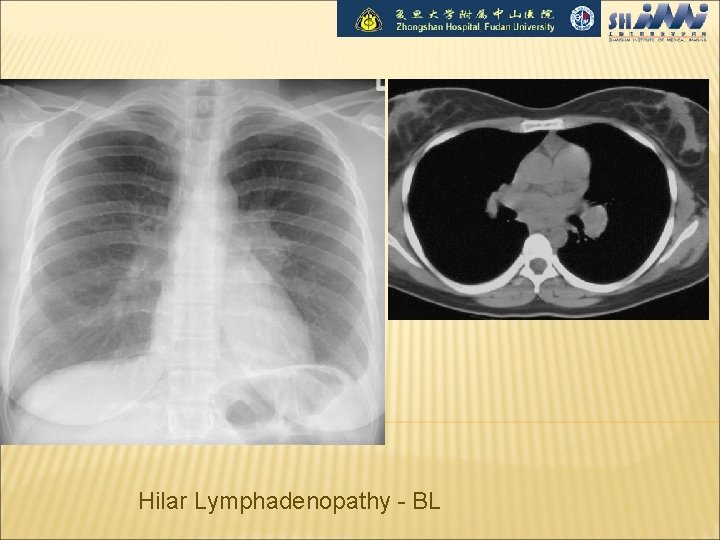

Hilar Lymphadenopathy - BL

Multiple Masses Metas

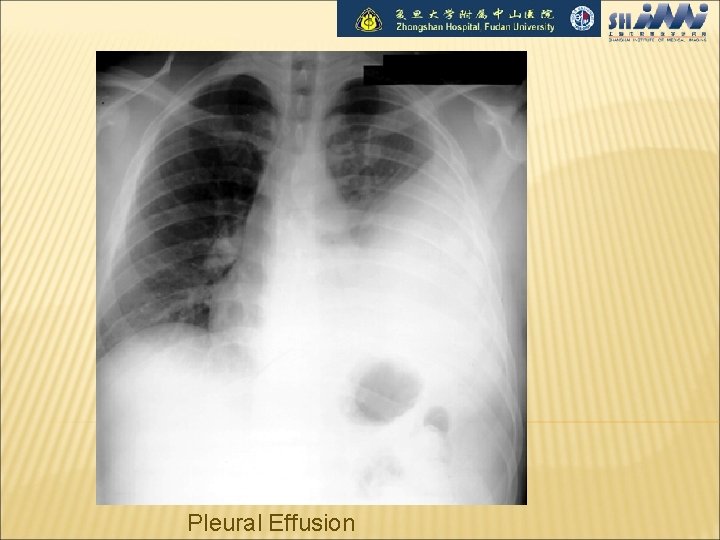

Pleural Effusion

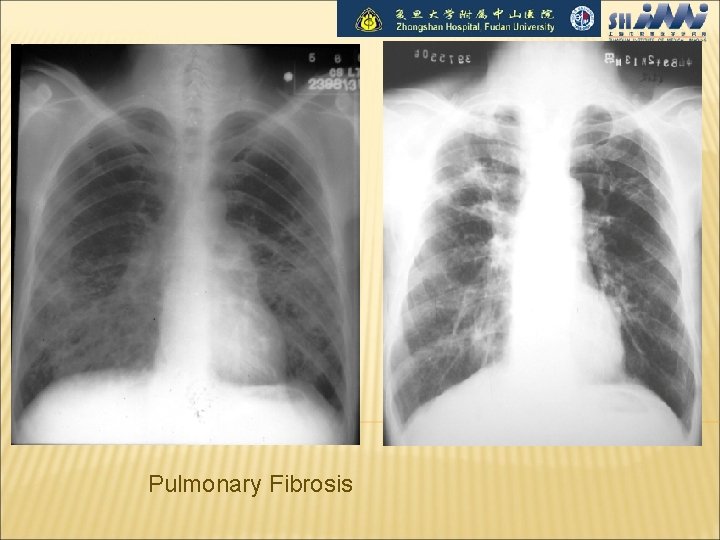

Pulmonary Fibrosis

Heart failure， Kerley A/B line （Interstitial lung hyperplasia edema）

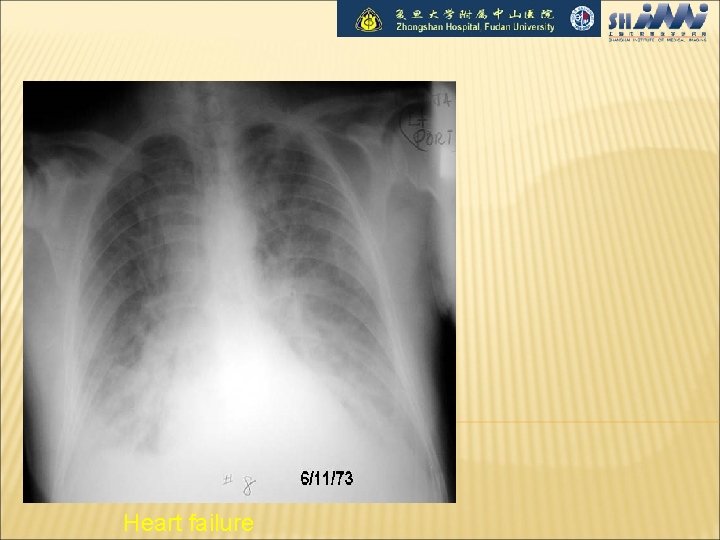

Heart failure

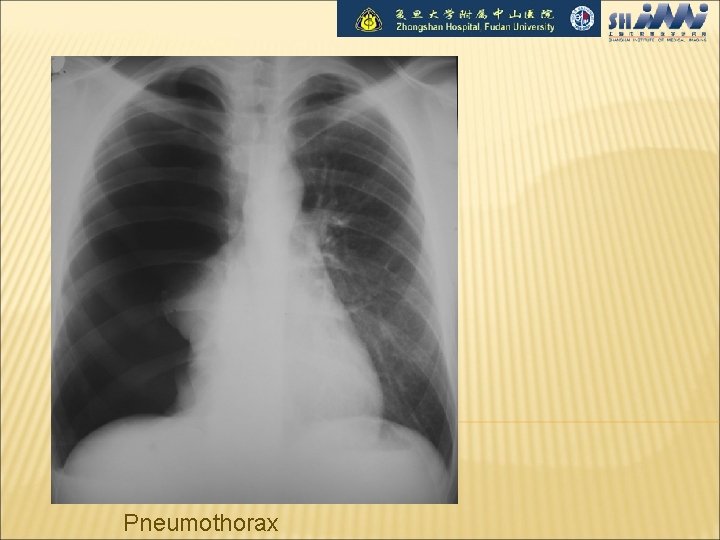

Pneumothorax

Emphysema

Cavitating lesion

Thin-walled Cavitating lesion 3 mm Thick-walled Cavitating lesion

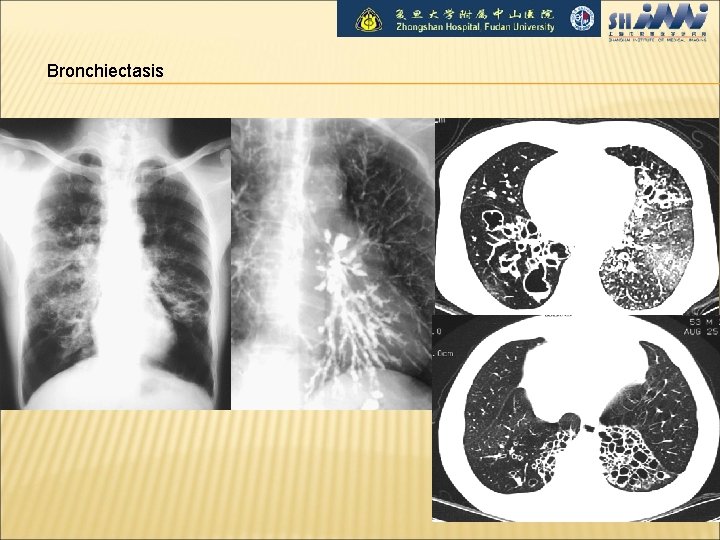

Bronchiectasis

Miliary shadowing

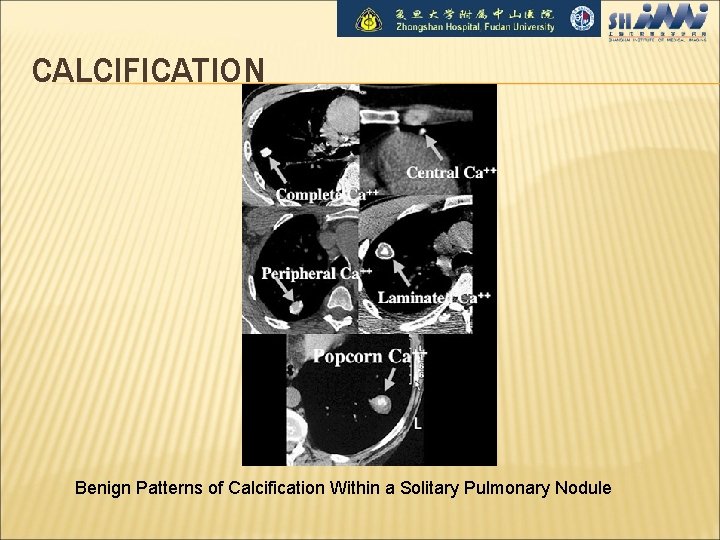

CALCIFICATION Benign Patterns of Calcification Within a Solitary Pulmonary Nodule

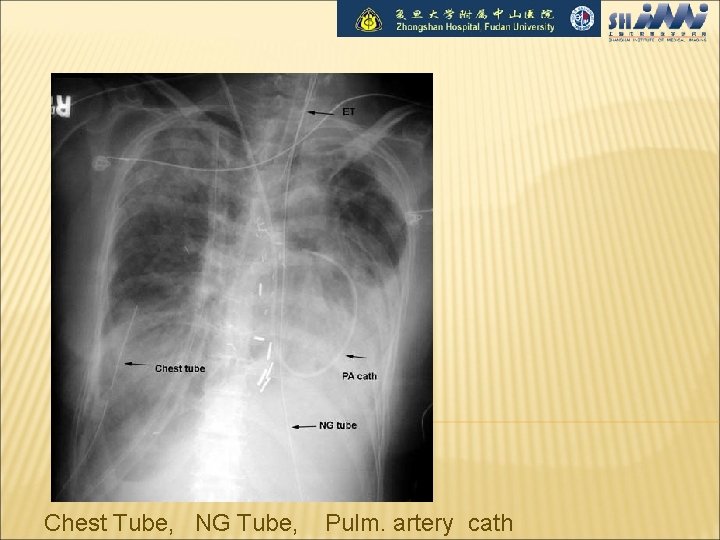

Chest Tube, NG Tube, Pulm. artery cath

CT INDICATIONS

KEY Clinical Factors Growth Pattern Size Margin (Border) Characteristics Density Contrast-Enhanced CT Other findings

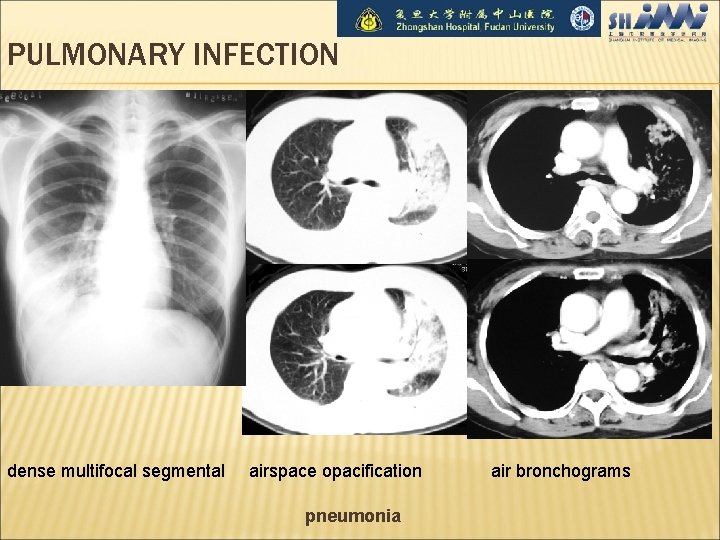

PULMONARY INFECTION dense multifocal segmental airspace opacification pneumonia air bronchograms

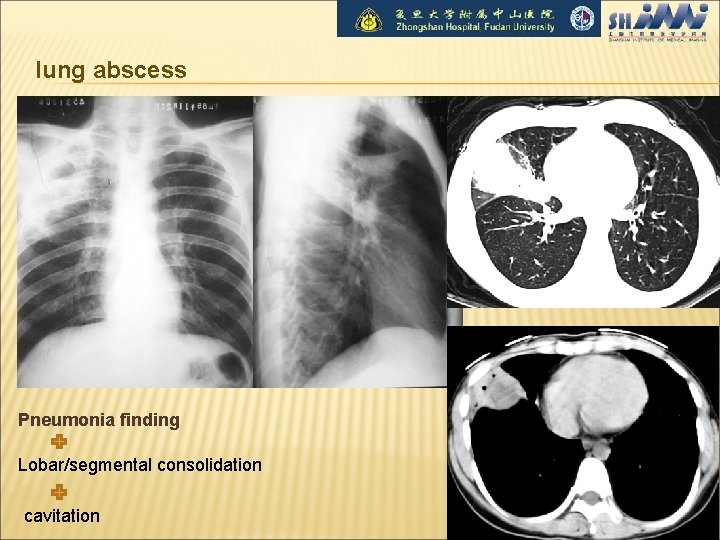

lung abscess Pneumonia finding Lobar/segmental consolidation cavitation

TUBERCULOSIS infiltrates Miliary shadowing Tuberculoma Chronic fibro-cavitary TB

CAUSES OF SOLITARY PULMONARY NODULES （SPN） Neoplastic: Malignant Bronchogenic carcinoma Solitary metastasis Lymphoma Carcinoid tumor Neoplastic: Benign Hamartoma Benign connective tissue and neural tumors (e. g. , lipoma, fibroma, neurofibroma) Inflammatory Granuloma Lung abscess Rheumatoid nodule Inflammatory pseudotumor (plasma cell granuloma) Congenital Arteriovenous malformation Lung cyst Bronchial atresia with mucoid impaction Miscellaneous Pulmonary infarct Intrapulmonary lymph node Mucoid impaction Hematoma Amyloidosis Normal confluence of pulmonary veins Mimics of SPN Nipple shadow Cutaneous lesion (e. g. , wart, mole) Rib fracture or other bone lesion loculated pleural effusion

NEOPLASTIC: BENIGN Hamartoma

Bronchogenic carcinoma NEOPLASTIC: MALIGNANT

NEOPLASTIC: MALIGNANT Bronchogenic carcinoma

INFLAMMATORY Granuloma chest radiograph shows a small, wellcircumscribed, round opacity at the right lung base (arrows). Lateral view shows that the opacity is within the lung on two views (posterior segment of the right lower lobe) and thus represents a pulmonary nodule (arrow).

Malignant SPN Contrast CT in Malignant Solitary Pulmonary Nodule. Thin-collimation (3 mm) CT scans through left upper lobe nodule in a 62 -year-old woman with biopsy-proven lung cancer shows a lobulated contour with positive enhancement of 50 H after contrast administration

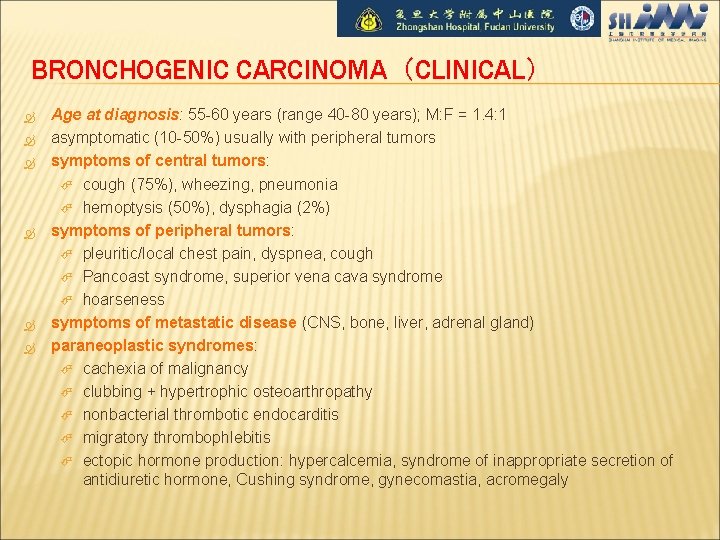

BRONCHOGENIC CARCINOMA（CLINICAL） Age at diagnosis: 55 -60 years (range 40 -80 years); M: F = 1. 4: 1 asymptomatic (10 -50%) usually with peripheral tumors symptoms of central tumors: cough (75%), wheezing, pneumonia hemoptysis (50%), dysphagia (2%) symptoms of peripheral tumors: pleuritic/local chest pain, dyspnea, cough Pancoast syndrome, superior vena cava syndrome hoarseness symptoms of metastatic disease (CNS, bone, liver, adrenal gland) paraneoplastic syndromes: cachexia of malignancy clubbing + hypertrophic osteoarthropathy nonbacterial thrombotic endocarditis migratory thrombophlebitis ectopic hormone production: hypercalcemia, syndrome of inappropriate secretion of antidiuretic hormone, Cushing syndrome, gynecomastia, acromegaly

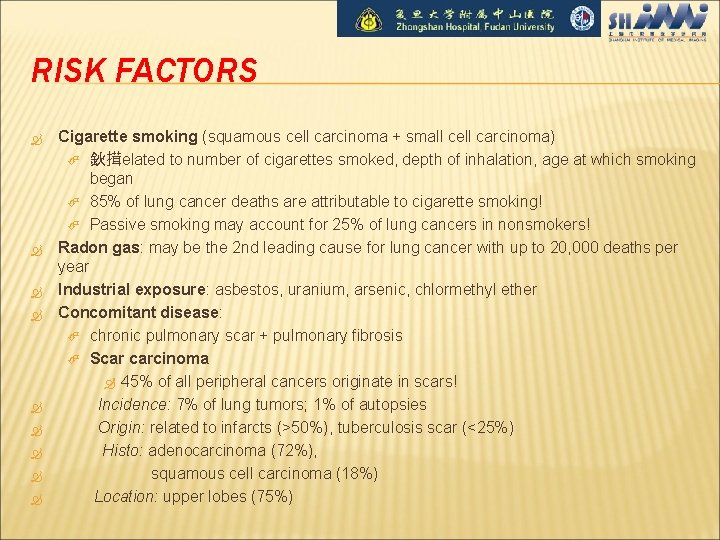

RISK FACTORS Cigarette smoking (squamous cell carcinoma + small cell carcinoma) 鈥搑elated to number of cigarettes smoked, depth of inhalation, age at which smoking began 85% of lung cancer deaths are attributable to cigarette smoking! Passive smoking may account for 25% of lung cancers in nonsmokers! Radon gas: may be the 2 nd leading cause for lung cancer with up to 20, 000 deaths per year Industrial exposure: asbestos, uranium, arsenic, chlormethyl ether Concomitant disease: chronic pulmonary scar + pulmonary fibrosis Scar carcinoma 45% of all peripheral cancers originate in scars! Incidence: 7% of lung tumors; 1% of autopsies Origin: related to infarcts (>50%), tuberculosis scar (<25%) Histo: adenocarcinoma (72%), squamous cell carcinoma (18%) Location: upper lobes (75%)

TYPES: Adenocarcinoma (50%) Most common cell type seen in women + nonsmokers Intermediate malignant potential (slow growth, high incidence of early metastases) almost invariably develops in periphery; frequently found in scars (tuberculosis, infarction, scleroderma, bronchiectasis) + in close relation to preexisting bullae solitary peripheral subpleural mass (52%)/alveolar infiltrate/multiple nodules may invade pleura + grow circumferentially around lung mimicking malignant mesothelioma upper lobe distribution (69%) air broncho-/bronchiologram on HRCT (65%) calcification in periphery of mass (1%) smooth margin/spiculated margin due to

solitary peripheral mass Adenocarcinoma Presenting as Solitary Pulmonary Nodule. A. Cone-down view of posteroanterior radiograph shows nodule in the right mid-lung (arrow). B. Thin-section CT shows 12 -mm nodule with spiculated margins (arrow) in the superior segment of the right lower lobe. Transthoracic needle biopsy revealed adenocarcinoma.

Squamous cell carcinoma (30 -35%) Strongly associated with cigarette smoking Central location within main/lobar/segmental bronchus (2/3) large central mass & cavitation distal atelectasis & bulging fissure (due to mass) postobstructive pneumonia All cases of pneumonia in adults should be followed to complete radiologic resolution! airway obstruction with atelectasis (37%) Solitary peripheral nodule (1/3) characteristic cavitation (in 7 -10%) Squamous cell carcinoma is the most common cell type to cavitate! invasion of chest wall Squamous cell carcinoma is the most common cell type to cause Pancoast tumor

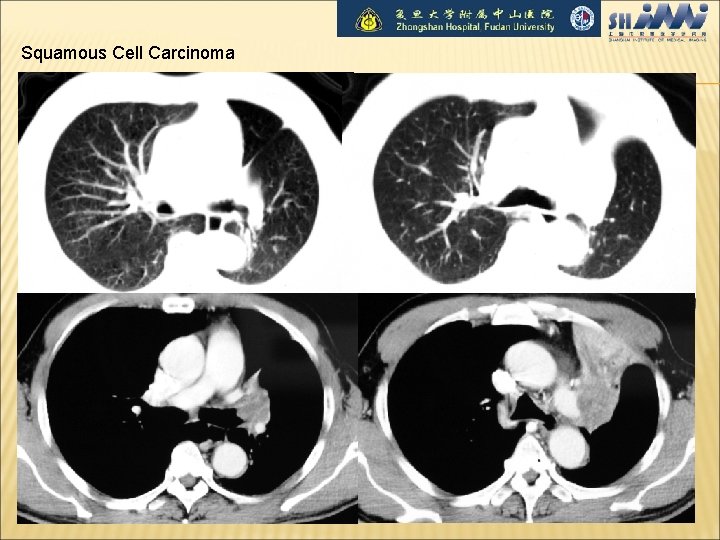

CENTRAL LUNG CANCER Squamous Cell Carcinoma. A. Posteroanterior chest film in a 58 -year-old male smoker with hemoptysis shows a left hilar mass with left upper lobe atelectasis. B. Enhanced CT scan shows the left hilar mass occluding the left upper lobe bronchus with an endobronchial component (straight arrow). Note the presence of mucus bronchograms within the atelectatic lung (curved arrow)

Squamous Cell Carcinoma

Small cell undifferentiated carcinoma (15%) Strongly associated with cigarette smoking Rapid growth + high metastatic potential typically large hilar/perihilar mass often associated with mediastinal widening (from adenopathy) extensive necrosis + hemorrhage small lung lesion (rare)

Large undifferentiated cell carcinoma (<5%) Strongly associated with smoking large bulky usually peripheral mass >6 cm (50%) large area of necrosis pleural involvement large bronchus involved in central lesion (50%)

Large-cell bronchogenic carcinoma small-cell bronchogenic carcinoma

GROUND-GLASS OPACITY the pattern was shown to be caused by predominantly interstitial diseases in 54% of cases, equal involvement of the interstitium and airspaces in 32%, and predominantly airspace disease in 14% GGO is an important finding. In certain clinical circumstances, it can suggest a specific diagnosis, indicate a potentially treatable disease, and guide a bronchoscopist or surgeon to an appropriate area for biopsy

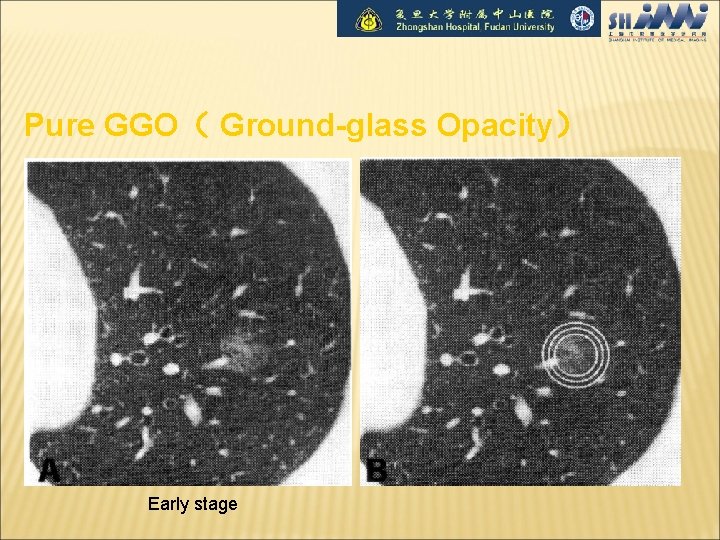

Pure GGO（ Ground-glass Opacity） Early stage

98, 6, 17

Lung cancer: solid nodules 12*8 mm , Lobular resection, 8 yrs alive

SELF TEST？

MR INDICATIONS

NEVER STOP LOOKING, CARRY ON WITH YOUR SYSTEMATIC APPROACH!!
