EMT 212 Analog Electronic II Chapter 5 Active Filter By En. Rosemizi Bin Abd Rahim
Introduction Filters are circuits that are capable of passing signals within a band of frequencies while rejecting or blocking signals of frequencies outside this band. This property of filters is also called “frequency selectivity”. Filter circuits built using components such as resistors, capacitors and inductors only are known as passive filters. Active filters employ transistors or op-amps in addition to resistors and capacitors.
Advantages of Active Filters over Passive Filters 1. Active filters can be designed to provide required gain, and hence no attenuation as in the case of passive filters 2. No loading problem, because of high input resistance and low output resistance of op-amp. 3. Active Filters are cost effective as a wide variety of economical op-amps are available.
Applications Active filters are mainly used in communication and signal processing circuits. They are also employed in a wide range of applications such as entertainment, medical electronics, etc.

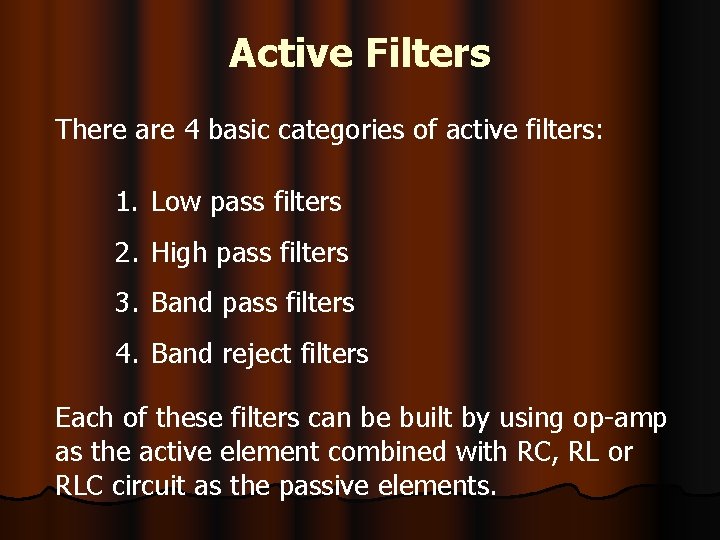

Active Filters There are 4 basic categories of active filters: 1. Low pass filters 2. High pass filters 3. Band pass filters 4. Band reject filters Each of these filters can be built by using op-amp as the active element combined with RC, RL or RLC circuit as the passive elements.

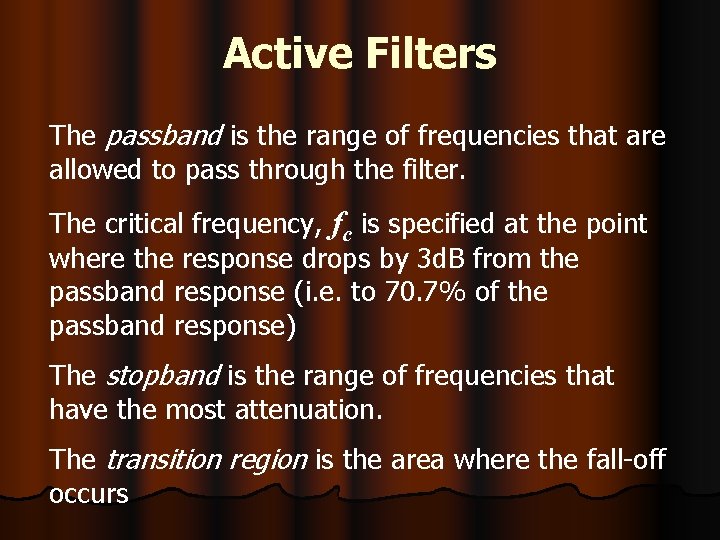

Active Filters The passband is the range of frequencies that are allowed to pass through the filter. The critical frequency, fc is specified at the point where the response drops by 3 d. B from the passband response (i. e. to 70. 7% of the passband response) The stopband is the range of frequencies that have the most attenuation. The transition region is the area where the fall-off occurs
Basic Filter Responses 1. Low-pass filter Allows the frequency from 0 Hz to critical frequency f. H (also known as cutoff frequency). Ideally, the response drops abruptly at the critical frequency f. H. Ideal response
Basic Filter Responses 1. Low-pass filter In an RC low-pass filter, the critical frequency can be calculated from the expression:
Basic Filter Responses Actual response
Basic Filter Responses 2. High-Pass filter Allows the frequencies above the critical frequency f. L. (also known as the cutoff frequency. Ideally, the response rises abruptly at the critical frequency Ideal response
Basic Filter Responses 2. High-Pass filter In an RC high-pass filter, the critical frequency can be calculated from the expression;
09/09/08
ZETTY ADIBAH BINTI KAMARUZZAMAN TUAN MOHD KHAIRI BIN TUAN IDRIS MUHAMMAD IZWAN BIN ABDUL HALIM CHOO HUI JOO MOHD IZWAN BIN MOHD KHALID MOHD ALIF BIN ISMAIL E. I. 73 91. 3 E. I. 72. 5 90. 6 E. I. 72 90. 0 S. E. 70. 5 88. 1 E. I. 70. 5 88. 1 S. E. 70 87. 5

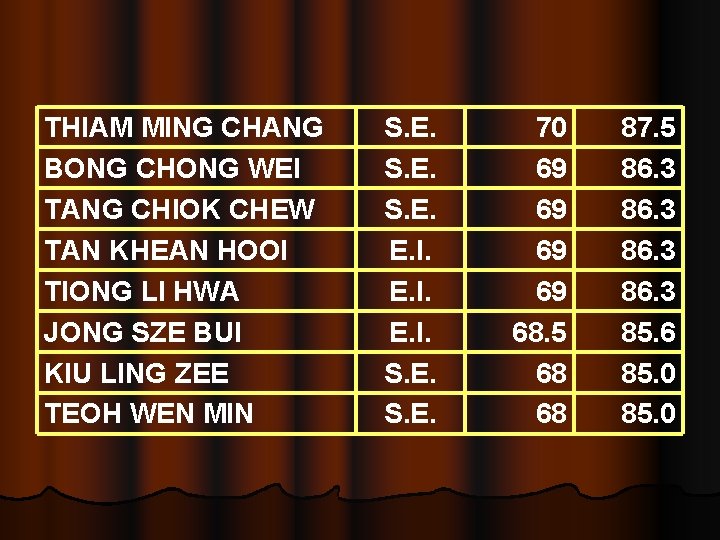

THIAM MING CHANG BONG CHONG WEI TANG CHIOK CHEW TAN KHEAN HOOI TIONG LI HWA JONG SZE BUI KIU LING ZEE TEOH WEN MIN S. E. E. I. S. E. 70 69 69 68. 5 68 68 87. 5 86. 3 85. 6 85. 0
Basic Filter Responses actual response
Basic Filter Responses 3. Band-Pass filter Allows frequencies between a lower cutoff frequency (f. L) and an upper cutoff frequency (f. H). Ideal response
Basic Filter Responses actual response
Basic Filter Responses 3. Band-Pass filter Bandwidth,

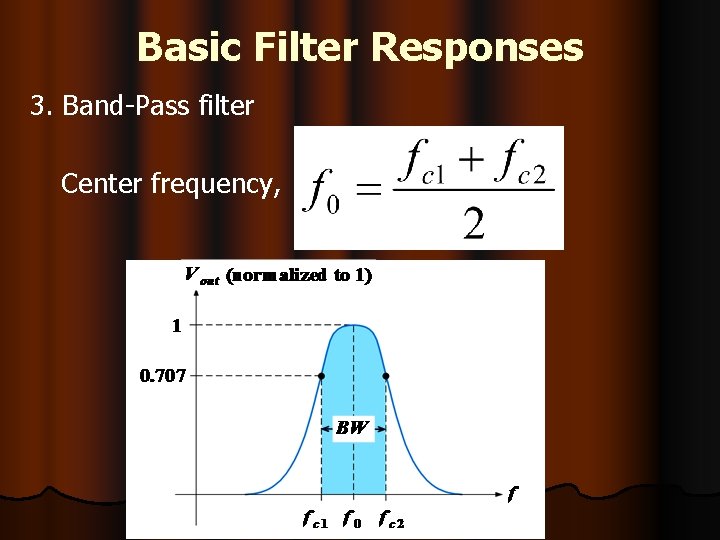

Basic Filter Responses 3. Band-Pass filter Center frequency,
Basic Filter Responses 3. Band-Pass filter Quality factor (Q) is the ratio of center frequency fo to the BW;
Basic Filter Responses 4. Band-stop filter Opposite of a bandpass. Frequencies above fc 1 (f. L) and above fc 2 (f. H) are passed Ideal response
Basic Filter Responses Actual response

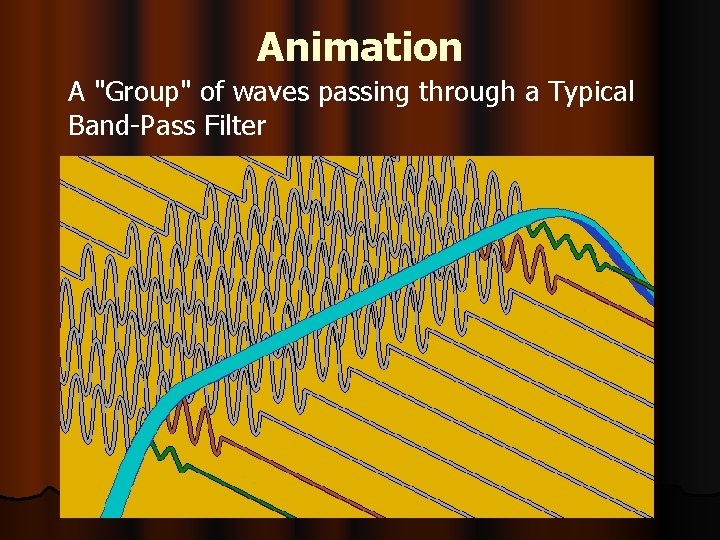

Animation A "Group" of waves passing through a Typical Band-Pass Filter
Filter Response Characteristics Identified by the shape of the response curve • Passband flatness • Attenuation of frequency outside the passband Three types: 1. Butterworth 2. Bessel 3. Chebyshev
Filter Response Characteristics
Filter Response Characteristics 1. Butterworth Response • Amplitude response is very flat. • The roll-off rate -20 d. B per decade (per filter order). • This is the most widely used.
Filter Response Characteristics 2. Chebyshev • Ripples. • The roll-off rate greater than – 20 d. B. • a nonlinear phase response.
Filter Response Characteristics 3. Bessel • Linear phase response. • ideal for filtering pulse waveforms.
Filter Response Characteristics Damping Factor The damping factor of an active filter determines the type of response characteristic either Butterworth, Chebyshev, or Bessel. The output signal is fed back into the filter circuit with negative feedback determined by the combination of R 1 and R 2.

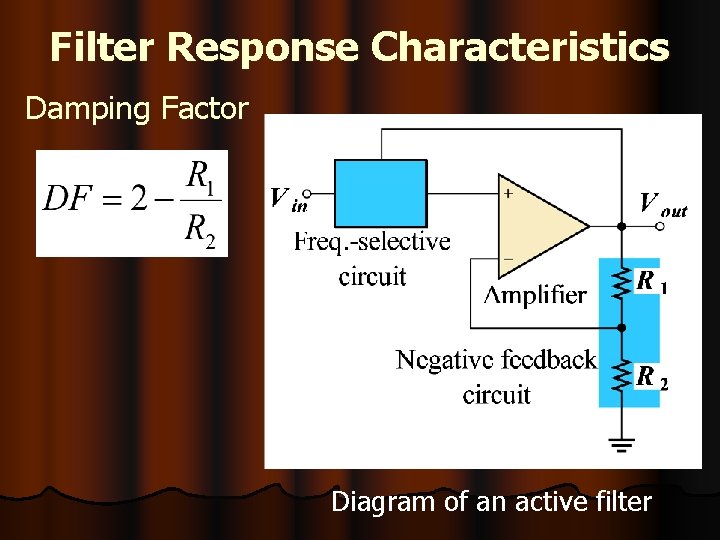

Filter Response Characteristics Damping Factor Diagram of an active filter
Filter Response Characteristics Critical Frequency and Roll-off rate • Greater roll-off rates can be achieved with more poles. • Each RC set of filter components represents a pole. • Cascading of filter circuits also increases the poles which results in a steeper roll-off. • Each pole represents a – 20 d. B/decade increase in roll-off
Filter Response Characteristics First order (one pole) low pass filter
Filter Response Characteristics The number of filter poles can be increased by cascading

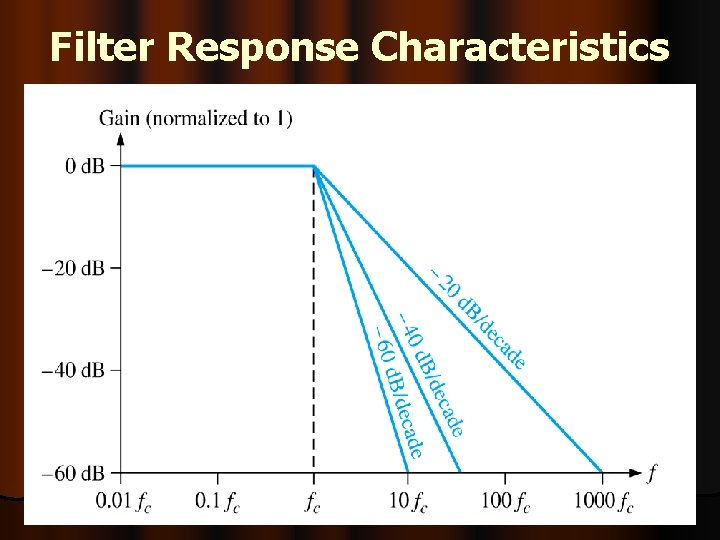

Filter Response Characteristics
Active Low-Pass Filters Basic Low-Pass filter circuit At critical frequency, Resistance = capacitive reactance i. e. or
Active Low-Pass Filters Basic Low-Pass filter circuit So, critical frequency;
Active Low-Pass Filters Low Pass Response Roll-off depends on number the of poles.
Active Low-Pass Filters A Single-Pole Filter One pole

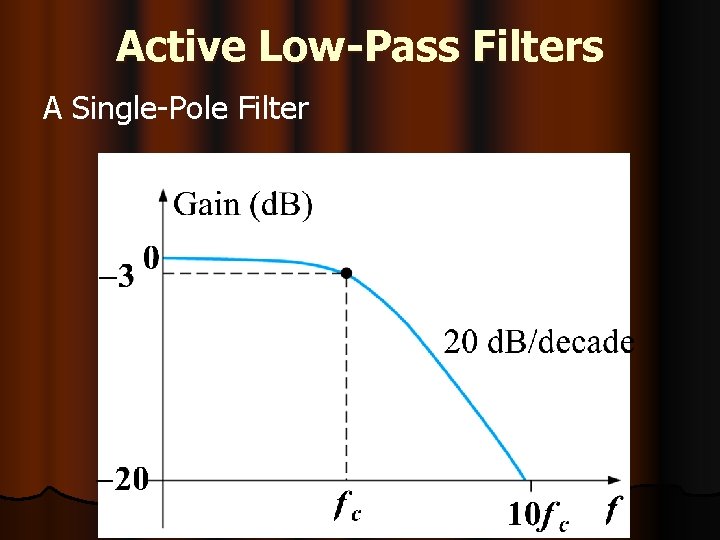

Active Low-Pass Filters A Single-Pole Filter
Active Low-Pass Filters The Sallen-Key • second-order (two-pole) filter • roll-off -40 d. B per decade Two-pole Low-pass circuit
Active Low-Pass Filters The Sallen-Key For RA = RB = R and CA = CB = C;
Active Low-Pass Filters Example For the following circuit; • Determine critical frequency • Set the value of R 1 for Butterworth response
Active Low-Pass Filters Example (cont’d)
Active Low-Pass Filters Solution • Critical frequency
Active Low-Pass Filters Solution • Butterworth response from Table 15. 1 Floyd, page 744, R 1/R 2 = 0. 586;
Active Low-Pass Filters Cascaded LPF – Three-pole • cascade two-pole and single-pole • roll-off -60 d. B per decade

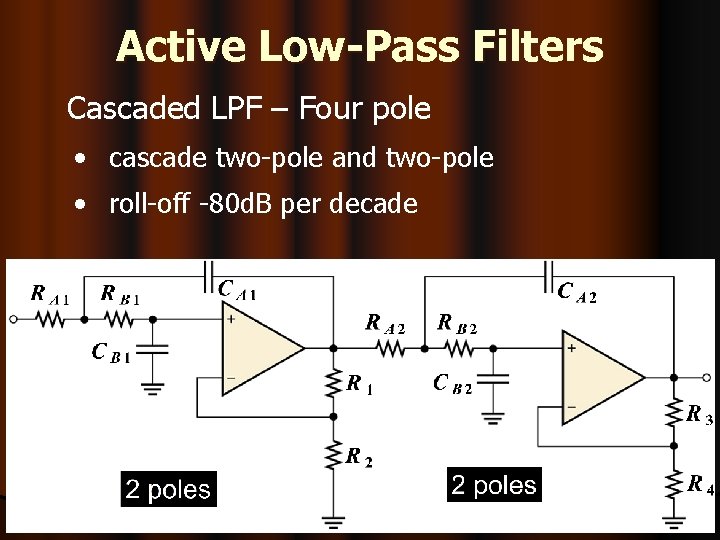

Active Low-Pass Filters Cascaded LPF – Four pole • cascade two-pole and two-pole • roll-off -80 d. B per decade

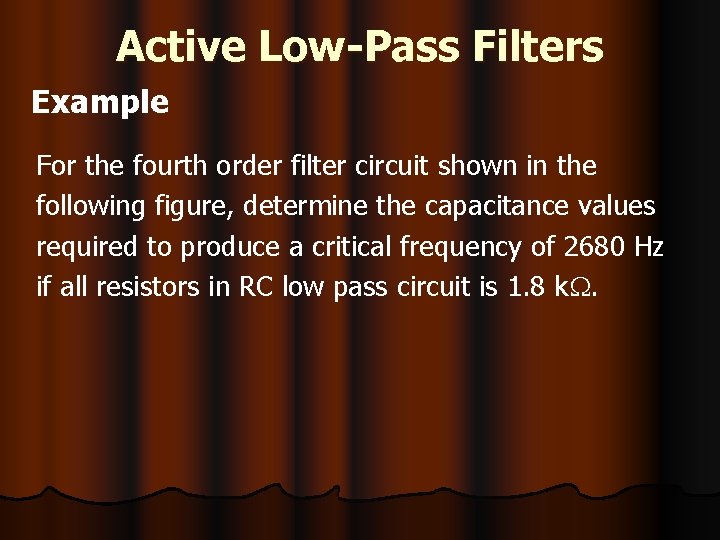

Active Low-Pass Filters Example For the fourth order filter circuit shown in the following figure, determine the capacitance values required to produce a critical frequency of 2680 Hz if all resistors in RC low pass circuit is 1. 8 k.
Active Low-Pass Filters Example (cont’d)
Active Low-Pass Filters Example – SOLUTION
Active High-Pass Filters Basic High-Pass circuit At critical frequency, Resistance = capacitive reactance i. e; or;

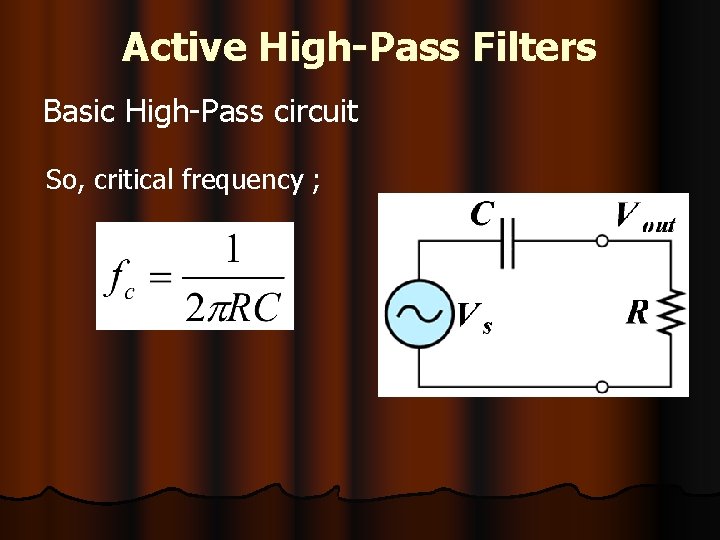

Active High-Pass Filters Basic High-Pass circuit So, critical frequency ;
Active High-Pass Filters High Pass Response Roll-off depends on number the of poles.
Active High-Pass Filters A Single-Pole Filter Circuit

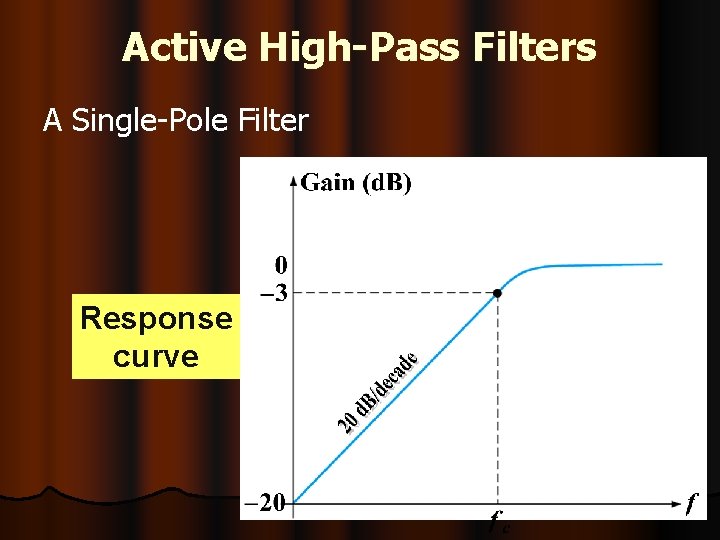

Active High-Pass Filters A Single-Pole Filter Response curve

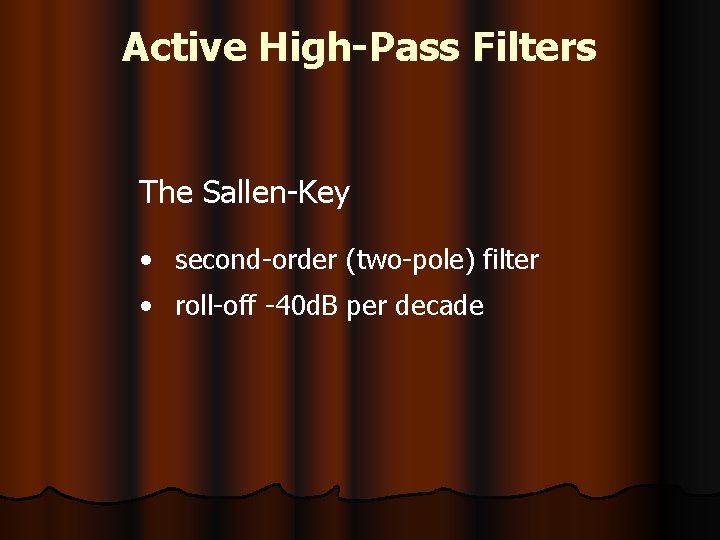

Active High-Pass Filters The Sallen-Key • second-order (two-pole) filter • roll-off -40 d. B per decade
Active High-Pass Filters The Sallen-Key
Active High-Pass Filters The Sallen-Key Lets RA = RB = R and CA = CB = C;
Active High-Pass Filters Cascaded HPF – Six pole • cascade 3 Sallen-Key two-pole stages • roll-off -120 d. B per decade
Active Band-Pass Filters A cascade of a low-pass and high-pass filter.
Active Band-Pass Filters
Active Band-Pass Filters
Active Band-Pass Filters
Active Band-Pass Filters Multiple-Feedback BPF • The low-pass circuit consists of R 1 and C 1. • The high-pass circuit consists of R 2 and C 2. • The feedback paths are through C 1 and R 2. • Center frequency;

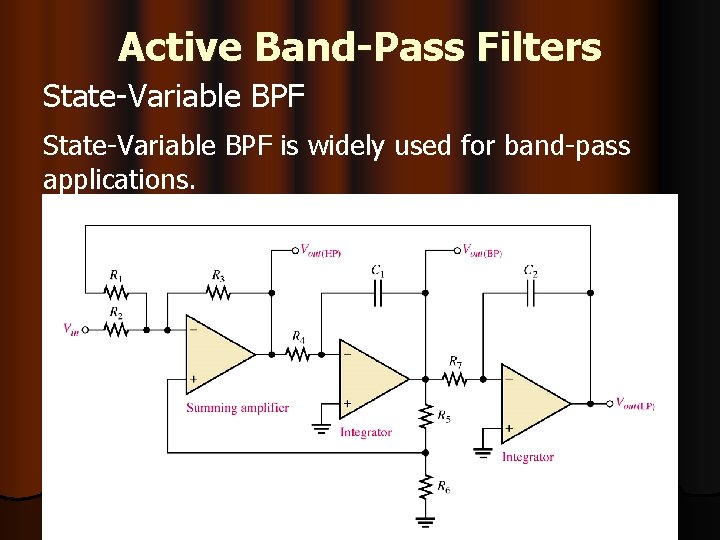

Active Band-Pass Filters State-Variable BPF is widely used for band-pass applications.
Active Band-Pass Filters State-Variable BPF • It consists of a summing amplifier and two integrators. • It has outputs for low-pass, high-pass, and band-pass. • The center frequency is set by the integrator RC circuits. • R 5 and R 6 set the Q (bandwidth).
Active Band-Pass Filters The band-pass output peaks sharply the center frequency giving it a high Q.
Active Band-Stop Filters The BSF is opposite of BPF in that it blocks a specific band of frequencies. The multiple-feedback design is similar to a BPF with exception of the placement of R 3 and the addition of R 4.
Active Band-Stop Filters

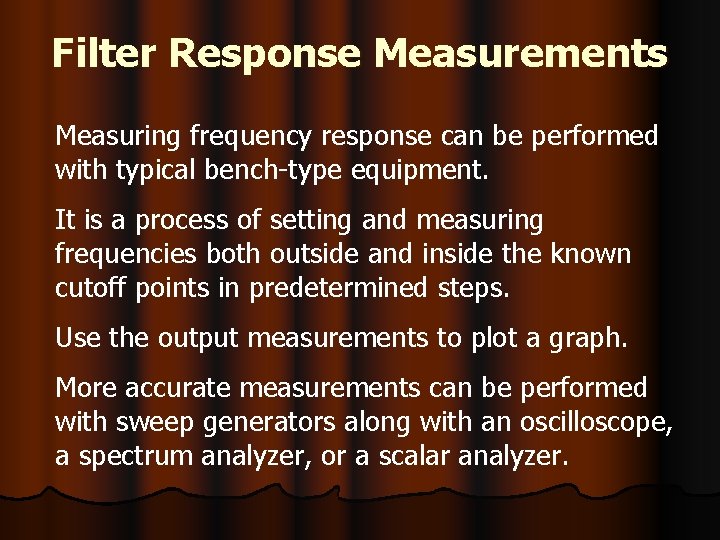

Filter Response Measurements Measuring frequency response can be performed with typical bench-type equipment. It is a process of setting and measuring frequencies both outside and inside the known cutoff points in predetermined steps. Use the output measurements to plot a graph. More accurate measurements can be performed with sweep generators along with an oscilloscope, a spectrum analyzer, or a scalar analyzer.
Summary • The bandwidth of a low-pass filter is the same as the upper critical frequency. • The bandwidth of a high-pass filter extends from the lower critical frequency up to the inherent limits of the circuit. • The band-passes frequencies between the lower critical frequency and the upper critical frequency.
Summary • A band-stop filter rejects frequencies within the upper critical frequency and upper critical frequency. • The Butterworth filter response is very flat and has a roll-off rate of – 20 B • The Chebyshev filter response has ripples and overshoot in the passband but can have rolloff rates greater than – 20 d. B
Summary • The Bessel response exhibits a linear phase characteristic, and filters with the Bessel response are better for filtering pulse waveforms. • A filter pole consists of one RC circuit. Each pole doubles the roll-off rate. The Q of a filter indicates a band-pass filter’s selectivity. The higher the Q the narrower the bandwidth. • The damping factor determines the filter response characteristic.
Active Filters EXAMPLE With reference to the following circuit; i. Name the type of circuit. Determine the critical frequency ii. Modify the circuit to increase roll-off to 120 d. B/decade. iii. Convert the circuit to become a high pass filter.
Active Filters EXAMPLE (cont’d)
Active Filters SOLUTION (i) Type of circuit: FOUR-POLE LOW-PASS ACTIVE FILTER Critical frequency

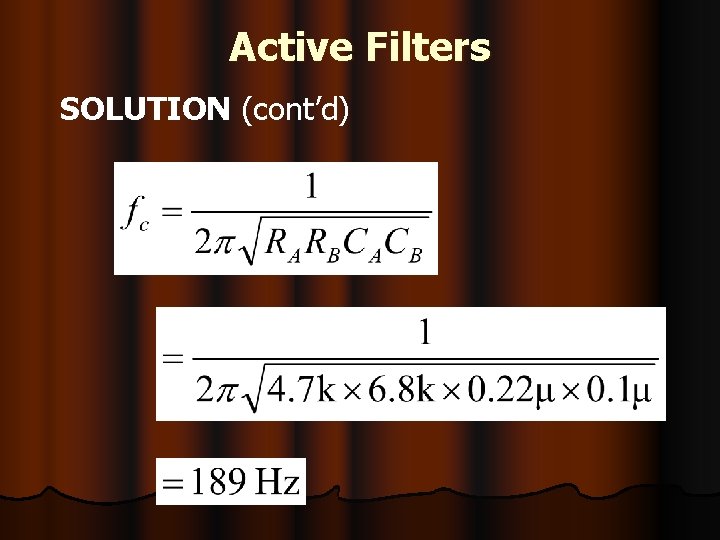

Active Filters SOLUTION (cont’d)
Active Filters SOLUTION (cont’d) (ii) Modification Add the following 3 rd stage to the output of the 2 nd stage

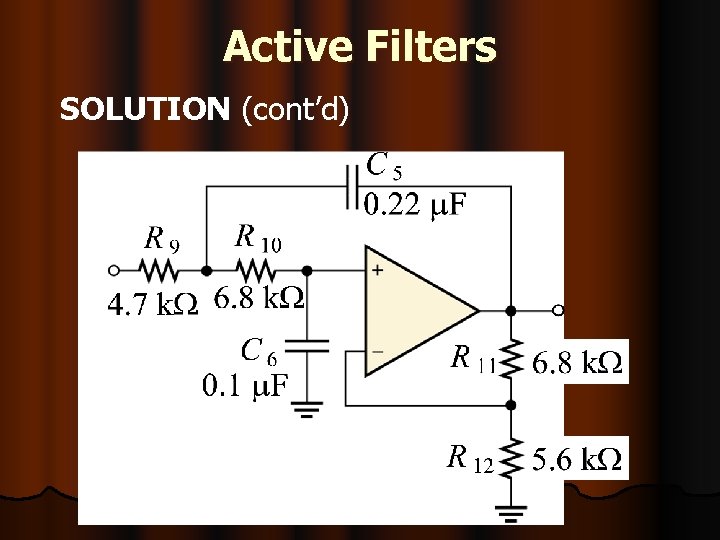

Active Filters SOLUTION (cont’d)
Assignment on Active Filters Due date : 30 th Sept 2005 Refer to Floyd text book page 766 – 770 Q 5, Q 10, Q 15, Q 16, Q 19
