Sparse Matrix Operator Kernel Emissions SMOKE Training Community
- Slides: 107
Sparse Matrix Operator Kernel Emissions SMOKE Training Community Modeling and Analysis System Center Institute for the Environment University of North Carolina at Chapel Hill © 2011 Institute for the Environment 1
CMAS Community Modeling and Analysis System http: //www. cmascenter. org What does CMAS do? • Working to coordinate community approach to emissions and air quality modeling • Software distribution and support • Training and conferences • Outreach • Development • Communication • CMAQ, MCIP, SMOKE, I/O API, PAVE, MIMS January 2011 SMOKE/CMAQ Training Konkuk University Seoul, Korea 2
SMOKE Sparse Matrix Operator Kernel Emissions http: //www. smoke-model. org Features: • • • Open-source, highly optimized Criteria and toxics pollutants Supports CMAQ, CAMx, MAQSIP, REMSAD, UAM Annual, daily, hourly inventories MOBILE 6 and BEIS 3 Fire plume rise algorithms Flexible QA/QC features Large user community Active training program 3
Training Overview • Emissions processing basics • SMOKE basics • Running SMOKE • Overview lab • SMOKE programs • SMOKE problem solving © 2011 Institute for the Environment • • • Area sources lab Biogenics lab Point sources lab Pregridded sources lab Merge lab Quality assurance lab 4
Overall Goal • Emissions inventory o Usually annual data (i. e. tons/yr) o Reported by source (may be county or coordinate) o By inventory pollutant (CO, NOx, VOC, , , ) © 2011 Institute for the Environment • Air quality model input o o Hourly Gridded By model species May be 3 -D file (layered) 5
Source Categories • Point source characteristics o Country, state, and county (FIPS) o Latitude and longitude o Plant, point, stack, segment, and source category code (SCC) o Ex: power plants, furniture refinishers • Area source characteristics o Country, state, and county o Source category code (SCC) o Ex: residential heating, lawnmowers, vehicular road dust (unpaved road), airports. © 2011 Institute for the Environment 6
Source Categories • Mobile (on-road) source characteristics Country, state, and county Road type (e. g. rural interstate, urban local) Vehicle type (e. g. light/heavy duty gasoline vehicles) Optional link coordinates ( road segment within a county) o Ex: gasoline and diesel vehicles on freeways o o • Biogenic source characteristics o Gridded land use o Ex: crops, corn, soybean, conifer forests, wetlands © 2011 Institute for the Environment 7
Definitions • Inventory pollutant: A compound or group of compounds defined for record-keeping and regulatory purposes (e. g. CO, NOx, VOC, PM 10, PM 2. 5) • Species: A compound or group of compounds defined as part of the estimation of air chemistry in an air quality model (AQM) (e. g. CO, NO 2, PAR, TOL, OLE) © 2011 Institute for the Environment 8
Definitions • Speciation: Convert the inventory pollutant data to the species needed by the AQM (e. g. VOC gets split into PAR, OLE, XYL, TOL, ISOP, and more) • Chemical mechanism: A parameterized representation of coupled chemical reactions (e. g. CB 4, RADM 2, SAPRAC 99, CB 05) © 2011 Institute for the Environment 9
Definitions • Map projection: The mathematical 2 -d representation of the spherical surface of the Earth (Emission and Air Quality Models shares) • Model grid: A 2 -d region based on a map projection; defined by starting coordinates, number of columns and rows, and the physical size of the grid cells © 2011 Institute for the Environment 10
Model Grid Definition © 2011 Institute for the Environment 11
Model Grid Examples © 2011 Institute for the Environment 12
Definitions • Spatial allocation: Convert the source spatial extent to the grid cell resolution needed by the air quality model • Gridding surrogates: A dataset used to spatially allocate the emissions to the grid cells; developed from data at a finer resolution than the emissions (e. g. population, housing, airports, roads) © 2011 Institute for the Environment 13
Definitions • Model layers: Vertical spatial divisions of the atmosphere defined by an air quality model; used to model variations in the atmosphere at different vertical positions • Plume rise: The rising of exhaust from point sources due to the velocity and temperature of the exhaust gases © 2011 Institute for the Environment 14
Definitions • Elevated source: A point source in which emissions extend beyond the first model layer due to plume rise • Plume-in-grid (Pin. G): A special treatment of elevated sources in which the plume rise is modeled with extra detail by the AQM © 2011 Institute for the Environment 15
Definitions • Temporal allocation: Convert the annual or daily inventory data to the hourly data needed by the AQM • Profile data: Factors used for converting inventory emissions data to AQM data • Cross-reference: A dataset used to match sources in the inventory with profile data © 2011 Institute for the Environment 16
Cross-reference Example X-ref table Profiles table State County ID ID Factor 1 Factor 2 NC Durham 14 13 1. 2 10. 4 NC Orange 14 14 1. 4 12. 7 NC Wake 15 15 1. 7 18. 3 SC all 17 16 1. 6 15. 2 17 1. 1 9. 8 © 2011 Institute for the Environment 17
Area Emissions Processing • • • Import data Spatial allocation Speciation Temporal allocation Growth (to a future or past year) and controls Merge © 2011 Institute for the Environment 18
Point Emissions Processing • Import, speciation, temporal allocation, growth/controls, plus… • No surrogates needed for spatial allocation • May have day- and hour-specific emissions • Determine elevated and Pin. G sources • Special processing for elevated and Pin. G sources • Merge © 2011 Institute for the Environment 19
Biogenic Emissions Processing • MEGAN emissions model • Global gridded land cover, emissions factors, and plant functional types • Compute hourly biogenic photochemical and secondary organic aerosol precursors • Adjust estimates using simulated temperature and solar radiation © 2011 Institute for the Environment 20
Merging • Combine independent import, gridding, speciation, temporal allocation, and other steps for a single sourcse category to create model-ready files • Combine multiple source categories into a single data set, called model-ready output for the AQM • Output correct units, species, time steps, grid, and file format for the AQM © 2011 Institute for the Environment 21
Quality Assurance • Compare emission totals from emissions processor with inventory totals (by state, county, SCC, etc. ) • Compare emission totals after each stage of processing • Ensure that input file formats are correct • Ensure that no errors occurred during processing • Compare emissions between states and counties © 2011 Institute for the Environment 22
SMOKE Basics • • • Programs Data flow Shared program details Capabilities Benefits © 2011 Institute for the Environment 23
Emissions Processing Paradigms © 2011 Institute for the Environment 24
SMOKE Programs © 2011 Institute for the Environment 25
SMOKE Data Flow © 2011 Institute for the Environment 26
Capabilities Data Import • Formats o EMS-95: area, mobile, point, and day- and hourspecific point o IDA and ORL (toxics): area, mobile, and point o CEM format : hour-specific point o Pregridded inventories in net. CDF format o Gridded land use • User-defined inventory pollutants o Photochemical precursors, PM, air toxics defined by default; new pollutants can be added as needed o No limit on number of pollutants © 2011 Institute for the Environment 27
Capabilities Spatial Allocation • Convert inventory spatial distribution to 3 -d modeling grid • Input coordinates: Lat-Lon or Universal Transverse Mercator (UTM) • Output projections: Lat-Lon, Lambert, equatorial mercator, polar stereographic • No limit on number and size of grid cells • Area: use gridding surrogates or assign lat-lon coordinates • Mobile: apply gridding surrogates • Point: assign point source locations to grid cells © 2011 Institute for the Environment 28
Capabilities Chemical Speciation • Convert inventory VOC and PM pollutants to species required by air quality models • User-defined species, unlimited number • CB 05 and SAPRC-99 mechanisms are readily available; other mechanism speciation can be developed by users • Handles both mole-based and mass-based speciation © 2011 Institute for the Environment 29
Capabilities Temporal Allocation • Convert inventory temporal coverage to hourly estimates • Supports monthly, weekly, and hourly profiles o Allows different hourly profiles for each day of the week • Can use average-day or annual inventory data • Point sources can use day- and hour-specific data • Biogenics based on meteorology data • Automatic accounting for holidays © 2011 Institute for the Environment 30
Capabilities Growth and Controls • Uses year-specific growth factors to grow inventories to future or past years • Several types of multiplicative and reactivity controls • Location and source IDs for area and mobile • Source-specific for Point • Pollutant-specific growth and controls © 2011 Institute for the Environment 31
Capabilities Biogenics Processing • MEGAN can be run outside of SMOKE and configured to output SMOKE-formatted files • Merge MEGAN data with anthropogenic emissions for input to AQMs • Several chemical mechanisms (CB 4, CB 05, and SAPRC 99) are readily available to convert VOC estimates from MEGAN to AQM species • Support NO and VOC emission factors only © 2011 Institute for the Environment 32
Capabilities Point Source Processing • Annual, Day- and/or hour-specific data by pollutant • Supports customized source definition based on different text inventory formats • Selects elevated and Pin. G sources • Can import hourly data such as Continuous Emissions Monitoring (CEM) © 2011 Institute for the Environment 33
Capabilities Elevated Source Options • Two options for defining elevated sources 1. Define characteristics of elevated sources and allow AQMto computes plume rise 2. Treat all sources as potentially elevated; SMOKE computes plume rise • Select Pin. G sources; SMOKE outputs special Pin. G file • Allocate 2 -d area sources to vertical layers using vertical profiles © 2011 Institute for the Environment 34
Benefits of SMOKE • Faster processing than other systems (pre-compiled Linux program) • Flexible processing paradigm for multiple grids, control strategies, chemical mechanisms, etc. • Machine-independent binary file format (net. CDF-I/O API) • No grid or inventory size limits • No limit to number of pollutants or species • Processing for ozone, toxics, PM, wildfires, offshore, lightening, and aircraft modeling • Open source codes for users • Output for CMAQ, MAQSIP, UAM-V, CAMx, UAMAERO, REMSAD, and AERMOD © 2011 Institute for the Environment 35
SMOKE Libraries and Utilities • Libraries: I/O API, Net. CDF • Analysis/Postprocessing: I/O API Tools • Ancillary data tools: Spatial Allocator, Speciation Tool • Visualization: PAVE, VERDI, IDV © 2011 Institute for the Environment 36
SMOKE Libraries and Utilities • Library files provide an easy way for programs to share commonly used subroutines; three libraries used by CMAQ • I/O API - an easy-to-learn, easy-to-use programming library for data storage and access, available for both Fortran and C • net. CDF - an interface for array-oriented data access and a library that provides an implementation of the interface © 2011 Institute for the Environment 37
I/O API Library • The Input/Output Applications Programming Interface contains an extensive set of utility routines for manipulating dates and times, performing coordinate conversions, storing and recalling grid definitions, sparse matrix arithmetic, etc. , as well as a set of data -manipulation and statistical analysis programs • Command line programs that are easy to script for automating analysis and post processing • http: //www. baronams. com/products/ioapi/ • Examples of I/O API utilities © 2011 Institute for the Environment 38
net. CDF Library • The Network Common Data Form is an interface to a library of data access functions for storing and retrieving data in the form of arrays • An abstraction that supports a view of data as a collection of self-describing, network-transparent objects that can be accessed through a simple interface • By using direct file access, net. CDF achieves the goal of supporting efficient access to small subsets of large datasets • www. unidata. ucar. edu/packages/netcdf/ © 2011 Institute for the Environment 39
I/O API Tools • m 3 diff: for computing statistics for pairs of variables and for applying various comparison ("differencing") operations to those variables in a pair of files • m 3 edhdr: edit header attributes/file descriptive parameters • m 3 merge: merges selected variables from a set of input files for a specified time period, and writes them to a single output file, with optional variablerenaming in the process • vertot: compute vertical-column totals of variables in a file © 2011 Institute for the Environment 40
The Surrogate Tool • Creates spatial surrogates from GIS Shapefile attributes or functions of the attributes • Merges surrogates o 0. 75*Total Road Miles + 0. 25*Population • Gapfills surrogates • prevents dropping of emissions with up to four levels of coverage © 2011 Institute for the Environment 41
Speciation Tool • Generates chemical speciation profiles for emission models, including SMOKE • Converts VOC and PM mass fractions to photochemical mechanism species • Supports any defined chemical mechanism • Supports both VOC and PM species • Supports integrated and non-integrated HAPS • Supports both active and tracer toxics © 2011 Institute for the Environment 42
PAVE • Package for Analysis and Visualization of Environmental data is a UNIX/Linux graphics tool for net. CDF and UAM formatted data • PAVE is a flexible and distributed application to visualize multivariate gridded environmental datasets • Easily scriptable to automate plot generation • Creates 2 -d tile plots, time series, 3 -d mesh plots, bar charts, scatter plots, and integrates observations into graphics • http: //www. cmascenter. org/html/models. html © 2011 Institute for the Environment 43
VERDI • Visualization Environment for Rich Data Interpretation is Java graphics tool for I/O APInet. CDF formatted data • VERDI was developed as a replacement for PAVE • Easily scriptable to automate plot generation • Creates 2 -d tile plots, time series, 3 -d mesh plots, bar charts, scatter plots, and integrates observations into graphics • http: //www. verdi-tool. org © 2011 Institute for the Environment 44
IDV • Integrated Data Viewer is a Java graphics tool that supports multiple data formats • IDV is a 3 -d visualization tool • Scriptable to automate plot generation • In addition to standard output formats (gif, mpeg, etc), also can output kmz files. • http: //www. unidata. ucar. edu/software/idv/ • Current version is IDV 2. 7 update 1 © 2011 Institute for the Environment 45
Running SMOKE • • • Assigns file Files and directory names Default directory structure Case and episode settings Script structure © 2011 Institute for the Environment 46
Assigns File • Sets directory names and file names for input and output files • Sets case-specific (global) settings like grid, chemical mechanism, and episode dates • Used when running scripts and when working directly with files • Always “source your Assigns file” > cd $SMK_HOME/subsys/smoke/assigns > source ASSIGNS. nei 96. cmaq. cb 4 p 25. us 36 © 2011 Institute for the Environment 47
Main Directories SMKROOT: Main SMOKE system directory – – Assigns file Run scripts Program source code Executables ($SMK_HOME) © 2011 Institute for the Environment 48
Main Directories SMKDAT: Main SMOKE data directory – Inventories – Cross-reference and profile data – Intermediate and output files © 2011 Institute for the Environment 49
Inventory Directories INVDIR: Main inventory directory – ARDAT: Area source inventory data – BGDAT: Biogenics land use data – MBDAT: Mobile source inventory data – PTDAT: Point source inventory data © 2011 Institute for the Environment 50
Other Input Directories GE_DAT: General data directory – Grid descriptions – Cross-reference and profile data – Other inputs (holidays, country/state/county names, stack parameters, SCC/SIC description names, etc. ) © 2011 Institute for the Environment 51
Other Input Directories MET_DAT: Meteorology data directory – Hourly, gridded meteorology data from MCIP © 2011 Institute for the Environment 52
Intermediate Output Directories INVOPD: Intermediate inventory directory – Output from Smkinven and Grwinven © 2011 Institute for the Environment 53
Intermediate Output Directories SCENARIO: Time-dependent output directory – Output from Temporal and Laypoint © 2011 Institute for the Environment 54
Intermediate Output Directories STATIC: Time-independent output directory – Output from Grdmat, Spcmat, Cntlmat, Elevpoint, Mbsetup, Premobl, and Emisfac © 2011 Institute for the Environment 55
Model-Ready Output Directories A_OUT: Merged area output directory B_OUT: Merged biogenic output directory M_OUT: Merged mobile output directory P_OUT: Merged point output directory OUTPUT: Final merged output directory © 2011 Institute for the Environment 56
Report Directories REPSTAT: Timeindependent reports directory - Reports containing emissions that are not temporalized REPSCEN: Timedependent reports directory - Reports containing temporalized emissions © 2011 Institute for the Environment 57
Overall Settings GRID: Grid name used in naming files IOAPI_GRIDNAME_1: Grid name used in grid description file SPC: Chemical speciation name - cmaq. cb 4 p 25 - cmaq. saprc 99 pm - remsad 7. cb 4 mpm © 2011 Institute for the Environment 58
Episode Settings EPI_STDATE: Episode start date (YYYYDDD) EPI_STTIME: Episode start time (HHMMSS) EPI_RUNLEN: Episode run length (HHHMMSS) EPI_NDAY: Number of days in the episode G_STDATE: Start date for each output file G_STTIME: Start time for each output file G_RUNLEN: Length of each output file ESDATE: Start date used in file names © 2011 Institute for the Environment 59
Basic SMOKE Script Structure • • • Set Assigns file name Set source category Select which programs to run Program-specific settings Multiple-program settings Script settings Assigns file override settings Source the Assigns file Run main SMOKE programs (smk_run. csh) Run Smkreport (qa_run. csh) Loop through days for time-dependent steps © 2011 Institute for the Environment 60
Training Details • Inventory o 2005 West Asia and Europe inventory • Pollutants o CO, NOx, VOC, SO 2, NH 3, PM 10, PM 2. 5 • Domains o Arabian Gulf 36 km and UAE 12 km • Period o July 7, 2009 © 2011 Institute for the Environment 61
Training Domains West Asia 36 and 12 -km domains © 2011 Institute for the Environment 62
SMOKE Programs • • Smkinven Grdmat Spcmat Cntlmat Grwinven Temporal Layalloc © 2011 Institute for the Environment • • Elevpoint Laypoint MEGAN Smkmerge Mrggrid Mrgelev Smk 2 emis Smkreport 63
SMOKE Programs © 2011 Institute for the Environment 64
Area Source Processing © 2011 Institute for the Environment 65
Area Source Processing © 2011 Institute for the Environment 66
Smkinven (1) • Imports area, mobile, or point source inventories • Inputs Inventory file Country/state/county codes Inventory table Day-specific files(s) ARINV|MBINV|PTINV COSTCY INVTABLE PTDAY Hour-specific files(s) PTHOUR Replacement stack parameters PSTK Area-to-point assignments ARTOPNT © 2011 Institute for the Environment 67
Smkinven (2) • Outputs SMOKE inventory file AREA|MOBL|PNTS Text file listing several files: area. ncf, asrc. txt, area_dat/<pollutant>. ncf SMOKE day-specific file PDAY SMOKE hour-specific file Inventory SCC list PHOUR [A|M|P]SCC Import report REPINVEN © 2011 Institute for the Environment 68
Smkinven (3) • Major settings SMK_SOURCE [A|M|P] sets source category DAY_SPECIFIC_YN Y = import day-specific data HOUR_SPECIFIC_YN Y = import hour-specific data SMK_ARTOPNT_YN Y = assign coordinates to specified sources SMKINVEN_FORMULA “PMC=PM 10 -PM 2_5” to compute coarse PM from PM 10 and PM 2. 5 WEST_HSPHERE Y = convert stack coordinates to Western hemisphere © 2011 Institute for the Environment 69
Grdmat (1) • Creates area, mobile, or point source gridding matrix to assign inventory emissions to model grid cells. • Inputs SMOKE inventory file AREA|MOBL|PNTS Gridding cross-reference [A|M]GREF Gridding surrogates description file SRGDESC Grid description file GRIDDESC Mobile codes MCODES © 2011 Institute for the Environment 70
Grdmat (2) • Outputs Gridding matrix Ungridding matrix Surrogate codes by source • Major settings SMK_SOURCE REPORT_DEFAULTS SMK_DEFAULT_SRGID © 2011 Institute for the Environment [A|M|P]GMAT MUMAT [A|M]GSUP [A|M|P] sets source category Y = reports when default profile is used Default surrogate code to use when primary surrogate would cause zero emissions 71
Spcmat (1) • Creates area, mobile, or point source speciation matrices for mass- and mole-based factors • Inputs SMOKE inventory file Speciation profiles Speciation cross-reference Pollutant conversion file AREA|MOBL|PNTS GSPRO GSREF GSCNV Mobile codes MCODES Mobile emission processes MEPROC Inventory table INVTABLE © 2011 Institute for the Environment 72
Spcmat (2) • Outputs Mole speciation matrix Mass speciation matrix Speciation codes by source • Major settings SMK_SOURCE REPORT_DEFAULTS [A|M|P]SMAT_L [A|M|P]SMAT_S [A|M|P]SUP [A|M|P] sets source category Y = reports when default profile is used POLLUTANT_CONVERSION Y = use GSCNV file © 2011 Institute for the Environment 73
Temporal (1) • Computes hourly area, mobile, or point source emissions • Inputs SMOKE inventory file SMOKE day-specific file SMOKE hour-specific file Temporal profiles AREA|MOBL|PNTS PDAY PHOUR [A|M|P]TPRO Temporal cross-reference file [A|M|P]TREF Inventory table INVTABLE © 2011 Institute for the Environment 74
Temporal (2) • Inputs (continued) Country/state/county codes Holiday identification file COSTCY HOLIDAYS • Outputs Hourly emissions file Temporal profile codes by source © 2011 Institute for the Environment [A|M|P]TMP [A|M|P]TSUP 75
Temporal (3) • Major settings SMK_SOURCE G_STDATE G_STTIME G_RUNLEN OUTZONE DAY_SPECIFIC_YN HOUR_SPECIFIC_YN REPORT_DEFAULTS SMK_AVEDAY_YN © 2011 Institute for the Environment [A|M|P] sets source category Output file start date (YYYYDDD) Output file start time (HHMMSS) Output file duration (HHMMSS) Output time zone Y = use day-specific data Y = use hour-specific data Y = report when default profile is used Y = use average-day emissions 76
Cntlmat (1) • Creates area, mobile, or point source growth and/or control matrices • Inputs SMOKE inventory file Control packets file Speciation profiles (reactivity controls only) © 2011 Institute for the Environment AREA|MOBL|PNTS GCNTL GSPRO 77

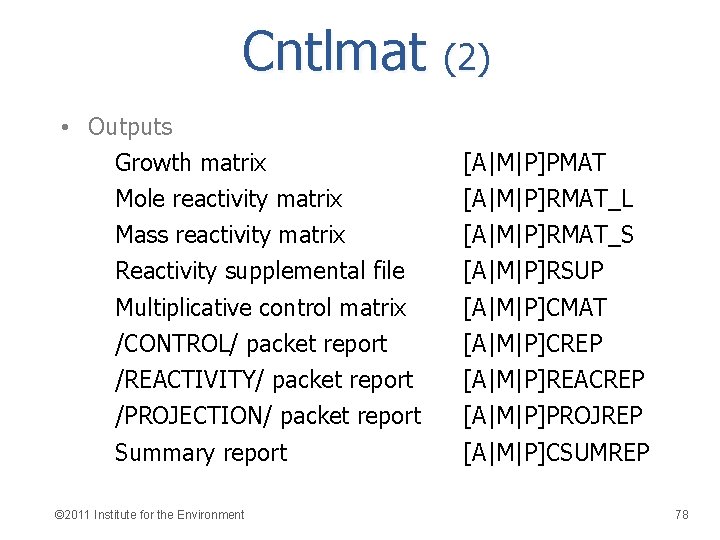

Cntlmat (2) • Outputs Growth matrix Mole reactivity matrix Mass reactivity matrix Reactivity supplemental file Multiplicative control matrix /CONTROL/ packet report /REACTIVITY/ packet report /PROJECTION/ packet report Summary report © 2011 Institute for the Environment [A|M|P]PMAT [A|M|P]RMAT_L [A|M|P]RMAT_S [A|M|P]RSUP [A|M|P]CMAT [A|M|P]CREP [A|M|P]REACREP [A|M|P]PROJREP [A|M|P]CSUMREP 78
Cntlmat (3) • Major settings SMK_SOURCE REPORT_DEFAULTS © 2011 Institute for the Environment [A|M|P] sets source category Y = report when default control is used 79
Grwinven • Grows an inventory using the growth and control matrices from Cntlmat • Inputs SMOKE inventory file AREA|MOBL|PNTS Growth and control matrices [A|M|P]CMAT[##] • Outputs SMOKE inventory file AREA_O|MOBL_O|PNTS_O Text inventory file ARINV_O|MBINV_O|PTINV_O • Major settings SMK_NUM_CNTLMAT Number of matrices SMK_OUTPUTIDA_YN Y = output raw IDA inventory © 2011 Institute for the Environment 80
Smkmerge (1) • Merges any set of intermediate SMOKE files to create model-ready output files and/or state/county emission total reports • Inputs SMOKE inventory files AREA Gridding matrices AGMAT Hourly emissions ATMP Speciation matrices ASMAT © 2011 Institute for the Environment 81
Smkmerge (2) • Inputs (continued) Grid description file Multiplicative control matrices Reactivity control matrices Country/state/county codes GRIDDESC ACMAT ARMAT COSTCY Inventory table INVTABLE © 2011 Institute for the Environment 82
Smkmerge (3) • Outputs Emissions data State/county report © 2011 Institute for the Environment [A]G[T][S][_S|_L] REP[A]G[T][S][_S|_L] 83
Smkmerge (4) • Major settings MRG_SOURCE [A][B][M][P] indicates which source categories to merge MRG_SPCMAT_YN Y = merge speciation matrices MRG_TEMPORAL_YN Y = merge hourly emissions MRG_CTLMAT_MULT [A][M][P] merge mult. controls MRG_CTLMAT_REAC [A][M][P] merge reac. controls MRG_GRDOUT_YN Y = output gridded file MRG_REPSTA_YN Y = output state total report MRG_REPCNY_YN Y = output county total report © 2011 Institute for the Environment 84
Smkmerge (5) • Major settings (continued) MRG_GRDOUT_UNIT Units for gridded output (_S/_L) MRG_TOTOUT_UNIT Units for state/county totals MRG_METCHK_YN Y = check the consistency of meteorology scenario name across multiple input files (mobile/biogenic/point) © 2011 Institute for the Environment 85
Point Source Processing © 2011 Institute for the Environment 86
Elevpoint (1) • Identifies elevated point sources by setting criteria of stack parameters • Inputs SMOKE inventory file PNTS Grid description file GRIDDESC Elevated source selection file (Stack height, Diameter, Top 10 NOx emitter) PELVCONFIG © 2011 Institute for the Environment 87
Elevpoint (2) • Outputs Elevated sources identification file PELV Pin. G stack parameters file (CMAQ) STACK_GROUPS • Major settings SMK_PING_METHOD SMK_ELEV_METHOD © 2011 Institute for the Environment 0 = no Pin. G sources 1 = use PELVCONFIG to select Pin. G sources 0 = treat all sources as elevated 1 = use PELVCONFIG to select elevated sources 2 = create INLN input file for CMAQ in-line plume rise 88
Laypoint (1) • Calculates plume rise layer fractions for elevated point sources to distribute into modeling layers • Inputs SMOKE inventory file PNTS SMOKE hour-specific file (stack parameters or plume rise) : fires only PHOUR Elevated source identification file PELV Meteorology data files from MCIP GRID_CRO_2 D MET_CRO_3 D MET_DOT_3 D © 2011 Institute for the Environment 89
Laypoint (2) • Outputs Layer fractions file PLAY Explicit layer fractions file (hourly PLAY_EX specific non-traditional point only) • Major settings REP_LAYER_MAX Max Layer number to report higher plumes than the layer SMK_EMLAYS Number of modeling emission layers interested in. SMK_SPECELEV_YN Y = use PELV file HOUR_PLUMEDATA_YN Y = import plume rise data © 2011 Institute for the Environment 90
Smkmerge (1) • Merges any set of intermediate SMOKE files to create model-ready output files and/or state/county emission total reports • Inputs SMOKE inventory files PNTS Gridding matrices PGMAT Hourly emissions PTMP Speciation matrices PSMAT Layer fractions file PLAY|PLAY_EX © 2011 Institute for the Environment 91
Smkmerge (2) • Inputs (continued) Grid description file Multiplicative control matrices Reactivity control matrices Country/state/county codes Inventory table Elevated source identification file © 2011 Institute for the Environment GRIDDESC PCMAT PRMAT COSTCY INVTABLE PELV 92
Smkmerge (3) • Outputs Emissions data Pin. G emissions (CMAQ) State/county report UAM-style elevated file © 2011 Institute for the Environment [P]G[T][S][3 D][_S|_L] PING[T][S][_S|_L] REP[P]G[T][S][_S|_L] ELEV[T][S][_S|_L] 93
Smkmerge (4) • Major settings MRG_LAYERS_YN Y = merge layer fractions SMK_ASCIIELEV_YN Y = create UAM-style elevated point source file (UAM style) SMK_PING_METHOD 0 = no Pin. G 1 = create output Pin. G file © 2011 Institute for the Environment 94
Biogenic Source Processing © 2011 Institute for the Environment 95
MEGAN • TXT 2 NCF o Converts gridded text (CSV) file of plant functional types (PFTs) and plant-based emissions factors to net. CDF format • MEGAN o Computes hourly biogenic emissions by apply meteorology (temp/pressure) into gridded normalized emissions • MG 2 IOAPI o Applies speciation factors to convert MEGAN output species to AQM pollutants. © 2011 Institute for the Environment 96
Mrggrid • Final step in preparation of air quality model emissions • Merges 2 -d and 3 -d model-ready emissions files (ex: Point + Area + Biogenic) • Inputs List of logical file names to merge FILELIST • Outputs Output emissions file © 2011 Institute for the Environment OUTFILE 97
Smkreport (1) • Generates a variety of user-defined emissions summary reports for area, mobile, and point sources • Inputs Report configuration file SMOKE inventory file Hourly emissions file Temporal profile codes by source Gridding matrix Surrogate codes by source © 2011 Institute for the Environment REPCONFIG AREA|MOBL|PNTS [A|M|P]TMP [A|M|P]TSUP [A|M|P]GMAT [A|M]GSUP 98
Smkreport (2) • Inputs (continued) Speciation matrix Speciation profile codes by source Layer fractions file Country/state/county codes Elevated source identification file © 2011 Institute for the Environment [A|M|P]SMAT [A|M|P]SSUP PLAY COSTCY PELV 99
Smkreport (3) • Outputs Any number of report files REPORT 1 REPORT 2 REPORT 3, etc. • Major settings – Most options are controlled by the report configuration file – More details are in the REPCONFIG documentation in Chapter 7 of the user’s manual © 2011 Institute for the Environment 100
SMOKE Problem Solving • • Examining log files Common problems Smkreport program SMOKE support © 2011 Institute for the Environment 101
Examining Log Files • Every program outputs a log file • Check for normal completion of program • Fix any errors o Check file formats o Confirm locations of files o Internal errors are not usually fixable by the user • Check any warnings o May not be a problem, but need to confirm © 2011 Institute for the Environment 102
Common Problems (1) • Problem: Program is reporting that an output file cannot be opened • Solution: o Check that the directory listed in the log file is valid and exists o Delete the existing output file listed in the log file and rerun; the I/O API library will not overwrite files with different header information than the new file © 2011 Institute for the Environment 103
Common Problems (2) • Problem: Output file is not in the expected location after the program finishes • Solution: o Check that the program completed successfully o Check the log file to find out the logical file name of the output file o Ensure that the logical file name is defined in the Assigns file or scripts © 2011 Institute for the Environment 104
Common Problems (3) • Problem: Program is ending because an input file is not available • Solution: o Check the log file to find the name and location of the input file o Ensure that the logical file name is defined in the Assigns file or scripts o Check that the directory and file name of the input file is correct o If the input file is generated by another program, make sure that program completed successfully © 2011 Institute for the Environment 105
Smkreport • Can compare emissions at each stage of processing and with inventory totals • Output files can be imported into spreadsheet programs for further analysis • Supports the selection and grouping of inventory sources o Report by source, inventory sector ID, source characteristics, etc. © 2011 Institute for the Environment 106
SMOKE Support • User’s Manual • EPA CHIEF (www. epa. gov/ttn/chief/index. html) • CMAS Help Desk (www. cmascenter. org) • Emissions modeling email list (emregional@listserv. unc. edu) © 2011 Institute for the Environment 107
