Non Lethal Ammunition TRIPLEPHASER GRENADES BAFFLED GRENADES White

Non Lethal Ammunition

TRIPLE-PHASER™ GRENADES BAFFLED GRENADES White Smoke 6211 CS 5231 White Smoke 5210 B CS 5230 B CN 5220 B GRTENADES FLASH BANG HAND GRENADE White Smoke 5211 6211 CS 5231 6231 CN 5221 6221 CANISTER GRENADES MODELS 52, 62, & 82 SERIES JET-LITE™ RUBBER GRENADES MODEL 92 SERIES

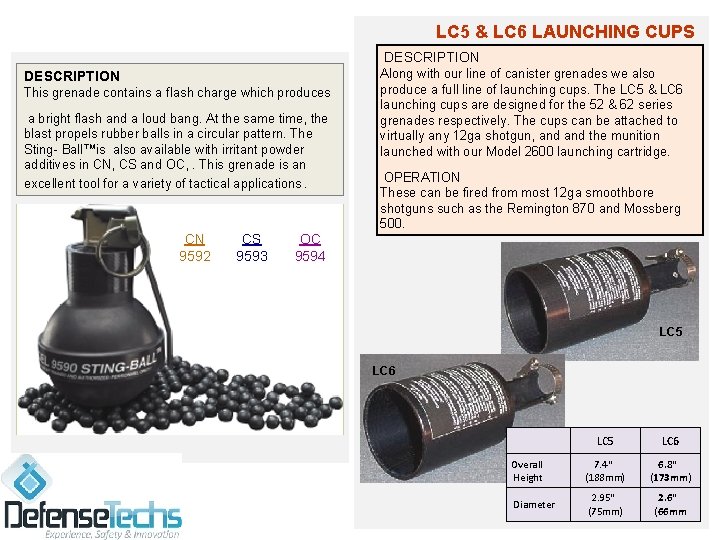

LC 5 & LC 6 LAUNCHING CUPS DESCRIPTION This grenade contains a flash charge which produces a bright flash and a loud bang. At the same time, the blast propels rubber balls in a circular pattern. The Sting- Ball™is also available with irritant powder additives in CN, CS and OC, . This grenade is an excellent tool for a variety of tactical applications. CN 9592 CS 9593 OC 9594 Along with our line of canister grenades we also produce a full line of launching cups. The LC 5 & LC 6 launching cups are designed for the 52 & 62 series grenades respectively. The cups can be attached to virtually any 12 ga shotgun, and the munition launched with our Model 2600 launching cartridge. OPERATION These can be fired from most 12 ga smoothbore shotguns such as the Remington 870 and Mossberg 500. LC 5 LC 6 Overall Height 7. 4" (188 mm) 6. 8" (173 mm) Diameter 2. 95" (75 mm) 2. 6" (66 mm

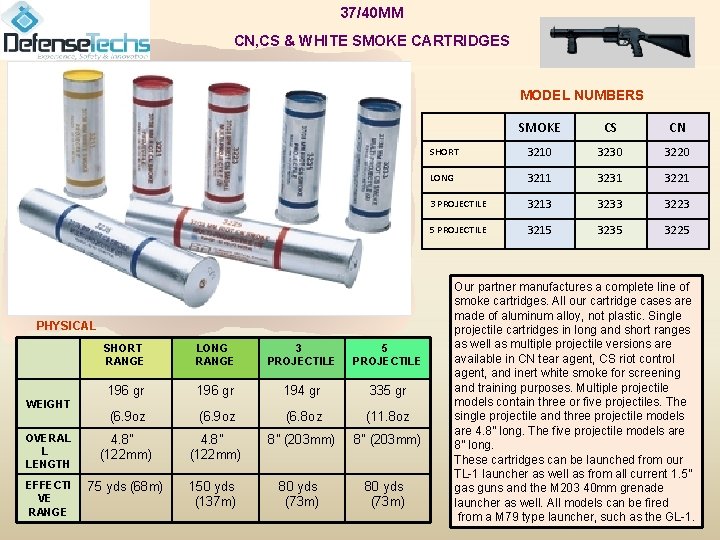

37/40 MM CN, CS & WHITE SMOKE CARTRIDGES MODEL NUMBERS PHYSICAL SHORT RANGE LONG RANGE 3 PROJECTILE 5 PROJECTILE 196 gr 194 gr 335 gr (6. 9 oz (6. 8 oz (11. 8 oz OVERAL L LENGTH 4. 8" (122 mm) 8" (203 mm) EFFECTI VE RANGE 75 yds (68 m) 150 yds (137 m) 80 yds (73 m) WEIGHT SMOKE CS CN SHORT 3210 3230 3220 LONG 3211 3231 3221 3 PROJECTILE 3213 3233 3223 5 PROJECTILE 3215 3235 3225 Our partner manufactures a complete line of smoke cartridges. All our cartridge cases are made of aluminum alloy, not plastic. Single projectile cartridges in long and short ranges as well as multiple projectile versions are available in CN tear agent, CS riot control agent, and inert white smoke for screening and training purposes. Multiple projectile models contain three or five projectiles. The single projectile and three projectile models are 4. 8” long. The five projectile models are 8” long. These cartridges can be launched from our TL-1 launcher as well as from all current 1. 5” gas guns and the M 203 40 mm grenade launcher as well. All models can be fired from a M 79 type launcher, such as the GL-1.

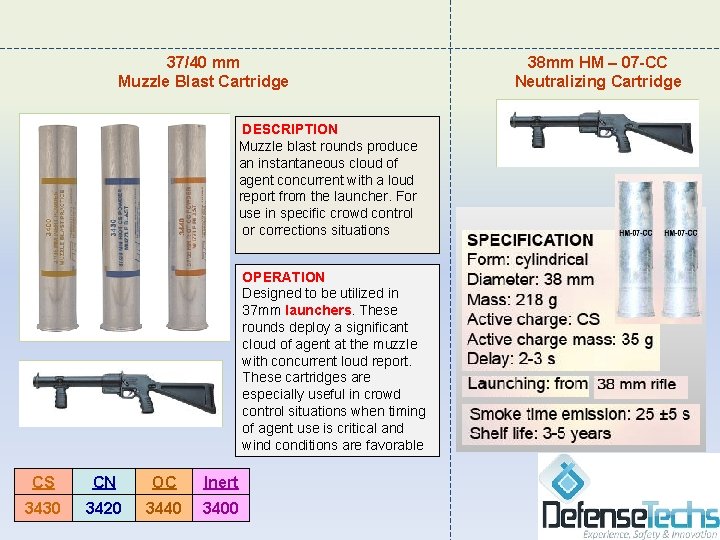

37/40 mm Muzzle Blast Cartridge DESCRIPTION Muzzle blast rounds produce an instantaneous cloud of agent concurrent with a loud report from the launcher. For use in specific crowd control or corrections situations OPERATION Designed to be utilized in 37 mm launchers. These rounds deploy a significant cloud of agent at the muzzle with concurrent loud report. These cartridges are especially useful in crowd control situations when timing of agent use is critical and wind conditions are favorable CS CN OC Inert 3430 3420 3440 3400 38 mm HM – 07 -CC Neutralizing Cartridge

mm 37/40 BATON AND STING-BALL CARTRIDGES CTS manufactures a complete line of less-lethal impact munitions. Cartridges with three or five rubber, foam or hardwood batons as well as Sting-Ball™ rubber pellet models are available. All our cartridge cases are made of aluminum alloy. Wood batons are coated and sealed with lacquer to prevent swelling through moisture absorption. MODEL NUMBERS Model Load Weight Length 3561 Wood Batons (3) 135 gm 3565 Wood Batons (5) gm 201 8" 3551 Foam Batons (3) gm 122) 4. 8" 3555 Foam Batons (5) 180 gm 8" 3555 R Rubber Batons (5) 300 gm 8" 3553 31 cal Rubber Balls 127 gm 4. 8" 3556 31 cal Rubber Balls 204 gr 8" 3558 60 cal Rubber Balls Gm 125 3559 60 cal Rubber Balls 202 gm Foam Short 4. 8 3561 3553 3556 Long 8" 3565 3558 3559 4. 8" Sting. Ball Wood Solid Rubber 3555 R

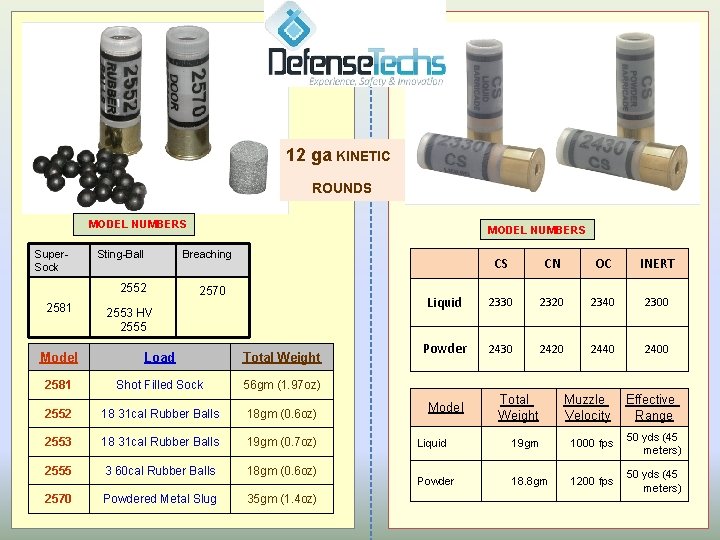

12 ga KINETIC ROUNDS MODEL NUMBERS Super. Sock Sting-Ball 2552 2581 MODEL NUMBERS Breaching 2570 2553 HV 2555 Model Load Total Weight 2581 Shot Filled Sock 56 gm (1. 97 oz) 2552 18 31 cal Rubber Balls 18 gm (0. 6 oz) 2553 18 31 cal Rubber Balls 19 gm (0. 7 oz) 2555 3 60 cal Rubber Balls 18 gm (0. 6 oz) 2570 Powdered Metal Slug 35 gm (1. 4 oz) CS CN OC INERT Liquid 2330 2320 2340 2300 Powder 2430 2420 2440 2400 Total Weight Muzzle Velocity Liquid 19 gm 1000 fps 50 yds (45 meters) Powder 18. 8 gm 1200 fps 50 yds (45 meters) Model Effective Range

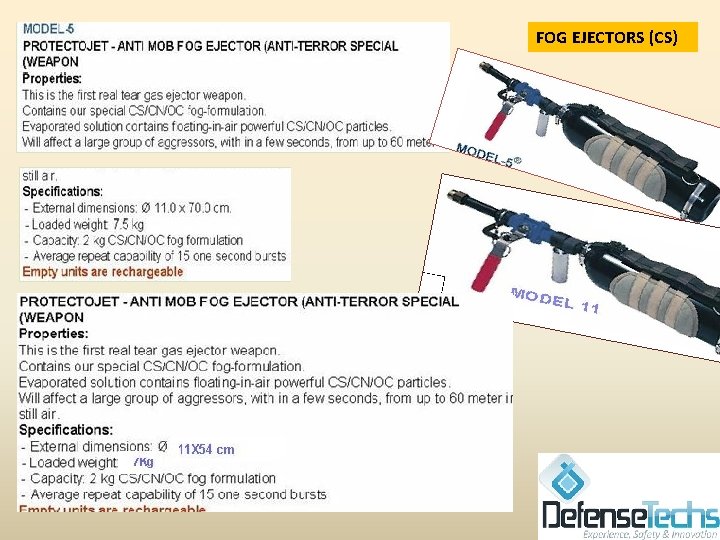

FOG EJECTORS (CS)

Non Lethal Personal Equipment & Arms

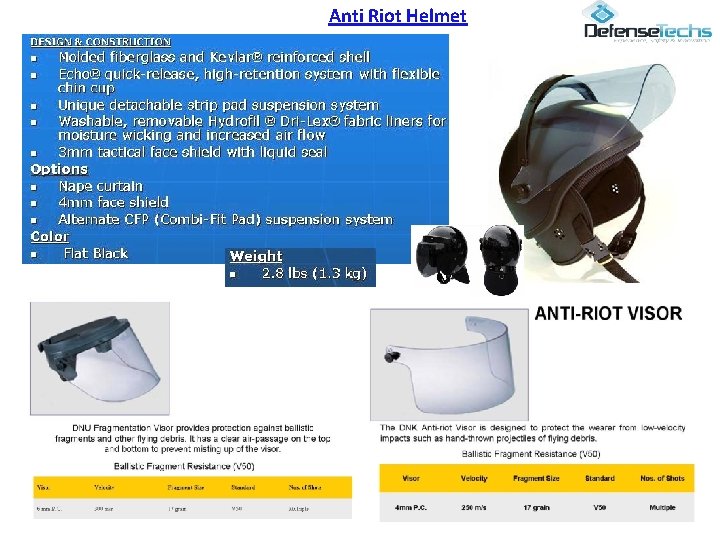

Anti Riot Helmet

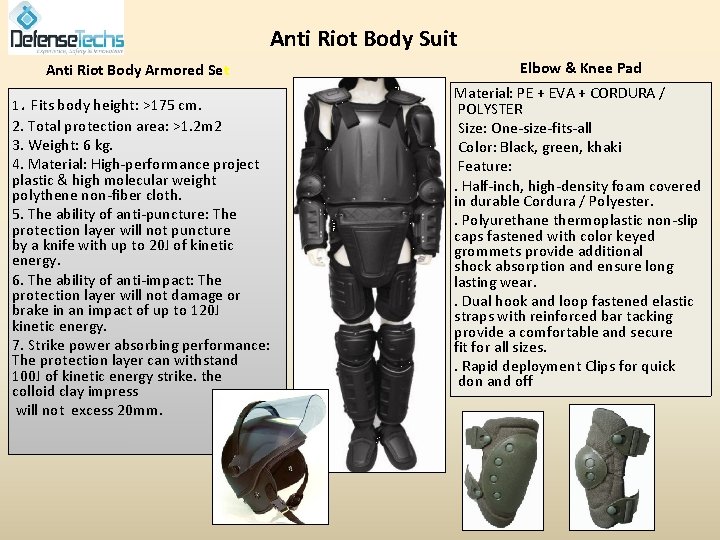

Anti Riot Body Suit Anti Riot Body Armored Set . 1 Fits body height: >175 cm. 2. Total protection area: >1. 2 m 2 3. Weight: 6 kg. 4. Material: High-performance project plastic & high molecular weight polythene non-fiber cloth. 5. The ability of anti-puncture: The protection layer will not puncture by a knife with up to 20 J of kinetic energy. 6. The ability of anti-impact: The protection layer will not damage or brake in an impact of up to 120 J kinetic energy. 7. Strike power absorbing performance: The protection layer can withstand 100 J of kinetic energy strike. the colloid clay impress will not excess 20 mm. Elbow & Knee Pad Material: PE + EVA + CORDURA / POLYSTER Size: One-size-fits-all Color: Black, green, khaki Feature: . Half-inch, high-density foam covered in durable Cordura / Polyester. . Polyurethane thermoplastic non-slip caps fastened with color keyed grommets provide additional shock absorption and ensure long lasting wear. . Dual hook and loop fastened elastic straps with reinforced bar tacking provide a comfortable and secure fit for all sizes. . Rapid deployment Clips for quick don and off

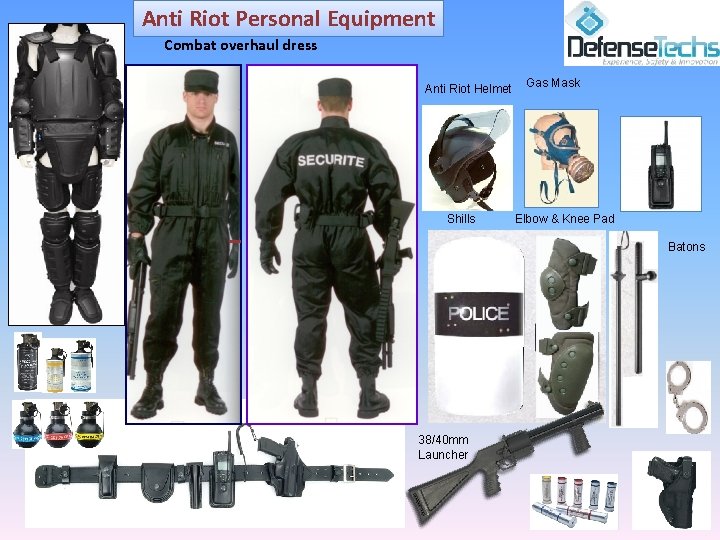

Anti Riot Personal Equipment Combat overhaul dress Anti Riot Helmet Shills Gas Mask Elbow & Knee Pad Batons 38/40 mm Launcher

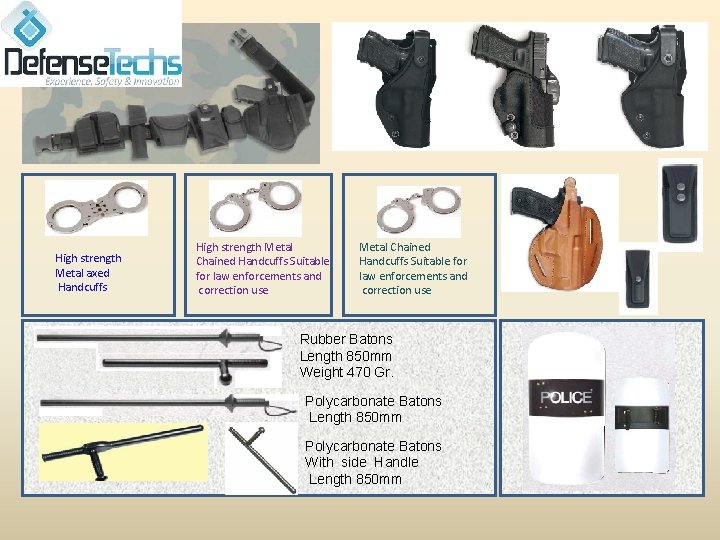

High strength Metal axed Handcuffs High strength Metal Chained Handcuffs Suitable for law enforcements and correction use Rubber Batons Length 850 mm Weight 470 Gr. Polycarbonate Batons Length 850 mm Polycarbonate Batons With side Handle Length 850 mm

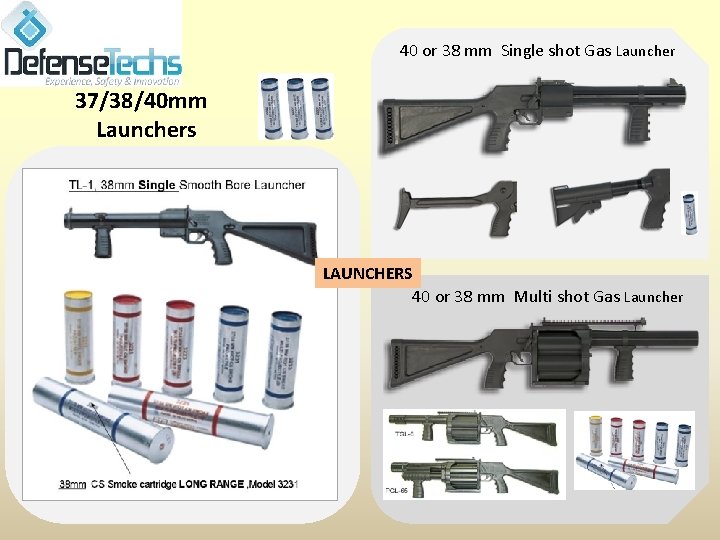

40 or 38 mm Single shot Gas Launcher 37/38/40 mm Launchers LAUNCHERS 40 or 38 mm Multi shot Gas Launcher

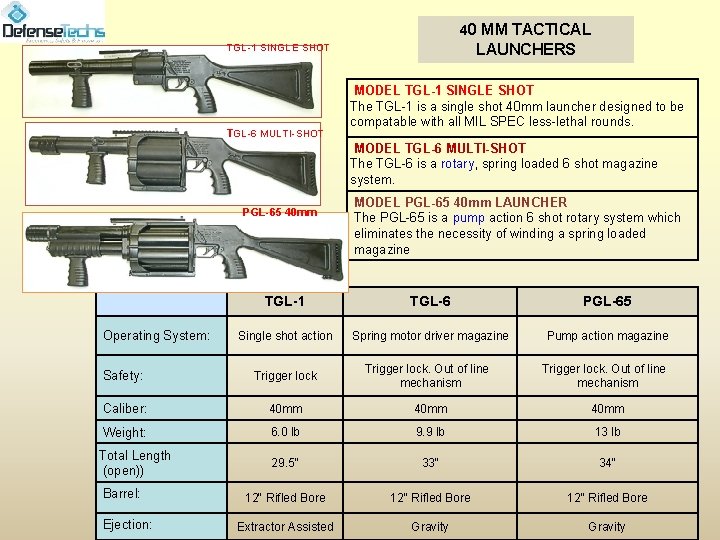

40 MM TACTICAL LAUNCHERS TGL-1 SINGLE SHOT TGL-6 MULTI-SHOT MODEL TGL-1 SINGLE SHOT The TGL-1 is a single shot 40 mm launcher designed to be compatable with all MIL SPEC less-lethal rounds. MODEL TGL-6 MULTI-SHOT The TGL-6 is a rotary, spring loaded 6 shot magazine system. PGL-65 40 mm MODEL PGL-65 40 mm LAUNCHER The PGL-65 is a pump action 6 shot rotary system which eliminates the necessity of winding a spring loaded magazine TGL-1 TGL-6 PGL-65 Single shot action Spring motor driver magazine Pump action magazine Safety: Trigger lock. Out of line mechanism Caliber: 40 mm Weight: 6. 0 lb 9. 9 lb 13 lb 29. 5" 33" 34" 12" Rifled Bore Extractor Assisted Gravity Operating System: Total Length (open)) Barrel: Ejection:

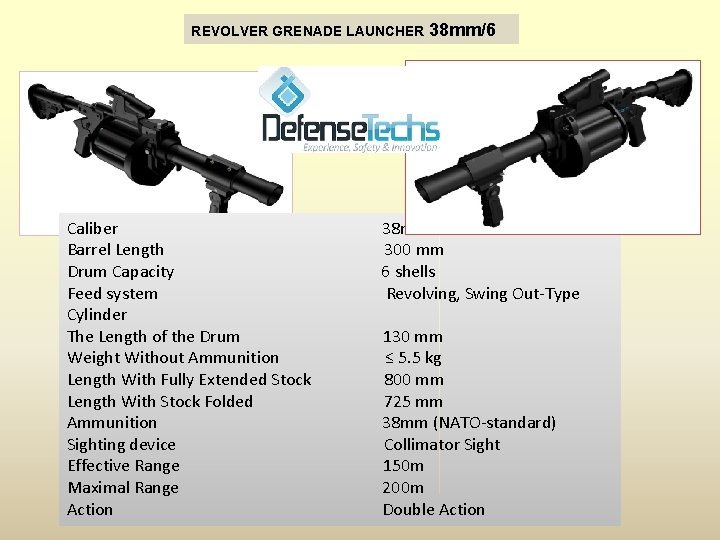

REVOLVER GRENADE LAUNCHER 38 mm/6 Caliber 38 mm Barrel Length 300 mm Drum Capacity 6 shells Feed system Revolving, Swing Out-Type Cylinder The Length of the Drum 130 mm Weight Without Ammunition ≤ 5. 5 kg Length With Fully Extended Stock 800 mm Length With Stock Folded 725 mm Ammunition 38 mm (NATO-standard) Sighting device Collimator Sight Effective Range 150 m Maximal Range 200 m Action Double Action

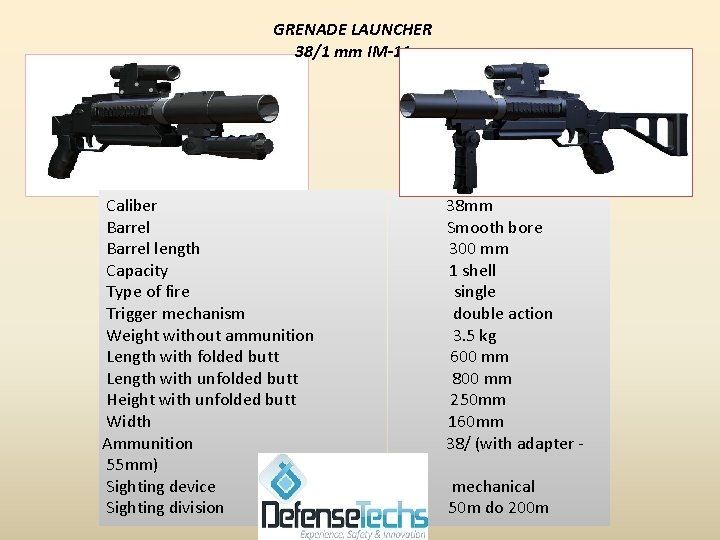

GRENADE LAUNCHER 38/1 mm IM-11 Caliber 38 mm Barrel Smooth bore Barrel length 300 mm Capacity 1 shell Type of fire single Trigger mechanism double action Weight without ammunition 3. 5 kg Length with folded butt 600 mm Length with unfolded butt 800 mm Height with unfolded butt 250 mm Width 160 mm Ammunition 38/ (with adapter - 55 mm) Sighting device mechanical Sighting division 50 m do 200 m

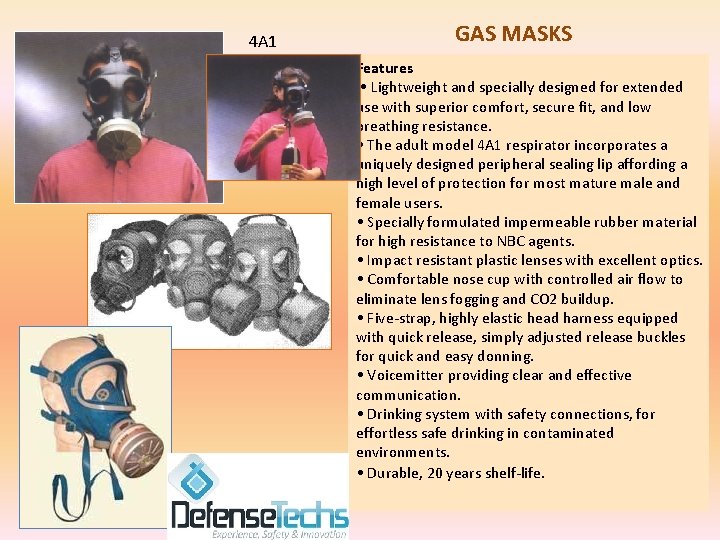

4 A 1 GAS MASKS Features • Lightweight and specially designed for extended use with superior comfort, secure fit, and low breathing resistance. • The adult model 4 A 1 respirator incorporates a uniquely designed peripheral sealing lip affording a high level of protection for most mature male and female users. • Specially formulated impermeable rubber material for high resistance to NBC agents. • Impact resistant plastic lenses with excellent optics. • Comfortable nose cup with controlled air flow to eliminate lens fogging and CO 2 buildup. • Five-strap, highly elastic head harness equipped with quick release, simply adjusted release buckles for quick and easy donning. • Voicemitter providing clear and effective communication. • Drinking system with safety connections, for effortless safe drinking in contaminated environments. • Durable, 20 years shelf-life.
